USER`S MANUAL
USER’S MANUAL
Model

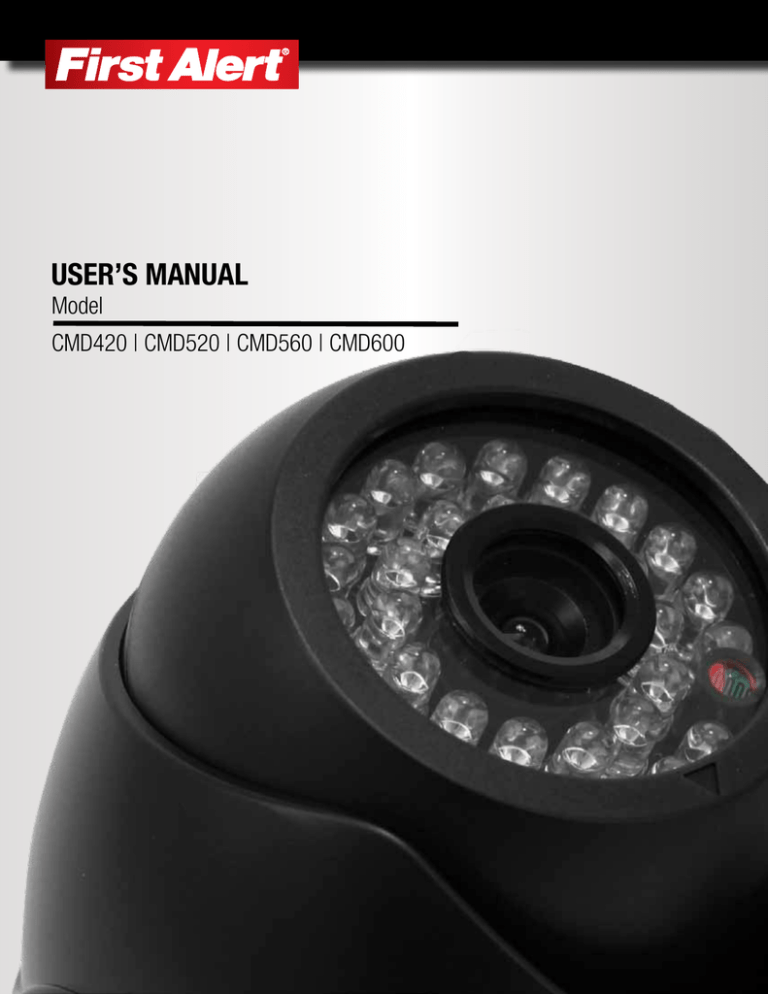

CMD420 | CMD520 | CMD560 | CMD600
INTRODUCTION
THANK YOU
Welcome
Thank you for choosing First Alert for your security needs!
For more than half a century, First Alert has made the home-safety and security products that make
your job easier. Our products are built to the highest standard which has earned us a leadership role
in the home-safety and security product categories. We are committed to serving our customers,
from the professionals who install our products, to the families and businesses who count on them.
First Alert has been helping families and businesses stay safe for over 50 years. By having a First
Alert Security System, you’re taking the first step in protecting your home or business from damage
or theft. We’re watching, even when you’re not.
This manual is written for the CMD420, CMD520, CMD560 and CMD600 security camera. It was accurate
at the time it was completed. However, because of our ongoing effort to constantly improve our products,
additional features and functions may have been added since that time and on-screen displays may change.
We encourage you to visit our website at www.firstalert.com to check for the latest manuals (English and
Spanish), firmware updates, downloads, other security camera products and announcements. You’ll find
this product line under Home Security >> Security Cameras >> Wired Cameras.
© 2012 BRK Brands, Inc. All rights reserved. Distributed by BRK Brands, Inc., Aurora, Illinois 60504. BRK Brands, Inc. is a subsidiary of Jarden
Corporation (NYSE: JAH). First Alert® is a registered trademark of the First Alert Trust. Due to continuing product development, the product inside
the packaging may look slightly different than the one on the package. To obtain warranty service, contact the Consumer Affairs Division at
1-800-323-9005, Monday through Friday, 7:30 a.m. - 5 p.m., Central Standard Time.
Made in China
Page 2
INTRODUCTION
PRODUCTS
Package Contents
• (1) Camera with mounting bracket & hardware
• (1) 12vDC Power Adapter
• (1) BNC Video & DC Power Cable
CMD420 CMD520 CMD560 & CMD600
12V DC Power Adaptor
BNC Video & DC Power Cable
Page 3
SAFETY
CAUTION STATEMENTS
Safety Precautions
•
•
•
•
•
•
Do not drop, puncture, or disassemble the cameras or DVR.
Do not tug on the power adapter. Use the plug to remove it from the wall.
Do not expose the cameras or DVR to high temperatures.
For your own safety, avoid using the DVR when there is a storm or lightning in your area.
Use the cameras and DVR with care. Avoid pressing hard on the cameras or DVR body.
Do not use power cable if it is crushed or damaged
FCC Compliance
FCC Compliance Class B Digital Device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that of the receiver.
Consult the dealer or an experienced radio or TV technician for help.
Notice: Only peripherals complying with FCC class B limits may be attached to this equipment. Operation with non-compliant peripherals
or peripherals not recommended by First Alert / BRK Brands, Inc. is likely to result in interference to radio and TV reception. Changes or
modifications to the product, not expressly approved by First Alert / BRK Brands, Inc., could void the user’s authority to operate the equipment.
We, First Alert / BRK Brands, Inc. declare under our sole responsibility that the device to which this declaration relates: Complies with
Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Certification (if applicable)
This device contains a radio transmitter. Accordingly, it has been certified as compliant with 47 CFR Part 15 of the
FCC Rules for intentional radiators. Products that contain a radio transmitter are labeled with an FCC ID.
Fire and Electric Shock Hazard Statement
CAUTION
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
UNPLUG ALL POWER SOURCES, INCLUDING CAMERAS FROM
THE DVR BEFORE REMOVING COVER. FAILURE TO DO SO CAN
RESULT IN DAMAGE TO THE DVR OR ITS COMPONENTS AS
WELL AS INJURY OR DEATH.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of un-insulated
“dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle, is intended to
alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF THE PLUG TO THE WIDE SLOT AND FULLY INSERT
Page 4
PRODUCT OVERVIEW
CAMERA AND POWER CONNECTIONS
Installing Cameras
Mounting Cameras and Running Cable
Select the position for the camera and secure the camera stand. Screw the camera onto the stand. Adjust camera to the proper
view angle. Make sure the lens is upright relative to the subject. Tighten the thumb bolt. First Alert cameras can be either ceiling or
wall mounted by simply reversing the camera stand mounting. See “Camera Orientation” Info box. Holes are provided on both the
bottom and back of the camera housing to accommodate most mounting requirements. Run cable from camera to DVR location.
See Information box below on “Longer Cable Runs”.
Camera Orientation
It’s important the camera is mounted correctly
to ensure the image is not upside down as the
camera lens can only be positioned one way.
Longer Cable Runs
Camera - Ceiling Mounted
Longer cable runs may require an upgrade
to RG59 Coax cable. First Alert kits ship with
economical AV cable that is designed to work
well up to the length of cable provided, usually
around 60 feet. If longer distances between
camera and DVR are required, you will need to upgrade to RG59
Coax cable. We provide several lengths up to 300 feet. In addition, if
you need to run cable for in-wall installations, then you may require
fire rated cable, FT-4/CMR UL approved for in-wall installations.
Connecting Cameras
Follow this diagram to connect camera to a DVR or other device using a BNC connection. Note:
DVR Power Adaptor is for illustration purposes only. Your power adaptor may be different.
Option 1
Option 2
Power from DVR (Not Supplied)
Video to DVR
Video In
Power from Supplied Adaptor
Power to DVR
DC 12V Input
Supplied 12V
DC Adaptor
Splitter from DVR
Camera & Power
Power from 120V
Power to Camera
AV Cable: BNC/
DC Power
12V DC
Converter
From DVR
Video to Camera
Power to Camera
Page 5
APPENDIX
SPECIFICATIONS AND TROUBLESHOOTING
Technical Specifications
Item
Specifications
Model
CMD420
CMD520
CMD560
CMD600
Image Sensor
1/3.6" CMOS
1/3.6" CMOS
1/3.6" CMOS
1/4” CMOS
Effective Pixels
NTSC:(H)648*(V)488
NTSC: 656(H)X492(V)
NTSC: 656(H)X492(V); PAL 768(H)
X576(V)
NTSC: 656 (H) X 492 (V), PAL: 768
(H) X 576 (V)
Horizontal Resolution
420 TV Lines
520TVL
560TVL
600TVL
IP Rating
54
54
54
66
Number of infrared LED’s
32 IR LEDs
32 IR LEDs
32 IR LEDs
32 IR LEDs
Night-Vision Range
50 Ft.
80 Ft.
80 Ft.
80 Ft.
Indoor/Outdoor
Indoor
Indoor
Indoor
Indoor
Lens
6mm
6mm
6mm
6mm
View angle
34º
34º
34º
48°
Frame Rate
NTSC: 60 fields/sec PAL: 50
fields/sec;
NTSC: 60 fields/sec PAL: 50
fields/sec;
NTSC: 60 fields/sec PAL: 50
fields/sec;
NTSC: 60 fields/sec ; PAL: 50
fields/sec
Minimum Illumination
0 Lux (IR ON)
0 Lux (IR ON)
0 Lux (IR ON)
0 Lux (IR ON)
Audio
No
No
No
No
White Balance
Auto
Auto
Auto
Auto
S/N Ratio
>48dB
>48dB
>48db
>48dB (AGC OFF)
Gamma correction
>0.45
>0.45
>0.45
>0.45
Shutter Speed
1/50(1/60) 1/100000
1/50(1/60) 1/100000
1/50(1/60) 1/100000
1/50(1/60) 1/100000
Infrared Wave Length
850nm
850nm
850nm
850nm
Video Output
1.0Vp-p 75 Ohm
1.0Vp-p 75 Ohm
1.0Vp-p 75 Ohm
1.0Vp-p 75 Ohm
Power Supply
DC 12V±10% 300mA
DC 12V±10% 300mA
DC 12V±10% 300mA
DC 12V 300mA
OperatingTemp
14 °F to 122 °F (-10 °C to 45 °C)
14 °F to 122 °F (-10 °C to 50 °C) 14 °F to 122 °F (-30 °C to 50 °C)
14 °F to 122 °F (-30 °C to 50 °C)
Troubleshooting
Error
Possible Cause
Solutions
No Picture
Camera cables are loose or have become disconnected
• Check the camera video cable and connections
• Disconnect and reconnect the cable at the system and at the
camera
• Try moving the camera to another channel or use another cable
Flickering image
Bright light shining directly into camera lens
• Move the camera or move any source of bright light away
from the camera
Image is too light or dark
Mis-adjustment of contrast and brightness levels
• Adjust the contrast and brightness on the DVR or TV
• Move the camera or move any source of bright light away from the
camera
Camera is placed too close to a window
• The camera’s infrared LEDs shine invisible light that reflects off
surfaces such as glass causing white light
• Place the camera on the other side of windows or place the lens
flush against the surface to improve night vision
A white image appears at
night
Page 6
APPENDIX
WARRANTY
Warranty
PRODUCT LIMITED WARRANTY
BRK Brands, Inc., (“BRK”) the maker of First Alert® brand products warrants that for a period of one year from the date of purchase
(the “Warranty Period”), this product will be free from defects in material and workmanship. BRK, at its sole option, will repair or
replace this product or any component of the product found to be defective during the Warranty Period. Replacement or repair will
be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with
a similar product of equal or greater value. This is your exclusive warranty.
This warranty is valid for the original retail purchaser only from the date of initial retail purchase and is not transferable. In order
to obtain warranty service, you must keep the original sales receipt and proof of purchase in the form of the UPC code from the
package. BRK dealers, service centers, or retail stores selling BRK products do not have the right to alter, modify or any way change
the terms and conditions of this warranty.
WARRANTY EXCLUSIONS
Parts and Labor: 1 year limited (warranted parts do not include bulbs, LEDs, and batteries)
This warranty does not apply to bulbs, LEDs, and batteries supplied with or forming part of the product.
This warranty is invalidated if non- BRK accessories are or have been used in or in connection with the product or in any modification
or repair is made to the product.
This warranty does not apply to defects or damages arising by use of the product in other than normal (including normal atmospheric,
moisture and humidity) conditions or by installation or use of the product other than in strict accordance with the instructions
contained in the product owner’s manual.
This warranty does not apply to defects in or damages to the product caused by (i) negligent use of the product, (ii) misuse,
abuse, neglect, alteration, repair or improper installation of the product, (iii) electrical short circuits or transients, (iv) usage not in
accordance with product installation, (v) use of replacement parts not supplied by BRK, (vi) improper product maintenance, or (vii)
accident, fire, flood or other Acts of God.
This warranty does not cover the performance or functionality of any computer software included in the package with the product.
BRK makes no warranty that the software provided with the product will function without interruption or otherwise be free of
anomalies, errors, or “Bugs.” This warranty does not cover any costs relating to removal or replacement of any product or software
installed on your computer.
BRK reserves the right to make changes in design or to make additions to or improvements in its products without incurring any
obligations to modify any product which has already been manufactured. BRK will make every effort to provide updates and fixes to
its software via its website. This warranty does not cover any alteration or damage to any other software that may be or may become
resident on the users system as a result of installing the software provided. This warranty is in lieu of other warranties, expressed or
implied, and BRK neither assumes nor authorizes any person to assume for it any other obligation or liability in connection with the
sale or service of the product. In no event shall BRK be liable for any special or consequential damages arising from the use of the
product or arising from the malfunctioning or non-functioning of the product, or for any delay in the performance of this warranty
due to any cause beyond its control.
BRK does not make any claims or warranties of any kind whatsoever regarding the product’s potential, ability, or effectiveness to
prevent, minimize, or in any way affect personal or property damage or injury. BRK is not responsible for any personal damage, loss,
or theft related to the product or to its use for any harm, whether physical or mental related thereto. Any and all claims or statements,
whether written or verbal, by salespeople, retailers, dealers, or distributors to the contrary are not authorized by BRK, and do not
affect this provision of this warranty.
BRK’s responsibility under this, or any other warranty, implied or expressed, is limited to repair, replacement or refund, as set
forth above. These remedies are the sole and exclusive remedies for any breach of warranty. BRK is not responsible for direct,
special, incidental, or consequential damages resulting from any breach of warranty or under any other legal theory including but
not limited to, loss profits, downtime, goodwill, damage to or replacement of equipment and property and any costs of recovering,
reprogramming or reproducing any program or data stored in or used with a system containing the product accompanying software.
BRK does not warrant the software will operate with any other software except that which is indicated. BRK cannot be responsible
for characteristics of their party hardware or software which may effect the operation of the software included.
Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is
limited in duration to the duration of the above Warranty Period. Some states, provinces, or jurisdictions do not allow the exclusion
or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations
or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from
state to state, or province to province, or jurisdiction to jurisdiction.
OBTAINING SERVICE
If service is required, do not return the product to your place of purchase. In order to obtain warranty service, contact the Consumer
Affairs Division at 1-800-323-9005, 7:30 a.m. – 5:00 a.m. Central Standard Time, Monday through Friday. To assist us in serving you,
please have the model number and date of purchase available when calling.
After contacting the Consumer Affairs Division and it is determined that the product should be returned for Warranty Service, please
mail the product to: BRK Brands, Inc., 3901 Liberty Street Road, Aurora, IL 60504-8122.
Page 7
©2012 BRK Brands, Inc.
a Jarden Corporation Company (NYSE:JAH)
3901 Liberty Street Road, Aurora, IL 60504-8122
Phone: 630-851-7330 Tech Services: 800-323-9005
www.firstalert.com
M08-0397-014
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
