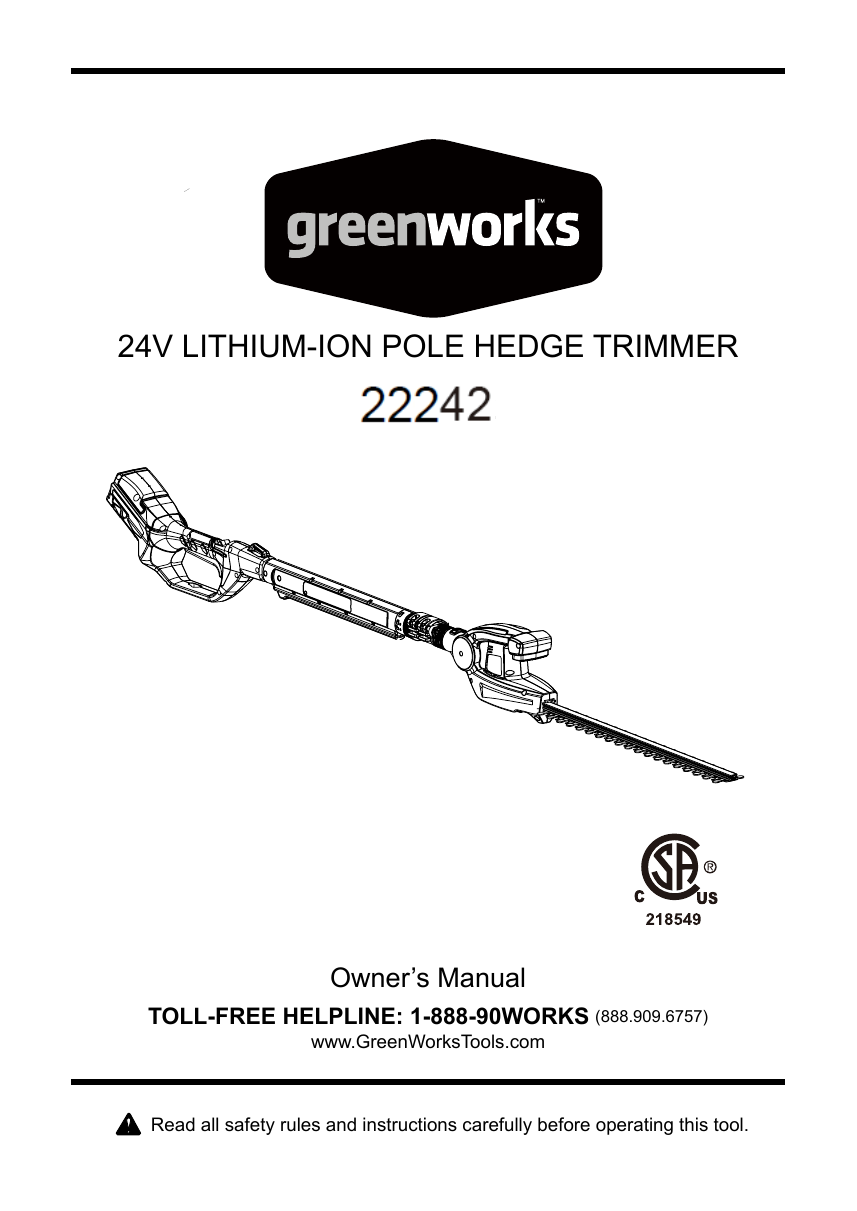

Greenworks 22242 24V 20in Pole Hedge Trimmer Owner's Manual

24V LITHIUM-ION POLE HEDGE TRIMMER
2300002
Owner’s Manual
TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757)
www.GreenWorksTools.com
Read all safety rules and instructions carefully before operating this tool.
CONTENTS
Contents............................................................................................................................... 2
Specifications....................................................................................................................... 2
General safety rules..........................................................................................................3-5
Symbols............................................................................................................................. 6-7
Know your hedge trimmer..................................................................................................... 8
Assembly instruction........................................................................................................ 9-10
Operation........................................................................................................................11-16
Maintenance...................................................................................................................... 17-18
Environmentally safe battery disposal....................................................................................19
Troubleshooting...................................................................................................................... 20
Warranty............................................................................................................................. 21
Exploded View.................................................................................................................... 22
Parts List............................................................................................................................ 23
Specifications
24V LITHIUM-ION POLE hedger TRIMMER
Type........................................................................................ Cordless, battery-powered
Blade length.......................................................................................................20" (51 cm)
Cutting capacity...............................................................................................5/8” (16 mm)
Reciprocating speed...........................................................................................3000 SPM
Weight (without battery)...........................................................................7.41 lbs. (3.36Kg)
2
general safety rules
WA R N I N G
Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire, and/or serious injurys.
Save all warnings and instructions for future reference.
The term “power tool” in all of the warnings listed below refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
1. Work area safety
A. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
B. Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
C. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
A. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
B. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
C. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
D. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
E. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
F. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
A. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
B. Use personal protective equipment. Always wear eye protection. Protective equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions
will reduce personal injuries.
C. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on
the switch or energising power tools that have the switch on invites accidents.
D. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
3
general safety rules
E. Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
F. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
G. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of these devices can reduce dust-related hazards.
4. Power tool use and care
A. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
B. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
C. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
D. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
E. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tools operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
F. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
G. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into accountthe working conditions and the work to be performed.. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
A. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when used with another battery pack.
B. Use power tools only with specifically designated battery packs. Use any other battery packs
may create a risk of injury and fire.
C. When battery pack is not in use, keep it away from the other metal objects, like paper clips,
coins, keys, nails, screws, or other small metal objects that can make a connection from one
terminal to another. Shorting the battery terminals together may cause burns or a fire.
D. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
6. Service
A. Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
4
general safety rules
HEDGE TRIMMER SAFETY WARNINGS
• Use both hands when operating the hedge trimmer. Using one hand could cause loss of
control and result in serious personal injury.
• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold
material to be cut when blades are moving. Make sure the switch is off when clearing jammed
material. Blades coast after turn off. A moment of inattention while operating the hedge
trimmer may result in serious personal injury.
• Carry the hedge trimmer by the handle with the cutter blade stopped. Proper handling of the
hedge trimmer will reduce possible personal injury from the cutter blades.
• Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact
hidden wiring or its own cord. Blades coast after turn off. Cutter blades contacting a “live” wire
may make exposed metal parts of the power tool “live” and could give the operator an electric
shock.
• DANGER – Keep hands away from blade. Contact with blade will result in serious personal
injury.
WA R N I N G
(PROPOSITION 65)
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure to these chemicals varies depending on how often you do this type of
work. To reduce your exposure to these chemicals, work in a well-ventilated area, and work with
approved safety equipment, such as dust masks that are specially designed to filter out microscopic
particles.
5
SymbolS
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL
NAME
DESIGNATION/EXPLANATION
V
Volts
Voltage
A
Amperes
Current
Hz
HertzFrequency (cycles per second)
W
Watts
Power
/min
Per Minute
Revolutions, strokes, surface speed, orbits etc.,
per minute
Alternating Current
Type of current
Direct Current
Type or a characteristic of current
Safety Alert Symbol
Indicates a potential personal injury hazard.
Read The Operator’s Manual
To reduce the risk of injury user must read and
understand operator’s manual before using this
product.
Eye and Head Protection
Wear eye and headprotection when operating
this equipment.
Do not expose to rain or use in damp locations.
Wet Conditions Alert
No Hands SymbolFailure to keep your hands away from the blade will
result in serious personal injury.
Keep Tool Away from Electrical DANGER! Risk of electrocution! Keep tool 50 feet
Lines/Keep Bystanders Away
electrical lines. Keep all bystanders at least 50 ft.
away.
Gloves
Operate With Two Hands
Wear non-slip, heavy-duty protective gloves when
handling the blades.
Hold and operate the hedge trimmer properly with
both hands.
Moving Parts
Keep hands away from moving parts.
Ricochet
Thrown objects can ricochet and result in
personal injury or property damage.
6
SymbolS
The following signal words and meanings are intended to explain the levels of risk associated
with this product.
SYMBOL
signalmeaning
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
CAUTION
(Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
SAVE THESE INSTRUCTIONS
7
know your Hedge trimmer
Fig. 1
Battery pack latch
Lock button
Battery pack
Switch trigger
Pivoting button.
Front trigger
Blade support
Blade
Blade cover
KNOW YOUR POLE hedge TRIMMER (See Figure 1.)
The safe use of this product requires an understanding of the information on the product and in
this operator’s manual as well as a knowledge of the project you are attempting. Before use of
this product, familiarize yourself with all operating features and safety rules.
BLADE COVER
The blade cover keeps the operator from coming in contact with the sharp blades when the tool
is not in use. It also helps keep the blades from being nicked or damaged when the tool is in
storage.
LOCK-OUT BUTTON
The lock-out button prevents unintentional starting of the hedge trimmer.
SEVEN-POSITION PIVOTING HEAD
The hedge trimmer head can be adjusted with the pivoting button.
8
ASSEMBLY INSTRUCTION
UNPACKING
This product requires assembly.
• Carefully remove the product and any accessories from the box. Make sure that all items
listed in the packing list are included.
WA R N I N G
Do not use this product if any parts on the Packing List are already assembled to your product
when you unpack it. Parts on this list are not assembled to the product by the manufacturer and
require customer installation. Use of a product that may have been improperly assembled could
result in serious personal injury.
• Inspect the product carefully to make sure no breakage or damage occurred during
shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily
operated the product.
• If any parts are damaged or missing, please call 1-888-909-6757 for assistance.
PACKING LIST
Power Head
Hedge Trimmer Attachment
Blade Cover
Operator’s Manual
WA R N I N G
If any parts are damaged or missing do not operate this product until the parts are replaced. Use
of this product with damaged or missing parts could result in serious personal injury.
WA R N I N G
Do not attempt to modify this product or create accessories not recommended for use with this
product. Any such alteration or modification is misuse and could result in a hazardous condition
leading to possible serious personal injury.
WA R N I N G
To prevent accidental starting that could cause serious personal injury, always remove the battery
pack from the product when assembling parts.
9
ASSEMBLY INSTRUCTION
ASSEMBLING THE TOOL (See Figure 2.) :
• Align the arrow on the end of main handle with the arrow on the trimmer head.
• Push the trimmer head onto the handle till the red line.
• Fasten the trimmer head cam lock.
NOTE: Once assembled correctly, the upper and lower tubes should not separate when pulled.
Repeat above steps if tubes can be separated.
WA R N I N G
Failure to secure the upper tube to the lower tube as instructed above could result in serious
injury or death.
Fig. 2
10
OPERATIon
WA R N I N G
Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.
WA R N I N G
Always wear eye protection with side shields marked to comply with ANSI Z87.1. Wear head
protection when operating this equipment above shoulder level. Failure to do so could result in
objects being thrown into your eyes and other possible serious injuries.
WA R N I N G
Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal
injury.
APPLICATIONS
You may use this product for the purpose listed below:
• Trimming and shaping hedges and shrubbery
Before each use, inspect the entire product for damaged, missing, or loose parts such as screws,
nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product
until all missing or damaged parts are replaced. Please call 1-888-909-6757 or contact an authorized service center for assistance.
This product will accept Greenworks 24v lithium-ion battery packs.
For complete charging instructions, refer to the Operator’s Manuals for your Greenworks battery
pack and charger models.
TO INSTALL/REMOVE BATTERY PACK (See Figure 3.)
WA R N I N G
Always remove battery pack from your tool when you are assembling parts, making adjustments,
cleaning, or when not in use. Removing battery pack will prevent accidental starting that could
cause serious personal injury.
To install:
• Place the battery pack in the power head. Align the raised rib on the battery pack with
groove in the power head’s battery port.
• Make sure the latches on each side of the battery pack snap in place and that the battery
pack is secured in the power head before beginning operation.
C A U T I O N :
When placing battery pack in the tool, be sure raised rib on battery pack aligns with the bottom
of the tool and latches into place properly. Improper installation of the battery pack can cause
damage to internal components.
11
OPERATIon
Fig. 3
To remove:
• Locate the latch on the back side of the battery pack and depress to release the battery
pack from the power head.
WA R N I N G
Battery tools are always in operating condition. Therefore, hands should be free of the switch
trigger and lock-out button when not in use. Remove battery pack when transporting or carrying
hedge trimmer to avoid accidental starting, which could result in serious injury.
12
OPERATIon
STARTING AND STOPPING THE HEDGE TRIMMER (See Figure 4.)
To start:
• Remove the blade cover.
• Push the front trigger.
• Press and hold the lock-out button.
• Depress the switch trigger.
• Release the lock-out button. Continue to depress the switch trigger for extended
operation.
To stop:
• Release the switch trigger to stop the hedge trimmer.
• Upon release of the switch trigger, the lock-out button will automatically reset to the locked
position.
Lock-out button
Front trigger
Switch trigger
13
Fig. 4
OPERATIon
ADJUSTING PIVOTING HEAD (See Figure 5.)
• Release the switch trigger and allow blades to come to a complete stop.
• Remove the battery pack from the hedge trimmer.
• Place the hedge trimmer on a sturdy flat surface.
• Push pivot button and adjust trimmer head until it snaps securely into place at one of the
seven positions.
WA R N I N G
Do not place hand between pivoting head and threaded base. Placement of your hand or fingers
in this area could result in a pinch point injury.
-30º
0º
75º
14
Fig. 5
OPERATIon
FASTEN AND LOOSEN THE HANDEL CAM LOCK (See Figure 6.)
• Fasten and loosen the handle cam lock as the arrow show.
Loosen
Loosen
Fasten
Fasten
Fig. 6
ADJUSTING POLE LENGTH (See Figure 6.)
• Rest the handle on the ground.
• Loosen the handle cam lock and adjust the handle shaft to a comfortable length.
• Fasten the handle cam lock.
Fig. 7
15
OPERATIon
WA R N I N G
Always keep both hands on the hedge trimmer handles. Never hold shrubs with one hand and
operate the hedge trimmer with the other. Improper operation of the hedge trimmer could result
in serious injury.
CUTTING TIPS
D A N G E R
Never cut near electric cords or lines. If blade jams on any electrical cord or line, DO NOT
TOUCH THE BLADE! IT CAN BECOME ELECTRICALLY LIVE AND VERY DANGEROUS.
Continue to hold the hedge trimmer by the insulated rear handle or lay it down and away from
you in a safe manner. Disconnect the electrical service to the damaged line or cord before
attempting to free the blade from the line or cord. Contact with the blade, other conductive parts
of the hedge trimmer, or live electric cords or lines will result in death by electrocution or serious
injury.
WA R N I N G
Clear the area to be cut before each use. Remove all objects such as cords, lights, wire, or loose
string which can become entangled in the cutting blade and create a risk of serious personal
injury.
• 5/8" thick, or those obviously too large to feed into the cutting blade. Use a non-powered
hand saw or pruning saw to trim large stems.
• Before starting the hedge trimmer, hold the unit with both hands with the cutting blades
directed away from you. Always use the hedge trimmer properly.
• Do not force the hedge trimmer through heavy shrubbery. This can cause the blades to
bind and slow down. If the blades slow down, reduce the pace.
• Do not try to cut stems or twigs that are larger than 1/2 in. thick, or those obviously too
large to feed into the cutting blade. Use a non-powered hand saw or pruning saw to trim
large stems.
• If blades do become jammed, stop the motor, allow the blades to stop and remove the
battery pack before attempting to remove the obstruction.
• If desired, you can use a string to help cut your hedge level. Decide how high you want the
hedge. Then, stretch a piece of string along the hedge at this height. Trim the hedge just
above this guide line of string. Trim the side of a hedge so that it will be slightly narrower
at the top. More of the hedge will be exposed when shaped this way, and it will be more
uniform.
• Always hold hedge trimmer with both hands when operating. Use a firm grip on the
handles. The unit is used for cutting in either direction in a slow, sweeping action from
side to side.
• Wear gloves when trimming thorny or prickly growth. When trimming new growth, use
a wide sweeping action, so that the stems are fed directly into the cutting blade. Older
growth will have thicker stems and will be trimmed easiest by using a sawing movement.
16
MAINTENANCE
WA R N I N G
When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.
WA R N I N G
To avoid serious personal injury, always remove the battery pack from the product before inspecting, cleaning or performing any maintenance.
GENERAL MAINTENANCE
Before each use, inspect the entire product for damaged, missing, or loose parts such as screws,
nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product
until all missing or damaged parts are replaced. Please call 1-888-909-6757 or contact an
authorized service center for assistance.
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from
various types of commercial solvents and may be damaged by their use. Use clean cloths to
remove dirt, dust, oil, grease, etc.
WA R N I N G
Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc.,
come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may
result in serious personal injury.
Only the parts shown on the parts list are intended to be repaired or replaced by the customer.
All other parts should be replaced at an Authorized Service Center.
BATTERY PACK REMOVAL AND PREPARATION FOR RECYCLING
WA R N I N G
Upon removal, cover the battery pack’s terminals with heavy-duty adhesive tape. Do not attempt
to destroy or disassemble battery pack or remove any of its components. Lithium-ion and nickelcadmium batteries must be recycled or disposed of properly. Also, never touch both terminals
with metal objects and/or body parts as short circuit may result. Keep away from children. Failure
to comply with these warnings could result in fire and/or serious injury.
TRANSPORTING AND STORING
• Always place the blade cover on the blade before storing or transporting the hedge trimmer.
Use caution to avoid the sharp teeth of the blade.
• Clean the hedge trimmer thoroughly before storing. Store the hedge trimmer indoors, in a
dry place that is inaccessible to children. Keep away from corrosive agents such as garden
chemicals and de-icing salts.
17
MAINTENANCE
CLEANING THE HEDGE TRIMMER
• Remove the battery pack.
• Slide the blade cover over the blade.
• Clean dirt and debris from the body of the hedge trimmer, using a damp cloth with a mild
detergent.
NOTE: Do not use any strong detergents on the plastic housing or the handle. They can
be damaged by certain aromatic oils such as pine and lemon, and by solvents such as
kerosene.
• Moisture can cause a shock hazard. Wipe off any moisture with a soft dry cloth.
• Use a small brush or the air discharge of a small vacuum cleaner brush to clear dust or debris
from the air vents on the motor housing.
STORING THE HEDGE TRIMMER
• Clean the hedge trimmer thoroughly before storing. Store the hedge trimmer in a dry, wellventilated place that is inaccessible to children. Keep away from corrosive agents such as
garden chemicals and de-icing salts.
• Always place the blade cover on the cutting blades before storing.
18
ENVIRONMENTALLY SAFE BATTERY DISPOSAL
The following toxic and corrosive materials are in the batteries used in this hedge
trimmer battery pack: Lithium-Ion, a toxic material.
WA R N I N G
All toxic materials must be disposed of in a specified manner to prevent contamination of the
environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your
local waste disposal agency, or the local Environmental Protection Agency for information and
specific instructions. Take the batteries to a local recycling and/or disposal centre, certified for
lithium-ion disposal.
WA R N I N G
If the battery pack cracks or breaks, with or without leaks, do not recharge it and do not use. Dispose of it and replace with a new battery pack. DO NOT ATTEMPT TO REPAIR IT!
To avoid injury and risk of fire, explosion, or electric shock, and to avoid damage to the environment:
• Cover the battery's terminals with heavy-duty adhesive tape.
• DO NOT attempt to remove or destroy any of the battery pack components.
• DO NOT attempt to open the battery pack.
• If a leak develops, the released electrolytes are corrosive and toxic. DO NOT get the
solution in the eyes or on skin, and do not swallow it.
• DO NOT place these batteries in your regular household trash.
• DO NOT incinerate.
• DO NOT place them where they will become part of any waste landfill or municipal solid
waste stream.
• Take them to a certified recycling or disposal centre.
19
troubleshooting
PROBLEM
POSSIBLE CAUSE
SOLUTION
Motor fails to start
when switch trigger
is depressed.
Battery is not secure.
To secure the battery pack, make sure
the latches on the top of the battery pack
snap into place.
Battery is not charged.
Charge the battery pack according to the
instructions included with your model.
Motor runs,but cutting
blades do not move.
Hedger damaged.
Call for technical service.
Do not use hedge trimmer.
Hedge trimmer smokes Hedger damaged.
Call for technical service.
during operation.
Do not use hedge trimmer.
Motor hums, blades
do not move.
Debris or other may be
jamming the blades
20
Remove battery, clear debris blockage
from blades.
WARRANTY
GREENWORKS™ hereby warranties this product, to the original purchaser with proof of
purchase, for a period of four (4) years against defects in materials, parts or workmanship.
GREENWORKS™, at its own discretion will repair or replace any and all parts found to be
defective, through normal use, free of charge to the customer. This warranty is valid only for
units which have been used for personal use that have not been hired or rented for industrial/
commercial use, and that have been maintained in accordance with the instructions in the
owners’ manual supplied with the product from new.
Battery and charger carry a two (2) year warranty against defects in workmanship and materials.
Batteries must be charged in accordance with the operator’s manuals directions and regulations
in order to be valid.
Items not covered by warranty:
1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect,
accident, improper maintenance, or alteration; or
2. The unit, if it has not been operated and/or maintained in accordance with the owner's
manual; or
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade sharpening;
5. Normal deterioration of the exterior finish due to use or exposure.
GREENWORKS Helpline (1 888 90WORKS):
Warranty service is available by calling our toll-free helpline, 9am to 5pm EST. at 1-888-909-6757
(1-888-90WORKS).
Transportation Charges:
Transportation charges for the movement of any power equipment unit or attachment are the
responsibility of the purchaser. It is the purchaser’s responsibility to pay transportation charges
for any part submitted for replacement under this warranty unless such return is requested in
writing by GREENWORKS.
21
EXPLODED VIEW
22
parts list
Item No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
Part No.Description
34108648
blade cover
33101652-1
blade assy.
33901648
spring
34105648
rotating handle
31101648
motor housing assy.
36101459-1
motor
34111459-1
gear box
33200451
gear
33307453
pressing board
33202453
shaft cover2
33902459
shaft cover3
33302453
small washer
33301453
big washer
33203161
pin
33304453-1
eccentric block
33305453
spacing block
33201451-1
dual gear
33202451
pinion
33303453
gear box cover
33314470
female insert
34106646
male plug
34107646/34108646 L/R female insert
31102648
rotating assy.
34102646/34103646 L/R assistant handle
33201648
steel ball
33902648
spring
36301454-1
switch
34105646
eccentric knob
34104646
switch trigger
33102646
glide tube
33101646
connection tube
3340287
spring
34113505-1
anti-lock off button
34121708
switch button
34104978
motor housing insert board
31103648
handle assy.
32201517
nut
33201646
trigonal spring
32201715
screw
33302505
clamp tube
33203334
fixing shaft
33104505
wrench
33202648
bolt
23
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
3
1
1
1
1
1
1
2
1
1
1
1
2
1
1
1
1
26
1
9
2
2
2
2
NOTES
24
NOTES
25
NOTES
26
TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757)
Rev: 00 (01-17-14)
Printed in China on 100% Recycled Paper

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
