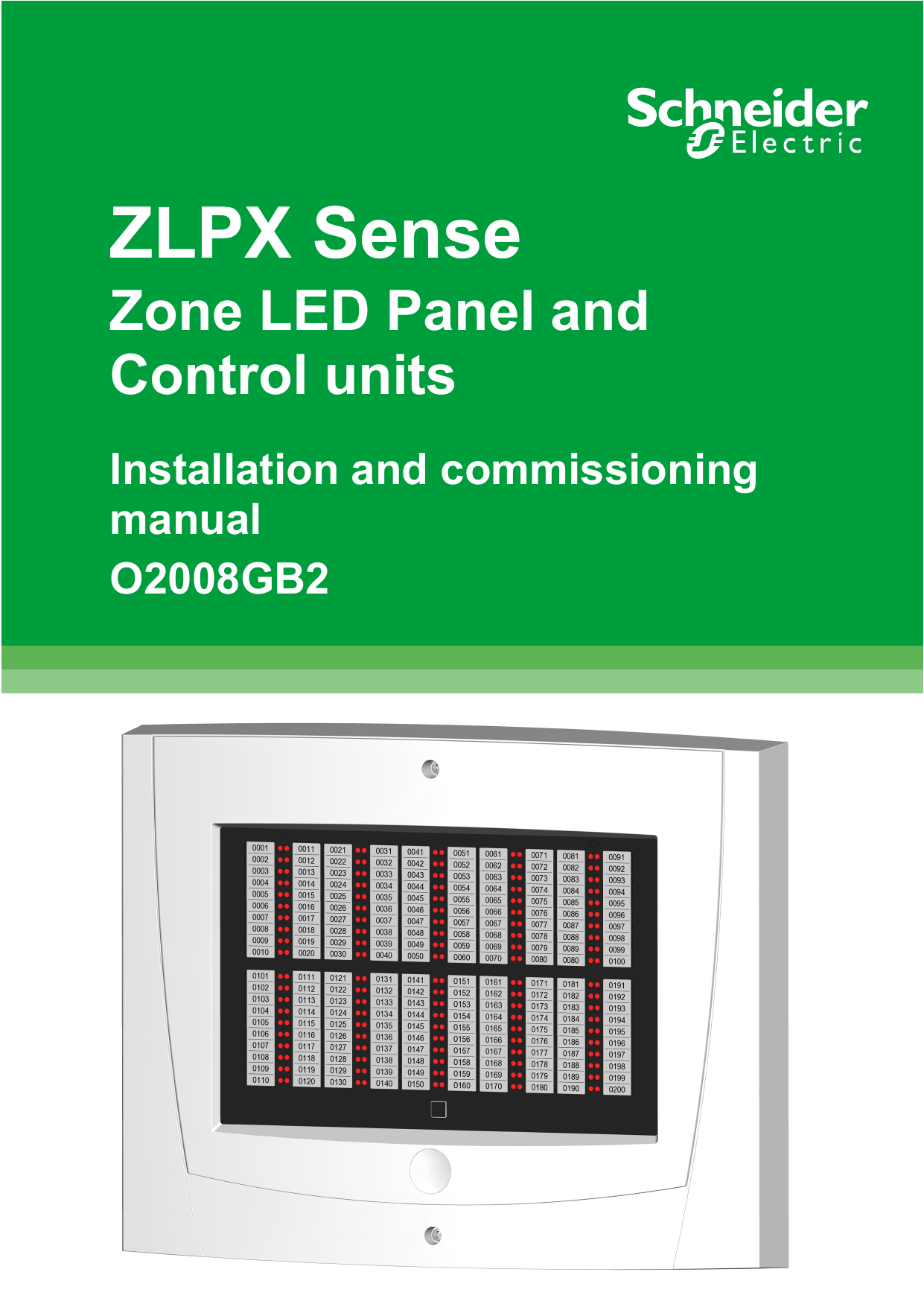

ZLPX Sense
Zone LED Panel and
Control units
Installation and commissioning
manual
O2008GB2
Schneider Electric Fire & Security Oy
Sokerilinnantie 11 C
FI-02600 Espoo, Finland
Tel: +358 10 446 511
Website: www.se.com
Document number: O2008GB2
© 2021 – Schneider Electric. All Rights Reserved. This information is only to be used as guidance. Subject to changes and errors.
2
O2008GB2
Contents
Contents
1
ZLPX Sense zone LED panel and control units ...................................4
2
Installation ...............................................................................................6
3
ZLPX-IC ....................................................................................................8
4
Electrical connections of OC-100L and OC-100R ..............................12
5
Electrical connections of RB-20 ..........................................................13
6
Electrical connections of LB-200 ........................................................14
7
System examples..................................................................................15
1.1
1.2
2.1
2.2
3.1
3.2
3.3
3.4
3.5
Technical data of ZLPX Sense zone LED panel .......................................................................... 4
Product codes .............................................................................................................................. 5
Mechanical installation ................................................................................................................. 6
Zone name label installation ........................................................................................................ 6
Electrical connections .................................................................................................................. 8
Settings and LED indications ....................................................................................................... 9
Configuration .............................................................................................................................. 11
Configuration memory erasure .................................................................................................. 11
Software update ......................................................................................................................... 11
7.1
7.2
7.3
7.4
7.5
Basic system principle with ZLPX Sense panels ....................................................................... 15
System example: open collector LED outputs ........................................................................... 16
System example: relay outputs .................................................................................................. 17
System example: LED board LB200 outputs ............................................................................. 18
System example: mixed outputs ................................................................................................ 19
O2008GB2
3
1 ZLPX Sense zone LED panel and control units
1
ZLPX Sense zone LED panel and control units
The ZLPX Sense zone LED panel is used for fire brigade as primary information source
of the place of alarm in the building. The panel can function as pure display device
showing zone specific fire place. The ZLPX Sense can be connected to the FDP panels:
FDP221, FDP252 and FDP292.
Figure 1: ZLPX Sense zone LED panel.
Table 1: Technical data of ZLPX Sense zone LED panel
Technical data
4
Dimensions (W x H x D)
328 x 417 x 79 mm
Weight
5 kg
Colour
White
Operating Temperature
+ 5°C … +40°C
Humidity
max. RH 95 %
Operating Voltage
19 … 30 VDC
Standby Current
50 mA
Alarm State Current. Max. 50 LEDs “on” at the
same time
72 mA
O2008GB2
1 ZLPX Sense zone LED panel and control units
Serial Communication Ports
IP Rating
In: RS485 or RS232
Out: RS485
IP30
Note: Both 24VDC inputs must be connected.
Table 2: Current consumption/output
Current consumption/output
1.2
LB200
0.15 mA/active output
OC-100L
6.2 mA/active output
0C-100R+RB20
7.5 mA/active output
Product codes
Table 3: Product codes
O2008GB2
Product
Code
Description
ZLPX Sense
FFS00703849
Zone LED panel with 200 LEDs
ZLPX-IC
FFS00703841
ZLPX Sense controller
LB200
FFS00703842
LED board 200 LEDs
OC-100L
FFS00703843
Open collector output for 100 LEDs
OC-100R
FFS00703844
Open collector output for 100 relays
CCLO
FFS00703845
Connection cable for LED outputs, 3m
COL-10
FFS00703846
10 LEDs cable, 1m
RB20
FFS00703847
Relay board of 20 relays
5
2 Installation
2
Installation
2.1
Mechanical installation
Figure 2: Mechanical installation.
2.2
Zone name label installation
Use Adobe Acrobat Reader and the document ”Zone name definition” 66521547 to name
and print a customer specific zone name label. The file 66521547 has been published in
www.se-technet.fi.
6
O2008GB2
2 Installation
Figure 3: Zone name label installation.
O2008GB2
7
3 ZLPX-IC
3
ZLPX-IC
3.1
Electrical connections
Figure 4: ZLPX-IC electrical connections.
Note: Both 24VDC inputs must be connected.
8
O2008GB2
3 ZLPX-IC
3.2
Settings and LED indications
Table 4: A dip switch
A dip switch
A
A2
A3
A4
A5
A6
A7
A8
OFF
Not in use
ON
Not in use
OFF
Not in use
ON
Not in use
OFF
ON
FDP-panel connection
ESA/MESA panel connection (message set F or older)
OFF
Not in use
ON
OFF
Not in use
ON
OFF
Not in use
ON
OFF
Not in use
ON
OFF
Normal state
ON
Not in use
Table 5: B dip switch
B dip switch
B1
B2
B3
B4
B5
B6
B7
B8
O2008GB2
OFF
Not in use
ON
OFF
Not in use
ON
OFF
OUT “B” port not in use
ON
OUT “B” port in use
OFF
Not in use
ON
OFF
Not in use
ON
OFF
IN “A” port baud rate 1200
ON
IN “A” port baud rate 9600
OFF
OUT “B” port baud rate 1200
ON
OUT “B” port baud rate 9600
OFF
To be “OFF”! Only for service purposes.
ON
9
3 ZLPX-IC
Table 6: LED indications in normal use
LED indications in normal use
LED 1
LED 2
Continuous
Fault in configuration file
Blinking
Configuration state
Continuous
Not in use
Blinking
LED 3
LED 4
LED 5
LED 6
Continuous
Power supply input 1 or 2 fault
Blinking
NA
Continuous
IN “A” communication fault
Blinking
IN “A” HW fault
Continuous
OUT “B” communication fault
Blinking
OUT “B” HW fault
Continuous
Not in use
Blinking
Note: LEDs 1-6 in the ZLPX IC are activated in system fault.
Table 7: LED Indications in start-up condition (10 seconds)
LED indications in start-up condition (10 seconds)
LED 1
LED 2
LED 3
LED 4
LED 5
LED 6
Continuous
Display HW installed
OFF
Display HW not installed
Continuous
Isolated port installed
OFF
Isolated port not installed
Continuous
NA
OFF
NA
Continuous
LED board connector installed
OFF
LED board connector not installed
Continuous
NA
OFF
NA
Continuous
MCO HW installed
OFF
MCO HW not installed
Table 8: Jumpers for service purposes
10
Jumper
ON
OFF
Prog update
Program update
Normal use
Config
Configuration state
Normal use
O2008GB2
3 ZLPX-IC
3.3
Configuration
The ZLPX Sense zone LED panel can be used in the FDP fire detection system without
any configuration. In this case, the ZLPX Sense shows the same fire alarm information as
the FDP panel communicating with the zone LED panel.
If it is necessary to show zone/area-specific fire alarm information only, then the ZLPX
Sense panel must be configured. The configuration is done by using the WinFMPX
configuration tool and the incoming serial port with the RS232 setting. During the
configuration of the ZLPX Sense panel, the communication line to the FDP panel (RS485)
must be disconnected.
3.4
Configuration memory erasure
To erase the configuration memory back to the factory defaults, follow these steps:
3.5
●
Disconnect power from the unit (power inputs PI1 and PI2).
●
Set the “config” jumper to “ON”.
●
Turn panel ID number switches to E and F (E = 10’s, F=1’s).
●
Connect power back.
●
Follow the LED number 1:
●
When the LED is blinking quickly, turn dip switch A8 to “ON”.
●
LED number 1 OFF: erasure in progress.
●
LED number 1 ON continuous: erasure is ready.
●
Disconnect power, set ID switches back to “0” and remove the “config” jumper.
●
Connect power back.
●
The unit is starting without configuration data.
Software update
The panel is set to the software update state by setting the “prog update” jumper to “ON”
and restarting the panel (by pushing the CPU reset button). The software update is done
by using the PC loader software and the incoming serial port with the RS232 setting.
During the software update, the communication line to the FDP panel (RS485) must be
disconnected.
O2008GB2
11
4 Electrical connections of OC-100L and OC-100R
4
Electrical connections of OC-100L and OC100R
Figure 5: Electrical connections of OC-100L and OC-100R.
Table 9: Input descriptions
Input descriptions
12
Input 1
Activates all outputs for 5 seconds
Inputs 2-5
Not in use
External power input
Normally not in use
O2008GB2
5 Electrical connections of RB-20
5
Electrical connections of RB-20
Figure 6: Electrical connections of RB-20.
O2008GB2
13
6 Electrical connections of LB-200
6
Electrical connections of LB-200
Figure 7: Electrical connections of LB-200.
Note: By pushing the “LED test button” all LEDs are ON for 5 seconds.
14
O2008GB2
7 System examples
7
System examples
7.1
Basic system principle with ZLPX Sense panels
Figure 8: Basic system principle with ZLPX Sense panels.
Note: The maximum number of ZLPX Sense (and/or ZLPX-IC; FMP, DAP,
REP, REPX-OB, MCO, MCOX-OB) units connected to one FDP panel is 16.
The RS232 setting is used for configuration and software update.
The INFO line in the ZLPX Sense (ZLPX-IC) panel must be disconnected
during the ZLPX Sense (ZLPX-IC) configuration.
Note: The maximum RS485 cable length between 2 devices is 1000 m.
The maximum RS232 cable length is 10 m.
Note: The maximum number of zones in one FDP system is 8000.
Note: Due to current consumption, max. 50 zonal outputs/ZLPX-IC card can
be activated at the same time.
Note: There can be more than one outputs/zone.
O2008GB2
15
7 System examples
7.2
System example: open collector LED outputs
Figure 9: System example: open collector LED outputs.
Note: The maximum number of ZLPX Sense (and/or ZLPX-IC; FMP, DAP,
REP, REPX-OB, MCO, MCOX-OB) units connected to one FDP panel is 16.
The RS232 setting is used for configuration and software update.
The INFO line in the ZLPX Sense (ZLPX-IC) panel must be disconnected
during the ZLPX Sense (ZLPX-IC) configuration.
Note: The maximum RS485 cable length between 2 devices is 1000 m.
The maximum RS232 cable length is 10 m.
Note: The maximum number of zones in one FDP system is 8000.
If the load taken from the IC board exceeds 1A, then an external power
supply input (OC-100I and OC-100R) must be used.
Note: Due to current consumption, max. 50 zonal outputs/ZLPX-IC card can
be activated at the same time.
Note: There can be more than one outputs/zone.
16
O2008GB2
7 System examples
7.3
System example: relay outputs
Figure 10: System example: relay outputs.
Note: The maximum number of ZLPX Sense (and/or ZLPX-IC; FMP, DAP,
REP, REPX-OB, MCO, MCOX-OB) units connected to one FDP panel is 16.
The RS232 setting is used for configuration and software update.
The INFO line in the ZLPX Sense (ZLPX-IC) panel must be disconnected
during the ZLPX Sense (ZLPX-IC) configuration.
Note: The maximum RS485 cable length between 2 devices is 1000 m.
The maximum RS232 cable length is 10 m.
Note: The maximum number of zones in one FDP system is 8000.
Note: Due to current consumption, max. 50 zonal outputs/ZLPX-IC card can
be activated at the same time.
Note: There can be more than one outputs/zone.
O2008GB2
17
7 System examples
7.4
System example: LED board LB200 outputs
Figure 11: System example: LED board LB200 outputs.
Note: The maximum number of ZLPX Sense (and/or ZLPX-IC; FMP, DAP,
REP, REPX-OB, MCO, MCOX-OB) units connected to one FDP panel is 16.
The RS232 setting is used for configuration and software update.
The INFO line in the ZLPX Sense (ZLPX-IC) panel must be disconnected
during the ZLPX Sense (ZLPX-IC) configuration.
Note: The maximum RS485 cable length between 2 devices is 1000 m.
The maximum RS232 cable length is 10 m.
Note: The maximum number of zones in one FDP system is 8000.
Note: Due to current consumption, max. 50 zonal outputs/ZLPX-IC card can
be activated at the same time.
Note: There can be more than one outputs/zone.
18
O2008GB2
7 System examples
7.5
System example: mixed outputs
Figure 12: System example: mixed outputs.
Note: The maximum number of ZLPX Sense (and/or ZLPX-IC; FMP, DAP,
REP, REPX-OB, MCO, MCOX-OB) units connected to one FDP panel is 16.
The RS232 setting is used for configuration and software update.
The INFO line in the ZLPX Sense (ZLPX-IC) panel must be disconnected
during the ZLPX Sense (ZLPX-IC) configuration.
Note: The maximum RS485 cable length between 2 devices is 1000 m.
The maximum RS232 cable length is 10 m.
Note: The maximum number of zones in one FDP system is 8000.
Note: Due to current consumption, max. 50 zonal outputs/ZLPX-IC card can
be activated at the same time.
Note: There can be more than one outputs/zone.
O2008GB2
19

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
