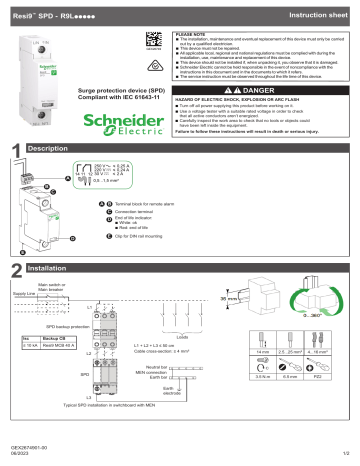

Schneider Electric Resi9 SPD - R9L***** Instruction Sheet

Instruction sheet
Resi9 SPD - R9Lppppp
TM
PLEASE NOTE
b The installation, maintenance and eventual replacement of this device must only be carried
out by a qualified electrician.
b This device must not be repaired.
b All applicable local, regional and national regulations must be complied with during the
installation, use, maintenance and replacement of this device.
b This device should not be installed if, when unpacking it, you observe that it is damaged.
b Schneider Electric cannot be held responsible in the event of noncompliance with the
instructions in this document and in the documents to which it refers.
b The service instruction must be observed throughout the life time of this device.
GEX26749
Surge protection device (SPD)
Compliant with IEC 61643-11
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
b Turn off all power supplying this product before working on it.
b Use a voltage tester with a suitable rated voltage in order to check
that all active conductors aren’t energized.
b Carefully inspect the work area to check that no tools or objects could
have been left inside the equipment.
Failure to follow these instructions will result in death or serious injury.
1
Description
A
B
C
A B Terminal block for remote alarm
C Connection terminal
D End of life indicator:
Resi9
b White: ok
b Red: end of life
E Clip for DIN rail mounting
D
E
2
Installation
Supply Line
Main switch or
Main breaker
L1
SPD backup protection
Isc
Backup CB
≤ 10 kA
Resi9 MCB 40 A
Loads
L2
SPD
L1 + L2 + L3 ≤ 50 cm
Cable cross-section: ≥ 4 mm²
Neutral bar
MEN connection
Earth bar
L3
14 mm
2.5...25 mm²
4...16 mm²
6.5 mm
PZ2
C
3.5 N.m
Earth
electrode
Typical SPD installation in switchboard with MEN
GEX2674901-00
06/2023
1/2
3
NOTICE
HAZARD OF PRODUCT DAMAGE DURING INSULATION RESISTANCE TEST
The device must be disconnected before performing the insulation resistance test.
Failure to follow these instructions can result in equipment damage.
4
Cartridge replacement
3
6...6.5 mm
2
Res
i9
1
Res
i9
Res
i9
4
Res
i9
5
More information
R9Lpppppp
Schneider Electric Industries SAS
35, rue Joseph Monier
CS 30323
F - 92506 Rueil Malmaison Cedex
www.se.com
GEX2674901-00
© 2023 Schneider Electric - All rights reserved.
2/2
