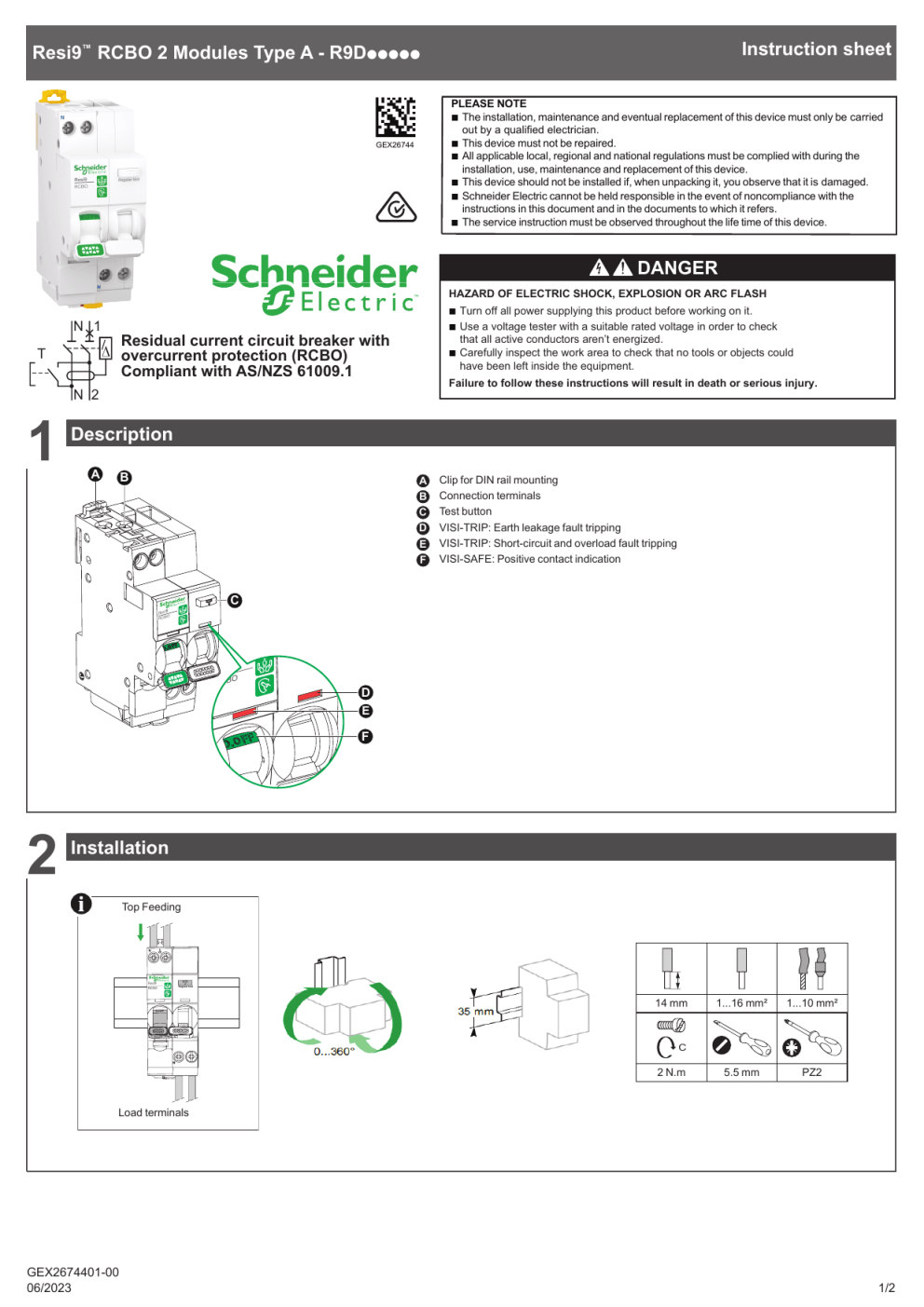

Schneider Electric Resi9 RCBO 2 Modules Type A - R9D***** Instruction Sheet

Instruction sheet
Resi9 RCBO 2 Modules Type A - R9Dppppp
TM
PLEASE NOTE
b The installation, maintenance and eventual replacement of this device must only be carried
out by a qualified electrician.
b This device must not be repaired.
b All applicable local, regional and national regulations must be complied with during the
installation, use, maintenance and replacement of this device.
b This device should not be installed if, when unpacking it, you observe that it is damaged.
b Schneider Electric cannot be held responsible in the event of noncompliance with the
instructions in this document and in the documents to which it refers.
b The service instruction must be observed throughout the life time of this device.
GEX26744
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
N 1
Residual current circuit breaker with
overcurrent protection (RCBO)
Compliant with AS/NZS 61009.1
T
1
b Turn off all power supplying this product before working on it.
b Use a voltage tester with a suitable rated voltage in order to check
that all active conductors aren’t energized.
b Carefully inspect the work area to check that no tools or objects could
have been left inside the equipment.
Failure to follow these instructions will result in death or serious injury.
N 2
Description
A
B
A
B
C
D
E
F
Clip for DIN rail mounting
Connection terminals
Test button
VISI-TRIP: Earth leakage fault tripping
VISI-TRIP: Short-circuit and overload fault tripping
VISI-SAFE: Positive contact indication
C
9
Resi
RCBO
O
RCB
D
E
F
2
Installation
Top Feeding
Resi9
DANGER
Regular test
O OFF
14 mm
1...16 mm²
1...10 mm²
5.5 mm
PZ2
C
2 N.m
Load terminals
GEX2674401-00
06/2023
1/2
3
Regular test
Note: Test the device at regular intervals by pressing the Test button (marked T), following the intervals defined in your local regulations or monthly.
Resi9
Resi9
Clack!
Resi9
I ON
Resi9
I ON
4
More information
R9Dppppp
Schneider Electric Industries SAS
35, rue Joseph Monier
CS 30323
F - 92506 Rueil Malmaison Cedex
www.se.com
GEX2674401-00
© 2023 Schneider Electric - All rights reserved.
2/2
