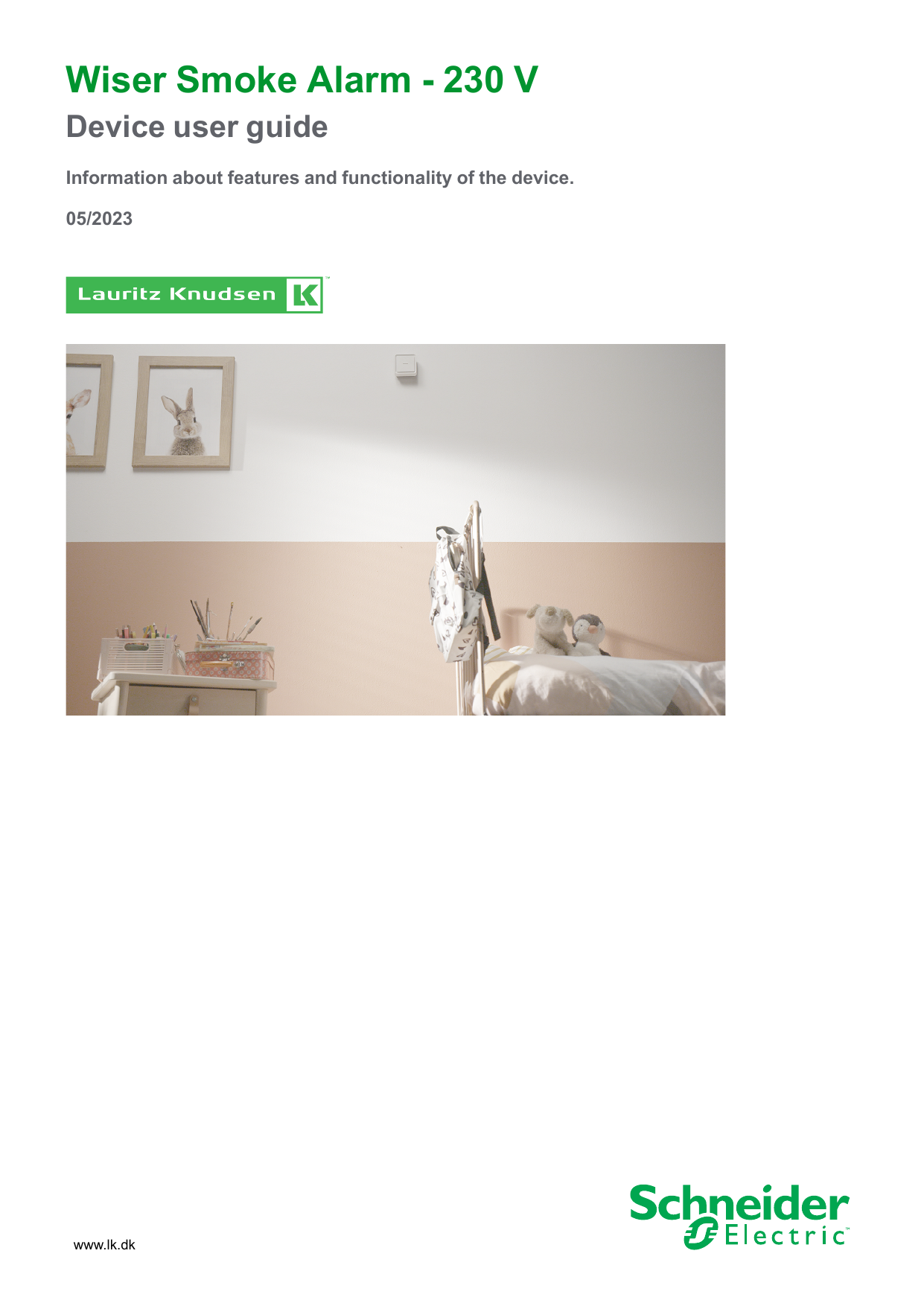

Wiser Smoke Alarm - 230 V
Device user guide
Information about features and functionality of the device.
05/2023
www.lk.dk
Legal Information
The Schneider Electric brand and any trademarks of Schneider Electric SE and its
subsidiaries referred to in this guide are the property of Schneider Electric SE or its
subsidiaries. All other brands may be trademarks of their respective owners.
This guide and its content are protected under applicable copyright laws and
furnished for informational use only. No part of this guide may be reproduced or
transmitted in any form or by any means (electronic, mechanical, photocopying,
recording, or otherwise), for any purpose, without the prior written permission of
Schneider Electric.
Schneider Electric does not grant any right or license for commercial use of the guide
or its content, except for a non-exclusive and personal license to consult it on an "as
is" basis. Schneider Electric products and equipment should be installed, operated,
serviced, and maintained only by qualified personnel.
As standards, specifications, and designs change from time to time, information
contained in this guide may be subject to change without notice.
To the extent permitted by applicable law, no responsibility or liability is assumed by
Schneider Electric and its subsidiaries for any errors or omissions in the informational
content of this material or consequences arising out of or resulting from the use of the
information contained herein.
Table of Contents
Safety information .......................................................................................4
Wiser Smoke Alarm - 230 V ......................................................................5
For your safety ...........................................................................................5
About the device.........................................................................................6
Installing the device ....................................................................................6
Pairing the device .......................................................................................7
Pairing device manually.........................................................................7
Pairing device with auto scan.................................................................9
Setting up connection without Wiser Gateway.............................................10
Interconnecting devices without Wiser Gateway ....................................10
Disconnecting a secondary device ....................................................... 11
Testing the device.....................................................................................12
Configuring the device ..............................................................................13
Changing the device icon ....................................................................13
Renaming the device ..........................................................................14
Changing the device location ...............................................................14
Using the device.......................................................................................15
Checking the device history .................................................................16
Setting LED brightness........................................................................17
Test alarm reminder ............................................................................18
Silencing the device ............................................................................19
Snoozing the device alerts...................................................................20
False alarm ........................................................................................20
Creating an automation .......................................................................21
Removing the device from the Wiser app....................................................26
Resetting the device manually ...................................................................26
Maintenance and cleaning.........................................................................27
LED Indications ........................................................................................28
Troubleshooting .......................................................................................29
Technical Data .........................................................................................29
Compliance ................................................................................................30
Compliance information for Green Premium products..................................30
Trademarks..............................................................................................30
DUG_Smoke Alarm AC_LK-00
3
Safety information
Safety information
Important information
Read these instructions carefully and look at the equipment to become familiar
with the device before trying to install, operate, service, or maintain it. The
following special messages may appear throughout this manual or on the
equipment to warn of potential hazards or to call attention to information that
clarifies or simplifies a procedure.
The addition of either symbol to a “Danger” or “Warning” safety label indicates
that an electrical hazard exists which will result in personal injury if the
instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that accompany this symbol to avoid possible
injury or death.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
Failure to follow these instructions will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
NOTICE
NOTICE is used to address practices not related to physical injury.
4
DUG_Smoke Alarm AC_LK-00
Wiser Smoke Alarm - 230 V
Wiser Smoke Alarm - 230 V
550B1028
For your safety
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Safe electrical installation must be carried out only by skilled professionals.
Skilled professionals must prove profound knowledge in the following areas:
•
Connecting to installation networks
•
Connecting to several electrical devices
•
Laying electrical cables
•
Safety standards, local wiring rules and regulations
Failure to follow these instructions will result in death or serious injury.
NOTICE
EQUIPMENT INSTALLATION HAZARD
•
Always operate the product in compliance with the specified technical data.
•
Keep the installation instruction for the life of the product.
Failure to follow these instructions can result in equipment damage.
WARNING
SEALED BATTERY HAZARD
Do not recharge, disassemble or incinerate the battery.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
DUG_Smoke Alarm AC_LK-00
5
Wiser Smoke Alarm - 230 V
About the device
The Wiser Smoke Alarm 230 V (device) uses a photoelectric sensor to detect
smoke generated by fire and a temperature sensor that detects heat caused by
rapid increase in temperature. It also includes a backup battery that allows the
device to work if the power supply is disconnected. When connected to the Wiser
system, the device will send notifications via the Wiser app.
Operating elements
A. Status LED (Amber, Green and Red LED)
B. Standby LED (Red LED)
C. Test/Hush button
D. Power switch: OFF/Auto*
E. Setup/Reset button
*OFF/Auto: In this position the device is turned off. When the device is mounted
on the mounting base, it turns on automatically. When it is removed, it turns off
automatically.
Installation location
•
Smoke Alarm can be installed on a flat/inclined ceiling, or on the wall.
•
Do not install smoke alarms near windows, doors, or ducts.
•
Avoid paint, stickers, or other decorations.
M
>1m
> 0.3 m
0.3 m min.
0.3 m min. /
0.5 m max.
0.5 m min. /
1.5 m max.
Installing the device
Refer to the installation instruction supplied with this product.
See Wiser Smoke Alarm - 230 V.
6
DUG_Smoke Alarm AC_LK-00
Wiser Smoke Alarm - 230 V
Pairing the device
Using the Wiser app, pair your device with the Wiser Hub/Gateway to access and
control the device. You can either add the device manually or do an auto-scan to
pair it.
IMPORTANT: Do not mount the device before the pairing. The Setup/Reset
button (Zigbee) and power switch are located on the rear side of the device.
NOTE: When multiple smoke alarms are paired with same Wiser Gateway, an
868MHz radio frequency (RF) interconnection is automatically created
between smoke alarms.
Pairing device manually
1. Locate the power switch on the rear side of the device. Use a screwdriver to
turn the power switch to ON position.
NOTE: When the device is mounted on a wall or on the ceiling, the power
switch is automatically turned ON.
2. In Wiser app Home page, tap +.
3. Tap
and select the required Wiser Hub on the slide-up menu.
4. Select any one of the options to add device (A):
– Add Device with Install Code
– Add Device without Install Code
Add Device
Install Code is Recommended
To enhance network security, we strongly
recommend using the install code to add a
device.
If you are unable to scan or type the install
code, you can still add the device without it.
Add Device with Install Code
A
Add Device without Install Code
TIP: It is highly recommended to pair the device with Install code.
DUG_Smoke Alarm AC_LK-00
7
Wiser Smoke Alarm - 230 V
5. To pair the device with an install code,, tap Add Device with Install Code to
display the slide-up menu. Select any one of the options (B):
– Scan Install Code: you can scan the device for the an install code.
– Enter Install Code Manually: you can manually enter the install code
from the device.
TIP: Install code is located on the rear side of the device.
After scanning or entering the install code, proceed to Step 7.
Add Device
Install Code is Recommended
To enhance network security, we strongly
recommend using the install code to add a
device.
If you are unable to scan or type the install
code, you can still add the device without it.
Add Device with Install Code
Scanwithout
Install Code
Add Device
Install Code
Enter Install Code Manually
B
Cancel
6. To pair the device without install code, tap Add Device without Install Code.
7. Short press the Setup/Reset button 3 times.
The LED blinks yellow.
8. In the app, select LED is blinking yellow and tap Start Configuration (C).
Cancel
How to pair device
1. Turn the Power switch located at the rear
side of the device to ON position.
Note: Use a screwdriver to turn the switch.
2. Tap Set/Reset button for 3 times.
DO NOT PAINT
PUSH TO TEST / HUSH
LED is blinking yellow
C
8
DUG_Smoke Alarm AC_LK-00
Wiser Smoke Alarm - 230 V
9. After a few seconds, a solid green LED indicates that the device has been
successfully paired.
DO NOT PAINT
PUSH TO TEST / HUSH
10. Once the device is paired in the app, tap Done.
Pairing device with auto scan
Pairing the device with auto scan automatically discovers the device when the
corresponding device is powered on.
1. Locate the power switch on the rear side of the device. Use a screwdriver to
turn the power switch to ON position.
2. On the Home page, tap + > Auto scan > Confirm.
3. Enable permissions to Access location and Wi-Fi for scanning device and
tap Start scanning.
NOTE: If you have multiple hubs, do Step 4 or proceed to Step 5.
4. Tap Select hub and select the Wiser hub from the slide-up menu.
5. Press the Setup/Reset button 3 times and wait for a few seconds until the
device search is complete..
The LED blinks yellow.
TIP: If you want to pair multiple devices at once, perform step 5 on each
device and wait for a few seconds for them to be detected.
6. Tap Next (A) and select Smoke Alarm.
Auto Scan
Available devices found
Smoke
Alarm
Next
A
7. Once the device is added successfully, tap Done.
DUG_Smoke Alarm AC_LK-00
9
Wiser Smoke Alarm - 230 V
Setting up connection without Wiser Gateway
Interconnecting devices without Wiser Gateway
The smoke alarms (devices) can be connected directly to each other via RF
connections even without a Wiser Gateway network.
IMPORTANT: Turn the power switch to ON position on all the devices.
1. Identify a device and mark it as Primary with a label supplied. Other devices
are considered as Secondary.
2. Short press the Test/Hush button 3 times within 2 s on the primary device.
3× < 2 s
The Standby LED turns on for 30 s once it is in pairing mode.
3. Identify a Secondary device and short press the Test/Hush button 3 times
within 2 s.
The Standby LED blinks 3 times on both Primary and Secondary devices
indicating a successful RF connection. Then on the Primary device, the
Standby LED again turns on for 30 s
3× < 2 s
Repeat the step 3 on all Secondary devices.
NOTE: To exit from pairing mode, short press (< 0,5 s) the Test/Hush button 3
times on the Primary device. The Standby LED turns off indicating that the
Primary device is not in pairing mode.
10
DUG_Smoke Alarm AC_LK-00
Wiser Smoke Alarm - 230 V
Disconnecting a secondary device
Remove a Secondary device from the mounting base (See "Removing a device
from the mounting base in the instruction manual").
NOTE:
•
Do not remove the Primary device.
•
Read the following steps before disconnecting a Secondary device.
1. Make sure that the power switch is in OFF/AUTO position.
2. Press and hold the Test/Hush button and simultaneously turn the power
switch to ON position.
The Standby LED turns on for 3 s.
3. Continue to hold the Test/Hush button until the Standby LED turns off. Then
release the Test/Hush button.
4. Short press the Test/Hush button when the Standby LED is on for 3 s.
1× < 5 s
The Standby LED blinks for 5 s indicating disconnecting of RF
interconnection also the Status LED blinks green for 7 times.
IMPORTANT:
DUG_Smoke Alarm AC_LK-00
•
When the Secondary device is successfully disconnected, make sure
to turn the power switch to OFF/ AUTO position.
•
Test all smoke alarms for interconnection. Refer testing the
interconnected device(s)
11
Wiser Smoke Alarm - 230 V
Testing the device
The device has a test mode that helps ensure the proper operation of the device.
It is recommended to test the device once a month. If the device is installed in a
mobile home, it is recommended to test the device weekly and before every
journey.
NOTE: Using Wiser app you can set the monthly reminder for test alarm in
settings, page 17.
Testing the individual device
IMPORTANT: Test the device once a month to ensure proper operation.
Press the Test/Hush button on each device for more than 3 s until an alarm
sounds off. If the test alarm does not sound, then the device is not connected to
power supply.
Testing the interconnected device(s)
It is possible to test all the devices simultaneously in an interconnected network
with one operation.
1. Select any interconnected device.
2. Press and hold the Test/Hush button for more than 18 s until an alarm goes
off on all interconnected devices.
DO NOT PAINT
1× > 18 s
PUSH TO TEST /
If there is no alarm triggered on the interconnected devices, make sure that the
wireless interconnection setup is correct. Also the distance between each device
is within the specification.
NOTE: The triggered alarm on the interconnected devices remains for a
longer time even if you release the Test/Hush button.
12
DUG_Smoke Alarm AC_LK-00
Wiser Smoke Alarm - 230 V
Configuring the device
Changing the device icon
You can change the device icon using the Wiser app.
1. On the Home page, select the device for which you wish to change the icon.
2. At the top-right corner of the screen, tap
3. Tap edit
.
next to the device name.
4. Tap Icon to view the menu.
5. In the slide-up menu, select any one of the following (A) to change the device
icon:
– Take photo - allows you to take a photo with your device camera.
– Select from Icon Library - allows you to select an icon from the app
library.
– Select from Album - allows you to select a photo from the mobile gallery.
Icon
Name
Location
Take photo
Select from Icon Library
A
Select from album
Cancel
DUG_Smoke Alarm AC_LK-00
13
Wiser Smoke Alarm - 230 V
Renaming the device
You can rename the device using the Wiser app.
1. On the Home page, select the device for which you wish to rename.
2. At the top-right corner of the screen, tap
3. Tap edit
.
next to the device name.
4. Tap Name, enter the new name (A) and then tap Save.
Icon
Rename
Name
A
LocationCancel
Save
Changing the device location
You can change the device location using the Wiser app.
1. On the Home page, select the device for which you wish to change the
location.
2. At the top-right corner of the screen, tap
3. Tap edit
.
next to the device name.
4. Tap Location.
5. Select the desired location from the list (A) and then tap Save.
Device location
Save
Living Room
Master Bedroom
Kitchen
A
Dining Room
Study Room
Kids Room
14
DUG_Smoke Alarm AC_LK-00
Wiser Smoke Alarm - 230 V
Using the device
The Control Panel of the smoke alarm allows you to view the current state of the
device and allow you to access the history and settings.
On the Home page, tap All devices > Smoke Alarm to access the control panel.
On the Smoke Alarm control panel page, you can see the following:
•
Battery level (A)
•
Current state of the device (B)
•
History, page 16 (C)
•
Settings (D) : LED brightness settings, page 17 and Test alarm reminder,
page 18
Smoke Alarm
A
B
No Alarm
C
D
DUG_Smoke Alarm AC_LK-00
History
Settings
15
Wiser Smoke Alarm - 230 V
Checking the device history
Using the Wiser app, you can monitor the smoke detection by accessing the
device history.
1. On the Home page, tap All devices > Smoke Alarm.
2. On the device control panel page, tap History.
3. In the History page, you can see the date, time, and type of alarm detected.
History
The history supports record checking for 7 days in maximum.
04 February
04 February
Smoke Alarm
19:46:02 I The Smoke Alarm occured
Test Alarm
19:41:37 I The Test Alarm occured
Test Alarm
19:41:22 I The Test Alarm occured
NOTE: The history supports record checking for 7 days maximum.
16
DUG_Smoke Alarm AC_LK-00
Wiser Smoke Alarm - 230 V
Setting LED brightness
You can change the LED brightness to minimum and maximum manually or by
using Wiser app.
Changing the LED brightness manually
1. When the device is in standby mode, short press the test/hush button 3 times
within 2 s.
3× < 2 s
2. When the Red LED is On, short press the Test/Hush button to switch between
Min. and Max. LED brightness.
1× < 0,5 s
3. Again short press the Test/Hush button 3 times within 2 s to store the adjusted
brightness level. Otherwise, you can wait 30s for the standby LED to turn off,
then the brightness level will be saved.
3× < 2 s
DUG_Smoke Alarm AC_LK-00
17
Wiser Smoke Alarm - 230 V
Changing the LED brightness using app
1. On the Home page, tap All devices > Smoke Alarm.
2. On the device control panel page, tap Settings.
3. Tap on LED Indicator Light Level (A).
4. Follow the settings mentioned in the pop-up notification, then tap Ok (B).
5. Select Min or Max indicator level (C).
Settings
A
Settings
LED Indicator Light Level
Min
LED Indicator Light Level
Min
Test Alarm Reminder
Test Alarm Reminder
Notice: If the Test Alarm Reminder is activated, the App will
Notice: If the Test Alarm Reminder is activated, the App will
perform a test alarm. The reminder is also stored in the
perform a test alarm. The reminder is also stored in the
to wake it up before applying the
settings.
OFF/AUTO
ON
LED Indicator Light Level
Cancel
B
ok
Min
C
Max
Cancel
Test alarm reminder
You can set a reminder for the test alarm in the Wiser app.
1. On the Home page, tap All devices > Smoke Alarm.
2. On the device control panel page, tap Settings.
3. Tap the Test Alarm Reminder toggle switch (A) to turn on the reminder.
Settings
LED Indicator Light Level
Max
Test Alarm Reminder
A
Notice: If the Test Alarm Reminder is activated, the App will
perform a test alarm. The reminder is also stored in the
NOTE: If the test alarm reminder is enabled, the app sends a monthly
reminder to perform a test alarm on the first day of every month.
The reminder is also stored in the Notification
18
history under Messages.
DUG_Smoke Alarm AC_LK-00
Wiser Smoke Alarm - 230 V
Silencing the device
Hush the smoke alarms
During an alarm event, first identify the smoke alarm/s that detected smoke, these
will have Red LEDs blinking. Then short press the Test/Hush button on the device
to stop the alarm.
IMPORTANT: In hush mode, the device will not detect smoke/high
temperature for 10 minutes. After this time the device resumes to normal
operation. During this time, the Standby LED blinks once every 8 s.
For instance, if smoke is detected and the device is set to hush mode, hightemperature detection will still be active.
or
If high temperature is detected and then device is set to hush mode, smoke
detection will still be active.
In the event that smoke and high temperature are both detected at the same
time, and the device is set to hush mode, then both smoke and high
temperature detection will not work for the next 10 minutes.
In an interconnected group, if more than one device has blinking Red LEDs and
an active alarm, short press the Test/Hush button on all devices. All
interconnected devices stop alarming within 5 to 10 s.
NOTE: Wait for 10 minutes before performing any test to avoid malfunctioning
of the device. Once the device is set to Hush Mode the status can be checked
in Wiser app.
Smoke Alarm
The device is in Hush Mode - it will
not detect smoke temporarily.
Hush Mode
History
Settings
DUG_Smoke Alarm AC_LK-00
19
Wiser Smoke Alarm - 230 V
Temporarily disabling smoke detection
To temporarily disable the smoke detection of a device, short press the Test/Hush
button once when the device is in Standby mode. The device will not detect smoke
for 10 minutes. During this mode the Standby LED blinks once every 8 s.
NOTE: The temperature sensor remains active even when the smoke
detection is disabled.
Snoozing the device alerts
Low Battery
When the battery is low, the Standby LED blinks every 48 s, together with a beep.
You can snooze the low battery indication for 10 hours by short pressing the Test/
Hush button once.
IMPORTANT: The user must replace the device within 30 days after the first
alert.
Fault detection
When a device fault is detected, 2 beeps occur every 48 s together with blinking
Standby LED. You can snooze the indication for 10 hours by short pressing the
Test/Hush button once.
Refer troubleshooting, page 29.
Alarm memory
In an interconnected group, the Standby LED on the triggered device blinks once
every 2 s for 72 hours after the alarm has stopped. This allows the user to identify
the device that was triggered by smoke/high temperature. Short press the Test/
Hush button once to snooze the blinking LED for 10 hours.
False alarm
In an event of a false alarm in an interconnected group, it is recommended to
identify the triggering device(s) by finding the devices with flashing Red LED every
2 s, or by using alarm history log in the app. These devices must be cleaned,
serviced or replaced if necessary.
20
DUG_Smoke Alarm AC_LK-00
Wiser Smoke Alarm - 230 V
Creating an automation
An automation allows you to group multiple actions that are usually done together,
triggered automatically or at scheduled times. By using the Wiser app, you can
create automations based on your needs.
1. On the Home page, tap the
.
2. Go to Automation > + to create an automation.
3. Tap Edit name
, enter the name of the automation (A) and tap Save.
TIP: You can choose the cover image that represents your automation by
tapping
Cancel
.
Automation settings
Save
My Automation
Any condition is met
(0/10)
Edit name
Add Condition
A
Action
(Added
Save 0/80)
Cancel
Add Task
All-Day
4. Tap Any condition is met to select any one of the condition type (B):
– All conditions are met- The automation is triggered when all the
conditions are met.
– Any condition is met- The automation is triggered when at least one
condition is met.
Cancel
Automation settings
Save
My Automation
Any condition is met
(0/10)
Add Condition
(Added 0/80)
Action
Add Task
Select Condition type
All conditions are met
B
Any condition is met
Cancel
5. Tap Add Condition to display the slide-up menu.
DUG_Smoke Alarm AC_LK-00
21
Wiser Smoke Alarm - 230 V
6. In the Add Condition menu, you can do either or all of the following options
(C):
– When weather changes - Select the various weather settings
– Schedule - Set the time and day
– When device status changes - Select the device and it’s function
NOTE: You can add one or more conditions using
.
.
Cancel
Automation settings
Save
My Automation
Any condition is met
(0/10)
Add Condition
Add Condition
When weather changes
Schedule
C
When device status changes
7. Tap When device status changes > Smoke Alarm and select either or all of
the functions to add in the automation:
– Heat Alarm - When the device detects rise in temperature (D)
– Test Mode - When the device is in test mode (E)
– Remote Alarm - When the device is triggered by interconnected device
(F)
– Hush Mode - When the device is in hush mode (G)
– Smoke Alarm - When the device detects smoke (H)
Select function
D
E
F
G
H
Heat Alarm
Test Mode
Remote Alarm
Hush Mode
Smoke Alarm
8. Tap Add task to display the slide-up menu.
22
DUG_Smoke Alarm AC_LK-00
Wiser Smoke Alarm - 230 V
9. In the Add task menu, you can do either or all of the following options (I):
– Run the device- Select the devices that you want to triggered.
– Moment or Automation- Select the moment which you want to trigger or
select the automation that you want to enable or disable.
– Send notification- Turn On notification for the automation.
– Delay - Set the delay time.
NOTE: You can add one or more actions using
Cancel
Automation settings
.
Save
My Automation
Any condition is met
(0/10)
Add Condition
Action
Add task
(Added 0/80)
Run the device
Add Task
Moment or Automation
I
All-Day
Delay
10. Tap on Effective period to set the time range for the automation. You can
select any one of the following (J):
– All-day - 24 hours
– Daytime - From sunrise to sunset
– Night - From sunset to sunrise
– Custom - User defined time period
Next
All-day
24 hours
Daytime
From sunrise to sunset
Night
J
From sunset to sunrise
Custom
Repeat
Everyday
City
11. Set all the actions and conditions and than tap Save.
Automation is now available under Automation tab. Use toggle switch to
enable/disable automation.
DUG_Smoke Alarm AC_LK-00
23
Wiser Smoke Alarm - 230 V
Example of an automation
This demonstration shows you how to create an automation to get notification on
your app when the smoke is detected.
1. Go to Automation > + to create an automation.
2. Tap Edit name
, enter the name of the automation and tap Save.
TIP: You can choose the cover image that represents your automation by
tapping
.
3. Tap Add Condition > When device status changes > Smoke Alarm.
4. In Select function menu tap on Smoke Alarm > Smoke Alarm (A).
Smoke Alarm
Smoke Alarm Ended
A
Smoke Alarm
5. Tap Add task > Send Notification and select Notifications (B).
Next
Multiple items selectable
B
6. Tap Next.
24
DUG_Smoke Alarm AC_LK-00
Wiser Smoke Alarm - 230 V
7. In the Automation Settings page, tap Save.
Automation settings
Cancel
Save
My Automation
Any condition is met
(1/10)
Smoke Alarm
Smoke Alarm: Smoke Alarm
Action
(1/80)
On
All-Day
Once the automation is saved, it is visible on the Automation tab. You can
tap the toggle switch on the automation to enable it.
Push notification will appear on the screen when the automation is triggered. You
can also tap on
to access the notification history.
Editing an automation
1. On the Automation tab, locate the automation you want to edit and tap
.
2. On the Edit page, you can tap each item (such as dimmer, shutter, delay,
temperature, etc.) to change the settings.
TIP:
•
You can add one or more condition or actions using
.
•
To delete an existing condition or action, slide each item towards left
and tap Delete.
Deleting an automation
1. On the Automation tab, locate the automation that you want to delete and
then tap
.
2. Tap Delete and then tap Ok.
NOTE: After deleting an automation, the device action can no longer be
triggered.
DUG_Smoke Alarm AC_LK-00
25
Wiser Smoke Alarm - 230 V
Removing the device from the Wiser app
You can remove a device from the device list using the Wiser app,
1. On the Home page, tap All devices > Smoke Alarm.
2. Tap
to display more details.
3. Tap Remove and Factory Reset Device (A) and tap Confirm.
More
Smoke Alarm
Room: Sensors
Device information
Moment and Automation
Others
FAQ & Feedback
Add to home Screen
No updates available.
Remove and Factory Reset Device
A
TIP: Alternatively, you can tap and hold on theSmoke Alarm on the
Home page to remove the device.
NOTE: By removing the device, you will reset the device. If you still have
a problem with the reset, then refer to resetting the device, page 26.
Resetting the device manually
Short press (< 0,5 s) the Setup/Reset button 3 times and then long press the
Setup/Reset button once for >10 s to reset the device to factory default mode.
IMPORTANT: All configuration data, user data and network data are deleted.
ON
OFF/AUTO
26
DUG_Smoke Alarm AC_LK-00
Wiser Smoke Alarm - 230 V
Maintenance and cleaning
A monthly inspection is recommended to help ensure the device is dust, dirt, and
insect free. The device can be vacuumed (strongly recommended) or brushed
with a soft brush to remove accumulated dust, dirt or kitchen grease. Apply a small
amount of insect surface spray to a cloth and wipe around device(s) every 3 to 6
months to mitigate insect ingress.
IMPORTANT:
1. Always test the device after cleaning, for more information refer testing
the device, page 12.
2. If necessary refer to the installation instruction for more information about
installing the device.
NOTICE
EQUIPMENT MAINTENANCE INSTRUCTIONS
•
Test the device regularly to ensure its functionality and the battery is in good
condition.
•
Replace the device after 10 years from the date of manufacturing.
•
Do not open the device casing or repair yourself. There are no serviceable
parts inside.
Failure to follow these instructions can result in equipment damage.
DUG_Smoke Alarm AC_LK-00
27
Wiser Smoke Alarm - 230 V
LED Indications
Pairing
User Action
LED Indication
Status
Press the Setup/Reset button 3 times
Status LED blinks yellow, once per second.
Pairing mode is active for 30 seconds.
When pairing is completed, status LED
glows green for some time before turning
Off.
User Action
LED Indication
Status
Press the Setup/Reset button 3 times and
hold it for > 10 s.
After 10 s, status LED starts blinking red.
The device is in reset mode. It is reset to the
factory settings after 10 seconds. The
device then restarts and the status LED
starts blinking green before turning Off.
Resetting
Operating
Operating Mode
Standby LED
Alarming Sound
Duration
Normal mode / Standby mode
Blinks every 48 s
OFF
—
Local Alarm *
Blinks every 1 s
3 beeps every 4 s
—
Interconnected alarm
OFF
3 beeps every 4 s
—
1 blink every 1 s
3 beeps every 4 s
Until Test/Hush button is
released
Wireless interconnection test
OFF
Continuous 3 beeps
every 4 s
25 s
Hush mode
Blinks every 8 s
OFF
10 min
Low battery mode
Blinks every 48 s
1 beep every 48 s
End of life: replace
smoke alarm
Fault mode
2 blinks every 48 s
2 beeps every 48 s
Until fault has been
cleared
Low battery
Blinks every 24 s
OFF
10 hrs
Fault
2 blinks every 24 s
OFF
10 hrs
Alarm memory
Blinks every 48 s
OFF
10 hrs
Alarm Mode
Test mode
Snooze Mode
NOTE: For all the operating modes, LED blinks Red.
* For local smoke alarms, all red LEDs blink, whereas, for local temperature alarms, only the standby red LED blinks.
28
DUG_Smoke Alarm AC_LK-00
Wiser Smoke Alarm - 230 V
Troubleshooting
Issue
Resolution/Action
Device does not produce an alarm sound when tested.
1. Confirm that the power switch is in ON position, or the device
is installed correctly. If you are unsure then remove and
reinstall the device.
2. Press Test/Hush button until an alarm sound is produced. Do
not press consecutively.
3. If the problem persists or if you have questions about the
warranty, contact customer care center.
Device beeps and Standby LED blinks every 48 s
Battery may be low or drained. Replace the device.
Device beeps twice and Standby LED blinks every 48 s
1. Clean the device. Refer to Maintenance, page 27 section.
2. If the problem persists or if you have questions about the
warranty, contact customer care center.
Device produces alarm sound unexpectedly without smoke or
steam or high temperature.
1. Identify the triggered device, indicated by a blinking Standby
LED and 3 beeps every 4 s.
2. Press Test/Hush button to pause the alarm sound. The
interconnected device stops alarming within 10 s.
3. Clean the device. Refer to Maintenance, page 27.
4. Reinstall the device and test.
5. If the problem persists or if you have questions about the
warranty, contact customer care center.
IMPORTANT: After an alarm event, the device that has
blinking Standby LED every 2 s is the triggered device. Identify
the device and follow steps 3 to 5.
Technical Data
Power supply
110-240 VAC, 50 / 60 Hz
Back up battery Life
10 years
Operating Current
≤40 mA
Sensing Type
Photoelectric. This alarm contains NO radioactive material.
Operating Temperature
0 °C to 45 °C
Ambient Humidity
5% to 95%
Cable interconnection
Max. 40 devices
Wireless interconnection
RF+Zigbee, max. 40 devices in one network
Terminal provisions
Active, Neutral, Loop and Interconnect terminals, each
accommodates 2 × 1.5 mm² or 1 × 2.5 mm²
Operating frequency
Zigbee: 2405 - 2480 MHz
RF: 868 MHz
Wireless Range
40m indoor line of sight
Horn Level
85 dB at 3 m
Mounting Type
Mounting on ceiling and wall only
Dimensions (H × W × D)
115 × 115 × 46 mm
Standard
EN 14604
Certification
Zigbee 3.0
DUG_Smoke Alarm AC_LK-00
29
Compliance
Compliance
Compliance information for Green Premium products
Find and download comprehensive information about Green Premium products,
including RoHS compliance and REACH declarations as well as Product
Environmental Profile (PEP) and End-of-Life instructions (EOLI).
https://checkaproduct.se.com/
General information about Green Premium products
Click the link below to read about Schneider Electric’s Green Premium product
strategy.
https://www.schneider-electric.com/en/work/support/green-premium/
Trademarks
This guide makes reference to system and brand names that are trademarks of
their relevant owners.
•
Zigbee® is a registered trademark of the Connectivity Standards Alliance.
•
Apple® and App Store® are brand names or registered trademarks of Apple
Inc.
•
Google Play™ Store and Android™ are brand names or registered
trademarks of Google Inc.
•
Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
•
Wiser™ is a trademark and the property of Schneider Electric, its subsidiaries
and affiliated companies.
Other brands and registered trademarks are the property of their respective
owners.
30
DUG_Smoke Alarm AC_LK-00
Printed in:
Schneider Electric
Lautrupvang 1
2750 Ballerup
Danmark
+45 88 30 20 00
Schneider Electric Danmark A/S
Lautrupvang 1, 2750 Ballerup
Danmark
+45 88 30 20 00
www.lk.dk
As standards, specifications, and design change from time to time,
please ask for confirmation of the information given in this publication.
© 2023 – 2023 Schneider Electric. All rights reserved.
DUG_Smoke Alarm AC_LK-00

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
