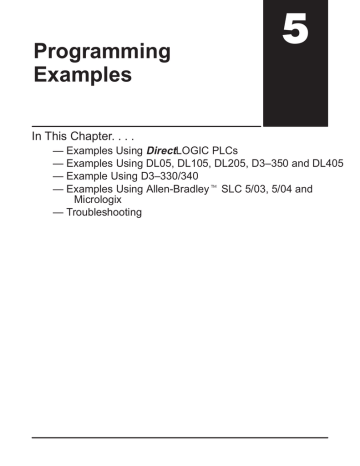

Programming Examples

5

Programming

Examples

In This Chapter. . . .

— Examples Using DirectLOGIC PLCs

— Examples Using DL05, DL105, DL205, D3–350 and DL405

— Example Using D3–330/340

— Examples Using Allen-Bradley

t

SLC 5/03, 5/04 and

Micrologix

— Troubleshooting

5–2

Programming Examples

Examples Using

DirectLogic PLCs

Register Usage

The OP–WINEDIT configuration software allows you to configure a panel to use a block of registers at a starting value that you define. For a DL05, DL105, DL205,

D3–350 or DL405 CPU the recommended memory to use is the general purpose data words starting at V2000. For the 305 family (except the D3–350) the recommended memory is the registers beginning at R400. Any block of registers within the data word range can be used.

The following table lists the data word registers for DirectLOGIC CPUs.

Data Word Registers for

DirectLOGIC t

PLCs

DirectLOGIC t DL05 D0–05

DirectLOGIC t DL105 F1–130

DirectLOGIC t DL205 D2–230

D2–250

DirectLOGIC t DL305 D3–330/D3–330P

V1200–V7377

V2000–V2377

V2000–V2377

D3–350

DirectLOGIC t DL405 D4–430

D4–450

V1400–V7377 and

V10000–V17777

R400–R563

R700–R767

V1400–V7377 and

V10000–V17777

V1400–V7377

V10000–V17777

V1400–V7377 and

V10000–V37777

Programming Examples

5–3

Examples Using DL05, DL105, DL205, D3–350 and DL405

Defining the

Status Register

The following examples assume that the OP–440 is configured for a base address of

V2000. When configuring the panel, use the configuration data and messages shown in the following figure. Also, assume that message #140 consists of all blanks.

NOTE: The Example Worksheet in Appendix A also has the configuration data and messages needed for these examples. The example uses an F1–130 CPU, but enter the PLC parameters for your PLC. The example shows how you can use the worksheets to help plan your configurations.

Enter the above messages to run the example programs.

5–4

Programming Examples

Displaying

Messages

C100

The following example shows two messages being displayed. The second line is displaying message #4 and the bottom line is displaying message #8. The top and third lines use data display message #140, which has been configured as a blank text message.

LD

K4

OUT

V2001

LD

K8

OUT

V2003

LD

V3000

OUT

V2006

LD

K140

OUT

V2000

OUT

V2002

This selects message #4 to be displayed in the second line.

This selects message #8 to be displayed in the bottom line.

This puts data from V3000 into the second line data field.

Select message #140 to blank the top and third lines.

Good Parts: 235

Process Step 1

V2000

V2001

V2002

V2003

V2004

V2005

V2006

V2007

V2010

V2011

V2012

V2013

Top line message selection

Second line message selection

Third line message selection

Bottom line message selection

Top line data

Top line data 2

Second line data

Second line data 2

Third line data

Third line data 2

Bottom line data

Bottom line data 2

5–5

Programming Examples

Displaying Binary

Numbers

This example is similar to the previous example, except that it uses a binary number in the top line display. The top line uses data display message #1, which has been configured as a binary display message. The data for the data field is coming from memory location V2200. The third line is text message #8. The second and bottom lines use message #140 which has been configured as a blank text message.

C101

This selects message #1 to be displayed in the top line.

LD

K140

OUT

V2001

OUT

V2003

LD

K1

OUT

V2000

LD

K8

OUT

V2002

LD

V2200

OUT

V2004

This selects message #8 to be displayed in the third line.

This puts data from V2200 into top line data field.

This selects message #140 to be displayed in the second and bottom lines.

Parts Left: 12340

Process Step 1

V2000

V2001

V2002

V2003

V2004

V2005

V2006

V2007

V2010

V2011

V2012

V2013

Top line message selection

Second line message selection

Third line message selection

Bottom line message selection

Top line data

Top line data 2

Second line data

Second line data 2

Third line data

Third line data 2

Bottom line data

Bottom line data 2

5–6

Programming Examples

Displaying BCD

Double Numbers

This example is similar to the previous example, except that it uses a BCD Double number in the bottom line display. The bottom line uses data display message #6, which has been configured as a BCD Double display message. The data for the data field is from V3002 and V3003. V3002 contains the four least significant digits while

V3003 contains the four most significant digits. The second line is text message #3.

The data for the second line BCD message comes from register V2100. The third line uses message #140 which has been configured as a blank text message.

C102

LD

K140

OUT

V2002

LD

K6

OUT

V2003

LDD

V3002

LD

K8

OUT

V2000

LD

K3

OUT

V2001

LD

V2100

OUT

V2006

OUTD

V2012

This selects message #8 to be displayed in the top line.

This selects message #3 to be displayed in the second line.

This puts data from V2100 into the second line data field.

This selects message #140 to blank the third line.

This selects message #6 to be displayed in the bottom line.

This puts the BCD Double number from V3002/V3003 into the bottom line data field.

Process Step 1

Tank Level: 1935

Count Val: 64197324

V2000

V2001

V2002

V2003

V2004

V2005

V2006

V2007

V2010

V2011

V2012

V2013

Top line message selection

Second line message selection

Third line message selection

Bottom line message selection

Top line data

Top line data 2

Second line data

Second line data 2

Third line data

Third line data 2

Bottom line data

Bottom line data 2

5–7

Programming Examples

Displaying

Floating Point

Numbers

Example 1

C102

This example uses a floating point number in the third line display. The bottom line uses data display message #7, which has been configured as a floating point display message. Since the data is a floating point number, it uses two 16-bit registers. The two registers have to be looked at together, not individually, for the data to be understandable. In this example, the data is a constant number (168932) which is loaded into the bottom line data display registers using an LDR (load real number) instruction. The second line is text message #8.

This selects message #140 to blank the top and bottom lines.

LD

K140

OUT

V2000

OUT

V2003

LD

K8

OUT

V2001

LD

K7

OUT

V2002

LDR

R168932

OUTD

V2010

This selects message #8 to be displayed in the second line.

This selects message #7 to be displayed in the third line.

This puts the floating point number into third line data field. Notice that the displayed value is truncated.

Process Step 1

Avg Part/Hr +1.68E+05

V2000

V2001

V2002

V2003

V2004

V2005

V2006

V2007

V2010

V2011

V2012

V2013

Top line message selection

Second line message selection

Third line message selection

Bottom line message selection

Top line data

Top line data 2

Second line data

Second line data 2

Third line data

Third line data 2

Bottom line data

Bottom line data 2

5–8

Programming Examples

Displaying

Floating Point

Numbers

Example 2

C102

This example is similar to the previous example, except that it gets its value from two

PLC registers instead of a constant value. The third line uses data display message

#7, which has been configured as a floating point display message. Remember, floating point numbers require two 16-bit registers. In this example, the data is loaded from V3010 and V3011 using an LDR (load real number) instruction to the third line display registers V2010 and V2011. The top and bottom lines use message

#140 which has been configured as a blank text message. The second line uses message #8, a text message.

This selects message #140 to blank the top and bottom lines.

LD

K140

OUT

V2000

OUT

V2003

LD

K8

OUT

V2001

LD

K7

OUT

V2002

LDR

V3010

OUTD

V2010

This selects message #8 to be displayed in the second line.

This selects message #7 to be displayed in the third line.

This puts the floating point number from V3010 and V3011 into the third line display registers

V2010 and V2011.

Process Step 1

Avg Part/Hr +1.68E+05

V2000

V2001

V2002

V2003

V2004

V2005

V2006

V2007

V2010

V2011

V2012

V2013

Top line message selection

Second line message selection

Third line message selection

Bottom line message selection

Top line data

Top line data 2

Second line data

Second line data 2

Third line data

Third line data 2

Bottom line data

Bottom line data 2

5–9

Programming Examples

Example Using D3–330/340

Defining the

Status Register

IO0

The following example assumes that the OP–440 is configured for a base address of

R400/R401. When configuring the panel, enter the messages shown in the previous section for the DL05, DL105, DL205, D3–350 and DL405 examples.

DirectSOFT

DSTR

K1

F50

Displaying Messages

This rung displays message #1 on the top line and displays the top line data as a BCD

Double number.

DOUT F60

R400

DSTR F50

R500

DOUT

R410

F60

DSTR F50

R502

DOUT

F60

R412

Top line data.

Top line data BCD Double.

First Scan

C374

DSTR F50

K2376

DOUT

F60

R500

DSTR F50

K6759

DOUT

F60

R502

This rung loads an arbitrary value (2376) at memory locations to be displayed as data values.

5–10

Programming Examples

Examples Using Allen-Bradley SLC 5/03, 5/04 and

Micrologix

Interfacing to A-B

Memory

OptiMate panels interface to Allen-Bradley SLC 5/03, SLC 5/04 and Micrologix

PLCs via integer file type N. The 5/03 and 5/04 have file type N7 as standard. Other

“N” type files can be created. The Micrologix has a fixed file type N7. Please see A-B documentation for information on setting up and using “N” type files.

NOTE: When using an OP–440 with an Allen-Bradley PLC, always be sure that at least 12 words of memory are allocated to allow proper communications.

All of the examples shown assume the OP–440 has been configured as shown below (using OP–WINEDIT) with a file number N7 and base register address 0.

Assume that message #140 consists of all blanks.

BIN

BIN

BIN

BIN

BIN

BIN

BIN

Displaying Floating

Point Numbers

While the OP–440 can display floating point numbers, the A–B SLC PLCs do not have a means of handling floating point numbers.

Displaying BCD

Numbers

A–B deals with its registers in binary, not BCD. For this reason, during configuration be sure to indicate Binary when setting up for A–B.

Programming Examples

5–11

Displaying Binary

Numbers

This example uses the configuration shown earlier, and shows two messages being displayed. The top line uses data display message #1, which has been configured as a binary display message. The data for the data field is a constant number 56432.

The data can also be moved to the data register from another register. The third line is text message #8. Message #140 is selected for the second and bottom lines.

I:2

12

MOVE

Source

Dest

1

N7:0

Selects message #1 for the top display line.

MOVE

Source

Dest

140

N7:1

Selects message #140 for the second display line.

MOVE

Source

Dest

8

N7:2

Selects message #8 for the third display line.

MOVE

Source

Dest

140

N7:3

Selects message #140 for the bottom display line.

MOVE

Source

56432

Dest N7:4

Puts binary data “56432” into the top line data field.

Parts Left: 56432

Process Step 1

N7:0

N7:1

N7:2

N7:3

N7:4

N7:5

N7:6

N7:7

N7:8

N7:9

N7:10

N7:11

Top line message selection

Second line message selection

Third line message selection

Bottom line message selection

Top line data

Top line data 2 (not used)

Second line data

Second line data 2 (not used)

Third line data

Third line data 2 (not used)

Bottom line data

Bottom line data 2 (not used)

5–12

Programming Examples

Troubleshooting

Troubleshooting

Power

Supply Problems

Configuration

Problems

Communication

Problems

Getting Help

In this section, we explain how to isolate potential problems which may occur while using the OP–440. Because these panels have only a power supply connection and a communications connection, no DIP switches or controls to set, and cannot be used in multiple panel arrangements, troubleshooting is a very straightforward operation.

If the panel LED display and the RX and TX LEDs on the back of the panel do not illuminate, the panel is most likely not receiving input power. Carefully check your connections to make sure they are tight. If this does not help, see Chapter 2 and review the input power requirements.

Remember, all PLC’s require that you use the OP–PS400 5V plug-in power supply

(or equivalent) for configuration. Some PLC’s also require that you use this power supply for operation. Make sure that the 120 VAC receptacle you plug the power supply into has power. Also, if you are using another 5V power supply, make sure that it has a center negative connector.

If using a PLC that supplies 5V for operation through the communications cable, check to make sure sure that pin 5 on the lead going into the panel has a 5V signal.

Make sure that you are using the proper configuration cable (OP–CCBL) and that it is securely connected. Check your configuration program and make sure the proper communications port is selected, such as COM1 or COM2. Review your configuration settings to make sure they are correct. Remember, the OP–WINEDIT

Help screens provide a lot of valuable information.

Observe the RX and TX LEDs on the rear panel. They should be steady flashing or glow (depending on the baud rate). If not, make sure that you are using the proper communications cable and that it is securely connected. Review your configuratiion settings and make sure that the communications information for your PLC, address number, baud rate, protocol type, etc. is correct. Check the user manual for your PLC for the proper settings.

See “Technical Support” in Chapter 1 for additional information.
