SN8P2318

SN8P2318

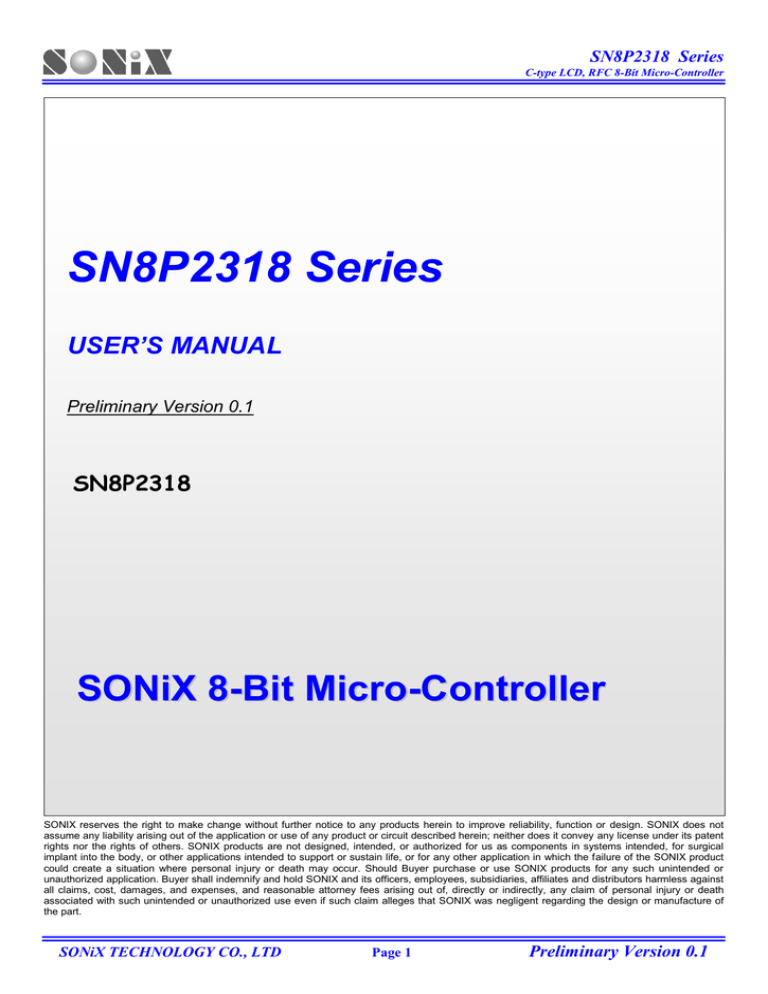

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

SN8P2318 Series

USER’S MANUAL

Preliminary Version 0.1

SN8P2318

S O N i i

X 8 -

-

B i i t t

M i i c r r o -

-

C o n t t r r o l l l l e r r

SONIX reserves the right to make change without further notice to any products herein to improve reliability, function or design. SONIX does not assume any liability arising out of the application or use of any product or circuit described herein; neither does it convey any license under its patent rights nor the rights of others. SONIX products are not designed, intended, or authorized for us as components in systems intended, for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SONIX product could create a situation where personal injury or death may occur. Should Buyer purchase or use SONIX products for any such unintended or unauthorized application. Buyer shall indemnify and hold SONIX and its officers, employees, subsidiaries, affiliates and distributors harmless against all claims, cost, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use even if such claim alleges that SONIX was negligent regarding the design or manufacture of the part.

SONiX TECHNOLOGY CO., LTD

Page 1

Preliminary Version 0.1

Version

VER 0.1

Date

Mar. 2010 First issue.

AMENDENT HISTORY

Description

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

SONiX TECHNOLOGY CO., LTD

Page 2

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

Table of Content

AMENDENT HISTORY ................................................................................................................................ 2

1 PRODUCT OVERVIEW ........................................................................................................................... 8

1.1

FEATURES ........................................................................................................................................ 8

1.2

SYSTEM BLOCK DIAGRAM .......................................................................................................... 9

1.3

PIN ASSIGNMENT ........................................................................................................................... 9

1.4

PIN DESCRIPTIONS ....................................................................................................................... 10

1.5

PIN CIRCUIT DIAGRAMS ............................................................................................................. 11

2 CENTRAL PROCESSOR UNIT (CPU) .................................................................................................. 13

2.1

PROGRAM MEMORY (ROM) ....................................................................................................... 13

2.1.1

RESET VECTOR (0000H) ...................................................................................................... 14

2.1.2

INTERRUPT VECTOR (0008H) ............................................................................................. 15

2.1.3

LOOK-UP TABLE DESCRIPTION ........................................................................................ 17

2.1.4

JUMP TABLE DESCRIPTION ............................................................................................... 19

2.1.5

CHECKSUM CALCULATION............................................................................................... 21

2.2

DATA MEMORY (RAM) ................................................................................................................ 22

2.2.1

SYSTEM REGISTER .............................................................................................................. 22

2.2.1.1

SYSTEM REGISTER TABLE ............................................................................................ 22

2.2.1.2

SYSTEM REGISTER DESCRIPTION ............................................................................... 22

2.2.1.3

BIT DEFINITION of SYSTEM REGISTER ....................................................................... 23

2.2.2

ACCUMULATOR ................................................................................................................... 25

2.2.3

PROGRAM FLAG ................................................................................................................... 26

2.2.4

PROGRAM COUNTER........................................................................................................... 27

2.2.5

H, L REGISTERS..................................................................................................................... 30

2.2.6

Y, Z REGISTERS..................................................................................................................... 31

2.2.7

R REGISTER ........................................................................................................................... 31

2.3

ADDRESSING MODE .................................................................................................................... 32

2.3.1

IMMEDIATE ADDRESSING MODE .................................................................................... 32

2.3.2

DIRECTLY ADDRESSING MODE ....................................................................................... 32

2.3.3

INDIRECTLY ADDRESSING MODE ................................................................................... 32

2.4

STACK OPERATION ...................................................................................................................... 33

2.4.1

OVERVIEW ............................................................................................................................. 33

2.4.2

STACK REGISTERS ............................................................................................................... 34

2.4.3

STACK OPERATION EXAMPLE.......................................................................................... 35

2.5

CODE OPTION TABLE .................................................................................................................. 36

2.5.1

High_Clk code option ............................................................................................................... 36

SONiX TECHNOLOGY CO., LTD

Page 3

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.5.2

Low_Clk code option ............................................................................................................... 36

2.5.3

Fcpu code option ...................................................................................................................... 36

2.5.4

Reset_Pin code option .............................................................................................................. 37

2.5.5

Security code option ................................................................................................................. 37

2.5.6

Noise Filter code option ........................................................................................................... 37

3 RESET ...................................................................................................................................................... 38

3.1

OVERVIEW ..................................................................................................................................... 38

3.2

POWER ON RESET ......................................................................................................................... 39

3.3

WATCHDOG RESET ...................................................................................................................... 39

3.4

BROWN OUT RESET ..................................................................................................................... 39

3.5

THE SYSTEM OPERATING VOLTAGE ....................................................................................... 40

3.6

LOW VOLTAGE DETECTOR (LVD) ............................................................................................ 40

3.7

BROWN OUT RESET IMPROVEMENT ....................................................................................... 42

3.8

EXTERNAL RESET ........................................................................................................................ 43

3.9

EXTERNAL RESET CIRCUIT ....................................................................................................... 43

3.9.1

Simply RC Reset Circuit .......................................................................................................... 43

3.9.2

Diode & RC Reset Circuit ........................................................................................................ 44

3.9.3

Zener Diode Reset Circuit ........................................................................................................ 44

3.9.4

Voltage Bias Reset Circuit ....................................................................................................... 45

3.9.5

External Reset IC ...................................................................................................................... 45

4 SYSTEM CLOCK .................................................................................................................................... 46

4.1

OVERVIEW ..................................................................................................................................... 46

4.2

F

CPU

(INSTRUCTION CYCLE) ...................................................................................................... 46

4.3

SYSTEM HIGH-SPEED CLOCK .................................................................................................... 46

4.3.1

HIGH_CLK CODE OPTION ................................................................................................... 47

4.3.2

INTERNAL HIGH-SPEED OSCILLATOR ............................................................................ 47

4.3.3

EXTERNAL HIGH-SPEED OSCILLATOR ........................................................................... 47

4.4

SYSTEM LOW-SPEED CLOCK ..................................................................................................... 48

4.5

OSCM REGISTER ........................................................................................................................... 49

4.6

SYSTEM CLOCK MEASUREMENT ............................................................................................. 49

4.7

SYSTEM CLOCK TIMING ............................................................................................................. 50

5 SYSTEM OPERATION MODE .............................................................................................................. 53

5.1

OVERVIEW ..................................................................................................................................... 53

5.2

NORMAL MODE ............................................................................................................................ 54

5.3

SLOW MODE .................................................................................................................................. 54

5.4

POWER DOWN MDOE .................................................................................................................. 54

5.5

GREEN MODE ................................................................................................................................ 55

5.6

OPERATING MODE CONTROL MACRO .................................................................................... 56

SONiX TECHNOLOGY CO., LTD

Page 4

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

5.7

WAKEUP ......................................................................................................................................... 57

5.7.1

OVERVIEW ............................................................................................................................. 57

5.7.2

WAKEUP TIME ...................................................................................................................... 57

5.7.3

P1W WAKEUP CONTROL REGISTER ................................................................................ 59

6 INTERRUPT ............................................................................................................................................ 60

6.1

OVERVIEW ..................................................................................................................................... 60

6.2

INTEN INTERRUPT ENABLE REGISTER ................................................................................... 61

6.3

INTRQ INTERRUPT REQUEST REGISTER ................................................................................ 62

6.4

GIE GLOBAL INTERRUPT OPERATION .................................................................................... 63

6.5

PUSH, POP ROUTINE..................................................................................................................... 64

6.6

EXTERNAL INTERRUPT OPERATION (INT0) ........................................................................... 65

6.7

INT1 (P0.1) INTERRUPT OPERATION ......................................................................................... 66

6.8

T0 INTERRUPT OPERATION........................................................................................................ 67

6.9

TC0 INTERRUPT OPERATION ..................................................................................................... 68

6.10

T1 INTERRUPT OPERATION........................................................................................................ 69

6.11

MULTI-INTERRUPT OPERATION ............................................................................................... 70

7 I/O PORT .................................................................................................................................................. 71

7.1

OVERVIEW ..................................................................................................................................... 71

7.2

I/O PORT MODE ............................................................................................................................. 72

7.3

I/O PULL UP REGISTER ................................................................................................................ 74

7.4

I/O PORT DATA REGISTER .......................................................................................................... 75

8 TIMERS.................................................................................................................................................... 76

8.1

WATCHDOG TIMER ...................................................................................................................... 76

8.2

T0 8-

BIT BASIC TIMER

........................................................................................................................ 78

8.2.1

OVERVIEW ............................................................................................................................. 78

8.2.2

T0 Timer Operation .................................................................................................................. 79

8.2.3

T0M MODE REGISTER ......................................................................................................... 80

8.2.4

T0C COUNTING REGISTER ................................................................................................. 80

8.2.5

T0 TIMER OPERATION EXPLAME ..................................................................................... 81

8.3

TC0 8-BIT TIMER/COUNTER ....................................................................................................... 82

8.3.1

OVERVIEW ............................................................................................................................. 82

8.3.2

TC0 TIMER OPERATION ...................................................................................................... 83

8.3.3

TC0M MODE REGISTER ....................................................................................................... 84

8.3.4

TC0C COUNTING REGISTER .............................................................................................. 84

8.3.5

TC0R AUTO-RELOAD REGISTER ....................................................................................... 85

8.3.6

TC0D PWM DUTY REGISTER ............................................................................................. 85

8.3.7

TC0 EVENT COUNTER ......................................................................................................... 86

8.3.8

PULSE WIDTH MODULATION (PWM) .............................................................................. 86

SONiX TECHNOLOGY CO., LTD

Page 5

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.3.9

TC0 TIMER OPERATION EXPLAME .................................................................................. 87

8.4

T1 16-

BIT

T

IMER WITH

C

APTURE

T

IMER

F

UNCTION

.......................................................................... 89

8.4.1

OVERVIEW ............................................................................................................................. 89

8.4.2

T1 TIMER OPERATION ......................................................................................................... 90

8.4.3

T1M MODE REGISTER ......................................................................................................... 91

8.4.4

T1CH, T1CL 16-bit COUNTING REGISTERS ...................................................................... 92

8.4.5

T1 CPATURE TIMER OPERATION ..................................................................................... 93

8.4.6

CAPTURE TIMER CONTROL REGISTERS ........................................................................ 94

8.4.7

10-bit Event Counter Function ................................................................................................. 94

8.4.8

T1VCH, T1VCL 10-bit EVENT COUNTER REGISTERS .................................................... 95

8.4.9

T1 TIMER OPERATION EXPLAME ..................................................................................... 96

9 RESISTANCE TO FREQURNCY CONVERTER (RFC) ...................................................................... 98

9.1

OVERVIEW ..................................................................................................................................... 98

9.2

RFC APPLICATION CIRCUIT ....................................................................................................... 99

9.3

RFC OPERATION ........................................................................................................................... 99

9.4

RFCM REGISTER ......................................................................................................................... 100

9.5

RFC OPERATION EXPLAME...................................................................................................... 101

1

00

4X32 LCD DRIVER .......................................................................................................................... 102

10.1

OVERVIEW ................................................................................................................................... 102

10.2

LCD REGISTERS .......................................................................................................................... 102

10.3

C-TYPE LCD MODE ..................................................................................................................... 103

10.4

R-TYPE LCD MODE ..................................................................................................................... 104

10.5

LCD RAM MAP ............................................................................................................................. 105

10.6

LCD WAVEFORM ........................................................................................................................ 106

1

11

INSTRUCTION TABLE .................................................................................................................... 107

1

22

ELECTRICAL CHARACTERISTIC................................................................................................. 108

12.1

ABSOLUTE MAXIMUM RATING .............................................................................................. 108

12.2

ELECTRICAL CHARACTERISTIC ............................................................................................. 108

1

33

DEVELOPMENT TOOL ................................................................................................................... 109

13.1

SN8P2318 EV-

KIT

.......................................................................................................................... 109

13.2

ICE

AND

EV-KIT APPLICATION NOTIC .................................................................................... 110

1

44

OTP PROGRAMMING PIN .............................................................................................................. 111

14.1

WRITER TRANSITION BOARD SOCKET PIN ASSIGNMENT ............................................... 111

14.2

PROGRAMMING PIN MAPPING: ............................................................................................... 111

1

55

MARKING DEFINITION ................................................................................................................. 112

SONiX TECHNOLOGY CO., LTD

Page 6

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

15.1

INTRODUCTION .......................................................................................................................... 112

15.2

MARKING INDETIFICATION SYSTEM .................................................................................... 112

15.3

MARKING EXAMPLE ................................................................................................................. 112

15.4

DATECODE SYSTEM .................................................................................................................. 113

1

66

PACKAGE INFORMATION ............................................................................................................ 114

16.1

LQFP 64 PIN .................................................................................................................................. 114

SONiX TECHNOLOGY CO., LTD

Page 7

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

1

PRODUCT OVERVIEW

1.1 FEATURES

Memory configuration

ROM size: 4K * 16 bits.

RAM size: 128 * 8 bits.

8 levels stack buffer.

5 interrupt sources

3 internal interrupts: T0, TC0, T1

2 external interrupt: INT0, INT1

I/O pin configuration

Bi-directional: P0, P1, P5.

Bi-directional and shared with SEG pins: P2, P3.

Input only shared with reset pin: P0.3.

Wakeup: P0, P1 level change.

Pull-up resisters: P0, P1, P2, P3, P5.

External interrupt pin:

P0.0 trigger edge controlled by PEDGE.

P0.1 level change trigger.

Event counter input:

TC0 event counter input pin: P0.0

T1 event counter input pin: P0.2

RFC channel pins: P1.0~P1.4.

3-Level LVD: 2.0V/2.4V/3.6V

Powerful instructions

Instruction’s length is one word.

Most of instructions are one cycle only.

All ROM area JMP/CALL instruction.

All ROM area lookup table function (MOVC).

Features Selection Table

CHIP ROM RAM Stack

8

8

Timer

T0 TC0 T1

V V 1

V V 1

SN8P2308 4K*16 128*8

SN8P2318 4K*16 128*8

PWM RFC

1

1

2-ch

5-ch

Fcpu (Instruction cycle)

Fcpu = Fosc/1, Fpsc/2, Fosc/4, Fosc/8, Fosc/16.

One 8-bit basic timer. (T0).

One 8-bit timer/counter (TC0) with duty/cycle

programmable PWM and IR carry signal.

One 16-bit timer/counter (T1) with auto-reload/ counter/capture timer supports for RFC function.

5-Channel RFC (Resistor to Frequency Converter)

4*32 LCD Driver (128 dots) supports internal C type and external R type bias.

On chip watchdog timer and clock source is

Internal low clock RC type (16KHz @3V, 32KHz

@5V).

4 system clocks

External high clock: RC type up to 10 MHz

External high clock: Crystal type up to 16 MHz

Internal high clock: PLL 16MHz from 32K X’tal.

Internal low clock: RC type 16KHz(3V), 32KHz(5V)

4 operating modes

Normal mode: Both high and low clock active

Slow mode: Low clock only.

Sleep mode: Both high and low clock stop

Green mode: Periodical wakeup by timer

Package (Chip form support)

LQFP 64 pin

Ext.

Int

1

2

I/O

LCD Driver

Dot C-type R-type

25 4*32 V V

29 4*32 V V

Package

LQFP64

LQFP64

SONiX TECHNOLOGY CO., LTD

Page 8

Preliminary Version 0.1

1.2 SYSTEM BLOCK DIAGRAM

PC

IR

FLAGS

OTP

ROM

INTERNAL PLL

16MHz

EXTERNAL

HIGH OSC.

INTERNAL

LOW RC

TIMING GENERATOR

3-Level LVD

(Low Voltage Detector)

WATCHDOG TIMER

ALU

RAM

C-TYPE BIAS

4*32 LCD DRIVER

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

ACC

INTERRUPT

CONTROL

SYSTEM REGISTERS

TIMER & COUNTER

RFC

PWM

COM0~COM3,

SEG0~SEG31

RFCO

RFC0~RFC4

PWM0

P0 P1

1.3 PIN ASSIGNMENT

SN8P2318F (LQFP 64 pin)

P2 P3 P5

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

P0.2/T1IN 1 O 48 SEG1

P0.1/INT1 2 47 SEG2

P0.0/INT0 3 46 SEG3

P1.0/RFC0 4 45 SEG4

P1.1/RFC1 5 44 SEG5

P1.2/RFC2 6 43 SEG6

P1.3/RFC3 7 42 SEG7

P1.4/RFC4 8

SN8P2318F

41 SEG8

P1.5 9 40 SEG9

P1.6/RFCOUT 10 39 SEG10

NC 11 38 SEG11

NC 12 37 SEG12

NC 13 36 SEG13

NC 14 35 SEG14

NC 15 34 SEG15

P5.4/PWM0 16 33 SEG16/P3.7

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

SONiX TECHNOLOGY CO., LTD

Page 9

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

1.4 PIN DESCRIPTIONS

PIN NAME TYPE DESCRIPTION

VDD, VSS

VLCD

C+, C-

V1, V2

P0.3/RST/VPP

XIN

XOUT/P0.4/FCPUO

LXIN

LXOUT/FLO

P0.0/INT0

I/O

I/O

XIN: Oscillator input pin while external oscillator enable (crystal and RC).

In PLL mode, XIN connects a decouple 0.1uF capacitor to GND.

XOUT: Oscillator output pin while external crystal enable.

P0.4: Bi-direction pin. Schmitt trigger structure as input mode. Built-in pull-up resisters. Level change wake-up.

FCPUO: Fcpu clock signal output pin as High_Clk code option=RC.

I LXIN: Low-speed oscillator input pin.

LXOUT: Low-speed oscillator output pin.

O

FLO: Low-speed RC type oscillator Flosc freq output pin as Low_Clk code option=RC.

P0.0: Bi-direction pin. Schmitt trigger structure as input mode. Built-in pull-up resisters. Level change wake-up.

I/O

INT0: External interrupt 0 input pin.

TC0 event counter input pin.

P0.1/INT1

P0.2/T1IN

I/O

I/O

P0.1: Bi-direction pin. Schmitt trigger structure as input mode. Built-in pull-up resisters. Level change wake-up.

INT1: External interrupt 1 input pin.

P0.2: Bi-direction pin. Schmitt trigger structure as input mode. Built-in pull-up resisters. Level change wake-up.

T1 event counter input pin.

P1.0/RFC0

P1.1/RFC1

P1.2/RFC2

P Power supply input pins for digital and analog circuit.

P LCD power source.

P

LCD C-type charge pump output pins.

LCD C-type: Connected a 0.1uF capacitor.

LCD R-type: Low status.

P

I, P

LCD bias voltage. 1/2 bias: V1 = V2. 1/3 bias: V1 = 1/3*Vdd, V2 = 2/3*Vdd.

LCD R-type: Connect external resistors to decide bias voltage and current.

RST: System external reset input pin. Schmitt trigger structure, active “low”, normal stay to “high”.

VPP: OTP 12.3V power input pin in programming mode.

P0.3: Input only pin with Schmitt trigger structure and no pull-up resistor. Level change wake-up.

I/O

I/O

I/O

P1.0: Bi-direction pin. Schmitt trigger structure as input mode. Built-in pull-up resisters. Level change wake-up.

RFC0: RFC channel 0.

P1.1: Bi-direction pin. Schmitt trigger structure as input mode. Built-in pull-up resisters. Level change wake-up.

RFC1: RFC channel 1.

P1.2: Bi-direction pin. Schmitt trigger structure as input mode. Built-in pull-up resisters. Level change wake-up.

P1.3/RFC3

P1.4/RFC4

P1.5

P1.6/RFCOUT

P5.4/ PWM0

P2[7:0]/

SEG[31:24]

P3[7:0]/

SEG[23:16]

SEG[15:0]

COM[3:0]

I/O

I/O

I/O

RFC2: RFC channel 2.

P1.3: Bi-direction pin. Schmitt trigger structure as input mode. Built-in pull-up resisters. Level change wake-up.

RFC3: RFC channel 3.

P1.4: Bi-direction pin. Schmitt trigger structure as input mode. Built-in pull-up resisters. Level change wake-up.

RFC4: RFC channel 4.

P1.5: Bi-direction pin. Schmitt trigger structure as input mode. Built-in pull-up resisters. Level change wake-up.

I/O

I/O

P1.6: Bi-direction pin. Schmitt trigger structure as input mode. Built-in pull-up resisters. Level change wake-up.

RFCOUT: RFC oscillating signal output pin.

P5.4: Bi-direction pin. Schmitt trigger structure as input mode. Built-in pull-up resisters.

PWM0: Programmable PWM output pin from TC0.

P2[7:0]: Bi-direction pin. No Schmitt trigger structure. Built-in pull-up resisters.

I/O

I/O

SEG[31:24]: LCD segment output pins.

P3[7:0]: Bi-direction pin. No Schmitt trigger structure. Built-in pull-up resisters.

SEG[23:16]: LCD segment output pins.

O SEG[15:0]: LCD segment output pins.

O COM[3:0]: LCD common 0~3 output pins.

SONiX TECHNOLOGY CO., LTD

Page 10

Preliminary Version 0.1

1.5 PIN CIRCUIT DIAGRAMS

Reset shared pin structure:

Ext. Reset

Code Option

Pin

I/O Input Bus

Reset

GPIO pin structure:

Pull-Up

Resistor

PnM PnUR

Pin I/O Input Bus

PnM

Output

I/O Output Bus

Latch

Specific Output Function (e.g. PWM, RFC…) shared pin structure:

Pull-Up

Resistor

PnM PnUR

Pin

PnM

Output

Latch

*. Specific Output

Function Control Bit

Specific Output

Function Control Bit

LCD SEG shared pin structure:

Pull-Up

Resistor

LCD SEG Control

Register

PnM PnUR

Pin

PnM

Output

Latch

LCD Segment Signal Generator

IO Input Bus

Output Bus

Specific Output

Bus

IO Input Bus

Output Bus

LCD Segment

Signal

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

SONiX TECHNOLOGY CO., LTD

Page 11

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

Oscillator shared pin structure:

XIN:

Pin Name

XIN

Oscillator Code Option

R

C, 4M X’tal, 12M X’tal,

PLL_16M

Pull-Up

Resistor

Oscillator input pin.

High_Clk

Code Option

PnM PnUR

Description

Pin I/O Input Bus

PnM

Output

Latch

I/O Output

Bus

High Speed

Oscillator Driver

XOUT/FCPUO/P0.4:

Pin Name

XOUT

FCPUO

P0.4

Oscillator Code Option

4M X’tal, 12M X’tal

RC

PLL_16M

Pull-Up

Resistor

High_Clk

Code Option

PnM PnUR

Description

Oscillator output pin.

Fcpu signal output pin to measure RC frequency for adjusting RC parameters.

GPIO mode.

Pin I/O Input Bus

PnM

Output

Latch

I/O Output

Bus

High Speed

Oscillator Driver

Fcpu

Signal

LXIN:

Pin Name

LXIN

Oscillator Code Option

RC, 32K X’tal

Low_Clk

Code Option

Pin

Oscillator input pin.

Description

Pin

32K X’tal Driver

RC Driver

LXOUT/FLO:

Pin Name

LXOUT

FLO

Oscillator Code Option

32K X’tal

RC

Low_Clk

Code Option

Description

Oscillator output pin.

Flosc signal output pin to measure RC frequency for adjusting RC parameters.

32K X’tal Driver

Flosc signal

SONiX TECHNOLOGY CO., LTD

Page 12

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2

CENTRAL PROCESSOR UNIT (CPU)

2.1 PROGRAM MEMORY (ROM)

4K words ROM

0000H

ROM

Reset vector

User reset vector

Jump to user start address

0001H

.

.

0007H

0008H

0009H

.

.

000FH

General purpose area

Interrupt vector

User interrupt vector

User program

0010H

0011H

.

.

.

.

.

0FFCH

0FFDH

0FFEH

0FFFH

General purpose area

Reserved

End of user program

The ROM includes Reset vector, Interrupt vector, General purpose area and Reserved area. The Reset vector is program beginning address. The Interrupt vector is the head of interrupt service routine when any interrupt occurring.

The General purpose area is main program area including main loop, sub-routines and data table.

SONiX TECHNOLOGY CO., LTD

Page 13

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.1.1 RESET VECTOR (0000H)

A one-word vector address area is used to execute system reset.

Power On Reset (NT0=1, NPD=0).

Watchdog Reset (NT0=0, NPD=0).

External Reset (NT0=1, NPD=1).

After power on reset, external reset or watchdog timer overflow reset, then the chip will restart the program from address 0000h and all system registers will be set as default values. It is easy to know reset status from NT0, NPD flags of PFLAG register. The following example shows the way to define the reset vector in the program memory.

Example: Defining Reset Vector

0

START

; 0000H

; Jump to user program address.

START:

ORG

JMP

ORG

10H

; 0010H, The head of user program.

; User program

ENDP ; End of program

SONiX TECHNOLOGY CO., LTD

Page 14

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.1.2 INTERRUPT VECTOR (0008H)

A 1-word vector address area is used to execute interrupt request. If any interrupt service executes, the program counter (PC) value is stored in stack buffer and jump to 0008h of program memory to execute the vectored interrupt.

Users have to define the interrupt vector. The following example shows the way to define the interrupt vector in the program memory.

Note:

”PUSH”, “POP” instructions save and load ACC/PFLAG without (NT0, NPD). PUSH/POP buffer is a

unique buffer and only one level.

Example: Defining Interrupt Vector. The interrupt service routine is following ORG 8.

.CODE

ORG 0 ; 0000H

JMP

ORG

PUSH

START

8

; Jump to user program address.

; Interrupt vector.

; Save ACC and PFLAG register to buffers.

; Load ACC and PFLAG register from buffers.

START:

POP

RETI

JMP

ENDP

START

; End of interrupt service routine

; The head of user program.

; User program

; End of user program

; End of program

SONiX TECHNOLOGY CO., LTD

Page 15

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

Example: Defining Interrupt Vector. The interrupt service routine is following user program.

.CODE

ORG

JMP

ORG

JMP

ORG

0

START

8

MY_IRQ

10H

; 0000H

; Jump to user program address.

; Interrupt vector.

; 0008H, Jump to interrupt service routine address.

START:

MY_IRQ:

JMP

PUSH

POP

RETI

ENDP

START

; 0010H, The head of user program.

; User program.

; End of user program.

;The head of interrupt service routine.

; Save ACC and PFLAG register to buffers.

; Load ACC and PFLAG register from buffers.

; End of interrupt service routine.

; End of program.

Note: It is easy to understand the rules of SONIX program from demo programs given above. These points are as following:

1. The address 0000H is a

“JMP” instruction to make the program starts from the beginning.

2. The address 0008H is interrupt vector.

3. User

’s program is a loop routine for main purpose application.

SONiX TECHNOLOGY CO., LTD

Page 16

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.1.3 LOOK-UP TABLE DESCRIPTION

In the ROM’s data lookup function, Y register is pointed to middle byte address (bit 8~bit 15) and Z register is pointed to low byte address (bit 0~bit 7) of ROM. After MOVC instruction executed, the low-byte data will be stored in ACC and

TABLE1: high-byte data stored in R register.

Example: To look up the ROM data located “TABLE1”.

B0MOV

B0MOV

Y, #TABLE1$M

; To set lookup table1’s middle address

Z, #TABLE1$L

; To set lookup table1’s low address.

MOVC

; To lookup data, R = 00H, ACC = 35H

; Increment the index address for next address.

@@:

INCMS

JMP

INCMS

NOP

MOVC

DW

DW

DW

Z

@F

Y

0035H

5105H

2012H

; Z+1

; Z is not overflow.

; Z overflow (FFH 00), Y=Y+1

;

;

; To lookup data, R = 51H, ACC = 05H.

;

; To define a word (16 bits) data.

Note: The Y register will not increase automatically when Z register crosses boundary from 0xFF to

0x00. Therefore, user must be take care such situation to avoid look-up table errors. If Z register is overflow, Y register must be added one. The following INC_YZ macro shows a simple method to process

Y and Z registers automatically.

Example: INC_YZ macro.

INC_YZ MACRO

INCMS

JMP

@@:

INCMS

NOP

ENDM

Y

Z

@F

; Z+1

; Not overflow

; Y+1

; Not overflow

SONiX TECHNOLOGY CO., LTD

Page 17

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

Example: Modify above example by

“INC_YZ” macro.

B0MOV

B0MOV

MOVC

Y, #TABLE1$M

; To set lookup table1’s middle address

Z, #TABLE1$L

; To set lookup table1’s low address.

; To lookup data, R = 00H, ACC = 35H

INC_YZ

; Increment the index address for next address.

@@:

TABLE1:

MOVC

DW

DW

DW

0035H

5105H

2012H

;

; To lookup data, R = 51H, ACC = 05H.

;

; To define a word (16 bits) data.

0035H

5105H

2012H

; To lookup data. If BUF = 0, data is 0x0035

; If BUF = 1, data is 0x5105

; If BUF = 2, data is 0x2012

; To define a word (16 bits) data.

SONiX TECHNOLOGY CO., LTD

Page 18

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.1.4 JUMP TABLE DESCRIPTION

The jump table operation is one of multi-address jumping function. Add low-byte program counter (PCL) and ACC value to get one new PCL. If PCL is overflow after PCL+ACC, PCH adds one automatically. The new program counter

(PC) points to a series jump instructions as a listing table. It is easy to make a multi-jump program depends on the value of the accumulator (A).

Note: PCH only support PC up counting result and doesn

’t support PC down counting. When PCL is carry after PCL+ACC, PCH adds one automatically. If PCL borrow after PCL

–ACC, PCH keeps value and not change.

Example: Jump table.

ORG

B0ADD

JMP

JMP

JMP

JMP

0X0100

PCL, A

A0POINT

A1POINT

A2POINT

A3POINT

; The jump table is from the head of the ROM boundary

; PCL = PCL + ACC, PCH + 1 when PCL overflow occurs.

; ACC = 0, jump to A0POINT

; ACC = 1, jump to A1POINT

; ACC = 2, jump to A2POINT

; ACC = 3, jump to A3POINT

SONIX provides a macro for safe jump table function. This macro will check the ROM boundary and move the jump table to the right position automatically. The side effect of this macro maybe wastes some ROM size.

Example: If “jump table” crosses over ROM boundary will cause errors.

@JMP_A MACRO

IF

VAL

(($+1) !& 0XFF00) !!= (($+(VAL)) !& 0XFF00)

JMP

ORG

ENDIF

B0ADD

ENDM

($ | 0XFF)

($ | 0XFF)

PCL, A

Note:

“VAL” is the number of the jump table listing number.

Example:

“@JMP_A” application in SONIX macro file called “MACRO3.H”.

B0MOV A, BUF0

@JMP_A 5

JMP

JMP

JMP

A0POINT

A1POINT

A2POINT

;

“BUF0” is from 0 to 4.

; The number of the jump table listing is five.

; ACC = 0, jump to A0POINT

; ACC = 1, jump to A1POINT

; ACC = 2, jump to A2POINT

JMP

JMP

A3POINT

A4POINT

; ACC = 3, jump to A3POINT

; ACC = 4, jump to A4POINT

SONiX TECHNOLOGY CO., LTD

Page 19

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

If the jump table position is across a ROM boundary (0x00FF~0x0100), the

“@JMP_A” macro will adjust the jump table routine begin from next RAM boundary (0x0100).

Example:

“@JMP_A” operation.

; Before compiling program.

ROM address

0X00FD

B0MOV A, BUF0

@JMP_A 5

JMP A0POINT

0X00FE

0X00FF

0X0100

0X0101

JMP

JMP

JMP

JMP

; After compiling program.

A1POINT

A2POINT

A3POINT

A4POINT

ROM address

0X0100

0X0101

0X0102

0X0103

0X0104

B0MOV A, BUF0

@JMP_A 5

JMP

JMP

JMP

JMP

JMP

A0POINT

A1POINT

A2POINT

A3POINT

A4POINT

;

“BUF0” is from 0 to 4.

; The number of the jump table listing is five.

; ACC = 0, jump to A0POINT

; ACC = 1, jump to A1POINT

; ACC = 2, jump to A2POINT

; ACC = 3, jump to A3POINT

; ACC = 4, jump to A4POINT

;

“BUF0” is from 0 to 4.

; The number of the jump table listing is five.

; ACC = 0, jump to A0POINT

; ACC = 1, jump to A1POINT

; ACC = 2, jump to A2POINT

; ACC = 3, jump to A3POINT

; ACC = 4, jump to A4POINT

SONiX TECHNOLOGY CO., LTD

Page 20

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.1.5 CHECKSUM CALCULATION

The last ROM address are reserved area. User should avoid these addresses (last address) when calculate the

Checksum value.

Example: The demo program shows how to calculated Checksum from 00H to the end of user’s code.

@@:

MOV

B0MOV

MOV

B0MOV

CLR

CLR

A,#END_USER_CODE$L

END_ADDR1, A

A,#END_USER_CODE$M

END_ADDR2, A

Y

Z

; Save low end address to end_addr1

; Save middle end address to end_addr2

; Set Y to 00H

; Set Z to 00H

AAA:

END_CHECK:

MOVC

B0BSET FC

ADD

MOV

DATA1, A

A, R

ADC

JMP

INCMS

JMP

JMP

MOV

CMPRS

JMP

MOV

CMPRS

DATA2, A

END_CHECK

Z

@B

Y_ADD_1

A, END_ADDR1

A, Z

AAA

A, END_ADDR2

A, Y

; Clear C flag

; Add A to Data1

; Add R to Data2

; Check if the YZ address = the end of code

; Z=Z+1

; If Z != 00H calculate to next address

; If Z = 00H increase Y

; Check if Z = low end address

; If Not jump to checksum calculate

; If Yes, check if Y = middle end address

Y_ADD_1:

CHECKSUM_END:

END_USER_CODE:

JMP

JMP

INCMS

NOP

JMP

AAA

CHECKSUM_END

Y

@B

; If Not jump to checksum calculate

; If Yes checksum calculated is done.

; Increase Y

; Jump to checksum calculate

; Label of program end

SONiX TECHNOLOGY CO., LTD

Page 21

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.2 DATA MEMORY (RAM)

128 X 8-bit RAM

BANK 0

Address

000h

07Fh

080h

0FFh

RAM Location

General Purpose Area

System Register

RAM Bank 0

080h~0FFh of Bank 0 store system registers (128 bytes).

End of Bank 0

The 128-byte general purpose RAM is in Bank 0. Sonix provides

“Bank 0” type instructions (e.g. b0mov, b0add, b0bts1, b0bset

…) to control Bank 0 RAM in non-zero RAM bank condition directly.

2.2.1 SYSTEM REGISTER

2.2.1.1 SYSTEM REGISTER TABLE

0 1 2 3 4 5 6 7 8 9 A B C D E F

8

L

9

-

H

-

R

-

Z

-

Y

-

-

-

P5M

PFLAG RBANK

-

A

T1M T1CL T1CH T1VCL T1VCH T1CKSM RFCM

B

- - - - - - -

-

-

-

-

- C P1W P1M P2M P3M

D

P0 P1 P2 P3

-

-

E

P0UR P1UR P2UR P3UR -

P5 - -

-

-

-

P0M

-

-

-

-

-

-

-

-

-

-

-

-

T0M T0C TC0M TC0C

P5UR @HL @YZ TC0D - - -

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

PEDGE

INTRQ INTEN OSCM LCDM WDTR TC0R PCL PCH

-

-

STKP

-

F

STK7L STK7H STK6L STK6H STK5L STK5H STK4L STK4H STK3L STK3H STK2L STK2H STK1L STK1H STK0L STK0H

2.2.1.2 SYSTEM REGISTER DESCRIPTION

H, L = Working, @HL addressing register.

R = Working register and ROM look-up data buffer.

RBANK = RAM bank control register.

T1CH,L = T1 counting register.

T1CKSM = T1 capture timer control register.

INTRQ = Interrupt request register.

OSCM = Oscillator mode register.

WDTR = Watchdog timer clear register.

P1W = P1 wake-up control register.

PnM = Port n input/output mode register.

PnUR = Port n pull-up resister control register.

T0C = T0 counting register.

TC0C = TC0 counting register.

TC0D = TC0 duty control register.

@YZ = RAM YZ indirect addressing index pointer.

STK0~STK7 = Stack 0 ~ stack 7 buffer.

Y, Z = Working, @YZ and ROM addressing register.

PFLAG = Special flag register.

T1M = T1 mode register.

T1VCH,L = T1 event counter counting register.

RFCM = RFC mode register.

INTEN = Interrupt enable register.

LCDM = LCD mode register.

PEDGE = P0.0 edge direction register.

PCH, PCL = Program counter.

Pn = Port n data buffer.

T0M = T0 mode register.

TC0M = TC0 mode register.

TC0R = TC0 auto-reload data buffer.

@HL = RAM HL indirect addressing index pointer.

STKP = Stack pointer buffer.

SONiX TECHNOLOGY CO., LTD

Page 22

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.2.1.3 BIT DEFINITION of SYSTEM REGISTER

Address Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 R/W

080H

081H

082H

083H

LBIT7

HBIT7

RBIT7

ZBIT7

LBIT6

HBIT6

RBIT6

ZBIT6

LBIT5

HBIT5

RBIT5

ZBIT5

LBIT4

HBIT4

RBIT4

ZBIT4

LBIT3

HBIT3

RBIT3

ZBIT3

084H

086H

YBIT7

NT0

YBIT6

NPD

YBIT5 YBIT4

LVD36 LVD24

YBIT3

087H

0A0H T1ENB T1rate2 T1rate1 T1rate0 T1CKS

LBIT2

HBIT2

RBIT2

ZBIT2

YBIT2

C

LBIT1

HBIT1

RBIT1

ZBIT1

YBIT1

DC

LBIT0

HBIT0

RBIT0

ZBIT0

YBIT0

Z

R/W

R/W

R/W

R/W

R/W

R/W

RBNKS0 R/W

R/W

0A1H

0A2H

0A3H

0A4H

T1CL7

T1CH7 T1CH6 T1CH5 T1CH4 T1CH3 T1CH2 T1CH1 T1CH0 R/W

T1VCL7 T1VCL6 T1VCL5 T1VCL4 T1VCL3 T1VCL2 T1VCL1 T1VCL0 R/W

0A5H CPTVC

0A6H RFCENB

T1CL6 T1CL5

0

T1CL4 T1CL3

1

T1CL2

CPTCKS CPTStart

RFCOUT RFCH2

T1CL1 T1CL0 R/W

T1VCH1 T1VCH0 R/W

CPTG1

RFCH1

CPTG0

RFCH0

R/W

R/W

0B8H

0BFH

P04M

P00G1 P00G0

P02M P01M P00M R/W

R/W

0C0H

0C1H

0C2H

0C3H

0C5H

0C8H

0C9H

0CAH

P27M

P37M

P16W

P16M

P26M

P36M

P15W

P15M

P25M

P35M

P14W

P14M

P24M

P34M

P54M

P13W

P13M

P23M

P33M

P12W

P12M

P22M

P32M

P11W

P11M

P21M

P31M

P10W W

P10M R/W

P20M R/W

P30M R/W

R/W

T1IRQ TC0IRQ T0IRQ

T1IEN TC0IEN T0IEN

P01IRQ

P01IEN

CPUM1 CPUM0 CLKMD STPHX

P00IRQ

P00IEN

R/W

R/W

R/W

0CBH CPCK1 CPCK0 VLCDCP PSEG2 PSEG1 PSEG0 BIAS LCDENB R/W

0CCH WDTR7 WDTR6 WDTR5 WDTR4 WDTR3 WDTR2 WDTR1 WDTR0 W

0CDH TC0R7 TC0R6 TC0R5 TC0R4 TC0R3 TC0R2 TC0R1 TC0R0 W

0CEH

0CFH

PC7 PC6 PC5 PC4 PC3

PC11

PC2

PC10

PC1

PC9

PC0

PC8

R/W

R/W

0F0H

0F1H

0F2H

0F3H

0F4H

0F5H

0F6H

0F7H

0F8H

0F9H

0FAH

0FBH

0D0H

0D1H

0D2H

0D3H

P27

P37

P16

P26

P36

P15

P25

P35

P04

P14

P24

P34

P03

P13

P23

P33

P02

P12

P22

P32

P01

P11

P21

P31

P00

P10

P20

P30

R/W

R/W

R/W

R/W

0D5H P54

0D8H T0ENB T0rate2 T0rate1 T0rate0

R/W

T0TB R/W

0D9H T0C7 T0C6 T0C5 T0C4 T0C3 T0C2

0DAH TC0ENB TC0rate2 TC0rate1 TC0rate0 TC0CKS1 TC0CKS0

T0C1 T0C0 R/W

PWM0OUT

R/W

0DBH TC0C7 TC0C6 TC0C5 TC0C4 TC0C3 TC0C2 TC0C1 TC0C0 R/W

0DFH GIE STKPB2 STKPB1 STKPB0 R/W

0E0H

0E1H

0E2H

0E3H

0E5H

0E6H

0E7H

0E8H

P27R

P37R

@HL7

P16R

P26R

P36R

@HL6

P15R

P25R

P35R

@HL5

P04R

P14R

P24R

P34R

P54R

@HL4

P13R

P23R

P33R

@HL3

P02R

P12R

P22R

P32R

@HL2

P01R

P11R

P21R

P31R

@HL1

P00R

P10R

P20R

P30R

W

W

W

W

W

@HL0 R/W

@YZ7 @YZ6 @YZ5 @YZ4 @YZ3 @YZ2 @YZ1 @YZ0 R/W

TC0D7 TC0D6 TC0D5 TC0D4 TC0D3 TC0D2 TC0D1 TC0D0 R/W

S7PC7 S7PC6 S7PC5 S7PC4 S7PC3 S7PC2 S7PC1 S7PC0 R/W

S7PC11 S7PC10 S7PC9 S7PC8 R/W

S6PC7 S6PC6 S6PC5 S6PC4 S6PC3 S6PC2 S6PC1 S6PC0 R/W

S6PC11 S6PC10 S6PC9 S6PC8 R/W

S5PC7 S5PC6 S5PC5 S5PC4 S5PC3 S5PC2 S5PC1 S5PC0 R/W

S5PC11 S5PC10 S5PC9 S5PC8 R/W

S4PC7 S4PC6 S4PC5 S4PC4 S4PC3 S4PC2 S4PC1 S4PC0 R/W

S4PC11 S4PC10 S4PC9 S4PC8 R/W

S3PC7 S3PC6 S3PC5 S3PC4 S3PC3 S3PC2 S3PC1 S3PC0 R/W

S3PC11 S3PC10 S3PC9 S3PC8 R/W

S2PC7 S2PC6 S2PC5 S2PC4 S2PC3 S2PC2 S2PC1 S2PC0 R/W

S2PC11 S2PC10 S2PC9 S2PC8 R/W

Remarks

P0

P1

P2

P3

P5

T0M

T0C

TC0M

TC0C

STKP

P0UR

P1UR

P2UR

P3UR

P5UR

@HL

@YZ

TC0D

STK7L

STK7H

STK6L

STK6H

STK5L

STK5H

STK4L

STK4H

STK3L

STK3H

STK2L

STK2H

P0M

PEDGE

P1W

P1M

P2M

P3M

P5M

INTRQ

INTEN

OSCM

LCDM

WDTR

TC0R

PCL

PCH

L

H

R

Z

Y

PFLAG

RBANK

T1M

T1CL

T1CH

T1VCL

T1VCH

T1CKSM

RFCM

SONiX TECHNOLOGY CO., LTD

Page 23

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

0FCH S1PC7 S1PC6 S1PC5 S1PC4 S1PC3 S1PC2 S1PC1 S1PC0 R/W

0FDH S1PC11 S1PC10 S1PC9 S1PC8 R/W

0FEH

0FFH

S0PC7 S0PC6 S0PC5 S0PC4 S0PC3

S0PC11

S0PC2

S0PC10

S0PC1

S0PC9

S0PC0

S0PC8

R/W

R/W

STK1L

STK1H

STK0L

STK0H

Note:

1.

To avoid system error, make sure to put all the “0” and “1” as it indicates in the above table

.

2. All of register names had been declared in SN8ASM assembler.

3. Onebit name had been declared in SN8ASM assembler with “F” prefix code.

4.

“b0bset”, “b0bclr”, ”bset”, ”bclr” instructions are only available to the “R/W” registers.

SONiX TECHNOLOGY CO., LTD

Page 24

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.2.2 ACCUMULATOR

The ACC is an 8-bit data register responsible for transferring or manipulating data between ALU and data memory. If the result of operating is zero (Z) or there is carry (C or DC) occurrence, then these flags will be set to PFLAG register.

A

CC is not in data memory (RAM), so ACC can’t be access by “B0MOV” instruction during the instant addressing mode.

Example: Read and write ACC value.

; Read ACC data and store in BUF data memory.

MOV BUF, A

; Write a immediate data into ACC.

MOV A, #0FH

; Write ACC data from BUF data memory.

MOV A, BUF

; or

B0MOV A, BUF

The system doesn’t store ACC and PFLAG value when interrupt executed. ACC and PFLAG data must be saved to other data memories. “PUSH”, “POP” save and load ACC, PFLAG data into buffers.

Example: Protect ACC and working registers.

INT_SERVICE:

; Save ACC and PFLAG to buffers. PUSH

POP ; Load ACC and PFLAG from buffers.

RETI ; Exit interrupt service vector

SONiX TECHNOLOGY CO., LTD

Page 25

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.2.3 PROGRAM FLAG

The PFLAG register contains the arithmetic status of ALU operation, system reset status and LVD detecting status.

NT0, NPD bits indicate system reset status including power on reset, LVD reset, reset by external pin active and watchdog reset. C, DC, Z bits indicate the result status of ALU operation. LVD24, LVD36 bits indicate LVD detecting power voltage status.

086H

PFLAG

Read/Write

After reset

Bit 7

NT0

R/W

-

Bit 6

NPD

R/W

-

Bit [7:6] NT0, NPD: Reset status flag.

Bit 5

LVD36

R

0

Bit 4

LVD24

R

0

Bit 3

-

-

-

Bit 2

C

R/W

0

Bit 1

DC

R/W

0

Bit 0

Z

R/W

0

NT0 NPD

0 0

Reset Status

Watch-dog time out

0

1

1

1

0

1

Reserved

Reset by LVD

Reset by external Reset Pin

Bit 5 LVD36: LVD 3.6V operating flag and only support LVD code option is LVD_H.

0 = Inactive (VDD > 3.6V).

1 = Active (VDD

≦ 3.6V).

Bit 4 LVD24: LVD 2.4V operating flag and only support LVD code option is LVD_M.

0 = Inactive (VDD > 2.4V).

1 = Active (VDD

≦ 2.4V).

Bit 2

Bit 1

Bit 0

C: Carry flag

1 = Addition with carry, subtraction without borrowing, rotation with shifting out logic “1”, comparison result

≧ 0.

0 = Addition without carry, subtraction with borrowing signal, rotation with shifting out logic “0”, comparison result < 0.

DC: Decimal carry flag

1 = Addition with carry from low nibble, subtraction without borrow from high nibble.

0 = Addition without carry from low nibble, subtraction with borrow from high nibble.

Z: Zero flag

1 = The result of an arithmetic/logic/branch operation is zero.

0 = The result of an arithmetic/logic/branch operation is not zero.

Note: Refer to instruction set table for detailed information of C, DC and Z flags.

SONiX TECHNOLOGY CO., LTD

Page 26

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.2.4 PROGRAM COUNTER

The program counter (PC) is a 12-bit binary counter separated into the high-byte 4 and the low-byte 8 bits. This counter is responsible for pointing a location in order to fetch an instruction for kernel circuit. Normally, the program counter is automatically incremented with each instruction during program execution.

Besides, it can be replaced with specific address by executing CALL or JMP instruction. When JMP or CALL instruction is executed, the destination address will be inserted to bit 0 ~ bit 11.

Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 9 Bit 8 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

PC

- - - - PC11 PC10 PC9 PC8 PC7 PC6 PC5 PC4 PC3 PC2 PC1 PC0

After reset

- - - -

PCH

ONE ADDRESS SKIPPING

0 0 0 0 0 0 0 0

PCL

0 0 0 0

There are nine instructions (CMPRS, INCS, INCMS, DECS, DECMS, BTS0, BTS1, B0BTS0, B0BTS1) with one address skipping function. If the result of these instructions is true, the PC will add 2 steps to skip next instruction.

If the condition of bit test instruction is true, the PC will add 2 steps to skip next instruction.

C0STEP:

B0BTS1

JMP

NOP

B0MOV

B0BTS0

JMP

NOP

FC

C0STEP

A, BUF0

FZ

C1STEP

; To skip, if Carry_flag = 1

; Else jump to C0STEP.

; Move BUF0 value to ACC.

; To skip, if Zero flag = 0.

; Else jump to C1STEP.

C1STEP:

If the ACC is equal to the immediate data or memory, the PC will add 2 steps to skip next instruction.

C0STEP:

CMPRS

JMP

NOP

A, #12H

C0STEP

; To skip, if ACC = 12H.

; Else jump to C0STEP.

SONiX TECHNOLOGY CO., LTD

Page 27

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

If the destination increased by 1, which results overflow of 0xFF to 0x00, the PC will add 2 steps to skip next instruction.

INCS instruction:

C0STEP:

INCMS instruction:

INCS

JMP

NOP

BUF0

C0STEP ; Jump to C0STEP if ACC is not zero.

INCMS

JMP

NOP

BUF0

C0STEP ; Jump to C0STEP if BUF0 is not zero.

C0STEP:

If the destination decreased by 1, which results underflow of 0x00 to 0xFF, the PC will add 2 steps to skip next instruction.

DECS instruction:

DECS

C0STEP:

DECMS instruction:

JMP

NOP

BUF0

C0STEP ; Jump to C0STEP if ACC is not zero.

C0STEP:

DECMS

JMP

NOP

BUF0

C0STEP ; Jump to C0STEP if BUF0 is not zero.

SONiX TECHNOLOGY CO., LTD

Page 28

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

MULTI-ADDRESS JUMPING

Users can jump around the multi-address by either JMP instruction or ADD M, A instruction (M = PCL) to activate multi-address jumping function. Program Counter supports

“ADD M,A”, ”ADC M,A” and “B0ADD M,A” instructions for carry to PCH when PCL overflow automatically. For jump table or others applications, users can calculate PC value by the three instructions and don’t care PCL overflow problem.

Note: PCH only support PC up counting result and doesn

’t support PC down counting. When PCL is carry after PCL+ACC, PCH adds one automatically. If PCL borrow after PCL

–ACC, PCH keeps value and not change.

Example: If PC = 0323H (PCH = 03H, PCL = 23H)

; PC = 0323H

MOV

B0MOV

A, #28H

PCL, A ; Jump to address 0328H

; PC = 0328H

MOV

B0MOV

A, #00H

PCL, A ; Jump to address 0300H

Example: If PC = 0323H (PCH = 03H, PCL = 23H)

; PC = 0323H

B0ADD

JMP

JMP

JMP

JMP

PCL, A

A0POINT

A1POINT

A2POINT

A3POINT

; PCL = PCL + ACC, the PCH cannot be changed.

; If ACC = 0, jump to A0POINT

; ACC = 1, jump to A1POINT

; ACC = 2, jump to A2POINT

; ACC = 3, jump to A3POINT

SONiX TECHNOLOGY CO., LTD

Page 29

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.2.5 H, L REGISTERS

The H and L registers are the 8-bit buffers. There are two major functions of these registers.

Can be used as general working registers

Can be used as RAM data pointers with @HL register

081H

H

Bit 7

HBIT7

Bit 6

HBIT6

Bit 5

HBIT5

Bit 4

HBIT4

Bit 3

HBIT3

Bit 2

HBIT2

Read/Write

After reset

R/W

-

R/W

-

R/W

-

R/W

-

R/W

-

R/W

-

Bit 1

HBIT1

R/W

-

Bit 0

HBIT0

R/W

-

080H

L

Read/Write

After reset

Bit 7

LBIT7

R/W

-

Bit 6

LBIT6

R/W

-

Bit 5

LBIT5

R/W

-

Bit 4

LBIT4

R/W

-

Bit 3

LBIT3

R/W

-

Bit 2

LBIT2

R/W

-

Bit 1

LBIT1

R/W

-

Bit 0

LBIT0

R/W

-

Example: If want to read a data from RAM address 20H of bank_0, it can use indirectly addressing mode to access data as following.

B0MOV H, #00H ; To set RAM bank 0 for H register

B0MOV

B0MOV

L, #20H

A, @HL

; To set location 20H for L register

; To read a data into ACC

Example: Clear general-purpose data memory area of bank 0 using @HL register.

CLR_HL_BUF:

CLR

B0MOV

CLR

DECMS

JMP

H

L, #07FH

; H = 0, bank 0

; L = 7FH, the last address of the data memory area

@HL

L

; Clear @HL to be zero

; L

– 1, if L = 0, finish the routine

CLR_HL_BUF ; Not zero

END_CLR:

CLR

@HL

; End of clear general purpose data memory area of bank 0

SONiX TECHNOLOGY CO., LTD

Page 30

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.2.6 Y, Z REGISTERS

The Y and Z registers are the 8-bit buffers. There are three major functions of these registers.

Can be used as general working registers

Can be used as RAM data pointers with @YZ register

Can be used as ROM data pointer with the MOVC instruction for look-up table

084H

Y

Bit 7

YBIT7

Bit 6

YBIT6

Bit 5

YBIT5

Bit 4

YBIT4

Bit 3

YBIT3

Bit 2

YBIT2

Read/Write

After reset

R/W

-

R/W

-

R/W

-

R/W

-

R/W

-

R/W

-

Bit 1

YBIT1

R/W

-

083H

Z

Read/Write

After reset

Bit 7

ZBIT7

R/W

-

Bit 6

ZBIT6

R/W

-

Bit 5

ZBIT5

R/W

-

Bit 4

ZBIT4

R/W

-

Bit 3

ZBIT3

R/W

-

Bit 2

ZBIT2

R/W

-

Bit 1

ZBIT1

R/W

-

Example: Uses Y, Z register as the data pointer to access data in the RAM address 025H of bank0.

B0MOV

B0MOV

B0MOV

Y, #00H

Z, #25H

A, @YZ

; To set RAM bank 0 for Y register

; To set location 25H for Z register

; To read a data into ACC

Bit 0

YBIT0

R/W

-

Bit 0

ZBIT0

R/W

-

Example: Uses the Y, Z register as data pointer to clear the RAM data.

B0MOV

B0MOV

Y, #0

Z, #07FH

; Y = 0, bank 0

; Z = 7FH, the last address of the data memory area

CLR_YZ_BUF:

CLR @YZ ; Clear @YZ to be zero

END_CLR:

DECMS

JMP

CLR

Z ; Z

– 1, if Z= 0, finish the routine

CLR_YZ_BUF ; Not zero

@YZ

; End of clear general purpose data memory area of bank 0

2.2.7 R REGISTER

R register is an 8-bit buffer. There are two major functions of the register.

Can be used as working register

For store high-byte data of look-up table

(MOVC instruction executed, the high-byte data of specified ROM address will be stored in R register and the low-byte data will be stored in ACC).

082H

R

Read/Write

After reset

Bit 7

RBIT7

R/W

-

Bit 6

RBIT6

R/W

-

Bit 5

RBIT5

R/W

-

Bit 4

RBIT4

R/W

-

Bit 3

RBIT3

R/W

-

Bit 2

RBIT2

R/W

-

Bit 1

RBIT1

R/W

-

Bit 0

RBIT0

R/W

-

Note: Please refe r to the “LOOK-UP TABLE DESCRIPTION” about R register look-up table application.

SONiX TECHNOLOGY CO., LTD

Page 31

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.3 ADDRESSING MODE

2.3.1 IMMEDIATE ADDRESSING MODE

The immediate addressing mode uses an immediate data to set up the location in ACC or specific RAM.

Example: Move the immediate data 12H to ACC.

MOV A, #12H ; To set an immediate data 12H into ACC.

Example: Move the immediate data 12H to R register.

B0MOV R, #12H ; To set an immediate data 12H into R register.

Note: In immediate addressing mode application, the specific RAM must be 0x80~0x87 working register.

2.3.2 DIRECTLY ADDRESSING MODE

The directly addressing mode moves the content of RAM location in or out of ACC.

Example: Move 0x12 RAM location data into ACC.

B0MOV A, 12H ; To get a content of RAM location 0x12 of bank 0 and save in

ACC.

Example: Move ACC data into 0x12 RAM location.

B0MOV 12H, A ; To get a content of ACC and save in RAM location 12H of bank 0.

2.3.3 INDIRECTLY ADDRESSING MODE

The indirectly addressing mode is to access the memory by the data pointer registers (H/L, Y/Z).

Example: Indirectly addressing mode with @HL register

B0MOV

B0MOV

B0MOV

H, #0

L, #12H

A, @HL

; To clear H register to access RAM bank 0.

; To set an immediate data 12H into L register.

; Use data pointer @HL reads a data from RAM location

; 012H into ACC.

Example: Indirectly addressing mode with @YZ register

B0MOV

B0MOV

B0MOV

Y, #0

Z, #12H

A, @YZ

; To clear Y register to access RAM bank 0.

; To set an immediate data 12H into Z register.

; Use data pointer @YZ reads a data from RAM location

; 012H into ACC.

SONiX TECHNOLOGY CO., LTD

Page 32

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.4 STACK OPERATION

2.4.1 OVERVIEW

The stack buffer has 8level. These buffers are designed to push and pop up program counter’s (PC) data when interrupt service routine and

“CALL” instruction are executed. The STKP register is a pointer designed to point active level in order to push or pop up data from stack buffer. The STKnH and STKnL are the stack buffers to store program counter (PC) data.

RET /

RETI

CALL /

INTERRUPT

PCH PCL

STKP + 1 STKP - 1

STACK Level

STKP = 7

STKP = 6

STKP = 5

STKP = 4

STKP = 3

STKP = 2

STKP = 1

STKP = 0

STKP

STACK Buffer

High Byte

STK7H

STK6H

STK5H

STK4H

STK3H

STK2H

STK1H

STK0H

STKP

STACK Buffer

Low Byte

STK7L

STK6L

STK5L

STK4L

STK3L

STK2L

STK1L

STK0L

SONiX TECHNOLOGY CO., LTD

Page 33

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.4.2 STACK REGISTERS

The stack pointer (STKP) is a 3-bit register to store the address used to access the stack buffer, 13-bit data memory

(STKnH and STKnL) set aside for temporary storage of stack addresses.

The two stack operations are writing to the top of the stack (push) and reading from the top of stack (pop). Push operation decrements the STKP and the pop operation increments each time. That makes the STKP always point to the top address of stack buffer and write the last program counter value (PC) into the stack buffer.

The program counter (PC) value is stored in the stack buffer before a CALL instruction executed or during interrupt service routine. Stack operation is a LIFO type (Last in and first out). The stack pointer (STKP) and stack buffer

(STKnH and STKnL) are located in the system register area bank 0.

0DFH

STKP

Read/Write

After reset

Bit 7

GIE

R/W

0

Bit 6

-

-

-

Bit 5

-

-

-

Bit 4

-

-

-

Bit 3

-

-

-

Bit 2

STKPB2

R/W

1

Bit 1 Bit 0

STKPB1 STKPB0

R/W

1

R/W

1

Bit[2:0] STKPBn: Stack pointer (n = 0 ~ 2)

Bit 7 GIE: Global interrupt control bit.

0 = Disable.

1 = Enable. Please refer to the interrupt chapter.

Example: Stack pointer (STKP) reset, we strongly recommended to clear the stack pointers in the beginning of the program.

0F0H~0FFH

STKnH

Read/Write

After reset

Bit 7

-

-

-

MOV

B0MOV

Bit 6

-

-

-

A, #00000111B

STKP, A

0F0H~0FFH

STKnL

Read/Write

After reset

Bit 7

SnPC7

R/W

0

Bit 6

SnPC6

R/W

0

STKn = STKnH , STKnL (n = 7 ~ 0)

Bit 5

-

-

-

Bit 5

SnPC5

R/W

0

Bit 4

SnPC12

R/W

0

Bit 4

SnPC4

R/W

0

Bit 3

SnPC11

R/W

0

Bit 3

SnPC3

R/W

0

Bit 2

SnPC10

R/W

0

Bit 2

SnPC2

R/W

0

Bit 1

SnPC9

R/W

0

Bit 1

SnPC1

R/W

0

Bit 0

SnPC8

R/W

0

Bit 0

SnPC0

R/W

0

SONiX TECHNOLOGY CO., LTD

Page 34

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.4.3 STACK OPERATION EXAMPLE

The two kinds of Stack-Save operations refer to the stack pointer (STKP) and write the content of program counter (PC) to the stack buffer are CALL instruction and interrupt service. Under each condition, the STKP decreases and points to the next available stack location. The stack buffer stores the program counter about the op-code address. The

Stack-Save operation is as the following table.

Stack Level

STKP Register Stack Buffer

STKPB2 STKPB1 STKPB0 High Byte Low Byte

1 1 1 Free Free

Description

5

6

7

8

> 8

0

1

2

3

4

1

1

1

0

0

0

0

1

1

1

0

0

1

1

0

0

1

1

0

1

0

1

0

1

0

1

0

STK0H

STK1H

STK2H

STK3H

STK4H

STK5H

STK6H

STK7H

-

STK0L

STK1L

STK2L

STK3L

STK4L

STK5L

STK6L

STK7L

-

-

-

-

-

-

-

-

-

-

Stack Over, error

There are Stack-Restore operations correspond to each push operation to restore the program counter (PC). The RETI instruction uses for interrupt service routine. The RET instruction is for CALL instruction. When a pop operation occurs, the STKP is incremented and points to the next free stack location. The stack buffer restores the last program counter

(PC) to the program counter registers. The Stack-Restore operation is as the following table.

Stack Level

STKP Register Stack Buffer

STKPB2 STKPB1 STKPB0 High Byte Low Byte

1 1 1 STK7H STK7L

Description

5

4

3

8

7

6

2

1

0

0

0

0

0

1

1

1

1

0

0

1

1

0

0

1

1

0

1

0

1

0

1

0

1

STK6H

STK5H

STK4H

STK3H

STK2H

STK1H

STK0H

Free

STK6L

STK5L

STK4L

STK3L

STK2L

STK1L

STK0L

Free

-

-

-

-

-

-

-

-

-

SONiX TECHNOLOGY CO., LTD

Page 35

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.5 CODE OPTION TABLE

The code option is the system hardware configurations including oscillator type, watchdog timer operation, Noise Filter option, LVD option, reset pin option and OTP ROM security control. The code option items are as following table:

Code Option Content

High_Clk

Low_Clk

Fcpu

Watch_Dog

Reset_Pin

Noise_Filter

Security

LVD

PLL_16M

RC

12M X’tal

4M X’tal

32K X’tal

RC

Fhosc/1

Fhosc/2

Fhosc/4

Fhosc/8

Fhosc/16

Always_On

Enable

Disable

Reset

P03

Enable

Disable

Enable

Disable

LVD_L

LVD_M

LVD_H

LVD_MAX

Function Description

High speed internal 16MHz PLL. External low-speed 32K oscillator free runs. XOUT pin is bi-direction GPIO mode. XIN pin connects a 0.1uF decouple capacitor for PLL.

Low cost RC for external high clock oscillator. XIN pin is connected to RC oscillator. XOUT pin is Fcpu signal output.

High speed crystal /resonator (e.g. 12MHz) for external high clock oscillator.

Standard crystal /resonator (e.g. 4M) for external high clock oscillator.

Low frequency, power saving crystal (e.g. 32.768KHz) for external low clock oscillator. LXIN/LXOUT pins drive external 32768Hz low speed crystal/ceramic oscillator.

LXIN pin drives external RC oscillator. LXOUT pin outputs Flosc clock.

Instruction cycle is 1 oscillator clocks.

Instruction cycle is 2 oscillator clocks.

Instruction cycle is 4 oscillator clocks.

Instruction cycle is 8 oscillator clocks.

Instruction cycle is 16 oscillator clocks.

Watchdog timer is always on enable even in power down and green mode.

Enable watchdog timer. Watchdog timer stops in power down mode and green mode.

Disable Watchdog function.

Enable External reset pin.

Enable P0.3 input only without pull-up resister.

Enable Noise_Filter.

Disable Noise_Filter.

Enable ROM code Security function.

Disable ROM code Security function.

LVD will reset chip if VDD is below 2.0V

LVD will reset chip if VDD is below 2.0V

Enable LVD24 bit of PFLAG register for 2.4V low voltage indicator.

LVD will reset chip if VDD is below 2.4V

Enable LVD36 bit of PFLAG register for 3.6V low voltage indicator.

LVD will reset chip if VDD is below 3.6V

2.5.1 High_Clk code option

High_Clk code option control system high speed oscillator type including PLL_16M, RC, 4M X’tal and 12M X’tal. In

PLL_16M mode, LXIN/LXOUT connects 32KHz crystal or RC oscillator, XIN connects 0.1uF decouple capacitor, and

XOUT pin is Fcpu signal output.

2.5.2 Low_Clk code option

Low_Clk code option control system low speed oscillator type including 32K

X’tal and RC. In RC mode, LXIN connects

RC oscillator, and LXOUT pin outputs Flosc signal for measuring RC frequency.

2.5.3 Fcpu code option

Fcpu means instruction cycle of normal mode (high clock). In slow mode, the system clock source is external low speed 32KHz oscillator connected to LXIN/LXOUT pins. The Fcpu of slow mode isn

’t controlled by Fcpu code option and fixed Flosc/4.

SONiX TECHNOLOGY CO., LTD

Page 36

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

2.5.4 Reset_Pin code option

The reset pin is shared with general input only pin controlled by code option.

Reset: The reset pin is external reset function. When falling edge trigger occurring, the system will be reset.

P03: Set reset pin to general input only pin (P0.3). The external reset function is disabled and the pin is input pin.

2.5.5 Security code option

Security code option is OTP ROM protection. When enable security code option, the ROM code is secured and not dumped complete ROM contents.

2.5.6 Noise Filter code option

Noise Filter code option is a power noise filter manner to reduce noisy effect of system clock. If noise filter enable, In high noisy environment, enable noise filter, enable watchdog timer and select a good LVD level can make whole system work well and avoid error event occurrence.

SONiX TECHNOLOGY CO., LTD

Page 37

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

3

RESET

3.1 OVERVIEW

The system would be reset in three conditions as following.

Power on reset

Watchdog reset

Brown out reset

External reset (only supports external reset pin enable situation)

When any reset condition occurs, all system registers keep initial status, program stops and program counter is cleared.

After reset status released, the system boots up and program starts to execute from ORG 0. The NT0, NPD flags indicate system reset status. The system can depend on NT0, NPD status and go to different paths by program.

086H

PFLAG

Read/Write

After reset

Bit 7

NT0

R/W

-

Bit 6

NPD

R/W

-

Bit [7:6] NT0, NPD: Reset status flag.

Bit 5

LVD36

R

0

Bit 4

LVD24

R

0

Bit 3

-

-

-

Bit 2

C

R/W

0

Bit 1

DC

R/W

0

Bit 0

Z

R/W

0

NT0 NPD

0 0

Condition

Watchdog reset

0

1

1

1

1

Reserved

External reset

Description

Watchdog timer overflow.

-

0 Power on reset and LVD reset. Power voltage is lower than LVD detecting level.

External reset pin detect low level status.

Finishing any reset sequence needs some time. The system provides complete procedures to make the power on reset successful. For different oscillator types, the reset time is different. That causes the VDD rise rate and start-up time of different oscillator is not fixed. RC type oscillator

’s start-up time is very short, but the crystal type is longer. Under client terminal application, users have to take care the power on reset time for the master terminal requirement. The reset timing diagram is as following.

Power

VDD

VSS

LVD Detect Level

External Reset

VDD

VSS

Watchdog Reset

Watchdog Normal Run

Watchdog Stop

System Status

System Normal Run

System Stop

External Reset

Low Detect

External Reset

High Detect

Watchdog

Overflow

Power On

Delay Time

External

Reset Delay

Time

Watchdog

Reset Delay

Time

SONiX TECHNOLOGY CO., LTD

Page 38

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

3.2 POWER ON RESET

The power on reset depend no LVD operation for most power-up situations. The power supplying to system is a rising curve and needs some time to achieve the normal voltage. Power on reset sequence is as following.

Power-up: System detects the power voltage up and waits for power stable.

External reset (only external reset pin enable): System checks external reset pin status. If external reset pin is not high level, the system keeps reset status and waits external reset pin released.

System initialization: All system registers is set as initial conditions and system is ready.

Oscillator warm up: Oscillator operation is successfully and supply to system clock.

Program executing: Power on sequence is finished and program executes from ORG 0.

3.3 WATCHDOG RESET

Watchdog reset is a system protection. In normal condition, system works well and clears watchdog timer by program.

Under error condition, system is in unknown situation and watchdog can

’t be clear by program before watchdog timer overflow. Watchdog timer overflow occurs and the system is reset. After watchdog reset, the system restarts and returns normal mode. Watchdog reset sequence is as following.

Watchdog timer status: System checks watchdog timer overflow status. If watchdog timer overflow occurs, the system is reset.

System initialization: All system registers is set as initial conditions and system is ready.

Oscillator warm up: Oscillator operation is successfully and supply to system clock.

Program executing: Power on sequence is finished and program executes from ORG 0.

Watchdog timer application note is as following.

Before clearing watchdog timer, check I/O status and check RAM contents can improve system error.

 Don’t clear watchdog timer in interrupt vector and interrupt service routine. That can improve main routine fail.

Clearing watchdog timer program is only at one part of the program. This way is the best structure to enhance the watchdog timer function.

Note: Please refer to the “WATCHDOG TIMER” about watchdog timer detail information.

3.4 BROWN OUT RESET

The brown out reset is a power dropping condition. The power drops from normal voltage to low voltage by external factors (e.g. EFT interference or external loading changed). The brown out reset would make the system not work well or executing program error.

VDD

VSS

System Work

Well Area

V1

V2

V3

Brown Out Reset Diagram

System Work

Error Area

SONiX TECHNOLOGY CO., LTD

Page 39

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

The power dropping might through the voltage range that

’s the system dead-band. The dead-band means the power range can’t offer the system minimum operation power requirement. The above diagram is a typical brown out reset diagram. There is a serious noise under the VDD, and VDD voltage drops very deep. There is a dotted line to separate the system working area. The above area is the system work well area. The below area is the system work error area called dead-band. V1 does n’t touch the below area and not effect the system operation. But the V2 and V3 is under the below area and may induce the system error occurrence. Let system under dead-band includes some conditions.

DC application:

The power source of DC application is usually using battery. When low battery condition and MCU drive any loading, the power drops and keeps in dead-band. Under the situation, the power won’t drop deeper and not touch the system reset voltage. That makes the system under dead-band.

AC application:

In AC power application, the DC power is regulated from AC power source. This kind of power usually couples with AC noise that makes the DC power dirty. Or the external loading is very heavy, e.g. driving motor. The loading operating induces noise and overlaps with the DC power. VDD drops by the noise, and the system works under unstable power situation.

The power on duration and power down duration are longer in AC application. The system power on sequence protects the power on successful, but the power down situation is like DC low battery condition. When turn off the AC power, the VDD drops slowly and through the dead-band for a while.

3.5 THE SYSTEM OPERATING VOLTAGE

To improve the brown out reset needs to know the system minimum operating voltage which is depend on the system executing rate and power level. Different system executing rates have different system minimum operating voltage.

The electrical characteristic section shows the system voltage to executing rate relationship.

System Mini.

Operating Voltage.

Vdd (V)

Normal Operating

Area

Dead-Band Area

System Reset

Voltage.

Reset Area

System Rate (Fcpu)

Normally the system operation voltage area is higher than the system reset voltage to VDD, and the reset voltage is decided by LVD detect level. The system minimum operating voltage rises when the system executing rate upper even higher than system reset voltage. The dead-band definition is the system minimum operating voltage above the system reset voltage.

3.6 LOW VOLTAGE DETECTOR (LVD)

Power

VDD

VSS

LVD Detect Voltage

Power is below LVD Detect

Voltage and System Reset.

System Status

System Normal Run

System Stop

Power On

Delay Time

SONiX TECHNOLOGY CO., LTD

Page 40

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

The LVD (low voltage detector) is built-in Sonix 8-bit MCU to be brown out reset protection. When the VDD drops and is below LVD detect voltage, the LVD would be triggered, and the system is reset. The LVD detect level is different by each MCU. The LVD voltage level is a point of voltage and not easy to cover all dead-band range. Using LVD to improve brown out reset is depend on application requirement and environment. If the power variation is very deep, violent and trigger the LVD, the LVD can be the protection. If the power variation can touch the LVD detect level and make system work error, the LVD can

’t be the protection and need to other reset methods. More detail LVD information is in the electrical characteristic section.

The LVD is three levels design (2.0V/2.4V/3.6V) and controlled by LVD code option. The 2.0V LVD is always enable for power on reset and Brown Out reset. The 2.4V LVD includes LVD reset function and flag function to indicate VDD status function. The 3.6V includes flag function to indicate VDD status. LVD flag function can be an easy low battery

detector. LVD24, LVD36 flags indicate VDD voltage level. For low battery detect application, only checking LVD24,

LVD36 status to be battery status. This is a cheap and easy solution.

086H

PFLAG

Read/Write

After reset

Bit 5

Bit 7

NT0

R/W

-

Bit 6

NPD

R/W

-

Bit 5

LVD36

R

0

Bit 4

LVD24

R

0

Bit 3

-

-

-

Bit 2

C

R/W

0

LVD36: LVD 3.6V operating flag and only support LVD code option is LVD_H.

0 = Inactive (VDD > 3.6V).

1 = Active (VDD

≦ 3.6V).

Bit 1

DC

R/W

0

Bit 0

Z

R/W

0

Bit 4 LVD24: LVD 2.4V operating flag and only support LVD code option is LVD_M.

0 = Inactive (VDD > 2.4V).

1 = Active (VDD

≦ 2.4V).

LVD

2.0V Reset

2.4V Flag

2.4V Reset

3.6V Flag

3.6V Reset

LVD_L

Available

-

-

-

-

LVD Code Option

LVD_M LVD_H

Available

Available

Available

-

-

-

-

Available

Available

-

LVD_MAX

Available

-

-

-

Available

LVD_L

If VDD < 2.0V, system will be reset.

Disable LVD24 and LVD36 bit of PFLAG register.

LVD_M

If VDD < 2.0V, system will be reset.

Enable LVD24 bit of PFLAG register. If VDD > 2.4V, LVD24 is

“0”. If VDD ≦ 2.4V, LVD24 flag is “1”.

Disable LVD36 bit of PFLAG register.

LVD_H

If VDD < 2.4V, system will be reset.

Enable LVD24 bit of PFLAG register. If VDD > 2.4V, LVD24 is

“0”. If VDD ≦ 2.4V, LVD24 flag is “1”.

Enable LVD36 bit of PFLAG register. If VDD > 3.6V, LVD36 is

“0”. If VDD ≦ 3.6V, LVD36 flag is “1”.

LVD_MAX

If VDD < 3.6V, system will be reset.

Note:

1. After any LVD reset, LVD24, LVD36 flags are cleared.

2. The voltage level of LVD 2.4V or 3.6V is for design reference only. Don

’t use the LVD indicator as

precision VDD measurement.

SONiX TECHNOLOGY CO., LTD

Page 41

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

3.7 BROWN OUT RESET IMPROVEMENT

How to improve the brown reset condition? There are some methods to improve brown out reset as following.

LVD reset

Watchdog reset

Reduce the system executing rate

External reset circuit. (Zener diode reset circuit, Voltage bias reset circuit, External reset IC)

Note:

1. The

“ Zener diode reset circuit”, “Voltage bias reset circuit” and “External reset IC” can completely improve the brown out reset, DC low battery and AC slow power down conditions.

2. For AC power application and enhance EFT performance, the system clock is 4MHz/4 (1 mips) and use external reset (

“ Zener diode reset circuit”, “Voltage bias reset circuit”, “External reset IC”).

The structure can improve noise effective and get good EFT characteristic.

Watchdog reset:

The watchdog timer is a protection to make sure the system executes well. Normally the watchdog timer would be clear at one point of program.

Don’t clear the watchdog timer in several addresses. The system executes normally and the watchdog won

’t reset system. When the system is under dead-band and the execution error, the watchdog timer can’t be clear by program. The watchdog is continuously counting until overflow occurrence. The overflow signal of watchdog timer triggers the system to reset, and the system return to normal mode after reset sequence. This method also can improve brown out reset condition and make sure the system to return normal mode.

If the system reset by watchdog and the power is still in dead-band, the system reset sequence won’t be successful and the system stays in reset status until the power return to normal range. Watchdog timer application note is as following.

Reduce the system executing rate:

If the system rate is fast and the dead-band exists, to reduce the system executing rate can improve the dead-band.

The lower system rate is with lower minimum operating voltage. Select the power voltage that

’s no dead-band issue and find out the mapping system rate. Adjust the system rate to the value and the system exits the dead-band issue.

This way needs to modify whole program timing to fit the application requirement.

External reset circuit:

The external reset methods also can improve brown out reset and is the complete solution. There are three external reset circuits to improve brown out reset including

“Zener diode reset circuit”, “Voltage bias reset circuit” and “External reset IC

”. These three reset structures use external reset signal and control to make sure the MCU be reset under power dropping and under dead-band. The external reset information is described in the next section.

SONiX TECHNOLOGY CO., LTD

Page 42

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

3.8 EXTERNAL RESET

External reset function is controlled by

“Reset_Pin” code option. Set the code option as “Reset” option to enable external reset function. External reset pin is Schmitt Trigger structure and low level active. The system is running when reset pin is high level voltage input. The reset pin receives the low voltage and the system is reset. The external reset operation actives in power on and normal running mode. During system power-up, the external reset pin must be high level input, or the system keeps in reset status. External reset sequence is as following.

External reset (only external reset pin enable): System checks external reset pin status. If external reset pin is not high level, the system keeps reset status and waits external reset pin released.

System initialization: All system registers is set as initial conditions and system is ready.

Oscillator warm up: Oscillator operation is successfully and supply to system clock.

Program executing: Power on sequence is finished and program executes from ORG 0.

The external reset can reset the system during power on duration, and good external reset circuit can protect the system to avoid working at unusual power condition, e.g. brown out reset in AC power application

3.9 EXTERNAL RESET CIRCUIT

3.9.1 Simply RC Reset Circuit

VDD

R1

47K ohm

R2

100 ohm

RST

MCU

C1

0.1uF

VSS

VCC

GND

This is the basic reset circuit, and only includes R1 and C1. The RC circuit operation makes a slow rising signal into reset pin as power up. The reset signal is slower than VDD power up timing, and system occurs a power on signal from the timing difference.

Note: The reset circuit is no any protection against unusual power or brown out reset.

SONiX TECHNOLOGY CO., LTD

Page 43

Preliminary Version 0.1

3.9.2 Diode & RC Reset Circuit

DIODE

VDD

R1

47K ohm

R2

100 ohm

RST

MCU

C1

0.1uF

VSS

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

VCC

GND

This is the better reset circuit. The R1 and C1 circuit operation is like the simply reset circuit to make a power on signal.

The reset circuit has a simply protection against unusual power. The diode offers a power positive path to conduct higher power to VDD. It is can make reset pin voltage level to synchronize with VDD voltage. The structure can improve slight brown out reset condition.

Note: The R2 100 ohm resistor of

“Simply reset circuit” and “Diode & RC reset circuit” is necessary to limit any current flowing into reset pin from external capacitor C in the event of reset pin breakdown due to Electrostatic Discharge (ESD) or Electrical Over-stress (EOS).

3.9.3 Zener Diode Reset Circuit

VDD

R1

33K ohm

R2

10K ohm

B

E

C

Q1

RST

MCU

Vz

R3

40K ohm

VSS

VCC

GND

The zener diode reset circuit is a simple low voltage detector and can improve brown out reset condition

completely. Use zener voltage to be the active level. When VDD voltage level is above

“Vz + 0.7V”, the C terminal of the PNP transistor outputs high voltage and MCU operates normally. When VDD is below

“Vz + 0.7V”, the C terminal of the PNP transistor outputs low voltage and MCU is in reset mode. Decide the reset detect voltage by zener specification. Select the right zener voltage to conform the application.

SONiX TECHNOLOGY CO., LTD

Page 44

Preliminary Version 0.1

3.9.4 Voltage Bias Reset Circuit

R1

47K ohm

R2

10K ohm

VDD

B

E

C

Q1

RST

MCU

R3

2K ohm

VSS

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

VCC

GND

The voltage bias reset circuit is a low cost voltage detector and can improve brown out reset condition completely.

The operating voltage is not accurate as zener diode reset circuit. Use R1, R2 bias voltage to be the active level. When

VDD voltage level is above or equal to

“0.7V x (R1 + R2) / R1”, the C terminal of the PNP transistor outputs high voltage and MCU operates normally. When VDD is below

“0.7V x (R1 + R2) / R1”, the C terminal of the PNP transistor outputs low voltage and MCU is in reset mode.

Decide the reset detect voltage by R1, R2 resistances. Select the right R1, R2 value to conform the application. In the circuit diagram condition, the MCU

’s reset pin level varies with VDD voltage variation, and the differential voltage is

0.7V. If the VDD drops and the voltage lower than reset pin detect level, the system would be reset. If want to make the reset active earlier, set the R2 > R1 and the cap between VDD and C terminal voltage is larger than 0.7V. The external reset circuit is with a stable current through R1 and R2. For power consumption issue application, e.g. DC power system, the current must be considered to whole system power consumption.

Note: Under unstable power condition as brown out reset,

“Zener diode rest circuit” and “Voltage bias reset circuit

” can protects system no any error occurrence as power dropping. When power drops below the reset detect voltage, the system reset would be triggered, and then system executes reset sequence. That makes sure the system work well under unstable power situation.

3.9.5 External Reset IC

VDD

VDD

Bypass

Capacitor

0.1uF

Reset

IC

RST

RST

MCU

VSS

VSS

VCC

GND

The external reset circuit also use external reset IC to enhance MCU reset performance. This is a high cost and good effect solution. By different application and system requirement to select suitable reset IC. The reset circuit can improve all power variation.

SONiX TECHNOLOGY CO., LTD

Page 45

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

4

SYSTEM CLOCK

4.1 OVERVIEW

The micro-controller is a dual clock system including high-speed and low-speed clocks. The high-speed clock includes internal high-speed oscillator and external oscillators selected by

“High_Clk” code option. The low-speed clock is external low-speed oscillator. Both high-speed clock and external low-speed clock can be system clock source through a divider to decide the system clock rate.

High-speed oscillator

Internal high-speed oscillator is 16MHz PLL type called

PLL_16M”.

External high-speed oscillator includes crystal/ceramic (4MHz, 12MHz) and RC type.

Low-speed oscillator

External low-speed oscillator includes crystal/ceramic (32KHz) and RC type.

System clock block diagram

STPHX HOSC

Fcpu Code Option

CLKMD

Fosc

XIN

XOUT

Fcpu = Fhosc/1 ~ Fhosc/16, Noise_Filter Disable

Fcpu = Fhosc/4 ~ Fhosc/16, Noise_Filter Enable

Fhosc.

Fcpu

Fosc

PLL CPUM[1:0]

LXIN

LXOUT

Flosc.

Fcpu = Flosc/4

LOSC

HOSC: High_Clk code option.

LOSC: Low_Clk code option.

Fhosc: External high-speed clock / Internal PLL clock.

Flosc: External low-speed clock.

Fosc: System clock source.

Fcpu: Instruction cycle.

4.2 FCPU (INSTRUCTION CYCLE)

The system clock rate is instruction cycle called

Fcpu” which is divided from the system clock source and decides the system operating rate. Fcpu rate is selected by Fcpu code option and the range is Fhosc/1~Fhosc/16 under system normal mode. If the system high clock source is external 4MHz crystal, and the Fcpu code option is Fhosc/4, the Fcpu frequency is 4MHz/4 = 1MHz. Under system slow mode, the Fcpu is fixed Flosc/4, 32KHz/4=8KHz.

4.3 SYSTEM HIGH-SPEED CLOCK

The system high-speed clock has internal and external two-type. The external high-speed clock includes 4MHz, 12MHz, crystal/ceramic and RC type. The internal high-speed clock is internal PLL 16MHz oscillator. These high-speed oscillators are selected by

High_Clk” code option.

SONiX TECHNOLOGY CO., LTD

Page 46

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

4.3.1 HIGH_CLK CODE OPTION

For difference clock functions, Sonix provides multi-type system high clock options controlled by

“High_Clk” code option. The High_Clk code option defines the system oscillator types including PLL_16M, RC, 12M X

’tal and 4M X’tal.

These oscillator options support different bandwidth oscillator.

PLL_16M: The system high-speed clock source is internal PLL high-speed 16MHz type oscillator. The PLL is pumped from external 32KHz low-speed oscillator (LXINT/XOUT).

RC: The system high-speed clock source is external low cost RC type oscillator. The RC oscillator circuit only connects to XIN pin, and the XOUT pin is Fcpu signal output.

12M X

’tal: The system high-speed clock source is external high-speed crystal/ceramic. The oscillator bandwidth is 10MHz~16MHz.

4M X

’tal: The system high-speed clock source is external high-speed crystal/resonator. The oscillator bandwidth is 1MHz~10MHz.

4.3.2 INTERNAL HIGH-SPEED OSCILLATOR

The internal high-speed oscillator is 16MHz PLL type. The accuracy is ±2% under commercial condition. When the

“High_Clk” code option is “PLL_16M”, the internal high-speed oscillator is enabled.

PLL_16M: The system high-speed clock is internal 16MHz oscillator RC type. LXIN/LXOUT pins connects external low-speed 32KHz oscillator. XIN pin connects a 0.1uF decouple capacitor for PLL. XOUT pin is GPIO structure.

INTERNAL HIGH-SPEED OSCILLATOR APPLICATION CIRCUIT

LXIN

32KHz Oscillator

Circuit LXOUT

XIN

MCU

C

0.1uF

VSS

VCC

GND

4.3.3 EXTERNAL HIGH-SPEED OSCILLATOR

The external high-speed oscillator includes 4MHz, 12MHz and RC type controlled by

“High_Clk” code option. The

4MHz and 12MHz oscillators support crystal and ceramic types connected to XIN/XOUT pins with 20pF capacitors to ground. The RC type is a low cost RC circuit only connected to XIN pin. The capacitance is not below 100pF, and use the resistance to decide the frequency.

EXTERNAL OSCILLATOR APPLICATION CIRCUIT

CRYSTAL/CERAMIC:

RC Type:

C

20pF

XIN

CRYSTAL

XOUT

C

20pF

MCU

VDD

R

VDD

XOUT

XIN

MCU

C

VSS

VCC

GND

VCC

GND

SONiX TECHNOLOGY CO., LTD

Page 47

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

Note: Connect the Crystal/Ceramic and C as near as possible to the XIN/XOUT/VSS pins of

micro-controller. Connect the R and C as near as possible to the VDD pin of micro-controller.

4.4 SYSTEM LOW-SPEED CLOCK

The external low-speed oscillator includes 32KHz and RC type controlled by

“Low_Clk” code option. The 32KHz oscillator supports crystal and ceramic types connected to LXIN/LXOUT pins with 10pF capacitors to ground. The RC type is a low cost RC structure, builds in R (resistor), and connects external C (capacitor) with LXIN pin. The capacitance is 27pF @3V and 39pF @5V at 32KHz. LXOUT pin outputs Flosc = 32KHz signal for adjust the capacitance by RC type.

32K X

’tal: The system low-speed clock source is external low-speed 32768Hz crystal.

RC: The system low-speed clock source is external low cost RC type oscillator. The RC oscillator circuit only connects one capacitor to LXIN pin, and the LXOUT pin outputs 32KHz signal.

EXTERNAL OSCILLATOR APPLICATION CIRCUIT

32KHz CRYSTAL/CERAMIC:

RC Type:

C

10pF

LXIN

32768Hz

LXOUT

MCU

C

10pF

VDD

C

27pF (3V)

39pF (5V)

VDD

LXOUT

LXIN

MCU

VSS

VCC

GND

VCC

GND

Note: Connect the Crystal/Ceramic and C as near as possible to the LXIN/LXOUT/VSS pins of

micro-controller. Connect the C as near as possible to the VSS pin of micro-controller.

SONiX TECHNOLOGY CO., LTD

Page 48

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

4.5 OSCM REGISTER

The OSCM register is an oscillator control register. It controls oscillator status, system mode.

0CAH

OSCM

Read/Write

After reset

Bit 7

0

-

-

Bit 6

0

-

-

Bit 5

0

-

-

Bit 4

CPUM1

R/W

0

Bit 3

CPUM0

R/W

0

Bit 2

CLKMD

R/W

0

Bit 1

STPHX

R/W

0

Bit 1 STPHX: System high-speed oscillator (external high-speed oscillator and internal PLL) control bit.

0 = System high-speed oscillator free run.

1 = Disable system high-speed oscillator. System low-speed oscillator keeps running.

Bit 2 CLKMD: System high/Low clock mode control bit.

0 = Normal (dual) mode. System clock is high-speed mode.

1 = Slow mode. System clock is low-speed mode.

Bit[4:3] CPUM[1:0]: CPU operating mode control bits.

00 = normal.

Bit 0

0

-

-

01 = sleep (power down) mode.

10 = green mode.

11 = reserved.

“STPHX” bit controls internal high speed PLL oscillator and external oscillator operations. When “STPHX=0”, the external oscillator or internal high speed PLL oscillator active. When

“STPHX=1”, the external oscillator or internal high speed PLL oscillator are disabled. The STPHX function is depend on different high clock options to do different controls.

PLL_16M:

“STPHX=1” disables internal high speed PLL oscillator.

RC, 4M, 12M:

“STPHX=1” disables external oscillator.

4.6 SYSTEM CLOCK MEASUREMENT

The frequency of RC type oscillator can be measured from clock output pin for adjusting R and C parameters.

In high-speed RC mode (High_Clk code option = RC), the system clock signal outputs from

“FCPUO” pin. The clock rate is instruction cycle through system pre-scaler.

In low-speed RC mode (Low_Clk code option = RC), the low-speed oscillator

’s frequency (Flosc) signal outputs from

“FLO” pin.

The system clock also can be measured by software.

Example: Fcpu instruction cycle of external oscillator.

B0BSET P0M.0 ; Set P0.0 to be output mode for outputting Fcpu toggle signal.

@@:

B0BSET

B0BCLR

JMP

P0.0

P0.0

@B

; Output Fcpu toggle signal in low-speed clock mode.

; Measure the Fcpu frequency by oscilloscope.

Note: Do not measure the RC frequency directly from XIN pin of external high-speed RC mode and LXIN

pin of external low-speed RC mode; the probe impendence will affect the RC frequency.

SONiX TECHNOLOGY CO., LTD

Page 49

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

4.7 SYSTEM CLOCK TIMING

Parameter

Hardware configuration time

Oscillator start up time

Oscillator warm-up time

Symbol

Tcfg

Tost

Tosp

Description

2048*F

ILRC

.

(The hardware configuration time clock source is internal low-speed RC oscillator whose frequency is 16KHz @3V,

32KHz @5V)

The startup time is depended on oscillator’s material, factory and architecture. The RC typ e oscillator’s start-up time is very short and ignored.

Oscillator warm-up time of reset condition (Power on reset, LVD reset, watchdog reset, external reset pin active and wake-up from power down mode):

External high-speed crystal 4M/12M modes:

2048*F hosc

(Reset modes).

External high-speed crystal 4M/12M modes:

2560*F hosc

(Wake-up modes)

External high-speed RC modes: 32*F hosc

External low-speed 32KHz crystal mode: (2

14

+256)*F losc

External low-speed RC modes: 32*F losc

Internal PLL 16MHz oscillator warm-up time is external low-speed oscillator warm-up time + 256 low-speed clock. ex.

PLL 16MHz in external low-speed crystal mode: (2

14

+256)*F losc

PLL 16MHz in external low-speed RC mode: 288*F losc

Power On Reset Timing

Typical

64ms @ F

ILRC

= 32KHz

128ms @ F

ILRC

= 16KHz

-

High-speed oscillator:

8us @ F hosc

= 4MHz RC

128us @ F hosc

= 16MHz X

’tal

(Reset modes)

512us @ F hosc

= 4MHz X

’tal

(Reset modes)

160us @ F hosc

= 16MHz X

’tal

(Wake-up modes)

640us @ F hosc

= 4MHz X

’tal

(Wake-up modes)

Low-speed oscillator:

0.52sec @ F losc

= 32KHz

X

’tal

1ms @ F losc

= 32KHz RC

PLL 16MHz:

0.52sec @ F losc

X

’tal

= 32KHz

9ms @ F losc

= 32KHz RC

Vp

Vdd

Power On Reset

Flag

Oscillator

Tcfg

Fcpu

(Instruction Cycle)

External Reset Pin Reset Timing

Tost

Tosp

Reset pin falling edge trigger system reset.

External Reset Pin

External Reset

Flag

Oscillator

Fcpu

(Instruction Cycle)

Reset pin returns to high status.

Tcfg Tost

Tosp

System is under reset status.

SONiX TECHNOLOGY CO., LTD

Page 50

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

Watchdog Reset Timing

Watchdog timer overflow.

Watchdog Reset

Flag

Oscillator

Fcpu

(Instruction Cycle)

Tcfg

Power Down Mode Wake-up Timing

Tost

Tosp

Edge trigger system wake-up.

Wake-up Pin

Falling Edge

Wake-up Pin

Rising Edge

Oscillator

Fcpu

(Instruction Cycle)

Tost

System inserts into power down mode.

Green Mode Wake-up Timing

Tosp

Edge trigger system wake-up.

Wake-up Pin

Falling Edge

Wake-up Pin

Rising Edge

Timer ...

0xFD 0xFE 0xFF 0x00

Timer overflow.

0x01 0x02 ...

...

Oscillator

Fcpu

(Instruction Cycle)

System inserts into green mode.

...

...

...

SONiX TECHNOLOGY CO., LTD

Page 51

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

Oscillator Start-up Time

The startup time is depended on oscillator’s material, factory and architecture. The RC type oscillator’s start-up time is very short and ignored.

High-Speed

RC Oscillator

Tost

High-Speed

Ceramic/Resonator

Tost

High-Speed

Crystal

Tost

Low Speed RC

(32K)

Tost

Low Speed Crystal

(32K)

Tost

PLL 16MHz of

Low Speed RC(32K)

Tost

PLL 16MHz of

Low Speed Crystal(32K)

Tost

SONiX TECHNOLOGY CO., LTD

Page 52

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

5

SYSTEM OPERATION MODE

5.1 OVERVIEW

The chip builds in four operating mode for difference clock rate and power saving reason. These modes control oscillators, op-code operation and analog peripheral devices

’ operation.

Normal mode: System high-speed operating mode.

Slow mode: System low-speed operating mode.

Power down mode: System power saving mode (Sleep mode).

Green mode: System idle mode.

Operating Mode Control Block

One of reset trigger sources actives.

Wake-up condition:

P0, P1 input status is level changing.

One of reset trigger sources actives.

Reset Control Block Normal Mode

Power Down Mode

CPUM1, CPUM0 = 01.

CLKMD = 1

CLKMD = 0

Slow Mode

CPUM1, CPUM0 = 10.

Wake-up condition:

P0, P1 input status is level changing.

T0 timer counter is overflow.

Green Mode

One of reset trigger sources actives.

Operating Mode Clock Control Table

Operating

Mode

EHOSC/IHOSC

ELOSC

CPU instruction

T0 timer

Normal Mode

Running

Running

Executing

By T0ENB

Slow Mode

By STPHX

Running

Executing

By T0ENB

TC0 timer By TC0ENB By TC0ENB

T1 timer

LCD Driver

RFC function

Watchdog timer

Internal interrupt

External interrupt

Wakeup source

By T1ENB

By LCDENB

By RFCENB

By Watch_Dog

Code option

All active

All active

-

By T1ENB

By LCDENB

By RFCENB

By Watch_Dog

Code option

All active

All active

-

EHOSC: External high-speed oscillator (XIN/XOUT).

IHOSC: Internal high-speed PLL oscillator.

ELOSC: External low-speed oscillator (LXIN/LXOUT).

Green Mode

By STPHX

Running

Stop

By T0ENB

By TC0ENB

PWM active

Inactive

By LCDENB

By RFCENB

By Watch_Dog

Code option

T0

All active

P0, P1, T0, Reset

Wake-up condition:

P0, P1 input status is level changing.

T0 timer counter is overflow.

Power Down

Mode

Stop

Stop

Stop

Inactive

Inactive

Inactive

Inactive

Inactive

By Watch_Dog

Code option

All inactive

All inactive

P0, P1, Reset

SONiX TECHNOLOGY CO., LTD

Page 53

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

5.2 NORMAL MODE

The Normal Mode is system high clock operating mode. The system clock source is from high-speed oscillator. The program is executed. After power on and any reset trigger released, the system inserts into normal mode to execute program. When the system is wake-up from power down mode, the system also inserts into normal mode. In normal mode, both of high-speed oscillator and low-speed oscillator active, and the power consumption is largest of all operating modes.

The program is executed, and full functions are controllable.

The system rate is high-speed.

The high-speed oscillator and low-speed oscillator active.

Normal mode can be switched to other operating modes through OSCM register.

Power down mode is wake-up to normal mode.

Slow mode is switched to normal mode.

Green mode from normal mode is wake-up to normal mode.

5.3 SLOW MODE

The slow mode is system low clock operating mode. The system clock source is from external low-speed oscillator including crystal type and RC type. The slow mode is controlled by CLKMD bit of OSCM register. When CLKMD=0, the system is in normal mode. When CLKMD=1, the system inserts into slow mode. The high-speed oscillator won’t be disabled automatically after switching to slow mode, and must be disabled by SPTHX bit to reduce power consumption.

In slow mode, the system rate is fixed Flosc/4 (Flosc is external low-speed crystal type and RC type oscillator frequency).

The program is executed, and full functions are controllable.

The system rate is low speed (Flosc/4).

The external low-speed oscillator actives, and the high-speed oscillator is controlled by STPHX=1. In slow mode, to stop high speed oscillator is strongly recommendation.

Slow mode can be switched to other operating modes through OSCM register.

Power down mode from slow mode is wake-up to normal mode.

Normal mode is switched to slow mode.

Green mode from slow mode is wake-up to slow mode.

5.4 POWER DOWN MDOE

The power down mode is the system idle status. No program execution and oscillator operation. Whole chip is under low power consumption status under 1uA. The power down mode is waked up by P0, P1 hardware level change trigger.

P1 wake-up function is controlled by P1W register. Any operating modes into power down mode, the system is waked up to normal mode. Inserting power down mode is controlled by CPUM0 bit of OSCM register. W hen CPUM0=1, the system inserts into power down mode. After system wake-up from power down mode, the CPUM0 bit is disabled (zero status) automatically.

The program stops executing, and full functions are disabled.

All oscillators including external high-speed oscillator, internal high-speed PLL oscillator and external low-speed oscillator stop.

The power consumption is under 1uA.

The system inserts into normal mode after wake-up from power down mode.

The power down mode wake-up source is P0 and P1 level change trigger.

Note: If the system is in normal mode, to set STPHX=1 to disable the high clock oscillator. The system is under no system clock condition. This condition makes the system stay as power down mode, and can

be wake-up by P0, P1 level change trigger.

SONiX TECHNOLOGY CO., LTD

Page 54

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

5.5 GREEN MODE

The green mode is another system idle status not like power down mode. In power down mode, all functions and hardware devices are disabled. But in green mode, the system clock source keeps running, so the power consumption of green mode is larger than power down mode. In green mode, the program isn’t executed, but the timer with wake-up function actives as enabled, and the timer clock source is the non-stop system clock. The green mode has 2 wake-up sources. One is the P0, P1 level change trigger wake-up. The other one is internal timer with wake-up function occurring overflow. That

’s mean users can setup one period to timer, and the system is waked up until the time out.

Inserting green mode is controlled by CPUM1 bit of OSCM register. When CPUM1=1, the system inserts into green mode. After system wake-up from green mode, the CPUM1 bit is disabled (zero status) automatically.

The program stops executing, and full functions are disabled.

Only the timer with wake-up function actives.

The oscillator to be the system clock source keeps running, and the other oscillators operation is depend on system operation mode configuration.

If inserting green mode from normal mode, the system insets to normal mode after wake-up.

If inserting green mode from slow mode, the system insets to slow mode after wake-up.

The green mode wake-up sources are P0, P1 level change trigger and unique time overflow.

LCD, PWM and RFC functions active in green mode, but the timer can

’t wake-up the system as overflow.

Note: Sonix provides

“GreenMode” macro to control green mode operation. It is necessary to use

“GreenMode” macro to control system inserting green mode.

The macro includes three instructions. Please take care the macro length as using BRANCH type instructions, e.g. bts0, bts1, b0bts0, b0bts1, ins, incms, decs, decms, cmprs, jmp, or the routine would

be error.

SONiX TECHNOLOGY CO., LTD

Page 55

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

5.6 OPERATING MODE CONTROL MACRO

Sonix provides operating mode control macros to switch system operating mode easily.

Macro Length Description

SleepMode

GreenMode

1-word The system insets into Sleep Mode (Power Down Mode).

3-word The system inserts into Green Mode.

2-word The system inserts into Slow Mode and stops high speed oscillator.

SlowMode

Slow2Normal

5-word The system returns to Normal Mode from Slow Mode. The macro includes operating mode switch, enable high speed oscillator, high speed oscillator warm-up delay time.

Example: Switch normal/slow mode to power down (sleep) mode.

SleepMode

; Declare

“SleepMode” macro directly.

Example: Switch normal mode to slow mode.

SlowMode

; Declare

“SlowMode” macro directly.

Example: Switch slow mode to normal mode (The external high-speed oscillator stops).

Slow2Normal

; Declare

“Slow2Normal” macro directly.

Example: Switch normal/slow mode to green mode.

GreenMode

; Declare

“GreenMode” macro directly.

Example: Switch normal/slow mode to green mode and enable T0 wake-up function.

; Set T0 timer wakeup function.

B0BCLR

B0BCLR

MOV

B0MOV

MOV

B0MOV

B0BCLR

FT0IEN

FT0ENB

A,#20H

T0M,A

A,#74H

T0C,A

FT0IEN

; To disable T0 interrupt service

; To disable T0 timer

;

; To set T0 clock = Fcpu / 64

; To set T0C initial value = 74H (To set T0 interval = 10 ms)

; To disable T0 interrupt service

B0BCLR

B0BSET

FT0IRQ

FT0ENB

; To clear T0 interrupt request

; To enable T0 timer

; Go into green mode

GreenMode

; Declare

“GreenMode” macro directly.

Example: Switch normal/slow mode to green mode and enable T0 wake-up function with RTC.

CLR

B0BSET

B0BSET

; Go into green mode

GreenMode

T0C

FT0TB

FT0ENB

; Clear T0 counter.

; Enable T0 RTC function.

; To enable T0 timer.

; Declare

“GreenMode” macro directly.

SONiX TECHNOLOGY CO., LTD

Page 56

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

5.7 WAKEUP

5.7.1 OVERVIEW

Under power down mode (sleep mode) or green mode, program doesn

’t execute. The wakeup trigger can wake the system up to normal mode or slow mode. The wakeup trigger sources are external trigger (P0/P1 level change) and internal trigger (T0 timer overflow).

Power down mode is waked up to normal mode. The wakeup trigger is only external trigger (P0/P1 level change)

Green mode is waked up to last mode (normal mode or slow mode). The wakeup triggers are external trigger

(P0/P1 level change) and internal trigger (T0 timer overflow).

5.7.2 WAKEUP TIME

When the system is in power down mode (sleep mode), the high clock oscillator stops. When waked up from power down mode, MCU waits a period for stabling the oscillator circuit. After the wakeup time, the system goes into the normal mode.

Note: Wakeup from green mode is no wakeup time because the clock doesn’t stop in green mode.

The wake-up time of the external high-speed (12M_X

’tal, 4M_C’tal) crystal type oscillator is as the following.

The Wakeup time = 1/Fhosc * 2560 (sec) + high clock start-up time

Example: In power down mode (sleep mode), the system is waked up. After the wakeup time, the system goes into normal mode. The wakeup time is as the following.

The wakeup time = 1/Fhosc * 2560 = 0.64 ms (4MHz crystal)

The total wakeup time = 0.64 ms + oscillator start-up time

The wake-up time of the external high/low speed RC type oscillator is as the following.

The Wakeup time = 1/Fosc * 32 (sec) + clock start-up time

Example: In power down mode (sleep mode), the system is waked up. After the wakeup time, the system goes into normal mode. The wakeup time is as the following.

The wakeup time = 1/Fhosc * 32 = 8 us (4MHz RC)

The total wakeup time = 8 us + oscillator start-up time

The wakeup time = 1/Fhosc * 32 = 1 ms (32KHz RC)

The total wakeup time = 1 ms + oscillator start-up time

The wake-up time of the external low-speed crystal type oscillator is as the following.

The Wakeup time (32K_X

’tal) = 1/Flosc * (2

14

+256) + low clock start-up time

SONiX TECHNOLOGY CO., LTD

Page 57

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

Example: In power down mode (sleep mode), the system is waked up. After the wakeup time, the system goes into normal mode. The wakeup time is as the following.

The wakeup time = 1/Flosc * (2

14

+256 ) = 0.52 sec (32KHz crystal)

The total wakeup time = 0.52 sec + oscillator start-up time

The wake-up time of the internal high-speed PLL 16MHz oscillator is as the following.

The Wakeup time of 32KHz RC type oscillator mode = 1/Flosc * 288 (sec) + clock start-up time

The Wakeup time of 32KHz crystal type oscillator mode = 1/Flosc * (2

14

+256) (sec) + clock start-up time

Example: In power down mode (sleep mode), the system is waked up. After the wakeup time, the system goes into normal mode. The wakeup time is as the following.

The wakeup time = 1/Flosc * 288 = 9 ms (32KHz RC)

The total wakeup time = 9 ms + oscillator start-up time

The wakeup time = 1/Flosc * (2

14

+256) = 0.52 sec (32KHz crystal)

The total wakeup time = 0.52 sec + oscillator start-up time

Note: The high clock start-up time is depended on the VDD and oscillator type of high clock.

SONiX TECHNOLOGY CO., LTD

Page 58

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

5.7.3 P1W WAKEUP CONTROL REGISTER

Under power down mode (sleep mode) and green mode, the I/O ports with wakeup function are able to wake the system up to normal mode. The wake-up trigger edge is level changing. When wake-up pin occurs rising edge or falling edge, the system is waked up by the trigger edge. The Port 0 and Port 1 have wakeup function. Port 0 wakeup function always enables, but the Port 1 is controlled by the P1W register.

0C0H

P1W

Read/Write

After reset

Bit 7

-

-

-

Bit 6

P16W

W

0

Bit 5

P15W

W

0

Bit 4

P14W

W

0

Bit[6:0] P10W~P16W: Port 1 wakeup function control bits.

0 = Disable P1n wakeup function.

1 = Enable P1n wakeup function.

Bit 3

P13W

W

0

Bit 2

P12W

W

0

Bit 1

P11W

W

0

Bit 0

P10W

W

0

SONiX TECHNOLOGY CO., LTD

Page 59

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

6

INTERRUPT

6.1 OVERVIEW

This MCU provides 5 interrupt sources, including 3 internal interrupt (T0/TC0/T1) and 2 external interrupt (INT0/INT1).

The external interrupt can wake-up the chip while the system is switched from power down mode to high-speed normal mode, and interrupt request is latched until return to normal mode. Once interrupt service is executed, the GIE bit in

STKP register will clear to “0” for stopping other interrupt request. On the contrast, when interrupt service exits, the GIE bit will set to “1” to accept the next interrupts’ request. The interrupt request signals are stored in INTRQ register.

INTEN Interrupt Enable Register

INT0 Trigger

INT1 Trigger

T0 Time Out

TC0 Time Out

T1 Time Out

INTRQ

8-Bit

&

CMnM

2-Bit

Latchs

P00IRQ

P01IRQ

T0IRQ

TC0IRQ

T1IRQ

Interrupt

Enable

Gating

Note: The GIE bit must enable during all interrupt operation.

Interrupt Vector Address (0008H)

Global Interrupt Request Signal

SONiX TECHNOLOGY CO., LTD

Page 60

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

6.2 INTEN INTERRUPT ENABLE REGISTER

INTEN is the interrupt request control register including three internal interrupts, two external interrupts enable control bits. One of the register to be set “1” is to enable the interrupt request function. Once of the interrupt occur, the stack is incremented and program jump to ORG 8 to execute interrupt service routines. The program exits the interrupt service routine when the returning interrupt service routine instruction (RETI) is executed.

0C9H

INTEN

Bit 7

-

Bit 6

T1IEN

Bit 5

TC0IEN

Bit 4

T0IEN

Bit 3

-

-

-

Read/Write

After reset

Bit 0

-

-

R/W

0

R/W

0

R/W

0

P00IEN: External P0.0 interrupt (INT0) control bit.

0 = Disable INT0 interrupt function.

1 = Enable INT0 interrupt function.

Bit 1 P01IEN: External P0.1 interrupt (INT1) control bit.

0 = Disable INT1 interrupt function.

1 = Enable INT1 interrupt function.

Bit 2

-

-

-

Bit 1

P01IEN

R/W

0

Bit 0

P00IEN

R/W

0

Bit 4

Bit 5

Bit 6

T0IEN: T0 timer interrupt control bit.

0 = Disable T0 interrupt function.

1 = Enable T0 interrupt function.

TC0IEN: TC0 timer interrupt control bit.

0 = Disable TC0 interrupt function.

1 = Enable TC0 interrupt function.

T1IEN: T1 timer interrupt control bit.

0 = Disable T1 interrupt function.

1 = Enable T1 interrupt function.

SONiX TECHNOLOGY CO., LTD

Page 61

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

6.3 INTRQ INTERRUPT REQUEST REGISTER

INTRQ is the interrupt request flag register. The register includes all interrupt request indication flags. Each one of the interrupt requests occurs, the bit of the INTRQ register would be set “1”. The INTRQ value needs to be clear by programming after detecting the flag. In the interrupt vector of program, users know the any interrupt requests occurring by the register and do the routine corresponding of the interrupt request.

0C8H

INTRQ

Bit 7

-

Bit 6

T1IRQ

Bit 5

TC0IRQ

Bit 4

T0IRQ

Bit 3

-

-

-

Read/Write

After reset

Bit 0

Bit 1

-

-

R/W

0

R/W

0

R/W

0

P00IRQ: External P0.0 interrupt (INT0) request flag.

0 = None INT0 interrupt request.

1 = INT0 interrupt request.

P01IRQ: External P0.1 interrupt (INT1) request flag.

0 = None INT1 interrupt request.

1 = INT1 interrupt request.

Bit 2

-

-

-

Bit 1

P01IRQ

R/W

0

Bit 0

P00IRQ

R/W

0

Bit 4

Bit 5

T0IRQ: T0 timer interrupt request flag.

0 = None T0 interrupt request.

1 = T0 interrupt request.

TC0IRQ: TC0 timer interrupt request flag.

0 = None TC0 interrupt request.

1 = TC0 interrupt request.

Bit 6 T1IRQ: T1 timer interrupt request flag.

0 = None T1 interrupt request.

1 = T1 interrupt request.

SONiX TECHNOLOGY CO., LTD

Page 62

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

6.4 GIE GLOBAL INTERRUPT OPERATION

GIE is the global interrupt control bit. All interrupts start work after the GIE = 1 It is necessary for interrupt service request. One of the interrupt requests occurs, and the program counter (PC) points to the interrupt vector (ORG 8) and the stack add 1 level.

0DFH

STKP

Bit 7

GIE

Bit 6

-

Bit 5

-

Read/Write

After reset

Bit 7

R/W

0

-

-

GIE: Global interrupt control bit.

0 = Disable global interrupt.

1 = Enable global interrupt.

-

-

Example: Set global interrupt control bit (GIE).

B0BSET FGIE

Bit 4

-

-

-

Bit 3

; Enable GIE

-

-

-

Bit 2

STKPB2

R/W

1

Bit 1 Bit 0

STKPB1 STKPB0

R/W

1

R/W

1

Note: The GIE bit must enable during all interrupt operation.

SONiX TECHNOLOGY CO., LTD

Page 63

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

6.5 PUSH, POP ROUTINE

When any interrupt occurs, system will jump to ORG 8 and execute interrupt service routine. It is necessary to save

ACC, PFLAG data. The chip includes

“PUSH”, “POP” for in/out interrupt service routine. The two instructions save and load ACC, PFLAG data into buffers and avoid main routine error after interrupt service routine finishing.

Note:

”PUSH”, “POP” instructions save and load ACC/PFLAG without (NT0, NPD). PUSH/POP buffer is

an unique buffer and only one level.

Example: Store ACC and PAFLG data by PUSH, POP instructions when interrupt service routine executed.

START:

INT_SERVICE:

ORG

JMP

ORG

JMP

ORG

PUSH

POP

0

START

8

INT_SERVICE

10H

; Save ACC and PFLAG to buffers.

; Load ACC and PFLAG from buffers.

RETI

ENDP

; Exit interrupt service vector

SONiX TECHNOLOGY CO., LTD

Page 64

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

6.6 EXTERNAL INTERRUPT OPERATION (INT0)

INT0 is external interrupt trigger source and builds in edge trigger configuration function. When the external edge trigger occurs, the external interrupt request flag will be set to

“1” no matter the external interrupt control bit enabled or disable. When external interrupt control bit is enabled and external interrupt edge trigger is occurring, the program counter will jump to the interrupt vector (ORG 8) and execute interrupt service routine.

The external interrupt builds in wake-up latch function. That means when the system is triggered wake-up from power down mode, the wake-up source is external interrupt source (P0.0), and the trigger edge direction matches interrupt edge configuration, the trigger edge will be latched, and the system executes interrupt service routine fist after wake-up.

0BFH

PEDGE

Read/Write

After reset

Bit 7

-

-

-

Bit 6

-

-

-

Bit 5

-

-

-

Bit 4

P00G1

R/W

0

Bit 3

P00G0

R/W

0

Bit 2

-

-

-

Bit 1

-

-

-

Bit 0

-

-

-

Bit[4:3] P00G[1:0]: INT0 edge trigger select bits.

00 = reserved,

01 = rising edge,

10 = falling edge,

11 = rising/falling bi-direction.

Example: Setup INT0 interrupt request and bi-direction edge trigger.

MOV

B0MOV

A, #98H

PEDGE, A ; Set INT0 interrupt trigger as bi-direction edge.

B0BSET

B0BCLR

FP00IEN

FP00IRQ

; Enable INT0 interrupt service

; Clear INT0 interrupt request flag

; Enable GIE B0BSET FGIE

Example: INT0 interrupt service routine.

ORG 8

JMP

INT_SERVICE:

B0BTS1

INT_SERVICE

FP00IRQ

; Interrupt vector

; Push routine to save ACC and PFLAG to buffers.

; Check P00IRQ

EXIT_INT:

JMP

B0BCLR

RETI

EXIT_INT

FP00IRQ

; P00IRQ = 0, exit interrupt vector

; Reset P00IRQ

; INT0 interrupt service routine

; Pop routine to load ACC and PFLAG from buffers.

; Exit interrupt vector

SONiX TECHNOLOGY CO., LTD

Page 65

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

6.7 INT1 (P0.1) INTERRUPT OPERATION

When the INT1 trigger occurs, the P01IRQ will be set to

“1” no matter the P01IEN is enable or disable. If the P01IEN =

1 and the trigger event P01IRQ is also set to be

“1”. As the result, the system will execute the interrupt vector (ORG

8). If the P01IEN = 0 and the trigger event P01IRQ is still set to be

“1”. Moreover, the system won’t execute interrupt vector even when the P01IRQ is set to be

“1”. Users need to be cautious with the operation under multi-interrupt situation.

If the interrupt trigger direction is identical with wake-up trigger direction, the INT1 interrupt request flag (INT1IRQ) is latched while system wake-up from power down mode or green mode by P0.1 wake-up trigger. System inserts to interrupt vector (ORG 8) after wake-up immediately.

Note: INT1 interrupt request can be latched by P0.1 wake-up trigger.

Note: The interrupt trigger direction of P0.1 is falling edge.

Example: INT1 interrupt request setup.

B0BSET

B0BCLR

FP01IEN

FP01IRQ

B0BSET FGIE

Example: INT1 interrupt service routine.

INT_SERVICE:

EXIT_INT:

ORG

JMP

B0BTS1

JMP

B0BCLR

RETI

8

INT_SERVICE

FP01IRQ

EXIT_INT

FP01IRQ

; Enable INT1 interrupt service

; Clear INT1 interrupt request flag

; Enable GIE

; Interrupt vector

; Push routine to save ACC and PFLAG to buffers.

; Check P01IRQ

; P01IRQ = 0, exit interrupt vector

; Reset P01IRQ

; INT1 interrupt service routine

; Pop routine to load ACC and PFLAG from buffers.

; Exit interrupt vector

SONiX TECHNOLOGY CO., LTD

Page 66

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

6.8 T0 INTERRUPT OPERATION

When the T0C counter occurs overflow, the T0IRQ will be set to

“1” however the T0IEN is enable or disable. If the

T0IEN = 1, the trigger event will make the T0IRQ to be

“1” and the system enter interrupt vector. If the T0IEN = 0, the trigger event will make the T0IRQ to be

“1” but the system will not enter interrupt vector. Users need to care for the operation under multi-interrupt situation.

Example: T0 interrupt request setup. Fcpu = 4MHz / 4.

B0BCLR

B0BCLR

MOV

B0MOV

MOV

B0MOV

B0BSET

B0BCLR

FT0IEN

FT0ENB

A, #20H

T0M, A

A, #64H

T0C, A

FT0IEN

FT0IRQ

; Disable T0 interrupt service

; Disable T0 timer

;

; Set T0 clock = Fcpu / 64

; Set T0C initial value = 64H

; Set T0 interval = 10 ms

; Enable T0 interrupt service

; Clear T0 interrupt request flag

; Enable T0 timer

; Enable GIE

B0BSET

B0BSET

FT0ENB

FGIE

Example: T0 interrupt service routine.

ORG 8

INT_SERVICE:

JMP

B0BTS1

JMP

EXIT_INT:

B0BCLR

MOV

B0MOV

RETI

INT_SERVICE

FT0IRQ

EXIT_INT

FT0IRQ

A, #64H

T0C, A

; Interrupt vector

; Push routine to save ACC and PFLAG to buffers.

; Check T0IRQ

; T0IRQ = 0, exit interrupt vector

; Reset T0IRQ

; Reset T0C.

; T0 interrupt service routine

; Pop routine to load ACC and PFLAG from buffers.

; Exit interrupt vector

SONiX TECHNOLOGY CO., LTD

Page 67

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

6.9 TC0 INTERRUPT OPERATION

When the TC0C counter overflows, the TC0IRQ will be set to “1” no matter the TC0IEN is enable or disable. If the

TC0IEN and the trigger event TC0IRQ is set to be “1”. As the result, the system will execute the interrupt vector. If the

TC0IEN = 0, the trigger event TC0IRQ is still set to be “1”. Moreover, the system won’t execute interrupt vector even when the TC0IEN is set to be “1”. Users need to be cautious with the operation under multi-interrupt situation.

Example: TC0 interrupt request setup.

B0BCLR

B0BCLR

MOV

B0MOV

FTC0IEN

FTC0ENB

A, #20H

TC0M, A

; Disable TC0 interrupt service

; Disable TC0 timer

;

; Set TC0 clock = Fcpu / 64

MOV

B0MOV

B0BSET

B0BCLR

B0BSET

A, #74H

TC0C, A

FTC0IEN

FTC0IRQ

FTC0ENB

; Set TC0C initial value = 74H

; Set TC0 interval = 10 ms

; Enable TC0 interrupt service

; Clear TC0 interrupt request flag

; Enable TC0 timer

; Enable GIE B0BSET FGIE

Example: TC0 interrupt service routine.

INT_SERVICE:

ORG

JMP

B0BTS1

JMP

EXIT_INT:

B0BCLR

MOV

B0MOV

RETI

8

INT_SERVICE

FTC0IRQ

EXIT_INT

FTC0IRQ

A, #74H

TC0C, A

; Interrupt vector

; Push routine to save ACC and PFLAG to buffers.

; Check TC0IRQ

; TC0IRQ = 0, exit interrupt vector

; Reset TC0IRQ

; Reset TC0C.

; TC0 interrupt service routine

; Pop routine to load ACC and PFLAG from buffers.

; Exit interrupt vector

SONiX TECHNOLOGY CO., LTD

Page 68

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

6.10 T1 INTERRUPT OPERATION

When the T1C (T1CH, T1CL) counter occurs overflow, the T1

IRQ will be set to “1” however the T1IEN is enable or disable. If the T1IEN = 1, the trigger event will make the T1

IRQ to be “1” and the system enter interrupt vector. If the

T1IEN = 0, the trigger event will make the T1

IRQ to be “1” but the system will not enter interrupt vector. Users need to care for the operation under multi-interrupt situation.

Example: T1 interrupt request setup.

B0BCLR

B0BCLR

MOV

B0MOV

CLR

CLR

B0BSET

FT1IEN

FT1ENB

A, #20H

T1M, A

T1CH

T1CL

FT1IEN

; Disable T1 interrupt service

; Disable T1 timer

;

; Set T1 clock = Fcpu / 32 and falling edge trigger.

; Enable T1 interrupt service

; Clear T1 interrupt request flag

; Enable T1 timer

; Enable GIE

B0BCLR

B0BSET

FT1IRQ

FT1ENB

B0BSET FGIE

Example: T1 interrupt service routine.

INT_SERVICE:

ORG

JMP

PUSH

B0BTS1

JMP

B0BCLR

B0MOV

B0MOV

EXIT_INT:

B0MOV

B0MOV

CLR

CLR

POP

RETI

8

INT_SERVICE

FT1IRQ

EXIT_INT

FT1IRQ

A, T1CH

T1CHBUF, A

A, T1CL

T1CLBUF, A

T1CH

T1CL

; Interrupt vector

; Push routine to save ACC and PFLAG to buffers.

; Check T1IRQ

; T1IRQ = 0, exit interrupt vector

; Reset T1IRQ

; Save pulse width.

; T1 interrupt service routine

; Pop routine to load ACC and PFLAG from buffers.

; Exit interrupt vector

SONiX TECHNOLOGY CO., LTD

Page 69

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

6.11 MULTI-INTERRUPT OPERATION

Under certain condition, the software designer uses more than one interrupt requests. Processing multi-interrupt request requires setting the priority of the interrupt requests. The IRQ flags of interrupts are controlled by the interrupt event. Nevertheless, the IRQ flag

“1” doesn’t mean the system will execute the interrupt vector. In addition, which means the IRQ flags can be set

“1” by the events without enable the interrupt. Once the event occurs, the IRQ will be logic

“1”. The IRQ and its trigger event relationship is as the below table.

Interrupt Name Trigger Event Description

P00IRQ

P01IRQ

T0IRQ

TC0IRQ

T1IRQ

P0.0 trigger controlled by PEDGE

P0.1 falling edge trigger

T0C overflow

TC0C overflow

T1C (T1CH, T1CL) overflow

For multi-interrupt conditions, two things need to be taking care of. One is to set the priority for these interrupt requests.

Two is using IEN and IRQ flags to decide which interrupt to be executed. Users have to check interrupt control bit and interrupt request flag in interrupt routine.

Example: Check the interrupt request under multi-interrupt operation

ORG 8 ; Interrupt vector

INT_SERVICE:

JMP

INTP00CHK:

B0BTS1

JMP

INT_SERVICE

FP00IEN

INTT0CHK

; Push routine to save ACC and PFLAG to buffers.

; Check INT0 interrupt request

; Check P00IEN

; Jump check to next interrupt

B0BTS0

JMP

INTP01CHK:

B0BTS1

INTT0CHK:

JMP

B0BTS0

JMP

B0BTS1

JMP

B0BTS0

JMP

INTTC0CHK:

B0BTS1

JMP

B0BTS0

INTT1CHK:

INT_EXIT:

JMP

B0BTS1

JMP

B0BTS0

JMP

RETI

FP00IRQ

INTP00

FP01IEN

INTT0CHK

FP01IRQ

INTP01

FT0IEN

INTTC0CHK

FT0IRQ

INTT0

FTC0IEN

INTT1CHK

FTC0IRQ

INTTC0

FT1IEN

FT1IRQ

INTT1

; Check P00IRQ

; Jump to INT0 interrupt service routine

; Check INT1 interrupt request

; Check P01IEN

; Jump check to next interrupt

; Check P01IRQ

; Jump to INT1 interrupt service routine

; Check T0 interrupt request

; Check T0IEN

; Jump check to next interrupt

; Check T0IRQ

; Jump to T0 interrupt service routine

; Check TC0 interrupt request

; Check TC0IEN

; Jump check to next interrupt

; Check TC0IRQ

; Jump to TC0 interrupt service routine

; Check T1 interrupt request

; Check T1IEN

; Jump check to next interrupt

; Check T1IRQ

; Jump to T1 interrupt service routine

; Pop routine to load ACC and PFLAG from buffers.

; Exit interrupt vector

SONiX TECHNOLOGY CO., LTD

Page 70

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

7

I/O PORT

7.1 OVERVIEW

The micro-controller builds in 29 pin I/O. Most of the I/O pins are mixed with analog pins and special function pins. The

I/O shared pin list is as following.

I/O Pin Shared Pin

Shared Pin Control Condition

Name Type Name Type

P0.0

P0.1

P0.2

P0.3

P0.4

P1.0

P1.1

P1.2

P1.3

P1.4

P1.6

P5.4

I/O

I/O

I/O

I

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

INT0

INT1

T1IN

RST

VPP

XOUT

FCPUO

RFC0

RFC1

RFC2

RFC3

RFC4

RFCOUT

PWM0

DC

DC

DC

DC

HV

AC

DC

AC

AC

AC

DC

DC

P00IEN=1

P01IEN=1

T1CKS=1

Reset_Pin code option = Reset

OTP Programming

High_Clk code option = 4M, 12M

High_Clk code option = RC

AC RFCENB=1, RFCH[2:0]=000b

AC RFCENB=1, RFCH[2:0]=001b

RFCENB=1, RFCH[2:0]=010b

RFCENB=1, RFCH[2:0]=011b

RFCENB=1, RFCH[2:0]=100b

RFCENB=1, RFCOUT=1

TC0ENB=1, PWMOUT=1

P2[3:0]

P2[7:4]

P3[3:0]

P3[7:4]

I/O

I/O

I/O

I/O

SEG[28:31]

SEG[24:27]

SEG[20:23]

SEG[16:19]

DC

DC

DC

DC

PSEG[2:0]=000b

PSEG[2:0]=000b/001b

PSEG[2:0]=000b/001b/010b

PSEG[2:0]=000b/001b/010b/011b

* DC: Digital Characteristic. AC: Analog Characteristic. HV: High Voltage Characteristic.

SONiX TECHNOLOGY CO., LTD

Page 71

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

7.2 I/O PORT MODE

The port direction is programmed by PnM register. When the bit of PnM register is

“0”, the pin is input mode. When the bit of PnM register is

“1”, the pin is output mode.

0B8H

P0M

Bit 7

-

Bit 6

-

Bit 5

-

Bit 4

P04M

Bit 3

-

Bit 2

P02M

Bit 1

P01M

Bit 0

P00M

Read/Write

After reset

-

-

-

-

-

-

R/W

0

-

-

R/W

0

R/W

0

R/W

0

0C1H

P1M

Bit 7

-

-

-

Bit 6

P16M

R/W

0

Bit 5

P15M

R/W

0

Bit 4

P14M

R/W

0

Bit 3

P13M

R/W

0

Bit 2

P12M

R/W

0

Bit 1

P11M

R/W

0

Bit 0

P10M

R/W

0

Read/Write

After reset

0C2H

P2M

Read/Write

After reset

Bit 7

P27M

R/W

0

Bit 6

P26M

R/W

0

Bit 5

P25M

R/W

0

Bit 4

P24M

R/W

0

Bit 3

P23M

R/W

0

Bit 2

P22M

R/W

0

Bit 1

P21M

R/W

0

Bit 0

P20M

R/W

0

0C3H

P3M

Read/Write

After reset

0C5H

P5M

Read/Write

After reset

Bit 7

P37M

R/W

0

Bit 7

-

-

-

Bit 6

P36M

R/W

0

Bit 6

-

-

-

Bit 5

P35M

R/W

0

Bit 5

-

-

-

Bit[7:0] PnM[7:0]: Pn mode control bits. (n = 0~5).

0 = Pn is input mode.

1 = Pn is output mode.

Bit 4

P34M

R/W

0

Bit 4

P54M

R/W

0

Bit 3

P33M

R/W

0

Bit 3

-

-

-

Bit 2

P32M

R/W

0

Bit 2

-

-

-

Bit 1

P31M

R/W

0

Bit 1

-

-

-

Bit 0

P30M

R/W

0

Bit 0

-

-

-

Note:

1. Users can program them by bit control instructions (B0BSET, B0BCLR).

2. P0.3 input only pin, and the P0M.3 is undefined.

Example: I/O mode selection.

CLR

CLR

P0M

P1M

MOV

B0MOV

B0MOV

A, #0FFH

P0M, A

P1M,A

B0BCLR

B0BSET

P1M.0

P1M.0

; Set all ports to be input mode.

; Set all ports to be output mode.

; Set P1.0 to be input mode.

; Set P1.0 to be output mode.

SONiX TECHNOLOGY CO., LTD

Page 72

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

Example: LCD shared pin control methods.

;Enable P2.0~P2.3 GPIO function.

B0BCLR

B0BCLR

B0BSET

FPSEG2

FPSEG1

FPSEG0

MOV

B0MOV

B0BCLR

A, #0X0F

P2M, A

P2M.0

;Enable P2.0~P2.7 GPIO function.

B0BCLR

B0BSET

FPSEG2

FPSEG1

B0BCLR FPSEG0

MOV

B0MOV

B0BCLR

A, #0XFF

P2M, A

P2M.0

;Enable P2.0~P2.7 and P3.0~P3.3 GPIO function.

B0BCLR

B0BSET

B0BSET

FPSEG2

FPSEG1

FPSEG0

MOV

B0MOV

MOV

B0MOV

B0BCLR

B0BCLR

A, #0XFF

P2M, A

A, #0X0F

P3M, A

P2M.0

P3M.0

;Enable P2.0~P2.7 and P3.0~P3.7 GPIO function.

B0BSET FPSEG2

B0BCLR

B0BCLR

FPSEG1

FPSEG0

MOV

B0MOV

B0MOV

B0BCLR

B0BCLR

A, #0XFF

P2M, A

P3M, A

P2M.0

P3M.0

;Disable P2.0~P2.7 and P3.0~P3.7 GPIO function.

B0BCLR FPSEG2

B0BCLR

B0BCLR

FPSEG1

FPSEG0

; Set PSEG[2:0]=001b

; Set P2.0~P2.3 to output mode.

; Set P2.0 to input mode.

; Set PSEG[2:0]=010b

; Set P2.0~P2.7 to output mode.

; Set P2.0 to input mode.

; Set PSEG[2:0]=011b

; Set P2.0~P2.7 to output mode.

; Set P3.0~P3.3 to output mode.

; Set P2.0 to input mode.

; Set P3.0 to input mode.

; Set PSEG[2:0]=100b

; Set P2.0~P2.7 and P3.0~P3.7 to output mode.

; Set P2.0 to input mode.

; Set P3.0 to input mode.

; Set PSEG[2:0]=000b

SONiX TECHNOLOGY CO., LTD

Page 73

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

7.3 I/O PULL UP REGISTER

The I/O pins build in internal pull-up resistors and only support I/O input mode. The port internal pull-up resistor is programmed by PnUR register. When the bit of PnUR register is

“0”, the I/O pin’s pull-up is disabled. When the bit of

PnUR register is

“1”, the I/O pin’s pull-up is enabled.

0E0H

P0UR

Bit 7

-

Bit 6

-

Bit 5

-

Bit 4

P04R

Bit 3

-

Bit 2

P02R

Bit 1

P01R

Bit 0

P00R

Read/Write

After reset

-

-

-

-

-

-

W

0

-

-

W

0

W

0

W

0

0E1H

P1UR

Read/Write

After reset

0E2H

P2UR

Read/Write

After reset

Bit 7

-

-

-

Bit 7

P27R

W

0

Bit 6

P16R

W

0

Bit 6

P26R

W

0

Bit 5

P15R

W

0

Bit 5

P25R

W

0

Bit 4

P14R

W

0

Bit 4

P24R

W

0

Bit 3

P14R

W

0

Bit 3

P23R

W

0

Bit 2

P12R

W

0

Bit 2

P22R

W

0

Bit 1

P11R

W

0

Bit 1

P21R

W

0

Bit 0

P10R

W

0

Bit 0

P20R

W

0

0E3H

P3UR

Read/Write

After reset

0E5H

P5UR

Read/Write

After reset

Bit 7

P37R

W

0

Bit 7

-

-

-

Bit 6

P36R

W

0

Bit 6

-

-

-

Bit 5

P35R

W

0

Bit 5

-

-

-

Bit 4

P34R

W

0

Bit 4

P54R

W

0

Bit 3

P33R

W

0

Bit 3

-

-

-

Bit 2

P32R

W

0

Bit 2

-

-

-

Bit 1

P31R

W

0

Bit 1

-

-

-

Bit 0

P30R

W

0

Bit 0

-

-

-

Note: P0.3 is input only pin and without pull-up resister. The P0UR.3 is undefined.

Example: I/O Pull up Register

MOV

B0MOV

B0MOV

A, #0FFH

P0UR, A

P1UR,A

; Enable Port0, 1 Pull-up register,

;

SONiX TECHNOLOGY CO., LTD

Page 74

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

7.4 I/O PORT DATA REGISTER

0D0H

P0

Read/Write

After reset

0D1H

P1

Read/Write

After reset

0D2H

P2

Read/Write

After reset

0D3H

P3

Read/Write

After reset

Bit 7

-

-

-

Bit 7

-

-

-

Bit 7

P27

R/W

0

Bit 6

-

-

-

Bit 6

P16

R/W

0

Bit 6

P26

R/W

0

Bit 5

-

-

-

Bit 5

P15

R/W

0

Bit 5

P25

R/W

0

Bit 4

P04

R/W

0

Bit 4

P14

R/W

0

Bit 4

P24

R/W

0

Bit 3

P03

R

0

Bit 3

P13

R/W

0

Bit 3

P23

R/W

0

0D5H

P5

Read/Write

After reset

Bit 7

P37

R/W

0

Bit 7

-

-

-

Bit 6

P36

R/W

0

Bit 6

-

-

-

Bit 5

P35

R/W

0

Bit 5

-

-

-

Bit 4

P34

R/W

0

Bit 4

P54

R/W

0

Bit 3

P33

R/W

0

Bit 3

-

-

-

Note: The P03 keeps

“1” when external reset enable by code option.

Example: Read data from input port.

B0MOV

B0MOV

A, P0

A, P1

Example: Write data to output port.

MOV

B0MOV

B0MOV

A, #0FFH

P0, A

P1, A

Example: Write one bit data to output port.

B0BSET P1.0

B0BCLR P1.0

; Read data from Port 0

; Read data from Port 1

; Write data FFH to all Port.

; Set P1.0 to be

“1”.

; Set P1.0 to be

“0”.

Bit 2

P02

R/W

0

Bit 2

P12

R/W

0

Bit 2

P22

R/W

0

Bit 2

P32

R/W

0

Bit 2

-

-

-

Bit 1

P21

R/W

0

Bit 1

P31

R/W

0

Bit 1

P01

R/W

0

Bit 1

P11

R/W

0

Bit 1

-

-

-

Bit 0

P20

R/W

0

Bit 0

P30

R/W

0

Bit 0

P00

R/W

0

Bit 0

P10

R/W

0

Bit 0

-

-

-

SONiX TECHNOLOGY CO., LTD

Page 75

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8

TIMERS

8.1 WATCHDOG TIMER

The watchdog timer (WDT) is a binary up counter designed for monitoring program execution. If the program goes into the unknown status by noise interference, WDT overflow signal raises and resets MCU. Watchdog clock controlled by code option and the clock source is internal low-speed oscillator.

Watchdog overflow time = 8192 / Internal Low-Speed oscillator (sec).

VDD Internal Low RC Freq.

3V 16KHz

5V 32KHz

Watchdog Overflow Time

512ms

256ms

The watchdog timer has three operating options controlled

“WatchDog” code option.

Disable: Disable watchdog timer function.

Enable: Enable watchdog timer function. Watchdog timer actives in normal mode and slow mode. In power down mode and green mode, the watchdog timer stops.

Always_On: Enable watchdog timer function. The watchdog timer actives and not stop in power down mode and green mode.

In high noisy environment, the

“Always_On” option of watchdog operations is the strongly recommendation to make the system reset under error situations and re-start again.

Watchdog clear is controlled by WDTR register. Moving 0x5A data into WDTR is to reset watchdog timer.

0CCH

WDTR

Read/Write

After reset

Bit 7

WDTR7

W

0

Bit 6

WDTR6

W

0

Bit 5

WDTR5

W

0

Bit 4

WDTR4

W

0

Bit 3

WDTR3

W

0

Bit 2

WDTR2

W

0

Bit 1

WDTR1

W

0

Bit 0

WDTR0

W

0

Example: An operation of watchdog timer is as following. To clear the watchdog timer counter in the top of the main routine of the program.

Main:

MOV

B0MOV

CALL

A, #5AH

WDTR, A

; Clear the watchdog timer.

CALL

SUB1

SUB2

JMP MAIN

Example: Clear watchdog timer by

“@RST_WDT” macro of Sonix IDE.

Main:

@RST_WDT

CALL

CALL

JMP

SUB1

SUB2

MAIN

; Clear the watchdog timer.

SONiX TECHNOLOGY CO., LTD

Page 76

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

Watchdog timer application note is as following.

Before clearing watchdog timer, check I/O status and check RAM contents can improve system error.

 Don’t clear watchdog timer in interrupt vector and interrupt service routine. That can improve main routine fail.

Clearing watchdog timer program is only at one part of the program. This way is the best structure to enhance the watchdog timer function.

Example: An operation of watchdog timer is as following. To clear the watchdog timer counter in the top of the main routine of the program.

Main:

Err:

JMP $

; Check I/O.

; Check RAM

; I/O or RAM error. Program jump here and don’t

; clear watchdog. Wait watchdog timer overflow to reset IC.

Correct:

MOV

B0MOV

CALL

CALL

JMP

A, #5AH

WDTR, A

SUB1

SUB2

MAIN

; I/O and RAM are correct. Clear watchdog timer and

; execute program.

; Clear the watchdog timer.

SONiX TECHNOLOGY CO., LTD

Page 77

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.2 T0 8-BIT BASIC TIMER

8.2.1 OVERVIEW

The T0 timer is an 8-bit binary up timer with basic timer function. The basic timer function supports flag indicator

(T0IRQ bit) and interrupt operation (interrupt vector). The interval time is programmable through T0M, T0C registers and supports RTC function. The T0 builds in green mode wake-up function. When T0 timer overflow occurs under green mode, the system will be waked-up to last operating mode.

8-bit programmable up counting timer: Generate time-out at specific time intervals based on the selected clock frequency.

Interrupt function: T0 timer function supports interrupt function. When T0 timer occurs overflow, the T0IRQ actives and the system points program counter to interrupt vector to do interrupt sequence.

RTC function: T0 supports RTC function. The RTC clock source is from external low speed 32K oscillator

(LXIN/LXOUT) when T0TB=1.

Green mode function: T0 timer keeps running in green mode and wakes up system when T0 timer overflows.

T0 Rate

(Fcpu/2~Fcpu/

256)

T0ENB

Load T0C Value by Program.

T0TB

Fcpu T0C 8-Bit Binary Up Counting Counter

T0IRQ Interrupt Flag

(T0 timer overflow.)

Ext. 32K

(LXIN, LXOUT)

÷ 64

CPUM0,1

Note: In RTC mode, the T0 interval time is fixed at 0.5 sec and T0C is 256 counts.

SONiX TECHNOLOGY CO., LTD

Page 78

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.2.2 T0 Timer Operation

T0 timer is controlled by T0ENB bit. When T0ENB=0, T0 timer stops. When T0ENB=1, T0 timer starts to count. T0C increases

“1” by timer clock source. When T0 overflow event occurs, T0IRQ flag is set as ”1” to indicate overflow and cleared by program. The overflow condition is T0C count from full scale (0xFF) to zero scale (0x00). T0 doesn

’t build in double buffer, so load T0C by program when T0 timer overflows to fix the correct interval time. If T0 timer interrupt function is enabled (T0IEN=1), the system will execute interrupt procedure. The interrupt procedure is system program counter points to interrupt vector (ORG 8) and executes interrupt service routine after T0 overflow occurrence. Clear

T0IRQ by program is necessary in interrupt procedure. T0 timer can works in normal mode, slow mode and green mode. In green mode, T0 keeps counting, set T0IRQ and wakes up system when T0 timer overflows.

Clock

Source

...

...

T0C

0x00 or “n” by program

0x01 or n+1

0x02 or n+2

0x02 or n+2

...

0xFE 0xFF

0x00 or “n” by program

...

T0IRQ

T0 timer overflows. T0IRQ set as “1”.

Reload T0C by program.

T0IRQ is cleared by program.

T0 clock source is Fcpu (instruction cycle) through T0rate[2:0] pre-scaler to decide Fcpu/2~Fcpu/256. T0 length is 8-bit

(256 steps), and the one count period is each cycle of input clock.

T0rate[2:0] T0 Clock

Fhosc=16MHz,

Fcpu=Fhosc/4

T0 Interval Time

Fhosc=4MHz,

Fcpu=Fhosc/4

IHRC_RTC mode max. (ms) Unit (us) max. (ms) Unit (us) max.

(sec)

Unit (ms)

000b

001b

010b

011b

100b

101b

110b

111b

-

Fcpu/256 16.384

Fcpu/128 8.192

Fcpu/64 4.096

Fcpu/32 2.048

Fcpu/16

Fcpu/8

Fcpu/4

Fcpu/2

32768Hz/64

1.024

0.512

0.256

0.128

-

64

32

16

8

4

2

1

0.5

-

65.536

32.768

16.384

8.192

4.096

2.048

1.024

0.512

-

256

128

64

32

16

8

4

2

-

-

-

-

-

0.5

-

-

-

-

-

-

-

-

-

-

-

-

1.953

SONiX TECHNOLOGY CO., LTD

Page 79

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.2.3 T0M MODE REGISTER

T0M is T0 timer mode control register to configure T0 operating mode including T0 prescaler, clock source…These configurations must be setup completely before enabling T0 timer.

0D8H

T0M

Read/Write

After reset

Bit 7

T0ENB

R/W

0

Bit 6

T0rate2

R/W

0

Bit 5

T0rate1

R/W

0

Bit 4

T0rate0

R/W

0

Bit 3

-

-

-

Bit 2

-

-

-

Bit 1

-

-

-

Bit 0

T0TB

R/W

0

Bit 0 T0TB: RTC clock source control bit.

0 = Disable RTC (T0 clock source from Fcpu).

1 = Enable RTC.

Bit [6:4] T0RATE[2:0]: T0 timer clock source select bits.

000 = Fcpu/256, 001 = Fcpu/128, 010 = Fcpu/64, 011 = Fcpu/32, 100 = Fcpu/16, 101 = Fcpu/8, 110 =

Fcpu/4,111 = Fcpu/2.

Bit 7 T0ENB: T0 counter control bit.

0 = Disable T0 timer.

1 = Enable T0 timer.

Note: T0RATE is not available in RTC mode. The T0 interval time is fixed at 0.5 sec.

8.2.4 T0C COUNTING REGISTER

T0C is T0 8-bit counter. When T0C overflow occurs, the T0IRQ flag is set as

“1” and cleared by program. The T0C decides T0 interval time through below equation to calculate a correct value. It is necessary to write the correct value to

T0C register, and then enable T0 timer to make sure the first cycle correct. After one T0 overflow occurs, the T0C register is loaded a correct value by program.

0D9H

T0C

Read/Write

After reset

Bit 7

T0C7

R/W

0

Bit 6

T0C6

R/W

0

Bit 5

T0C5

R/W

0

Bit 4

T0C4

R/W

0

Bit 3

T0C3

R/W

0

Bit 2

T0C2

R/W

0

Bit 1

T0C1

R/W

0

Bit 0

T0C0

R/W

0

The equation of T0C initial value is as following.

T0C initial value = 256 - (T0 interrupt interval time * T0 clock rate)

Example: To calculation T0C to obtain 10ms T0 interval time. T0 clock source is Fcpu = 4MHz/4 = 1MHz.

Select T0RATE=001 (Fcpu/128).

T0 interval time = 10ms. T0 clock rate = 4MHz/4/128

T0C initial value = 256 - (T0 interval time * input clock)

= 256 - (10ms * 4MHz / 4 / 128)

= 256 - (10

-2

* 4 * 10

6

/ 4 / 128)

= B2H

Note: In RTC mode, T0C is 256 counts and generatesT0 0.5 sec interval time. Don

’t change T0C value in

RTC mode.

SONiX TECHNOLOGY CO., LTD

Page 80

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.2.5 T0 TIMER OPERATION EXPLAME

T0 TIMER CONFIGURATION:

; Reset T0 timer.

MOV

B0MOV

A, #0x00

T0M, A

; Set T0 clock source and T0 rate.

MOV

B0MOV

A, #0nnn0000b

T0M, A

; Set T0C register for T0 Interval time.

MOV

B0MOV

A, #value

T0C, A

; Clear T0IRQ

B0BCLR FT0IRQ

; Enable T0 timer and interrupt function.

B0BSET

B0BSET

FT0IEN

FT0ENB

T0 works in RTC mode:

; Reset T0 timer.

MOV

B0MOV

; Set T0 RTC function.

B0BSET

; Clear T0C.

CLR

A, #0x00

T0M, A

FT0TB

T0C

; Clear T0IRQ

B0BCLR FT0IRQ

; Enable T0 timer and interrupt function.

B0BSET

B0BSET

FT0IEN

FT0ENB

; Clear T0M register.

; Enable T0 interrupt function.

; Enable T0 timer.

; Clear T0M register.

; Enable T0 interrupt function.

; Enable T0 timer.

SONiX TECHNOLOGY CO., LTD

Page 81

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.3 TC0 8-BIT TIMER/COUNTER

8.3.1 OVERVIEW

The TC0 timer is an 8-bit binary up timer with basic timer, event counter and PWM functions. The basic timer function supports flag indicator (TC0IRQ bit) and interrupt operation (interrupt vector). The interval time is programmable through TC0M, TC0C, TC0R registers. The event counter is changing TC0 clock source from system clock

(Fcpu/Fhosc) to external clock like signal (e.g. continuous pulse, R/C type oscillating signal

…). TC0 becomes a counter to count external clock number to implement measure application. TC0 also builds in duty/cycle programmable PWM.

The PWM cycle and resolution are controlled by TC0 timer clock rate, TC0R and TC0D registers, so the PWM with good flexibility to implement IR carry signal, motor control and brightness adjuster

…The main purposes of the TC0 timer are as following.

8-bit programmable up counting timer: Generate time-out at specific time intervals based on the selected clock frequency.

Interrupt function: TC0 timer function supports interrupt function. When TC0 timer occurs overflow, the TC0IRQ actives and the system points program counter to interrupt vector to do interrupt sequence.

Event Counter: The event counter function counts the external clock counts.

Duty/cycle programmable PWM: The PWM is duty/cycle programmable controlled by TC0R and TC0D registers.

Green mode function: All TC0 functions (timer, PWM, event counter, auto-reload) keep running in green mode and no wake-up function.

TC0 Rate

(Fcpu/1~Fcpu/128)

TC0CKS0

TC0R Reload

Data Buffer

Up Counting

Reload Value

Load

TC0CKS1 TC0ENB

Fcpu

Fhosc

TC0 Time Out

TC0C

8-Bit Binary Up

Counting Counter

PWM0OUT

INT0 (Schmitter Trigger)

PWM

CPUM0,1

Compare

S

R

P5.4 Pin

TC0D

Data Buffer

P5.4 GPIO

SONiX TECHNOLOGY CO., LTD

Page 82

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.3.2 TC0 TIMER OPERATION

TC0 timer is controlled by TC0ENB bit. When TC0ENB=0, TC0 timer stops. When TC0ENB=1, TC0 timer starts to count. Before enabling TC0 timer, setup TC0 timer

’s configurations to select timer function modes, e.g. basic timer, interrupt function

…TC0C increases “1” by timer clock source. When TC0 overflow event occurs, TC0IRQ flag is set as

”1” to indicate overflow and cleared by program. The overflow condition is TC0C count from full scale (0xFF) to zero scale (0x00). In difference function modes, TC0C value relates to operation. If TC0C value changing effects operation, the transition of operations would make timer function error. So TC0 builds in double buffer to avoid these situations happen. The double buffer concept is to flash TC0C during TC0 counting, to set the new value to TC0R (reload buffer), and the new value will be loaded from TC0R to TC0C after TC0 overflow occurrence automatically. In the next cycle, the TC0 timer runs under new conditions, and no any transitions occur. The auto-reload function is no any control interface and always actives as TC0 enables. If TC0 timer interrupt function is enabled (TC0IEN=1), the system will execute interrupt procedure. The interrupt procedure is system program counter points to interrupt vector (ORG 8) and executes interrupt service routine after TC0 overflow occurrence. Clear TC0IRQ by program is necessary in interrupt procedure. TC0 timer can works in normal mode, slow mode and green mode. But in green mode, TC0 keep counting, set TC0IRQ and outputs PWM, but can

’t wake-up system.

Clock

Source

TC0C

0x00 or TC0R

0x01 0x02

...

...

0x03 ...

0xFE 0xFF TC0R ...

TC0IRQ

TC0 timer overflows. TC0IRQ set as “1”.

Reload TC0C from TC0R automatically.

TC0IRQ is cleared by program.

TC0 provides different clock sources to implement different applications and configurations. TC0 clock source includes

Fcpu (instruction cycle), Fhosc (high speed oscillator) and external input pin (P0.0) controlled by TC0CKS[1:0] bits.

TC0CKS0 bit selects the clock source is from Fcpu or Fhosc. If TC0CKS0=0, TC0 clock source is Fcpu through

TC0rate[2:0] pre-scaler to decide Fcpu/1~Fcpu/128. If TC0CKS0=1, TC0 clock source is Fhosc without any divider.

TC0CKS1 bit controls the clock source is external input pin or controlled by TC0CKS0 bit. If TC0CKS1=0, TC0 clock source is selected by TC0CKS0 bit. If TC0CKS1=1, TC0 clock source is external input pin that means to enable event counter function. TC0rate[2:0] pre-scaler is unless when TC0CKS0=1 or TC0CKS1=1 conditions. TC0 length is 8-bit

(256 steps), and the one count period is each cycle of input clock.

TC0CKS0 TC0rate[2:0] TC0 Clock

TC0 Interval Time

Fhosc=16MHz,

Fcpu=Fhosc/2 max. (ms) Unit (us)

0

0

0

0

1

0

0

0

0

000b

001b

010b

011b

100b

101b

110b

111b useless

Fcpu/128

Fcpu/64

Fcpu/32

Fcpu/16

Fcpu/8

Fcpu/4

Fcpu/2

Fcpu/1

Fhosc

4.096

2.048

1.024

0.576

0.256

0.128

0.064

0.032

0.016

16

8

4

2.25

1

0.5

0.25

0.125

0.0625

SONiX TECHNOLOGY CO., LTD

Page 83

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.3.3 TC0M MODE REGISTER

TC0M is TC0 timer mode control register to configure TC0 operating mode including TC0 pre-scaler, clock source,

PWM function…These configurations must be setup completely before enabling TC0 timer.

0DAH

TC0M

Bit 7

TC0ENB

Bit 6

TC0rate2

Bit 5

TC0rate1

Bit 4

TC0rate0

Bit 3

TC0CKS1

Bit 2

TC0CKS0

Bit 1

-

Bit 0

PWM0OUT

Read/Write

After reset

Bit 0

R/W

0

R/W

0

R/W

0

R/W

0

R/W

0

PWM0OUT: PWM output control bit.

0 = Disable PWM output function, and P5.4 is GPIO mode.

1 = Enable PWM output function, and P5.4 outputs PWM signal.

R/W

0

-

-

R/W

0

Bit 2 TC0CKS0: TC0 clock source select bit.

0 = Fcpu.

1 = Fhosc. TC0rate[2:0] bits are useless.

Bit 3

Bit [6:4] TC0RATE[2:0]: TC0 timer clock source select bits.

000 = Fcpu/128, 001 = Fcpu/64, 010 = Fcpu/32, 011 = Fcpu/16, 100 = Fcpu/8, 101 = Fcpu/4, 110 = Fcpu/2,

111 = Fcpu/1.

Bit 7

TC0CKS1: TC0 clock source select bit.

0 = Internal clock (Fcpu and Fhosc controlled by TC0CKS0 bit).

1 = External input pin (P0.0/INT0) and enable event counter function. TC0rate[2:0] bits are useless.

TC0ENB: TC0 counter control bit.

0 = Disable TC0 timer.

1 = Enable TC0 timer.

8.3.4 TC0C COUNTING REGISTER

TC0C is TC0 8-bit counter. When TC0C overflow occurs, the TC0IRQ flag is set as

“1” and cleared by program. The

TC0C decides TC0 interval time through below equation to calculate a correct value. It is necessary to write the correct value to TC0C register and TC0R register first time, and then enable TC0 timer to make sure the fist cycle correct.

After one TC0 overflow occurs, the TC0C register is loaded a correct value from TC0R register automatically, not program.

0DBH

TC0C

Bit 7

TC0C7

Bit 6

TC0C6

Bit 5

TC0C5

Bit 4

TC0C4

Bit 3

TC0C3

Bit 2

TC0C2

Bit 1

TC0C1

Bit 0

TC0C0

Read/Write

After reset

R/W

0

R/W

0

R/W

0

The equation of TC0C initial value is as following.

R/W

0

R/W

0

R/W

0

R/W

0

TC0C initial value = 256 - (TC0 interrupt interval time * TC0 clock rate)

R/W

0

SONiX TECHNOLOGY CO., LTD

Page 84

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.3.5 TC0R AUTO-RELOAD REGISTER

TC0 timer builds in auto-reload function, and TC0R register stores reload data. When TC0C overflow occurs, TC0C register is loaded data from TC0R register automatically. Under TC0 timer counting status, to modify TC0 interval time is to modify TC0R register, not TC0C register. New TC0C data of TC0 interval time will be updated after TC0 timer overflow occurrence, TC0R loads new value to TC0C register. But at the first time to setup TC0M, TC0C and TC0R must be set the same value before enabling TC0 timer. TC0 is double buffer design. If new TC0R value is set by program, the new value is stored in 1 st

buffer. Until TC0 overflow occurs, the new value moves to real TC0R buffer.

This way can avoid any transitional condition to effect the correctness of TC0 interval time and PWM output signal.

0CDH

TC0R

Read/Write

After reset

Bit 7

TC0R7

W

0

Bit 6

TC0R6

W

0

Bit 5

TC0R5

W

0

Bit 4

TC0R4

W

0

Bit 3

TC0R3

W

0

Bit 2

TC0R2

W

0

Bit 1

TC0R1

W

0

Bit 0

TC0R0

W

0

The equation of TC0R initial value is as following.

TC0R initial value = 256 - (TC0 interrupt interval time * TC0 clock rate)

Example: To calculation TC0C and TC0R value to obtain 10ms TC0 interval time. TC0 clock source is

Fcpu = 16MHz/16 = 1MHz. Select TC0RATE=000 (Fcpu/128).

TC0 interval time = 10ms. TC0 clock rate = 16MHz/16/128

TC0C/TC0R initial value = 256 - (TC0 interval time * input clock)

= 256 - (10ms * 16MHz / 16 / 128)

= 256 - (10 -2 * 16 * 10 6 / 16 / 128)

= B2H

8.3.6 TC0D PWM DUTY REGISTER

TC0D register

’s purpose is to decide PWM duty. In PWM mode, TC0R controls PWM’s cycle, and TC0D controls the duty of PWM. The operation is base on timer counter value. When TC0C = TC0D, the PWM high duty finished and exchange to low level. It is easy to configure TC0D to choose the right PWM

’s duty for application.

0E8H

TC0D

Bit 7

TC0D7

Bit 6

TC0D6

Bit 5

TC0D5

Bit 4

TC0D4

Bit 3

TC0D3

Bit 2

TC0D2

Bit 1

TC0D1

Bit 0

TC0D0

Read/Write

After Reset

R/W

0

R/W

0

R/W

0

The equation of TC0D initial value is as following.

R/W

0

R/W

0

R/W

0

R/W

0

R/W

0

TC0D initial value = TC0R + (PWM high pulse width period / TC0 clock rate)

Example: To calculate TC0D value to obtain 1/3 duty PWM signal. The TC0 clock source is Fcpu =

16MHz/16= 1MHz. Select TC0RATE=000 (Fcpu/128).

TC0R = B2H. TC0 interval time = 10ms. So the PWM cycle is 100Hz. In 1/3 duty condition, the high pulse width is about 3.33ms.

TC0D initial value = B2H + (PWM high pulse width period / TC0 clock rate)

= B2H + (3.33ms * 16MHz / 16 / 128)

= B2H + 1AH

= CCH

SONiX TECHNOLOGY CO., LTD

Page 85

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.3.7 TC0 EVENT COUNTER

TC0 event counter is set the TC0 clock source from external input pin (P0.0). When TC0CKS1=1, TC0 clock source is switch to external input pin (P0.0). TC0 event counter trigger direction is falling edge. When one falling edge occurs,

TC0C will up one count. When TC0C counts from 0xFF to 0x00, TC0 triggers overflow event. The external event counter input pi n’s wake-up function of GPIO mode is disabled when TC0 event counter function enabled to avoid event counter signal trigger system wake-up and not keep in power saving mode. The external event counter input pin’s external interrupt function is also disabled when TC0 event counter function enabled, and the P00IRQ bit keeps

“0” status. The event counter usually is used to measure external continuous signal rate, e.g. continuous pulse, R/C type oscillating signal

…These signal phase don’t synchronize with MCU’s main clock. Use TC0 event to measure it and calculate the signal rate in program for different applications.

External Input Signel ...

...

TC0C

0x00 or TC0R

0x01 0x02 0x03 ...

0xFE 0xFF TC0R ...

TC0IRQ

TC0 timer overflows. TC0IRQ set as “1”.

Reload TC0C from TC0R automatically.

TC0IRQ is cleared by program.

8.3.8 PULSE WIDTH MODULATION (PWM)

The PWM is duty/cycle programmable design to offer various PWM signals. When TC0 timer enables and PWM0OUT bit sets as

“1” (enable PWM output), the PWM output pin (P5.4) outputs PWM signal. One cycle of PWM signal is high pulse first, and then low pulse outputs. TC0R register controls the cycle of PWM, and TC0D decides the duty (high pulse width length) of PWM. TC0C initial value is TC0R reloaded when TC0 timer enables and TC0 timer overflows.

When TC0C count is equal to TC0D, the PWM high pulse finishes and exchanges to low level. When TC0 overflows

(TC0C counts from 0xFF to 0x00), one complete PWM cycle finishes. The PWM exchanges to high level for next cycle.

The PWM is auto-reload design to load TC0C from TC0R automatically when TC0 overflows and the end of PWM

’s cycle, to keeps PWM continuity. If modify the PWM cycle by program as PWM outputting, the new cycle occurs at next cycle when TC0C loaded from TC0R.

Enable TC0 and PWM.

TC0C is loaded from TC0R.

PWM outputs high status.

TC0C = TC0D.

PWM exchanges to low status.

TC0C overflows from 0xFF to 0x00.

TC0C is loaded from TC0R.

PWM exchanges to high status.

TC0R

TC0R

+1

TC0R

+2

...

TC0D

-2

TC0D

-1

TC0D ...

0xFD 0xFE 0xFF TC0R

TC0R

+1

TC0R

+2

...

TC0C

PWM Output

One complete cycle of PWM.

Next cycle.

SONiX TECHNOLOGY CO., LTD

Page 86

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

The resolution of PWM is decided by TC0R. TC0R range is from 0x00~0xFF. If TC0R = 0x00, PWM

’s resolution is

1/256. If TC0R = 0x80, PWM

’s resolution is 1/128. TC0D controls the high pulse width of PWM for PWM’s duty. When

TC0C = TC0D, PWM output exchanges to low status. TC0D must be greater than TC0R, or the PWM signal keeps low status. When PWM outputs, TC0IRQ still actives as TC0 overflows, and TC0 interrupt function actives as TC0IEN = 1.

But strongly recommend be careful to use PWM and TC0 timer together, and make sure both functions work well.

The PWM output pin is shared with GPIO and switch to output PWM signal as PWM0OUT=1 automatically. If

PWM0OUT bit is cleared to disable PWM, the output pin exchanges to last GPIO mode automatically. It easily to implement carry signal on/off operation, not to control TC0ENB bit.

PWM Output

PWM0OUT=0.

PWM0OUT=1. The pin exchanges to output mode and outputs PWM signal automatically.

PWM0OUT=0. The pin exchanges

to last GPIO mode (output low).

PWM Output

PWM0OUT=0.

PWM0OUT=1. The pin exchanges to output mode and outputs PWM signal automatically.

PWM0OUT=0. The pin exchanges

to last GPIO mode (output high).

High impendence (floating)

PWM Output

PWM0OUT=0.

PWM0OUT=1. The pin exchanges to output mode and outputs PWM signal automatically.

PWM0OUT=0. The pin exchanges

to last GPIO mode (input).

8.3.9 TC0 TIMER OPERATION EXPLAME

TC0 TIMER CONFIGURATION:

; Reset TC0 timer.

; Clear TC0M register. CLR TC0M

; Set TC0 clock source and TC0 rate.

MOV A, #0nnn0n00b

B0MOV TC0M, A

; Set TC0C and TC0R register for TC0 Interval time.

MOV A, #value

B0MOV TC0C, A

; Clear TC0IRQ

B0MOV TC0R, A

B0BCLR FTC0IRQ

; Enable TC0 timer and interrupt function.

B0BSET FTC0IEN

B0BSET FTC0ENB

; TC0C must be equal to TC0R.

; Enable TC0 interrupt function.

; Enable TC0 timer.

PWM0OUT=1.

PWM0OUT=1.

PWM0OUT=1.

SONiX TECHNOLOGY CO., LTD

Page 87

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

TC0 EVENT COUNTER CONFIGURATION:

; Reset TC0 timer.

CLR

; Enable TC0 event counter.

B0BSET

TC0M

FTC0CKS1

; Set TC0C and TC0R register for TC0 Interval time.

MOV

B0MOV

A, #value

TC0C, A

B0MOV

; Clear TC0IRQ

B0BCLR

TC0R, A

FTC0IRQ

; Enable TC0 timer and interrupt function.

B0BSET

B0BSET

FTC0IEN

FTC0ENB

TC0 PWM CONFIGURATION:

; Reset TC0 timer.

CLR TC0M

; Set TC0 clock source and TC0 rate.

MOV

A, #0nnn0n00b

B0MOV TC0M, A

; Set TC0C and TC0R register for PWM cycle.

MOV

B0MOV

B0MOV

A, #value1

TC0C, A

TC0R, A

; Set TC0D register for PWM duty.

MOV A, #value2

B0MOV

; Enable PWM and TC0 timer.

TC0D, A

B0BSET

B0BSET

FTC0ENB

FPWM0OUT

; Clear TC0M register.

; Set TC0 clock source from external input pin (P0.0).

; TC0C must be equal to TC0R.

; Enable TC0 interrupt function.

; Enable TC0 timer.

; Clear TC0M register.

; TC0C must be equal to TC0R.

; TC0D must be greater than TC0R.

; Enable TC0 timer.

; Enable PWM.

SONiX TECHNOLOGY CO., LTD

Page 88

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.4 T1 16-BIT TIMER WITH CAPTURE TIMER FUNCTION

8.4.1 OVERVIEW

The T1 timer is a 16-bit binary up timer with basic timer and capture timer functions. The basic timer function supports flag indicator (T1IRQ bit) and interrupt operation (interrupt vector). The interval time is programmable through T1M,

T1CH/T1CL 16-bit counter registers. The capture timer supports high pulse width measurement, low pulse width measurement, cycle measurement and continuous duration from P0.2/T1IN pin. T1 becomes a timer meter to count external signal time parameters to implement measure application. The main purposes of the T1 timer are as following.

16-bit programmable up counting timer: Generate time-out at specific time intervals based on the selected clock frequency.

16-bit capture timer: Measure the input signal pulse width and cycle depend on the T1 clock time base to decide the capture timer’s resolution. The capture timer builds in programmable trigger edge selection to decide the start-stop trigger event.

10-bit event counter: The 10-bit event counter to detect event source for accumulative capture timer function.

The event counter is up counting design. When the counter is overflow, the T1 stops counting and the T1 counter buffers records the period of event counter duration.

Interrupt function: T1 timer function and capture timer function support interrupt function. When T1 timer occurs overflow or capture timer stops counting, the T1IRQ actives and the system points program counter to interrupt vector to do interrupt sequence.

Green mode function: All T1 functions (timer, event counter, capture timer, auto-reload) keeps running in green mode, but no wake-up function.

T1CH

Buffer

T1 Rate

(Fcpu/1~Fcpu/128)

T1CKS

T1ENB

T1CL

Buffer

Read T1CL Register

Write T1CL Register

Fcpu

Fhosc

T1CH,L 16-Bit Binary Up Counting Counter

T1IRQ Interrupt Flag

(T1 timer overflow.)

(Capture timer stop)

CPUM0,1

P0.2/T1IN

RFC Output

Signal

CPTCKS CPTG[1:0]

CPTStart

CPTVC

CPTStart CPTG[1:0] = 00, Disable. 01/10/11 = Enable.

T1VC Counter Overflow

T1VC 10-bit Event Counter, Binary Up Counting Counter

SONiX TECHNOLOGY CO., LTD

Page 89

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.4.2 T1 TIMER OPERATION

T1 timer is controlled by T1ENB bit. When T1ENB=0, T1 timer stops. When T1ENB=1, T1 timer starts to count. Before enabling T1 timer, setup T1 timer’s configurations to select timer function modes, e.g. basic timer, interrupt function…T1 16-bit counter (T1CH, T1CL) increases “1” by timer clock source. When T1 overflow event occurs, T1IRQ flag is set as ”1” to indicate overflow and cleared by program. The overflow condition is T1CH, T1CL count from full scale (0xFFFF) to zero scale (0x0000). T1 doesn’t build in double buffer, so load T1CH, T1CL by program when T1 timer overflows to fix the correct interval time. If T1 timer interrupt function is enabled (T1IEN=1), the system will execute interrupt procedure. The interrupt procedure is system program counter points to interrupt vector (ORG 000FH) and executes interrupt service routine after T1 overflow occurrence. Clear T1IRQ by program is necessary in interrupt procedure. T1 timer can works in normal mode, slow mode and green mode.

Clock

Source

...

...

T1CH, T1CL

0x0000 or “n” by program

0x0001 or n+1

0x0002 or n+2

0x0002 or n+2

...

0xFFFE 0xFFFF

0x0000 or “n” by program

...

T1IRQ

T1 timer overflows. T1IRQ set as “1”.

Reload T1CH, T1CL by program.

T1IRQ is cleared by program.

T1 provides different clock sources to implement different applications and configurations. T1 clock source includes

Fcpu (instruction cycle) and Fhosc (high speed oscillator) controlled by T1CKS bit. T1CKS bit selects the clock source is from Fcpu or Fhosc. If T1CKS=0, T1 clock source is Fcpu through T1rate[2:0] pre-scalar to decide Fcpu/1~Fcpu/128.

If T1CKS=1, T1 clock source is Fhosc. T1 length is 16-bit (65536 steps), and the one count period is each cycle of input clock.

T1 Interval Time

T1CKS

0

0

0

0

0

0

0

0

1

T1rate[2:0]

000b

001b

010b

011b

100b

101b

110b

111b

-

T1 Clock

Fhosc=16MHz,

Fcpu=Fhosc/4

Fhosc=4MHz,

Fcpu=Fhosc/4 max. (ms) Unit (us) max. (ms) Unit (us)

Fcpu/128 2097.152

Fcpu/64 1048.576

Fcpu/32 524.288

Fcpu/16 262.144

Fcpu/8

Fcpu/4

Fcpu/2

Fcpu/1

131.072

65.536

32.768

16.384

Fhosc/1 4.096

32

16

8

4

2

1

0.5

0.25

0.0625

8388.608

4194.304

2097.152

1048.576

524.288

262.144

131.072

65.536

16.384

128

64

32

16

8

4

2

1

0.25

SONiX TECHNOLOGY CO., LTD

Page 90

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.4.3 T1M MODE REGISTER

T1M is T1 timer mode control register to configure T1 operating mode including T1 pre-scalar, clock source, capture parameters…These configurations must be setup completely before enabling T1 timer.

0A0H

T1M

Bit 7

T1ENB

Bit 6

T1rate2

Bit 5

T1rate1

Bit 4

T1rate0

Bit 3

T1CKS

Bit 2 Bit 1 Bit 0

R/W

0

R/W

0

R/W

0

Read/Write

After reset

Bit 7

R/W

0

R/W

0

T1ENB: T1 counter control bit.

0 = Disable T1 timer.

1 = Enable T1 timer.

Bit [6:4] T1RATE[2:0]: T1 timer clock source select bits.

If T1CKS0=1, the T1RATE[2:0] control is “Ignored”.

000 = Fcpu/128, 001 = Fcpu/64, 010 = Fcpu/32, 011 = Fcpu/16, 100 = Fcpu/8, 101 = Fcpu/4,

110 = Fcpu/2,111 = Fcpu/1.

Bit 3 T1CKS: T1 clock source control bit.

0 = Fcpu divided by T1rate[2:0].

1 = Fhosc.

SONiX TECHNOLOGY CO., LTD

Page 91

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.4.4 T1CH, T1CL 16-bit COUNTING REGISTERS

T1 counter is 16-bit counter combined with T1CH and T1CL registers. When T1 timer overflow occurs, the T1IRQ flag is set as “1” and cleared by program. The T1CH, T1CL decide T1 interval time through below equation to calculate a correct value. It is necessary to write the correct value to T1CH and T1CL registers, and then enable T1 timer to make sure the fist cycle correct. After one T1 overflow occurs, the T1CH and T1CL registers are loaded correct values by program.

0A1H

T1CL

Bit 7

T1CL7

Bit 6

T1CL6

Bit 5

T1CL5

Bit 4

T1CL4

Bit 3

T1CL3

Bit 2

T1CL2

Bit 1

T1CL1

Bit 0

T1CL0

Read/Write

After reset

R/W

0

R/W

0

R/W

0

R/W

0

R/W

0

R/W

0

R/W

0

R/W

0

0A2H

T1CH

Read/Write

After Reset

Bit 7

T1CH7

R/W

0

Bit 6

T1CH6

R/W

0

Bit 5

T1CH5

R/W

0

Bit 4

T1CH4

R/W

0

Bit 3

T1CH3

R/W

0

Bit 2

T1CH2

R/W

0

Bit 1

T1CH1

R/W

0

Bit 0

T1CH0

R/W

0

The T1 timer counter length is 16-bit and points to T1CH and T1CL registers. The timer counter is double buffer design.

The core bus is 8-bit, so access 16-bit data needs a latch flag to avoid the transient status affect the 16-bit data mistake occurrence. Under write mode, the write T1CH is the latch control flag. Under read mode, the read T1CL is the latch control flag. So, write T1 16-bit counter is to write T1CH first, and then write T1CL. The 16-bit data is written to

16-bit counter buffer after executing writing T1CL. Read T1 16-bit counter is to read T1CL first, and then read T1CH.

The 16-bit data is dumped to T1CH, T1CL registers after executing reading T1CL.

Read T1 counter buffer sequence is to read T1CL first, and then read T1CH.

Write T1 counter buffer sequence is to write T1CH first, and then write T1CL.

The equation of T1 16-bit counter (T1CH, T1CL) initial value is as following.

T1CH, T1CL initial value = 65536 - (T1 interrupt interval time * T1 clock rate)

Example: To calculation T1CH and T1CL values to obtain 500ms T1 interval time. T1 clock source is Fcpu

= 16MHz/16 = 1MHz. Select T1RATE=000 (Fcpu/128).

T1 interval time = 500ms. T1 clock rate = 16MHz/16/128

T1 16-bit counter initial value = 65536 - (T1 interval time * input clock)

= 65536 - (500ms * 16MHz / 16 / 128)

= 65536 - (500*10 -3 * 16 * 10 6 / 16 / 128)

= F0BDH (T1CH = F0H, T1CL = BDH)

SONiX TECHNOLOGY CO., LTD

Page 92

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.4.5 T1 CPATURE TIMER OPERATION

The 16-bit capture timer purpose is to measure input signal pulse width and cycle. The measure is through T1 timer by trigger selection. The capture timer is controlled by CPTG[1:0] bits. When CPTG[1:0] = 00, the capture timer is disabled.

When CPTG[1:0] = 01/10/11, the capture timer is enabled, but the T1ENB must be enabled. The capture timer can measure input high pulse width, input low pulse width and the cycle of input signal controlled by CPTG[1:0]. CPTG[1:0]

= 01, measure input high pulse width. CPTG[1:0] = 10, measure input low pulse width. CPTG[1:0] = 11, measure the cycle of input signal. The CPTG[1:0] only selects the capture timer function, not to execute the capture timer. CPTStart bit is to execute capture timer. When CPTStart is set as “1”, the capture timer waits the right trigger edge to active

16-bit counter. The trigger edge finds, and the 16-bit counter starts to count which clock source is T1. When the second right edge finds, the 16-counter stops, CPTStart is cleared and the T1IRQ actives. Before setting CPTStart bit, the T1

16-bit counter is cleared for capture timer initialization.

High Pulse Width Measurement

T1ENB = 1. CPTG[1:0] = 01.

Input Signal

T1 16-bit Counter

Un-know Data 0x????

0x0000

Initialization

1 2 n-1 n

0x0000

Initialization

1

T1 is counting.

“n” is the high pulse width period. Read it by program through T1CH, T1CL registers.

CPTStart = 1 Rising Edge

T1 starts to count.

Falling Edge

T1 stops counting.

CPTStart = 0

The high pulse width measurement is using rising edge to start T1 16-bit counter and falling edge to stop T1 16-bit counter. If set CPTStart bit at high pulse duration, the capture timer will measure next high pulse until the rising edge occurrence.

Low Pulse Width Measurement

T1ENB = 1. CPTG[1:0] = 10.

Input Signal

T1 16-bit Counter

Un-know Data 0x????

0x0000

Initialization

1 2 n-1 n

0x0000

Initialization

1

T1 is counting.

“n” is the low pulse width period. Read it by program through T1CH, T1CL registers.

CPTStart = 1 Falling Edge Rising Edge

T1 starts to count.

T1 stops counting.

CPTStart = 0

The low pulse width measurement is using falling edge to start T1 16-bit counter and rising edge to stop T1 16-bit counter. If set CPTStart bit at low pulse duration, the capture timer will measure next low pulse until the falling edge occurrence.

Input Cycle Measurement

T1ENB = 1. CPTG[1:0] = 11.

Input Signal

T1 16-bit Counter

Un-know Data 0x????

0x0000

Initialization

1 2 n-1 n

0x0000

Initialization

1

T1 is counting.

“n” is the cycle of input signal.

Read it by program through

T1CH, T1CL registers.

CPTStart = 1 Rising Edge

T1 starts to count.

Rising Edge

T1 stops counting.

CPTStart = 0

The cycle measurement is using rising edge to start and stop T1 16-bit counter. If set CPTStart bit at high or low pulse duration, the capture timer will measure next cycle until the rising edge occurrence.

SONiX TECHNOLOGY CO., LTD

Page 93

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.4.6 CAPTURE TIMER CONTROL REGISTERS

A5H

T1CKSM

Read/Write

After Reset

Bit 7

Bit 3

Bit 7

CPTVC

R/W

0

Bit 6 Bit 5 Bit 4

CPTVC: Event counter function control bit.

0 = Disable event counter function.

1 = Enable event counter function.

CPTCKS: Capture timer clock source control bit.

0 = External input pin, P0.2/T1IN.

Bit 2

1 = RFC output terminal.

CPTStart: Capture timer counter control bit.

0 = Process end.

1 = Start to count and processing.

Bit [1:0] CPTG[1:0]: Capture timer function control bit.

00 = Disable capture timer function.

01 = High pulse width measurement.

10 = Low pulse width measurement.

11 = Cycle measurement.

Bit 3 Bit 2 Bit 1

CPTCKS CPTStart CPTG1

R/W

0

R/W

0

R/W

0

Bit 0

CPTG0

R/W

0

8.4.7 10-bit Event Counter Function

The 10-bit event timer purpose is to measure the period of a continuous input signal. The measure is through T1 timer by trigger selection. The event counter is controlled by CPTVC bit. When CPTVC = 0, the event counter is disabled.

When CPTVC = 1, the event counter is enabled, but the T1ENB must be enabled. The event counter trigger edge is rising edge and must be set as CPTG[1:0] = 01 by program. The trigger edge finds, and the 10-bit event counter and

T1 16-bit timer start to count. When T1 event counter overflows, T1 event counter and 16-bit timer stops counting and the T1IRQ actives. Before execute T1 event counter, the T1 16-bit counter must be cleared for initialization.

Note: The event counter trigger edge is rising edge and must be set as CPTG[1:0] = 01 by program.

Event Counter Operation

Input Signal

10-bit Event Counter

Set “m” by program m+1 m+2 0xFE 0xFF 0x00

CPTStart = 1

T1 16-bit Counter

Un-know

Data 0x????

1 2 3

T1 is counting.

0x0000

Initialization

Event counter is overflow.

T1 stops counting. CPTStart = 0 n-1 n

“n” is the period of (256-n) cycle of input signals.

Read it by program through T1CH, T1CL registers.

SONiX TECHNOLOGY CO., LTD

Page 94

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

Event Counter Trigger Format

The capture timer input source has high pulse, low pulse and cycle signal. In event counter function, the trigger format is not like capture timer and fixed rising edge format. Use the start trigger signal of capture timer to be the event counter trigger source:

Input Signal

10-bit Event Counter

n n+1 n+2 n+3 n+4 n+5

8.4.8 T1VCH, T1VCL 10-bit EVENT COUNTER REGISTERS

T1 event counter is 10-bit counter combined with T1VCH and T1VCL registers. When T1 event counter overflow occurs, the T1IRQ flag is s et as “1” and cleared by program. The T1VCH, T1VCL decide T1 event counter number.

0A3H

T1VCL

Bit 7

T1VCL7

Bit 6

T1VCL6

Bit 5

T1VCL5

Bit 4

T1VCL4

Bit 3

T1VCL3

Bit 2

T1VCL2

Bit 1

T1VCL1

Bit 0

T1VCL0

Read/Write

After reset

R/W

0

R/W

0

R/W

0

R/W

0

R/W

0

R/W

0

R/W

0

R/W

0

0A4H

T1VCH

Read/Write

After Reset

Bit 7

-

-

-

Bit 6

-

-

-

Bit 5

-

-

-

Bit 4

-

-

-

Bit 3

-

-

-

Bit 2

-

-

-

Bit 1

T1VCH1

R/W

0

Bit 0

T1VCH0

R/W

0

The T1 event counter length is 10-bit and points to T1VCH and T1VCL registers. The core bus is 8-bit, so access 10-bit data needs a latch flag to avoid the transient status affect the 10-bit data mistake occurrence. Under write mode, the write T1VCH is the latch control flag. Under read mode, the read T1VCL is the latch control flag. So, write T1 10-bit event counter is to write T1VCH first, and then write T1VCL. The 10-bit data is written to 10-bit counter buffer after executing writing T1VCL. Read T1 10-bit event counter is to read T1VCL first, and then read T1VCH. The 10-bit data is dumped to T1VCH, T1VCL registers after executing reading T1VCL.

Read T1 event counter buffer sequence is to read T1VCL first, and then read T1VCH.

Write T1 event counter buffer sequence is to write T1VCH first, and then write T1VCL.

SONiX TECHNOLOGY CO., LTD

Page 95

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

8.4.9 T1 TIMER OPERATION EXPLAME

T1 TIMER CONFIGURATION:

; Reset T1 timer.

MOV A, #0x00 ; Clear T1M register.

B0MOV

; Set T1 clock rate.

T1M, A

MOV

B0MOV

A, #0nnn0000b

T1M, A

; Set T1CH, T1CL registers for T1 Interval time.

MOV A, #value1

B0MOV

MOV

B0MOV

T1CH, A

A, #value2

T1CL, A

; Clear T1IRQ

B0BCLR FT1IRQ

; Enable T1 timer and interrupt function.

B0BSET

B0BSET

FT1IEN

FT1ENB

; T1rate[2:0] bits.

; Set high byte first.

; Set low byte.

; Enable T1 interrupt function.

; Enable T1 timer.

T1 CAPTURE TIMER FOR SINGLE CYCLE MEASUREMENT CONFIGURATION:

; Reset T1 timer.

MOV

B0MOV

A, #0x00

T1M, A

; Set T1 clock rate, select input source, and select/enable T1 capture timer.

MOV A, #0nnnm000b

; “nnn” is T1rate[2:0] for T1 clock rate selection.

B0MOV T1M, A

; “m” is T1 clock source control bit.

MOV A, #000000mmb

; “mm” is CPTG[1:0] for T1 capture timer function selection.

B0MOV T1CKSM, A ; CPTG[1:0] = 01b, high pulse width measurement.

; CPTG[1:0] = 10b, low pulse width measurement.

; CPTG[1:0] = 11b, cycle measurement.

; Clear T1M register.

; Clear T1CH, T1CL.

CLR

CLR

; Clear T1IRQ

B0BCLR

T1CH

T1CL

FT1IRQ

; Clear high byte first.

; Clear low byte.

; Enable T1 timer, interrupt function and T1 capture timer function.

B0BSET FT1IEN ; Enable T1 interrupt function.

B0BSET FT1ENB ; Enable T1 timer.

; Set capture timer start bit.

B0BSET FCPTStart

SONiX TECHNOLOGY CO., LTD

Page 96

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

T1 EVENT COUNTER FOR CONTINUOUS SIGNAL MEASUREMENT CONFIGURATION:

; Reset T1 timer.

CLR T1M ; Clear T1M register.

; Set T1 clock rate and select/enable T1 capture timer.

MOV

B0MOV

A, #0nnnm000b

T1M, A

; “nnn” is T1rate[2:0] for T1 clock rate selection.

; “m” is T1 clock source control bit.

MOV

B0MOV

A, #00000001b

T1CKSM, A

; Set capture timer function.

; CPTG[1:0] must be set as

“01”.

;

“High pulse width measurement”

; Clear T1CH, T1CL.

CLR

CLR

T1CH

T1CL

; Clear high byte first.

; Clear low byte.

; Set T1VCH, T1VCL 10-bit capture timer for continuous signal measurement.

MOV A, #value1 ; Set high nibble first.

B0MOV T1VCH, A

; Clear T1IRQ

MOV

B0MOV

B0BCLR

A, #value2

T1VCL, A

FT1IRQ

; Set low byte.

; Enable T1 timer, interrupt function and T1 capture timer function.

B0BSET

B0BSET

FT1IEN

FT1ENB

; Enable T1 interrupt function.

; Enable T1 timer.

FCPTVC ; Enable T1 event counter function. B0BSET

; Set capture timer start bit.

B0BSET FCPTStart

SONiX TECHNOLOGY CO., LTD

Page 97

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

9

RESISTANCE TO FREQURNCY

CONVERTER (RFC)

9.1 OVERVIEW

The MCU builds in resistance to frequency converter (RFC) CR type oscillation converter. The RFC conversion circuit is connecting a resistive sensor, reference resistance and a capacitor. Resistance value of the resistive sensor or reference resistance connected to the RFC channel input is converted into frequency by CR oscillator and the number of clocks is counted in the built-in measurement timer/counter (T1). Reading the value of T1 measurement obtains the digitally converting value detected by the resistance. Various sensor circuits such as temperature measurement using a thermistor can easily realize using the RFC. The RFC includes 5 channels. One channel is used reference channel, and the other channels are sensor input channels. For different resistive sensor, the RFC clock frequency is different.

T1 provides pulse width measurement and input frequency measurement functions to measure high/low speed RFC clock. RFC pin is shared with port 1. When RFCENB = 1, P1.0~P1.4 are selected to RFC0~RFC4 channel through

RFCH[2:0] bits. P1.6 is shared with RFCOUT pin controlled by RFCOUT bit of RFCM register. Each of RFC channels is connected to T1capture timer function to measure RFC frequency and does RFC oscillation. These RFC pins are shared with GPIO controlled by RFCM register. RFC function actives under green mode, but not support wake-up function.

RFCENB

P1.0/RFC0

RFCENB

P1.1/RFC1

P1.2/RFC2

RFC

Oscillation

Generator

T1 Capture Timer

P1.3/RFC3

P1.4/RFC4

RFCH[2:0]

RFCENB

P1.6/RFCOUT

RFCOUT

RFC Channel: RFC channels are shared with GPIO controlled by RFCENB = 1 and RFCH[2:0] selected.

RFCENB=1 is necessary, or the RFC channel selected by RFCH[2:0] is GPIO mode.

RFCOUT pin: RFC output pin is shared with GPIO controlled by RFCOUT bit. RFC output pin outputs RFC oscillating signal through RFC oscillator generator processing. The signal also inputs to T1 capture timer.

SONiX TECHNOLOGY CO., LTD

Page 98

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

9.2 RFC APPLICATION CIRCUIT

RFC application is configured a resistive device and a capacitor. Normally, the resistor is a sensor type device and the capacitor is a static device. The connection diagram is as following. The resistor connects from Vdd to RFC channel, and the capacitor connects from Vss to RFC channel. When RFC function actives, the internal RFC oscillation generator makes the RFC channel oscillating. The frequency depends on R and C value.

RFCOUT

R1 R2

C1 C2

R3 R4 R5

RFC0

RFC1

RFC2

RFC3

RFC4

MCU

C5 C3 C4

VCC

GND

These RC circuits are switched by RFCH[2:0] bits of RFCM register. If one RFC input is selected, the other pins switch to GPIO mode. Recommend set RFC0~RFC4 (P1.0~P1.4) as input floating. RFC digitally converting clock is output from RFCOUT pin (P1.6) controlled by RFCOUT bit of RFC register.

9.3 RFC OPERATION

VDD

To T1 RFC Measurement Counter

(1) (2)

R

RFC

Oscillation

Generator

(2)

RFC Channel

C

(1)

VSS

RFC operation is base on charge and discharge capacitor to obtain the converting clock. The RFCENB=1 turns on

RFC function. RFC channel charges the external RC circuit until the voltage level higher than ViH of RFC cahnnel.

Then RFC channel exchanges to discharge operation until voltage level under ViL. The charge/discharge operation obtains the RFC oscillation.

Loop (1) of above figure is charge mode. The capacitor is charged by RFC channel, and the voltage level increases.

RFC channel detects the voltage level to Schmitt trigger high-level voltage, and then RFC channel switches to discharge mode. Loop (2) is discharge mode. RFC channel discharges and the voltage level starts to fall down. RFC channel detects the voltage level to Schmitt trigger low-level voltage, and then RFC channel switches to charge mode.

The result of charge and discharge switching is converted by RC oscillation control circuit and generate digitally clock.

High Level of Schmitt trigger

RFC Input Signal

Low Level of Schmitt trigger

Charge

Discharge

VDD

RFC Clock & RFCOUT (RFC Output)

VSS

The reference capacitor value is steady. The RFC clock frequency value depends on resistance value and determines charge and discharge rate. Using the RFC clocks of reference resistance and resistive sensor can measure the sensor resistance by the frequency of RFC converting result. The RFC clock can be T1 clock source to measure RFC converting value by frequency measurement and pulse width measurement. The RFC clock also can output to

RFCOUT pin (P1.6) when RFCOUT =1.

SONiX TECHNOLOGY CO., LTD

Page 99

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

9.4 RFCM REGISTER

0A6H

RFCM

Read/Write

After reset

Bit 7

Bit 7

RFCENB

R/W

0

Bit 6

-

-

-

Bit 5

0

W

0

RFCENB: RFC function control bit.

0 = Disable RFC function.

1 = Enable RFC function.

Bit 4

1

W

0

Bit 3

RFCOUT

R/W

0

Bit 2

RFCH2

R/W

0

Bit 1

RFCH1

R/W

0

Bit 5

Bit 4

Bit 3

RFCM.5 must be set as

RFCM.4 must be set as

“0” by program.

“1” by program.

RFCOUT: RFC output control bit.

0 = Disable RFC output, P1.6 is general purpose I/O.

1 = Enable RFC output, P1.6 is RFCOUT pin.

Bit[2:1] RFCH[2:1]: RFC input channels select bit.

000 = Select RFC0 channel. Disable P1.0 GPIO function. P1.1, P1.2, P1.3, P1.4 are GPIO mode.

001 = Select RFC1 channel. Disable P1.1 GPIO function. P1.0, P1.2, P1.3, P1.4 are GPIO mode.

010 = Select RFC2 channel. Disable P1.2 GPIO function. P1.0, P1.1, P1.3, P1.4 are GPIO mode.

011 = Select RFC3 channel. Disable P1.3 GPIO function. P1.0, P1.1, P1.2, P1.4 are GPIO mode.

100 = Select RFC4 channel. Disable P1.4 GPIO function. P1.0, P1.1, P1.2, P1.3 are GPIO mode.

101~111 = Reserved. P1.0, P1.1, P1.2, P1.3, P1.4 are GPIO mode.

Bit 0

RFCH0

R/W

0

Note:

1. Before RFC enable, P1.0~P1.4 must be set as input mode without pull-up resistor first by program.

2. RFCM.4 must be set as

“1” by program through MOV/B0MOV instruction because the bit is write only type.

3. RFCM.5 must be set as

“0” by program through MOV/B0MOV instruction because the bit is write only type.

4. We strongly recommend controlling RFCM register through MOV/B0MOV instructions.

SONiX TECHNOLOGY CO., LTD

Page 100

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

9.5 RFC OPERATION EXPLAME

Example: Measure RFC signal through T1 event counter function.

; Set T1 timer mode.

CLR

MOV

T1M

A, #0

; T1 clock is Fcpu and rate is Fcpu/256.

; Clear T1 counter buffers.

B0MOV

B0MOV

; Set T1 event counter mode.

MOV

B0MOV

MOV

B0MOV

MOV

T1CH, A

T1CL, A

A, #10001000B

T1CKSM, A

A, #0

T1VCH, A

A, #0xFF

; Configure and enable T1 capture timer.

; Set T1 event counter buffers.

T1VCL, A

FT1IRQ ; Clear T1 interrupt request flag.

; Set RFC.

B0MOV

B0BCLR

CLR

MOV

AND

MOV

B0MOV

B0BSET

B0BSET

; Check T1IRQ=1.

Chk_T1IRQ:

B0BTS1

JMP

B0MOV

B0MOV

P1UR

A, #11100000B

P1M, A

A, #10010000B

RFCM, A

FT1ENB

FCPTStart

FT1IRQ

Chk_T1IRQ

A, T1CL

A, T1CH

; Disable P1 pull-up resistor.

; Set P1.0~P1.4 to input mode.

; Enable RFC and select RFC channel 0.

; Enable T1 timer.

; Start to measure RFC frequency.

; Check T1IRQ=1.

; The end of RFC measurement.

SONiX TECHNOLOGY CO., LTD

Page 101

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

1 0

4x32 LCD DRIVER

10.1 OVERVIEW

The LCD driver density is 4x32 (4 commons and 32 segments, 128 dots) and builds in C-type and R-type structure.

The LCD supports 1/4 duty and 1/2, 1/3 bias LCD panel. The LCD frame rate is 64Hz and clock source is external

32768Hz oscillator crystal or RC type. The C-type only supports 1/3 bias LCD structure. R-type is using external bias circuit to adjust LCD power and bias voltage. There are 16-pin GPIO shared with SEGs controlled by register. For difference density LCD panel, users can decides more GPIO pins for application.

10.2 LCD REGISTERS

0CBH

LCDM

Bit 7

CPCK1

Bit 6

CPCK0

Bit 5

VLCDCP

Bit 4

PSEG2

Read/Write

After reset

R/W

0

R/W

0

R/W

0

R/W

0

Bit [7:6] CPCK[1:0]: VLCD charge-pump clock selection.

CPCK[1:0] Charge-pump Clock

00 32KHz

01

10

11

16KHz

4KHz

1KHz

Bit 3

PSEG1

R/W

0

Bit 2

PSEG0

R/W

0

Bit 1

BIAS

R/W

0

Bit 0

LCDENB

R/W

0

Note: In general speaking, 1KHz charge-pump clock is enough for most application. Lower charge-pump clock frequency can save more power consumption. Higher charge-pump clock frequency can provide stronger VLCD driving capability.

Bit 5 VLCDCP: VLCD charge-pump control bit.

0 = Disable. LCD is R-type.

1 = Enable. LCD is C-type.

Bit [4:2] PSEG2: LCD shared pin control bit.

000 = Disable all LCD shared pins

’ GPIO function. The SEG pin number is 32.

Bit 1

001 = Enable P2.0~P2.3 (SEG28~SEG31) GPIO function. The SEG pin number is 28.

010 = Enable P2.0~P2.7 (SEG24~SEG31) GPIO function. The SEG pin number is 24.

011 = Enable P2.0~P2.7 and P3.0~P3.3 (SEG20~31) GPIO function. The SEG pin number is 20.

100 = Enable P2.0~P2.7 and P3.0~P3.7 (SEG16~31) GPIO function. The SEG pin number is 16.

101~111 = Reserved.

BIAS: LCD bias control bit.

0 = 1/3 bias (C type and R type).

1 = 1/2 bias (R type only).

Bit 0 LCDENB: LCD control bit.

0 = Disable.

1 = Enable.

SONiX TECHNOLOGY CO., LTD

Page 102

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

10.3 C-TYPE LCD MODE

In C-type mode only support 1/3 bias LCD panel. The LCD power (VLCD) is supplied by internal charge-pump. The power consumption of C-type mode is less than R-type, because no external DC bias circuit expenses power current.

The charge-pump voltage level is following VLCD voltage. V1 is the charge pump source which level is 1/3*VLCD. V2 is 2 times of V1 by charge pump which level is 2/3*VLCD. In C-type LCD mode, the VLCDCP bit of VLCD register must be “1”.

VLCD Power Source

10pF

LXIN

32768Hz

VLCD 0.1uF

VSS

10pF

LXOUT

MCU

V2

0.1uF

COM0~COM3

Charge-Pump

Output Voltage

V1

0.1uF

LCD

PANEL

SEG0~SEG31

VSS

C+ C-

0.1uF

Basic C type LCD Application Circuit

LCD C-type mode only supports 1/3 bias.

In C-type mode, connect a 0.1uF capacitor between C+ and C- pins.

The 0.1uF capacitors of VLCD/V1/V2 pins are necessary for power stable.

V1 voltage is charge-pump source voltage and 1/3*VLCD.

V2 voltage is 2*V1 = 2/3*VLCD.

Note: The VLCD voltage source is from external power source depended on LCD panel power level, and

VLCD voltage level can’t be larger than MCU’s Vdd.

Example : The configuration of C-type LCD mode.

; Set C-type LCD.

MOV

B0MOV

A, #nn0mmm00B

LCDM

;

“nn” selects charge pump clock rate.

;

“mmm” controls P2/P3 LCD shared pins.

; Enable charge pump.

; BIAS = 0 for 1/3 bias structure.

; Enable LCD driver.

B0BSET

B0BSET

; LCD picture process.

FVLCDCP

FLCDENB

; Enable LCD charge-pump and LCD is switched to

; C-type mode.

; Enable LCD driver..

SONiX TECHNOLOGY CO., LTD

Page 103

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

10.4 R-TYPE LCD MODE

In R-type mode, LCD power (VLCD) is connected with internal VDD. V1, V2 bias voltage is controlled by external resistor. The bias resistors determine LCD V1, V2 bias voltage and LCD driver current. Too much current makes LCD panel to bring remnant images. In normal condition, the s uggestion of the external bias resistor’s value is 100Kohm. In

Rtype LCD mode, the VLCDCP bit of VLCD register must be “0”.

LCD Bias

1/3 Bias (Bias=0)

1/2 Bias (Bias=1)

VLCD

VDD

VDD

V2

2/3*VDD

1/2*VDD

V1

1/3*VDD

1/2*VDD

VLCD Power Source VLCD Power Source

VLCD

0.1uF

VLCD

0.1uF

100Kohm

MCU

V2

V1

100Kohm

0.1uF

100Kohm

0.1uF

100Kohm

MCU

V2

V1

0.1uF

100Kohm

VSS VSS VSS VSS

C+ CC+ C-

1/3 bias, 1/4 duty, R-type LCD Circuit.

1/2 bias, 1/4 duty, R-type LCD Circuit.

In R-type mode, C+/C- don’t connect any devices.

1/2 bias, V2 connects to V1.

The 0.1uF capacitors of VLCD/V1/V2 pins are necessary for power stable.

Note: Note: The VLCD voltage source is from external power source depended on LCD panel power level, and VLCD voltage level can’t be larger than MCU’s Vdd.

Example : The configuration of R-type LCD mode.

; Set C-type LCD.

MOV

B0MOV

A, #000mmmn0B

LCDM

;

“n” selects bias.

;

“mmm” controls P2/P3 LCD shared pins.

; Enable LCD driver.

B0BSET

; LCD picture process.

FLCDENB ; Enable LCD driver..

SONiX TECHNOLOGY CO., LTD

Page 104

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

10.5 LCD RAM MAP

LCD dots are controlled by LCD RAM in Bank15. Program the LCD RAM data is using index pointer in bank 0 or directly addressing in bank 15. The LCD RAM placement is by LCD segments. One segment address includes four common bits data. COM0~COM3 is in low-nibble of one LCD RAM (bit0~bit3). The high-nibble of one LCD RAM is useless. The LCD RAM map is as following.

RAM bank 15 address vs. Common/Segment location.

RAM Bit 0 1 2 3 4 5 6 7

Address

0Fh

10h

.

.

.

1Bh

1Ch

1Dh

1Eh

1Fh

00h

01h

02h

03h

.

.

.

0Ch

0Dh

0Eh

LCD

COM0 COM1 COM2 COM3

SEG0

SEG1

SEG2

SEG3

00h.0

01h.0

02h.0

03h.0

00h.1

01h.1

02h.1

03h.1

00h.2

01h.2

02h.2

03h.2

00h.3

01h.3

02h.3

03h.3

.

.

.

.

.

.

.

.

. . . .

SEG12 0Ch.0 0Ch.1 0Ch.2

.

.

.

0Ch.3

SEG13 0Dh.0 0Dh.1 0Dh.2

SEG14 0Eh.0 0Eh.1 0Eh.2

0Dh.3

0Eh.3

SEG15 0Fh.0

SEG16 10h.0

.

.

.

.

0Fh.1

10h.1

.

.

0Fh.2

10h.2

.

.

0Fh.3

10h.3

.

.

. . .

SEG27 1Bh.0 1Bh.1

. .

1Bh.2 1Bh.3

SEG28 1Ch.0 1Ch.1 1Ch.2

SEG29 1Dh.0 1Dh.1 1Dh.2

1Ch.3

1Dh.3

SEG30 1Eh.0 1Eh.1

SEG31 1Fh.0 1Fh.1

1Eh.2 1Eh.3

1Fh.2 1Fh.3

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Example : Set LCD RAM data by index pointer (@YZ) in bank 0.

B0MOV

CLR

Y, #0FH

Z

; Set @YZ point to LCD RAM address 0x1500.

MOV

B0MOV

A, #00001010B

@YZ, A

; Set COM0=0, COM1=1, OCM2=0,COM3=1 of SEG 0.

INCMS

Z ; Point to next segment address.

Example : Set LCD RAM data by directly addressing in bank 15.

MOV

B0MOV

A, #01

RBANK, A

; Switch to RAM bank 15.

MOV

MOV

BCLR

BSET

MOV

B0MOV

A, #00001010B

00H, A

01H.0

01H.1

A, #0

RBANK, A

; Set COM0=0, COM1=1, OCM2=0,COM3=1 of SEG 0.

; Clear COM0=0 of SEG 1.

; Clear COM1=1 of SEG 1.

; Switch to RAM bank 0.

Note: Access RAM data of bank 0 (system registers and user define RAM 0x0000~0x007F) is using

“B0xxx” instructions.

SONiX TECHNOLOGY CO., LTD

Page 105

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

10.6 LCD WAVEFORM

LCD Clock

COM0

COM1

COM2

COM3

SEG0 (1010b)

SEG0 (0101b)

1/2 bias, 1/4 duty

1 Frame 1 Frame

ON OFF ON OFF ON OFF ON OFF

OFF ON OFF ON OFF ON OFF ON

1/3 bias, 1/4 duty

LCD Clock

VLCD

1/2*VLCD

VSS

VLCD

1/2*VLCD

VSS

VLCD

1/2*VLCD

VSS

COM0

COM1

COM2

VLCD

1/2*VLCD

VSS

VLCD

1/2*VLCD

VSS

COM3

SEG0 (1010b)

VLCD

1/2*VLCD

VSS

SEG0 (0101b)

1 Frame 1 Frame

ON OFF ON OFF ON OFF ON OFF

OFF ON OFF ON OFF ON OFF ON

VLCD

2/3*VLCD

1/3*VLCD

VSS

VLCD

2/3*VLCD

1/3*VLCD

VSS

VLCD

2/3*VLCD

1/3*VLCD

VSS

VLCD

2/3*VLCD

1/3*VLCD

VSS

VLCD

2/3*VLCD

1/3*VLCD

VSS

VLCD

2/3*VLCD

1/3*VLCD

VSS

SONiX TECHNOLOGY CO., LTD

Page 106

Preliminary Version 0.1

1 1

INSTRUCTION TABLE

Field Mnemonic Description

M

MOV

MOV

A,M

A

M

M,A

M

A

O B0MOV A,M

A

M (bank 0)

V B0MOV M,A

M (bank 0)

A

E MOV A,I A

I

B0MOV M,I

M

I, “M” only supports 0x80~0x87 registers (e.g. PFLAG,R,Y,Z…)

XCH

B0XCH

MOVC

A,M

A



M

A,M

A



M (bank 0)

R, A

ROM [Y,Z]

A

R

I

ADC

ADC

ADD

ADD

A,M

A

A + M + C, if occur carry, then C=1, else C=0

M,A

M

A + M + C, if occur carry, then C=1, else C=0

A,M

A

A + M, if occur carry, then C=1, else C=0

M,A

M

A + M, if occur carry, then C=1, else C=0

T B0ADD M,A

M (bank 0)

M (bank 0) + A, if occur carry, then C=1, else C=0

H ADD A,I

A

A + I, if occur carry, then C=1, else C=0

M

E

T

I

C

SBC

SBC

SUB

SUB

SUB

DAA

A,M

A

A - M - /C, if occur borrow, then C=0, else C=1

M,A

M

A - M - /C, if occur borrow, then C=0, else C=1

A,M

A

A - M, if occur borrow, then C=0, else C=1

M,A

M

A - M, if occur borrow, then C=0, else C=1

A,I

A

A - I, if occur borrow, then C=0, else C=1

To adjust ACC’s data format from HEX to DEC.

L

O

G

I

C

AND

AND

AND

OR

OR

OR

XOR

XOR

XOR

A,M

A

A and M

M,A

M

A and M

A,I

A

A and I

A,M

A

A or M

M,A

M

A or M

A,I

A

A or I

A,M

A

A xor M

M,A

M

A xor M

A,I

A

A xor I

P

R

O

C

E

S

SWAP

SWAPM

RRC

RRCM

RLC

RLCM

CLR

M

M

M

M

M

M

M

A (b3~b0, b7~b4)

M(b7~b4, b3~b0)

M(b3~b0, b7~b4)

M(b7~b4, b3~b0)

A

RRC M

M

RRC M

A

RLC M

M

RLC M

M

0

S BCLR

BSET

M.b

M.b

0

M.b M.b

1

B0BCLR M.b

M(bank 0).b

0

B0BSET M.b

M(bank 0).b

1

CMPRS A,I

ZF,C

A - I, If A = I, then skip next instruction

B CMPRS A,M

ZF,C

A

– M, If A = M, then skip next instruction

R INCS M

A

M + 1, If A = 0, then skip next instruction

A

N

C

INCMS

DECS

DECMS

M

M

M

M

M + 1, If M = 0, then skip next instruction

A

M - 1, If A = 0, then skip next instruction

M

M - 1, If M = 0, then skip next instruction

H BTS0 M.b If M.b = 0, then skip next instruction

BTS1 M.b If M.b = 1, then skip next instruction

B0BTS0 M.b If M(bank 0).b = 0, then skip next instruction

B0BTS1 M.b If M(bank 0).b = 1, then skip next instruction

JMP

CALL

d

PC15/14

RomPages1/0, PC13~PC0

d

d

Stack

PC15~PC0, PC15/14

RomPages1/0, PC13~PC0

d

M

I

RET

RETI

PC

Stack

PC

Stack, and to enable global interrupt

S PUSH

C POP

To push ACC and PFLAG (except NT0, NPD bit) into buffers.

To pop ACC and PFLAG (except NT0, NPD bit) from buffers.

NOP No operation

Note: 1.

“M” is system register or RAM. If “M” is system registers then “N” = 0, otherwise “N” = 1.

2. If branch condition is true then “S = 1”, otherwise “S = 0”.

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

C DC Z Cycle

- -

- - -

- -

- - -

1

1

1

1

- - -

- - -

1

1

- - - 1+N

- - - 1+N

- - - 2

  

1

  

1+N

  

1

  

1+N

  

1+N

  

1

  

1

  

1+N

  

- -

1

  

1+N

  

1

1

- -

1

- -

1+N

- -

1

- -

1

- -

1+N

- -

- -

1

1

- -

1+N

- -

1

- - - 1

- - - 1+N

- - 1

- - 1+N

- - 1

- - 1+N

- - - 1

- - - 1+N

- - - 1+N

- - - 1+N

- - - 1+N

-

1 + S

-

1 + S

- - - 1+ S

- - - 1+N+S

- - - 1+ S

- - - 1+N+S

- - - 1 + S

- - - 1 + S

- - - 1 + S

- - - 1 + S

- - - 2

- - - 2

- - -

- - -

- - -

  

- - -

2

2

1

1

1

SONiX TECHNOLOGY CO., LTD

Page 107

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

1 2

ELECTRICAL CHARACTERISTIC

12.1 ABSOLUTE MAXIMUM RATING

Supply voltage (Vdd)…………………………………………………………………………………………………………………….……………… - 0.3V ~ 6.0V

Input in voltage (Vin)…………………………………………………………………………………………………………………….… Vss – 0.2V ~ Vdd + 0.2V

Operating ambient temperature (Topr)

SN8P2318F

………………………………………………………..………………………………………………………………………….. 0

C ~ + 70

C

Storage ambient temperature (Tstor) ………………………………………………………………….………………………………………… –40

C ~ + 125

C

12.2 ELECTRICAL CHARACTERISTIC

DC CHARACTERISTIC

(All of voltages refer to Vss, Vdd = 5.0V, Fosc = 4MHz,Fcpu=1MHz,ambient temperature is 25

C unless otherwise note.)

PARAMETER SYM. DESCRIPTION MIN. TYP. MAX. UNIT

Operating voltage

RAM Data Retention voltage

*Vdd rise rate

Input Low Voltage

Input High Voltage

Vdd Normal mode. Fcpu = 1MHz

Normal mode. Fcpu = 4MHz

Vdr

Vpor Vdd rise rate to ensure internal power-on reset

ViL1 All input ports

ViL2 Reset pin

ViH1 All input ports

ViH2 Reset pin

Reset pin leakage current Ilekg Vin = Vdd

I/O port input leakage current Ilekg Pull-up resistor disable, Vin = Vdd

I/O port pull-up resistor

I/O output source current sink current

*INTn trigger pulse width

Vin = Vss , Vdd = 3V

Rup

Vin = Vss , Vdd = 5V

IoH Vop = Vdd

– 0.5V

IoL Vop = Vss + 0.5V

Tint0 INT0 interrupt request pulse width

Supply Current

Internal PLL Oscillator

LVD Voltage

Idd1

Run Mode

(LCD disable)

Vdd= 3V, PLL/4 = 4MHz

Vdd= 5V, PLL/4 = 4MHz

Vdd= 3V, PLL/16 = 1MHz

Vdd= 5V, PLL/16 = 1MHz

Vdd= 3V, 16M X

’tal/4 = 4MHz

Vdd= 5V, 16M X

’tal/4 = 4MHz

Vdd= 3V, 4M X

’tal/4 = 1MHz

Vdd= 5V, 4M X

’tal/4 = 1MHz

Vdd= 3V, Ext. 32K/4

Vdd= 5V, Ext. 32K/4

Idd2

Idd3

Slow Mode

(LCD disable)

Sleep Mode

(LCD disable)

Vdd= 5V/3V

Vdd= 3V, PLL

Idd4

Green Mode

(LCD disable)

Vdd= 5V, PLL

Vdd= 3V, 16M X

’tal

Vdd= 5V, 16M X

’tal

Vdd= 3V, 4M X

’tal

Vdd= 5V, 4M X

’tal

Vdd= 3V, Ext. 32KHz X’tal

Vdd= 5V, Ext. 32KHz X’tal

Vdd= 3V, Ext. 32KHz X’tal

Green Mode

Idd5 (LCD enable, no

Vdd= 5V, Ext. 32KHz X’tal panel).

Fpll PLL 16MHz

25

C, Vdd=2.2V~ 5.5V

Fcpu=Fhosc/1

25

C, Vdd=2.2V~ 5.5V

Fcpu=Fhosc/2~Fhosc/16

Vdet0 Low voltage reset level. 25

C

Vdet1

Low voltage reset/indicator level. 25

C

Vdet2

Low voltage reset/indicator level. 25

C

2.2

2.4

1.5

0.05

Vss

Vss

0.7Vdd

0.8Vdd

-

-

100

50

8

8

2/fcpu

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

16.11 16.78 17.45 MHz

16.44 16.78 17.12 MHz

1.9

2.3

3.5

-

-

200

100

-

-

-

2.5

-

-

-

-

-

-

-

-

4.5

1.5

3

2.5

5

1

2.5

5

15

-

0.6

0.9

0.6

1.6

0.2

0.5

2.5

9

5.5

15

2.0

2.4

3.6

-

-

-

-

2

2

300

150

5.5

5.5

-

-

0.3Vdd

0.2Vdd

Vdd

Vdd

-

-

-

-

-

-

-

-

-

2

-

-

-

-

-

-

-

-

-

-

2.1

2.5

3.7

V

K

 mA uA mA mA mA mA mA mA uA uA uA

V

V/ms

V

V

V

V uA uA cycle mA mA mA mA mA mA mA mA uA uA uA

V

V

V

*

” These parameters are for design reference, not tested.

SONiX TECHNOLOGY CO., LTD

Page 108

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

1

3

DEVELOPMENT TOOL

SONIX provides ICE (in circuit emulation), IDE (Integrated Development Environment) and EV-kit for SN8P2318 development. ICE and EV-kit are external hardware devices, and IDE is a friendly user interface for firmware development and emulation. These development tools’ version is as following.

ICE: SN8ICE2K Plus 2. (Please install 16MHz crystal for PLL emulation.)

EV-kit: SN8P2318_EV kit Rev. B.

IDE: SONiX IDE M2IDE_V126.

Writer: MPIII writer.

13.1 SN8P2318 EV-KIT

SONIX provides SN8P2318 MCU which includes LCD and RFC functions. These functions aren’t built in SN8ICE2K

Plus 2. To emulate the functions must be through SN8P2318 real chip. The real chip provides an EV-KIT to achieve

LCD and RFC functions emulations. For SN8P2318 ICE emulation, the EV-Kit includes LCD/RFC/ LVD2.4V/3.6V and switch circuits.

SN8P2318 EV-kit PCB Outline:

JP2: Connect to SN8ICE2K Plus 2 CON1 (includes GPIO, EV-KIT control signal, and the others).

JP1: Connect to SN8ICE2K Plus 2 JP3 (EV-KIT communication bus with ICE, control signal, and the others).

S1: LVD24V/LVD36V control switch. To emulate LVD2.4V flag/reset function and LVD3.6V/flag function

Switch No. ON OFF

LVD24 (1)

LVD36 (2)

LVD 2.4V Active LVD 2.4V Inactive

LVD 3.6V Active LVD 3.6V Inactive

U1: SN8P2318 EV-chip.

S2: SN8P2318 EV-chip reset key. If EV-KIT active fail, press S2 to reset EV-KIT Real Chip (U1).

JP8: Keep JP8 as open stauts.

JP9: LCD connector.

JP10, JP11: GPIO connector.

R5, C8: RFC channel 0.

R6, C12: RFC channel 1.

R9, C13: RFC channel 2.

R10, C14: RFC channel 3.

R11, C15: RFC channel 4.

C7, C10, C6, C16: LCD decouple capacitors connected 0.1uF.

R8, R7, R3: R-type LCD resistors.

C11, C9, Y1: SN8P2318 EV-chip 32KHz crystal circuit.

SONiX TECHNOLOGY CO., LTD

Page 109

Preliminary Version 0.1

SN8P2318 EV-kit schematic:

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

13.2 ICE AND EV-KIT APPLICATION NOTIC

1. SN8ICE2K Plus 2 power switch must be turned off before you connect the SN8P2318 EV-KIT to SN8ICE2K Plus 2.

2. Connect EV-

KIT’s JP1/JP2 to ICE’s JP3/CON1.

3. Turn on SN8ICE2K Plus 2 power switch to start emulation.

4. If the power indicator (LED D1) doesn

’t light, the EV-kit occurs some mistakes. Please contact SONIX’s agent for maintain service.

5.

It is necessary to connect 16MHz crystal in ICE for IHRC_16M mode emulation. SN8ICE2K Plus 2 doesn’t support over 8-mips instruction cycle, but real chip does

6. JP11

’s P10~P14 and P16 only support GPIO function, not RFC function.

7. JP10 only supports P2 / P3 GPIO function only, not LCD function.

8. JP9 only supports LCD function to plug LCD panel.

SONiX TECHNOLOGY CO., LTD

Page 110

Preliminary Version 0.1

1

4

OTP PROGRAMMING PIN

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

14.1 WRITER TRANSITION BOARD SOCKET PIN ASSIGNMENT

Writer JP2

D1 7

D3 9

4 CE

6 OE/ShiftDat

8 D0

10 D2

D5 11 12 D4

D7 13 14 D6

VDD 16 VPP

HLS 18 RST

- 19 20 ALSB/PDB

JP2 for dice and >48 pin package

14.2 PROGRAMMING PIN MAPPING:

11

12

13

14

15

16

17

18

19

20

Chip Name

Writer Connector

JP1/JP2

Pin Number

JP1/JP2

Pin Name

1

2

VDD

GND

3

4

5

6

7

8

9

10

CLK

CE

PGM

OE

D1

D0

D3

D2

D5

D4

D7

D6

VDD

VPP

HLS

RST

-

ALSB/PDB

-

-

17

-

-

-

-

-

-

7

Programming Pin Information of SN8P2318

SN8P2318F(LQFP)

IC and JP3 48-pin text tool Pin Assignment

IC

Pin Number

IC

Pin Name

JP3

Pin Number

IC

Pin Number

IC

Pin Name

64

59

VDD

VSS

-

-

-

4

-

5

6

-

P1.0

-

P1.1

P1.2

-

-

-

-

-

-

-

-

-

RST

-

-

-

P1.3

JP3

Pin Number

SONiX TECHNOLOGY CO., LTD

Page 111

Preliminary Version 0.1

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

1 5

Marking Definition

15.1 INTRODUCTION

There are many different types in Sonix 8-bit MCU production line. This note listed the production definition of all 8-bit

MCU for order or obtain information. This definition is only for Blank OTP MCU.

15.2 MARKING INDETIFICATION SYSTEM

SN8 X PART No. X X X

Material

Temperature

Range

B = PB-Free Package

G = Green Package

- = 0

~ 70

Shipping

Package

W=Wafer, H=Dice

L=LQFP

Device

ROM Type

2318

P = OTP

15.3 MARKING EXAMPLE

Wafer, Dice:

Name

S8P2318W

SN8P2318H

ROM Type

OTP

OTP

Green Package:

Name ROM Type

SN8P2318FG

OTP

PB-Free Package:

Name ROM Type

SN8P2318FB

OTP

Device

2318

2318

Device

2318

Device

2318

Title

Package

Wafer

Dice

Package

LQFP

Package

LQFP

SONiX 8-bit MCU Production

Temperature

0℃~70℃

0℃~70℃

Temperature

0℃~70℃

Temperature

0℃~70℃

Material

-

-

Material

Green Package

Material

PB-Free Package

SONiX TECHNOLOGY CO., LTD

Page 112

Preliminary Version 0.1

15.4 DATECODE SYSTEM

X X X X XXXXX

SONiX Internal Use

Day

1=01

2=02

. . . .

9=09

A=10

B=11

. . . .

Month

1=January

2=February

. . . .

9=September

A=October

B=November

C=December

Year

03= 2003

04= 2004

05= 2005

06= 2006

. . . .

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

SONiX TECHNOLOGY CO., LTD

Page 113

Preliminary Version 0.1

1

6

PACKAGE INFORMATION

16.1 LQFP 64 PIN

SN8P2318 Series

C-type LCD, RFC 8-Bit Micro-Controller

SYMBOLS

D

D1

E

E1

[e]

L

L1

R1

R2

Y

θ°

θ1°

θ2°

θ3°

A

A1

A2 b b1

C

C1

0.018

0.039

0.003

0.003

-

11°

11°

MIN

-

0.002

0.054

0.007

0.007

0.004

0.004

NOR

(inch)

-

0.055

0.009

0.009

-

-

-

0.472

0.394

0.472

0.394

0.020

0.024

-

-

-

-

3.5°

-

12°

12°

0.030

-

-

0.008

0.030

-

13°

13°

MAX

0.063

0.006

0.057

0.011

0.009

0.008

0.006

MIN

-

0.050

1.360

0.170

0.170

0.090

0.090

0.450

1.000

0.080

0.080

-

11°

11°

NOR

(mm)

-

1.400

0.220

0.220

-

-

-

12.000

10.000

12.000

10.000

0.500

0.600

-

-

-

-

3.5°

-

12°

12°

MAX

1.600

0.150

1.450

0.270

0.230

0.200

0.160

0.750

-

-

0.200

0.750

-

13°

13°
