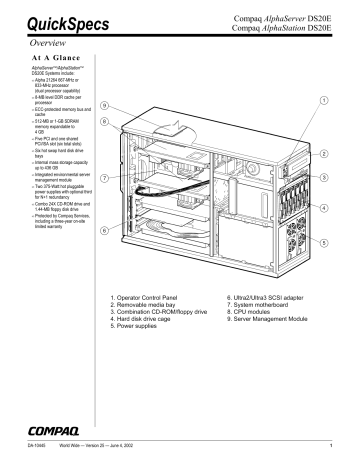

QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Overview
At A Glance
AlphaServer/AlphaStation
DS20E Systems include:
• Alpha 21264 667-MHz or
833-MHz processor
(dual processor capability)
• 8-MB level DDR cache per
processor
• ECC-protected memory bus and
cache
• 512-MB or 1-GB SDRAM
memory expandable to
4 GB
• Five PCI and one shared
PCI/ISA slot (six total slots)
• Six hot swap hard disk drive
bays
• Internal mass storage capacity
up to 436 GB
• Integrated environmental server
management module
• Two 375-Watt hot pluggable
power supplies with optional third
for N+1 redundancy
• Combo 24X CD-ROM drive and
1.44-MB floppy disk drive
• Protected by Compaq Services,
including a three-year on-site
limited warranty
DA-10445
World Wide — Version 25 — June 4, 2002
1
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Standard Features
Processor
Alpha 21264 667-MHz or 833-MHz processor
Cache Memory
8-MB level 2 dual data rate cache per processor
Upgradability
System upgradable to dual processing
Memory
Minimum
Maximum
Network Controller
Choice of Ethernet controllers
Expansion
I/O (Total)
PCI
Shared PCI/ISA
Storage Controller
Choice of storage controllers
Storage
Diskette Drive
CD-ROM
Internal Hard Drives
Maximum Internal Storage
1.44 MB
24X Max IDE CD-ROM Drive
Choice of 18.2-GB, 36.4-GB, or 72.8-GB drives
436 GB
Interfaces
Parallel
Serial
Pointing Device (Mouse)
Keyboard
SCSI knockouts on rear of
chassis
Parallel
1
2
1
1
6
512-MB or 1-GB ECC SDRAM memory standard
4 GB
6
5
1
1
Form Factor
Rackmount or Tower
Manageability
Compaq Insight Manager
Power Supply
Two 375-Watt hot plug power supplies, standard; optional third N+1 for redundancy
Hot plug redundant power supply support; hot plug fan support
OS Support
AlphaServer DS20E Tru64 UNIX systems include pre-installed software (V5.1A), Base license, Unlimited
User license, Server Extension license, Internet Express, iPlanet Directory Server, iPlanet Enterprise Server, and
Compaq Secure Web Server
AlphaStation DS20E Tru64 UNIX systems include pre-installed software (V5.1A), 2-user Base license
AlphaServer DS20E OpenVMS systems include pre-installed software (V7.3), Base license with System
Manager license and Enterprise Integration Server License Package for OpenVMS V3.1
AlphaStation DS20E OpenVMS systems include pre-installed software (V7.3), Base license, Concurrent Use
1-user license, NAS 150 Client license, and Compaq Open3D traditional license
Minimum OS support: Tru64 UNIX V4.0F, OpenVMS V7.1-2 or V7.2-1
Service and Support
Compaq Services provides a wide range of service offerings including a three-year limited warranty fully
supported by a worldwide network of resellers and service providers; lifetime toll-free 7 x 24 hardware technical
phone support.
DA-10445
World Wide — Version 25 — June 4, 2002
2
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Systems/Options
Step 1 − Select system
AlphaServer/AlphaStation DS20E systems require the mandatory selection of the following items:
• Pedestal/tower or rackmount bezel kit
• Disk drive cage
• LVD SCSI adapter
• System disk drive
• Ethernet adapter
• Power cord
• Software media and documentation for first system onsite
NOTES: DS20E minimum OS support −Tru64 UNIX V4.0F, OpenVMS V7.1-2 or V7.2-1
Keyboard and mouse not included.
Option part numbers identified with the notation ″U.S./Canada orders″ and ″Other country orders″ refers specifically to the country where the
order originates, and indicates the valid and orderable part numbers in the respective geographies.
For system integration of options with 6-3 part numbers, non-U.S./Canada orders, contact CustomSystems
AlphaServer DS20E Systems
OS
Tru64 UNIX
Tru64 UNIX
Tru64 UNIX
Tru64 UNIX
OpenVMS
OpenVMS
OpenVMS
OpenVMS
AlphaStation DS20E Systems
Tru64 UNIX
Tru64 UNIX
Tru64 UNIX
Tru64 UNIX
OpenVMS
OpenVMS
OpenVMS
OpenVMS
CPU
667 MHz
667 MHz
833 MHz
833 MHz
Memory/Cache
512 MB/8 MB
1 GB/8 MB
512 MB/8 MB
1 GB/8 MB
Order Number
DA-56PAB-EA
DA-56PAB-FA
DA-56RAA-EA
DA-56RAA-FA
667 MHz
667 MHz
833 MHz
833 MHz
512 MB/8 MB
1 GB/8 MB
512 MB/8 MB
1 GB/8 MB
DY-56PAB-EA
DY-56PAB-FA
DY-56RAA-EA
DY-56RAA-FA
667 MHz
667 MHz
833 MHz
833 MHz
512 MB/8 MB
1 GB/8 MB
512 MB/8 MB
1 GB/8 MB
DA-56PAB-EW
DA-56PAB-FW
DA-56RAA-EW
DA-56RAA-FW
667 MHz
667 MHz
833 MHz
833 MHz
512 MB/8 MB
1 GB/8 MB
512 MB/8 MB
1 GB/8 MB
DY-56PAB-EW
DY-56PAB-FW
DY-56RAA-EW
DY-56RAA-FW
Step 2 − Select mandatory options
Step 2a − Bezel Kits − Mandatory
• Pedestal/Tower kit or Rackmount kit is mandatory for each system
Pedestal/Tower bezel kit
Rackmount bezel kit (M-Series Cabinets)
Rackmount bezel kit for Compaq Series 9000 Cabinets (Onsite integration only –
contact CustomSystems if factory integration is required)
Step 2b − Disk Drive Cage − Mandatory
• Systems support one disk drive cage; disk drive cage supports six 3.5-inch hard disk drives
6-bay disk drive cage
DA-10445
World Wide — Version 25 — June 4, 2002
3X-BA56P-PB
3X-BA56R-RC
3X-BA56R-RE
BA610-6D
3
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 2 − Select mandatory options (continued)
Step 2c − SCSI Adapter − Mandatory
• Selection of LVD SCSI adapter to connect to internal disk drive cage is mandatory; SCSI cable included with disk-drive cage
Single-channel LVD adapter, maximum four per system
PCI 2-channel multimode Ultra3 LVD SCSI adapter VHDCI (Tru64 UNIX 5.1 or higher
and OpenVMS V7.2-2 or higher)
NOTE: Patch kit required, kit available at
http://ftp1.support.compaq.com/public/Digital_UNIX/v5.1/
No shared SCSI or SDLT tape/library support.
PCI-to-10/100 MBPS Ethernet, graphics, LVD SCSI combination adapter, maximum one
per system (cannot be installed in PCI slot 1)
3X-KZPCA-AA
3X-KZPEA-DB
3X-DEPVZ-AA
Step 2d − System Disk Drive (Supported in Disk Drive Cage) − Mandatory
• Selection of one disk drive is mandatory
18.2-GB Ultra3 SCSI 10,000 rpm 1-inch Universal disk drive
18.2-GB Ultra3 SCSI 15,000 rpm 1-inch Universal disk drive
36.4-GB Ultra3 SCSI 10,000 rpm 1-inch Universal disk drive
36.4-GB Ultra3 SCSI 15,000 rpm 1-inch Universal disk drive
72.8-GB Ultra3 (LVD) 10,000 rpm 1-inch Universal disk drive
Ultra Universal drive height converter, 4-pack; required for installed base customers with
earlier 4-slot drive cages (3X-BA611-4D) when ordering 1-inch universal drives
3R-A0585-AA
3R-A1543-AA
3R-A0919-AA
3R-A3079-AA
3R-A3050-AA
3R-A0528-AA
Step 2e − Ethernet Adapters − Mandatory
• Selection of one Ethernet adapter is mandatory (Ethernet adapter is not required if KZPCM or 3X-DEPVZ-AA adapter is selected)
• See Step 12 for additional networking options
PCI 1-port 10/100 Mbit Fast Ethernet adapter, UTP, maximum four per system
PCI 2-port 10/100 Mbit, Fast Ethernet adapter, UTP, maximum two per system,
maximum eight 10/100 Ethernet ports per system
Multi-mode fiber (MMF) add-on daughter card for 3X-DE602-AA, maximum two per
system, maximum eight 10/100 Ethernet ports per system
PCI 2-port 10/100 Mbit Fast Ethernet adapter, UTP, maximum two per system,
maximum eight 10/100 Ethernet ports per system
2-port 10/100 Mbit, UTP, Ethernet add-on daughter card for 3X-DE602-BB, maximum
two per system, maximum eight 10/100 Ethernet ports per system
PCI 10/100 Mbit 4-port Ethernet adapter, UTP, maximum one per system
PCI Video/NIC Combo adapter, 3Dlabs Permedia P2 graphics with 4-MB VRAM, singleport 10/100 Mbit Fast Ethernet, maximum one per system
Cable for 10BaseT twisted pair connection
3X-DE600-AA
3X-DE602-AA
3X-DE602-FA
3X-DE602-BB
3X-DE602-TA
DE504-BA
3X-DEPVD-AA
BN25G-xx
Step 2f − Power Cords − Mandatory
• Selection of power cord is mandatory for all systems
Pedestal Power Cords
North American 120V, 75-inch
Australia, New Zealand, 2.5-meter
Central Europe, 2.5-meter
Denmark, 2.5-meter
Egypt, India, South Africa, 2.5-meter
Israel, 2.5-meter
DA-10445
World Wide — Version 25 — June 4, 2002
BN26J-1K
103541-511
(U.S./Canada orders)
BN19H-2E
(Other country orders)
BN19C-2E
103541-481
(U.S./Canada orders)
BN19K-2E
(Other country orders)
103541-AR1
(U.S./Canada orders)
BN19S-2E
(Other country orders)
BN18L-2E
4
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 2 − Select mandatory options (continued)
Step 2f − Power Cords − Mandatory (continued)
Pedestal Power Cords (continued) Italy, 2.5-meter
Japan, 2.5-meter
Switzerland, 2.5-meter
UK, Ireland, 2.5-meter
Rackmount Power Cords
U.S./Canada
Non-U.S.
Japan, 2.5-meter
103541-461
(U.S./Canada orders)
BN35M-02
(Other country orders)
3X-BN46F-02
103541-511
(U.S./Canada orders)
BN19E-2E
(Other country orders)
BN19A-2E
BN20Z-4E
BN35S-4E
3X-BN46D-4E
Step 3 − Additional CPU Modules − Optional
•
One 6/667-MHz or 6/833-MHz CPU included, one additional CPU supported, second CPU must be the same speed.
SMP upgrade includes one 6/667-MHz CPU with 8-MB cache and Tru64 UNIX SMP
license
SMP upgrade includes one 6/667-MHz CPU with 8-MB cache and OpenVMS SMP
license
SMP upgrade includes one 6/833-MHz CPU with 8-MB cache and Tru64 UNIX SMP
license
SMP upgrade includes one 6/833-MHz CPU with 8-MB cache and OpenVMS SMP
license
KN311-CB
KN311-CC
KN312-BB
KN312-BC
Step 4 − Memory − Optional
•
System includes one memory option; up to three additional memory options can be added
512-MB memory option (4 x 128-MB DIMMs)
1-GB memory option (4 x 256-MB DIMMs)
MS340-DA
MS340-EA
Step 5 − Additional Power Supplies − Optional
•
Two 375 watt power supplies included with system; optional third power supply provides N+1 redundancy
DS20E redundant power supply
FR-H7910-AA
Step 6 − Internal Removable Storage − Optional
•
DA-10445
System supports three internal removable media devices:
- One combo 24X CD-ROM drive and 1.44-MB disk drive
- One additional removable media slot provides support for one 5.25-inch half-height device; requires KZPBA-CA or KZPCM-DA UltraSCSI
adapter, or 3X-KZPCA-AA or 3X-DEPVZ-AA Ultra2 (LVD) adapter, and SCSI cable (3X-BC56C-2F) or 3X-KZPEA-DB Ultra3 (LVD) adapter.
For optimum performance it is recommended that Ultra2 capable devices be connected to at least an Ultra2 capable adapter.
12/24-GB 4 mm DAT SCSI tape drive (TLZ10) 5.25-inch half-height, top gun blue
TLZ10-LB
5.25-inch half-height 20/40-GB 4 mm DAT Ultra 2 (LVD) SCSI tape drive, top gun blue
3X-SD20X-LB
5.25-inch half-height 35/70-GB 8 mm AIT Wide Ultra SCSI tape drive, top gun blue
3X-SZ35X-LB
5.25-inch half-height 50/100-GB 8 mm AIT Ultra 2 (LVD) SCSI tape drive, top gun blue
3X-SZ50X-LB
5.25-inch half-height 35/70-GB 8 mm AIT LVD UltraSCSI tape drive, carbon black;
requires 3X-KZPCA-AA or 3X-DEPVZ-AA LVD adapter
35/70-GB AIT hot plug LVD Universal tape drive, uses two slots in BA610-6D or 43xxx
shelves, 3X-KZPCA-AA, 3X-DEPVZ-AA LVD, or 3X-KZPEA-DB adapter
50/100-GB AIT hot plug LVD Universal tape drive, uses two slots in BA610-6D or 43xxx
shelves, 3X-KZPCA-AA,3X-DEPVZ-AA LVD, or 3X-KZPEA-DB adapter
3R-A2392-AA
World Wide — Version 25 — June 4, 2002
3R-A2396-AA
3R-A2779-AA
5
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 6 − Internal Removable Storage − Optional (continued)
20/40-GB DAT DDS4 hot plug LVD Universal tape drive, uses two slots in BA610-6D or
43xxx shelves, 3X-KZPCA-AA LVD or 3X-KZPEA-DB adapter
SCSI cable with one connector and active terminator to connect optional PCI adapter to
5.25-inch device
3R-A2780-AA
3X-BC56C-2F
Step 7 − External Storage − Optional
UltraSCSI StorageWorks BA356 Pedestals
• UltraSCSI top gun blue pedestals provide support for UltraSCSI disk drives; pedestal is available in single-bus or split-bus configurations and
includes a personality module and 180W power supply
• UltraSCSI shelf supports: seven 3.5-inch hard disk drives, or one 5.25-inch device and four 3.5-inch hard disk drives, or two 5.25-inch devices and
one 3.5-inch hard disk drive
• Installation of redundant power supply reduces number of 3.5-inch drive slots by one
UltraSCSI single-ended pedestal, single-bus personality module, 180W power supply
DS-BA356-KF
UltraSCSI pedestal, single-channel differential personality module, 180W power supply
DS-BA356-KH
180W power supply, includes 120V North American and 240V IEC power cord
CK-BA35X-HH
UltraSCSI StorageWorks BA36R Shelf – Requires selection of UltraSCSI adapter and SCSI cable
• StorageWorks Shelf supports seven 3.5-inch x 1.6-inch hard disk drives; with addition of redundant power supply, only six drives are supported
• StorageWorks shelf kits are mounted back-to-back in M-Series cabinets
StorageWorks UltraSCSI single-bus shelf kit
BA36R-RC
StorageWorks UltraSCSI split-bus shelf kit
BA36R-RD
StorageWorks Model 4314R and Model 4354R Universal Drive Shelves
• StorageWorks Model 4314R and 4354R Ultra3 SCSI (LVD) single-bus and split-bus Universal drive shelves; refer to StorageWorks Enclosure 4300
Family QuickSpecs when configuring shelves. When selecting a DS-SL13R-xx split-bus shelf, order two 3X-KZPCA-AA adapters with BN38C-xx
cables, or one 3X-KZPEA-DB with BN37A-xx cables. Model 43xx shelves are compatible with Wide Ultra2 or Ultra3 (LVD) adapters only. Note that
the depth of a DS-SL13R-xx shelf does not allow front and rear mounting. 3X-KZPEA-DB adapter does not support SDLT tapes.
StorageWorks Model 4314R Ultra3 SCSI (LVD) single-bus Universal drive rackmount
DS-SL13R-AA
shelf, for North America and International use, except Japan (190209-001)
(All regions except Japan)
StorageWorks Model 4314R Ultra3 SCSI (LVD) single-bus Universal drive rackmount
190209-291
shelf, Japan
(U.S./Canada orders for
Japan variant)
DS-SL13R-AJ
(Non U.S./Canada orders
for Japan variant)
StorageWorks Model 4354R Ultra3 SCSI (LVD) split-bus Universal drive rackmount
DS-SL13R-BA
shelf, for North America and International use, except Japan (190211-001)
(All regions except Japan)
StorageWorks Model 4354R Ultra3 SCSI (LVD) split-bus Universal drive rackmount
190211-291
shelf, Japan
(U.S./Canada orders for
Japan variant)
DS-SL13R-BJ
(Non U.S./Canada orders
for Japan variant)
DA-10445
World Wide — Version 25 — June 4, 2002
6
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 7 − External Storage − Optional (continued)
StorageWorks Model 4314T
Standalone Enclosure for
Universal Drives
Model 4314T Ultra3 SCSI, single-bus tower enclosure, U.S.
Model 4314T Ultra3 SCSI, single-bus tower enclosure, International
Model 4314T Ultra3 SCSI, single-bus tower enclosure, Japan
StorageWorks Model 4314
Options
StorageWorks enclosure redundant power supply
190210-001
(U.S./Canada orders)
DS-SL13T-AA
(Other country orders)
190210-B31
(U.S./Canada orders)
DS-SL13T-AB
(Other country orders)
190210-291
(U.S./Canada orders)
DS-SL13T-AJ
(Other country orders)
119826-B21
(U.S./Canada orders)
DS-SE2UP-AA
(Other country orders)
Step 8 − Storage Devices − Optional
UltraSCSI Configuration Rules
• UltraSCSI configurations require UltraSCSI components (controllers, adapters, shelves, disks, and cables)
• UltraSCSI adapters and RAID controllers support UltraSCSI disks at UltraSCSI speeds in UltraSCSI top gun blue shelves (DS-BA356-xx)
• UltraSCSI and Fast10 drives can be mixed in DS-BA356 top gun blue UltraSCSI shelf; UltraSCSI adapter negotiates maximum transfer speed of
drives
18.2-GB Ultra3 SCSI 10,000 rpm 1-inch Universal disk drive
Disk Drives
(Supported in Model 4314R, Model 4354R, 18.2-GB Ultra3 SCSI 15,000 rpm 1-inch Universal disk drive
or Model 4314T Universal Drive Shelves) 36.4-GB Ultra3 SCSI 10,000 rpm 1-inch Universal disk drive
36.4-GB Ultra3 SCSI 15,000 rpm 1-inch Universal disk drive
72.8-GB Ultra3 (LVD) 10,000 rpm 1-inch Universal disk drive
9.1-GB UltraSCSI 10,000 rpm disk drive
Disk Drives
(Supported in StorageWorks BA356/BA36R 18.2-GB UltraSCSI 10,000 rpm disk drive
Shelves)
36.4-GB UltraSCSI 10,000 rpm disk drive
3R-A0585-AA
3R-A1543-AA
3R-A0919-AA
3R-A3079-AA
3R-A3050-AA
DS-RZ1DD-VW
DS-RZ1ED-VW
DS-RZ1FC-VW
Tape Drives
• Tape drives require single-ended UltraSCSI adapter and country-specific power cord
• For more information on Compaq tape drives, see http://www.compaq.com/products/storageworks/sitemap.html#tapedrives
NOTE: This website is available in English only.
AIT Tape Drives
DA-10445
35/70-GB 8 mm AIT LVD tabletop tape drive, North America; requires 3X-KZPCA-AA or
3X-KZPEA-DB LVD adapter
35/70-GB 8 mm AIT LVD tabletop tape drive, International; requires 3X-KZPCA-AA or
3X-KZPEA-DB LVD adapter
35/70-GB 8 mm AIT LVD tabletop tape drive, Japan; requires 3X-KZPCA-AA or
3X-KZPEA-DB LVD adapter
35/70-GB 8 mm AIT SCSI tabletop tape drive with 120V North American power cord;
requires 3X-KZPCA-AA or KZPBA-CA SCSI adapter or 3X-KZPEA-DB LVD adapter
35/70-GB 8 mm AIT SCSI tabletop tape drive, International; requires 3X-KZPCA-AA or
KZPBA-CA SCSI adapter or 3X-KZPEA-DB LVD adapter
50/100-GB 8 mm AIT SCSI tabletop tape drive with 120V North American power cord;
requires 3X-KZPCA-AA Wide Ultra2 (LVD) adapter or 3X-KZPEA-DB LVD adapter
50/100-GB 8 mm AIT SCSI tabletop tape drive, International; requires 3X-KZPCA-AA
Wide Ultra2 (LVD) adapter or 3X-KZPEA-DB LVD adapter
35/70-GB AIT hot plug LVD Universal tape drive, uses two slots in BA610-6D or 43xxx
shelves
50/100-GB AIT hot plug LVD Universal tape drive, uses two slots in BA610-6D or 43xxx
shelves
World Wide — Version 25 — June 4, 2002
216885-001
216885-B31
216885-291
388507-001
388507-B31
157767-001
157767-B31
3R-A2396-AA
3R-A2779-AA
7
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 8 − Storage Devices − Optional (continued)
AIT Tape Libraries
DAT Tape Drives
SSL2020 AIT library with one AIT 50-GB drive and 20 slots, rackmount, requires
3X-KZPCA-AA or 3X-KZPEA-DB adapter
SSL2020 AIT library with two AIT 50-GB drives and 20 slots, rackmount, requires
3X-KZPCA-AA or 3X-KZPEA-DB adapter
Tabletop SSL2020 AIT library with one AIT 50-GB drive and 20 slots requires
3X-KZPCA-AA LVD adapter or 3X-KZPEA-DB adapter
Tabletop SSL2020 AIT library with two AIT 50-GB drives and 20 slots, requires
3X-KZPCA-AA LVD adapter or 3X-KZPEA-DB adapter
175196-B21
175196-B22
175195-B21
175195-B22
DAT 12/24-GB 4 mm narrow single-ended tabletop SCSI tape drive with 120V North
American power cord; requires BN31W-xx SCSI cable and KZPBA-CA or KZPCM-DA
adapter
DAT 20/40-GB 4 mm Wide Ultra2 (LVD) tabletop SCSI tape drive with 120V North
American power cord; requires 3X-KZPCA-AA Wide Ultra2 (LVD) adapter or
3X-KZPEA-DB Ultra3 (LVD) adapter
DAT 20/40-GB 4 mm Wide Ultra2 (LVD) tabletop SCSI tape drive, International;
requires 3X-KZPCA-AA Wide Ultra2 (LVD) adapter or 3X-KZPEA-DB Ultra3 (LVD)
adapter
DAT 20/40-GB autoloader external, North America
DS-TLZ10-DB
DAT 20/40-GB auto loader external, International; requires BN31W-xx SCSI cable and
KZPBA-CA or KZPCM-DA adapter or 3X-KZPEA-DB Ultra3 (LVD) adapter
DAT 20/40-GB autoloader external, Japan
166505-B31
DAT 20/40-GB DDS4 hot plug LVD Universal tape drive, uses two slots in BA610-6D or
43xxx shelves
3R-A2780-AA
157770-001
157770-B31
166505-001
166505-291
Removable Media Devices for StorageWorks Shelves
• For maximum performance, tape libraries must be configured with Fast Wide Differential (FWD) controllers for tape backup
• For more information on Compaq tape drives, see http://www.compaq.com/products/storageworks/sitemap.html#tapedrives
NOTE: This website is available in English only.
AIT Tape Drives
AIT 35/70-GB 8 mm SCSI tape drive in 3.5-inch StorageWorks carrier (BA36R or
BA356 shelves)
SSL2020 AIT library with one AIT 50-GB drive and 20 slots, tabletop, LVD
SSL2020 AIT library with two AIT 50-GB drives and 20 slots, tabletop, LVD
SSL2020 AIT library with one AIT 50-GB drive and 20 slots, rackmount, LVD
SSL2020 AIT library with two AIT 50-GB drives and 20 slots, rackmount, LVD
DS-AIT35-VW
DAT Tape Drives
DAT 12/24-GB 4 mm narrow SCSI tape drive in StorageWorks carrier
(BA36R or BA356 shelves)
DS-TLZ10-VA
DLT/SDLT Tape Drives
DLT8000 40/80-GB tape drive in StorageWorks carrier (BA36R or BA356 shelves)
DLT8000 40/80-GB carbon black internal tape drive for use in LVD tape enclosures
DLT8000 40/80-GB carbon black tabletop drive, U.S./International
DLT8000 40/80-GB carbon black tabletop drive, Japan
DLT 20/40-GB single-ended tape drive in StorageWorks carrier
(BA36R or BA356 shelves)
SDLT 110/220-GB internal tape drive for use in LVD tape enclosures
SDLT 110/220-GB tabletop drive, U.S.
SDLT 110/220-GB tabletop drive, International
SDLT 110/220-GB tabletop drive, Japan
DA-10445
World Wide — Version 25 — June 4, 2002
175195-B21
175195-B22
175196-B21
175196-B22
DS-TZ90N-VW
146196-B22
146197-B23
146197-293
TZ88N-VA
192106-B25
192103-002
192103-B32
192103-292
8
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 8 − Storage Devices − Optional (continued)
DAT Autoloaders
DDS4 20/40-GB eight-cartridge internal DAT autoloader
DDS4 20/40-GB eight-cartridge tabletop DAT autoloader, U.S.
DDS4 20/40-GB eight-cartridge tabletop DAT autoloader, International
DDS4 20/40-GB eight-cartridge tabletop DAT autoloader, Japan
166504-B21
166505-001
166505-B31
166505-291
AIT Autoloaders
AIT 35/70-GB eight-cartridge rackmount autoloader
AIT 35/70-GB eight-cartridge tabletop autoloader
AIT rackmount kit for autoloader
282175-001
282175-002
284930-001
AIT Libraries
AIT 50/100-GB SSL2020 tabletop library with one drive
AIT 50/100-GB SSL2020 tabletop library with two drives
AIT 50/100-GB SSL2020 rackmount library with one drive
AIT 50/100-GB SSL2020 rackmount library with two drives
NOTE: 3X-KZPEA-DB does not support SDLT tapes/libraries.
175195-B21
175195-B22
175196-B21
175196-B22
DLT Tape Libraries
MSL5026DLX or MSL5026SL, DLT/SDLT rackmount library, 0 drives – requires
rackmount kit (254795-001)
MSL5026SL, SDLT tabletop library with one 110/220-GB SDLT tape drive, LVD
MSL5026SL, SDLT tabletop library with two 110/220-GB SDLT tape drives, LVD
MSL5026SL, SDLT rackmount library with one 110/220-GB SDLT tape drive,
LVD – requires rackmount kit (254795-001)
MSL5026SL, SDLT rackmount library with two 110/220-GB SDLT tape drives,
LVD – requires rackmount kit (254795-001)
MSL5052, 0 drives, LVD, rackmount
MSL5052SL, two SDLT 110/220-GB drives, LVD, tabletop
MSL5052SL, two SDLT 110/220-GB drives, LVD, rackmount
ESL9198 DLX enterprise tape library with two 40/80-GB tape drives, 198 slots
(194993-B24/-B28 for four or eight tape drives); requires 3X-KZPCA-AA adapter
ESL9198 DLX enterprise tape library with four 40/80-GB tape drives, 198 slots;
requires 3X-KZPCA-AA adapter
ESL9198 DLX enterprise tape library with eight 40/80-GB tape drives, 198 slots;
requires 3X-KZPCA-AA adapter
ESL9198SL SDLT tape library with four 110/220-GB SDLT tape drives, 198 slots
requires 3X-KZPCA-AA adapter
ESL9198SL SDLT tape library with eight 110/220-GB SDLT tape drives, 198 slots
requires 3X-KZPCA-AA adapter
ESL9326SL LVD with six SDLT 110/220-GB drives
ESL9326SL LVD with eight SDLT 110/220-GB drives
ESL9326SL LVD with 16 SDLT 110/220-GB drives
231979-B21
External Tape Drive Enclosures
(for rackmount configurations)
DA-10445
DLT tape array III Model 0, carbon black enclosure, supports up to four DLT/SDLT
internal drives
3U rackmount tape Model 0 enclosure, supports up to two DLT/SDLT full height drives
or four DAT/AIT half height drives
Rackmount kit for 3U tape enclosure and H9Axx series cabinets
5U rackmount tape Model 0 enclosure
World Wide — Version 25 — June 4, 2002
231822-B21
231822-B22
231892-B21
231892-B22
255102-B21
249490-B21
249491-B21
194993-B21
194993-B24
194993-B28
234618-B21
234618-B22
234615-B21
234615-B22
234615-B26
274339-B21
274338-B21
3R-A3804-AA
274339-B21
9
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 8 − Storage Devices − Optional (continued)
Internal Drives for Above Tape
Enclosures
DLT 4000 20/40-GB tape drive
DLT 8000 40/80-GB carbon black tape drive
SDLT 110/220-GB carbon black internal tape drive
DAT 20/40-GB carbon black internal DDS4 tape drive
AIT 35/70-GB carbon black internal tape drive
AIT 50/100-GB carbon black internal tape drive
DAT 20/40-GB DDS4 eight-cartridge autoloader
AIT 35-GB eight-cartridge autoloader
340743-B22
146197-B22
192106-B25
157769-B22
216884-B21
157766-B22
166504-B21
282175-001
Modular Data Routers
The following Modular Data Routers are supported with MSL5000 and ESL9000 tape
libraries:
One Fibre channel x 2 HVD Data Router (3R-A2673-AA)
One Fibre channel x 2 LVD Data Router (3R-A2774-AA)
Two Fibre channel x 4 HVD Data Router (3R-A3292-AA)
Two Fibre channel x 4 LVD Data Router (3R-A3312-AA)
Two Fibre channel x 4 LVD Data Router (3R-A3740-AA) (Tru64 UNIX only)
Two Fibre channel x 4 HVD Data Router (3R-A3741-AA) (Tru64 UNIX only)
218240-B21
218241-B21
163082-B21
163083-B21
262653-B21
262654-B21
StorageWorks Fibre Channel
Switches
Fibre Channel SAN Switch, 8 ports with Fabric Operating Software
Fibre Channel SAN Switch, 16 ports with Fabric Operating Software
NOTE: For more information on above switches, refer to
http://www.compaq.com/products/quickspecs/10457_na/10457_na.HTML
NOTE: This website is available in English only.
Fibre Channel SAN Switch 8-EL– refer to
NOTE: For more information on above switches, refer to
http://www.compaq.com/products/quickspecs/10647_na/10647_na.HTML
NOTE: This website is available in English only.
Fibre Channel SAN Switch 16-EL – refer to
NOTE: For more information on above switches, refer to
http://www.compaq.com/products/quickspecs/10735_na/10735_na.HTML
NOTE: This website is available in English only.
Fibre Channel Director Class switch – 64 ports (Tru64 UNIX and OpenVMS)
Fibre Channel SAN Switch – 2 GB, 16-ports, two power supplies (Tru64 UNIX and
OpenVMS) – requires Tru64 UNIX V5.1A patch kit: T64V51AB01AS0001-20020116.tar
158222-B21
(U.S./Canada orders)
DS-DSGGB-AA
(Other country orders)
158223-B21
(U.S./Canada orders)
DS-DSGGB-AB
(Other country orders)
176219-B21
(U.S./Canada orders)
DS-DSGGC-AA
(Other country orders)
212776-B21
(U.S./Canada orders)
DS-DSGGC-AB
(Other country orders)
DS-DMGGD-AA
287055-B21
(U.S./Canada orders)
DS-DSGGD-BA
(Other country orders)
DA-10445
World Wide — Version 25 — June 4, 2002
10
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 9 −UltraSCSI RAID Array Controllers and UltraSCSI RAID Packaged Solutions − Optional
External Storage Solutions/
Controllers
Modular Array 8000 Fibre Channel RAID storage solution, 60 Hz; includes one HSG80
controller with 256-MB cache, one M2200 controller shelf, three dual-bus disk shelves,
two I/O ports, two power supplies
Modular Array 8000 Fibre Channel RAID storage solution, 50 Hz; includes one HSG80
controller with 256-MB cache, one M2200 controller shelf, three dual-bus disk shelves,
two I/O ports, two power supplies
Enterprise Modular Array 12000 Fibre Channel RAID storage solution, 60 Hz
Enterprise Modular Array 12000 Fibre Channel RAID storage solution, 50 Hz
Enterprise Virtual Array Model 2C6D 60-Hz 42U opal storage cabinet, M3220 controller
assembly with dual HSV110 controllers, six M5214 dual FC loop 14-bay drive
enclosures
Enterprise Virtual Array Model 2C6D 50-Hz 42U opal storage cabinet, M3220 controller
assembly with dual HSV110 controllers, six M5214 dual FC loop 14-bay drive
enclosures
Enterprise Virtual Array Model 2C12D 60-Hz, includes 42U opal storage cabinet, M3220
controller assembly with dual HSV110 controllers, 12 M5214 dual FC loop 14-bay drive
enclosures
Enterprise Virtual Array Model 2C12D 60-Hz, includes 42U opal storage cabinet, M3220
controller assembly with dual HSV110 controllers, 12 M5214 dual FC loop 14-bay drive
enclosures
Enterprise Virtual Array Model 8C8D 60-Hz, includes 42U opal storage cabinet, four
M3220 controller assembly with eight HSV110 controllers, eight M5214 dual FC loop
14-bay drive enclosures
Enterprise Virtual Array Model 8C8D 50-Hz, includes 42U opal storage cabinet, four
M3220 controller assembly with eight HSV110 controllers, eight M5214 dual FC loop
14-bay drive enclosures
NOTE: For Modular Array 8000 and Enterprise Modular Array 12000 configuration and
ordering information, see
http://www.compaq.com/products/storageworks/raidstoragesystems.html
NOTE: This website is available in English only.
Fibre Channel controller (HSG80), includes 64-MB cache; each HSG80 requires
128697-B21 HSG80 ACS V8.4F software kit for RAID Array and Enterprise Storage
Array solutions
Fibre Channel controller (HSG80), includes 256-MB cache; each HSG80 requires
128697-B21 HSG80 ACS V8.4F software kit for RAID Array and Enterprise Storage
Array solutions
DA-10445
World Wide — Version 25 — June 4, 2002
175992-B21
(U.S./Canada orders)
DS-SWXEB-CA
(Other country orders)
175992-B22
(U.S./Canada orders)
DS-SWXEB-CB
(Other country orders)
175993-B21
175993-B22
234345-B21
234345-B22
234346-B21
234346-B22
239782-001
249977-B21
380671-B21
380672-B21
11
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 9 −UltraSCSI RAID Array Controllers and UltraSCSI RAID Packaged Solutions − Optional (continued)
RAID Array 3000 Rackmount Controller Shelf
• Selection of RA3000 Solutions Software Kit is required
• Supported SCSI adapter: 3X-KZPBA-CC PCI 1-port UltraSCSI differential adapter
RA3000 rackmount controller shelf, blue, with one controller, 110V
Includes: UltraSCSI BA356 controller shelf, one HSZ22 2-channel controller with 16MB cache, integrated Environmental Monitoring Unit (EMU), two 180W power supplies,
two dual-port host differential UltraSCSI I/O SBBs, dual-channel UltraSCSI singleended personality modules, one 120V 1000VA rackmount UPS, 5-m host SCSI cable
(BN37A-05), BN38E-0B adapter, UPS serial cable, PC connection serial cable (DB-9),
two 68-pin HD tri-link adapters (H8861-AA), two North American power cords, and
RETMA mounting bracket (disk shelves and disks not included)
Requires: Solutions Software Kit for platform, host adapter, RA3000 disk shelf, and
disks
Options: Second HSZ22 controller, up to four additional RA3000 disk shelves, cache
memory upgrade
RA3000 rackmount controller shelf, blue, with one controller, 230V
Includes: UltraSCSI BA356 controller shelf, one HSZ22 2-channel controller with 16MB cache, integrated Environmental Monitoring Unit (EMU), two 180W power supplies,
two dual-port host differential UltraSCSI I/O SBBs, dual-channel UltraSCSI singleended personality modules, one 230V 1000VA rackmount UPS, 5-m host SCSI cable
(BN37A-05), BN38E-0B adapter, UPS serial cable, PC connection serial cable (DB-9),
two 68-pin HD tri-link adapters (H8861-AA), RETMA mounting bracket (disk shelves
and disks not included)
Requires: Solutions Software Kit for platform, two country-specific power cords, host
adapter, RA3000 disk shelf, and disks
Options: Second HSZ22 controller, up to four additional RA3000 disk shelves, cache
memory upgrade
DS-SWXRA-GH
DS-SWXRA-GK
RAID Array 3000 Rackmount Disk Shelf
• Select one to four disk shelves
• Third and fourth DS-SWXRA-GN disk shelf ordered will be installed in rear of M-Series cabinet; rear mounted shelves require that a 2-meter
BN37A-02 SCSI cable be ordered
RA3000 rackmount disk shelf, blue, includes UltraSCSI BA356 disk shelf, two 180 W
DS-SWXRA-GN
power supplies, single-ended UltraSCSI personality card, one half meter SCSI cable
(BN37A-0E), two North American power cords, and RETMA mounting bracket (disks
not included); order two country-specific power cords for non-North American use
HSZ22 Controller
• Note that second HSZ22 controller ordered is field installed only, not factory installed; requires BN37A-0E SCSI jumper cable be ordered
separately
Second HSZ22 controller with 16-MB cache and two 16-MB SIMMs for mirror cache,
DS-HSZ22-AA
one BN37A-05 5-m UltraSCSI cable, one BN38E-0B cable adapter − field installable
only; note that second HSZ22 controller does not require additional Solution Software
Kit
Second HSZ22 controller with 32-MB cache and two 32-MB SIMMs for mirror cache,
DS-HSZ22-AB
one BN37A-05 5-m UltraSCSI cable, one BN38E-0B cable adapter − field installed only;
note that second HSZ22 controller does not require additional Solution Software Kit
DA-10445
World Wide — Version 25 — June 4, 2002
12
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 9 −UltraSCSI RAID Array Controllers and UltraSCSI RAID Packaged Solutions − Optional (continued)
RA3000 Solutions Software Kit
• StorageWorks Command Console (SWCC) software; includes installation scripts and installation documentation
RA3000 Solutions Software Kit for Tru64 UNIX
RA3000 Solutions Software Kit for OpenVMS
Fibre Channel controller (DS-HSG80-BJ), includes 2-MB cache expandable to 128 MB;
requires 128697-B21 HSG80 ACS V8.4F software kit or 128698-B21 V8.4P software kit
for each HSG80 ordered
Fibre Channel controller (DS-HSG80-BH), includes 64-MB cache expandable to 128
MB; requires 128697-B21 HSG80 ACS V8.4F software kit or 128698-B21 V8.4P
software kit for each HSG80 ordered
HSG80 External Controllers
RA3000 UltraSCSI seven SBB slot pedestal cabinet, blue-gray, 230 volts, includes one
DS-HSZ22-A controller, 16-MB cache, two host ports, two device ports, slot for second
DS-HSZ22-AA, two redundant power supplies 204 watts with fans, one BN37A-05
cable, one BN38E-0B adapter, one serial cable, on UPS, two North American power
cords
RA3000 UltraSCSI seven SBB slot pedestal, blue-gray, 120/230 volts, includes two
redundant power supplies 204 watts with fans, one BN37A-01 cable, two country power
cords
RA3000 Pedestals
QB-5TWAB-SA
QB-5TWAC-SA
380672-B21
380671-B21
DS-SWXRA-GC
DS-SWXRA-GD
ESA 10000, RAID Array 7000, RAID Array 8000
• Enterprise Storage Array 10000 and RAID Array 7000 (HSZ70) product sets are supported on AlphaServer DS20E systems
• Supported SCSI adapter for HSZ80/HSZ70 − 3X-KZPBA-CC PCI 1-port UltraSCSI differential adapter
• Supported SCSI adapter for HSG80 − KGPSA-BC PCI 1-port Fiber-Channel adapter
Step 10 − Storage Adapters/Controllers
NOTE: Refer to the following chart when configuring adapters, shelves, and disks.
AlphaServer DS20E Configuration Chart for Storage Adapters
Storage Adapter
3X-KZPCA-AA
Shelf
BA610-6D
DS-SL13R-xx
3X-KZPEA-DB
BA610-6D
DS-SL13R-xx
KZPCM-DA
KZPBA-CA
BA36R-xx
BA36R-xx
Disk Drive
3R-A0xxx-AA 1-inch Universal
3R-A1xxx-AA 1-inch Universal
3R-A3xxx-AA 1-inch Universal
3R-A0xxx-AA 1-inch Universal
3R-A1xxx-AA 1-inch Universal
3R-A3xxx-AA 1-inch Universal
DS-RZ1xx-VW
DS-RZ1xx-VW
AlphaServer DS20E Configuration Chart for Storage Controllers
RAID Controller
Shelf
Disk Drive
KZPAC-AA/CA/CB
BA36R-xx
DS-RZ1xx-VW
DS-KZPCC-AC/CE
BA610-6D
3R-A0xxx-AA 1-inch Universal
DS-SL13R-xx
3R-A1xxx-AA 1-inch Universal
3R-A3xxx-AA 1-inch Universal
DA-10445
World Wide — Version 25 — June 4, 2002
Tru64 UNIX
V4.0F or higher
OpenVMS
V7.2-1 or higher
V5.1 or higher
V7.2.2 or higher
V4.0F or higher
V4.0F or higher
V7.2-1 or higher
V7.2-1 or higher
Tru64 UNIX
V4.0F or higher
V5.1A or higher
OpenVMS
V7.2-1 or higher
-
13
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 10 − Storage Adapters/Controllers (continued)
Maximum # Supported
Tru64 UNIX
OpenVMS
PCI Fibre Channel adapter (KGPSA-CA), (uses one slot)
4
4
DS-KGPSA-CA
168794-B21
PCI to 2–Gbit Fibre Channel adapter, 64-bit/33-MHz, single-channel
4
4
DS-KGPSA-DA
261329-B21
Fibre Channel cable (BNGBX-xx) xx=02, 05, 15, 30, 50 meters
x=1, 2, 3, 4, 5
234457-B2x
PCI 1-port Ultra2 (LVD) SCSI adapter, 32-bit, single-channel (uses one PCI slot);
includes internal 68-pin and external 68-pin HD connectors; requires BN38C-xx cable to
connect adapter to Ultra2 shelf; HSZxx RAID controllers not supported. OpenVMS V7.1-2
requires Tima Kit: DEC-AXPVMS-VMS712_UPDATE-V0300—4.PCSI; Tru64 UNIX
V4.0F requires Patch Kit2 BL13: DUV40FAS0002-19991116.tar
68-pin HD male-to-VHDCI male UltraSCSI cable;
xx = 02, 03, 05, 10, 20, 25 m
4
PCI 2-port UltraSCSI single-ended adapter and 10/100 Mb Ethernet combo adapter
(uses one PCI slot); includes internal 68-pin and 50-pin HD connectors and two external
68-pin VHDCI SCSI connectors, requires BN37A-xx cable to connect to single-ended
UltraSCSI shelf
VHDCI male-to-VHDCI male UltraSCSI cable,
xx = 02, 2E [2.5], 03, 05, 10, 20 m
4
PCI 1-port UltraSCSI single-ended adapter (uses one PCI slot); includes internal 68-pin
and 50-pin HD connectors and external 68-pin HD connector, requires BN38C-xx cable
(2 to 20 m) to connect to single-ended UltraSCSI shelf
4
4
KZPBA-CA
PCI 1-port UltraSCSI differential adapter (uses one PCI slot); includes external 68-pin HD
connector, requires BN38C-xx cable (2 - 25 meter) to connect adapter to differential
UltraSCSI shelf or RAID controller
68-pin HD male-to-VHDCI male UltraSCSI cable;
xx = 02, 03, 05, 10, 20, 25 m
4
4
3X-KZPBA-CC
PCI 2-channel multimode Ultra3 LVD SCSI adapter, VHDCI (only supported in dual-bus
shelves)
NOTE: Patch kit required, kit available at
http://ftp1.support.compaq.com/public/Digital_UNIX/v5.1/
NOTE: This website is available in English only.
NOTE: No shared SCSI or SDLT tape/library support.
DA-10445
World Wide — Version 25 — June 4, 2002
4
3X-KZPCA-AA
BN38C-xx
4
KZPCM-DA
BN37A-xx
BN38C-xx
4
V5.1 or higher
4
V7.2-2 or higher
3X-KZPEA-DB
14
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 10 − Storage Adapters/Controllers (continued)
Maximum # Supported
Tru64 UNIX
OpenVMS
PCI 3-channel Ultra2 LVD RAID controller, 64-bit, 64-MB cache
2 with SRM V6.0
NOTES:
3 with SRM V6.1
•
Supported with BA610-6D, BA356 DS-SL13R-xx or DS-SSL14-Rx shelves only.
V4.0F/4.0G/5.1/5.1A
•
BA610-6D Nile Card must be at rev 0B to support internal RAID.
•
When installed in BA356 shelves, part number DS-BA35X-FC is required for nonfactory installations. Graphics card is required to run the DS-KZPCC-CE console
utilities (SMOR) with SRM console versions lower than V6.0 or, alternatively can be
run via serial line and terminal emulation software for SRM V6.0 or higher.
PB2GA-JC/JD graphics cards are not supported.
•
EV6 systems not supported.
•
Tru64 UNIX V4.0F requires NHD3 and Patch Kit 4 (BL15) or later Tru64 UNIX V5.1
requires Patch Kit 3 (BL17) and Early Release Patch C462.
- Patch Kit 3 (BL17) is located at: T64V5117-C0046202-11060-Manual-ER20010615.tar
- Patch C462.02 is located at: http://ftp1.support.compaq.com/public/unix/v5.1/
NOTE: This website is available in English only.
•
TruCluster V5.1 (restricted to non-shared buses only)
PCI 1-channel Ultra2 LVD backplane RAID controller, 64-bit, 16-MB cache
2 with SRM V6.0
NOTES:
3 with SRM V6.1
V4.0F/4.0G/5.1/5.1A
•
Supported with BA610-6D, BA356 and DS-SL13R-xx shelves only.
•
When installed in BA356 shelves, part number DS-BA35X-FC is required for nonfactory installations.
•
Graphics card is required to run the DS-KZPCC-AC console utilities (SMOR) with
SRM console versions lower than V6.0 or, alternatively can be run via serial line
and terminal emulation software for SRM V6.0 or higher. PB2GA-JC/JD graphics
cards are not supported.
•
EV6 systems not supported.
•
Tru64 UNIX V4.0F requires NHD3 and Patch Kit 4 (BL15) or later
•
Tru64 UNIX V5.1 requires Patch Kit 3 (BL17) and Early Release Patch C462.
- Patch Kit 3 (BL17) is located at: T64V5117-C0046202-11060-Manual-ER20010615.tar
- Patch C462.02 is located at: http://ftp1.support.compaq.com/public/unix/v5.1/
NOTE: This website is available in English only.
•
TruCluster V5.1 (restricted to non-shared buses only)
PCI 1-port UltraSCSI RAID controller with 4-MB cache memory, includes RAID Array
230/Plus Subsystem software and documentation kit and VHDCI female connector; tape
drives not supported – 18.2GB or higher disk drives not supported on KZPAC-xx RAID
controllers
PCI 3-port UltraSCSI RAID controller with 4-MB cache memory (uses one PCI slot),
includes RAID Array 230/Plus subsystem software and documentation kit; tape drives not
supported; 18.2-GB disk drives not supported; SCSI cable required for each active port;
requires BN37X-xx cable (.3 to 20 m) to connect to single-ended UltraSCSI shelf, and
BN31K-0E for external third port connection
Same as KZPAC-CA with 8-MB cache memory
Cache battery backup for KZPAC controller
VHDCI male-to-VHDCI male UltraSCSI cable:
xx = 02, 2E [2.5], 03, 05, 10, 20, 25 m
NOTE: Manufacturing may substitute BN37A-02 cable for specific cabinet configurations.
SCSI cable/bulkhead assembly kit, supports one third-port connection from
KZPAC-CA/CB, allows external connection of one third port
SCSI cable/bulkhead assembly kit, supports two third-port connections from
KZPAC-CA/CB, allows external connection of two third ports
DA-10445
World Wide — Version 25 — June 4, 2002
-
DS-KZPCC-CE
-
DS-KZPCC-AC
4
4
KZPAC-AA
2
2
KZPAC-CA
2
2
KZPAC-CB
KZPSC-UB
BN37A-xx
BN31K-0E
KZPAC-SB
15
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 11 − M-Series Cabinets − Optional
M-Series enclosures require selection of the following items:
• H9A10 or H9A15 cabinet, 120V or 240V
• Rack kit for each system
• H9A10 or H9A15 rear cabinet extender
• Cabinet front door based on cabinet height
• Factory integration
• Ballast kit if one or two systems are ordered for the H9A15 cabinet
• Power cord
NOTE: For more information on M-Series Cabinet Enclosures, see http://www.copaql.com/alphaserver/products/M-Series/index.html
NOTE: This website is available in English only.
Cabinet Configuration Chart for AlphaServer DS20E (5U) with BA356 (4U) or DS-SL13R (3U) StorageWorks Shelves
• Disk shelves cannot be mixed in same cabinet
Cabinet
H9A10-MC/MD
H9A15-MC/MD
Rack Kit
3X-BA56R-RC
3X-BA56R-RC
Cabinet
Height/Space
67-inch/34U
Systems
BA356 Shelves
DS-SL13R Shelves
Ballast Kit
1
6
8
-
2
6
7
-
3
6
5
-
4
6
4
-
5
2
2
-
6
0
0
-
1
6
8
1
79-inch/ 41U
2
6
7
1
3
6
7
-
4
6
6
-
5
6
4
-
6
4
2
-
Cabinet Configuration Chart for AlphaServer DS20E (5U) with StorageWorks RA3000 and Disk Shelves (12U)
• 12U of vertical cabinet space is reserved for one RA3000 controller shelf and up to five disk shelves mounted in top of cabinet, front to back; an
additional 2U of vertical space is required for RA3000 controller shelf UPS.
• Disk shelves can be a combination of RA3000 DS-SWXRA-GN disk shelves and StorageWorks BA36R-RC/RD disk shelves.
• RA3000 controller shelf supports a maximum of four DS-SWXRA-GN disk shelves; third and fourth DS-SWXRA-GN disk shelf ordered will be
installed in rear of M-Series cabinet; rear mounted shelves require that a 2-meter SCSI cable (BN37A-02) be ordered separately.
• Systems are supported in remaining vertical space.
Cabinet
H9A10-MC/MD
H9A15-MC/MD
DA-10445
Mounting Kit
3X-BA56R-RC
3X-BA56R-RC
World Wide — Version 25 — June 4, 2002
Cabinet Height/Space
67-inch/34U
79-inch/41U
Systems
1
RA3000 + Shelves
1+5
Ballast Kit
-
2
1+5
-
3
1+5
-
1
1+5
1
2
1+5
1
3
1+5
-
4
1+5
-
16
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 11 − M-Series Cabinets − Optional (continued)
M-Series Cabinets
67-inch cabinet with 59.5-inch or 34U of usable vertical space, 120V dual-24A
controller, each with 10 NEMA 5-15R outlets, input power plug NEMA L5-30P,
Americas, Asia Pacific; includes rear door and top fan tray
67-inch cabinet with 59.5-inch or 34U of usable vertical space, 240V dual-16A
controller, each with 12 IEC C13 outlets, input power plug IEC 309, 16A, Europe;
includes rear door and top fan tray
79-inch cabinet with 71.7-inch or 41U of usable vertical space, 120V dual-24A
controller, each with 10 NEMA 5-15R outlets, input power plug NEMA L5-30P,
Americas, Asia Pacific; includes rear door and top fan tray
79-inch cabinet with 71.7-inch or 41U of usable vertical space, 240V dual-16A
controller, each with 12 IEC C13 outlets, input power plug IEC 309, 16A, Europe;
includes rear door and top fan tray
H9A10-MC
H9A10-MD
H9A15-MC
H9A15-MD
Rear cabinet extender, top gun blue, for H9A10-MC/MD cabinets
Rear Cabinet Extender − Requires
selection of one cabinet extender for each Rear cabinet extender, top gun blue, for H9A15-MC/MD cabinets
H9A10 or H9A15 cabinet
H9C10-TE
H9C15-TE
Cabinet Front Door − Requires selection Front door, top gun blue, for H9A10-MC/MD cabinet enclosure
of door based on cabinet height
Front door, top gun blue, for H9A15-MC/MD cabinet enclosure
H9C10-TF
H9C15-TF
Factory Integration − Required
Factory Integration of systems and storage devices assembled and configured in
cabinet enclosure in predefined locations
YS-ASCAA-AA
Ballast Kit − Required only if one system is ordered for the H9A15 cabinet
• Ballast is added to a cabinet at particular locations for specific configurations to meet safety regulations for installation, operation, and service; see
Cabinet Configuration Chart
Two 35 to 40 lb steel plates
H9C10-MC
Rackmount Power Cord − Required for
each system
U.S./Canada
Non-U.S.
Japan, 2.5-meter
Shelves Supported in M-Series
Cabinets − Optional
UltraSCSI single-ended RETMA rack, single-bus personality module, 180W power
supply
UltraSCSI single-ended RETMA rack, split-bus personality module, 180W power
supply
180W power supply, includes 120V North American and 240V IEC power cord
StorageWorks Model 4314R Ultra3 SCSI (LVD) single-bus Universal drive rackmount
shelf, North America and International use except Japan (190209-001)
BN20Z-4E
BN35S-4E
3X-BN46D-4E
BA36R-RC
BA36R-RD
CK-BA35X-HH
DS-SL13R-AA
(All regions except Japan)
StorageWorks Model 4314R Ultra3 SCSI (LVD) single-bus Universal drive rackmount
shelf, Japan
190209-291
(U.S./Canada orders for
Japan variant))
DS-SL13R-AJ
(Non U.S./Canada orders
for Japan variant)
StorageWorks Model 4354R Ultra3 SCSI (LVD) split-bus Universal drive rackmount
shelf, North America and International use except Japan (190211-001)
DS-SL13R-BA
(All regions except Japan)
190211-291(U.S./Canada
orders for Japan variant))
DS-SL13R-BJ
(Non U.S./Canada orders
for Japan variant)
StorageWorks Model 4354R Ultra3 SCSI (LVD) split-bus Universal drive rackmount
shelf, Japan
CustomSystems Support
• Cabinets containing systems and storage must be assembled by qualified assemblers: Compaq Manufacturing
• For custom integration of systems
DA-10445
World Wide — Version 25 — June 4, 2002
17
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 12 − Graphics Adapters − Optional
•
•
RAID Configuration Utility is accessible via console port for Tru64 UNIX and OpenVMS systems; optional graphics capability available
Select graphics adapter, monitor, mouse, and country-specific keyboard if required
Maximum # Supported
Tru64 UNIX
OpenVMS
3Dlabs Oxygen VX1 32-MB PCI 2D graphics adapter
NOTE: Only VX1 cards can be used in a multihead environment.
PowerStorm 4D51T advanced 3D graphics accelerator
4
4
4
-
SN-PBXGI-AD
PowerStorm 300 3D multi-head graphics accelerator with 15-MB frame buffer memory
and 16-MB texture memory
PowerStorm 350 3D multi-head graphics accelerator with 30-MB frame buffer memory
and 32-MB texture memory
PCI combo adapter - See Step 7
4
4
SN-PBXGD-AD
4
4
SN-PBXGD-AE
1
1
3X-DEPVZ-AA
SN-PBXGF-AB
Step 13 − Monitors − Optional
•
•
•
•
•
•
RAID Configuration Utility is accessible via the console port for Tru64 UNIX and OpenVMS systems; optional graphics capability is available
Graphics monitors other than those listed can be used if compatible with SVGA graphics ordered with system
Country-specific power cord is required for all monitors; if not included, order power cord as appropriate
Video extension cable required if monitor is located more than 1-meter from server
Monitors will ship with, but not be integrated with systems
At least one video cable, 1.8-meter length, is included with all variants of monitors
Carbon/Silver Monitors
DA-10445
V570 15-inch (13.8-inch viewable image size) multiple-scan color monitor, VGA to 1024
x 768 @85 Hz, 0.28 mm DP, MPRII/Energy Star Compliant, Northern Hemisphere with
NA power cord, VGA cable
3R-A3383-AA
228113-001
Same as above with Euro-power cord, TCO99
3R-A3384-AA
228113-021
Same as above, APD, no power cord, MPRII
3R-A3385-AA
228113-B22
Same as above, PRC, with power cord, CCIB
3R-A3386-AA
228113-AA1
Same as above, Southern Hemisphere, with Australia/New Zealand power cord
3R-A3387-AA
228113-011
Same as above, Equatorial, for Latin America with NA power cord
3R-A3704-AA
228113-B29
P720 17-inch (16-inch viewable image size) auto-scanning color monitor, Diamondtron
NF, 0.25 mm aperture grille pitch, VGA to 1280 x 1024 @85 Hz, MPRII/TCO 99/Energy
Star Compliant, Northern Hemisphere with NA power cord, VGA cable
3R-A3388-AA
244373-001
Same as above, with Euro-power cord
3R-A3389-AA
244373-021
Same as above, APD, no power cord
3R-A3390-AA
244373-B24
Same as above, PRC, with power cord, CCIB
3R-A3391-AA
244373-AA1
Same as above, Southern Hemisphere, with Australia/New Zealand power cord
3R-A3392-AA
244373-011
World Wide — Version 25 — June 4, 2002
18
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 13 − Monitors − Optional (continued)
P920 19-inch (18-inch viewable image size) auto-scanning color monitor, Diamondtron
NF, 0.24 mm aperture grille pitch, VGA to 1600 x 1200 @85 Hz, MPRII/TCO 99/Energy
Star Compliant, Northern Hemisphere with NA power cord, VGA cable
Same as above, with Euro power cord
Same as above, PRC, with power cord, CCIB
Same as above, Southern Hemisphere, 0.25 to 0.27 mm aperture grille pitch, with
Australia/New Zealand power cord
P1220 22-inch (20-inch viewable image size) auto-scanning color monitor, Diamondtron
NF, 0.24 mm aperture grille pitch, VGA to 1792 x 1344 @85Hz, dual video input, USB
Hub, MPRII/TCO 99/Energy Star Compliant, Northern Hemisphere with NA power cord,
VGA cable
Same as above, with Euro power cord
Same as above, APD, no power cord
Same as above, PRC, with power cord, CCIB
Same as above, Southern Hemisphere, with Australia/New Zealand power cord
Carbon/Silver Flat Panel Monitors
TFT8030, 18.1-inch (18-inch viewable image size) TFT flat panel monitor, 0.28 mm
pixel pitch, 1280 x 1024 @75 Hz, multi-mode support, MPRII/TCO99/Energy Star
compliant, six video input connectors (two VGA, two DVI-I, one S-video, and one Cvideo), NA power cord, VGA and DVI-I cables
TFT5030, 15.1-inch (15-inch viewable image size) TFT flat panel monitor, 0.30 mm
pixel pitch, 1024 x 768 @75 Hz, multi-mode support, MPRII/TCO99/Energy Star
compliant, two video input connectors (one VGA and one DVI-I), NA power cord, VGA
and DVI-I cables
Video Extension Cable
6-foot/1.8-meter video extension cable
Monitor Power Cords
North American, 120V, 75-inch
Australia, New Zealand, 2.5-meter
Central Europe, 2.5-meter
Denmark, 2.5-meter
Egypt, India, South Africa, 2.5-meter
Israel, 2.5-meter
Italy, 2.5-meter
Japan, 2.5-meter
DA-10445
World Wide — Version 25 — June 4, 2002
3R-A3393-AA
244375-001
3R-A3394-AA
244375-021
3R-A3396-AA
244375-AA1
3R-A3397-AA
244375-011
3R-A3398-AA
244374-001
3R-A3399-AA
244374-021
3R-A3400-AA
244374-B24
3R-A3401-AA
244374-AA1
3R-A3402-AA
244374-011
3R-A3511-AA
234362-001
3R-A3353-AA
228134-001
BN39C-02
BN26J-1K
103541-511
(U.S./Canada orders)
BN19H-2E
(Other country orders)
BN19C-2E
103541-481
(U.S./Canada orders)
BN19K-2E
(Other country orders)
103541-AR1
(U.S./Canada orders)
BN19S-2E
(Other country orders)
BN18L-2E
103541-461
(U.S./Canada orders)
BN35M-02
(Other country orders)
3X-BN46F-02
19
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 13 − Monitors − Optional (continued)
Monitor Power Cords (continued)
Switzerland, 2.5-meter
103541-511
(U.S./Canada orders)
BN19E-2E
(Other country orders)
UK, Ireland, 2.5-meter
BN19A-2E
Step 14 − Networks and Communications − Optional
•
•
Reference individual product information for operating system support.
See Step 2 for mandatory supported Ethernet adapters
PCI 1-port 10/100-Mb Ethernet adapter (Twisted Pair)
PCI 2-port 10/100 Mbit, Fast Ethernet adapter, UTP, maximum two per
system, maximum eight 10/100 Ethernet ports per system
FE FX daughter card for 3X-DE602-AA (3X-DE602-AA is a prerequisite)
maximum eight 10/100 Ethernet ports supported per system
PCI 2-port 10/100 Mbit Fast Ethernet adapter, UTP, maximum two per
system, maximum eight 10/100 Ethernet ports per system
PCI 2-port 10/100 Mbit, UTP, Ethernet add-on daughter card for
3X-DE602-BB, maximum two per system, maximum eight 10/100 Ethernet
ports per system
PCI Gigabit Ethernet adapter, SC connectors, MMF, no boot support
PCI 2-port 10/100 Mbit Fast Ethernet adapter, UTP, maximum eight
10/100 Ethernet ports per system
2-port 10/100 Mbit, UTP, Ethernet add-on daughter card for
3X-DE602-BB, maximum eight 10/100 Ethernet ports per system
SC-to-SC dual fiber optic cable
PCI Gigabit Ethernet adapter, UTP, no boot support
PCI FDDI adapter, single attachment station (SAS), multi-mode fiber
(MMF), SC connector
PCI FDDI adapter, DAS, MMF, SC connector
MIC-SC dual fiber optic cable
SC-to-SC dual fiber optic cable
PCI FDDI adapter, SAS, TP-PMD, requires BN25H-03 cable
PCI FDDI dual adapter, DAS, TP-PMD, requires BN25H-03 cable
3-meter (9.8-feet) FDDI cross-over cable
Maximum # Supported
Tru64 UNIX
OpenVMS
4
4
2
2
3X-DE600-AA
3X-DE602-AA
2
2
3X-DE602-FA
2
2
3X-DE602-BB
2
2
3X-DE602-TA
2
2
1
2
DEGPA-SA
3X-DE602-BB
2
2
3X-DE602-TA
2
2
2
2
BN34B-xx
DEGPA-TA
3X-DEFPA-AC
2
2
2
2
2
2
PCI 4-port asynchronous controller; maximum two PBXDA-Ax controllers
per system
PCI 8-port asynchronous controller, cable included; maximum two
PBXDA-Ax controllers per system
PCI 16-port asynchronous controller, cable included; maximum two
PBXDA-Ax controllers per system
4
2
PBXDA-AA
4
2
PBXDA-AB
4
2
PBXDA-AC
PCI-to-ATM 155 Mb adapter – Fiber
PCI-to-ATM 155 Mb adapter – UTP
PCI-to-ATM 622 Mb adapter – Fiber
4
4
2
4
4
2
3X-DAPBA-FA
3X-DAPBA-UA
3X-DAPCA-FA
PCI-to-dual port synchronous controller
PCI-to-quad port synchronous controller
4
4
4
4
3X-PBXDD-AA
3X-PBXDD-AB
Asynchronous multi-port MUX expander XEM
DA-10445
World Wide — Version 25 — June 4, 2002
3X-DEFPA-DC
BN34D-xx
BN34B-xx
3X-DEFPA-UC
3X-DEFPA-MC
BN25H-03
CXI01-AB
20
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 15 − MEMORY CHANNEL − Optional
Tru64 UNIX Systems
(V5.0A and later)
•
Each system node in the cluster requires a TruCluster Server license
(QL-6BRAC-AA)
Tru64 UNIX Systems
(V4.0G and earlier)
•
•
Requires a minimum of Tru64 UNIX V4.0F with TruCluster V1.6 or later
Each system node in the cluster requires a TruCluster Production Server
(QB-3RLAE-AA) or TruCluster MEMORY CHANNEL software license
(QB-4ZCAE-AA)
TruCluster MEMORY CHANNEL license (QB-4ZCAG-AA), normally used for high
performance technical computing applications, not required if systems have a
TruCluster Production Server license (QB-3RLAE-AA)
•
OpenVMS Systems
•
Requires OpenVMS V7.1-2 or later and OpenVMS Cluster license
(QL-MUZAC-AA)
Configuring Information
•
Up to two PCI to System Area Network adapters (CCMAB-AA) are supported in a
single system
Two-node clusters can be configured by ordering a CCMAB-AA for each system
and one BN29B-04 or BN29B-10 cable; the cable connects directly to the
CCMAB-AA in each system
For three or four system nodes, order one CCMAB-AA adapter, one BN29B-04 or
BN29B-10 cable and one CCMHB-AA; make connections from the CCMAB-AA in
a system to the CCMHB-AA
CCMHB-AA includes four CCMLB-AA line cards and supports up to four nodes;
expansion up to eight system nodes can be achieved by adding up to four
additional CCMLB-AA line cards
If two CCMAB-AA’s are configured in each system, a second CCMHB-AA is
required for three or more nodes; in two-node clusters, the CCMAB-AA’s may be
directly connected
•
•
•
•
MEMORY CHANNEL Controller
PCI System Area Network Controller, maximum two
System Area Network Hub with four line cards; includes BN19P-2E power cord for
Canada, Japan, and US operations−for other regions, order appropriate power cord
from list below
Expansion line card for CCMHB hub
CCMAB-AA
CCMHB-AA
4-meter cable for CCMAB and CCMHB
10-meter cable for CCMAB and CCMHB
BN39B-04
BN39B-10
CCMFB-AA
Copper-to-single mode fiber optic converter – 5V (clock not affected)
MEMORY CHANNEL Power Cords Australia, New Zealand
Central Europe
Denmark
Egypt, India
CCMLB-AA
103541-011
(U.S./Canada orders)
BN19H-2E
(Other country orders)
BN19C-2E
103541-481
(U.S./Canada orders)
BN19K-2E
(Other country orders)
103541-AR1
(U.S./Canada orders)
BN19S-2E
(Other country orders)
Ireland, United Kingdom
Israel
DA-10445
World Wide — Version 25 — June 4, 2002
BN19A-2E
BN18L-2E
21
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 15 − MEMORY CHANNEL − Optional (continued)
MEMORY CHANNEL Power Cords Italy
(continued)
103541-461
(U.S./Canada orders)
BN35M-02
(Other country orders)
Switzerland
(103541-511
(U.S./Canada orders)
BN19E-2E
(Other country orders)
Step 16 − Keyboards, Mouse, Power Cords, Documentation
•
•
•
Keyboard and mouse are not included with system and must be ordered separately
All keyboards listed may not be available in all geographies
Select an opal OpenVMS keyboard and mouse for use with VT5xx text terminals.
Opal
Keyboard/Language
OpenVMS
U.S./English keyboard
LK461-A2
Arabic keyboard
Belgian keyboard
LK461-AB
BHCSY keyboard
Canadian/English keyboard
LK461-AQ
Canadian/French keyboard
LK461-AC
Cyrillic keyboard (Russian)
LK461-BT
Czech keyboard
LK461-BV
Danish keyboard
LK461-AD
Dutch keyboard
LK461-AH
Finnish keyboard
LK461-AF
French keyboard
LK461-AP
German keyboard
LK461-AG
Greek keyboard
LK461-BH
Hebrew keyboard
LK461-AT
Hungarian keyboard
LK461-BQ
International keyboard
Italian keyboard
LK461-AI
Japanese keyboard
Korean keyboard
Latin-American keyboard
Norwegian keyboard
LK461-AN
Polish keyboard
LK461-BP
Portuguese keyboard
LK461-AV
Romanian keyboard
LK461-BL
Simplified Chinese keyboard
Slovak keyboard
LK461-CZ
Spanish keyboard
LK461-AS
Swedish keyboard
LK461-AM
Swiss/French keyboard
LK461-AK
Swiss/German keyboard
LK461-AL
Traditional Chinese keyboard
Thai keyboard
Turkish keyboard
LK461-BU
Turkish/French keyboard
LK461-BW
UK keyboard
Yugoslavian keyboard
LK461-BY
DA-10445
World Wide — Version 25 — June 4, 2002
Carbon
Tru64 UNIX
3R-LKQ48-AA
3R-LKQ48-BR
3R-LKQ48-AB
3R-LKQ48-AX
3R-LKQ48-AC
3R-LKQ48-BT
3R-LKQ48-BV
3R-LKQ48-AD
3R-LKQ48-AH
3R-LKQ48-AF
3R-LKQ48-AP
3R-LKQ48-AG
3R-LKQ48-BH
3R-LKQ48-AT
3R-LKQ48-BQ
3R-LKQ48-BA
3R-LKQ48-AI
3R-LKQ48-AJ
3R-LKQ48-BK
3R-LKQ48-AR
3R-LKQ48-AN
3R-LKQ48-BP
3R-LKQ48-AV
3R-LKQ48-CV
3R-LKQ48-CZ
3R-LKQ48-AS
3R-LKQ48-AM
3R-LKQ48-AK
3R-LKQ48-BI
3R-LKQ48-CB
3R-LKQ48-BU
3R-LKQ48-AE
-
OpenVMS
3X-LK462-A2
3X-LK462-AB
3X-LK462-AQ
3X-LK462-AC
3X-LK462-BT
3X-LK462-BV
3X-LK462-AD
3X-LK462-AH
3X-LK462-AF
3X-LK462-AP
3X-LK462-AG
3X-LK462-BH
3X-LK462-AT
3X-LK462-BQ
3X-LK462-AI
3X-LK462-AN
3X-LK462-BP
3X-LK462-AV
3X-LK462-BL
3X-LK462-CZ
3X-LK462-AS
3X-LK462-AM
3X-LK462-AK
3X-LK462-AL
3X-LK462-BU
3X-LK462-BW
3X-LK462-BY
22
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 16 − Keyboards, Mouse, Power Cords, Documentation (continued)
Mouse
3-button mouse – opal
3-button mouse – carbon
Keyboard or Mouse Extension
Cable
6-foot/1.8-meter keyboard or mouse extension cable; to extend both keyboard and
mouse order two cables
SN-PBQWS-WA
3R-A3480-AA
3X-BC34A-06
Step 17 − Console Terminal − Optional
•
Any terminal can be used as a console device
•
Third-party console devices require an EIA-232 25-pin DSUB connector
VT510 video terminal; requires H8575-x cable
Console cable, female connector
Console cable, male connector
Console cable, male connector (IBM compatible)
VT510-xx
H8575-A
H8575-D
H8575-E
Step 18 − Software − Required selection of media and documentation for first system on site
•
Software Processor Code = E
Tru64 UNIX
•
•
AlphaServer DS20E Tru64 UNIX systems include Unlimited User license, Server
Extension license, Internet Express, iPlanet Directory Server, iPlanet Enterprise
Server, and Compaq Secure Web Server
AlphaStation DS20E Tru64 UNIX systems include Base 2-user
When using Tru64 UNIX V5.0a or Tru64 UNIX media and online documentation on CD-ROM
later
Tru64 UNIX full hard copy documentation
Tru64 UNIX Unlimited User license
StorageWorks Software Package, with licenses for Logical Storage Manager and
AdvFS Utilities
TruCluster Server license
Advanced Server for Tru64 UNIX, 25 client concurrent use license
Advanced Server for Tru64 UNIX, 50 client concurrent use license
Advanced Server for Tru64 UNIX, 100 client concurrent use license
Advanced Server for Tru64 UNIX, 250 client concurrent use license
Advanced Server for Tru64 UNIX, 500 client concurrent use license
Layered products media and documentation for Tru64 UNIX on CD-ROM
DECnet/OSI end-system license for Tru64 UNIX
DECnet/OSI extended function license for Tru64 UNIX
QA-6ADAA-H8
QA-6ADAA-GZ
QL-MT7AE-AA
QB-5RXAE-AA
When using Tru64 UNIX V4.0G or Tru64 UNIX media and online documentation on CD-ROM
earlier
Tru64 UNIX full hard copy documentation
Tru64 UNIX Unlimited User license
StorageWorks Software Package, with licenses for Logical Storage Manager and
AdvFS Utilities
TruCluster Available Server license
TruCluster Production Server license
Tru64 UNIX Driver for MEMORY CHANNEL license
Advanced Server for Tru64 UNIX, 25 client concurrent use license
Advanced Server for Tru64 UNIX, 50 client concurrent use license
QA-MT4AA-H8
QA-MT4AA-GZ
QL-MT7AE-AA
QB-5RXAE-AA
DA-10445
World Wide — Version 25 — June 4, 2002
QL-6BRAC-AA
QL-5U29M-3D
QL-5U29M-3E
QL-5U29M-3F
QL-5U29M-3G
QL-5U29M-3H
QA-054AA-H8
QL-MTJAE-AA
QL-MTKAE-AA
QL-05SAC-AA
QB-3RLAE-AA
QB-4ZCAE-AA
QL-5U29M-3D
QL-5U29M-3E
23
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 18 − Software − Required selection of media and documentation for first system on site (continued)
When using Tru64 UNIX V4.0G or Advanced Server for Tru64 UNIX, 100 client concurrent use license
earlier (continued)
Advanced Server for Tru64 UNIX, 250 client concurrent use license
Advanced Server for Tru64 UNIX, 500 client concurrent use license
Layered products media and documentation for Tru64 UNIX on CD-ROM
DECnet/OSI end-system license for Tru64 UNIX
DECnet/OSI extended function license for Tru64 UNIX
Open3D for Tru64 UNIX on CD-ROM, includes graphics drivers
OpenVMS
DA-10445
QL-5U29M-3F
QL-5U29M-3G
QL-5U29M-3H
QA-054AA-H8
QL-MTJAE-AA
QL-MTKAE-AA
QA-0AFAA-H8
•
AlphaServer DS20E OpenVMS systems include Base license with System
Manager license and Compaq Enterprise Integration Server Package for
OpenVMS Revision V3.1
•
AlphaStation DS20E OpenVMS systems include Base license, Concurrent Use
1-user license, NAS 150 Client license, and Compaq Open3D license
•
Compaq Enterprise Integration Package includes licenses for TCP/IP Services for
OpenVMS, DECwindows Motif for OpenVMS Alpha, DECprint Supervisor for
OpenVMS Alpha Plus, DECprint Supervisor for OpenVMS Open, DECnet-Plus for
OpenVMS Alpha End System, Archive/Backup System for OpenVMS
Management Tools, Archive/Backup Agent for Windows NT, OpenVMS Disk
Services for Windows NT, Office Server for OpenVMS, PATHWORKS 32,
PATHWORKS V6 for OpenVMS – Advanced Server, and Compaq Office Server
Client Access License
OpenVMS V7.1-2 media and online documentation on CD-ROM
QA-MT1AR-H8
OpenVMS media and online documentation on CD-ROM
OpenVMS hard copy documentation
QA-MT1AA-H8
QA-001AA-GZ
Layered products media and documentation for OpenVMS on CD-ROM
Open3D for OpenVMS on CD-ROM, includes graphics drivers
•
OpenVMS Concurrent Use licenses provide the right to interactively use the
operating system by the specified number of concurrent users on a designated
OpenVMS system. OpenVMS Concurrent Use licenses can be moved from one
system to another at user discretion and can be shared in a mixed OpenVMS
VAX and OpenVMS Alpha cluster.
•
OpenVMS Traditional Unlimited Use license is system specific and can only be
used on one single system at a time. It cannot be shared between systems or in
an OpenVMS VAX or OpenVMS Alpha Cluster.
Concurrent Use 1-user license
Concurrent Use 2-user license
Concurrent Use 4-user license
Concurrent Use 8-user license
Concurrent Use 16-user license
Concurrent Use 32-user license
Concurrent Use 64-user license
Concurrent Use 128-user license
Concurrent Use 256-user license
OpenVMS Cluster license for Alpha systems
OpenVMS Cluster Client license for Alpha systems
OpenVMS Cluster Client to Full VMS Cluster Migration license
DECnet extended function license for OpenVMS
DECnet end-system to extended function upgrade license for OpenVMS
OpenVMS Volume Shadowing license
QA-03XAA-H8
QA-0ADAA-H8
World Wide — Version 25 — June 4, 2002
QL-MT3AA-3B
QL-MT3AA-3C
QL-MT3AA-3D
QL-MT3AA-3E
QL-MT3AA-3F
QL-MT3AA-3G
QL-MT3AA-3H
QL-MT3AA-3J
QL-MT3AA-3K
QL-MUZAC-AA
QL-3MRAC-AA
QL-6J7AC-AA
QL-MTGAE-AA
QL-MTHAE-AA
QL-2A1AE-AA
24
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 19 − Hardware and Software Support Services
•
Select one of the optional CarePaq Priority Service Packages described below that best supports the customer’s
operational requirements for system availability.
CarePaq Priority Services
•
Program Features – Principal Server
•
Priority
•
•
•
•
•
•
•
•
•
Priority 24
•
Priority Silver
•
•
•
•
•
•
•
Priority Gold
•
•
•
•
•
•
•
•
•
DA-10445
CarePaq Priority Services are available for AlphaServer/AlphaStation systems
running Tru64 UNIX or OpenVMS operating systems. Priority Services are
designed for the growing number of customers who need support beyond the
basic warranty. Five packages are offered - Priority, Priority 24, Priority Silver,
Priority Gold, and Priority Executive with coverage for both Principal
servers/stations and SSPs (Subsequent System Packages) − that meet a full
range of customer support requirements.
9 x 5 HW/SW support
4-hour response on-site hardware support
2-hour response for Bronze software support
License Subscription for Compaq O/S software and embedded L/P (i.e., EIS for
OpenVMS, unlimited users, and server extensions for Tru64 UNIX)
Condist update distribution for OpenVMS or Tru64 UNIX and their layered
products. (Layered products not included on Condist can be ordered separately.)
24 x 7 HW/SW support
Named HW engineer
4-hour response on-site hardware support
2-hour response for Bronze software support
License Subscription for Compaq O/S software and embedded L/P (i.e., EIS for
OpenVMS, unlimited users, and server extensions for Tru64 UNIX)
Condist update distribution for OpenVMS or Tru64 UNIX and their layered
products. (Layered products not included on Condist can be ordered separately.)
24 x 7 HW Support with Named Engineer, 4-hour response
24 x 7 Silver SW Support - Named Account Rep, 1-hour response Monday –
Friday, 8AM-5PM local time; 2-hour response remaining hours
License Subscription for Compaq O/S software and embedded L/P (i.e., EIS for
OpenVMS, unlimited users, and server extensions for Tru64 UNIX)
Condist update distribution for OpenVMS or Tru64 UNIX and their layered
products. (Layered products not included on Condist can be ordered separately.)
Technical newsletter and SW activity review
Proactive Patch Notification
One (1) System Healthcheck per year
24 x 7 HW support with Named Engineer, 4-hour response for on-site support
24 x 7 Gold SW support - Named Account Rep
30-minute callback (critical); 1-hour callback (non-critical)
License Subscription for Compaq O/S software and embedded L/P (i.e., EIS for
OpenVMS, unlimited users, and server extensions for Tru64 UNIX)
Condist update distribution for OpenVMS or Tru64 UNIX and their layered
products. (Layered products not included on Condist can be ordered separately.)
Technical newsletter, SW activity review and 10 hours Upgrade impact planning
Proactive Revision Management
Two (2) System Healthchecks per year
Mandatory pre-qualification required
World Wide — Version 25 — June 4, 2002
25
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Options
Step 19 − Hardware and Software Support Services (continued)
Program Features – Principal Server (continued)
•
24 x 7 HW support with Named Engineer, two-hour response for on-site support
Priority Gold Executive
•
24 x 7 Gold SW support - Named Account Rep
•
30-minute callback (critical); one-hour callback (non-critical)
•
License Subscription for Compaq O/S software and embedded L/P (i.e., EIS for
OpenVMS, unlimited users, and server extensions for Tru64 UNIX)
•
Software update distribution on CD-ROM: OpenVMS or Tru64 UNIX and their
layered products (Layered products not included on Condist can be ordered
separately.)
•
Technical newsletter, SW activity review and 10 hours Upgrade impact planning
•
Proactive Revision Management
•
Two (2) System Healthchecks per year
•
Customer site must be within 25 miles of a Compaq service location
•
Mandatory pre-qualification required
Program Features – Additional Services
•
For Priority, Priority 24, Priority Silver, Priority Gold, and Priority Gold Executive
SSPs (Subsequent System
Packages)
•
HW Support at same level as corresponding package for Principal server/station
•
License Subscription: Compaq O/S (where applicable)
•
Telephone support through Principal server/station covered by full support
package
Installation
•
•
•
•
•
Preinstallation review
Unpacking of equipment
Assemble and test
Basic product usage info
No software installation added
Installation & Startup Compaq
O/S
•
•
•
•
•
•
•
•
Preinstallation review
Unpacking of equipment
Assemble and test
Basic product usage info
Install operating systems
Product configuration
Print and network access
Orientation
Principal Server/Station
Principal Server/Station
Subsequent Systems
Subsequent Systems
Model/CarePaq
Priority Service
1 year
3 years
1 year
3 years
AlphaServer/AlphaStation DS20E
Priority
FP-A01MA-12
FP-A01MA-36
FP-A21MA-12
FP-A21MA-36
Priority 24
FP-A02MA -12
FP-A02MA-36
FP-A22MA-12
FP-A22MA-36
Priority Silver
FP-A04MA-12
FP-A04MA-36
FP-A24MA-12
FP-A24MA-36
Priority Gold
FP-A08MA-12
FP-A08MA-36
FP-A28MA-12
FP-A28MA-36
Priority Gold Exec.
FP-A09MA-12
FP-A09MA-36
FP-A29MA-12
FP-A29MA-36
Installation
FP-AINST-MA
FP-AINST-MA
FP-AINST-MA
FP-AINST-MA
Installation & Startup
FP-ASTAR-MA
FP-ASTAR-MA
FP-ASTAR-MA
FP-ASTAR-MA
NOTES:
•
AlphaServer/AlphaStation DS20E systems include three years hardware warranty with 5x9, on-site Next Business Day response.
•
New Compaq hardware options internal to the AlphaServer/AlphaStation enclosure receive the same warranty or service level as purchased with the
server or station.
•
External storage devices/cabinets carry their own level of warranty and should be quoted separately for uplifted warranty services (CarePaq Priority
Service).
•
In addition to the CarePaq Priority Services, uplifted warranty Supplemental Services are available for separate hardware and software support. For
more information on Hardware and Software Supplemental Services and other Compaq service options available for AlphaServer systems and
AlphaStation systems, consult your Sales Account Manager or visit http://www.compaq.com/services/. NOTE: This website is available in English only.
DA-10445
World Wide — Version 25 — June 4, 2002
26
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Technical Specifications
Pedestal
Dimensions (H x W x D)
18.5 x 8.85 x 27.5 in/47 x 22.5 x 69.9 cm
Shipping Dimensions
24 x 26.25 x 40 in/61 x 66 x 101.6 cm
Weight
Typical Configuration
80 lb/36 kg
Maximum Configuration
88 lb/40 kg
Nominal
100 lb/45 kg
Maximum
110 lb/50 kg
Shipping Weight
Clearances
Rackmount
Service
Front
15 in/ 38.1 cm
15 in/ 38.1 cm
Rear
6 in/15 cm
29.5 in/75 cm
Left Side
None
None
Right Side
None
None
Dimensions (H x W x D)
8.75 x 17.5 x 26 in/22.2 x 44.5 x 66 cm
(5U)
Shipping Dimensions
24 x 26.25 x 40 in/61 x 66 x 101.6 cm
Weight
When lifting
Nominal
80 lb/36 kg
Maximum
86 lb/39 kg
Total added to cabinet
(brackets, slides, cables):
Nominal
84 lb/38 kg
Maximum
88 lb/40 kg
Nominal
100 lb/45 kg
Maximum
110 lb/50 kg
Operating
Service
See specific cabinet
requirements
Minimum 4 ft/121.9 cm, 28 in/71 cm withdrawal
on rails
H9A10 M-Series
H9A15 M-Series
Dimensions (H x W x D)
(Depth includes rear door
extender)
67 x 23.6 x 41.5 in/
170 x 60 x 105.4 cm
79 x 23.6 x 41.5 in/
200 x 60 x 105.4 cm
Shipping Dimensions
73 x 36 x 48 in/
185.5 x 91.5 x 122 cm
85 x 36 x 48 in/
216 x 91.5 x 122 cm
Weight
Configuration dependent
Configuration dependent
Shipping Weight
Nominal: 946 lb/430 kg
Nominal: 1,056 lb/550 kg
Maximum: 1,375 lb/625 kg
Maximum: 1,408 lb/640 kg
Shipping Weight
Clearances
Cabinet
DA-10445
Operating
World Wide — Version 25 — June 4, 2002
27
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Technical Specifications
System Unit
ENVIRONMENTAL
Temperature
Operating (Tower, Rackmount) 50° to 95°F/10° to 35°C
Non-operating
Not tested
Storage (60 days)
–40° to –151°F/–40 to –66°C
Rate of change
20°F/hr/11°C/hr
NOTE: Maximum operating temperature at sea level; reduce by 1.8°F (1°C) for
each 600m (2,000 ft) above sea level.
Humidity
Operating
20% to 80%
Non-operating
20% to 80%
Storage (60 days)
10% to 95%
Rate of change
20% hr
Maximum Wet Bulb
Temperature
Operating
82°F/28°C
Storage (60 days)
115°F/46°C
Maximum Dew Point
Temperature
Operating
36°F/2°C
Heat Dissipation
Tower
Nominal
550W, 1,878 BTU/hr
Maximum
780W, 2,664 BTU/hr
H9A10/H9A15 Cabinets
Configuration dependent
Intake location
Front
Exhaust location
Rear Tower, Pedestal, Rack; Rear/top
H9A10/H9A15
Particle size
N/A
Concentration
N/A
Altitude
Operating
10,000 ft/3,037m
(unpressurized)
Non-operating
40,000 ft/12,192m
Air Flow and Quality
NOTE: Higher altitudes are possible if maximum operating temperature is
reduced (see Temperature); other restrictions may apply such as
maximum permissible altitude for hard drives.
A C O U S T I C S (Declared values per ISO 9296 and ISO 7779)
Acoustics
LWAd3B
LnAm5dBA
(bystander position)
Idle
5.8
44
Operating
6.3
49
NOTE: Current values for specific configurations are available from Compaq,
note that 1 B = 10 dBA.
Vibration
DA-10445
World Wide — Version 25 — June 4, 2002
Operating
10 to 500 Hz .1 G peak
Non-operating
1.03 Grms 5-300 Hz
28
QuickSpecs
Compaq AlphaServer DS20E
Compaq AlphaStation DS20E
Technical Specifications
System Unit (continued)
E LECTRICAL (Power supplies are universal, PFC, auto ranging, 100/240 VAC)
Nominal Voltage (VAC)
100
120
200 to 240
Voltage Range (VAC)
(temporary condition)
90 to 100
110 to 128
180-250
Power Source Phase
Single
Single
Single
Nominal Frequency (Hz)
50/60
50/60
50/60
Frequency Range (Hz)
49 to 51/59 to 61
49 to 51/59 to 61
49 to 51/59 to 61
RMS Current
Pedestal and Rackmount
M-Series Cabinet
(Configuration dependent)
Single power cord 7.5A
6.0A
3.8A
Maximum VA
780
765
730
Nominal voltage
(VAC)
100
120
220-240
Each power cord
24A
24A
16A
Power Cords
Pedestal
1 (75 in/190 cm)
IEC 320 C13 to NEMA 5-15
(North America) or IEC 320 C13 to countryspecific
Rackmount
1 (14 ft 10 in/452 cm)
IEC 320 C13 to NEMA 5-15
(North America) or
IEC 320 C13 to IEC 320 C14
(other countries)
Cabinet
2 (10 ft 10 in/330 cm)
120V non-removable NEMA
L5-30P or 200-240V non-removable IEC 309
Regulatory
Agency Approvals
UL: Listed to UL1950 (3rd edition)
CSA: Certified to CAN/CSA-C22.2 No. 950-M95
TUV: EN 60950/A4: 1997 VDE 0805 GS
marked
FCC: Part 15.B Class A (EV6 500 MHz)
FCC: Part 15.B Class B (EV67 667 MHz)
CE: EN55022, EN50082
VCCI Class II ITE
BCIQ: CISPR22, CNS13438
C-Tick: CISPR22, AS/NZS 3548
Reviewed to
AS/NZ 3260:1993 Australian/New Zealand
Standard
EN 60950/A4: 1997 European Norm
IEC 950 (2nd edition, 4th amend)
©2002 Compaq Information Technologies Group, L.P. All rights reserved. Compaq, the Compaq logo, AlphaServer, AlphaStation, Insight Manager, Tru64,
OpenVMS, StorageWorks, CarePaq, and TruCluster are trademarks of Compaq Information Technologies Group, L.P. in the U.S. and/or other countries.
Windows NT is a trademark of Microsoft Corporation in the U.S. and/or other countries. UNIX is a trademark of The Open Group in the U.S. and/or other
countries. All other product names mentioned herein may be trademarks of their respective companies.
Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information is provided ″as is″ without warranty of any kind and
is subject to change without notice. The warranties for Compaq products are set forth in the express limited warranty statements accompanying such
products. Nothing herein should be construed as constituting an additional warranty.
DA-10445
World Wide — Version 25 — June 4, 2002
29
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
