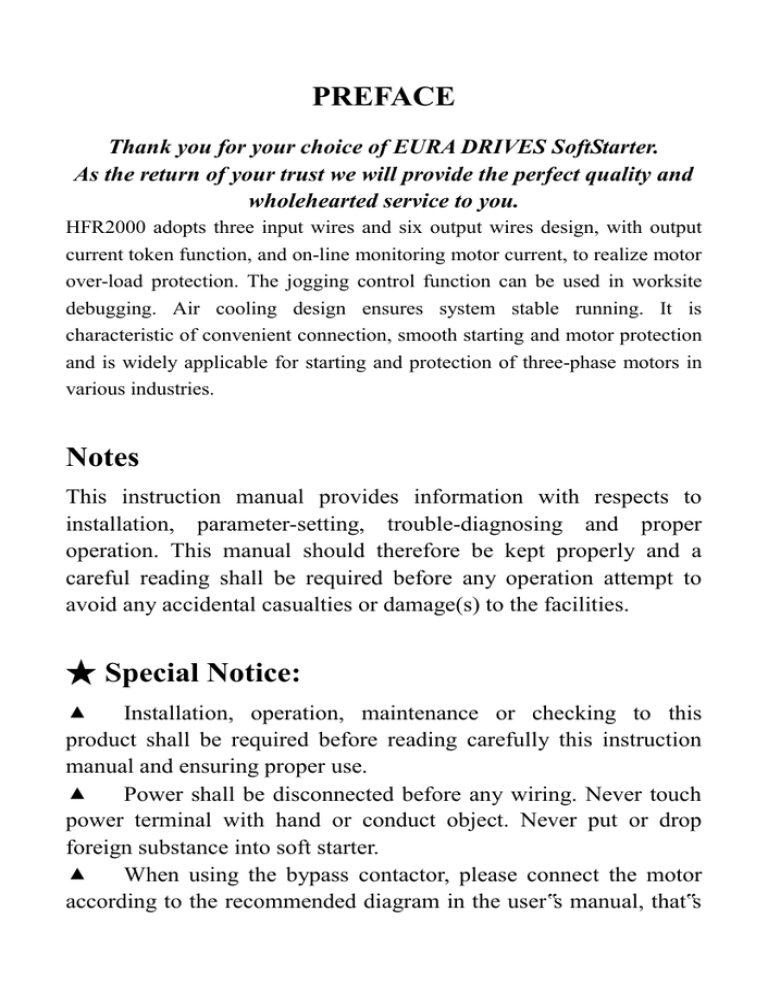

PREFACE

Thank you for your choice of EURA DRIVES SoftStarter.

As the return of your trust we will provide the perfect quality and wholehearted service to you.

HFR2000 adopts three input wires and six output wires design, with output current token function, and on-line monitoring motor current, to realize motor over-load protection. The jogging control function can be used in worksite debugging. Air cooling design ensures system stable running. It is characteristic of convenient connection, smooth starting and motor protection and is widely applicable for starting and protection of three-phase motors in various industries.

Notes

This instruction manual provides information with respects to installation, parameter-setting, trouble-diagnosing and proper operation. This manual should therefore be kept properly and a careful reading shall be required before any operation attempt to avoid any accidental casualties or damage(s) to the facilities.

Special Notice:

Installation, operation, maintenance or checking to this product shall be required before reading carefully this instruction manual and ensuring proper use.

Power shall be disconnected before any wiring. Never touch power terminal with hand or conduct object. Never put or drop foreign substance into soft starter.

When using the bypass contactor, please connect the motor according to the recommended diagram in the user‟s manual, that‟s

EURA Soft Starter User’s Manual in order to keep the output exact consistency of softstarter and motor. Otherwise softstarter and motor will be damaged.

Please do not take magneto ohmmeter to measure the insulated resistance between input and output. Otherwise the IGBT and control PCB will be damaged because of high voltage. Please use the magneto ohmmeter to measure the resistance between each phase and between each phase with ground. Also please note that firstly use 3 cables short circuit the each three-phase of input and output separately and take out the entire plugs in control PCB.

Connect input terminals R, S and T to urban power supply of

400V, connect output terminals U, V and W to motor.

Grounding terminal PE shall be properly earth connected

(grounding impedance not exceeding 4Ω).

When terminals R, S and T are connected to power supply of

400V and output terminals U, V and W are not connected to motor, it is normal that the voltage of U, V and W is AC400V. The voltage is got by leakage current of module. After U, V and W are connected to motor, the voltage will clear away.

Capacitance can not be connected to the output of soft starter, but capacitance can be connected to the input of soft starter when it is used for improving power factor.

·2·

CONTENTS

I. Product ………………………………………………………………..

1.1 Nameplate ……………………………………………………

1.2 Model Illustration……………………………………………

1

1

1

1.3 Appearance……………………………………………………

1

1.4 Technical Specifications ……………………………………

2

1.5 Designed Standards for Implementation……………………

3

1.6 Safe Instructions………………………………………………

3

1.7 Precautions……………………………………………………

3

1.8 Maintenance…………………………..……………………

II. Keypad panel…………………………………………………………

2.1 Panel Illustrations……………………………………………

2.2 Panel Operating ……………………………………………

2.3 Parameters Setting …………………………………………

4

5

5

6

6

III. Functional Block Diagram…………………………………………

3.1 Functional Block Diagram………………………………

IV. Installation & Connection …………………………………………

4.1 Power Loop Wiring…… ……………………………………

7

7

8

8

4.3 Terminal Function……………………………………………

V. Function Parameters …………………………………………………

10

11

5.1 Parameters List………………………………………………

11

5.2 Parameters Instruction………………………………………..

12

VI. External Dimension and Mounting Size……………………………

18

VII. Appendix……………………………………………………………

Appendix 1 Trouble Shooting of Keypad Panel Display ……………

19

19

Appendix 2 Fault Diagnosis………………………..….. ……………

Appendix 3 Applications ……………….…. …………………………

20

22

Appendix 4 Communication Manual………………………. ………

23

EURA Soft Starter User’s Manual

I. Product

This manual offers a brief introduction of the installation connection for

HFR2000 series softstarters, parameters setting and operations, and should therefore be properly kept. Please contact manufacturer or dealer in case of any malfunction during application.

1.1 Nameplate

Taking for instance the

HFR2000 series 15KW softstarter with 3-phase input, its nameplate is illustrated as Fig 1-1.

3Ph: Three-phase input,

400V 50/60Hz: input voltage range and rated frequency.

SOFTSTARTER IP20

MODEL

INPUT

RATED

CURRENT

CODE BAR

1.2 Model Illustration

EURA DRIVES ELECTRIC CO., LTD

HFR1015 SCOPE

3PH AC 400V 50/60Hz

15KW

AC-53b

TRIP

CLASS

Fig 1-1 Nameplate Illustration

10

Taking for instance as the HFR2000 series with 3-phase input

H F R 2 □□□

Adaptive motor power(KW)

2000 Series Bypass Model

EURA Softstarter

1.3 Appearance

The external structure of HFR2000 series softstarter is metal housings and all the installation is wall hanging type. Metal housing uses advanced exterior plastic- spraying and powder-spraying process on the surface with elegant color.

HFR2000 series softstarter 15KW to 55KW adopt structure of takedown single door spindle, softstarter 75KW to 500KW adopt sliding cover structure, easy to wiring and maintain.

·1·

EURA Soft Starter User’s Manual

! CAUTION

Softstarter

1) Do not connect output terminals(U.V.W) to the power supply

2) Perform parts replacement after discharge is finished

3) Do not re-set while the motor is rotating

Takedown appearance for 15-55KW Takedown appearance for 75-500KW

1.4 Technical Specifications

Power supply

AC 400V±15%, 50/60Hz (It is supplied by interior, users need not supply power.)

Input power supply AC 400V±15%, 50/60Hz

Applicable motor

Common asynchronism motor

Startup mode

Stop mode

Voltage ramp startup (1~120 seconds), current limiting startup

(150~400% Ie), voltage kick startup, jogging start

Free stop, soft stop (1~60 seconds)

Relay output

Delay running output, fault output, full voltage output (by pass)

[contact dot: 5A, 250VAC]

Startup frequency

Advise: not exceeding fifteen times per hour

Protection function Out phase, over-load, over current over-heating.

Display

LED nixie tube showing present output frequency, types of faults, and parameters for the system and operation, LED indicators showing the current working status of softstarter.

Protection level

IP20

Cooling mode

Air cooling

Installation mode

Hanging type

Environment conditions

Equipment Location

In an indoor location, Prevent exposure from direct sunlight, Free from dust, tangy caustic gases, flammable gases, steam or the salt-contented, etc.

·2·

EURA Soft Starter User’s Manual

Environment

Temperature

Environment

Humidity

Vibration Strength

Height above sea level

Applicable motor

15-500KW

-10℃~+50℃

Below 90% (no water-bead coagulation)

Below 0.5g (acceleration)

1000m or below

1.5 Designed Standards for Implementation

GB14048.6-2008 Low-voltage switchgear and control-gear contactors and motor-starters Section2: AC semiconductor motor controllers and starters(include softstarter)

1.6 Safe instructions

Please check the model in the nameplate and the rated value of the softstarter. Please do not use the damaged softstarter in transit.

Installation and application environment should be free of rain, drips, steam, dust and oily dirt, without corrosive or flammable gases or liquids, metal particles or metal powder. Environment temperature within the scope of -10℃~+50℃.

Please install softstarter away from combustibles.

Do not drop anything into the softstarter.

The reliability of softstarter relies heavily on the temperature. The around temperature increases by 10℃, softstarter life will be halved.

Because of the wrong installation or fixing, the temperature of softstarter will increase and the softstarter will be damaged.

 softstarter is installed in a control cabinet, and smooth ventilation should be ensured and softstarter should be installed vertically. If there are several softstarters in one cabinet, in order to ensure ventilation, please install softstarters side by side. If it is necessary to install several softstarters up and down.

1.7 Precautions

1.7.1 Instructions for use

Never touch the internal elements within 15 minutes after power off.

Wait till it is completely discharged.

Input terminals R, S and T are connected to power supply of 400V while output terminals U, V and W are connected to motor.

Proper grounding should be ensured with grounding resistance not exceeding 4Ω, separate grounding is required for motor and softstarter. Grounding with series connection is forbidden.

Load switch is forbidden at output while softstarter is in operation.

·3·

EURA Soft Starter User’s Manual

AC reactor or/and DC reactor is recommended when your softstarter is above 37KW.

There should be separate wiring between control loop and power loop to avoid any possible interference.

Signal line should not be too long to avoid any increase with common mode interference.

It shall comply with the requirements for surrounding environment as stipulated in Table 1-1 “Technical Specifications for HFR2000

Series Softstarter”.

1.7.2 Special Warning!!

Never touch high-voltage terminals inside the softstarter to avoid any electric shock.

All safety covers should be well fixed before softstarter is power connected, to avoid any electric shock.

Only professional personnel are allowed for any maintenance, checking or replacement of parts.

No live-line work is allowed.

1.8 Maintenance

1.8.1 Periodic Checking

Cooling fan and wind channel should be cleaned regularly to check whether it is normal, remove the dust accumulated in the softstarter on a regular basis.

Check softstarter‟s input and output wiring and wiring terminals regularly and check if wirings are ageing.

Check whether screws on each terminals are fastened.

Check whether softstarter is corrosive.

1.8.2 Storage

Please put the softstarter in the packing case of manufacture.

If softstarter is stored for long time, please charge the softstarter

1.8.3 Daily Maintenance

Environment temperature, humidity, dust and vibration would decrease the life of softstarter so daily maintenance is necessary for softstarter.

Daily inspecting:

Inspecting for noise of motor when it is working.

Inspecting for abnormal vibration of motor when it is working.

Inspecting for the installing environment of softstarter.

Inspecting for the fan and softstarter temperature.

Daily cleaning:

Keep the softstarter clean. Clean surface dust of softstarter to prevent dust, metal powder, oily dirt and water from dropping into the softstarter.

·4·

EURA Soft Starter User’s Manual

II Keypad Panel

2.1 Panel Illustrations

The panel covers three sections: data display section, status indicating section and keypad operating section

LED shows running current, function code, parameter value or fault code.

4 LEDs indicate working status. Details are as following list.

Keypad Panel

4 LED lights indicate working status:

Press “Fun” for function code, and “set” for original parameters.▲and▼keys can be used to select function codes and parameters. Press “set” again to confirm. “Run” and “Stop/Reset” keys control start and stop. Press “Stop/Reset” key to reset softstarter in fault status.

Indicate Light Status of Softstarter Remarks

RUN○

FWD●

DGT●

FRQ●

RUN●

FWD○

DGT●

FRQ●

Running Status

Delay Status

Light “RUN” is on in running state after startup finished and light is off in standby status.

Light “FWD” is on when delay begins, and light is off after delay ended.

RUN●

FWD●

DGT○

FRQ●

External control

Light “DGT” is on when external control works, and light is off in keypad status.

RUN●

FWD●

DGT●

FRQ○

Current Display

Light “FRQ” is on, and current is displayed when pressing FUN key during the startup process, light goes off when pressing it again, and status is displayed.

○ indicates the light is on, ● indicates the light is off

·5·

EURA Soft Starter User’s Manual

2.2 Panel Operating

All keys on the panel are available for user.

Keys Names

Fun

Set

Fun

Set

Up

Down

Remarks

To call function code and switch over display mode.

To call and save data.

To increase data (setting parameters)

To decrease data (setting parameters)

Run

Run

To start softstarter

Stop/reset

2.3 Parameters Setting

This softstarter has numerous function parameters, which the user can modify to effect different modes of operation control. User needs to realize that if user sets password valid

(HF30=1), user‟s password must be entered first if parameters are to be set after power off or protection is effected, i.e., to call HF40 and enter the correct code 8. User‟s password is invalid before delivery, and user could set corresponding parameters without entering password.

User can modify to effect different modes of operation control

Steps Keys

1

2

Fun or

3

4

Set or

5

Panel display

set

Items

-HF-

RUN

STOP

OUT

SST

Operation

Press “Fun” key to display function code

Press “Up” or “Down” to select required function code

To read data set in the function code

To modify data

Finish setting and display present function code

Remarks

Reset status

Startup status

Stop status

By pass running status

Soft stop status

Display

HF01

HF09

150

350

HF09

·6·

EURA Soft Starter User’s Manual

DEL_

PC、OC1、OC2、

OL、OH、PF

10

Startup interval status(During startup interval to operate the displayed item)

PC protect, Startup over current 1, Startup over current 2,

Startup over load, over heating and out phase.

Remain time of delay startup

III

Functional Block Diagram

3.1 Functional Block Diagram

Three reverse-parallel connection SCR modules are adopted as power element. By picking up synchronization signal from input voltage sampling, it can pick up output current sampling for feedback fuzzy control, trace the phase automatically and control phase displacement angle. Voltage can thus be increased step by step, and startup current will be under control. After startup, the bypass contactor will make the SCR short circuit.

The motor will finally be driven into the electricity network for operation.

·7·

EURA Soft Starter User’s Manual

IV Installation & Connection

4.1 Power loop wiring

Model

HFR2015

Matched

Motor

15

Rated

Current

30

Lead Section

Area(mm

2

)

16

By Pass Contactor Rated

Current (Recommended)

35A

HFR2022

HFR2030

HFR2037

HFR2045

HFR2055

HFR2075

HFR2090

HFR2110

HFR2132

HFR2160

HFR2200

HFR2220

HFR2250

22

30

37

45

55

75

90

110

132

160

200

220

250

45

60

75

90

110

150

180

220

260

320

400

440

500

16

25

25

35

35

50

70

50A

65A

80A

100A

120A

165A

70

95

120

150

185

240

190A

250A

280A

350A

440A

500A

500A

HFR2280 280 560

240

600A

HFR2315 315 630

150*2

630A

HFR2355 355

700

150*2

800A

HFR2400 400

800

185*2

900A

HFR2450 450

900

240*2

1000A

HFR2500 500

1000

240*2

1000A

Remarks:

1. The rated current value of the by pass contactor selected must be higher than the recommending value.

2. The capacity of by pass output relay of the softstarter is 7A/250AC, when the by pass contactor‟s loops current is higher than this capacity then add up a middle relay is recommended.

·8·

EURA Soft Starter User’s Manual

4.2 Wiring Recommended

R, S, T terminals of softstarter are input terminals while U, V and W are output terminals. QF is auto air breaker, KM is contactor, RJ is over heating protection relay, RD1 is fuse, L11is N connected to 230V. And L11-N is forbidden being connecting to 400V.

! PE Grounding wire should be as short as possible, and should be connected to the nearest grounding point, better on the installation board against the soft starter. Installation board should also be grounded.

! Please connect motor with the phase-sequence recommended by manual.

Correctly connect softstarter output with bypass contactor. Otherwise softstarter and motor will be ruined.

·9·

EURA Soft Starter User’s Manual

4.3 Terminal Function

Y1 Y2 Y3 T1 T2 T3 30A 30B 30C IM GND CM RUN STOP BX RST GND JOG CM

Terminal

Number

Terminal Name Description Technical Parameters

Y1

Y2

Delay Start

Terminal

When delaying start:Y2-Y1 opened, Y3-Y1 closed, the contacts of relay will be reversed after delay start

Capacity:7A/250VAC

Y1:middle end

Y2-Y1 normally closed

Y3-Y1 normally opened

Y3

T1

T2 By pass Contactor

Terminal

After startup:T2-T1 opened,

T3-T1 closed, for turnover to by pass contactor or middle relay after startup

Capacity:7A/250VAC

T1:middle end

T2-T1 normally closed

T3-T1 normally opened

T3

30A

30B

Fault Output

Terminal

During fault:30B-30A open

30C-30A close,for fault output

Capacity:7A/250VAC

30A:middle terminal

30B-30A normal close

30C-30Anormal open

30C

IM

GND

Current token output terminal

Current grounding token

Output current is proportional to motor current.

IM output grounding

RUN Running Terminal RUN-CM close for running status

External load resistance should be lower than 500Ω

Forbidden connecting CM to GND.

STOP Stop Terminal

BX

STOP-CM close for stop status

Free Stop Terminal BX-CM close for free stop status

RST Reset Terminal RST-CM close for reset status

JOG

CM

Jogging terminal

Common Terminal

JOG-CM close for jogging startup status

CM (External control common terminal)

·10·

EURA Soft Starter User’s Manual

V Function Parameters

5.1 Parameters List

Function No. Function Explanation

HF00 Control mode

HF01

HF02

HF03

HF04

HF05

HF06

HF07

HF08

HF09

HF10

HF11

Startup mode

Startup delay time

Stop mode

Torque compensation

Kick voltage

Kick time

Ramp ascending time

Ramp descending time

Startup current limit

Startup time interval

Reverting to Mfr‟s Value

HF12 Fault memory 1

HF13 Fault memory 2

HF14 Fault memory 3

HF15 Reserved

HF16 PC protection selection

HF17 Voltage ramp OL coefficient

Data Explanation

0 Keypad control

1 External terminal control

2 Keypad + terminal

3 Modbus

4 Keypad + terminal +Modbus

0 Voltage ramp startup

1 Current limit startup

2 Kick startup

3 Jogging startup

0-600S

Mfr Value

1

1

0S

0 Free stop 1 Soft stop 0

0-50% rated voltage

20-80% rated voltage

5%

50%

1-60S

1-120S

2S

20S (15-30kw)

60S (37-75kw)

100s(90-500kw)

1-60S

150-400% rated current

1-3600S

0 No action

1 Action (manufacturer value restored)

The latest fault

The last but one fault

The last but two fault

0 Invalid 1 Valid

0-60

2S

300%

240S

0

0

1

0

0

0

·11·

EURA Soft Starter User’s Manual

HF18 Out phase selection

HF19 Parity check

0 Invalid 1 Valid

HF20 Communication baud rate 0: 1200 1: 2400 2: 4800

3: 9600 4: 19200

1

0 Odd 1 Even 2 No check 0

2

HF21 Communication Address 1-127: Softstarter address

HF22

Selection of ASCII mode and RTU mode

0 ASCII mode

1 RTU mode

HF23 Motor rated current

1

0

10-softstarter rated current Subject to model

HF24

HF25

HF26

Close loop Control mode

Over-load coefficient when bypass running

Over-load time when bypass running

0 Close loop mode 1

1 Close loop mode 2

50%-200%

1-100S

HF27 Jogging torque

1-100%

0

150%

20S

40%

HF28

HF29

HF30

IM output range

IM output gain

Password valid or not

0 0-20mA

1 4-20mA

0.10-2.00

0 Invalid 1 Valid

0

1.00

0

HF31-HF37 Reserved

HF38 Softstarter power

15-500

Mfr‟s value

Subject to model

HF39 Software edition No. Mfr‟s value

HF40 User‟s password

0-9999

0

5.2 Parameters Instruction

HF00 Control mode

0 Keypad control

1 External terminal control

2 Keypad + terminal

3 Modbus 4 Keypad + terminal +Modbus

0

Control mode selection can be operated directly through the panel keypad, and the manufacturer value is 0.

“Keypad control” refers to the start/stop commands given by the “Run” or “stop/reset” key on the keypad.

“Terminal control” refers to the start/stop command given by the “Run” and “Stop” terminals.

When HF00=3, the running command is given by Modbus.

·12·

EURA Soft Starter User’s Manual

When HF00=4, keypad + terminal + Modbus command are valid at the mean time.

HF01 Startup mode

0 Voltage ramp startup

1 Current limit startup

1

2 Kick startup

3 Jogging startup

You can start by selecting one of the following three modes:

0 Voltage ramp startup, 1 current limit startup, 2 kick startup, 3 Jogging startup. The manufacturer value is 1

Δ Voltage ramp startup

Set HF01 to 0, and set ramp startup time t (HF07) and torque compensation voltage

(HF04) U0, the motor will start along with the increasing input voltage, and the speed will accelerate accordingly till its top speed, as shown in Fig1.

U

Ue

U0 t (HF07) T

Fig1 Voltage Ramp Startup Feature Curve

Δ Current limit startup

Set HF01 to 1 and set startup current limit percent Is(HF09)and Torque compensation voltage (HF04). The current of the motor will increase until the voltage ramp reaches Is, then it will stop, and the speed will accelerate to its full speed. After that, the current will decrease to below the rated current Ie, as shown in Fig2:

I

Is

Ie

T

Fig2 Current Limit Startup Feature Curve

·13·

EURA Soft Starter User’s Manual

Δ Kick startup

Set HF01 to 2, and set ramp start time t (HF07) and torque compensation (HF04), kick time t(HF06). The motor will start rapidly along with the increasing voltage, then the voltage will increase in a ramp way, and the speed will accelerate to its full speed. It is better for startup motor with big inertia, as shown in Fig3:

U

Ue

Us

U0

t(HF06)

T

Fig3 Kick Startup Feature Curve

Δ Jogging startup

When HF01 is set to 3, and set HF04 and HF27 correctly, jogging startup is valid. Jogging startup is for debugging softstater. When JOG terminal is connected to CM terminal, jogging startup is valid. When jogging startup is valid, softstarter will not be switched to bypass running.

U

Ue

U0

T

Fig4 Jogging Startup Feature Curve

HF02 Startup delay time 0-600S 0S

Startup delay time is set for startup preparation, and the motor will not start in this interval. Count down mode is used for display, and the time can be set from 0 to 600 seconds. When start delay, Y2-Y1 open, Y3-Y1 close, Use these two contacts can output a warning signal. The manufacturer value is set to 0S

·14·

EURA Soft Starter User’s Manual

HF03 Free stop 0 Free stop 1 Soft stop 0

You can stop by selecting two modes: 0 free stop 1 soft stop. The manufacturer value is set to 0.

Free stop means that the voltage of softstarter will reduce directly from Ue to 0V,and the motor will run with inertia till its stop, as shown in Fig5:

U

Ue

T

Fig5 Free Stop Feature Curve

Soft stop means that the voltage of starter will reduce gradually from Ue to 0V when the voltage drops. The soft stop can help resist “water hammer domino effect”, as shown in

Fig6:

U

Ue

t(HF08) T

HF04

Fig6 Soft Stop Feature Curve

Torque compensation 0-50% rated voltage 5%

Torque compensation means to adjust the torque produced by initial voltage U0. The manufacturer value is set to 5%. If the load is heavy, please increase HF04. It is valid in voltage ramp startup and current limit startup. Please note that big value‟s setting is not recommended, increase gradually the value.

·15·

EURA Soft Starter User’s Manual

HF05 Kick voltage 20-100% rated voltage 50%

As for a load with big static torque, an instant high voltage must be inflicted, so that it can start smoothly with the torque big enough, the “kick voltage” range is from 20% to 80% percent of the rated voltage. The manufacturer value is set to 50% rated voltage. Please note that big value‟s setting is not recommended, increase gradually the value.

HF06 Kick time 1-60S 2S

Kick time means the interval to exert high voltage, adjustable between 1-60S. The manufacturer value is set to 2S.

HF07 Ramp ascending time 1-120S 20S (15-30KW)

60S (37-75KW)

100S (90-500KW)

Ramp ascending time means the interval to bring the voltage from 0V up to rated voltage

Ue. The manufacturer value is set to 20S.

HF08 Ramp descending time 1-180S 2S

Ramp descending time means the interval to bring the voltage from rated voltage Ue to

0V. The manufacturer value is set to 20S.

HF09 Startup current limit 150-400% rated current 300%

It works when HF01 is set to 1, startup current limit = HF09*Ie, please adjust HF09 for a successful start, less current is preferred. Please note that big value‟s setting is not recommended, increase gradually the value.

HF10 Startup interval 1-3600S 240S

This equipment is small-sized, and you can only restart it when the radiator cools down from the previous startup, otherwise the machine will stop due to over-heating protection.

The startup interval is adjustable, and no more than 15 startups per hour are preferred for full load startups. The manufacturer value is set to 240S.

HF11

Reverting to

Mfr‟s value

0 no action

1 action (manufacturer value is restored)

0

When the data is in disorder, please restore the manufacturer value by setting data initialization 1.

HF12

HF13

Fault memory 1

Fault memory 2

The latest fault

The last but one fault

0

0

Store and display the code of the last but two fault:

·16·

EURA Soft Starter User’s Manual

Fault Code

0

1

2

3

4

5

Fault Details

No Fault

OH Overheating Fault

OC Over current Fault

PF Out phase Fault

OL2 Over load or jam Fault

OL1 Over load or jam Fault

HF14 Fault memory 3

The latest fault current is stored in HF14.

The latest fault current

HF15 Reserved

It‟s a reserved parameter and user no need to setup.

HF16 PC protection selection 0 invalid 1 valid

0

Mfr‟s value

1

When HF16 is set to 1, the function is valid. It is used to protect the setting of motor and softstarter.

HF17 Voltage coefficient ramp OL 0-60 0

Set overload time protection coefficient in the voltage ramp startup. When OL malfunction occurs in the voltage ramp startup, please increase this parameter.

HF18 Out phase selection 0 invalid 1 valid 1

HF18 is out phase selection, 0 means out phase function is invalid, 1 means this function is valid, Mfr‟s value is 1.

HF19 Parity check 0 Odd 1 Even 2 No check

Set the mode of Parity check. The manufacturer value is set to Odd check.

HF20 Communication baud rate 0: 1200 1: 2400

2: 4800 3: 9600

4: 19200

Set the communication baud rate. The manufacturer value is 4800.

HF21 Communication Address 1-127: Softstarter address

0

2

1

Set softstarter address. The manufacturer value is 1.

·17·

EURA Soft Starter User’s Manual

HF22 Selection of ASCII mode and RTU mode

0 ASCII mode

1 RTU mode

Set communication mode. The manufacturer value is set to ASCII mode.

HF23 Motor rated current 10-softstarter rated current

0

Subject to model

This function code is applied for setting motor startup current limit value and overload protection when bypass running. Please set it correctly.

HF24

Close loop Control mode

0 Close loop mode 1

1 Close loop mode 2

0

Set 0 means close loop mode 1, set 1 means close loop mode 2. The manufacturer value is

0, the close loop mode 1 is fit for most loads, but centrifugal fan or other big inertia load will cause the unsteady starting. The close loop mode 2 is recommended for this situation.

HF25

Over-load coefficient when bypass running

50%-200%

150%

The Mfr‟s value of HF25 equals to 150% times of motor rated current (HF23). HF25 and

HF26 are applied to over-load protection for softstarter.

HF26 Over-load time when bypass running

1-100S

HF27 Jogging torque

1-100%

20S

40%

Jogging torque is 40% times of rated torque. Target torque is set by this parameter when jogging startup is valid. The value should be lower than 80% times of rated torque.

HF28 IM output range

0 0-20mA 1 4-20mA

0

When motor is in startup process, the IM output range corresponds to 5 times of motor rated current (HF23). After softstarter runs in bypass status and motor is running,

IM output range corresponds to 2 times of motor rated current (HF23). Softstarter will switch automatically, and users do not need to set it.

HF29 IM gain 0.10-2.00 1.00

HF29 is used to adjust IM output when softstarter stops. The Mfr‟s value is 1.00.

HF30 Password valid or not

0 Invalid 1 Valid

0

HF31-HF37 Reserved

HF38 Softstarter Power 15-500 Subject to model

·18·

EURA Soft Starter User’s Manual

HF39 Software Edition No.

HF30 will display the Edition No. of software. User can only check it.

HF40 User‟s password 0-9999

Mfr‟s value

6. External Dimension and Mounting Size

0

HFR2015

HFR2022

HFR2030

HFR2037

HFR2045

HFR2055

HFR2075

HFR2090

HFR2110

HFR2132

HFR2160

HFR2200

HFR2220

HFR2250

HFR2280

HFR2315

HFR2355

HFR2400

Model

HFR2450

HFR2500

External Dimension

(A×B×H)

370×200×220

370×200×220

370×200×220

370×200×220

370×200×220

370×200×220

487.5×254×276.5

487.5×254×276.5

487.5×254×276.5

487.5×254×276.5

487.5×254×276.5

555×364.5×351.5

555×364.5×351.5

555×364.5×351.5

555×364.5×351.5

555×364.5×351.5

660×475.5×317.5

660×475.5×317.5

660×475.5×317.5

660×475.5×317.5

Installation of copper platoon

Mounting Size

(W×L)

150×350

150×350

150×350

150×350

150×350

150×350

200×424.5

200×424.5

200×424.5

200×424.5

200×424.5

322×475

322×475

322×475

322×475

322×475

402×607.5

402×607.5

402×607.5

402×607.5

Structure Code

L1*L2*L3

RC2

RC3

RC4

25X455X70

30X525X102

44X628X151

·19·

Code

RC1

RC1

RC1

RC1

RC1

RC1

RC2

RC2

RC2

RC2

RC2

RC3

RC3

RC3

RC3

RC3

RC4

RC4

RC4

RC4

M8

M8

M10

M10

M10

M10

M8

M8

M8

M8

M8

M8

M8

M8

M8

M8

M8

M8

M8

M8

S1*S2*S3

55X162X162

55X201X211

237X79X68

Remarks

Metal

Hanging

Type

Structure Diagram:

EURA Soft Starter User’s Manual

B

A

W

Softstarter

! CAUTION

1) Do not re-set while the motor is rotating

2) Perform parts replacement after discharge is finished

3) Do not connect output terminals(U.V.W) to the power supply

RC1 Structure RC2-RC3 Structure RC4 structure

Copper platoon structure diagram

L1

L1

L1

L2

Softstarter

L1 L3

Softstarter

Softstarter

Φ10

M8

! CAUTION

1)Do not re-set while the motor is rotating

2)Perform parts replacement after discharge is finished

3)Do not connect output terminals(U.V.W) to the power supply

L3

Φ10

M12

! CAUTION

1) Do not re-set while the motor is rotating

2) Perform parts replacement after discharge is finished

3) Do not connect output terminals(U.V.W) to the power supply

U

L3

V W

Φ11

M12

! CAUTION

1) Do not re-set while the motor is rotating

2) Perform parts replacement after discharge is finished

3) Do not connect output terminals(U.V.W) to the power supply

L3

S2

For RC2 For RC3 For RC4

S1

S2 S1

S1

S3

S3

S3 S2

For RC2 For RC3 For RC4

·20·

EURA Soft Starter User’s Manual

7. Appendix

Appendix 1. Trouble Shooting of Keypad Panel Display

Protection function

Display in the panel

Over current OC1/OC2

Out phase

Overheat

Over load

PC protection

P.F.

OH

OL

PC

Counter measures

*Please decrease HF04 and increase HF07 in the voltage ramp startup.

*Please refer to Appendix 2 in the current limited startup.

*Please check if power input is normal.

*If the fault caused by power supply, please set HF18=0, Out phase function is invalid.

*Please check softstarter installation environment and improve ventilation,

*Please decrease startup times if startup is frequent.

*When the temperature fell into the safe range, OH protection stops.

*Please increase HF17 and HF07 in the voltage ramp startup

*Please increase HF09 in the current limited startup.

*If softstarter is switched into bypass within

1S during the starting process, “PC” malfunction will display. Please increase

HF07 and decrease HF09. If softstarter runs alone without load, “PC” malfunction will display.

*If the power of motor and softstarter has a great difference, “PC” will display because starting process is too fast. Please match the right power of softstarter.

·21·

EURA Soft Starter User’s Manual

Appendix 2. Fault Diagnosis

Problems

Motor sounds buzz, when power is on

Motor can not work normally with the startup signal input.

Status explanation

Soft starter is in standby state

Standby status is displayed in the panel

Trouble shooting

1. Check whether the bypass contactor is blocked at the closed place,

2. Check whether the silicon controlled rectifier

(SCR) is spark-through or damaged.

1. In external control state, check whether the terminal RUN-CM is turned on;

2. Check whether the control circuit connection is right, control switch works normally.

No control power supply state

1. Check whether voltage is normal.

Wrong parameter set

Phase loss occurs during startup

1. Check every parameter set value one by one, make sure that the set values match the practical parameters of motor,

2. Check the current limit value

Check three phases‟ voltage, judge whether there is phase loss and eliminate fault

Startup current exceeds the set value

Wire connection of motor is open

Current limit function fails

Environment temperature is too high

Over run current of motor

1. Check whether the connection of output terminals of soft starter and what of motor is right and reliable,

2. Check the input terminals‟ voltage, judge whether internal circuit of motor is open,

3. Check whether there is phase loss in input terminal

1. Check whether the startup current set is right,

2. Check whether the connection of current mutual inductor is right,

3. Check whether the current mutual inductor works properly, and matches the motor.

1. Check whether soft starter installation environment has good ventilation and is installed vertically,

2. Check whether soft starter avoids direct sunlight successfully,

1. Check whether the soft starter has short circuit in output connection ,

2. Check whether overload of motor or damage

·22·

EURA Soft Starter User’s Manual happens,

3. Check whether phase loss fault happens in the motor.

Soft starter is short circuit between input and output terminal connection

1.Check whether the bypass contactor is blocked at the closed place,

2.Check whether the silicon controlled rectifier

(SCR) is sparked through or damaged

The above problems must be handled by professionals. Users are not allowed for any repair by themselves.

·23·

EURA Soft Starter User’s Manual

Appendix 3. Applications (for reference)

Machinery type

Load type

Startup mode

Voltage

Ramp

Current limited

Parameters setting

Torque

(%)

Current

(%)

10% 300%

Startup time

S

10 30

Fan

A little heave load compressor

(piston-type)

Standard load compressor

(centrifugal)

Standard load

Convey

Mixer

Standard load

A little heave load

Ball crusher Heavy load

20%

10%

15%

10%

15%

30%

350%

300%

350%

10 30

10 30

10 30

10 30

20 40

30 60

Muller Heavy load ● 30% 400% 30 60

Users can set the parameters according to actual load.

To a little heavy load and heavy load, the manufacturer recommend user to choose higher power of softstarter. For example: centrifugal fan, mixer, ball crusher and muller. If the load starts frequently (ten times with one hour), please choose higher power of softstarter. Furthermore, the startup mode of “Kick startup” is recommended for heavy load and heavy inertia.

·24·

EURA Soft Starter User’s Manual

Appendix 4 Communication Manual

(Modbus Version 1.7)

I. General

Modbus is a serial and asynchronous communication protocol. Modbus protocol is a general language applied to PLC and other controlling units. This protocol has defined an information structure which can be identified and used by a controlling unit regardless of whatever network they are transmitted.

Modbus protocol does not require a special interface while a typical physical interface is RS485.

You can read reference books or ask for the details of MODBUS from manufactures.

II. Modbus Protocol

1. Overall Description

(1) Transmission mode

1) ASCII Mode

When controllers are setup to communicate on a Modbus network using ASCII mode, each 8–bit byte in a message is sent as two ASCII characters.

For example, 31H

(hexadecimal data) include two ASCII characters‟3(33H)‟,‟1(31H)‟.

Common characters, ASCII characters are shown in the following table:

Characters

ASCII Code

Characters

„0‟ „1‟ „2‟ „3‟ „4‟ „5‟

30H 31H 32H 33H 34H 35H 36H 37H

„8‟ „9‟ „A‟ „B‟ „C‟ „D‟

„6‟

„E‟

„7‟

„F‟

ASCII Code

2) RTU Mode

38H 39H 41H 42H 43H 44H 45H 46H

In RTU mode, one Byte is expressed by hexadecimal format. For example, 31H is delivered to data packet.

(2) Baud rate

Setting range: 1200, 2400, 4800, 9600, 19200

(3) Frame structure:

1) ASCII mode

Byte

1

7

0/1

1/2

Function

Start Bit (Low Level)

Data Bit

Parity Check Bit (None for this bit in case of no checking. Otherwise 1 bit)

Stop Bit (1 bit in case of checking, otherwise 2 bits)

·25·

EURA Soft Starter User’s Manual

2) RTU mode

Byte Function

1

8

Start Bit (Low Level)

Data Bit

0/1

1/2

Parity Check Bit (None for this bit in case of no checking. Otherwise 1 bit)

Stop Bit (1 bit in case of checking, otherwise 2 bits)

(4) Error Check

1) ASCII mode

Longitudinal Redundancy Check (LRC): It is performed on the ASCII message field contents excluding the „colon‟ character that begins the message, and excluding the CRLF pair at the end of the message.

The LRC is calculated by adding together successive 8–bit bytes of the message, discarding any carries, and then two‟s complementing the result.

A procedure for generating an LRC is:

1. Add all bytes in the message, excluding the starting „colon‟ and ending CRLF. Add them into an 8–bit field, so that carries will be discarded.

2. Subtract the final field value from FF hex (all 1‟s), to produce the ones–complement.

3. Add 1 to produce the twos–complement.

2) RTU Mode

Cyclical Redundancy Check (CRC): The CRC field is two bytes, containing a 16–bit binary value.

The CRC is started by first preloading a 16–bit register to all 1‟s. Then a process begins of applying successive 8–bit bytes of the message to the current contents of the register. Only the eight bits of data in each character are used for generating the CRC. Start and stop bits, and the parity bit, do not apply to the

CRC.

A procedure for generating a CRC-16 is:

1. Load a 16–bit register with FFFF hex (all 1‟s). Call this the CRC register.

2. Exclusive OR the first 8–bit byte of the message with the high–order byte of the 16–bit CRC register, putting the result in the CRC register.

3. Shift the CRC register one bit to the right (toward the LSB), zero–filling the MSB. Extract and examine the LSB.

4. (If the LSB was 0): Repeat Step 3 (another shift).

(If the LSB was 1): Exclusive OR the CRC register with the polynomial value A001 hex (1010 0000 0000

0001).

5. Repeat Steps 3 and 4 until 8 shifts have been performed. When this is done, a complete 8–bit byte will have been processed.

When the CRC is appended to the message, the low-order byte is appended first, followed by the high-order byte.

2.

Command Type & Format

(1) The listing below shows the function codes.

code name description

03 Read Holding Registers Read the binary contents of holding registers in the slave.

(Less than 10 registers once time )

06 Preset Single Register Preset a value into holding register

·26·

EURA Soft Starter User’s Manual

(2) Format

1) ASCII mode

Start Address Function

:

(0X3A)

Softstarter

Address

Function

Code

Data

Length

Data

Data

1

2)RTU mode

Data

N

LRC check

High-order byte of LRC

Low-order byte of LRC

Return

(0X0D)

End

Line Feed

(0X0A)

Start

T1-T2-T3-T4

Address Function Data

Softstarter

Address

3) Protocol Converter

Function

Code

N data

CRC check

Low-order byte of CRC

High-order byte of CRC

End

T1-T2-T3-T4

It is easy to turn a RTU command into an ASCII command followed by the lists:

1) Use the LRC replacing the CRC.

2) Transform each byte in RTU command into a corresponding two byte ASCII. For example: transform 0x03 into 0x30, 0x33 (ASCII code for 0 and ASCII code for 3).

3) Add a „colon‟ ( : ) character (ASCII 3A hex) at the beginning of the message.

4) End with a „carriage return – line feed‟ (CRLF) pair (ASCII 0D and 0A hex).

So we will introduce RTU Mode in followed part. If you use ASCII mode, you can use the up lists to convert.

(3) Address and meaning

The part introduces softstarter running, softstarter status and related parameters setting.

Description of rules of function codes parameters address:

1) Use the function code as parameter address

1. General Series:

High-order byte: 01~09 (hexadecimal)

Low-order byte: 00~3C

For example: F114 (display on the board), parameter address is 010E (hexadecimal).

2. Softstarter series

High-order byte: 00

Low-order byte: 00~3C

For example: HF14 (display on the board), parameter address is 000E (hexadecimal).

Note: in this situation, it allows to read six function codes and write only one function code.

Some function codes can only be checked but cannot be modified, some function codes can neither be checked nor be modified, some function codes can not be modified in run state, some function codes can not be modified both in stop and run state.

In case parameters of all function codes are changed, the effective range, unit and related instructions shall refer to user manual of related series of softstarters. Otherwise, unexpected results may occur.

2) Use different parameters as parameter address

(The above address and parameters descriptions are in hexadecimal format, for example, the decimal

·27·

EURA Soft Starter User’s Manual digit 4096 is represented by hexadecimal 1000).

1. Running status parameters

Parameters Address

1001

1002

2. Control commands

Parameter Descriptionread only

The following is softstarter status.

The high-order byte is 0, and low-order byte is the status of softstarter.

0. standby

1. running

2. OC1 protection

3. OC2 protection

4. PF protection

5. OH protection

6. OL protection

Output current

Parameters Address

2000

Parameters Descriptionwrite only

Command meaning:

0003:Deceleration stop

0004:Free stop

0008:Run(no directions)

0009:Fault reset

3. Communication parameters

Parameters Address

3000

Parameters Descriptionread only

Command meaning:

0000:no error

0001:illegal function

0002: illegal address

0003: illegal parameters

0004: LRC error

0005: CRC error

0006:system locked

4. Response

Command Description Parameters Description

Response when reading parameters

Response when writing parameters

1、return code value in normal response

2、not allowed to read return FFFF(hex)

0001:operate successfully

0002:less than min value

0003:greater than max value

0004:not allowed to change

0005:in fault status

0006:system locked

·28·

EURA Soft Starter User’s Manual

The following is response command when read/write parameters:

Eg1: In RTU mode, change acc time (F007) to 10.0s in NO.01 softatarter.

Host Query

Address Function

Register

Address Hi

Register

Address Lo

Preset Data

Hi

CRC Lo CRC Hi

01 06 F0 07 00 0A

Function code F007 Value: 10.0S

Slave Response

8B 0C

Address

01

Function

06

Register

Address Hi

F0

Register

Address Lo

07

Response

Data Hi

00

Response

Data Lo

04

CRC Lo CRC Hi

0A

Function code F007 Do not allow to change

C8

Eg 2Read status and output voltage from N0.2 softstarter.

Preset Data

Lo

Host Query

Address Function

First Register

Address Hi

First Register

Address Lo

Register count Hi

Register count L0

02 03 10 00 00

Communication Parameters Address 1000H

Slave Response:

02

CRC Lo CRC Hi

C0 F8

02 03 04 00 02 00 00

OC1 protection output current

Eg 3NO.1 softstarter runs forwardly.

Host Query:

Address Function

Register

Hi

Register

Lo

68

Write status Hi

F3

Write status Lo

CRC Lo CRC Hi

01 06 20 00 00 01 43

Communication parameters address 2000H Forward running

·29·

CA

EURA Soft Starter User’s Manual

Slave Response:

Address Function

Register

Hi

Register

Lo

Write status Hi

Write status Lo

CRC Lo CRC Hi

01 06 20

Writing parameters successfully

Eg4: Read the value of F017 from NO.2 softstarter

Host Query:

Address Function

02 03

Register

Address Hi

F0

Register

Address Lo

11

Register

Count Hi

00

Register

Count L0

01

CRC Lo CRC Hi

E7

Communication Parameter Address F011H Reading one Register.

Slave Response:

3C

Address Function

Register

Address Hi

00

Register

Address Lo

00 01 43

Read status Hi Read status Lo CRC Lo

CA

CRC Hi

02 03 F0 11 00 04

The actual value is 4.

3. Additional Remarks

(1)

Expressions during communication course:

Parameter Values of Current=actual value X 10

27 3F

Others parameter Values=actual value X 1

Parameter value is the value sent in the data package. Actual value is the actual value of softstarter. After

PC/PLC receives the parameter value, it will divide the corresponding coefficient to get the actual value.

NOTE: Take no account of radix point of the data in the data package when PC/PLC transmits command to softstarter.. The valid value is range from 0 to 65535.

Function codes related to communication

Function Code

HF18

HF19

HF20

HF21

HF22

Name

Stop bit

Parity Check

Baud Rate

Soft starter‟s Address

ASCII and RTU mode

Selection

Setting Rang

0 one bit 1 two bits

0:Odd 1:Even

2:No checkout

0 1200 1 2400

2 4800 3 9600

4 19200

1-127

0 ASCII Mode

1 RTU Mode

Mfr‟s Value

0

0

2

1

0

·30·

EURA Soft Starter User’s Manual

You can read device status and function code value or preset functions value of soft starter regardless of value of HF00.

Please set functions code related to communication consonant with the PLC/PC communication parameters, when soft starter communicate with PLC/PC.

physical interface

1 interface

Hardware uses communication MAX485, the following are the pin of 485 interface.

VCC:

5V

power supply

GND: ground of 5V

Connect A+ to A+ of PLC or other converter and connect A -to B- of PLC or other Converter, when soft starter communicate to other devices.

2 Structure of Field Bus

PLC/PC

Field Bus

EURA EURA soft starter soft starter

Connecting Diagram of Field Bus

RS485 Half-duplex communication mode is adopted for EURA softstarter.

·31·

EURA Soft Starter User’s Manual

Daisy chain the devices together. Do not use 'spur' lines, or a star configuration. Terminating Resistors of

120 Ohms should be used on the ends of long modbus/485 loops. In the first example below, the terminator should be placed at the PLC and modbus device 4.

Correct

Wrong

1

2

Soft starter

1 2 3 4

3

Modbus Devices

Soft starter

4

Modbus Devices

Wrong

4

1 2 3

soft starter

Modbus Devices

Please note that for the same time in half-duplex connection, only one softstarter can have communication with PC/PLC. Should two or more than two softstarters upload data at the same time, then bus competition will occur, which will not only lead to communication failure, but higher current to certain elements as well.

No direct grounding shall be allowed for any point of RS485 network. All the equipment in the network shall be well grounded via their own grounding terminal. Please note that grounding wires will not form closed loop in any case.

Please think over the drive capacity of PC/PLC and the distance between PC/PLC and softstarter when wiring. Add a repeaters if drive capacity is not enough. Modbus repeaters may be used to extend the length of the loop, but introduce delay in the device response time. Using repeaters on slow devices may cause timeout problems.

All wiring connections for installation shall have to be made when the softstarter is disconnected from power supply.

·32·

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
