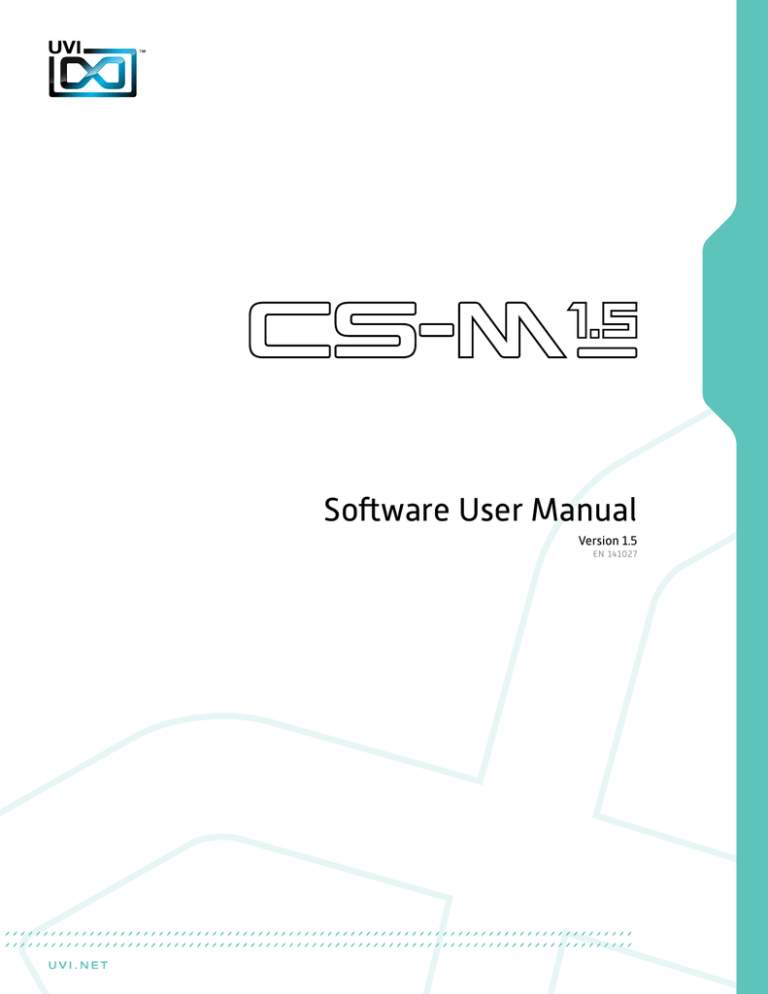

Software User Manual

Software User Manual

Version 1.5

EN 141027

End User License Agreement (EULA)

Do not use this product until the following license agreement is understood and accepted.

By using this product, or allowing anyone else to do so, you are accepting this agreement.

CS-M (henceforth ‘the Product’) is licensed to you as the end user.

Please read this Agreement carefully.

You cannot transfer ownership of these Sounds and Software they contain. You cannot re-sell or copy the Product.

LICENSE AND PROTECTION

1. License Grant

UVI grants to you, subject to the following terms and conditions, a non-exclusive, non-transferable right to use each authorized copy of the Product.

The product is the property of UVI and is licensed to you only for use as part of a musical performance, live or recorded. This license expressly forbids resale or other distribution of the sounds and software included in the Product or their derivatives, either as they exist on disc, reformatted for use in another digital sampler, or mixed, combined, filtered, resynthesized or otherwise edited, for use as sounds, multi-sounds, samples, multi-samples, wavetables, programs or patches in a sampler, microchip or any hardware or software sample playback device.

You cannot sell the Product content or give it away for use by others in their sampling or sample playback devices. In the event UVI terminates this agreement due to your breach, you agree to return the original and all other copies of the software and documentation to UVI.

UVI reserves all rights not expressly granted to herein.

2. Protection of Software

You agree to take all reasonable steps to protect the product and any accompanying documentation from unauthorized copying or use. You agree not to modify the product to circumvent any method or means adopted or implemented by UVI to protect against or discourage the unlicensed use of copying of the Product.

3. Ownership

As between you and UVI, ownership of, and title to, the enclosed digitally recorded sounds (including any copies) are held by UVI.

Copies are provided to you only to enable you to exercise your rights under the license.

4. Term

This agreement is effective from the date you open this package, and will remain in full force until termination. This agreement will terminate if you break any of the terms or conditions of this agreement. Upon termination you agree to destroy and return to UVI all copies of this product and accompanying documentation.

5. Restrictions

Except as expressly authorized in this agreement, you may not rent, sell, lease, sub-license, distribute, transfer, copy, reproduce, display, modify or time share the enclosed product or documentation.

6. Hardware

The accompanying USB flash media is only guaranteed in it’s original state, as an installation medium for the Product. Any variance from this use including but not limited to deleting, altering or adding data, reformatting the media or any physical alteration of the device will void its warranty. If the media is found to have a physical or manufacturing defect please contact our support department (http:// www.uvi.net/contact-support).

©2014 UVI. All rights reserved.

All trademarks are the property of their respective owners.

2

Table of Contents

Introduction

..............................................................................................................................................................

4

System Requirements

.........................................................................................................................................

5

Installation

Step 1: Register Your Serial Number

....................................................................................................

6

Step 2: Activate Your License

..................................................................................................................

7

Step 3: Install Your Instrument

................................................................................................................

8

Step 4: Load Your Instrument

..................................................................................................................

9

User Interface

Edit Page

.............................................................................................................................................................

10

Mod Page

...........................................................................................................................................................

12

Arp Page

..............................................................................................................................................................

13

Presets

.........................................................................................................................................................................

14

Raw Waves

................................................................................................................................................................

15

UVI Workstation: Tips and Tricks

...................................................................................................................

16

Links

.............................................................................................................................................................................

17

Credits and Thanks

...............................................................................................................................................

18

3

Introduction

CS-M 1.5

CS-M is back and it’s bigger than ever! Now including the full set of raw waveforms for the CS-01, an expanded preset library with over 200 patches and a massive boost to performance, delivering dramatically faster load times. There’s never been a better time to explore the warm analog tones of the CS series!

Between 1979 and 1984 Yamaha designed and built some of the most unique and distinct sounding analog synthesizers in the world - the most famous of which being the massive CS-80.

We tend to prefer the sounds of the lesser-known models, and have focused here on the CS-70M, CS-40M, CS-20M and CS-01.

UVI CS-M features a dual-layer architecture and instant preset/layer switching making it an extraordinarily responsive instrument capable of a wide and authentic sound palette.

Layers include all possible base waveforms and noises as well as expertly programmed presets, all made on the original machines. In fact, great lengths were taken to ensure the authentic sound and natural character of these machines was preserved and translated clearly in CS-M. Everything was sampled, down to the unique unison and ensemble modes.

Enjoy the wonderful vintage sound of these synthesizers or take them into new territory with the UVI Engine. CS-M comes packed with a wealth of features to help you enrich and customize your sounds including double arpeggios, a step sequencer, LFOs and precision modeled FX - allowing you to freely tread in territory the old hardware couldn’t dream of.

From thick and gritty basslines to warm and bubbly arpeggios and sharp analog leads, UVI CS-M is a grand ode to some of our most beloved hardware inspirations.

4

System Requirements

Compatibility

Audio Units, VST, MAS, AAX, RTAS or standalone

UVI Workstation 2.5.7 or higher

Minimum System Requirements

Intel CPU

4 GB of RAM (8 GB+ recommended)

1.5 GB of disk space

Mac OS X 10.7 or higher

iLok account (free, dongle not required)

Compatibility

VST, AAX, RTAS or standalone

UVI Workstation 2.5.7 or higher

Minimum System Requirements

Core Duo or faster

4 GB of RAM (8 GB+ recommended)

1.5 GB of disk space

Windows 7 or higher

iLok account (free, dongle not required)

Authorize the Way You Want

Your license allows 3 concurrent authorizations on any combination of computers and iLok dongles.

License management is a simple drag-and-drop process done through iLok License Manager.

Visi t ilok.com/ to download iLok License Manager and create your free account.

5

Step

1

Register Your Serial Number

1 2 3 4

You must have an account on uvi.net/ and ilok.com/ prior to registration

If you purchased a physical version of this product, your serial number is located on the inside of the box

If you purchased an electronic version of this product, your serial number will be included in a confirmation email

You can see a list of the products you’ve registered and their serial numbers anytime at uvi.net/my-products

1. Login to your account on uvi.net/

2. Navigate to the ‘Product Registration’ page

3. Enter your details and click ‘Register’

Upon completion a new license will be deposited in your iLok account

6

Step

2

Activate Your License

iLok License Manager is required for activation, download the newest version at ilok.com/ilm.html

Your license allows up to 3 concurrent activations on any combination of iLok dongles and computers

Activations can be moved between devices at anytime

1 2 3 4

1. Launch iLok License Manager

2. Login to your account

3. Click the ‘Available’ tab

4. Drag the license to your computer or an iLok dongle

5. Click ‘Ok’ to confirm the activation

The process is complete, your device is now authorized

»

To see how many authorizations you have left simply select the license and click ‘Show Details’

»

To deactivate your license, right-click it and select ‘Deactivate’ — doing so will return your license to the ‘Available’ tab

7

Step

3

Install Your Instrument

UVI Instruments can be stored anywhere on your system

Storing your instruments on a fast drive will improve performance

Your instruments can be downloaded at any time from uvi.net/my-products

1. Create a folder on your computer and place your UVI Instruments in it

Once this is done we need to tell UVI Workstation where to find your instruments.

We do this by creating a watch folder, follow the steps below to create your own:

2. Open UVI Workstation

3. Click the Settings page

4. Click the ‘Sound Banks’ tab

5. Click the ‘...’ button and select the folder where you’ve placed your instruments

6. Restart UVI Workstation and open the Browser

Your instruments will be available under the ‘Soundbanks’ tab

1 2 3 4

8

Step

4

Load Your Instrument

UVI Workstation is required to run UVI Instruments

The newest version of UVI Workstation can be downloaded free at uvi.net/downloads

UVI Workstation can be run as a standalone program or as a virtual instrument from within your DAW of choice

1 2 3 4

1. Open UVI Workstation

2. Click the Browser icon

3. Open the Sound Banks tab

4. Select a product, in this example we’ll choose Vector Pro, then select an instrument and patch

Double-click the patch to load it

5. The UI appears and you’re ready to jam!

9

Edit Page

Pages

2

Layer Globals

3

Layer Edit

5

Pitch

6

1

Presets

4

Master Gain

8

Drive

7

Amplitude

The UI is divided into three pages; [Edit] , [Mod] and [Arp] . Primary controls such as amp, filter, stereo, pitch and effects are available on the [Edit] page.

Clicking the [Mod] button at the top of the interface reveals the second page of controls containing the LFO and Step Modulator. The final [Arp] page presents an independent arpeggiator for each layer.

Main

1 Presets

Select a global preset from the pulldown menu or browse them with the

Prev/Next arrows

2 Pages

Change the current page by selecting one of the 3 options; Edit, Mod or Arp

3 Layer Globals

» On/Off Toggle

» Volume

» Pan

» Octave [+1, 0, -1]

4 Master Gain

Set the Output Gain for the instrument

Basic Controls

5 Layer Edit

» Edit A | Edit B | Edit All

Choose to edit layers A or B seperately or simultaneously

» Wave Menu

Choose the wave category in the first row and the wave in the second

6 Pitch

» Tune

Adjust the pitch in Semitones/Cents

» Depth

Adjust the Portamento depth

» Mode

Toggle between Mono and Poly voicing

» Time

Set the Glide time

7 Amplitude

» No Velocity

Sets all incoming notes to max velocity

» Velocity > Attack

Modulates attack amount based on incoming note velocity. Low velocities result in long attacks; high velocities result in short attacks

» ADSR

Attack / Decay / Sustain / Release envelope for the Amplitude section

8 Drive

» Amount

Sets the amount of drive

10

Edit Page

[continued]

10

Filter (ADSR)

Filter

10

Stereo

9

Modwheel

12

11

Effects

Basic Controls (continued)

9 Stereo

» Mode

Off / Alternate Pan / Unison

» Color

Shifts color based on adjacent samples

» Spread

Change the stereo width

» Detune

UNI Mode Only: setunes layers

10 Filter

» Filter Modes

Choose Filter mode; High Pass, Band

Pass, Low Pass or OFF

» Cutoff Freq

Filter cutoff frequency

» Resonance

Adjust the resonance (Q) of the Filter

» EG Depth

Modifies the amount of ADSR envelope to be applied to the Filter

» Velocity

Adjust the Velocity > Filter sensistivity

» ADSR

Attack / Decay / Sustain / Release envelope for the Filter section

11 Effects

» Power/Amount

Choose from Phaser, Delay, and Reverb

(additional controls available in the

Effects page of UVIWS and MF)

12 Modwheel

» Power/Amount

Easily route your controllers Modwheel to control common parameters such as

Vibrato, Tremolo and Filter Depth

11

Mod Page

Waveforms

2

Sync

1

LFO Controls

3

Seq Params

6

Step Sequencer

5

4

LFO Mod Routing

7

Seq Mod Routing

LFO

1 Sync

Enable/Disable LFO sync to Host Tempo

2 Waveforms

Choose LFO waveform; Sine, Triangle,

Square or Sample & Hold

3 LFO Controls

» Speed

Change the LFO Speed

» EG Depth

Adjusts the amount of Attack and Decay to be applied to the LFO

» Attack

Attack time for the Speed envelope

» Decay

Decay time for the Speed envelope

4 Mod Routing

Control the amounts of LFO modulation to be applied to various parameters including; Pitch, Drive, Volume and Filter

Step Modulator

5 Step Sequencer

Interactive editor for programming sequenced modulations; bar height equals mod amount

6 Seq Params

» Res

Change the sequencers step length

» Steps

Change the amount of steps for the sequencer to play

» Delay

Delay time to activate first step

» Rise

Time to activate step with a smooth transition

» Smooth

Interpolates values between adjacent steps to smooth parameter modulation for a custom LFO effect

7 Mod Routing

Control the amounts of modulation to be applied to various parameters including;

Volume and Filter

12

Arp Page

Mode

4

Step Indicator

1

Step Editor

2

Tie

3

Arp On/Off

5

Arp Mode

Grid

7

6

9

Steps

8

Gate

10

Octave

1 Step Indicator

LED lights up when step is triggered

2 Step Editor

16-step sequencer; affects Velocity

3 Tie

When active, step inherets Velocity from the previous step

4 Mode

Mono mode = Arpeggiator 1 affects both layer 1 and layer 2

Stereo mode = each Arp modifies its corresponding layer (A=1, B=2)

5 Arp On/Off

Toggle the Arpeggiator On/Off

6 Grid

Change the step length

7 Arp Mode

Select Up, Down, or Up and Down

8 Gate

Change the step length (knob value ranges from zero to the tracks

Resolution setting)

9 Steps

Sets the Arpeggiators step length

10 Octave

Set the pitch range of the Arpeggiator in Octaves

13

Presets

Brassy

BR-Dirty Crazy

BR-Eve Angelis

BR-French Horn Like

BR-GuiBRastar

BR-K Brass Orch

BR-Lazer Brass

BR-Majestic OBrass

BR-Power Brass

BR-Sea Fluid

Bass

BS-Alley Shakedown

BS-Baxtandal

BS-Burnt Popcorn

BS-Chinese Fretless

BS-Crate Duster

BS-Grain Bass Lead

BS-Greem B

BS-Intoxic

BS-Jo B Jo Bass

Arpeggios

AR-Art Peggios

AR-Barbarian

AR-Cool Session

AR-CS One Again

AR-Diode Power

AR-Gumball Acrobatics

AR-Kieseritzky G

AR-Kitch Pop Corn

AR-Perfect G

AR-Play 3 Notes

AR-Primitive

AR-Spatial Story

AR-Tangerinoise

AR-Tanjarre Dream

AR-Tease Analog

AR-Xanalog Beat

AR-Xperimental Valley

Bells

BL-A Very Small One

BL-Baby Bell

BL-Bella Noisa

BL-Ego Bells

BL-Ensembells

BL-Genesis

BL-Guiz Mode

BL-Harpsybell

BL-Hi PWM

BL-James Bells

BL-One CS Bell

BL-Passage

BL-Satin

BL-Tremolos

BL-Very Analog

FX / Drone

FX-Cochon in Space

FX-Dayvan Indian

FX-Droning

FX-Glissandi

FX-Haunted Flat

FX-Interstellar

FX-Kaufman Synchronus

FX-LoFi CoalRider

FX-Move Away

FX-Neptoms

FX-Noise Dunes

FX-Quasi Quasar

FX-Rue of Terra

FX-Sub Liminal

FX-Sweep Machine

FX-Talking Tex

FX-Tube Thanks

Keyboards

KB-CS Analog Piano 1

KB-CS Analog Piano 2

KB-CS Analog Piano 3

KB-Dirty Organ

KB-Dynogital

BS-L0c0m0t1v8r

BS-Magus Electrus

BS-Multi Polarity

BS-Music and Nights

BS-Obese

BS-One Note Line

BS-TB Progress

BS-TrenZ Diana

BS-Underground

BS-Way Sub

BS-Yeti Bass

BS-You and Bass

BS-Your Freek

BS-Zapp Nostalgia

Play Chords

CH-8bit Stew Fly

CH-Accelerator

CH-Analog Crunch

CH-Decade Inversion

CH-Evolu Chord Wheel

CH-Little Monster

CH-Mahyem Ragga

CH-Move On

CH-Nate FF1087

CH-Parallel Predators

CH-Relaxing Wheel

CH-Starlight

CH-Talking One

CH-U Di Paris

CH-Windax Boxer

KB-Fantasiatic

KB-HarpsYanalog

KB-Key Tooma

KB-King Court

KB-Majestic Keys

KB-Majestic Organ

KB-Molecular

KB-Nick Wheel Organ

KB-Oldganic

KB-Orgalogic

KB-Organ 20M

KB-Pluck Road

KB-PMW Keys

KB-Prophet Tines

KB-Seq Clavistan

KB-Short Piano

KB-Soft Pluck

KB-Space Caroussel

KB-Synth Piano

KB-Troshrgan

KB-Vox Populi

Lead

LD-Cajolead

LD-Creamy Synth

LD-CS One Two

LD-CSolo 70M

LD-CSweep Lead

LD-FeedbacKing

LD-First Lead

LD-Funky Cucumber

LD-Fusion Lead

LD-Green Show New

LD-Guitar Air HO

LD-Hernani

LD-Mono AL

LD-NoiSolo

LD-Screamer

LD-Seventh Dimension

LD-Short Cop X

LD-Slow Solo

LD-Strange LFO

LD-Very Short One

LD-Vocal Theremin

LD-Wha Wheel Solo

LD-Xtatic Motion

Noisy

NS-ColdnQuiet

NS-Guiznoiso

NS-Noise Melody

NS-Noisonic Pad

NS-Ominousea

Pads

PD-86 Skies Full Wheel

PD-Analog Pure

PD-ARP Ominous

PD-Beautypad

PD-Creamy Flutter

PD-Creative Wheel

PD-Dark Volute

PD-Du ALmosphere

PD-Geologic

PD-Granular Soft

PD-Hall of Grain

PD-Hornalog Pad

PD-Hybrid Choir

PD-Joy Arp

PD-Little Planet

PD-Morpho

PD-Network Reso

PD-Orchestranalog

PD-PortArpmento

PD-Step Walking

PD-Urban Bed

Polysynth

PL-Big Power One

PL-Busy Times

PL-CS One Saw Fee

PL-Full Ens Synth

PL-Laughing Factory

PL-Numericharp

PL-Poly Game

PL-PolyGrain

PL-Portamanteau

PL-Raining Pluck

PL-Stab Island

PL-Submarine Scream

PL-Tekno Idea

Strings

ST-Bi Spectral Strings

ST-Ensemble Machine

ST-In a Box

ST-Lina Star

ST-Mutronic Strings

ST-My Eminent

ST-Noisycato

ST-Pizzanalog

ST-Soloist

Sweep

SW-Classic Jarr

SW-CreaSweep

SW-Fidel

SW-Inverted

SW-Majestueux

SW-Moment of Clarity

SW-Monowheelist

SW-Mosquito

SW-Original Sweep

14

Raw Waves

Raw Solo

Bass Lead

CSolo 70M

Double Seq

Laser

Pluck

Power Grain

Seq Clav

Solo Soft

Unison

Bass Lead 1

Bass Lead 2

Dirty Organ

Orchestral Brass

Polyson

Power Uni

Resophonic

Soft Pad

Thing Long

Ensemble

CSweep 70M

Full Ensemble

Lina Strings 1

Lina Strings 2

Machine String

Softy Brassy

Raw Poly

Bright Pad

Elec Piano

French Hornalog

Grain Soft 1

Grain Soft 2

OBrass

Power Wave

Short Piano

Waves

Saw

Sine

Sine-Saw

Square PWM 1

Square PWM 2

Square PWM 3

Square-Saw PWM 1

Square-Saw PWM 2

Square-Saw-Sine PWM 1

Square-Saw-Sine PWM 2

Waves Noises

Noise BP Raw

Noise BP Reso

Noise Flat Raw

Noise Flat Reso 1

Noise Flat Reso 2

Noise HP Raw

Noise HP Reso

Noise Unison Raw

Noise Unison Reso 1

Noise Unison Reso 2

Sub Noise Unison

Waves Unison

Sine-Saw Uni

Sine-Square Uni

Square-Saw Uni

Square-Saw-Sine Uni

20M Sounds

Big One

Big Two

Fifth Avenue

Funky Bass

Gizmono

Lazer

Noisonic

Organic

Pianoise

PortHardmento

SeqOrgan

Technoid

20M Waves

Noise

Saw

Sine

Square PWM 0

Square PWM 2

Square PWM 4

Square PWM 6

Square PWM 8

Triangle

CS01 Waves

PWM 1

PWM 3

PWM 5

PWM 7

PWM 9

Saw

Square 1

Square 2

Triangle

WhiteNoise

15

UVI Workstation: Tips + Tricks

MIDI Learn Arpeggiator

Most UVI Workstation parameters can be automated via. a convenient

MIDI Learn. MIDI Learn allows you to bind a physical MIDI controller to specific parameters within UVI Workstation.

Any FX tab parameter, Macro Knob or Slider in UVI instruments can use the MIDI Learn feature

The MIDI controller type and the MIDI Channel assignment will be saved with the multi or with your song in the host sequencer

Automation is assigned per-part

To use MIDI Learn:

1. Right-click the parameter in UVI Workstation that you want to automate

2. After the MIDI Learn dialog appears, Trigger the desired MIDI input controller (knob, fader etc.)

To remove a MIDI controller assignment:

Right-click the desired parameter and press “Delete”

Unlimited FX

UVI Workstation comes equipped with a robust arpeggiator. To insert an arpeggiator in a part, you need to display the Single view in the

UVI Workstation, then click on the note icon. The arpeggiator can be employed as a pattern gate, arpeggiator, or even an advanced rhythmic processor for your live MIDI performance or sequenced MIDI tracks. Arpeggiators can be inserted in an unlimited number of parts.

Preset Stacking

Thanks to the simplicity of the UVI Workstation you can stack as many presets as you want by simply assigning multiple parts on the same MIDI channel.

Split, Velocity & Key Switch

UVI Workstation offers a wide variety of FX, or effect processors, to cover all your audio processing needs. The FX implementation is robust and includes the ability to insert unlimited FX slots in several stages of the signal flow.

Click the “FX” tab to open the FX page on the Single view

In Multi view the FX section is always displayed

The Keyswitch settings allow you to load multiple presets into two or more parts and dynamically play and mute them from your MIDI controller using key switching, note range, velocity range or any combination of the three parameters. This powerful feature gives you a great deal of real-time control.

Scroll Wheel

All knobs can be adjusted with the scroll wheel on your mouse.

When you double-click on any knob or slider, you can manually enter or type in the desired value.

16

Links

UVI

Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . uvi.net/

Download UVI Workstation and User Manuals . . . . . . . . . . . . . . . . . . uvi.net/downloads

Your Registered Product Serial Numbers and Download Links. . . . . . . . . uvi.net/my-products

FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . uvi.net/faq

Tutorial and Demo Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . youtube.com/

Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . uvi.net/contact-support

iLok

Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ilok.com/ iLok License Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ilok.com/ilm.html

FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ilok.com/supportfaq

17

Credits and Thanks

Produced by UVI

Recording / Editing / Sound Design

Damien Vallet

Emmanuel Usai

Kevin Guilhaumou

Alain J Etchart

Nathaniel Reeves

Software + Scripting

Olivier Tristan

Remy Muller

GUI + Design

Nathaniel Reeves

Special Thanks

Manu @ Masterwave

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
