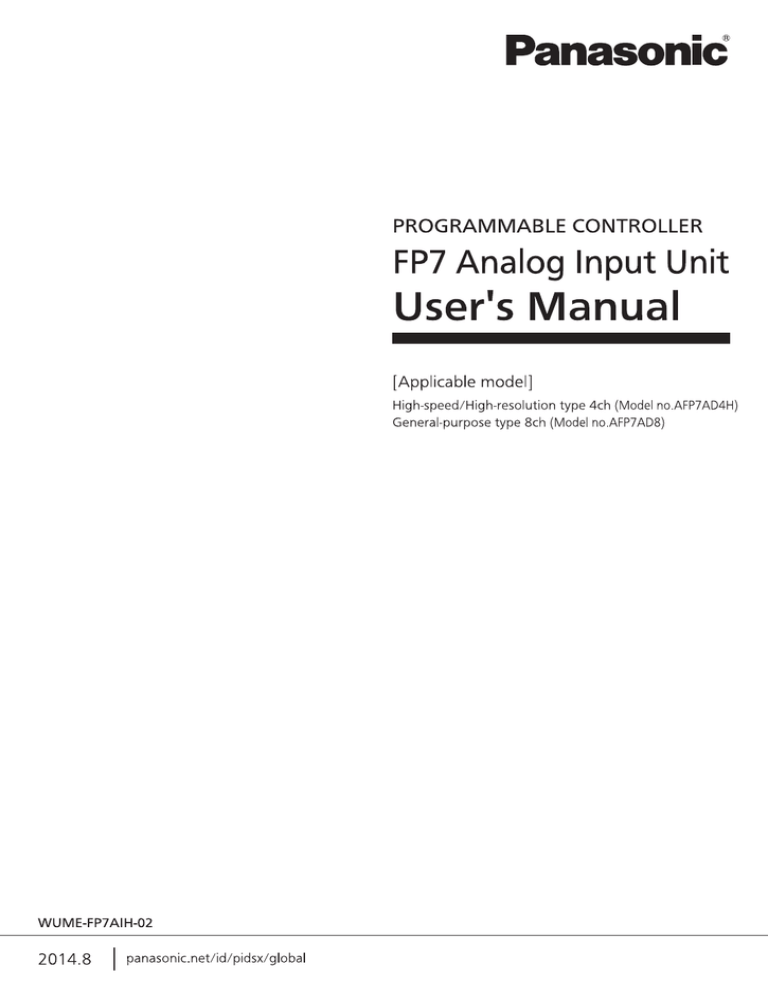

FP7 Analog Input Unit User`s Manual

FP7 Analog Input Unit User`s Manual

Safety Precautions

Observe the following notices to ensure personal safety or to prevent accidents.

To ensure that you use this product correctly, read this User’s Manual thoroughly before use.

Make sure that you fully understand the product and information on safety.

This manual uses two safety flags to indicate different levels of danger.

WARNING

If critical situations that could lead to user’s death or serious injury is assumed by

mishandling of the product.

-

Always take precautions to ensure the overall safety of your system, so that the whole system remains safe in the event of failure of this product or other external factor.

-Do not use this product in areas with inflammable gas. It could lead to an explosion.

-Exposing this product to excessive heat or open flames could cause damage to the lithium battery or other electronic parts.

CAUTION

If critical situations that could lead to user’s injury or only property damage is

assumed by mishandling of the product.

-To prevent excessive exothermic heat or smoke generation, use this product at the values less than the maximum of the characteristics and performance that are assured in these specifications.

-Do not dismantle or remodel the product. It could cause excessive exothermic heat or smoke generation.

-Do not touch the terminal while turning on electricity. It could lead to an electric shock.

-Use the external devices to function the emergency stop and interlock circuit.

-Connect the wires or connectors securely.

The loose connection could cause excessive exothermic heat or smoke generation.

-Do not allow foreign matters such as liquid, flammable materials, metals to go into the inside of the product. It could cause excessive exothermic heat or smoke generation.

-Do not undertake construction (such as connection and disconnection) while the power supply is on. It could lead to an electric shock.

Copyright / Trademarks

-This manual and its contents are copyrighted.

-You may not copy this manual, in whole or part, without written consent of

Panasonic

Industrial Devices SUNX Co., Ltd.

-Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

-All other company names and product names are trademarks or registered trademarks of their respective owners.

PLC_ORG

Introduction

Thank you for buying a Panasonic product. Before you use the product, please carefully read the installation instructions and the users manual, and understand their contents in detail to use the product properly.

Types of Manual

• There are different types of users manual for the FP7 series, as listed below. Please refer to a relevant manual for the unit and purpose of your use.

• The manuals can be downloaded on our website: http://industrial.panasonic.com/ac/e/dl_center/manual/ .

Unit name or purpose of use

FP7 Power Supply Unit

Manual name

FP7 CPU Unit Users Manual (Hardware)

Manual code

WUME-FP7CPUH

FP7 CPU Unit

FP7 CPU Unit Command Reference Manual

FP7 CPU Unit Users Manual

(Logging Trace Function)

Instructions for Built-in LAN

Port

Instructions for Built-in

COM Port

FP7 Extension Cassette

(Communication)

(RS-232C/RS485 type)

FP7 Extension Cassette

(Communication) (Ethernet type)

FP7 Extension (Function)

Cassette

Analog Cassette

FP7 Digital Input/Output Unit

FP7 Analog Input Unit

FP7 Analog Output Unit

FP7 Thermocouple Multianalog Input Unit

FP7 RTD Input Unit

FP7 CPU Unit Users Manual (Security Function)

FP7 CPU Unit Users Manual

(LAN Port Communication)

FP7 series Users Manual (SCU communication)

FP7 series Users Manual (Communication cassette Ethernet type)

FP7 Analog Cassette Users Manual

FP7 Digital Input/Output Unit Users Manual

FP7 Analog Input Unit Users Manual

FP7 Analog Output Unit Users Manual

FP7 Thermocouple Multi-analog Input Unit

FP7 RTD Input Unit

Users Manual

FP7 High-speed counter Unit

FP7 Pulse Output Unit

FP7 High-speed counter Unit Users Manual

FP7 Pulse Output Unit Users Manual

FP7 Positioning Unit FP7 Positioning Unit Users Manual

FP7 Serial Communication Unit FP7 series Users Manual (SCU communication)

PHLS System

Programming Software

FPWIN GR7

PHLS System Users Manual

FPWIN GR7 Introduction Guidance

WUME-FP7CPUPGR

WUME-FP7CPULOG

WUME-FP7CPUSEC

WUME-FP7LAN

WUME-FP7COM

WUME-FP7CCET

WUME-FP7FCA

WUME-FP7DIO

WUME-FP7AIH

WUME-FP7AOH

WUME-FP7TCRTD

WUME-FP7HSC

WUME-FP7PG

WUME-FP7POSP

WUME-FP7COM

WUME-PHLS

WUME-FPWINGR7

Table of Contents

Table of Contents

1. Unit Functions and Restrictions ........................................ 1-1

1.1

Unit Functions and Operation ................................................................. 1-2

1.1.1 Unit Type ................................................................................................. 1-2

1.1.2 Unit Type ................................................................................................. 1-3

1.2

Basic Operation of Analog Input Processing .......................................... 1-4

1.3

Restrictions on Units Combination ......................................................... 1-5

1.3.1 Restriction by Power Consumption ......................................................... 1-5

1.3.2 Applicable Versions of Unit and Software ............................................... 1-5

2. Names and Functions of Parts .......................................... 2-1

2.1

Analog Input Unit .................................................................................... 2-2

3. Wiring ................................................................................... 3-1

3.1

Wiring of Terminal Block ........................................................................ 3-2

3.2

Connecting Analog Input ........................................................................ 3-3

3.2.1 Precautions When Connecting Analog Input Signal ............................... 3-3

3.2.2 AFP7AD4H .............................................................................................. 3-3

3.2.3 AFP7AD8 ................................................................................................ 3-5

3.3

Trigger Input Terminal TRIG Specifications ........................................... 3-6

4. Unit Settings and data Reading ......................................... 4-1

4.1

Confirming the I/O Number Allocations and Starting Word Number ............................ 4-2

ii

Table of Contents

4.1.1 Occupied I/O Area and I/O Allocations ................................................... 4-2

4.1.2 Confirming the I/O Number Allocations ................................................... 4-5

4.2

Option settings ........................................................................................ 4-6

4.2.1 Configuration of Analog Input unit ........................................................... 4-6

4.2.2 Unit Setting and Conversion Processing Time ....................................... 4-9

4.3

Reading Analog Input Data ................................................................... 4-10

4.3.1 Reading Analog Input Data ................................................................... 4-10

4.4

Data Acquisition Timing ........................................................................ 4-11

5.

Conversion Characteristics of Analog Input Unit ............ 5-1

5.1

Voltage Range ........................................................................................ 5-2

5.1.1 Voltage Input Range: -10 to +10 V (0.32 mV, 1/62,500) ......................... 5-2

5.1.2 Voltage Input Range: 0 to +10 V (0.32 mV, 1/31,250) ............................ 5-3

5.1.3 Voltage Input Range: 0 to +5 V (0.16 mV, 1/31,250) .............................. 5-3

5.1.4 Voltage input range: 1 to 5 V (0.16 mV, 1/25,000) .................................. 5-4

5.2

Current Range ........................................................................................ 5-5

5.2.1 Current Input Range: 0 to +20 mA (0.64μA, 1/31,250) ........................... 5-5

5.2.2 Current Input Range: +4 to +20 mA (0.64μA, 1/25,000) ......................... 5-5

6.

Optional Settings ................................................................. 6-1

6.1

Average Processing Settings .................................................................. 6-2

6.1.1 Number of Averaging Times ................................................................... 6-2

6.1.2 Time Average .......................................................................................... 6-3

6.1.3 Moving Average ...................................................................................... 6-4

6.2

Offset/Gain processing ........................................................................... 6-5

6.3

Scale Conversion .................................................................................... 6-7

6.4

Comparison for Upper and Lower Limits ................................................ 6-8

6.5

Holding Max./Min. Values ..................................................................... 6-11

iii

Table of Contents

6.6

Disconnection detection ....................................................................... 6-14

6.7

Buffer Settings ...................................................................................... 6-16

6.7.1 Overview of Buffer Function .................................................................. 6-16

6.7.2 Buffering by Trigger Output Relay ......................................................... 6-18

6.7.3 Buffering by External Input Trigger ....................................................... 6-20

6.7.4 Buffering Triggered by Value Change in Analog Input .......................... 6-22

6.8

Configuration by Programming ............................................................. 6-24

7. What to Do If an Error Occurs ............................................ 7-1

7.1

What to Do If an Error Occurs (Analog Input) ........................................ 7-2

7.1.1 Failure in Reading Analog Input Data ..................................................... 7-2

7.1.2 Unstable Analog Input Conversion Value ............................................... 7-2

7.1.3 No Proper Conversion Values Obtained with Current Input ................... 7-2

8. Specifications ...................................................................... 8-1

8.1

Specifications ......................................................................................... 8-2

8.1.1 General Specifications ............................................................................ 8-2

8.1.2 Performance Specifications (AFP7AD4H) .............................................. 8-3

8.1.3 Performance Specifications (AFP7AD8) ................................................. 8-4

8.2

I/O Allocation .......................................................................................... 8-5

8.3

List of Unit Memories .............................................................................. 8-8

8.3.1 List of Unit Memory Number.................................................................... 8-8

8.4

List of Detailed Specifications of Unit Memories .................................. 8-10

8.5

Dimensions ........................................................................................... 8-17

iv

1

Unit Functions and

Restrictions

Unit Functions and Restrictions

1.1 Unit Functions and Operation

1.1.1 Unit Type

Features of analog input unit

The analog input unit receives various analog values (i.e., voltage, current, and temperature values) from laser analog sensors and pressure sensors and converts them internally into digital values.

• The analog input unit can receive input through a number of channels.

Analog input units: 4 channels (AD4H) / 8 channels (AD8)

Six types of input ranges can be selected to support a variety of connecting equipment.

• The speed of conversion, such as voltage/current range conversion, is as high as 25

μs/channel (non-isolated).

• Converts input analog values into digital data with up to 16 bits in a resolution range of

1/25,000 to 1/62,500.

1-2

1.1 Unit Functions and Operation

Various optional functions

Functions to process loaded analog input data are provided. User programs can be simplified.

Function

Average processing settings

Offset/Gain processing settings

Scale conversion setting

Upper/lower limit value comparison setting

Max./Min. hold setting

Disconnection detection

Buffer function

Description

Averages analog values obtained by sampling and stores them in the I/O area as digital values. It can be selected from No. of averaging times, time average and moving average.

Performs the correction of offset values (addition correct) or gain values

(magnification correction), and stores the data after processing in the I/O area.

This function is to scale-convert values to an easy-to-use data range. Converts values to digital values in the specified range (min. value and max. value), and stores the processed data in the I/O area. This function is convenient if used for unit conversion.

This function compares acquired data with the upper limit and lower limit and turns ON the upper limit relay or lower limit relay if the acquired data exceeds the upper limit value or lower limit value.

This function maintains the maximum and minimum values of acquired data.

Holds the maximum and minimum digital conversion values when the maximum/minimum value hold setting is enabled, and stores the values in provided unit memories for each channel.

Turns ON the disconnection detection flag when input is disconnected or unconnected when selecting the range of 1-5 V 4-20 mA, and warns of the error state.

This function is to store digital conversion values loaded with a desired period.

Any of the changes in user program, external digital input or analog input value can be selected as a trigger.

1.1.2 Unit Type

Name

FP7 Analog I/O Unit

Specifications

Input 4ch

Input 8ch

Voltage input range:

-10 to +10 V, 0 to +5 V, 1 to +5 V, -100 to

+100 mV

Current input range:

0 to +20 mA, 4 to +20 mA

Product no.

AFP7AD4H

AFP7AD8

1-3

Unit Functions and Restrictions

1.2 Basic Operation of Analog Input Processing

Analog input is processed as explained below.

Operation of analog input unit

(1) Receiving analog input

The analog input unit receives analog input data from analog devices, such as laser analog sensors and pressure sensors.

(2) Digital conversion processing

Analog input data received by the unit is converted into digital values in sequence automatically.

(3) Storage of digital values

A user program is used to read converted digital values as data in the input relay area (WX).

Option setting

The following option setting functions are provided for analog input processing. Any of the option setting functions can be set by writing the function to the unit memory (UM) by using the configuration menu of the FPWIN GR7 or a user program.

• Average processing (number of times, time average, and moving average)

• Scale conversion

• Offset/Gain processing

• Holding Max./Min.

• Comparison for upper and lower limits

• Disconnection detection

• Buffering

1-4

1.3 Restrictions on Units Combination

1.3 Restrictions on Units Combination

1.3.1 Restriction by Power Consumption

The unit has the following internal current consumption. Make sure that the total current consumption is within the capacity of the power supply with consideration of all other units used in combination with the analog input unit.

Name

FP7 analog input unit (High-speed and High-accuracy type)

FP7 Analog Input Unit (Generalpurpose type)

Product no.

AFP7AD4H

AFP7AD8

Current consumption

100 mA or less

85 mA or less

1.3.2 Applicable Versions of Unit and Software

For using the above units, the following versions of CPU units and software are required.

Name Product no.

Applicable version

CPU unit FPWINGR7

FP7 Analog Input Unit

(High-speed and Highaccuracy type)

FP7 Analog Input Unit

(General-purpose type)

AFP7AD4H

AFP7AD8

Ver.1.0 or later

Ver.3.1 or later

Ver.1.0 or later

Ver.2.4 or later

1-5

Unit Functions and Restrictions

1-6

2

Names and Functions of

Parts

Names and Functions of Parts

2.1 Analog Input Unit

Names and functions of parts

(1) Operation monitor LEDs

LED name LED color

- Blue

Contents

Lit when the CPU unit is turned ON.

ERROR

ALARM

Red

Red

Lit if the configuration settings are beyond the allowable range or A/D conversion is not possible.

Lit if the hardware has an error.

(2) Terminal block release lever

To remove the analog input terminal block, push the release lever downward.

(3) DIN rail attachment lever

This lever is used to fix the unit to the DIN rail.

(4) Unit Connector

Connects to other I/O units and high-function units.

(5) Analog input terminal block

The terminal block is removable. Remove the terminal block before wiring.

Solderless terminals for M3 can be used.

(8) Fixing hook

Used to secure the unit with another unit.

2-2

3

Wiring

Wiring

3.1 Wiring of Terminal Block

Suitable solderless terminals/wires

M3 terminal screws are used for the terminal. The following suitable solderless terminals are recommended for the wiring to the terminals

• Suitable solderless terminals

Manufacturer

J.S.T. Mfg Co., Ltd.

Shape

Round type

Fork type

Round type

Fork type

• Suitable wires

Suitable wires

AWG22 to 14 (0.3 mm

2

to 2.0 mm

2

)

Part no.

1.25-MS3

1.25-B3A

2-MS3

2-N3A

Tightening torque

0.5 to 0.6N ∙m

Suitable wires

0.25 to 1.65 mm

2

1.04 to 2.63 mm

2

Connection to the terminal block

Remove the terminal block before beginning the wiring operations.

To remove the terminal block, push the release lever located at the top of the terminal block downward.

<Bottom of unit>

Lock button

Install the terminal block by inserting it all the way to its original position and pressing the lock button on the bottom of the unit. Then confirm that the terminal block is securely attached and cannot be removed.

3-2

3.2 Connecting Analog Input

3.2 Connecting Analog Input

3.2.1 Precautions When Connecting Analog Input Signal

• Use double-core twisted-pair shielded wires. It is recommended to ground them.

However, depending on the conditions of the external noise, it may be better not to ground the shielding.

• Do not have the analog input wiring close to AC wires, power wires, or load line from a device other than PLC. Also, do not bundle it with them.

3.2.2 AFP7AD4H

• For the current input, connect the V and I terminals.

• The trigger input terminal is used for using the buffer function with external input signals as trigger signals. It does not need to be connected when this function is not used.

Wiring Diagram and Internal Circuit Diagram (For voltage input)

Input device

Shield

Vn

In

COMn

PhotoMOS relay

1MΩ

250Ω

TRIGn

24V DC

T-COMn

5.1kΩ

Terminal layout (For voltage input)

For voltage input CH1

For voltage input CH3

24V DC

V1

I

1

COM1

V3

I

3

COM3

TRIG1

TRIG3

T-COM13

V0

I

0

COM0

V2

I

2

COM2

TRIG0

TRIG2

T-COM02

For voltage input CH0

For voltage input CH2

24V DC

910Ω

3-3

Wiring

Wiring Diagram and Internal Circuit Diagram (For current input)

Input device

Shield

Vn

In

COMn

PhotoMOS relay

1MΩ

250Ω

TRIGn

24V DC 910Ω

T-COMn

5.1kΩ

(Note) For the current input, connect the V and I terminals.

Terminal layout (For current input)

For current input CH1

For current input CH3

V1

I

1

COM1

V3

I

3

COM3

V0

I

0

COM0

V2

I

2

COM2

For current input CH0

For current input CH2

24V DC

TRIG1

TRIG3

T-COM13

TRIG0

TRIG2

T-COM02

24V DC

(Note 1)TRIG0 to TRIG3 of AFP7AD4H indicate input terminal numbers. Note that they do not correspond to the analog inputs "CH0 to CH3".

3-4

3.2 Connecting Analog Input

3.2.3 AFP7AD8

• The voltage input and the current input switched by the configuration setting.

• The trigger input terminal is used for using the buffer function with external input signals as trigger signals. It does not need to be connected when this function is not used.

Wiring Diagram and Internal Circuit Diagram (For voltage input and current input)

Input device

Vn / In

(*)

Shield

COMn

250Ω

TRIG

2kΩ

24V DC

680Ω

T-COM

(*) The connection of the circuit varies according to the configuration setting.

Terminal layout (For voltage input and current input)

For input CH1

For input CH3

For input CH5

For input CH7

V1 / I1

COM1

V3 / I3

COM3

V5 / I5

COM5

V7 / I7

COM7

T-COM

V0 / I0

COM0

V2 / I2

COM2

V4 / I4

COM4

V6 / I6

COM6

TRIG

For input CH0

For input CH2

For input CH4

For input CH6

24V DC

3-5

Wiring

3.3 Trigger Input Terminal TRIG Specifications

The trigger input terminal is used when the buffer function is used with an external input signal as a trigger signal. This terminal needs not be connected if these functions are not used.

Description

Items

Insulation system

Rated input voltage

Rated input current

Input impedance

Operating voltage range

Min. ON voltage/Min. ON current

Max. OFF voltage/Max. OFF current

Response time OFF→ON

ON→OFF

Input points per common

External connection method

Description

AFP7AD4H

Optical coupler

AFP7AD8

24 V DC

Approx. 4.5 mA (at 24 V)

Approx. 5.1kΩ

21.6 to 26.4 V DC

Approx. 12 mA (at 24 V)

Approx. 2kΩ

19.2 V/3.5 mA

5 V/1.5 mA

0.2 ms or less

0.2 ms or less

0.1 ms or less

0.1 ms or less

2 point/1 common 1 point/1 common

Terminal block connections (M3 terminal screws)

3-6

4

Unit Settings and data

Reading

Unit Settings and data Reading

4.1 Confirming the I/O Number Allocations and Starting Word Number

4.1.1 Occupied I/O Area and I/O Allocations

• Input data is allocated to the external input relay areas (WX).

• To the I/O areas of the thermocouple multi analog input unit and RTD input unit, an area to set optional functions and an area to reset errors are allocated.

Input contact

I/O area

No.

WX0

Name

CH0 Analog conversion data

Default Description

WX1

WX2

WX3

WX4

WX5

WX6

WX7

WX8

WX9

WX10

WX11

WX12

WX13

CH0 Optional function flag

CH1 Analog conversion data

CH1 Optional function flag

CH2 Analog conversion data

CH2 Optional function flag

CH3 Analog conversion data

CH3 Optional function flag

CH4 Analog conversion data

CH4 Optional function flag

CH5 Analog conversion data

CH5 Optional function flag

CH6 Analog conversion data

CH6 Optional function flag

K0

H0

K0

H0

K0

H0

K0

H0

K0

H0

K0

H0

K0

H0

Analgo conversion data area

Digital converted values corresponding to the analog input is stored.

<Voltage range>

-10 to +10 V: -31,250 to +31,250

0 to +10 V or 0 to +5 V: 0 to +31,250

+1 to +5 V: 0 to +25,000

<Current range>

0 to +20 mA: 0 to +31,250

+4 to +20 mA: 0 to +25,000

Optional function flag area

Refer to the table on the next page.

WX14

WX15

CH7 Analog conversion data

CH7 Optional function flag

K0

H0

(Note 1): The I/O numbers in the table indicates offset addresses. The I/O numbers actually allocated are the numbers based on the starting word number allocated to the unit. Example) When the starting word number for the unit is "10", the A/D conversion data of CH0 is WX10 and the error flag is X11F.

(Note 2) It is A/D conversion data within the specified scale range when setting the scale conversion setting.

(Note 3) The digital converted value corresponding to about 2 V of analog input is displayed for channels which are not connected to input when setting the voltage range with AFP7AD8.

4-2

4.1 Confirming the I/O Number Allocations and Starting Word Number

Input contact (Optional functions/Error flag area)

I/O No.

CH0 CH1 CH2 CH3 CH4 CH5 CH6 CH7

Name Description

ON with disconnection detected and OFF with disconnection restored.

(Valid for 1 to 5 V and 4 to 20 mA ranges only)

Turns ON when the value exceeds the set upper limit.

Turns OFF when the value drops below the set lower limit.

X13 X33 X53 X73 X93 X113 X133 X153

Upper/Lower limit comparison execution flag

X14 X34 X54 X74 X94 X114 X134 X154 Not used

Turns ON when the upper limit/lower limit comparison function is executed.

Do not use.

Turns ON when the max./min. hold function is executed.

X16 to

X17

X36 to

X37

X56 to

X57

X76 to

X77

X96 to

X97

X116 to

X117

X136 to

X137

X156 to

X157

Not used Do not use.

X18 - - - - - - -

Buffer function execution flag

On when the buffer function is executed.

X19

X1A

X1B

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Buffering flag

Buffering completion flag

Data before triggering enable flag

ON when buffering starts after the trigger is accepted.

OFF when the number of buffer data items is reached.

ON when the shared memory has become accessible after completion of buffering.

OFF on completion of buffer data reading.

ON when the number of buffer data items before triggering has reached the set value.

OFF on completion of buffer data reading.

X1C to

X1E

X3C to

X3E

X5C to

X5E

X7C to

X7E

X9C to

X9E

X11C to

X11E

X13C to

X13E

X15C to

X15E

Not used

X1F X3F X5F X7F X9F X11F X13F X15F Error flag

Do not use.

Turns ON when an error occurs

(Note 1): The I/O numbers in the table indicates offset addresses. The I/O numbers actually allocated are the numbers based on the starting word number allocated to the unit. Example) When the starting word number for the unit is "10", the error flag is X11F.

(Note 2) The conditions of the buffer function (i.e., the buffer function execution flag, buffering flag, buffering completion flag, and data enable flag before triggering) are allocated to the input contacts for CH0.

4-3

Unit Settings and data Reading

Output contact (Optional functions/Error flag area)

I/O No.

CH0 CH1 CH2 CH3 CH4 CH5 CH6 CH7

Name

Y0 Y10 Y20 Y30 Y40 Y50 Y60 Y70

Disconnection detection execution relay

Y1 Y11 Y21 Y31 Y41 Y51 Y61 Y71

Y2 Y12 Y22 Y32 Y42 Y52 Y62 Y72

Not used

Y3 Y13 Y23 Y33 Y43 Y53 Y63 Y73

Upper/Lower limit comparison execution relay

Y4 Y14 Y24 Y34 Y44 Y54 Y64 Y74 Not used

Y6 Y16 Y26 Y36 Y46 Y56 Y66 Y76 Not used

Y7 Y17 Y27 Y37 Y47 Y57 Y67 Y77 Not used

Y8

Y9

YA

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Buffer execution relay

Buffer trigger relay

Buffer data read completion relay

Description

ON to execute the disconnection detection function.

OFF to turn OFF the disconnection detection flag (Xn0).

(Valid for 1 to 5 V and 4 to 20 mA ranges only)

Do not use.

ON to execute the function to compare the upper and lower limits.

OFF to turn OFF the upper limit comparison relay (Xn1) and lower limit comparison relay (Xn2).

Do not use.

ON to execute the max./min. hold function.

Do not use.

Do not use.

When the buffer function is enabled, trigger acceptance will be permitted with the buffer execution relay turned ON.The internal state transition will be initialized with the buffer execution relay turned

OFF.

If "Trigger relay" is set in trigger setting, triggering will start with the trigger relay turned ON.

ON for one scan upon completion of readign buffer data from the shared memory with a user program. Goes to the state of trigger acceptance permitted after clearing the buffer memory.

YB to

YE

Y1B to

Y1E

Y2B to

Y2E

Y3B to

Y3E

Y4B to

Y4E

Y5B to

Y5E

Y6B to

Y6E

Y7B to

Y7E

Not used Do not use.

Resets an error flag.

(Note 1): The I/O numbers in the table indicates offset addresses. The I/O numbers actually allocated are the numbers based on the starting word number allocated to the unit. Example) When the starting word number for the unit is "10", the disconnection detection execution relay of CH0 is Y100, and the error flag reset relay is

Y10F.

(Note 2) The operation of the buvver function (consisting of the buffer execution relay, buffer trigger relay, and buffer data read completion relay) is specified by the output contacts for CH0.

4-4

4.1 Confirming the I/O Number Allocations and Starting Word Number

4.1.2 Confirming the I/O Number Allocations

• I/O numbers and base word numbers are always necessary when writing programs. Always check to see if the numbers match the design.

• I/O numbers allocated to the analog input unit are determined by the first word number.

Allocations to unit

Take the following procedure to set the first word number.

PROCEDURE

1. Select "Options" > "FP7 Configuration" > "I/O map" in the menu bar.

The "I/O map" dialog box is displayed.

2. Double-click the target slot where the operating unit is to be inserted.

3. Select “Analog I/O” and “Input Unit” in the unit selection field.

The following dialog box shows the case of AFP7AD4H.

4. Press the [OK] button.

The first word number specified is set.

4-5

Unit Settings and data Reading

4.2 Option settings

4.2.1 Configuration of Analog Input unit

Use the FPWIN GR7 configuration menu to make analog input unit settings, such as input range and isolation/non-isolation settings.

Setting method

The following steps are described on the condition that the analog input unit has been already allocated on the I/O map.

PROCEDURE

1. Select “Options” > “FP7 Configuration” > “I/O map” from the menu bar.

The "I/O map" dialog box is displayed.

2. Select the slot where the analog input unit is registered and press the

[Advanced] button.

The “Analog unit settings” dialog box is displayed.

3. Select a setting to be set from the left pain, and set desired items.

The following explanation shows the case of CH0 setting. Displayed items vary depending on the unit types and selected items.

4. Press the [OK] button.

The set value will become effective when the set value is downloaded together with a corresponding program as a project.

4-6

4.2 Option settings

Settings (AFP7AD4H)

Group

Basic setting items

(common to all channels)

Basic setting items

(per channel)

Option setting items

(per channel)

Setting item Settings Default

Isolation between channels Non-isolated/Isolated

Buffer function Not use/Use

Trigger type

Trigger input relay/rise of external input trigger/fall of external input trigger/rising time of analog input level/falling time of analog input level

External input trigger

Input level trigger CH

No. of buffer data items

No. of data items before triggering

Unused/TRIG0/TRIG1/TRIG2/TRIG3 Not used

Unused/CH0/CH1/CH2/CH3 Not used

1 to 10,000 1000

0 to 9,999

Non-isolated

Not use

Trigger input relay

0

Trigger cycle

Analog input trigger level

Conversion processing

Range setting

Average processing settings

Offset/Gain processing

Scale conversion

Comparison settings for upper and lower limits

Max./Min. hold

Disconnection detection settings

Disconnection detection reset

1 to 30,000

-31,250 to +31,250

Execute/Not execute

-10 to +10 V

0 to +10 V

0 to +5 V

+1 to +5 V

0 to +20 mA

+4 to +20 mA

Not execute/No. of averaging times/time average/moving average

Not execute/Execute

Not execute/Execute

Not execute/Execute

Not execute/Execute

Not execute/Execute

Auto/Manual

1

0

Execute

-10 to +10 V

Not execute

Not execute

Not execute

Not execute

Not execute

Not execute

Auto

Averaging constant

Times: 2 to 60,000 [times]

Time (non-isolated): 1 to 1,500 [ms]

Time (isolated): 200 to 60,000 [ms]

Moviing average: 2 to 2,000 [times]

-3,000 to +3,000

+9,000 to +11,000

200

0

+10,000

Offset value

Gain value

Scale conversion max. value

Scale conversion min. value

Upper limit comparison ON level

Upper limit comparison

OFF level

Lower limit comparison ON level

Lower limit comparison

OFF level

-30,000 to +30,000

-30,000 to +30,000

-31,250 to +31,250

-31,250 to +31,250

-31,250 to +31,250

-31,250 to +31,250

10,000

0

0

0

0

0

4-7

Unit Settings and data Reading

Settings (AFP7AD8)

Group

Basic setting items

(common to all channels)

Basic setting items

(per channel)

Option setting items

(per channel)

Setting item Settings

Isolation between channels

Buffer function

Trigger type

Input level trigger CH

Non-isolated only

Not use/Use

Trigger input relay/rise of external input trigger/fall of external input trigger/rising time of analog input level/falling time of analog input level

Unused/CH0/CH1/CH2/CH3/HC4/

CH5/CH6/CH7

1 to 8,000 No. of buffer data items

No. of data items before triggering

Trigger cycle

Analog input trigger level

Conversion processing

Range setting

Average processing settings

0 to 7,999

1 to 30,000

-31,250 to +31,250

Execute/Not execute

-10 to +10 V

0 to +10 V

0 to +5 V

+1 to +5 V

0 to +20 mA

+4 to +20 mA

Not execute/No. of averaging times/time average/moving average

Not execute/Execute

Not execute/Execute

Offset/Gain processing

Scale conversion

Comparison settings for upper and lower limits

Max./Min. hold

Upper limit comparison ON level

Upper limit comparison OFF level

Lower limit comparison ON level

Lower limit comparison OFF level

Not execute/Execute

Not execute/Execute

Disconnection detection settings

Disconnection detection reset

Not execute/Execute

Auto/Manual

Averaging constant

Offset value

Gain value

Times: 2 to 60,000 [times]

Time (non-isolated): 1 to 1,500 [ms]

Time (isolated): 200 to 60,000 [ms]

Moviing average: 2 to 2,000 [times]

-3,000 to +3,000

+9,000 to +11,000

Scale conversion max. value -30,000 to +30,000

Scale conversion min. value -30,000 to +30,000

-31,250 to +31,250

-31,250 to +31,250

-31,250 to +31,250

-31,250 to +31,250

Default

Non-isolated

Not use

Trigger input relay

Not used

1000

0

1

0

Execute

-10 to +10 V

0

0

0

0

+10,000

10,000

0

0

Not execute

Not execute

Not execute

Not execute

Not execute

Not execute

Auto

200

4-8

4.2 Option settings

4.2.2 Unit Setting and Conversion Processing Time

Conversion time varies with the configuration setting conditions.

Isolation setting and conversion processing time

• Isolated: 5 ms/ch • Non-isolated: 25 μs/ch

• The speed of A/D conversion processing will become faster if non-isolation is set. Each channel is isolated by switching the respective photo-MOS relays of the channels at the time of conversion. The photo-MOS relays are always turned ON at the time of non-isolation and the commons will be shared.

• For AFP7AD8, only the non-isolated setting is available.

Conversion processing execution/non-execution setting and conversion processing time

Select the execution or non-execution of the conversion processing of analog input on a channel-by-channel basis. This can save the conversion time for channels that do not execute conversion processing.

Example) Conversion time for four channels

Converted in the order of ch0→ch1→ch2→ch3→ch0→ch1→ch2→ch3→.... (1 cycle = 100 μs at the time of non-isolation)

Example) Conversion time for two channels (with CH2 and CH3 excluded).

Conversion is executed in the order of ch0→ch1→ch0→ch1→ch0→ch1→ch0→ch1→... and the conversion time for CH2 and CH3, which are excluded, is saved. (1 cycle = 50 μs at the time of non-isolation)

4-9

Unit Settings and data Reading

4.3 Reading Analog Input Data

4.3.1 Reading Analog Input Data

Basic Operation of Analog Input Processing

(1) Receiving analog input

The analog input unit receives analog input data from devices, such as laser analog sensors and pressure sensors.

(2) Digital conversion processing

Analog input data received by the unit is converted into digital values in sequence automatically in the unit. The converted digital value varies with the setting of the range.

(3) Storage of digital values

A user program is used to read converted digital values as data in the input relay area (WX).

The specified area number varies depending on the installation position of the unit.

V or I t

Program to Acquire Converted Digital Values

Reading the values in digital conversion value storage areas WX10, WX12, WX14, and WX16 to any areas of data registers ranging from DT100 to DT103.

R0

MV.SS

WX10

CH0 input

DT100

MV.SS

MV.SS

WX12

CH1 input

WX14

CH2 input

DT101

DT102

Transferring the digital data in analog input areas WX10, WX12,

WX14, and WX16 to data registers ranging from DT100 to DT103.

MV.SS

WX16

CH3 input

DT103

4-10

4.4 Data Acquisition Timing

4.4 Data Acquisition Timing

Input conversion processing time of analog input unit

Conversion processing time varies with the range and the number of channels in use. The conversion execution/non-execution channel function can save the conversion time for channels that do not execute conversion processing.

Example of 2-channel conversion

Converted in the order of ch0→ch1→ch0→ch1→....

Data acquisition timing of CPU unit

• Digital values converted by the analog input unit are input into the CPU unit at the I/O refreshing timing of the CPU unit.

• The conversion processing of the analog input unit is not synchronized with the I/O refreshing timing of the CPU unit. Therefore, the latest data is input into the operation memory of the CPU unit when the CPU unit implements I/O refreshing.

• Example of 4-channel conversion b c

Analog signal of ch0 a d e

Converts in the order of ch0→ch1→ch2→ch3

Processing in the analog input part

0 1 2 3 0 1 2 3 0 1 2 3 0 1 2 3 0

I/O refresh

Processing in the CPU unit

Data of ch0 to be read in the CPU unit a b c d

4-11

Unit Settings and data Reading

• Example of 1-channel conversion g c d e f b a

Analog signal of ch0 h i j k l m n o p q r

Processing in the analog input part

Processing in the CPU unit

Data of ch0 to be read in the CPU unit a c e g j l n p

Converts ch0 repeatedly

I/O refresh

4-12

5

Conversion Characteristics of Analog Input Unit

Conversion Characteristics of Analog Input Unit

5.1 Voltage Range

5.1.1 Voltage Input Range: -10 to +10 V (0.32 mV, 1/62,500)

Input range: -10 to +10 V

Analog input value

(V)

Digital conveted value

(K)

+10

+8

+6

+4

+2

0

-2

-4

-6

-8

+31,250

+25,000

+18,750

+12,500

+6,250

0

-6,250

-12,500

-18,750

-25,000

-10 -31,250

When exceeding the rated range

Analog input value

Converted value

+10 V or more

-10V or less

+31,250

-31,250

5-2

5.1 Voltage Range

5.1.2 Voltage Input Range: 0 to +10 V (0.32 mV, 1/31,250)

Input range: 0 to +10 V

Analog input value

(V)

Digital conveted value

(K)

+10

+8

+6

+4

+31,250

+25,000

+18,750

+12,500

+2 +6,250

0 0

When exceeding the rated range

Analog input value

Converted value

+10 V or more

0 V or less

+31,250

0

5.1.3 Voltage Input Range: 0 to +5 V (0.16 mV, 1/31,250)

Input range: 0 to +5 V

Analog input value

(V)

Digital conveted value

(K)

+5

+4

+3

+2

+31,250

+25,000

+18,750

+12,500

+1 +6,250

0 0

When exceeding the rated range

Analog input value

Converted value

+5 V or more

0 V or less

+31,250

0

5-3

Conversion Characteristics of Analog Input Unit

5.1.4 Voltage input range: 1 to 5 V (0.16 mV, 1/25,000)

Input range: 1 to 5 V

Analog input value

(V)

Digital conveted value

(K)

5

4

3

2

25,000

18,750

12,500

6,250

1 0

When exceeding the rated range

Analog input value

Converted value

5 V or more

1 V or less

25,000

0

5-4

5.2 Current Range

5.2 Current Range

5.2.1 Current Input Range: 0 to +20 mA (0.64μA, 1/31,250)

Input range: 0 to +20 mA

Analog input value

(mA)

Digital conveted value

(K)

+20

+16

+12

+8

+4

+31,250

+25,000

+18,750

+12,500

+6,250

0 0

When exceeding the rated range

Analog input value

Converted value

+20 mA or more

0 mA or less

+31,250

0

5.2.2 Current Input Range: +4 to +20 mA (0.64μA, 1/25,000)

Input range: +4 to +20 mA

Analog input value

(mA)

Digital conveted value

(K)

+20

+16

+12

+25,000

+18,750

+12,500

+8 +6,250

+4 0

When exceeding the rated range

Analog input value

Converted value

+20 mA or more

+4 mA or less

+25,000

0

5-5

Conversion Characteristics of Analog Input Unit

5-6

6

Optional Settings

Optional Settings

6.1 Average Processing Settings

6.1.1 Number of Averaging Times

Overview of functions

• Analog input data sampled by the unit is averaged and stored as digital values.

• If the number of averaging times is set, analog input data items acquired will be stored as digital values when the number of analog input data items reaches the set number of averaging times.

• If the number of data items acquired is less than the number of averaging times, the acquired data will be stored in the I/O area.

• Obtain the number of averaging times to be processed from the following input.

Input: The sum of analog input data items for the number of averaging times

Output: Number of averaging times value

Processing during the number of averaging times

Averaging setting example: The number of averaging times is set to 5.

Analog signal a b c d e f g h i j k l m n o p q r

Analog input processing

Average of a to e

Analog input data

Configuration

Name

Function setting

Average processing settings

Averaging constant

Default

Not execute

K200

Average of f to j

Average of k to o

Setting range and description

Select “the number of averaging times.”

Number: 2 to 60,000 [times]

(specified with an unsigned integer)

6-2

6.1 Average Processing Settings

6.1.2 Time Average

Overview of functions

• Analog input data sampled by the unit is averaged and stored as digital values.

• If time average is set, analog input data items acquired will be stored as digital values when the acquisition period of the analog input data items reaches the set averaging time.

• Obtain the time average to be processed from the following input.

Input: The sum of analog input data items for the number of averaging time

Output: Time average value

Processing during time average

Average setting example: Example of an averaging time of 5 ms

Analog signal

A0

A1

A2

Elapse of 5 ms

An

B0

B1 B2

Elapse of 5 ms

Bn

C0 C1 C2

・・・・・ ・・・・・

・・・・・

Analog input processing ・・・・・

・・・・・

Average of

A0 to An

・・・・・

Average of

B0 to Bn

Analog input data

Configuration

Name

Function setting

Default

Average processing settings

Not execute

Averaging constant K200

Setting range and description

Select “time average.”

Time (non-isolated): 1 to 1,500 [ms]

Time (isolated): 200 to 60,000 [ms] (For AD4H only)

(Specified with an unsigned integer)

6-3

Optional Settings

6.1.3 Moving Average

Overview of functions

• Analog input data sampled by the unit is averaged and stored as digital values.

• If moving average is set, analog input data items acquired will be stored as digital values when the number of analog input data items reaches the set number of moving average times.

• Obtain the number of averaging times to be processed from the following input.

Input: The number of average times, analog input data for the number of average times, the latest analog input data, and old analog input data

Output: Moving average value

Processing during moving average

Averaging setting example: The number of averaging times is set to 15. e f p c d g o q b h i n r a j m

Analog signal k l

・・・

Analog input processing

Average of a to o

Average of b to p

Average of c to q

・・・

Analog input data

・・・

Configuration

Name

Function setting

Average processing settings

Averaging constant

Default

Not execute

K200

Setting range and description

Select “moving average.”

2 to 2,000 [times] (specified with an unsigned integer)

6-4

6.2 Offset/Gain processing

6.2 Offset/Gain processing

Overview of Functions

• Offset value (added correction) and gain value (magnification correction) adjustments are made to store processed data in the I/O area.

Analog input data

Offset processing Gain processing

Analog postprocessing data

• Offset value settings are used as a function (zero-point adjustment) to make offset error adjustments between load devices. If the analog conversion value is K50 when the analog input value is 0 V, the analog conversion data is corrected to 0 V based on K-50 as an offset value.

(K) (K)

50

(V)

Offset processing

(V)

• Gain value settings are used as a function to adjust delicate scale errors between load devices. The gain value slope can be changed in a range of x0.9 to x1.1.

(K) (K)

Gain x 1.1

Gain x 0.9

(V)

Gain processing

(V)

• Offset/Gain processing is executed on a channel-by-channel basis.

6-5

Optional Settings

Configuration

Name

Function setting

Offset/Gain processing

Offset value

Gain value

Default

Not execute

K0

K10,000

Setting range and description

Select “Execute.”

Set an offset value at the time of using the offset processing function.

Setting range: -3,000 to +3,000 (specified with a signed integer)

Set an gain value at the time of using the gain processing function.

Setting range: +9,000 to 1+1,000 (0.9x to 1.1x: Specified with a signed integer)

The offset value is corrected to a value corresponding to the resolution of the input range of the original value regardless of whether scale conversion is set or not.

6-6

6.3 Scale Conversion

6.3 Scale Conversion

Overview of functions

• This function is to scale-convert values to an easy-to-use data range. It converts values to digital values in the specified range (min. value and max. value), and stores the processed data in the I/O area. This function is convenient if used for unit conversion.

• Scale conversion is executed on a channel-by-channel basis.

• Conversion values read from the analog input unit include fractions. Therefore, convert the values to easy-to-handle figures if needed.

(K)

25000

(K)

10000

12500

Scale conversion

5000

1 3 5

(V)

1 3 5

(V)

Configuration

Name Default Setting range and description

Function setting

Scale conversion

Minimum value of scale conversion

Maximum value of scale conversion

Not execute

K0

K10,000

Select “Execute.”

Set the minimum value at the time of using the scale conversion function.

Setting range: -30,000 to +30,000 (specified with a signed integer)

Set the maximum value at the time of using the scale conversion function.

Setting range: -30,000 to +30,000 (specified with a signed integer)

* If data outside the minimum or maximum scale is input, scale conversion will be disabled and the minimum or maximum scale value will be stored as a conversion value.

6-7

Optional Settings

6.4 Comparison for Upper and Lower Limits

Overview of Functions

This function compares acquired data with the upper limit and lower limit and turns ON the upper limit relay or lower limit relay if the acquired data exceeds the upper limit value or lower limit value.

• Comparison for upper and lower limits is executed on a channel-by-channel basis.

• The upper limit relay will turn ON if the digital conversion value is larger than the upper limit.

• The lower limit relay will turn ON if the digital conversion value is smaller than the lower limit.

• The function will be disabled with the comparison execution relay (Y) turned ON if the configuration-upper/lower limit comparison setting is not executed.

(K)

Upper limit comparison ON level

(2)

(3)

Upper limit comparison OFF level

Lower limit comparison OFF level

Digital converted value

Lower limit comparison ON level

(4)

(Flag)

Comparison execution relay

(*1)

Upper limit comparison relay

(*1)

Lower limit comparison relay

(*3)

Comparison execution flag

(*4 )

(1) (5)

(t)

(1) The upper/lower limit comparison function will be executed when the user program turns

ON the comparison execution relay.

(2) The upper limit comparison relay will turn ON if the upper limit comparison ON level or an upper level is detected

(3) The upper limit comparison relay will turn OFF if the upper limit comparison OFF level or a lower level is detected.

(4) The lower limit comparison relay will turn ON if the lower limit comparison ON level or a lower level is detected.

(5) The upper/lower limit comparison relay and comparison execution flag will be forcibly turned OFF if the comparison execution relay is turned OFF.

6-8

6.4 Comparison for Upper and Lower Limits

I/O Allocation

The I/O numbers in the timing chart and program are shown on the condition that the first word number of the unit is 10. Actual I/O numbers allocated to the analog input unit are determined by the first word number.

*1 Comparison execution relay

CH0 CH1 CH2 CH3 CH4 CH5 CH6 CH7

Y103 Y113 Y123 Y133 Y143 Y153 Y163 Y173

*2 Upper limit comparison relay X111

*3 Lower limit comparison relay X112

*4 Comparison execution flag X113

X131

X132

X133

X151

X152

X153

X171

X172

X173

X191

X192

X193

X211

X212

X213

X231

X232

X233

X251

X252

X253

Configuration

Name

Function setting

Upper limit /

Lower limit comparison

Default Setting range and description

Not execute

Select the desired function to be used.

Upper/Lower limit comparison

Upper limit comparison ON level

Upper/Lower limit comparison

Upper limit comparison OFF level

Upper/Lower limit comparison

Lower limit comparison OFF level

Upper/Lower limit comparison

Lower limit comparison ON level

K0

K0

K0

K0

Set the upper limit to turn ON the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

Set the upper limit to turn OFF the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

Set the lower limit to turn OFF the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

Set the lower limit to turn ON the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

(Note) Make the following level settings for upper/lower limit comparison.

Lower limit comparison ON level ≤ Lower limit comparison OFF level < Upper limit comparison OFF level ≤ Upper limit comparison ON level

6-9

Optional Settings

Sample Program

The digital conversion value on ch0 of the analog input unit is read to detect the upper limit and lower limit, and the desired output is turned ON with the upper or lower limit detected.

R0

(

DF

)

R1

(

DF

)

X113 X111

Comparison execution flag

X113

Upper limit comparison relay

X112

Comparison execution flag

Lower limit comparison relay

Y103

< SET >

(CH0): Upper/Lower limit comparison execution relay

Y103

RST < >

(CH0): Upper/Lower limit comparison execution relay

Y200

(CH0): Controls upper and lower limit comparison function

R0 ON:

Comparison execution

R1 ON:

Turns OFF comparison execution relay.

(CH0): Turns ON Y200 when the value exceeds the upper limit.

Y201

(CH0): Turns ON Y201 when the value drops below the lower limit.

6-10

6.5 Holding Max./Min. Values

6.5 Holding Max./Min. Values

Overview of Functions

This function maintains the maximum and minimum values of acquired data. When the maximum and minimum value hold settings are valid, the maximum and minimum digital conversion values will be maintained and stored in the following unit memories.

• If the function has not been enabled with the configuration settings, the function will not work with the hold execution relay turned ON.

• When the hold execution relay is turned ON, the values at that time will be preset as maximum and minimum values in the unit memories.

• The maximum and minimum values will be stored in the unit memories even if the hold execution relay is turned OFF or the unit is set into PROG. mode.

• The maximum and minimum values are held on a channel-by-channel basis.

(K)

Holds min. value in unit memory

Digital conversion value

Holds max. value in unit memory

(Flag)

Hold execution relay (*1)

Hold execution flag (*2)

Unit memory Refreshes max. value

Refreshes min. value

Refreshes min. value

(t)

6-11

Optional Settings

Hold data storage area

Unit memory number

(Hex)

Name

UM 00180

UM 00181

UM 00182

UM 00183

UM 00184

UM 00185

UM 00186

UM 00187

Default Setting range and description

Holding max. value K0

The acquired maximum value will be held when the maximum and minimum value holding function is used.

Setting range: -31,250 to 31,250 (specified with a signed integer)

UM 00188

UM 00189

UM 0018A

UM 0018B

UM 0018C

UM 0018D

UM 0018E

UM 0018F

Holding min. value K0

The acquired minimum value will be held when the maximum and minimum value holding function is used.

Setting range: -31,250 to 31,250 (specified with a signed integer)

(Note) The unit memory numbers in the above table are listed for CH0 to CH7 in numerical order.

I/O allocation

The I/O numbers in the timing chart and program are shown on the condition that the first word number of the unit is 10. Actual I/O numbers allocated to the analog input unit are determined by the first word number.

*1 Hold execution relay

*2 Hold execution flag

CH0 CH1 CH2 CH3 CH4 CH5 CH6 CH7

Y105 Y115 Y125 Y135 Y145 Y155 Y165 Y175

X115 X135 X155 X175 X195 X215 X235 X255

Configuration

Name

Function setting

Holding max./min. values

Holding min. value

Holding max. value

Default

Not execute

K0

K0

Setting range and description

Select “Execute.”

Holding min. value (-31,250 to +31,250)

Holding max. value (-31,250 to +31,250)

6-12

6.5 Holding Max./Min. Values

Sample Program

The analog data on ch0 of the analog input unit is read, and the data holding the maximum and minimum values will be read at the desired data register.

R0

R1

(

DF

)

(

DF

)

X115

Max./Min. value hold execution flag

MV.SS

S1: UM00180

Unit memory specified for slot 1

<

Y105

SET >

Max./Min. value hold execution relay

<

Y105

RST >

Max./Min. value hold execution relay

DT0

(CH0): Controls upper and lower limit comparison function.

ON: Execute

OFF: Don't execute

(CH0): Copies max. value to DT0

MV.SS

S1: UM00188

Unit memory specified for slot 1

DT1

(CH0): Copies min. value to DT1

6-13

Optional Settings

6.6 Disconnection detection

Overview of Functions

This function is to announce an error with the disconnection detection flag if the input is below a certain value in either range, +1 to +5V of voltage input or +4 to +20 mA of current input.

Voltage input range of +1 to +5 V set: 0.7 V or less; Current input range of +4 to +20 mA set:

2.8 mA max.

• If the input exceeds the above value while the disconnection detection execution relay is turned ON, the disconnection detection flag will be turned OFF automatically, provided that the auto setting has been made.

• If the manual reset setting is made, the disconnection detection flag will be turned OFF by using a user program and turning OFF the disconnection detection execution relay.

• If the configuration-disconnection detection setting has not been made, the function will be disabled with the disconnection detection execution relay turned ON.

Action with the detection disconnection reset setting set to auto

(V)

Analog input value

Disconnection threshold

0.7 V or 2.8 mA

(Flag) detection execution relay

(*1)

Disconnection detection flag

(*2)

(t)

Action with the detection disconnection reset setting set to manual

(V)

Analog input value

While in manual mode, the disconnection detection flag (X) will not automatically turn OFF when the voltage is recovered.

Disconnection threshold

0.7 V or 2.8 mA

Disconnection detection execution relay

(*1)

Disconnection detection flag

(*2)

The disconnection detection flag (X) is turned OFF with the disconnection detection execution relay turned OFF.

(t)

6-14

6.6 Disconnection detection

I/O allocation

The I/O numbers in the timing chart and program are shown on the condition that the first word number of the unit is 10. Actual I/O numbers allocated to the analog input unit are determined by the first word number.

*1 Disconnection detection execution relay

*2 Disconnection detection flag

CH0 CH1 CH2 CH3 CH4 CH5 CH6 CH7

Y100 Y110 Y120 Y130 Y140 Y150 Y160 Y170

X110 X130 X150 X170 X190 X210 X230 X250

Configuration

Name

Function setting

Disconnection detection

Disconnection detection reset

Sample Program

Default

Not execute

Auto

Setting range and description

Select “Execute.”

Select “Auto.”

R0

R1

(

DF

)

(

DF

)

Y100

< SET >

Disconnection detection execution relay

<

Y100

RST >

(CH0): Controls disconnection detection execution function.

ON: Execute

OFF: Turns OFF disconnection detection flag.

X110

Disconnection detection flag

Y200

(CH0): Turns Y200 ON at the time of disconnection detection.

Not executed unless a voltage input range of +1 to +5 V or current input range of +4 to +20 mA is set.

6-15

Optional Settings

6.7 Buffer Settings

6.7.1 Overview of Buffer Function

This function stores digital conversion values acquired at a preset cycle into a unit memory. If a trigger is input while the buffer function is executed (with the buffer execution relay turned

ON), digital conversion values for a specified number of data items will be stored in the buffer memory (unit memory) at a specified cycle.

Buffer function configuration

Specify execution conditions (trigger settings, the number of buffer data items, and cycle)

Buffer function ON

Starts execution

Starts the buffering of pre-trigger digital conversion values at the specified cycle

Trigger ON

Starts the buffering of digital conversion values at the specified cycle

Buffering

Buffering completion

Buffer data read

Reads buffer data from the CPU unit

Executes buffering Buffer trigger Completion of acquisition

Digital conversion value

Analog input processing

・・・・・

・・・・・

Pre-trigger data buffering Post-trigger data buffering

Aligns and stores the contents in the shared memory on completion of acquisition

CH0 CH1 CH2 CH3

Buffer

(Unit memory)

CH0 buffer areas UM 00800 to UM 02F0F

(10,000 words)

CH1 buffer areas UM 03000 to UM 0570F

(10,000 words)

CH2 buffer areas UM 05800 to UM 07F0F

(10,000 words)

CH3 buffer areas UM 08000 to UM 0A70F

(10,000 words)

• If the configuration-disconnection detection setting has not been set to “not execute”, the function will be disabled even if the buffer execution relay is turned ON.

6-16

6.7 Buffer Settings

Configuration

Name

Buffer function

Execution/Nonexecution settings

Trigger setting

Default Setting range and description

Not use

H0

Select "Use" for the buffer function.

No. of buffer data items

No. of data items before triggering

Trigger cycle

Input level trigger

K1000

K0

K1

K0

Select a trigger signal to start buffering when the buffer function is used.

Set the number of data items (words) to be stored in the buffer.

Setting range: +1 to +10,000 (AFP7AD4H), +1 to +8,000 (AFP7AD8)

* The number of buffer data items is the total sum of data items including the number of data items before triggering

Set the number of data items (words) before triggering.

Setting range: +1 to +9,999 (AFP7AD4H), +1 to +7,999 (AFP7AD8)

* Set the number of data items before triggering to a value smaller than the number of buffer data items.

Set the cycle enabling trigger input. The trigger period is obtained from the following formula. For AFP7AD8, only the non-isolated setting is available.

At the time of isolation: Set value (1 to 3000) x Enabled number of channels x

5 [ms]

At the time of non-isolation: Set value (1 to 3000) x Enabled number of channels x 0.025 [ms]

If “Input level” is selected for the trigger type, set an input level to enable triggering.

Setting range: -31,250 to +31,250

Sample program

Select the trigger input relay for the trigger setting, set the trigger cycle to 1, the number of data items before triggering to 1,000, and the number of buffer data items to 10,000. After completion of buffering, acquire analog data in the desired data area.

R0

DF

Buffer function execution condition

R1

DF

Buffer trigger condition

X11A

Buffer completion flag

DF

MV.UL

BKMV.SS S1:UM00800

U9999

<

Y108

SET

Buffer execution relay

Y109

>

Buffer trigger relay

S1:I0UM00800

I0

DT0

Reads 10,000 words from buffer storage area UM00800 of the unit memory for slot 1 and stores the words beginning with DT0.

X11A

Buffer completion flag

DF

Y10A

Read completion relay

Resets the buffer function.

6-17

Optional Settings

6.7.2 Buffering by Trigger Output Relay

Buffering by trigger output relay (YXXX)

The following sequence shows the operation of starting buffer processing with the trigger relay

(YXXX) turned ON by a user program.

(K)

Digital converted value CH0 to CH3

(Flag/Data)

Buffer execution relay

(*1)

(1)

Starts buffering at specified cycle.

Buffer

(Unit memory)

Pre-trigger buffering Buffering

(4)

(6)

Pre-trigger

Trigger relay

(*2)

Pre-trigger data enabled (*3)

Buffering flag

(*4)

Buffering completion flag

(*5)

Read completion relay (*6)

(2)

(3)(

3)

(5)

Buffer read

(t)

(1) Pre-trigger buffering will start when the user program turns ON the buffer execution relay.

(2) The pre-trigger data enabled flag is turned ON when the number of pre-trigger data items is reached.

(3) Buffering starts with the trigger relay turned ON. The user program turns ON the trigger relay. Buffering will continue until the set number of buffer data items is reached after the trigger relay is turned ON.

(4) Buffering is completed with the number of buffer data items obtained.

(5) The user program reads the buffering data and turns ON the read completion relay.

(6) The unit waits for the next trigger and repeat the sequence from pre-trigger buffering.

6-18

6.7 Buffer Settings

I/O Allocation

The I/O numbers in the timing chart and program are shown on the condition that the first word number of the unit is 10. Actual I/O numbers allocated to the analog input unit are determined by the first word number. The buffer function is allocated to I/O on CH0. CH1 to

CH7 all operate simultaneously with the I/O on CH0.

*1 Buffer execution relay

*2 Trigger relay

*3 Pre-trigger data enabled

*4 Buffering flag

*5 Buffering completion flag

*6 Read completion relay

CH0 to CH7

Y108

Y109

X11B

X119

X11A

Y10A

Trigger input will be prohibited with the buffer execution relay turned ON after trigger input. Input, if any, will be ignored.

It is possible to start buffering with the trigger input even if the number of pre-trigger data items has not reached a specified number. (The area where pre-trigger data is not acquired is 0).

6-19

Optional Settings

6.7.3 Buffering by External Input Trigger

Using external input as trigger

The following sequence shows the operation of buffer processing with input into the external trigger input terminal of the unit.

(K)

Digital converted value CH0 to CH3

(Flag/Data)

Buffer execution relay

(*1)

(1)

Buffer

(Unit memory)

Starts buffering at specified cycle.

Pre-trigger buffering Buffering

(4)

(6)

Pre-trigger

(3)

TRIG0

Pre-trigger data enabled (*2)

(2)

Buffering flag

(*3)

Buffering completion flag

(*4)

Read completion relay (*5)

(5)

Buffer read

(t)

(1) Pre-trigger buffering will start when the user program turns ON the buffer execution relay.

(2) The pre-trigger data enabled flag is turned ON when the number of pre-trigger data items is reached.

(3) Starts buffering with the rising of TRIG0. Buffering will continue until the preset number of buffer data items is reached from the rising of TRIG0.

(4) Buffering is completed with the number of buffer data items obtained.

(5) The user program reads the buffering data and turns ON the read completion relay.

(6) The unit waits for the next trigger and repeat the sequence from pre-trigger buffering.

6-20

6.7 Buffer Settings

I/O Allocation

The I/O numbers in the timing chart and program are shown on the condition that the first word number of the unit is 10. Actual I/O numbers allocated to the analog input unit are determined by the first word number. The buffer function is allocated to I/O on CH0. CH1 to

CH7 all operate simultaneously with the I/O on CH0.

*1 Buffer execution relay

*2 Pre-trigger data enabled

*3 Buffering flag

*4 Buffering completion flag

*5 Read completion relay

CH0 to CH3

Y108

X11B

X119

X11A

Y10A

Trigger input will be prohibited with the buffer execution relay turned ON after trigger input. Input, if any, will be ignored.

It is possible to start buffering with the trigger input even if the number of pre-trigger data items has not reached a specified number. (The area where pre-trigger data is not acquired is 0).

TRIG0 to TRIG3 for external input trigger selection show input terminal numbers. Keep in mind that none of them supports CH0 to CH3.

The buffer function will not be executed if “Not use” is selected with the external input trigger even if “External input trigger” is selected as “Trigger type” in the configuration menu of the FPWIN GR7.

6-21

Optional Settings

6.7.4 Buffering Triggered by Value Change in Analog Input

Buffering by change in trigger input

The following sequence shows the operation of starting buffer processing with the detection of a rise or fall of the digital converted value on a specified analog input channel. The example below shows a case where the level of analog input CH0 rises.

(K)

Digital converted value CH0 to CH3

Analog input trigger level (3)

Digital converted value CH0

(Flag/Data)

Buffer execution relay (*1)

Buffer

(Unit memory)

(1)

Starts buffering at specified cycle.

Pre-trigger buffering Buffering

(4) (6)

Pre-trigger

Pre-trigger data enabled (*2)

Buffering flag (*3)

Buffering completion flag

(*4)

Read completion relay (*5)

(2)

(5)

Buffer read

(t)

(1) Pre-trigger buffering will start when the user program turns ON the buffer execution relay.

(2) The pre-trigger data enabled flag is turned ON when the number of pre-trigger data items is reached.

(3) Buffering will start because the preset digital conversion value on CH0 has risen above the trigger level. Buffering will continue until the set number of buffer data items is reached after the rise of the trigger level.

(4) Buffering is completed with the number of buffer data items obtained.

(5) The user program reads the buffering data and turns ON the read completion relay.

(6) The unit waits for the next trigger and repeat the sequence from pre-trigger buffering.

6-22

6.7 Buffer Settings

I/O allocation

The I/O numbers in the timing chart and program are shown on the condition that the first word number of the unit is 10. Actual I/O numbers allocated to the analog input unit are determined by the first word number. The buffer function is allocated to I/O on CH0. CH1 to

CH7 all operate simultaneously with the I/O on CH0.

*1 Buffer execution relay

*2 Pre-trigger data enabled

*3 Buffering flag

*4 Buffering completion flag

*5 Read completion relay

CH0 to CH7

Y108

X11B

X119

X11A

Y10A

Trigger input will be prohibited with the buffer execution relay turned ON after trigger input. Input, if any, will be ignored.

If analog input is selected, buffering will start at the rise (or fall) timing of the digital conversion value on the corresponding channel from a specified value. If the value exceeds a threshold value from the beginning, buffering will start at the moment the value exceeds the threshold value again after the value once falls below (or rises above) the set value.

Keep in mind that the analog input trigger will generate timing that disables trigger detection depending on the buffer cycle setting.

It is possible to start buffering with the trigger input even if the number of pre-trigger data items has not reached a specified number. (The area where pre-trigger data is not acquired is 0).

The buffer function will not be executed if “Not use” is selected for the selection of an external input trigger or the selection of input level trigger channel.

The buffer function will not be executed if “Not use” is selected for the input trigger channel even if “Analog input level” is selected as “Trigger type” in the configuration menu of the FPWIN GR7.

6-23

Optional Settings

6.8 Configuration by Programming

Overview of functions

• The FP7 analog input unit makes it possible to overwrite configuration information by programming.

• The configuration information is refreshed by writing “55AA” to unit memory UM 00028 after the value is stored in the unit memory where a desired parameter is set.

• The value of unit memory UM 00028 will be set to 0 when the configuration information is refreshed.

Sample program

Between channels: Isolated; Input range: 4 to 20 mA with CH0 and CH1 set as execution channels and CH2 and CH3 set as non-execution channels.

R0

(

DF

)

MV.US

MV.US

H0001

Unit memory

S1:UM00081 specified for slot 1

H0020 S1:UM00091

MV.US

MV.US

MV.US

MV.US

H0020

H0000

S1:UM000A1

S1:UM000B0

H0000 S1:UM000C0

H55AA S1:UM00028

R1 R0

(

DF

)

R1

R1

R2

S1:UM00028 =.US

H0

R2

R2

(

DF

)

R3

<

R3

SET >

MV.SS

MV.SS

WX10

WX11

DT100

DT101

Between channels:

Isolated

Input range: Set CH0 to

CH1 to +4 to +20 mA

Setting CH2 and CH3 to non-execute

Setting update

Setting updating in progress

Setting updated

Reading analog input data

6-24

7

What to Do If an Error Occurs

What to Do If an Error Occurs

7.1 What to Do If an Error Occurs (Analog Input)

7.1.1 Failure in Reading Analog Input Data

• Check again that I/O allocations are correct.

• Check again the connections of the terminal block.

• Check again the configuration settings.

7.1.2 Unstable Analog Input Conversion Value

• Used a twisted pair shield wire and check that the wire is properly shielded.

• Check that the analog input wiring is not placed close to AC lines or high-tension lines or bundled with the lines.

• Check that there are no power lines, high-tension lines, high-capacity relays, or noisegenerating equipment, such as inverters, close to the analog input unit.

• Check that the voltage or current for the range setting is set correctly.

7.1.3 No Proper Conversion Values Obtained with Current Input

• Check again the connections of the terminal block.

• Check again the connections of the output equipment.

• Check that the range setting is the current mode.

7-2

8

Specifications

Specifications

8.1 Specifications

8.1.1 General Specifications

Items

Operating ambient temperature

0°C to 55°C

Description

Storage ambient temperature

Operating ambient humidity

Storage ambient humidity

-40°C to 70°C

10% to 95% (RH) with no condensation (at 25°C)

10% to 95% (RH) with no condensation (at 25°C)

Breakdown voltage (Note)

Insulation resistance

Between I/O terminals and power supply terminals of CPU unit/function earth

Between analog input terminal channels

Between I/O terminals and power supply terminals of CPU unit/function earth

500 V AC for 1 minute

200 V AC for 1 minute

100 MΩ

(Test voltage: 500 V

DC)

Vibration resistance

Shock resistance

Noise resistance

Conforming to JIS B 3502 and IEC 61131-2

5 to 8.4 Hz, 3.5-mm-wide single amplitude

8.4 to 150 Hz, acceleration 9.8 m/s

2

10-time sweeping in X, Y, and Z directions (1 octave/min.)

Conforming to JIS B 3502 and IEC 61131-2

147 m/s

2

or more., 3 times each in X, Y, and Z directions

1,000 V DC (p-p) with pulse width of 50 ns/1 μs

(by using a noise simulator) (Applied to the power supply of the CPU unit)

Free from corrosive gases and excessive dust. Environment

EU Directive applicable standard

Overvoltage category

Pollution degree

EMC Directive: EN61131-2

Category II or lower

Pollution degree 2 or lower

(Note) Cutoff current: 5 mA (Factory default setting)

8-2

8.1 Specifications

8.1.2 Performance Specifications (AFP7AD4H)

Items

No. of input points

Input range

(resolution)

Voltage

Current

Description

4 channels

-10 to +10 V DC (Resolution: 1/62,500)

0 to +10 V DC (Resolution: 1/31,250)

0 to +5 V DC (Resolution: 1/31,250)

+1 to +5 V DC (Resolution: 1/25,000) (see note 3)

0 to +20 mA (Resolution: 1/31,250)

+4 to +20 mA (Resolution: 1/25,000) (see note 3)

25 μs/Ch (non-isolation); 5 ms/Ch (isolation) Conversion speed

Total accuracy ±0.05% F.S. max. (at +25°C) and ±0.1% F.S. max. (at 0°C to +55°C)

Input impedance

Absolute max. input

Insulation system

Voltage input: Approximately 1MΩ; current input: Approximately 250Ω

Voltage input: -15 to +15 V; current input: -30 to +30 mA

Between input terminals and internal circuit: Photocoupler and isolated

DC/DC converter

Between channels: Photo-MOS relay

Execution/Non-execution channel settings

Possible to make non-converted channel settings.

Input range selection

Number of averaging times

Average processing settings

Time average

Possible to make settings on a channel-by-channel basis

Setting range of 2 to 60,000 times

Time setting range of 1 to 1,500 ms (non-isolated) and 200 to 60,000 ms

(isolated)

Moving average Setting range of 2 to 2,000 times

Offset/Gain processing

Scale conversion settings

A desired value within the digital output range can be set for the offset value.

Setting range: -3,000 to +3,000

A desired value within the digital output range can be set for the offset value.

Setting range: 9,000 to +11,000 (90% to 110%)

A desired value within the digital input range can be set for the offset value.

Setting range: -30,000 to +30,000

Comparison settings for upper and lower limits

Holding max./min. values

Output if the value is outside the preset upper and lower limits

Holding max./min. values sampled

Disconnection detection

Buffer function

Disconnection detection is possible at the time of setting ranges of +1 to +5 V and +4 to +20 mA Possible to select auto or manual resetting.

The buffering of up to 10,000 words is possible on each channel. Sampling is performed with a change in desired input, external input, or analog input as a trigger.

(Note 1) Set any of the following functions in the configuration menu of the tool software or a user program: Input range, selection of isolation and non-isolation, conversion execution/non-execution channel, averaging processing, offset/gain, scaling processing, upper/lower limit comparison, holding max./min. value, disconnection detection, and buffer.

(Note 2) If not all channels are used, the conversion speed can be saved by setting non-execution channels with the function of setting the conversion execution/non-execution channels used.

(Note 3) The full scale (F.S.) on the accuracy of an analog voltage input range from +1 to +5 V and that of an analog current input range from +4 to +20 mA are 0 to +5 V and 0 to +20 mA, respectively.

8-3

Specifications

8.1.3 Performance Specifications (AFP7AD8)

Items

No. of input points

Input range

(resolution)

Voltage

Current

Description

8 channels

-10 to +10 V DC (Resolution: 1/62,500)

0 to +10 V DC (Resolution: 1/31,250)

0 to +5 V DC (Resolution: 1/31,250)

+1 to +5 V DC (Resolution: 1/25,000) (see note 3)

0 to +20 mA (Resolution: 1/31,250)

+4 to +20 mA (Resolution: 1/25,000) (see note 3)

25 μs/Ch Conversion speed

Total accuracy ±0.1% F.S. max. (at +25°C) and ±0.3% F.S. max. (at 0°C to +55°C)

Input impedance

Absolute max. input

Insulation system

Voltage input: Approximately 1MΩ; current input: Approximately 250Ω

Voltage input: -15 to +15 V; current input: -30 to +30 mA

Between input terminals and internal circuit: Photocoupler and isolated

DC/DC converter

Between channels: Photo-MOS relay

Execution/Non-execution channel settings

Input range selection

Average processing settings

Possible to make non-converted channel settings.

Possible to make settings on a channel-by-channel basis

Number of averaging times

Setting range of 2 to 60,000 times

Time average Time setting range of 1 to 1,500 ms

Moving average Setting range of 2 to 2,000 times

Offset/Gain processing

Scale conversion settings

A desired value within the digital output range can be set for the offset value.

Setting range: -3,000 to +3,000

A desired value within the digital output range can be set for the offset value.

Setting range: 9,000 to +11,000 (90% to 110%)

A desired value within the digital input range can be set for the offset value.

Setting range: -30,000 to +30,000

Comparison settings for upper and lower limits

Holding max./min. values

Disconnection detection

Buffer function

Output if the value is outside the preset upper and lower limits

Holding max./min. values sampled

Disconnection detection is possible at the time of setting ranges of +1 to +5 V and +4 to +20 mA Possible to select auto or manual resetting.

The buffering of up to 8,000 words is possible on each channel. Sampling is performed with a change in desired input, external input, or analog input as a trigger.

(Note 1) Set any of the following functions in the configuration menu of the tool software or a user program: Input range, selection of isolation and non-isolation, conversion execution/non-execution channel, averaging processing, offset/gain, scaling processing, upper/lower limit comparison, holding max./min. value, disconnection detection, and buffer.

(Note 2) If not all channels are used, the conversion speed can be saved by setting non-execution channels with the function of setting the conversion execution/non-execution channels used.

(Note 3) The full scale (F.S.) on the accuracy of an analog voltage input range from +1 to +5 V and that of an analog current input range from +4 to +20 mA are 0 to +5 V and 0 to +20 mA, respectively.

8-4

8.2 I/O Allocation

8.2 I/O Allocation

Input contact

I/O area

No.

WX0

WX1

WX2

WX3

WX4

WX5

WX6

WX7

WX8

WX9

WX10

Name

CH0 Analog conversion data

CH0 Optional function flag

CH1 Analog conversion data

CH1 Optional function flag

CH2 Analog conversion data

CH2 Optional function flag

CH3 Analog conversion data

CH3 Optional function flag

CH4 Analog conversion data

CH4 Optional function flag

CH5 Analog conversion data

CH5 Optional function flag

CH6 Analog conversion data

CH6 Optional function flag

CH7 Analog conversion data

Default

K0

H0

K0

H0

K0

H0

K0

H0

K0

H0

K0

H0

K0

H0

K0

Description

Analgo conversion data area

Digital converted values corresponding to the analog input is stored.

<Voltage range>

-10 to +10 V: -31,250 to +31,250

0 to +10 V or 0 to +5 V: 0 to +31,250

+1 to +5 V: 0 to +25,000

<Current range>

0 to +20 mA: 0 to +31,250

+4 to +20 mA: 0 to +25,000

Optional function flag area

Refer to the table on the next page.

WX11

WX12

WX13

WX14

WX15 CH7 Optional function flag H0

(Note 1): The I/O numbers in the table indicates offset addresses. The I/O numbers actually allocated are the numbers based on the starting word number allocated to the unit. Example) When the starting word number for the unit is "10", the A/D conversion data of CH0 is WX10 and the error flag is X11F.

(Note 2) It is A/D conversion data within the specified scale range when setting the scale conversion setting.

(Note 3) The digital converted value corresponding to about 2 V of analog input is displayed for channels which are not connected to input when setting the voltage range with AFP7AD8.

8-5

Specifications

Input contact (Optional functions/Error flag area)

I/O No.

CH0 CH1 CH2 CH3 CH4 CH5 CH6 CH7

Name Description

ON with disconnection detected and OFF with disconnection restored.

(Valid for 1 to 5 V and 4 to 20 mA ranges only)

Turns ON when the value exceeds the set upper limit.

Turns OFF when the value drops below the set lower limit.

X13 X33 X53 X73 X93 X113 X133 X153

Upper/Lower limit comparison execution flag

X14 X34 X54 X74 X94 X114 X134 X154 Not used

Turns ON when the upper limit/lower limit comparison function is executed.

Do not use.

Turns ON when the max./min. hold function is executed.

X16 to

X17

X36 to

X37

X56 to

X57

X76 to

X77

X96 to

X97

X116 to

X117

X136 to

X137

X156 to

X157

Not used Do not use.

X18 - - - - - - -

Buffer function execution flag

On when the buffer function is executed.

X19

X1A

X1B

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Buffering flag

Buffering completion flag

Data before triggering enable flag

ON when buffering starts after the trigger is accepted.

OFF when the number of buffer data items is reached.

ON when the shared memory has become accessible after completion of buffering.

OFF on completion of buffer data reading.

ON when the number of buffer data items before triggering has reached the set value.

OFF on completion of buffer data reading.

X1C to

X1E

X3C to

X3E

X5C to

X5E

X7C to

X7E

X9C to

X9E

X11C to

X11E

X13C to

X13E

X15C to

X15E

Not used

X1F X3F X5F X7F X9F X11F X13F X15F Error flag

Do not use.

Turns ON when an error occurs

(Note 1): The I/O numbers in the table indicates offset addresses. The I/O numbers actually allocated are the numbers based on the starting word number allocated to the unit. Example) When the starting word number for the unit is "10", the error flag is X11F.

(Note 2) The conditions of the buffer function (i.e., the buffer function execution flag, buffering flag, buffering completion flag, and data enable flag before triggering) are allocated to the input contacts for CH0.

8-6

8.2 I/O Allocation

Output contact (Optional functions/Error flag area)

I/O No.

CH0 CH1 CH2 CH3 CH4 CH5 CH6 CH7

Name

Y0 Y10 Y20 Y30 Y40 Y50 Y60 Y70

Disconnection detection execution relay

Y1 Y11 Y21 Y31 Y41 Y51 Y61 Y71

Y2 Y12 Y22 Y32 Y42 Y52 Y62 Y72

Not used

Y3 Y13 Y23 Y33 Y43 Y53 Y63 Y73

Upper/Lower limit comparison execution relay

Y4 Y14 Y24 Y34 Y44 Y54 Y64 Y74 Not used

Y6 Y16 Y26 Y36 Y46 Y56 Y66 Y76 Not used

Y7 Y17 Y27 Y37 Y47 Y57 Y67 Y77 Not used

Y8

Y9

YA

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Buffer execution relay

Buffer trigger relay

Buffer data read completion relay

Description

ON to execute the disconnection detection function.

OFF to turn OFF the disconnection detection flag (Xn0).

(Valid for 1 to 5 V and 4 to 20 mA ranges only)

Do not use.

ON to execute the function to compare the upper and lower limits.

OFF to turn OFF the upper limit comparison relay (Xn1) and lower limit comparison relay (Xn2).

Do not use.

ON to execute the max./min. hold function.

Do not use.

Do not use.

When the buffer function is enabled, trigger acceptance will be permitted with the buffer execution relay turned ON.The internal state transition will be initialized with the buffer execution relay turned

OFF.

If "Trigger relay" is set in trigger setting, triggering will start with the trigger relay turned ON.

ON for one scan upon completion of readign buffer data from the shared memory with a user program. Goes to the state of trigger acceptance permitted after clearing the buffer memory.

YB to

YE

Y1B to

Y1E

Y2B to

Y2E

Y3B to

Y3E

Y4B to

Y4E

Y5B to

Y5E

Y6B to

Y6E

Y7B to

Y7E

Not used Do not use.

Resets an error flag.

(Note 1): The I/O numbers in the table indicates offset addresses. The I/O numbers actually allocated are the numbers based on the starting word number allocated to the unit. Example) When the starting word number for the unit is "10", the disconnection detection execution relay of CH0 is Y100, and the error flag reset relay is

Y10F.

(Note 2) The operation of the buvver function (consisting of the buffer execution relay, buffer trigger relay, and buffer data read completion relay) is specified by the output contacts for CH0.

8-7

Specifications

8.3 List of Unit Memories

8.3.1 List of Unit Memory Number

There is no need to set unit memory values, because unit memory values will be written automatically if they are set in the configuration menu of the FPWIN GR7 tool software. In the case of making program settings, specify the desired unit memory numbers and write the corresponding values.

Setting monitoring items and allocation of unit memory numbers (CH0 to CH3)

Setting monitoring item Unit memory no.

CH0 CH1 CH2 CH3

Unit memory update UM 00028

Isolation between channels

Execution/Non-execution settings

Trigger type

Buffer function

No. of buffer data items UM 0008A

No. of data items before triggering UM 0008B

Trigger cycle

Analog input trigger level

UM 0008C

UM 0008D

Conversion processing

Range setting

Function setting 1

Average processing settings

Offset/Gain processing

Scale conversion

UM 00081 (AFP7AD4H only)

UM 00088

UM 00089

UM 00090

UM 00091

UM 00092

UM 000A0

UM 000A1

UM 000A2

UM 000B0

UM 000B1

UM 000B2

UM 000C0

UM 000C1

UM 000C2

Function setting 2

Comparison of upper and lower limits

Holding max./min. values

Disconnection detection

Disconnection detection reset

Averaging constant

Offset value

Gain value

Scale conversion

Max. value

Min. Value

Upper limit comparison ON level

Upper limit /

Lower limit comparison

Upper limit comparison OFF level

Lower limit comparison OFF level

Lower limit comparison ON level

Max./Min. value hold monitor area

Holding max. value

Holding min. value

UM 00093

UM 00094

UM 00095

UM 00096

UM 00097

UM 00098

UM 00099

UM 0009A

UM 0009B

UM 00180

UM 00188

UM 000A3 UM 000B3

UM 000A4 UM 000B4

UM 000A5 UM 000B5

UM 000A6 UM 000B6

UM 000A7 UM 000B7

UM 000A8 UM 000B8

UM 000A9 UM 000B9

UM 000C3

UM 000C4

UM 000C5

UM 000C6

UM 000C7

UM 000C8

UM 000C9

UM 000AA UM 000BA UM 000CA

UM 000AB UM 000BB UM 000CB

UM 0009C UM 000AC UM 000BC UM 000CC

UM 00181

UM 00189

UM 00182

UM 0018A

UM 00183

UM 0018B

Buffer function

Hold data storage area

UM 00800 to

UM 02F0F

UM 03000 to

UM 0570F

UM 05800 to

UM 07F0F

UM 08000 to

UM 0A70F

8-8

8.3 List of Unit Memories

Setting monitoring items and allocation of unit memory numbers (CH4 to CH7)

Setting monitoring item Unit memory no.

CH4 CH5 CH6 CH7

Unit memory update UM 00028

Isolation between channels UM 00081

Execution/Non-execution settings

Trigger type

No. of buffer data items

UM 00088

UM 00089

UM 0008A

Buffer function

Range setting

No. of data items before triggering UM 0008B

Trigger cycle UM 0008C

Analog input trigger level

Conversion processing

UM 0008D

UM 000D0

UM 000D1

Function setting 1

Average processing settings

Offset/Gain processing

Scale conversion

UM 000D2

Function setting 2

Comparison of upper and lower limits

Holding max./min. values

Disconnection detection

Disconnection detection reset

Averaging constant

Offset value

Gain value

Scale conversion

Upper limit /

Lower limit comparison

Max./Min. value hold monitor area

Max. value

Min. Value

Upper limit comparison ON level

Upper limit comparison OFF level

Lower limit comparison OFF level

Lower limit comparison ON level

Holding max. value

Holding min. value

UM 000D3

UM 000D4

UM 000D5

UM 000D6

UM 000D7

UM 000D8

UM 000D9

UM 000DA

UM 000DB

UM 000DC

UM 00184

UM 0018C

Buffer function

Hold data storage area

UM 08100 to

UM 0A03F

UM 000E0

UM 000E1

UM 000E2

UM 000E3

UM 000E4

UM 000E5

UM 000E6

UM 000E7

UM 000E8

UM 000E9

UM 000EA

UM 000EB

UM 000EC

UM 00185

UM 0018D

UM 0A040 to

UM 0BF7F

UM 000F0

UM 000F1

UM 000F2

UM 000F3

UM 000F4

UM 000F5

UM 000F6

UM 000F7

UM 000F8

UM 000F9

UM 000FA

UM 000FB

UM 000FC

UM 00186

UM 0018E

UM 0BF80 to

UM 0DEBF

UM 00100

UM 00101

UM 00102

UM 00103

UM 0DEC0 to

UM 0FDFF

UM 00104

UM 00105

UM 00106

UM 00107

UM 00108

UM 00109

UM 0010A

UM 0010B

UM 0010C

UM 00187

UM 0018F

8-9

Specifications

8.4 List of Detailed Specifications of Unit Memories

Common to All Channels

Unit memory number

(Hex)

Name Default

UM 00081

UM 00088

UM 00089

Isolation between channels

Buffer function

Execution/Nonexecution settings

Buffer function

Trigger settings

(AFP7AD4H)

H0

H0

H0

H0

Setting range and description

This is used to rewrite configuration infromation using a user program.

If the constant "55AA" is written to the unit memory UM 00028 after transferring a desired parameter to a unit memory, the settings will be updated. The value of unit memory UM 00028 will be set to 0 when the configuration information is refreshed.

Select the insulation or non-insulation between analog input channels.

H0: Non-isolated

H1: Isolated

Select the use of the buffer function.

H0: Not use

H1: Use

Select a trigger signal to start buffering when the buffer function is used.

Bit

3-0

7-4

11-8

Name

Trigger type

External input trigger

Input level trigger CH

Description

H0

H1

H2

H4

H8

H0

H1

H2

H4

H8

H0

H1

H2

H4

H8

Trigger input relay

Rise of external input trigger

Fall of external input trigger input

Rising time of analog input level

Falling time of analog input level

Unused

TRG0

TRG1

TRG2

TRG3

Unused

CH0

CH1

CH2

CH3

15-

12

Not used

8-10

8.4 List of Detailed Specifications of Unit Memories

Unit memory number

(Hex)

Name Default Setting range and description

UM 00089

Buffer function

Trigger settings

(AFP7AD8)

UM 0008D

Buffer function

Analog input

Trigger level

H0

UM 0008A

UM 0008B

Buffer function

No. of buffer data items

Buffer function

No. of pre-trigger data items

K1,000

K0

K1

K0

Select a trigger signal to start buffering when the buffer function is used.

Bit Name Description

3-0 Trigger type

H0

H1

H2

H4

H8

Trigger input relay

Rise of external input trigger

Fall of external input trigger input

Rising time of analog input level

Falling time of analog input level

7-4 Note used

11-8 Input level trigger CH

15-

12

Not used

H0

H1

H2

H3

H4

H5

H6

H7

CH0

CH1

CH2

CH3

CH4

CH5

CH6

CH7

Set the number of data items (words) to be stored in the buffer.

Setting range: +1 to +10,000 (AFP7AD4H), +1 to +8,000 (AFP7AD8)

Set the number of data items (words) out of the number of buffer data items before triggering.

Setting range: 0 to +9,999 (AFP7AD4H), 0 to +7,999 (AFP7AD8)

Set the cycle enabling trigger input. The trigger cycle is obtained from the following formula. For AFP7AD8, only the non-isolated setting is available.

Isolated: Set value (1 to 30,000) × No. of enabled channels × 5 [ms]

Non-isolated: Set value (1 to 30,000) × No. of enabled channels ×

0.025 [ms]

If “Analog input level” is selected for the trigger type, set an input level to enable triggering.

Setting range: -31,250 to +31,250

8-11

Specifications

Individual setting area per channel

Unit memory number

(Hex)

Name Default

UM 00090

UM 000A0

UM 000B0

UM 000C0

UM 000D0

UM 000E0

UM 000F0

UM 00100

UM 00091

UM 000A1

UM 000B1

UM 000C1

UM 000D1

UM 000E1

UM 000F1

UM 00101

Conversion processing

Execution/Nonexecution

Range setting

H1

H1

Setting range and description

Select the conversion function to be used.

H0: Not execute

H1: Execute

Select the input range.

H1: Voltage input -10 to +10 V

H2: Voltage input 0 to +10 V

H4: Voltage input 0 to +5 V

H8: Voltage input +1 to+ 5 V

H10: Current input 0 to +20 mA

H20: Current input +4 to +20 mA

Select the desired function to be used.

UM 00092

UM 000A2

UM 000B2

UM 000C2

UM 000D2

UM 000E2

UM 000F2

UM 00102

UM 00093

UM 000A3

UM 000B3

UM 000C3

UM 000D3

UM 000E3

UM 000F3

UM 00103

Function setting 1

Average processing settings

Offset processing/

Gain processing

Scale conversion

Function setting 2

Comparison of upper and lower limits

Holding max./min. values

Disconnection detection

Disconnection detection reset

H0

H0

Bit

3-0

Name

Average processing

7-4

15-

12

Offset/Gain processing

11-8 Scale conversion

Not used

Settings

H0

H1

H2

H4

H0

H1

Not execute

No. of averaging times

Time average

Moving average

Not execute

Execute

H0

H1

Not execute

Execute

Select the desired function to be used.

Bit

3-0

7-4

Name

Upper limit /

Lower limit comparison

Max./Min. values hold

Settings

H0

H1

H0

H1

Not execute

Execute

Not execute

Execute

11-8 Disconnection detection

15-

12

Disconnection detection reset

H0

H1

H0

H1

Not execute

Execute

Auto (Auto reset for reconnection)

Manual

(Note) The unit memory numbers in the above table are listed for CH0 to CH7 in numerical order.

8-12

8.4 List of Detailed Specifications of Unit Memories

Individual setting area per channel

Unit memory number

(Hex)

Name Default

UM 00094

UM 000A4

UM 000B4

UM 000C4

UM 000D4

UM 000E4

UM 000F4

UM 00104

Averaging constant

K200

Setting range and description

Set constants for average processing.

Function used Settings

Number of averaging times

Average time

Moving average

No. of averaging times

Non-isolated

Isolated

No. of moving average

2 to 60,000 [times]

1 to 1,500 [ms]

200 to 60,000 [ms]

2 to 2,000 [times]

UM 00097

UM 000A7

UM 000B7

UM 000C7

UM 000D7

UM 000E7

UM 000F7

UM 00107

UM 00098

UM 000A8

UM 000B8

UM 000C8

UM 000D8

UM 000E8

UM 000F8

UM 00108

UM 00095

UM 000A5

UM 000B5

UM 000C5

UM 000D5

UM 000E5

UM 000F5

UM 00105

UM 00096

UM 000A6

UM 000B6

UM 000C6

UM 000D6

UM 000E6

UM 000F6

UM 00106

UM 00099

UM 000A9

UM 000B9

UM 000C9

UM 000D9

UM 000E9

UM 000F9

UM 00109

Offset value K0

Gain value

Scale conversion

Max. value

Scale conversion

Min. value

Upper limit comparison

ON level

K10,000

K10,000

K0

K0

Set an offset value at the time of using the offset processing function.

Setting range: -3,000 to +3,000 (specified with a signed integer)

Set an offset value at the time of using the offset processing function.

Setting range: +9,000 to +11,000 (0.9x to 1.1x: Specified with a signed integer)

Set the maximum value at the time of using the scale conversion function.

Setting range: -30,000 to +30,000 (specified with a signed integer)

Set the minimum value at the time of using the scale conversion function.

Setting range: -30,000 to +30,000 (specified with a signed integer)

Set the upper limit to turn ON the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

8-13

Specifications

Unit memory number

(Hex)

Name Default Setting range and description

UM 0009A

UM 000AA

UM 000BA

UM 000CA

UM 000DA

UM 000EA

UM 000FA

UM 0010A

UM 0009B

UM 000AB

UM 000BB

UM 000CB

UM 000DB

UM 000EB

UM 000FB

UM 0010B

Upper limit comparison

OFF level

Lower limit comparison

OFF level

K0

K0

Set the upper limit to turn OFF the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

Set the lower limit to turn OFF the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

UM 0009C

UM 000AC

UM 000BC

UM 000CC

UM 000DC

UM 000EC

UM 000FC

UM 0010C

Lower limit comparison

ON level

K0

Set the lower limit to turn ON the output flag at the time of using the upper/lower limit comparison function.

Setting range: -31,250 to +31,250 (specified with a signed integer)

(Note) The unit memory numbers in the above table are listed for CH0 to CH7 in numerical order.

8-14

8.4 List of Detailed Specifications of Unit Memories

Individual monitor area per channel

Unit memory number (Hex)

Name Default

UM 00180

UM 00181

UM 00182

UM 00183

UM 00184

UM 00185

UM 00186

UM 00187

Holding max. value

K0

Setting range and description

The acquired maximum value will be held when the maximum and minimum value holding function is used.

Setting range: -31,250 to +31,250 (specified with a signed integer)

UM 00188

UM 00189

UM 0018A

UM 0018B

UM 0018C

UM 0018D

UM 0018E

UM 0018F

Holding min. value

K0

The acquired minimum value will be held when the maximum and minimum value holding function is used.

Setting range: -31,250 to +31,250 (specified with a signed integer)

(Note) The unit memory numbers in the above table are listed for CH0 to CH7 in numerical order.

Buffer data storage area per channel (AFP7AD4H)

Unit memory number (Hex)

Name Default Setting range and description

UM 00800 to UM 02F0F

CH0

Buffer area

K0

UM 03000 to UM 0570F

UM 05800 to UM 02F0F

UM 08000 to UM 0A70F

CH1

Buffer area

CH2

Buffer area

CH3

Buffer area

K0

K0

K0

Stores buffer data when the buffer function is used.

10,000 words per channel

Setting range: -31,250 to +31,250 (specified with a signed integer)

8-15

Specifications

Buffer data storage area per channel (AFP7AD8)

Unit memory number (Hex)

Name Default Setting range and description

UM 00400 to UM 0233F

CH0

Buffer area

K0

UM 02340 to UM 00427F

CH1

Buffer area

K0

UM 04280 to UM 061BF

UM 061C0 to UM 080FF

UM 08100 to UM 0A03F

UM 0A040 to UM 0BF7F

UM 0BF80 to UM 0DEBF

UM 0DEC0 to UM 0FDFF

CH2

Buffer area

CH3

Buffer area

CH4

Buffer area

CH5

Buffer area

CH6

Buffer area

CH7 buffer area

K0

K0

K0

K0

K0

K0

Stores buffer data when the buffer function is used.

8,000 words per channel

Setting range: -31,250 to +31,250 (specified with a signed integer)

8-16

8.5 Dimensions

28

(

18) 80

8.5 Dimensions

4

8-17

Specifications

8-18

Record of changes

Manual No. Date

WUME-FP7AIH-01 Mar.2013

WUME-FP7AIH-02 Aug.2014

Record of Changes

1st Edition

2nd Edition

- Added new model AFP7AD8

- Error correction

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
