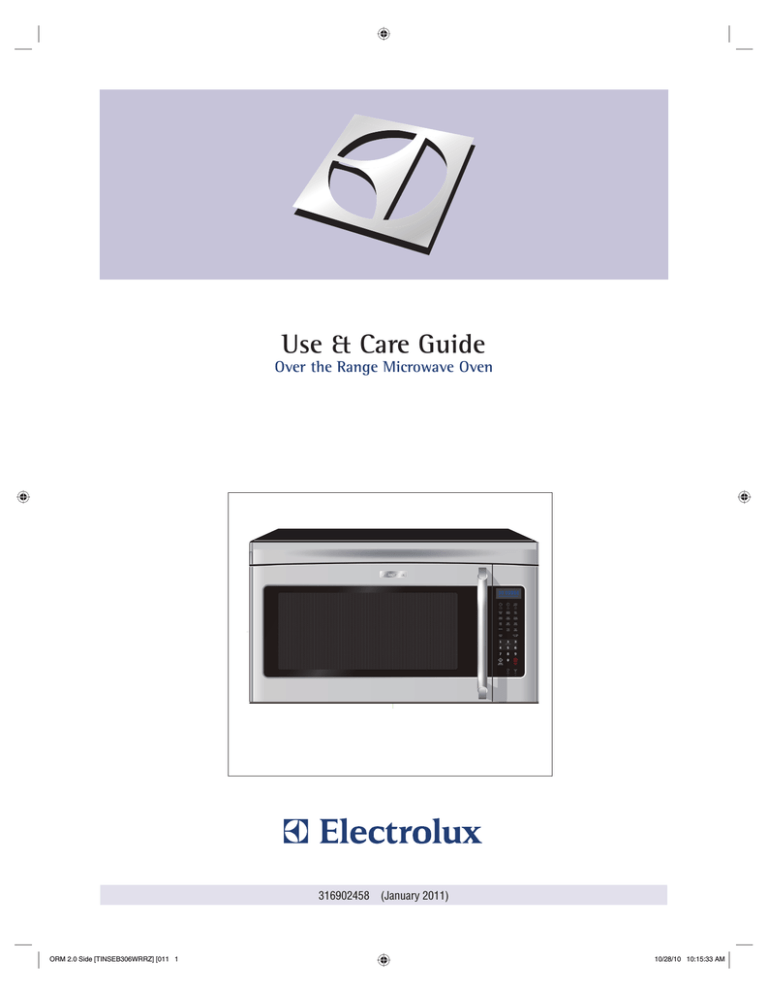

Use & Care Guide
Over the Range Microwave Oven
316902458
ORM 2.0 Side [TINSEB306WRRZ] [011 1
(January 2011)
10/28/10 10:15:33 AM
2
FINDING INFORMATION
Please read and save this guide
Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide
is part of our commitment to customer satisfaction and product quality throughout the service life of your
new appliance.
We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you,
please use this page to record important product information.
Keep a record for quick reference
Purchase date
Electrolux model number
Electrolux serial number (see picture for location)
NOTE
Questions?
Registering your product with Electrolux enhances
our ability to serve you. You can register online at
www.electroluxappliances.com or by dropping
your Product Registration Card in the mail.
For toll-free telephone support in the U.S. and Canada:
1-877-4ELECTROLUX (1-877-435-3287)
For online support and Internet production information visit http://www.electroluxappliances.com
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can result
in harmful exposure to microwave energy. It is important not to defeat or tamper with the
safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or
loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
E
©2008 Electrolux Home Products, Inc.
ORM 2.0 Side [TINSEB306WRRZ] [012 2
All rights reserved. Printed in Thailand
10/20/10 8:41:24 AM
TABLE OF CONTENTS
FINDING INFORMATION..................................
2
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
Frozen Veggies chart .....................................
19
Baked Potato chart .......................................
19
Sensor Reheat chart .....................................
19
TO EXCESSIVE MICROWAVE ENERGY ...............
2
TABLE OF CONTENTS ....................................
3
IMPORTANT SAFETY INSTRUCTIONS ..........
4
Auto Cook ......................................................
20
UNPACKING AND EXAMING YOUR OVEN ....
5
Auto Cook chart .............................................
20
GROUNDING INSTRUCTIONS ........................
6
Dinner recipes ................................................
21
INFORMATION YOU NEED TO KNOW ........... 7-10
Keep Warm.....................................................
22
AUTO MODES ................................................. 20-26
About Your Oven ............................................
7
Melt, Soften ....................................................
23
About Microwave Cooking .............................
7
Melt, Soften chart...........................................
23
About Safety .................................................
8
Snacks ...........................................................
24
About Children and the Microwave ................
8
Snacks chart ..................................................
24
About Food ....................................................
9
Auto Reheat ...................................................
25
About Utensils and Coverings .......................
10
Auto Reheat chart ..........................................
25
PART NAMES ...................................................
11
Auto Defrost ...................................................
26
CONTROL PANEL ............................................
12
Auto Defrost chart ..........................................
26
BEFORE OPERATING .....................................
13
To Set the Clock .............................................
13
User Pref ........................................................
27
START add 30 sec..........................................
13
Multiple Sequence Cooking ...........................
28
Stop/Clear .....................................................
13
More or Less Time Adjustment ......................
28
Using the Rack ...............................................
13
Add 30 Seconds ............................................
28
MANUAL OPERATION ..................................... 14-15
Help ................................................................
29
CONVENIENT FEATURES .............................. 27-29
Time Cooking .................................................
14
Timer ..............................................................
29
To Set Power Level ........................................
14
Turntable ON/OFF ..........................................
29
Manual Defrost ...............................................
15
Quick Start .....................................................
29
SENSOR MODES ............................................ 15-19
Demonstration Mode .....................................
29
Sensor Cook ..................................................
16
Light ...............................................................
29
Sensor Cook chart .........................................
17
Fan .................................................................
29
Popcorn/Fresh Veggies/Frozen Veggies/
3
CLEANING AND CARE .................................... 30-31
Baked Potato/Sensor Reheat ........................
18
SERVICE CALL CHECK ..................................
32
Popcorn chart ...............................................
18
SPECIFICATIONS.............................................
33
Fresh Veggies chart .......................................
19
WARRANTY INFORMATIONS .........................
34
E
ORM 2.0 Side [TINSEB306WRRZ] [013 3
10/20/10 8:41:24 AM
4
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the following:
To reduce the risk of burns, electric shock, fire, injury to persons or exposure
to excessive microwave energy:
1. Read all instructions before using the appliance.
2. Read and follow the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” on page 2.
3. This appliance must be grounded. Connect only
to properly grounded outlet. See “Grounding
Instructions” on page 6.
4. Install or locate this appliance only in accordance
with the provided installation instructions.
5. Some products such as whole eggs and sealed
containers—for example, closed glass jars—are
able to explode and should not be heated in
this oven.
6. Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type
of oven is specifically designed to heat, cook
or dry food. It is not designed for industrial or
laboratory use.
7. As with any appliance, close supervision is
necessary when used by children.
8. Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly or if it
has been damaged or dropped.
9. This appliance should be serviced only by
qualified service personnel. Contact nearest
Electrolux Authorized Servicer for examination,
repair or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store or use this appliance outdoors. Do
not use this product near water—for example,
near a kitchen sink, in a wet basement, near a
swimming pool, or similar locations.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or
counter.
15. See door surface cleaning instructions on page
30 - 31.
16. Do not mount over a sink.
17. Do not store anything directly on top of the appliance surface when the appliance is in operation.
E
ORM 2.0 Side [TINSEB306WRRZ] [014 4
18. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend
to appliance when paper, plastic or other
combustible materials are placed inside the
oven to facilitate cooking.
b. Remove wire twist-ties from paper or plastic
bags before placing bag in oven.
c. If materials inside the oven ignite, keep oven
door closed, turn oven off and disconnect the
power cord or shut off power at the fuse or
circuit breaker panel.
d. Do not use the cavity for storage purposes. Do
not leave paper products, cooking utensils or
food in the cavity when not in use.
19. Liquids, such as water, coffee or tea are able to
be overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or
boiling when the container is removed from
the Microwave Oven is not always present.
THIS COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN A SPOON
OR OTHER UTENSIL IS INSERTED INTO THE
LIQUID.
To reduce the risk of injury to persons:
a. Do not overheat the liquid.
b. Stir the liquid both before and halfway through
heating it.
c. Do not use straight-sided containers with narrow
necks. Use a wide-mouthed container.
d. After heating, allow the container to stand in the
Microwave Oven at least for 20 seconds before
removing the container.
e. Use extreme care when inserting a spoon or other
utensil into the container.
20. Clean ventilation openings and grease filters
frequently—grease should not be allowed to accumulate on ventilation openings, louver or grease
filters.
21. Use care when cleaning the louver and the grease
filters. Corrosive cleaning agents, such as lye-based
oven cleaners, may damage the louver and the
grease filters.
22. When flaming food under the hood, turn the fan on.
23. This appliance is suitable for use above both gas and
electric cooking equipment 36” wide or less.
SAVE THESE INSTRUCTIONS
10/20/10 8:41:24 AM
UNPACKING AND EXAMING YOUR OVEN
5
Open the bottom of the carton, bend the carton flaps back and tilt the oven over to rest on plasticfoam
pad. Lift carton off oven and remove all packing materials, WALL and TOP CABINET TEMPLATES. SAVE
THE CARTON AS IT MAY MAKE INSTALLATION EASIER.
1. Remove the feature sticker from the outside of the door, if
there is one.
2. Check to see that there is a WALL TEMPLATE and TOP
CABINET TEMPLATE. Read enclosures and SAVE the Use
and Care Guide.
Check the oven for any damage, such as misaligned or bent
door, damaged door seals and sealing surfaces, broken or
loose door hinges and latches and dents inside the cavity or on
the door. If there is any damage, do not operate the oven and
contact your dealer or ELECTROLUX AUTHORIZED SERVICER.
See Installation Instructions for more details.
E
ORM 2.0 Side [TINSEB306WRRZ] [015 5
10/20/10 8:41:25 AM
6
GROUNDING INSTRUCTIONS
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance
with the National Electrical Code and local codes and ordinances. In the event of an electrical short circuit,
grounding reduces risk of electric shock by providing an escape wire for the electric current.
Improper use of the grounding plug can result in a risk of electric shock.
Electrical Requirements
The oven is equipped with a 3-prong grounding plug. DO
NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE
THE GROUNDING PIN FROM THE PLUG.
DO NOT USE AN EXTENSION CORD.
If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.
The Power Supply Cord and plug must be connected to
a separate 120 Volt AC, 60 Hz, 15 Amp, or more branch
circuit, single grounded receptacle. The receptacle should
be located inside the cabinet directly above the Microwave
Oven mounting location as shown in Figure 1.
NOTES:
1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service
person.
2. Neither Electrolux nor the dealer can accept any liability
for damage to the oven or personal injury resulting from
failure to observe the correct electrical connection
procedures.
Radio or TV Interference
Figure 1
Ground
Receptacle
Opening for
Power Cord
Should there be any interference caused by the microwave
oven to your radio or TV, check that the microwave oven is
on a different electrical circuit, relocate the radio or TV as
far away from the oven as feasible or check position and
signal of receiving antenna.
E
ORM 2.0 Side [TINSEB306WRRZ] [016 6
10/20/10 8:41:25 AM
INFORMATION YOU NEED TO KNOW
7
About Your Oven
NEVER use the oven without the turntable and
support nor turn the turntable over so that a large
dish could be placed in the oven. The turntable will
turn both clockwise and counterclockwise.
Condensation is a normal part of microwave cooking. Room humidity and the moisture in food will
influence the amount of moisture that condenses in
the oven. Generally, covered foods will not cause as
much condensation as uncovered ones. Ventilation
openings must not be blocked.
ALWAYS have food in the Microwave Oven when it
is on to absorb the microwave energy.
The Microwave Oven is for food preparation only. It
should not be used to dry clothes or newspapers.
When using the oven at power levels below 100%,
you may hear the magnetron cycling on and off. It
is normal for the exterior of the oven to be warm to
the touch when cooking or reheating.
Your Microwave Oven is rated 1000 watts by using
the IEC Test Procedure. In using recipes or package
directions, check food a minute or two before the
minimum time and add time accordingly.
This Use and Care Guide is valuable: read it carefully
and always save it for reference.
About Microwave Cooking
• Arrange food carefully. Place thickest areas
towards outside of dish.
• Watch cooking time. Cook for the shortest
amount of time indicated and add more as
needed. Food severely overcooked can smoke
or ignite.
• Cover foods while cooking. Check recipe or
cookbook for suggestions: paper towels, wax
paper, microwave plastic wrap or a lid. Covers prevent spattering and help foods to cook
evenly.
• Shield with small flat pieces of aluminum foil any
thin areas of meat or poultry to prevent overcooking before dense, thick areas are cooked
thoroughly.
• Stir foods from outside to center of dish once or
twice during cooking, if possible.
• Rearrange foods such as meatballs halfway
through cooking both from top to bottom and
from the center of the dish to the outside.
• Add standing time. Remove food from oven
and stir, if possible. Cover for standing time
which allows the food to finish cooking without
overcooking.
• Check for doneness. Look for signs indicating
that cooking temperatures have been reached.
Doneness signs include:
-
Food steams throughout, not just at edge.
-
Center bottom of dish is very hot to the
touch.
-
Poultry thigh joints move easily.
-
Meat and poultry show no pinkness.
-
Fish is opaque and flakes easily with a fork.
• Turn foods over once during microwaving to
speed cooking of such foods as chicken and
hamburgers. Large items like roasts must be
turned over at least once.
E
ORM 2.0 Side [TINSEB306WRRZ] [017 7
10/20/10 8:41:25 AM
8
INFORMATION YOU NEED TO KNOW
About Safety
• Check foods to see that they are cooked to the
United States Department of Agriculture’s recommended temperatures.
• ALWAYS use potholders to prevent burns when
handling utensils that are in contact with hot food.
Enough heat from the food can transfer through
utensils to cause skin burns.
Temp
Food
145˚F
(63°C)
For beef, lamb or veal cut into steaks
chops or roasts
MEDIUM RARE
160˚F
(71°C)
For fresh pork, ground meat, fish,
seafood, egg dishes, frozen prepared
food and beef, lamb or veal cut into
steaks, chops or roasts cooked to
MEDIUM
• Stay near the oven while it’s in use and check
cooking progress frequently so that there is no
chance of overcooking food.
For leftover, ready-to-reheat refrigerated, deli and carry out “fresh” food,
whole chicken or turkey, chicken or
turkey breasts and ground poultry
used in chicken or turkey burgers,
boneless white poultry.
NOTE: Do not cook whole, stuffed
poultry. Cook stuffing separately to 165°F.
• Select, store and handle food carefully to preserve its high quality and minimize the spread of
foodborne bacteria.
165˚F
(74°C)
To test for doneness, insert a meat thermometer in
a thick or dense area away from fat or bone. NEVER
leave the thermometer in the food during cooking,
unless it is approved for microwave use.
• Avoid steam burns by directing steam away from
the face and hands. Slowly lift the farthest edge
of a dish’s covering and carefully open popcorn
and oven cooking bags away from the face.
• NEVER use the cavity for storing cookbooks or
other items.
• Keep waveguide cover clean. Food residue can
cause arcing and/or fires.
• Use care when removing items from the oven so
that the utensil, your clothes or accessories do
not touch the safety door latches.
• Keep aluminum foil used for shielding at least
1 inch away from walls, ceiling and door.
About Children and the Microwave
Children below the age of 7 should use the
microwave oven with a supervising person very
near to them. Between the ages of 7 and 12, the
supervising person should be in the same room.
Children should be taught all safety precautions:
use potholders, remove coverings carefully, pay
special attention to packages that crisp food
because they may be extra hot.
The child must be able to reach the oven comfortably; if not, he/she should stand on a sturdy stool.
Don’t assume that because a child has mastered one
cooking skill he/she can cook everything.
At no time should anyone be allowed to lean or swing
on the oven door.
Children need to learn that the microwave oven is
not a toy. See page 27 for Child Lock feature.
E
ORM 2.0 Side [TINSEB306WRRZ] [018 8
10/20/10 8:41:26 AM
INFORMATION YOU NEED TO KNOW
9
About Food
Food
Do
Eggs,
sausages,
nuts, seeds,
fruits &
vegetables
• Puncture egg yolks before cooking to
prevent “explosion”.
• Cook eggs in shells.
• Pierce skins of potatoes, apples,
squash, hot dogs and sausages so
that steam escapes.
• Dry nuts or seeds in shells.
Popcorn
• Use specially bagged popcorn for
microwave cooking.
• Pop popcorn in regular brown bags
or glass bowls.
• Listen while popping corn for the
popping to slow to 1 or 2 seconds or
use special popcorn pad.
• Exceed maximum time on popcorn
package.
• Transfer baby food to small dish and
heat carefully, stirring often. Check
temperature before serving.
• Heat disposable bottles.
Baby food
• Put nipples on bottles after heating
and shake thoroughly. “Wrist” test
before feeding.
General
• Cut baked goods with filling after
heating to release steam and avoid
burns.
• Stir liquids briskly before and after
heating to avoid “eruption”.
• Use deep bowl, when cooking liquids
or cereals, to prevent boilovers.
Don't
• Reheat whole eggs.
• Heat bottles with nipples on.
• Heat baby food in original jars.
• Heat or cook in closed glass jars or
air tight containers.
• Can in the microwave as harmful
bacteria may not be destroyed.
• Deep fat fry.
• Dry wood, gourds, herbs or wet
papers.
E
ORM 2.0 Side [TINSEB306WRRZ] [019 9
10/20/10 8:41:26 AM
10
INFORMATION YOU NEED TO KNOW
About Utensils and Coverings
It is not necessary to buy all new cookware. Many
pieces already in your kitchen can be used successfully in your new Over the Range Microwave Oven.
Make sure the utensil does not touch the interior
walls during cooking.
Use these utensils for safe microwave cooking
and reheating:
• glass ceramic (Pyroceram®), such as Corningware®.
• heat-resistant glass (Pyrex®)
• microwave-safe plastics
• paper plates
• microwave -safe pot te r y, stoneware and
porcelain
The following coverings are ideal:
• Paper towels are good for covering foods for
reheating and absorbing fat while cooking
bacon.
• Wax paper can be used for cooking and
reheating.
• Plastic wrap that is specially marked for microwave use can be used for cooking and reheating.
DO NOT allow plastic wrap to touch food. Vent
so steam can escape.
• Lids that are microwave-safe are a good choice
because heat is kept near the food to hasten
cooking.
• browning dish (Do not exceed recommended
pre heating time. Follow manufacture r's
directions.)
• Oven cooking bags are good for large meats or
foods that need tenderizing. DO NOT use metal
twist ties. Remember to slit bag so steam can
escape.
These items can be used for short time reheating
of foods that have little fat or sugar in them:
How to use aluminum foil in your Over the Range
Microwave Oven:
• wood, straw, wicker
• Small flat pieces of aluminum foil placed smoothly
on the food can be used to shield areas that are
either defrosting or cooking too quickly.
DO NOT USE
• metal pans and bakeware
• dishes with metallic trim
• non-heat-resistant glass
• non-microwave-safe plastics (margarine
tubs)
• recycled paper products
• brown paper bags
• food storage bags
• metal twist-ties
Should you wish to check if a dish is safe for
microwaving, place the empty dish in the oven and
microwave on HIGH for 30 seconds. A dish which
becomes very hot should not be used.
• Foil should not come closer than one inch to any
surface of the oven.
Should you have questions about utensils or coverings, check a good microwave cookbook or follow
recipe suggestions.
Accessories
There are many microwave accessories available for
purchase. Evaluate carefully before you purchase
so that they meet your needs. A microwave-safe
thermometer will assist you in determining correct doneness and assure you that foods have
been cooked to safe temperatures. Electrolux is
not responsible for any damage to the oven when
accessories are used.
E
ORM 2.0 Side [TINSEB306WRRZ] [0110 10
10/20/10 8:41:26 AM
BOTTOM VIEW
PART NAMES
11
10 Fan pad
Touch the fan pad once for high speed, twice for
medium speed, three times for low speed and
four times to turn off the fun.
11 Auto-Touch control panel
12 Time display: Digital display, 99 minutes, 99
seconds
13 Ventilation openings
14 Removable turntable
The turntable will rotate clockwise or counterclockwise. Only remove for cleaning.
15 Removable turntable support
First, carefully place the turntable support in the
motor shaft in the center of the microwave oven
floor. Then, place the turntable on the turntable
support securely.
16 Rack for 2-level cooking/ reheating
17 Light cover
18 Grease filters
19 Menu label
20 Rating label (model and serial number)
E
(Front of microwave oven)
(Rear of microwave oven)
1 Microwave oven door with see-through window
2 Door hinges
3 Waveguide cover:
DO NOT REMOVE.
4 Turntable motor shaft
5 Microwave oven light
It will light when microwave oven is operating or
door is open.
6 Rack holders
7 Safety door latches
The microwave oven will not operate unless the
door is securely closed.
8 Handle
9 Light pad
Touch the light pad once for high, twice for
medium, three times for low and four times to
turn off the light.
ORM 2.0 Side [TINSEB306WRRZ] [0111 11
10/20/10 8:41:26 AM
12
CONTROL PANEL
Words in the lower portion of the display will light to indicate what function is in progress.
29
16
18-19
27-28
13
18
18-19
20-21
25
26
24
14
23
22
29
29
13, 28
13
29
29
Number next to the control panel illustration
indicates pages on which there are feature descriptions and usage information.
E
ORM 2.0 Side [TINSEB306WRRZ] [0112 12
10/20/10 8:41:27 AM
BEFORE OPERATING
• Before operating your new oven make sure you
read and understand this Use and Care Guide
completely.
START add 30 sec
• Before the Over the Range Microwave Oven can
be used, follow these procedures:
1. Start cooking.
1. Plug in the oven. Close the door. The oven display
will show ENJOY YOUR OVEN TOUCH CLEAR
AND TOUCH CLOCK.
2. Touch the STOP/clear pad.
will appear.
:
13
Touch the START add 30 sec pad to:
2. Cook for 30 seconds at 100 % power level during
manual cooking. See page 28 Add 30 Seconds.
3. Extend cooking time in multiples of 30 seconds
each time this pad is touched during manual
cooking. See page 28 Add 30 Seconds.
3. Set clock. See below.
Stop/Clear
To Set the Clock
Touch the STOP/clear pad to:
• Suppose you want to enter the correct time of
day 12:30 (A.M or P.M.).
Procedure
Step
1. Erase if you make a mistake during programming.
2. Cancel timer.
3. Stop the oven temporarily during cooking.
Touch
4. Return the time of day to the display.
5. Cancel a program during cooking, touch twice.
1. Touch the set clock pad.
2. Enter the correct time
of day by touching the
numbers in sequence.
3. Touch the set clock pad
again.
set
clock
1
2
3
0
set
clock
This is a 12 hour clock. If you attempt to enter an
incorrect clock time, ERROR will appear in the
display. Touch the STOP/clear pad and re-set the
clock.
• If the electrical power supply to your microwave
oven should be interrupted, the display will
intermittently show after the power is reinstated.
If this occurs during cooking, the program will
be erased. The time of day will also be erased.
Simply touch the STOP/clear pad and reset the
clock for the correct time of day.
NOTE
Your Over the Range Microwave Oven can
be programmed with the door open except for
START add 30 sec, popcorn, fresh veggies,
frozen veggies, baked potato and sensor
reheat.
Using the Rack
The rack allows several foods to be cooked or
reheated at one time. However, for the best cooking
and reheating, use Turntable ON function and cook
with SENSOR MODES or AUTO MODES without
the rack. When the rack is used, set time and
power level manually. Allow plenty of space around
and between the dishes. Pay close attention to the
cooking and reheating progress. Reposition the
foods and reverse them from the rack to turntable
and/or stir them at least once during any cooking
or reheating time. After cooking or reheating, stir
if possible. Using a lower power level will assist in
better cooking and reheating uniformity.
Avoid:
• Storing the rack in the microwave oven when not
in use.
• Popping popcorn with the rack in the microwave
oven.
• Using any browning dish on the rack.
• Using SENSOR MODES and AUTO MODES with
the rack.
• Cooking directly on the rack—use microwavesafe cookware.
NOTE
Turntable ON/OFF function can be used in
Manual Operation. See page 29.
E
ORM 2.0 Side [TINSEB306WRRZ] [0113 13
10/20/10 8:41:27 AM
14
MANUAL OPERATION
• Suppose you want to defrost for 5 minutes at
30%.
Time Cooking
Your Over the Range Microwave Oven can be
programmed for 99 minutes 99 seconds (99.99).
Always enter the seconds after the minutes, even if
they are both zeros.
• Suppose you want to cook for 5 minutes at
100%.
Touch
5
1. Enter cooking time.
2. Touch the START
add 30 sec pad.
0
Step
1. Enter defrosting time.
2. Touch the power level
pad eight times to enter a
power level of 30%.
Procedure
Step
Procedure
0
START
add 30 sec
3. Touch the START
add 30 sec pad.
Touch
5
0
power
level
0
x8
START
add 30 sec
When the defrost time is complete, cooking completion signal will sound and END will appear in the
display.
To Set Power Level
There are eleven preset power levels.
Using lower power levels increases the cooking time
which is recommended for foods such as cheese,
milk and long slow cooking of meats. Consult cookbook or recipes for specific recommendations.
Touch power
level pad number
of times for
desired power
Approx.
Percentage
of power
Common
words for
power
levels
power level x 1
100%
High
power level x 2
90%
power level x 3
80%
power level x 4
70%
power level x 5
60%
power level x 6
50%
power level x 7
40%
power level x 8
30%
power level x 9
20%
power level x 10
10%
power level x 11
0%
Medium
High
Medium
Med Low/
Defrost
Low
E
ORM 2.0 Side [TINSEB306WRRZ] [0114 14
10/20/10 8:41:27 AM
MANUAL OPERATION
15
Manual Defrost
If the food that you wish to defrost is not listed on
the Defrost chart or is above or below the limits in
the Amount column on the Defrost chart (see page
26), you need to defrost manually.
You can defrost any frozen food, either raw or
previously cooked, by using Power Level for 30%
Follow the exact 3-step procedure found under To
set power level. Estimate defrosting time and touch
power level pad eight times for 30% power.
For either raw or previously cooked frozen food the
rule of thumb is approximately 4 minutes per pound.
For example, defrost 4 minutes for 1 pound of frozen
spaghetti sauce.
Always stop the oven periodically to remove or
separate the portions that are defrosted. If food is
not defrosted at the end of the estimated defrosting
time, program the oven in 1 minute increments at
power level 30% until totally defrosted.
When using plastic containers from the freezer,
defrost only long enough to remove from the plastic
in order to place in a microwave-safe dish.
SENSOR MODES
The sensor is a semi-conductor device that detects
the vapor (moisture and humidity) emitted from the
food as it heats. The sensor adjusts the cooking
times and power level for various foods and
quantities.
Using Sensor Settings:
1. After oven is plugged in, wait 2 minutes before
using Sensor Settings.
2. Be sure the exterior of the cooking container
and the interior of the oven are dry. Wipe off any
moisture with a dry cloth or paper towel.
3. The oven works with foods at normal storage
temperature. For example, popcorn would be at
room temperature.
4. Any Sensor Settings selection can be programmed with More or Less Time Adjustment.
See page 28.
5. More or less food than the quantity listed in the
chart should be cooked following the guidelines
in any microwave cookbook.
6. During the first part of SENSOR MODES, food
name will appear on the display. Do not open the
oven door or touch the STOP/clear pad during
this part of the cycle. The measurement of vapor
will be interrupted. If this occurs, an error message will appear. To continue cooking, touch the
STOP/clear pad and cook manually.
When the sensor detects the vapor emitted from
the food, remainder of cooking time will appear.
Door may be opened when remaining cooking
time appears on the display. At this time, you
may stir or season food, as desired.
7. If the sensor does not detect vapor properly
when popping popcorn, the oven will turn off,
and the correct time of day will be displayed. If
the sensor does not detect vapor properly when
cooking other foods, ERROR will be displayed,
and the oven will turn off.
8. Check food for temperature after cooking. If
additional time is needed, continue to cook
manually.
9. Each food has a cooking hint. Touch user pref
pad when the HELP indicator is lighted in the
display.
Covering Foods:
Some foods cook better when covered. Use the
cover recommended in the food charts.
1. Casserole lid.
2. Plastic wrap: Use plastic wrap recommended for
microwave cooking. Cover dish loosely; allow
approximately 1/2 inch to remain uncovered to
allow steam to escape. Plastic wrap should not
touch food.
3. Wax paper: Cover dish completely; fold excess
wrap under dish to secure. If dish is wider than
paper, overlap two pieces at least one inch
to cover.
Be careful when removing any covering to allow
steam to escape away from you.
E
ORM 2.0 Side [TINSEB306WRRZ] [0115 15
10/20/10 8:41:28 AM
16
SENSOR MODES
SENSOR MODES has 6 functions, such as Sensor
Cook, popcorn, fresh veggies, frozen veggies, baked
potato and sensor reheat.
NOTES
1. SENSOR MODES can be programmed with
More or Less Time Adjustment. Touch the
power level pad once or twice before cooking is started. See page 28.
2. Each food has a cooking hint. Touch the user
pref pad when the HELP indicator is lighted
in the display.
3. Should you attempt to enter more or less
than the allowed amount, an error message
will appear in the display.
More or less than the quantity listed on
the chart should be cooked following the
guidelines in any microwave cookbook.
4. The final cooking result will vary according
to the food condition (e.g. initial temperature,
shape, quality). Check food for temperature
after cooking. If additional time is needed,
continue to cook manually.
Sensor Cook
There are 5 foods (frozen entrees, ground meat,
rice, flash/seafood, and chicken breast) under the
SENSOR COOK that uses the sensor.
You can cook many foods by touching the sensor
cook pad and the food number. You don’t need to
calculate cooking time or power level.
<Frozen Entrees, Ground Meat, Rice,
Fish/Seafood, Chicken Breast>
• Suppose you want to cook Frozen Entrees.
Procedure
Step
1. Touch the sensor
cook pad, number 1
for Frozen Entrees.
Touch
sensor
cook
1
2. At end, follow the directions in the display.
3. Touch the START add
30 sec pad.
START
add 30 sec
5. When sensor detects the vapor emitted from
the foods, manipulation message or remaining cooking time will be displayed.
6. Stay near the oven while it’s in use and check
cooking progress frequently so that there is
no chance of overcooking food.
E
ORM 2.0 Side [TINSEB306WRRZ] [0116 16
10/20/10 8:41:28 AM
SENSOR MODES
17
Sensor Cook chart
Food
Amount
Procedure
1. Frozen Entrees*
6 - 17 oz
170 - 480 g
Use this pad for frozen, convenience foods. It will give
satisfactory results for most brands. You may wish to try
several and choose your favorite. Remove package from
outer wrapping and follow package directions for covering.
After cooking, let stand, covered for 1 to 3 minutes.
2. Ground Meat*
0.25 - 2.0 lb
0.2 - 0.9 kg
Use this setting to cook ground beef or turkey as patties
or in a casserole to be added to other ingredients. Place
patties on a microwave-safe rack and cover with wax paper.
Place ground meat in a casserole and cover with wax paper
or plastic wrap. When oven stops, turn patties over or stir
meat in casserole to break up large pieces. Re-cover and
touch the START add 30 sec pad. After cooking, let stand,
covered, for 2 to 3 minutes.
3. Rice*
0.5 - 2.0 cups Place rice into a deep casserole dish and add double quantity of
water. Cover with lid or plastic wrap. After cooking, stir, cover and
let stand 3 to 5 minutes or until all liquid has been absorbed.
Rice
.5 cup
1 cup
1.5 cups
2 cups
Water
1 cup
2 cups
3 cups
4 cups
Size of casserole dish
1.5 quart
2 quart
2.5 or 3 quart
3 quart or larger
4. Fish/Seafood*
0.25 - 2.0 lb
0.2 - 0.9 kg
Arrange in ring around shallow glass dish (roll fillet with
edges underneath). Cover with plastic wrap. After cooking,
let stand, covered, 3 minutes.
5. Chicken Breast*
0.5 - 2.0 lb
0.3 - 0.9 kg
Cover with vented plastic wrap. When oven stops, turn over.
Shield with small, flat pieces of aluminum foil any areas that
are cooking too rapidly. Re-cover and touch the START add
30 sec pad. After cooking, let stand, covered 3 to 5 minutes.
Chicken should be 160˚F.
* It is not necessary to enter amount.
E
ORM 2.0 Side [TINSEB306WRRZ] [0117 17
10/20/10 8:41:28 AM
18
SENSOR MODES
Popcorn/Fresh Veggies/Frozen Veggies/Baked Potato/
Sensor Reheat
<Popcorn・Fresh Veggies>
<Frozen Veggies・Baked Potato・Sensor Reheat>
• Suppose you want to cook popcorn.
• Suppose you want to reheat soup.
Procedure
Step
Procedure
Touch
<Regular>
Touch the popcorn pad once.
<Snack>
Touch the popcorn pad twice.
pop
corn
Step
Touch
Touch the sensor reheat pad
for soup.
sensor
reheat
pop x2
corn
NOTES
1. Fresh veggies can be selected by touching the pad once or twice depending on Soft or Hard. See
Fresh Veggies chart on page 19.
2. The popcorn, fresh veggies, frozen veggies, baked potato and sensor reheat can only be accepted
within 3 minutes after cooking, opening and closing the door or touching the STOP/clear pad to
prevent from misusing.
3. Cooking can be also started by touching the START add 30 sec pad within 2 seconds after touching
the desired pad.
Popcorn chart
Food
Popcorn
Amount
1 package
Regular: 3.0 - 3.5 oz,
85 - 100 g
Snack: 1.5 - 1.75 oz,
45 - 50 g
Procedure
Use only popcorn packaged for the microwave. Try several
brands to decide which you like. Do not try to pop unpopped
kernels. The amount is selected by pressing the pad once
(Regular) or twice (Snack).
E
ORM 2.0 Side [TINSEB306WRRZ] [0118 18
10/20/10 8:41:28 AM
SENSOR MODES
19
Fresh Veggies chart
Food
Amount
Procedure
1. Fresh Vegetables, soft
Broccoli
Brussels sprouts
Cabbage
Cauliflower (flowerets)
Cauliflower (whole)
Spinach
Zucchini
Baked apples
0.25 - 2.0 lb, 0.2 - 0.9 kg
0.25 - 2.0 lb, 0.2 - 0.9 kg
0.25 - 2.0 lb, 0.2 - 0.9 kg
0.25 - 2.0 lb, 0.2 - 0.9 kg
0.25 - 2.0 lb, 0.2 - 0.9 kg
1 medium
0.25 - 1.0 lb, 0.2 - 0.45 kg
0.25 - 2.0 lb, 0.2 - 0.9 kg
2 - 4 medium
Wash and place in casserole. Add no water if vegetables have just been washed. Cover with lid for
tender vegetables. Use plastic wrap for tender-crisp
vegetables. Touch the fresh veggies pad once.
After cooking, stir, if possible. Let stand, covered,
for 2 to 5 minutes.
2. Fresh Vegetables, hard
Carrots, sliced
Corn on cob
Green beans
Winter squash
- diced
- halves
0.25 - 2.0 lb, 0.2 - 0.9 kg
0.25 - 1.5 lb, 0.2 - 0.6 kg
2 - 4 pcs.
0.25 - 1.5 lb, 0.2 - 0.6 kg
Place in casserole. Add 1-4 tbsp. water. Cover with
lid for tender vegetables. Use plastic wrap cover for
tender-crisp vegetables. Touch the fresh veggies
pad twice. After cooking, stir, if possible. Let stand,
covered, for 2 to 5 minutes.
0.25 - 1.5 lb, 0.2 - 0.6 kg
1-2
Frozen Veggies chart
Food
Frozen Veggies*
Amount
Procedure
0.25 - 1.25 lb
0.2 - 0.5 kg
Add no water. Cover with lid or plastic wrap. After cooking,
stir and let stand, covered, for 3 minutes.
* It is not necessary to enter amount or number.
Baked Potato chart
Food
Baked Potato*
Amount
1 - 8 pieces
(medium)
Procedure
Pierce with fork in several places. Place on paper towel on
turntable. After cooking, remove from oven and let stand
wrapped in foil for 5 to 10 minutes.
* It is not necessary to enter amount or number.
Sensor Reheat chart
Food
Sensor Reheat*
Amount
4 - 36 oz
0.12 - 1.0 kg
Procedure
Place in dish or casserole slightly larger than amount to be
reheated. Flatten, if possible. Cover with lid, plastic wrap
or wax paper. Use covers such as plastic wrap or lids with
larger quantities of more dense foods such as stews. After
reheating, stir well, if possible. Re-cover and allow to stand
2 to 3 minutes. Foods should be very hot. If not, continue to
heat with variable power and time.
* It is not necessary to enter amount or number.
E
ORM 2.0 Side [TINSEB306WRRZ] [0119 19
10/20/10 8:41:29 AM
20
AUTO MODES
AUTO MODES has 6 functions, such as auto cook, keep
warm, melt/soften, snacks, auto reheat and auto defrost.
NOTES
1. AUTO MODES except keep warm can be programmed with More or Less Time Adjustment.
Touch the power level pad once or twice
before cooking is started. See page 28.
2. Each food has a cooking hint. Touch the user
pref pad when the HELP indicator is lighted
in the display for a helpful hint.
Auto Cook
Auto cook is divided into 2 parts, Quick Meal (frozen
breakfast, scrambled eggs, hot cereal, soup) and
Dinner Recipes (Chicken and Rice, Meat Loaf, Roast
Pork, Seafood Pasta, Vegetarian Medley).
<Quick Meal>
• Suppose you want to cook hot cereal for 1 serving with Less Time Adjustment.
Procedure
Step
Touch
1. Touch the auto cook
pad, number 3 for hot
cereal.
auto
cook
3
2. Repeat touching same
number pad at Step 1
to increase quantity.
Ex: 1 serving.
3
x1
3. Touch the power level
pad twice for Less Time
Adjustment.
power
level x2
4. Touch the START add
30 sec pad.
START
add 30 sec
5. Midway through the cooking, cooking stop melody will
be heard and your oven will stop. Open the door, follow
the instruction shown in the display and close the door.
6. Touch the START add
30 sec pad to
continue cooking.
START
add 30 sec
NOTES
1. Skip Step 3, when More or Less Time Adjustment is not needed.
2. Frozen breakfast is not needed to enter
amount or number. Skip Step 2.
3. If mute is set, the melody will not be heard at Step
5. See 2, Audible Signal Elimination on page 27.
Auto Cook chart
Food
E
Amount
Procedure
1. Frozen
Breakfast*
3 -6 oz
85 - 170 g
This setting works well for frozen breakfast entrees, pancakes, waffles,
burritos etc. Follow manufacturer’s directions for how to prepare for
microwaving. Allow to stand 1 or 2 minutes after cooking.
2. Scrambled
Eggs
1 - 8 eggs
For each egg, use 1 teaspoon of butter or margarine and 1 tablespoon of
milk. Place butter or margarine in dish, measuring cup or casserole large
enough for the egg to expand. Mix egg and milk together. Pour on to butter
or margarine in dish. Cover with wax paper. Place in oven and program.
Touch number 2 to increase quantity and touch the START add 30 sec pad.
When oven stops, stir egg mixture moving the cooked portion to the center
of the dish, uncooked portion to the outside, close the door and touch the
START add 30 sec pad. After cooking, stir and let stand, covered, until set.
Note that eggs will be slightly undercooked when removed from the oven.
3. Hot Cereal
1- 6 servings
Use individual packets or bulk cereal in your favorite variety: oatmeal, oat
bran, cream of wheat, farina or wheatena. Follow package directions for the
correct amount of water or milk. To prevent boilovers, it is very important
to choose a large container because microwave cooking of cereal causes
high boiling. Touch number 3 to increase quantity and touch the START
add 30 sec pad. When oven stops, stir and touch the START add 30 sec
pad. After cooking, stir and let stand, covered, for 2 minutes.
4. Soup
1 - 8 cups
Place in bowl or casserole. Cover with lid or plastic wrap. Touch number
4 to increase quantity and touch the START add 30 sec pad. At end,
stir, recover and let stand 1 to 3 minutes.
* It is not necessary to enter amount or number.
ORM 2.0 Side [TINSEB306WRRZ] [0120 20
10/20/10 8:41:29 AM
AUTO MODES
21
<Dinner Recipes (recipes serve 6)>
5. CHICKEN AND RICE
8. SEAFOOD PASTA
Place in a 3 quart casserole:
1
package (5 - 8 ounces) yellow rice mix
with flavor packet
2
cups chicken broth
Stir well and cover. Touch the auto cook pad,
number 5 and touch the START add 30 sec pad.
At pause, stir well and add:
1
cup frozen peas
1
red pepper, diced
11/4 pounds boneless chicken cutlets,
sliced into thin strips
Re-cover. Touch the START add 30 sec pad.
At end, garnish with parsley.
Place in a 3 quart casserole:
8 - 9 ounces fresh tortellini
2
cups water
Stir well and cover. Touch the auto cook pad,
number 8 and touch the START add 30 sec pad.
At pause, stir well and add:
1
jar (17 ounces) creamy Alfredo sauce or
13/4 cups of medium, white cheese sauce
11/4 pounds combination raw shellfish,
fresh or thawed (shrimp, bay scallops,
crabmeat)
3
cups mixed, fresh vegetables (sliced
mushrooms, thinly julienned carrots,
green beans)
Re-cover. Touch the START add 30 sec pad.
At end, garnish with:
1/3 cup grated Parmesan cheese
6. MEAT LOAF
Mix together well:
11/2 pounds lean ground beef
1/2 cup soft bread crumbs
1/2 cup red wine
1
egg, beaten
2
tablespoons chopped onion
1/2 teaspoon salt
1/2 teaspoon dry mustard
1/4
teaspoon pepper
1
teaspoon instant beef bouillon
2
tablespoons chopped green pepper
Place in a 9 x 5-inch glass loaf dish.
Touch the auto cook pad, number 6 and touch the
START add 30 sec pad.
If desired, spread top of meat loaf with 1/2 cup catsup
during last 2 minutes of cooking time.
At end, remove from oven, cover with foil and allow
to stand 3 to 5 minutes before serving.
7. ROAST PORK
Combine in small dish:
1
tablespoon butter, melted
2
cloves garlic, minced
1
teaspoon dried marjoram leaves, crushed
1/2 teaspoon dried oregano leaves, crushed
1/2 teaspoon pepper
Stir well. Brush on:
1
(3 pound) boneless, pork loin, center cut
Place loin in a 13 x 9 x 2-inch casserole. Cover with
vented plastic wrap.
Touch the auto cook pad, number 7 and touch the
START add 30 sec pad.
9. VEGETARIAN MEDLEY
Place in a 3 quart casserole:
1
cup orzo or other tiny shaped pasta
31/2 cups vegetable or chicken broth
1/4
cup pesto sauce (fresh or reconstituted
from dry)
1/2 cup small pieces of sundried tomatoes
1
tablespoon minced garlic
1
tablespoon Italian seasoning
Stir well and cover. Touch the auto cook pad,
number 9 and touch the START add 30 sec pad.
At pause, stir well and add:
3
cups chopped green, red, orange or yellow peppers
1
onion, thinly sliced
1
can (14 ounces) artichoke hearts, drained
and quartered
1
can (3 ounces) pitted, ripe olives, drained
and halved
Re-cover. Touch the START add 30 sec pad.
At end, stir and garnish top with:
1/2 cup freshly shredded Parmesan cheese
1/4
cup pine nuts
E
ORM 2.0 Side [TINSEB306WRRZ] [0121 21
10/20/10 8:41:30 AM
22
AUTO MODES
Keep Warm
Keep warm allows you to keep food warm for
30 minutes at the maximum.
Direct use
• Suppose you want to keep a cup of soup warm
for 30 minutes.
Procedure
Step
1. Touch the keep warm
pad.
2. Enter the desired time.
Ex : 30 minutes.
3. Touch the START add
30 sec pad.
With manual cooking
• Suppose you want to cook a cup of soup for
2 minutes at 70% and keep the soup warm for
15 minutes.
Procedure
Step
Touch
Touch
keep
warm
3
0
0
0
START
add 30 sec
The oven will start. The display will show 30.00 and
count down. KEEP WARM will be displayed every
10 seconds during the countdown.
You can program Keep warm with manual cooking
to keep food warm continuously after cooking.
1. Enter cooking time.
2. Touch the power level
pad 4 times for 70%
power.
3. Touch the keep warm
pad.
4. Enter the desired time
by touching the number
pads 1, 5, 0 and 0 for
15 minutes.
5. Touch the START add
30 sec pad.
2
0
0
power
level
x4
keep
warm
1
5
0
0
START
add 30 sec
The operation will start. When the cooking time is
complete, cooking completion melody will sound
and Keep warm will start. KEEP WARM will appear
in the display every 10 seconds and count down
for 15 minutes.
NOTES
1. Keep warm cannot be programmed in
conjunction with SENSOR MODES or AUTO
MODES.
2. Keep warm can be used in conjunction with
sequence cooking in Auto Start function. See
Auto Start on page 27.
3. Turn table ON/OFF function can be used in
keep warm. See page 29.
E
ORM 2.0 Side [TINSEB306WRRZ] [0122 22
10/20/10 8:41:30 AM
AUTO MODES
23
Melt, Soften
Melt, soften automatically computes the correct
heating time and microwave power level for melting
and softening foods shown in the chart.
There are 4 foods (butter, chocolate, ice cream and
cream cheese) under the melt, soften.
<Butter, Chocolate, Ice cream, Cream cheese>
NOTE
To melt, soften other food or foods except the
quantity listed on the melt, soften chart, use
manual operation.
• Suppose you want to melt 1 square of chocolate.
Procedure
Step
Touch
1. Touch the melt, soften
pad once, number 2 for
chocolate.
2. Repeat touching same
number pad at Step 1 to
select quantity.
Ex: Touch number 2 two
more times for 1 square.
3. Touch the START add
30 sec pad.
melt,
soften
2
2
x2
START
add 30 sec
Melt, Soften chart
Food
Amount
Melt
1. Butter
2. Chocolate
Procedure
Use a Pyrex measuring cup. Cover with plastic wrap. Stir after cooking.
2 tbsp
After touching the melt, soften pad, touch number 1 two times for 2 tbsp.
1/2 cup
After touching the melt, soften pad, touch number 1 three times for 1/2 cup.
1 cup chips
After touching the melt, soften pad, touch number 2 two times for 1 cup chips.
1 square
After touching the melt, soften pad, touch number 2 three times for 1 square.
Soften
DO NOT COVER.
3. Ice cream
1 pint
After touching the melt, soften pad, touch number 3 two times for 1 pint.
1/2 gallon
After touching the melt, soften pad, touch number 3 three times for 1/2 gallon.
4. Cream cheese
Use a small plate. DO NOT COVER.
3 oz, 85 g
After touching the melt, soften pad, touch number 4 two times for 3 oz
or 0.085 kg.
8 oz, 225 g
After touching the melt, soften pad, touch number 4 three times for 8 oz
or 0.225 kg.
E
ORM 2.0 Side [TINSEB306WRRZ] [0123 23
10/20/10 8:41:30 AM
24
AUTO MODES
Snacks
Snacks are for cooking/heating foods that take a
short amount of time!
There are 7 foods (frozen mw pizza, hand held snacks
(3-4 oz / 0.085-0.113 kg), hand held snacks (5-6 oz /
0.142-0.17 kg), chicken nuggets, hot dogs, frozen kid's
meal and pizza) under the snacks.
<Frozen MW Pizza, Hand Held Snacks,
Hot Dogs, Frozen Kid's Meal, Pizza>
• Suppose you want to reheat a slice of pizza with snacks.
Procedure
Step
Touch
1. Touch the snacks pad
and number 7 for pizza.
2. Repeat touching same
number pad at Step 1
to increase quantity.
3. Touch the START add
30 sec pad.
7
snacks
7
x1
START
add 30 sec
<Chicken Nuggets>
• Suppose you want to heat 0.3 pound or 0.3
kilogram chicken nuggets with snacks.
Procedure
Step
Touch
1. Touch the snacks
pad and number 4 for
chicken nuggets.
snacks
4
2. Enter amount by touching the number 3.
Ex: 0.3 lb or 0.3 kg
chicken nuggets.
3
3. Touch the START add
30 sec pad.
START
add 30 sec
NOTES
1. Frozen mw pizza, hand held snacks and
Frozen Kid's Meal are not needed to enter
amount or number. Skip Step 2.
2. When 1.0 pound chicken nuggets is heated,
touch number 1 and 0 at Step 2.
Snacks chart
Food
E
Amount
Procedure
1. Frozen MW
Pizza*
6 - 8 oz
170 - 225 g
Use for frozen microwave pizza. Remove from package and unwrap. Follow package directions for use of package and/or silver crisping disk.
2. Hand Held
Snacks*
3 - 4 oz
85 - 113 g
Use for frozen French fries, cheese sticks, appetizers etc. Remove from outer
package. Arrange on flat plate. Follow package directions for how to wrap or
cover. Be careful when removing from the oven as snack may be very hot.
3. Hand Held
Snacks*
5 - 6 oz
142 - 170 g
Use for frozen French fries, cheese sticks, appetizers etc. Remove from outer
package. Arrange on flat plate. Follow package directions for how to wrap or
cover. Be careful when removing from the oven as snack may be very hot.
4. Chicken
Nuggets
0.3 - 1.0 lb
0.2 - 0.4 kg
Place frozen chicken nuggets on a flat plate allowing space between
each. It is not necessary to cover them. When oven stops, rearrange
and touch the START add 30 sec pad.
5. Hot Dogs
1 - 6 pieces
Place hot dog in bun. Wrap each with paper towel or napkin. Touch number 5 to increase quantity and touch the START add 30 sec pad.
6. Frozen Kid's
Meal*
6 - 8 oz
170 - 225 g
Use this pad for frozen, convenience foods. It will give satisfactory results
for most brands. You may wish to try several and choose your favorite.
Remove package from outer wrapping and follow package directions
for covering. After cooking, let stand, covered for 1 to 3 minutes.
7. Pizza
1 - 6 slices
Use this setting to reheat refrigerated leftover pizza, 1 slice is approximately
1/8th of a 12-inch pizza or 1/12th of a 16-inch pizza. Arrange on flat plate. Touch
number 7 to increase quantity and touch the START add 30 sec pad.
* It is not necessary to enter amount.
ORM 2.0 Side [TINSEB306WRRZ] [0124 24
10/20/10 8:41:30 AM
AUTO MODES
25
Auto Reheat
There are 4 foods (fresh rolls/muffins, frozen
rolls/muffins, pasta and beverage) under the auto
reheat.
<Fresh Rolls/Muffins, Frozen Rolls/Muffins,
Pasta, Beverage>
• Suppose you want to reheat 2 fresh muffins with
auto reheat.
Procedure
Step
Touch
1. Touch the auto
reheat pad and number 1 for fresh muffin.
2. Repeat touching same
number pad at Step 1
to increase quantity.
Ex : 2 muffins.
3. Touch the START add
30 sec pad.
auto
reheat
1
1
x2
START
add 30 sec
Auto Reheat chart
Food
Amount
Procedure
1. Fresh Rolls/
Muffins
1 - 10 pieces Use this pad to warm rolls, muffins, biscuits, bagels etc. Large items
should be considered as 2 or 3 regular size. Arrange on flat plate; cover
with paper towel. For refrigerated rolls or muffins, it may be necessary
to double the entered amount to ensure the proper serving temperature.
For example, enter quantity of 2 for 1 refrigerated muffin. Touch the
auto reheat pad and number 1 to increase quantity and touch the
START add 30 sec pad.
2. Frozen Rolls/
Muffins
1 - 10 pieces Use this pad to warm rolls, muffins, biscuits, bagels etc. Large items
should be considered as 2 or 3 regular size. Arrange on flat plate; cover
with paper towel. Touch the auto reheat pad and number 2 to increase
quantity and touch the START add 30 sec pad.
3. Pasta
1 - 6 cups
4. Beverage
0.5 - 2.0 cups This setting is good for restoring a cool beverage to a better drinking
temperature. Stir liquid briskly before and after heating to avoid "eruption". Touch the auto reheat pad, number 4 to increase quantity and
touch the START add 30 sec pad.
Use this pad to reheat refrigerated canned or homemade pasta with sauce.
For room temperature pastas, use Less option. Pasta without sauce double
the quantity per setting. For example, measure 2 cups of cooked noodles
and program for 1 cup. Cover with lid or plastic wrap. Touch the auto
reheat pad, number 3 to increase quantity and touch the START add 30
sec pad. After cooking, stir and let stand, covered 2 to 3 minues.
E
ORM 2.0 Side [TINSEB306WRRZ] [0125 25
10/20/10 8:41:31 AM
26
AUTO MODES
Auto Defrost
There are 6 foods (ground meat, stakes/chops/fish,
chicken pieces, roast, casserole and soup) under
the auto defrost.
Auto defrost automatically defrosts all the foods
found in the Defrost chart below.
<Ground Meat, Steaks/Chops/Fish,
Chicken Pieces, Roast, Casserole, Soup>
• Suppose you want to defrost a 1.8 pound or 1.8
kilogram steak.
Procedure
Step
Touch
1. Touch the auto defrost pad
and number 2 for steak.
2. Enter weight by touching
number 1 and 8.
Ex: 1.8 lb or 1.8 kg steak.
auto
defrost
1
2
8
3. Touch the START add 30
sec pad.
START
add 30 sec
4. Midway through the cooking,
cooking stop melody will be
heard and your oven will stop.
Open the door, follow the
instruction shown in the display
and close the door. Touch the
START add 30 sec pad.
START
add 30 sec
NOTES
1. To defrost other food or foods above or below the
weights allowed on the Defrost chart, use time and
30% power. See Manual defrost on page 15.
2.If you attempt to enter more or less than the
amount as indicated in the chart below, an
error message will appear in the display.
3. Check foods when your oven stops. After final
stage, small sections may still be icy. Let stand
to continue thawing. Do not defrost until all ice
crystals are thawed.
4. If mute is set, the melody will not be heard at
Step 4. See 2, Audible Signal Elimination on
page 27.
5. Shielding prevents cooking from occurring
before the center of the food is defrosted. Use
small smooth strips of aluminum foil to cover
edges and thinner sections of the food.
6. Touch number 5 to enter 0.5 pound or 0.5
kilogram at Step 2.
7. Touch desired number for casserole and soup
at Step 2.
After defrost cycle ends, let stand, covered.
Auto Defrost chart
Food
Amount
Procedure
1. Ground Meat
0.5 - 3.0 lb Remove any thawed pieces after each stage. Let stand, covered, for
0.3 - 1.3 kg 5 to 10 minutes.
2. Steaks/Chops/
Fish
0.5 - 4.0 lb After each stage, rearrange and if there are warm or thawed portions,
0.3 - 1.8 kg shield with small flat pieces of aluminum foil. Remove any meat or fish
that is almost defrosted. Let stand, covered, for 10 to 20 minutes.
3. Chicken Pieces
0.5 - 3.0 lb After each stage, rearrange pieces or remove portions should they
0.3 - 1.3 kg become warm or thawed. Let stand, covered, for 10 to 20 minutes.
4. Roast
2.0 - 4.0 lb Start defrosting with fat side down. After each stage, turn roast over
1.0 - 1.8 kg and shield the warm portions with aluminum foil. Let stand, covered,
for 30 to 60 minutes.
5. Casserole
2 - 6 cups
After audible signal, stir if possible. At end, stir well and let stand,
covered, for 5 to 10 minutes.
6. Soup
1 - 6 cups
After audible signal, stir if possible. At end, stir well and let stand,
covered, for 5 to 10 minutes.
E
ORM 2.0 Side [TINSEB306WRRZ] [0126 26
10/20/10 8:41:31 AM
CONVENIENT FEATURES
User Pref
27
Procedure
User pref provides 4 features that make using
your oven easy because specific instructions are
provided in the interactive display.
Step
Touch
1. Child Lock
5. Enter cooking time.
Ex : 20 minutes
The Child Lock prevents unwanted oven operation
such as by small children. The oven can be set so
that the control panel is deactivated or locked. To
set, touch the user pref pad, the number 1 and then
touch the START add 30 sec pad. Should a pad be
touched, LOCKED will appear in the display.
6. Touch the power level
pad six times for 50%
power.
To cancel, touch the user pref pad and the START
add 30 sec pad. Child Lock will not be canceled if
other pads except the START pad are touched after
touching the user pref pad.
7. Touch the keep warm
pad.
8. Enter desired time.
Ex : 15 minutes
2. Audible Signal Elimination
If you wish to have the oven operate with no audible
signals, touch the user pref pad, number 2 and the
STOP/clear pad.
To cancel and restore the audible signal, touch the user
pref pad, number 2 and the START add 30 sec pad.
3. Auto Start
If you wish to program your oven to begin cooking
automatically at a designated time of day, follow
this procedure:
• Suppose you want to start cooking a stew for
20 minutes at 50% and set keep warm 15 minutes
at 4:30. Before setting, check to make sure the
clock is showing the correct time of day.
9. Touch the START add 30
sec pad.
2
0
0
0
power
level
x6
keep
warm
1
5
0
0
START
add 30 sec
NOTES
1. Auto Start can be used for manual cooking and keep warm set in conjunction with
sequence cooking if clock is set.
Step
Touch
2. If the oven door is opened after programming Auto Start, it is necessary to touch the
START add 30 sec pad for Auto Start time
to appear in the display so that the oven will
automatically begin programmed cooking at
the chosen Auto Start time.
1. Touch the user pref pad.
user
pref
3. Be sure to choose foods that can be left in the
oven safely until the Auto Start time. Acorn or
butternut squash are often a good choice.
3
4. If you wish to know the time of day, simply
touch the set clock pad.
Procedure
2. Touch number 3.
3. Enter the start time.
Ex : 4:30
4. Touch the set clock pad.
4
3
0
5. After programming Auto Start, open the door and
close the door to cancel auto start function.
set
clock
E
ORM 2.0 Side [TINSEB306WRRZ] [0127 27
10/20/10 8:41:31 AM
28
CONVENIENT FEATURES
4. Language Selection
The oven comes set for English and U.S. Customary Unitpounds. Your oven can be selected 3 Languages, English,
Spanish or French, and 2 units, pounds or kilograms for
each language. To change, touch the user pref pad and
number 4. Continue to touch the number 4 until your choice
is selected from the table below. Then, touch the START
add 30 sec pad.
Press the user pref pad
and number 4
Language
5. Touch the START add 30
sec pad for 2nd stage.
NOTES
1. If the power level pad is touched, HIGH will be
displayed.
Units
2. If 100% is selected as the final sequence, it is not
necessary to touch the power level pad.
once
twice
English
LB
3 times
English
KG
4 times
Spanish
LB
5 times
Spanish
KG
6 times
French
LB
7 times
French
KG
8 times
English
LB
Multiple Sequence Cooking
Your oven can be programmed for up to 4 automatic cooking sequences, switching from one power level setting to
another automatically.
START
add 30 sec
3. Keep warm can be programmed even if 4 cooking
sequences have been set.
More or Less Time Adjustment
Should you discover that you like any of SENSOR MODES
or AUTO MODES slightly more done, touch the power
level pad once after touching your choice of pads or
before touching the START add 30 sec pad. The display
will show MORE.
Should you discover that you like any of SENSOR MODES
or AUTO MODES slightly less done, touch the power
level pad twice after touching your choice of pads or
before touching the START add 30 sec pad. The display
will show LESS.
Add 30 Seconds
Sometimes cooking directions tell you to start on one
power level and then change to a different power level.
Your oven can do this automatically.
Add 30 seconds allows you to cook for 30 seconds at 100%
by simply touching the START add 30 sec pad. You can also
extend cooking time in multiples of 30 seconds by repeatedly
touching the START add 30 sec pad until maximum 99 minutes
during manual cooking.
•
•
Suppose you want to cook roast beef for 5 minutes at 100%
and then continue to cook for 30 minutes at 50%.
Suppose you want to heat a cup of soup for 30 seconds.
Procedure
Procedure
Step
1. Enter cooking time for 1st
stage.
2. Touch the power level pad
once for 100% power for
1st stage.
3. Enter second cooking time
for 2nd stage.
4. Touch the power level pad
6 times for 50% power for
2nd stage.
E
ORM 2.0 Side [TINSEB306WRRZ] [0128 28
Step
Touch
5
0
0
power
level
x1
3
0
0
0
Touch
Touch the START add 30
sec pad.
START
add 30 sec
NOTES
1. To use add 30 seconds, touch the pad within 3
minutes after cooking, closing the door, touching the
STOP/clear pad or during cooking.
2. Add 30 seconds cannot be used with SENSOR
MODES and AUTO MODES.
Help
power
level
x6
Each setting has a cooking hint. If you wish to check,
touch the user pref pad whenever HELP is lighted in the
Interactive Display for these and other manual operation
hints.
10/20/10 8:41:32 AM
CONVENIENT FEATURES
Timer
cooking or reheating time. After cooking or reheating, stir if possible.
Using a lower power level will assist in better cooking or reheating
uniformity.
You can easily use Timer function as independent kitchen timer or
while using microwave for cooking.
Turntable ON/OFF function can be used in Manual Cooking and keep
warm in AUTO MODES. When Turntable ON is set, Turntable is turned
and when Turntable OFF is set, Turntable is stopped. When SENSOR
MODES and AUTO MODES are selected, Turntable ON is automatically
set.
•
Suppose you want to time a 3-minute long distance phone call.
Procedure
Step
Turntable ON/OFF can be set during Manual Cooking and cooking
programming by touching the turntable on-off pad.
Touch
3
2. Enter time.
Quick Start
timer
on-off
1. Touch the timer on-off pad.
3. Touch the timer on-off pad.
The timer will count down.
0
29
0
timer
on-off
4. At end of timer, 3 long beeps will sound and words Timer / End
will flash in the display. This tells you the timer is completed. To
cancel, just touch any key pad. The time of day clock will then
appear in display.
Quick start is very useful function to start or add to cook from
1 minute to 6 minutes by touching number from 1 to 6 at 100% power
without touching the START add 30 sec pad. Touch number from
1 to 6 within 3 minutes after cooking, closing the door, touching the
STOP/CLEAR pad.
•
Suppose you want to cook 2 minutes at 100% power.
Procedure
Step
Touch
2
Touch number 2.
NOTES
1. Timer on-off pad acts as an independent kitchen timer. It
can be used before microwave is started for cooking or after
microwave has already been started cooking. Timer can not be
set while microwave cooking is programing.
2. Timer is always started as example above - touch timer pad, enter
desired time, press timer pad again to start count down.
3. Canceling the Timer function is completed as follows - touch
timer pad, then touch STOP clear pad. Timer is cancelled. This
must be done within 4 seconds after touching timer pad. See
Timer Operation Table below.
4. When Timer function is completed, 3 long beeps will sound
and words Timer / End will flash in the display. This tells you
the timer function is completed. To cancel, just touch any key
pad. The time of day clock will then appear in display.
5. If using timer when cooking with microwave, when timer is
completed, 3 long beeps will sound and words Timer / End will
flash in the display. This will continue until timer is cancelled
by pressing any key pad. The microwave cooking time will then
appear in display.
6. If using timer when cooking with microwave, and cooking is
completed and canceled, Timer remaining time will be displayed
and continue counting down.
Turntable ON/OFF
Turntable OFF function is useful when a rack or a large casserole
which stop the turntable's rotating are used, for example lasagne or
meat. Reposition the foods and/or stir them at least once during any
Demonstration Mode
To demonstrate, touch the set clock pad, number 0 and then touch
the START add 30 sec pad and hold for three seconds. DEMO ON
DURING DEMO NO OVEN POWER will appear in the display. Cooking
operations and specific special features can now be demonstrated
with no power in the oven. For example, touch the START add 30 sec
pad and the display will show .30 and count down quickly to END.
To cancel, touch the set clock pad, number 0 and the STOP/CLEAR
pad. If easier, unplug the oven from the electrical outlet and replug.
Light
Touch the light pad once for high, twice for medium, three times for
Low and four times to turn off.
Fan
The fan will automatically start when heat rises from range surface
units or burners. This protects the Over the Range Microwave
Oven from excessive temperature rise. The fan will stay on until the
temperature decreases. It cannot be turned off manually during
this time.
For other uses, touch the fan pad once for high speed, twice for
medium speed, three times for low speed and four times to turn off.
Timer Operation Table
Timer use only
Display
To see timer couting
How to cancel Timer
Timer counting
down
Appears in display at all times
Press STOP clear pad once
Press timer on-off pad.
Remaining time will appear for
4 seconds, then will change
back to microwave cook time.
Press timer on-off pad, then
STOP clear pad once. This
must be completed within 4
seconds after timer on-off pad.
Microwave cooking and Microwave cooking
timer being used at
is counting down
same time
How to stop or cancel
cooking
Stop: Press the STOP
clear pad once.
Cancel: Press the STOP
clear pad twice.
E
ORM 2.0 Side [TINSEB306WRRZ] [0129 29
10/20/10 8:41:32 AM
30
CLEANING AND CARE
Disconnect the power cord before cleaning or leave the door open to deactivate
the oven during cleaning.
EXTERIOR
ODOR REMOVAL
The outside surface is precoated steel and plastic.
Clean the outside with mild soap and water; rinse
and dry with a soft cloth. Do not use any type of
household or abrasive cleaner.
Occasionally, a cooking odor may remain in the
microwave oven. To remove, combine 1 cup water,
grated peel and juice of 1 lemon and several whole
cloves in a 2-cup glass measuring cup. Boil for several
minutes using 100% power. Allow to set in microwave
oven until cool. Wipe interior with a soft cloth.
DOOR
Disconnect the power cord or deactivate the oven
with setting Child Lock before cleaning to prevent
unexpected manipulation. See Child Lock on page
27. Wipe the window on both sides with a soft cloth
to remove any spills or spatters. Metal parts will be
easier to maintain if wiped frequently with a soft cloth.
Avoid the use of spray and other harsh cleaners as
they may stain, streak or dull the door surface.
EASY CARE™ STAINLESS STEEL (SOME
TURNTABLE/TURNTABLE SUPPORT
The turntable and turntable support can be removed
for easy cleaning. Wash them in mild, sudsy water; for
stubborn stains use a mild cleanser and non-abrasive
scouring sponge. They are also dishwasher-proof. Use
upper rack of dishwasher. The turntable motor shaft is
not sealed, so excess water or spills should be wiped
up immediately.
MODELS)
GREASE FILTERS
Your microwave oven finish may be made with Easy
Care™ Stainless Steel (some models). Clean the
stainless with warm soapy water using a clean sponge
or cloth. Rinse with clean water and dry with a soft
clean cloth. DO NOT use ANY store bought cleaners
like Stainless Steel cleaners or any other types of
cleaners containing any abrasive, chlorides, chlorines
or ammonia. It is recommended to use mild dish soap
and water or a 50/50 solution of water and vinegar.
Filters should be cleaned at least once a month. Never
operate the fan or microwave oven without the filters
in place.
INTERIOR
Cleaning is easy because little heat is generated
to the interior surfaces; therefore, there is no
baking and setting of spills or spattering. To clean
the interior surfaces, wipe with a soft cloth and
warm water. DO NOT USE ABRASIVE OR HARSH
CLEANERS OR SCOURING PADS. For heavier soil,
use baking soda or a mild soap; rinse thoroughly with
hot water. The rack can be cleaned with hot soapy
water, rinsed and dried.
1. Pull down slightly on the tab toward the front of
the microwave oven and remove the filter. Repeat
for the other filter.
2. Soak the filters in a sink or dish pan filled with hot
water and detergent. DO NOT use ammonia or
other alkali; they will react with the filter material
and darken it.
3. Agitate and scrub with a brush to remove embedded dirt.
4. Rinse thoroughly and shake dry.
5. Replace by fitting the filter back into the opening.
BOTTOM VIEW
(Front of microwave oven)
WAVEGUIDE COVER
E
The waveguide cover is located on the ceiling in
the microwave oven cavity. It is made from mica so
requires special care. Keep the waveguide cover
clean to assure good microwave oven performance.
Carefully wipe with a damp cloth any food spatters
from the surface of the cover immediately after they
occur. Built-up splashes may overheat and cause
smoke or possibly catch fire. DO NOT REMOVE THE
WAVEGUIDE COVER.
ORM 2.0 Side [TINSEB306WRRZ] [0130 30
Grease filters
Tabs
(Rear of microwave oven)
10/20/10 8:41:33 AM
CLEANING AND CARE
31
Disconnect the power cord before cleaning or leave the door open to deactivate
the oven during cleaning.
CHARCOAL FILTERS
MICROWAVE OVEN LIGHT
Charcoal Filters, which are attached with Hood
Louver, are used for nonvented, recirculated installation. The filter should be changed every 6 to 12
months depending on use.
Remove the louver per instructions 1-3 above, if
used.
1. Disconnect power to the microwave oven at the
circuit breaker panel or by unplugging.
2. Remove three Houver Louver Screws.
3. Push the upper tabs and pull the louver away
from the unit.
4. Remove the charcoal filters from hood louver and
replace new charcoal filters by piercing tabs into
the holes in charcoal filters.
5. Carefully push the louver back into place and
replace the screws removed at step 2.
Oven Light Cover
1. To replace krypton light bulb, first disconnect
power to the microwave oven at the circuit
breaker panel or by unplugging.
2. Open oven light cover by carefully pulling up on
the front edge. See figure 1.
3. Remove light bulb and replace 40 watts krypton
light bulb. DO NOT USE BULB LARGER THAN
40 WATTS.
4. Close the Oven Light Cover by carefully pushing into place. Push the louver back into place
(engaging both the bottom and top tabs) and
replace three Houver Louver Screws.
VENT HOOD LIGHT BULBS
1. To replace krypton light bulb, first disconnect
power to the microwave oven at the circuit
breaker panel or by unplugging.
2. To open Light Cover, remove the screw on the
light cover. (See Figure 3.)
3. Replace the 40 watts krypton light bulb with new
one. DO NOT USE A BULB LARGER THAN 40
WATTS.
Hood Louver
Screws
4. Close the Light Cover and secure with screw
removed at step 2.
BOTTOM VIEW
Hood Louver
Figure 1
Light Bulb
(Front of microwave oven)
Upper Tab
Inside of Hood Louver
Charcoal Filters
(Rear of microwave oven)
Figure 3
Tabs
Figure 2
Light Cover
Screw
CAUTION
Light Cover may become very hot. Do not touch
glass when light is on.
E
ORM 2.0 Side [TINSEB306WRRZ] [0131 31
10/20/10 8:41:33 AM
32
SERVICE CALL CHECK
Please check the following before calling for service:
Place one cup of water in a glass measuring cup in the oven and close the door securely.
Operate the oven for one minute at HIGH 100%.
A
Does the oven light come on?
YES ____
NO ____
B
Does the cooling fan work?
YES ____
NO ____
YES ____
NO ____
(Put your hand over the left side of louver.)
C Is the water in the oven warm?
If “NO” is the answer to any of the above questions, please check electrical outlet, fuse and/
or circuit breaker. If they are functioning properly, CONTACT YOUR NEAREST ELECTROLUX
AUTHORIZED SERVICER.
A microwave oven should never be serviced by
a “do-it-yourself” repair person.
NOTES
1. If time appearing in the display is counting
down very rapidly, check Demonstration Mode
on page 29 and cancel.
2. If the oven is set for 40 minutes and over at
80, 90 or 100 percent power level, after the
first 40 minutes the power level will automatically adjust itself to 70 percent power to avoid
overcooking.
E
ORM 2.0 Side [TINSEB306WRRZ] [0132 32
10/20/10 8:41:34 AM
SPECIFICATIONS
*
AC Line Voltage:
Single phase 120V, 60Hz, AC only
AC Power Required:
1650 W 14.3 amps. (for EI30SM55JB, EI30SM55JW, EI30SM55JS)
1500 W 13.0 amps. (for EI30SM5CJB, EI30SM5CJW, EI30SM5CJS)
Output Power:*
1000 watts
Frequency:
2450 MHz (Group 2/Class B)**
Outside Dimensions (including handle):
29 15/16"(W) x 17 1/16"(H) x 18 15/32"(D)
Cavity Dimensions:
22 1/2"(W) x 10 1/16"(H) x 14 31/32"(D)
Microwave Oven Capacity***:
2.0 Cu. Ft.
Weight:
Approx. (net) 58 lb, (gross) 69 lb
33
The International Electrotechnical Commission’s standardized method for measuring output wattage.
This test method is widely recognized.
** This is the classification of ISM (Industrial, Scientific and Medical) equipment described in the International Standard CISPR11. (for EI30SM5CJB, EI30SM5CJW, EI30SM5CJS)
*** Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for
holding food is less.
In compliance with standards set by:
FCC
- Federal Communications Commission Authorized.
DHHS
- Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21,
Chapter I, Subchapter J.
NHW
- Department of National Health and Welfare of Canada.
(for EI30SM5CJB, EI30SM5CJW, EI30SM5CJS)
- This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc.
- This symbol on the nameplate means the product is listed by Underwriters Laboratories,
Inc. for use in USA or Canada.
E
ORM 2.0 Side [TINSEB306WRRZ] [0133 33
10/20/10 8:41:34 AM
34
WARRANTY INFORMATIONS
Major Appliance Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will repair
or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed,
used, and maintained in accordance with the provided instructions. In addition, the magnetron tube of your appliance is covered
by a two through five year limited warranty. During the 2nd through 5th years from your original date of purchase, Electrolux will
provide a replacement magnetron tube for your appliance which has proven to be defective in materials or workmanship when
your appliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Products with original serial numbers that have been removed, altered or cannot be readily determined.
Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
Rust on the interior or exterior of the unit.
Products purchased “as-is” are not covered by this warranty.
Food loss due to any refrigerator or freezer failures.
Products used in a commercial setting.
Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary
household use or used other than in accordance with the provided instructions.
Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are
not a part of the appliance when it is shipped from the factory.
Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or
other cosmetic parts.
Labor or in-home service costs during the additional limited warranty periods beyond the first year from your original date
of purchase.
Pickup and delivery costs; your appliance is designed to be repaired in the home.
Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage
expense for service calls to remote areas, including the state of Alaska.
Damages to the finish of appliance or home incurred during transportation or installation, including but not limited to floors,
cabinets, walls, etc.
Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux
parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse,
inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR REPLACEMENT AS
PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW,
BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES
SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED
WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO
THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be
required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be
obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted by
Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted
by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations
for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features
or specifications as described or illustrated are subject to change without notice.
USA
1-877-435-3287
Electrolux Major Appliances North America
P.O. Box 212378
Augusta, GA 30907
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4
E
ORM 2.0 Side [TINSEB306WRRZ] [0134 34
10/20/10 8:41:34 AM
35
E
ORM 2.0 Side [TINSEB306WRRZ] [0135 35
10/28/10 2:45:19 PM
For toll-free telephone support in the U.S. and Canada
1-877-4ELECTROLUX (1-877-435-3287)
For online support and internet product information:
www.electroluxappliances.com
©2008 Electrolux Home Products, Inc.
Post Office Box 212378, Augusta
Georgia 30917, USA
All right reserved. Printed in the Thailand
ORM 2.0 Side [TINSEB306WRRZ] [0136 36
TINSEB306WRRZ-EL01
10/28/10 10:15:38 AM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
