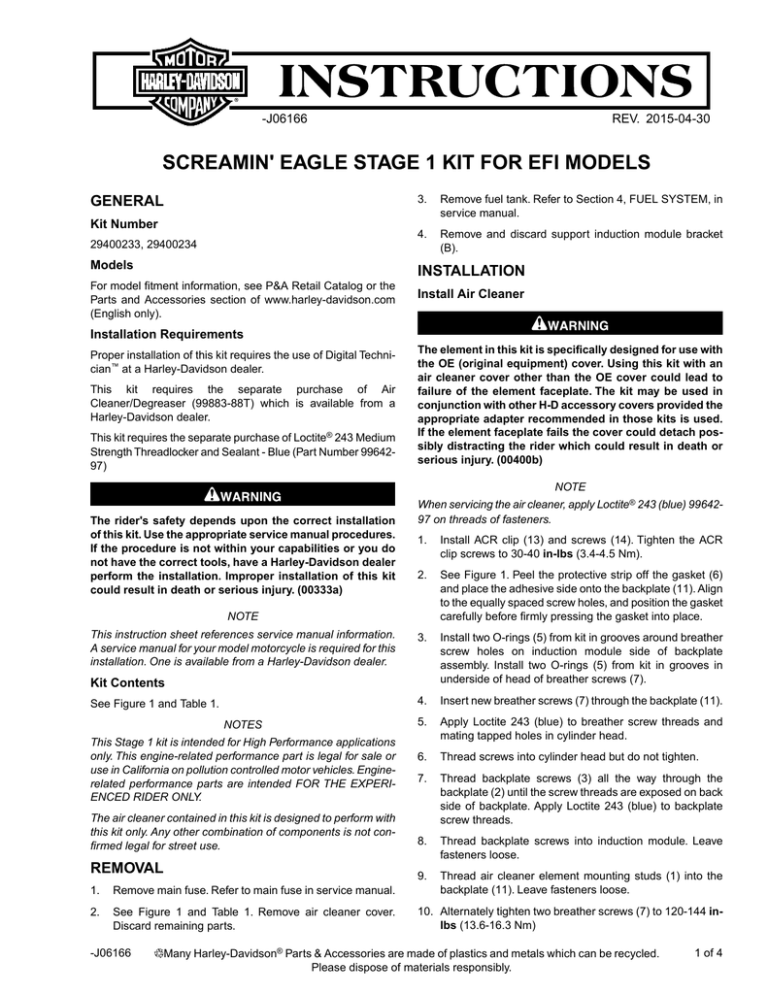

-J06166
REV. 2015-04-30
SCREAMIN' EAGLE STAGE 1 KIT FOR EFI MODELS
GENERAL
Kit Number
3.
Remove fuel tank. Refer to Section 4, FUEL SYSTEM, in
service manual.
4.
Remove and discard support induction module bracket
(B).
29400233, 29400234
Models
INSTALLATION
For model fitment information, see P&A Retail Catalog or the
Parts and Accessories section of www.harley-davidson.com
(English only).
Install Air Cleaner
Installation Requirements
Proper installation of this kit requires the use of Digital Technician™ at a Harley-Davidson dealer.
This kit requires the separate purchase of Air
Cleaner/Degreaser (99883-88T) which is available from a
Harley-Davidson dealer.
This kit requires the separate purchase of Loctite® 243 Medium
Strength Threadlocker and Sealant - Blue (Part Number 9964297)
The element in this kit is specifically designed for use with
the OE (original equipment) cover. Using this kit with an
air cleaner cover other than the OE cover could lead to
failure of the element faceplate. The kit may be used in
conjunction with other H-D accessory covers provided the
appropriate adapter recommended in those kits is used.
If the element faceplate fails the cover could detach possibly distracting the rider which could result in death or
serious injury. (00400b)
NOTE
The rider's safety depends upon the correct installation
of this kit. Use the appropriate service manual procedures.
If the procedure is not within your capabilities or you do
not have the correct tools, have a Harley-Davidson dealer
perform the installation. Improper installation of this kit
could result in death or serious injury. (00333a)
When servicing the air cleaner, apply Loctite® 243 (blue) 9964297 on threads of fasteners.
1.
Install ACR clip (13) and screws (14). Tighten the ACR
clip screws to 30-40 in-lbs (3.4-4.5 Nm).
2.
See Figure 1. Peel the protective strip off the gasket (6)
and place the adhesive side onto the backplate (11). Align
to the equally spaced screw holes, and position the gasket
carefully before firmly pressing the gasket into place.
3.
Install two O-rings (5) from kit in grooves around breather
screw holes on induction module side of backplate
assembly. Install two O-rings (5) from kit in grooves in
underside of head of breather screws (7).
4.
Insert new breather screws (7) through the backplate (11).
5.
Apply Loctite 243 (blue) to breather screw threads and
mating tapped holes in cylinder head.
6.
Thread screws into cylinder head but do not tighten.
7.
Thread backplate screws (3) all the way through the
backplate (2) until the screw threads are exposed on back
side of backplate. Apply Loctite 243 (blue) to backplate
screw threads.
8.
Thread backplate screws into induction module. Leave
fasteners loose.
9.
NOTE
This instruction sheet references service manual information.
A service manual for your model motorcycle is required for this
installation. One is available from a Harley-Davidson dealer.
Kit Contents
See Figure 1 and Table 1.
NOTES
This Stage 1 kit is intended for High Performance applications
only. This engine-related performance part is legal for sale or
use in California on pollution controlled motor vehicles. Enginerelated performance parts are intended FOR THE EXPERIENCED RIDER ONLY.
The air cleaner contained in this kit is designed to perform with
this kit only. Any other combination of components is not confirmed legal for street use.
REMOVAL
1.
Remove main fuse. Refer to main fuse in service manual.
Thread air cleaner element mounting studs (1) into the
backplate (11). Leave fasteners loose.
2.
See Figure 1 and Table 1. Remove air cleaner cover.
Discard remaining parts.
10. Alternately tighten two breather screws (7) to 120-144 inlbs (13.6-16.3 Nm)
-J06166
Many Harley-Davidson® Parts & Accessories are made of plastics and metals which can be recycled.
Please dispose of materials responsibly.
1 of 4
11. Tighten three backplate screws (3) to 55-60 in-lbs (6.26.8 Nm)
9.
Align air cleaner adapter (9) then assemble and tighten
the air cleaner cover screw (8) securely 36-60 in-lbs (4.18.0 Nm).
12. Tighten three element mounting studs (1) to 55-60 in-lbs
(6.2-6.8 Nm).
Final Assembly
Install air cleaner filter and cover.
1.
NOTES
Install main fuse.
Recalibrate ECM
This is a dry air filter. Do not apply oil to the filter element.
Whenever the air cleaner cover is installed, apply Loctite 243
(blue) to the air cleaner cover screw (B).
1.
2.
3.
See Figure 1. Secure air filter element (2) to air cleaner
mounting studs (1) using screws (4). Tighten screws to
55-60 in-lbs (6.2-6.8 Nm).
Carefully remove and discard the original air cleaner cover
insert from air cleaner (12). Remove any residual adhesive
on the cover with mineral spirits.
Clean with a mixture of 50-70 percent isopropyl alcohol
and 30-50 percent distilled water. Allow to dry completely.
NOTE
The air cleaner cover insert in this kit utilizes 3M™ Dual Lock™
Reclosable tape.The tape can be separated and pressed back
together for service access to the air cleaner cover screw.
4.
5.
Peel liner from adhesive backing of air cleaner cover insert
(12). Position insert over air cleaner cover (A) without
touching adhesive on cover surface. Line up insert with
recess in air cleaner cover.
You must recalibrate the ECM when installing this kit.
Failure to properly recalibrate the ECM can result in severe
engine damage. (00399b)
Download the new ECM calibration using the Digital Technician™ at a Harley-Davidson dealer.
MAINTENANCE
Air Cleaner Element Maintenance
NOTES
This is a dry air filter (2). Do not apply oil to the filter element.
When servicing the air cleaner, apply Loctite 243 (blue) on
threads of fasteners.
1.
See Figure 1. Remove air cleaner and inspect the filter
element (2) every 5000 mi (8000 km) or more often under
dusty conditions.
2.
Clean filter element:
Press air cleaner cover insert firmly against the cover all
around, and hold pressure for 30 seconds. After releasing
pressure, avoid direct contact with the insert for about 20
minutes.
NOTES
Allow at least 24 hours after applying the insert before exposing
the area to vigorous washing, strong water spray or extreme
weather. The adhesive bond will increase to maximum strength
after about 72 hours at normal room temperatures
6.
Insert adapter spacer (10) into air cleaner adapter (9).
7.
Carefully pry air cleaner insert (12) off the air cleaner cover
to access the air cleaner cover mounting screw hole.
8.
Align air cleaner adapter (9) with air filter element channel
and mounting screws. Set adapter into place, verifying
that adapter rib fits fully into element channel.
-J06166
3.
a.
Remove and wash element by immersing it, on edge,
in a shallow pan containing enough Air
Cleaner/Degreaser to cover no more than 3/4 the
depth of the filter pleats. Do not let dirty solution get
inside the element. Carefully "roll" the element in the
solution around its perimeter until the entire outer
surface of the filter pleats has been soaked.
b.
Remove filter element from cleaner/degreaser. Allow
five minutes for the cleaner to dissolve the dirt.
c.
From the inside out, rinse the element with cold water.
Shake off excess water. Allow the element to air dry.
Do not dry with compressed air.
Install air cleaner insert (12).
2 of 4
SERVICE PARTS
is08550
B
14
13
1
6
5
11
9
7
3
A
10
2
4
8
12
Figure 1. STAGE I AIR CLEANER
Table 1. Service Parts Table
Item
Description (Quantity)
Part Number
1
Mounting stud, element (3)
8250
2
Air filter element
29244-08
3
Screw, hex socket button head cap (3)
869
4
Large flange screw (3)
3563
5
O-ring #2-113 (4)
11292
6
Gasket throttle body
29241-08
7
Breather screw, black
Breather screw, chrome
29267-08A
29400081
8
Air cleaner cover screw
29327-94
9
Air cleaner cover adapter
29400159
10
Spacer, air cleaner cover adapter
29400161
11
Back plate, ETC, black
Back plate, ETC, chrome
29000123
29000124
12
A-C cover insert
61300299
13
Clip, ACR retention
16325-10
14
Screw (2)
4705
-J06166
3 of 4
Table 1. Service Parts Table
Item
Description (Quantity)
Part Number
Items mentioned in text, but not included in kit:
A
Air cleaner cover
B
Induction module bracket
-J06166
4 of 4
