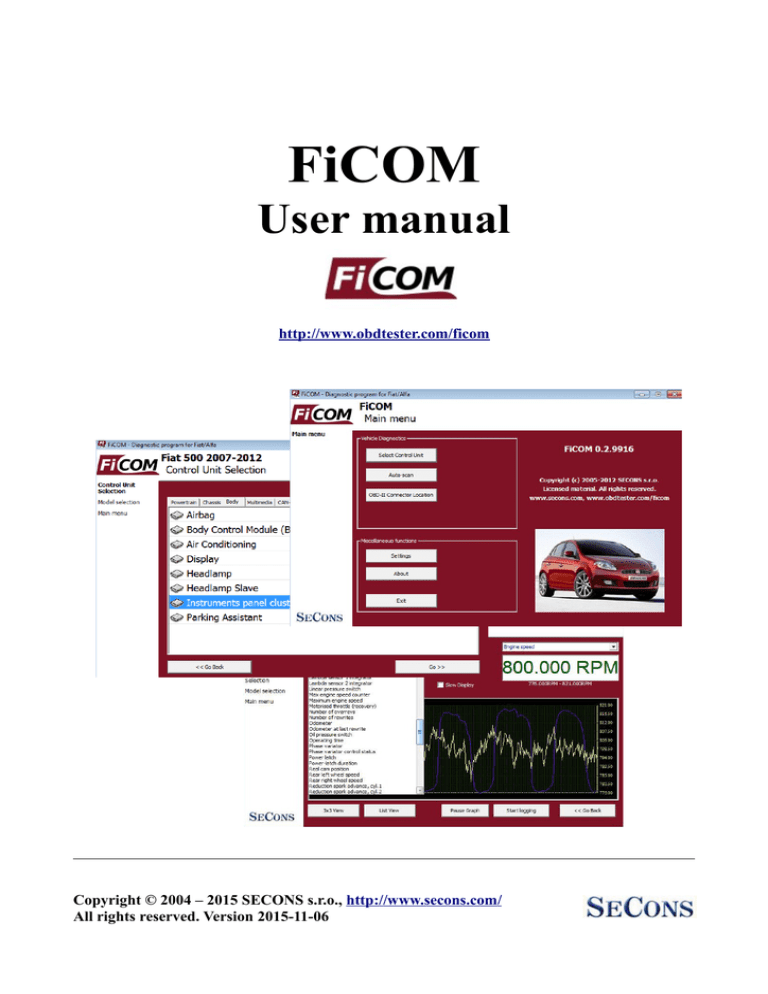

FiCOM user manual - Auto

FiCOM

User manual

http://www.obdtester.com/ficom

Copyright © 2004 – 2015 SECONS s.r.o.,

http: //www.secons.com/

All rights reserved. Version 2015-11-06

FiCOM user manual www.obdtester.com/ficom

SECONS Ltd. is not connected with Fiat S.p.A in any way.

Please read carefully this user manual before using the FiCOM application.

SECONS Ltd. is not liable for damages caused by using the FiCOM.

Before using the software please read license agreement.

Abarth, Fiat, Lancia, Alfa Romeo, Innocenti, Maserati and Iveco are registered trademarks of Fiat

Group or other owners.

Peugeot and Citroen are registered trademarks of Peugeot Group or other owners.

Ford is registered trademark of Ford Motor Company or other owners.

All trademarks used in this documentation or programs or any other material are used nominatively for identification purposes only and may be property of their respective owners.

Page 2 / 28

Table of Contents

1 Introduction ......................................................................................................................................4

1.1 Key features ..............................................................................................................................4

1.2 Software updates .......................................................................................................................4

2 FiCOM software and driver installation ...........................................................................................5

2.1 Microsoft Windows operating System ......................................................................................5

2.2 Microsoft Windows 8 driver installation ..................................................................................6

2.3 GNU/Linux System ..................................................................................................................7

2.3.1 Requirements ....................................................................................................................7

2.3.2 Setting up devices .............................................................................................................7

2.3.3 Installation .........................................................................................................................7

3 Diagnostic connectors used in Fiat vehicles .....................................................................................8

3.1 3-pin ..........................................................................................................................................8

3.2 Iveco 38pin ...............................................................................................................................8

3.3 OBD-II CAN type I ..................................................................................................................9

3.4 OBD-II CAN type II .................................................................................................................9

3.5 OBD-II CAN type III ..............................................................................................................10

4 Information about Fiat control units ...............................................................................................11

4.1 Fiat ECU naming terminology ................................................................................................11

4.2 Communication protocols .......................................................................................................11

4.3 Diagnostics of Fiat Scudo, Fiat Ulysse, Lancia Z, Lancia Phedra ..........................................11

5 Preparation to diagnose ...................................................................................................................11

6 FiCOM main menu .........................................................................................................................12

6.1 Select Control Unit .................................................................................................................12

6.2 Auto-scan ................................................................................................................................13

6.3 OBD-II Connector Location ...................................................................................................13

6.4 Settings ....................................................................................................................................14

6.5 About .......................................................................................................................................16

7 Diagnostic functions .......................................................................................................................17

7.1 Unrecognized Control Unit .....................................................................................................18

7.2 Control Unit Identification ......................................................................................................19

7.3 Read fault code memory .........................................................................................................20

7.4 Clear Fault Codes ....................................................................................................................20

7.5 Freeze Frame ...........................................................................................................................21

7.6 Measured values .....................................................................................................................22

7.6.1 Graph display ..................................................................................................................22

7.6.2 Display 3x3 .....................................................................................................................22

7.6.3 Display list ......................................................................................................................22

7.6.4 Save to log .......................................................................................................................22

7.7 Actuators activation ................................................................................................................23

7.8 ECU Programming/Coding functions .....................................................................................24

7.9 ECU Configuration .................................................................................................................25

8 Reporting bugs and improvement requests ....................................................................................26

8.1 How to create Debug Log .......................................................................................................26

8.2 How to create ecu Snapshot ....................................................................................................27

9 Known problems ............................................................................................................................28

FiCOM user manual www.obdtester.com/ficom

1 Introduction

Thank you for purchasing the FiCOM diagnostic interface and software. FiCOM is professional tool for diagnostics of Fiat vehicles. Please read carefully this User Manual before using the product.

We hope you'll find our products useful. In case you have any questions, problems or feedback please contact as at [email protected]

. We're here to help!

1.1 Key features

Support for wide range of ECUs and models

Fully multiplexed all-in-one smart USB2.0 interface

Wide range of communication protocols and buses covered: KW71, IAW, KWP2000,

FIAT9141, ISO15765, UDS, ...

Automatic ECU recognition

Automatic vehicle scan

ECU Identification

Fault code (DTC) reading

Fault freeze frame reading

Fault code clearing

Measured values / live data

Live data recording

Diagnostic protocol printing

Actuator tests

Control unit coding such as:

Immobilizer key matching

Injector coding

Parameters resetting

The FiCOM system works with Fiat vehicles. (It works as well with Fiat subsidiaries vehicles such as Ford Ka 2008+, Peugeot Boxer, etc.) The rule of thumb is: tasks related to fault code memory and identification are reliable everywhere, but measured values and other functions may not be fully supported.

1.2 Software updates

Updates of purchased software version are available for free download at www.obdtester.com/downloads . User name = serial number of FiCOM diagnostic interface.

Password leave blank. The serial number can be found on a silver label of the interface or in settings of FiCOM after performing “Test interface”. We recommend you to install updated version at least once a month, because updates provide support for new ECUs and fix various issues.

We recommend you to update firmware in diagnostic interface by clicking on SettingsUpgrade

firmware every time you update the software.

Page 4 / 28

FiCOM user manual

2 FiCOM software and driver installation

2.1 Microsoft Windows operating System

1. Insert FiCOM installation CD to your CD-ROM drive

2. Run installation file FiComSetup.exe

3. Choose language for the installer www.obdtester.com/ficom

4. Choose your destination folder for the FiCOM and click on Install button and after successful installation click on Close button.

FiCOM drivers are automatically updated during the FiCOM installation. When prompted to install

„unsigned“ drivers, click on Install this driver software anyway (Microsoft® Windows® 7) or

Continue Anyway (Microsoft® Windows® XP).

Microsoft® Windows® will automatically install drivers when you plug-in the FiCOM to USB port. Driver installation isn't required for operation on GNU/Linux system.

Page 5 / 28

FiCOM user manual www.obdtester.com/ficom

2.2 Microsoft Windows 8 driver installation

In case of problem with installing drivers on Windows 8, please follow these steps:

1. Press Windows Key + R

2. In the window that appears, type: “shutdown.exe /r /o /f /t 00”

3. Press "OK" button

4. The System will restart to a "Choose an option" screen

5. Select "Troubleshoot" from "Choose an option" screen

6. Select "Advanced options" from "Troubleshoot" screen

7. Select "Windows Startup Settings" from "Advanced options" screen

8. Click on "Restart" button

9. System will restart to "Advanced Boot Options" screen

10. Select "Disable Driver Signature Enforcement" (press number on keyboard for option shown on screen)

11. Once the system starts, install the diagnostic interface drivers as you would on Windows 7

Windows Vista & 7 required signed all .sys files (we use usbser.sys shipped by Microsoft with valid digital signature). Final version of Windows 8 requires also signed .inf file (which is not in our case). The above procedure helps to override unsigned .inf file. Once driver is installed, the program will work properly.

Page 6 / 28

FiCOM user manual www.obdtester.com/ficom

2.3 GNU/Linux System

Our diagnostic application are tested to work under Linux. The applications can be run under Linux, BSD or Apple OS/X on Intel x86 using Wine environment. The installer and applications perform fully automated installation under these operating system.

2.3.1 Requirements

Linux 2.6.x with USB support (or FreeBSD)

USB CDC Driver

Wine 1.0.1

Recent Debian Linux or Ubuntu meet the above requirements.

2.3.2 Setting up devices

Driver installation isn't required for operation on GNU/Linux system. Diagnostic applications require access to /dev/ttyACMx devices from Wine environment. This can be set-up very easily using these commands: ln -s /dev/ttyACM0 ~/.wine/dosdevices/com5 ln -s /dev/ttyACM1 ~/.wine/dosdevices/com6 ln -s /dev/ttyACM2 ~/.wine/dosdevices/com7 ln -s /dev/ttyACM3 ~/.wine/dosdevices/com8

Diagnostic interface should be then visible from the FiCOM diagnostic application.

2.3.3 Installation

Programs can be installed by launching setup .exe file using wine, e.g. wine FiCOMSetup.exe.

You can download the latest version of FiCOM at www.obdtester.com/downloads .

Page 7 / 28

B

C

Pin

A

FiCOM user manual www.obdtester.com/ficom

3 Diagnostic connectors used in Fiat vehicles

Location of OBD2, OBD1 or 3pin diagnostic connectors is available in DLC location database available from the FiCOM main menu.

3.1 3-pin

Some older vehicles (up to 2003) may use 3pin connectors.

Every system (Injection, ABS, Airbag, …) use separate connector. Special OBD2 to 3pin reduction is available for such diagnosis.

The 3pin reduction cable has to be connected to battery positive voltage in order to work with FiCOM (the 3pin connector does not provide battery voltage).

Description

L-Line ISO9141

Chassis (ground)

K-Line ISO9141

3.2 Iveco 38pin

Iveco Daily 2001-2006 is using round 38pin

AMP connector for diagnostics. Special multiplexed diagnostic adapter is required for these vehicles. Please contact your distributor or visit www.obdtester.com/obd2_adapters for more information.

Page 8 / 28

FiCOM user manual

3.3 OBD-II CAN type I

www.obdtester.com/ficom

Standard OBD2 connector is used since 1997 to approx. 2012 (please note that some models manufactured after 1997 still may use 3pin connector).

ISO9141 K Line

-

ISO9141 K Line

Ground (GND)

1 9 ISO9141 K Line

2 10 -

3 11 ISO9141 K Line

4 12 ISO9141 K Line

Signal ground (GND) 5 13 ISO9141 K Line

FT CAN High 6 14 FT CAN Low

ISO9141 K Line

ISO9141 K Line

7

8

15

16

ISO9141 L-Line

Battery voltage

3.4 OBD-II CAN type II

Standard OBD2 connector is used for all vehicles using ISO14229 UDS diagnostic protocol (EP

ECUs), Iveco Daily 2006- and some Maserati vehicles.

FT CAN High

-

ISO9141 K Line

1 9 FT CAN Low

2 10 -

3 11 ISO9141 K Line

Ground (GND) 4 12 ISO9141 K Line

Signal ground (GND) 5 13 ISO9141 K Line

HS CAN High

ISO9141 K Line

ISO9141 K Line

6

7

8

14

15

16

HS CAN Low

ISO9141 L-Line

Battery voltage

Page 9 / 28

FiCOM user manual www.obdtester.com/ficom

3.5 OBD-II CAN type III

Standard OBD2 connector is used on all Chrysler-based e.g. Fiat Freemont/Dodge Journey) and selected 2015+ Fiat models (e.g. Fiat 500X). FiCOM diagnostic interfaces manufactured before

2016 are not fully capable of diagnosing these vehicles.

FT CAN High

-

MS CAN High

Ground (GND)

1 9 FT CAN Low

2 10 -

3 11 MS CAN Low

4 12 AUX CAN High

Signal ground (GND) 5 13 AUX CAN Low

HS CAN High 6 14 HS CAN Low

7 15

8 16 Battery voltage

Page 10 / 28

FiCOM user manual

4 Information about Fiat control units

4.1 Fiat ECU naming terminology

Injection – Engine ECU control unit

Code – immobilizer control unit

Body – Body Computer (central electronics)

4.2 Communication protocols

Protocol

KW71 (Bosch)

Marelli IAW

KWP2000,

FIAT9141

ISO15765

UDS (ISO 14229)

Diagnostic bus

ISO9141

Marelli

ISO9141

Production

1991-2001

1991-2001

1996 – 2011

ISO9141 1996 - 2007

CAN-BUS (ISO 11898) 2003 - present

CAN-BUS (ISO 11898) 2005 – present www.obdtester.com/ficom

4.3 Diagnostics of Fiat Scudo, Fiat Ulysse, Lancia Z, Lancia Phedra

Fiat Scudo, Fiat Ulysse, Lancia Z, Lancia Phedra are not supported by FiCOM. Special diagnostic software for Peugeot/Citroen (PSA) must be used, such is PSA-COM ( www.obdtester.com/psacom )

Some ECU's in Fiat Ducato may also require diagnostics PSA.

Fiat Sedici is based on Suzuki platform and is not supported.

5 Preparation to diagnose

Before starting diagnosis, make sure that car ignition is turned ON. Connect your FiCOM diagnostic interface to PC / laptop via USB. Interface test in settings of FiCOM must pass

successfully (more information in chapter Settings ). Connect your FiCOM diagnostic interface to

OBD-II connector in the vehicle. You can find the OBD-II connector using FiCOM OBD-II

Connector Location image database.

Page 11 / 28

FiCOM user manual www.obdtester.com/ficom

6 FiCOM main menu

FiCOM main menu is divided into two parts → Vehicle diagnostics and Miscellaneous functions.

Descriptions of single functions are given below.

6.1 Select Control Unit

Using this function you can connect to a specific control unit you wish to diagnose. You can choose the control unit from a complete list of control units after exact selection of tested vehicle.

All control units present in tested vehicle can be detected by Auto-scan function.

If control unit was recognized, you can use diagnostic functions.

In other case, you should study chapter Unrecognized Control Unit before using diagnostic

functions.

Page 12 / 28

FiCOM user manual

Some ECUs such as ABS are not functional while being diagnosed.

Warning beeps and error messages on instrument cluster may appear during diagnostics.

www.obdtester.com/ficom

6.2 Auto-scan

This function scans for all known ECUs and shows the list of ECUs present in vehicle along with number of diagnostic trouble codes.

It is necessary to select exact vehicle type before starting the auto-scan.

6.3 OBD-II Connector Location

Using this database you can check a location of OBD-II connector in the vehicle. The database is constantly updated.

Page 13 / 28

FiCOM user manual

6.4 Settings

All functions in settings are described below.

www.obdtester.com/ficom

Language

Choose language of FiCOM user interface in the drop down menu.

Units type

You can choose metric or imperial unit system for measured values.

Expert functions

Development functions - Enables additional functions under development. This setting is not saved before program exit and will be cleared on every application start. Do not enable this option unless requested by SECONS support staff as these functions may be dangerous to use without proper instructions.

Expert mode – Enables additional functions such as special coding functions or additional configuration options. These functions are intended for experienced technicians and are provided on

“AS IS” basis, with absolutely no guarantee. It is highly recommended to leave this option unchecked. This mode also eliminates some warning messages and questions.

Page 14 / 28

FiCOM user manual www.obdtester.com/ficom

Interface port selection

Refresh - this button refreshes COM port selection drop down list. Correct COM port number should be already chosen after connecting diagnostic interface via USB to PC and clicking on

Refresh button. If not, choose correct COM port number from the list. It is needed in order to perform successful interface test.

Test interface – before each use of program, please test proper function of your connected interface by clicking this button. After successful test, you can see a serial number of your interface displayed below the COM port field, then firmware version and information about active licenses.

Activate license – this button is used for activating new license/s to use the program or special functions. Internet connection is required. Standard license is already activated for all interfaces before purchase.

Page 15 / 28

FiCOM user manual www.obdtester.com/ficom

Upgrade firmware – use this button to upgrade firmware in your diagnostic interface every time after installing the latest software version (available at www.obdtester.com/downloads ). Do not disconnect your interface during upgrading the firmware.

Device Manager – is used to finding out correct COM port number, or to reinstall drivers. Your device appears as “ELM-USB Interface (COMx)” under “Ports (COM & LPT)”.

Bluetooth Manager – is a preparation to upcoming bluetooth feature. The button is currently inactive.

Protocol settings

You can set various timings for each communication protocol. This is advanced feature used for example when problems occur with connection to control unit caused by slower ECU response and the like.

Restore Defaults – this button restores all modified timings of all protocols to default values.

Changing protocol settings is not required before normal use of the program. You will be asked to make changes by our tech. support when solving your issue at [email protected]

if necessary.

Debug functions

By clicking on Save Debug button, you can capture the latest data from elapsed communication between control unit and program into one file. Providing this file is required only by our technical support. Based on these data, we are able to monitor the whole process of performed operation and its correctness.

Use of debug function is important for successful resolution of any program failure or verifying its causes. For more information on how to proceed, please read the following

chapter #8.Reporting bugs and improvement requests .

6.5 About

After clicking on “About” button, you can read a license agreement or check application version.

Page 16 / 28

FiCOM user manual www.obdtester.com/ficom

7 Diagnostic functions

After connecting to chosen control unit, the following diagnostic menu is displayed. The diagnostic menu is divided into three parts. Basic functions, Advance functions and Expert functions.

If control unit was recognized, the diagnostic menu will be available immediately and you can use diagnostic functions. If control unit wasn't identified uniquely, you should study next chapter

Unrecognized Control Unit before using diagnostic functions.

Page 17 / 28

FiCOM user manual www.obdtester.com/ficom

7.1 Unrecognized Control Unit

Fiat control units in exceptional cases do not return unique identification or FiCOM may not correctly identify the control unit. In such case it is necessary to choose right type of control unit from list. In this situation, you can either use generic ECU mode by clicking on Use Generic Access button, or select correct control unit from the list below. In Generic Access you can only read identification or work with fault code memory.

You can get more information about ECU by clicking on Show ECU Identification button.

It is important to choose correct ECU for proper display of measured values.

If you make a mistake in identification, you shouldn't perform any of programming functions.

Save ECU Information function make possible to save all development information about ECU to a file. We asking users to send these files to us. We would like to add support to these ECUs to next version of FiCOM.

Page 18 / 28

FiCOM user manual www.obdtester.com/ficom

7.2 Control Unit Identification

This function can display only identification data accessed by ECU, for example:

Identification data

ECU part number

• serial number

Incomplete identification are very common mainly for older ECUs that do not provide full part number or VIN code.

Each ECU should contain valid VIN code.

You can print identification by clicking on Print Values button or you can copy to clipboard by clicking on Copy Values button.

Save ECU Information button is used to save “ECU snapshot” of tested control unit, as mentioned

in chapter “ #7.1.Unrecognized Control Unit

” or “ #8.Reporting bugs and improvement requests ”.

Page 19 / 28

FiCOM user manual www.obdtester.com/ficom

7.3 Read fault code memory

This function allows to read and display diagnostic trouble codes saved in memory of control unit

(so called CMDTC).

7.4 Clear Fault Codes

This function clears fault codes stored in ECU memory.

Clearing memory isn't guaranteed. Fault codes might appear again or under some conditions isn't possible to clear fault codes at all. It is possible that in the presence of some faults the control unit doesn't allow to clear fault codes or fault is in no time written back to memory.

It is recommended to read memory by clicking on Re-read fault codes button again.

Page 20 / 28

FiCOM user manual www.obdtester.com/ficom

7.5 Freeze Frame

Freeze Frame function combines the reading fault codes and displaying measured values function.

It displays the measured parameters assigned to fault code.

Page 21 / 28

FiCOM user manual

7.6 Measured values

7.6.1 Graph display

This function displays two measured values (also known as live data or sensor values) simultaneously. Measured parameters can be chosen from selectors at the top of the window.

Buttons + and – allow to accelerate or decelerate speed of graph.

7.6.2 Display 3x3

For measuring 9 value simultaneously, click on

3x3 View button.

www.obdtester.com/ficom

7.6.3 Display list

To measure all available values simultaneously, click on List view button.

Please note values means slower refresh rate.

7.6.4 Save to log

Measured values can be saved/logged to a file by clicking on Start logging button. The log file is standard csv file and it is compatible with VagScope or can be imported to Microsoft Excel or

OpenOffice Calc.

Page 22 / 28

FiCOM user manual

7.7 Actuators activation

This function can activate actuators and perform some actuators actions.

www.obdtester.com/ficom

Page 23 / 28

FiCOM user manual www.obdtester.com/ficom

7.8 ECU Programming/Coding functions

This feature allows to run coding functions. Note that some of the coding functions can not be run when the engine is running and vice versa (some coding functions can not be run unless the engine is running).

More information about coding functions is available at www.obdtester.com/downloads

Page 24 / 28

FiCOM user manual

7.9 ECU Configuration

www.obdtester.com/ficom

Page 25 / 28

FiCOM user manual www.obdtester.com/ficom

8 Reporting bugs and improvement requests

Our customers can take advantage of our full technical support for free. In case you have any difficulties with using FiCOM, do not hesitate to contact us directly at

[email protected]

or through your distributor.

Please read carefully this chapter in order to provide us with all information so as we can resolve your problem quickly.

Note:

Before sending support request for failing operation, please make sure you have met all conditions required for the operation (e.g. you are entering correct data, correct engine temperature for DPF regeneration, correct number of keys for engine start, etc).

In case of communication issues we recommend to check diagnostic plug connection and retry procedure at least once, connection problems may result in erratic communication issues.

In case you encounter to failure of any program functions (e.g. fault codes reading/clearing, coding functions, actuator tests, connecting to ECU …), or you're missing some function or some function does not work sufficiently, please prepare the following data in your email before sending your request to our technical support:

1. Detailed description of failure or your improvement request

2. Vehicle description - VIN code, model, manufacture year, engine type

3. Attach Debug Log (in case that required function doesn't work properly). This file captures data from the latest communication between program and ECU, so we can detect failure causes.

4. Attach Snapshot of tested ECU – this file contains important information about tested control unit

.

8.1 How to create Debug Log

It is necessary to perform operation that is not working correctly first. Once failure occurs, go back directly to settings in main menu (do not close the program). Click on “Save Debug” button. Name and save the file into well known directory in your computer.

Enable “Debug mode” check box only at our special request.

This function is used to tell program enable special functions in diagnostics interface and to log more data than required for normal operation.

Page 26 / 28

FiCOM user manual

8.2 How to create ecu Snapshot

After connection to related control unit, click on

“Control Unit Identification”. In the following window click on “Save ECU Information” button. Choose a directory to save the file and confirm. Saving may take a few minutes.

www.obdtester.com/ficom

Please send all support requests along with required data attached to [email protected]

. Your case will be assigned with unique ticket number in order to communicate efficiently with you.

Also feel free to contact us with any suggestions for improvements in the software on the same email address. Your feedback is greatly appreciated.

Page 27 / 28

FiCOM user manual www.obdtester.com/ficom

9 Known problems

Missing support for EDC15C7 injector classification coding will be available as a free update.

Page 28 / 28

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
