Craftsman 917.28738 Owner`s manual

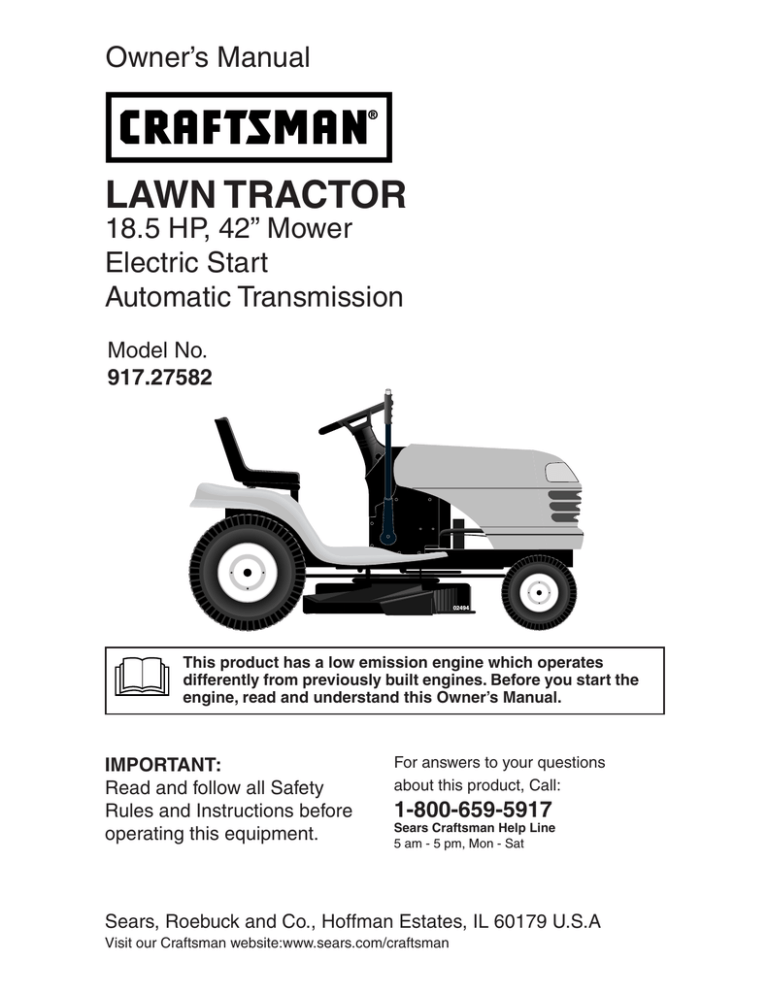

Owner’s Manual LAWN TRACTOR 18.5 HP, 42” Mower Electric Start Automatic Transmission Model No. 917.27582 02494 This product has a low emission engine which operates differently from previously built engines. Before you start the engine, read and understand this Owner’s Manual. IMPORTANT: Read and follow all Safety Rules and Instructions before operating this equipment. For answers to your questions about this product, Call: 1-800-659-5917 Sears Craftsman Help Line 5 am - 5 pm, Mon - Sat Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A Visit our Craftsman website:www.sears.com/craftsman TABLE OF CONTENTS Maintenance Schedule ........................ 18 Service and Adjustments..................... 23 Storage ................................................ 29 Troubleshooting ................................... 30 Repair Parts......................................... 34 Sears Service ........................Back Cover Warranty ................................................ 2 Safety Rules .......................................... 3 Product Specifications ........................... 6 AssemblyPre-Operation ........................ 8 Operation............................................. 11 Maintenance ....................................... 18 WARRANTY LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT For two (2) years from the date of purchase, if this Craftsman Riding Equipment is maintained, lubricated and tuned up according to the instructions in the owner’s manual, Sears will repair or replace free of charge any parts that are found to be defective in material or workmanship according to the guidelines of coverage listed below. Sears will also provide free labor for these applicable warranted parts for the two full years. During the first 30 days of purchase, there will be no charges to service the product at your home for issues covered by this warranty. (See exclusions below). For your convenience, IN HOME warranty service will still be available after the first 30 days of purchase, but a trip charge will apply. This charge will be waived if the Craftsman product is dropped off at an authorized Sears location. For the nearest authorized Sears location, please call 1-800-4-MY-HOME®. This warranty applies only while this product is within the United States. This Warranty does not cover: • Expendable items which become worn during normal use, including but not limited to blades, spark plugs, air cleaners, belts, and oil filters. • Standard Maintenance Servicing, oil changes, or tune-ups • Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass. • Repairs necessary because of operator abuse, including but not limited to, damage caused by towing objects beyond the capability of the riding equipment, impacting objects that bend the frame or crankshaft, or over-speeding the engine. • Repairs necessary because of operator negligence, including but not limited to, electrical and mechanical damage caused by improper storage, failure to use the proper grade and amount of engine oil, failure to keep the deck clear of flammable debris, or failure to maintain the equipment according to the instructions contained in the owner’s manual. • Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or oxidized (stale). In general, fuel should be used within 30 days of its purchase date. • Normal deterioration and wear of the exterior finishes, or product label replacement. • Riding equipment used for commercial or rental purposes. LIMITED WARRANTY ON BATTERY For ninety (90) days from date of purchase, if any battery included with this riding equipment proves defective in material or workmanship and our testing determines the battery will not hold a charge, Sears will replace the battery at no charge. During the first 30 days of purchase, there will be no charges to replace the battery at your HOME. After the first 30 days, for your convenience, IN-HOME warranty service will still be available but a trip charge will apply. This charge will be waived if the Craftsman product is dropped off at an authorized Sears location. For the nearest authorized Sears location, please call 1-800-4-MY-HOME®. This battery warranty applies only while this product is within the United States. This warranty gives you specific legal rights, and you may also have other rights, which vary, from state to state. Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179 2 SAFETY RULES IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. • WARNING: In order to prevent accidental starting when setting up, transporting, adjusting or making repairs, always disconnect spark plug wire and place wire where it cannot contact spark plug. WARNING: Do not coast down a hill in neutral, you may lose control of the tractor. WARNING: Tow only the attachments that are recommended by and comply with specifications of the manufacturer of your tractor. Use common sense when towing. Operate only at the lowest possible speed when on a slope. Too heavy of a load, while on a slope, is dangerous. Tires can lose traction with the ground and cause you to lose control of your tractor. WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WARNING: Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. • • • • • • • • • I. GENERAL OPERATION • • • • • • • • Read, understand, and follow all instructions on the machine and in the manual before starting. Do not put hands or feet near rotating parts or under the machine. Keep clear of the discharge opening at all times. Only allow responsible adults, who are familiar with the instructions, to operate the machine. Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blades. Be sure the area is clear of bystanders before operating. Stop machine if anyone enters the area. Never carry passengers. Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing. • • 3 Never direct discharged material toward anyone. Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Stop the blades when crossing gravel surfaces. Do not operate machine without the entire grass catcher, discharge guard, or other safety devices in place and working. Slow down before turning. Never leave a running machine unattended. Always turn off blades, set parking brake, stop engine, and remove keys before dismounting. Disengage blades when not mowing. Shut off engine and wait for all parts to come to a complete stop before cleaning the machine, removing the grass catcher, or unclogging the discharge guard. Operate machine only in daylight or good artificial light. Do not operate the machine while under the influence of alcohol or drugs. Watch for traffic when operating near or crossing roadways. Use extra care when loading or unloading the machine into a trailer or truck. Always wear eye protection when operating machine. Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect themselves and others from serious injury. Follow the manufacturer’s recommendation for wheel weights or counterweights. Keep machine free of grass , leaves or other debris build-up which can touch hot exhaust / engine parts and burn. Do not allow the mower deck to plow leaves or other debris which can cause build-up to occur. Clean any oil or fuel spillage before operating or storing the machine. Allow machine to cool before storage. SAFETY RULES • II. SLOPE OPERATION Slopes are a major factor related to loss of control and tip-over accidents, which can result in severe injury or death. Operation on all slopes requires extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it. • Mow up and down slopes, not across. • Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles. • Choose a low ground speed so that you will not have to stop or shift while on the slope. • Do not mow on wet grass. Tires may lose traction. Always keep the machine in gear when going down slopes. Do not shift to neutral and coast downhill. • Avoid starting, stopping, or turning on a slope. If the tires lose traction, disengage the blades and proceed slowly straight down the slope. • Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction, which could cause the machine to roll over. • Use extra care while operating machine with grass catchers or other attachments; they can affect the stability of the machine. Do no use on steep slopes. • Do not try to stabilize the machine by putting your foot on the ground. • Do not mow near drop-offs, ditches, or embankments. The machine could suddenly roll over if a wheel is over the edge or if the edge caves in. • • Never carry children, even with the blades shut off. They may fall off and be seriously injured or interfere with safe machine operation. Children who have been given rides in the past may suddenly appear in the mowing area for another ride and be run over or backed over by the machine. Never allow children to operate the machine. Use extra care when approaching blind corners, shrubs, trees, or other objects that may block your view of a child. IV. TOWING • • • • • Tow only with a machine that has a hitch designed for towing. Do not attach towed equipment except at the hitch point. Follow the manufacturer’s recommendation for weight limits for towed equipment and towing on slopes. Never allow children or others in or on towed equipment. On slopes, the weight of the towed equipment may cause loss of traction and loss of control. Travel slowly and allow extra distance to stop. V. SERVICE SAFE HANDLING OF GASOLINE To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. • Extinguish all cigarettes, cigars, pipes, and other sources of ignition. • Use only approved gasoline container. • Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling. • Never fuel the machine indoors. • Never store the machine or fuel container where there is an open flame, spark, or pilot light such as on a water heater or other appliances. • Never fill containers inside a vehicle or on a truck or trailer bed with plastic liner. Always place containers on the ground away from your vehicle when filling. III. CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them. • Keep children out of the mowing area and in the watchful care of a responsible adult other than the operator. • Be alert and turn machine off if a child enters the area. • Before and while backing, look behind and down for small children. 4 SAFETY RULES • • • • Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment with a portable container, rather than from a gasoline dispenser nozzle. Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device. If fuel is spilled on clothing, change clothing immediately. Never overfill fuel tank. Replace gas cap and tighten securely. • • • • GENERAL SERVICE • • • • • • • • • • Never operate machine in a closed area. Keep all nuts and bolts tight to be sure the equipment is in safe working condition. Never tamper with safety devices. • • • Be sure the area is clear of bystanders before operating. Stop machine if anyone enters the area. Never carry passengers. Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing. Never carry children, even with the blades shut off. They may fall off and be seriously injured or interfere with safe machine operation. Children who have been given rides in the past may suddenly appear in the mowing area for another ride and be run over or backed over by the machine. Keep children out of the mowing area and in the watchful care of a responsible adult other than the operator. Be alert and turn machine off if a child enters the area. • • • • • 5 Check their proper operation regularly. Keep machine free of grass, leaves, or other debris build-up. Clean oil or fuel spillage and remove any fuel-soaked debris. Allow machine to cool before storing. If you strike a foreign object, stop and inspect the machine. Repair, if necessary, before restarting. Never make any adjustments or repairs with the engine running. Check grass catcher components and the discharge guard frequently and replace with manufacturer’s recommended parts, when necessary. Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them. Check brake operation frequently. Adjust and service as required. Maintain or replace safety and instruction labels, as necessary. Before and while backing, look behind and down for small children. Mow up and down slopes (15° Max), not across. Choose a low ground speed so that you will not have to stop or shift while on the slope. Avoid starting, stopping, or turning on a slope. If the tires lose traction, disengage the blades and proceed slowly straight down the slope. If machine stops while going uphill, disengage blades, shift into reverse and back down slowly. Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible. PRODUCT SPECIFICATIONS Gasoline Capacity and Type: Oil Type (API-SG-SL): Oil Capacity: Spark Plug: (GAP: .030") Ground Speed (MPH): Tire Pressure: In the state of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest Sears service center (See REPAIR PARTS section of this manual). 3.5 Gallons Unleaded Regular SAE 30 (above 32°F) SAE 5W-30 (Below 32°F) W/Filter: 3.5 Pints W/O Filter: 3.0 Pints Champion RC12YC REPAIR PROTECTION AGREEMENTS Congratulations on making a smart purchase. Your new Craftsman® product is designed and manufactured for years of dependable operation. But like all products, it may require repair from time to time. That’s when having a Repair Protection Agreement can save you money and aggravation. Purchase a Repair Protection Agreement now and protect yourself from unexpected hassle and expense. Here’s what’s included in the Agreement: • Expert service by our 12,000 profesional repair specialists. • Unlimited service and no charge for parts and labor on all covered repairs. • Product replacement if your covered product can’t be fixed. • Discount of 10% from regular price of service and service-related parts not covered by the agreement; also, 10% off regular price of preventive maintenance check. • Fast help by phone – phone support from a Sears technician on products requiring in-home repair, plus convenient repair scheduling. Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online. Sears has over 12,000 professional repair specialists, who have access to over 4.5 million quality parts and accessories. That’s the kind of professionalism you can count on to help prolong the life of your new purchase for years to come. Purchase your Repair Protection Agreement today! Some limitations and exclusions apply. For prices and additional information call 1-800-827-6655. Forward: 5.5 Reverse: 2.4 Front: 14 PSI Rear: 10 PSI Charging System: 3 Amps Battery 5 Amps Headlights Battery: Amp/Hr: 28 Min. CCA: 230 Case Size: U1R Blade Bolt 27–35 Ft. Lbs. Torque: CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manufactured to give you the best possible dependability and performance. Should you experience any problem you cannot easily remedy, please contact a Sears or other qualified service center. We have competent, well-trained technicians and the proper tools to service or repair this tractor. Please read and retain this manual. The instructions will enable you to assemble and maintain your tractor properly. Always observe the “SAFETY RULES”. CUSTOMER RESPONSIBILITIES • Read and observe the safety rules. • Follow a regular schedule in maintaining, caring for and using your tractor. • Follow the instructions under “Maintenance” and “Storage” sections of this owner’s manual. WARNING: This tractor is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. SEARS INSTALLATION SERVICE 6 For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. call 1-800-4-MYHOME® UNASSEMBLED PARTS Steering Wheel Insert Steering Wheel (1) Large Flat Washer Steering Extension Shaft Steering Boot Steering Wheel Adapter (1) 5/16 Lock Washer (1) Hex Bolt 5/16-18 x 4 Seat (1) Washer 17/32 x 1-3/16 x 12 Gauge (1) Knob (1) Oil Drain Tube For Future Use Keys Slope Sheet 7 ASSEMBLY/PRE-OPERATION Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness. TOOLS REQUIRED FOR ASSEMBLY Insert A socket wrench set will make assembly easier. Standard wrench sizes you need are listed below. (1) 3/4" wrench (1) Pliers (1) 1/2" wrench (1) Utility knife (1) Tire pressure gauge When right or left hand is mentioned in this manual, it means, from your point of view, when you are in the operating position (seated behind the steering wheel). 5/16 Hex Bolt 5/16 Lock Washer Large Flat Washer Steering Wheel Steering Boot Tabs TO REMOVE TRACTOR FROM CARTON Adapter UNPACK CARTON 1. Remove all accessible loose parts and parts boxes from carton. 2. Cut along dotted lines on all four panels of carton. Remove end panels and lay side panels flat. 3. Check for any additional loose parts or cartons and remove. Extension Shaft Lower Steering Shaft 02 82 3 BEFORE REMOVING TRACTOR FROM SKID Tab Slots ATTACH STEERING WHEEL ASSEMBLE EXTENSION SHAFT AND BOOT 1. Slide extension shaft onto lower steering shaft. 2. Place tabs of steering boot over tab slots in dash and push down to secure. IMPORTANT: Check for and remove any staples in skid that may puncture tires where tractor is to roll off skid. INSTALL SEAT Adjust seat before tightening adjustment knob. 1. Remove adjustment knob and flat washer securing seat to cardboard packing and set aside for assembly of seat to tractor. 2. Pivot seat upward and remove from the cardboard packing. Remove the cardboard packing and discard. 3. Place seat on seat pan so head of shoulder bolt is positioned over large slotted hole in pan. 4. Push down on seat to engage shoulder bolt in slot and pull seat towards rear of tractor. 5. Pivot seat and pan forward and assemble adjustment knob and flat washer loosely. Do not tighten. INSTALL STEERING WHEEL 3. Position front wheels of the tractor so they are pointing straight forward. 4. Remove steering wheel adapter from steering wheel and slide adapter onto steering shaft extension. 5. Position steering wheel so cross bars are horizontal (left to right) and slide inside boot and onto adapter. 6. Assemble large flat washer, 5/16 lock washer, 5/16 hex bolt and tighten securely. 7. Snap steering wheel insert into center of steering wheel. 8. Remove protective materials from tractor hood and grill. 8 6. Lower seat into operating position and sit in seat. 7. Slide seat until a comfortable position is reached which allows you to press clutch/brake pedal all the way down. 8. Get off seat without moving its adjusted position. 9. Raise seat and tighten adjustment knob securely. Seat Seat Pan Shoulder Bolt 66 24 Flat Washer NOTE: You may now roll or drive your tractor off the skid. Follow the appropriate instruction below to remove the tractor from the skid. TO ROLL TRACTOR OFF SKID (See Operation section for location and function of controls) 1. Press lift lever plunger and raise attachment lift lever to its highest position. 2. Release parking brake by depressing clutch/brake pedal. 3. Place freewheel control in “transmission disengaged” position (See “TO TRANSPORT” in the Operation section of this manual). 4. Roll tractor forward off skid. 5. Remove banding holding deflector shield up against tractor. TO DRIVE TRACTOR OFF SKID (See Operation section for location and function of controls) WARNING: Before starting, read, under stand and follow all instructions in the Adjustment Knob Operation section of this manual. Be sure tractor is in a well-ventilated area. Be sure CHECK BATTERY the area in front of tractor is clear of other 1. Lift hood to raised position. people and objects. NOTE: If this battery is put into service 1. Be sure all the above assembly steps after month and year indicated on label have been completed. (label located between terminals) charge 2. Check engine oil level and fill fuel tank battery for minimum of one hour at 6-10 with gasoline. amps. (See "BATTERY" in Maintenance 3. Place freewheel control in "transsection of this manual for charging instrucmission engaged" position. (See “TO tions). TRANSPORT” in the Operation section of this manual). 4. Sit on seat in operating position, Label depress clutch/brake pedal and set the parking brake. 5. Place motion control lever in neutral (N) position. 6. Press lift lever plunger and raise attachment lift lever to its highest position. 7. Start the engine. After engine has started, move throttle control to idle position. 8. Release parking brake. 9. Slowly move the motion control lever forward and slowly drive tractor off skid. 10. Apply brake to stop tractor, set parking brake and place motion control lever in neutral position. 11. Turn ignition key to "STOP" position. 9 Continue with the instructions that follow. 02464 02 17 3 ✔CHECKLIST CHECK TIRE PRESSURE The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance. • Reduce tire pressure to PSI shown in “PRODUCT SPECIFICATIONS” section of this manual. CHECK DECK LEVELNESS For best cutting results, mower housing should be properly leveled. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual. CHECK FOR PROPER POSITION OF ALL BELTS See the figures that are shown for replacing motion and mower blade drive belts in the Service and Adjustments section of this manual. Verify that the belts are routed correctly. CHECK BRAKE SYSTEM After you learn how to operate your tractor, check to see that the brake is properly adjusted. See “TO ADJUST BRAKE” in the Service and Adjustments section of this manual. Before you operate your new tractor, we wish to assure that you receive the best performance and satisfaction from this quality product. Please review the following checklist: ✓ All assembly instructions have been completed. ✓ No remaining loose parts in carton. ✓ Battery is properly prepared and charged. (Minimum 1 hour at 6 amps). ✓ Seat is adjusted comfortably and tightened securely. ✓ All tires are properly inflated. (For shipping purposes, the tires were overinflated at the factory). ✓ Be sure mower deck is properly leveled side-to-side/front-to-rear for best cutting results. (Tires must be properly inflated for leveling). ✓ Check mower and drive belts. Be sure they are routed properly around pulleys and inside all belt keepers. ✓ Check wiring. See that all connections are still secure and wires are properly clamped. ✓ Before driving tractor, be sure freewheel control is in “transmission engaged” position (see “TO TRANSPORT” in the Operation section of this manual). While learning how to use your tractor, pay extra attention to the following impor tant items: ✓ Engine oil is at proper level. ✓ Fuel tank is filled with fresh, clean, regular unleaded gasoline. ✓ Become familiar with all controls - their location and function. Operate them before you start the engine. ✓ Be sure brake system is in safe operating condition. ✓ Be sure Operator Presence System and Reverse Operation System (ROS) are working properly (See the Operation and Maintenance sections in this manual). ✓ It is important to purge the transmission before operating your tractor for the first time. Follow proper starting and transmission purging instructions (See “TO START ENGINE” and “PURGE TRANSMISSION” in the Operation section of this manual). 10 OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION SWITCH P ENGINE OFF OVER TEMP LIGHT REVERSE OPERATION SYSTEM (ROS) FUEL ENGINE ON OIL PRESSURE ENGINE START BATTERY PARKING BRAKE REVERSE FORWARD PARKING BRAKE LOCKED MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT 15 ATTACHMENT CLUTCH DISENGAGED ATTACHMENT CLUTCH ENGAGED LIGHTS ON FREE WHEEL (Automatic Models only) Failure to follow instructions could result in serious injury or death. The safety alert symbol is used to identify safety information about hazards which can result in death, serious injury and/or property damage. DANGER, KEEP HANDS AND FEET AWAY 15 SLOPE HAZARDS KEEP AREA CLEAR (SEE SAFETY RULES SECTION) DANGER indicates a hazard which, if not avoided, will result in death or serious injury. WARNING indicates a hazard which, if not avoided, could result in death or serious injury. CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury. CAUTION when used without the alert symbol, indicates a situation that could result in damage to the tractor and/or engine. HOT SURFACES indicates a hazard which, if not avoided, could result in death, serious injury and/or property damage. FIRE indicates a hazard which, if not avoided, could result in death, serious injury and/or property damage. 11 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. Attachment Clutch Lever Ammeter Ignition Switch ROS "ON" Position Light Switch Lift Lever Plunger Attachment Lift Lever Throttle/Choke Control Height Adjustment Indicator Clutch/Brake Pedal Freewheel Control Parking Brake Lever Motion Control Lever 02815_LSW Our tractors conform to the safety standards of the American National Standards Institute. AMMETER - Indicates charging (+) or discharging (-) of battery. ATTACHMENT CLUTCH LEVER - Used to engage the mower blades, or other attachments mounted to your tractor. ATTACHMENT LIFT LEVER - Used to raise, lower, and adjust the mower deck or other attachments mounted to your tractor. CLUTCH/BRAKE PEDAL - Used for declutching and braking the tractor and starting the engine. FREEWHEEL CONTROL - Disengagages transmission for pushing or slowly towing the tractor with the engine off. IGNITION SWITCH - Used for starting and stopping the engine. LIFT LEVER PLUNGER - Used to release attachment lift lever when changing its position. LIGHT SWITCH - Turns the headlights on and off. MOTION CONTROL LEVER - Selects the speed and direction of tractor. PARKING BRAKE LEVER - Locks clutch/ brake pedal into the brake position. REVERSE OPERATION SYSTEM (ROS) "ON" POSITION - Allows operation of mower deck or other powered attachment while in reverse. THROTTLE/CHOKE CONTROL - Used for starting and controlling engine speed. 12 00155 The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend standard safety glasses or a wide vision safety mask worn over spectacles. HOW TO USE YOUR TRACTOR TO SET PARKING BRAKE Your tractor is equipped with an operator presence sensing switch. When engine is running, any attempt by the operator to leave the seat without first setting the parking brake will shut off the engine. 1. Depress clutch/brake pedal all the way down and hold. 2. Pull parking brake lever up and release pressure from clutch/brake pedal. Pedal should remain in brake position. Make sure parking brake will hold tractor secure. Throttle/ Choke Control “Brake” Position Clutch/ Brake Pedal 01844 Attachment Clutch Lever “Engaged” Position Ignition Key “Disengaged” Position Motion Control Lever “Disengaged” Position Parking Brake “Engaged” Position STOPPING MOWER BLADES • To stop mower blades, move attachment clutch lever to “DISENGAGED” position. GROUND DRIVE • To stop ground drive, depress clutch/ brake pedal all the way down. • Move motion control lever to neutral (N) position. IMPORTANT: The motion control lever does not return to neutral (N) position when the clutch/brake pedal is depressed. ENGINE • Move throttle control between half and full speed (fast) position. NOTE: Failure to move throttle control between half and full speed (fast) position, before stopping, may cause engine to “backfire”. • Turn ignition key to “STOP” position and remove key. Always remove key when leaving tractor to prevent unauthorized use. 13 • Never use choke to stop engine. IMPORTANT: Leaving the ignition switch in any position other than "STOP" will cause the battery to discharge and go dead. NOTE: Under certain conditions when tractor is standing idle with the engine running, hot engine exhaust gases may cause “browning” of grass. To eliminate this possibility, always stop engine when stopping tractor on grass areas. CAUTION: Always stop tractor completely, as described above, before leaving the operator's position. TO USE THROTTLE CONTROL Always operate engine at full throttle. • Operating engine at less than full throttle reduces the battery charging rate. • Full throttle offers the best bagging and mower performance. TO MOVE FORWARD AND BACKWARD The direction and speed of movement is controlled by the motion control lever. 1. Start tractor with motion control lever in neutral (N) position. 2. Release parking brake. 3. Slowly move motion control lever to desired position. TO ADJUST MOWER CUTTING HEIGHT The position of the attachment lift lever determines the cutting height. • Grasp lift lever. • Press plunger with thumb and move lever to desired position. The cutting height range is approximately 1-1/2 to 4". The heights are measured from the ground to the blade tip with the engine not running. These heights are approximate and may vary depending upon soil conditions, height of grass and types of grass being mowed. • The average lawn should be cut to approximately 2-1/2 inches during the cool season and to over 3 inches during hot months. For healthier and better looking lawns, mow often and after moderate growth. • For best cutting performance, grass over 6 inches in height should be mowed twice. Make the first cut relatively high; the second to desired height. TO ADJUST GAUGE WHEELS Gauge wheels are properly adjusted when they are slightly off the ground when mower is at the desired cutting height in operating position. Gauge wheels then keep the deck in proper position to help prevent scalping in most terrain conditions. NOTE: Adjust gauge wheels with tractor on a flat level surface. 1. Adjust mower to desired cutting height (See “TO ADJUST MOWER CUTTING HEIGHT” in this section of manual). 2. With mower in desired height of cut position, gauge wheels should be assembled so they are slightly off the ground. Install gauge wheel in appropriate hole with shoulder bolt, 3/8 washer, and 3/8-16 locknut and tighten securely. 3. Repeat for opposite side, installing gauge wheel in same adjustment hole. Low Position “Disengaged” Position 3/8 Washer Gauge Wheel Deflector Shield 01931 OPERATING IN REVERSE Your tractor is equipped with a Reverse Operation System (ROS). Any attempt by the operator to travel in the reverse direction with the attachment clutch engaged will shut off the engine unless the ignition key is placed in the ROS "ON" position. WARNING: Backing up with the attachment clutch engaged while mowing is strongly discouraged. Turning the ROS "ON", to allow reverse operation with the attachment clutch engaged, should only be done when the operator decides it is necessary to reposition the machine with the attachment engaged. Do not mow in reverse unless absolutely necessary. Gauge Wheel Mounting Bracket 3/8-16 Locknut Attachment Lift Lever High Position Attachment Clutch Lever “Engaged” Position 01 42 3 Shoulder Bolt USING THE REVERSE OPERATION SYSTEM 1. Move motion control lever to neutral (N) position. 2. With engine running, turn ignition key counterclockwise to ROS "ON" position. 3. Look down and behind before backing up. 4. Slowly move motion control lever to reverse (R) position to start movement. 5. When use of the ROS is no longer needed, turn the ignition key clockwise to engine "ON" position. TO OPERATE MOWER Your tractor is equipped with an operator presence sensing switch. Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will shut off the engine. You must remain fully and centrally positioned in the seat to prevent the engine from hesitating or cutting off when operating your equipment on rough, rolling terrain or hills. 1. Select desired height of cut. 2. Start mower blades by engaging attachment clutch control. TO STOP MOWER BLADES disengage attachment clutch control. CAUTION: Do not operate the mower without either the entire grass catcher, on mowers so equipped, or the deflector shield in place. ROS "ON" Position Engine "ON" Position (Normal Operating) 02828 14 TO OPERATE ON HILLS WARNING: Do not drive up or down hills with slopes greater than 15° and do not drive across any slope. Use the slope guide at the back of this manual. • Choose the slowest speed before starting up or down hills. • Avoid stopping or changing speed on hills. • If slowing is necessary, move throttle control lever to slower position. • If stopping is absolutely necessary, push clutch/brake pedal quickly to brake position and engage parking brake. • Move motion control lever to neutral (N) position. IMPORTANT: The motion control lever does not return to neutral (N) position when the clutch/brake pedal is depressed. • To restart movement, slowly release parking brake and clutch/brake pedal. • Slowly move motion control lever to slowest setting. • Make all turns slowly. TOWING CARTS AND OTHER ATTACHMENTS Tow only the attachments that are recommended by and comply with specifications of the manufacturer of your tractor. Use common sense when towing. Too heavy of a load, while on a slope, is dangerous. Tires can lose traction with the ground and cause you to lose control of your tractor. BEFORE STARTING THE ENGINE CHECK ENGINE OIL LEVEL The engine in your tractor has been shipped, from the factory, already filled with summer weight oil. 1. Check engine oil with tractor on level ground. 2. Remove oil fill cap/dipstick and wipe clean, reinsert the dipstick and screw cap tight, wait for a few seconds, remove and read oil level. If necessary, add oil until “FULL” mark on dipstick is reached. Do not overfill. • For cold weather operation you should change oil for easier starting ((See the oil viscosity chart in the Maintenance TO TRANSPORT section of this manual). When pushing or towing your tractor, be • To change engine oil, see the Maintesure to disengage transmission by placing nance section in this manual. freewheel control in freewheeling position. ADD GASOLINE Freewheel control is located at the rear • Fill fuel tank to bottom of tank filler neck. drawbar of tractor. Do not overfill. Use fresh, clean, regular 1. Raise attachment lift to highest position unleaded gasoline with a minimum of with attachment lift control. 87 octane. (Use of leaded gasoline will 2. Pull freewheel control out and down increase carbon and lead oxide deposits into the slot and release so it is held in and reduce valve life). Do not mix oil the disengaged position. with gasoline. Purchase fuel in quanti• Do not push or tow tractor at more than ties that can be used within 30 days to two (2) MPH. assure fuel freshness. • To re-engage transmission, reverse CAUTION: Wipe off any spilled oil or above procedure. fuel. Do not store, spill or use gasoline near an open flame. Transmission Engaged IMPORTANT: When operating in temperatures below 32°F(0°C), use fresh, clean winter grade gasoline to help insure good cold weather starting. CAUTION: Alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. 02219 To avoid engine problems, the fuel system should be emptied before storage of 30 Transmission Disengaged days or longer. Drain the gas tank, start NOTE: To protect hood from damage the engine and let it run until the fuel lines when transporting your tractor on a truck and carburetor are empty. Use fresh fuel or a trailer, be sure hood is closed and next season. See Storage Instructions for secured to tractor. Use an appropriate additional information. means of tying hood to tractor (rope, cord, Never use engine or carburetor cleaner etc.). 15 products in the fuel tank or permanent damage may occur. TO START ENGINE When starting the engine for the first time or if the engine has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine. 1. Be sure freewheel control is in the transmission engaged position. 2. Sit on seat in operating position, depress clutch/brake pedal and set parking brake. 3. Place motion control lever in neutral (N) position. 4. Move attachment clutch to disengaged position. 5. Move throttle control to choke position. NOTE: Before starting, read the warm and cold starting procedures below. 6. Insert key into ignition and turn key clockwise to start position and release key as soon as engine starts. Do not run starter continuously for more than fifteen seconds per minute. If the engine does not start after several attempts, move throttle control to fast position, wait a few minutes and try again. If engine still does not start, move the throttle control back to the choke position and retry. WARM WEATHER STARTING (50° F and above) 7. When engine starts, move the throttle control to the fast position. • The attachments and ground drive can now be used. If the engine does not accept the load, restart the engine and allow it to warm up for one minute using the choke as described above. COLD WEATHER STARTING ( 50° F and below) 7. When engine starts, allow engine to run with the throttle control in the choke position until the engine runs roughly, then move throttle control to fast position. This may require an engine warm-up period from several seconds to several minutes, depending on the temperature. AUTOMATIC TRANSMISSION WARM UP Before driving the unit in cold weather, the transmission should be warmed up as follows: 1. Be sure the tractor is on level ground. 2. Place the motion control lever in neutral. Release the parking brake and let the clutch/brake slowly return to operating position. 3. Allow one minute for transmission to warm up. This can be done during the engine warm up period. • The attachments can also be used during the engine warm-up period after the transmission has been warmed up. NOTE: If at a high altitude (above 3000 feet) or in cold temperatures (below 32 F) the carburetor fuel mixture may need to be adjusted for best engine performance. (See “TO ADJUST CARBURETOR” in the Service and Adjustments section of this manual.) PURGE TRANSMISSION To ensure proper operation and performance, it is recommended that the transmission be purged before operating tractor for the first time. This procedure will remove any trapped air inside the transmission which may have developed during shipping of your tractor. IMPORTANT: Should your transmission require removal for service or replacement, it should be purged after reinstallation before operating the tractor. 1. Place tractor safely in an area that is flat for approximately 80 feet in front of the tractor and set the parking brake. 2. Sitting in the tractor seat, start engine. After the engine is running, move throttle control to slow position. With motion control lever in neutral (N) position, slowly disengage clutch/brake pedal. 3. Slowly move motion control lever to full forward position and hold for five (5) seconds, or approximately 40 feet. Slowly move lever to full reverse position and hold for five (5) seconds, or approximately 20 feet. After the tractor moves approximately 20 feet in reverse return the motion control lever to the neutral (N) position. Repeat this procedure three (3) times. Your transmission is now purged and now ready for normal operation. 16 MOWING TIPS • Mower should be properly leveled for best mowing performance. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual. • The left hand side of mower should be used for trimming. • Drive so that clippings are discharged onto the area that has already been cut. Have the cut area to the right of the tractor. This will result in a more even distribution of clippings and more uniform cutting. • When mowing large areas, start by turning to the right so that clippings will discharge away from shrubs, fences, driveways, etc. After one or two rounds, mow in the opposite direction making left hand turns until finished. 00272 • If grass is extremely tall, it should be mowed twice to reduce load and possible fire hazard from dried clippings. Make first cut relatively high; the second to the desired height. • Do not mow grass when it is wet. Wet grass will plug mower and leave undesirable clumps. Allow grass to dry before mowing. • Always operate engine at full throttle when mowing to assure better mowing performance and proper discharge of material. Regulate ground speed by selecting a low enough gear to give the mower cutting performance as well as the quality of cut desired. • When operating attachments, select a ground speed that will suit the terrain and give best performance of the attachment being used. 17 MAINTENANCE MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE E E S S RS S AG US UR OUR OU SON OR UR O H T O H H A 0 S H SE RE 25 10 50 EE Y 8 R RY ERY ERY ERY FO OR E E F E V B SERVICE E EV EV EV EV BE H AC DATES Check Brake Operation Check Tire Pressure T R A C T 0 R Check Operator Presence and ROS Systems Check for Loose Fasteners 5 Sharpen/Replace Mower Blades 3 Lubrication Chart Check Battery Level 4 Clean Battery and Terminals Check Transaxle Cooling Check V-Belts Check Engine Oil Level Change Engine Oil (with oil filter) 1,2 Clean Air Filter 2 Clean Air Screen 2 Inspect Muffler/Spark Arrester Replace Oil Filter (If equipped) 1, 2 Clean Engine Cooling Fins maint_sch-tractore.ROS.e E N G I N E 1,2 Change Engine Oil (without oil filter) 2 Replace Spark Plug Replace Air Filter Paper Cartridge 2 Replace Fuel Filter 3 - Replace blades more often when mowing in sandy soil. 4 - Not required if equipped with maintenance-free battery. 5 - Tighten front axle pivot bolt to 35 ft.-lbs. maximum. Do not overtighten. 1 - Change more often when operating under a heavy load or in high ambient temperatures. 2 - Service more often when operating in dirty or dusty conditions. GENERAL RECOMMENDATIONS The warranty on this tractor does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain tractor as instructed in this manual. Some adjustments will need to be made periodically to properly maintain your tractor. At least once a season, check to see if you should make any of the adjustments described in the Service and Adjustments section of this manual. • At least once a year you should replace the spark plug, clean or replace air filter, and check blades and belts for wear. A new spark plug and clean air filter assure proper air-fuel mixture and help your engine run better and last longer. BEFORE EACH USE 1. 2. 3. 4. Check engine oil level. Check brake operation. Check tire pressure. Check operator presence and ROS systems for proper operation. 5. Check for loose fasteners. LUBRICATION CHART ➀ Spindle ➀ Spindle Zerk Zerk ➀Front Wheel ➀Front Wheel Bearing Zerk Bearing Zerk ➁Engine 01964 ➀ General Purpose Grease ➁ REFER TO Maintenance “ENGINE” SECTION IMPORTANT: Do not oil or grease the pivot points which have special nylon bearings. Viscous lubricants will attract dust and dirt that will shorten the life of the self-lubricating bearings. If you feel they must be lubricated, use only a dry, powdered graphite type lubricant sparingly. 18 TRACTOR Always observe safety rules when performing any maintenance. BRAKE OPERATION If tractor requires more than five (5) feet to stop at highest speed in highest gear on a level, dry concrete or paved surface, then brake must be checked and adjusted. (See “TO ADJUST BRAKE” in the Service and Adjustments section of this manual). TIRES • Maintain proper air pressure in all tires (See “PRODUCT SPECIFICATIONS” section of this manual). • Keep tires free of gasoline, oil, or insect control chemicals which can harm rubber. • Avoid stumps, stones, deep ruts, sharp objects and other hazards that may cause tire damage. NOTE: To seal tire punctures and prevent flat tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion. OPERATOR PRESENCE SYSTEM AND REVERSE OPERATION SYSTEM (ROS) Be sure operator presence and reverse operation systems are working properly. If your tractor does not function as described, repair the problem immediately. • The engine should not start unless the brake pedal is fully depressed, and the attachment clutch control is in the disengaged position. CHECK OPERATOR PRESENCE SYSTEM • When the engine is running, any attempt by the operator to leave the seat without first setting the parking brake should shut off the engine. • When the engine is running and the attachment clutch is engaged, any attempt by the operator to leave the seat should shut off the engine. • The attachment clutch should never operate unless the operator is in the seat. ROS "ON" Position Engine "ON" Position (Normal Operating) 02828 • When the engine is running with the ignition switch in the ROS "ON" position and the attachment clutch is engaged, any attempt by the operator to shift into reverse should NOT shut off the engine. BLADE CARE For best results mower blades must be kept sharp. Replace bent or damaged blades. BLADE REMOVAL 1. Raise mower to highest position to allow access to blades. 2. Remove blade bolt, lock washer and flat washer securing blade. 3. Install new or resharpened blade with trailing edge up towards deck as shown. IMPORTANT: To ensure proper assembly, center hole in blade must align with star on mandrel assembly. 4. Reassemble blade bolt, lock washer and flat washer in exact order as shown. 5. Tighten blade bolt securely (27-35 Ft. Lbs. torque). IMPORTANT: Blade bolt is heat treated. If bolt needs replacing, replace only with approve bolt shown in the Repair Parts. Trailing Edge Up Mandrel Assembly Blade Center Hole Flat Washer Lock Washer Star Blade Bolt TO SHARPEN BLADE NOTE: We do not recommend sharpening blade - but if you do, be sure the blade is balanced. Care should be taken to keep the blade CHECK REVERSE OPERATION (ROS) balanced. An unbalanced blade will cause SYSTEM excessive vibration and eventual damage • When the engine is running with the igto mower and engine. nition switch in the engine "ON" position • The blade can be sharpened with a file and the attachment clutch is engaged, or on a grinding wheel. Do not attempt any attempt by the operator to go into to sharpen while on the mower. reverse should shut off the engine. • To check blade balance, you will need a 5/8" diameter steel bolt, pin, or a cone balancer. (When using a cone balancer, follow the instructions supplied with 19 balancer.) • Inspect cooling fins for dirt, grass clippings and other materials. To prevent damage to seals, do not use compressed air or high pressure sprayer to clean cooling fins. TRANSAXLE PUMP FLUID The transaxle was sealed at the factory and fluid maintenance is not required for the life of the transaxle. Should the transaxle ever leak or require servicing, contact a Sears or other qualified service center. V-BELTS Check V-belts for deterioration and wear after 100 hours of operation and replace if necessary. The belts are not adjustable. Replace belts if they begin to slip from wear. NOTE: Do not use a nail for balancing blade. The lobes of the center hole may appear to be centered, but are not. • Slide blade on to an unthreaded portion of the steel bolt or pin and hold the bolt or pin parallel with the ground. If blade is balanced, it should remain in a horizontal position. If either end of the blade moves downward, sharpen the heavy end until the blade is balanced. Blade 5/8” Bolt or Pin Center Hole BATTERY Your tractor has a battery charging system which is sufficient for normal use. However, periodic charging of the battery with an automotive charger will extend its life. • Keep battery and terminals clean. • Keep battery bolts tight. • Keep small vent holes open. • Recharge at 6-10 amperes for 1 hour. NOTE: The original equipment battery on your tractor is maintenance free. Do not attempt to open or remove caps or covers. Adding or checking level of electrolyte is not necessary. ENGINE LUBRICATION Only use high quality detergent oil rated with API service classification SG-SL. Select the oil’s SAE viscosity grade according to your expected operating temperature. SAE VISCOSITY GRADES SAE 30 5W-30 -20 F C -30 0 -20 30 -10 32 0 40 60 10 100 80 20 30 40 TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE TO CLEAN BATTERY AND TERMINALS Corrosion and dirt on the battery and terminals can cause the battery to “leak” power. 1. Remove terminal guard. 2. Disconnect BLACK battery cable first then RED battery cable and remove battery from tractor. 3. Rinse the battery with plain water and dry. 4. Clean terminals and battery cable ends with wire brush until bright. 5. Coat terminals with grease or petroleum jelly. 6. Reinstall battery (See “REPLACING BATTERY" in the SERVICE AND ADJUSTMENTS section of this manual). TRANSAXLE COOLING The transmission fan and cooling fins should be kept clean to assure proper cooling. Do not attempt to clean fan or transmission while engine is running or while the transmission is hot. To prevent possible damage to seals, do not use high pressure water or steam to clean transaxle. • Inspect cooling fan to be sure fan blades are intact and clean. oil_visc_chart1_e NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, they will result in increased oil consumption when used above 32°F. Check your engine oil level more frequently to avoid possible engine damage from running low on oil. Change the oil after every 50 hours of operation or at least once a year if the tractor is not used for 50 hours in one year. Check the crankcase oil level before starting the engine and after each eight (8) hours of operation. Tighten oil fill cap/dipstick securely each time you check the oil level. TO CHANGE ENGINE OIL Determine temperature range expected before oil change. All oil must meet API service classification SG-SL. • Be sure tractor is on level surface. • Oil will drain more freely when warm. • Catch oil in a suitable container. 1. Remove oil fill cap/dipstick. Be careful not to allow dirt to enter the engine when changing oil. 2. Remove yellow cap from end of drain valve and install the drain tube onto the fitting. 20 6. Align tabs on cover with slots in blower housing and replace cover. 7. Hook handle on cover and push down on handle to close. IMPORTANT: Petroleum solvents, such as kerosene, are not to be used to clean the cartridge. They may cause deterioration of the cartridge. Do not oil cartridge. Do not use pressurized air to clean cartridge. Oil Drain Valve Closed and Locked Position 3 46 02 Yellow Cap Handle Drain Tube 3. Unlock drain valve by pushing inward slightly and turning counterclockwise. 4. To open, pull out on the drain valve. 5. After oil has drained completely, close and lock the drain valve by pushing inward and turning clockwise until the pin is in the locked position as shown. 6. Remove the drain tube and replace the cap onto the end of the drain valve. 7. Refill engine with oil through oil fill dipstick tube. Pour slowly. Do not overfill. For approximate capacity see “PRODUCT SPECIFICATIONS” section of this manual. 8. Use gauge on oil fill cap/dipstick for checking level. For accurate reading, tighten dipstick cap securely onto the tube before removing dipstick. Keep oil at “FULL” line on dipstick. Tighten cap onto the tube securely when finished. ENGINE OIL FILTER Replace the engine oil filter every season or every other oil change if the tractor is used more than 100 hours in one year. AIR FILTER Your engine will not run properly using a dirty air filter. Replace pre-cleaner after every 25 hours of operation or every season. Service paper cartridge every 100 hours of operation or every season, whichever occurs first. Service air cleaner more often under dusty conditions. 1. Pull up on air filter cover handle and rotate towards engine. 2. Remove cover. 3. Carefully remove air filter cartridge and pre-cleaner from base. 4. Clean base carefully to prevent debris from falling into carburetor. NOTE: If very dirty or damaged, replace cartridge. 5. Place new pre-cleaner and cartridge firmly in base. 21 Cover Cartridge Pre-cleaner Tabs Base 02698 Slots CLEAN AIR SCREEN Air screen must be kept free of dirt and chaff to prevent engine damage from overheating. Clean with a wire brush or compressed air to remove dirt and stubborn dried gum fibers. ENGINE COOLING SYSTEM Debris may clog the engine’s air cooling system. Remove blower housing and clean area shown to prevent overheating and engine damage. Air Screen Clean out chaff and debris 02744 MUFFLER Inspect and replace corroded muffler and spark arrester (if equipped) as it could create a fire hazard and/or damage. SPARK PLUG(S) Replace spark plug(s) at the beginning of each mowing season or after every 100 hours of operation, whichever occurs first. Spark plug type and gap setting are shown in “PRODUCT SPECIFICATIONS” section of this manual. IN-LINE FUEL FILTER The fuel filter should be replaced once each season. If fuel filter becomes clogged, obstructing fuel flow to carburetor, replacement is required. 1. With engine cool, remove filter and plug fuel line sections. 2. Place new fuel filter in position in fuel line with arrow pointing towards carburetor. 3. Be sure there are no fuel line leaks and clamps are properly positioned. 4. Immediately wipe up any spilled gasoline. Clamp Fuel Filter CLEANING • Clean engine, battery, seat, finish, etc. of all foreign matter. • Keep finished surfaces and wheels free of all gasoline, oil, etc. • Protect painted surfaces with automotive type wax. We do not recommend using a garden hose or pressure washer to clean your tractor unless the engine and transmission covered to keep water out. Water in engine or transmission will shorten the usful life of your tractor. Use compressed air or a leaf blower to remove grass, leaves and trash from tractor and mower. Clamp 00667 22 SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS: 1. Depress clutch/brake pedal fully and set parking brake. 2. Place motion control lever in neutral (N) position. 3. Place attachment clutch in “DISENGAGED” position. 4. Turn ignition key to “STOP” and remove key. 5. Make sure the blades and all moving parts have completely stopped. 6. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug. TRACTOR 9. Raise lift lever to raise suspension arms. Slide mower out from under tractor. IMPORTANT: If an attachment other than the mower deck is to be mounted on the tractor, remove the front links and hook the clutch spring Into square hole in frame. TO REMOVE MOWER Mower will be easier to remove from the right side of tractor. 1. Place attachment clutch in “DISENGAGED” position. 2. Move attachment lift lever forward to lower mower to its lowest position. 3. Roll belt off engine pulley. 4. Remove small retainer spring, and remove clutch spring off pulley bolt. 5. Remove large retainer spring, slide collar off and push housing guide out of bracket. 6. Disconnect anti-sway bar from chassis bracket by removing retainer spring. 7. Disconnect suspension arms from rear deck brackets by removing retainer springs. 8. Disconnect front links from deck by removing retainer springs. TO INSTALL MOWER 1. Raise attachment lift lever to its highest position. 2. Slide mower under tractor with deflector shield to right side of tractor. 3. Lower lift lever to its lowest position. 4. Connect front links to mower deck and secure with retainer springs. 5. Connect suspension arms to rear deck brackets and secure with retainer springs. 6. Connect anti-sway bar to chassis bracket and secure with retainer spring. Small Retainer Spring Clutch Spring Clutch Spring Flat Washer Small Retainer Spring Square Hole Suspension Arms Engine Pulley Front Link Retainer Spring Anti-Sway Bar Retainer Springs (Both Sides) Collar Deflector Shield Housing Guide Bracket 96 026 Large Retainer Spring 23 7. Push clutch cable housing guide into bracket, slide collar onto guide and secure with large retainer spring. 8. Place flat washer and clutch spring on idler pulley bolt and secure with small retainer spring. 9. Install belt onto engine pulley. TO LEVEL MOWER HOUSING Adjust the mower while tractor is parked on level ground or driveway. Make sure tires are properly inflated (See “PRODUCT SPECIFICATIONS” section of this manual). If tires are over or underinflated, you will not properly adjust your mower. SIDE-TO-SIDE ADJUSTMENT • Raise mower to its highest position. • At the midpoint of both sides of mower, measure height from bottom edge of mower to ground. Distance “A” on both sides of mower should be the same or within 1/4" of each other. • If adjustment is necessary, make adjustment on one side of mower only. • To raise one side of mower, tighten lift link adjustment nut on that side. • To lower one side of mower, loosen lift link adjustment nut on that side. NOTE: Each full turn of adjustment nut will change mower height about 1/8". • Recheck measurements after adjusting. Bottom edge of mower to ground A • Before making any necessary adjustments, check that both front links are equal in length. • If links are not equal in length, adjust one link to same length as other link. • To lower front of mower loosen nut “E” on both front links an equal number of turns. • When distance “D” is 1/8" to 1/2" lower at front than rear, tighten nuts “F” against trunnion on both front links. • To raise front of mower, loosen nut “F” from trunnion on both front links. Tighten nut “E” on both front links an equal number of turns. The two front links must remain equal in length. • When distance “D” is 1/8" to 1/2" lower at front than rear, tighten nut “F” against trunnion on both front links. • Recheck side-to-side adjustment. Mandrel 01268 “D” “D” Both Front Links Should be Equal in Length 01267 Bottom edge of mower to ground 00598 Ground Line A Nut “E” Nut “F” Suspension Arm Trunnion 01156 01553 Lift Link Adjustment Nut FRONT-TO-BACK ADJUSTMENT IMPORTANT: Deck must be level side-to side. If the following front-to-back adjustment is necessary, be sure to adjust both front links equally so mower will stay level side-to-side. To obtain the best cutting results, the mower housing should be adjusted so that the front is approximately 1/8" to 1/2" lower than the rear when the mower is in its highest position. Check adjustment on right side of tractor. Measure distance “D” directly in front and behind the mandrel at bottom edge of mower housing as shown. Front Links TO REPLACE MOWER BLADE DRIVE BELT The mower blade drive belt may be replaced without tools. Park the tractor on level surface. Engage parking brake. BELT REMOVAL 1. Remove mower from tractor (See “TO REMOVE MOWER” in this section of manual). 2. Work belt off both mandrel pulleys and idler pulleys. 3. Pull belt away from mower. 24 BELT INSTALLATION 1. Work belt around both mandrel pulleys and idler pulleys 2. Make sure belt is in all pulley grooves and inside all belt guides. 3. Install mower (See “To Install Mower” in this section of this manual). Mandrel Pulley Mandrel Pulley 5. Road test tractor for proper stopping distance as stated above. Readjust if necessary. If stopping distance is still greater than five (5) feet in highest gear, further maintenance is necessary. Replace brake pads or contact a Sears or other qualified service center. Operating Arm Idler Pulleys 1-9/16” Nut “A” Jam Nut 02557-LTH 02 31 TO REPLACE MOTION DRIVE BELT Park the tractor on level surface. Engage parking brake. For assistance, there is a belt installation guide decal on bottom side of left footrest. 4 TO CHECK AND ADJUST BRAKE Your tractor is equipped with an adjustable brake system which is mounted on the right side of the transaxle. If tractor requires more than five (5) feet to stop at highest speed in highest gear on a level, dry concrete or paved surface, then brake must be checked and adjusted. BELT REMOVAL 1. Remove mower (See “TO REMOVE MOWER” in this section of manual). NOTE: Observe entire motion drive belt and position of all belt guides and keepers. 2. Remove belt from stationary idler and clutching idler. 3. Remove belt downward from around engine pulley. 4. Pull belt slack toward rear of tractor. Carefully remove belt upwards from transmission input pulley. 5. Remove belt from center span keeper and pull belt away from tractor. TO CHECK BRAKE 1. Park tractor on a level, dry concrete or paved surface, depress clutch/brake pedal all the way down and engage parking brake. 2. Disengage transmission by placing freewheel control in “transmission disengaged” position. Pull freewheel control out and into the slot and release so it is held in the disengaged position. The rear wheels must lock and skid when you try to manually push the tractor forward. If the rear wheels rotate, the brake needs to be adjusted or the pads need to be replaced. BELT INSTALLATION 1. Carefully work new belt down onto the input pulley. 2. Slide belt into the center span keeper. 3. Pull belt toward front of tractor and roll around the top groove of engine pulley. 4. Install belt through stationary idler and clutching idler. 5. Make sure belt is in all pulley grooves and inside all belt guides and keepers. 6. Install mower (See “TO INSTALL MOWER” in this section of manual). TO ADJUST BRAKE 1. Depress clutch/brake pedal all the way down and engage parking brake. 2. Measure distance between brake operating arm and nut “A” on brake rod. 3. If distance is other than 1-9/16", loosen jam nut and turn nut “A” until distance becomes 1-9/16". Retighten jam nut against nut “A”. 4. Engage transmission by placing freewheel control in “transmission engaged” position. 25 Engine Pulley Clutching Idler Stationary Idler Center Span Keeper Transmission Input Pulley 01510 TRANSAXLE MOTION CONTROL LEVER NEUTRAL ADJUSTMENT The motion control lever has been preset at the factory and adjustment should not be necessary. 1. Loosen adjustment bolt in front of the right rear wheel, and lightly tighten. 2. Start engine and move motion control lever until tractor does not move forward or backward. 3. Hold motion control lever in that position and turn engine off. 4. While holding motion control lever in place, loosen the adjustment bolt. 5. Move motion control lever to the neutral (N) (lock gate) position. 6. Tighten adjustment bolt securely. NOTE: If additional clearance is needed to get to adjustment bolt, move mower deck height to the lowest position. After above adjustment is made, if the tractor still creeps forward or backward while motion control lever is in neutral position, follow these steps: 1. Loosen the adjustment bolt. 2. Move the motion control lever 1/4 to 1/2 inch in the direction it is trying to creep. 3. Tighten adjustment bolt securely. 4. Start engine and test. 5. If tractor still creeps, repeat above steps until satisfied. Motion Control Lever 02239 Neutral Lock Gate Adjustment Bolt TRANSMISSION REMOVAL/ REPLACEMENT Should your transmission require removal for service or replacement, it should be purged after reinstallation and before operating the tractor. See “PURGE TRANSMISSION” in the Operation section of this manual. TO ADJUST STEERING WHEEL ALIGNMENT If steering wheel crossbars are not horizontal (left to right) when wheels are positioned straight forward, remove steering wheel and reassemble with crossbars horizontal. Tighten securely. FRONT WHEEL TOE-IN/CAMBER The front wheel toe-in and camber are not adjustable on your tractor. If damage has occurred to affect the front wheel toe-in or camber, contact a Sears or other qualified service center. TO REMOVE WHEEL FOR REPAIRS 1. Block up axle securely. 2. Remove axle cover, retaining ring and washers to allow wheel removal (rear wheels have a square key - Do not lose). 3. Repair tire and reassemble. NOTE: On rear wheels only: align grooves in rear wheel hub and axle. Insert square key. 4. Replace washers and snap retaining ring securely in axle groove. 5. Replace axle cover. NOTE: To seal tire punctures and prevent flat tires due to slow leaks, purchase and use tire sealant from Sears. Tire sealant also prevents tire dry rot and corrosion. Washers Retaining Ring Axle Cover Square Key (Rear Wheel Only) 3 0066 TO START ENGINE WITH A WEAK BATTERY WARNING: Lead-acid batteries generate explosive gases. Keep sparks, flame and smoking materials away from batteries. Always wear eye protection when around batteries. If your battery is too weak to start the engine, it should be recharged. (See "BATTERY" in the MAINTENANCE section of this manual). 26 If “jumper cables” are used for emergency starting, follow this procedure: IMPORTANT: Your tractor is equipped with a 12 volt system. The other vehicle must also be a 12 volt system. Do not use your tractor battery to start other vehicles. 8. Close terminal access doors. 9. Close hood. TO ATTACH JUMPER CABLES 1. Connect one end of the RED cable to the POSITIVE (+) terminal of each battery(A-B), taking care not to short against tractor chassis. 2. Connect one end of the BLACK cable to the NEGATIVE (-) terminal (C) of fully charged battery. 3. Connect the other end of the BLACK cable (D) to good chassis ground, away from fuel tank and battery. Terminal Access Door Hex Bolt Keps Nut 02 17 Terminal Guard 02614 Fully Charged Battery REPLACING BATTERY WARNING: Do not short battery terminals by allowing a wrench or any other object to contact both terminals at the same time. Before connecting battery, remove metal bracelets, wristwatch bands, rings, etc. Positive terminal must be connected first to prevent sparking from accidental grounding. 1. Lift hood to raised position. 2. Remove terminal guard. 3. Disconnect BLACK battery cable then RED battery cable and carefully remove battery from tractor. 4. Install new battery with terminals in same position as old battery. 5. Reinstall terminal guard. 6. First connect RED battery cable to positive (+) battery terminal with hex bolt and keps nut as shown. Tighten securely. 7. Connect BLACK grounding cable to negative (-) battery terminal with remaining hex bolt and keps nut. Tighten securely Negative (Black) Cable TO REPLACE HEADLIGHT BULB 1. Raise hood. 2. Pull bulb holder out of the hole in the backside of the grill. 3. Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill. 4. Close hood. INTERLOCKS AND RELAYS Loose or damaged wiring may cause your tractor to run poorly, stop running, or prevent it from starting. • Check wiring. See electrical wiring diagram in the Repair Parts section. TO REPLACE FUSE Replace with 20 amp automotive-type plug-in fuse. The fuse holder is located behind the dash. TO REMOVE CABLES, REVERSE ORDER 1. BLACK cable first from chassis and then from the fully charged battery. 2. RED cable last from both batteries. Weak or Dead Battery 9 Positive (Red) Cable TO REMOVE HOOD AND GRILL ASSEMBLY 1. Raise hood. 2. Unsnap headlight wire connector. 3. Stand in front of tractor. Grasp hood at sides, tilt toward engine and lift off of tractor. 4. When replacing hood, be sure to reconnect the headlight wire connector. Hood Headlight Wire Connector 02495 27 ENGINE IMPORTANT: Damage to the needle valve and the seat in carburetor may result if screw is turned in too tight. Maintenance, repair, or replacement of the emission control devices and systems, which are being done at the customers expense, may be performed by any non-road engine repair establishment or individual. Warranty repairs must be performed by an authorized engine manufacturer's service outlet. TO ADJUST THROTTLE CONTROL CABLE The throttle control has been preset at the factory and adjustment should not be necessary. Check adjustment as described below before loosening cable. If adjustment is necessary, proceed as follows: 1. With engine not running, move throttle control lever from slow to choke position. Slowly move lever from choke to fast position. 2. Check that holes “A” in governor control lever and hole in governor plate line-up. If holes “A” are not aligned, loosen clamp screw and move throttle cable until holes are aligned. Tighten clamp screw securely. PRELIMINARY SETTING 1. Air cleaner assembly must be assembled to the carburetor when making carburetor adjustments. 2. Be sure the throttle control cable is adjusted properly (see above). Governor Control Lever Governor Control Plate 1 04 01 Holes "A" Clamp Screw Throttle Cable TO ADJUST CARBURETOR NOTE: The carburetor on this engine is low emission. It is equipped with an idle fuel adjusting needle with a limiter cap, which allows some adjustment within the limits allowed by the cap. Do not attempt to remove the limiter cap. The limiter cap cannot be removed without breaking the adjusting needle. The carburetor has been preset at the factory and adjustment should not be necessary. However, minor adjustment may be required to compensate for differences in fuel, temperature, altitude or load. If the carburetor does need adjustment, proceed as follows: In general, turning idle mixture valve in (clockwise) decreases the supply of fuel to the engine giving a leaner fuel/air mixture. Turning the idle mixture valve out (counterclockwise) increases the supply of fuel to the engine giving a richer fuel/air mixture. FINAL SETTING -(See “TO ADJUST THROTTLE CONTROL CABLE” in this section of the manual.) 1. Start engine and allow to warm for five minutes. Make final adjustments with engine running and shift/motion control lever in neutral (N) position. 2. Move throttle control lever to slow position. With finger, rotate and hold throttle lever against idle speed screw. Turn idle speed screw to attain 1750 RPM. 3. While still holding throttle lever against idle speed screw, turn idle mixture valve full travel clockwise then counterclockwise until engine runs rough. Turn valve to a point midway between those two positions. Release throttle lever. ACCELERATION TEST 4. Move throttle control lever from slow to fast position. If engine hesitates or dies, turn idle mixture valve out (counterclockwise) 1/8 turn. Repeat test and continue to adjust, if necessary, until engine accelerates smoothly. High speed stop is factory adjusted. Do not adjust or damage may result. IMPORTANT: Never tamper with the engine governor, which is factory set for proper engine speed. Overspeeding the engine above the factory high speed setting can be dangerous. If you think the engine-governed high speed needs adjusting, contact a Sears or other qualified service center, which has proper equipment and experience to make any necessary adjustments. Idle Speed Screw 01915 Throttle Lever Idle Mixture Valve with Limiter 28 STORAGE Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. CAUTION: Never store the tractor with gasoline in the tank inside a building where fumes may reach an open flame or spark. Allow the engine to cool before storing in any enclosure. TRACTOR Remove mower from tractor for winter storage. When mower is to be stored for a period of time, clean it thoroughly, remove all dirt, grease, leaves, etc. Store in a clean, dry area. 1. Clean entire tractor (See “CLEANING” in the Maintenance section of this manual). 2. Inspect and replace belts, if necessary (See belt replacement instructions in the Service and Adjustments section of this manual). 3. Lubricate as shown in the Maintenance section of this manual. 4. Be sure that all nuts, bolts and screws are securely fastened. Inspect moving parts for damage, breakage and wear. Replace if necessary. 5. Touch up all rusted or chipped paint surfaces; sand lightly before painting. BATTERY • Fully charge the battery for storage. • After a period of time in storage, battery may require recharging. • To help prevent corrosion and power leakage during long periods of storage, battery cables should be disconnected and battery cleaned thoroughly (see “TO CLEAN BATTERY AND TERMINALS” in the Maintenance section of this manual). • After cleaning, leave cables disconnected and place cables where they cannot come in contact with battery terminals. • If battery is removed from tractor for storage, do not store battery directly on concrete or damp surfaces. hose, or tank during storage. Also, alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. • Empty the fuel tank by starting the engine and letting it run until the fuel lines and carburetor are empty. • Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur. • Use fresh fuel next season. NOTE: Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during storage. Add stabilizer to gasoline in fuel tank or storage container. Always follow the mix ratio found on stabilizer container. Run engine at least 10 minutes after adding stabilizer to allow the stabilizer to reach the carburetor. Do not empty the gas tank and carburetor if using fuel stabilizer. ENGINE OIL Drain oil (with engine warm) and replace with clean engine oil. (See “ENGINE” in the Maintenance section of this manual). CYLINDER(S) 1. Remove spark plug(s). 2. Pour one ounce of oil through spark plug hole(s) into cylinder(s). 3. Turn ignition key to “START” position for a few seconds to distribute oil. 4. Replace with new spark plug(s). OTHER • Do not store gasoline from one season to another. • Replace your gasoline can if your can starts to rust. Rust and/or dirt in your gasoline will cause problems. • If possible, store your tractor indoors and cover it to give protection from dust and dirt. • Cover your tractor with a suitable protective cover that does not retain moisture. Do not use plastic. Plastic cannot breathe which allows condensation to form and will cause your tractor to rust. IMPORTANT: Never cover tractor while engine and exhaust areas are still warm. ENGINE FUEL SYSTEM IMPORTANT: It is important to prevent gum deposits from forming in essential fuel system parts such as carburetor, fuel 29 TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE CORRECTION Will not start 1. Out of fuel. 2. Engine not “CHOKED” properly. 3. Engine flooded. 1. Fill fuel tank. 2. See “TO START ENGINE” in Operation section. 3. Wait several minutes before attempting to start. 4. Bad spark plug. 4. Replace spark plug. 5. Dirty air filter. 5. Clean/replace air filter. 6. Dirty fuel filter. 6. Replace fuel filter. 7. Water in fuel. 7. Empty fuel tank and carburetor, refill tank with fresh gasoline and replace fuel filter. 8. Loose or damaged wiring. 8. Check all wiring. 9. Carburetor out of adjustment. 9. See “To Adjust Carburetor” in Service and Adjustments section. 10. Engine valves out of 10. Contact a Sears or other adjustment. qualified service center. Hard to start 1. 2. 3. 4. 5. Dirty air filter. Bad spark plug. Weak or dead battery. Dirty fuel filter. Stale or dirty fuel. 1. 2. 3. 4. 5. Engine will not turn over 1. 2. 3. 4. 5. 6. 7. 8. Brake pedal not depressed. Attachment clutch is engaged. Weak or dead battery. Blown fuse. Corroded battery terminals. Loose or damaged wiring. Faulty ignition switch. Faulty solenoid or starter. 1. 2. 3. 4. 5. 6. 7. 8. Clean/replace air filter. Replace spark plug. Recharge or replace battery. Replace fuel filter. Empty fuel tank and refill tank with fresh, clean gasoline. 6. Loose or damaged wiring. 6. Check all wiring. 7. Carburetor out of adjustment. 7. See “To Adjust Carburetor” in Service and Adjustments section. 8. Engine valves out of 8. Contact a Sears or other adjustment. qualified service center. 9. Faulty operator presence switch(es). Depress brake pedal. Disengage attachment clutch. Recharge or replace battery. Replace fuse. Clean battery terminals. Check all wiring. Check/replace ignition switch. Check/replace solenoid or starter. 9. Contact a Sears or other qualified service center. Engine clicks but will not start 1. 2. 3. 4. 1. 2. 3. 4. Loss of power 1. Cutting too much grass/too fast. 2. Throttle in “CHOKE” position. 3. Build-up of grass, leaves and trash under mower. 4. Dirty air filter. 5. Low oil level/dirty oil. Weak or dead battery. Corroded battery terminals. Loose or damaged wiring. Faulty solenoid or starter. 30 Recharge or replace battery. Clean battery terminals. Check all wiring. Check/replace solenoid or starter. 1. Raise cutting height/reduce speed. 2. Adjust throttle control. 3. Clean underside of mower housing. 4. Clean/replace air filter. 5. Check oil level/change oil. TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE CORRECTION Loss of power (cont.) 6. Faulty spark plug. 6. Clean and regap or change spark plug. 7. Dirty fuel filter. 7. Replace fuel filter. 8. Stale or dirty fuel. 8. Empty fuel tank and refill tank with fresh, clean gasoline. 9. Water in fuel. 9. Empty fuel tank and carburetor, refill tank with fresh gasoline and replace fuel filter. 10. Spark plug wire loose. 10. Connect and tighten spark plug wire. 11. Dirty engine air screen/fins. 11. Clean engine air screen/fins. 12. Dirty/clogged muffler. 12. Clean/replace muffler. 13. Loose or damaged wiring. 13. Check all wiring. 14. Carburetor out of adjustment. 14. See “To Adjust Carburetor” in Service and Adjustments section. 15. Engine valves out of 15. Contact a Sears or other adjustment. qualified service center. Excessive vibration 1. Worn, bent or loose blade. 2. Bent blade mandrel. 3. Loose/damaged part(s). 1. Replace blade. Tighten blade bolt. 2. Contact a Sears or other qualified service center. 3. Tighten loose part(s). Replace damaged parts. Engine dies when 1. Reverse operation system tractor is shifted (ROS) is not "ON" while into reverse mower or other attachment is engaged. 1. Turn ignition key to ROS "ON" position. See Operation section. Engine continues 1. Faulty operator-safety to run when presence control system. operator leaves seat with attachment clutch engaged 1. Check wiring, switches and connections. If not corrected, contact a Sears or other qualified service center. Poor cut - uneven 1. Worn, bent or loose blade. 2. 3. 4. 5. 1. Replace blade. Tighten blade bolt. Mower deck not level. 2. Level mower deck. Buildup of grass, leaves, and 3. Clean underside of mower trash under mower. housing. Bent blade mandrel. 4. Contact a Sears or other qualified service center. Clogged mower deck vent 5. Clean around mandrels to from build-up of grass, leaves, open vent holes. and trash around mandrels. 31 TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE CORRECTION Mower blades will 1. Obstruction in clutch not rotate mechanism. 2. Worn/damaged mower drive belt. 3. Frozen idler pulley. 4. Frozen blade mandrel. 1. Remove obstruction. 2. Replace mower drive belt. 3. Replace idler pulley. 4. Contact a Sears or other qualified service center. Poor grass discharge 1. Place throttle control in “FAST” position. 2. Travel speed too fast. 2. Shift to slower speed. 3. Wet grass. 3. Allow grass to dry before mowing. 4. Mower deck not level. 4. Level mower deck. 5. Low/uneven tire air pressure. 5. Check tires for proper air pressure. 6. Worn, bent or loose blade. 6. Replace/sharpen blade. Tighten blade bolt. 7. Buildup of grass, leaves and 7. Clean underside of mower trash under mower. housing. 8. Mower drive belt worn. 8. Replace mower drive belt. 9. Blades improperly installed. 9. Reinstall blades sharp edge down. 10. Improper blades used. 10. Replace with blades listed in this manual. 11. Clogged mower deck vent 11. Clean around mandrels to holes from buildup of grass, open vent holes. leaves, and trash around mandrels. Headlight(s) not working (if so equipped) 1. 2. 3. 4. 5. Battery will not charge 1. Bad battery cell(s). 2. Poor cable connections. 3. Faulty regulator (if so equipped). 4. Faulty alternator. Loss of drive 1. Engine speed too slow. Light switch is “OFF”. Bulb(s) or lamp(s) burned out. Faulty light switch. Loose or damaged wiring. Blown fuse. 1. 2. 3. 4. 5. Turn light switch “ON”. Replace bulb(s) or lamp(s). Check/replace light switch. Check wiring and connections. Replace fuse. 1. Replace battery. 2. Check/clean all connections. 3. Replace regulator. 4. Replace alternator. 1. Freewheel control in 1. Place freewheel control in “disengaged” position. “engaged” position. 2. Motion drive belt worn, 2. Replace motion drive belt. damaged, or broken. 3. Air trapped in transmission 3. Purge transmission. during shipment or servicing. Engine “backfires” 1. Engine throttle control not set 1. Move throttle control when turning between half and full speed between half and full speed engine “OFF” (fast) position before stopping (fast) position before engine. stopping engine. 32 33 1. Fold this page along dotted line indicated above. 2. Hold page before you so that its left edge is vertically parallel to a tree trunk or other upright structure. 3. Sight across the fold in the direction of hill slope you want to measure. 4. Compare the angle of the fold with the slope of the hill. WARNING: To avoid serious injury, operate your tractor up and down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees. Make turns gradually to prevent tipping or loss of control. Exercise extreme caution when changing direction on slopes. 15 DEGREES MAX. ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL FOL D AL ONG THIS DOT IS A TED 15 D LINE EGR EE S LOP E SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION Get it fixed, at your home or ours! Your Home For repair – in your home – of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories and owner’s manuals that you need to do-it-yourself. For Sears professional installation of home appliances and items like garage door openers and water heaters. 1-800-4-MY-HOME® (1-800-469-4663) www.sears.com Anytime, day or night (U.S.A. and Canada) www.sears.ca Our Home For repair of carry-in products like vacuums, lawn equipment, and electronics, call or go on-line for the nearest Sears Parts and Repair Center. 1-800-488-1222 Anytime, day or night (U.S.A. only) www.sears.com To purchase a protection agreement (U.S.A.) or maintenance agreement (Canada) on a product serviced by Sears: 1-800-827-6655 (U.S.A.) Para pedir servicio de reparación a domicilio, y para ordenar piezas: 1-888-SU-HOGARSM (1-888-784-6427) 1-800-361-6665 (Canada) Au Canada pour service en français: 1-800-LE-FOYERMC (1-800-533-6937) www.sears.ca 02410 © Sears, Roebuck and Co. ® Registered Trademark / TM Trademark / SM Service Mark of Sears, Roebuck and Co. ® Marca Registrada / TM Marca de Fábrica / SM Marca de Servicio de Sears, Roebuck and Co. MC Marque de commerce / MD Marque déposée de Sears, Roebuck and Co. 195509 11.19.04 TR Printed in U.S.A.
