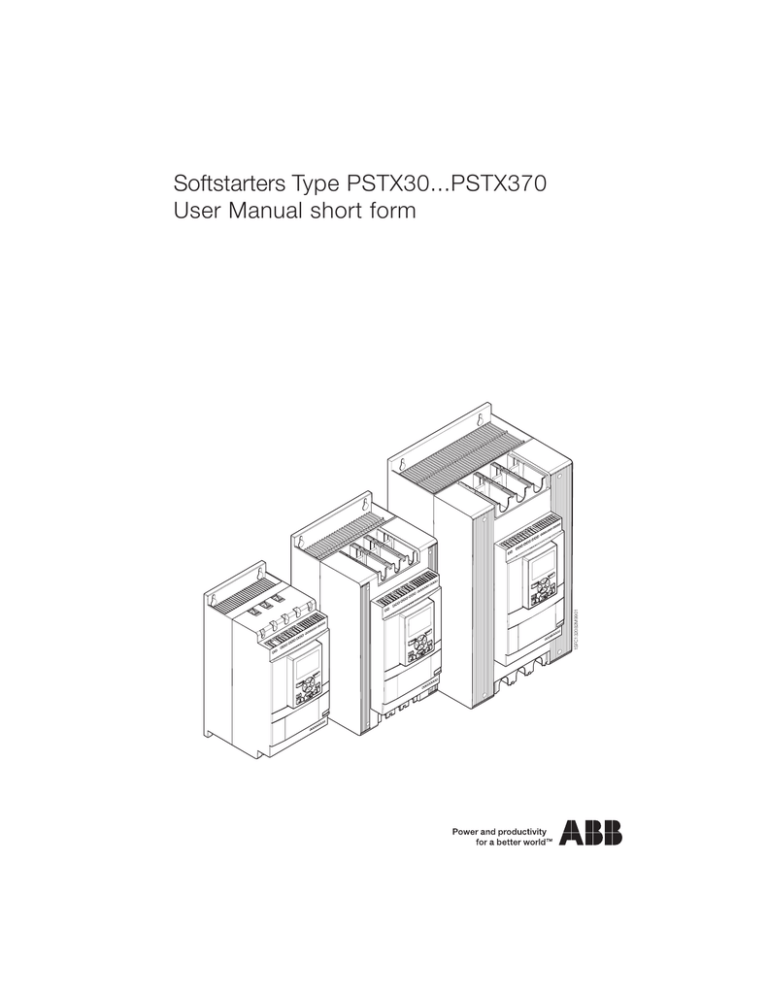

Softstarters Type PSTX30...PSTX370 User Manual short form

Softstarters Type PSTX30...PSTX370 User Manual short form
1SFC132082M9901
Softstarters Type PSTX30...PSTX370
User Manual short form
according to EN /IEC 60947-4-2
This manual belongs to:
___________________________________________________________
2 Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901
Italiano
IT
ABB avviatore graduale PSTX30...PSTX370 instruzioni operative
)TCƂEJG
Pagina 62
Pagina 227
Español
ES
ABB arrancadores suaves PSTX30...PSTX370 instrucciones de uso
)T½ƂEQU
Página 76
Página 227
Portugues
PT
Nederlands
NL
Polski
PL
ABB chave de partida suave PSTX30...PSTX370 Instruções de
Serviço
)T½ƂEQU
#$$UQHVUVCTVGT256:256:)GDTWKMUCCPYĎ\KPI
)TCƂGMGP
Página 90
Página 227
5QHVUVCTVGT#$$256:256:sKPUVTWMELCQDUĜWIK
Rysunki
Strona 118
Strona 227
Ɋɭɫɫɤɢɣ
RU
Suomi
FI
Ʉɪɚɬɤɚɹɢɧɫɬɪɭɤɰɢɹɩɨɷɤɫɩɥɭɚɬɚɰɢɢɭɫɬɪɨɣɫɬɜɩɥɚɜɧɨɝɨɩɭɫɤɚ$%%
PSTX30...PSTX370
ɂɥɥɸɫɬɪɚɰɢɢ
ABB:n pehmokäynnistinten PSTX30...PSTX370 käyttöohjeet
)TCCƂUGVU[ODQNKV
ɫɬɪ
Sivu 147
Sivu 227
Türkçe
TR
#$$;WOWĵCM;QNXGTKEKNGT256:256:-WNNCPČO6CNKOCVNCTČ
Grafikler
Sayfa 161
Sayfa 227
Pagina 104
Pagina 227
AR
ɫɬɪ
EN
Page 47
Page 227
SV
ABB démarrreur progressif PSTX30...PSTX370 instruction de service
Graphiques
DE
Français
FR
FR
Seite 32
Seite 227
IT
ABB sanftanlasser PSTX30...370 betriebsanleitung
)TCƂMGP
ES
Deutsch
DE
PT
Sida 18
Sida 227
NL
ABB mjukstartare PSTX30...PSTX370 bruksanvisning
)TCƂM
PL
Svenska
SV
RU
Page 4
Page 227
FI
ABB softstarter PSTX30...PSTX370 operating instructions
Graphics
TR
English
EN
ABB 软起动器 PSTX30...PSTX370 操作说明
图
第 199 页
第 227 页
éGwVKPC
CS
#$$UQHVUVCTVÅT[256:256:RįÉTWêMC
ITCƂMC
Strana 213
Strana 227
Graphics
227
Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901 3
CS
中文
简体中文
ZH
185-227
EN
4GCFVJKUƂTUV
Thank you for selecting this ABB PSTX softstarter. Read carefully and make sure
[QWWPFGTUVCPFCNNKPUVTWEVKQPUDGHQTG[QWOQWPVEQPPGEVCPFEQPƂIWTGVJG
softstarter.
This manual is a short form manual intended for quick and easy installation of the
PSTX softstarter. For complete information, see 1SFC132081M0201 - Softstarters Type PSTX30...PSTX370, Installation and Commissioning Manual available
on: http://www.abb.com/lowvoltage
When this manual refers to http://www.abb.com/lowvoltage: Select the link
Control Products, continue to SoftstartersCPFV[RGKPVJGURGEKƂGFTGHGTGPEG
KPVJGUGCTEJƂGNF
r The softstarter shall be installed by authorized personnel only.
r ABB personnel must obey the ABB CISE 15.4 instructions.
r This manual is a part of the PSTX softstarter and must always be
available to personnel that works with this material.
r Always read the full manual before you use the softstarter.
In the User Manual, these symbols are used:
The caution symbol in the left margin: if you don´t obey this instruction there is a
risk for personal injury.
The warning symbol in the left margin: if you don´t obey this instruction there is a
risk for damage to equipment or property
The information symbol in the left margin: tells the reader about relevant facts
and conditions
The graphics symbol in the right margin: refers to graphical information.
Approved personnel are allowed to install and make the electrical connection of
the
softstarter in accordance with existing laws and regulations.
Examine the softstarter and the package when you unpack your new PSTX
softstarter. If there are damages, please speak to the transportation company or
VJG#$$TGUGNNGTQHƂEGKOOGFKCVGN[
Do not lift the softstarter by the connection bars, because it can do damage to
the softstarter.
Only approved personnel are allowed to do service and repair.
Note: not approved repair can effect the warranty.
/QFKƂECVKQPUVQFCVCKPVJKUOCPWCNECPDGCRRNKGFYKVJQWVPQVKEG
4 Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901
EN
2 Description
The PSTX softstarter has the latest technology for soft starting and soft
stopping of standard squirrel cage motors.
General data
Description
Rated insulation voltage, Ui
600 V / 690 V
Rated operational voltage, Ue
208-600 / 690 V, 50 / 60 Hz
Rated control supply voltage, Us
100-250 V, 50 / 60 Hz
Voltage tolerance
+10% to -15%
Frequency tolerance
± 10%
Rated impulse withstand voltage
6 kV operational circuit / 4 kV control supply circuit
Inputs
Start, stop, 3 programmable inputs, temperature
sensor input
24 V output
24 V DC ± 5% Max 250 mA
Analog output
4-20 mA, 0-20 mA, 0-10 V, 0-10 mA
Relay outputs
3 programmable
Communication
3 Fieldbus ports, Extension I/O
EMC
IEC 60947-4-2 Class A 1
Recommended fuse
Control supply circuit
6 A Delayed
MCB use C characteristics
1 The softstarter is designed for class A equipment. Use of the product in
domestic environments can cause radio interference. If so, it can be necessary
to use more mitigation procedures.
(QTOQTGFGVCKNGFGNGEVTKECNFCVCCPFURGEKƂECVKQPUUGG
1SFC132081M0201 - Softstarters Type PSTX30...PSTX370,
Installation and Commissioning Manual available on: http://www.abb.
com/lowvoltage.
Suitable For Use On A Circuit Capable Of Delivering Not More Than
____ Symmetrical Amperes, ___ Volts Maximum When Protected by
AAA,%NCUU6KOG&GNC[(WUGUQT4-ENCUU(WUGUQTEKTEWKVDTGCMGT
Refer to table 8.1 for corresponding current and voltage level for any
given device.
15
For complete short circuit protection recommendations see
http://www.abb.com/lowvoltage.
6JGRTQFWEVUJQWNFQPN[DGWUGFYKVJKPVJGURGEKƂGFTCVKPIU$GCYCTG
of the ambient temperature and altitude above sea level. Derating is
required above 40 °C (104 °F) and above 1000 m (3281 ft).
For more details, see 1SFC132081M0201 - Softstarters Type PSTX30...
PSTX370, Installation and Commissioning Manual available on: http://
www.abb.com/lowvoltage.
01
Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901 5
EN
3 Mounting
The PSTX softstarters has 3 different sizes that you can install with M6
bolts, or bolts with the same dimension and strength.
1.
Find the correct drawing with dimensions for your softstarter
and make sure that you have the correct drilling plan.
Drilling plan is also printed on the box.
02
2.
If the softstarter is installed in an enclosure, make sure that the
enclosure size is not smaller than the minimum recommended.
Select the size from the applicable table for IEC or
.
03
3.
Make sure that the distance to the wall and the front, and the
installation angle meet the requirements.
04
4.
/CMGUWTGVJCVVJGTGKUHTGGƃQYQHCKTVJTQWIJVJGRTQFWEV
5.
You can remove the HMI and use it as a remote control. Drill a hole
where you want to install the HMI. Use RJ45 cable between the HMI
and the softstarter. The maximum cable length is 3 m.
Roll together the remaining cable to prevent blockage of the door.
Risk of damage to property. Make sure that no liquids, dust or
conductive parts can go into the softstarter.
If you do not obey these instructions, this can cause the softstarter to
become overheated or not operate correctly.
6 Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901
05
06
EN
4 Connection
This product is carefully manufactured and tested but there is a risk
that damage can occur from such as shipment and incorrect operation.
Obey to the procedure below during initial installation:
Hazardous voltage: Will cause death or serious injury. Turn off and lock
out all power that supply this device before you start work on the
equipment.
Mounting and electrical connection of the softstarter must be made by
authorized personnel and in accordance with existing laws and
regulations.
Apply the control supply voltage to make sure that the by-pass relays
are in open position before you connect the softstarters PSTX30...
256:VQQRGTCVKQPCNXQNVCIGHQTVJGƂTUVVKOG+HPQVVJGGSWKROGPV
can start accidentally.
ABB personnel must obey to the ABB CISE 15.4 instructions.
1.
To mount the softstarter, refer to Chapter 3 “Mounting”.
2.
Connect the main circuit: terminals 1L1 - 3L2 - 5L3 to the line side and
terminals 2T1 - 4T2 - 6T3 to the motor side. Use wire connection for
PSTX30...105, see Figure 1 in graphics 7, and terminal connection for
PSTX142...370, see Figure 2 , in graphics 7.
PSTX softstarters can be connected both “In Line” and “Inside
Delta” see figure 1.
07
Note: Use only wires of same dimension when you connect 2 wires on
each terminal. (PSTX30...105 only).
PSTX
PSTX
1SFC132082M9901
1
Figure 1: In Line, Inside Delta
Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901 7
EN
Capacitors for power factor compensation are not allowed between the
softstarter and the motor, since this can cause current peaks which can
damage the thyristors in the softstarter. If you use such capacitors, they
must be connected on the line side of the softstarter.
3.
Connect control supply voltage to terminals 1 and 2.
08
4.
Connect terminal 22 to the functional earth.
09
The earthing is not a protective earth, it is a functional earth.
The earthing cable must be as short as possible. Maximum length 0.5
m. The earthing cable must be connected to the mounting plate, which
must also be earthed.
5.
Look at the diagram and connect the start/stop circuits: terminal 13,
14, 18, 19 and 20/21, with the internal 24V DC terminal. When using
internal 24 V DC (terminals 20 or 21), the terminals 18 and 19 should
be connected to each other.
10
Terminal 15, 16 and 17 are programmable inputs for purposes such as
reset, slow speed forward, slow speed reverse, stand still brake etc.
For usage of external supply see 1SFC132081M0201 - Softstarters
Type PSTX30...PSTX370, Installation and Commissioning Manual
available on: http://www.abb.com/lowvoltage
Use 24V DC only when you connect terminal 13, 14, 15, 16 and 17.
Other voltages can cause damage to the softstarter and the warranty
will no longer be valid.
6.
Connect terminals 4, 5, 6, 7, 8, 9, 10, 11 and 12 to use the signal
output relays. These are potential free contacts for maximum 250 V
AC, 1.5 A AC-15 and 30 V DC, 5 A DC-12.
7.
Check that the operational voltage and control supply voltage
correspond to the softstarter ratings.
8.
Switch ON the control supply voltage, terminals 1 and 2.
9.
%QPƂIWTGCRRNKECDNGRCTCOGVGTUIKXGPKPEJCRVGT
Softstarter settings.
8 Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901
11
EN
10. Switch the operational voltage to ON.
;QWECPDGƃGZKDNGYJGP[QWEQPPGEVVJG256:UQHVUVCTVGT
but following the previous steps will enable operation of the PSTX
UQHVUVCTVGT;QWECPƂPFCPGZCORNGQHCHWNNKPUVCNNCVKQPKPVJGITCRJKEU
UGEVKQP6JGƂTUVQPGWUGUHWUGUCPFEQPVCEVQTUCPFVJGUGEQPFQPG
uses a circuit breaker.
12
Refer to the timing diagram graphics 13 for the basic behaviour of
PSTX softstarter.
13
Built in Modbus RTU
The PSTX softstarter has an RS485 physical interface (terminals 23 and 24),
that can be connected to external devices which have support for RS485 based
communication. Through this interface it is possible to control the softstarter,
retrieve status information and upload and download parameters. The softstarter
has a Modbus RTU slave implemented via the RS485 interface.
See Figure 1.
PTC/PT100 temperature sensor input
The softstarter has input terminals for PTC and PT100 elements (terminals
25, 26 and 27). Please note that both PTC and PT100 cannot be used at
the same time. See Figure 1.
Analogue output
The softstarter has one output for a configurable analog output signal
(terminals 29 and 30). The load resistance is maximum 500 ohm for current
output and minimum 500 ohm for voltage output. See Figure 1.
Com 3
+(B) -(A)
Temp In
Analog out
T1 T2 T3 +24V + GND
23 24 25 26 27 28 29 30
1SFC132082M9901
1
Figure 1: Terminal connection
For instructions and programming see
1SFC132081M0201 - Softstarters Type PSTX30...PSTX370, Installation and Commissioning Manual available on: http://www.abb.com/
lowvoltage.
Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901 9
Refer toƂIWTG for the HMI parts:
A
Local
A
Display for information.
B
Left selection soft key. The function is
showed to the left in the display above the
key.
C
Right selection soft key. The function is
showed to the right in the display above the
key.
D
Left LED indicators.
Ready (green) and Run (green).
E
Right LED indicators.
Protection (yellow) and Fault (red)
F
Navigation keys. To navigate in the menu
and change the parameter values.
Highlighted black board on numbers or text
shown in the display indicates that the
menu/value can be changed or scrolled
G
Remote/local-key. Switch between local
control from the HMI and remote control
HTQOJCTFYKTGKPRWVQTƂGNFDWU
PSTX30
A
Motor current
0.0
Motor current
B
%
C
0.0
Options
12:00
Menu
D
E
Stop
G
H
1SFC132082M9901
EN
5 Human machine interface (HMI)
Start
I
Figure 1: HMI
F
J
K
H
Stop-key. Stop-switch for the softstarter.
To stop the motor according to the set
parameters.
(Only active in local control mode).
I
Mini USB port. For communication with
external devices, eg. a PC.
J
Start-key. Start-switch for the softstarter.
To start the motor and operate it according
to the set parameters.
(Only active in local control mode).
K
Information-key. For context-sensitive
information about the softstarter status and
settings.
Refer to the timing diagram in graphics 13
for the basic behaviour of PSTX softstarter.
10 Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901
13
EN
6 Softstarter settings
The PSTX softstarter provides a number of basic start functions,
such as:
r
r
r
Voltage ramp
Torque ramp
Full voltage start
#NN256:UQHVUVCTVGTUOWUVDGEQPƂIWTGFVQVJGTCVGFEWTTGPVQHVJG
motor. If the motor is connected In Line, set the parameter “01.01 Motor rated current Ie” to the value found on the rating plate of the motor.
If the motor is connected Inside Delta, set the parameter “01.01 Motor
TCVGFEWTTGPV+GqVQ
ūQHVJGTCVGFOQVQTEWTTGPV
In the menu screen, you can set parameters individually or select a set
QHRTGFGƂPGFRCTCOGVGTUHQTFKHHGTGPVCRRNKECVKQPU;QWECPƂPFVJG
application settings and the most common parameters in table 6.2 and
6.3. Do the procedure that follows to set the parameters:
Menu
Push the right Selection soft-key to go to the menu and then use the
Navigation keypad Up and Down to select parameter and Left and Right
to change menu. The selected parameter is then highlighted with a black
board. Push the Selection key to make your selection, see figure 1,
graphics 14. The parameters can be set with numerical setting, switch
setting or selection lists.
14
The numerical setting
Use the numerical setting when a numerical value is to be set in the
softstarter. Use Left and Right key on the Navigation keypad to select
number, a black board highlights the selected number. Then push Up or
Down to change the value of the selected number. Push Save key to save.
See figure 2, graphics 14.
On/off switch
With the switch you can select 1 or 0 (on or off). Use Up and Down on the
Navigation keypad, a black board highlights the selected switch. Then push
Left or Right to change the value of the selected switch. Push Save key to
save. See figure 3, graphics 14.
Selection list
Use the Navigation keypad to navigate up and down in the lists. The
selected option is highlighted with a black board. Push Save key to save.
See figure 4, graphics 14.
Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901 11
EN
6.1: Options settings
In the Options screen, it is possible to change the appearance of the
home view of the softstarter and go to active faults/active warnings.
5GGƂIWTGITCRJKEU
14
Add information screens to Home view.
Push softkey Options and then select Edit home view. In Edit home viewmode you can add information screen to the Home view. Push Left or Right
on the Navigation keypad and push the Selection softkey “Add” to add
more data to the Home view.
Edit information screens in Home view
Push softkey Options and then select Edit home view. Push Up or Down
on the Navigation keypad and push the Selection softkey “Edit” and enter
the Display slot-menu. Refer to these options to set the new screen in the
Display slot-menu:
Display slot table
Settings
Description
Parameter
Select which parameter to show on the Home view.
Display style
Select the display style for the Home view. Select between numeric, gauge
or graph data.
Display decimals
Set the number of decimals to be shown in the Home view.
Display name
Type in a name for the information screen in the Home view.
Signal min
Set the minimum value to be shown in the Home view.
Signal max
Set the maximum value to be shown in the Home view.
Scale value range
Tick the Scale value range-square, to illuminate three more options in the
display slot-menu: Display signal :
Display signal min as - Set the scaled minimum value.
Display signal max as - Set the scaled maximum value.
Display unit - Set unit.
Active faults/warnings/protections are also found in the
options menu. They give information about faults and warnings that
have occurred during operation. For fault solution see chapter 7
Troubleshooting.
The motor can start unexpectedly if there is a start signal present, while
you do any of the procedures below:
r %JCPIGHTQOQPGV[RGQHEQPVTQNVQCFKHHGTGPVQPG
KGƂGNFDWU
control to hardwire control or local to remote control)
r Reset events
r If you use automatic event reset
r If you use Auto restart
12 Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901
EN
Table 6.2: Application settings
Current limit level
Start mode
Stop mode
Stop ramp end level
10
-
30
30
4
Voltage ramp
No ramp
Bow thruster
10
-
30
30
3
Voltage ramp
No ramp
Centrifugal pump
10
10
30
30
4
Voltage ramp
Torque ramp
Circular saw
10
-
30
30
4
Voltage ramp
No ramp
Conveyor belt short
10
-
40
30
3,5
Voltage ramp
No ramp
Cutter
10
-
30
30
4
Voltage ramp
No ramp
Escalator
10
-
30
30
3,5
Voltage ramp
No ramp
High pressure pump
10
10
40
30
4,5
Voltage ramp
Torque ramp
Hydraulic pump
10
-
30
30
3
Voltage ramp
No ramp
Lift/Elevator
10
-
30
30
3,5
Voltage ramp
No ramp
Piston compressor
5
-
50
30
3
Voltage ramp
No ramp
Scroll compressor
2
-
50
30
3
Voltage ramp
No ramp
Axial fan
10
-
30
30
4
Voltage ramp
No ramp
Conveyor belt long
10
-
40
30
3,5
Voltage ramp
No ramp
Crusher
10
-
30
30
4
Voltage ramp
No ramp
Centrifugal fan
10
-
30
30
4
Voltage ramp
No ramp
Grinder
10
-
30
30
4
Voltage ramp
No ramp
Mixer
10
-
30
30
3,5
Voltage ramp
No ramp
Stop ramp time
Band saw
Start ramp time
Normal start (class 10)
Heavy duty start (class 30)
Start ramp initial level
Recommended basic setting
Assistants menu
Menu XAssistants
Push the right selection key, Menu, to enter the menu. Use Up or Down key on the
navigation keypad to Assistants and then push Select.
Note: use the parameter values above as guidance only. Additional tuning can be necessary
because of variations in load conditions.
Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901 13
EN
Table 6.3: Parameter list for operational function
This is a selection of the most commonly used parameters.
For complete parameter list and setting range, see:
1SFC132081M0201 - Softstarters type PSTX30...PSTX370, Installation and Commissioning Manual
available on: http://www.abb.com/lowvoltage
Operation functions
Parameter name
Motor rated current Ie
Setting range
PSTX30: 9 ... 30 A
Default value
1
30 A
Start mode
Voltage ramp, Torque ramp,
Full voltage start
Voltage ramp
Stop mode
Voltage ramp, Torque ramp,
No ramp
No ramp
10 ... 99 %
30%
1 ... 120s
10s
Start ramp initial level
Start time
Stop ramp end level
10 ... 99%
30%
Current limit type
Off, Normal, Dual, Ramp
Normal
Current limit level
1.5 ... 7.5 xIe
4.0 xIe
On/Off
Off
-KEMUVCTVNGXGN
50 ... 100%
70%
-KEMUVCTVVKOG
0,2s ... 2,0s
0,2s
Step down level
10 ... 100%
80%
System mode
Normal, Demo, Small motor
Normal
Mains connection
Auto, In line, Inside delta UI,
Inside delta IU,
Two phase (L1 Shorted),
Two phase (L2 Shorted),
Two phase (L3 Shorted)
Auto
On/Off
Off
-KEMUVCTV
Motor heating
1
1
Sequence start
Internal faults
External faults
Limp mode
1
1
1
For full parameter list, see I1SFC132081M0201
- Softstarters Type PSTX30...PSTX370, Installation and Commissioning Manual
available on: http://www.abb.com/lowvoltage
14 Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901
Setting range
Default value
EOL mode
Parameter name
Normal/Dual
Normal
EOL class
10 A, 10, 20, 30
10
EOL dual class
10 A, 10, 20, 30
20
EOL operation
Off, Stop-Manual,
Stop-Manual
Stop-Automatic, Indication
Locked rotor operation
Off, Stop-Manual,
Off
Stop-Automatic, Indication
Current underload operation
Over voltage operation
Off, Stop-Manual,
Stop-Automatic, Indication
Off
Off, Stop-Manual,
Off
Stop-Automatic, Indication
Under voltage operation
Off, Stop-Manual,
Stop-Automatic, Indication
Off
Phase reversal operation
Off, Stop-Manual,
Stop-Automatic, Indication
Off
By-pass open operation
Off, Stop-Manual,
Stop-Automatic, Indication
Off
Earth fault trip time
0,1s ... 1,0s
0,5s
Earth fault operation
Off, Stop-Manual,
Stop-Automatic, Indication
Off
Faulty connection operation
Off, Stop-Manual,
Stop-Automatic, Indication
Off
Warnings
Parameter name
EOL level
Setting range
Default value
40 ... 99%
90%
EOL
On/Off
Off
Locked rotor
On/Off
Off
Thyristor overload
On/Off
Off
Current underload
On/Off
Off
Over voltage
On/Off
Off
Under voltage
On/Off
Off
EOL time-to-trip
On/Off
Off
THD(U) level
1...10%
10%
THD(U)
On/Off
Off
1 ... 65535
65535
Number of starts
On/Off
Off
Short circuit
On/Off
Off
Number of starts limit
Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901 15
EN
Protections
&GRGPFKPIQP256:5QHVUVCTVGTEQPƂIWTCVKQPFKHHGTGPVGXGPVUOC[DGUKIPCNNGFQPVJGFKURNC[5GG'XGPVNKUV6CDNG
Table 7.1: Event list
Protections
EN
7 Troubleshooting
Description
EOL protection
The motor has been overloaded because of too high current over
a certain time. Check starting conditions and EOL settings.
Locked rotor protection
The motor is running stiff. A damaged bearing or a stucked load
could be possible causes. Check the load and the motor.
Phase reversal protection
The phase sequence is not correct. Change the phase sequence
on the line side to L1-L2-L3.
Current imbalance
protection
Current imbalance between the phases. Restart the motor and
check the main currents and voltage.
Over voltage protection
The main voltage is too high. Check the main voltage.
Under voltage protection
The main voltage is too low. Check the main voltage.
Earth fault protection
Equipment protection. In a symmetrical three phase system, the
sum of the instantaneous line currents is equal to zero. Earth
fault indicates if the sum differs more than a settable value. This
can indicate a serious condition of the motor.
Voltage imbalance
protection
Voltage imbalance between the phases. Check the main voltage
and restart the motor.
Voltage outputs protection
The 24V voltage outputs has been overloaded or shorted. Check
the connections
External thermal sensor PT100 protection
The external thermal sensor has detected a temperature higher
than the trip level. Check the root cause of the over heating.
External thermal sensor PTC protection
The external thermal sensor has detected a temperature higher
than the trip level. Check the root cause of the over heating.
Power factor underload
protection
The power factor has fallen below the normal level.
Current underload
protection
The motor current has fallen below the settable value. Check that
the motor current parameter (Ie) is set correctly.
%WUVQOGTFGƂPGF
protection
Programmable digital input can be used in combination with
external device/sensor to provide to the customer the possibility
of handling own defined protection.
Too long current limit
protection
The time at current limit has exceeded the set value. The starting
condition is too heavy for the set current limit. Check starting
conditions and parameters.
By-pass open protection
By pass contactor or relay does not close when reached TOR.
Contact ABB sales office for service.
Fieldbus failure protection
There is a communication disturbance between the softstarter
and PLC.
Extension IO failure
protection
There is communication disturbance between the softstarter and
the extension I/O module.
HMI failure protection
There is communication disturbance between the softstarter and
the HMI.
16 Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901
Faults
Warnings
Voltage to one or more phases missing. Check that the mains
are connected and that no line contactor or breaker is open.
High current fault
A fault current, higher than 8 times the softstarter rated current,
has occurred. Check the circuits including the motor for any
insulation fault phase to phase or earth fault.
Low supply voltage fault
Too low control supply voltage on terminals 1 and 2. Check for
voltage dips or interruptions.
Bad network fault
Excessive disturbances in the operational supplying network.
Check for harmonics or frequency disturbance in the supply
network.
Thyristor overload fault
The thyristors are overheated. Check the starting conditions and
the fans. Increase current limit if needed. Let the thyristors cool
down before restart.
Short circuit fault
A thyristor is shorted. Contact ABB sales office for service.
Shunt fault
The softstarter cannot stop the motor due to internal short
circuit. Contact ABB sales office for service.
Current imbalance warning
Current imbalance between the phases has exceeded. Restart
the motor and check the main currents and voltage.
Over voltage warning
The main voltage has exceeded the warning level. Check the
main voltage.
Under voltage warning
The main voltage has fallen below the warning level. Check the
main voltage.
EOL time-to-trip warning
The predicted time before EOL trip has fallen below the warning
level.
EOL warning
The calculated motor temperature has exceeded the warning
level.
THD(U) warning
THD has exceeded the warning level. Check the quality of the
network.
Voltage imbalance warning
Voltage imbalance between the phases has exceeded the
warning level. Check the main voltage.
Power factor underload
warning
The power factor has fallen below the warning level.
Current underload warning
The motor current has fallen below the warning level. Check that
the motor current parameter (Ie) is set correctly.
Fan failure warning
The fans are not working properly. Risk of overheating. Contact
ABB sales office for service.
Locked rotor warning
The motorcurrent has exceeded the warning level. The motor
is running stiff. A damaged bearing or a stucked load could be
possible causes. Check the load and the motor.
Thyristor overload warning
The calculated thyristor temperature has exceeded the warning
level. Check the starting conditions and the fans. Increase
current limit if needed.
Short circuit warning
There is an internal short circuit and the softstarter is running in
limp mode. Contact ABB sales office for service.
Softstarters Type PSTX30...PSTX370 User Manual short form 1SFC132082M9901 17
EN
Phase loss fault
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
