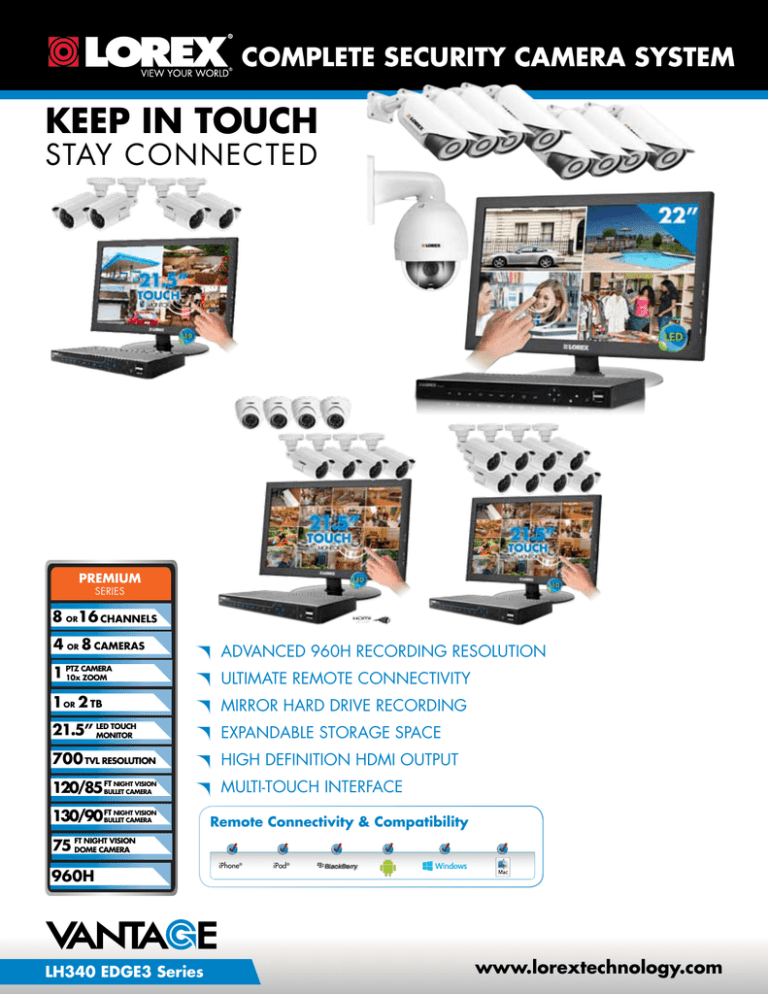

COMPLETE SECURITY CAMERA SYSTEM

KEEP IN TOUCH

STAY CONNECTED

PREMIUM

SERIES

8

OR

16

CHANNELS

4

OR

8

CAMERAS

1

PTZ CAMERA

10x ZOOM

1

OR

2

TB

21.5”

LED TOUCH

MONITOR

700

TVL RESOLUTION

120/85

FT

NIGHT VISION

BULLET CAMERA

130/90

FT

NIGHT VISION

BULLET CAMERA

75 FT NIGHT VISION

DOME CAMERA

960H

ADVANCED 960H RECORDING RESOLUTION

ULTIMATE REMOTE CONNECTIVITY

MIRROR HARD DRIVE RECORDING

EXPANDABLE STORAGE SPACE

HIGH DEFINITION HDMI OUTPUT

MULTI-TOUCH INTERFACE

Remote Connectivity & Compatibility

iPhone

® iPad

®

LH340 EDGE3 Series www.lorextechnology.com

COMPLETE SECURITY CAMERA SYSTEM

RECORD IN HIGHER RESOLUTION

960H records with 34% more resolution than D1, offering a true to life aspect ratio that provides sharper, more detailed, and non-stretched images.

1

MIRROR RECORDING

Secure your data by simultaneously recording footage to an external USB hard drive (not included).

4

EXPANDABLE STORAGE

Connect to an external USB hard drive & increase the recording capacity of your system.

4

KEEP IN TOUCH WITH YOUR WORLD

Use your smartphone, tablet, PC, or Mac to connect, view and control your system.

EASE OF USE, END TO END

Internet setup wizard, touch operation and dedicated Apps give you the peace of mind at the tip of your fingers.

NON-STRETCHED

960H

SHARPER

STRETCHED

D1

STANDARD

Monitor not included.

www.lorextechnology.com

LH340 EDGE3 Series

COMPLETE SECURITY CAMERA SYSTEM

DVR FEATURES:

• 960H (960x480) records with 34% more resolution than D1, offering a true to life aspect ratio that provides sharper, more detailed, and non-stretched images

1

• HDMI output resolution 1080p (1920x1080) for simple connection to HDTVs

2

• TRIPLE TOUCH technology using a touch screen monitor

3

, light touch front panel controls, smartphones/tablets

• 24x7 100% duty cycle HDD

• Pentaplex operation - View, Record, Playback, Backup & Remotely control the system simultaneously

• Recording options : Motion, schedule or continuous

• 3 x USB 2.0 ports (mouse, touch monitor, backup, firmware upgrade)

• Mirror Hard Drive Recording - secure your recordings by backing up footage to an external hard drive at the same time as recording to the DVR hard drive

4

• Expandable storage - connect an external USB hard drive to increase recording capacity

4

• Swipe-to-Switch dynamic allocation of camera location in live viewing

• Intuitive search at your finger tips with multi-channel preview second by second

• Scroll-to-Search through recorded event list with image preview

• Covert camera feature allows the DVR administrator to monitor cameras while hiding them for regular users.

• Multi-language interface (21 languages supported)

• PTZ cameras supported (RS485)

• Small form factor (11.6 x 6.5 x 1.3”)

• VESA Mount (easily mounts to the back of an LCD monitor)

††

• “Flex” IR extender for remote control (line-of-sight not required)

CONNECTIVITY:

• Instant Mobile Viewing on compatible Smartphones

• Dedicated iPad

® app with multi-channel live viewing, playback, backup & setup

• Exclusive LOREX Easy Connect Internet Set-up Wizard

5

• Lorex Edge Client Software:

PC (Microsoft Windows™ 8 (extend your touch experience), 7, Vista, XP compatible using client software

(included) & web browser.

Mac remote client software (included)

• Free LOREX DDNS (Dynamic Domain Name Service) for advanced remote connectivity at all times

• Instant e-mail alerts with snap shot attachments and web link

• Advanced Management Software - control multiple DVRs in different geographical locations (home/business/ vacation properly) via client software & mobile Apps

COMPLIANCE:

• CEC energy efficient power adapter

• Energy efficient HDD

• ROHS

VESA MOUNT

†† Easily mounts to the back of an LCD monitor (requires clear access to the VESA mounting holes).

• Industry standard video inputs (BNC) and outputs (HDMI, VGA)

LH340 EDGE3 Series www.lorextechnology.com

COMPLETE SECURITY CAMERA SYSTEM

ADDITIONAL DVR FEATURES:

• Detail you can count on day and night. HD output (HDMI) with exceptional playback quality

2

• Keep in Touch with your world on your smart phone, tablet, PC or Mac. Use the most touch intuitive DVR that’s compatible with Windows 8 to connect, view and control your system

• Reliability you can depend on. Powerful performance in a compact size

• Slim yet powerful. The smallest full-featured DVR in the market

• Ease of use, end to end. Internet setup wizard, touch operation and dedicated Apps give you the peace of mind at the tip of your fingers

• Finger -tip operation. Point, Tap, scroll and swipe to control your DVR

• Scroll-to-Search. Unique event log search while viewing playback footage for an efficient review of events that happened in the course of a day

LH340 EDGE3 Series www.lorextechnology.com

COMPLETE SECURITY CAMERA SYSTEM

21.5” LED TOUCH MONITOR

•Intuitive, optical, multi-touch screen operation

•1080P (1920 x 1080) resolution

•Built-in speakers

•VESA standard mounting holes

•Slim, energy efficient LED monitor

PREMIUM

SERIES

21.5”

TOUCH LED

1080p

(1920 x 1080)

HDMI/VGA

LH340 EDGE3 Series www.lorextechnology.com

COMPLETE SECURITY CAMERA SYSTEM

960

33% MORE VIDEO

VIEW THE NIGHT -

AS CLEAR AS DAY

SUPERIOR DETAIL

VANDAL RESISTANT

CLEAR-NIGHT TECHNOLOGy

960

SUPER RESOLUTION

960

HIGH PERFORMANCE

Experience the exceptional, powered by the latest 960H Sony EXview™ II image sensor.

960H RESOLUTION

Providing 34% more detail than standard D1 resolution and a 500% increase over CIF, delivering a sharper, non-distorted image with a true-to-life aspect ratio.

EXCEPTIONAL NIGHT VISION

ClearNight technology with Digital Noise Reduction improves low light performance and recording efficiency up to 30%.

FEATURES

Advanced Sony EXview™ II image sensor

Video image processor delivers up to 700TV lines of resolution

960H optimized image sensor delivers up to 34% more resolution than D1 and 5x more than CIF

6

Offers a true to life non-stretched aspect ratio that provides sharper, more detailed images

6

• Wide angle lens for wide area coverage (90° FOV)

7

• ClearNight imaging technology ensures clear night vision and improves recording efficiency up to 30%

Night Vision up to 120ft away in ambient lighting conditions and up to 85ft away in total darkness

8

Split glass design minimizes IR reflection

Weatherproof (IP66) rated aluminum housing for indoor/outdoor installations

9

Robust vandal resistant housing with cable pass-through bracket

PREMIUM

SERIES

700

TVL

120/85ft

NIGHT

VISION

AMBIENT LIGHTING

TOTAL DARKNESS

NIGHT VISION

INDOOR/OUTDOOR

960H

120

FT

85

FT

Typical

Low light viewing - stays in color longer*

LH340 EDGE3 Series www.lorextechnology.com

COMPLETE SECURITY CAMERA SYSTEM

HOME BUSINESS RETAIL

960

960

33% MORE VIDEO

SUPER RESOLUTION

SEE IT ALL -

IN GREATER DETAIL

BEST-IN-CLASS NIGHT VISION

OUTSTANDING ImAGE qUALITy

FLEXIBLE INSTALLATION

960

HIGH PERFORMANCE VIDEO

With Extreme Resolution (700 TVL) for amazingly detailed images

EXceptional Night Vision

Latest Sony EXview™ II sensor offers best low light performance

EFFICIENT VIDEO RECORDING

Digital Noise Reduction improves night vision clarity and saves recording hard drive space

FEATURES

Advanced Sony EXview™ II image sensor

960H optimized image sensor delivers up to 34% more resolution than D1 and 5x more than CIF

6

• Offers a true to life non-stretched aspect ratio that provides sharper, more detailed images

6

Video image processor delivers up to 700TV lines of resolution launch kku date finalize panniaacha

Night Vision up to 75ft (23m) away in total darkness

7

• ClearNight imaging technology ensures clear night vision and improves recording efficiency up to 30%

Wide angle lens for wide area coverage (79° FOV)

8

Weatherproof (IP66 rated) aluminum housing for indoor/outdoor installations

9

COMMERCIAL

PREMIUM

SERIES

700

TVL

75ft

NIGHT

VISION

INDOOR/OUTDOOR

960H

RESOLUTION

NIGHT VISION

LH340 EDGE3 Series

Standard Resolution Super+ Resolution Typical

Low light viewing stays in color longer*

www.lorextechnology.com

960

33% MORE VIDEO

960

SUPER RESOLUTION

960

COMPLETE SECURITY CAMERA SYSTEM

BUSINESS

HOME RETAIL

SEE IT ALL -

IN GREATER DETAIL

POLyCARBONATE PROTECTED

BRIGHT-NIGHT VIEWING

EXTREmE TEmPERATURE OPERATION

960H RESOLUTION

Providing 34% more detail than standard D1 resolution and a 500% increase over CIF, delivering a sharper, non-distorted image with a true-to-life aspect ratio.

BUILT TO LAST

Durable, light and impact resistant, the Polycarbonate housing is made to withstand the elements.

RELIABILITY IN THE EXTREME

Patented ImageCool

Technology ensures optimal performance in extreme temperatures (–22° ~ 122°F).

VANDAL-RESISTANT

Designed with a cable pass-through bracket and a removable camera base for hassle-free installation.

PREMIUM

SERIES

700

TVL

130/90ft

NIGHT

VISION

INDOOR/OUTDOOR

960H

Ambient Lighting

130

FT

Total Darkness

90

FT

LH340 EDGE3 Series www.lorextechnology.com

COMPLETE SECURITY CAMERA SYSTEM

FEATURES

700TVL Resolution using an advanced new 960H optimized Image Sensor

6

Lightweight yet extremely durable Polycarbonate housing

Integrated automatic Infrared Cut Filter (ICR) ensures accurate color representation in all lighting conditions

Day/Night mode: Picture automatically switches to B&W delivering better clarity in low light conditions

BrightNight viewing with enhanced low light image sensor

Close-up recognition at night with auto light compensation prevents wash-out effect

Night vision range up to 130ft (40m) in ambient lighting & up to 90ft (28m) away in total darkness

8

Modern two-tone design - residential and business friendly

Split glass design minimizes IR reflection

Anti-glare feature ensures clear images under strong lighting conditions

Reliable camera operation coupled with patented ImageCool extreme temperatures (-22° ~ 122°F / -30° ~ 50°C)

technology ensures optimal performance in

3.6mm wide-angle lens captures a 80° diagonal field of view

Vandal resistant design with cable pass-through bracket

Ideal for outdoor & indoor applications (IP66 Rated)

9

Removable camera base and integrated 3ft camera cable for hassle-free and flexible installation

• Versatile mounting options: ceiling, counter or wall mountable

60ft BNC/Power extension cable included per camera

Energy-efficient CEC (California Energy Commission) compliant power adapter included

LH340 EDGE3 Series

1

Monitor is not included

www.lorextechnology.com

COMPLETE SECURITY CAMERA SYSTEM

VIEW THE ENTIRE SCENE

- WITH PAN, TILT & ZOOM.

HIGH PERFORMANCE PAN/TILT/ZOOM CAMERA

Sony Effio™ video image processor delivers up to 700TV lines of resolution

SUPER+ RESOLUTION

Experience the exceptional, powered by the latest Sony Exview™ II Image Sensor

COVER ANY ANGLE

High speed 360° per second panning allows you to cover large areas quickly

PREMIUM

SERIES

700

TVL

10x

ZOOM

360°/SEC MAX

ROTATION

960H

INDOOR/OUTDOOR

LH340 EDGE3 Series www.lorextechnology.com

COMPLETE SECURITY CAMERA SYSTEM

FEATURES

• Latest Sony EXview™ II image sensor for best-in-class low light performance 10

Sony Effio™ video image processor delivers up to 700TV lines of resolution

• 10X Optical Zoom and 10X Digital Zoom to focus in on even the finest details

Complete area coverage with 360 degrees per second panning speed

Program preset viewing points when connected to a DVR

ClearNight technology with Digital Noise Reduction improves low light performance and recording efficiency by up to 30%

Accurate colors with Lorex’s automatic light filtering technology

• Weatherproof (IP66) rated with included wall mount 11

Connects to any Lorex Eco™ or Edge™ series DVR for local or remote operation

Control camera movement remotely from your Smartphone, Tablet, PC or Mac with

Eco™ Series DVR

Install outdoors with included wall mount bracket or indoors with wall mount bracket or attach directly to the ceiling

100ft all-in-one connection cable included for installation location flexibility

10x ZOOM ACCURATE COLORS

No Zoom

RESOLUTION

10x Zoom Typical

Accurate Colors with Exclusive

Infrared Filter Technology

CLEARNIGHT

360º ROTATION SPEED

50

55

0

5

10

45

40

35 25

30

1 Sec.

15

20

Typical Pan/Tilt/Zoom

Camera

LZC7091B

Standard Resolution Super+ Resolution Typical

ClearNight with Advanced

Digital Noise Reduction

LH340 EDGE3 Series www.lorextechnology.com

COMPLETE SECURITY CAMERA SYSTEM

SYSTEM

STORAGE & ARCHIVE

Operating System:

Pentaplex:

Number of Channels:

Linux (embedded)

Storage:

Simultaneous View, Record, Playback, Backup & Remote

Configuration

Backup Media:

8/16 Channel

Backup File Format:

Up to 1 HDD (SATA)

Up to 2TB

USB Flash Drive (max 16GB)

MOV file (Codec included)

Inputs/Outputs

Bookmark Archiving: Supported

Video In: 8/16 x 1Vp-p, CVBS, 75ohms, BNC

CONNECTIVITY

VGA Out: VGA compatible

Easy Connect: Lorex Auto Port Forward Wizard

HDMI Out: HDMI compatible

Software: Edge Client Software for PC & Mac

Audio In:

Audio Out: 1 line out(RCA)

Supported Operating Windows™: 8, 7, Vista, XP

Systems: Mac

USB Port:

PTZ Control:

2 front & 1 back

RS485

Browsers: Internet Explorer, Google Chrome (IE Tab) , Mozilla

FireFox (IE Tab)

Display

Email Notification: Text with weblink & snap shot attachment

Live Display:

Live Display Speed:

1 or 4 or 9 (8ch), 1 or 4 or 9 or 16 (16ch)

240/480 (8/16ch NTSC)

200/400 (8/16ch PAL)

Mobile Connectivity: iPad

®

, iPhone w

- 4.0 and above, Blackberry™ -

(supported model numbers: 9800, 9700, 9000,

8900), Android (version 2.1)

DDNS: Free Lorex DDNS

OSD: ON/OFF

Web Server Port: Programmable by User

Activity Detection: 1320

Network Protocol: LAN, DHCP, Dynamic IP, DDNS

Sensitivity Levels:

System Control:

100

USB Mouse, Front Panel Controls, Handheld Remote

Control, Touch Screen (Windows 7 touch compatible)

Network Interface:

Network Speed Control:

10/100-Base-TX, RJ-45

10 levels (28.8Kb ~ 1.5MB)/sec.

Firmware Upgrade: Via USB device

GENERAL

User Authority: ADMIN/USER1/USER2

Power Consumption: Approx. 30 watts

Audio:

RECORDING

Video Compression:

Audio Compression: PCM

Recording Speed & Resolution:

Channel

1-way audio conference (via network)

H.264

240/200 @ 352x240 / 352x256 (NTSC/PAL)

120/160 @ 480x240

(PAL)

120/100 @ 720x240 / 720x256 (NTSC/PAL)

60/50 @ 720x480 / 720x512 (NTSC/PAL)

Supply Voltage: 100VAC-240VAC, 12VDC, 2.5A, 50/60Hz

Unit Dimensions 11.6”

(W x D x H): 295mm x 167.4mm x 34.0mm

Unit Weight:

Operating Temperature:

Humidity:

50/40 @ 960x480 / 960x576 (NTSC/PAL)

3.2 lbs

41° ~ 104° F / 5° ~ 40° C

10 ~ 75% NC

Recording Resolution Setting:

Recording Quality Control:

Image Size:

Programmable per camera

5 levels

32 Kbyte (960X480), 16 Kbyte (960X240)

24 Kbyte (704x480), 12 Kbyte (704x240) 6 Kbyte

(352x240)

Recording Schedule:

Recording Modes:

By hour. by day, by recording mode, by Ch

Continuous, motion activated

Pre Recording:

Post Recording:

Reliability:

Max. 10 seconds

Max. 255 seconds

Watch-Dog, Auto-recovery after power failure

Covert Video:

PLAYBACK

Dynamic allocation of cameras

Playback Display: 1,4,9 (8ch), 1,4,9,16 (16ch)

Instant Playback: for quick review of log events

Playback Speed: Variable (1, 5, 15, 60)

Playback Player:

Backup Player:

Search:

Apple QuickTime multi-hour Player

Apple QuickTime multi-hour Player

By time, event, scroll, frame, date, file

LH340 EDGE3 Series www.lorextechnology.com

COMPLETE SECURITY CAMERA SYSTEM

CAMERA (MCB7041):

Image Sensor 1/3” 960H Sony EXview, HAD™ CCD II

Video Format NTSC

Effective Pixels

Resolution

H: 976 V: 494 up to 700 TV Lines

Scan System 2:1 Interlace

Sync System Internal

S / N Ratio >50dB (AGC Off)

Iris AES

AES Shutter Speed

Min. Illumination

1/60 ~ 1/100,000 sec.

0.15 Lux without IR LED , 0 Lux with IR LED

Video Output

Lens / Lens Type

Composite 1.0Vpp @ 75ohm

3.6mm F2.0 / Fixed

FOV (Diagonal) 90°

Termination BNC Type

IR LED Qty. / Type

Night Vision Range

Power Requirement

Power Consumption

18 pieces / 850nm

120ft (37m) / 85ft (26m)

12V DC ±10%

Max. 370mA (w / IR)

3

Operating Temp. Range

Operating Humidity Range

14° ~ 122°F / –10° ~ 50°C

< 80% RH

Environmental Rating IP66

Weight (including stand) 0.6lbs / 0.2kg

CAMERA (LDC7051):

Image Sensor: 1/3” Sony Exview HAD™ CCD II

Video Format: NTSC

Effective Pixels: H: 976 V: 494

Resolution:

Scan System:

Up to 700 TV Lines

2:1 Interlace

Sync System: Internal

S/N Ratio: +50dB (AGC Off)

Iris: AES

AES Shutter Speed: 1/60 ~ 1/100,000 sec.

Min. Illumination:

Video Output:

Lens/Lens Type:

0.15 Lux without IR LED

0 Lux with IR LED

Composite 1.0Vpp @ 75ohm

3.6mm F2.0/Fixed

FOV (Diagonal): 79°

Termination: BNC Type

IR LED Qty./Type: 14 pieces/850nm

Night Vision Range: 75ft/23m

Power Requirement:

Power Consumption

Operating Temp. Range:

Operating Humidity Range:

12V DC ±10%

Max.: 250mA (w/IR)

14° ~ 122°F/–10° ~ 50°C

< 90% RH

Environmental Rating: IP66

Weight: 0.8lbs/0.4kg

21.5” TOUCH SCREEN LED MONITOR:

Display:

Resolution:

Dots Distance:

Visible Range:

21.5” Touchscreen LED

H: 1920 V: 1080

0.248mm (H) x 0.248mm (V)

476.64mm (H) x 268.11mm (V)

Power Source: 12V DC

Power Requirement: 2.5A

Power Consumption:

Operating Temperature:

Dimensions (including stand):

Weight (approx.): up to 30W

23° ~ 113°F –5° ~ 45°C

20.6” (L) x 14.4” (W) X 7.5” (D)

524mm (L) x 365mm (W) X 191mm (D)

8.6lbs / 3.9kg

CAMERA (LZC7091B):

Image Sensor: 1/3” Sony Ex-View HAD CCD II

Video Format: NTSC

Effective Pixels: 976(H) x 494 (V)

Resolution:

Range: up to 700 TVL

360° Pan (Endless), 155° Tilt (Auto-Flip) 3

Pan/Tilt Speed:

Zoom:

Protocol:

Min. Illumination:

Max 360°/Sec.

10x Optical Zoom & 10x Digital Zoom

Pelco-D, Pelco-P

0.7 Lux in Color

Lens/Lens Type:

S/N Ratio:

Iris:

Day/Night:

Termination:

Video Output:

Power Requirement:

0.02 Lux in Black and White

Auto Focus / 3.8-38mm F 1.8

50db (AGC Off)

Auto Iris

IR Cut Filter (ICR)

BNC Video / RS485 / DC Power

Composite 1.0Vpp @ 75ohm

12V DC ±10%

Power Consumption:

Operating Temperature Range:

Operating Humidity Range:

Indoor/Outdoor:

Max. 850mA

-4°F ~ 122°F / -20°C ~ 50°C within 90%RH

Both (IP662)

Weight: 2.15lbs/0.96kg

CAMERA (CVC7711):

Image Sensor 1/3” 960H Advanced Image Sensor

Video Format

Effective Pixels

Resolution

Scan System

Sync System

S / N Ratio

Iris

AES Shutter Speed

Min. Illumination

Video Output

Lens / Lens Type

FOV (Diagonal)

Termination

IR LED Qty. / Type

Night Vision Range

Power Requirement

Power Consumption

Operating Temp. Range

Operating Humidity Range

Environmental Rating

Weight (including stand)

NTSC

H: 960 V: 480

700 TV Lines

2:1 Interlace

Internal

48dB (AGC Off)

AES

1/60 ~ 1/25,000 sec.

0.1 Lux without IR LED

0 Lux with IR LED

Composite 1.0Vpp @ 75ohm

3.6mm F2.0 / Fixed

80°

BNC Type

18 pieces / 850nm

130ft (40m) / 90ft (28m)

12V DC ±10%

Max. 260mA (w / IR)

-22° ~ 122°F / -30° ~ 50°C

< 90% RH

IP66

0.6lbs / 0.2kg

LH340 EDGE3 Series www.lorextechnology.com

DVR Back Panel

8 Channel DVR

COMPLETE SECURITY CAMERA SYSTEM

Product Information

16 Channel DVR

Product Information:

MODEL CONFIGURATION

LH3481001C4T22B 8 ch Edge3 DVR x 4

(700) TVL Cameras

(MCB7041) x 1TB HDD x

21.5” LED Touch Monitor

LH3481001C8T22B 8 ch Edge3 DVR x 8

(700) TVL Cameras

(MCB7041) x 1TB HDD x

21.5” LED Touch Monitor

PACKAGE

Brown Box 658mm x 320mm x 470mm/

Brown Box

W x D x H - Inches & mm

25.9” x 12.6” x 18.5”

658mm x 320mm x 470mm/

25.9” x 12.6” x 18.5”

WEIGHT

28.6lbs /

12.9kg

35.1lbs /

15.9 kg

CUBE

0.09786 CBM

/ 3.49486 CBF

0.09786 CBM

/ 3.49486 CBF

UPC Code

7-78597-81422-4

7-78597-81822-2

LH3462001C8T22B 16 ch Edge3 DVR x

8 (700) TVL Cameras

(MCB7041) x 2TB HDD x

21.5” LED Touch Monitor

LH346821T22B 16 ch Edge3 DVR x

4 (700) TVL Cameras

(MCB7041) x 4 (700)

TVL Cameras (LDC7051)

2TB HDD x 21.5” LED

Touch Monitor

LH346820Z1T22B 16 ch Edge3 DVR x 8

(700) TVL Cameras (2 x

CVC7711PK4B) x 1 (PTZ)

Camera (LZC7091B) 2TB

HDD x 21.5” LED Touch

Monitor

INCLUDES

Brown Box

Brown Box

Brown Box

658mm x 320mm x 470mm/

25.9” x 12.6” x 18.5”

658mm x 320mm x 470mm/

25.9” x 12.6” x 18.5”

658mm x 320mm x 470mm/

25.9” x 12.6” x 18.5”

35.1lbs /

15.9 kg

35.1lbs /

15.9 kg

35.1lbs /

15.9 kg

0.09786 CBM

/ 3.49486 CBF

0.09786 CBM

/ 3.49486 CBF

0.09786 CBM

/ 3.49486 CBF

7-78597-46822-9

7-78597-34682-4

7-78597-36822-2

8 or 16 Channel DVR with pre-installed HDD, Remote Control, Flex IR, Mouse, Ethernet Cable, 2 screws (for key-hole style VESA mounting), Power Adapter, Quick Start Guide, User Manual, CD with Client Software and Auto Port Forward Wizard, 4 or 8 x

Cameras, 4 or 8 x Camera Stands, 4 or 8 x 60ft BNC/DC Extension Cables, 1 or 2 x 4 in 1 Camera Power Adaptor(s), LED

Touch Screen Monitor & Stand, Power Adapter, HDMI Cable, VGA Cable, USB Cable, RCA Cable.

Included with LH346820Z1T22B - 1 x High Speed PTZ Camera 700TVL 960H with weather proof mount, 1 x 95ft all-in-one

RS485/BNC/DC extension cable for PTZ camera, 1 x 12V power adapter for PTZ camera.

LH340 EDGE3 Series www.lorextechnology.com

Dimensions:

DVR

EDGE3

960H

294mm/11.6” W

COMPLETE SECURITY CAMERA SYSTEM

Product Information

28mm/1.1” H

CAMERA (MCB7041)

157mm/6.2” D

TOUCH SCREEN MONITOR

20” /

507mm

15.8” /

402mm

CAMERA (CVC7711PK4B)

7.6” /

200mm

CAMERA (LDC7051)

88mm/

3.5"

95mm/

3.8”

PTZ CAMERA (LZC7091B)

95mm/

3.8"

148mm/

5.8”

188mm/

7.4”

146mm/

5.7”

125mm/

4.9”

188mm/

7.4”

DISCLAIMERS:

1. When used with 960H compatible cameras. DVR is backwards compatible and supports different camera inputs: standard resolution and 960H.

2. HDMI output 1080p (1920x1080) for high definition multi-channel live viewing only. High definition recording not supported, recording resolution is

limited to a maximum of 960x480 per channel. Image quality and resolution is dependent on the type of camera connected to the DVR.

3. Touch operation with Windows™ 7 compatible touch screen monitor via USB connection.

4. Hard drive mirroring and External storage expansion are selectable options. You select one or the other, but not both at the same time. The DVR supports a single external USB hard drive up to a maximum size of 2TB. The external hard drive must be self-powered to work with the system; it cannot receive power from the DVR’s USB port. Footage on the external hard drive can only be accessed using the DVR or a Windows PC. The footage cannot be accessed on a Mac.

5. Requires a high speed internet connection and a router (not included).

6. When connected to a 960H capable DVR.

7. Field of View, Diagonal.

8. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area and light reflection / absorption level of object.

9. Not intended for submersion in water. Installation in a sheltered location recommended.

* If light level is too low, camera will switch over to B/W for increased light sensitivity.

10. This camera features an ultra-low light sensitive image sensor and therefore does not feature Infra-Red LEDs. The camera requires ambient lighting (for example, street/building lighting, star or moon light) to render a night time image. In total darkness (zero Lux) the camera will not produce a night time image and therefore the camera should not be installed in completely dark areas.

11. Wall mount required for outdoor installation. Not intended for submersion in water. Installation in a sheltered location recommended.

12. This PTZ camera is designed to pan left and right a full 360° and tilt up and down within a range of 155°. Tilting less than 10° or greater than 165° away from the camera base may cause the image to become slightly unclear.

† Instant Mobile Viewing on iPad®, iPhone®, BlackBerry (supported model numbers: 8900, 9000, 9700, 9800), Android (version 1.5 & above). Mobile phone data plan is required (not included). Router port forwarding required. For the latest smart phone compatibility list check www.lorextechnology.com as new smart phone models become available in the market.

†† Easily mounts to the back of an LCD monitor with VESA standard mounting holes and an independent stand. Requires clear access to the 175mm x 75mm, 100mm x

100mm, and 200mm x 200mm VESA mounting holes.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Technology Inc.

We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.

Lorex Technology Inc.

250 Royal Crest Court

Markham, Ontario, Canada

L3R 3S1

901 Elkridge Landing Road, Suite 100

Linthicum, Maryland 21090,

USA.

© 2013 Lorex Technology Inc.

As our product is subject to continuous improvement, Lorex Technology & subsidiaries reserve the right to modify product design, specifications & prices without notice and without incurring any obligation. E&OE.

4-06192013

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
