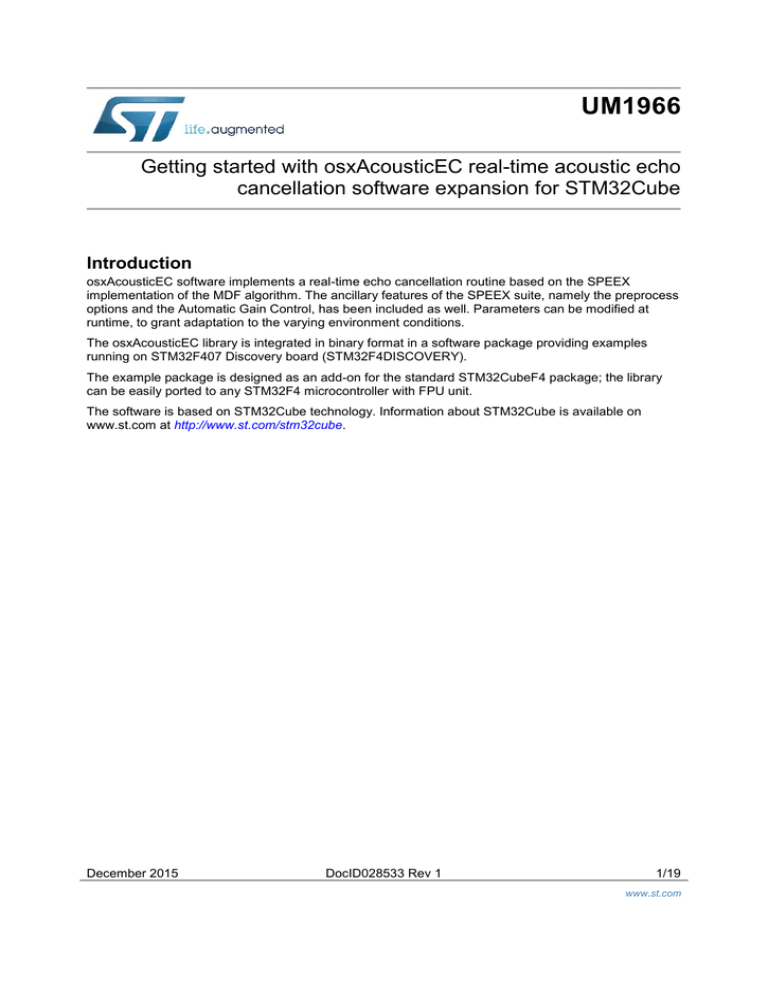

Getting started with osxAcousticEC real-time acoustic echo cancellation software expansion for STM32Cube

Introduction

osxAcousticEC software implements a real-time echo cancellation routine based on the SPEEX implementation of the MDF algorithm. The ancillary features of the SPEEX suite, namely the preprocess options and the Automatic Gain Control, has been included as well. Parameters can be modified at runtime, to grant adaptation to the varying environment conditions.

The osxAcousticEC library is integrated in binary format in a software package providing examples running on STM32F407 Discovery board (STM32F4DISCOVERY).

The example package is designed as an add-on for the standard STM32CubeF4 package; the library can be easily ported to any STM32F4 microcontroller with FPU unit.

The software is based on STM32Cube technology. Information about STM32Cube is available on www.st.com at

http://www.st.com/stm32cube

.

December 2015 DocID028533 Rev 1 1/19

www.st.com

Contents

Contents

UM1966

1 Licensing information ..................................................................... 4

2 osxAcousticEC software library ..................................................... 6

3 osxAcousticEC software expansion for STM32CubeF4 ............... 7

3.1

3.2

3.3

3.4

Overview ........................................................................................... 7

Architecture ....................................................................................... 7

Folder structure ................................................................................. 8

APIs .................................................................................................. 9

4 System setup guide ....................................................................... 10

4.1

4.2

Hardware setup ............................................................................... 10

Firmware and software .................................................................... 10

4.2.1

Additional package download and unpack ....................................... 10

4.2.2

Library package installation .............................................................. 10

4.2.3

Node locking procedure.................................................................... 13

4.2.4

Compiling the sample projects ......................................................... 14

5 Sample application description .................................................... 16

5.1

5.2

Firmware steps ................................................................................ 16

Example program execution............................................................ 16

6 Library profiling ............................................................................. 17

7 Revision history ............................................................................ 18

2/19 DocID028533 Rev 1

UM1966

List of figures

List of figures

Figure 1: Resulting software architecture ................................................................................................... 8

Figure 2: Package folder structure .............................................................................................................. 8

Figure 3: Directory content after unpacking the STM32CubeF4 package ............................................... 10

Figure 4: License Agreement .................................................................................................................... 11

Figure 5: Information and additional package requirements .................................................................... 11

Figure 6: Installation directory for the PC software ................................................................................... 12

Figure 7: Installation directory for the firmware ........................................................................................ 12

Figure 8: OSX LicenseWizard tool installation ......................................................................................... 13

Figure 9: Resulting firmware workspace................................................................................................... 13

Figure 10: Library selection ...................................................................................................................... 14

Figure 11: License request generation ..................................................................................................... 14

Figure 12: Error while building the original osx_license.h file ................................................................... 15

Figure 13: osx_license.h file after the required modifications................................................................... 15

DocID028533 Rev 1 3/19

Licensing information

1 Licensing information

UM1966

This software library is licensed under ST OpenSoftwareX Limited License Agreement, (the

"OSX-LLA License"). You may obtain a copy of the OSX License at:

OpenSoftwareX license agreement

Some of the library code is based on the CMSIS DSP software library by ARM, a suite of common signal processing functions for use on Cortex-M processor based devices.

Licensing terms are available in the attached release_note.html file, in the next lines of this document and on the web at:

http://www.keil.com/pack/doc/CMSIS/DSP/html/index.html.

ARM license note:

Copyright (C) 2009-2012 ARM Limited. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

Neither the name of ARM nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND

CONTRIBUTORS "AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.

IN NO EVENT SHALL COPYRIGHT HOLDERS AND CONTRIBUTORS BE LIABLE FOR

ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL

DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS

INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,

WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE

OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,

EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Some of the library code is based on the open Source patent-free SPEEX software, by

Jean-Marc Valin/Xiph.Org Foundation, released under "revised BSD" license. Licensing terms are available in this document, in the release note for this software, in the header file of this software and on the web at:

http://www.xiph.org/licenses/bsd/speex/

SPEEX revised BSD license note:

© 2002-2003, Jean-Marc Valin/Xiph.Org Foundation.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

4/19 DocID028533 Rev 1

UM1966

Licensing information

Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND

CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.

IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY

DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL

DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS

INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,

WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE

OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,

EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

DocID028533 Rev 1 5/19

osxAcousticEC software library

2 osxAcousticEC software library

UM1966

osxAcousticEC software provides a real-time echo cancellation routine based on the

SPEEX (

http://www.speex.org/

) implementation of the MDF algorithm.

6/19 DocID028533 Rev 1

UM1966

3

3.1

3.2

osxAcousticEC software expansion for

STM32CubeF4

osxAcousticEC software expansion for

STM32CubeF4

Overview

osxAcousticEC software package expands the functionality of STM32Cube. It is an add-on for the standard STM32CubeF4 package and exploits its features for digital MEMS microphone acquisition and audio output with an STM32F407 Discovery board

(STM32F4DISCOVERY).

For details on how to merge the two packages into a single package, refer to

Section 6.2:

"Firmware and software"

.

The key features of this add-on package are:

 osxAcousticEC library middleware

USB Audio input device class middleware.

 sample implementation available for the STM32F407 Discovery board

(STM32F4DISCOVERY)

 detailed chm documentation of the library API

Architecture

The package extends the STM32CubeF4 by providing:

 an additional middleware component for the osxAcousticEC library

 a sample implementation running on the STM32F407 discovery board

(STM32F4DISCOVERY)

Thus two packages must be merged in order to obtain a fully functional application based on the osxAcousticEC library, available to the user as a reference for software design and library integration.

The resulting application architecture includes the following layers, needed to access the microphones data:

STM32Cube HAL layer: consists of a set of simple, generic, multi-instance APIs

(application programming interfaces) which interact with the upper layer applications, libraries and stacks. These generic and extension APIs are based on a common framework which allows any layers they built on, such as the middleware layer, to implement their functions without requiring specific hardware information for a given microcontroller unit (MCU). This structure improves library code reusability and guarantees easy portability across other devices.

Board Support Package (BSP) layer: provides software support for the STM32

Nucleo board peripherals, excluding the MCU. These specific APIs provide a programming interface for certain board specific peripherals like LEDs, user buttons, etc and can also be used to fetch individual board version information. It also provides support for initializing, configuring and reading data.

DocID028533 Rev 1 7/19

osxAcousticEC software expansion for

STM32CubeF4

Figure 1: Resulting software architecture

UM1966

3.3 Folder structure

The following folders are included in the package:

Documentation: this folder contains a compiled HTML file generated from the source code and describing in details the software components and APIs.

Drivers: this folder contains the HAL drivers, the board specific drivers for each supported board or hardware platform, including the on-board components ones and the CMSIS layer which is a vendor-independent hardware abstraction layer for the Cortex-M processor series.

Middlewares: this folder contains the osxAcousticEC library binary code, documentation and license information.

Projects: this folder contains a sample application used to demonstrate library, provided for the STM32Discovery platform with three development environments (IAR Embedded

Workbench for ARM, RealView Microcontroller Development Kit (MDK-ARM) and System

Workbench for STM32 (SW4STM32).

Figure 2: Package folder structure

8/19 DocID028533 Rev 1

UM1966

3.4

osxAcousticEC software expansion for

STM32CubeF4

APIs

Detailed technical information fully describing the functions and parameters of the osxAcousticEC APIs can be found in the osxAcousticEC_Package.chm compiled HTML file located in the Documentation folder of the software package. In the same document, you can find general descriptions regarding all the osxAcoustic library APIs and the concepts behind their design.

The osxAcousticEC is provided as a node-locked library which allows derivative firmware images to run on a specific STM32 device only. Licensing activation codes must be requested from ST and included in the project (and become part of the build process) prior to attempting its usage. The resulting firmware binary image will therefore be node-locked.

For complete information about the open.AUDIO license agreement, please refer to the license file located in the Middlewares/ST/ STM32_OSX_AcousticEC_Library folder.

DocID028533 Rev 1 9/19

System setup guide

4

4.1

4.2

4.2.1

System setup guide

UM1966

Hardware setup

The library sample application requires the following hardware:

STM32F4DISCOVERY board.

Further details are available at www.st.com

Firmware and software

The main steps required to setup the environment are:

1. Additional package download and unpack

2. Library package installation

3. Node locking procedure

4. Compiling and running

Additional package download and unpack

The application is designed as an add-on project for the STM32CubeF4 package, which you can find at www.st.com.

After downloading, unpack the zip file in a directory of your choice. This will become the workspace used to test and work with the library. Avoid using paths names longer than 240 characters because it can cause problems in some tool chains during project build. In our example below, the workspace is placed in the “C:\Workspace” folder.

Figure 3: Directory content after unpacking the STM32CubeF4 package

4.2.2 Library package installation

Double click the “osxAcousticEC_Setup” library installer available at

www.st.com

in order to start the installation procedure.

The first step is to accept the License Agreement:

10/19 DocID028533 Rev 1

UM1966

Figure 4: License Agreement

System setup guide

Then the procedure details the additional packages required:

Figure 5: Information and additional package requirements

Now you can choose the directory where you want to install the library software. Note that this is not the path for the firmware, but where the PC software related information

(uninstall and other information) shall be stored.

This folder does not necessarily have to be your workspace folder.

DocID028533 Rev 1 11/19

System setup guide

Figure 6: Installation directory for the PC software

UM1966

Then you choose the directory where the firmware will be unpacked.

This folder must be your desired workspace directory (“C:\Workspace” in our example).

Figure 7: Installation directory for the firmware

12/19

Finally you can complete the installation procedure.

The LicenseWizard software is required for the next steps.

DocID028533 Rev 1

UM1966

Figure 8: OSX LicenseWizard tool installation

System setup guide

At this stage, your Workspace folder should resemble the image below.

Figure 9: Resulting firmware workspace

4.2.3

You will find the installed library in the Middleware folder, while the sample application projects are in the Project folder.

Node locking procedure

Connect a STM32DiscoveryF4 board to the PC, run the OSX LicenseWizard you installed in the previous steps and choose the library you want to activate.

DocID028533 Rev 1 13/19

System setup guide

Figure 10: Library selection

UM1966

Now use the appropriate buttons on the wizard to:

 identify the STM32 Nucleo board

 generate the license request send the request e-mail

Figure 11: License request generation

4.2.4

14/19

The license mail should arrive after a few moments.

Compiling the sample projects

Open the project with your favorite tool chain. In this example, the projects for three IDEs are located in “C:\Workspace\Projects\Multi\Applications\Acoustic_EC”.

Try to compile the project, you should receive the following error:

DocID028533 Rev 1

UM1966

System setup guide

Figure 12: Error while building the original osx_license.h file

Open the osx-license.h file and substitute the dummy license array with the one you received by mail from the Open.Audio server. Also, comment the define directive depicting the error.

Figure 13: osx_license.h file after the required modifications

You should be now able to compile and flash the board for which you requested the license in order to use the library example.

DocID028533 Rev 1 15/19

Sample application description

5

5.1

5.2

Sample application description

UM1966

A sample application using the osxAcousticEC library with the STM32F407 Discovery board (STM32F4DISCOVERY) is provided in the Projects directory. Ready to be built projects are available for multiple IDEs.

The application is designed to perform:

Acquisition of the on board digital MEMS microphone

Output of an audio fragment (saved in the STM32 FLASH) using the onboard codec

Echo cancellation with the following inputs:

 a primary microphone signal

 the known audio fragment as the reference signal

Streaming of two audio channels via USB to a host PC. The two audio streams contain:

 the algorithm output (first channel)

 a reference omnidirectional microphone (second channel).

Firmware steps

Follow these steps to obtain the desired behavior:

Initialize and start the USB audio input driver and middleware. This allows a host PC to recognize the device as a standard multichannel USB microphone.

Initialize microphones acquisition using the relevant BSP function.

Initialize audio output using the relevant BSP function

Initialize osxAcousticEC library.

Start the audio acquisition that will trigger the library execution.

Processed data as well as the reference omnidirectional microphone streams are passed to USB driver every millisecond.

All the operations related to the osxAcousticEC library are performed in dedicated functions in the “audio_application.c” file.

Further details about the library API can be found in the .chm help file in the Documentation folder.

Example program execution

In order to record audio from the device and evaluate beamforming, you need to install third party software, like the Audacity® freeware program, to save or play the streamed signal.

Detailed information on how to set up the host system for audio recording can be found in the X-CUBE-MEMSMIC1 user manual, available at www.st.com

Further information about Audacity® can be obtained at:

http://audacityteam.org/?lang=en

16/19 DocID028533 Rev 1

UM1966

6

Library profiling

Library profiling

Profiling was performed in order to evaluate the library resource consumption in terms of

MIPS, RAM and Flash. Detailed information can be found in the osxAcousticEC_Package.chm compiled HTML file located in the Documentation folder.

DocID028533 Rev 1 17/19

Revision history

7 Revision history

Date

02-Dec-2015

Table 1: Document revision history

Version Changes

1 Initial release.

UM1966

18/19 DocID028533 Rev 1

UM1966

IMPORTANT NOTICE

– PLEASE READ CAREFULLY

STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.

Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products.

No license, express or implied, to any intellectual property right is granted by ST herein.

Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.

ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.

Information in this document supersedes and replaces information previously supplied in any prior versions of this document.

© 2015 STMicroelectronics

– All rights reserved

DocID028533 Rev 1 19/19

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
