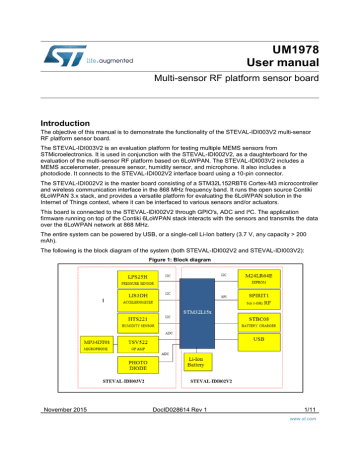

UM1978
User manual
Multi-sensor RF platform sensor board
Introduction
The objective of this manual is to demonstrate the functionality of the STEVAL-IDI003V2 multi-sensor
RF platform sensor board.
The STEVAL-IDI003V2 is an evaluation platform for testing multiple MEMS sensors from
STMicroelectronics. It is used in conjunction with the STEVAL-IDI002V2, as a daughterboard for the
evaluation of the multi-sensor RF platform based on 6LoWPAN. The STEVAL-IDI003V2 includes a
MEMS accelerometer, pressure sensor, humidity sensor, and microphone. It also includes a
photodiode. It connects to the STEVAL-IDI002V2 interface board using a 10-pin connector.
The STEVAL-IDI002V2 is the master board consisting of a STM32L152RBT6 Cortex-M3 microcontroller
and wireless communication interface in the 868 MHz frequency band. It runs the open source Contiki
6LoWPAN 3.x stack, and provides a versatile platform for evaluating the 6LoWPAN solution in the
Internet of Things context, where it can be interfaced to various sensors and/or actuators.
This board is connected to the STEVAL-IDI002V2 through GPIO's, ADC and I²C. The application
firmware running on top of the Contiki 6LoWPAN stack interacts with the sensors and transmits the data
over the 6LoWPAN network at 868 MHz.
The entire system can be powered by USB, or a single-cell Li-Ion battery (3.7 V, any capacity > 200
mAh).
The following is the block diagram of the system (both STEVAL-IDI002V2 and STEVAL-IDI003V2):
Figure 1: Block diagram
November 2015
DocID028614 Rev 1
1/11
www.st.com
Contents
UM1978
Contents
1
Board description ........................................................................... 3
2
Getting started ................................................................................ 5
2.1
Package contents............................................................................. 5
2.2
Hardware installation ........................................................................ 5
3
Schematic diagrams....................................................................... 7
4
Revision history ........................................................................... 10
2/11
DocID028614 Rev 1
UM1978
1
Board description
Board description
Figure 2: STEVAL-IDI002V2 board photo
Figure 3: STEVAL-IDI003V2 board photo
DocID028614 Rev 1
3/11
Board description
UM1978
To demonstrate the functionalities of the 6LoWPAN network based on the multi-sensor RF
platform, the STEVAL-IDI004V2 is used. The STEVAL-IDI004V2 is a USB dongle based on
the SPIRIT1 Sub 1-GHz RF transceiver and an STM32L microcontroller.
In the demo application, the STEVAL-IDI004V2 board acts as the root node in a 6LoWPAN
network. The STEVAL-IDI004V2 and STEVAL-IDI002V2 boards together form a 6LoWPAN
network. The STEVAL-IDI002V2 reads the data from the sensors on the STEVALIDI003V2, and transmits it to the root node through the 6LoWPAN network.
Communication between the various nodes in this 6LoWPAN network is handled by the
SPIRIT1 868 MHz RF transceiver from STMicroelectronics. The SPIRIT1 is a very low
power RF transceiver intended for RF wireless applications in the sub 1 GHz band. It is
designed to operate both in the license-free ISM and SRD frequency bands at 169, 315,
433, 868, and 915 MHz, but can also be programmed to operate at other frequencies in the
300-348 MHz, 387-470 MHz, and 779-956 MHz bands.
The 6LoWPAN stack runs on the STM32L152RBT6 microcontroller on the multi-sensor RF
platform. The STM32L series of microcontrollers are ultra low power microcontrollers based
on the Cortex-M3 core. In the multi-sensor RF platform, it performs the tasks of collecting
sensor data, interfacing, controlling the SPIRIT1 RF transceiver and executing the
6LoWPAN stack and application. The STEVAL-IDI002V2 also consists of a dual-EEPROM
M24LR64E from STMicroelectronics. This dual EEPROM enables the multi-sensor RF
platform to store the data from the sensors and provides an option for the user to access
this data using any smartphone enabled with NFC.
The STEVAL-IDI003V2 contains of a host of sensors from STMicroelectronics. These
include the MEMS accelerometer LIS3DH, the MEMS pressure sensor LPS25H, the MEMS
humidity sensor HTS221, and MEMS microphone MP34DT01. In addition to these, it also
contains a light sensor from AVAGO technologies.
Together, these sensors enable a wide array of applications that can be developed on the
multi-sensor RF platform.
4/11
DocID028614 Rev 1
UM1978
Getting started
2
Getting started
2.1
Package contents
The multi-sensor RF platform sensor board includes the following items:


2.2
Hardware:

STEVAL-IDI003V2 board.
Documentation:

User manual for the STEVAL-IDI003V2 board
Hardware installation
Connecting STEVAL-IDI002V2 and STEVAL-IDI003V2
The two boards are connected using the 10-pin male connector J4 on STEVAL-IDI002V2
and 10-pin female connector J1 on the STEVAL-IDI003V2.
These 10-pin connector provides for connecting some I2C, ADC & GPIO pins from the
STM32L152RBT6 on the STEVAL-IDI002V2 with the various sensors on the STEVALIDI003V2. The STEVAL-IDI003V2, derives power from the STEVAL-IDI002V2 using this
10-pin connector.
Below is a table describing the pins of the J4 connector on the STEVAL-IDI002V2.
Table 1: J4 connector
Pin
J4
Description
1
3V3
VDD connection for the daughterboard (STEVAL-IDI003V2)
2
I2C1_SCL
I2C1 clock pin
3
I2C1_SDA
I2C1 data pin
4
I2C2_SCL
I2C2 clock pin
5
I2C2_SDA
I2C2 data pin
6
GPIO0
PA3 pin of the STM32L152RBT6
7
GPIO1
PB0 pin of the STM32L152RBT6
8
ADC0
PA0 pin of the STM32L152RBT6 connected to the photo
diode output of the STEVAL-IDI003V2
9
ADC1
PA1 pin of the STM32L152RBT6 connected to the
microphone amplifier output of the STEVAL-IDI003V2
10
GND
Ground connection for the daughterboard (STEVALIDI003V2)
Power supply
The STEVAL-IDI002V2 board can be powered from a PC using a USB mini B-type
connector J7. Alternatively, it can be powered with a Li-Ion battery connected to the 2-pin
connector J8. The 3-pin SPDT switch J5 is used to turn the board ON or OFF.
The STEVAL-IDI003V2 derives power from the STEVAL-IDI002V2 through the 10-pin
connector.
DocID028614 Rev 1
5/11
Getting started
UM1978
For a detailed description of the STEVAL-IDI003V2, please refer to the user
manual for STEVAL-IDI002V2.
6/11
DocID028614 Rev 1
UM1978
Schematic diagrams
Figure 4: STEVAL-IDI003V2 circuit schematic (1 of 5)
4
5
NC
14
VDD
A DC2
INT 1
LIS3DH
SCL/SPC
GND
RE SERVED
INT 2
12
11
R4
0 0402
GPIO0_PA3
10
9
CS
I2C2_SCL_PB10
GND
13
8
3
C1
1uF 0805
ADC3
NC
SA0/SDO
2
VDD_IO
SDA/SDI
1
100nF 0402
C2
7
3V3
ADC1
U1
15
16
3V3
6
3
Schematic diagrams
I2C2_SDA_PB11
3V3
R5
4k7 0402
R6
4k7 0402
ACCELERTOMETER SECTION
GSPG11102015DI1050
Figure 5: STEVAL-IDI003V2 circuit schematic (2 of 5)
GSPG11102015DI1055
DocID028614 Rev 1
7/11
Schematic diagrams
UM1978
Figure 6: STEVAL-IDI003V2 circuit schematic (3 of 5)
3V3
R7
4k7 0402
I2C 2_SCL_PB10
R9
4k7 0402
I2C 2_SDA_PB11
3V3
C7
100nF 0402
NC
U5
V dd
S DA
S CL
HT 221
NC
4
GND
1
2
I2C 2_SCL_PB10
3
5
I2C 2_SDA_PB11
6
3V3
HUMIDITY SENSOR SECTION
GSPG11102015DI1100
Figure 7: STEVAL-IDI003V2 circuit schematic (4 of 5)
3
LPS25H
9
8
INT1
SA0/SDO
GND_IO
R8
0 0402
5
SCL/SPC
SDA/SDI
VDD_IO
TE
2
4
1
I2C2_SCL_PB10
GND
VDD
10
3V3
CS
GPIO0_PA3
7
6
3V3
R10
4k7 0402
3V3
U4
R11
4k7 0402
C8
100nF 0402
I2C2_SDA_PB11
PRESSURE SENSOR SECTION
GSPG11102015DI1105
8/11
DocID028614 Rev 1
UM1978
Schematic diagrams
Figure 8: STEVAL-IDI003V2 circuit schematic (5 of 5)
J1
3V3
1
2
ADC
1_PA1
1
2
OUT
V CC
NC
V CC
4
3
APDS-9004
3
U6
R12
1K 0402
C9
3V3
I2C 2_SCL_PB 10
I2C 2_SDA_P B11
GPIO0_PA3
GPIO1_PB0
ADC 0_PA0
ADC 1_PA1
4
5
6
7
8
9
100nF 0402
10
C10
100pF 0402
CON 10
PHOTODETECTOR SECTION
DAU GH TER BOARD CONNECTOR
GSPG11102015DI1110
DocID028614 Rev 1
9/11
Revision history
4
UM1978
Revision history
Table 2: Document revision history
10/11
Date
Revision
27-Nov-2015
1
Changes
Initial release.
DocID028614 Rev 1
