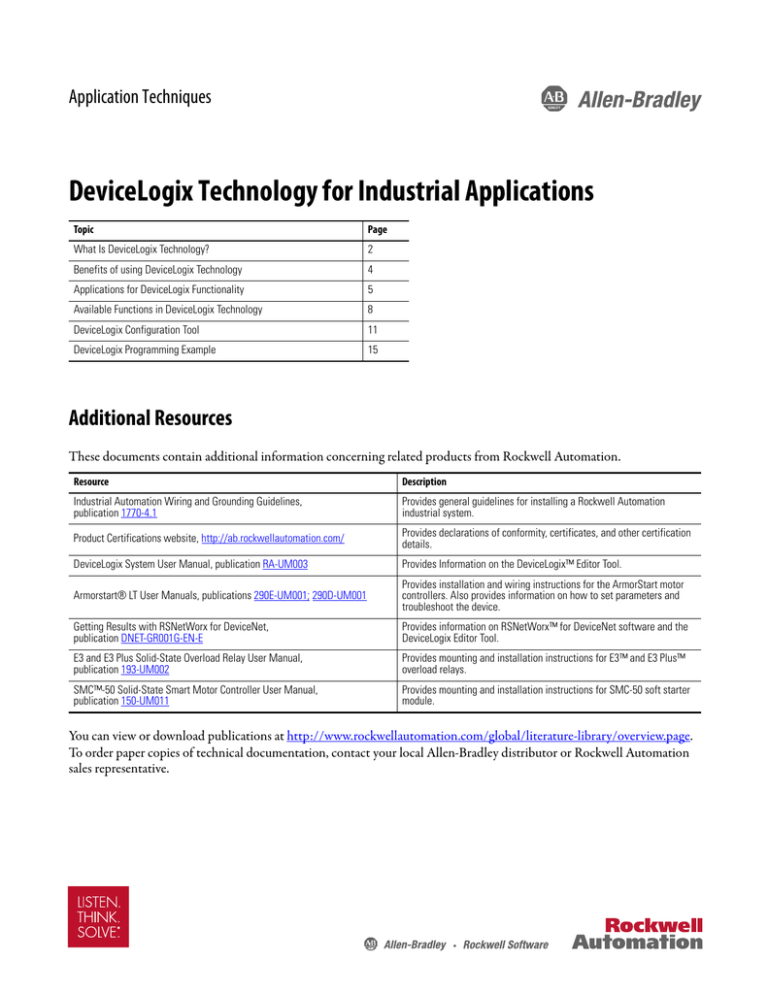

DeviceLogix Technology for Industrial Applications

DeviceLogix Technology for Industrial Applications

Application Techniques

DeviceLogix Technology for Industrial Applications

Topic

What Is DeviceLogix Technology?

Benefits of using DeviceLogix Technology

Applications for DeviceLogix Functionality

Available Functions in DeviceLogix Technology

DeviceLogix Configuration Tool

DeviceLogix Programming Example

8

11

15

4

5

Page

2

Additional Resources

These documents contain additional information concerning related products from Rockwell Automation.

Resource

Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1

Product Certifications website, http://ab.rockwellautomation.com/

DeviceLogix System User Manual, publication RA-UM003

Armorstart® LT User Manuals, publications 290E-UM001; 290D-UM001

Getting Results with RSNetWorx for DeviceNet, publication DNET-GR001G-EN-E

E3 and E3 Plus Solid-State Overload Relay User Manual, publication 193-UM002

SMC™-50 Solid-State Smart Motor Controller User Manual, publication 150-UM011

Description

Provides general guidelines for installing a Rockwell Automation industrial system.

Provides declarations of conformity, certificates, and other certification details.

Provides Information on the DeviceLogix™ Editor Tool.

Provides installation and wiring instructions for the ArmorStart motor controllers. Also provides information on how to set parameters and troubleshoot the device.

Provides information on RSNetWorx™ for DeviceNet software and the

DeviceLogix Editor Tool.

Provides mounting and installation instructions for E3™ and E3 Plus™ overload relays.

Provides mounting and installation instructions for SMC-50 soft starter module.

You can view or download publications at http://www.rockwellautomation.com/global/literature-library/overview.page

.

To order paper copies of technical documentation, contact your local Allen-Bradley distributor or Rockwell Automation sales representative.

DeviceLogix Technology for Industrial Applications

Introduction

There is an emerging need for highly flexible and adaptable 'smart' devices in control system architectures—devices that can execute simple control functions by making decisions independent of a central processor. You can achieve this local decision-making ability at the component level with DeviceLogix™ component technology from Rockwell Automation.

DeviceLogix technology allows simple Boolean logic execution, signal conditioning, event detection, and alarms. The result is higher-performance and lower-cost distributed control.

What Is DeviceLogix Technology?

DeviceLogix technology is a platform-independent logic engine that is embedded into several Rockwell Automation devices, such as push button stations, I/O blocks, motor starters, and drives. This logic engine controls outputs and manages status information locally within a device.

The configuration of the DeviceLogix functionality is accomplished through the DeviceLogix editor that runs on the workstation and can be accessed through an RSLogix 5000® Add-On profile or other Rockwell Automation software.

(

Table 1 on page 8

).

The DeviceLogix editor includes two kinds of logic configuration tools for DeviceLogix devices. You can use either one, depending on your configuration preferences:

Function Block Editor – Provides a graphical interface for configuring functional blocks to provide local control

within for devices capable of DeviceLogix technology. ( Figure 1

)

Ladder Editor – Provides a ladder-style configuration tool for for devices capable of DeviceLogix technology.

( Figure 2

)

Figure 1 - Function Block Diagram

2

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

DeviceLogix Technology for Industrial Applications

Figure 2 - Ladder Logic Diagram

The DeviceLogix run-time engine (Runtime) embedded into the device firmware is what executes DeviceLogix functionality. This connection is illustrated in

Figure 3

.

Figure 3 - DeviceLogix Technology Communication

Workstation

Device

DeviceLogix Editor DeviceLogix

Runtime

Communication Link

You can describe the working process of using DeviceLogix-enabled products as follows:

1. You program the application logic in the editor.

2. The editor compiles the graphic logic into downloadable code that can be downloaded to the device through a communication link.

3. The device run-time engine executes the downloaded logic.

In addition to creating a run-time code in the Editor, you must also configure device parameters. Each DeviceLogixenabled device contains a series of input, output, scratchpad, and datalink parameters. These device parameters are used to map physical I/O to DeviceLogix inputs and output.

You can configure DeviceLogix technology to operate under specific situations. The DeviceLogix program runs only if the logic has been enabled and unswitched power is present. You can do this within the Logic Editor. Operation configuration

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

3

DeviceLogix Technology for Industrial Applications is accomplished by setting the “Network Override” and “Communication Override” parameters. The following describes the varying levels of operation:

If both overrides are disabled and the logic is enabled, DeviceLogix only runs if there is an active I/O connection with a master, that is, the master is in Run mode. At all other times DeviceLogix runs the logic but does NOT control the state of the outputs.

If the Network Override is enabled and the logic is enabled, then DeviceLogix controls the state of the outputs when the PLC is in Run mode and if a network fault occurs.

If the Communications Override is enabled and the logic is enabled, the device does not need any I/O connection to run the logic. As long as there are switched and unswitched power sources connected to the device, the logic controls the state of the outputs.

Benefits of using DeviceLogix Technology

DeviceLogix technology provides local control at the component level, and brings a level of intelligence to devices that was not previously available. This allows the capability of having simple local control functions without the need to rely on the programmable logic and automation controllers.

Improve Control System Performance

Faster input sense to out actuation

DeviceLogix-enabled smart components are well suited for applications that require a quick, local response to an input without the performance constraints and sense-to-activation delays that are imposed by network round-trip polling times with a centralized controller and a communications network. You can achieve input-sense to output actuation times in the range of 2 ms with several product families; this yields significant improvements in system performance. These improved actuation times are particularly useful in applications where response time is critical, such as motor emergency stop (E-stop).

Reduction in overall network traffic

Performing simple repetitive logic function at the Device level reduces the amount of communications traffic, which in turn reduces network bandwidth delays.

4

Increase System Reliability

Improved diagnostics and reduced troubleshooting-

Processing much of the logic at the component level makes troubleshooting much easier. You can take a device offline without affecting other devices in the process, and you can do it without needing an operator to modify logic within a master controller that isolates the device that needs troubleshooting.

Continue to run processing the event of network interruptions

In a use case where a failure in the central programmable logic controller (PLC) could occur, the component device can identify the failure by detecting an interruption in the communication with it. You can design the DeviceLogix program running on this device to respond to such a failure by turning the field process under its local control into a pre-defined state. This could either allow the controlled process to keep running, with the failure of the central PLC, or shut down the process appropriately to meet the design requirements of your application. For more time-sensitive applications such as mixing cement, this type of functionality is imperative because a machine shutdown during the process could be costly.

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

DeviceLogix Technology for Industrial Applications

Reduce potential points of system-level failure

On-board logic processing capability of DeviceLogix technology eliminates the need for extra components such as timers or relays that could not only introduce an additional delay to the signal processing, but also become a potential point of failure. Reducing extra components greatly reduces the complexity of the system, while also lowering its cost.

Increase System /Machine Modularity

Smaller programs in the controller

Smaller programs in controller (PLC or PC-based), saves memory and reduces scan times.

Distributing control on the machine or process

You can copy and paste programs that are written with DeviceLogix functionality to other devices and essentially use them as “blocks” that you can reuse over multiple devices of the same type. You can build machine sections in a modular fashion, which speeds installation while reducing diagnostic and troubleshooting times.

Following are two examples that further illustrate the benefit of having a control system with DeviceLogix-enabled devices.

In a conventional setup, the input module receives the sensor signals. The module processes and waits for a time slot for the data transmission via the fieldbus. Once transferred over the network a scanner card picks up the information and sends it to the PLC. The PLC scans the stored program to execute the logic at the scheduled timing cycle. Then the appropriate output data travels back to the scanner, onto the network, and to the output module, finally energizing output devices.

When you add the time required at the beginning of each logic scan for the input data and the time required updating the output data after the scan, the total time the PLC requires becomes significant. This is particularly true when the PLC is fully loaded running the application in the control system and as the number of nodes on the network increases.

DeviceLogix functionality significantly reduces communication time. Input signals still travel to the input module. But because program logic resides at the DeviceLogix node, data is processed and output is generated much more quickly. Local processing time is a fraction of the time required for data to travel back and forth through the network connection. You can gain improvements of approximately 90…95% of the response time when you use DeviceLogix-based local control instead of a traditional PLC-based field bus control system.

Another system benefit is the advantage of greater flexibility for designing and constructing a simple control application system.

In a typical architecture for an application that uses a conventional fieldbus control system with DeviceLogix-enabled component devices, you would implement the so-called hierarchy control strategy. The component device running the local DeviceLogix program can control the local loop with faster response time as well as off-loading the PLC. The central

PLC executes the control for the coordination across the component devices or some complex but non-time critical tasks.

In other words, the device using DeviceLogix functionality can optimize the performance of the application because the device now has the capability to make decisions locally without relying on the PLC. The program design for the PLC is also simplified, and can focus on coordination and the upper level control decisions and communications.

Applications for DeviceLogix Functionality

DeviceLogix functionality has many applications and the implementation is typically only limited to the imagination of the programmer. The application of DeviceLogix functionality is only designed to handle simple logic routines.

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

5

DeviceLogix Technology for Industrial Applications

Applications can be simple, using digital I/O for signal actuation, or perform more complex functions by using Analog signals and user-defined Macro functions. Some of the typical applications for DeviceLogix functionality are listed below.

Material Counting for Batch Processes

Encoder Functions

Selector Switch Functions

Signal Conditioning

Signal Scaling

Fault Handling

Complex Math Function/ Integration

Temperature Control

Speed Reference Selection

Motor Control Applications

This material handling application uses DeviceLogix-enabled devices to construct a truly distributed, simple, control system with no central controllers, such as a PLC or PAC.

Figure 4 demonstrates the design flexibility of simple control

system that uses DeviceLogix technology.

Figure 4 - Typical Material Handling Application

Conveyor 1

Motor 1

Conveyor 2

Motor 1

Conveyor 3

Motor 3

Conveyor 4

Motor 4

6

DeviceLogix device 1

DeviceNet Network

DeviceLogix device 2

To demonstrate the use of DeviceLogix functionality in the material handling application in

Figure 4

, the installation structure is simplified to show only the two control segments of the system. In reality, the whole system contains many more segments. However, the principle of using DeviceLogix functionality is the same regardless of the scale of the system.

In this application, each segment is composed of two conveyors that are used to transfer the material downstream. A

DeviceLogix-enabled device controls each segment. For each conveyor in the segment, a DeviceLogix-enabled controller is installed along with a sensor to detect the existence of the material on the conveyor, and with a motor to drive the conveyor while it turns and moves the material. Between the segments, the DeviceLogix devices are connected by a DeviceNet network for the data exchange in a peer-to-peer communication manner.

The purpose of this application is to reduce the amount of energy consumed by the motors. The design calls for the motor to work only when material is detected on the conveyor to transfer. When the material is delivered to next conveyor, the motor stops.

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

DeviceLogix Technology for Industrial Applications

Figure 5

gives the illustrative algorithm using DeviceLogix technology and is executed in both DeviceLogix device1 and

DeviceLogix device2 for this application. Figure 6

shows the completed DeviceLogix functionality for this material handling application.

Figure 5 - Illustrative Algorithm in Devices for Material Handling Application

If Sensor 1 is ON

Turn on Motor 1;

If

Sensor 2 is ON

Turn off Motor 1;

Turn on Motor 2;

If

Sensor 3 is ON

Turn on Motor 3;

If Sensor 4 is ON

Turn off Motor 3;

Turn on Motor 4;

If

P2P_Sensor 3 is ON

Figure 6 - Completed DeviceLogix Functionality for Material Handling Application

Send out the data of

Sensor 3

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

7

8

DeviceLogix Technology for Industrial Applications

Table 1 - Devices Capable of DeviceLogix Technology

RSNetWorx™ for

DeviceNet

Software

800T Push Button Station vX.01 (and higher) vX.01 (and higher) E3 Plus™ Electronic

Overload Relay

E300 Electronic Overload

Relay

— ArmorStart Bulletin 280/

281/284

ArmorStart Bulletin 290/

291/294

SMC™-50 v4.02

PowerFlex™ 755 v1.xx

PowerFlex 753 v1.xx – x5.xx

PowerFlex 755 v2.xx – x5.xx

PowerFlex 753 v6.xx – x7.xx

PowerFlex 755 v6.xx – x7.xx

DriveExplorer™

Software

— v6.01 (and higher) v6.02 (and higher) v6.04 (and higher)

DriveTools™ SP/

DriveExecutive™

Software

V5.01 (and higher) v5.01 (and higher) v5.02 (and higher) v5.05 (and higher)

RSLogix 5000

Add-On Profile

V5.01 (and higher) vX.01 (and higher) vX.01 (and higher) v4.01 (and higher) v2.01 (and higher) v2.02 (and higher)

Connected Components Workbench™

Software

V6.01 (and higher) v1.02 (and higher) v1.02 (and higher) v4.02 (and higher) v1.02 (and higher)

Available Functions in DeviceLogix Technology

With the development evolution of DeviceLogix technology, nowadays it can support the most frequently used instructions in the industry to build the logic program; specifically, the overall instruction set available for integration with device includes the following elements.

Table 2 - Process Category Toolbar

Function Description

Alarm Instruction

Timing Diagnosis Instruction

PID Instruction

Table 3 - Filter Category Toolbar

Function Description

Low Pass Filter Instruction

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

Table 4 - Select/Limit Category Toolbar

Function Description

Select Instruction

High Low Limit Instruction

Low Pass Filter Instruction

Table 5 - Statistical Category Toolbar

Function Description

Moving Average Instruction

Table 6 - Timer/Counter Category Toolbar

Function Description

Pulse Timer Instruction

On-Delay Timer Instruction

Off-Delay Timer Instruction

Up Counter Instruction

Up Down Counter Instruction

TIP

When using the ACC feature, you may notice some minor differences in the

Timer/Counter instructions. Depending on the firmware implementation, some devices consider this an output and bind it to an analog output tag, while other devices consider it a parameter.

DeviceLogix Technology for Industrial Applications

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

9

DeviceLogix Technology for Industrial Applications

Table 7 - Compare Category Toolbar

Function Description

Greater Than Instruction

Greater Than or Equal To Instruction

Equal Instruction

Not Equal Instruction

Less Than Instruction

Less Than or Equal Instruction

Mask Instruction

Table 8 - Compute/Math Category Toolbar

Function Description

Add Instruction

Multiply Instruction

Subtract Instruction

Divide Instruction

Modulus (DINT) Instruction

Modulus (REAL) Instruction

Absolute Instruction

Negative Instruction

Square Root Instruction

Power Instruction

10

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

DeviceLogix Technology for Industrial Applications

Table 9 - Move/Logical Category Toolbar

Function Description

AND Instruction

Not AND Instruction

OR Instruction

Not OR Instruction

Exclusive OR Instruction

Exclusive Not OR Instruction

NOT Instruction

Set Latch Instruction

Reset Latch Instruction

In addition to the common instructions listed above, DeviceLogix functionality can also support user-customized instructions that encapsulate logic you develop with the built-in instruction set. This feature is called a Macro instruction, with which you can design customized application instructions for the target device.

Not all functions are available for each device. Each device type can support just enough of the overall DeviceLogix functionality as that device functionality requires.

For example, a device with only a few digital physical inputs and outputs is required to support only the logic instructions using digital data as its inputs and outputs, including Boolean, Timer, and Counter. Instructions that use analog data are not needed and moved out of the scope supported by this device. This can reduce the resource requirements in the runtime, and create a more cost-effective and easier-to-use product with just enough functionality.

DeviceLogix Configuration Tool

The configuration of the DeviceLogix functionality is accomplished through the DeviceLogix Editor. The DeviceLogix

Editor includes two kinds of logic configuration tools for DeviceLogix devices to meet different configuration preferences:

Function Block Editor - provides a graphical interface for configuring function blocks to provide local control within for devices capable of DeviceLogix technology.

Ladder Editor - provides a ladder-style configuration tool for devices capable of DeviceLogix technology. Beginning with firmware revision 4, two Ladder Editors are available within DeviceLogix software. The Old Ladder Editor supports DeviceLogix firmware revision 3 and earlier. The New Ladder Editor supports DeviceLogix firmware revision 4.

With devices capable of DeviceLogix technology, you can enable a logic operation using the DeviceLogix Editor to provide local control over the device’s operation. A DeviceLogix device consists of:

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

11

DeviceLogix Technology for Industrial Applications

A specific number of inputs and/or outputs.

Local logic that determines its behavior.

The DeviceLogix Editor is an applet of RSNetWorx for DeviceNet software, Drive Tools software, and Connected

Components Workbench software, and it can be launched directly from those hosts.

With the appropriate EDS File, the DeviceLogix Editor Tool can also be launched from RSLogix 5000 software.

The examples that follow show where to access the DeviceLogix Editor Tool.

The DeviceLogix Editor Tool through RSNetWorx for DeviceNet software can be accessed by selecting the device node while in the network view or RSNetWorx software. The Device Properties window pops up. If the device is a DeviceLogixenabled device, the DeviceLogix tab is present. Click on the DeviceLogix tab and select the Start Logic Editor.

Figure 7 - Start Logic Editor

You can also access the DeviceLogix Editor tool through the Connected Component Workbench software. In this software, add the DeviceLogix-enabled device to the Project Organizer by searching for it under the Device Toolbox

Catalog or by using the Discover feature. Once the device is in the Project Organizer, double-click on it to display the

Device Menus. If the device is DeviceLogix enabled, the DeviceLogix icon appears. Double-click on it to launch the

DeviceLogix Editor.

12

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

Figure 8 - Launching the DeviceLogix Editor Tool through the Connected Component Workbench Software

DeviceLogix Technology for Industrial Applications

Figure 9 - Launching the DeviceLogix Editor Tool through the RSLogix Add-On Profile

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

13

DeviceLogix Technology for Industrial Applications

Figure 10 - Launching the DeviceLogix Editor Tool through the DriveTools DriveExecutive

Once you select the Icon for the DeviceLogix Editor Tool (

Figure 11

), the Style Selection box appears and prompts

you to select whether you would like to proceed with a Function block ( Figure 12

) or Ladder program.

Figure 11 - DeviceLogix Editor Style Selection

14

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

Figure 12 - Function Block Editor

DeviceLogix Technology for Industrial Applications

For more information on the DeviceLogix Editor, refer to the DeviceLogix System User Manual, publication

RA-UM003B .

DeviceLogix Programming Example

The following example shows how to program a simple logic routine to control the E3 Plus Overload Relay outputs based on the condition of input signals. OUT A control is defined by the states of IN1 and IN2 processed through a Boolean OR gate. OUT B control is defined by the states of IN3 and IN4 processed through a separate Boolean OR gate. This example is using RSNetWorx for DeviceNet software, version 8.00.01, and an E3 Plus Series C overload relay.

1. While in RSNetWorx for DeviceNet software, double-click the E3 Plus relay, select the DeviceLogix Tab.

2. If you are prompted with a dialog box while online with the E3 Plus, then select Upload.

3. Select Start Logic Editor, select the Function Block Editor, and press OK.

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

15

DeviceLogix Technology for Industrial Applications

4. If you are programming offline, then continue to Step

5 . If you are programming online, place the E3 Plus relay into

Edit mode by selecting Edit from the Tools pull-down menu or by selecting the button. Select Yes to enter Edit mode.

16

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

DeviceLogix Technology for Industrial Applications

5. Using the left mouse button, select the Boolean OR (BOR) function block from the Move/Logical tab and drag it onto the display.

6. Using the left mouse button, select the Bit Input block and drag it to the left of the BOR function block. Doubleclick on the Bit Input block to select Input 1 of the E3 Plus relay under the Hardware Boolean Input set.

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

17

DeviceLogix Technology for Industrial Applications

7. Place the cursor to the right of the Bit Input block and press the left mouse button. Draw a line from the Bit Input block to the In1 of the BOR function block. Double-click the left mouse button to establish a connection.

8. Repeat steps

6

and 7

to add Input 2 of the E3 Plus to In2 of the BOR function block.

18

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

DeviceLogix Technology for Industrial Applications

9. Using the left mouse button, select the Bit Output block and drag it to the right of the BOR function block.

Double-click the Bit Input block to select Output A of the E3 Plus relay under the Hardware Boolean Output set.

10. Place the cursor on the left of the Bit Output block and press the left mouse button. Draw a line from the Bit Output block to the Out of the BOR function block and double-click the left mouse button to establish a connection.

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

19

DeviceLogix Technology for Industrial Applications

11. Repeat steps 5

through

10 to add a second BOR function block that monitors Input 3 and 4 to control Output B of

the E3 Plus relay.

12. Disable Edit mode by de-selecting the Edit mode button or through the Tools menu.

20

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

DeviceLogix Technology for Industrial Applications

13. If you are programming the function block offline, exit the Function Block editor and go online with the Device

Network. Download the parameters, including the DeviceLogix Function Blocks, to the E3 Plus relay and proceed to Step 12. If you are programming the function block online, download the Function Blocks to the E3 Plus relay by selecting the Download button or through the Communications menu.

A dialog box appears when the Function Blocks are successfully downloaded to the E3 Plus relay. Click OK to continue.

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

21

DeviceLogix Technology for Industrial Applications

14. Enable the DeviceLogix Function Blocks. You can do this through a DeviceNet Configuration Terminal (Catalog

Number 193-DNCT) or through RSNetWorx software. If you use RSNetWorx software to enable the DeviceLogix function blocks, select the Logic Enable On button or enable the blocks through the Communications menu.

15. Verify the functionality of the DeviceLogix Function Blocks by enabling Input 1 on the E3 Plus relay. When Input 1 is enabled, Output A energizes.

22

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

Notes:

DeviceLogix Technology for Industrial Applications

Rockwell Automation Publication 193-AT001A-EN-P - December 2015

23

Important User Information

Read this document and the documents listed in the additional resources section about installation, configuration, and operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.

Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be carried out by suitably trained personnel in accordance with applicable code of practice.

If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation,

Inc., is prohibited.

Documentation Feedback

Your comments will help us serve your documentation needs better. If you have any suggestions on how to improve this document, complete this form, publication RA-DU002, available at http://www.rockwellautomation.com/literature/ .

Rockwell Automation maintains current product environmental information on its website at http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page

.

Allen-Bradley, ArmorStart, Connected Components Workbench, DeviceLogix, DriveExecutive, DriveExplorer, DriveTools, E3, E3 Plus, LISTEN. THINK. SOLVE, PowerFlex, Rockwell Automation, Rockwell Software,

RSLogix 5000, RSNetWorx, and SMC are trademarks of Rockwell Automation, Inc

Trademarks not belonging to Rockwell Automation are property of their respective companies.

Rockwell Otomasyon Ticaret A.Ş., Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: +90 (216) 5698400

Publication 193-AT001A-EN-P - December 2015

Copyright © 2015 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
