EasySteamPlus
Touchline Electric Combi Oven
10GN 1/1
SIS #
AIA #
Main Features
EasySteamPlus
Touchline Electric Combi Oven 10GN 1/1
237202
(FCZ101ETA)
Electric Combi Oven 10 1/1 – 400 V/3N
ph/50/60 Hz
237222
(FCZ101ETN)
Electric Combi Oven 10 1/1 – 230 V/3 ph/50/60
Hz
Short Form Specification
Convection-steamer with a high resolution touch screen control panel (translated in 30
languages) and with dedicated steam generator guarantees a continuous supply of fresh
steam at all times.
Real humidity control based upon Lambda sensor for consistent results independent from
the food load. Any excess humidity generated by the food is exhausted with the hot air cycles.
Cooking evenness guaranteed: fresh air is blown into the oven from the outside, after it is
pre-heated it is pulled through the bi-functional fan, thus maintaining the evenness of the
cooking process. Manual injection of water to add additional moisture in the cell.
Built-in automatic cleaning system with four automatic pre-set cycles.
Economizer cleaning functions can be set to save energy (skip drying function), water
(reduce water consumption) and rinse aid (skip rinse aid). Three cooking modes: Manual
(cooking cycle, temperature, time and advance features); Automatic - (select family and
food type + 3 special cycles-LTC, proofing, regeneration); Programs (recipe selection from
page with 1000 free 16-phase programs and search button). Recipes can be saved in a
USB key for replication in other ovens. Automatic pre-heating and pre-cooling. Half power,
half speed and pulse ventilation (Hold) controls. Food probe with 6 temperature sensors
(the lowest one drives the cycle). Double-glass door with book-like opening maintains a
cool external temperature and incorporates a drip pan to collect excess condensation
avoiding wet floors. Halogen lighting in the cooking chamber. Side, back panels and interior
in AISI 304 stainless steel.
Supplied with n.1 tray rack 1/1GN, 65mm pitch.
APPROVAL:
Zanussi Professional
www.zanussiprofessional.com
[email protected]
EasySteamPlus
Touchline Electric Combi Oven 10GN 1/1
Item No.
• Humidity control with Lambda sensor: controls and displays
the exact (single degree of accuracy) amount of humidity
contained in the hot air which circulates in the oven
atmosphere during the combi and regeneration cycles. The
Lambda sensor measures physically the real humidity level
inside the cooking cell and acts consequently according to
the set value. With hot air cycles, it also manages to exhaust
the excess humidity generated from the food.
• Perfect eveness: blows fresh air from the outside through
the bi-functional fan, which pushes the air that has been
preheated in the meantime, into the cooking chamber,
guaranteeing the evenness of the cooking process.
• Guided descaling function to guide operator during boiler
descaling phase (from "Setting" mode).
• MultiTimer function to manage a sequence of up to 14
different cooking cycles, improving flexibility and ensuring
excellent cooking results. Can be saved up to 70 multitimers
programs.
• Automatic mode: choosing family and food type, the oven
automatically selects the appropriate cooking climate,
temperature and time. A maximum of 60 personalised
presets per family can be saved. Three special automatic
cycles available:
- Low Temperature Cooking cycle (LTC) to minimize weight
loss, maximizing food quality for large pieces of meat.
- Reheating cycle: efficient humidity management to quickly
reheat.
- Proofing cycle: uses the air-o-clima function to create the
perfect proofing conditions.
• Automatic cleaning system: 4 different pre-set cycles to
clean the cooking cell, according to the actual requirements.
The cleaning system is built-in (no need for add-ons).
• Programs mode: a maximum of 1000 recipes can be stored
in the oven's memory, to recreate the exact same recipe at
any time. The recipes can be group in 16 different categories
to better organize the menu. 16-step cooking programs also
available.
• Manual mode: traditional cooking style by manually
selecting the parameters. Traditional cooking cycles
available:
- Dry, hot convection cycle (max. 300 °C): ideal for low
humidity cooking.
- Low temperature Steam cycle (max. 100 °C): ideal for sousvide (vacuum packed) re-thermalization and delicate
cooking.
- Steam cycle (100 °C): seafood and vegetables.
- High temperature steam (max. 130 °C).
- Combination cycle (max. 250 °C): combining convected
heat and steam to obtain humidity controlled cooking
environment, accelerating the cooking process and
reducing weight loss.
• 6-point multi sensor core temperature probe for maximum
precision and food safety.
• Fan speeds: full, half speed for delicate pulse cooking such
as for baking cakes and pulse ventilation for baking and low
temperature cooking. The "pulse utility" is also perfect for
keeping food warm at the end of the cooking cycle.
• Reduced power cycle.
• USB connection: to download HACCP and FSC data, upload
the recipes and interface setting.
• Food safe control monitors the cooking process to comply
with HACCP standards. HACCP management to record
cooking procedure available upon request.
EasySteamPlus
Touchline Electric Combi Oven
10GN 1/1
• Sous-vide USB probe to ensure excellent cooking results even with
vacuum-packed products (optional accessory).
• Make-it-mine feature to allow user to personalize all user main
interfaces in the "Setting" mode and block editing and deleting of
stored programs.
• Supplied with n.1 tray rack 1/1GN, 65 mm pitch.
Construction
• IPX 5 spray water protection certification for easy cleaning.
• 304 AISI stainless steel construction throughout.
• Seamless hygienic cooking chamber with all rounded corners for
easy cleaning.
• Double thermo-glazed door with open frame construction, for cool
outside door panel. Swing hinged easy-release inner glass on door
for easy cleaning.
• Swing hinged front panel for easy service access to main
components.
• Integrated spray hose included.
Optional Accessories
• Exhaust hood without fan for 6&10 1/1GN
PNC 640791 ❑
ovens. It is mandatory to use the flue
condenser (640413) on installation with gas
ovens
• Exhaust hood with fan for 6&10x1/1 GN ovens. PNC 640792 ❑
It is mandatory to use the flue condenser
(640413) on installation with gas ovens
• Odourless hood for ovens 6 GN1/1 and 10
PNC 640796 ❑
GN1/1, electric
• Water softener with cartridge C500 for 6 1/1 PNC 920002 ❑
and 10 1/1 ovens (low-medium steam usage less than 2hrs per day full steam)
• Water softener with cartridge STEAM 1200
PNC 920003 ❑
• Automatic water softener
PNC 921305 ❑
• Resin sanitizer for water softener
PNC 921306 ❑
• Castor kit for base for 6&10x1/1 and 2/1 GN
PNC 922003 ❑
ovens
• Trolley for 6&10x1/1GN ovens and bcf
PNC 922004 ❑
• Tray rack with wheels for 10x1/1 GN ovens and PNC 922006 ❑
bcf, 65mm pitch
• Tray rack with wheels for 8x1/1 GN ovens and PNC 922009 ❑
bcf, 80mm pitch
• Kit 4 adjustable feet for 6&10 GN ovens
PNC 922012 ❑
• Thermal blanket for 10x1/1GN
PNC 922013 ❑
• Rack for 30 plates for 10x1/1GN ovens and bcf, PNC 922015 ❑
65mm pitch with wheels
• Pair of 1/1 GN AISI 304 grids
PNC 922017 ❑
• Tray support for 6&10x1/1GN open base
PNC 922021 ❑
• Couple of grids GN 1/1 for whole chicken (8 per PNC 922036 ❑
grid)
• Pastry tray rack with wheels, for 10x1/1GN
PNC 922066 ❑
ovens and bcf, 80mm pitch (8 runners). Allows
use of 400x600mm pastry trays
• Rack for 23 plates for 10x1/1GN ovens and bcf, PNC 922071 ❑
85mm pitch with wheels
• Slide-in rack and handle for 6&10x1/1GN ovens PNC 922074 ❑
• Grid GN 1/1 for 4 whole chickens (1,2 kg each) PNC 922086 ❑
• Tray rack reinforced for 10x1/1 GN oven, 64mm PNC 922099 ❑
pitch
• External connection kit for detergent and rinse PNC 922169 ❑
aid
• Side external water spray unit (needs to be mounted PNC 922171 ❑
outside and includes support for mounting to oven)
• Fat filter for 10 1/1 and 2/1 GN combi steamers (gas PNC 922178 ❑
and electric) and convection ovens (electric)
• Open base with tray support for 6&10x1/1GN ovens PNC 922195 ❑
• Basket for detergent tank - wall mounted
PNC 922209 ❑
• Holder for detergent tank, to mount on open base PNC 922212 ❑
• Cupboard base with tray support for 6&10x1/1 GN PNC 922226 ❑
ovens
• Hot cupboard base with tray support for 6&10x1/1 PNC 922232 ❑
GN ovens. Allows use of 400x600mm pastry trays
• 2 frying baskets for ovens
PNC 922239 ❑
• Heat shield for stacked 6x1/1 GN on 10x1/1 GN
PNC 922245 ❑
ovens
• Control panel filter for 6&10 GN 1/1 ovens
PNC 922246 ❑
• Heat shield for 10x1/1 GN oven
PNC 922251 ❑
• Double-click closing catch for oven door
PNC 922265 ❑
• Grid GN 1/1 for 8 whole chickens (1,2 kg each)
PNC 922266 ❑
• Kit integrated Haccp for ovens
PNC 922275 ❑
• USB probe for Sous-Vide cooking - available on
PNC 922281 ❑
EasySteamPlus and EasyPlusT ovens with software
versions after 4.10
• Drain kit for 6&10x1/1GN, 10x2/1 oven, diameter PNC 922283 ❑
50mm
• Pastry runners (400x600mm) for 6&10x1/1 GN
PNC 922286 ❑
oven bases
• Grease collection kit (tray and trolley)
PNC 922287 ❑
• Baking tray for baguette 1/1GN
PNC 922288 ❑
• Egg fryer for 8 eggs 1/1GN
PNC 922290 ❑
• Bakery rack kit for 10 GN1/1 ovens
PNC 922292 ❑
• Flat baking tray with 2 edges, GN 1/1
PNC 922299 ❑
• Potato baker GN 1/1 for 28 potatoes
PNC 922300 ❑
• Stacking kit for electric 6x1/1 GN oven placed on PNC 922319 ❑
electric 6&10x1/1 GN oven
• Kit flanged feet
PNC 922320 ❑
• Fat collection tray 100 mm
PNC 922321 ❑
• Trolley for slide-in rack on stacked ovens (needed PNC 922323 ❑
for the oven that will be stacked below)
• Universal skewer rack
PNC 922326 ❑
• 4 long skewers
PNC 922327 ❑
• Fat collection tray 40 mm
PNC 922329 ❑
• Wheels for stacked oven 2x 6 GN 1/1 or 6 GN 1/1 PNC 922333 ❑
on 10 GN1/1
• Smoker for lengthwise and crosswise ovens - 4
PNC 922338 ❑
kinds of smoker wood chips are available on
request
• Kit check valve
PNC 922347 ❑
• Multipurpose hook
PNC 922348 ❑
• Flat baking tray with 2 edges, GN 1/1
PNC 925006 ❑
EasySteamPlus
Touchline Electric Combi Oven 10GN 1/1
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2016.03.03
EasySteamPlus
Touchline Electric Combi Oven
10GN 1/1
Front
Electric
Supply voltage:
237202 (FCZ101ETA)
237222 (FCZ101ETN)
Electrical power:
Circuit breaker required
400 V/3N ph/50/60 Hz
230 V/3 ph/50/60 Hz
17.5 kW
Water:
Top
Water inlet "CW" connection:
3/4"
Total hardness:
5-50 ppm
Pressure, bar min/max:
1-2.5 bar
Drain "D":
1"1/4
Electrolux recommends the use of treated water, based on testing of
specific water conditions.
Please refer to user manual for detailed water quality information.
Installation:
Clearance:
Suggested clearance for service
access:
5 cm rear and right hand sides.
50 cm left hand side.
Capacity:
GN:
Max load capacity:
10 - 1/1 Gastronorm
50 kg
Key Information:
CWI1
= Cold Water inlet 1
EI = Electrical connection
CWI2
= Cold Water Inlet 2
D = Drain
DO = Overflow drain pipe
External dimensions, Height:
External dimensions, Width:
External dimensions, Depth:
Net weight:
Shipping weight:
Shipping volume:
237202 (FCZ101ETA)
237222 (FCZ101ETN)
1058 mm
898 mm
915 mm
156 kg
176 kg
1.17 m³
1.19 m³
Side
EasySteamPlus

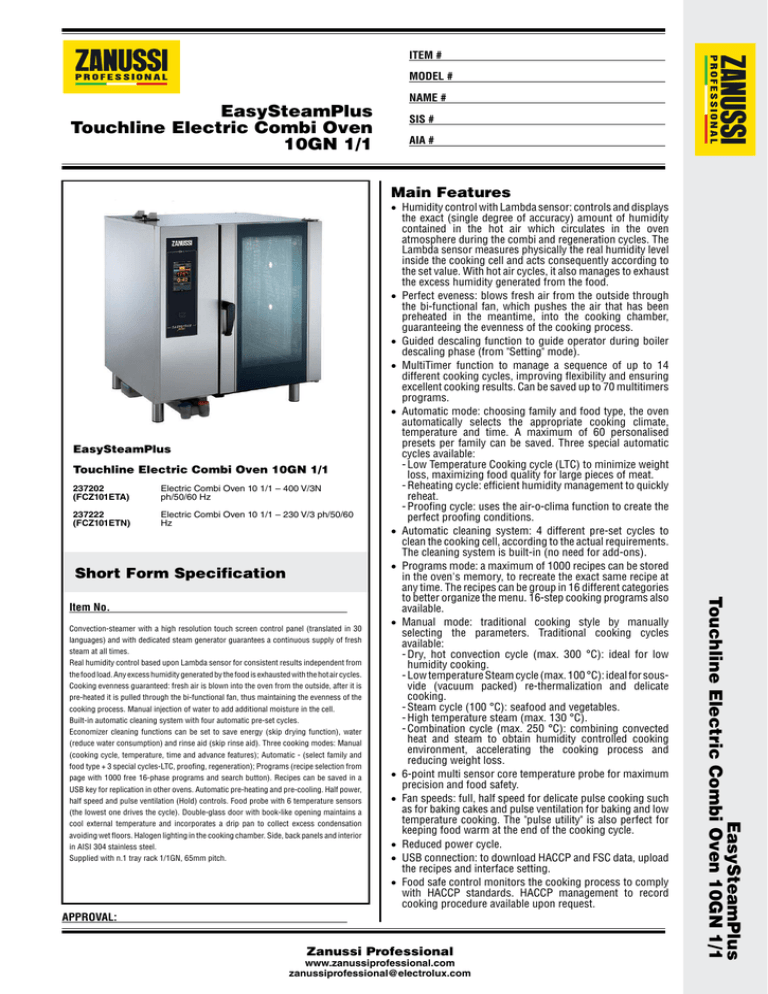

Touchline Electric Combi Oven 10GN 1/1
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2016.03.03
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
