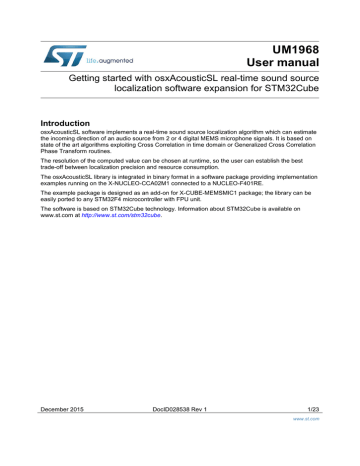

UM1968
User manual
Getting started with osxAcousticSL real-time sound source
localization software expansion for STM32Cube
Introduction
osxAcousticSL software implements a real-time sound source localization algorithm which can estimate
the incoming direction of an audio source from 2 or 4 digital MEMS microphone signals. It is based on
state of the art algorithms exploiting Cross Correlation in time domain or Generalized Cross Correlation
Phase Transform routines.
The resolution of the computed value can be chosen at runtime, so the user can establish the best
trade-off between localization precision and resource consumption.
The osxAcousticSL library is integrated in binary format in a software package providing implementation
examples running on the X-NUCLEO-CCA02M1 connected to a NUCLEO-F401RE.
The example package is designed as an add-on for X-CUBE-MEMSMIC1 package; the library can be
easily ported to any STM32F4 microcontroller with FPU unit.
The software is based on STM32Cube technology. Information about STM32Cube is available on
www.st.com at http://www.st.com/stm32cube.
December 2015
DocID028538 Rev 1
1/23
www.st.com
Contents
UM1968
Contents
1
Licensing information ..................................................................... 4
2
osxAcousticSL software library ..................................................... 5
2.1
2.2
3
4
5
Angle resolution ................................................................................ 5
2.1.1
Cross-correlation ................................................................................ 5
2.1.2
GCC-PHAT algorithm ......................................................................... 5
Microphone geometry ....................................................................... 6
2.2.1
Two-microphone scenario .................................................................. 6
2.2.2
4-microphone scenario ....................................................................... 6
osxAcousticSL software expansion for X-CUBE-MEMSMIC1 ...... 8
3.1
Overview ........................................................................................... 8
3.2
Architecture ....................................................................................... 8
3.3
Folders Structure............................................................................... 9
3.4
APIs ................................................................................................ 10
System setup guide....................................................................... 11
4.1
Hardware setup ............................................................................... 11
4.2
Firmware and software .................................................................... 11
4.2.1
Additional package download and unpacking .................................. 11
4.2.2
Library package installation .............................................................. 12
4.2.3
Node locking procedure.................................................................... 15
4.2.4
Compiling the example projects ....................................................... 16
Sample application description .................................................... 18
5.1
Firmware steps................................................................................ 18
5.2
Example program execution............................................................ 18
6
Library Profiling ............................................................................. 20
7
8
References ..................................................................................... 21
Revision history ............................................................................ 22
2/23
DocID028538 Rev 1
UM1968
List of figures
List of figures
Figure 1: Two-microphone arrangement .................................................................................................... 6
Figure 2: Four-microphone arrangement .................................................................................................... 7
Figure 3: Resulting software architecture ................................................................................................... 9
Figure 4: Package folder structure .............................................................................................................. 9
Figure 5: Directory content after unpacking the X-CUBE-MEMSMIC1 package...................................... 12
Figure 6: License Agreement .................................................................................................................... 12
Figure 7: Information and additional package requirements .................................................................... 13
Figure 8: Installation directory for the PC software ................................................................................... 13
Figure 9: Installation directory for the firmware ........................................................................................ 14
Figure 10: OSX LicenseWizard tool installation ....................................................................................... 14
Figure 11: Resulting firmware workspace................................................................................................. 15
Figure 12: Library selection ...................................................................................................................... 15
Figure 13: License request generation ..................................................................................................... 16
Figure 14: Error while building the original osx_license.h file ................................................................... 16
Figure 15: osx_license.h file after the required modifications................................................................... 17
Figure 16: STLink Virtual COM port detection .......................................................................................... 19
DocID028538 Rev 1
3/23
Licensing information
1
UM1968
Licensing information
This software library is licensed under ST OpenSoftwareX Limited License Agreement, (the
"OSX-LLA License"). You may obtain a copy of the OSX License at:
OpenSoftwareX license agreement
Some of the library code is based on the CMSIS DSP software library by ARM, a suite of
common signal processing functions for use on Cortex-M processor based devices.
Licensing terms are available in the attached release_note.html file, in the next lines of this
document and on the web at:
http://www.keil.com/pack/doc/CMSIS/DSP/html/index.html.
ARM license note:
Copyright (C) 2009-2012 ARM Limited. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:



Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.
Neither the name of ARM nor the names of its contributors may be used to endorse or
promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL COPYRIGHT HOLDERS AND CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
4/23
DocID028538 Rev 1
UM1968
2
osxAcousticSL software library
osxAcousticSL software library
This library uses audio signals from microphones to execute Sound Source Localization
and estimate the angle of arrival of the audio source. It embeds two Time Difference of
Arrival (“TDOA”) algorithms with differing RAM and MIPS footprints and overall
performance [1]:


“XCORR” cross correlation algorithm:

performed in the time domain

less resource intensive

lower resolution

requires microphones to be placed at greater distances
“GCC-PHAT” algorithm

performed in the frequency domain

more resource demanding

higher resolution

performance should not in theory be impacted by microphone distance
The basic version of each algorithm uses two audio signals to estimate an angle in a 180
degree range. A 360 degree range requires four audio streams and appropriate library
configuration. Both the algorithm and the number of microphones are chosen by the user
during library initialization. The software is designed to run in a real-time environment.
2.1
Angle resolution
Angle output resolution mainly depends on the chosen algorithm and how the result is
computed:
2.1.1
Cross-correlation
Cross-correlation is based on time-domain computation and the resolution depends on
both the sampling frequency and the distance between microphones. For each combination
of these parameters, the maximum delay between two microphones (in terms of samples)
is:
(𝐷𝑖𝑠𝑡𝑎𝑛𝑐𝑒) ∗ (𝑆𝑎𝑚𝑝𝑙𝑖𝑛𝑔𝐹𝑟𝑒𝑞𝑢𝑒𝑛𝑐𝑦)
𝐷𝑒𝑙𝑎𝑦𝑀𝑎𝑥 = 𝐹𝑙𝑜𝑜𝑟 (
)
(𝑆𝑜𝑢𝑛𝑑𝑆𝑝𝑒𝑒𝑑)
This value is strictly related to the maximum number of angles that can be discerned by the
routine and thus determines the output resolution.
The minimum detectable angle over 180 degrees is thus:
180
𝑀𝑖𝑛𝑖𝑚𝑢𝑚𝐷𝑒𝑡𝑒𝑐𝑡𝑎𝑏𝑙𝑒𝐴𝑛𝑔𝑙𝑒 = 𝐹𝑙𝑜𝑜𝑟 (
)
2 ∗ 𝐷𝑒𝑙𝑎𝑦𝑀𝑎𝑥
The larger the microphone distance, the higher the possible resolution, at a higher MIPS
cost. If this algorithm is chosen, the achievable resolution is computed automatically by the
initialization function and cannot be set by the user. In this case, the resolution parameter is
ignored by the initialization function.
2.1.2
GCC-PHAT algorithm
The GCC-PHAT algorithm works with frequencies and generally offers a better resolution
even in low inter-microphone spacing configurations. The user can set the desired
resolution with a dedicated parameter in the initialization structure (see the chm help file in
DocID028538 Rev 1
5/23
osxAcousticSL software library
UM1968
the Documentation folder). In this case, the higher the resolution, the higher the MIPS
consumption.
Please note that the resolution value relates to the use of the library with two channels.
When the library is used with four channels to perform source localization over a 360
degree range, two detected values are merged internally and the overall resolution may be
different to the initial setting.
2.2
Microphone geometry
2.2.1
Two-microphone scenario
Figure 1: "Two-microphone arrangement" shows the plan view of microphones M1 and M2.
The minimum inter-microphone spacing depends on the algorithm:


for XCORR, the distance must allow at least one sample delay between them
GCC-PHAT has potentially no distance constraints
Figure 1: Two-microphone arrangement
The estimated angle is measured taking as a reference the imaginary line passing through
the middle point of the segment joining the two microphones and orthogonal to it, as
depicted in the picture.
2.2.2
4-microphone scenario
Figure 2: "Four-microphone arrangement" shows the arrangement of microphones M1, M2,
M3 and M4. The same distance constraints as in the two-microphone scenario must be
observed, but they are measured between opposite microphones; i.e., between M1-M2 and
between M3-M4.
6/23
DocID028538 Rev 1
UM1968
osxAcousticSL software library
Figure 2: Four-microphone arrangement
DocID028538 Rev 1
7/23
osxAcousticSL software expansion for X-CUBEMEMSMIC1
3
osxAcousticSL software expansion for X-CUBEMEMSMIC1
3.1
Overview
UM1968
osxAcousticSL software package expands the functionality provided by STM32Cube. It is
designed as an add-on for X-CUBE-MEMSMIC1 pack and exploits its features for digital
MEMS microphones acquisition, decimation and streaming. For further information
regarding X-CUBE-MEMSMIC1, including the microphone acquisition process and
software downloads, please refer to www.st.com.
For details on how to merge the two packages into a single package, refer to Section 4.2:
"Firmware and software".
The key features of this add-on package are:



3.2
osxAcousticSL library middleware
sample implementation available for X-NUCLEO-CCA02M1 board plugged on top of a
NUCLEO-F401RE, based on the X-CUBE-MEMSMIC1 package
detailed chm documentation of the library API
Architecture
The package extends X-CUBE-MEMSMIC1 by providing:


an additional middleware component for the osxAcousticSL library
a sample implementation that exploits the X-CUBE-MEMSMIC1 capabilities for
microphone acquisition, decimation and streaming.
The two packages must therefore be merged in order to obtain a fully functional application
based on the osxAcousticSL library, available to the user as a reference for software
design and library integration.
The resulting application architecture includes the following layers needed to access the
microphone data:


8/23
STM32Cube HAL layer: consists of a set of simple, generic, multi-instance APIs
(application programming interfaces) which interact with the upper layer applications,
libraries and stacks. These generic and extension APIs are based on a common
framework which allows any layers they built on, such as the middleware layer, to
implement their functions without requiring specific hardware information for a given
microcontroller unit (MCU). This structure improves library code reusability and
guarantees easy portability across other devices.
Board Support Package (BSP) layer: provides software support for the STM32
Nucleo board peripherals, excluding the MCU. These specific APIs provide a
programming interface for certain board specific peripherals like LEDs, user buttons,
etc and can also be used to fetch individual board version information. It also provides
support for initializing, configuring and reading data.
DocID028538 Rev 1
UM1968
osxAcousticSL software expansion for X-CUBEMEMSMIC1
Figure 3: Resulting software architecture
3.3
Folders Structure
The following folders are included in the software package:
Documentation: contains a compiled HTML file generated from the source code, detailing
the software components and APIs.
Drivers: contains the HAL drivers, the board specific drivers for each supported board or
hardware platform, including those for the onboard components and the CMSIS layer which
is a vendor-independent hardware abstraction layer for the Cortex-M processor series.
Middlewares: contains the osxAcousticBF library binary code, documentation and license
information.
Projects: contains a sample application used to demonstrate the library, provided for the
NUCLEO-F401RE platform with three development environments: (IAR) Embedded
Workbench for ARM, RealView Microcontroller Development Kit (MDK-ARM) and System
Workbench for STM32 (SW4STM32).
Figure 4: Package folder structure
DocID028538 Rev 1
9/23
osxAcousticSL software expansion for X-CUBEMEMSMIC1
3.4
UM1968
APIs
Detailed technical information fully describing the functions and parameters of the
osxAcousticSL APIs can be found in the osxAcousticSL_Package.chm compiled HTML file
located in the Documentation folder of the software package. In the same document, you
can find general descriptions regarding all the osxAcoustic library APIs and the concepts
behind their design.
osxAcousticSL is provided as a node-locked library which allows derivative firmware
images to run on a specific STM32 Nucleo device only. Licensing activation codes must be
requested from ST and included in the project (and become part of the build process) prior
to attempting its usage. The resulting firmware binary image will therefore be node-locked.
For complete information about the open.AUDIO license agreement, please refer to the
license file located in the Middlewares/ST/STM32_OSX_AcousticSL_Library folder.
10/23
DocID028538 Rev 1
UM1968
System setup guide
4
System setup guide
4.1
Hardware setup
The library sample application needs the following hardware:

NUCLEO-F401RE board
Further details can be found at www.st.com


Four external digital microphones based on the ST coupon daughterboard concept
(part number: STEVAL-MKI129V or STEVAL-MKI155V). Find further details regarding
possible choices at ww.st.com
X-NUCLEO-CCA02M1 expansion board
For this specific application, the board solder jumpers must be configured in order to
acquire four microphones using the abovementioned external coupon boards. Note that
this is not the default factory setting, so you may need to change solder jumper
configurations and add strips line in order to host the coupon boards.
The correct setup is described in [2]. Refer to the same user manual for information
regarding board connections and supplying power.
4.2
Firmware and software
The main steps required to setup the environment are:




4.2.1
Additional packages download and unpack
Library package installation
Node locking procedure
Compiling and running
Additional package download and unpacking
The application is designed as an add-on project for the X-CUBE-MEMSMIC1 v1.1, which
you can find at www.st.com.
After downloading, unpack the zip file in a directory of your choice. This will become the
workspace used to test and work with the library. Avoid using paths names longer than 240
characters because it can cause problems in some tool chains during project build. In our
example below, the workspace is placed in the “C:\Workspace” folder.
DocID028538 Rev 1
11/23
System setup guide
UM1968
Figure 5: Directory content after unpacking the X-CUBE-MEMSMIC1 package
4.2.2
Library package installation
Double click the “osxAcousticSL_Setup” library installer available at www.st.com in order to
start the installation procedure.
The first step is to accept the License Agreement:
Figure 6: License Agreement
Then the procedure details the additional packages required:
12/23
DocID028538 Rev 1
UM1968
System setup guide
Figure 7: Information and additional package requirements
Now you can choose the directory where you want to install the library software. Note that
this is not the path for the firmware, but where the PC software related information
(uninstall and other information) shall be stored.
This folder does not necessarily have to be your workspace folder.
Figure 8: Installation directory for the PC software
Then you choose the directory where the firmware will be unpacked.
This folder must be your desired workspace directory (“C:\Workspace” in our
example).
DocID028538 Rev 1
13/23
System setup guide
UM1968
Figure 9: Installation directory for the firmware
Finally you can complete the installation procedure.
The LicenseWizard software is required for the next steps.
Figure 10: OSX LicenseWizard tool installation
At this stage, your Workspace folder should resemble the image below.
14/23
DocID028538 Rev 1
UM1968
System setup guide
Figure 11: Resulting firmware workspace
You will find the installed library in the Middleware folder, while the sample application
projects are in the Project folder.
4.2.3
Node locking procedure
Connect a NUCLEO-F401RE board to the PC, run the OSX LicenseWizard you installed in
the previous steps and choose the library you want to activate.
Figure 12: Library selection
Now use the appropriate buttons on the wizard to:




identify the STM32 Nucleo board
generate the license request
send the request e-mail
License request generation
DocID028538 Rev 1
15/23
System setup guide
UM1968
Figure 13: License request generation
The license mail should arrive after a few moments.
4.2.4
Compiling the example projects
Open the project with your favorite tool chain. In this example, the projects for three IDEs
are located in “C:\Workspace\Projects\Multi\Applications\Acoustic_SL”.
Try to compile the project, you should receive the following error:
Figure 14: Error while building the original osx_license.h file
Open the osx-license.h file and substitute the dummy license array with the one you
received by mail from the Open.Audio server. Also, comment the define directive
describing the error.
16/23
DocID028538 Rev 1
UM1968
System setup guide
Figure 15: osx_license.h file after the required modifications
You should now be able to compile and flash the board for which you requested the license
in order to use the library example.
DocID028538 Rev 1
17/23
Sample application description
5
UM1968
Sample application description
An example application using the osxAcousticSL library with NUCLEO-F401RE and XNUCLEO-CCA02M1 boards is provided in the “Projects” directory. Ready to build projects
are available for multiple IDEs.
The application is designed to perform:




5.1
Acquisition of the four external microphones mounted on the X-NUCLEO-CCA02M1
board.
Sound source localization running basing on those signals.
Output of the localization result through the ST-Link embedded virtual COM port.
Streaming of four audio channels via X-NUCLEO-CCA02M1 USB connector to a host
PC.
Firmware steps
Follow these steps to obtain the desired behavior:






Initialize and start the USB audio input driver and middleware. This allows a host PC
to recognize the device as a standard multichannel USB microphone.
Initialize microphone acquisition using the relevant BSP function.
Initialize the osxAcousticSL library.
Start the audio acquisition that will trigger library execution.
The four omnidirectional microphones streams are be passed to USB driver each
millisecond.
The osxAcousticSL results are sent through ST-Link VCP to a host PC on each library
run.
All the operations related to the osxAcousticSL library are performed in dedicated functions
in the “audio_application.c” file.
Further details about library API can be found in the .chm help file in the Documentation
folder.
5.2
Example program execution
Third party serial communication software is required to be able to collect localization
values. One possible solution is the free Putty software available at:
http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html.
To set up the demo:

18/23
Connect NUCLEO-F401RE mini USB cable (USB type A to Mini-B USB cable).
DocID028538 Rev 1
UM1968
Sample application description
Figure 16: STLink Virtual COM port detection



Check the COM Port number assigned to the board in Windows Device Manager.
Open the serial utility and ensure the connection parameters are set to:

Baudrate: 9600

Data bits: 8

Stop bits: 1

Parity: none

Flow Control: none
Open the COM port
Now you should be able to see the localization results on the screen. Note that there is an
audio energy threshold below which the library is not executed, in which case localization is
not computed and nothing is sent to the VCP.
In order to record audio from the device, you need to install third party software such as the
Audacity® freeware program to save or play the streamed signal.
Detailed information on how to setup the host system for audio recording can be found in
the X-CUBE-MEMSMIC1 user manual, available at www.st.com.
Further information about Audacity® can be obtained at: http://audacityteam.org/?lang=en
DocID028538 Rev 1
19/23
Library Profiling
6
UM1968
Library Profiling
Profiling was performed in order to evaluate the library resource consumption in terms of
MIPS, RAM and Flash. Detailed information can be found in the
osxAcousticBF_Package.chm compiled HTML file located in the Documentation folder.
20/23
DocID028538 Rev 1
UM1968
7
References
References
1.
2.
Knapp, C. H. (1976). The generalized correlation method for estimation of time delay,
IEEE Transactions on Acoustics, Speech and Signal Processing ASSP. 24(4), 320327.
User manual, UM1900 - Getting started with the digital MEMS microphones expansion
board based on MP34DT01-M for STM32 Nucleo. STMicroelectronics
DocID028538 Rev 1
21/23
Revision history
8
UM1968
Revision history
Table 1: Document revision history
22/23
Date
Version
Changes
02-Dec-2015
1
Initial release.
DocID028538 Rev 1
UM1968
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST
products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the
design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2015 STMicroelectronics – All rights reserved
DocID028538 Rev 1
23/23
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
