ENGLISH
ESPAÑOL

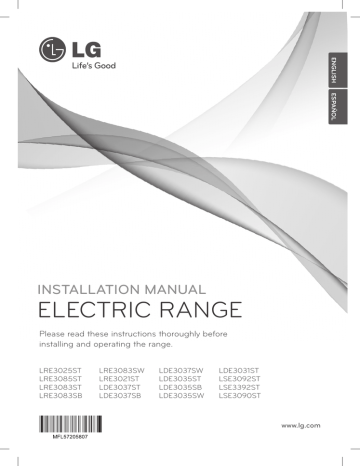

INSTALLATION MANUAL
ELECTRIC RANGE
Please read these instructions thoroughly before
installing and operating the range.
LRE3025ST
LRE3085ST
LRE3083ST
LRE3083SB
LRE3083SW
LRE3021ST
LDE3037ST
LDE3037SB
LDE3037SW
LDE3035ST
LDE3035SB
LDE3035SW
LDE3031ST
LSE3092ST
LSE3392ST
LSE3090ST
www.lg.com
2
TABLE OF CONTENTS
TABLE OF CONTENTS
3 SAFETY
3 Before You Begin
3 Important Safety Instructions
5 Prepare to Install the Range
6 PREPARE TO INSTALL RANGE
6 Installation Drawings
8 ELECTRICAL CONNECTIONS
8 Electrical Connection Requirements
8 Connect Range Cord
10 3-Wire Connection With a Power Supply Cord
1 1 4-Wire Connection With a Power Supply Cord
1 1 3-Wire Connection: Conduit
12 4-Wire Connection: Conduit
13 INSTALL THE RANGE
13 Anti-Tip Device Installation
13 Final Installation
13 Optional Rear Filler
SAFETY
3
Remove all tape and packing materials before using the range.
Dispose of all plastic bags after unpacking the range. Never allow children to play with packing materials.
You can download the installation and owner’s manual at: http://www.lg.com.
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or
damage when using the range. This guide does not cover all possible conditions that may occur. For further assistance
contact your service agent or manufacturer.
This is the safety alert symbol. This symbol alerts you to potential hazards that can cause personal injury to
you and others. All safety messages will follow the safety alert symbol with either the word “WARNING” or
“CAUTION.”
WARNING
This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.
CAUTION
This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.
WARNING
• The information in this manual should be followed exactly.
- A fire or electrical shock may result causing property damage, personal injury or death.
• Do not step or sit on the oven door. Install the Anti-Tip Bracket supplied with the range.
- The range could be tipped and injury might result from spilled hot liquid, food, or the range itself.
-If the range is pulled away from the wall for cleaning, service, or any other reason, ensure that the Anti-Tip device is properly reengaged when the range is pushed back against the wall.
- Install the Anti-Tip Bracket. Screws must be fixed to at least two locations.
- A child or adult can be killed when the range is tipped.
- 1) According to the Anti-Tip Bracket Template, install Anti-Tip Bracket to the floor and wall.
-Anti-Tip will fasten the range by holding the range’s legs of the rear side and the Anti-Tip Bracket Template lets
you know proper locations of Anti-Tip Bracket easily.
- 2) Engage the range to the Anti-Tip Bracket by putting the range’s legs into each Anti-Tip Bracket.
- 3) Re-engage the Anti-Tip Bracket if you can move the range except for range’s front direction.
- 4) See installation instructions for details (refer to the page 13).
- Failure to do so can result in death or serious burns to children or adults.
• You should use two or more people to move and install range. (Excessive Weight Hazard)
- Failure to do so can result in back or other injury.
• You never pull or push any handles of door to move and install range.
- Failure to do so can result in serious damage to the door of the range.
• New branch-circuit installations (1996 NEC) for mobile homes, recreational vehicles, and installations
where local codes do not allow grounding through the neutral wire require a 4-conductor UL listed range
cord or 4 wire conduit connection.
ENGLISH
BEFORE YOU BEGIN
4
SAFETY
WARNING
• Power supply cord and plug should not be modified. If it will not fit the outlet, have a proper outlet
Installed by a qualified electrician.
• Using an extension cord to connect the power is prohibited. The way to connect the power cord and plug
directly is strongly recommended.
• Electrical ground is required on this appliance.
• You should make sure that the power cord is not pinched by the range or heavy objects.
- Failure to do so can result in serious burns or electrical shock.
• You never remove the protection cover covering the rear of oven.
-Failure to do so can result in serious damage to power cord. The damage causes serious burns and electric
shock.
• The middle (neutral or ground) wire of a 3 wire power cord or a 3 wire conduit has to be connected to the
middle post of the main terminal block. The remaining two wires of the power cord or conduit have to be
connected to the outside posts of the main terminal connection block.
-Failure to do so can result in electrical shock, severe personal injury or death.
• Only a 4-conductor power-supply cord kit rated 120/240 volts, 50 amperes and marked for use with
ranges with closed-loop connectors or open-end spade lugs with upturned ends shall be used. The
middle (neutral) wire of the power cord or 4-wire conduit has to be connected to the middle post of
the main terminal block. The other two wires of the power cord or conduit have to be connected to the
outside posts of the main terminal connection block. The 4th ground wire must be connected to the
frame of the range with the ground screw.
- Failure to do so can result in electrical shock, severe personal injury or death.
CAUTION
• You should put on gloves during the installation procedure.
- Failure to do so can result in bodily injury.
• You should make sure that the wall covering, countertop and cabinets around the range can withstand
the heat (up to 194°F) generated by the range.
-Discoloration, delamination or melting may occur.
-This range has been designed to comply with the maximum allowable wood cabinet temperatures of 194°F.
• Cabinet storage space located above the surface units should be avoided.
• You should install a range hood that projects horizontally a minimum of 5 inches beyond the bottom of
the cabinets. If cabinet Storage is to be provided.
- The risk of burns or fire by reaching over the heated surface elements can be reduced.
• You should not install the range in the humid place. Splashing the range with water or any electrolyte can
result in electrical shock.
• You should not let cooking grease or flammable material accumulate in or near the range.
-Failure to do so can result in serious burns.
SAFETY
5
WARNING
Tip - Over Hazard
A child or adult can tip the range and be
killed. Verify the anti-tip bracket have been
installed. Ensure the anti-tip bracket is
enganged when the range is moved.
Do not operate the range without the antitip bracket in place. Failure to follow these
instructions can result in death or serious
burns to children and adults.
To check visually that leveling leg is inserted
into bracket, grasp the top rear edge of the
range and carefully attempt to tilt it forward.
TOOLS NEEDED
Phillips Screwdriver
Level
Flat-blade
Screwdriver
Adjustable Wrench
/ ” Nut Driver
1 4
Drill
Pliers
Safety Glasses
bracket
Leveling
leg
Tape Measure
CAUTION
• P
ut on gloves during installation procedure.
-Failure to do so can result in bodily injury.
NOTE
• Read all instructions contained in these installation
instructions before installing range.
• R emove all packing materials from the oven
compartments before connecting the electrical
supply to the range.
• Observe all governing codes and ordinances.
• B e sure to leave these instructions with the
consumer.
• Have the installer show you the location of the
circuit breaker or fuse. Mark it for easy reference.
NOTE
Keep these instructions with your owner’s manual
for future reference.
• As when using any appliance generating heat, there
are certain safety precautions you should follow.
• B e sure your range is installed and grounded
properly by a qualified installer or service technician.
• Make sure the wall coverings around the range
can withstand the heat generated by the range.
• To eliminate the need to reach over the surface
elements, cabinet storage space above the
elements should be avoided.
Pencil
Gloves
PARTS PROVIDED
Anti-Tip Bracket Kit (1)
Template (1)
Rear filler & 2 Screws
(LSE Series only)
Anchor Sleeves (6)
Lag Bolts (6)
(For Anti-Tip Bracket Mounted
on Concrete Floors and Walls)
PARTS NOT PROVIDED
(UL Approved 40 or 50 AMP)
4-Wire Cord OR 3-Wire Cord
Strain Relief
(For Conduit
Installations Only)
ENGLISH
PREPARE TO INSTALL THE RANGE
WARNING
•T
he information in this manual should be
followed exactly.
-A fire or electrical shock may result causing
property damage, personal injury or death.
6
PREPARE TO INSTALL THE RANGE
INSTALLATION DRAWINGS
NOTE
SAVE FOR THE USE OF THE LOCAL ELECTRICAL INSPECTOR
CLEARANCES AND DIMENSIONS (Figure 1)
To install range refer to the following Figure 1.
For installation in CANADA, a Free-standing range
is not to be installed closer than 15/32 (12mm) from
any adjacent surface.
WARNING
•Y
ou should use two or more people to move and
install range. (Excessive Weight Hazard)
- Failure to do so can result in back or other injury.
• You never pull or push any handles of upper &
lower door to move and install range.
-Failure to do so can result in serious damage to
the door of the range.
CAUTION
• C abinet storage space located above the
surface units should be avoided.
• Install a range hood that projects horizontally a
minimum of 5 inches beyond the bottom of the
cabinets if cabinet storage is to be provided.
-The risk of burns or fire by reaching over the
heated surface elements can be reduced.
• Make sure that the wall covering, countertop
and cabinets around the range can with-stand
the heat (up to 194°F) generated by the range.
-Discoloration, delamination or melting may occur.
-This range has been designed to comply with
the maximum allowable wood cabinet temperatures of 194°F.
For model : LRE Series
A = 30”(76.2 cm) For U.S.A
= 30”(76.2 cm) ~ 31”(78.7 cm) For CANADA
FIGURE 1
Figure 2
PREPARE TO INSTALL THE RANGE
7
ENGLISH
For model : LSE Series
24”
(60.9cm)
A = 30”(76.2 cm) For U.S.A
= 30”(76.2 cm) ~ 31”(78.7 cm) For CANADA
FIGURE 1
Figure 2
For model : LDE Series
Cabinet
opening
Wall
Center
15”(38cm)
11”(28cm)
Cabinet
4”
(10cm)
6”
(15.2cm)
9”
(23cm)
2.5”(6.3cm)
4”
(10cm)
5”
(13cm) 6”
(15.2cm)
9”
(23cm)
2.5”
(6.3cm)
A = 30”(76.2 cm) For U.S.A
= 30”(76.2 cm) ~ 31”(78.7 cm) For CANADA
FIGURE 1
Figure 2
MINIMUM DIMENSIONS (Figure 2)
*30" (76.2 cm) minimum clearance between the top of the cooking surface and the bottom of an unprotected wood
or metal cabinet; or 24" (60.9 cm) minimum when bottom of wood or metal cabinet is protected by not less than
1/4”(6.4 cm) flame retardant millboard covered with not less than no. 28 MSG sheet steel, 0.015" (0.381 mm) stainless
steel, 0.024" (0.610 mm) aluminum or 0.020" (0.508 mm) copper.
**15" (38.1 cm) minimum between countertop and adjacent cabinet bottom.
8
ELECTRICAL CONNECTIONS
ELECTRICAL CONNECTION
REQUIREMENTS
This appliance must be installed and grounded on a
branch circuit by a qualified technician in accordance
with the National Electrical code ANSI/NFPA NO. 70 latest edition.
All wiring should conform to Local and NEC. This range
requires a single-phase, 3 wire, A.C 120/208V or 120/240V
60Hz electrical system. Use only a 3-conductor or a
4-conductor UL-listed range cord with closed-loop
terminals, open-end spade lugs with upturned ends
or similar termination. DO NOT install the power cord
without a strain relief.
A range cord rated at 40 amps with 120/240 minimum
volt range is required. If a 50 amp range cord is used, it
should be marked for use with 13/8” diameter connection
openings. This appliance may be connected by means
of conduit or power cord. If conduit is being used, go to
page 10 for 3 wire conduit connections or page 11 for 4
wire conduit connections.
CONNECT RANGE CORD
The Rear Access cover must be removed. Loosen the two
screws with a screwdriver. The terminal block will then be
accessible.
For model : LRE Series
Terminal block
Power cord outlet
Drawer body
Cord/Conduit
connection
plate
For model : LSE Series
Terminal block
Access cover
WARNING
• New branch-circuit installations (1996 NEC)
for mobile homes, recreational vehicles, and
installations where local codes do not allow
grounding through the neutral wire require
a 4-conductor UL listed range cord or 4 wire
conduit connection.
• Power supply cord and plug should not be
modified. If it will not fit the outlet, have a
proper outlet Installed by a qualified electrician.
• Using an extension cord to connect the power is
prohibited. The way to connect the power cord
and plug directly is strongly recommended.
• Electrical ground is required on this appliance.
• You should make sure that the power cord is
not pinched by the range or heavy objects.
-Failure to do so can result in serious burns or
electrical shock.
Power cord outlet
Drawer body
Drawer body cover
(LSE series only)
Specified
rating of power
120/240 volts 120/208 volts supply-cord kit,
amperes
3-wire
3-wire
8,750 - 16,500 7,801 - 12,500
40 or 50A
16,501 - 22,500 12,501 - 18,500
50
Diameter (inches) of Range
connection Opening
Power cord
Conduit
1 3/8”
1 3/4”
1 1/8”
1 3/8”
3, 4 - Wire electrical wall Receptacle
4 Wire receptacle (14-50R)
3 Wire receptacle (10-50R)
Figure 3
Cord/Conduit
connection plate
For model : LDE Series
Terminal block
Access cover
Cord/Conduit
Rear of lower oven connection
plate
Specified power-supply-cord kit rating
Range rating, watts
Access
cover
Figure 4
Protection cover
Access
cover
ELECTRICAL CONNECTIONS
For model : LRE Series
WARNING (LDE series only)
•Y
ou never remove the protec tion cover
covering the rear of lower oven.
-Failure to do so can result in serious damage to
power cord. The damage causes serious burns
and electric shock.
For model : LSE Series
1 /8"(2.8cm)
11/8"(2.8cm)
13/8"(3.5cm)
11/8"(2.8cm)
13/8"(3.5cm)
13/8"(3.5cm)
13/8"
(Cord)
1 /8"
(Cord)
3
13/8"(Cord)
For model : LDE Series
1
11/8"(Conduit)
11/8"
(Conduit)
11/8" (Conduit)
Remove the Conduit connection plate
Figure 5
For model : LRE Series
For model : LSE Series
Cord/Conduit
connection
plate
Cord/conduit
connection
plate
Strain relief
Conduit
For model : LDE Series
Cord/Conduit
connection
plate
Ring
Conduit
Conduit
Body
Cord Strain
relief
Cord Strain relief
Reinstall the Cord/Conduit connection plate
Figure 6
Cord Strain
relief
ENGLISH
The Cord/Conduit connection plate is used for the
installation of power cord or conduit. For power cord,
install it with the connection plate as INSTALLED. For
conduit, remove the connection plate and use the conduit
hole (1 1/8”) instead of power cord hole (1 3/8” ). (Refer to
Figure 5 and 6.)
9
10 ELECTRICAL CONNECTIONS
3-WIRE CONNECTION WITH
A POWER SUPPLY CORD
WARNING
•T
he middle (neutral or ground) wire, which
is white, of a 3 wire power cord or a 3 wire
conduit has to be connected to the middle
post of the main terminal block. The remaining
two wires of the power cord or conduit have to
be connected to the outside posts of the main
terminal connection block.
-Failure to do so can result in electrical shock,
severe personal injury or death.
Install the power cord as follows:
For power cord installations, Hook the strain relief over
the power cord hole (13/ 8”) located below the rear of
oven. Insert the power cord through the strain relief and
tighten it. (Refer to Figure 7.)
Power cord
Separate Strain Relief
before installation
Assemble the strain relief
to the 1 3/8” opening in
Conduit connection plate
Figure 7
3-wire connection
Black
DO NOT install the power cord without a strain relief.
1. R
emove the lower 3 screws from the terminal block
and retain them. (Refer to Figure 8.)
2. I nsert the 3 screws through each power cord terminal
ring and into the lower terminals of the terminal block.
Make sure that the center (neutral) wire, which is
white, is connected to the center lower position of the
terminal block.
3. Tighten 3 screws securely into the terminal block. Do
not remove the ground strap connections.
4. R
efer to page 13
Conduit
connection
plate
Cord strain relief
White
Red
Terminal
block
Conduit
connection plate
Figure 8
* I f screws are not tightened securely, it can result in
electrical spark and severe personal injury or death.
ELECTRICAL CONNECTIONS
WARNING
• O
nly a 4-conductor power-supply cord kit rated
120/240 volts, 50 amperes and marked for use
with ranges with closed-loop connectors or openend spade lugs with upturned ends shall be used.
The middle (neutral) wire, which is white, of the
power cord or 4-wire conduit has to be connected
to the middle post of the main terminal block.
The other two wires of the power cord or conduit
have to be connected to the outside posts of the
main terminal connection block. The 4th ground
wire (green) must be connected to the frame of
the range with the ground screw.
-Failure to do so can result in electrical shock,
severe personal injury or death.
Install the power cord as follows:
For power cord installations, Hook the strain relief over
the power cord hole (13/ 8”) located below the rear of
oven. Insert the power cord through the strain relief and
tighten it. (Refer to Figure 7.)
DO NOT install the power cord without a strain relief.
1. R
emove the lower 3 screws from the terminal block
and retain them. (Refer to Figure 9.)
2. R
emove ground strap and discard as show in in
Figure 9.
3. Insert the ground screw into the power cord ground wire
(green) terminal ring and secure it to the range frame.
4. Insert the 3 screws through each power cord terminal ring
and into the lower terminals of the terminal block. Make sure
that the center (neutral) wire, which is white, is connected to
the center lower position of the terminal block.
5. Tighten 3 screws securely into the terminal block.
3-WIRE CONNECTION: CONDUIT
Install the conduit as follows:
Remove the Conduit connection plate from the rear of
oven and rotate it as shown in Figure 5. The conduit hole
(11/8") must be used.
First, prepare the conduit wires as shown in Figure 10.
3 wire
4 wire
Conduit
connection
plate
Ground
wire
or
FIGURE 10
Second, install conduit as shown in Figure 6.
For conduit installations, after purchasing a strain relief,
insert it in the conduit hole (1 1/ 8”). Then install the
conduit through the body of strain relief and fasten the
strain relief with its ring. Reinstall the bracket.
For conduit connections :
If the wire in the conduit is copper it must be 8 or 10
AWG wiring.
If the wire in the conduit is aluminum it must be 6 or 8
AWG wiring.
1. Loosen the lower 3 screws from the terminal block.
Refer to Figure 11.)
2. Insert the bare wire (white/neutral) end through the
center terminal block opening. Do not remove ground
strap connections.
3. Insert the two side bare wire ends into the lower left
and the lower right terminal block opening. Tighten
the 3 screws securely into the terminal block.
(approximately 35 - 50 IN-LB)
4. Refer to page 13.
3-wire connection
4-wire connection
Black White Red
Black
Terminal
block
White
Red
Terminal
block
Ground
strap
Wire ends
Remove ground
strap and discard
Ground screw
Conduit
connection plate
Figure 9
Conduit
connection plate
Figure 11
* If screws are not tightened securely, it can result in electrical spark and severe personal injury or death.
ENGLISH
4-WIRE CONNECTION WITH
A POWER SUPPLY CORD
11
12
ELECTRICAL CONNECTIONS
4-WIRE CONNECTION: CONDUIT
WARNING
• T
he middle (neutral) wire, which is white, of the
power cord or 4-wire conduit has to be connected
to the middle post of the main terminal block.
The other two wires of the power cord or conduit
have to be connected to the outside posts of the
main terminal connection block. The 4th ground
wire (green) must be connected to the frame of
the range with the ground screw.
-Failure to do so can result in electrical shock,
severe personal injury or death.
1. Follow the instructions under “Install the conduit as
follows” on page 11 to correctly install the strain relief.
DO NOT install the conduit without a strain relief.
2. Loosen the 2 lower left and right screws from the
terminal block. (Refer to Figure 12.) Remove the lower
2 center screws.
3. Remove ground strap and discard as shown in Figure
12. Do not discard any screws.
4. Attach the ground bare wire (green) end to range
frame and secure it in place with the ground screw
(Refer to figure 12.)
5. Insert the bare wire (white/neutral) end through the
center terminal block opening.
6. Insert the two side bare wire ends into the left and the
right terminal block opening. Tighten the 3 screws
securely into the terminal block. (approximately
35 - 50 IN-LB)
7. Refer to page 13.
4-wire connection
Black White Red
Terminal
block
Ground
strap
Wire
ends
Remove
ground
strap and
discard
Conduit
connection plate
Ground
Screw
Ground
Wire
Figure 12
* I f screws are not tightened securely, it can result in
electrical spark and severe personal injury or death.
Replace the access cover on the back of the range. To
replace the wire cover, insert the two tabs into the
openings located below the opening and tighten the
three screws.
Access cover
INSTALL THE RANGE
WARNING
Tip - Over Hazard
A child or adult can tip the range and be
killed. Verify the anti-tip bracket have been
installed. Ensure the anti-tip bracket is
enganged when the range is moved.
Do not operate the range without the antitip bracket in place. Failure to follow these
instructions can result in death or serious
burns to children and adults.
To check visually that leveling leg is inserted
into bracket, grasp the top rear edge of the
range and carefully attempt to tilt it forward.
Anti-tip
bracket
Screw must
enter wood
or concrete
bracket
Leveling
leg
Wall plate
1. Locate the bracket using the template
Anti-tip bracket are packaged with the template. The
instructions include necessar y information to
complete the installation. Read and follow range
installation instruction sheet (template).
2. L
evel the range
Level the range by adjusting the leveling legs with a
wrench.
First check direction .
level
After check direction .
If the level doesn’t show
level on the rack, adjust
the leveling legs with a
wrench.
FINAL INSTALLATION
• M
ove range close enough to the opening to plug into
the receptacle.
• S lide range into position insuring that both back legs
slide under the anti-tip bracket. Range should sit flush
against the back wall when properly installed.
• C
arefully attempt to tip range forward to insure that
the anti-tip bracket is engaged properly. If properly
installed, the anti-bracket will prevent the range from
being tipped. If the range can be tipped, reinstall the
range until the bracket is properly installed and the
range will not tip forward.
• T urn on electrical power. Check the range for proper
operation as described in owner’s manual.
OPTIONAL REAR FILLER
If the counter does not bridge the opening at the rear
wall the rear filler kit, that is provided with the slide in
range, will be needed.
NOTE
If the countertop depth is greater than 25” there will
be a gap between the filler kit and the back wall.
Lower
range
Leg
leveler
Raise
range
Use a level to check your adjustments. Place the level
diagonally on the oven rack, and check each direction
for level.
If the countertop depth is less than 24”, the control panel
will not sit flush with the countertop.
(See figure 1 on page 6)
ENGLISH
ANTI-TIP DEVICE INSTALLATION
13
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
