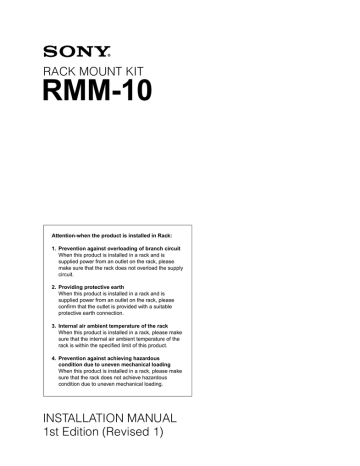

RMM-10 Installation Manual
RACK MOUNT KIT
RMM-10
Attention-when the product is installed in Rack:
1. Prevention against overloading of branch circuit
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
make sure that the rack does not overload the supply
circuit.
2. Providing protective earth
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
confirm that the outlet is provided with a suitable
protective earth connection.
3. Internal air ambient temperature of the rack
When this product is installed in a rack, please make
sure that the internal air ambient temperature of the
rack is within the specified limit of this product.
4. Prevention against achieving hazardous
condition due to uneven mechanical loading
When this product is installed in a rack, please make
sure that the rack does not achieve hazardous
condition due to uneven mechanical loading.
INSTALLATION MANUAL
1st Edition (Revised 1)
This manual is the installation manual of the rack mount kit RMM-10.
The RMM-10 is designed to mounted a unit (width : 440 mm) on a 19-inch standard rack.
n
This installation manual explains the standard procedure in mounting a unit into a rack using RMM-10.
But then, when mounting the unit into a rack, comply with the instructions in a manual for installing the
unit. (The specially mounting procedure and/or typical notes of the unit may be explained in the manual.)
c
. As for the RMM-10, the mass of a rack mountable unit is under 50 kg with safety.
If 50 kg or over, the unit may fall because of the breakage of the rack mount adaptor.
Components of RMM-10
. Rack brackets .................................................................2 pieces
. Rack mounting adaptor (right) ....................................... 1 piece
[Including two screws (B4 x 6: 7-682-560-09)]
. Rack mounting adaptor (left) .........................................1 piece
[Including two screws (B4 x 6: 7-682-560-09)]
. Rack bracket fixing screws (B4 x 6: 7-682-560-09) .....6 pieces
. Adaptor fixing screws (B4 x 10: 7-682-560-10) ...........6 pieces
Required other parts
To mount the unit on the rack, the following parts are required.
. Screws (RK5 x 16: 7-682-378-04) ................................ 4 pieces
. Ornamental washers (2-297-913-01) .............................4 pieces
. Rock angles (Handles) (When the unit has not it.) ........ 1 pair (left and right)
Notes on Rack Mounting
w
. Fix the rack on the horizontal and firm floor with bolts to prevent it from turning over or moving.
If the rack overturn due to the weight of the unit, this may cause a death or serious injury.
. After rack mounting, be sure to tighten the screws of the rack angle and fix the unit to the rack.
If not, the unit may slide and fall from the rack. This causes an injury.
c
Attention when the unit is installed in the rack:
. Mount the unit with two or more persons.
. Be careful not to put your hand in the rack mount adaptor.
. Install in a stable posture.
n
Install a ventiloting fan in the rack to prevent the increase in the temperature inside a rack when multiple
units are put in one rack.
RMM-10
1 (E)
Rack Mounting Procedure
,m
. Fasten the screws at the tightening torque below.
_2
Tightening torque: 120 x 10 N.m {12.2 kgf.cm}
. Attack the rack angles (handles) to the unit, before
mounting the unit to the rack.
3. Firmly lay the right and left adaptors in the rack with
the specified six screws.
(Following figure is case of left side.)
Front
31.75
1. Attach the rack brackets in the side panels of the unit
with the specified six screws.
n
Be sure to use B4 x 6 as a screw.
B4 x 10
Rear
1U
B 4 x 10
Rack bracket
31.75
B4 x 6
4. Fasten the length adjustment screws which are loosened in step 2.
5. Align the crook of the each rack bracket on the side
panels of the unit with the rail, then slide the unit
backward.
n
Each rack bracket covers the rails as shown in the
figure below.
B4 x 6
Rack bracket
2. Loosen the screws at the rear of the each adaptor,
before adjusting each adaptor length to the rack depth.
(Following figure is case of left side.)
Rack bracket
Rail
Rack bracket
Rail
6. Fix the unit to the rack with the specified screws and
ornamental washers.
Rail portion
B4 x 6
(Length adjustment
screws)
n
The maximum depth of an adaptor is 750 mm.
The minimum depth of an adaptor is 595 mm.
Ornamental washers
RK5 x 16
Ornamental washers
RK5 x 16
2 (E)
RMM-10
The material contained in this manual consists of
information that is the property of Sony Corporation.
Sony Corporation expressly prohibits the duplication of
any portion of this manual or the use thereof for any
purpose other than the operation or maintenance of the
equipment described in this manual without the express
written permission of Sony Corporation.
Le matériel contenu dans ce manuel consiste en
informations qui sont la propriété de Sony Corporation.
Sony Corporation interdit formellement la copie de
quelque partie que ce soit de ce manuel ou son emploi
pour tout autre but que des opérations ou entretiens de
l’équipement à moins d’une permission écrite de Sony
Corporation.
Das in dieser Anleitung enthaltene Material besteht aus
Informationen, die Eigentum der Sony Corporation sind.
Die Sony Corporation untersagt ausdrücklich die
Vervielfältigung jeglicher Teile dieser Anleitung oder den
Gebrauch derselben für irgendeinen anderen Zweck als
die Bedienung oder Wartung der in dieser Anleitung
beschriebenen
Ausrüstung
ohne
ausdrückliche
schriftliche Erlaubnis der Sony Corporation.
RMM-10 (WW) J, E
3-202-767-02 (2)
Sony Corporation
B&P Company
Printed in Japan
2001. 7 22
©1999
