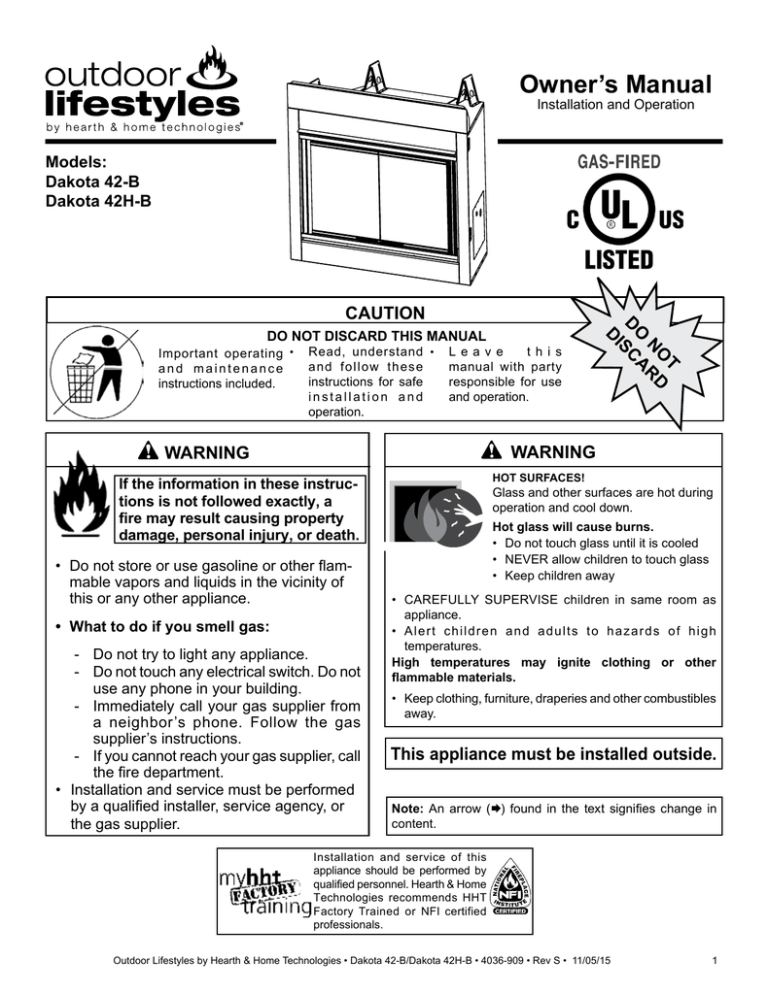

Owner’s Manual

Installation and Operation

Models:

Dakota 42-B

Dakota 42H-B

CAUTION

DO NOT DISCARD THIS MANUAL

• Important operating a n d m a i n t e n a n c e instructions included.

Read, understand and follow these instructions for safe i n s t a l l a t i o n a n d operation.

L e a v e t h i s manual with party responsible for use and operation.

DIS

DO

CA

N

RD

OT

WARNING

If the information in these instructions is not followed exactly, a fire may result causing property

damage, personal injury, or death.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

• What to do if you smell gas:

- Do not try to light any appliance.

- Do not touch any electrical switch. Do not use any phone in your building.

- Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

WARNING

HOT SURFACES!

Glass and other surfaces are hot during operation and cool down.

Hot glass will cause burns.

• Do not touch glass until it is cooled

• NEVER allow children to touch glass

• Keep children away

• CAREFULLY SUPERVISE children in same room as appliance.

• Alert children and adults to hazards of high temperatures.

High temperatures may ignite clothing or other flammable materials.

• Keep clothing, furniture, draperies and other combustibles away.

This appliance must be installed outside.

Note: An arrow () found in the text signifies change in content.

Installation and service of this appliance should be performed by qualified personnel. Hearth & Home

Technologies recommends HHT

Factory Trained or NFI certified professionals.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 1

Read this manual before installing or operating this appliance.

Please retain this owner’s manual for future reference.

Congratulations

Congratulations on selecting a Outdoor LifeStyles Collection gas appliance—an elegant and clean alternative to wood burning appliances. The Outdoor LifeStyles Collection gas appliance you have selected is designed to provide the utmost in safety, reliability, and efficiency.

As the owner of a new appliance, you’ll want to read and carefully follow all of the instructions contained in this owner’s manual. Pay special attention to all cautions and warnings.

This owner’s manual should be retained for future reference.

We suggest you keep it with your other important documents and product manuals.

The information contained in this owner’s manual, unless noted otherwise, applies to all models and gas control systems.

Your new Outdoor LifeStyle Collection gas appliance will give you years of durable use and trouble-free enjoyment.

Welcome to the Outdoor LifeStyle Collection family of appliance products!

Homeowner Reference Information

We recommend that you record the following pertinent information about your appliance:

Model Name:

Serial Number:

Dealership purchased from:

Notes:

Date purchased/installed:

Location on appliance:

Dealer phone:

Listing Label Information/Location

The model information regarding your specific appliance can be found on the rating plate usually located in the control area of the appliance.

Serial Number

Type of Gas

This appliance must be installed in accordance with local codes, if any; if not, follow ANSI Z223.1 in the USA installation codes.

VENTED GAS

FIREPLACE

8R54

Serial (Serie):

OD

Mfg. Date:

Outdoor Lifestyles by

Hearth & Home Technologies

7571 - 215th St. West., Lakeville, MN 55044

Vented gas fireplace - for outdoor installation only. Not for use with solid fuel. (Foyer au

gaz à évacuation - pour installation à l'extérieur seulement. Ne doit pas entre utilise avec un combustible solide.)

ANSI Z21.50-2003 - CSA 2.22-M2003

Minimum Permissible Gas Supply for Purposes of Input Adjustment.

Natural Gas Propane Gas

Approved Minimum (De Gaz) Acceptable . . 7.0 in. w.c. (Po. Col. d'eau) . . .11.0 in. w.c. (Po. Col. d'eau)

Maximum Pressure (Pression) . . . . . . . . . . 10.0 in. w.c. (Po. Col. d'eau) . .14.0 in. w.c. (Po. Col. d'eau)

Maximum Input BTUH: . . . . . . . . . . . . . . . . 60,000 . . . . . . . . . . . . . . . . . . .53,000

Orifice Size: . . . . . . . . . . . . . . . . . . . . . . . . #25DMS . . . . . . . . . . . . . . . . . .#44DMS

Model

(Modele):

MADE

IN USA

DAKOTA42-B

DAKOTA42L-B

This product is covered by one or more of the following patents: (Nos produits sont couverts par un ou plusieurs des brevels suivants): (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322; 4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254; 5,191,877;

5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia) 543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending (ou autres brevets americains et etrangers en attente).

4036-994A

Gas and Electric Information

Model Number

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 2

Table of Contents

1 Listing and Code Approvals

A. Appliance Certification . . . . . . . . . . . . . . . . . . . . . . . . . 4

B. Glass Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 4

C. BTU Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

D. High Altitude Installations . . . . . . . . . . . . . . . . . . . . . . 4

2 Getting Started

A. Design and Installation Considerations . . . . . . . . . . . . 5

Moisture Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

B. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . 6

C. Inspect Appliance and Components . . . . . . . . . . . . . . 6

3 Framing and Clearances

A. Select Appliance Location . . . . . . . . . . . . . . . . . . . . . . 7

B. Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

C. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4 Termination Locations

A. Vent Termination Minimum Clearances . . . . . . . . . . . . 9

5 Appliance Preparation

A. Remove Logs and Shipping Cover . . . . . . . . . . . . . . 10

B. Securing and Leveling Appliance . . . . . . . . . . . . . . . 10

6 Gas Information

A. Fuel Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

B. Gas Pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

C. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

D. High Altitude Installations . . . . . . . . . . . . . . . . . . . . . 12

E. Valve Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

7 Electrical Information

A. Intellifire Ignition System Wiring . . . . . . . . . . . . . . . . 14

8 Finishing

A. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

B. Facing Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

9 Appliance Setup

A. Clean the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . 17

B. Grate Assembly Placement . . . . . . . . . . . . . . . . . . . . 17

C. Positioning the Logs . . . . . . . . . . . . . . . . . . . . . . . . . 17

D. Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

E. Placing Lava Rock . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

F. Reinstall Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . 19

10 Operating Instructions

A. Before Lighting Appliance . . . . . . . . . . . . . . . . . . . . . 20

B. Lighting the Appliance . . . . . . . . . . . . . . . . . . . . . . . . 21

C. After the Appliance is Lit . . . . . . . . . . . . . . . . . . . . . . 22

D. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . 22

11 Troubleshooting

A. Intellifire Ignition System . . . . . . . . . . . . . . . . . . . . . . 23

12 Maintaining and Servicing the Appliance

A. Valve Service and Replacement . . . . . . . . . . . . . . . . 25

B. Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . 26

B. Maintenance and Service Tasks: . . . . . . . . . . . . . . . . 27

13 Reference Materials

A. Appliance Dimension Diagram . . . . . . . . . . . . . . . . . 28

B. Accessories................................................................28

C. Service Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

D. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

E. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 3

1

Listing and Code Approvals

A. Appliance Certification C. BTU Specifications

MODELS: Dakota 42-B, Dakota 42H-B

LABORATORY: Underwriters Laboratories, Inc. (UL)

TYPE: Vented Gas Appliance

STANDARD:

ANSI Z21.50-2003—CSA2.22-M2003

Models

Dakota 42-B (NG)

Dakota 42-B (LP)

Maximum

Input BTUH

60,000

53,000

Orifice Size

(DMS)

25

44

This product is listed to ANSI standards for “Vented Gas

Fireplaces” and applicable sections of “Gas Burning Heating

Appliances for Manufactured Homes and Recreational Vehicles”, and “Gas Fired Appliances for Use at High Altitudes”.

B. Glass Specifications

Hearth & Home Technologies appliances manufactured with tempered glass may be installed in hazardous locations such as bathtub enclosures as defined by the Consumer Product

Safety Commission (CPSC). The tempered glass has been tested and certified to the requirements of ANSI Z97.1 and

CPSC 16 CFR 1202 (Safety Glazing Certification Council

SGCC# 1595 and 1597. Architectural Testing, Inc. Reports

02-31919.01 and 02-31917.01).

This statement is in compliance with CPSC 16 CFR Section

1201.5 “Certification and labeling requirements” which refers to 15 U.S. Code (USC) 2063 stating “…Such certificate shall accompany the product or shall otherwise be furnished to any distributor or retailer to whom the product is delivered.”

Some local building codes require the use of tempered glass with permanent marking in such locations. Glass meeting this requirement is available from the factory. Please contact your dealer or distributor to order.

D. High Altitude Installations

U.L. Listed gas appliances are tested and approved without requiring changes for elevations from 0 to 2000 feet in the

U.S.A. and Canada.

When installing this appliance at an elevation above 2000 ft, it may be necessary to decrease the input rating by changing the existing burner orifice to a smaller size. Input rate should be reduced by 4% for each 1000 ft above a 2000 ft elevation in the U.S.A., or 10% for elevations between 2000 and 4500 ft in Canada. If the heating value of the gas has been reduced, these rules do not apply. To identify the proper orifice size, check with the local gas utility.

If installing this appliance at an elevation above 4500 ft (in

Canada), check with local authorities.

WARNING

Do NOT use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

Note: This installation must conform with local codes. In the absence of local codes you must comply with the

National

Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A. and the CAN/CGA B149 Installation Codes in Canada.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 4

2

Getting Started

A. Design and Installation Considerations

These appliances must be installed outdoors.

The Dakota 42-B Series outdoor gas fireplace is designed for outdoor use. It may also be installed in screened porches and lanais that meet these minimum requirements:

• Minimum porch area - 96 square feet

• Minimum ceiling height - 84 in.

A minimum of two walls can be screened but must be open to outside ventilation.

• Minimum screen area - 64 square feet

• Minimum screen top height - 80 in.

Refer to Section 3.B. for clearances.

CAUTION

Check building codes prior to installation.

• Installation MUST comply with local, regional, state and national codes and regulations.

• Consult insurance carrier, local building, fire officials or authorities having jurisdiction about restrictions, installation inspection, and permits.

When planning an appliance installation, it’s necessary to determine the following information before installing:

• Where the appliance is to be installed.

• Gas supply piping.

• Electrical wiring.

• Framing and finishing details

.

Moisture Resistance:

This outdoor fireplace will shed moderate amounts of water, but is not waterproof. Water and condensing water vapor may enter the chase under certain conditions.

The fireplace will not perform as an exterior wall. Moisture penetration must be considered for construction that places the fireplace in structure walls or on moisture sensitive surfaces.

When installed on exterior walls: Hearth & Home Technologies recommends that the fireplace chase be constructed outside the structure’s weather envelope. Where the platform meets the wall, use a flashing detail similar to that required for attached decks. Chase platforms, including hearths should slope away from the structure at 1/8 in. to

1/4 in. per foot. The fireplace can be shimmed level.

When installed on surfaces where water may collect or

cause damage: Hearth & Home Technologies recommends that a drainage pan be placed under the unit. This can be constructed of metal, adhesive polymer membrane (such as ice and water shield) or other suitable materials. A means of drainage out of the pan such as tubes or weep holes should be provided. A slope of 1/8 in. to 1/4 in. per foot towards the drain port is suggested. The fireplace can be shimmed level.

Hearths should slope away from the front of the fireplace and chase at 1/8 in. to 1/4 in. per foot. Spark strips must be on top of any combustible hearth materials used for moisture management.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 5

B. Tools and Supplies Needed

Before beginning the installation be sure that the following tools and building supplies are available.

Reciprocating saw

Pliers

Hammer

Framing material

Hi temp caulking material

Gloves

Phillips screwdriver Framing square

Flat blade screwdriver Electric drill and bits (1/4 in.)

Plumb line

Manometer

Safety glasses

Voltmeter

Tape measure Level

Non-corrosive leak check solution

1/2 - 3/4 inch length, #6 or #8 Self-drilling screws

2-”D” Cell Batteries

C. Inspect Appliance and Components

WARNING

Inspect appliance and components for damage. Damaged parts may impair safe operation.

• Do NOT install damaged components.

• Do NOT install incomplete components.

• Do NOT install substitute components.

Report damaged parts to dealer.

• Carefully remove the appliance and components from the packaging.

• The gas logs may be packaged separately and must be field installed.

• Report to your dealer any parts damaged in shipment, particularly the condition of the glass.

• Read all of the instructions before starting the installation. Follow these instructions carefully during the installation to ensure maximum safety and benefit.

WARNING

Hearth & Home Technologies disclaims any responsibility for, and the warranty will be voided by, the following actions:

• Installation and use of any damaged appliance or vent system component.

• Modification of the appliance or vent system.

• Installation other than as instructed by Hearth & Home

Technologies.

• Improper positioning of the gas logs or the glass door.

• Installation and/or use of any component part not approved by Hearth & Home Technologies.

Any such action may cause a fire hazard.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 6

3

Framing and Clearances

Note:

• Illustrations reflect typical installations and are FOR

DESIGN PURPOSES ONLY.

• Illustrations/diagrams are not drawn to scale.

• Actual installation may vary due to individual design preference.

A. Select Appliance Location

When selecting a location for your appliance it is important to consider the required clearances to walls (See Figure 3.1).

Note: For actual appliance dimensions refer to Section 13.

Note: If this surface is inside the building’s warm air envelope...

WARNING

Fire Risk

Provide adequate clearance:

• Around air openings.

• To combustibles.

• For service access.

Locate appliance away from traffic areas.

...then this surface must be an exterior wall system.

G

57-3/4 in.

(1467 mm)

G

F

A

B

F

E

F

C

D

C

D

81-3/4 in.

(2076 mm)

E

in.

mm

A B

24-3/4 24-1/8

629 613

C

48

1219

D

49

1245

E

5/8

16

F

1/2

13

G

1-1/2

38

Figure 3.1 Appliance Locations

WARNING

Fire Risk

Odor Risk

• Install appliance on hard metal or wood surfaces extending full width and depth of appliance.

• Do NOT install appliance directly on carpeting, vinyl, tile or any combustible material other than wood.

WARNING

Fire Risk

• Locate and install appliance to all clearance specifications in manual.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 7

B. Clearances

in.

mm

Framing Dimensions

A B C

24-1/8

613

43-7/8

1114

49

1245

D

43-7/8

1114

Upper front can be covered with non-combustible material or removed and replaced with non-combustible material.

36 in.

(914 mm)

A

B

C

D

Header height.

Use only noncombustible material below the top of the top standoffs.

0 in. to level of standoffs

1-1/2 in. (38 mm)

84 in.

(2134 mm) to ceiling

0 in.

Combustible flooring may be installed next to the front of the appliance.

1-1/2 in.

(38 mm)

1/2 in. (13 mm)

Drywall

0 in.

Figure 3.2 Framing Dimensions

C. Mantel Projections

WARNING

Fire Risk

• Comply with all minimum clearances to combustibles as specified.

• Framing or finishing material used on the front of, or in front of, the appliance closer than the minimums listed, must be constructed entirely of noncombustible materials

(i.e., steel studs, concrete board, etc.).

Failure to comply may cause fire.

If A is:

in.

6 - 36

mm 152 - 914

in. 36 or more

mm 914 or more

Then

B

must be at least:

26

660

18

457

12 in. (305 mm) max. combustible mantel depth

A

Roof or

Overhang

Fireplace Structure

Mantel

84 in.

(2134 mm) minimum height

Figure 3.3 Clearances to Mantels or Other Combustibles Above Appliance

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15

B

8

4

Termination Locations

A. Vent Termination Minimum Clearances

D

E

A

FP

L

B

FP

B

F

FP

FP

B

FP

FP = FIREPLACE OPENING

X

= AIR SUPP LY INLET

A

G

I

A = 0 in. . . . . . . . . . clearances above grade, veranda, porch, deck or balcony.

B = 12 in. . . . . . . . . . clearances to window or door that may be opened, or to permanently closed window.

36 in. . . . . . . . . . vinyl windows or siding.

D** = 47 in. . . . . . . . . . vertical clearance to unventilated soffit or to ventilated soffit located above the terminal.

60 in. . . . . . . . . . vinyl clad soffits.

F = 9 in. . . . . . . . . . clearance to outside corner.

G* = 6 in. . . . . . . . . . clearance to inside corner.

48 in. . . . . . . . . . vinyl windows or siding.

H = 3 ft. (Canada) . not to be installed above a gas meter/regulator assembly within

3 ft (914 mm) horizontally from the center line of the regulator.

= 3 ft. (USA)

6 ft. (Canada) . clearance to service regulator vent outlet and electric service.

* 48 in. minimum for vinyl windows or vinyl siding.

** Not allowed for vinyl clad soffits.

*** a fireplace shall not open directly above a sidewalk or paved driveway which is located between two single family dwellings and services both dwellings.

**** only permitted if veranda, porch, deck or balcony is fully open on a minimum of 2 sides beneath the floor, or if the screened porch guidelines are followed.

Note 1: Local codes or regulations may require different clearances.

Note 2: Termination in an alcove space (spaces open only on one side and with an overhang) are permitted with the dimensions specified for vinyl or non-vinyl siding and soffits. 1) There must be a 3 ft minimum between terminations or between the fireplace and termination. 2) All mechanical air intakes within 10 ft of a termination must be a minimum of 3 ft below the fireplace hood. 3) All gravity air intakes within 3 ft of the fireplace hood must be a minimum of 1 ft below the termination.

Figure 4.1 Minimum Clearances

H

R

O

P

FP

N

Q

(See Note 2)

I

M

FP X

J or K

= AREA WHERE FIREPLACE IS NOT PERMITTED

J = 9 in. (USA)

12 in. (Canada) . clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance.

K = 3 ft. (USA)

6 ft. (Canada) . clearance to a mechanical air supply inlet.

L*** = 54 in. . . . . . . . . . clearance above paved sidewalk

(See note 1) or a paved driveway located on

public property.

M**** = 47 in. . . . . . . . . . clearance under veranda, porch, deck, balcony or overhang.

Not allowed: . . . . . . vinyl

N = 6 in. . . . . . . . . . non-vinyl siding.

P = 84 in.

Dakota

Q

MIN

10 feet

R

MAX

2 x Q

1 additional termination cap Q + 3 feet 1 x Q

2 additional termination caps Q + 6 feet 2/3 x Q

3 additional termination caps Q + 9 feet 1/2 x Q

ACTUAL

R

MAX

= (2 / # caps plus fireplace ) x Q

ACTUAL

This fireplace is approved for installation onto screen porches with the following guidelines:

Minimum porch area: 96 sq ft

Minimum ceiling height: 84 in.

Minimum of two walls must be screened

Minimum top of screen height, side walls: 6 ft 8 in.

Minimum screen area: 64 sq ft

Note 2: There may be some odor and small amounts of soot associated with burning the Dakota on a screened porch. Ensuring good cross draft ventilation and routine maintenance of the fireplace will maximize comfort and cleanliness.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 9

5

Appliance Preparation

CAUTION

Sharp Edges

• Wear protective gloves and safety glasses during installation.

A. Remove Logs and Shipping Cover

Remove locking screw at the top of the doors (shown in Figure 5.1).

Open the doors by sliding the handles toward the outside edges of the doors. Remove the cartons of logs from their shipping location in the appliance.

Set the logs and door lock bracket screw aside for later reinstallation.

Locking Screw

B. Securing and Leveling Appliance

WARNING

Fire Risk

• Prevent contact with sagging, loose insulation.

• Do NOT install against vapor barriers or exposed insulation.

The diagram shows how to properly position, level, and secure the appliance (see Figure 5.2). Nailing tabs are provided to secure the appliance to the framing members.

• Place the appliance into position on either a combustible or non-combustible continuous flat surface.

Note: Remove the top standoffs before sliding appliance into position if using an FPS prefab enclosure.

• Level the appliance from side to side and front to back.

• Shim the appliance with non-combustible material, such as sheet metal, as necessary.

• Bend out nailing tabs on each side.

• Keep nailing tabs flush with the framing.

• Secure the appliance to the framing by using nails or screws through the nailing tabs.

Open Open

Upper front can be covered with non-combustible material or removed and replaced with non-combustible material.

Figure 5.1 Door Operation

NAILING TABS

Figure 5.2 Proper Positioning, Leveling and Securing of an

Appliance

CAUTION

Do NOT notch into the framing around the appliance spacers.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 10

6

Gas Information

A. Fuel Conversion

Before making gas connections ensure appliance being installed is compatible with the available gas type.

Any natural or propane gas conversions necessary to meet the appliance and locality needs must be made by a qualified technician using Hearth & Home Technologies specified and approved parts.

C. Gas Connection

Note: Have the gas supply line installed in accordance with local building codes, if any. If not, follow

ANSI

223.1. Installation should be done by a qualified installer approved and/or licensed as required by the locality. (In the Commonwealth of Massachusetts installation must be performed by a licensed plumber or gas fitter.)

B. Gas Pressure

Proper input pressures are required for optimum appliance performance. Gas line sizing requirements need to be made following

NFPA51.

Note: A listed (and Commonwealth of Massachusetts approved) 1/2 in. (13 mm) T-handle manual shut-off valve and flexible gas connector are connected to the 1/2 in.

(13 mm) control valve inlet.

• If substituting for these components, please consult local codes for compliance.

WARNING

Fire Risk

Explosion Risk

High pressure will damage valve.

• Disconnect gas supply piping BEFORE pressure testing gas line at test pressures above 1/2 psig.

• Close the manual shutoff valve BEFORE pressure testing gas line at test pressures equal to or less than 1/2 psig.

Optional: A 5 ft flexible gas line is available to those regions which do not require black pipe to be used. See Service

Parts List (Section 13).

Note: Gas line MUST be run from right side of appliance.

WARNING

Fire Risk

Explosion Risk

Verify inlet pressures.

• High pressure may cause overfire condition.

• Low pressure may cause explosion.

Install regulator upstream of valve if line pressure is greater than 1/2 psig.

• Remove the two factory-installed screws holding the outer shell valve cover to the right side of the appliance.

• Lift the cover off and set it and the two screws aside.

• Install the gas line.

• Replace the valve cover using the two screws removed and six more from the fastener pack.

WARNING

Gas Leak Risk

• Support control when attaching pipe to prevent bending gas line.

Pressure requirements for appliance are shown in table below.

Pressure Natural Gas Propane

Minimum Inlet Pressure 5.0 inches w.c. 11.0 inches w.c.

Maximum Inlet Pressure 7.0 inches w.c. 14.0 inches w.c.

Manifold Pressure 3.5 inches w.c. 10.5 inches w.c.

Note: The gap between supply piping and gas access hole may be plugged with non-combustible unfaced insulation to prevent cold air infiltration.

These pressures can be verified through the internal valve access panels as shown in Section E. Valve Access.

• Ensure that gas line does not come in contact with outer wrap of appliance. Follow local codes.

• Incoming gas line should be piped into the valve compartment and connected to the 1/2 in. connection on the manual shutoff valve.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 11

WARNING

Fire Risk

Explosion Risk

• Gas build-up during line purge may ignite.

• Purge should be performed by qualified technician.

• Ensure adequate ventilation.

• Ensure there are no ignition sources such as sparks or open flames.

• A small amount of air will be in the gas supply lines. When first lighting appliance it will take a short time for air to purge from lines. When purging is complete, the appliance will light and operate normally.

D. High Altitude Installations

U.L. listed gas appliances are tested and approved without requiring changes for elevations from 0 to 2000 ft in the USA and Canada.

When installing this appliance at an elevation above 2000 ft, it may be necessary to decrease the input rating by changing the existing burner orifice to a smaller size. Input rate should be reduced by 4% for each 1000 ft above a 2000 ft elevation in the U.S.A., or 10% for elevations between 2000 and 4500 ft in Canada. If the heating value of the gas has been reduced, these rules do not apply. To identify the proper orifice size, check with the local gas utility.

If installing this appliance at an elevation above 4500 ft (in

Canada), check with local authorities.

WARNING

CHECK FOR GAS LEAKS

Fire Risk

Explosion Risk

Asphyxiation Risk

• Check all fittings and connections.

• Do not use open flame.

• After the gas line installation is complete, all connections must be tightened and checked for leaks with a commercially available, non-corrosive leak check solution. Be sure to rinse off all leak check solution following testing.

Fittings and connections may have loosened during shipping and handling.

WARNING

Fire Risk

Explosion Risk

Do NOT change the valve settings.

• This valve has been preset at the factory.

• Changing valve settings may result in fire hazard or bodily injury.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 12

E. Valve Access After Installation

• The gas valve can be accessed after installation from behind the cement refractory panel on the right side of the fireplace.

• Lift doors out and set aside. There is a washer under each door. Be careful not to lose those washers.

• Remove the inside valve access panel by lifting it up and out.

Washer

Figure 6.4 Remove Valve Access Panel

Figure 6.1 Lift Out Doors

• Remove logs if access is necessary after installation is complete. See Section 9.C. Remove logs in reverse order of set up.

• Remove grate if access is necessary after installation is complete. (Refer to Section 9.B.)

• Remove two screws on side of pilot shield and remove shield.

• Use a phillips screwdriver to remove the exterior valve access panel (remove four screws).

Figure 6.5 Remove Exterior Valve Access Panel

Figure 6.2 Remove Pilot Shield

• Use a phillips screwdriver to remove the two screws securing the refractory retaining strip. Remove the refractory side panel and set aside.

• Use a manometer on the lower out pressure tap. Start up the fireplace to verify the pressure and adjust as necessary. Reverse these steps to reassemble before log positioning.

Figure 6.6 Connect Manometer

Figure 6.3 Loosen Refractory Retaining Strip

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 13

7

Electrical Information

A. Intellifire Ignition System Wiring

• This appliance is equipped with an Intellifire control valve which operates on a 3 volt system.

• This appliance is supplied with a battery pack which is located in the ON/OFF switch terminal box. A wiring diagram is shown in Figure 7.1.

• The battery pack requires two D cell batteries (not included). See Section 12.B. for battery replacement.

CAUTION

Battery polarity must be correct or module damage will occur.

WARNING

Shock Risk

• Replace damaged wire with type 105° C rated wire.

• Wire must have high temperature insulation.

CAUTION

Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

IGNITION MODULE

3 VAC

I

S

INTERMITTENT

PILOT

IGNITOR

ON/OFF

WALL

SWITCH

IGNITION

(3V)

FLAME SPARKER/

SENSOR

BATTERY

PACK

VALVE

LOW VOLTAGE

SEE NOTE 1

RED

WHT

ORG

GROUND TO

FIREPLACE

CHASSIS

PIGGYBACK

ON/OFF SWITCH

VALVE

Figure 7.1 Intellefire Pilot Ignition (IPI) Wiring Diagram

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 14

8

Finishing

A. Mantel Projections

Figure 8.1 shows the minimum vertical dimension of appliance mantels or other combustible projections above the top front edge of the appliance.

If

A is:

in.

6 - 36

mm 152 - 914

in. 36 or more

mm 914 or more

Then

B

must be at least:

26

660

18

457

Roof or

Overhang

12 in. (305 mm) max. combustible mantel depth

Fireplace Structure

Mantel

84 in.

(2134 mm) minimum height

B

A

Figure 8.1 Clearances to Mantels or other Combustibles above Appliance.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 15

B. Facing Material

WARNING

Fire Risk

Do NOT obstruct air inlet or outlet grilles.

Do NOT modify grilles.

• Modifying or covering grilles could cause temperature rise and fire hazard.

Finishing materials must not interfere with:

• Air flow through grilles or louvers.

• Operation of louvers or doors.

• Access for service.

Finish wall material may be combustible, top & sides.

Upper front can be covered with non-combustible material or removed and replaced with noncombustible material.

0 in.

0 in.

Sealant Material

Figure 8.2 Noncombustible Facing Diagram

0 in.

WARNING

Fire Risk

Finish all edges and fronts to clearances and specifications listed in manual.

• Metal appliance front may be covered with noncombustible material only.

• Do NOT overlap combustible materials onto appliance front.

• Install combustible materials up to specified clearances on top front and side edges.

• Seal joints between the finished wall and appliance top and sides using only a 300° F minimum sealant.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 16

9

Appliance Setup

A. Clean the Appliance

Clean/vacuum any sawdust that may have accumulated inside the firebox or underneath in the control cavity.

C. Positioning the Logs

• See Section 13.B. for log descriptions and illustrations.

• Place right rear log on the grate against the appliance right side wall.

WARNING

Shock Risk

Fire Risk

Use ONLY optional accessories approved for this appliance.

• Using non-listed accessories voids warranty.

• Using non-listed accessories may result in a safety hazard.

• Only Hearth & Home Technologies approved accessories may be used safely.

Figure 9.2 Right Rear Log (SRV720)

• Place the left rear log on the grate against the left wall and rest it on log.

B. Grate Assembly Placement

• Ensure grate assembly is over burner assembly, centered from left to right, and back legs are in grate brackets (see

Figure 9.1)

Back Legs in Grate Brackets

Figure 9.3 Left Rear Log (SRV728)

• Place the fork of log onto the left front bar and rest its back on right rear log.

Figure 9.1 Back Legs in Grate Brackets

Figure 9.4 Left Side Log (SRV723)

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 17

• Place front log in front of the main grate with its left end resting on left rear log as shown.

• Place right log against the rightmost front grate bar and rest its rear on right rear log, angled towards the corner as shown.

Figure 9.5 Front Log (SRV727)

Figure 9.8 Right Side Log (SRV740)

• Place front left log between locating bars so it rests against log left side log and on top of front log.

• Place right front corner log between the right hand side wall and right hand side grate bar as shown.

Figure 9.6 Front Left Log (SRV722)

• Place right center log between the 4th and 5th vertical bars on the log grate, resting the back on right rear log.

Figure 9.9 Right Front Corner Log (SRV742)

Figure 9.7 Front Right Log (SRV724)

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 18

D. Glass Assembly

WARNING

Handle glass with care.

• Inspect the glass for cracks, chips or scratches.

• Do NOT strike, slam or scratch glass.

• Do NOT operate appliance with glass door removed, cracked, broken or scratched.

• Replace glass door assembly as a complete assembly.

E. Placing Lava Rock

• After logs have been placed spread part of the lava rock (included) between the rock pan and ashlip (see

Figure 9.10).

Rock Pan

Ashlip

• The glass doors are included with and pre-installed in the appliance.

• To adjust doors, open them and loosen screws on top and bottom pivot pins. Slide each door as necessary and tighten screws.

• To adjust handle, loosen screws to move handles as necessary and tighten screws.

Glass Specifications

Dakota42-B: Tempered

Dakota42L-B: Tempered

Dakota42H-B: Tempered

Dakota42HL-B: Tempered

Figure 9.10 Placement of Lava Rocks

F. Reinstall Door Lock

When logs and lava rock have been installed, or if the glass assembly has been adjusted, reinstall the door lock by inserting the screw at the top of the door. Tighten screw. You may refer to Section 5.A. if needed.

Locking Screw

Open Open

Figure 9.11 Reinstall Door Lock

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 19

10

Operating Instructions

A. Before Lighting Appliance

Before operating this appliance, have a qualified technician:

• Remove all shipping materials from inside and/or underneath the firebox.

• Review proper placement of logs, rockwool, lava rock and vermiculite.

• Check the wiring.

• Check the air shutter adjustment.

Shutter should be closed for natural; mostly open for LP.

• Ensure that there are no gas leaks.

• Ensure that the flow of combustion and ventilation air is not obstructed (front grilles).

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier.

WARNING

Do NOT use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

WARNING

HOT SURFACES!

Glass and other surfaces are hot during operation and cool down.

Hot glass will cause burns.

• Do not touch glass until it is cooled

• NEVER allow children to touch glass

• Keep children away

• CAREFULLY SUPERVISE children in same room as appliance.

• Alert children and adults to hazards of high temperatures.

High temperatures may ignite clothing or other flammable materials.

• Keep clothing, furniture, draperies and other combustibles away.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 20

B. Lighting the Appliance

Intellifire Ignition

WARNING:

If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance is equipped with an intermittent pilot ignition (IPI) device which automatically lights the burner. Do not try to light the burner by hand.

B. BEFORE LIGHTING, smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL

GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

WARNING:

DO NOT CONNECT 110 VAC

TO THE CONTROL VALVE.

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance.

This appliance needs fresh air for safe operation and must be installed so there are provisions for adequate combustion and ventilation air.

If not installed, operated, and maintained in accordance with the manufacturer’s instructions, this product could expose you to substances in fuel or fuel combustion which are known to the State of California to cause cancer, birth defects, or other reproductive harm.

Keep burner and control compartment clean. See installation and operating instructions accompanying appliance.

CAUTION:

Hot while in operation. Do not touch.

Keep children, clothing, furniture, gasoline and other liquids having flammable vapors away.

Do not operate the appliance with panel(s) removed, cracked or broken. Replacement of the panel(s) should be done by a licensed or qualified service person.

For use with natural gas and propane. A conversion kit, as supplied by the manufacturer, shall be used to convert this appliance to the alternate fuel.

1. Turn off wall switch.

2. This appliance is equipped with an ignition device which automatically lights the burner. Do not try to light the burner by hand.

GAS

VALVE

3. Wait five (5) minutes to clear out any gas.

Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the Safety Information located on the left side of this label. If you don’t smell gas, go to next step.

4. Turn on wall switch.

5. To light the burner, flip the ON/OFF switch to the “ON” position. (The ON/OFF switch may include a wall switch if so equipped).

6. If the appliance will not operate, check battery then follow the instructions “To

Turn Off Gas to Appliance” and call your service technician or gas supplier.

TO TURN OFF

GAS TO APPLIANCE

1. Turn off all electric power to the appliance if service is to be performed.

2. Flip ON/OFF switch to the “OFF” position.

Final Inspection by _________________________________

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 21

C. After the Appliance is Lit

Initial Break-in Procedure

When you light the appliance, you may notice that it produces heat which does have an associated odor or smell. If you feel this odor is excessive it may require the initial three to four hour continuous burn on high followed by a second burn up to 12 hours to fully drive off any odor from paint and lubricants used in the manufacturing process. Condensation of the glass is normal

CAUTION

• Prevent accidental appliance operation when not attended.

• Unplug or remove batteries from remote switch if absent or if appliance will not be used for an extended period of time.

• Property damage possible from elevated temperatures.

Note: This appliance should be run three to four hours on the initial start-up. Turn it off and let it cool completely.

Remove and clean the glass. Replace the glass and run the appliance for an additional 12 hours. This will help cure the products used in the paint and logs.

CAUTION

Smoke and odors are released during initial operation.

Smoke and odors may be irritating to sensitive individuals.

WARNING

Fire Risk

High Temperatures

Keep combustible household items away from appliance.

Do NOT obstruct combustion and ventilation air.

• Do NOT place combustible items on top of or in front of appliance.

• Keep furniture, draperies away from appliance.

WARNING

Fire Risk

Keep combustible materials, gasoline and other flammable vapors and liquids clear of appliance.

• Do NOT store flammable materials in the vicinity of the appliance.

• Do NOT use gasoline, lantern fuel, kerosene, charcoal lighter fluid or similar liquids in this appliance.

Combustible materials may ignite.

D. Frequently Asked Questions

Issue

Condensation on the glass

Blue flames

Odor from appliance

Film on the glass

Metallic noise

Is it normal to see the pilot flame burn continually?

Solutions

This is a result of gas combustion and temperature variations. As the appliance warms, this condensation will disappear.

This is a result of normal operation and the flames will begin to yellow as the appliance is allowed to burn for 20 to

40 minutes.

When first operated, this appliance may release an odor for the first several hours. This is caused by the curing of the paint and the burning off of any oils remaining from manufacturing.

This is a normal result of the curing process of the paint and logs. Glass should be cleaned within 3 to 4 hours of initial burning to remove deposits left by oils from the manufacturing process. A non-abrasive cleaner such as gas fireplace glass cleaner may be necessary. See your dealer.

Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the sound produced by a furnace or heating duct. This noise does not affect the operation or longevity of the fireplace.

In an Intellifire ignition system it is normal to see the pilot flame, but it should turn off when ON/OFF is turned off.

In a standing pilot system the pilot will always stay on.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 22

11

Troubleshooting

With proper installation, operation and maintenance your gas appliance will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist a qualified service person in the diagnosis of a problem and the corrective action to be taken. This troubleshooting guide can only be used by a qualified service technician.

A. Intellifire Ignition System

Symptom

1.

The ignitor/module makes noise, but no spark.

Possible Causes

A.

Incorrect wiring.

2.

Pilots won’t light, there is no noise or spark.

B.

Loose connections or electrical shorts in the wiring.

C.

Ignitor gap is too large.

D.

Faulty module.

A.

Dead Batteries

B.

A shorted or loose connection in wiring configuration or wiring harness.

C.

Improper wall switch wiring.

D.

Module not grounded.

Corrective Actions

Verify “S” wire (white) for sensor and “I” wire (orange) for ignitor are connected to the correct terminals on the module and the pilot assembly. Reversed wires at the module may cause the system to make a sparking noise, but the spark may not be present at pilot hood.

Verify there are no loose connections or electrical shorts in wiring from module to pilot assembly. The rod closest to the pilot hood should be ignitor. Verify connections underneath pilot assembly are tight; also verify the connections are not grounding out to the metal chassis, pilot burner, pilot enclosure, mesh screen if present, or any other metal object.

Verify gap of ignitor to pilot hood. The gap should be approximately .17 in. or 1/8 in.

Turn ON/OFF rocker switch or wall switch to OFF position. Remove ignitor wire “I” from module. Place ON/OFF rocker switch or wall switch in ON position. Hold ground wire about 3/16 in. away from “I” terminal on module. If there is no spark at “I” terminal, module must be replaced. If there is a spark at “I” terminal, module is fine. Inspect pilot assembly for shorted sparker wire or cracked insulator around electrode.

Check or replace D cell batteries.

Remove and reinstall the wiring harness that plugs into module. Verify there is a tight fit. Verify pilot assembly wiring to module. Remove and verify continuity of each wire in wiring harness.

Verify wall switch is wired correctly.

3.

Pilot lights but continues to spark, and main burner will not ignite. (If the pilot continues to spark after the pilot flame has been lit, flame rectification has not occurred.)

4.

Pilot sparks, but pilot will not light.

E.

Faulty module.

A.

A shorted or loose connection in sensor rod.

B.

Poor flame rectification or contaminated sensor rod.

C.

Module is not grounded.

D.

Damaged pilot assembly or dirty sensor rod.

E.

Faulty module.

A.

Correct gas supply.

B.

Ignitor gap is too large.

C.

Module is not grounded.

D.

Module voltage output/ valve/pilot solenoid ohms readings.

Verify black ground wire from module wire harness is grounded to metal chassis of appliance.

Turn ON/OFF rocker switch or wall switch to OFF position. Remove ignitor wire “I” from module. Place ON/OFF rocker switch or wall switch in ON position. Hold ground wire about 3/16 in. away from “I” terminal on module. If there is no spark at “I” terminal module must be replaced. If there is a spark at “I” terminal, module is fine. Inspect pilot assembly for shorted sparker wire or cracked insulator around electrode.

Verify all connections to wiring diagram in manual. Verify connections underneath pilot assembly are tight. Verify connections are not grounding out to metal chassis, pilot burner, pilot enclosure or screen if present, or any other metal object.

Verify flame is engulfing sensor rod. If the pilot assembly does not have a ground strap, consider installing one to increase flame rectification. Verify correct pilot orifice is installed and inlet gas specifications are met. Flame carries rectification current, not the gas. If flame lifts from pilot hood, the circuit is broken. A wrong orifice or too high an inlet pressure can cause pilot flame to lift. The sensor rod may be contaminated.

Clean sensor rod with emery cloth.

Verify that module is securely grounded to metal chassis of appliance. Verify that the wire harness is firmly connected to module.

Verify that ceramic insulator around the sensor rod is not cracked, damaged, or loose.

Verify connection from sensor rod to white sensor wire. Clean sensor rod with emery cloth to remove any contaminants that may have accumulated on sensor rod. Verify continuity with a multimeter with ohms set at lowest range.

Turn ON/OFF rocker switch or wall switch to OFF position. Remove ignitor wire “I” from module. Place ON/OFF rocker switch or wall switch in ON position. Hold ground wire about 3/16 in. away from “I” terminal on module. If there is no spark at “I” terminal, module must be replaced. If there is a spark at “I” terminal, module is fine.

Inspect pilot assembly for shorted sparker wire or cracked insulator around electrode.

Verify that incoming gas line ball valve is “open”. Verify that inlet pressure reading is within acceptable limits, inlet pressure must not exceed 14 in. w.c.

Verify that spark gap from ignitor to pilot hood is .17 in. or 1/8 in.

Verify module is securely grounded to metal chassis of appliance.

Replace module.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 23

12

Maintaining and Servicing the Appliance

Although the frequency of appliance servicing and maintenance will depend on use and the type of installation, a qualified service technician should perform an appliance check-up at the beginning of each heating season.

WARNING

Risk of injury or property damage

Before servicing:

• Turn off gas.

• Turn off electricity to appliance.

• Disable remote control, if one is present.

• Ensure appliance is completely cooled.

After Servicing:

• Replace any screen or barrier that was removed.

• Reseal and reinstall any venting removed for servicing.

CAUTION

Handle glass assembly with care.

Note: Clean glass after initial 3-4 hours operation.

Longer operation without cleaning glass may cause a permanent white film on glass.

When cleaning glass door:

• Avoid striking, scratching or slamming doors.

• Do NOT use abrasive cleaners.

• Use a hard water deposit glass cleaner on white film.

• Do NOT clean glass when it is hot.

• Turn off appliance after 3-4 hours of operation and ALLOW TO COOL.

• Remove and clean glass assembly.

• Replace glass assembly and operate appliance for an additional 12 hours.

Refer to maintenance instructions.

WARNING

Annual inspection by qualified technician recommended.

Check:

• Condition of doors, surrounds and fronts.

• Condition of glass, glass assembly and glass seal.

• Obstructions of combustion and ventilation air.

• Condition of logs.

• Condition of firebox.

• Burner ignition and operation.

• Burner air shutter adjustment.

• Gas connections and fittings.

• Obstructions of termination cap.

Clean:

• Glass.

• Air passageways, grilles, control compartment.

• Burner, burner ports.

Risk of:

Fire

• Delayed ignition or explosion

• Exposure to combustion fumes

• Odors

WARNING

Fire Risk

Explosion Risk

Inspect external vent cap regularly.

• Ensure no debris blocks cap.

• Combustible materials blocking cap may ignite.

• Restricted air flow affects burner operation.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 24

A. Valve Service and Replacement

Tools Required

Phillips sc rewdriver

7/16 in., 5

/8 in., 13/16 in., 15/16 in. wrenches

• Remove the inside valve access panel by lifting it up and out.

Figure 12.1 Tools Required

• The valve can be accessed through the valve access panel on the right side of the fireplace.

• Lift doors out and set aside.

• Remove grate and pilot shield (see Figure 6.2).

Figure 12.4 Remove Valve Access Panel

• Using a phillips screwdriver remove the exterior valve access panel.

Figure 12.2 Lift Out Doors

• Use a phillips screwdriver to remove the right refractory by removing the two screws securing the refractory retaining strip. Remove the refractory side panel and set aside.

Figure 12.5 Remove Exterior Valve Access Panel

• Turn the gas ball valve off and disconnect the gas line after the ball valve by loosening the flare nut using a 13/16 in. and a 15/16 in. wrench.

Figure 12.6 Turn off Gas Valve

Figure 12.3 Loosen Refractory Retaining Strip

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 25

• Using two 3/4 in. wrenches, disconnect the burner supply tube.

B. Battery Replacement

• Remove switch cover plate from the wall.

Figure 12.7 Disconnect Burner Supply Tube

Figure 12.9 Switch Cover Plate

• Remove the two screws securing the valve to the valve bracket.

• Replace two D-cell battieres.

Ground

Wire

Figure 12.8 Remove Valve from Valve Bracket

Figure 12.10 Batteries

• Disconnect the pilot and orifice tubes using a 7/16 in. and a 5/8 in. wrench.

• Reverse these steps to replace the gas valve and covers.

Make sure the ground wire is reattached as shown in

Figure 12.8.

• Replace switch cover plate.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 26

B. Maintenance and Service Tasks:

Inspect Maintenance Tasks

Doors, surrounds and fronts 1 Inspect for scratches and nicks that can lead to breakage when exposed to heat.

2 Verify no obstructions to airflow through the louvers.

3 Verify proper clearance to combustible household objects is maintained.

Glass assembly and glass 1 Inspect glass panels for scratches and nicks that can lead to breakage when exposed to heat.

Valve compartment and firebox top

Logs

Firebox

Burner ignition and operation

Batteries

2 Confirm there is no damage to glass or glass frame. Replace as necessary.

3 Verify that latches engage properly, clip studs are not stripped, and glass attachment components are intact and operating properly. Replace as necessary.

4 Clean glass using a nonabrasive cleaner such as Brasso®. Replace glass assembly if severely coated with silicate deposits that cannot be removed.

1 Vacuum and wipe out dust, cobwebs, debris or pet hair. Use caution when cleaning these areas.

Screw tips that have penetrated the sheet metal are sharp and should be avoided.

2 Remove any foreign objects.

3 Verify unobstructed air circulation.

1 Inspect for broken, damaged or missing logs. Replace as necessary.

2 Verify correct log placement and no flame impingement causing sooting. Correct as necessary.

1 Inspect for paint condition, warpage, corrosion or perforation. Sand and repaint as necessary.

2 Replace appliance is firebox has been perforated.

1 Verify burner is properly secured and aligned with pilot or igniter.

2 Clean off burner top, inspect for plugged ports, corrosion or deterioration. Replace burner if necessary.

3 Replace rockwool with new dime-sized and shaped pieces. Do not block ports or obstruct lighting paths.

4 Check for smooth lighting and ignition carryover to all ports. Verify there is no ignition delay.

5 Inspect for lifting or other flame problems.

6 Verify air shutter is clear of dust and debris.

7 Inspect orifice for soot, dirt or corrosion.

8 Verify manifold and inlet pressures. Adjust regulator as required.

9 Inspect pilot flame strength. Clean or replace orifice as necessary.

10 Inspect thermocouple/thermopile or IPI sensor rod for soot, corrosion and deterioration. Clean with emery cloth or replace as required.

11 Verify millivolt output. Replace as necessary.

1 Verify operation of batteries.

2 Replace batteries if needed.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 27

13

Reference Materials

A. Appliance Dimension Diagram

Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 3.

31 in.

(787 mm)

23-1/4 in.

(591 mm)

7/8 in.

(22 mm)

42 in.

(1067 mm)

48 in.

(1219 mm)

1 in.

(25 mm)

43-1/2 in.

(1105 mm)

37-1/8 in.

(943 mm)

23-1/8 in.

(587 mm)

6-3/4 in.

(171 mm)

15-5/8 in.

(397 mm)

External Valve Cover

12-5/8 in.

(321 mm)

Figure 13.1 Appliance Dimensions

B. Accessories

1. ELEC-DAKOTA - Provides 110V power to unit instead of batteries.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 28

C. Service Parts List

Stocked at Depot

Stocked at Depot

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 29

C. Service Parts List (continued)

Stocked at Depot

Post Serial #OD9287 (Kit is retro-fittable.)

Box 3 4036-713

Box 2 4036-712

Box 1 4036-71

Stocked at Depot

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 30

This page intentionally left blank.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 31

D. Warranty

Outdoor Lifestyles by Hearth & Home Technologies™

Warranty

Hearth & Home Technologies (“HHT”) extends the following warranty for all Outdoor Lifestyles by HHT™ brand products (“Products”) that are purchased from an HHT authorized dealer.

WARRANTY COVERAGE:

HHT warrants to the original owner of the Product at the site of installation, and to any transferee taking ownership of the Product at the site of installation within one year following the date of original purchase, that the Product will be free from defects in materials and workmanship at the time of manufacture. After installation, if covered components manufactured by HHT are found to be defective in materials or workmanship during the applicable warranty period, HHT will, at its option, repair or replace the covered components. This warranty is subject to conditions, exclusions and limitations as described below.

WARRANTY PERIOD:

The warranty period runs for one year, beginning on the earlier of: (i) the date of invoice for the Product;

(ii) in the case of new home construction, the date of first occupancy of the residence or six months after the date of sale of the Product by an HHT authorized dealer, whichever occurs first; or (iii) the date 24 months following the date of Product shipment from HHT, regardless of the invoice or occupancy date.

WARRANTY CONDITIONS:

• This warranty only covers Products that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites.

• This warranty is only valid while the Product remains at the site of original installation.

• Contact your installing dealer for warranty service. If the installing dealer is unable to provide necessary parts, contact the nearest HHT authorized dealer or supplier. Additional service fees may apply if you are seeking warranty service from a dealer other than the dealer from whom you originally purchased the Product.

• Check with your dealer in advance for any costs to you when arranging a warranty call. Travel and shipping charges for parts are not covered by this warranty.

WARRANTY EXCLUSIONS:

This warranty does not cover the following:

• Changes in surface finishes as a result of normal use. As a heating appliance, some changes in color of interior and exterior surface finishes may occur; this is not a flaw and not covered under warranty.

• Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse, scratches, melted items, or other external sources and residues left on surfaces from the use of abrasive cleaners or polishes.

• Repair or replacement of parts that are subject to normal wear and tear during the warranty period. These parts include: paint, firebricks, grates, flame guides and the discoloration of glass.

• Minor expansion, contraction, or movement of certain parts causing noise. These conditions are normal and complaints related to this noise are not covered by this warranty.

Outdoor Lifestyles Warranty - 2108-975B - 2/15/13 - page 1

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 32

D. Warranty (continued)

• Damages resulting from: (1) failure to install, operate, or maintain the Product in accordance with the installation instructions, operating instructions, and listing agent identification label furnished with the Product; (2) failure to install the Product in accordance with local building codes; (3) shipping or improper handling; (4) improper operation, abuse, misuse, continued operation with damaged, corroded or failed components, accident, or incorrectly performed repairs; (5) inadequate ventilation, negative pressure or environmental conditions, including, without limitation: hail, snow, ice, fallen branches, flooding, water damage and fading of color; (6) use of fuels other than those specified in the operating instructions; (7) installation or use of components not supplied with the Product or any other components not expressly authorized and approved by

HHT; (8) modification of the Product not expressly authorized and approved by HHT in writing; and/or (9) interruptions or fluctuations of electrical power supply to the Product.

• Non-HHT venting components, hearth components or other accessories used in conjunction with the Product.

• Any part of a pre-existing fireplace system in which an insert or a decorative gas appliance is installed.

• The Product’s capability to heat the desired space. Information is provided to assist the consumer and the dealer in selecting the proper appliance for the application. Consideration must be given to the Product’s location and configuration and environmental conditions.

This warranty is void if:

• The Product has been over-fired or operated in atmospheres contaminated by chlorine, fluorine, or other damaging chemicals. Over-firing can be identified by, but not limited to, warped plates or tubes, rust colored cast iron, bubbling, cracking and discoloration of steel or enamel finishes and cracking or spalling of refractory or cementitious materials.

• The Product is subjected to prolonged periods of dampness, condensation, ice or snow.

• There is any damage to the Product or other components due to water or weather damage which is the result of, but not limited to, improper chimney or venting installation.

LIMITATIONS OF LIABILITY:

Repair or replacement in accordance with the provisions of this warranty will be the owner’s exclusive remedy for and will constitute HHT’s sole obligation under this warranty, under any other warranty

(express or implied), or in contract, tort or otherwise; provided, however, that if HHT is unable to provide repair or replacement in an expedient and cost effective manner, HHT may discharge all such obligations by refunding the purchase price of the Product. No employee, agent, dealer, or other person is authorized to give any warranty on behalf of HHT. TO THE EXTENT ALLOWED BY LAW, HHT MAKES NO OTHER

WARRANTY, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE. HHT WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL

OR INCIDENTAL DAMAGES ARISING OUT OF DEFECTS IN OR USE OF THE PRODUCTS. Some states do not allow exclusions or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific rights; you also may have other rights, which vary from state to state. The duration of any implied warranty is limited to the duration of the warranty period specified herein.

Outdoor Lifestyles Warranty - 2108-975B - 2/15/13 - page 2

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 33

E. Contact Information

Please contact your Outdoor Lifestyles dealer with any questions or concerns.

For the number of your nearest Outdoor Lifestyles dealer, please visit www.hearthnhome.com.

- NOTES -

CAUTION

DO NOT DISCARD THIS MANUAL

• Important operating a n d m a i n t e n a n c e instructions included.

Read, understand and follow these instructions for safe i n s t a l l a t i o n a n d operation.

L e a v e t h i s manual with party responsible for use and operation.

DIS

DO

CA

N

RD

OT

This product may be covered by one or more of the following patents: (United States) 5601073, 5613487, 5647340, 5890485,

5941237, 6006743, 6019099, 6053165, 6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7098269,

7258116, 7470729, 8147240 or other U.S. and foreign patents pending.

Outdoor Lifestyles by Hearth & Home Technologies • Dakota 42-B/Dakota 42H-B • 4036-909 • Rev S • 11/05/15 34

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
