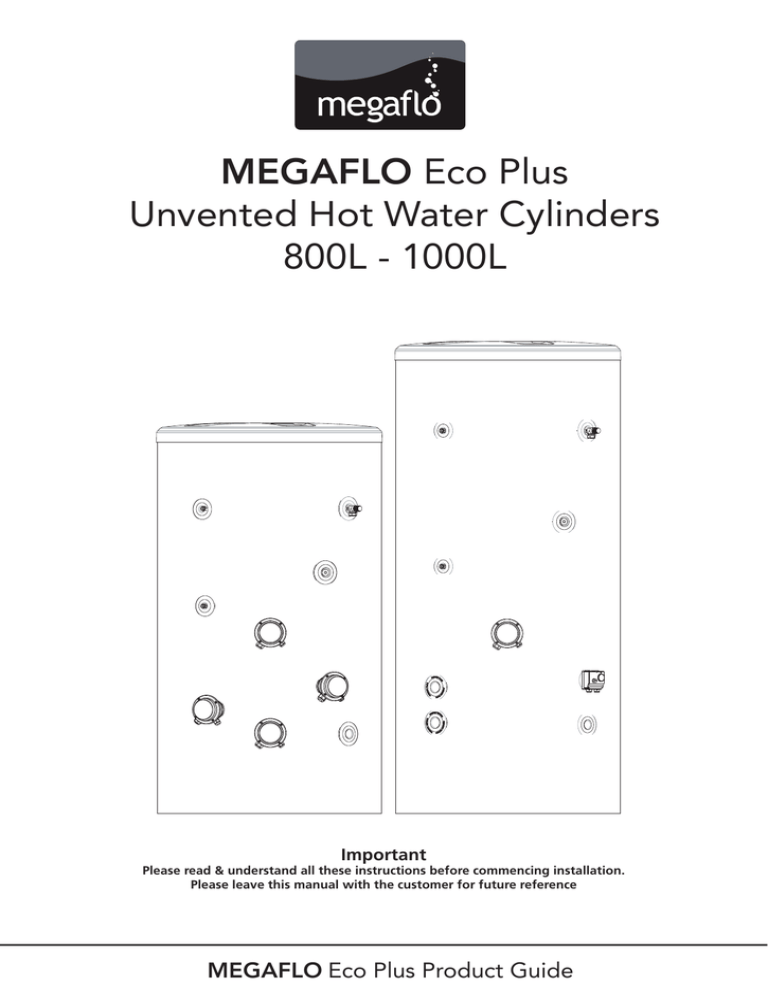

Installation manual

MEGAFLO Eco Plus

Unvented Hot Water Cylinders

800L - 1000L

Important

Please read & understand all these instructions before commencing installation.

Please leave this manual with the customer for future reference

MEGAFLO Eco Plus Product Guide

2

Contents

1. Introduction ................................................................................................ 3

1.1 General .................................................................................................... 3

1.2 Symbols used .......................................................................................... 3

1.3 Abbreviations ........................................................................................... 3

1.4 Liabilities .................................................................................................. 3

2. Safety ........................................................................................................... 4

2.1 General safety warnings .......................................................................... 4

2.2 Recommendations .................................................................................. 4

2.3 Specific safety instructions ...................................................................... 4

3. Technical specifications ............................................................................ 5

3.1 Technical data ......................................................................................... 5

3.2 Dimensions and connections .................................................................. 8

3.3 Electrical diagram(s) ................................................................................ 9

4. Description of the product ...................................................................... 13

4.1 General description ............................................................................... 13

4.2 Operation principle ................................................................................ 13

4.3 Main components .................................................................................. 13

4.4 Standard delivery .................................................................................. 13

5. Before installation .................................................................................... 15

5.1 Installation regulations ........................................................................... 15

5.2 Installation requirements ....................................................................... 15

5.3 Choice of location .................................................................................. 15

5.4 Transport ............................................................................................... 16

6. Installation ................................................................................................ 17

6.1 General .................................................................................................. 17

6.2 Water connections ................................................................................. 17

6.3 Electrical connections ............................................................................ 23

6.4 Filling the installation ............................................................................. 23

7. Commissioning ........................................................................................ 24

7.1 General .................................................................................................. 24

7.2 Checklist before commissioning ............................................................ 24

7.3 Commissioning procedure ..................................................................... 24

8. Operation .................................................................................................. 25

8.1 General .................................................................................................. 25

9. Maintenance .............................................................................................. 26

9.1 General .................................................................................................. 26

9.2 Standard inspection & maintenance operations .................................... 26

10. Troubleshooting ..................................................................................... 28

10.1 Fault finding ......................................................................................... 28

11. Decommissioning ................................................................................... 29

11.1 Decommissioning procedure ............................................................... 29

12. Spare parts .............................................................................................. 30

12.1 Spare parts list..................................................................................... 30

Benchmark checklist ................................................................................... 32

Commissioning & service records ............................................................. 33

Guarantee ...................................................................................................... 34

Unvented Hot Water Cylinder

1. Introduction

1.1 General

The following instructions are offered as a guide to the user and installer.

The installation must be carried out by a competent plumbing and electrical installer in accordance with

Building Regulation G3 (England and Wales), Technical

Standard P3 (Scotland) or Building Regulation P5

(Northern Ireland) and the Water Fitting Regulations

(England and Wales) or Water Byelaws (Scotland).

1.2 Symbols used

In these instructions, various risk levels are employed to draw the user’s attention to particular information. In doing so we wish to safeguard the user, avoid hazards and guarantee the correct operation of the appliance.

DANGER

Risk of a dangerous situation causing serious physical injury.

WARNING

Risk of dangerous situation causing slight physical injury.

CAUTION

Risk of material damage.

In the interest of UK customers, we are continuously endeavouring to make improvements in product quality. All the specifications stated in this document are therefore subject to change without notice.

Our liability as the manufacturer may not be invoked in the following cases:

`

Failure to abide by the instructions on using the appliance.

`

Faulty or insufficient maintenance of the appliance.

`

Failure to abide by the instructions on installing the product.

Installer's liability

The installer is responsible for the installation and the commissioning of the appliance. The installer must respect the following instructions:

`

Read and follow the instructions given in the manuals provided with the appliance.

`

Carry out installation in compliance with the prevailing legislation and standards.

`

Perform the initial start up and carry out any checks necessary.

`

Complete the commissioning checklist.

`

Explain the installation to the user.

`

If maintenance is necessary, warn the user of the obligation to check the appliance and maintain it in good working order.

`

Give all the instruction manuals to the user.

Users liability

To guarantee optimum operation of the appliance, the user must respect the following instructions:

Signals important information.

1.3 Abbreviations

`

T&P - Temperature & Pressure relief valve

`

PRV - Pressure Reducing Valve

`

Prv - Pressure relief valve

`

Read and follow the instructions given in the manuals provided with the appliance.

`

Call on qualified professionals to carry out installation and initial start up.

`

Get your fitter to explain your installation to you.

`

Have your required checks and services done.

`

Keep the instruction manuals in good condition and close to the appliance.

1.4 Liabilities

Manufacturers liability

Our products are manufactured in compliance with the requirements of the various applicable European

Directives.

This appliance complies with the requirements of the

CE marking directive.

This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children must be supervised to ensure they do not play with the appliance.

Unvented Hot Water Cylinder

3

2. Safety

2.1 General safety warnings

DANGER

This cylinder is unvented and as such becomes pressurised when in operation. The combination of pressurisation and hot water could lead to serious physical injury if the safety instructions in this manual are not adhered to.

WARNING

`

Only competent persons having received adequate training are permitted to work on the appliance and the installation.

`

Do not tamper with any of the safety valves or controls supplied with the cylinder.

`

Before any work, switch off the mains supply to the appliance.

`

Do not switch on if there is a possibility that the water in the cylinder is frozen.

2.3 Specific safety instructions

WARNING

`

If water discharges from the temperature/pressure relief valve on the cylinder shut down the boiler. Do not turn off any water supply. Contact a competent installer for unvented water heaters to check the system.

`

Do not tamper with any of the safety valves fitted to the system. If a fault is suspected contact a competent installer.

`

DO NOT bypass the thermal cut-out(s) in any circumstances.

CAUTION

Do not operate immersion heaters until the cylinder has been filled with water.

2.2 Recommendations

WARNING

When handling the unit, take appropriate precautions for the weight of the unit. Weights can be found in section 3, table 1 & 2, page 5

& 6.

CAUTION

Annual maintenance is recommended by a competent person.

4

Unvented Hot Water Cylinder

3. Technical specifications

3.1 Technical data

Indirect:

Max direct kW rating

Coil surface area m2

Coil rating (kW)

15l/min

30l/min

Indirect heat time (mins)

60l/min

15l/min

30l/min

60l/min

Pressure drop through primary coil (MPa)

15l/min

30l/min

60l/min

Heat loss (kWh in 24h)

Hot water capacity (volume of water drawn off

>40°C)

Weight full (kg)

Weight empty (kg)

Max supply pressure

Max design pressure

Max operating pressure (PRV)

Max expansion vessel charge pressure

Expansion relief valve setting

T&P valve setting

Expansion PRV set pressure

Maximum primary pressure (see Note 3)

6

25.6

41.0

58.7

73

47

33

2.74

[email protected]/min [email protected]/min

1011

211

3

0.002

0.008

0.030

6

29.1

45.4

64.8

88

57

40

3.33

1219

219

1.6MPa (16 bar)

0.8MPa (8 bar)

0.35MPa (3.5 bar)

1.0MPa (10 bar)

0.8MPa (8 bar)

1.0MPa (10 bar)/90°C

0.8MPa (8 bar)

1.0MPa (10 bar)

Notes:

1. Indirect cylinders tested in conformance with BS EN 12897:2006.

2. Heat up time from cold through 45°C, based on a flow temperature of 80°C +/- 2°C & normal volume.

3. The primary coil should not be exposed to more than 0.3MPa (3bar) without the cylinder being full of water and under the minimum working pressure.

Table 1: Technical data - Indirect

Unvented Hot Water Cylinder

5

Direct:

6

Max direct kW rating (4 x 6kW)

Direct heat time (based on max kW rating in mins, 15-60 °C rise)

Heat loss (kWh in 24h)

Hot water capacity (volume of water drawn off >40°C)

Weight full (kg)

Weight empty (kg)

Max supply pressure

Max design pressure

Max operating pressure (PRV)

Max expansion vessel charge pressure

Expansion relief valve setting

T&P valve setting

Expansion Prv set pressure

24

95

2.74

658

1007

207

24

117

3.33

810

1215

215

1.6MPa (16 bar)

0.8MPa (8 bar)

0.35MPa (3.5 bar)

1.0 MPa (10 bar)

0.8MPa (8 bar)

1.0MPa (10 bar)/90°C

0.8MPa (8 Bar)

Notes:

1. Indirect cylinders tested in conformance with BS EN 12897:2006.

2. Heat up time from cold through 45°C, based on a flow temperature of 80°C +/- 2°C & normal volume.

Table 2: Technical data - Direct

Direct

Supplier’s name or trade mark

Supplier’s model identifier

Storage volume V in litres

Mixed water at 40 °C V40 in litres

The declared load profile

The water heating energy efficiency class of the model

The water heating energy efficiency in %

The annual electricity consumption in kWh

Daily fuel consumption Q fuel in kWh

The thermostat temperature settings of the water heater, as placed on the market by the supplier

Specific precautions that shall be taken when the water heater is assembled, installed or maintained and disposed of at end of life

Megaflo Eco Plus

800

800.0

1294

3XL

D

38.5

10660

48.540

60°C

1000

1000.0

1711

3XL

D

36.5

11251

51.230

See section 3 to 9

Indirect

Model(s)

Energy efficiency class

Storage volume V in litres

Standing loss in W

800

C

800.0

114.0

1000

C

1000.0

139.0

Table: Technical parameters in accordance with european commission regulations 814/2013 and 812/2013

Unvented Hot Water Cylinder

3.2 Dimensions and connections

J

30°REF

35°

REF

30°REF

45°

REF

Figure 1: General dimensions - Direct

Item Connection 800D

A

NA 1914

B

1/2"BSP/T&P 1503

G

H

I

C

D

E

F

1" BSP

1/2"BSP

1 3/4" BSP

1 3/4" BSP

1 3/4" BSP

1 3/4" BSP

1" BSP

1188

1023

888

623

508

393

393

Table 3: General dimensions table - Direct

1000D

2327

1908

1583

1023

888

623

508

393

393

Unvented Hot Water Cylinder

7

8

35°REF

40° REF

Figure 2: General dimensions - Indirect

Item Connection

A

F

G

H

I

J

B

C

D

E

N/A

1/2" BSP/T&P 1503 1886

1" BSP

1/2" BSP

1 3/4" BSP

1/2" BSP

1 1/4" BSP

1 1/4" BSP

1" BSP

2" BSP

800l 1000l

1914 2327

1188 1583

1218 1438

888

710

623

448

438

N/A

888

710

623

448

438

N/A

Table 4: General dimensions table - Indirect

Unvented Hot Water Cylinder

J

3.3 Electrical diagram(s)

Schematic Wiring Diagram - Basic 2 x 2 Port Valve System

Cylinder terminal block

1 2 3

3

Zone valve (HTG)

G Br Bl 0

GY

1 2 3

Room stat

1 3 2

2

Zone valve (DHW)

(supplied)

G Br Bl 0

1 2

L

(Supply)

N

1 2 3 4 5 6 7 8 9 10

1 2 3 4 5 6 7 8 9 10

Junction box

1 2 3 2 3

L N

HTG

ON

Programmer

DHW

ON

L N

Boiler

NOTES: Control terminal numbering may differ from those shown.

Refer to instructions with controls selected.

A double pole isolating switch must be installed in the mains supply.

All earth connections must be connected back to the mains earth supply.

2

Figure 3: Schematic wiring diagram - basic 2 x 2 port valve system

L

N

Schematic Wiring Diagram - 3 Port Mid Position Valve System. N.B. Must Be Used In Conjunction

With 2 Port Zone Valve Supplied

Cylinder terminal block

1 2 3

3

Zone valve (HTG)

G W Bl 0

GY

2 3

Zone valve (DHW)

(supplied)

G Br Bl 0

1 2

3

Pump

L

(Supply)

N

1 2 3 4 5 6 7 8 9 10

1 2 3 4 5 6 7 8 9 10

Junction box

1 2 3

2

2 3

L N

HTG

ON

DHW

ON

Programmer

DHW

OFF

1 3 2

Room stat

L N

Boiler

NOTES: Control terminal numbering may differ from those shown.

Refer to instructions with controls selected.

A double pole isolating switch must be installed in the mains supply.

All earth connections must be connected back to the mains earth supply.

Figure 4: Schematic wiring diagram - 3 port mid position system

2

L

N

3

Pump

Unvented Hot Water Cylinder

9

6kW immersion

Step 1:

- remove 4 retaining screws and lift lid off immersion heater

Step 2:

- remove 2 screws holding thermostatic controls and slide out

thermostat from stat pocket.

Step 3:

- Wire up immersion as per figures 6, page 11. If three phase

wiring chosen remove “Live” side buzz bar and fit extra posts

(supplied) to L1, L2 & L3. (outer case and bracket removed for clarity)

Notes:

For single phase wiring use 4mm² H07RNF 3 Core

Use 2 x Two Pole 40A contactors for single phase

For 3 phase use Five core 1mm² Fused at max 10A

Use 2 x Three Pole 16A per pole contactors for 3 phase

For signal wire use 5 core 1mm² Fused at max 6A for thermostat and thermal cut-out controls.

Disconnection time of the circuit protective device must be maintained below the regulatory minimum (in the UK 5 seconds for fixed equipment), cable sizes may have to be higher depending on the characteristics of the installation supply.

Step 4:

Replace thermostatic controls taking care when inserting the capillary bulbs into stat pocket and wire up as per figure 6 or 7, page 11 .

10

Figure 5: Immersion head assembly

Unvented Hot Water Cylinder

L

N

E

Earth

Single phase wiring schematic

Neutral

Live

Fuse

(not supplied)

A

B

1

2

Live

Contactors

(not supplied)

Earth

2

1

Rotate spindle clockwise to increase temperature and counter clockwise to decrease the temperature

Figure 6: Single phase wiring schematic

2

1

Neutral

Immersion Heater

Note:

The 2 external contactors must be approved components certified for 10,000 cycles of operation for the contactor controlled by the thermostat and at least 30 for the contactor controlled by the non-self-resetting thermal cut-out.

3 phase wiring schematic

A

B

A

B

B-2 = Thermostat controls

A-1 = Thermal cut-out

Fuse

(not supplied)

A

1

L1

L2

L3

B

2

Contactors

(not supplied)

L2

L1

E

N

= Max temp

= Approx 65°

= Min temp

L3

L1 L2

L3

Earth

Figure 7: Three phase wiring schematic

Immersion Heater

Unvented Hot Water Cylinder

Neutral

11

High limit thermostat

1

C

2

Control thermostat

C 3 2

Load

(Demand Contact)

Common

(S/L)

Satisfied

Thermal cut-out reset under screw head

30

40

50

0

°C

60

Temperature

Adjustment

Figure 8: Indirect wiring schematic

12

Unvented Hot Water Cylinder

4. Description of the product

4.1 General description

This product is a purpose designed unvented water heater. The unit has a stainless steel inner vessel, which ensures an excellent standard of corrosion resistance. The outer casing is a combination of resilient thermoplastic mouldings and soft jacket. All products are insulated with CFC free polyurethane foam (GWP

3.1) to give good heat loss protection.

The unit is supplied complete with all the necessary safety and control devices needed to allow connection to the cold water mains. All these components are preset and should not be tampered with.

4.2 Operation principle

The unvented cylinder is used to heat and store hot water for use in commercial applications.

Depending on the model the water can be heated directly using an element (supplied separately) or indirectly through a coil in the unit using an external heat source e.g. Gas, Oil or Electric.

To provide pressure to the tap or shower an unvented unit uses the incoming mains water pressure. To do this the cylinder is sealed and not vented. However, when the volume of water is heated it expands and without any room for expansion could cause the cylinder to rupture and fail. To allow expansion of this heated water it is important that an expansion vessel is used.

This vessel is pressurised and gives the heated water room to expand.

4.3 Main connections

See Figures 9 & 10: Main connections on page 14

4.4 Standard delivery

The delivery includes:

`

Cylinder

`

Literature pack

`

Instructions (inc benchmark commissioning checklist & service record)

`

Cold water control pack

`

Expansion vessel

`

Combination valve (inc pressure reducing valve, pressure relief valve and check valve)

`

Tundish

`

2 port zone valve (indirect only)

Unvented Hot Water Cylinder

13

1/2" BSP Sensor pocket

1/2" BSP Sensor pocket

Immersion Heater

Immersion Heater

Figure 9: Direct Cylinder

1/2” BSP sensor pocket

1/2” BSP sensor pocket

1 1/4” BSP primary flow

1 1/4” BSP primary return

14

Figure 10: Indirect Cylinder

Unvented Hot Water Cylinder

2" BSP Outlet 800L - 1000L

Valve T&P 3/4" 10 BAR 90DEG

Secondary Return

Immersion Heater

Immersion Heater

1" BSP Inlet Connection

2”BSP Hot Outlet

3/4” T&P valve 90°C/10 bar

1” BSP Secondary return

Immersion heater

Indirect controls

1” BSP cold inlet

5. Before installation

5.1 Installation regulations

WARNING

Installation of the appliance must be carried out by a qualified engineer in accordance with prevailing and national regulations as listed below.

`

Building Regulations G3

`

The Building Standards (Scotland)

`

The Building Regulations (Northern

Ireland)

`

I.E.E Electrical Regs

`

UK Water Regulations

5.2 Installation requirements

Water supply

In an unvented system the pressure and flowrate is directly related to the incoming water supply. For this reason it is recommended that the maximum water demand is assessed and the water supply checked to ensure this demand can be satisfactorily met.

`

We suggest the minimum supply requirements should be 0.15MPa (1.5 bar) pressure and 100 litres per minute flow rate. However, at these values outlet flow rates may be poor if several outlets are used simultaneously.

`

A 28mm cold water supply is recommended, however, if a smaller supply exists, which provides sufficient flow, this may be used (although more flow noise may be experienced).

`

The higher the available pressure and flow rate the better the system performance.

`

See table 1 & 2 on pages 5 & 6 for cylinder operating pressures. This is controlled by the cold water combination valve assembly.

` The water supply must be of wholesome water quality (Fluid Category 1 as defined by the Water

Supply Regulations 1999).

`

Outlet/terminal fittings (taps, etc.)

`

The cylinder can be used with most types of terminal fittings.

`

Outlets situated higher than the cylinder will give outlet pressures lower than that at the heater, a

10m height difference will result in a 1 bar pressure reduction at the outlet.

`

All fittings, pipework and connections must have a rated pressure of at least 8 bar (dependant on cylinder being fitted) at 80°C.

Limitations

The cylinder should not be used in association with any of the following:

`

Solid fuel boilers or any other boiler in which the energy input is not under effective thermostatic control, unless additional and appropriate safety measures are installed.

`

Ascending spray type bidets or any other class 1 back syphonage risk requiring that a type A air gap be employed.

`

Steam heating plants unless additional and appropriate safety devices are installed.

`

Situations where maintenance is likely to be neglected or safety devices tampered with.

`

Water supplies that have either inadequate pressure or where the supply may be intermittent.

`

Situations where it is not possible to safely pipe away any discharge from the safety valves.

`

In areas where the water consistently contains a high proportion of solids, e.g. suspended matter that could block the strainer, unless adequate filtration can be ensured.

`

In areas where the water supply contains chloride levels that exceed 250mg/l.

5.3 Choice of location

The cylinder must be vertically floor mounted. Although location is not critical, the following points should be considered:

`

The cylinder should be sited to ensure minimum dead leg distances, particularly to the point of most frequent use.

`

Avoid siting where extreme cold temperatures will be experienced. All exposed pipe work should be insulated.

`

The discharge pipework from the safety valves must have minimum fall of 1:200 from the unit and terminate in a safe and visible position.

`

Access to associated controls and immersion heaters must be available for the servicing and maintenance of the system. Where these controls are installed against a wall a minimum distance of

250mm must be left.

`

Ensure that the floor area for the cylinder is level and capable of permanently supporting the weight when full of water (see table 1 & 2, page 5 & 6 for weights).

Min 600mm

Wall

Min 600mm

Figure 11: Siting the unit if immersions not at the front

Unvented Hot Water Cylinder

15

5.4 Transport

Prior to installation the unit should be stored and transported in an area free from excessive damp or humidity. The unit should be stored in a frost free environment.

To aid installation, the water heater (800ltr upwards) is provided with lifting points located at the top of the unit.

To access the lifting eyes please remove the top cover.

Figure 12: Lifting the unit

16

Unvented Hot Water Cylinder

6. Installation

6.1 General

After reading the previous sections in this booklet and choosing a good location for the unit please install, paying attention to the following hydraulic, electrical and commissioning sections.

Boiler selection

`

The boiler should have a control thermostat and non self-resetting thermal cut-out and be compatible with unvented storage water heaters.

`

Where use of a boiler without a thermal cut-out is unavoidable a “low head” open vented primary circuit should be used. The feed and expansion cistern head above the cylinder should not exceed

2.5m.

`

Can be a sealed system or open vented type - maximum primary pressure 3 bar (see Note 3 page

5).

`

The boiler cannot be vented through the cylinder.

6.2 Water connections

WARNING

`

Under no circumstances should the factory fitted temperature/pressure relief valve be removed other than by a competent person. To do so will invalidate any guarantee or claim.

`

The cold water combination valve assembly must be fitted on the mains water supply to the cylinder.

`

No control or safety valves should be tampered with or used for any other purpose.

`

The discharge pipe should not be blocked or used for any other purpose.

`

The tundish should not be located adjacent to any electrical components.

To hot outlets

T&P relief valve

Refer to the installation schematic (fig 13, below) for details on the pipework layout. Specific details for the discharge pipework layout is also provided in figure 16 on page 22.

`

All pipe fittings are made via BSP female pipe connections directly to the unit.

`

A stopcock or servicing valve should be incorporated into the cold water supply to enable the cylinder and its associated controls to be isolated and serviced

(not supplied).

`

The expansion vessel must be connected between the cold water combination valve and the cylinder.

Expansion vessel

Balanced cold water connection

Pressure relief valve

Pressure reducing valve

Secondary return

Immersion

Heater

Primary flow

Primary return

Inlet

Figure 13: Typical installation schematic (not to scale)

Drain cock Tundish Discharge pipe

Unvented Hot Water Cylinder

Mains water supply

17

`

The location of the expansion vessel should allow access to recharge the pressure as and when necessary.

`

A suitable draining tap should be installed in the cold water supply to the cylinder between the expansion valve and the heater at as low a level as possible.

`

It is recommended that the outlet point of the drain pipework be at least 1 metre below the level of the heater (this can be achieved by attaching a hose to the drain tap outlet spigot).

Cold water control pack

CAUTION

`

The expansion vessel pressure must be set in accordance with the inlet pressure set on the pressure reducing valve.

`

Flush supply pipework before connection to remove all flux and debris prior to fitting the inlet controls.

Failure to do this may result in irreparable damage to the controls and will invalidate any warranty.

`

The cold water control pack can be connected anywhere on the cold water cylinder supply prior to the expansion vessel.

`

The control pack incorporates the strainer, check valve, core unit and expansion relief valve.

`

The pressure reducing valve is factory set to 3.5 bar and should not be adjusted.

`

The valve can be fitted in any orientation to suit the installation as long as the valve is installed with the direction of flow arrows pointing in the correct direction.

`

The expansion relief valve should be installed with the discharge pipework in either the horizontal position or facing downwards.

`

No other valves should be placed between the cold water combination valve and the cylinder.

`

The blank plastic plugs in the body of the pressure relief valve are pressure gauge connections to enable pressure monitoring to be carried out, should the system develop a fault. It is recommended that these be accessible (the pressure reducing valve has two – only one need be accessible).

` Where discharge pipework is difficult to attain, the local building control officer from the local council should be sought for advice as this falls under G3 guidelines and is not down to the manufacturer for unvented systems.

Primary circuit control

`

The 2 port motorised valve supplied with the cylinder MUST be fitted on the primary flow to the cylinder heat exchanger and wired such that in the event of the cylinder overheating it will close the primary circuit.

`

Primary circulation to the cylinder heat exchanger must be pumped; gravity circulation WILL NOT

WORK.

`

It is recommended that an air bleed or automatic air vent is fitted to the highest point of the system.

`

Boiler flow temperature should be set to 82°

(maximum flow temperature to primary heat exchanger 89°C).

direction

8 bar Pressure relief valve

Pressure relief

discharge

To cylinder

18

Figure 14: Cold water combination valve

28mm compression connections

Unvented Hot Water Cylinder

3.5 bar Pressure reducing valve direction

Mains water in

Pressure gauge connections (one each side)

Secondary circulation

If secondary circulation is required it is recommended that it be connected to the cylinder as shown (see fig.

15, below).

`

The secondary return pipe should be in 28mm pipe and incorporate a check valve to prevent backflow.

`

A suitable WRAS approved circulation pump will be required.

`

On large systems, due to the increase in system water content, it may be necessary to fit an additional expansion vessel to the secondary circuit. This should be done if the capacity of the secondary circuit exceeds 10 litres.

In direct electric installations where a secondary circulation is required particular attention should be paid by the installer to maintain the returning water temperature (guidelines state that a minimum of 55°C return temperature is advisable). Factors such as, but not limited to, secondary circulation flow rates, minimising heat loss of all secondary circuit pipework and timed operation during periods of high demand are critical to the correct operation and longevity of the heating element(s) and thermostats.

Pipe capacity (copper):

15mm O.D. = 0.13 l/m (10 litres = 77m)

22mm O.D. = 0.38 l/m (10 litres = 26m)

28mm O.D. = 0.55 l/m (10 litres = 18m)

Note: Plastic pipe capacities may be reduced due to thicker wall sections.

To hot outlets

T&P relief valve

WRAS approved

pump

(not supplied)

Secondary return

Primary flow

Primary return

Cold water inlet

Drain cock

Immersion

Heater

Figure 15: Secondary circulation schematic

Unvented Hot Water Cylinder

19

20

Discharge

It is a requirement of Building Regulation G3 that any discharge from an unvented system is conveyed to where it is visible, but will not cause danger to persons in or about the building. The tundish and discharge pipes should be fitted in accordance with the requirements and guidance notes of Building Regulation G3. The G3

Requirements and Guidance section 3.50 - 3.63 are reproduced in the following sections of this manual.

For discharge pipe arrangements not covered by G3

Guidance advice should be sought from your local

Building Control Officer. Any discharge pipe connected to the pressure relief devices (expansion valve and temperature/pressure relief valve) must be installed in a continuously downward direction and in a frost free environment.

Water may drip from the discharge pipe of the pressure relief device. This pipe must be left open to the atmosphere. The pressure relief device is to be operated regularly to remove lime deposits and to verify that it is not blocked.

G3 REQUIREMENT

“...there shall be precautions...to ensure that the hot water discharged from safety devices is safely conveyed to where it is visible but will not cause danger to persons in or about the building.”

The following extract is taken from the latest G3

Regulations

Discharge pipes from safety devices

Discharge pipe D1

3.50 Each of the temperature relief valves or combined temperature and pressure relief valves specified in

3.13 or 3.17 should discharge either directly or by way of a manifold via a short length of metal pipe (D1) to a tundish.

3.51 The diameter of discharge pipe (D1) should be not less than the nominal outlet size of the temperature relief valve.

3.52 Where a manifold is used it should be sized to accept and discharge the total discharge from the discharge pipes connected to it.

3.53 Where valves other than the temperature and pressure relief valve from a single unvented hot water system discharge by way of the same manifold that is used by the safety devices, the manifold should be factory fitted as part of the hot water storage system unit or package.

Tundish

3.54 The tundish should be vertical, located in the same space as the unvented hot water storage system and be fitted as close as possible to, and lower than, the valve, with no more than 600mm of pipe between

Unvented Hot Water Cylinder

the valve outlet and the tundish (see fig 13).

Note: To comply with the Water Supply (Water Fittings)

Regulations, the tundish should incorporate a suitable air gap.

3.55 Any discharge should be visible at the tundish. In addition, where discharges from safety devices may not be apparent, e.g. in dwellings occupied by people with impaired vision or mobility, consideration should be given to the installation of a suitable safety device to warn when discharge takes place, e.g. electronically operated.

Discharge pipe D2

3.56 The discharge pipe (D2) from the tundish should:

(a) have a vertical section of pipe at least 300mm long below the tundish before any elbows or bends in the pipework (see fig. 13); and

(b) be installed with a continuous fall thereafter of at least 1 in 200.

3.57 The discharge pipe (D2) should be made of:

(a) metal; or

(b) other material that has been demonstrated to be capable of safely withstanding temperatures of the water discharged and is clearly and permanently marked to identify the product and performance standard (e.g. as specified in the relevant part of BS 7291).

3.58 The discharge pipe (D2) should be at least one pipe size larger than the nominal outlet size of the safety device unless its total equivalent hydraulic resistance exceeds that of a straight pipe 9m long, i.e. for discharge pipes between 9m and 18m the equivalent resistance length should be at least two sizes larger than the nominal outlet size of the safety device; between 18 and 27m at least 3 sizes larger, and so on; bends must be taken into account in calculating the flow resistance.

See Fig 13, Table 3 and the worked example.

Note: An alternative approach for sizing discharge pipes would be to follow Annex D, section D.2 of BS

6700:2006 Specification for design, installation, testing and maintenance of services supplying water for domestic use within buildings and their curtilages.

3.59 Where a single common discharge pipe serves more than one system, it should be at least one pipe size larger than the largest individual discharge pipe

(D2) to be connected.

3.60 The discharge pipe should not be connected to a soil discharge stack unless it can be demonstrated that the soil discharge stack is capable of safely withstanding temperatures of the water discharged, in which case, it should:

(a) contain a mechanical seal, not incorporating a water trap, which allows water into the branch pipe without allowing foul air from the drain to be ventilated through the tundish;

(b) be a separate branch pipe with no sanitary appliances connected to it;

(c) if plastic pipes are used as branch pipes carrying discharge from a safety device they should be either polybutylene (PB) to Class S of BS 7291-2:2006 or cross linked polyethylene (PE-X) to Class S of BS

7291-3:2006; and

(d) be continuously marked with a warning that no sanitary appliances should be connected to the pipe.

Note:

1. Plastic pipes should be joined and assembled with fittings appropriate to the circumstances in which they are used as set out in BS EN ISO 1043-1.

2. Where pipes cannot be connected to the stack it may be possible to route a dedicated pipe alongside or in close proximity to the discharge stack.

Termination of discharge pipe

3.61 The discharge pipe (D2) from the tundish should terminate in a safe place where there is no risk to persons in the vicinity of the discharge.

3.62 Examples of acceptable discharge arrangements are:

(a) to a trapped gully with the end of the pipe below a fixed grating and above the water seal;

(b) downward discharges at low level; i.e. up to

100mm above external surfaces such as car parks, hard standings, grassed areas etc. are acceptable providing that a wire cage or similar guard is positioned to prevent contact, whilst maintaining visibility; and

(c) discharges at high level: e.g. into a metal hopper and metal downpipe with the end of the discharge pipe clearly visible or onto a roof capable of withstanding high temperature discharges of water and 3m from any plastic guttering system that would collect such discharges.

3.63 The discharge would consist of high temperature water and steam. Asphalt, roofing felt and nonmetallic rainwater goods may be damaged by such discharges.

Worked example of discharge pipe sizing

Fig. 13: shows a G1/2 temperature relief valve with a discharge pipe (D2) having 4 No. elbows and length of

7m from the tundish to the point of discharge.

From Table 3:

Maximum resistance allowed for a straight length of

22mm copper discharge pipe (D2) from a G1/2 temperature relief valve is 9.0m.

Subtract the resistance for 4 No. 22mm elbows at 0.8m each = 3.2m

Therefore the permitted length equates to: 5.8m

5.8m is less than the actual length of 7m therefore calculate the next largest size.

Maximum resistance allowed for a straight length of

28mm pipe (D2) from a G1/2 temperature relief valves equates to 18m.

Subtract the resistance of 4 No. 28mm elbows at 1.0m each = 4.0m

Therefore the maximum permitted length equates to:

14m

As the actual length is 7m, a 28mm (D2) copper pipe will be satisfactory.

Unvented Hot Water Cylinder

21

Valve

Outlet Size

G1/2

G3/4

G1

Minimum Size Of

Discharge Pipe

D1

15mm

22mm

28mm

Minimum Size Of

Discharge Pipe D2

From Tundish

22mm

28mm

35mm

28mm

35mm

42mm

35mm

42mm

54mm

Maximum Resistance

Allowed, Expressed As A

Length Of Straight Pipe

(I.E. No Elbows Or Bends)

up to 9m up to 18m up to 27m up to 9m up to 18m up to 27m up to 9m up to 18m up to 27m

Table 5: Sizing of copper discharge pipe (D2) for common temperature relief valve outlet sizes

Resistance

Created By Each

Elbow Or Bend

0.8m

1.0m

1.4m

1.0m

1.4m

1.7m

1.4m

1.7m

2.3m

Safety device

(e.g. Temperature relief valve)

Metal discharge pipe (D1) from

Temperature relief valve to tundish

Tundish

600mm maximum

300mm minimum

Discharge below fixed grating

(Building Regulation

G3 section 3.61 gives alternative points of discharge)

Fixed grating

Discharge pipe (D2) from tundish, with continuous fall. See Building

Regulation G3 section 3.56,

Table 1 and worked example

Trapped gully

Figure 16: Typical discharge pipe arrangement (extract from Building Regulation G3 Guidance Section 3.50)

22

Unvented Hot Water Cylinder

6.3 Electrical connections

In case of difficulty contact service support; contact details are available on page 36 of this booklet.

WARNING

`

Disconnect from the mains electrical supply before removing any covers.

`

Never attempt to replace the immersion heater(s) other than with genuine manufacturers components. Using other manufacturers components may invalidate the warranty on the cylinder.

`

`

DO NOT bypass the thermal cut-out(s) in any circumstances. All electrical wiring should be carried out by a competent electrician and be in accordance with the latest I.E.E Wiring Regulations.

`

Each circuit must be protected by a suitable fuse and double pole isolating switch with a contact separation of at least 3mm in both poles.

`

DO NOT operate the immersion heaters until the cylinder has been filled with water.

6.4 Filling the installation

`

Check expansion vessel pre-charge pressure.

The expansion vessel pressure must be set in accordance with the inlet pressure set on the pressure reducing valve.

`

Ensure the drain cock is CLOSED.

`

Open a hot tap furthest from the cylinder.

`

Open the mains stop cock to fill the unit. When water flows from the tap, allow to run for a few minutes to thoroughly flush through any residue, dirt or swarf, then close the tap.

`

Open successive hot taps to purge the system of air.

`

The immersion heater(s) should be wired in accordance with fig's 6 & 7, page 11.

Space and heating systems controls

`

The controls provided with the cylinder will ensure the safe operation of the unit within the central heating system. Other controls will be necessary to control the space heating requirements and times that the system is required to function.

`

The cylinder is compatible with most heating controls, examples of electrical circuits are shown in figs. 3 and 4, page 9. However, other systems may be suitable, refer to the controls manufacturers instructions, supplied with the controls selected, for alternative system wiring schemes.

Unvented Hot Water Cylinder

23

24

7. Commissioning

7.1 General

After filling the installation with water in the previous section please follow the following steps to complete the installation of the unit.

WARNING

DO NOT operate the immersion heaters or primary circuit until the cylinder has been filled with water.

`

WARNING: If the unit is to be left unused following installation and commissioning, e.g. unoccupied properties, the water heater should be drained or regularly flushed through with fresh mains water once a week.

`

When placing the unit into service, the procedure for filling the unit and the system checks above should be observed.

7.2 Checklist before commissioning

`

Check all water connections for leaks and rectify as necessary.

`

Turn off mains water supply.

`

Remove the pressure reducing valve head work to access the strainer mesh, clean and re-fit.

`

Turn the water supply back on.

`

Manually open, for a few seconds, each relief valve in turn, checking that water is discharged and runs freely through the tundish and out at the discharge point.

`

Ensure that the valve(s) reseat satisfactorily.

7.3 Commissioning procedure

Direct units

`

Switch on electrical supply to the immersion heater(s) and allow the cylinder to heat up to normal working temperature (65°C recommended).

`

If necessary the temperature can be adjusted by inserting a flat bladed screwdriver in the adjustment spindle on front of the immersion heater thermostat and rotating. The adjustment represents a temperature range of 15°C to 74°C.

`

Check the operation of thermostat(s) and that no water has issued from the expansion relief valve or temperature/pressure relief valve during the heating cycle.

Indirect units

`

Fill the indirect (primary) circuit following the boiler manufacturer’s commissioning instructions.

`

To ensure the cylinder primary heat exchanger is filled, the 2 port motorised valve (supplied) should be manually opened by moving the lever on the motor housing to the MANUAL setting. When the primary circuit is full return the lever to the

AUTOMATIC position.

`

Switch on the boiler, ensure the programmer is set to Hot Water and allow the cylinder to heat up to a normal working temperature 65 o

C (recommended).

Thermal cut-out reset under cap

Figure 17: Indirect controls

Temperature control clockwise to increase, counter-clockwise to decrease

30

40

0

°C

50

60

Unvented Hot Water Cylinder

8. Operation

8.1 General

WARNING

`

If water discharges from the temperature/pressure relief valve on the cylinder shut down the heat source.

Do not turn off any water supply. Contact a competent installer for unvented water heaters to check the system.

`

Do not tamper with any of the safety valves fitted to the system. If a fault is suspected contact a competent installer.

`

DO NOT bypass the thermal cut-out(s) in any circumstances.

Benchmark

The cylinder is covered by the Benchmark Scheme which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise safety, efficiency and performance.

Benchmark is managed and promoted by the Heating and Hotwater Industry Council. For more information visit www.centralheating.co.uk.

Please ensure that the installer has fully completed the

Benchmark Checklist (page 32 & 33) of this manual and that you have signed it to say that you have received a full and clear explanation of its operation. The installer is legally required to complete a commissioning checklist as a means of complying with the appropriate Building

Regulations (England & Wales).

All installations must be notified to Local Area Building

Control either directly or through a Competent

Persons Scheme. A Building Regulations Compliance

Certificate will then be issued to the customer who should, on receipt, write the Notification Number on the

Benchmark Checklist.

This product should be serviced regularly to optimise its safety, efficiency and performance. The service engineer should complete the relevant Service Record on the Benchmark Checklist after each service.

The Benchmark Checklist may be required in the event of any warranty work.

Flow performance

When initially opening hot outlets a small surge in flow may be noticed as pressures stabilise. This is quite normal with unvented systems. In some areas cloudiness may be noticed in the hot water. This is due to aeration of the water, is quite normal and will quickly clear.

Temperature controls – direct units immersion heater(s)

`

All immersion heaters are fitted with a thermostat which is fitted in the centre of the heater plate and a cut-out which is fitted to the side of the thermostat.

`

Access to the thermostat can be made by opening the immersion heater cover - DISCONNECT THE

ELECTRICAL SUPPLY BEFORE OPENING THE

COVER(S).

`

Temperature adjustment is made by rotating the adjustment spindle on the top of the thermostat.

The adjustment represents a temperature range of

15°C to 74°C.

`

Maximum working temperature is 74°C/165°F. In very hard water areas limit to 60/65°C (140/150°F).

DO NOT bypass the thermal cut-out(s) in any circumstances.

Temperature controls - indirect units

The cylinder units are fitted with an indirect thermostat and thermal cut-out. These controls must be wired in series with the 2 port motorised zone valve supplied to interrupt the flow of primary water around the heat exchanger coil when the control temperature has been reached.

DO NOT bypass the thermal cut-out(s) in any circumstances.

Operational faults

Operational faults and their possible causes are detailed in the Fault Finding section (p.28) of this book.

It is recommended that faults should be checked by a competent installer.

The air volume within the expansion vessel will periodically require recharging to ensure expanded water is accommodated within the system. A discharge of water INTERMITTENTLY from the expansion valve will indicate the air volume has reduced to a point where it can no longer accommodate the expansion.

This will require a suitably qualified person to check the expansion vessel pressure and no attempt should be made to re-pressurize the expansion vessel by the end user.

Unvented Hot Water Cylinder

25

26

9. Maintenance

9.1 General

Maintenance requirements

Unvented hot water systems have a continuing maintenance requirement in order to ensure safe working and optimum performance. It is essential that the relief valve(s) are periodically inspected and manually opened to ensure no blockage has occurred in the valves or discharge pipework. Maintenance of this appliance should only be carried out by a suitably qualified person. Failure to do so could invalidate the warranty.

Similarly cleaning of the strainer element and replacement of the air in the expansion vessel will help to prevent possible operational faults.

The maintenance checks described below should be performed by a competent person on a regular basis, e.g. annually to coincide with boiler maintenance.

After any maintenance, please complete the relevant

Service Interval Record section of the Benchmark

Checklist on page 32 of this document.

9.2 Standard inspection & maintenance operations

Inspection

The immersion heater boss can be used as an access for inspecting the cylinder internally.

Safety valve operation

CAUTION

Water discharged may be very hot!

`

Manually operate the temperature/pressure relief valve for a few seconds.

`

Check water is discharged and that it flows freely through the tundish and discharge pipework.

`

Check valve reseats correctly when released.

`

Repeat the above procedure for the expansion relief valve.

Strainer

`

Turn off the isolating valve prior to the Pressure

Reducing Valve or the main stop cock to the system.

`

Open the lowest hot tap in the system to relieve the system pressure.

`

Using a spanner unscrew the pressure reducing cartridge and remove the moulded housing. The strainer will be removed with the cartridge.

`

Wash any particulate matter from the strainer under clean running water.

`

Replace the strainer and screw the Pressure

Reducing Valve cartridge into the moulded housing.

`

Close hot tap, turn on isolating valve or main stop cock to the system. Check for leaks.

Descaling immersion heater(s)

`

Turn off the mains water supply, isolate the electrical supply and turn off boiler

`

Attach a hosepipe to the drain cock having sufficient length to take water to a suitable discharge point below the level of the unit.

`

Open a hot tap close to the unit and open drain cock to drain unit.

`

Open the cover(s) to the immersion heater housing(s) and disconnect wiring from immersion heater(s) thermostat(s).

`

Unscrew the immersion heater and withdraw the immersion heater from the cylinder. Take care when lifting the immersion heater out of the cylinder and work within safe working practices.

`

Carefully remove any scale from the surface of the element(s).

CAUTION

DO NOT use a sharp implement as damage to the element surface could be caused.

`

Ensure sealing surfaces are clean and seals are undamaged, if in doubt fit a new "O" ring. (spare part number 95611810)

`

Replace immersion heater(s), making sure not to trap the "O" ring.

`

Rewire, check, close and secure immersion heater housing cover(s).

Expansion vessel charge pressure

`

Remove the dust cap on top of the vessel.

`

De-pressurise the system by turning the mains supply off and then opening a hot tap.

`

Check the charge pressure using a tyre pressur e gauge. The pressure must be set in accordance with the inlet pressure set on the pressure reducing valve.

`

If it is lower than the required setting it should be recharged using a tyre pump (Schrader valve type).

CAUTION

DO NOT OVER-CHARGE

`

Re-check the pressure and when correct replace the dust cap.

Unvented Hot Water Cylinder

Re-commissioning

`

Check all electrical and plumbing connections are secure. Close the drain cock.

`

With a hot tap open, turn on the cold water supply and allow unit to refill.

`

DO NOT switch on the immersion heater(s) or boiler until the unit is full.

`

When water flows from the hot tap allow to flow for a short while to purge air and flush through any disturbed particles.

`

Close hot tap and then open successive hot taps in system to purge any air.

`

When completely full and purged check system for leaks.

`

The heating source (immersion heater(s) or boiler) can then be switched on.

Unvented Hot Water Cylinder

27

28

10. Troubleshooting

WARNING

Do not tamper with any of the safety valves or controls supplied with the cylinder as this will invalidate any guarantee.

10.1 Fault finding

Important

`

After servicing, complete the relevant Service

Interval Record section of the Benchmark Checklist located on pages 32 and 33 of this document.

`

Servicing should only be carried out by competent persons in the installation and maintenance of unvented water heating systems.

`

Any spare parts used MUST be authorised parts.

`

Disconnect the electrical supply before removing any electrical equipment covers.

`

NEVER bypass any thermal controls or operate system without the necessary safety valves.

`

Water contained in the cylinder may be very hot, especially following a thermal control failure.

Caution must be taken when drawing water from the unit.

The fault finding chart (table 6, below) will enable operational faults to be identified and their possible causes rectified. Any work carried out on the unvented water heater and its associated controls MUST be carried out by a competent installer for unvented water heating systems. In case of doubt contact service support.

Spare Parts

A full range of spare parts are available for the cylinder range (table 7, page 30). Refer to the technical data label on the unit to identify the model installed and ensure the correct part is ordered. You will need to quote the serial number, which is printed on the data label.

Fault

No hot water flow

Water from hot tap is cold

Water discharges from expansion valve

Water discharges from

T&P relief valve

Milky water

Possible Cause

Mains supply off

Strainer blocked

Remedy

Check and open stop cock

Turn off water supply. Remove strainer and clean

Check and refit as required Cold water combination valve incorrectly fitted

Direct immersion heater not switched on

Direct immersion heater thermal cut-out has operated

Indirect programmer set to central heating only

Indirect boiler not working

Indirect thermal cut-out has operated

Indirect motorised valve not connected correctly

Intermittently

Expansion vessel charge pressure has reduced below 3.5 bar, or set too high

Continually

Cold water combination valve pressure reducer not working correctly.

Expansion valve seat damaged

Thermal control failure

CAUTION: Water will be very hot!

Oxygenated water

Check and switch on

Check, reset by pushing button on thermostat

Check, set to domestic hot water programme

Check boiler operation. If fault is suspected consult boiler manufacturer’s instructions

Check, reset by pushing button on thermostat.

Check operation of indirect thermostat

Check wiring and/or plumbing connections to motorised valve

See Maintenance section (p.19) for re-charging of expansion vessel procedure

Check pressure from cold water combination valve. If greater than 3.5 bar replace pressure reducing valve cartridge.

Remove expansion valve cartridge, check condition of seat. If necessary fit new expansion valve

Switch off power to immersion heater(s) and shut down boiler.

DO NOT turn off water supply. When discharge stops check all thermal controls, replace if faulty

Water from a pressurised system releases oxygen bubbles when flowing. The milkiness will disappear after a short while

Table 6: Fault finding chart

Unvented Hot Water Cylinder

11. Decommissioning

11.1 Decommissioning procedure

`

Isolate electrical supplies and make safe

`

Isolate the water supply

`

Drain the cylinder

`

Drain the primary circuit (indirect only)

`

Remove cylinder

`

Cap pipework

Environmental information

Products are manufactured from many recyclable materials. At the end of their useful life they should be disposed of at a Local Authority Recycling Centre in order to realise the full environmental benefits.

Insulation is by means of an approved CFC/HCFC free polyurethane foam with an ozone depletion factor of zero.

Unvented Hot Water Cylinder

29

12. Spare parts

12.1 Spare parts list

A full range of spare parts are available for the cylinder range. Refer to the Technical Data label on the unit to identify the model installed and ensure the correct part is ordered.

13

14

15

9

10

11

12

7

8

5

6

3

4

1

2

Table 7: Spares

DESCRIPTION

Integrated inlet control valve set (28mm)

Pressure reducing valve (3.5 bar, 28mm)

Pressure relief valve (8 bar, 28mm)

Pressure relief cartridge

6 kW Immersion heater (1 ¾" screw thread)

Dual temperature and thermal cut-out (Immersion heater)

Dual temperature and thermal cut-out (Indirect)

Immersion Heater "O" ring

¾" Temperature/Pressure relief valve

Expansion vessel (60L)

Tundish (22mm - 28mm)

2 port motorised valve (28mm)

1/2" Blanking stat pocket

Isolating ball valve 1"

Isolating drain valve 1"

SPARES NUMBER

95605104

95605105

95605107

95605108

95602001

95612064

95612650

95611810

95605103

95607445

95607367

95605884

95607690

95605178

95605182

1

4

3

2

30

Figure 18: Integrated control valve set

Unvented Hot Water Cylinder

13

5

6

8

9

13

7

Figure 19: Exploded spares diagram.

Unvented Hot Water Cylinder

31

Benchmark checklist

32

Unvented Hot Water Cylinder

Commissioning & service records

Unvented Hot Water Cylinder

33

34

Lifetime Warranty*

The MEGAFLO Lifetime Warranty provides unrivalled levels of customer support and peace of mind in the unlikely event that a problem arises from a manufacturing defect. It is supported by a large nationwide team of company-employed field-based engineers and our own call centre, which is open 363 days a year.

This Lifetime Warranty applies in relation to the following MEGAFLO products:

• MEGAFLO cylinders

• MEGAFLO calorifiers

The MEGAFLO Domestic Lifetime* Warranty

The MEGAFLO Domestic Lifetime* Warranty covers MEGAFLO cylinders installed in domestic properties† against corrosion for the lifetime* of the owner.

The cold water combination valve (and expansion vessel, where supplied) is covered by a five year warranty from the date of purchase of the MEGAFLO product that includes both parts and labour. All other components, including any other valves, fittings and controls are covered by a two year warranty from the date of purchase of the MEGAFLO product that includes both parts and labour.

In the case of the Megaflo Systemready, Megaflo Systemfit and Megaflo SolaReady units the supplied pumps and motorized valves ( where fitted ) are also covered by this two year warranty.

Incalloy immersion heaters ( where fitted ) are covered by a two year warranty.

Titanium Immersion heaters ( where fitted ) are covered by a five year warranty.

The MEGAFLO Commercial Lifetime* Warranty

The MEGAFLO Commercial Lifetime Warranty covers MEGAFLO cylinders and calorifiers installed in non-domestic properties^ against corrosion for a period of 30 years from the date of purchase.

All other components, including valves, expansion vessels, immersion heaters, fittings and controls are covered by a two year warranty from the date of purchase of the MEGAFLO product that includes both parts and labour.

Accessories

Shower heat recovery units are covered against manufacturing defects for a period of two years. Flat plate solar collectors are covered against manufacturing defects for a period of 10 years from the date of purchase of the MEGAFLO product. Evacuated tube solar collectors are covered against manufacturing defects for a period of five years from the date of purchase of the

MEGAFLO product. All other solar accessories are covered against manufacturing defects for a period of two years from the date of purchase of the MEGAFLO product.

Outside of the UK

These warranties are valid for installations within the United Kingdom.

For installation in the Republic of Ireland please contact Potterton Myson (Ireland) Limited on 00353 (0) 1 4590870

For installations outside of the United Kingdom and the Republic of Ireland, please telephone MEGAFLO Export on +44 1603

420271 for further details of the warranty terms and conditions applicable.

These guarantees are valid provided that:

• The MEGAFLO product has been installed by a competent installer in accordance with the instructions contained in the installation instructions and in compliance with all relevant laws, guidance, codes of practice and regulations in force at the time of installation.

• The MEGAFLO product has not been modified or tampered with in any way, other than by a Heatrae Sadia or Baxi Customer

Support approved engineer.

• The MEGAFLO product has not been subject to damage by scale.

• The MEGAFLO product and any part or parts of the MEGAFLO product (whether factory fitted or otherwise) have not been repaired or replaced other than by a Baxi Customer Support approved engineer and any replacement parts used on

Unvented Hot Water Cylinder

the MEGAFLO product are authorised MEGAFLO spare parts.

• The factory fitted temperature and pressure relief valve have not been tampered with or removed.

• The MEGAFLO product has not been subject to misuse or neglect.

• The MEGAFLO product has only been used for the storage of wholesome water. Should another substance be put through the product, the warranty will be invalid unless it is part of a disinfectant procedure carried out in accordance with BS EN 806.

• The MEGAFLO product has not been subjected to frost or freezing temperatures (except for solar collectors which are designed for external installation).

• The Benchmark™ commissioning checklist service record, included in the MEGAFLO installation instructions has been completed.

• Regular maintenance has been carried out by a competent person/, an approved engineer from Heatrae Sadia or any other part of the Baxi Group Baxi Customer Support approved engineer in accordance with the requirements set out in the maintenance section of the installation instructions.

• Access is available, at reasonable times and upon reasonable notice, to the MEGAFLO product to allow for any inspection repair or replacement.

• The product is registered within 60 days of purchase. This can be done by telephone, online or by using the registration form provided with the product.

• Evidence of purchase (for example a receipt or delivery note) and date of supply is submitted when making a claim.

• The MEGAFLO product has not been affected by any cause beyond our reasonable control including, without limitation: an act of God, explosion, flood, fire or accident; war or civil disturbance; strike, industrial action or stoppages of work; any form of government intervention; a third party act or omission including theft or malicious damage; failure by you to give us a correct delivery address or notify us of any change of address.

.

If any of the following situations occur, the MEGAFLO Lifetime Warranty* will not apply:

• Any wilful or accidental damage caused by your negligence

• Damage caused as a result of scale.

• Installation not in line with the installer and user manuals provided,

• Failure to comply with installation instructions (whether oral or in writing),

• Misuse of the MEGAFLO product or alteration of the MEGAFLO product not in accordance with the requirements set out abo ve.

• Defects which are not reported to us outside of the warranty period on 03444 8711535 or [email protected]

• Any third party repair or replacement costs unless those costs have been agreed and authorised by Baxi Customer Support or

Heatrae Sadia in writing prior to incurring the costs.

• In relation to the MEGAFLO Commercial Lifetime Warranty only, we will not be liable for any indirect and consequential losses and any loss of earnings, loss of business, or losses in relation to stress and inconvenience, howsoever caused.

Unvented Hot Water Cylinder

35

Claims

Defects should be reported to us as soon as you are aware of them. Please report defect to us by contacting 03444

8711535 or [email protected] .

Notes

We are only able to carry out warranty repair/replacement to MEGAFLO solar collectors which have safe access and that meet current Health & Safety working at heights requirements. The customer will cover the cost of any safety equipment including but limited to scaffolding and lifting equipment that is required to meet this standard and will appoint a contractor to carry this work out.

Heatrae Sadia accepts no liability for any third party damage.

These warranties do not affect your statutory rights and remedies in relation to the MEGAFLO products.

Annual service

Annual services are available from Baxi Customer Support, the service division of Heatrae Sadia.

Please contact Baxi Customer Support on 0844 871 1535 for details.

*In domestic† properties, lifetime is the period during which the first owner of the MEGAFLO or new build home continues to own the property. Should the property be sold, the new owner and any subsequent owners will receive a

30 year warranty from the date the original owner purchased the MEGAFLO or new home with a MEGAFLO installed.

In non-domestic properties lifetime is a period of 30 years from the date of purchase by the original owner and is transferable to any new owner of the property.

†Domestic is any premises not being, or ever having been, wholly or partly utilised for business purposes.

^Non-domestic premises are any premises other than those defined as Domestic.†

All MEGAFLO warranties are conditional on the installation being carried out in accordance with the installation instructions supplied with the product. These warranties do not affect your statutory rights. Full terms and conditions of these warranty packages are available on request or via www.heatraesadia.com/megaflo

Heaatrae Sadia*, Hurricane Way, Norwich, Norfolk, NR6 6EA

MEGAFLO may introduce modifications to their products from time to time. Consequentially the details given in this brochure are subject to alteration without notice.

Contacts

Specification Advice Hotline

T: 01603 420220

F: 01603 420229

E: [email protected] www.heatraesadia.com

* Heatrae Sadia is a trading name of Baxi Heating UK Limited, Brooks House, Coventry Road, Warwick, CV34 4LL

July 2015

36

Unvented Hot Water Cylinder

Notes

Unvented Hot Water Cylinder

37

Notes

38

Unvented Hot Water Cylinder

Notes

Unvented Hot Water Cylinder

39

Customer service

Telephone:

0344 8711535

Facsimile:

0344 8711528

E-mail: [email protected]

Megaflo

Hurricane Way

Norwich

Norfolk

NR6 6EA

36006198_issue_02

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
