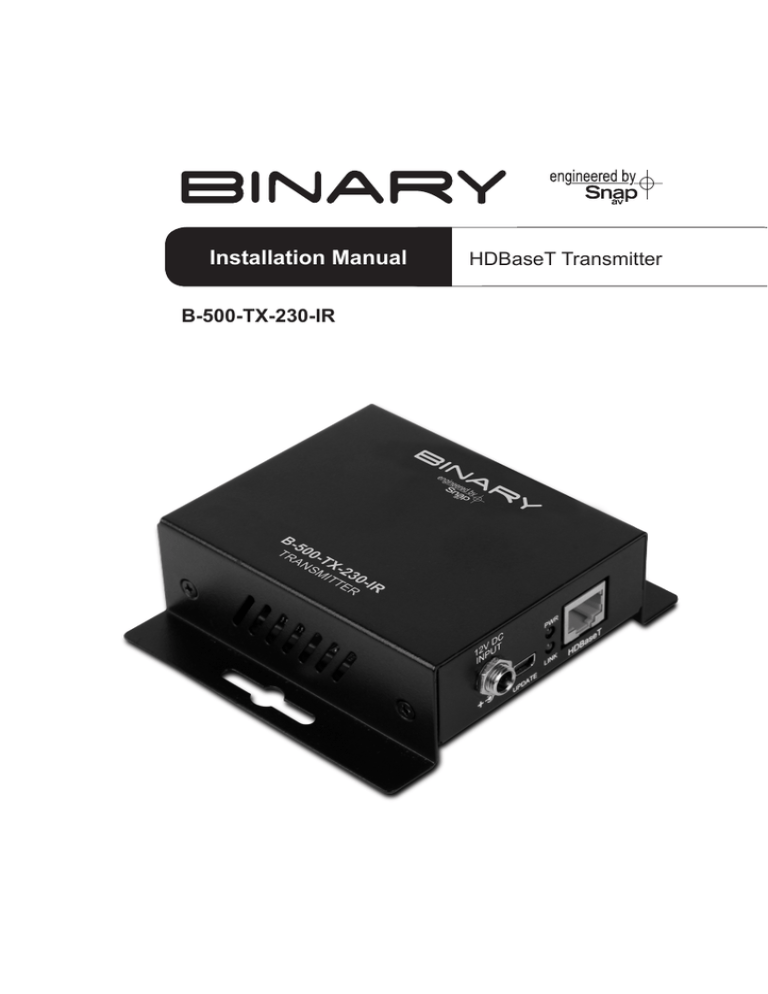

Installation Manual

B-500-TX-230-IR

HDBaseT Transmitter

B-500-TX-230-IR Installation Manual

Important Safety Instructions

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

1. Read and follow all instructions and warnings in this manual. Keep for future reference.

2. Do not use this apparatus near water.

3. Clean only with a dry cloth.

4. Do not block any ventilation openings. Install according to manufacturer’s instructions.

5. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus

(including amplifiers) that produce heat.

6. Do not override the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades - one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

7. Protect the power cord from being walked on or pinched particularly at the plug, convenience receptacles, and the point where it exits from the apparatus.

8. Only use attachments/accessories specified by the manufacturer.

9. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

10. DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR SPLASHING AND ENSURE THAT NO

OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, ARE PLACED ON THE EQUIPMENT.

11. TO COMPLETELY DISCONNECT THIS EQUIPMENT FROM THE AC MAINS, DISCONNECT THE

POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE.

12. THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE.

CAUTION

CAUTION: TO REDUCE THE RISK OF

ELECTRICAL SHOCK

DO NOT REMOVE COVER. NO USER

SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

pg.2

© 2014 Binary

B-500-TX-230-IR Installation Manual

1. Table of Contents

2. Product Overview ..................................................................................................4

2.1. Features............................................................................................................4

2.2. Package Contents ............................................................................................4

3. Recommended for Installation .............................................................................4

4. Transmitter Layout ................................................................................................5

5. Wiring Recommendations ....................................................................................6

5.1. HDBaseT Link ...................................................................................................6

5.2. HDMI Cable ......................................................................................................7

6. Power Supply.........................................................................................................7

7. Installation Instructions ........................................................................................8

8. IR Pass-Through ....................................................................................................9

8.1. IR Receiver & Flasher Port Pinout ....................................................................9

8.2. IR Pass-Through Application Diagram..............................................................9

9. Specifications .......................................................................................................10

10. Warranty ..............................................................................................................11

11. Contacting Technical Support ...........................................................................11

www.snapav.com Support: 866.838.5052

pg.3

B-500-TX-230-IR Installation Manual

2. Product Overview

The B-500-TX-230-IR extends HDMI over a single Cat5e/6 using HDBaseT technology allowing video and audio transmission to any HDBaseT Receiver. The B-500-TX-230-IR supports all

HDMI-defined audio and video formats, including 3D video and [email protected], and also features bi-directional IR pass-through.

2.1. Features

Form and Function

• Designed specifically for use with B-500-RX-230-IR and similar HDBaseT Receivers to extend

HDBaseT to displays and equipment with HDMI input

• Wall-mountable housing design for easy installation

• Extends HDMI formats over a single cable

Cat5e/Cat6: Up to 200ft ([email protected] up to 115 ft)

Cat6a: Up to 230ft ([email protected] up to 130 ft)

• Transmits HDMI Signal via HDBaseT up to 10.2Gbps

• HDCP 1.4 Compliant

• Latch-locking power supply

Video

• 2D Resolutions up to [email protected] – 48 Bit Deep Color

• 3D Resolutions up to [email protected] – 48 Bit Deep Color

[email protected] up to 130 ft

Audio

• Supports all HDMI supported audio formats, including DTS-HD Master and Dolby TrueHD

Bi-Directional IR Pass-Through

• Supports IR Signal up to 60 KHz

• Adaptive Circuit on IR Transmitter accepts input levels from 2V DC to 12V DC

2.2. Package Contents

(1) B-500-TX-230-IR

(1) 12V DC Power Supply

(2) Mounting Screws

(4) Rubber Feet

(1) Installation Manual

(2) HDBaseT Cable Labels

3. Recommended For Installation

To Extend HDBaseT

(Section 5, Wiring Recommendations)

• Category 5e/6 Cable

• RJ45 Connectors

• (1) HDMI Cable

For IR Pass-Through

(Section 8, IR-Pass Through)

• IR Flasher(s)

• IR Transmitter

• Mono-mini 3.5mm cable(s) pg.4

Tools

• Wire Stripper or Wire Scissors

• RJ45 Crimper

• Network Cable Analyzer or Continuity Tester

© 2014 Binary

B-500-TX-230-IR Installation Manual

4. Transmitter Layout

1 2

12V DC

3 4

5 6 7 8

1. Latch-Locking Power Jack

Attach the included 12V DC power supply to this jack.

2. Firmware Update Port (USB)

Factory use only. Requires custom non-standard USB cable.

3. HDBaseT Link Port (RJ45)

Attach the HDBaseT cable going to the receiving device.

4. HDMI IN

Attach HDMI cable to the source HDMI output.

5. Power LED

Illuminates solid RED when extender is powered on.

6. Link LED

Illuminates solid GREEN when HDBaseT Link is active. Off indicates that HDBaseT Link is not active.

7. IR Receiver

Connect an IR control signal from an IR output of control system with a 3.5mm mono mini cable.

If the system requires a powered IR Receiver at the transmitter, a powered IR block will be needed between the IR Receiver and the transmitter’s IR Receiver port. (3.5mm mono mini)

8. IR Flasher

Connect an IR flasher or control system to this port to control a device using IR passthrough. (3.5mm mono mini) pg.5

www.snapav.com Support: 866.838.5052

B-500-TX-230-IR Installation Manual

5. Wiring Recommendations

5.1. HDBaseT Link

Cable Type - Shielded or Unshielded Cat5e/6

• Distance Limitations

Cat5e/Cat6: Up to 200ft ([email protected] resolution is limited to 115 ft)

Cat6a: Up to 230ft ([email protected] resolution is limited to 130 ft)

• Use at least Category 5e high-quality twisted pair solid conductor cable rated to 350 Mhz bandwidth.

The higher the cable standard, the better it will perform.

• For the best results, install a shielded cable. This will prevent rare signal dropout and artifacts that may occur and are caused by electromagnetic and radio interference (EMI/RFI) from ceiling fans, appliances and electric motors.

• Use no more than two 5-meter or shorter, solid or stranded, 568B terminated patch cables in the run. Use shielded patch cables if the run is shielded to maintain shield continuity.

• Use no more than two keystones or couplers in the run. Use shielded keystones or couplers with shielded cable to maintain continuity.

• Cleanly terminate all cable ends and test every cable used before connecting the extender to avoid troubleshooting termination problems later.

• Mark each end of the HDBaseT cable with the included labels to avoid confusion later.

Cable Connector - RJ45

• Use a high-quality RJ45 connector that matches or exceeds the standard of the cable in use.

Shielded connectors must be used with shielded cables, and must maintain continuity of the shield to both connectors to protect from interference.

• We discourage the use of “EZ” style, open end RJ45s with HDMI extenders.

• Always terminate RJ45 connectors in the HDBaseT signal path to the 568B termination standard as indicated by HDBaseT standards.

TIA/EIA Standard 568-B (

Gold Pins Facing Up

)

Pin 1 White/Orange

Pin 2 Orange

Pin 3 White/Green

Pin 4 Blue

Pin 5 White/Blue

Pin 6 Green

Pin 7 White/Brown

Pin 8 Brown

pg.6

© 2014 Binary

B-500-TX-230-IR Installation Manual

5.2. HDMI Cable

• Use Binary (or similar) 2 meter or shorter, High Speed rated HDMI cables between any device and the HDMI IN port of the Transmitter for the best performance.

• The Transmitter should work with a longer cable, but in the case of any picture or sync issues, it is recommended to use an HDMI cable that is 2 meters or less between the equipment and the

Transmitter to troubleshoot accurately.

• Avoid using HDMI keystones. The best practice for HDMI cables is to have one unbroken cable between the Transmitter and other equipment.

6. Power Supply

The B-500-TX-230-IR uses a 12V DC power supply.

Power Supply Voltage Warning! Before applying power to the Transmitter, read the label on the power supply to confirm that it is 12V DC. Connecting the wrong voltage power supply may cause damage to the

Transmitter or the supply.

www.snapav.com Support: 866.838.5052

pg.7

B-500-TX-230-IR Installation Manual

7. Installation Instructions

B-500-TX-230-IR

12V DC

AC

Power

AC

Power

HD-BaseT Receiver

+24V DC 1A

INPUT

PWR HDMI OUT

HDTV

From HDMI Output

ON ON

Follow these steps to install the transmitter:

1. Turn off all equipment to be connected.

Do not connect power to the B-500-TX-230-IR until all other connections are made.

2. Run the HDBaseT cable from the location of the Transmitter to the location of the Receiver and terminate the ends.

3. Test the HDBaseT cable using a continuity tester or network analyzer.

4. Connect the HDBaseT cable to the B-500-TX-230-IR Transmitter and the Receiver being used.

5. Connect an HDMI cable between the HDMI IN port of the B-500-TX-230-IR and the HDMI output of the equipment.

6. Screw the power connector into the latch-locking jack on the Transmitter, and then plug the power supply into an AC outlet. The Power LED at the Transmitter should illuminate solid RED.

7. Test the system by playing media at the highest resolution that can be supported by all of the equipment.

8. After testing is complete and the unit is functional, mount the Transmitter in the desired location, or continue to the next page to set up IR pass-through.

Important! It is essential to have HDBaseT pass-through working correctly before other features are configured, so make sure this portion of the install is functional before setting up IR serial pass-through.

pg.8

© 2014 Binary

B-500-TX-230-IR Installation Manual

8. IR Pass-Through

IR pass-through may be used to control displays from the transmitting location (via commands from an automation system), or to control sources using IR remotes in the rooms where displays are located.

Commands may be passed in both directions at once if necessary.

8.1. IR Receiver & Flasher Port Pinout (1/8”/3.5mm Mono Mini)

GND (Sleeve)

IR Signal (Tip)

IR Signal

GND (Ground)

Tip

Ring

Important! Pinout configurations for IR transmitters and control systems vary. Before connecting to the IR Receiver port, review all device pinouts carefully in order to match the configuration for the

B-500-TX-230-IR.

8.2. IR Pass-Through Application Diagram

IR Inputs

IR Processor / Controller

IR Outputs

HDMI Source

PLAY

B-500-TX-230-IR

Mono Cable

IR Flasher

12V DC

HDBaseT Receiver

HDTV

HDBaseT Cat 5/6

+24V DC 1A

INPUT

PWR HDMI OUT

IR Flasher

IR Receiver

8.2. Connection Instructions

Refer to the diagram above. Connect an IR Receiver or mono cable connection from an IR output to one of the IR Receiver inputs. Connect an IR flasher to the IR Flasher port at the opposite end and place the emitter head over the IR receiver window of the device being controlled.

pg.9

www.snapav.com Support: 866.838.5052

B-500-TX-230-IR Installation Manual

9 . Specifications

HDMI Compliance

HDCP Compliance

Video Bandwidth

HDMI over UTP Transmission

Input TMDS Signal

Input DDC Signal

ESD Protection

IR Signal (Bi-directional)

HDBaseT Link

HDMI

IR Receiver

IR Flasher

Power

USB Update Port

Housing

Dimensions (Inches, W x H x D)

Weight

Power Supply

Power Consumption

Operation Temperature

Storage Temperature

Relative Humidity

Certifications and Compliance

TECHNICAL

HDMI 3D

Yes

10.2 Gbps

Resolution

1080i / 720p 24-bit color

Full HD 1080P 24-bit color

Full HD 1080P 36-bit deep color

[email protected]

Cat5e/Cat6

200ft

200ft

200ft

115ft

Cat6a

230ft

230ft

230ft

130ft

1.2 Volts (peak-to-peak)

5 Volts (peak-to-peak, TTL)

(1) Human body model — ±15kV (air-gap discharge) & ±8kV

(contact discharge) (2) Core chipset — ±8kV

Carrier frequency: 20-60kHz

CONNECTIONS

1x RJ45

1x HDMI Type A (19-pin female)

1x 3.5mm Mono

1x 3.5mm Mono

Latch-Locking

Mini USB - Factory Use Only

MECHANICAL

Metal enclosure

4.1” x 1.25” x 3.5”

1.1 lbs.

12V DC

7.5w (max)

32~104°F

-4~140°F

20~90% RH (no condensation)

Product: CE, FCC

Power Supply: CE, FCC, Rohs, UL pg.10

© 2014 Binary

10. Warranty

B-500-TX-230-IR Installation Manual

2-Year Limited Warranty

This Binary™ Product has a 2-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, or disassembled. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notification and an assigned return authorization number (RA).

11. Contacting Technical Support

Phone: (866) 838-5052

Email: [email protected]

www.snapav.com Support: 866.838.5052

pg.11

140808-1600

© 2014 Binary™
