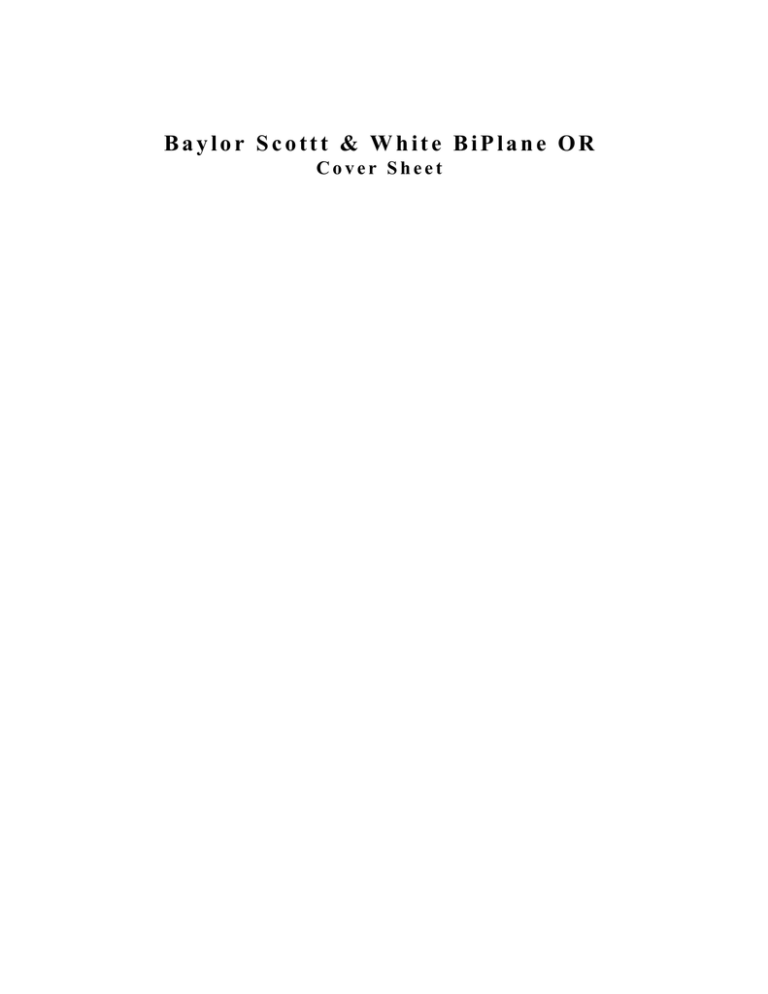

C o v e r S h e e t

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Anesthesia Machine, General

Atta ID:

3370-045

Alt ID:

Manufacturer: Draeger Medical, Inc ((800) 437-2437)

Mfr #:

OPC5280

Vendor:

Unspecified

Model:

Apollo Workstation (Base Unit)

Vendor #:

CAD ID:

ANE0032

Anesthesia machine with 2 or 3 vapor configuration. Electronic measurement of gas delivery with export capability to an electronic record system. Electrically driven piston E-vent ventilator. Optimized for low flow with warmed breathing system. High resolution TFT 12.1" color flat panel. Standard ventilation modes include volume control; pressure control; synchronized volume and pressure control. Optional: pressure support volume autoflow.

Item ID:

General Product Detail

Arch Sig:

Yes

Arch Code:

2 - Movable, Elect

Custom Code:

Unassigned

Furnish Install:

O/V Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Physical Requirements

Width:

33.50 in (851 mm)

Depth:

31.50 in (800 mm)

Height:

59.00 in (1499 mm)

Max Weight:

365 lbs (165.6 kg)

Mounting:

Floor-Mobile

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Product and Project Item Notes

Specification:

Max weight does not include vaporizers or gas cylinders.

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department Room# Room

Surgery Anesthesia

Electrical Requirements

Volts:

120

Hz:

60

Phase:

KVA:

Single

Emer. Power:

Yes

Watts:

200

Amps:

1.7

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: Type B (NEMA 5-15)

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

Vent:

No

No

Tech Connect:

No

Gasses:

Yes

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Structural Requirements

Seismic:

No

Pre-approval:

Funding Source Item Status

Project Draft (New)

Total:

Qty

1

1

Item Notes

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

04 | DRÄGER APOLLO® ANESTHESIA WORKSTATION

To protect

your investment

Apollo can grow

with you.

You care about improving outcomes ...

CONTINUITY OF CARE IN VENTILATION

As the proportion of elderly and critical-care patients in the OR rises, more is demanded of an anesthesia workstation. Apollo has the ventilation technology to care for patients of any age and acuity. The E-Vent plus servo controlled high-speed piston ventilator works with great precision to supply a maximum peak flow far in excess of any bellows ventilator, resulting in the kind of performance previously only seen in the ICU. Additional ly, unlike a bellows ventilator, it requires no drive gas. The very short response time has clear physiological benefits for your patients while the digital precision helps you make the most of the latest ventilation modes. In Pressure Mode, Apollo has a number of features that are particularly beneficial for pediatric or critical-care patients.

Decelerating flow control and optimum flow in the face of inspiratory resistance add up to critical-carequality ventilation. This eliminates the need for a separate ICU ventilator in the OR and sets a new ventilation standard. In synchronized Volume Mode, Apollo offers benefits such as an adjustable flow trigger that reduces the patient’s respiratory work and adjustable

PEEP. With E-Vent plus, you can switch smoothly from controlled to spontaneous respiration. In addition, Apollo is avail able with Pressure Support, an assisted spontaneous respiratory mode which allows the patient to breathe spon tane ously for extended periods by reducing the work of breathing.

08 | DRÄGER APOLLO® ANESTHESIA WORKSTATION

TECHNICAL DATA

Weight (without vaporizers and gas cylinders)

Dimensions (H × W × D)

Power

Operating voltage

Integrated power backup

Ventilator E-Vent® plus

Ventilation modes

Pressure limitation P

MAX

Pressure limitation P

INSP

Trigger

Tidal volume V

O

2

T

(in Volume Mode)

(in Pressure Mode)

(compliance compensated)

(in Volume Mode)

Breathing frequency (freq.)

Inspiration time (T

INSP

)

Inspiration/Expiration time ratio (I:E)

Plateau time (T

IP

:T

INSP

)

Inspiratory flow (in Pressure Mode)

PEEP in Volume Mode

PEEP in Pressure Mode

Fresh-gas flow

T

SLOPE

(in Pressure Mode and Pressure Support)

Total system leakage

O

2

flow control

flush

365 lbs. (165 kg)

59 × 33.5 × 31.5 inches (150 × 85 × 80 cm)

200 W, typically

100 to 127 VAC (- 15 % + 10 %) 45 – 65 Hz

At least 30 min, typically 90 min; Depending on ventilation parameters

Electrically driven and electronically controlled, fresh gas decoupled

Manual, spontaneous, Volume Mode, Pressure Mode

Optional/Synchronization: Pressure Support (PS), Volume Mode Autoflow

(PEEP + 10) up to 70 cmH

2

O

(PEEP + 5) up to 70 cmH

2

O

0.3 – 15 L/min

20 – 1400 mL

5 – 1400 mL (with advanced ventilation option)

3 – 100 bpm

0.2 – 6.7 s max. 5:1

0 – 60 % max. 150 L/min

0 – 20 cmH

2

O (max. P

MAX

– 10 cmH

2

O)

0 – 20 cmH

2

O (max. P insp

– 5 cmH

2

O)

0 – 10 L/min for each gas (oxygen, air, nitrous oxide)

0 – 2 s

< 150 mL/min at 30 cmH

2

O (automatic leak test)

Sensitive ORC function: at least 21 Vol.-% with N

2

O as carrier gas

> 35 L/min

Monitoring

Inspiratory and expiratory concentration of O

2

, N

2

(MV) and Tidal volume (V

T

O, CO

2

as well as anesthetic agents (Halothane, Enflurane, Isoflurane, Sevoflurane, Desflurane); Minute volume

); Breathing frequency; Peak pressure, plateau pressure, mean pressure, PEEP; Patient compliance CPAT; Option: Functional oxygen saturation (SpO

2

); The following parameters maybe displayed as waveforms:

Concentration of CO

2

, O

2

, as well as anesthetic agents, airway pressure, inspiratory and expiratory flow; Option: Plethysmogram; Bar graph display of volumeter and tidal volume; Virtual flow tubes for O

2

, AIR, N

2

O; Display of graphical trends and numerical lists of measured values; AutoSet for alarm limits

Serial interface

Protocol

2 × RS 232

Medibus, Medibus X

Absorber volume (reusable canister) 1.5 L

The colors of Apollo® may differ from the color of the Apollo® pictures in this brochure

Apollo, Infinity, Pick and Go, Innovian, E-Vent, DrägerService are trademarks of Dräger.

CORPORATE HEADQUARTERS

Drägerwerk AG & Co. KGaA

Moislinger Allee 53–55

23558 Lübeck, Germany www.draeger.com

Manufacturer:

Drägerwerk AG & Co. KGaA

Moislinger Allee 53–55

23558 Lübeck, Germany

Locate your Regional Sales

Representative at: www.draeger.com/contact

USA

Draeger Medical, Inc.

3135 Quarry Road

Telford, PA 18969-1042, USA

Tel +1 215 721 5400

Toll-free +1 800 437 2437

Fax +1 215 723 5935 [email protected]

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Disposal, Sharps, Wall Mount

Atta ID:

3723-027

Alt ID:

Manufacturer: BD Medical ((201) 847-6800)

Vendor:

Unspecified

Model:

BD Recykleen Brown 2-3 gal. (305097)

Locking, wall mounted sharps disposal cabinet with shield. For 2 and 3 gallon collectors. Brown. Made from

100% recycled content.

Mfr #:

305097

Vendor #:

CAD ID:

Item ID:

DIS0257

General Product Detail

Arch Sig:

Yes

Arch Code:

1 - Fixed

Custom Code:

Unassigned

Furnish Install:

O/C Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

Yes

Physical Requirements

Width:

14.50 in (368 mm)

Depth:

7.50 in (191 mm)

Height:

19.00 in (483 mm)

Max Weight:

5 lbs (2.3 kg)

Mounting:

Wall

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Electrical Requirements

Volts:

N/A

Hz:

N/A

Phase:

KVA:

N/A

N/A

Emer. Power:

No

Watts:

N/A

Amps:

N/A

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: N/A

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

Vent:

No

No

Tech Connect:

No

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Structural Requirements

Seismic:

No

Pre-approval:

Product and Project Item Notes

Specification:

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department

Surgery

Room#

21

Room

OR

Funding Source Item Status

Existing (Reuse) Draft (Existing)

Total:

Qty

1

1

Item Notes

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

14

Cabinets and Accessories

BD Recykleen

Cabinets are available in two sizes: small for use with 5.4 quart collectors and large for use with 2 and 3 gallon collectors. Each size is available in both green and brown semi-transparent colors.

Key product features include:

• A universal lock providing security and preventing unwanted access to collectors

• A one-piece transparent door facilitating easy cleaning

• The ability to clearly see the collector fill-level indication

• A two-year warranty providing

ABSORBENT

LOW TEMP HIGH TEMP

product replacement in case of manufacturer defects

305099

305098

100

%

Product made from

100% recycled materials

305096

305097

HANDS FREE

SECURITY SLIDE TOP

DUAL OPEN

HANDS FREE

BD Recykleen

Cabinets

Reference #

305096

305098

305097

305099

Product Size

Product Dimensions

( H x W x D inches )

5.4 qt BD Recykleen

Sharps Collector

Wall Cabinet Brown

5.4 qt BD Recykleen

Sharps Collector

Wall Cabinet Green

2 and 3 gal BD Recykleen

INCINERATOR

Wall Cabinet Brown

™ Sharps Collector

INCINERATOR

2 and 3 gal BD Recykleen ™

Wall Cabinet Green

Sharps Collector

14 x 13.3 x 5.5

14 x 13.3 x 5.5

19 x 14.5 x 7.5

19 x 14.5 x 7.5

Collectors not included.

Qty

Case

1

1

1

1

Compatible with

305517, 305551, 305426,

305427, 305448

305053, 305054, 305422,

305435, 305436, 305448

Brackets

Brackets are designed to secure the collector to a wall or cart. Some

SLIDE TOP

brackets include additional security via a locking mechanism.

DUAL OPEN

Stabilizers

Stabilizers are designed to stabilize collectors on a countertop or other flat surface.

Brackets and Stabilizers

Reference #

305447

305409

305588

305021

305552

305448

305495

305497

Product Size

Product Dimensions

( H x W x D inches )

Qty

Case

Locking Bracket

Locking Bracket

9.5 x 9.5 x 4.25

4.25 x 14 x 4.75

Wire Bracket

Stabilizer

4.5 x 12 x 5.3

3 x 13 x 6.5

Stabilizer 2.75 x 13.5 x 7.3

Glove Box Cabinet Bracket 6 x 12 x 4.4

Wire Security Bracket

Quick Release Strap

6 x 3.5 x 1.2

1.5 x 8 x 1

5

6

6

5

10

10

12

12

Compatible with

All 5.4 qt

2 and 3 gal Counterbalanced Door

2 and 3 gal Counterbalanced Door

All 5.4 qt

2 and 3 gal Counterbalanced Door

Attaches to Cabinets and 5.4 qt Locking Bracket

Multi-use One Piece Collectors

Multi-use One Piece Collectors

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Hamper, Linen

Atta ID:

3836-041

Alt ID:

Manufacturer: Blickman Inc. ((800) 338-2372)

Mfr #:

962018000

Vendor:

Unspecified

Model:

2018 (18' Round)

Vendor #:

CAD ID:

HAM0033

18" round, chrome linen hamper without lid. Constructed of 1" chrome steel tubing with 2" hard rubber casters.

Item ID:

General Product Detail

Arch Sig:

No

Arch Code:

3 - Movable, Non-Elect

Custom Code:

Unassigned

Furnish Install:

O/O Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Physical Requirements

Width:

18.75 in (476 mm)

Depth:

18.75 in (476 mm)

Height:

35.00 in (889 mm)

Max Weight:

11 lbs (5.0 kg)

Mounting:

Floor-Mobile

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Electrical Requirements

Volts:

N/A

Hz:

N/A

Phase:

KVA:

N/A

N/A

Emer. Power:

No

Watts:

N/A

Amps:

N/A

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: N/A

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

Vent:

No

No

Tech Connect:

No

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Structural Requirements

Seismic:

No

Pre-approval:

Product and Project Item Notes

Specification:

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department

Surgery

Room#

21

Room

OR

Funding Source Item Status

Existing (Reuse) Draft (Existing)

Total:

Qty

2

2

Item Notes

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

1

C H R O M E H A M P E R S / R E C E P TA C L E S

Keep linens under cover with the foot-operated MODEL 2010 STEP-ON HAMPER.

Just press the non-slip pedal to raise the white poly-coated steel lid; locking device keeps it in open position as needed. Supports 36-42 gallon multi-purpose bags with a ring to keep bags in place. Includes hamper bag storage pouch (2012). Glides effortlessly on 3” hard wheel casters, two with locks.

Model No.

2010

Part No.

Dimensions

0962010000 LID: 18-5/8"W 19-1/2"D 37-3/4"H

Option: Hamper bags

Ship Wt. (lb) est.

25

2010

MODEL 2018 and 2025 ROUND HAMPERS offer an 18” or 25” diameter ring constructed from 1” chrome steel tubing. Solid steel bag rest supports hamper bags.

Travels easily on 2” hard rubber casters.

Model No.

2018

2025

Part No.

0962018000

0962025000

Option: Hamper bags

Dimensions

18-5/8"D 35”H

25"D 35”H

Ship Wt. (lb) est.

11

12

2018

MODEL 2118 TILT-TOP FOOT-OPERATED HAMPER is spring-loaded for easy opening and closing and offers an attractive stainless steel lid with pin-drop, pneumatic top for quiet operation. Non-slip pedal allows for hands-free operation. Solid steel bag rest supports hamper bags. The hamper travels easily on four, 2” hard rubber casters.

Model No.

2118

Part No.

096211800P

Option: Hamper bags

Dimensions

19-5/8"D 36"H

Ship Wt. (lb) est.

21

2118

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Light, Surgical, Dual, Ceiling

Atta ID:

3979-168

Alt ID:

Manufacturer: Stryker Communications ((866) 726-3705)

Mfr #:

0682001252(x2)/0682001565

Vendor:

Unspecified

Model:

Visum LED II Dual (non-Camera Ready)

Ceiling mounted, dual arm surgical light with LED lightheads and 5P/5P central axis ceiling suspension. Non-

Camera ready. 160,000 Lux. Dual cardanic suspension, 41 inch focused column of light, 4400K color temp color rendering index of 90, field diameter adjustable from 8.5-12.9 inches. Sterilizable handles.

List Price includes budget allowance for Drop Tube, ceiling suspension cover, mounting plate and hardware kit

(specified separately).

Vendor #:

CAD ID:

Item ID:

LTS0613

General Product Detail

Electrical Requirements

Arch Sig:

Yes

Arch Code:

1 - Fixed

Custom Code:

Unassigned

Furnish Install:

O/V Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Volts:

120

Hz:

60

Phase:

KVA:

Single

Emer. Power:

No

Watts:

690

Amps:

6

BTU/hr:

950

Ded. Circuit: No

Plug Type: Hardwire

Physical Requirements

Width:

189.00 in (4801 mm)

Depth:

189.00 in (4801 mm)

Height:

*

Max Weight:

204 lbs (92.5 kg)

Mounting:

Ceiling

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

No

Vent:

No

Tech Connect:

No

Product and Project Item Notes

Specification:

Width/Depth specified is diameter of extension arms with two light heads.

Structural Requirements

Seismic:

Yes

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Pre-approval:

Wall mounted intensity control specified separately.

BTU/hr reflects 2 light heads (475 BTU/hr-140W per light head).

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department Room# Room

Surgery 21 OR

Funding Source Item Status

Existing (Reuse) Draft (Existing)

Qty

2

Item Notes

Total: 2

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

Visum LED II Surgical Lights

Technical Specifications

FDA Clearance: Yes

UL Approvals: Yes

Number of Lightheads: Up to two per suspension

Number of LEDs: 90 LEDs

LED Lifetime* L70: 50,000 hours

Color Temperature: 4400 K (+/- 200)

Color Rendering Index: ! 90

CRI R9: 85+-10%

Field Size Diameter: 8.5in -12.9in (21.6cm - 32.8cm)

Depth of Field: 41in (104.2 cm)

Illumination Level: 160,000 Lux

Ratio of Irradiation to Illuminance: 3.3 mW/m2 x lux

Controls: Wall control, voice capable, touch panel capable

Rotation: 360 degrees

Vertical Adjustment Range: + 22in (55.9cm), -25in (63.6cm)

Reflector Material: Reflector surface is aluminium

Task Lights: Yes (Perilite)

Sterilizable Handle: Yes

Lighthead Diameter: 26.7in (67.7cm)

Mounting Type: Ceiling

Supply Voltage: 100-230V 50/60Hz

Power (without camera): < 110 Watts

Bulb Type: LED

Other Options: Camera options available

*LED Light Output: To remain at or above 70% initial output. Estimate based on LED manufacturer data.

The information presented in this brochure is intended to demonstrate a Stryker product. Always refer to the package insert, product label and/or user instructions before using any Stryker product. Products may not be available in all markets. Product availability is subject to the regulatory or medical practices that govern individual markets. Please contact your Stryker representative if you have questions about the availability of Stryker products in your area.

Stryker Corporation or its divisions or other corporate affiliated entities own, use or have applied for the following trademarks or service marks: Visum and Stryker. All other trademarks are trademarks of their respective owners or holders.

Stryker Communications

1410 Lakeside Parkway #100

Flower Mound, TX 75028 www.stryker.com

Literature Number: 1004700050 (Rev. B)

10/10 BC/EP

Copyright © 2010 Stryker

Printed in USA

Visum™ Surgical Lights and

Flat Panel Arms

(Halogen and LED)

Pre-Installation Manual

August 2013 1001-400-008 REV P www.stryker.com

Visum™ Surgical Lights and Flat Panel Arms

(Halogen and LED)

Pre-Installation Manual

This manual contains confidential information that shall not be disclosed or duplicated for any reason other than to use and maintain Visum™ Surgical Lights and Flat Plane Arms. This restriction does not limit the right to use information contained in this manual if it is obtained from another source without restriction. The information subject to this restriction is contained in all pages of this manual.

© August 2013 Stryker Communications. All Rights Reserved. Information in this document is subject to change without notice. Stryker and Stryker logo are registered trademarks of Stryker.

Endosuite

®

OR and iSuite

®

are registered trademarks of Stryker.

All Rights Reserved

Stryker Visum Surgical Lights and Flat Panel Arms Pre-Installation Manual

1001-400-008 REV P

Contents

1. General Warnings and Cautions ............................................................................................................................ 7

1.1 Warnings ............................................................................................................................ 7

1.2 Cautions ............................................................................................................................. 7

2. Product Symbol Definition.................................................................................................................................... 8

3. Scope .................................................................................................................................................................... 9

4. Hospital/Contractor Responsibility ..................................................................................................................... 10

4.1 Delivery and Storage ......................................................................................................... 10

4.2 Drawings and Information ................................................................................................. 10

4.3 Ceiling Access .................................................................................................................... 10

5. Stryker’s Responsibilities .................................................................................................................................... 11

6. Structural Responsibilities .................................................................................................................................. 12

6.1 Support Structure/Mounting Support ................................................................................. 12

6.2 Support Structure Design Considerations ............................................................................ 12

6.3 Site Preparations .............................................................................................................. 15

6.3.1 Mounting (Interface) Plate ........................................................................................15

6.3.2 Universal Mounting Plate ..........................................................................................15

6.4 Mechanical Specifications .................................................................................................. 17

6.5 Support Structure Loads ................................................................................................... 17

7. Electrical Responsibilities ................................................................................................................................... 18

7.1 Electrical and Data Infrastructure ....................................................................................... 18

7.2 Electrical Installation ........................................................................................................ 18

7.3 Power Supply Box Mounted in Documentation Station (Halogen) ......................................... 19

7.3.1 Visum 450 & 600 (Halogen) Light Power Supply Box ....................................................19

7.3.2 Visum 450 & Visum 600 (Halogen) Light and Camera Wall Control Panel .......................20

7.4 Power Supply Box Mounted in Documentation Station (LED) ............................................... 22

7.4.1 Power Supply Box for Visum LED ................................................................................22

7.4.2 Visum LED Wall Control Panel .....................................................................................23

7.5 Wall-Mounted Power Supply Box (Visum LED) ...................................................................... 24

7.5.1 Power Supply Box Wall Mount (Optional) ....................................................................25

7.6 Electrical Installation Drawings .......................................................................................... 26

5

7.7 Electrical Specifications ..................................................................................................... 30

7.8 Video and Data Conduit Requirements ............................................................................... 30

8. Environmental Specifications ............................................................................................................................. 31

8.1 Light Suspension Specifications ......................................................................................... 32

Appendix A: Seismic Calculations (Light Suspensions) ............................................................................................ 33

Appendix B: Seismic Certificates (Light Suspensions) .............................................................................................. 36

6

1. General Warnings and Cautions

Please read this manual and follow its instructions carefully. The words WARNING, CAUTION, and

Note carry special meanings and should be carefully reviewed:

WARNING The personal safety of the patient or user may be involved. Disregarding this information could result in injury to the patient.

Caution Special service procedures or precautions must be followed to avoid damaging the instrument.

WARNING A lightening bolt within a triangle is intended to warn of the presence of hazardous voltages. Refer all service to authorized personnel.

Note

Special information to make maintenance easier or important information more clear.

To avoid potential serious injury to the user and the patient and/or damage to this device, the user must adhere to the following warnings and cautions.

1.1 Warnings

1. Read this manual thoroughly, and be familiar with its contents prior to installing this equipment.

2. Test this equipment before release for use by hospital personnel.

3. Energized electrical circuits can cause severe injury or death. Ensure that all personnel working around energized circuits have been trained in and follow proper lock-out/tag-out and other applicable safety procedures.

1.2 Cautions

1. Use caution when lifting heavy objects to avoid serious bodily injury or damage to equipment.

2. All Stryker-supplied equipment should be stored in a clean, dry environment prior to installation. Failing to comply with this requirement may lead to equipment damage.

7

2. Product Symbol Definition

The following symbols may be found on the Stryker Visum LED and Flat Panel Arms:

An exclamation mark within a triangle is intended to alert the user to the presence of important operating and maintenance (service) instructions in the literature accompanying the product.

A lightning bolt within a triangle indicates the presence of hazardous voltage. Refer all service to authorized personnel.

Denotes oxygen explosion hazard.

Denotes usage tips and useful information.

Denotes compliance to European Community Directive 93-42-EEC.

Indicates hot surfaces.

Denotes compliance to CSA Standard C22.2, 60601.1 - M90, AS 3200, IEC 60601,

IEC 60601-2-41, UL 60601, EN 60601

Denotes the date the equipment was manufactured.

Denotes the manufacturer of the device.

A yellow box with a hand within a triangle is intended to warn the user of the presence of an electrostatic sensitive device. Follow ESD prevention procedures.

In accordance with European Community Directive 2002/96/EC on Waste Electrical and Electronic Equipment, this symbol indicates that the product must not be disposed of as unsorted municipal waste but should be collected separately.

Note: The device does not contain any hazardous materials.

Legal regulations may include specifications regarding the disposal of this product. We request that you contact Stryker when you plan to withdraw this device from service for discard.

8

3. Scope

This Pre-Installation Guide describes the requirements for assembling and installing components used in the support of Stryker ceiling-mounted surgical lighting and monitor carrying assemblies prior to installation. This guide covers all mechanical and electrical pre-installation requirements for the lights, control panel, power supply, surgical light suspensions, and flat panel/navigation suspensions. This guide does not describe the installation of the surgical monitors or support arm assemblies.

9

4. Hospital/Contractor Responsibility

WARNING Responsibility for proper design of the support structure lies entirely with the hospital/contractor and is not covered through warranty by Stryker.

An improperly designed support structure may result in poor performance or damage to equipment and possible injury to the user.

Service charges related to inadequate support structure design is at the customer’s expense.

Stryker will not review or approve customer support structures. This is the responsibility of the customer’s architect and designated structural engineer. Any visit by Stryker personnel to view the steelwork is only to compare its position to ceiling plans.

4.1 Delivery and Storage

1. Accept delivery of Stryker crates and equipment to the proper room prior to the installation date.

2. All Stryker-supplied equipment should be stored in a clean, temperature controlled, dry environment prior to installation. Failing to comply with this requirement may lead to damage of equipment, possible failure of life support components, theft, and damage.

3. Remove and dispose of the pallets, boxes, and trash after completing the installation.

4.2 Drawings and Information

1. The hospital must supply Stryker with up-to-date drawings in

.dwg format (CAD) including but not limited to:

• Room layout plans (current and proposed)

• Electrical services drawings

• Mechanical services drawings

• Elevation drawings

• Structural steel (support structure) drawings

• Ceiling drawings

2. The hospital must ensure that Stryker is notified of all revisions and changes to drawings prior to and during the scope of the project.

4.3 Ceiling Access

1. A 24” x 24” (610mm x 610mm) minimum access panel must be installed in the ceiling within

18” (450mm) of the Stryker-supplied Mounting (Interface) Plate to allow connection of electrical and data cables during final installation. In this instance, an access panel is defined as an opening in the ceiling near the fixture that allows for servicing the equipment. The access panel must be separate from the hole where the equipment is hung and it must have a door for future serviceability.

2. A 21-22” diameter (533mm-558mm) hole, concentric with the Stryker-supplied Mounting

(Interface) Plate center is required for the light assembly installation. A 24”(600mm) diameter ceiling cover (Stryker-supplied) will conceal the hole after the suspension has been completely installed.

10

5. Stryker’s Responsibilities

• Provide the hospital or designated contractor with CAD drawings including elevation and room configuration drawings for Stryker-supplied equipment.

• Advise the hospital of a proposed time frame for installation of Stryker-supplied infrastructure.

• Check in with hospital personnel and/or contractor to announce arrival.

• Install the surgical lights and calibrate the brakes according to Stryker specifications.

• Connect low voltage electrical and data cables for surgical lights and adjust lighting

(voltage, field diameter adjustments, etc.) to Stryker specifications.

• Install the flat panel monitor arm (if applicable) and calibrate the brakes to Stryker specifications.

• Route and terminate all audio visual cables required for Stryker-supplied equipment.

• Install flat panel monitor (if applicable) and connect audio visual wiring kit to the flat panel.

11

6. Structural Responsibilities

Installation of the support structure, electrical conduits, junctions boxes, video, data, and other services should be installed by the hospital or contractor and are not contained within the scope of work for Stryker. Stryker assumes all work has been performed in accordance with all applicable engineering and electrical building codes.

6.1 Support Structure/Mounting Support

WARNING Responsibility for proper design of the support structure lies entirely with the hospital/contractor and is not covered through warranty by Stryker.

An improperly designed support structure may result in poor performance or damage to equipment and possible injury to the user.

Service charges related to inadequate support structure design is at the customer’s expense.

Stryker will not review or approve customer support structures. This is the responsibility of the customer’s architect and designated structural engineer. Any visit by Stryker personnel to view the steelwork is only to compare its position to ceiling plans.

1. Design and install the support structure to:

• Support (Stryker-supplied) weight and moment loads of each equipment piece.

• Satisfy all applicable regulations including, but not limited to, building and electrical codes.

2. Install Stryker-supplied Mounting (Interface) Plate at the bottom of each support structure at

3” (76.2 mm) above the finished ceiling in accordance with the recommended method. THIS

MUST BE INSTALLED PRIOR TO STRYKER’S ON-SITE ARRIVAL FOR INSTALLATION.

3. Ensure that Stryker equipment and infrastructure is not impeded by the design of the support structure.

4. Verify that the clearance for the mounting site is at least 25” (635mm) to install the Surgical

Light System (LED or Halogen).

5. Install a 24” x 24” (610mm X 610mm) access panel directly adjacent to each mounting point for installation, maintenance, and future service.

6.2 Support Structure Design Considerations

The support structure must be designed and fabricated to adequately support the loads specified for each application and to conform to all applicable regulations. Figure 6.1 is only an example of how all of the required components tie in with the hospital-supplied structure.

1. Position the support structure according to the room layout provided by Stryker.

WARNING The maximum allowed deflection of the ceiling plate under maximum load is 1˚(¹/

300

deflection ratio).

Note

The support structure must adequately support the loads specified for each application. Structure designs can vary significantly based on load, interstitial space, obstructions, and building codes.

2. Weld the Mounting (Interface) Plate to the support structure along the outer edge of the plate or

12

13

use the six .83” (21mm) holes along the outer edge of the plate to bolt it to the support structure

(see Figure 6.2).

3. The Stryker-supplied Mounting (Interface) Plate must be level within 0.25” (6.4mm). The bottom of the mounting plate must be 3” (76.2mm) above the finished ceiling. Allow enough space to route cables to the surgical light and Flat Panel Navigation Arm (see Figure 6.1).

WARNING Caution must be exercised when lifting heavy objects to avoid serious bodily injury or damage to equipment.

WARNING Proper design and manufacture of the support structure is the hospital and contractor’s responsibility and is not covered through warranty by

Stryker. Insufficient structure support may result in poor performance or damage to equipment as well as injury to the user. Service charges related to inadequate structure support are the hospital’s responsibility.

WARNING The mounting plate is part of the support structure. It is the hospital’s responsibility to ensure the mounting plate is sufficiently supported to carry the loads defined for the support structure.

Note

Dynamic (seismic) loads per California Building Code 1632A are available in

Appendices A and B. If seismic calculations are required for a local region, they must be determined by the structural engineer.

Note

The support structure must be designed and installed to avoid obstruction of or interference with the six tapped holes [5/8-11 UNC (M16)] located adjacent to the inner diameter of the Stryker-supplied Mounting (Interface) Plate as well as the 9.06” (230 mm) diameter center hole.

14

6.3 Site Preparations

6.3.1 Mounting (Interface) Plate

The Stryker-supplied Mounting Plate is the primary mounting component for new surgical light installations. Its is the responsibility of the hospital/contractor to install the plate, as it is considered part of the structure. The mounting plate MUST be installed by the hospital/contractor prior to the installation start date.

Figure 6.2 - Stryker-supplied Mounting (Interface) Plate

Material: Steel, .05” (12.7mm) thick, approximately 40lb (18kg)

Note

The green squares denote Stryker-only threaded holes. Red circles are acceptable mounting holes for the contractor. The shaded areas are acceptable welding points.

Note

Ensure that the area inside the Clear Zone and at least one of the two M6 holes remain unobstructed by the support structure or weld slug.

6.3.2 Universal Mounting Plate

The Universal Mounting Plate adapts the hole-pattern of existing ceiling plates to accommodate Stryker equipment. At least one hole pattern in the existing mounting plate must align with one hole pattern in the Universal Mounting Plate.

15

WARNING The Universal Mounting plate is only intended for use with light suspensions and flat panel suspensions. It cannot be used to mount a boom.

The Stryker-supplied Universal Mounting Plate was designed to bolt directly to most existing bolt patterns, but the hospital is required to confirm a matching bolt pattern before installation.

Support Structure

Existing Mounting Plate

Universal Mounting Plate

Figure 6.3 - Mounting & Universal Plate Diagram

Finished Ceiling

Figure 6.4 - Universal Mounting Plate

16

6.4 Mechanical Specifications

Max Load Capacity

Navigation Spring Arm:

Single Flat Panel Spring Arm:

Dual Flat Panel Spring Arm:

Horizontal Arm:

Flat Panel Spring Arm on Light Suspensions with all models, including Stryker Visum™ Surgical Light up to 7.0 kg (15.4 lbs) up to 18 kg (39.6 lbs) up to 45 kg (99.2 lbs) up to 45 kg (99.2 lbs) up to 21 kg* (46.3 lbs)

*Check load capacity of Spring Arm prior to loading.

6.5 Support Structure Loads

Support Structure Loads

Equipment Suspension Weight

x

Load Location y

LED and Halogen

Flat Panel Arm

Single

Dual

Triple

Dual

Single

131 lbs (59 kg)

204 lbs (93 kg)

282 lbs (128 kg)

214 lbs (97 kg)

184 lbs (83 kg)

34.4” (874mm)

40.2” (1021mm)

45.6” (1158mm)

33” (838mm)

31” (787mm)

53” (1346mm)

61.6” (1564mm)

65.4” (1661mm)

49” (1245mm)

45” (1143mm)

Figure 6.5 - Horizontal ( x

) & Vertical ( y

) Locations of Center Mass

17

7. Electrical Responsibilities

Installation of the support structure, electrical conduits, junctions boxes, video, data, and other services should be installed by the hospital or contractor and are not contained within the scope of work for Stryker. Stryker assumes all work has been performed in accordance with all applicable engineering and electrical building codes.

7.1 Electrical and Data Infrastructure

1. Provide and install the Mains power, junction boxes, Ethernet drops and grounded power outlets as described in this manual, CAD drawings, and applicable regulations and standards.

Note

For Flat Panel and Light/Flat Panel installations: Install a 5 amp fuse for 100V-

120V applications, or a 2.5 amp fuse for 200V-240V applications, if required by local electrical code. These fuses must be provided by the contractor.

If the contractor is unable to provide fuses or wishes to use a Stryker provided solution, 5 amp fuse kits are available as part number 0682400420 (5 amp). The fuse kit is intended to be mounted in a junction box 4” square and 1.5” deep.

2. Provide an uninterrupted, grounded, and isolated power to the surgical light system.

3. Install the appropriate conduit, catenaries, and cable trays between Mains power, surgical light power supply box, wall control panel, and the support structure mounting points.

4. Provide access for all Stryker personnel to route Stryker-supplied cables from locations within each room to the termination locations, as specified in the CAD drawings.

5. Verify the capacity of electrical infrastructure is capable of meeting the requirements as specified by Stryker for the project.

6. Perform final electrical testing and validation for all electrical cables and power outlets, including those on Stryker-supplied booms.

7. Make all connections of Stryker equipment to Mains power.

7.2 Electrical Installation

WARNING Energized electrical circuits can cause severe injury or death. Ensure that all personnel working around energized circuits have been trained in and follow proper lock out/tag out and other applicable safety procedures.

Note

Electrical installation and components must conform to all applicable regulations.

Note

All contractor-provided components must be UL-approved or UL-recognized.

Note

Maximum cable lengths specified in Conduit Schedules (Figures 7.6, 7.7, 7.8 and

7.9) indicate the maximum length of cables routed through conduits. Ensure the maximum conduit run between the mount and the power supply box does not exceed 50’.

18

7.3 Power Supply Box Mounted in Documentation Station (Halogen)

1. Install a vertically mounted RACO 942 three gang junction box for each wall control panel.

Note

For every two light configurations a RACO 942 junction box is required. For example, one and two light configurations require one RACO 942; but three and four light configurations require two RACO 942 junction boxes.

Note

It is not necessary to install the wall control panel inside the documentation station. Consult the hospital to determine ideal placement near or in the documentation station for the wall control panel.

2. Install a 6” x 6” (152mm x 152mm) back box behind the documentation station where the power supply box will be located.

3. Verify a grounded, uninterrupted, and isolated power outlet 115/230V is available within 48”

(1.2m) of each power supply box.

4. Install conduits as specified in Figure 7.6.

5. Provide pull-strings and terminate all conduits with bushings.

Note

All components must be located so that conduits do not exceed the maximum lengths specified in Figure 7.6.

Note

Suspensions with flat panel monitors require additional electrical components

(see Suspensions with Flat Panel Arms).

7.3.1 Visum 450 & 600 (Halogen) Light Power Supply Box

(Weight: 36.5 lbs/16.5 kg)

1. The power supply box provides 24V DC power to the surgical lights from a 115/230 VAC source.

2. Mount the power supply box at the documentation station.

Note

There is no wall mount option for Visum 450 & 600 Halogen lights.

Note

Single and dual-light configurations require one power supply box. Three or four-light configurations require two power supply boxes. If two power supply boxes are used, each power supply box should be installed on a 14-18” (356mm-

457mm) center.

3. Use a Documentation Station to accommodate the power supply box and a SwitchPoint Infinity® unit.

Note

The power supply box can be configured with an optional 24V inlet for battery backup, if required by the hospital.

19

Front View of Power Supply Box

Back View of Power Supply Box

Figure 7.1 - Power Supply Box

7.3.2 Visum 450 & Visum 600 (Halogen) Light and Camera Wall Control Panel

The wall control panel provides control for lighting levels as well as control for cameras where applicable.

1. Vertically mount the wall control panel at conventional light switch height.

Note

For every two light configurations a RACO 942 junction box is required. For example, one and two light configurations require one RACO 942 junction box; but, three and four light configurations require two RACO 942 junction boxes.

Note

The wall control panel must be within 60’ (18.3m) of the power supply box.

2. A RACO 942 three-gang box is required for Stryker to attach the wall control panel.

20

Figure 7.2 - Wall Control Panel

Note

If two wall control panels are used, each control panel should be installed on an

8-10” (203 mm-254mm) center.

Note

For proper installation of the wall control panel, a standard RACO 942 threegang box should be mounted vertically.

21

7.4 Power Supply Box Mounted in Documentation Station (LED)

1. Verify an Ethernet drop is available within 72” (1.8m) of the power supply box.

2. Verify a grounded, uninterrupted and isolated power outlet 100/230V is available within 48”

(1.2m) of each power supply box

7.4.1 Power Supply Box for Visum LED

(Weight: 20lbs/9.09 kg)

The power supply box provides 24 VDC power to the surgical lights from a 100-230 VAC source.

1. Mount the power supply box at the documentation station or near a power outlet and Ethernet drop.

Note

Verify a grounded, uninterrupted, and isolated power outlet 100/230V is available within 48” (1.2m) of each power supply box. If two power supply boxes are used, each power supply box should be installed on a 14”-18” (356mm-457mm) center.

2. Use a Documentation Station to accommodate a power supply box and a SwitchPoint Infinity® unit.

Wall

Connection

Port

SORN

Port

SIDNE

Port

Expansion

Port

Control Panel

Mount

Control Panel

Mount

Light Power

Panel Mount

Light Power

Panel Mount

Front View

12.5

(317.5)

Circuit Breaker

Electrical Inlet

7.0

(177.8)

22

Depth 15.5 (393.7)

Back View

Figure 7.3 - Power Supply Box & Ports (for Visum LED Surgical Lights)

INCHES (mm)

7.4.2 Visum LED Wall Control Panel

The LED Wall Control Panel enables users to control light intensity as well as In-Light camera functions.

1. Stryker will vertically mount the panel at conventional light switch height. The wall control panel comes with four screws to attach the panel to a RACO 942 three-gang box.

Note

For every two light configurations a RACO 942 junction box is required. For example, one and two light configurations require one RACO 942 junction box; but, three and four light configurations require two RACO 942 junction boxes.

Note

The wall control panel must be within 60’ (18.3m) of the power supply box.

2. For three or four light installations, mount the power supplies side by side at a distance of 16”

(406mm) from center to center between back boxes.

Figure 7.4 - Wall Control Panel

Note

If two wall control panels are used, each control panel should be installed on an

8-10” (203 mm-254mm) center.

7.4.2.1 Suspensions with Flat-Panel Arms

For each suspension with a flat panel monitor:

1. Install an additional 1.25” (32mm) conduit between the suspension and the documentation station (see Figure 7.7). If applicable, an in-light camera can share this conduit.

2. Provide pull strings and terminate all conduits with bushings.

3. Install a junction box with 110/220V uninterruptible power within 12” (30cm) of the mounting plate.

23

Note

For Flat Panel and Light/Flat Panel installations: install 5 amp fuse for 100V-

120V applications or a 2.5 amp fuse for 200V-240V applications, if required by local electrical code. These fuses must be provided by the contractor.

If the contractor is unable to provide fuses or wishes to use a Stryker provided solution, 5 amp fuse kits are available as part number 0682400420 (5 amp). The fuse kit is intended to be mounted in a junction box 4” square and 1.5” deep.

7.4.2.2 Single/Dual Flat-Panel Arms

1. Install 1.25” (32mm) conduit between the suspension and the documentation station.

2. Provide pull strings and terminate all conduits with bushings.

3. Install a junction box with 110/220V uninterruptable power within 18” (46cm) of the mounting plate.

7.4.2.3 Navigation Arms

1. Install 1.25” (32mm) conduit between the suspension and the documentation station.

2. Provide pull strings and terminate all conduits with bushings.

7.5 Wall-Mounted Power Supply Box (Visum LED)

1. Install a 10” x 10” x 4” (25.4cm x 25.4cm x 10.6) Hubbell Wiegmann (P/N SC101004) junction box at the location of the power supply box.

Note

The wall control panel is mounted on the power supply box for wall-mounted applications.

2. Provide an Ethernet drop terminated in a Hubbell Wiegmann junction box. The Ethernet drop must be within 72” (1.8m) of the power supply box.

Note

The hospital must appoint an electrician to connect the power supply box to the house power.

3. Install the conduits as specified in Figure 7.7.

4. Provide pull-strings and terminate all conduits with bushings.

Note

All components must be located so that conduits do not exceed the maximum lengths specified in the drawings in Section 7.6.

Note

Suspensions with flat panel monitors require additional electrical components

(see Suspensions with Flat Panel Arms).

24

7.5.1 Power Supply Box Wall Mount (Optional)

The Power Supply Box Wall Mount should be used to securely install and mount a Visum LED power supply box to a wall.

Exploded View of

Power Supply Box

Vertical Side View of Power

Supply Box & Back Box

Customer Supplied

Back Box*

Power Supply Box

Power Supply

Box

Control

Panel

Wall Mount

Plate

Customer

Supplied

Hubbell

Wiegmann

Back Box*

Wall

*The Back Box is concealed within the wall.

Figure 7.5 - Exploded/Side View of Power Supply Box

Note

Mount a standard Hubbell Wiegmann (P/N SC101004) junction box for proper installation of a wall-mounted power supply box. Consult the hospital to determine ideal placement for the power supply box.

25

7.6 Electrical Installation Drawings

100V/230V UNINTERRUPTED, GROUNDED, ISOLATED HOSPITAL POWER (LED) 115V/230V UNINTERRUPTED, GROUNDED, ISOLATED HOSPITAL POWER (HALOGEN) 6" X 6" JUNCTION BOX (CUSTOMER PROVIDED)

26

100V/230V UNINTERRUPTED, GROUNDED, ISOLATED HOSPITAL POWER (LED) 115V/230V UNINTERRUPTED, GROUNDED, ISOLATED HOSPITAL POWER (HALOGEN) 6" X 6" JUNCTION BOX (CUSTOMER PROVIDED)

110V/220V UNINTERRUPTED, GROUNDED, ISOLATED HOSPITAL POWER 2" X 4" JUNCTION BOX (CUSTOMER PROVIDED)

27

28

100V/230V UNINTERRUPTED, GROUNDED, ISOLATED HOSPITAL POWER (LED) 115V/230V UNINTERRUPTED, GROUNDED, ISOLATED HOSPITAL POWER (HALOGEN) 6" X 6" JUNCTION BOX (CUSTOMER PROVIDED)

110V/220V UNINTERRUPTED, GROUNDED, ISOLATED HOSPITAL POWER 2" X 4" JUNCTION BOX (CUSTOMER PROVIDED)

HUBBELL WIEGMANN JUNCTION BOX (P/N SC101004)(CUSTOMER PROVIDED) 100V/230V UNINTERRUPTED, GROUNDED, ISOLATED HOSPITAL POWER (LED) 115V/230V UNINTERRUPTED, GROUNDED, ISOLATED HOSPITAL POWER (HALOGEN)

29

7.7 Electrical Specifications

Rated Input

Power per Light Head (Visum LED)

Visum 450 (Halogen)

Visum 600 (Halogen)

Voltage

Current

With Camera

Without Camera

With Camera

Without Camera

With Camera

Without Camera

115/230V ~50/60 Hz (Halogen)

100-230V~50/60 Hz (LED)

4/2A (Halogen)

6A (LED)

475 Btu/hr (140W)

325 Btu/hr (95W)

511.82 Btu/hr (150W)

409.46 Btu/hr (120W)

614.19 Btu/hr (180W)

511.82 Btu/hr (150W)

7.8 Video and Data Conduit Requirements

1. All conduits will have insulation bushings.

2. Conduit size and routings will be specified in Stryker rough-in drawings.

3. Stryker cable installation only covers cable pulls less than 50’.

4. Any cable runs outside of the Operating Room or over 50’ are the responsibility of the Hospital/

Contractor to source.

5. All conduits must have pull strings in place.

6. All hard conduit must be terminated within 18” the center of the mount.

7. For plenum rated spaces a 8” X 8” X 4” J-box with flexible conduit to the center of the mount is required.

Figure 7.10 - Conduit Requirements for Plenum Rated Specs

30

8. Environmental Specifications

Operating Humidity:

Storage Humidity

Operating

Temperature

Storage

Temperature

Pressure

Visum LED Surgical Light/StrykeCam 2

Visum LED Surgical Light/StrykeCam 2

Visum LED Surgical Light/StrykeCam 2

10%–95%

10%–95%

41–100 °F (5-38 °C)

21-31in. Hg (71kPa-105kPa)

31

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Microscope, Operating, Neuro

Atta ID:

4028-007

Alt ID:

Manufacturer: Carl Zeiss Surgical Products Division ((800) 442-4020)

Vendor:

Unspecified

Model:

OPMI Pentero Complete System

Operating microscope for neurosurgery, ENT and spine surgery. Autofocus, stereo co-observation.

Navigation interface enables connection to all leading navigation systems. Integrated 3-chip MediLive® video camera (also available as a stereo version) enables digitally recording of videos and images. Can export or import patient data (e.g. demographic data, images and video clips) to other hospital computers via the network or DICOM interface.

Mfr #:

1290.983

Vendor #:

CAD ID:

MIC0071

Item ID:

General Product Detail

Arch Sig:

Yes

Arch Code:

2 - Movable, Elect

Custom Code:

Unassigned

Furnish Install:

O/O Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Physical Requirements

Width:

29.00 in (737 mm)

Depth:

29.00 in (737 mm)

Height:

104.75 in (2661 mm)

Max Weight:

717 lbs (325.2 kg)

Mounting:

Floor-Mobile

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Product and Project Item Notes

Specification:

Height reflects maximum arm height.

Ensure ample space available for microscope arm movement.

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department Room# Room

Surgery 21 OR

Electrical Requirements

Volts:

115

Hz:

60

Phase:

KVA:

Single

Emer. Power:

No

Watts:

1380

Amps:

12

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: Type B (NEMA 5-15)

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

Vent:

No

No

Tech Connect:

Yes

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Structural Requirements

Seismic:

No

Pre-approval:

Funding Source Item Status

Existing (Reuse) Draft (New)

Total:

Qty

1

1

Item Notes

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

O P M I

® s u r g i c a l m i c r o s c o p e s f r o m C a r l Z e i s s

U N I Q U E

O P M I

®

P e n t e r o

®

O P M I P e n t e r o c o n n e c t s . . .

... with colleagues around the world – via DICOM, for example. But let’s start right here with the hospital network. OPMI Pentero can export or import patient data (e.g. demographic data, images and video clips) to other hospital computers via the network or DICOM interface.

Preoperative data can also be imported.

Navigation included

The navigation interface enables fast and easy connection to all leading navigation systems with out external components and irritating wiring.

The Carl Zeiss open interface system permits the use of the same workstation and the same cable with other ZEISS surgical microscopes.

New and unique: binocular, color injection and superimposition of navigation data.

As a result of the innovative robotic X/Y design with three motorized axes, OPMI Pentero provides real tool tracking for viewing every point in the working and tilting range of the OPMI.

The laser-guided, high-speed autofocus system delivers precise navigation by focusing to a fraction of a millimeter and precisely identifying the displayed point.

And in case of an emergency?

We keep a vigilant eye on OPMI Pentero. Global, networked support centers provide 24/7 service and are supported by a help-desk database as well as a remote service function. Diagnosis and troubleshooting is carried out via the internet or telephone with assistance from the Service

Online Protocol.

Wit h the launch of OPMI Pentero, Carl Zeiss has introduced a totally new service concept for the s u rgical microscope. Our worldwide support and re mote diagnostic capabilities are t he benchmark in the in dust ry. At Zeiss, meeting t he needs of our customers is ou r nu mber one priority.

Matt hew Ferrante, Director of Service, Carl Zeiss

S u rgical, Inc., NY, USA

21

22

F r o m a t e c h n i c a l s t a n d p o i n t :

Dimensions in mm

Magnification System

– Motorized zoom, apochromatic, 1:6 ratio

– Magnification displayed on touchscreen and in the ocular (on demand)

– User specific start position

Focusing System

– Varioskop, apochromatic, 200–500 mm working range

– Internal, motorized, continuous adjustment

– Focusing speed adjustable to magnification

– High-speed laser autofocus, accurate to

+/- 0.5 mm (Class II Laser)

– Visual focusing aid with two converging laser spots

– Working distance displayed on touchscreen and in the ocular (on demand)

– User specific start position

MultiVision System

– Integrated data display with shutter function

– SVGA 800 x 600, color, 50-60 Hz

– Color, binocular, injection and superimposition of contours and data

– Supported external data signals

– Computer data (VGA Signal)

– I.e. data from navigation systems

– Y/C video data (PAL / NTSC)

– I.e. data from endoscopy systems

– Superimposition of system information

(focus, zoom, light)

– Injection of the touchscreen user interface into the eyepiece for sterile control of the system

Tubes and Co-Observation

– Main tube: 0–180° rotatable, f = 170, f = 200*

– Eyepieces 10x/21B, 12.5x/18B*

– Integrated beam splitter for lateral and face-to-face co-observation

– Stereo co-observation tube* remains fixed when tilting the OPMI

– Spine adapter for symmetric face-to-face configurations

– Integrated rotary tube adapters

AutoBalance

– AutoBalance of the microscope, suspension system or entire system by pushing a button

– Microscope AutoBalance independent of position or accessories

– Fine balancing with mouthswitch

– Drape weight compensation

AutoDrape System

– Integrated vacuum system to remove air from sterile drape for fast and easy draping

Integrated Digital Video Chain

– 3CCD-Video camera PAL/NTSC

– Video output on touchscreen

– Digital video output: Firewire/DV

– Analog video outputs: FBAS (BNC), Y/C, RGB,

Progressive Scan (VGA)

– Optional stereo camera

– Image capture

– Image freeze function

– Image capture as TIFF, JPG, BMP

– Image annotation

– Still image archiving via CD/DVD/USB and optional DICOM interface

– Digital video recording system*:

– MPEG2 recording

– Parallel HDD/DVD recording

– Editing function

– Video clip archiving via CD/DVD/USB and optional DICOM interface

Hospital Workflow Integration

– Navigation interface

– LAN interface and modem

– DICOM* data interface

– Microphone and speaker

– Patient data management allowing archival of image, video and audio data

– Service file

– Remote service interface

*Option

Illumination System

– Superlux 330 light source with two 300 W

Xenon daylight character lamps

– Integrated light source and light guide

– Integrated two-way illumination brightens shadows

– Variable spot illumination, minimum diameter 10 mm

– Automatic, fast action lamp exchange

– Display of remaining lamp life on Touchscreen

– Brightness regulation via handgrips

– Magnification dependant automatic brightness adjustment

– Synchronized camera flash system

– Safety functions

Electrical Data

– Voltage supply: 115 V! (100–125 V! ± 10 %)

230 V! (220–240 V! ± 10 %)

– Voltage consumption: 115 V: max. 12 A;

230 V: max. 6 A

– Frequency: 50–60 Hz

– Line protection: automatic circuit breaker

Standards/Compliance

– IEC 60601-1/DIN EN 60601-1

– UL 60601-1

– CAN/CSA C 22.2 No. 601.1-M90

– Protection class I, type B

(in accordance with above named standards)

176164

LASER RADIATION

DO NOT STARE

INTO BEAM

CLASS 2 LASER PRODUCT

AS PER EN 60 825-1:2002

Pmax: <1mW

l

635-645nm

23

Carl Zeiss Surgical GmbH

A Carl Zeiss Meditec Company

73446 Oberkochen

Germany

Fax: +49 (0) 7364/20-4823

E-Mail: [email protected]

www.meditec.zeiss.com/neuro

OPMI, Pentero, MediLive, AutoDrape and Superlux are registered trademarks of Carl Zeiss.

MultiVision, Varioskop and FlexiTrak are trademarks of Carl Zeiss.

204

Technical data

AUX port

View of connector side

2

3

1

2

3

1

Power requirements Only connect the suspension system to power outlets which are provided with a properly connected protective ground conductor.

Rated voltage

Current tion consump-

115 VAC (100...125 VAC ± 10%)

230 VAC (220...240 VAC± 10%)

115 VAC max. 12 A

230 VAC max. 6 A

Rated frequency

Fuses

Electrical outlets

Electrical standard,

50...60 Hz

Automatic circuit breaker

– Power outlet 115/230 V, max. 2 A

– AUX port for an external signal of a maximum of 24 V / 0.5 A.

complying with IEC 601-1/EN 60 601-1

UL 60601.1;

CAN/CSA-C22.2 601.1

Approval protection class I, type B equipment

System classification of basic version: Class I

System classification of intraoperative diagnostics: Class II

EMC requirements complying with EN 60601-1-2: 2001

Class A (hospital grade)

Max. dimensions in transport position

W x D x H: 875/782

* x 1880 x 1700 mm

*) After two screws at handgrip underside having been loosened and the handgrip having been raised.

approx. 600 kg Weight of system incl. transport container

Weight of system approx. 325 kg

G-30-1458-en OPMI® Pentero™ Issue 5.0

Printed on 06. 10. 2004

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Monitor, Physiologic, EEG, Intraoperative

Manufacturer: Covidien RMS (Respiratory & Monitoring) ((925) 463-4000)

Vendor:

Unspecified

Model:

BIS Complete 2--Channel Monitor

Physiologic monitor for measuring hypnotic state of the brain during surgical procedures. 2- Channel.

Processes EEG signals to produce Bispectral Index (BIS). Full color, touch screen navigation. USB ports for system expandability and real time updates. User configurable settings and DocuBIS integrated record keeping, battery backup.

Atta ID:

4072-004

Alt ID:

Mfr #:

0186-0210

Vendor #:

CAD ID:

MON0100

Item ID:

General Product Detail

Arch Sig:

No

Arch Code:

2 - Movable, Elect

Custom Code:

Unassigned

Furnish Install:

O/O Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Physical Requirements

Width:

7.50 in (191 mm)

Depth:

5.00 in (127 mm)

Height:

8.00 in (203 mm)

Max Weight:

5 lbs (2.3 kg)

Mounting:

Counter/Cart/Table/Pole

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Product and Project Item Notes

Specification:

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department

Surgery

Room# Room

Anesthesia

Electrical Requirements

Volts:

120

Hz:

60

Phase:

KVA:

Single

Emer. Power:

Yes

Watts:

84

Amps:

<1

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: Type B (NEMA 5-15)

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

No

Vent:

No

Tech Connect:

No

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Structural Requirements

Seismic:

No

Pre-approval:

Funding Source Item Status

Project Draft (New)

Total:

Qty

1

1

Item Notes

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

Operator’s Manual

BIS™

Complete Monitoring System

B Specifications, Warranty and

Software License Agreement

B.1

Specifications

This appendix lists specifications for the BIS™ Complete Monitoring System.

General Specifications

Product Description:

Monitor Weight:

Monitor Dimensions:

Display Size:

Digital Output:

Power Requirements:

Electrical Safety:

Battery Backup:

Software Updates:

Operator Position:

Sound Pressure

Readings (Typical):

Reminder Tone:

Low Priority:

High Priority:

BIS (Bispectral Index) monitoring system for display of processed data and real-time EEG waveforms

3.5 lbs (1.6 kg)

7.5 in wide x 8 in high x 5 in deep

(19 cm x 20.3 cm x 12.7 cm)

4 in high x 5.25 in wide (10 cm x 13 cm)

USB ports A, B, RS232 serial port

100–240 VAC, 50–60 Hz, 0.7 ampere max.

Conforms to: UL 60601-1, IEC 60601-2-26, CAN/CSA-

C22.2#601.1

45 minutes at full operation

Recharge Time: 6 hours

User-via USB port (Type A)

3.3 ft (1 meter) in front of unit with display at eye level

42 - 54.5 dBA

51 - 62.2 dBA

56 - 67.5 dBA

B-1

Specifications, Warranty and Software License Agreement

EEG Specifications

Epoch Duration:

Artifact Rejection:

Input Amplifier Range:

EEG Scales:

Computed Parameters:

User-defined Displays:

Update Rate:

Alarms:

Filters:

Mode:

2 seconds

Automatic

± 1 mV

One channel display: 25 μV/div (± 50 μV full scale)

Two channel display: 50 μV/div (± 50 μV per waveform)

Bispectral Index, Suppression Ratio, EMG,

Signal Quality Indicator, and Burst Count

Trend and real-time EEG waveforms

1 second for BIS™ number, 10 seconds for Trend

Auditory and visual, user adjustable limits

ON (2–70 Hz with notch) or OFF (0.25–100 Hz)

Sensor automatically selects mode

BISX™ Specifications

BISX:

Weight:

Dimensions:

Cable Length:

Analog to Digital Converter:

10.0 oz (0.284 kg) including integral cable

3.75 in diameter x 2.5 in thick

(9.5 cm x 6.3 cm)

9 ft (2.7 m) Integral BISX Cable

4 ½ ft (1.4 m) from BISX to sensor connector

Noise-shaped sigma-delta

Resolution:

Input Impedance:

Noise:

Common Mode Rejection:

(Isolation mode)

16 Bits at 256 samples/second

50 M ohms typical (DC)

5 M ohms typical (at 10 Hz)

< 0.3 μV RMS (2.0 μV peak-to-peak);

0.25 Hz to 50 Hz

110 dB at 50/60 Hz to earth ground

B-2 Operator’s Manual

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Monitor, Physiologic, EEG, Intraoperative

Atta ID:

4072-006

Alt ID:

Manufacturer: Cadwell Laboratories, Inc. (509-735-6481)

Vendor:

Unspecified

Model:

Cascade Elite

Intraoperative Neurophysiology monitor. 32 Channel (64 Inputs). Narrow Trolley Cart. Includes 32-channel base unit with integrated amplifiers; power/communication module; Carry Handle/Rail Mount, IV Pole Clamp

Mount, Cable Guide, (2) Impedance test arrays. Modalities: SSEP, Free-run EMG, Triggered EMG with Nerve

Guard. Laptop or SFF configuration available.

Mfr #:

9720201

Vendor #:

CAD ID:

Item ID:

MON0568

General Product Detail

Arch Sig:

No

Arch Code:

2 - Movable, Elect

Custom Code:

Unassigned

Furnish Install:

O/O Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Physical Requirements

Width:

24.00 in (610 mm)

Depth:

29.00 in (737 mm)

Height:

60.00 in (1524 mm)

Max Weight:

*

Mounting:

Floor-Mobile

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Product and Project Item Notes

Specification:

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department

Surgery

Room#

21

Room

OR

Electrical Requirements

Volts:

120

Hz:

60

Phase:

KVA:

Single

Emer. Power:

No

Watts:

720

Amps:

6

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: Type B (NEMA 5-15)

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

No

Vent:

No

Tech Connect:

Yes

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Structural Requirements

Seismic:

No

Pre-approval:

Funding Source Item Status

Existing (Reuse) Draft (Existing)

Total:

Qty

1

1

Item Notes

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

Cascade

®

Elite Intraoperative

!"#$%"&$#'()*+,$-,.%$"#/

!"#$%&'()*+,(-.$&/

01'""$(/: 2x16 with 4, 16­input remote  input extenders.

2-/,('3)4'-":

EPs: 0.01 µV to 20 mV per division in

42 steps.

EMG: 10, 20, 50, 100, 200, 500 µV

1, 2, 5, 10 mV per division.

5-%167#).(#$&/8) 2­pole (12 dB/octave)

-0%+&1

Selectable (­6dB) at 30, 50, 70, 100, 150,

200, 250, 300, 500, 750 Hz; 1, 1.5, 2,

2.5, 3, 5, 10 kHz.

9:;67#).(#$&/8) 2­pole (12 dB/octave)

-0%+&1

Selectable (­6dB) at .5, 1, 1.5, 3, 5, 10,

30, 50, 70, 100 Hz.

<:#61).(#$&8  50 or 60 Hz.

!/:('#-:")+:=$)&$>$6#-:"8))>115dB.

0:++:")+:=$)&$>$6#-:"8  >95dB.

0:""$6#-:")#3,$/8) 1.5­mm, touchproof  connector.

!",7#)-+,$='"6$)?6:++:")+:[email protected]

2344!51

<:-/$8) <4uV peak­to­peak, 10 Hz – 3  kHz.

Impedance measurement of all inputs  including patient ground.

A:"#'%-"%8  All inputs fully  montageable to any channels.

B$+:#$)-",7#)$C#$"=$&/8)

16 electrode inputs per extender cable

(patented).  Up to 4 extender cables per  base unit. Cable length 10 ft (3m) or 20  ft. (6m).

A/D Converter

16­bit, analog­to­digital conversion

25.6 kHz sampling rate per channel  minimum

Average

<7+D$&):E)'F$&'%$/8  1 to 10,000.

*&#-E'6#)&$>$6#8) Rejects signals that

+6,++7(7+-#+7(&+8+,%(/+%%$#'1((9+8+,%(  setting 10%­100%, on or off for all   channels independently.

G;$$,)/,$$=/8 1 to 1000mS/div in 23  steps.

!/:('#-:")H&'"/E:&+$&

Refer to Cadwell document 309002­000  to determine if an isolation transformer  is required.

Mechanical

I'/$)J"-#)=-+$"/-:"/8  5.2” H x 10.2”

W x 12.7” D (13.1 x 25.8 x 32.2 cm).

Weight:  9.3 lbs. ( 4.2kg).

Electrical

100­240 vac. 50­60 Hz, 2A max.

*7=-#:&3)K7#,7#

Built­in 2­way speaker with external  speaker output.

G#-+7('#:&/

B$,$#-#-:")&'#$/8 .5 to 90 pps  depending on stimulus type, sweep  speed, and protocol.

L($6#&-6'()G#-+7('#:&/

0:"/#'"#)67&&$"#)/#-+7('#-:"8

Provided via stimulator splitters which  multiplex the stimulation between 1 of

5 outputs on ES5 products or 1 of 16  outputs on the ES16 product.  Refer to

Cadwell document 100820­623 for a  complete line of stimulator splitters.

L($6#&-6'()&'"%$)E:&)1-%1)($F$():7#,7#/8

0­100mA, 380V max, 0.5 mA resolution

L($6#&-6'()&'"%$)E:&)(:;)($F$():7#,7#/8

ES5:  0­5mA, 370V max, 0.05 mA reso­ lution

ES5­10:  0­10mA, 370V max, 0.1 mA  resolution

ES5­20:  0­20mA, 370V max, 0.1 mA  resolution

ES16:  0­20 mA, 370V max, 0.1mA  resolution

ES5­5V; 0­5V, 100mA max

0.05V resolution

M7(/$)27&'#-:"8  50 to 1000uS width,  adjustable in 50 uS increments.

G'E$#3)N$'#7&$/8  Over current fault  detection and prevention.

07&&$"#)2$(-F$&$=)2-/,('38

The ES5­5, ES5­10, ES5­20 ES5­100  and ES16 provide feedback allowing  the Cascade software to display actual  stimulus current being delivered.

H0GOPQQQ)H&'"/6&'"-'()$($6#&-6'(

/#-+7('#-:"8 One constant voltage  stimulator output.

L($6#&-6'():7#,7#8  0­1000V, 1000mA  max, 2 V resolution

M7(/$)27&'#-:"8(:4(.#7(;:<)(-6+71

Pulse Trains of up to 9 pulses with 1.0 to

9.9mS inter­pulse interval.

H0GOP)H&'"/6&'"-'()$($6#&-6'()

/#-+7('#-:"8 One constant voltage  stimulator output.

L($6#&-6'():7#,7#8  0­800V, 1000mA  max, 2 V resolution

M7(/$)27&'#-:"8(:4<)(-6+71

Pulse Trains of up to 9 pulses with 1.0 to

9.9mS inter­pulse interval.

*7=-#:&3)G#-+7('#:&/

5$'=,1:"$/8)TDH­39, 10­ohm.  Avail­ able in acoustically shielded and non­ shielded models.

L'&)-"/$&#/8  TDH­39, 10­ohm compat­ ible transducers.

M&$/$"#'#-:"8)Left, right or both

!"#$"/-#3)7"-#/8 nHL.

G#-+7(7/)#3,$/8  Click

0(-6R/8  100µS square wave clicks.

Rarefaction, condensation, or  alternating  polarity.

2$6-D$()&'"%$8 ­10 to 95 dB nHL.

S1-#$)":-/$)+'/R-"%8  Contralateral  masking from 0 to 60 dB below stimulus  level.

T-/7'()G#-+7('#:&/

TLM)T-=$:)A:"-#:&U  NTSC or PAL  monochrome VEP video for black and  white, pattern­reversal checkerboard  stimulation.

=+.%>&+/(,+#%+&(-6.%$"#(%.&'+%?($#7+*+#­

7+#%(@>.7&.#%(.#7(A.0BC-+07(/%$D>0.%$"#1((

Square sizes: 2, 3, 4, 5, 6, 8, 10, 16, 32,

64 or 128 checks across the horizontal  axis.

17 in (43 cm) monochrome 110­volt  monitor available.

Combination of Cascade and monitor  must meet requirements of

EN60601­1­1.

VO-")[email protected])9L2)/#-+7('#:&U)Pattern  reversal checkerboard stimulator with

0.25­in. (6.4­mm) red and black square.

9L2)%:%%($/U  Flash pattern stimulus  selectable for right, left, or both eyes.

N('/1)G#-+7('#:&U  Flash rates from

1:C3:(EF1(41;G(HIJ./A1(

L($6#&:/7&%$&3)2$#$6#:&

Consists of an interface module and one  detector clip. Detector clip is clipped on  the electrosurgery handpiece cable.

01'""$(/8)2 (1 detector clip standard,  additional detector clip available).

Computer Interface

Interfaces via 10BaseT connection to a  laptop or desktop computer running

Cascade ®  and Windows ®  XP Profes­ sional.

Combination of computer accessories  and Cascade must meet the requirements  of EN60601­1­1. Refer to Cadwell   document 309002­000

Minimum Computer

B$X7-&$+$"#/

Refer to Cadwell document 308014­000  for minimum computer requirements  based on current software requirements.

<'&&:;):&)S-=$)H&:(($3

The narrow and wide trolley carts are  offered for either tower computer or low

*&"-0+(,"D*>%+&(/K/%+D/1(L$7+(%&"00+K( accommodates a tower PC and printer  on lower shelf with computer keyboard  on middle shelf and video monitor  mounted on the top shelf.  The narrow  trolley cart has video monitor mounting

"#(%A+(%"*(/A+0B(.#7(%A+(0"T(*&"-0+(

PC and computer keyboard on middle  shelf.  The bottom shelf accommodates  a printer.  A basement shelf on both  models holds an isolation transformer.

Both trolley carts accommodate an LCD  monitor.  These carts come with arm  mounting bracket, mouse pad holder,  storage drawer, and are shipped pre­ assembled.  Additionally, the narrow

%&"00+K(,.#(N+(-%%+7(T$%A(.(/0$7+(">%( keyboard and mouse tray. Dimensions:

Wide Trolley:

38” H x 29” D x 30” W.

Dimensions: Narrow Trolley:

38” H x 29” D x 24” W.

Service Contract

Extends the original warranty protection  for one year.  The contract covers repairs  and continued software and hardware  upgrades that occur during the year.

H&'"/,:&#)'"=)/#:&'%$)(-+-#/)

?'+D-$"#)6:"=-#-:"/@

H$+,$&'#7&$8 ­20° C (­4° F) to 65° C

(149° F)

B$('#-F$)57+-=-#38 10% ­ 90% non­ condensing

*#+:/,1$&-6)M&$//7&$8 500 hPa to 1060  hPa



K,$&'#-:"'()(-+-#/)?'+D-$"#)

6:"=-#-:"/@

H$+,$&'#7&$8 +10° C (+50° F) to +40°

C (+104° F)

B$('#-F$)57+-=-#38 30% to 75%

*#+:/,1$&-6)M&$//7&$8 700 hPa to 1060  hPa

B$%7('#:&3)*,,&:F'(/

UL6061­1, CSA601­1,

EN60601­1  (safety)

EN60601­1­1  (medical systems)

EN60601­2­40  (EMG/EP equipment)

EN60601­1­1­2  (EMC)

ISO 13485 (quality system)

2$F-6$)0('//-.6'#-:")  information

9+'>0.%"&K(U0.//$-,.%$"#/V

U.S.: Class II

Canada: Class II

E.U.: Class IIB

Type of protection against electric   shock ­ Class I Equipment (w/safety  ground)

Degree of protection against electric

/A",W(C(XK*+(Y=([email protected]>$*D+#%(ZJ".%$#'( inputs)

Degree of protection against ingress of  solids and liquids ­ Base unit: Designed  to comply with IP 64

Power/com: Designed to comply   with IP 40

Mode of operation ­ Continuous

This is not a contractual agreement. Cadwell  reserves the right to modify, delete, extend, or

$D*&"M+(B+.%>&+/(.#7(/*+,$-,.%$"#/(7+/,&$N+7( herein without notice.

Trademark Acknowledgments.



This document  contains names and trademarks that belong to

Cadwell and other companies.

Cascade

®

(O0$%+(PQ!()*+,$-,.%$"#/1(RG44S(

Cadwell Laboratories, Inc. All rights reserved.

P/N: 100821­931 Rev 1.

KEMA Medical

["%$-+7(Y"7K

L7&:,$'")9$%'()L"#-#3U)

CEpartner4U  www.cepartner4u.nl

Esdoornlaan 13

3951 DB Maarn

The Netherlands  Tel: +31 6 516 536 26

Advancing Medical Technology

To Help You Help Others.

909 North Kellogg Street

Kennewick, WA  99336

Phone: 800­245­3001 or 509­735­6481

Fax: 509­783­6503  [email protected]

www.cadwell.com

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Pump, Infusion, Triple

Manufacturer: CareFusion - Alaris ((614) 757-5000)

Vendor:

Unspecified

Model:

MedSystem III pump, infusion, triple, infusion modes include gen. purpose, gen. purpose w/ fractional flow rates, neonatal, controller pressure, operating room, o.r. w/ fractional flow rates; primary range 0.1-999ml/hr per channel; infusion vol. 0.1-9999ml per channel; 6 hr minimum with all three channels operating at 125 ml/hr each.

Atta ID:

4179-003

Alt ID:

Mfr #:

2863B

Vendor #:

CAD ID:

INF0046

Item ID:

General Product Detail

Arch Sig:

No

Arch Code:

2 - Movable, Elect

Custom Code:

Unassigned

Furnish Install:

O/O Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Physical Requirements

Width:

6.00 in (152 mm)

Depth:

2.25 in (57 mm)

Height:

8.00 in (203 mm)

Max Weight:

5 lbs (2.3 kg)

Mounting:

Counter/Cart/Table/Pole

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Product and Project Item Notes

Specification:

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department

Surgery

Room# Room

Anesthesia

Electrical Requirements

Volts:

120

Hz:

60

Phase:

KVA:

N/A

Emer. Power:

No

Watts:

N/A

Amps:

N/A

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: Type B (NEMA 5-15)

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

No

Vent:

No

Tech Connect:

No

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Structural Requirements

Seismic:

No

Pre-approval:

Funding Source Item Status

Project Draft (New)

Total:

Qty

1

1

Item Notes

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

T

H R E E

C

H A N N E L

With the added flexibility of the

MedSystem III

®

DLE

(Drug List Editor), you have the most versatile dose rate calculator available today.

Three Independent Fluid

Delivery Systems

All in one device weighing just over five pounds.

Small Instrument,

Huge Benefits

Ideal for surgery, oncology, and is an excellent transport instrument.

Advanced Dose

Rate Calculator

Includes comprehensive, customized drug library.

Six Selectable Device Types

Specifically tailors parameters to match the clinical needs of the patient.

Unique Clamping System

Allows pump attachment virtually anywhere.

Disposable Half-Set

Makes patient turnover easier.

Adapts to most manufacturers’ tubing.

Improving and Extending the

Quality of Human Life ™

M

E D

S

Y S T E M

I I I ® D L E I

N F U S I O N

S

Y S T E M

S

P E C I F I C A T I O N S

A

D M I N I S T R AT I O N

S

E T S

The MedSystem III ® DLE system is designed for use with IVAC ® 28

Series administration sets.

The IVAC ® 28 Series product line offers a wide variety of needleless and standard IV sets, each featuring free-flow protection.

C

L I N I C A L A N D

T

E C H N I C A L

B

E N E F I T S

■ Six selectable device types:

General Purpose, Neonatal,

Controller Pressure, O.R.,

General Purpose II, O.R. II

■ Drug Dose Calculator

■ Customizable Drug Library

■ Infusion Time Remaining

■ Adjustable Occlusion

Pressure Limits

■ Field Maintenance Software

■ Easy Software Upgrades

Flow Rate Range 0.1 to 999 mL/hr

Volume to be infused 0.1 to 9999 mL

KVO Flow Rate

Dimensions

0.1 to 20.0 mL/hr

Width 6.0 in.

Height 7.9 in.

Depth 2.1 in.

Weight 5.1 lbs.

Internal Battery

Battery Capacity

Power Requirements

Main - Rechargeable NiCad Battery Pack

Memory Backup - Nonrechargeable Lithium

Minimum 6 hours with all three channels at 125 mL/hr

6 watts AC power

Use only IVAC ® MedSystem III

110/120V AC, 60 Hz

® AC adapter,

Talk to the people who know best how ALARIS Medical Systems ™ can help you: contact your ALARIS Medical Systems ™ Account Consultant or call 1-800-482-4822. In Canada, call 1-800-387-8309.

©2000 ALARIS Medical Systems, Inc. All rights reserved. 8/00

SSM #300a

Improving and Extending the

Quality of Human Life ™

ALARIS Medical Systems, Inc.

W

ORLD

W

IDE

H

EADQUARTERS

10221 W

ATERIDGE

C

IRCLE

S

AN

D

IEGO

, C

ALIFORNIA

92121-2772

F

AX

: (858) 458-7760

C

USTOMER

S

ERVICE

: (800) 482-4822

W

EBSITE

:

WWW

.

ALARISMED

.

COM

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Rack, Apron, Wall Mount

Manufacturer: Aadco Medical Inc. (800-225-9014)

Vendor:

Unspecified

Model:

RayShield R-513B (10 apron)

Wall mounted apron rack. 10 apron unit. Right and left swing, fans out 180°. Maximum suggested weight limit is 220 lbs. Special Ergolite hangars optional.

Atta ID:

4187-039

Alt ID:

Mfr #:

R-513B

Vendor #:

CAD ID:

RCK0038

Item ID:

General Product Detail

Electrical Requirements

Arch Sig:

Yes

Arch Code:

1 - Fixed

Custom Code:

Unassigned

Furnish Install:

O/C Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Volts:

N/A

Hz:

N/A

Phase:

KVA:

N/A

N/A

Emer. Power:

No

Watts:

N/A

Amps:

N/A

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: N/A

Physical Requirements

Width:

14.50 in (368 mm)

Depth:

27.75 in (705 mm)

Height:

5.25 in (133 mm)

Max Weight:

55 lbs (24.9 kg)

Mounting:

Wall

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

Vent:

No

No

Tech Connect:

No

Structural Requirements

Seismic:

Yes

Product and Project Item Notes

Specification:

Maximum suggested load with all 10 aprons, 220 lbs.

Arms swing left and right. Width when hangars to side is 29.5 inches. Depth reflects hangars extended.

Includes 2 base plates 5.25in.H x 7.24in.L each.

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department Room# Room Funding Source Item Status

Surgery 21 OR Project Draft (New)

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Pre-approval:

Qty

2

Item Notes

Total: 2

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

RayShield® X-ray Apron Racks

Wall Mounted Apron Racks

ten chromed steel pivoting apron hangers which can fan out nearly 180° and swing close to the wall. Five Apron model is offered in either right or left swinging models. The maximum suggested weight for 5 arm models is 110 lbs.

10 arm models 220 lbs.

is used for mounting.

R-513B 10 Apron Unit, R & L Swing $711

* Note: Special ErgoLite Hangers are available for 10 arm model. Please Call.

5 Apron Model

Cat # Description

R-513L 5 Apron, Left Hand Swing $427

R-513R 5 Apron, Right Hand Swing $427

Sale Pricing?

See our website at www.aadcomed.com

or call 800-225-9014

RayShield® Apron Hanger

Lightweight anodized aluminum design provides proper support for increased apron life. Catalog # R-511 $33

10 Arm

Model

RayShield® ErgoLite® Apron Hanger

The special ErgoLite

®

apron Hanger combines a lightweight anodized aluminum

®

Apron, providing proper support for increased apron life.

Catalog # R-E511 $73

One/Two/Four/Seven or Nine Apron Rack

Single Apron Rack

Lightweight, solid metal wall mounted apron rack holds a single apron. 7" long....R-526

Reg $86

Two Apron Rack

Same construction as above, rack holds two aprons. 8.25" long....R-527

Reg $101

Four Apron Rack

Same construction as above, holds four aprons. 19.5" long....R-512

Reg $189

Seven Apron Rack

Same construction as above, rack holds seven aprons. 35.5" long....R-515

Reg $330

Nine Apron Rack

Same construction as above, rack holds nine aprons. 50" long....R-518

Reg $422

75

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Regulator, Suction, Intermittent/Continuous

Manufacturer: Ohio Medical (866-549-6446)

Vendor:

Unspecified

Model:

6702-1251-901

Continuous/Intermittent vacuum regulator. DISS Hand-I-Twist (HIT) adapter. Tubing Nipple patient connection. Flow range: Intermittent – 0-13 L/min, Continuous – 0-80 L/min. Features color coded ranges, 0-

200 mmHg and full vacuum, 5mm Hg increments, glow in the dark markings.

Atta ID:

4248-139

Alt ID:

Mfr #:

6702-1251-901

Vendor #:

CAD ID:

REG0189

Item ID:

General Product Detail

Arch Sig:

No

Arch Code:

3 - Movable, Non-Elect

Custom Code:

Unassigned

Furnish Install:

O/O Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Physical Requirements

Width:

3.50 in (89 mm)

Depth:

5.00 in (127 mm)

Height:

6.75 in (171 mm)

Max Weight:

2 lbs (0.9 kg)

Mounting:

Wall

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Product and Project Item Notes

Specification:

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department

Surgery

Room#

21

Room

OR

Electrical Requirements

Volts:

N/A

Hz:

N/A

Phase:

KVA:

N/A

N/A

Emer. Power:

No

Watts:

N/A

Amps:

N/A

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: N/A

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

No

Vent:

No

Tech Connect:

No

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

Yes

Structural Requirements

Seismic:

No

Pre-approval:

Funding Source Item Status

Project Draft (New)

Total:

Qty

2

2

Item Notes

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Stool, Exam, Cushion-Seat

Manufacturer: Midmark Corp ((800) 643-6275)

Vendor:

Unspecified

Model:

Ritter 272 Value Series

Cushion seat exam stool with pneumatic height adjustment. Lever hand control adjusts seat 18"-24.5". Fiveleg, black composite caster base. Weight capacity 225 lbs.

Atta ID:

4414-052

Alt ID:

Mfr #:

272-001

Vendor #:

CAD ID:

STL0068

Item ID:

General Product Detail

Arch Sig:

No

Arch Code:

3 - Movable, Non-Elect

Custom Code:

Unassigned

Furnish Install:

O/O Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Physical Requirements

Width:

23.00 in (584 mm)

Depth:

23.00 in (584 mm)

Height:

24.50 in (622 mm)

Max Weight:

15 lbs (6.8 kg)

Mounting:

Floor-Mobile

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Product and Project Item Notes

Specification:

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department

Surgery

Room#

21

Room

OR

Electrical Requirements

Volts:

N/A

Hz:

N/A

Phase:

KVA:

N/A

N/A

Emer. Power:

No

Watts:

N/A

Amps:

N/A

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: N/A

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

Vent:

No

No

Tech Connect:

No

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Structural Requirements

Seismic:

No

Pre-approval:

Funding Source Item Status

Existing (Reuse) Draft (Existing)

Total:

Qty

2

2

Item Notes

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

Back

Value Series Stools

Economy version of the popular

Classic Series Stools without compromising reliability and style.

The Value Series offers a black, plastic composite five-leg caster base and hood, and a single lever height control on pneumatic models. The seat height of the 270 (without back) and 271 (with back) adjusts manually while the 272 (without back) and 273

(with back) adjusts pneumatically.

281 Blood Drawing Chair

The slightly angled back and adjustable chair arms offer patient comfort and security. Arms are equipped with quick release mechanisms for simple and efficient positioning of their height and inward/outward angle. The 281 is available with a drawer, ideal for storing supplies and providing additional work surface area.

680 Side Chair

Soft and comfortable seating for your patients in the exam room, waiting room and front office.

The 680 comes with all the extras: contoured seat and back section for added support; sturdy, powder coated black steel tube frame with leveling feet for increased stability and a “wall-saver” kickback leg design that allows the chair to be close to the wall without damaging it. Available with or without high-impact plastic chair arms.

Next

Classic Series Stools

Seat Height:

18" – 24.5" (274-278)

19" – 25.5" (279)

Seat Diameter: 16.25"

Seat Cushion Thickness: 3.25"

Back Cushion Dimensions:

14" W x 7.5" H (275, 277)

Caster Base Diameter: 21.5"

Weight Capacity:

350 lbs. (274, 276)

225 lbs. (275, 277, 278, 279)

Value Series Stools

Seat Height:

18" – 24.5" (270-273)

Seat Diameter: 16.25"

Seat Cushion Thickness: 3.25"

Back Cushion Dimensions:

14" W x 7.5" H (271, 273)

Caster Base Diameter: 23"

Weight Capacity:

300 lbs. (270, 272)

225 lbs. (271, 273)

Stools and Chairs

S P E C I F I C A T I O N S

Classic and Value Series

Options

Locking casters

Soft rubber casters

Glides

6" Lab height extension

Foot ring

281 Blood Drawing Chair

Seat Height: 20"

Seat Cushion Dimensions:

20" W x 16.5" D

Seat Cushion Thickness: 2"

Back Cushion Dimensions:

20" W x 16.5" H

Inside Arm Width: 21"

Outside Arm Width: 32"

Storage Drawer Capacity:

8.5" W x 15.25" D x 4.5" H

Weight Capacity: 400 lbs.

425/427 Air Lift Physician

Stools

Seat Height:

17.5" – 24" (425)

17" – 23" (427)

Seat Cushion Dimensions:

16.5" W x 17" D

Seat Cushion Thickness: 3"

Back Cushion Dimensions:

13" W x 9.5" H

(with back kit accessory)

Caster Base Diameter: 23"

Weight Capacity: 225 lbs.

680 Side Chair

Seat Height: 17"

Seat Cushion Dimensions:

18" W x 19.5" D

Seat Cushion Thickness: 2"

Back Cushion Dimensions:

18" W x 13.5" H

Inside Arm Width: 17.5"

(on model with arms)

Outside Arm Width: 23.5"

(on model with arms)

Weight Capacity: 400 lbs.

Upholstery Colors:

Ritter: Navy, Dusty Blue, Moss,

Clay, Pebble Grey, Shadow,

Perfect Plum and Black

Midmark Premium Solid:

Blueberry, Silver Sage, Tea Green,

Fossil Grey, Cashmere Blue,

Terra Cotta and Black

Midmark Premium Pattern:

Belagio, Siena, Tuscany,

Firenze, Capri and Treviso

Classic and Value Series

Backrest

Classic Series Glides Value Series Glides

Classic and Value Series

Locking Casters

Classic Series

Soft Rubber Casters

Classic Series 277 shown with optional

6" lab height extension and foot ring.

Value Series

Soft Rubber Casters

Midmark Ultra-Premium:

Ultra-Pacific Blue, Ultra-Spruce,

Ultra-Olivine, Ultra-Arctic,

Ultra-Sky, Ultra-Canyon and

Ultra-Raven Wing

*There will be an additional charge for

Midmark Ultra-Premium.

Midmark is an ISO 13485 and

ISO 9001 Certified Company.

For more information or a demon stration, contact your Ritter or Midmark

Dealer, or contact Midmark

Corporation, Versailles, Ohio.

Call: 1-800-MIDMARK

Fax: 1-800-365-8631 midmark.com

© Midmark Corporation 2005

Products subject to improvement changes without notice.

Litho in U.S.A. 007-0558-00 Rev. D1 (3/08)

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Warmer, Patient, Hypothermia

Atta ID:

4657-021

Alt ID:

Manufacturer: 3M Infection Prevention Division ((651) 733-1110)

Mfr #:

77500

Vendor:

Unspecified

Model:

Bair Hugger 775

Forced-air patient warming unit. Two airflow settings, three hose-end temperature sensors. Tracks and reports forced-air warming therapy duration, over-temperature information, calibration, built-in hour meter, and fault codes via front panel.

Vendor #:

CAD ID:

Item ID:

WMR0107

General Product Detail

Arch Sig:

Yes

Arch Code:

2 - Movable, Elect

Custom Code:

Unassigned

Furnish Install:

O/O Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Physical Requirements

Width:

14.00 in (356 mm)

Depth:

13.00 in (330 mm)

Height:

13.00 in (330 mm)

Max Weight:

16 lbs (7.3 kg)

Mounting:

Counter/Cart/Table/Pole

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Product and Project Item Notes

Specification:

BTU's = 1,600 high/1,330 low

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department

Surgery

Room#

21

Room

OR

Electrical Requirements

Volts:

110

Hz:

60

Phase:

KVA:

Single

Emer. Power:

No

Watts:

1550

Amps:

11.7

BTU/hr:

1600

Ded. Circuit: No

Plug Type: Type B (NEMA 5-15)

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

No

Vent:

No

Tech Connect:

No

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Structural Requirements

Seismic:

No

Pre-approval:

Funding Source Item Status

Existing (Reuse) Draft (New)

Total:

Qty

1

1

Item Notes

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

3M

Bair Hugger

Therapy

Temperature Management Unit

Model 775

Warming

With

More

Control

Quiet. Adjustable. Safe. Effective.

It’s everything you want from your forced-air warming unit...and more.

Quiet, adjustable warming options for all 3M

Bair Hugger

blanket styles

Forced-air warming was introduced to the world in 1987 with the launch of Bair Hugger therapy. Since that time, Bair Hugger warming units and blankets have safely and effectively warmed more than 135 million patients worldwide.

Our latest advancement in forced-air warming – the 3M

Bair Hugger

Model 775 temperature management unit – offers two airflow settings, hose-end temp sensing, precise temperature delivery and ease of use from a single, quiet warming unit. It’s also compatible with all Bair Hugger blanket styles – pediatric to adult – and

3M

Bair Paws

™ gowns.

Features

Ř Four temperature settings allow clinicians to deliver effective forced-air patient warming and cooling therapy. The ambient setting can complement your current patient cooling strategies.

Ř The Model 775 can track and report information on forced-air warming duration, over-temperature conditions and fault codes, all of which are accessible via the front panel – there’s no need to open the unit.

Ř Three temperature sensors and adjustable airflow provide safe, quick temperature response.

Ř Accessories for the Model 775 warming unit allow the unit to be mounted on a hard surface, an IV pole, bed rail or rolling cart.

Ordering Information

Specifications

Dimensions

Bair Hugger Model 775

13"h × 14"w × 13"d (33h × 35w × 33d cm)

Weight

Operating Temperatures

Fan Speeds and Relative Noise

Leakage Current

Safety Systems

Filter

Device Ratings

Compatibility

Accessories

16 lb (7.3 kg)

High: 43° ± 1.5°C (109.4° ± 2.7°F)

Med: 38° ± 1.5°C (100.4° ± 2.7°F)

Low: 32° ± 1.5°C (89.6° ± 2.7°F)

Ambient: (Room Temperature)

High Fan Setting: 37 CFM (17.5 L/s) 53 dBA

Low Fan Setting: 32 CFM (15.1 L/s) 48 dBA

Meets UL 60601-1 and IEC 60601-1 requirements.

CAN/CSA-C22.2, No. 601.1

Audible and visual alarms;

Over-temperature ≤56°C, 53°C ± 3°C typical

High-efficiency 0.2 μm filter

110-120 VAC, 50/60 Hz, 11.7 Amperes

220-240 VAC, 50/60 Hz, 7.2 Amperes

100 VAC, 50/60 Hz, 14.5 Amperes

Use only with Bair Hugger blankets and Bair Paws gowns

Rolling cart, bed rail mount, accessory handle and teathered clip also available

To order, please contact your 3M Patient Warming representative or call Customer Service at 1-800-733-7775 .

Arizant Healthcare Inc., a 3M company

10393 West 70th St.

Eden Prairie, MN 55344 USA

Phone 800-733-7775

Fax 800-775-0002 www.bairhugger.com

3M is a trademark of 3M Company, used under license in Canada. BAIR HUGGER, BAIR PAWS and the BAIR HUGGER logo are trademarks of Arizant Healthcare Inc., used under license in Canada. Please recycle. Printed in USA. ©2011 Arizant Healthcare Inc.

All rights reserved. 603032D 12/11

Check the 3M

TM

Bair Hugger

TM

therapy website to ensure you have the most recent version of this document.

Bair Hugger Model 775 Temperature Management Unit Service Manual www.bairhugger.com reorder #202526A

27

Specifications

Physical Characteristics dimensions weight relative noise level hose filtration system recommended filter change mounting

13" high x 13" deep x 14" wide

33 cm high x 33 cm deep x 36 cm wide

16 lb (7.3kg)

53 dBA (High fan setting)

48 dBA (Low fan setting)

Flexible, compatible with the Bair Hugger brand 241 blood/fluid warming system.

High efficiency 0.2 µm air filter

Every 12 months or 500 hours of use.

Can be clamped to an IV pole, placed on a hard surface, or mounted to the rolling stand accessory.

Temperature Characteristics recommended operating environment Temperature: 15°C-25°C

Humidity:

Altitude:

Max relative humidity 80% (up to

31°C) decreasing linearly to 50% relative humidity at 40°C

Max 2,000m temperature control heat generated

Electronically controlled.

High fan setting:

1600 BTU/hr (average), 470 W (average)

Low fan setting:

1330 BTU/hr (average), 390 W (average) operating temperatures Average temperatures at the end of the hose:

HIGH: 43° ± 1.5°C

MED: 38° ± 1.5°C

LOW: 32° ± 1.5°C

109.4° ± 2.7°F

100.4° ± 2.7°F

89.6° ± 2.7°F time to reach operating temperature 2 - 5 minutes (dependent on blanket model)

Time required for the contact surface tempaerature to heat up from 23 ± 2°C to 37°C (73 ± 2°F to 99°F) storage/transport temperature -20°C to 45°C (-4°F to 113°F)

Store all components in a cool, dry place when not in use.

Safety System thermostat alarm system

Independent electronic circuit; thermal cutoff shuts the heater OFF to ensure hose end air remains below

56°C (53°C ± 3°C typical); back-up over-temperature detection at hose inlet.

Over-temperature (≤56°C, 53°C ± 3°C typical): red

Over-temp indicator light flashes, alarm sounds, heater and blower shut down, operating indicator lights turn OFF, control panel becomes unresponsive. overcurrent protection

English 202526A

Fault: amber Fault indicator light flashes, alarm sounds.

Dual input fused lines.

Check the 3M TM Bair Hugger TM therapy website to ensure you have the most recent version of this document.

28 www.bairhugger.com reorder #202526A

Bair Hugger Model 775 Temperature Management Unit Service Manual

Electrical Characteristics heating element leakage current blower motor power consumption power cord device ratings fuses certifications classification diagnostics

1400 W Resistive

Meets UL 60601-1 and IEC 60601-1 requirements.

Operating speed: 4,700 rpm (high fan setting),

4,100 rpm (low fan setting)

Airflow: up to 48 cfm or 23 L/s

Peak: 1550 W

Average: 800 W

15 ft., SJT, 3 cond., 13 A

15 ft., SJT, 3 cond., 15 A

4.6 m, HAR, 3 cond., 10 A

110-120 VAC, 50/60 Hz, 11.7 A, or

220-240 VAC, 50/60 Hz, 7.2 A, or

100 VAC, 50/60 Hz, 15 A

Type:

Amp rating:

Operating speed:

Fast acting ceramic fuses, 250 VAC

12 A (110 - 120 VAC)

8 A (220 - 240 VAC)

15 A (100 VAC)

F (Fast Acting)

Breaking capacity: 15 A, 12 A: 750 A @ 250 Vac

15 A, 12 A: 10,000 A @ 125 Vac

8 A: 200 A @ 250 Vac

8 A: 10,000 A @ 125 Vac

IEC 60601-1; IEC/EN 60601-1-2; UL 60601-1; CAN/CSA-

C22.2, No.601.1; EN 55011:

EN 80601-2-35

MEDICAL — GENERAL MEDICAL EQUIPMENT AS

TO ELECTRICAL SHOCK, FIRE AND MECHANICAL

HAZARDS ONLY IN ACCORDANCE WITH UL 60601-

1; CAN/CSA-C22.2, No.601.1; ANSI/AAMI ES60601-

1:2005 CSA-C22.2 No. 60601-1:08;

EN 80601-2-35; Control No.4HZ8.

Classified under IEC 60601-1 Guidelines (and other national versions of the Guidelines) as Class I, Type BF, Ordinary equipment, Continuous operation. Not suitable for use in the presence of flammable anesthetic mixtures with air or with oxygen or nitrous oxide. Classified by Underwriters

Laboratories Inc. with respect to electric shock, fire and mechanical hazards only, in accordance with UL 60601-

1, EN 80601-2-35 and in accordance with Canadian/CSA

C22.2, No. 601.1. Classified under the Medical Device

Directive as a Class IIb device.

A qualified service technician can perform overtemperature detection system testing, temperature output testing, operating temperature calibration, and fault code troubleshooting.

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Warmer, Fluid/ Blood, Portable

Manufacturer: Stryker Medical ((269) 329-2100)

Vendor:

Unspecified

Model:

Gaymar Medi-Temp III

Portable blood/fluid warmer. Features adjustable set points from 38°C to 43°C, flow rates from KVO to 500 ml/min, digital display, 15' attached power cord and restraining strap, latex free disposable cassettes, and mounts to IV pole stand. Uses standard disposable IV sets not included.

Atta ID:

4658-011

Alt ID:

Mfr #:

FW600

Vendor #:

CAD ID:

WMR0023

Item ID:

General Product Detail

Arch Sig:

Yes

Arch Code:

2 - Movable, Elect

Custom Code:

Unassigned

Furnish Install:

O/O Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Physical Requirements

Width:

4.75 in (121 mm)

Depth:

8.75 in (222 mm)

Height:

11.25 in (286 mm)

Max Weight:

6 lbs (2.7 kg)

Mounting:

Counter/Cart/Table/Pole

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Product and Project Item Notes

Specification:

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department

Surgery

Room#

21

Room

OR

Electrical Requirements

Volts:

120

Hz:

60

Phase:

KVA:

Single

Emer. Power:

No

Watts:

1080

Amps:

9

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: Type B (NEMA 5-15)

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

No

Vent:

No

Tech Connect:

No

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Structural Requirements

Seismic:

No

Pre-approval:

Funding Source Item Status

Project Draft (New)

Total:

Qty

1

1

Item Notes

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

Medi-Temp

®

Blood/Fluid

Warming System

Precise. Easy. Versatile.

Maintaining normothermia is a critical factor in achieving positive patient outcomes. Stryker provides an

easy to use blood and fluid warming system

that manages fluid temperature with precision over a wide range of flow rates.

Convex leading edge and rigid design facilitates easy cassette insertion and reinsertion.

Intuitive and easy-to-read control panel provides standby power button, temperature set point adjustment and digital read-out.

Sterile, latex-free disposables allow effective, even heating. A variety of confi- gurations, such as needle and needless injection ports help accomodate different facility and patient requirements.

Splash-proof rated

system helps protect components from IV drips and allows for quick and easy cleaning

Primary and secondary

control systems

Adjustable fluid temperature set point

ranging from 38ºC to 43ºC helps accommodate a wide range of procedures

Dry Heat Design

provides even heating and automatic adjustment to maintain the selected temperature for flow rates from

KVO to 500 ml/min

Low maintenance design

is ideal for both biomedical engineers and clinicians

Medical

Medi-Temp

®

Blood/Fluid Warming System

Standard Features

• 15' (4.6 m) power cord

• Power cord restraining strap

Optional Test Accessories

• FWT1 Thermistor Temperature

Sensor

• FWT2 Flowmeter

• 78350-000 Cleaning Kit

INDICATIONS FOR USE: inadvertent hypothermia during administration of blood, blood

3800 E. Centre Ave.

Portage, MI 49002 USA

t: 269 329 2100 f: 269 329 2311 toll free: 800 787 9537 www.stryker.com

Manufactured by:

Gaymar Industries

10 Centre Drive

Orchard Park, NY 14127

Specifications

Model Number

Height

Width

Length

Weight

Flow Rate

Set Point

Accuracy

FW600

8.6" (22 cm)

4.7" (12 cm)

FW603

8.6" (22 cm)

4.7" (12 cm)

11.2" (28.5 cm)

6 lbs (2.7 kg)

11.2" (28.5 cm)

6 lbs (2.7 kg)

KVO - 500 ml/min. (30L/hr.) KVO - 500 ml/min. (30L/hr.)

38ºC - 43ºC 38ºC - 43ºC

± 0.5ºC at 100 ml/min flow rate ± 0.5ºC at 100 ml/min flow rate

Electronics

Volts

Regulatory

120 V, 60 Hz, 9 amps

UL2601-1,

CAN/CSA C22.2

No. 601-1 - M90

EN60601-1-2 EMC

Warranty

1 year limited warranty

Stryker reserves the right to change speci cations without notice.

220-240 V, 50-60 Hz, 4.5 amps

EN60601-1

EN60601-1-2

Cassette Options

• D25310CE Standard Flow Set with needle injection site, 48" (122 cm) extension

• D25310NL Standard Flow Set with needle and needleless injection site, 48" (122 cm) extension

• D25315CE Standard Flow Set includes bubble trap, 60" (152 cm) extension

• D25320NL Restricted Flow Set with needle and needleless injection site, 30" (76 cm) extension

• D25330CE Hi-Flow Set with needle injection site, 48" (122 cm) extension

• D25330NL Hi-Flow Set with needle and needleless injection site, 48" (122 cm)

• D25340CE Standard Flow Set with no extension

Mkt Lit-541 061611 Rev A

Copyright © 2011 Stryker

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Electrosurgical Unit, Bipolar/Monopolar

Atta ID:

4824-060

Alt ID:

Manufacturer: Covidien - Valleylab Div ((303) 530-2300)

Mfr #:

ForceTriad Energy Platform

Vendor:

Unspecified

Model:

ForceTriad Energy Platform

Electrosurgical unit. Delivers bipolar and monopolar energy with LigaSure tissue fusion. Features touchscreen interface, automatic instrument recognition, TissueFect sensing technology, and enhanced LigaSure tissue fusion technology fuses vessels up to 7mm. Compatible with conventional ESU instruments, LigaSure instruments, and connects with RapidVac smoke evacuator (not included). Optional cart to be ordered separately.

Vendor #:

CAD ID:

Item ID:

ESU0041

General Product Detail

Electrical Requirements

Arch Sig:

No

Arch Code:

2 - Movable, Elect

Custom Code:

Unassigned

Furnish Install:

O/O Type: Medical

Spatially Sig:

Yes

ADA:

No

Antimicrobial:

No

Green:

No

Volts:

120

Hz:

60

Phase:

KVA:

Single

Emer. Power:

No

Watts:

840

Amps:

7

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: Type B (NEMA 5-15)

Physical Requirements

Width:

18.00 in (457 mm)

Depth:

20.00 in (508 mm)

Height:

10.00 in (254 mm)

Max Weight:

30 lbs (13.6 kg)

Mounting:

Counter/Cart/Table/Pole

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

Vent:

No

No

Tech Connect:

No

Structural Requirements

Seismic:

No

Product and Project Item Notes

Specification:

Max. current is 7 amps in Cut, 4 amps in Coag, and 5 amps in LigaSure mode.

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department Room# Room Funding Source Item Status

Surgery ESUs

Project Draft (New)

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Pre-approval:

Qty

2

Item Notes

Total: 2

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

ForceTriad

TM

Energy Platform

Specification Guide

Confidence

Evidence-Based

Versatility

Consistency

Technology

IN THE MOST

TRUSTED HANDS

ON EARTH

FORCETRIAD

TM

ENERGY PLATFORM

Technical Specifications

Output Waveforms

Bipolar

Low:

Standard:

Macro:

472 kHz sinusoid

472 kHz sinusoid

472 kHz sinusoid

Monopolar Cut

Pure:

Blend:

472 kHz sinusoid

472 kHz bursts of sinusoid, recurring at 26.21 kHz intervals.

50% duty cycle

Valleylab

TM

Mode

Valleylab

TM

:

472 kHz sinusoid, recurring at

28.3 kHz intervals. 25% duty cycle

Monopolar Coagulation

Fulgurate:

Spray:

472 kHz damped sinusoid, recurring at 30.66 kHz intervals.

6.5% duty cycle

472 kHz sinusoid, recurring at

21.7 kHz intervals. 4.6% duty cycle

LigaSure

TM

Tissue Fusion Technology

Seal:

472 kHz sinusoid, continuous output power changes by less than 15% or 5 watts, whichever is greater, as the line voltage varies from 90 - 132 volts and 208 - 264 volts (at rated load)

Duty Cycle

Under maximum power settings and rated load conditions, the ForceTriad

TM

energy platform is capable of operating at a duty cycle of 25%, defined as 10 seconds active and 30 seconds inactive, in any mode for a period of four hours.

Low Frequency Leakage (50-60 Hz)

Source current, patient leads, all outputs tied together

Normal polarity, intact ground < 10 μA

Normal polarity, ground open

Reverse polarity, ground open

< 50 μA

< 50 μA

Sink current, at high line, all inputs

Enclosure source current, ground open

< 50 μA

< 300 μA

High Frequency Radiofrequency

Measured directly at the energy platform terminals

Bipolar:

< 59.2 mA rms

Monopolar:

LigaSure

TM

:

< 100 mA rms

< 100 mA rms

Weight and Dimensions

Height:

Width:

Length:

Weight:

25.5 cm (10 in)

45.8 cm (18 in)

50.8 cm (20 in)

13.6 kg (30 lbs)

Input Power Requirements

Operating range is 90 to 264 AC volts 48 – 62 Hz.

Maximum current is 7 amperes in Cut, 4 amperes in

Coag and 5 amperes in LigaSure

TM

mode.

REM

TM

Contact Quality Monitoring System

Interrogation frequency:

Interrogation current:

80 kHz ± 10 kHz

< 100 μA

Acceptance resistance range is

5 – 135 ohms or up to a 40% increase in the initial measured contact resistance (whichever is less).

Adaptive REM

TM

REM

TM

trip is baseline impedance plus 40%.

For example, if the baseline impedance is 30 ohms, the upper level trip is approximately 42 ohms.

If the pad-patient impedance falls below the baseline impedance, a new baseline is established.

Autobipolar

Measurement frequency:

Measurement current:

Activation impedance:

Deactivation impedance:

Keying delay:

80 kHz + 10 kHz

< 100 μA

20 – 500 Ω

1.5 kΩ, 1.8 kΩ,

2 kΩ, 2.2 kΩ

0.0 s, 0.5 s, 1.0 s,

1.5 s, 2.0 s, 2.5 s

Meets UL and cUL specifications.

The ForceTriad

TM

energy platform meets all pertinent clauses of the

IEC 60601-1 second edition and IEC 60601-2-2 third edition.

General

Output configuration

Isolated output

Cooling

Natural convection and fan

Display

3 LCD touch screens 14.5 cm (5.7 in) diagonal

Mounting

Universal cart (UC8009); overshelf (UC8010), a stable flat surface; ForceTriad

TM

cart (FT900); or boom systems

Operating Parameters

Ambient temperature range

10° to 40° C (50° to 104° F)

Relative humidity

30% to 75% noncondensing

Atmospheric pressure

700 to 1060 millibars

Warm-up time

If transported or stored at temperatures outside the operating temperature range, allow one hour for the energy platform to reach room temperature before use.

Transport and Storage

Ambient temperature range

-30° C to +65° C

Relative humidity

0% to 90% (noncondensing) relative humidity

Atmospheric pressure

500 millibars to 1060 millibars

Duration of storage

The ForceTriad

TM

energy platform may be stored indefinitely. If the energy platform is stored over one year, the memory battery must be replaced

ENERGY

Audio Volume

The stated audio level is for the activation tone and alarm tone at a distance of one meter. Alarm tones meet the requirements of IEC 60601-2-2.

Activation Tone

Volume (adjustable)

Frequency (nominal)

LigaSure

TM

mode

Bipolar mode

Cut

Coag

Valleylab

TM

mode

45 to 65 dBA

440 Hz

940 Hz

660 Hz

940 Hz

800 Hz

Duration

Continuous while the energy platform is activated

Alarm Tone

Volume (not adjustable)

Frequency (nominal)

REM

TM

Regrasp

Two tones:

High = 985 Hz, Low = 780 Hz

Check Instrument

Two tones:

High = 985 Hz, Low = 780 Hz

Seal Complete

Error/System Alert

> 65 dBA

660 Hz

985 Hz

1400 Hz

Duration

REM

REM

TM

TM

Two 0.5 s tones separated by a 0.5 s for each

event

Reactivate/Regrasp

Four 175 ms tones – high, low, high, low separated by 0.5 s

Check Instrument

Six 175 ms tones – high, low, high, low, high, low

Seal Complete

Two 175 ms tones separated by 175 ms for each seal complete event – high, high

Error/System Alert

Three 0.5 s tones separated by a 0.5 s

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Electrosurgical Unit, Bipolar/Monopolar

Atta ID:

4824-061

Alt ID:

Manufacturer: Medtronic Advanced Energy ((603) 742-1515)

Mfr #:

40-402-1 / 30-401-1

Vendor:

Unspecified

Model:

Aquamantys Pump Generator and Cart

Vendor #:

CAD ID:

ESU0042

Bipolar electrosurgical unit with cart. Performs simultaneous delivery of bipolar RF energy and saline.

Features three flow rate settings, bipolar RF power 20-200 watts (in 10 watt increments), and one-touch device priming. Includes ESU generator (#40-402-1), mobile cart (#30-401-1) w/ height adjustable (56"-84") IV pole, cable winder for power cord storage, large storage basket, and casters with front brakes. Cart ships unassembled.

Item ID:

General Product Detail

Arch Sig:

No

Arch Code:

2 - Movable, Elect

Custom Code:

Unassigned

Furnish Install:

O/O Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Physical Requirements

Width:

21.50 in (546 mm)

Depth:

24.00 in (610 mm)

Height:

84.00 in (2134 mm)

Max Weight:

79 lbs (35.8 kg)

Mounting:

Floor-Mobile

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Product and Project Item Notes

Specification:

Dimensions reflect system cart. Max height includes IV pole.

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department Room# Room

Surgery 21 OR

Electrical Requirements

Volts:

115

Hz:

60

Phase:

KVA:

Single

Emer. Power:

No

Watts:

420

Amps:

3.7

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: Type B (NEMA 5-15)

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

Vent:

No

No

Tech Connect:

No

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Structural Requirements

Seismic:

No

Pre-approval:

Funding Source Item Status

Existing (Reuse) Draft (New)

Total:

Qty

1

1

Item Notes

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

USER GUIDE

Appendix A

Technical Specifications

Performance Characteristics

General

Output Configuration

Cooling

Display

Isolated output

Internal fan, natural convection on outside of chassis

Three (3) digital seven-segment displays:

0.55 inches (1.4 cm) each

Dimensions and Weight

Width

Depth

Height

Weight

Operating Parameters

Ambient temperature range

Relative humidity

Air pressure

Altitude

Transport and Storage

Ambient temperature range

Relative humidity

Air pressure

12.2 inches (31.0 cm)

15.2 inches (38.5 cm)

5.9 inches (15.0 cm)

31.5 lbs (14.3 kg)

50° to 104 °F (10° to 40 °C)

15% – 85%, non-condensing

524 – 795 mmHg (700 to 1060 hPa)

2000 meters maximum

14° to 149 °F (-10° to 65 °C)

0% - 95%, non-condensing

524 - 795 mmHg (700 to 1060 hPa)

Duty Cycle

At maximum output settings (200 Watts) and rated load conditions (100 Ohms) the unit may be safely operated for activation times of 40 seconds on, 80 seconds off, for 1 hour. With reduced power settings, you can activate the unit for greater durations without generating excess internal temperatures.

Internal Memory

During power failures, this unit has short time storage of the adjusted values. If the power fails for less than

10 seconds, the unit will restore the last adjusted working parameters.

Audio Volume

The audio volume level and frequencies of the activation tone and alarm tones meet the requirements of

IEC60601-2-2:2006.

A-1

A-2

Activation Tone

Frequency (nominal)

Alarm Tone

Frequency (nominal)

Leakage Currents

940 Hz

349, 415, 524, 698 Hz

See IEC test record

LEDs

All LEDs inside the Aquamantys are CLASS 1 LED PRODUCT according to EN60825-1.

Input Power

The nominal mains voltage is factory selected. Refer to the rear panel markings for correct mains voltage.

Nominal

V

RMS

100

Minimum

V

RMS

90

Maximum

V

RMS

110

115

230

104

207

127

253

Max Current

A

RMS

4.00

3.50

1.85

Fuse

Rating

T5.0A

T4.0A

T2.0A

Type of fuse

5x20mm,

Glass fine fuse

5x20mm,

Glass fine fuse

5x20mm,

Glass fine fuse

Mains line frequency (nominal):

Maximum power consumption:

Mains cable:

50/60 Hz

420 VA

3-conductor hospital grade

Standards and IEC Classifications

ATTENTION

Follow Instructions For Use.

To reduce the risk of electric shock, do not remove the cover.

Refer servicing to qualified service personnel.

DANGER

Explosion risk if used with flammable anesthetics.

Class I Equipment

Accessible conductive parts cannot become live in the event of a basic insulation failure because of the way in which they are connected to the protective earth conductor.

IPX1

Type CF Equipment / Defibrillator Proof

This unit provides a high degree of protection against electric shock, particularly regarding allowable leakage currents. It is type CF isolated (floating) output.

Drip Proof

This unit enclosure is constructed so that liquid spillage in normal use does not wet electrical insulation or other components which, when wet, are likely to affect adversely the safety of the unit.

Aquamantys

®

System Cart

Assembly Instructions

System

Thank you for purchasing the Aquamantys

®

System Cart. Before beginning the assembly of this cart, please verify that all of the parts listed below were included with your shipment. It is also helpful to review the assembly instructions in their entirety before beginning to assemble the cart.

10 11

Two special tools have been included with your Aquamantys System Cart to ease assembly. This includes; 1) a large Allen wrench for tightening the hexagonal screws which are used to attach the castor/stabilizers to the cart, and the basket and the shelf to the support column; 2) a small Allen wrench for loosening and tightening the set screws.for the infusion stand. No additional tools are required.

Large Allen Wrench

(4 mm)

Parts List for Aquamantys System Cart (Catalog #30-401-1)

01 - Support Column

(with attached handle)

02 - I.V. bag holder

03 - Infusion stand

04 - Basket

05 - Shelf

06 - Hexagonal screws (10 mm)

07 - Twin swivel castors/stabilizers with wheel locks

08 - Twin swivel castors/stabilizers without wheel locks

09 - End cap for support column

10 - Set Screws (6mm)

11 - Infusion stand clamps in Support Column (01)

Small Allen Wrench

(3 mm)

Qty 1

Qty 1

Qty 1

Qty 1

Qty 1

Qty 19 (one extra)

Qty 2

Qty 2

Qty 1

Qty 2

Qty 2

1

Large Allen Wrench

Small Allen Wrench

Aquamantys System Cart Assembly Instructions

STEP 1

Lay Support Column (01) horizontally on a hard surface with handle facing up. Attach the shorter length stabilizers which have the castors without wheel locks (08) to base of the hub by aligning holes in stabilizers with holes in stabilizer supports protruding from the base of the Support Column. Use two 10 mm hexagonal screws (06) per stabilizer. Tighten screws firmly with large Allen wrench.

STEP 2

Turn Support Column (01) over and lay horizontally on hard surface with handle facing down. Attach the longer stabilizers which have the castor with wheel locks (07) to base of hub by aligning holes in stabilizers with holes in stabilizer supports protruding from the base of the Support Column.

Use two 10 mm hexagonal screws

(06) per stabilizer. Tighten screws firmly with large Allen wrench.

STEP 3

Stand partially assembled cart up on its wheels and engage wheel locks. Loosen set screws (10) with small Allen wrench and insert infusion stand

(03) through end cap center hole (09) then into the support column. Advance infusion stand through both infusion stand clamps (11) until the stand reaches the hub of the cart. Gentle pressure and a twisting motion may be required to advance the infusion stand fully. After the infusion stand is correctly positioned, tighten set screws (10) with small Allen wrench, then snap end cap (09) into support column.

Medtronic Advanced Energy LLC, 180 International Drive Portsmouth, NH 03801 USA www.medtronicadvancedenergy.com

2

STEP 4

Attach I.V. bag holder (02) to the top of infusion stand (03) by placing the center hub of the I.V. bag holder on top of infusion stand and then rotating it clockwise. Continue rotating clockwise until the I.V. bag holder is tightly attached.

STEP 5

Lay partially assembled cart on hard surface horizontally with handle facing down. Attach basket (04) to Support

Column using four 10 mm hexagonal screws (06). Tighten screws firmly with large Allen wrench.

STEP 6

Attach shelf (05) to Support Column using six 10 mm hexagonal screws (06). Tighten screws firmly with large Allen wrench.

Stand cart on its wheels. Cart is now assembled and ready for use.

Questions? Contact Medtronic Advanced Energy LLC Customer Service at 866.777.9400

3

Aquamantys

®

System Cart

LIMITED EXPRESS WARRANTY

For one (1) year from the date of shipment from Medtronic Advanced Energy LLC, if an Aquamantys System Cart is found, to Medtronic Advanced Energy LLC’s satisfaction, to be inoperable during normal and proper use in accordance with applicable instructions, Medtronic Advanced Energy LLC will repair or replace the product, at its sole option, provided the product is returned, freight prepaid, in accordance with all return packaging and shipping instructions. A product repaired or replaced under this warranty will be warranted for the remainder of the original warranty period.

MEDTroNIC ADVANCED ENErGy LLC MAKES No oTHEr WArrANTIES WITH rESPECT To THE

ProDUCT AND EXPrESSLy DISCLAIMS ALL oTHEr WArrANTIES, EXPrESS or IMPLIED, AS To

MErCHANTABILITy, FITNESS For A PArTICULAr PUrPoSE or ANy oTHEr MATTEr. IN No EVENT

SHALL MEDTroNIC ADVANCED ENErGy LLC BE LIABLE For ANy CoNSEQUENTIAL DAMAGES.

THE ABoVE WArrANTy IS VoID oN ANy ProDUCT WHICH HAS BEEN MoDIFIED or rEPAIrED oTHEr THAN By MEDTroNIC ADVANCED ENErGy LLC or AN AUTHorIZED rEPrESENTATIVE,

IMProPErLy INSTALLED, USED, MAINTAINED or STorED, or SUBJECT To ABUSE, MISUSE, NEGLECT or ACCIDENT. MEDTroNIC ADVANCED ENErGy LLC IS NoT rESPoNSIBLE For DAMAGE or ANy oTHEr LoSS DUrING rETUrN SHIPMENT.

Manufacturer

Medtronic Advanced Energy LLC

180 International Drive

Portsmouth, NH 03801

USA www.medtronicadvancedenergy.com

Customer Service Telephone Numbers:

Tel: 866.777.9400

Fax: 866.222.0900

© Copyright 2011 Medtronic Advanced Energy LLC. All rights reserved.

Printed in USA. Aquamantys®, the Aquamantys® logo, and Transcollation® are registered trademarks of Medtronic Advanced Energy LLC. Additional trademarks are the property of their respective owners.

70-10-1142 rev K

4

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Stool, Step, Stackable

Atta ID:

5002-013

Alt ID:

Manufacturer: Blickman Inc. ((800) 338-2372)

Vendor:

Unspecified

Model:

8862SS EZ Stacking

Stackable step stool with 18.875in x 13.875in platform. Stools lock side to side or end to end. Non-skid rubber top surface and rubber feet. Can be locked side-to-side or end-to-end to create a larger stool or platform.

Stainless steel construction with rubber treading.

Mfr #:

1018862000

Vendor #:

CAD ID:

Item ID:

STL0402

General Product Detail

Arch Sig:

No

Arch Code:

3 - Movable, Non-Elect

Custom Code:

Unassigned

Furnish Install:

O/O Type: Medical

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Physical Requirements

Width:

20.00 in (508 mm)

Depth:

15.00 in (381 mm)

Height:

6.25 in (159 mm)

Max Weight:

11 lbs (5.0 kg)

Mounting:

Floor

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Product and Project Item Notes

Specification:

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department

Surgery

Room#

21

Room

OR

Electrical Requirements

Volts:

N/A

Hz:

N/A

Phase:

KVA:

N/A

N/A

Emer. Power:

No

Watts:

N/A

Amps:

N/A

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: N/A

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

No

Vent:

No

Tech Connect:

No

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Structural Requirements

Seismic:

No

Pre-approval:

Funding Source Item Status

Existing (Reuse) Draft (Existing)

Total:

Qty

2

2

Item Notes

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

7763MR

7763MR-HR

Option: Handrail attachment.

7764MR-HR

8862SS

8862SS w/ 8862SS-D

Option: Dolly for transport.

MODEL 7763MR (DONNELLY) FOOT STOOL

is our two-step version and provides a 24" x 8" top step welded to a larger base (24" x 16"). Two welded rod braces below the bottom step provide extra reinforcement.

Fully-welded, stainless-steel construction.

Model 7763MR-HR

includes handrail with 41" height.

Model No. Part No.

Dimensions Ship Wt. (lb) est.

7763MR

1017763000 16"D 24"W 16"H 26

7763MR-HR

1017763100 16"D 24"W 16"H, (41"HR) 39

H-Brace offers extra reinforcement.

MODEL 7764MR-HR FOOT STOOL

is designed with a larger platform and two 41” high handrails for easy access and support. Bracing below the bottom step provides extra reinforcement.

Model No. Part No.

Dimensions

7764MR-HR

1012041096 Base-36"L 24"W 8"H

Step-36"L 12"W 8"H

Ship Wt.(lb) est.

115

Bracing below the bottom step offers extra reinforcement.

MODEL 8862SS (EZ STACKING) FOOT STOOL:

The new and improved 8862SS EZ Stacking foot stool offers a wider, more stable platform. The

8862SS provides a space-saving solution while locking side-to-side or end-to-end to create a larger stool or platform.

Construction: Stainless Steel construction with rubber tread and feet. Designed for surgery suites,

8862SS locked end-to-end

diagnostic centers, outpatient facilities and exam rooms.

8862SS-D: Add the optional dolly 8862SS-D for ease of transport.

Model No. Part No.

Dimensions

8862SS

1018862000 18-7/8"W 13-7/8"D 6-1/4"H

8862SS-D

1018862300 21-1/2”W 16-1/2”D 39”H

Ship Wt.(lb) est.

14

20

MR-Conditional foot stools are available where indicated.

2

D

8

7

1 9 .

9 2 1

6

C

1 4 .

9 2 4

5 4

3

2

P D B I B a s e il n e

1

0 4 / 1 9 / 1 0

I t e m

1

P t #

4 0 0 8 8 6 2 0 0 0

D e s c ir p it o n

8 8 6 2 S S U P ( E Z S t a c k i n g ) S t o o l

Q T Y .

1

R e v .

P D

D

1

C

B

A

8

1 8 .

8 7 5

7 6

1 3 .

8 7 5

6 .

2 1 2

5

H : \ S W \ F o o t S t o o l \ 8 8 6 2 S S \

P O # : _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ D A T E : _ _ _ _ _ _ _ _ _ _ _ _ _

A P P R O V A L : _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

T I T L E : _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

T

D

B

R

W

B

P

P R

H E

R A

L I

E

L

R

I

I T

P

C

H

C

O

R

I N

W

K

P R I E

O

M A

O

K M

H I

I

O

F

O

N G

D U

U

B I

T

A

T E

R

N

T

N

M

C

D

I

T

S

T A

A T I O

H E

H E

.

H

I

E

T

R Y

H E

A

N

S

A L T H

O

W

A

N

R

L T

I

I T

H

T

N D C

C O

O L E

N

I

P

N D

A R

N T

P R

U S T R

T

O

A

N

O P

O

I N

I

E N

N

P

D U

E R

S T R I

R

F

M I

I E

I

E D

S

D E N

E R

S .

T

A S

S I

E S

Y

I N

T I A L

O F

A N

T

A W

O

I S

H

Y

I S

H O L E

N O F

U N L E S S O T H E R W I S E S P E C I F I E D :

D I M E N S I O N S A R E I N I N C H E S

T O

3

2

1

L E R A

A

P

P

P

N

L A

L A

L A

N C

C E

C E

C E

G U L A

E

R

.

S

0 0

. 0

:

.

0

0

0

=

=

=

. 0

. 0

. 0

. 5

1 0

1 5

3 0

4 3

D R A W N

E N G A P P R .

M A T E R I A L

N / A

F I N I S H

N / A

N A M E

M .

J

D A T E

0 4 / 1 9 / 2 0 1 0

A P P R X W E I G H T = 1 0 .

8 7 6 l b s

D O N O T S C A L E D R A W I N G

B L I C K M A

C L I F T O N

N , I N

, N .

J .

C .

IT T L E :

( E Z

8 8

S t a

6 c k

2 i n

S S g ) S t o o l

P A R T N O .

S I Z E

B

S C A L E : 1 : 4

1 0 1 8 8 6 2 0 0 0

R E V

P D

S H E E T 1 O F 1

2

1

A

B

Baylor Scott and White Health Care System

Baylor Scottt & White BiPlane OR

Specification Coversheet

Description: Camera, Operating Room, In-Light

Atta ID:

5131-016

Alt ID:

Manufacturer: Stryker Communications ((866) 726-3705)

Vendor:

Unspecified

Model:

StrykeCam 2 (for Visum LED)

In-light surgical camera for Stryker Visum LED surgical lights. Standard features include 36x zoom capability, automatic iris, automatic white balance, and automatic focus. Included in the selling price are the camera head, circuit board in the lighthead, circuit board in the power supply box, and the touchpanel control.

Mfr #:

0682400029

Vendor #:

CAD ID:

COR0017

Item ID:

General Product Detail

Arch Sig:

Yes

Arch Code:

2 - Movable, Elect

Custom Code:

Unassigned

Furnish Install:

O/V Type: Medical

Physical Requirements

Width:

*

Depth:

*

Height:

*

Max Weight:

*

Mounting:

Special

Left:

N/A

Right:

N/A

Front:

N/A

Back:

N/A

Top:

N/A

Bottom: N/A

Spatially Sig:

No

ADA:

No

Antimicrobial:

No

Green:

No

Electrical Requirements

Volts:

N/A

Hz:

N/A

Phase:

KVA:

N/A

N/A

Emer. Power:

No

Watts:

N/A

Amps:

N/A

BTU/hr:

N/A

Ded. Circuit: No

Plug Type: N/A

Utility and Technology Requirements

Water - Cold:

No

Water - Hot:

No

Water - Treated:

No

Vent:

No

Tech Connect:

Yes

Gasses:

No

Drain:

No

Steam:

No

Vacuum - Dental:

No

Vacuum - Medical:

No

Structural Requirements

Seismic:

No

Pre-approval:

Product and Project Item Notes

Specification:

Mounts to surgical light.

Powered through light (12 watts maximum).

Structural:

Electrical:

Plumbing:

Mechanical:

Location

Department Room#

Surgery

Room

Equipment - Deferred

Funding Source Item Status

Project Draft (New)

Total:

Qty

1

1

Item Notes

PLAN Powered by Attainia.com - CSIT

Sorted by Atta ID

11/13/2015 01:52 PM Page 1 of 1

SCALED 72%

SCALED 32%

SCALED 67%

SCALED 33%

SCALED 10%

SCALED 70%

Stryker StrykeCam Data Sheet

Back Side

Prints: 4 over 4

CMYK Plus Gloss AQ

Print Run: 2,500

Stryker Color Palette

Stryker Communications

1410 Lakeside Parkway #100

Flower Mound, TX 75028 t: 1 877 789 8106 www.stryker.com

Providing Clarity

In The O.R.

StrykeCam

®

In-Light Surgical Camera

The StrykeCam In-Light Surgical Camera is the first in its class to be designed by a surgical video/communications company. With 470 lines of resolution and an industry-leading 30x zoom, surgeons are assured crisp, clear video. When used in conjunction with the SwitchPoint Infinity® Control System, video can be routed to a flat panel monitor, recorded digitally, or printed.

Features:

• Industry-leading 30x zoom

• Image sensor is a 1/4 type Super HAD CCD

providing 768 (H) x 494 (V) pixels

• Low lux rating allows the in-light camera

to be used during laparoscopic procedures,

as well as open cases

• Automatic white balance, focus and iris

• Standard RS-232 interface

• The unique 5-pole commutator of the

Stryker Visum

®

Surgical Lights ensures crisp,

clear video by permitting the electrical and

data signals to travel separately

System Specifications

STRYKECAM

CCD sensor

Pixel/effective pixels

Video Norm

Resolution

White-set

Signal to Noise Ratio

Min. illumination

Lens

Power Supply

Humidity

Video Output

Control Through

Compatibility

SYSTEM SPECIFICATIONS

0.25" Interline CCD w/integrated mosaic filter

768 (H) x 494 (V)

NTSC

470 lines

5700K or manual

< 50 dB

< 1 lx at F1.4

30x Zoom

Through light / max. 12 Watt

< 90% rel. humidity

S-Video, Composite Video

RS-232, Touchpanel & SwitchPoint

Stryker Visum surgical lighting systems

Product Ordering information

ORDERING INFO.

682-000-160

682-000-190

682-000-183

STRYKECAM

StrykeCam In-Light Surgical Camera

Handles, Camera POM pkg. 6

Handles, Camera Aluminum pkg. 3

The information presented in this brochure is intended to demonstrate a Stryker product. Always refer to the package insert, product label and/or user instructions before using any Stryker product. Products may not be available in all markets.

Product availability is subject to the regulatory or medical practices that govern individual markets. Please contact your Stryker representative if you have questions about the availability of Stryker products in your area.

Products referenced with ™ designation are trademarks of Stryker.

Products referenced with ® designation are registered trademarks of Stryker.

Literature Number:

1001700002 (Rev. C)

VID/TGG 2.5k 07/06

Copyright © 2006 Stryker

Printed in USA

Stryker Color Palette

Stryker StrykeCam Data Sheet

Front Side

Prints: 4 over 4

CMYK Plus Gloss AQ

Print Run: 2,500

Communications

A Picture Is Worth

A Thousand Words

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
