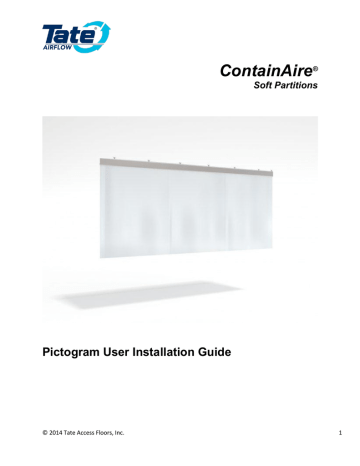

ContainAire

®

Soft Partitions

Pictogram User Installation Guide

© 2014 Tate Access Floors, Inc. 1

Introduction

Thank you for choosing a Tate Airflow product. Tate Airflow products are engineered to maximize the efficiency of your data center air handling system by isolating cold supply and hot exhaust airflow. We would be interested in hearing any comments you may have on this installation manual, product, or overall experience. Please call or e-mail our Technical Service

Department:

Phone: 410-799-4200

E-mail: [email protected]

Safety

Wear personal protective equipment (PPE) when drilling, cutting, or installing. PPE includes gloves, safety eyeglasses, hardhats, etc.

Do not leave the site unattended until the installation is complete.

Included Components

• 1 x 4’ Long Header Rail

• 1 x Straight Connector w/ Color Matching Thumb Screws

• 2 x Ceiling Grid Connector

• 1 x 4’ Long Vinyl Pivot and Grip Bracket

© 2014 Tate Access Floors, Inc. 2

1. For a single partition kit, you will receive one (1) cardboard box. Included components:

1 x header bar

2 x ceiling grid connector

1 x sheet of fire resistant vinyl

1 x straight connector w/ color matching thumb screws

2 Ceiling Grid Connectors

© 2014 Tate Access Floors, Inc.

Vinyl

Header Bar

3

2.

Decide where you want to position your partition on the drop ceiling T grid. Twist the ceiling grid connector onto the T grid.

3.

Place the second ceiling grid connector on the drop ceiling T grid.

© 2014 Tate Access Floors, Inc.

Ceiling Grid Connectors

4

4.

Install the header bar. Slide the recessed side of the header bar into the ceiling connectors using

Tate’s unique pivot and grip method.

© 2014 Tate Access Floors, Inc. 5

5.

The image shown below is taken from behind the partition (or inside the aisle). The smooth side should be facing out.

© 2014 Tate Access Floors, Inc. 6

6.

Unwrap the vinyl to expose the aluminum section at the top. Slide this bar into the back of the header bar, using the same pivot and grip technique. It will lock into place. Allow the vinyl to hang.

© 2014 Tate Access Floors, Inc.

Vinyl hanging off of header bar

7

7.

To add additional header bars to the partition, link them with the straight connector.

Straight connector w/ color matching thumb screws

8. Hang the header bar on the ceiling grid connectors as before. No vinyl is attached at this point on the second header piece.

© 2014 Tate Access Floors, Inc. 8

9.

The straight connector should be positioned to slide into the previously hung header bar.

10. Slide the connector bar together and tighten with the thumb screws. It will lock together.

© 2014 Tate Access Floors, Inc. 9

11.

Hang the vinyl as before on the second header section.

12. Ensure that the 2 header pieces are tight together and that the vinyl overlaps to prevent air leakage.

13.

The corner kit comes pre-assembled and connects to the ceiling grid connectors using the same method as with the standard straight header pieces.

14. Cut the vinyl to length as necessary for your installation. To cut, mark the vinyl and cut along a straight edge.

Overlapping vinyl

15.

Complete! The soft partition has been successfully installed.

Thank you for using Tate Airflow!

© 2014 Tate Access Floors, Inc. 10
