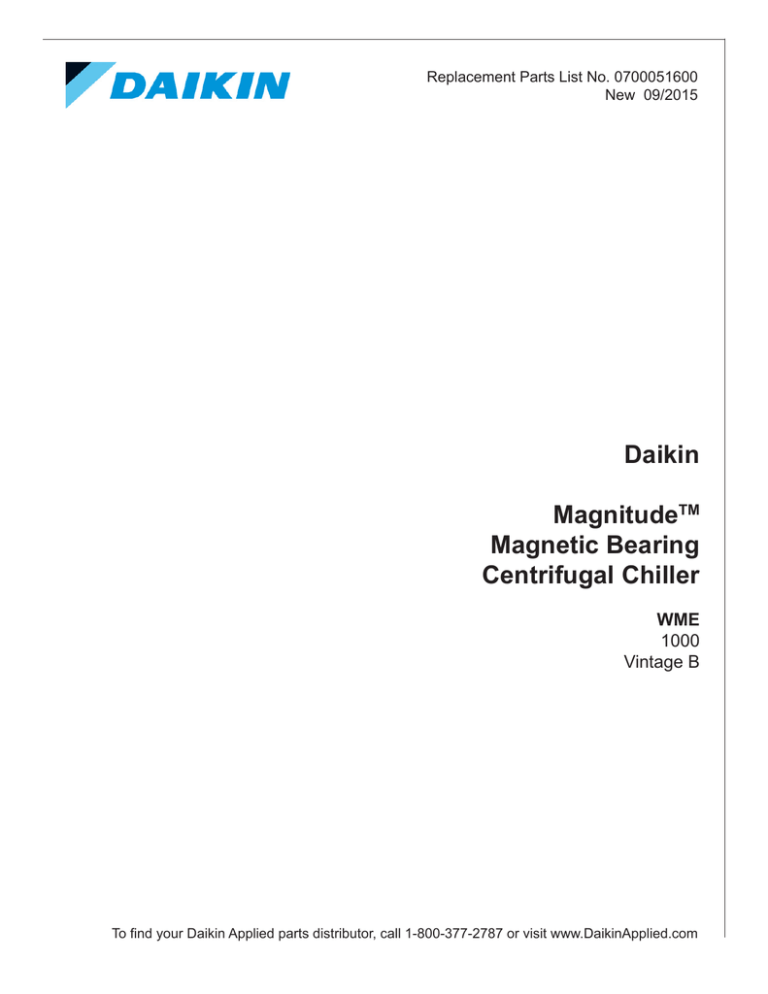

Replacement Parts List

Replacement Parts List

Replacement Parts List No. 0700051600

New 09/2015

Daikin

Magnitude

TM

Magnetic Bearing

Centrifugal Chiller

WME

1000

Vintage B

To find your Daikin Applied parts distributor, call 1-800-377-2787 or visit www.DaikinApplied.com

Contents

Parts List Revision History.................................................................................................................................. 3

Nomenclature

Model and Serial Number Nomenclature ..................................................................................................... 4

Model Number- Complete ....................................................................................................................... 5 - 9

Electrical Legend .............................................................................................................................................. 10

Controls

Main Control Box ........................................................................................................................................11

VFD Enclosure ........................................................................................................................................... 12

VFD Chassis ....................................................................................................................................... 13 - 14

VFD Power Supply Plate .................................................................................................................... 15 - 16

OITS- Operator Interface Touch Screen .................................................................................................... 17

Control Sensors .................................................................................................................................. 18 - 19

Compressor

Motor/Bearing Assemblies .................................................................................................................. 20 - 21

Impeller Assembly ..................................................................................................................................... 22

Impeller Seal & Compressor Fittings .................................................................................................. 23 - 24

Discharge Housing & High Speed Shaft Seal ........................................................................................... 25

Inlet Assembly ..................................................................................................................................... 26 - 27

Unit Assembly

Relief & Shutoff Valves ........................................................................................................................ 28 - 29

Discharge Piping Stack .............................................................................................................................. 30

Range Extension ................................................................................................................................. 31 - 32

Suction and Discharge Piping .................................................................................................................... 33

Liquid Injection ........................................................................................................................................... 34

Rotor Cooling ...................................................................................................................................... 35 - 36

Stator Cooling ..................................................................................................................................... 37 - 38

VFD Cooling ........................................................................................................................................ 39 - 40

Liquid Line ........................................................................................................................................... 41 - 42

Expansion Valve......................................................................................................................................... 43

Condenser

Condenser Diagrams ................................................................................................................................. 44

36 Inch - Dish Head Gaskets & Hardware ................................................................................................. 45

36 Inch - Water Box Head Gaskets & Hardware ........................................................................................ 46

Sight Glass, Shut Off Valve & Gasket, Charge Valve ................................................................................ 47

Evaporator

Evaporator Diagrams ................................................................................................................................. 48

42 Inch - Dish Head Gaskets & Hardware ................................................................................................. 49

42 Inch - Water Box Head Gaskets & Hardware ........................................................................................ 50

Sight Glass, Charge Valve ......................................................................................................................... 51

Critical Parts List............................................................................................................................................... 52

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 2

Parts List Revision History

Revision Date Description

New 09/2015 New

Daikin Applied, 13600 Industrial Park Blvd., P.O. Box 1551, Minneapolis, MN 55440 (763) 553-5330

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 3

Nomenclature

Model and Serial Number Nomenclature

Unit Type:

WME = Magnetic Bearing Centrifugal Chiller,

Water Cooled

Unit Size:

1000 Nominal Tons

Model Number Nomenclature

WME 1000 D B

Vintage

Number of Compressors

D = Dual Compressor

Plant Identification

STN = Staunton, VA

U = Unit

Serial Number Nomenclature

STN U 15 05 04810

Year of Manufacture

14 = 2014

15 = 2015

16 = 2016

17 = 2017 etc.

Serial Number

(Build Sequence)

Month of Manufacture

01 = January

02 = February

03 = March

04 = April

05 = May

06 = June

07 = July

08 = August

09 = September

10 = October

11 = November

12 = December

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 4

Nomenclature

Model Number- Complete

Code: WME 1000D B SN M3 00460 H6 D C E4216 GB 2 C DK L 2 V C N C

Code No.: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

4 440F 00580 C C N A C3616 GB 2 C DR N N N NN L 2 V

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

C N D 4 1050F 00725 C C N

40 41 42 43 44

N NN A A 0150 A 0700 E7 EA E N

45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

N A 01020 M D N N S N N R S H N B 1 5 A N N N

60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

F N N E A A N J 000 U Y N 0 A N S S U A 12345

81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

NNNNNNNNNNN NN NNNNN VFDM400 D NNNN N C3 04V

101 102 103 104 105 106 107 108 109

1. Model Type

WME= Magnetic Bearing Centrifugal Chiller, Water Cooled

2. Unit Size / Number of Compressors

1000D= 1000 Tons, Dual Compressor

3. Vintage

B= Vintage B

4. Chiller Configuration

SN= Single Refrigerant Circuit w/o Economizer

5. Motor Code

M2= 3 Winding, 3PH, 380- 575V; M3= 1 Winding, 6PH, 380- 480V

6. Power Supply Voltage

00380= 380V; 00400= 400V; 00415= 415V; 00440= 440V; 00460= 460V; 00480= 480V; 00575= 575V

7. Power Supply Hertz

H5= 50 Hertz; H6= 60 Hertz

8. Always D

9. Compressor Model Revision

C= Revision C

10. Evaporator Shell Size

E4216= Evaporator, 42" Diameter/16' Long

11. Evaporator

Tube Count and Configuration

GB= Design B, 3/4" Diameter Tube, Qty=753

HB= Design B, 3/4" Diameter Tube, Qty=661

JB= Design B, 3/4” Diameter Tube , Qty=597

SD= Design D, Mixed Tubes, Qty= 386 of 3/4" + 194 of 1"

TD= Design D, Mixed Tubes, Qty= 342 of 3/4" + 175 of 1"

VE= Design E, 1” Diameter Tube, Qty=385

WE= Design E, 1” Diameter Tube, Qty=345

YE= Design E, 1” Diameter Tube, Qty=299

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 5

Nomenclature

Model Number- Complete, Continued

12. Evaporator Tube Wall Thickness

2= 0.025"

3= 0.028"

5= 0.035"

13. Evaporator Tube Type

C= CU

N= CN90/10

14. Evaporator Tube Model

15. Evaporator Inlet Nozzle Location

L= Left

R= Right

16. Evaporator Water Passes

1= 1 Pass

2= 2 Pass

3= 3 Pass

17. Evaporator Inlet Nozzle Connection Type

V= Groove

F= Flanged

18. Evaporator Inlet Nozzle Configuration

A= Dish, End; 1-Pass

B= Dish, End; 2 or 3 Pass

D= Water Box, Top; 1-Pass

E= Water Box, Rear; 1-Pass

H= Water Box, Rear; 2 or 3 Pass

19. Evaporator Hinged Type

N= None

H= Standard Hinges on Both Ends

20.

Evaporator Refrigerant Design Pressure

C= 200 PSIG

21.

Evaporator Water Side Design Pressure

4= 150 PSIG, Non-ASME Code

22. Evaporator Leaving Water Temperature

Example: 440= 44.0 °F

23. Evaporator GPM

Example: 00580= 580 GPM

24. Evaporator Tube Sheet Coating/ Material

C= Carbon Steel

E= Enecon Coating; Outside of Tube Sheet

25. Evaporator Head/ Water Box Coating/ Material

C= Carbon Steel

E= Enecon Coating; Inside of Head

D= Devcon Coating; Inside of Head

26. Evaporator Head Tube Cleaning System

N= None

27. Evaporator Model Revision

A= Revision Level A

28. Condenser Shell Size

C3616= Evaporator, 36” Diameter/16’ Long

29. Condenser

Tube Count and Configuration

GB= Design B, 3/4” Diameter Tube, Qty=931

HB= Design B, 3/4” Diameter Tube, Qty=825

JB= Design B, 3/4” Diameter Tube , Qty=714

VE= Design E, 1” Diameter Tube, Qty=559

WE= Design E, 1” Diameter Tube, Qty=505

YE= Design E, 1” Diameter Tube, Qty=445

30. Condenser Tube Wall Thickness

2= 0.025”

3= 0.028”

5= 0.035”

31. Condenser Tube Type

C= CU

N= CN90/10

S= Stainless Steel

T= Titanium

32. Condenser Tube Model

33-36. Future Use

37. Condenser Inlet Nozzle Location

L= Left

R= Right

38. Condenser Water Passes

1= 1 Pass

2= 2 Pass

3= 3 Pass

39. Condenser Inlet Nozzle Connection Type

V= Groove

F= Flanged

40. Evaporator Inlet Nozzle Configuration

A= Dish, End; 1-Pass

B= Dish, End; 2 or 3 Pass

D= Water Box, Top; 1-Pass

E= Water Box, Front; 1-Pass

H= Water Box, Front; 2 or 3 Pass

41. Condenser Hinged Type

N= None

H= Standard Hinges on Both Ends

42.

Condenser Refrigerant Design Pressure

D= 225 PSIG

43.

Evaporator Water Side Design Pressure

4= 150 PSIG, Non-ASME Code

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 6

44. Condenser Leaving Water Temperature

Example: 1050= 105.0 °F

45. Condenser GPM

Example: 00725= 725 GPM

46. Condenser Tube Sheet Coating/ Material

C= Carbon Steel

E= Enecon Coating; Outside of Tube Sheet

M= Monel Clad

S= Stainless Steel Clad

T= Titanium Steel Clad

47. Condenser Head/ Water Box Coating/ Material

C= Carbon Steel

E= Enecon Coating; Inside of Head

D= Devcon Coating; Inside of Head

48-49. Future Use

50. Condenser Tube Cleaning System

NN= None

51. Condenser Model Revision

A= Revision level A

52. Pressure Vessel Code

A= ASME

53. Unit Tons

Example: 0150= 150 Tons

54. Refrigerant Type

A= Refrigerant 134A

55. Refrigerant Weight

Example: 0700= 700 Pounds

56. Electronic Expansion Valve Circuit #1

E7= Electronic Valve Size 7

57. Controller Type

EA= MicroTech-E (Rev. A)

58. Controller Language

E= English - English Units

59. Controller Rapid Restore

N= None

60. Controller Communications

N= None

B= BACnet (MS/TP, IP/Ethernet)

L= Lonmark

M= Modbus

61. Starter Box & Unit Controller Box Type

A= NEMA 1

Nomenclature

Model Number- Complete, Continued

62. Input Rated Load Amps (RLA) - Compressor #1

Example: 01020= 102.0 Amps

63. Starter Box #

M= Multiple Point - Dual Starter Boxes

64. Power Connection Type

D= Disconnect Switch

65. EMI Filter

N= None

4= 400A Input Current EMI Filter

66. Surge Protection

N= None

67. Short Circuit Current Ratings

S= SCCR 35KA

H= SCCR 65KA

V= SCCR 100KA

L= SCCR 25KA (For 575V only)

M= SCCR 50KA

68. Ground Fault Protection

N= None

F= With Ground Fault Protection Relay

69. Harmonic Filter

N= None

1= 300 HP

2= 350 HP

3= 400 HP

70. Range Extension

R= Range Extension System

71. Compressor Sound Reduction

Sound Reduction Pkg - Sound Insulation on Dchrg Line

72. Evaporator Insulation

N= None

H= 3/4" Insulation on Evap. Shell, Suction Piping,

and Compressor Inlet

3= 1-1/2" Insulation on Evap. Shell, Suction Piping,

and Compressor Inlet

73. Head Insulation

N= None

2= Evap. Return and Connection Heads Insulated

74. Factory Water Flow Indicatior

B= Both Evaporator and Condenser Flow Control

75. Unit Paint

1= Standard Painting

76. Shipping/ Packaging

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 7

Nomenclature

Model Number- Complete, Continued

77. Refrigerant Charge

A= Full Factory Refrigerant Charge

C= Holding Charge - Nitrogen

78. Special

V= None

X= Special

93. Refrigerant Warranty

0= None

B= 1 Year

D= 2 Year

F= 3 Year

H= 4 Year

K= 5 Year

79. Low Lift Conditions

N= None

80. Knockdown

N= None

A= Type A; Bolted Construction, Shipped Together

B= Type B; Bolted Construction, Shipped as Parts

94. Delayed Warranty Start

A= 12-18; Additional Months = none

B= 12-20; Additional Months = 2

C= 12-22; Additional Months = 4

D= 12-24; Additional Months = 6

E= 12-26; Additional Months = 8

F= 12-28; Additional Months = 10

G= 12-30; Additional Months = 12

81-83. Testing

GF= Ground Fault Detection Relay; YY= None

84. Agency Listing

E= ETL/cETL

N= None

85. AHRI Listing

A= AHRI

N= None

95. Extended Chiller Warranty

A= 1 year of Ext Warranty on compressor parts only

B= 1 year of Ext Warranty on compressor parts & labor

C= 2 year of Ext Warranty on compressor parts only

D= 2 year of Ext Warranty on compressor parts & labor

E= 3 year of Ext Warranty on compressor parts only

F= 3 year of Ext Warranty on compressor parts & labor

G= 4 year of Ext Warranty on compressor parts only

H= 4 year of Ext Warranty on compressor parts & labor

N= None

86. ASHRAE Listing

A= ASHRAE

N= None

96. Ship

S= Standard Ship

87. OSP-IBC Listing

S= OSP-IBC

N= None

96-97. Bill of Materials

99. Unit Model Revision

A= Revision Level A

88. Unit Label

J= Daikin

100. Unit kW

89. Coolant Rating

000= Water on both Evaporator and Condenser

E00= Ex: E10= 10% Ethylene on Evaporator or Condenser or Both

P00= Ex: P10= 10% Propylene on Evaporator or Condenser or Both

90. Startup

101. Stock Unit Modifications

NNNNNNNNNNN= None

* * * * * * * * * * *= WME Stock Unit Part Number

102. Expansion Valve #2

NN= None

91. First Year Warranty

Y= Entire Unit Parts and Labor

P= Entire Unit Parts Only

103. Input Rated Load Amps (RLA) - Compr #2 Only

NNNNN= None

* * * * *= Example: 01020= 102.0 Amps

92. Extended Chiller Warranty

A= 1 year of Extended Warranty on parts only

B= 1 year of Extended Warranty on parts and labor

C= 2 year of Extended Warranty on parts only

D= 2 year of Extended Warranty on parts and labor

E= 3 year of Extended Warranty on parts only

F= 3 year of Extended Warranty on parts and labor

G= 4 year of Extended Warranty on parts only

H= 4 year of Extended Warranty on parts and labor

N= None

104. VFD Type and Size

VFDM400= 400A - VFD Max Output Amps - 6 Phase

VFDM450= 450A - VFD Max Output Amps - 6 Phase

VFDM500= 500A - VFD Max Output Amps - 3 Phase

105. Power Assembly

S= Single Power Assembly- 3 Phase

D= Dual Power Assembly - 6 Phase

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 8

Nomenclature

Model Number- Complete, Continued

106. Transformer Type

NNNN= None

40SD= 400A AutoTransformer - 3 Phase (SD400-6)

60SU= 600A AutoTransformer - 3 Phase (SU600-6)

50SD= 500A Stepdown AutoTransformer - 6 Phase (SD500-12)

73ST= 730A AutoTransformer - 6 Phase (ST730-12)

73Su= 730A Stepup AutoTransformer - 6 Phase (SU730-12)

107. Power Meter

N= None

M= 7350 Power Meter

108. Cabinet Size

C1= Large Cabinet w/Transformer

C2= Small Cabinet w/o Transformer

C3= Large Cabinet w/o Transformer

109. Circuit Breaker Rating

04V= 380-480V / 400A, 100KA Breaker

05S= 380-480V / 500A, 35KA Breaker

05H= 380-480V / 500A, 65KA Breaker

06S= 380-480V / 600A, 35KA Breaker

06H= 380-480V / 600A, 65KA Breaker

06V= 380-480V / 600A, 100KA Breaker

08S= 380-480V / 800A, 35KA Breaker

08H= 380-480V / 800A, 65KA Breaker

08V= 380-480V / 800A, 100KA Breaker

04L= 575V / 400A, 25KA Breaker

04M= 575V / 400A, 50KA Breaker

06L= 575V / 600A, 25KA Breaker

06M= 575V / 600A, 50KA Breaker

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 9

Electrical Legend

Sch. Sym. Description

S15

SW1

SW3

SW4

SW5

TDM1- 3

TS1

TH1, 2

TX2

VFD1

BAS

CB1

CB2- 4

CB4

Communication Card

Circuit Breaker- TX2 Primary

Circuit Breaker- Fans

Circuit Breaker- MCB Trip, Power Meter, ELR, Solenoid

CFT1- CFT2 Cooling Fan Control

CT1- 6

CPU

D1

ES

ELR

EMC

EXV1

F1- F2

F3- F5

F6- F7

F8- F10

INPUT

IPS

L1- 3

LCD

LR

MCB

P1- P14

PM

PS2- PS4

PS5

PS6

PS7- PS8

Q1- 3

Q4- 6

R1- 4

S01

S02

S04

S05

S06

S07

S08

S09

S10

S11

S12

S13

S14

Current Transducers

Main Control Board

Diode

Switch- Ethernet

Relay- Earth Leakage

EMC Filter

Electronic Expansion Valve

Fuse- Controls Transformer, 2A 600VAC

Fuse- IPS, 6A 600VAC

Fuse- 150VDC to DC Power Supply, 10A 600VAC

Fuse- Power Meter, 10A 600VAC

I/O Board

Intermediate Power Supply

Chopper Chokes/Inductors

LCD Touch Screen Monitor (OITS)

Line Reactor

Main Circuit Breaker

DC Power Distribution Terminals

Power and Current Meter

Power Supply- VFD

Power Supply- Chiller I/O

Power Supply- Compressor I/O

Power Supply- Magnetic Bearings

Chopper/IGBT Driver

Steering Bridge IGBT

Resistors

Sensor- Evaporator Entering Water Temperature

Sensor- Evaporator Leaving Water Temperature

Switch- Evaporator Entering Flow

Sensor- Condenser Entering Water Temperature

Sensor- Condenser Leaving Water Temperature

Sensor- Condenser Refrigerant Pressure

Switch- Condenser Entering Flow

Sensor- Liquid Line Temperature

Sensor- Compressor Suction Temperature

Sensor- Compressor Suction Pressure

Sensor- Compressor Discharge Temperature

Sensor- Compressor Discharge Pressure

Sensor- Motor Gap Temperature

Switch- High Pressure

Switch- Compressor #1

Switch- Remote Start/Stop

Switch- Mode

Switch- Unit Enable

Diode/Thyristor Module

Thermal Switch

Thermistors

Transformer- 480/240/120 VAC, 500A

VFD Chassis Assembly

Location

Main Control Box

VFD Power Supply Plate

VFD Power Supply Plate

VFD Power Supply Plate

VFD Power Supply Plate

VFD Chassis

Main Control Box

VFD Chassis

Main Control Box

VFD Power Supply Plate

VFD Enclosure

Liquid Line

VFD Power Supply Plate

VFD Power Supply Plate

VFD Power Supply Plate

VFD Power Supply Plate

Main Control Box

VFD Enclosure

VFD Chassis

Evaporator

VFD Enclosure

VFD Enclosure

VFD Power Supply Plate

VFD Power Supply Plate

VFD Power Supply Plate

VFD Power Supply Plate

VFD Power Supply Plate

VFD Power Supply Plate

VFD Chassis

VFD Chassis

VFD Chassis

Evaporator Inlet

Evaporator Outlet

Evaporator Inlet

Condenser Inlet

Condenser Outlet

Condenser

Condenser Inlet

Liquid Line

Compressor

Compressor

Compressor Discharge Housing

Compressor Discharge Housing

Compressor

Discharge Piping

Main Control Box

Remote Mounting

Remote Mounting

Main Control Box

VFD Chassis

VFD Chassis

VFD Chassis

VFD Power Supply Plate

VFD Enclosure

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 10

Controls

Main Control Box

Communication Card

Location

24

4

7

8

9

18

13

Ref. Schem.

No. Sym.

4

7

N/S

N/S

8

9

11

13

18

24

CPU

SW5

SW1

N/S BAS

N/S BAS

N/S BAS

Description

Board- Chiller I/O Backplane

Board- Chiller Controller

Connector, Chiller Controller, Beige

Connector, Chiller Controller, Orange

Board- Digital I/O

Board- Analog Output

Board- IGV Stepper Motor

Board- Analog Input

Switch- Unit Enable

Switch- Unit and Compressor #1

BACnet MS/TP/E Installation Kit

2

Lonmark Installation Kit

2

Modbus Installation Kit

2

2

N/S= Not Shown on Diagram.

Includes the Communication Card and Installation Manual.

11

Part No.

300047099

300047102

300048948

300048949

333568101

333568201

333568302

333568401

300047109

300047110

332356961

332356952

332356953

2

1

2

1

1

1

1

1

4

1

Qty.

1

1

21

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 11

Controls

VFD Enclosure

3 1

1

8

7

10

4

5C 5B

5A

11

6

Ref. Schem.

No. Sym.

1

3 VFD1

4

5A

5B

5C

6 LR

7 IPS

8 MCB

10

Description

Fan 120 VAC 600 CFM

VFD Chassis Assembly- Phases 1- 3

Fuse

1

20A/1000VAC

Valve- Solenoid

Valve- Coil

Repair Kit- Solenoid Valve

Line Reactor

Intermediate Power Supply

CBKR Molded Case

3PH

25KAIC 600V 400A

120/60, 10 watt

CBKR Molded Case

CBKR Molded Case

CBKR Molded Case

CBKR Molded Case

CBKR Molded Case

CBKR Molded Case

CBKR Molded Case

CBKR Molded Case

CBKR Molded Case

CBKR Molded Case

CBKR Molded Case

Surge Suppressor

11 VFD1

1

Refer to VFD Chassis Assembly detail on the following pages.

2

This chassis is present ONLY when Code 05= M3.

3

Quantity per VFD Enclosure.

25KAIC 600V 600A

35KAIC 480V 500A

35KAIC 600V 500A

35KAIC 600V 600A

35KAIC 600V 800A

50KAIC 600V 400A

50KAIC 600V 600A

65KAIC 600V 500A

65KAIC 600V 600A

65KAIC 600V 800A

CBKR Molded Case 100KAIC 480V 400A

CBKR Molded Case 100KAIC 480V 600A

100KAIC 480V 800A

VFD Chassis Assembly- Phases 4- 6

1, 2

480V

WME1000DB- Water Cooled Chiller New 09/15

Part No.

300047091

300047093

300047094

331796001

331796051

300052079

300047096

300047097

300048927

300048929

300047098

300047071

300047100

300048924

300048928

300048930

300047088

300047108

300048925

300047069

300048923

300048926

300047076

300048873

RPL 7000516 / Page 12

1

1

1

1

1

1

1

1

Qty.

3

2

1

2

2

2

2

2

1

1

1

1

1

1

1

1

1

Controls

VFD Chassis- Diagrams

16

1

4

3

2

5

12

6

13

14

7

13

15

8

11

WME1000DB- Water Cooled Chiller New 09/15

10

15

9

RPL 7000516 / Page 13

Controls

VFD Chassis- Components & Compressor Wiring Harness

VFD Chassis- Components

Ref. Schem.

No. Sym.

1

2

3

4

5

Fuse

VFD Controller Assembly

Backup Battery for VFD Controller

Voltage Transducer Interface Board

Link Capacitor

6 Q4- 6

7 Q1- 3

Connector Interface

Steering Bridge IGBT Assy.

Chopper IGBT Assy.

8 TDM1- 3 Diode Thyristor Module

9

10 CT1- 3

11 CT4- 6

12 TS1

13 TH1, 2

14 R3, 4

15 R1, 2

16

N/S L1- 3

N/S

N/S

N/S

N/S D1

Fuse

Current Transducer

Current Transducer

Thermal Switch

Thermistor

Resistor

Resistor

Wire Harness/Cable Kit

Chopper Chokes/Inductors

Thyristor Driver Board

Snubber Board

Snubber Capacitors

Diode

2

Description

600A, 700V

1200uF, 700V

20A, 800V

2K2, 75W

150R, 250W

1uF, 1200V

Part No.

300047092

300048932

334295801

300048950

300048939

300048934

300048937

300048936

300049088

300048941

300048942

300048943

300048945

300048944

300049089

300048938

300055446

300048952

300048933

300048935

300048940

300048951

1

2

3

3

3

2

3

3

Qty.

1

3

1

3

1

1

1

6

1

1

1

1

3

2

2

1

2

N/S= Not Shown on Diagram.

Quantity PER Chassis Assembly, with the exception of chassis 300048873, which does not include Controller (Ref. #2).

Kit contains ribbon cables and harnesses. Connections include: Q1-J10; Q2-J11; Q3-J12; Q4-J7; Q5-J8; Q6-J9; J1-J6; and J1-J14.

Compressor Wiring Harness

Part Number 331795503

Available as a complete assembly only. One per compressor.

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 14

20

19

11

18

17

21

22

Controls

VFD Power Supply Plate- Diagram

2

3

7

4

8

5

13

6

9

12

13

14

15

14

16

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 15

Controls

VFD Power Supply Plate- Components

Ref. Schem.

No. Sym.

2

3

4

5

6

7

8

9

11

12

13

14

15

16

ELR

CB1

CB2- 4

Description

Plate- Partition

Terminal Block

Terminal Block- Ground

Bracket- End, Snap on

Relay- Earth Leakage

Circuit Breaker- Primary

Circuit Breaker- 2 Fans & MCB trip

Switch- Fan Failure

DC power supply

DC power supply

DC power supply

DC power supply

DC power supply

+24 VDC 100 watts

300047084

+12 VDC 72 watts

300047085

DC Distribution Board

Monitor- Voltage, Power and Current 17 PM

18 TX2

19 F1- 10

Transformer

Fuse holder

20 F1-2, F8-10 Fuse

21 F3- 5

22 F6-7

Fuse

Fuse

Part No.

Gray

300047073

Gray

300047074

Green-Yellow

300047075

300047190

300047078

8A

300047079

2A 300047080

+15 VDC 100 watts

15 VDC 25 watts

+24 VDC 77 watts

480/240/120V 500VA

331578601

300047081

300047082

300047083

300047086

300047087

349939804

300047088

300047089

300047090

300046902

1

Quantity per VFD Power Supply Plate.

1

1

2

2

1

1

3

2

Qty.

1

17

36

1

1

9

7

7

2

1

1

3

2

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 16

Controls

OITS- Operator Interface Touch Screen

Swivel Bracket

1

Swivel Pins

1

15

Main Control Box

18

16

Ref.No. Description

15 Monitor- 15" LCD Touchscreen, Black

Part No.

330276502

Qty.

1

16

18

LCD Support Arm Assembly, Black

1

OITS/Unit Control Box Support Block

330815411

330406501

1

2

1

The LCD Support Arm Assembly includes the Swivel Bracket, the Swivel Pins, and the mounting hardware (screws, washers and nuts). These items are not available separately.

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 17

Control Sensors

Sensor Location Diagrams

S15

S14

Top View

S07

S13

S12

S10 S11

Front View

Evaporator

Condenser

S09

End View

S02

Out

S01

In

Out

In

S04

WME1000DB- Water Cooled Chiller New 09/15

S08

S06

S05

RPL 7000516 / Page 18

Control Sensors

Components

Ref. Description

No.

S01 Sensor- Evaporator Entering Water Temperature

S02 Sensor- Evaporator Leaving Water Temperature

S04 Switch- Evaporator Entering Flow

N/S Cable- Evaporator Entering Flow Switch (5 Meter Lg.)

S05 Sensor- Condenser Entering Water Temperature

S06 Sensor- Condenser Leaving Water Temperature

S07 Sensor- Condenser Refrigerant Pressure

S08 Switch- Condenser Entering Flow

N/S Cable- Condenser Entering Flow Switch (5 Meter Lg.)

S09 Sensor- Liquid Line Temperature

S10 Sensor- Compressor Suction Temperature

S11 Sensor- Compressor Suction Pressure

N/S Cable- Compressor Suction Pressure Sensor

S12 Sensor- Compressor Discharge Temperature

S13 Sensor- Compressor Discharge Pressure

S14 Sensor- Motor Gap Temperature

S15 Switch- High Pressure

Part

Number

073007203

073007203

331796201

330571403

073007203

073007203

Qty.

071568621

331796201

330571403

073007203

331795201

2

2

071568521

1

1

331796801

331795201

2

2

071568621

2

2

331795205

2

2

074796301 2

2

N/S= Not Shown on Diagram

The Cable for this Sensor is part of the Compressor Wiring Harness and is not available separately. Refer to the Compressor Wiring

Harness section.

1

1

1

1

1

1

1

1

2

2

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 19

Compressor

Motor/Bearing Assemblies

Part No. Description

331799233 MBAW3/3 (Code 05= M2)

331799216 MBAW1/6 (Code 05= M3)

Application Voltage

440 - 575V

380 - 575V

Note: The Compressor Magnetic Bearing, Rotor, and Stator components are not field replaceable. If replacement is required, the entire assembly must be replaced. For

Compressor Motor/Bearing Assembly field serviceable components see the following page.

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 20

Compressor

Motor/Bearing Assembly Components

1

6

2

Front View

8A

8B

Bottom View

11

Back View

Ref.

No. Description

1

2

6

Kit- Electronics Cover Assy.

Controller- Compressor

1

Kit- Electronics Cover Gasket

2

8A Kit- Connector Plate with Gasket

8B Kit- Connector Plate with Gasket & 3 Cables

11 Plug- Hex Head

Part No.

300047066

300047067

300047068

300047070

300055102

300047072

1

Kit includes Cover, Gasket & Insulator.

2

Kit includes Gasket & Insulator. Included in Electronics Cover Assy Kit 300047066.

3

Quantity per Motor/Bearing Assembly.

Qty.

3

1

1

1

1

1

1

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 21

Compressor

Impeller Assembly

407

402

403

404

405

406

418

416

417

415

Ref.

No.

402

403- 406

407

415

416

417

418

Description

Washer- Impeller

Kit- Shim Washers, Impeller

Impeller Assembly

Volute Insert

Pin- Volute Insert

O-Ring

3

Ring- Retaining

2

1

.50 x .09"

Part No.

735043467

300049084

331347202

331498002

735038039

330198639

735049893

1

The shim combination is unique to each compressor. The kit contains quantities of four shim sizes.

2

Available as an assembly only.

3

Included in Compressor O-Ring Kit p/n 300049071. One kit per Compressor.

4

Quantity per Impeller Assembly.

1

1

1

1

Qty.

4

1

1

1

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 22

Compressor

Impeller Seal & Compressor Fittings- Diagrams

See Compressor

Inlet Assembly

504

506

502

503

609

608

602

605

606

607

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 23

Compressor

Impeller Seal & Compressor Fittings- Components

Ref.

No. Description

502 Seal- Impeller (1 pair)

503 O-Ring

3

504 O-Ring

3

506 Screw, Stainless Steel

602 Fitting- Elbow

2

O-Ring, ORFS

1

O-Ring, SAE

1

605 Fitting- Elbow

O-Ring, ORFS

1

O-Ring, SAE

1

606 Fitting- Elbow

O-Ring, ORFS

1

O-Ring, SAE

1

607 Fitting- Straight

O-Ring, ORFS

1

O-Ring, SAE

1

608 Fitting- Run Tee

O-Ring, ORFS

1

O-Ring, SAE

1

609 Well, Temperature Sensor

Part No.

332026502

Qty.

735043645

070194999

1

3/8-16 x 2.0"

331353705

332471617

070194968

070194980

070789307

735073650

735073625

070789368

735073640

735073625

070789383

300047193

1

O-Ring(s) are furnished standard with all fittings. Order additional O-Rings if needed. ORFS Style

2

O-Rings seat on the face end of the fitting. SAE style O-Rings seat at the base of the fitting.

The well for this fitting is integrated into the Discharge Housing and is not available separately.

3

Included in Compressor O-Ring Kit p/n 300049071. One kit per Compressor.

4

Quantity per Compressor.

1

1

1

1

24

1

1

1

070194970

1

070789392

070194968

070194980

331795204

1

1

1

1

1

1

1

2

1

1

4

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 24

Compressor

Discharge Housing & High Speed Shaft Seal

316

313

311

315

307

314

312

307

306

304

507

508

303

305

Ref.

No. Description

302 Discharge Housing

303 O-Ring

2

304 Screw, Stainless Steel

305 Screw, Stainless Steel

306 Ring- Liquid Injection

307 Screw

311 Pin

312 Seal- High Speed Shaft

313 Shim- High Speed Shaft Seal

314 Spring- Wave, High Speed Shaft

315 Retainer- High Speed Shaft Seal

316 Pin- Locator

507 Well, Temp Sensor

508 Valve- Access

Part No.

331497904

070194978

#.38-16 x 2.0" 331353705

#.38-16 x 3.0" 331353706

331583901

#10 x .50" 735034921

.50 x .09" 735038039

1.5" 331351101

331347501

735049886

331353301

331584501

331795202

070229306

2

Included in Compressor O-Ring Kit p/n 300049071. One kit per Compressor.

3

Quantity per Compressor.

1

1

1

1

1

1

1

1

Qty.

3

1

1

12

6

1

12

302

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 25

201

Compressor

Inlet Assembly- Diagrams

203

201

202

204

206

205

220

213

212

219

218

222

207

221

210

211

WME1000DB- Water Cooled Chiller New 09/15

208

209

RPL 7000516 / Page 26

Compressor

Inlet Assembly- Components

Ref. Description

No.

Complete Compressor Inlet Assembly

201 Inlet Housing

202 Gear- Face

203 Inlet Vane

204 Gear- Spur

205 Pin- Spur Gear

206 Ring- Retaining Spur Gear

207 IGV Actuator Assembly, Complete

208 O-Ring

1

209 Screw- Stainless Steel

210 Plug- Sensor Magnet

211 Magnet

212 Sensor

213 Bracket- Sensor

218 Ring- Vane Stop

219 Ring- Retaining Vane Stop

220 Valve- Access

221 Connector- Male

222 Well- Temperature Sensor

Part

Number Qty.

331584412

331583703

331438301

331352602

331438202

.313 x .58" 735038065

735049890

331584401

070194996

2

.50-13 x 1.50" 331353704

2

1

331438401

331353802

331352831

331352701

331438101

735049892

070229306

8 Pole 331795401

331795202

1

1

1

1

1

1

1

1

11

11

11

1

1

1

1

11

1

Included in Compressor O-Ring Kit p/n 300049071. One kit per Compressor.

2

Quantity per Inlet Assembly.

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 27

020

022

Unit Assembly

Relief & Shutoff Valves- Diagrams

024

081

082

080

083

WME1000DB- Water Cooled Chiller New 09/15

021

020

RPL 7000516 / Page 28

Unit Assembly

Relief & Shutoff Valves- Components

Ref.

No. Description

020 Fitting- 90 Degree Elbow

O-Ring

1

021 Valve- Shut Off (on Condenser)

O-Ring, SAE

1

083 Fitting- Swivel

1

022 Valve- Relief (on Evaporator)

024 Valve- Relief (on Condenser)

080 Valve- Angle

081 Cap- Tube End

082 Fitting

O-Ring

200#

225#

1

O-Ring(s) are furnished standard with all fittings. Order additional O-Rings if needed.

Part No.

332471635

070194963

735039964

070194980

735045817

735045829

332471751

070789347

735043930

070194948

735043954

2

2

1

2

Qty.

3

3

1

2

2

2

2

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 29

See Suction Piping

Unit Assembly

Discharge Piping Stack

135

136

126

022 147

132

022 128

125 126

Qty.=2

Ref.

No. Description

022 Nut

125 Valve- Check

126 Gasket

128 Screw

132 Elbow- 90 Degree

135 Nozzle- Discharge

136 O-Ring

147 Bolt

1

Quantity per Discharge Piping Stack.

Part No.

735029626

6.0" 333283102

070199039

.75 x 7.0"

6.0"

3/4-10 x 3.0"

WME1000DB- Water Cooled Chiller New 09/15

735033974

332760703

331583802

735073620

735033878

1

1

8

1

8

Qty.

1

18

1

3

RPL 7000516 / Page 30

Unit Assembly

Range Extension

026

020

022

024

004

003

002

034

020

022

024

026

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 31

Unit Assembly

Range Extension

Ref.

No. Description

002 Core- Schrader Valve

003 Valve- Schrader

004 Cap- Schrader Valve

020 Kit- Flange

2

022 Adapter

024 Gasket- Flange

026 Screw- Flange

034 Valve- Expansion

Motor- Expansion Valve

Sight Glass- Expansion Valve

Part No.

026541100

071100801

032943500

735016403

735049702

070199112

.62 x 2.50"

735033864

250T

330386205

330386209

300043182

2

The Flange Kit does NOT contain a gasket. If a gasket is required, order Ref # 024 p/n 070199112.

Also, DO NOT use the screws that come with this Flange Kit. If screws are required, order 4pc. of

Ref # 026 p/n 735033864.

Qty.

4

4

4

4

4

4

16

2

2

2

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 32

Unit Assembly

Suction and Discharge Piping

086

084

088

085

087

136

092 093

094

Ref.

No. Description

084 Screw

085 Screw- Stainless Steel

086 Elbow- Suction 90 Degree

087 O-Ring

1

088 O-Ring

1

092 Screw

093 Washer

094 Nut

136 O-Ring

Part No.

M10- 1.5 x 50mm 735036546

.38 -16 x 1.75" 331353707

331352003

350233017

.50 x 3.0" 735033852

040500310

735029625

735073620

1

Included in Compressor O-Ring Kit p/n 300049071. One kit per Compressor.

2

Quantity per Suction and Discharge Piping.

Qty.

2

18

12

1

070194992 1

8

8

1

8

1

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 33

Unit Assembly

Liquid Injection

027

002 003

004

021

022

029

002 003

004

031

Ref.

No. Description

002 Core- Schrader Valve

003 Valve- Schrader

004 Cap- Schrader Valve

021 Fitting- ORFS to Braze Sleeve

O-Ring

1

022 Nut- Braze Sleeve

027 Valve- Solenoid

N/S Coil- Solenoid Valve

029 Strainer

031 Valve- Ball

24VDC

.875"

Part No.

026541100

071100801

032943500

070789351

070194968

070789354

.875" 735048473

331796054

735030501

330286084

1

O-Ring(s) are furnished standard with each fitting. Order additional O-Rings if needed.

2

Quantity per Liquid Injection Line.

Qty.

2

2

2

2

1

1

1

1

1

1

1

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 34

Unit Assembly

Rotor Cooling

111 112

111

112

120

112 115

160

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 35

Unit Assembly

Rotor Cooling Components

Ref. Description

No.

111 Fitting- ORFS to Braze Sleeve

O-Ring

1

112 Nut- Braze Sleeve

115 Fitting- Reducer Sleeve

O-Ring

1

120 Valve- Solenoid

160 Valve- Ball .375"

Part Qty.

Number

070789351

070194968

070789354

070789391

070194968

331796003

330286001

1

O-Ring(s) are furnished standard with each fitting. Order additional O-Rings if needed.

2

Quantity per Rotor Cooling Line.

2

2

3

1

1

1

1

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 36

Unit Assembly

Stator Cooling

026

028

029

023

022

020

Stator Cooling Return

046 045

Stator Cooling Supply

045

046

046

045

002 003

004

030

036

002 003

004

WME1000DB- Water Cooled Chiller New 09/15

052

RPL 7000516 / Page 37

Unit Assembly

Stator Cooling- Components

Ref. Description

No.

002 Core- Schrader Valve

003 Valve- Schrader

004 Cap- Schrader Valve

020 Fitting- Elbow ORFS to SAE

O-Ring, ORFS

1

O-Ring, SAE

1

022 Fitting- ORFS to Braze Sleeve

O-Ring

1

023 Nut- Braze Sleeve

026 Valve- Solenoid

N/S Coil- Solenoid Valve

028 Fitting- Sleeve ORFS

O-Ring, ORFS

1

029 Fitting- Nut

030 Filter Drier

036 Valve- Ball

045 Fitting- ORFS to Braze Sleeve

O-Ring, ORFS

1

046 Fitting- Nut ORFS

O-Ring, ORFS

1

052 Valve- Ball

24VDC

.625"

.875"

Part

Number Qty.

026541100

071100801

032943500

332471617

070194968

070194980

070789351

070194968

070789354

331796002

331796052

070789361

735073640

070789360

735028828

330286003

070789316

735073650

070789310

735073650

330286084

1

O-Ring(s) are furnished standard with each fitting. Order additional O-Rings if needed. ORFS Style

2

O-Rings seat on the face end of the fitting. SAE style O-Rings seat at the base of the fitting.

Quantity per Stator Cooling Line.

1

1

1

1

1

1

1

1

3

3

3

3

1

1

1

1

1

2

1

2

2

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 38

Unit Assembly

VFD Cooling

021 022

002

003 004

VFD Cooling Return

031

002 003 004

021 022

031

002 003 004

012

021 022

VFD Cooling Supply

021 022

031

WME1000DB- Water Cooled Chiller New 09/15

002

003

004

002

003

004

018

012

RPL 7000516 / Page 39

002

003

004

Unit Assembly

VFD Cooling

Ref. Description

No.

002 Core- Schrader Valve

003 Valve- Schrader

004 Cap- Schrader Valve

012 Valve- Ball

018 Strainer

021 Fitting- ORFS to Braze Sleeve

2

O-Ring

1,2

022 Nut- Braze Sleeve

031 Valve, Ball .875

Part Qty.

Number

026541100 6

071100801 6

032943500 6

1.375"

330286086 4

1.375"

735030536 2

070789351 4

070194968

070789354

330286084

2

4

4

1

O-Ring(s) are furnished standard with each fitting. Order additional O-Rings if needed.

2

If unit has Harmonic Filter (Code 69=1, 2, 3) or AutoTransformer (Code 106= 40SD, 60SU, 50SD, 73ST,

73SU), contact Daikin Applied for Fitting or O-Ring part number.

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 40

Unit Assembly

Liquid Line- Diagrams

060B

060A

060E 060D 060C

022

080

021

081

101 102

100

See

Expansion

Valve section

020 022

024

104 021

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 41

Ref. Description

No.

020 Coupling- Adapter

021 Flange

022 Gasket

024 Strainer

060A Saddle- Sight Glass

060B Cap- Sight Glass

060C Valve- Schrader

060D Core- Schrader Valve

060E Cap- Schrader Valve

080 Coupling Adapter

081 Bolt

100 O-Ring

101 Screw

102 Washer, Lock

104 Screw

Unit Assembly

Liquid Line- Components

Part Qty.

Number

071901601 1

071992102 2

735073403 2

070977802 1

330743304 1

330508701 1

071100801 1

026541100 1

032943500 1

071900701 1

.625 x 3.25"

735033966 4

735073630 1

.75 x 3.0"

735033878 4

048164816 4

.75 x 3.5"

735033967 4

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 42

Unit Assembly

Expansion Valve

125

105

127

103

102

102

115

121

128

112

119

126

Ref. Description

No.

102 Bearing

103 Seal

105 Check Valve

112 Flex Coupling

115 Motor, Stepper/IGV

119 Site Glass (on Motor Cover)

121 O-Ring

125 Expansion Valve Body

126 Site Glass (on Body)

127 O-Ring (between Body and Base)

128 O-Ring (between Base and Motor Cover)

Part Qty.

Number

735014129 2

735234327 1

735040316 1

332778402 1

331353601 1

015997816 1

735043639 1

332935601 1

332674501 1

735073633 1

735043674 1

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 43

352

353 354

Condenser

Diagrams

2-Pass Condenser shown

Rear View

330 331

353 354

355

330 331

251 252 253

110A

(Located on the front side

of the Condenser)

Dish Head, Grooved

Entering Return

1- Pass

2- Pass

3- Pass

Screw

353

Water Box Head, Grooved

Entering Return

1- Pass

2- Pass

Cover End

3- Pass

WME1000DB- Water Cooled Chiller New 09/15

Water Box Head

Screw

353

Condenser End

354

Nut

352/355

Gasket

352/355

Gasket

354

Nut

RPL 7000516 / Page 44

Condenser

36 Inch - Dish Head Gaskets & Hardware

150 PSIG non-ASME (Code 43=4)

Carbon Steel tube sheet and heads (Codes 46 & 47 = C)

Ref.

No.

352/355

353

354

1 Pass, Dish Heads

Description

Gasket - Dish Head

Screw

Nut

Part Quantity

Number

334721706

2

.75 x 3.0" 735033878

56 per head

735029626

56 per head

2 Pass, Dish Heads

Ref. Description

No.

352 Gasket - Dish Head, Entering Side

353 Screw

354 Nut

355 Gasket- Dish Head, Return Side

Part Quantity

Number

334825851

1

.75 x 3.0" 735033878

56 per head

735029626

56 per head

334721706

1

Ref.

No.

352/355

353

354

3 Pass, Dish Heads

Description

Gasket - Dish Head

Screw

Nut

Part Quantity

Number

334825851

2

.75 x 3.0" 735033878

56 per head

735029626

56 per head

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 45

Condenser

36 Inch - Water Box Head Gaskets & Hardware

150 PSIG non-ASME (Code 43=4)

Carbon Steel tube sheet and heads (Codes 46 & 47 = C)

1-Pass, Water Box Heads with Top Nozzle (Code 40=D)

Ref.

No.

352/355

353

354

Description

Gasket - Water Box Head

Screw

Nut

Part Quantity

Number

334721706

4

.75 x 5.0" 735033970

56 x 4

1

735029626

56 x 4

1

1-Pass, Water Box Heads with Front Nozzle (Code 40=F)

Ref.

No.

352/355

353

354

Description

Gasket - Water Box Head

Screw

Nut

Part Quantity

Number

334721706

4

.75 x 5.0" 735033970

56 x 4

1

735029626

56 x 4

1

2-Pass, Water Box Heads with Front Nozzle (Code 40=J)

Ref. Description

No.

352 Gasket - Water Box Head, Entering Side

353 Screw for Water Box Head

Part Quantity

Number

334825853

2

.75 x 5.0" 735033970

56 x 2

1

Screw for Dished Head

354 Nut

355 Gasket- Dished Head, Return Side

.75 x 3.0" 735033878

56

735029626

56 x 3

1

334721706

1

3-Pass, Water Box Heads with Front Nozzle (Code 40=J)

Ref.

No.

352/355

353

354

Description

Gasket - Water Box Head

Screw

Nut

Part Quantity

Number

334825853

4

.75 x 5.0" 735033970

56 x 4

1

735029626

56 x 4

1

1

Each Water Box Head has 2 sets of screws and nuts. There are 56 screws + 56 nuts for the water box cover, and 56 screws + 56 nuts at the connection of the head to the condenser. See Condenser diagrams.

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 46

Condenser

Sight Glass, Shut Off Valve & Gasket,

Charge Valve

Sight Glass, Shut Off Valve & Gasket, Charge Valve & Cap

Ref. Description

No.

110A Sight Glass

251 Valve- Shut Off (King Valve)

252 Screw- Shut Off Valve

253 Gasket- Shut Off Valve

330 Valve- Charge

O-Ring for Charge Valve

331 Cap- Charge Valve

Part Qty.

Number

1.0" MPT

350229502 1

4.0"

735039809 1

075 x 7.0

735033974 4

070199106 1

332480201 2

735073634 2

073243901 2

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 47

352

353 354

Evaporator

Diagrams

2-Pass Evaporator shown

Rear View

330 331

353 354

355

Dish Head, Grooved

Entering Return

1- Pass

2- Pass

3- Pass

Water Box Head, Grooved

Entering Return

1- Pass

2- Pass

3- Pass

110A

(Located on the front side

of the Evaporator)

330 331

Screw

353

Cover end

Water Box Head

Screw

353 Condenser end

354

Nut

352/355

Gasket

352/355

Gasket

354

Nut

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 48

Evaporator

42 Inch - Dish Head Gaskets & Hardware

150 PSIG non-ASME (Code 21=4)

Carbon Steel tube sheet and heads (Codes 24 & 25 = C)

Ref.

No.

352/355

353

354

1 Pass, Dish Heads

Description

Gasket - Dish Head

Screw

Nut

Part Quantity

Number

334721707

2

.75 x 3.25" 735033966

80 per head

735029626

80 per head

2 Pass, Dish Heads

Ref. Description

No.

352 Gasket - Dish Head, Entering Side

353 Screw

354 Nut

355 Gasket- Dish Head, Return Side

Part Quantity

Number

334825861

1

.75 x 3.25" 735033966

80 per head

735029626

80 per head

334721707

1

Ref.

No.

352/355

353

354

3 Pass, Dish Heads

Description

Gasket - Dish Head

Screw

Nut

Part Quantity

Number

334825861

2

.75 x 3.25" 735033966

80 per head

735029626

80 per head

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 49

Evaporator

42 Inch - Water Box Head Gaskets & Hardware

150 PSIG non-ASME (Code 21=4)

Carbon Steel tube sheet and heads (Codes 24 & 25 = C)

1-Pass, Water Box Heads with Top Nozzle (Code 18=D)

Ref.

No.

352/355

353

354

Description

Gasket - Water Box Head

Screw

Nut

Part Quantity

Number

334721707

4

.75 x 6.0" 735033972

80 x 4

1

735029626

80 x 4

1

1-Pass, Water Box Heads with Rear Nozzle (Code 18=E)

Ref.

No.

352/355

353

354

Description

Gasket - Water Box Head

Screw

Nut

Part Quantity

Number

334721707

4

.75 x 6.0" 735033972

80 x 4

1

735029626

80 x 4

1

2-Pass, Water Box Heads with Rear Nozzle (Code 18=H)

Ref. Description

No.

352 Gasket - Water Box Head, Entering Side

353 Screw for Water Box Head

Part Quantity

Number

334825862

2

.75 x 6.0" 735033972

80 x 2

1

Screw for Dished Head

354 Nut

355 Gasket- Dished Head, Return Side

.75 x 3.25" 735033966

80

735029626

80 x 3

1

334721707

1

3-Pass, Water Box Heads with Rear Nozzle (Code 18=H)

Ref. Description

No.

352 Gasket - Water Box Head, Entering Side

355 Gasket - Water Box Head, Opposite Side

353 Screw

354 Nut

Part

Number

Quantity

334825862 2

334825863 2

.75 x 6.0" 735033972

80 x 4

1

735029626

80 x 4

1

1

Each Water Box Head has 2 sets of screws and nuts. There are 80 screws + 80 nuts for the water box cover, and 80 screws + 80 nuts at the connection of the head to the evaporator. See Evaporator diagrams.

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 50

Evaporator

Sight Glass & Charge Valve

Sight Glass, Charge Valve & Cap

Ref. Description

No.

110A Sight Glass

330 Valve- Charge

O-Ring for Charge Valve

331 Cap- Charge Valve

Part Qty.

Number

1.0" MPT

350229502 1

332480201 2

735073634 2

073243901 2

WME1000DB- Water Cooled Chiller New 09/15 RPL 7000516 / Page 51

Critical Daikin Applied OEM Parts

Are What Your HVAC Unit Needs!

Daikin Magnitude

TM

Centrifugal Chiller

WME

1000

Critical Components

Sensors

S01 - Evap Entering Water Temp

S02 - Evap Leaving Water Temp

S05 - Cond Entering Water Temp

S06 - Cond Leaving Water Temp

S07 - Cond Refrigerant Pressure

S09 - Liquid Line Temp

S10 - Compr Suction Temp

S11 - Compr Suction Pressure

S12 - Compr Discharge Temp

S13 - Compr Discharge Pressure

S14 - Motor Gap Temp

UNIT SIZE

1000

1000

1000

1000

1000

1000

1000

1000

1000

1000

1000

Voltage

ALL

ALL

ALL

ALL

ALL

ALL

ALL

ALL

ALL

ALL

ALL

Part Number

073007203

073007203

073007203

073007203

071568621

073007203

331795201

071568521

331795201

071568621

331795205

Switches

S04 - Switch, Evap Entering Flow

S08 - Switch, Cond Entering Flow

S15 - Switch, High Pressure

VFD Controls

Wire Harness/Cable Kit

Fuse, 20A/1000VAC

Fuse, 600A/700V

Fuse, 20A/800V

Fuse, Power Supply Plate F1-2, F8-10

Fuse, Power Supply Plate F3-5

Fuse, Power Supply Plate F6-7

Compressor O-Ring Kit

Compressor O-Ring Kit (one per compressor)

1000

1000

1000

1000

1000

1000

1000

1000

1000

1000

1000

ALL

ALL

ALL

ALL

ALL

ALL

ALL

ALL

ALL

ALL

ALL

331796201

331796201

074796301

300055446

300047094

300047092

300048941

300047089

300047090

300046902

300049071

Call Your Local Daikin Applied Parts Distributor For All Your Parts Needs.

To Locate A Distributor, Go To www.DaikinApplied.com or Call 1-800-37PARTS

7000516 New 09/2015 CPL Page 1 of 1

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
