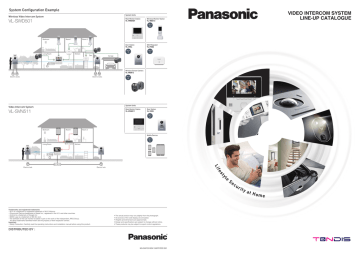

VIDEO INTERCOM SYSTEM LINE
System Configuration Example
VIDEO INTERCOM SYSTEM
LINE-UP CATALOGUE
System Units
Wireless Video Intercom System
Main Monitor Station
VL-SWD501
VL-MWD501
Wireless Monitor Station
VL-WD613
Up to
6
Bedroom
Room 1
Room 2
Door Station
DECT Repeater
VL-V554
VL-FKD2
Up to
Living Room
< 2 Wire >
Up to
2
Kitchen
Den
2
Garage
VL-PS240
Wireless Sensor Camera
VL-WD812
Electric locks
Electric locks
Up to
4
System Units
Video Intercom System
Main Monitor Station
VL-SVN511
VL-MVN511
Door Station
VL-V555
Up to
2
Bedroom
Room 1
Room 2
Mobile Devices
Up to
4
Wi-Fi router Kitchen
Living Room
< 2 Wire >
VL-PS240
VL-RLY1
Li
Electric lock
Electric lock
fe
st
yl
e
Trademarks and registered trademarks
- Wi-Fi is a trademark or registered trademark of Wi-Fi Alliance.
- iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries.
- Android is a trademark of Google Inc.
- SDXC Logo is a trademark of SD-3C, LLC.
- The software of the sub monitor is based in part on the work of the Independent JPEG Group.
All other trademarks identified herein are the property of their respective owners.
Important
- Safety Precaution: Carefully read the operating instructions and installation manual before using this product.
• The actual product may vary slightly from the photograph.
• All pictures of the LCD display are simulated.
• Weights and dimensions are approximate.
• Design and specifications are subject to change without notice.
• These products may be subject to export control regulations.
DISTRIBUTED BY :
MG-DHPC010EN 1509ITP/ZZZ-EX1
Se
cu
rit
ya
t Ho
me
Wiring Schematic Diagram
VIEW AND TALK FLEXIBLY
DOORPHONE 1
VL-SWD501
MAIN MONITOR
*1 Make sure to only connect electric vehicle gate locks to the S3/S4 terminals of the doorphones.
*2 Make sure to only connect electric door locks to the S1/S2 terminals of the doorphones.
A
D
NP
Panasonic offers various Video Intercom System models
to flexibly suit the size of your house and your lifestyle.
NP
C
220-240 V AC
NP
NP
Power 12 V AC/DC
supply
NP
Power 12 V AC/DC
supply
DOORPHONE 2
NP
D
Connection device for option output
(A contact)
NP
Power 12 V AC/DC
supply
NP
Power 12 V AC/DC
supply
24 V DC
POWER SUPPLY UNIT
NP: Non-polarised:
Wire type and length
Wiring run
Smartphone Connect Model
VL-SWD501
VL-SVN511
Main monitor – Doorphone
A
Main monitor – Power supply unit
B
φ 0.65 mm
φ 1.0 mm
φ 0.5 mm
φ 0.65 mm
φ 1.0 mm
φ 1.2 mm - φ 2.0 mm (17 AWG - 12 AWG)
No requirement
φ 0.5 mm - φ 1.2 mm (24 AWG - 17 AWG)
According to specification of connected device.
Main monitor – Connection device for option output (A contact)*2
E
φ 0.5 mm - φ 1.2 mm (24 AWG - 17 AWG)
According to specification of connected device.
Wireless sensor camera – Power supply unit
–
Power supply unit (for wireless sensor camera) – AC power source
–
Wireless sensor camera – External sensor
–
22 AWG
φ 0.65 mm
18 AWG
φ 1.0 mm
φ 1.2 mm - φ 2.0 mm (17 AWG - 12 AWG)
φ 0.5 mm - φ 0.8mm (24 AWG - 20 AWG)
*2 When using an electric lock or a connection device for option output (A contact), select a device that meets the following guidelines:
• Electric lock connection terminal (S1/S2, S3/S4): - N/O dry closure contact
- 12 V AC/DC, less than 1 A
• Connection device for option output (A contact) terminal (OUT1/OUT2): - 24 V AC/DC, less than 0.3 A (minimum contact: 5 V DC 1 mA)
DOORPHONE 1*
C
Main Monitor
1
1
Smartphone/Tablet
—
• (4)*
6 (DECT)
—
2 (Die-Cast Aluminium)
2
Wireless Sub Monitor
Door Station (Doorphone)
Recording
Movie/Picture Recording
SD Card Recording
Connectable
Devices
Sensor Camera
Electric Lock Release (Door Opener)
Night Vision (LED Light)
Touch Panel/Pan & Tilt
Wide Angle Camera
Intercom Call
Voice Changer
•/•
•
• (4)
• (2)*
• (2)
•
•
•
•
(Wireless)
•
*1 The main monitor must be on the same home Wi-Fi network as a smartphone/tablet (with the dedicated app installed).
*2 When connecting 2, an optional Door Station is required.
2
•
—/
—
24 V DC
Wire type and length
NP
POWER SUPPLY UNIT
Electric lock
E
D
NP
NP
—
•
—
•
—
•
RELAY BOX
F
NP
Power
supply
12 V AC/DC
NP
Power
supply
12 V AC/DC
Electric lock
Connection device for option
Input (A contact)
B
Wire type*1
Wiring run
Diameter
Main monitor – Doorphone
(including lobby station)
A
Main monitor – Power supply unit
B
Power supply unit – AC power source
C
—
• (2)
NP
A
1
2
Repeater
Others
VL-SVN511
NP
1
2
3
4
5
6
7
8
9
10
11
12
13
S3 S4
2
D1
D2
D3
D4
R1
R2
R3
IN1
IN2
IN3
IN4
P1
P2
* When you use an additional doorphone, the maximum number of the
electric locks that can be connected to the doorphone depends on the type
of doorphone. Consult your dealer for further information.
DOORPHONE 2*
S1 S2
1
1 2
R1 R2 R3
Units
50 m
100 m
No requirement
According to specification of connected device.
Must be no longer than 20 m.
*1 Type: Single-pair cable with outer sheath (jacket)
Conductor: Copper solid
• A certified power supply wiring has to be used with this equipment. The relevant national installation and/or equipment regulations shall be considered.
A certified power supply wiring not lighter than ordinary polyvinyl chloride flexible wiring according to IEC 60227 shall be used.
Comparison Chart
Connectable
Length (Max.)
100 m
130 m
50 m
10 m
20 m
C
220-240 V AC
Maximum
Wire type*1
Diameter
22 AWG
18 AWG
CAT 5
22 AWG
18 AWG
D
Door Station x 1, Main Monitor x 1
VL-SWD501
Electric lock
(Electric door lock)*2
Doorphone – Electric lock*2
MAIN MONITOR
Model Number
Electric lock
(Electric vehicle gate lock)*1
Power supply unit – AC power source
VL-SVN511
Door Station x 1, Main Monitor x 1,
Wireless Sub Monitor x 1
Electric lock
(Electric door lock)*2
E
B
Stylish Premium Wireless Model
Electric lock
(Electric vehicle gate lock)*1
φ 0.65 mm
φ 1.0 mm
φ 0.5 mm
φ 0.65 mm
φ 1.0 mm
22 AWG
18 AWG
CAT 5
22 AWG
18 AWG
φ 1.2 mm – φ 2.0 mm (17 AWG – 12 AWG)
φ 0.65 mm
φ 1.0 mm
Length (Max.)
100 m
130 m
50 m
10 m
20 m
No requirement
100 m
130 m
22 AWG
18 AWG
Main monitor – Relay box
D
Relay box –Electric lock*2
E
φ 0.5 mm - φ 1.2 mm (24 AWG - 17 AWG)
According to specification of connected device.
F
φ 0.5 mm - φ 1.2 mm (24 AWG - 17 AWG)
According to specification of connected device.
Main monitor – Connection device for option input (A contact)*2
*1 Type: Single-pair cable with outer sheath (jacket)
Conductor: Copper solid
• A certified power supply wiring has to be used with this equipment. The relevant national installation and/or equipment regulations shall be considered.
A certified power supply wiring not lighter than ordinary polyvinyl chloride flexible wiring according to IEC 60227 shall be used.
*2 When using an electric lock or a connection device for option input (A contact), select a device that meets the following guidelines:
• Electric lock connection terminal (S1/S2, S3/S4): – N/O dry closure contact
– 12 V AC/DC, less than 1 A
• Connection device for option input (A contact) terminal (IN1/IN2/IN3/IN4): – Input method: No-voltage contact
– Open-circuit voltage between terminals: DC 7 V or less
– Detection definite time: 0.1 second or more
– Short-circuit between terminals: 5 mA or less
– Resistance value: make: 500 Ω or less make, break: 15 KΩ or more
3
Stylish Premium Wireless Model
Smartphone Connect Model
Wireless Video Intercom System
Video Intercom System
VL-SWD501
Door Station
VL-V554
VL-SVN511
Main Monitor Station
VL-MWD501
Up to
2
5-inch
Wide Screen
Wireless Monitor Station
VL-WD613
Up to
6
Door Station
VL-V555
Up to
2
< 2 Wire*>
* Easy installation by simply replacing existing doorbell unit Nonpolar 2-wire system.
DECT Wireless
Smartphone Connect*1
Touch Panel
Up to
6
Up to
The main monitor has a 5-inch wide screen that clearly
shows each visitor's face. If it is difficult to
see, simply touch the screen to activate an
approximate 2x zoom horizontally and
vertically. This makes it easy for everyone
to see, and provides an easy-to-use
operating screen.
4
Answer Visitors and
Unlock the Electric Locks
Electric Lock Release Support : AC12V-1A/DC12V-1A
• Wide-Angle Camera (Horizontally:170˚, Vertically:115˚)
• SD Card Recording
(Stores up to 3,000 video recordings, each 30 sec in length)
• Wireless Sensor Cameras Connectable
• Flexible and Easy Expandability
• Easy Extension
• Voice Changer
• Intercom Call
You can automatically record video images of
visitors while you're away from home. It will
record up to 3,000 visitors (30 seconds per
visitor). And you can save and play the images
on a PC that has an SD card slot.
Options
Up to
2
4
(Sub Monitor)
VL-WD613
Up to
6
Wireless Sensor Camera
VL-WD812
Up to
4
DECT Repeater
VL-FKD2
Up to
2
In addition to smartphones/tablets,
the main monitor can also
wirelessly connect to the Wi-Fi
router for easy connections
without a cable.
You can configure Wi-Fi
settings using a simplified method
(called WPS) .
Related Product
Options
Main Monitor Station
(Main Monitor)
Door Station (Doorphone)
VL-V555 (Surface mount)
VL-MWD501
Up to
2
The main monitor can send e-mail
with a time stamp and image of
visitors to e-mail addresses
registered in advance, enabling
you to check who has visited when
you are outside the house (even
when you are overseas).
Monitoring
Other Features
Wi-Fi Connection
•
SD Card Recording
Wireless Monitor Station
E-mail Notification*2
You can use your smartphone or tablet as a sub monitor to respond to
visitors and open electric locks no matter where you are in the home.
You can also monitor doorphone images when you want to check the
door entrance.
Other Features
Door Station (Doorphone)
VL-V554 (Surface mount)
5-inch
Wide Screen
< 2 Wire*>
* Easy installation by simply replacing existing doorbell unit Nonpolar 2-wire system.
The wireless design means that
there is no troublesome wiring
required when adding on to the
system as well. You can add on up
to 6 sub monitors and 4 DECT
Wireless Sensor Cameras for
large homes, and easily confirm
visitors from a monitor in each
room.
Main Monitor Station
VL-MVN511
Supports iOS and AndroidTM (free application)
- iPhone 5 and later, iPad (iOS 7.0 or later)
- Android smartphones and tablets (Android 4.0 or later)
• Electric Lock Release Support: VL-RLY1 (12 V AC/DC, less than 1 A)
• Picture Recording
(Up to 400 images/50 visitors (8 shots per visitor))
• Wide-Angle Camera (Horizontally:170°, Vertically:130°)
• Night Vision (white coloured LED lights)
• Voice Changer
•
Internet
VL-MVN511
Wi-Fi network
Wi-Fi router Modem
Up to
4
Mobile devices
Door Station (Doorphone)
VL-V554 (Surface mount)
Up to
2
*1 The main monitor must be on the same home Wi-Fi network as a smartphone/tablet (with the dedicated app installed).
It is also necessary to run the dedicated app in order to receive visitor's calls on a smartphone/tablet.
*2 To use this function, a main monitor with e-mail sender information registered must be connected to the internet.
E-mail may not be able to be sent, depending on the condition of the network.
5
VL-SWD501
VL-SVN511
Model Composition
Model Composition
VL-SWD501EX
VL-MWD501EX x 1
VL-V554EX x 1
VL-WD613EX x 1
VL-SWD501UEX
VL-MWD501EX x 1
VL-V554UEX x 1
VL-WD613EX x 1
VL-MWD501EX
Main Monitor Station (Main monitor)
165
Model number and name
VL-V554EX (Surface mount)
VL-V554UEX (Flash mount)
Model number and name
Dimensions
(Unit: mm)
VL-SVN511EX
VL-WD613EX
Up to
21
118
2
35.8
30
180
Main body
52
Up to
Charger
VL-MVN511EX
VL-V555EX
VL-PS240
VL-RLY1
Main Monitor Station (Main monitor)
Door Station (Doorphone)
Power Supply Unit
* indoor use only
Relay Box
Up to
161
30
6
173
169
81
VL-V555EX x 1
Dimensions
(Unit: mm)
Wireless Monitor Station (Sub monitor)
Door Station (Doorphone)
VL-MVN511EX x 1
2
23.5
118
186
76
100
30
78
54
38
92
116
169
43
Power source
Power consumption
180 x 165 x 21 mm
VL-V554EX: 169 x 118 x 30 mm
VL-V554UEX: 169 x 118 x 16.5 mm
(excluding sections embedded into the wall)
173 x 52 x 30 mm
470 g
VL-V554EX: 405 g,
VL-V554UEX: 345 g
160 g (including the batteries)
Ambient temperature: Approx. 0 °C to +40 °C
Relative humidity (non-condensing): up to 90 %
Ambient temperature: Approx. -15 °C to +55 °C
Relative humidity (non-condensing): up to 90 %
(tested up to -20 °C)
Ambient temperature: Approx. 0 °C to +40 °C
Relative humidity (non-condensing): up to 90 %
Ambient temperature: Approx. 0 °C to +40 °C
Relative humidity (non-condensing): up to 90 %
5-inch wide colour / WVGA (800x480 pixel)
—
2.2-inch, colour / QVGA (320x240)
—
1.88 GHz to 1.90 GHz
—
1.88 GHz to 1.90 GHz
—
Rated load: 24 V AC/DC, 0.3 A or lower
Minimum applicable load: 5 V DC, 0.001 A
(Output when there is a call from the doorphone)
—
—
—
—
Horizontally: Approx. 170°
Vertically: Approx. 115°
Wall mount (mounting bracket supplied)
VL-V554EX: surface mount
(mounting base supplied)
VL-V554UEX: flush mount
(flush mounting box supplied)
—
1 lx (within approx. 50 cm from the camera lens)
—
—
—
Frequency
Option output (A contact)
Standby: Approx. 0.4 W (when the sub
monitor is not placed in the charger)
During charging: Approx. 1.4 W
—
Weight
Display
AC adaptor (PNLV226CE/PNLV226E)
Input: 220-240 V AC, 0.1 A, 50/60 Hz
Output: 5.5 V DC, 0.5 A
Rechargeable Ni-MH (AAA x 2)
Standby: Approx. 1.4 W
During operation: Approx. 10 W
Dimensions (H x W x D)
(Excluding protruding sections)
Operating environment
Power supplied by the main monitor
20 V DC, 0.23 A
Power supply unit (VL-PS240)
24 V DC, 0.5 A
Viewing angle
Installation method
—
43 x 81 x 76 mm
—
—
—
—
Lighting method
—
Warm white LED lights
—
IP rating / IK rating
—
IP54*1 / Compliant with IK07
—
—
Flame retardant ABS and PS resin
Aluminium and flame retardant PC+PS resin
ABS resin
ABS resin
Options
VL-WD812EX (For VL-SWD501)
VL-FKD2EX (For VL-SWD501)
Wireless Sensor Camera
DECT Repeater
118
Up to
290
Up to
4
Dimensions (H x W x D)
Weight
Operating environment
Frequency
39
AC adaptor (PQLV219CE/PQLV219E)
Input: 220-240 V AC, 0.1 A, 50/60 Hz Output: 6.5 V DC, 0.5 A
During standby: Approx. 1.5 W
During operation: Approx. 4.5 W (when the LED lights are not lit),
Approx. 8 W (when the LED lights are lit)
During standby: Approx. 1.5 W
During operation: Approx. 2.3 W (when transmitting)
160 x 118 x 290 mm
(when the camera is front facing and including the wall mount bracket)
82 x 111 x 39 mm
960 g
88 g (excluding the AC adaptor)
Ambient temperature: Approx. -20 °C to +50 °C
Relative humidity (non-condensing): up to 90 %
Ambient temperature: Approx. 0 °C to +40 °C
Relative humidity (non-condensing): up to 90 %
1.88 GHz to 1.90 GHz
1.88 GHz to 1.90 GHz
—
Transmitting range
Approx. 100 m (line-of-sight distance from the main monitor)
Approx. 100 m (line-of-sight distance from the main monitor)
Lighting method
Angular field of view (camera angle)
Sensor detection range
Power supplied by the main monitor
Input: 220-240 V AC, 0.2 A ( 50Hz /60Hz )
Output: 24 V DC, 0.6 A
Power supplied by the main monitor
Standby: Approx. 1.8 W
During operation: Approx. 10 W
—
—
—
186 x 161 x 23.5 mm
169 x 118 x 30 mm
116 x 100 x 54 mm
92 x 78 x 38 mm
230 g
130 g
395 g
485 g
Ambient temperature: Approx. 0 °C to +40 °C
Relative humidity (non-condensing): up to 90 %
Ambient temperature: Approx. -15 °C to +55 °C
Relative humidity (non-condensing): up to 90 %
(tested up to -20 °C)
Ambient temperature: approx. 0 °C to +40 °C
Ambient temperature: approx. 0 °C to +40 °C
Relative humidity (non-condensing): up to 90 % Relative humidity (non-condensing): up to 90 %
Display
5-inch, wide colour / WQVGA (480x272 pixel)
—
—
—
Display language
English, French, Germany, Spanish, Italy, Dutch
—
—
—
Hands-free
—
—
—
Wi-Fi: (IEEE 802.11 b/g/n 2.4 GHz)
—
—
—
Rated load: 24 V AC/DC, 0.3 A or lower
Minimum applicable load: 5 V DC, 0.001 A
(Output when there is a call from the doorphone.)
—
—
—
—
Horizontally: Approx 170°
Vertically: Approx. 130°
—
—
Talking method
Frequency
Option output (A contact)
Viewing angle
Installation method
Wall mount (mounting bracket supplied)
Surface mount (mounting base supplied)
* Optional flush mounting box is sold separately.
Attach to DIN rail
Attach to DIN rail
Minimum illuminance required
—
1 lx (within approx. 50 cm from the camera lens)
—
—
Lighting method
—
White coloured LED lights
—
—
IP rating / IK rating
—
IP54*1 / Compliant with IK07
—
—
Flame retardant ABS and PS resin
Aluminium and flame retardant PC+PS resin
Flame retardant PC+ABS resin
Flame retardant ABS resin
External material
Compatibility of Main Monitor and Door Station
VL-MWD501 (VL-SWD501)
= Connectable
•= Connectable (same as included unit)
— = Not connectable
Door Station
VL-V554EX
• (Set)
VL-V555EX
• (Set)
*1 Water resistance is only assured if the Door Station is installed correctly according to the instructions in the Installation Guide, and appropriate water protection measures are taken.
94
Power supply unit (VL-PS240)
24 V DC, 0.4 A
Wall mount (wall mount bracket supplied)
Image sensor
Operating environment
VL-MW511 (VL-SVN511)
Installation method
Minimum illuminance required
Weight
Power supply unit (VL-PS240)
24 V DC, 0.5 A
82
142
Power consumption
111
2
160
Power source
Dimensions (H x W x D)
(Excluding protruding sections)
Main Monitor (Set No.)
Model number and name
Dimensions
(Unit: mm)
Power consumption
70 g (excluding the AC adaptor)
Minimum illuminance required
External material
Power source
1 lx*
—
0.3 M pixel CMOS
—
2 white LED lights*3
—
Horizontal: Approx. 53° Vertical: Approx. 41°
—
Heat sensor (when the surrounding temperature is approx. 20°)
Horizontal: Approx. 63°, vertical: Approx. 20°, detection range: Approx. 5 m
—
2
Motion detection sensor Horizontal: Approx. 53°, vertical: Approx. 41°
Sensor detection method
IP rating
Adjustable mounting angles
Heat sensor adjustable angles
External material
Pyroelectric infrared sensor (heat sensor) and motion detection
—
IP54*1
—
Horizontal: ±90°, vertical: facing forward - facing down approx. 60° (adjustable when mounting)
—
Manually adjustable to 2 angles
—
PC+ABS resin
PS resin
*1 Water resistance is only assured if the Door Station/the camera is installed correctly according to the instructions in the Installation Guide, and appropriate water protection measures are taken.
Do not install the camera in areas directly exposed to water or rain.
*2 The minimum illuminance required when the camera’s [Brightness] setting is set to [+3].
*3 Approx. 8.5 lx when 3 m in front of the camera, and approx. 4 lx when 3 m away and 20° to the left or right of the camera.
6
7
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
