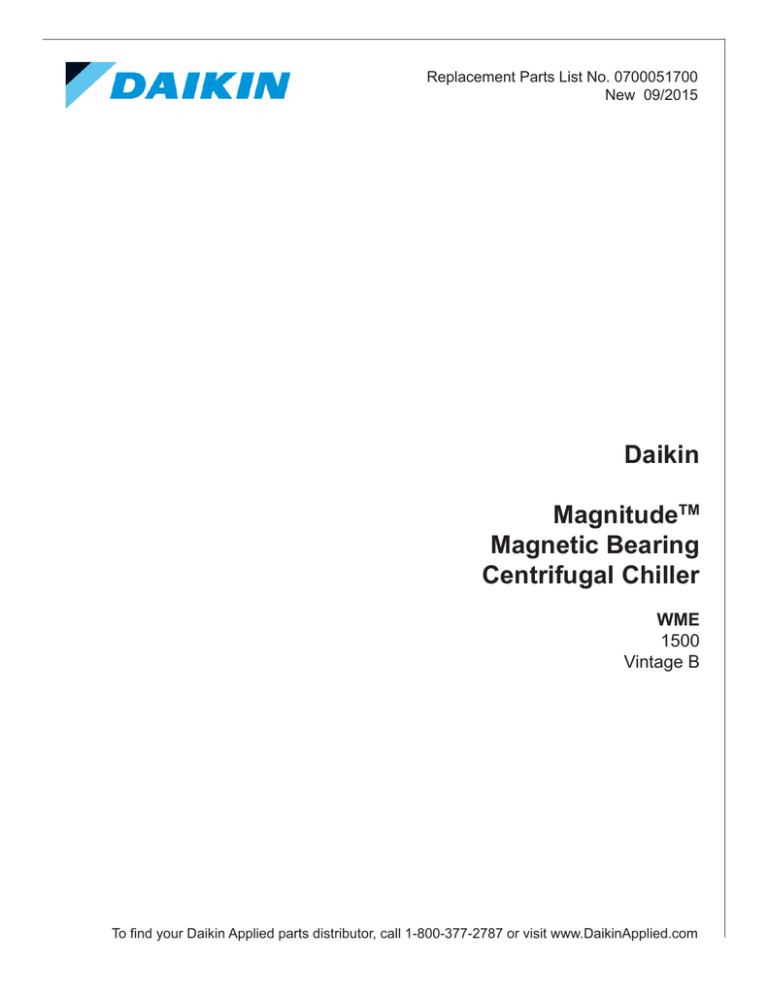

Replacement Parts List

Replacement Parts List
Replacement Parts List No. 0700051700
New 09/2015
Daikin
MagnitudeTM
Magnetic Bearing
Centrifugal Chiller
WME
1500
Vintage B
To find your Daikin Applied parts distributor, call 1-800-377-2787 or visit www.DaikinApplied.com
Contents
Parts List Revision History.................................................................................................................................. 3
Nomenclature
Model and Serial Number Nomenclature...................................................................................................... 4
Model Number- Complete........................................................................................................................ 5 - 9
Electrical Legend............................................................................................................................................... 10
Controls
Main Control Box.........................................................................................................................................11
VFD Enclosure............................................................................................................................................ 12
VFD Chassis........................................................................................................................................ 13 - 14
VFD Power Supply Plate..................................................................................................................... 15 - 16
OITS- Operator Interface Touch Screen..................................................................................................... 17
Control Sensors.......................................................................................................................................... 18 - 19
Compressor
Motor/Bearing Assemblies................................................................................................................... 20 - 21
Impeller Assembly ...................................................................................................................................... 22
Impeller Seal & Compressor Fittings................................................................................................... 23 - 24
Discharge Housing & High Speed Shaft Seal ............................................................................................ 25
Inlet Assembly...................................................................................................................................... 26 - 27
Unit Assembly
Relief & Shutoff Valves- Diagrams....................................................................................................... 28 - 29
Discharge Piping Stack............................................................................................................................... 30
Range Extension.................................................................................................................................. 31 - 32
Suction and Discharge Piping..................................................................................................................... 33
Liquid Injection............................................................................................................................................ 34
Rotor Cooling....................................................................................................................................... 35 - 36
Stator Cooling...................................................................................................................................... 37 - 38
VFD Cooling......................................................................................................................................... 39 - 40
Liquid Line............................................................................................................................................ 41 - 42
Expansion Valve......................................................................................................................................... 43
Condenser
Diagrams..................................................................................................................................................... 44
42 Inch - Dish Head Gaskets & Hardware.................................................................................................. 45
42 Inch - Water Box Head Gaskets & Hardware......................................................................................... 46
Sight Glass, Shut Off Valve & Gasket, Charge Valve................................................................................. 47
Evaporator
Diagrams..................................................................................................................................................... 48
48 Inch - Dish Head Gaskets & Hardware.................................................................................................. 49
48 Inch - Water Box Head Gaskets & Hardware......................................................................................... 50
Sight Glass, Charge Valve.......................................................................................................................... 51
Critical Parts List............................................................................................................................................... 52
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 2
Parts List Revision History
RevisionDate Description
New 09/2015New
Daikin Applied, 13600 Industrial Park Blvd., P.O. Box 1551, Minneapolis, MN 55440 (763) 553-5330
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 3
Nomenclature
Model and Serial Number Nomenclature
Model Number Nomenclature
WME 1500
D
B
Vintage
Unit Type:
WME = Magnetic Bearing Centrifugal Chiller,
Water Cooled
Number of Compressors
D = Dual Compressor
Unit Size:
1000 Nominal Tons
Serial Number Nomenclature
STN
U
15
05
04810
Serial Number
Plant Identification
STN = Staunton, VA
(Build Sequence)
Month of Manufacture
U = Unit
Year of Manufacture
14 = 2014
15 = 2015
16 = 2016
17 = 2017
etc.
WME1500DB- Water Cooled Chiller
New 09/15 01 = January
02 = February
03 = March
04 = April
05 = May
06 = June
07 = July
08 = August
09 = September
10 = October
11 = November
12 = December
RPL 7000517 / Page 4
Nomenclature
Model Number- Complete
Code:
WME 1500D B SN M3 00460 H6 D C E4816 GB 2 C DK L 2 V C N C
Code No.: 1
2
3 4 5
6
7 8 9 10 11121314151617181920
4 440F 00580 C C N A C4216 GB 2 C DR N N N NN L 2 V
21 22 23 24252627 28 2930 31 3233343536373839
C N D 4 1050F 00725 C C N N NN A A 0150 A 0700 E7 EA E N
40 4142 43 44
45 464748 49 505152 53 54 55 56 575859
N A 01020 M D N N S N N R S H N B 1 5 A N N N
6061 62 636465666768 697071727374757677787980
F N N E A A N J 000 U Y N 0 A N S S U A 12345
81 82 83 84 85 86 8788 89 9091 929394 9596979899 100
NNNNNNNNNNN
101 NN NNNNN
102 103
VFDM400
104
D NNNN
N
C3 04V
105 106 107108109
1. Model Type
WME= Magnetic Bearing Centrifugal Chiller, Water Cooled
2. Unit Size / Number of Compressors
1500D= 1500 Tons, Dual Compressor
3.Vintage
B= Vintage B
4. Chiller Configuration
SN= Single Refrigerant Circuit w/o Economizer
5. Motor Code
M4= 6 Winding, 6PH, 380-480V
6. Power Supply Voltage
00380= 380V; 00400= 400V; 00415= 415V; 00440= 440V; 00460= 460V; 00480= 480V; 00575= 575V
7. Power Supply Hertz
H5= 50 Hertz;
H6= 60 Hertz
8. Always D
9. Compressor Model Revision
C= Revision C
10.Evaporator Shell Size
E4816= Evaporator, 48" Diameter/16' Long
11.Evaporator Tube Count and Configuration
GB= Design B, 3/4" Diameter Tube, Qty=963
HB= Design B, 3/4" Diameter Tube, Qty=863
JB= Design B, 3/4” Diameter Tube, Qty=757
SD= Design D, Mixed Tubes, Qty= 553 of 3/4" + 222 of 1"
TD= Design D, Mixed Tubes, Qty= 499 of 3/4" + 200 of 1"
VE= Design E, 1” Diameter Tube, Qty=509
WE= Design E, 1” Diameter Tube, Qty=459
YE= Design E, 1” Diameter Tube, Qty=392
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 5
Nomenclature
Model Number- Complete, Continued
12.Evaporator Tube Wall Thickness
2= 0.025"
3= 0.028"
5= 0.035"
13.Evaporator Tube Type
C= CU
N= CN90/10
14.Evaporator Tube Model
15.Evaporator Inlet Nozzle Location
L= Left
R= Right
16.Evaporator Water Passes
1= 1 Pass
2= 2 Pass
3= 3 Pass
17.Evaporator Inlet Nozzle Connection Type
V= Groove
F= Flanged
18.Evaporator Inlet Nozzle Configuration
A= Dish, End; 1-Pass
B= Dish, End; 2 or 3 Pass
D= Water Box, Top; 1-Pass
E= Water Box, Rear; 1-Pass
H= Water Box, Rear; 2 or 3 Pass
19.Evaporator Hinged Type
N= None
H= Standard Hinges on Both Ends
27.Evaporator Model Revision
A= Revision Level A
28.Condenser Shell Size
C4216= Evaporator, 42” Diameter/16’ Long;
29.Condenser Tube Count and Configuration
GB= Design B, 3/4” Diameter Tube, Qty=1365
HB= Design B, 3/4” Diameter Tube, Qty=1221
JB= Design B, 3/4” Diameter Tube, Qty=1090
VE= Design E, 1” Diameter Tube, Qty=810
WE= Design E, 1” Diameter Tube, Qty=732
YE= Design E, 1” Diameter Tube, Qty=645
30.Condenser Tube Wall Thickness
2= 0.025”
3= 0.028”
5= 0.035”
31.Condenser Tube Type
C= CU
N= CN90/10
S= Stainless Steel
T= Titanium
32. Condenser Tube Model
33-36. Future Use
37.Condenser Inlet Nozzle Location
L= Left
R= Right
38.Condenser Water Passes
20.Evaporator Refrigerant Design Pressure
1= 1 Pass
2= 2 Pass
3= 3 Pass
21. Evaporator Water Side Design Pressure
4= 150 PSIG, Non-ASME Code
39.Condenser Inlet Nozzle Connection Type
C= 200 PSIG
22.Evaporator Leaving Water Temperature
Example: 440= 44.0 °F
23.Evaporator GPM
Example: 00580= 580 GPM
24.Evaporator Tube Sheet Coating/ Material
C= Carbon Steel
E= Enecon Coating; Outside of Tube Sheet
25.Evaporator Head/ Water Box Coating/ Material
C= Carbon Steel
E= Enecon Coating; Inside of Head
D= Devcon Coating; Inside of Head
26.Evaporator Head Tube Cleaning System
N= None
WME1500DB- Water Cooled Chiller
V= Groove
F= Flanged
40.Evaporator Inlet Nozzle Configuration
A= Dish, End; 1-Pass
B= Dish, End; 2 or 3 Pass
D= Water Box, Top; 1-Pass
E= Water Box, Front; 1-Pass
H= Water Box, Front; 2 or 3 Pass
41.Condenser Hinged Type
N= None
H= Standard Hinges on Both Ends
42. Condenser Refrigerant Design Pressure
D= 225 PSIG
43. Evaporator Water Side Design Pressure
4= 150 PSIG, Non-ASME Code
New 09/15 RPL 7000517 / Page 6
Nomenclature
Model Number- Complete, Continued
44.Condenser Leaving Water Temperature
Example: 1050= 105.0 °F
62.Input Rated Load Amps (RLA) - Compressor #1
45.Condenser GPM
Example: 00725= 725 GPM
63.Starter Box #
46.Condenser Tube Sheet Coating/ Material
C= Carbon Steel
64.Power Connection Type
E= Enecon Coating; Outside of Tube Sheet
M= Monel Clad
S= Stainless Steel Clad
T= Titanium Steel Clad
47.Condenser Head/ Water Box Coating/ Material
C= Carbon Steel
E= Enecon Coating; Inside of Head
D= Devcon Coating; Inside of Head
48-49. Future Use
50.Condenser Tube Cleaning System
NN= None
51.Condenser Model Revision
Example: 01020= 102.0 Amps
M= Multiple Point - Dual Starter Boxes
D= Disconnect Switch
65.EMI Filter
N= None
4= 400A Input Current EMI Filter
66.Surge Protection
N= None
67.Short Circuit Current Ratings
S= SCCR 35KA
H= SCCR 65KA
V= SCCR 100KA
L= SCCR 25KA (For 575V only)
M= SCCR 50KA
68. Ground Fault Protection
A= Revision level A
N= None
F= With Ground Fault Protection Relay
52.Pressure Vessel Code
69.Harmonic Filter
A= ASME
53.Unit Tons
Example: 0150= 150 Tons
54.Refrigerant Type
70.Range Extension
A= Refrigerant 134A
55.Refrigerant Weight
Example: 0700= 700 Pounds
56.Electronic Expansion Valve Circuit #1
E7= Electronic Valve Size 7
N= None
1= 300 HP
2= 350 HP
3= 400 HP
R= Range Extension System
71.Compressor Sound Reduction
Sound Reduction Pkg - Sound Insulation on Dchrg Line
72.Evaporator Insulation
58.Controller Language
N= None
H= 3/4" Insulation on Evap. Shell, Suction Piping,
and Compressor Inlet
3= 1-1/2" Insulation on Evap. Shell, Suction Piping,
and Compressor Inlet
59.Controller Rapid Restore
N= None
2= Evap. Return and Connection Heads Insulated
57.Controller Type
EA= MicroTech-E (Rev. A)
E= English - English Units
N= None
60. Controller Communications
N= None
B= BACnet (MS/TP, IP/Ethernet)
L= Lonmark
M= Modbus
61. Starter Box & Unit Controller Box Type
73.Head Insulation
74.Factory Water Flow Indicatior
B= Both Evaporator and Condenser Flow Control
75.Unit Paint
1= Standard Painting
76.Shipping/ Packaging
A= NEMA 1
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 7
Nomenclature
Model Number- Complete, Continued
77.Refrigerant Charge
A= Full Factory Refrigerant Charge
C= Holding Charge - Nitrogen
93.Refrigerant Warranty
V= None
X= Special
79.Low Lift Conditions
94.Delayed Warranty Start
78.Special
N= None
80.Knockdown
N= None
A= Type A; Bolted Construction, Shipped Together
B= Type B; Bolted Construction, Shipped as Parts
81-83.Testing
GF= Ground Fault Detection Relay; YY= None
0= None
B= 1 Year
D= 2 Year
F= 3 Year
H= 4 Year
K= 5 Year
A= 12-18; Additional Months = none
B= 12-20; Additional Months = 2
C= 12-22; Additional Months = 4
D= 12-24; Additional Months = 6
E= 12-26; Additional Months = 8
F= 12-28; Additional Months = 10
G= 12-30; Additional Months = 12
95.Extended Chiller Warranty
A= AHRI
N= None
86.ASHRAE Listing
96.Ship
84.Agency Listing
E= ETL/cETL
N= None
85.AHRI Listing
A= ASHRAE
N= None
87.OSP-IBC Listing
A= 1 year of Ext Warranty on compressor parts only
B= 1 year of Ext Warranty on compressor parts & labor
C= 2 year of Ext Warranty on compressor parts only
D= 2 year of Ext Warranty on compressor parts & labor
E= 3 year of Ext Warranty on compressor parts only
F= 3 year of Ext Warranty on compressor parts & labor
G= 4 year of Ext Warranty on compressor parts only
H= 4 year of Ext Warranty on compressor parts & labor
N= None
S= Standard Ship
96-97. Bill of Materials
S= OSP-IBC
N= None
99.Unit Model Revision
88.Unit Label
100. Unit kW
J= Daikin
89.Coolant Rating
A= Revision Level A
101. Stock Unit Modifications
NNNNNNNNNNN= None
000= Water on both Evaporator and Condenser
* * * * * * * * * * *= WME Stock Unit Part Number
E00= Ex: E10= 10% Ethylene on Evaporator or Condenser or Both
P00= Ex: P10= 10% Propylene on Evaporator or Condenser or Both
102. Expansion Valve #2
90.Startup
NN= None
Y= Entire Unit Parts and Labor
P= Entire Unit Parts Only
103. Input Rated Load Amps (RLA) - Compr #2 Only
NNNNN= None
* * * * *= Example: 01020= 102.0 Amps
92.Extended Chiller Warranty
104. VFD Type and Size
91.First Year Warranty
A= 1 year of Extended Warranty on parts only
B= 1 year of Extended Warranty on parts and labor
C= 2 year of Extended Warranty on parts only
D= 2 year of Extended Warranty on parts and labor
E= 3 year of Extended Warranty on parts only
F= 3 year of Extended Warranty on parts and labor
G= 4 year of Extended Warranty on parts only
H= 4 year of Extended Warranty on parts and labor
N= None
WME1500DB- Water Cooled Chiller
VFDM400= 400A - VFD Max Output Amps - 6 Phase
VFDM450= 450A - VFD Max Output Amps - 6 Phase
VFDM500= 500A - VFD Max Output Amps - 3 Phase
105. Power Assembly
S= Single Power Assembly- 3 Phase
D= Dual Power Assembly - 6 Phase
New 09/15 RPL 7000517 / Page 8
Nomenclature
Model Number- Complete, Continued
106. Transformer Type
NNNN= None
40SD= 400A AutoTransformer - 3 Phase (SD400-6)
60SU= 600A AutoTransformer - 3 Phase (SU600-6)
50SD= 500A Stepdown AutoTransformer - 6 Phase (SD500-12)
73ST= 730A AutoTransformer - 6 Phase (ST730-12)
73Su= 730A Stepup AutoTransformer - 6 Phase (SU730-12)
107. Power Meter
N= None
M= 7350 Power Meter
108. Cabinet Size
C1= Large Cabinet w/Transformer
C2= Small Cabinet w/o Transformer
C3= Large Cabinet w/o Transformer
109. Circuit Breaker Rating
04V= 380-480V / 400A, 100KA Breaker
05S= 380-480V / 500A, 35KA Breaker
05H= 380-480V / 500A, 65KA Breaker
06S= 380-480V / 600A, 35KA Breaker
06H= 380-480V / 600A, 65KA Breaker
06V= 380-480V / 600A, 100KA Breaker
08S= 380-480V / 800A, 35KA Breaker
08H= 380-480V / 800A, 65KA Breaker
08V= 380-480V / 800A, 100KA Breaker
04L= 575V / 400A, 25KA Breaker
04M= 575V / 400A, 50KA Breaker
06L= 575V / 600A, 25KA Breaker
06M= 575V / 600A, 50KA Breaker
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 9
Electrical Legend
Sch. Sym.
BAS
CB1
CB2- 4
CB4
CFT1- CFT2
CT1- 6
CPU
D1
ES
ELR
EMC
EXV1
F1- F2
F3- F5
F6- F7
F8- F10
INPUT
IPS
L1- 3
LCD
LR
MCB
P1- P14
PM
PS2- PS4
PS5
PS6
PS7- PS8
Q1- 3
Q4- 6
R1- 4
S01
S02
S04
S05
S06
S07
S08
S09
S10
S11
S12
S13
S14
S15
SW1
SW3
SW4
SW5
TDM1- 3
TS1
TH1, 2
TX2
VFD1
Description
Communication Card
Circuit Breaker- TX2 Primary
Circuit Breaker- Fans
Circuit Breaker- MCB Trip, Power Meter, ELR, Solenoid
Cooling Fan Control
Current Transducers
Main Control Board
Diode
Switch- Ethernet
Relay- Earth Leakage
EMC Filter
Electronic Expansion Valve Fuse- Controls Transformer, 2A 600VAC
Fuse- IPS, 6A 600VAC Fuse- 150VDC to DC Power Supply, 10A 600VAC
Fuse- Power Meter, 10A 600VAC
I/O Board
Intermediate Power Supply
Chopper Chokes/Inductors
LCD Touch Screen Monitor (OITS)
Line Reactor
Main Circuit Breaker
DC Power Distribution Terminals
Power and Current Meter
Power Supply- VFD
Power Supply- Chiller I/O
Power Supply- Compressor I/O
Power Supply- Magnetic Bearings
Chopper/IGBT Driver
Steering Bridge IGBT
Resistors
Sensor- Evaporator Entering Water Temperature
Sensor- Evaporator Leaving Water Temperature
Switch- Evaporator Entering Flow
Sensor- Condenser Entering Water Temperature
Sensor- Condenser Leaving Water Temperature
Sensor- Condenser Refrigerant Pressure
Switch- Condenser Entering Flow
Sensor- Liquid Line Temperature
Sensor- Compressor Suction Temperature
Sensor- Compressor Suction Pressure
Sensor- Compressor Discharge Temperature
Sensor- Compressor Discharge Pressure
Sensor- Motor Gap Temperature
Switch- High Pressure Switch- Compressor #1
Switch- Remote Start/Stop
Switch- Mode
Switch- Unit Enable
Diode/Thyristor Module
Thermal Switch
Thermistors
Transformer- 480/240/120 VAC, 500A
VFD Chassis Assembly
WME1500DB- Water Cooled Chiller
Location
Main Control Box
VFD Power Supply Plate
VFD Power Supply Plate
VFD Power Supply Plate
VFD Power Supply Plate
VFD Chassis
Main Control Box
VFD Chassis
Main Control Box
VFD Power Supply Plate
VFD Enclosure
Liquid Line
VFD Power Supply Plate
VFD Power Supply Plate
VFD Power Supply Plate
VFD Power Supply Plate
Main Control Box
VFD Enclosure
VFD Chassis
Evaporator
VFD Enclosure
VFD Enclosure
VFD Power Supply Plate
VFD Power Supply Plate
VFD Power Supply Plate
VFD Power Supply Plate
VFD Power Supply Plate
VFD Power Supply Plate
VFD Chassis
VFD Chassis
VFD Chassis
Evaporator Inlet
Evaporator Outlet
Evaporator Inlet
Condenser Inlet
Condenser Outlet
Condenser
Condenser Inlet
Liquid Line
Compressor
Compressor
Compressor Discharge Housing
Compressor Discharge Housing
Compressor
Discharge Piping
Main Control Box
Remote Mounting
Remote Mounting
Main Control Box
VFD Chassis
VFD Chassis
VFD Chassis
VFD Power Supply Plate
VFD Enclosure
New 09/15 RPL 7000517 / Page 10
Controls
Main Control Box
Communication Card
Location
24
4
9
7
8
18
13
Ref. Schem.
No. Sym.
4
7
CPU
N/S
N/S
8
9
11
13
18 SW5
24 SW1
N/S BAS
N/S BAS
N/S BAS
11
Description
Board- Chiller I/O Backplane
Board- Chiller Controller
Connector, Chiller Controller, Beige
Connector, Chiller Controller, Orange
Board- Digital I/O
Board- Analog Output
Board- IGV Stepper Motor
Board- Analog Input
Switch- Unit Enable
Switch- Unit and Compressor #1
BACnet MS/TP/E Installation Kit 2
Lonmark Installation Kit 2
Modbus Installation Kit 2
Part No.
300047099
300047102
300048948
300048949
333568101
333568201
333568302
333568401
300047109
300047110
332356961
332356952
332356953
Qty.
1
1
21
4
1
1
1
2
1
2
1
1
1
N/S= Not Shown on Diagram.
2
Includes the Communication Card and Installation Manual.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 11
Controls
VFD Enclosure
1
3
1
8
7
3
10
4
5C 5B 5A
6
Ref. Schem.
No. Sym.
1
3
VFD1
4
5A
5B
5C
6
LR
7
IPS
8
MCB
10
1
2
Description
Fan
120 VAC 600 CFM
VFD Chassis Assembly- Phases 1- 3 1
Fuse
20A/1000VAC
Valve- Solenoid
Valve- Coil
120/60, 10 watt Repair Kit- Solenoid Valve
Line Reactor
3PH
Intermediate Power Supply
CBKR Molded Case 25KAIC 600V 400A
CBKR Molded Case 25KAIC 600V 600A
CBKR Molded Case 35KAIC 480V 500A
CBKR Molded Case
35KAIC 600V 500A
CBKR Molded Case 35KAIC 600V 600A
CBKR Molded Case 35KAIC 600V 800A
CBKR Molded Case 50KAIC 600V 400A
CBKR Molded Case 50KAIC 600V 600A
CBKR Molded Case
65KAIC 600V 500A
CBKR Molded Case 65KAIC 600V 600A
CBKR Molded Case 65KAIC 600V 800A
CBKR Molded Case 100KAIC 480V 400A
CBKR Molded Case 100KAIC 480V 600A
CBKR Molded Case 100KAIC 480V 800A
Surge Suppressor
480V
Part No.
300047091
300047093
300047094
331796001
331796051
300052079
300047096
300047097
300048927
300048929
300047098
300047071
300047100
300048924
300048928
300048930
300047088
300047108
300048925
300047069
300048923
300048926
300047076
Qty. 2
2
1
2
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Refer to VFD Chassis Assembly detail on the following pages.
Quantity per VFD Enclosure.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 12
Controls
VFD Chassis- Diagrams
16
1
4
3
2
15
5
6
12
11
WME1500DB- Water Cooled Chiller
13
14
7
8
13
10
New 09/15 15
9
RPL 7000517 / Page 13
Controls
VFD Chassis- Components & Compressor Wiring Harness
VFD Chassis- Components
Ref. Schem.
No. Sym.
Description
1
Fuse 600A, 700V
2
VFD Controller Assembly
Backup Battery for VFD Controller
3
Voltage Transducer Interface Board
4
Link Capacitor 1200uF, 700V
5
Connector Interface
6
Q4- 6
Steering Bridge IGBT Assy.
7
Q1- 3
Chopper IGBT Assy.
8
TDM1- 3 Diode Thyristor Module
9
Fuse
20A, 800V
10
CT1- 3
Current Transducer
11
CT4- 6
Current Transducer
12
TS1
Thermal Switch
13
TH1, 2
Thermistor
14
R3, 4
Resistor
2K2, 75W
15
R1, 2
Resistor
150R, 250W
16
Wire Harness/Cable Kit 2
N/S L1- 3
Chopper Chokes/Inductors
N/S
Thyristor Driver Board
N/S
Snubber Board
N/S
Snubber Capacitors
1uF, 1200V
N/S D1
Diode
Part No.
300047092
300048932
334295801
300048950
300048939
300048934
300048937
300048936
300049088
300048941
300048942
300048943
300048945
300048944
300049089
300048938
300055446
300048952
300048933
300048935
300048940
300048951
Qty. 1
3
1
1
1
3
1
3
3
3
2
3
3
1
2
2
2
1
3
1
1
6
1
N/S= Not Shown on Diagram.
1
Quantity PER Chassis Assembly
2
Kit contains ribbon cables and harnesses. Connections include: Q1-J10; Q2-J11; Q3-J12; Q4-J7; Q5-J8; Q6-J9; J1-J6;
and J1-J14.
Compressor Wiring Harness
Part Number 331795503
Available as a complete assembly only. One per compressor.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 14
Controls
VFD Power Supply Plate- Diagram
2
22
7
3
4
8
21
6
9
5
20
13
19
12
11
13
14
18
15
17
14
16
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 15
Controls
VFD Power Supply Plate- Components
Ref. Schem.
No. Sym.
2
3
4
5
6 ELR
7 CB1
8 CB2- 4
9
11
12
13
14
15
16
17 PM
18 TX2
19 F1- 10
20 F1-2, F8-10
21 F3- 5
22 F6-7
1
Description
Plate- Partition
Gray
Terminal Block
Gray
Terminal Block- Ground
Green-Yellow
Bracket- End, Snap on
Relay- Earth Leakage
Circuit Breaker- Primary 8A Circuit Breaker- 2 Fans & MCB trip
2A Switch- Fan Failure
DC power supply +15 VDC 100 watts
DC power supply
15 VDC 25 watts
DC power supply +24 VDC 77 watts
DC power supply +24 VDC 100 watts
DC power supply +12 VDC 72 watts
DC Distribution Board
Monitor- Voltage, Power and Current
Transformer 480/240/120V 500VA
Fuse holder
Fuse
Fuse Fuse Part No.
300047073
300047074
300047075
300047190
300047078
300047079
300047080
331578601
300047081
300047082
300047083
300047084
300047085
300047086
300047087
349939804
300047088
300047089
300047090
300046902
Qty. 1
17
36
9
7
1
1
3
2
1
1
2
2
1
1
1
1
7
2
3
2
Quantity per VFD Power Supply Plate.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 16
Controls
OITS- Operator Interface Touch Screen
Swivel Pins 1
Main Control Box
Swivel Bracket 1
15
18
16
Ref.No.
15
Description
Monitor- 15" LCD Touchscreen, Black
Part No.
330276502
Qty.
1
16
18
LCD Support Arm Assembly, Black 1
330815411
1
OITS/Unit Control Box Support Block
330406501
2
1
The LCD Support Arm Assembly includes the Swivel Bracket, the Swivel Pins, and the mounting hardware (screws, washers and
nuts). These items are not available separately.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 17
Control Sensors
Sensor Location Diagrams
S15
S14
Top View
S07
S10 S11
S13 S12
Front View
Evaporator
Condenser
S09
End View
S02
S01
S04
Out
In
Out
In
S06
S05
S08
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 18
Control Sensors
Components
Ref.Description
No.
S01 Sensor- Evaporator Entering Water Temperature
S02 Sensor- Evaporator Leaving Water Temperature
S04 Switch- Evaporator Entering Flow
N/S Cable- Evaporator Entering Flow Switch (5 Meter Lg.)
S05 Sensor- Condenser Entering Water Temperature
S06 Sensor- Condenser Leaving Water Temperature
S07 Sensor- Condenser Refrigerant Pressure
S08 Switch- Condenser Entering Flow
N/S Cable- Condenser Entering Flow Switch (5 Meter Lg.)
S09 Sensor- Liquid Line Temperature
S10 Sensor- Compressor Suction Temperature
S11 Sensor- Compressor Suction Pressure
N/S Cable- Compressor Suction Pressure Sensor
S12 Sensor- Compressor Discharge Temperature
S13 Sensor- Compressor Discharge Pressure
S14 Sensor- Motor Gap Temperature
S15 Switch- High Pressure
Part
Qty.
Number
073007203
1
073007203
1
331796201
1
330571403
1
073007203
1
073007203
1
071568621
1
331796201
1
330571403
1
073007203
1
331582801 22
071568521
2
331796801
2
331582801 22
071568621 22
331795205 22
074796301
2
N/S= Not Shown on Diagram
2
The Cable for this Sensor is part of the Compressor Wiring Harness and is not available separately. Refer to the Compressor Wiring
Harness section.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 19
Compressor
Motor/Bearing Assemblies
Part No. Description
333507101 MBAW6/6 (Code 05= M4)
Application Voltage
380 - 575V
Note: The Compressor Magnetic Bearing, Rotor, and Stator components are not field
replaceable. If replacement is required, the entire assembly must be replaced. For
Compressor Motor/Bearing Assembly field serviceable components see the following
page.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 20
Compressor
Motor/Bearing Assembly Components
1
6
8A
2
8B
Front View
Bottom View
11
Back View
Ref.
No.
1
2
6
8A
8B
11
Description
Kit- Electronics Cover Assy. 1
Controller- Compressor
Kit- Electronics Cover Gasket 2
Kit- Connector Plate with Gasket
Kit- Connector Plate with Gasket & 3 Cables
Plug- Hex Head
Part No.
300047066
300047067
300047068
300047070
300047070
300047072
Qty.3
1
1
1
1
1
1
Kit includes Cover, Gasket & Insulator.
Kit includes Gasket & Insulator. Included in Electronics Cover Assy Kit 300047066.
3
Quantity per Motor/Bearing Assembly.
1
2
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 21
Compressor
Impeller Assembly
407
402
403 404
405 406
418
416
417
415
Ref.
No.
402
403- 406
407
415
416
417
418
Description
Washer- Impeller
Kit- Shim Washers, Impeller 1
Impeller Assembly 2
Volute Insert
Pin- Volute Insert
.50 x .09"
O-Ring 3
Ring- Retaining
Part No.
735043467
300049084
331347211
331439602
735038039
330198639
331438804
Qty. 4
1
1
1
1
1
1
1
The shim combination is unique to each compressor. The kit contains quantities of four shim sizes.
Available as an assembly only.
3
Included in Compressor O-Ring Kit p/n 300049073. One kit per Compressor.
4
Quantity per Impeller Assembly.
1
2
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 22
Compressor
Impeller Seal & Compressor Fittings- Diagrams
See Compressor
Inlet Assembly
504
502
506
503
609
608
602
605
606
WME1500DB- Water Cooled Chiller
607
New 09/15 RPL 7000517 / Page 23
Compressor
Impeller Seal & Compressor Fittings- Components
Ref.
No. Description
Part No.
Qty.4
502 Seal- Impeller (1 pair)
332027502
1
503 O-Ring 3070194967 1
504 O-Ring 3070194999 1
506 Screw, Stainless Steel
3/8-16 x 2.0"
331353705
24
602 Fitting- Elbow 2
332471617
1
O-Ring, ORFS 1
070194968
1
O-Ring, SAE 1
070194980
1
605 Fitting- Elbow
070789307
1
O-Ring, ORFS 1
735073650
1
O-Ring, SAE 1
735073625
1
606 Fitting- Elbow
070789368
1
O-Ring, ORFS 1
735073640
1
O-Ring, SAE 1
735073625
1
607 Fitting- Straight
070789383
1
O-Ring, ORFS 1
300047193
1
O-Ring, SAE 1070194970 1
608 Fitting- Run Tee
070789392
1
O-Ring, ORFS 1
070194968
2
O-Ring, SAE 1
070194980
1
609 Well, Temperature Sensor
331795204
1
O-Ring(s) are furnished standard with all fittings. Order additional O-Rings if needed. ORFS Style
O-Rings seat on the face end of the fitting. SAE style O-Rings seat at the base of the fitting.
2
The well for this fitting is integrated into the Discharge Housing and is not available separately.
3
Included in Compressor O-Ring Kit p/n 300049073. One kit per Compressor.
4
Quantity per Compressor.
1
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 24
Compressor
Discharge Housing & High Speed Shaft Seal
316
311
313
507
315
306
508
302
304
307
312
314
307
415
303
416
305
Ref.
No. Description
302 Discharge Housing
303 O-Ring 2
304 Screw, Stainless Steel
#.38-16 x 2.0"
305 Screw, Stainless Steel
#.38-16 x 3.0"
306 Ring- Liquid Injection
307 Screw
#10 x .50"
311 Pin
.50 x .09"
312 Seal- High Speed Shaft
1.5"
313 Shim- High Speed Shaft Seal
314 Spring- Wave, High Speed Shaft
315 Retainer- High Speed Shaft Seal
316 Pin- Locator
415 Dowel
.25 x .875
416 Plug
O-Ring, SAE 1
507 Well, Temp Sensor
508 Valve- Access
1
2
3
Part No.
331553803
070194978
331353705
331353706
331552901
735034921
735038039
331351101
331347501
735049886
331353301
331584501
735038038
735017102
735073623
331582701
070229306
Qty.3
1
1
12
6
1
12
1
1
1
1
1
1
1
1
1
1
1
O-Ring(s) are furnished standard with all fittings. Order additional O-Rings if needed.
Included in Compressor O-Ring Kit p/n 300049073. One kit per Compressor.
Quantity per Compressor.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 25
Compressor
Inlet Assembly- Diagrams
203
201
202
204
206
205
201
220
221
222
212
213
219
218
207
209
210
208
211
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 26
Compressor
Inlet Assembly- Components
Ref.Description Part
No. Number Qty.2
Complete Compressor Inlet Assembly 331553412 1
201 Inlet Housing 331587903 1
202 Gear- Face 331553201 1
203 Inlet Vane 331553002 11
204 Gear- Spur 331438202 11
205 Pin- Spur Gear
.313 x .58" 735038065 11
206 Ring- Retaining Spur Gear 735049890 11
207 IGV Actuator Assembly, Complete 331583401 1
208 O-Ring 1070194996 2
209 Screw- Stainless Steel
.50-13 x 1.50" 331353704 2
210 Plug- Sensor Magnet 331438401 1
211 Magnet 331353802 1
212 Sensor 331352831 1
213 Bracket- Sensor 331352701 1
218 Ring- Vane Stop 331553301 1
219 Ring- Retaining Vane Stop 331438805 1
220 Valve- Access 070229306 1
221 Connector- Male 8 Pole 331795401 1
222 Well- Temperature Sensor 331582701 1
1
2
Included in Compressor O-Ring Kit p/n 300049073. One kit per Compressor.
Quantity per Inlet Assembly.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 27
Unit Assembly
Relief & Shutoff Valves- Diagrams
020
022
024
021
081
020
082
080
083
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 28
Unit Assembly
Relief & Shutoff Valves- Components
Ref.
No. Description
020 Fitting- 90 Degree Elbow
O-Ring 1
021 Valve- Shut Off (on Condenser) O-Ring, SAE 1
022 Valve- Relief (on Evaporator)
200#
024 Valve- Relief (on Condenser)
225#
080 Valve- Angle
O-Ring, ORFS 1
O-Ring, SAE 1
081 Cap- Tube End
082 Fitting
083 Fitting- Swivel
1
Part No.
332471635
070194963
735039964
070194980
735045817
735045829
332471701
735043662
735073624
070789347
735043925
735043954
Qty.
3
3
1
1
2
2
2
2
2
2
2
2
O-Ring(s) are furnished standard with all fittings. Order additional O-Rings if needed. ORFS Style O-Rings seat on the
face end of the fitting. SAE style O-Rings seat at the base of the fitting.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 29
Unit Assembly
Discharge Piping Stack
See Suction Piping
135
136
126
132
022 147
127
022 128
125 126
Qty.=2
Ref.
No.
022
125
126
127
128
132
135
136
147
1
Description
Nut
Valve- Check
8.0"
Gasket Weld Flange
Screw
.75 x 8.5"
Elbow- 90 Degree
8.0"
Nozzle- Discharge
O-Ring
Bolt
3/4-10 x 3.25"
Part No.
735029626
333283103
070199040
735031835
735034137
331554301
331553702
330198643
735033966
Qty.1
24
1
3
2
8
1
1
1
8
Quantity per Discharge Piping Stack.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 30
Unit Assembly
Range Extension
020
022
024
004
026
003
002
020
022
034
024
026
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 31
Unit Assembly
Range Extension
Ref.
No. Description
002 Core- Schrader Valve
003 Valve- Schrader
004 Cap- Schrader Valve
020 Kit- Flange 2
022 Adapter
024 Gasket- Flange
026 Screw- Flange
.62 x 2.50"
034 Valve- Expansion
250T
Motor- Expansion Valve
Sight Glass- Expansion Valve
2
Part No.
026541100
071100801
032943500
735016403
735049702
070199112
735033864
330386205
330386209
300043182
Qty.
4
4
4
4
4
4
16
2
2
2
The Flange Kit does NOT contain a gasket. If a gasket is required, order Ref # 024 p/n 070199112.
Also, DO NOT use the screws that come with this Flange Kit. If screws are required, order 4pc. of
Ref # 026 p/n 735033864.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 32
Unit Assembly
Suction and Discharge Piping
085 087
086
084
088
136
092 093
094
Ref.
No.
084
085
086
087
088
092
093
094
136
1
2
Description
Part No.
Qty.2
Screw
M10- 1.5 x 50mm
735036546
18
Screw- Stainless Steel
.38 -16 x 1.75"
331353707
12
Elbow- Suction 90 Degree
331352003
1
O-Ring 1070194992 1
O-Ring 1
350233017
1
Screw
.50 x 3.5"
735033967
8
Washer
040500313
8
Nut 735029626
8
O-Ring
330198643
1
Included in Compressor O-Ring Kit p/n 300049073. One kit per Compressor.
Quantity per Suction & Discharge Piping.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 33
Unit Assembly
Liquid Injection
021 022
002 003
004
027
029
002 003
004
031
Ref.
No. Description
002 Core- Schrader Valve
003 Valve- Schrader
004 Cap- Schrader Valve
021 Fitting- ORFS to Braze Sleeve
O-Ring 1
022 Nut- Braze Sleeve
027 Valve- Solenoid
.875"
N/S Coil- Solenoid Valve
24VDC
029 Strainer
031 Valve- Ball
.875"
1
2
Part No.
026541100
071100801
032943500
070789351
070194968
070789354
735048473
331796054
735030501
330286084
Qty.2
2
2
2
1
1
1
1
1
1
1
O-Ring(s) are furnished standard with each fitting. Order additional O-Rings if needed.
Quantity per Liquid Injection Line.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 34
Unit Assembly
Rotor Cooling
111 112
111
112
120
112 115
160
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 35
Unit Assembly
Rotor Cooling Components
Part
Ref.Description
No.
Number
111
Fitting- ORFS to Braze Sleeve
070789351
O-Ring 1
070194968
112
Nut- Braze Sleeve
070789354
115
Fitting- Reducer Sleeve
070789391
O-Ring 1
070194968
120
Valve- Solenoid
331796003
160
Valve- Ball
.375"
330286001
1
2
Qty. 2
2
2
3
1
1
1
1
O-Ring(s) are furnished standard with each fitting. Order additional O-Rings if needed.
Quantity per Rotor Cooling Line.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 36
Unit Assembly
Stator Cooling
028
Stator Cooling Return
029
026
023 022
020
046 045
002 003
036
004
045
046
046 045
030
Stator Cooling Supply
002 003
004
052
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 37
Unit Assembly
Stator Cooling- Components
Part
Ref.Description
No.
Number
002
Core- Schrader Valve
026541100
003
Valve- Schrader
071100801
004
Cap- Schrader Valve
032943500
020
Fitting- Elbow ORFS to SAE
332471617
O-Ring, ORFS 1
070194968
O-Ring, SAE 1
070194980
022
Fitting- ORFS to Braze Sleeve
070789351
O-Ring 1
070194968
023
Nut- Braze Sleeve
070789354
026
Valve- Solenoid
331796002
N/S Coil- Solenoid Valve
24VDC
331796052
028
Fitting- Sleeve ORFS
070789361
O-Ring, ORFS 1
735073640
029
Fitting- Nut
070789360
030
Filter Drier
735028828
036
Valve- Ball
.625"
330286003
045
Fitting- ORFS to Braze Sleeve
070789316
O-Ring, ORFS 1
735073650
046
Fitting- Nut ORFS
070789310
O-Ring, ORFS 1
735073650
052
Valve- Ball
.875"
330286084
Qty. 2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
3
3
3
3
1
O-Ring(s) are furnished standard with each fitting. Order additional O-Rings if needed. ORFS Style
O-Rings seat on the face end of the fitting. SAE style O-Rings seat at the base of the fitting.
2
Quantity per Stator Cooling Line.
1
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 38
Unit Assembly
VFD Cooling
VFD Cooling Return
021 022
021 022
031
002 003 004
031
002 003 004
002 003 004
VFD Cooling Supply
012
021 022
021 022
031
002
003
004
018
002
002
003
004
WME1500DB- Water Cooled Chiller
New 09/15 003
012
004
RPL 7000517 / Page 39
Unit Assembly
VFD Cooling
Ref.Description
No.
002 Core- Schrader Valve
003 Valve- Schrader
004 Cap- Schrader Valve
012 Valve- Ball
1.375"
018 Strainer
1.375"
021 Fitting- ORFS to Braze Sleeve
O-Ring 1
022 Nut- Braze Sleeve
031 Valve, Ball
.875
1
Part Qty.
Number
026541100
6
071100801
6
032943500
6
330286086
4
735030536
2
070789351
4
070194968
2
070789354
4
330286084
4
O-Ring(s) are furnished standard with each fitting. Order additional O-Rings if needed.
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 40
Unit Assembly
Liquid Line- Diagrams
022
060E 060D 060C
080
101 102
021
060B 060A
100
081
See
Expansion
Valve
section
020 022
024
WME1500DB- Water Cooled Chiller
104
021
New 09/15 RPL 7000517 / Page 41
Unit Assembly
Liquid Line- Components
Part Qty.
Ref.Description
No.
Number
020
Coupling- Adapter
071901601 1
021 Flange 071992102 2
022
Gasket
735073403 2
024
Strainer
070977802 1
060A Saddle- Sight Glass
330743304 1
060B Cap- Sight Glass
330508701 1
060C Valve- Schrader
071100801 1
060D Core- Schrader Valve
026541100 1
060E Cap- Schrader Valve
032943500 1
080
Coupling Adapter
071900701 1
081
Bolt
.625 x 3.25"
735033966 4
100
O-Ring
735073630 1
101
Screw
.75 x 3.0"
735033878 4
102
Washer, Lock
048164816 4
104
Screw
.75 x 3.5"
735033967 4
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 42
Unit Assembly
Expansion Valve
121
115
102
105
127
103
102
119
125
112
128
126
Part Qty.
Ref.Description
No.
Number
102
Bearing
735014129 2
103
Seal
735234327 1
105
Check Valve
735040316 1
112
Flex Coupling
332778402 1
115
Motor, Stepper/IGV
331353601 1
119
Site Glass (on Motor Cover)
015997816 1
121
O-Ring
735043639 1
125
Expansion Valve Body
332935601 1
126 Site Glass (on Body)
332674501 1
127
O-Ring (between Body and Base)
735073633 1
128
O-Ring (between Base and Motor Cover)
735043674 1
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 43
Condenser
Diagrams
2-Pass Condenser shown
Rear View
353 354
352
353 354
330 331
330 331
110A
355
(Located on the front side
of the Condenser)
251 252 253
Dish Head, Grooved
Entering
Return
1- Pass
Water Box Head
Screw
2- Pass
Screw
Condenser End
353
353
354
Nut
3- Pass
354
Water Box Head, Grooved
Entering
Gasket
Nut
Return
1- Pass
352/355
Cover End
352/355
Gasket
2- Pass
3- Pass
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 44
Condenser
42 Inch - Dish Head Gaskets & Hardware
150 PSIG non-ASME (Code 43=4)
Carbon Steel tube sheet and heads (Codes 46 & 47 = C)
1 Pass, Dish Heads
Ref.
Description
PartQuantity
No. Number
352/355
Gasket - Dish Head 334721707
2
353
Screw
.75 x 3.5" 73503396680 per head
354
Nut 73502962680 per head
2 Pass, Dish Heads
Ref. Description
No.
352 Gasket - Dish Head, Entering Side 353 Screw
.75 x 3.5"
354 Nut
355 Gasket- Dish Head, Return Side
PartQuantity
Number
334825861
1
73503396680 per head
73502962680 per head
334721707
1
3 Pass, Dish Heads
Ref.
Description
PartQuantity
No. Number
352/355
Gasket - Dish Head 334825861
2
353
Screw
.75 x 3.5" 73503396680 per head
354
Nut 73502962680 per head
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 45
Condenser
42 Inch - Water Box Head Gaskets & Hardware
150 PSIG non-ASME (Code 43=4)
Carbon Steel tube sheet and heads (Codes 46 & 47 = C)
1-Pass, Water Box Heads with Top Nozzle (Code 40=D)
Description
PartQuantity
Ref.
No. Number
352/355
Gasket - Water Box Head 334721707
4
353
Screw
.75 x 6.0" 735033972 80 x 4 1
354
Nut 735029626
80 x 4 1
1-Pass, Water Box Heads with Front Nozzle (Code 40=F)
Description
PartQuantity
Ref.
No. Number
352/355
Gasket - Water Box Head 334721707
4
353
Screw
.75 x 6.0" 735033972 80 x 4 1
354
Nut 735029626 80 x 4 1
2-Pass, Water Box Heads with Front Nozzle (Code 40=J)
Ref. Description
No.
352 Gasket - Water Box Head, Entering Side 353 Screw for Water Box Head
.75 x 6.0"
Screw for Dished Head
.75 x 3.5"
354 Nut
355 Gasket- Dished Head, Return Side
PartQuantity
Number
334825863
2
735033972 80 x 2 1
735033966
56
735029626 80 x 3 1
334721707
1
3-Pass, Water Box Heads with Front Nozzle (Code 40=J)
Description
PartQuantity
Ref.
No. Number
352/355
Gasket - Water Box Head 334825863
4
353
Screw
.75 x 6.0" 735033972 80 x 4 1
354
Nut 735029626 80 x 4 1
Each Water Box Head has 2 sets of screws and nuts. There are 80 screws + 80 nuts for the water box cover,
and 80 screws + 80 nuts at the connection of the head to the condenser. See Condenser diagrams.
1
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 46
Condenser
Sight Glass, Shut Off Valve & Gasket,
Charge Valve
Sight Glass, Shut Off Valve & Gasket, Charge Valve & Cap
Part Qty.
Ref.Description
No.
Number
110A Sight Glass
1.0" MPT
350229502 1
251 Valve- Shut Off (King Valve)
4.0"
735039809 1
252 Screw- Shut Off Valve
.75 x 7.0
735033974 4
253 Gasket- Shut Off Valve
070199106 1
330 Valve- Charge
332480201 2
O-Ring for Charge Valve
735073634 2
331 Cap- Charge Valve
073243901 2
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 47
Evaporator
Diagrams
2-Pass Evaporator shown
Rear View
353 354
352
353 354
355
330 331
110A
(Located on the front side
of the Evaporator)
Dish Head, Grooved
Entering
330 331
Return
1- Pass
Water Box Head
2- Pass
Screw
353
3- Pass
354
Nut
Water Box Head, Grooved
Entering
Condenser end
353
Screw
354
Return
1- Pass
Nut
352/355
Gasket
Cover end
352/355
2- Pass
Gasket
3- Pass
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 48
Evaporator
48 Inch - Dish Head Gaskets & Hardware
150 PSIG non-ASME (Code 21=4)
Carbon Steel tube sheet and heads (Codes 24 & 25 = C)
1 Pass, Dish Heads
Ref.
Description
PartQuantity
No. Number
352/355
Gasket - Dish Head 334721708
2
353
Screw
.75 x 3.5" 73503396796 per head
354
Nut 73502962696 per head
2 Pass, Dish Heads
Ref. Description
No.
352 Gasket - Dish Head, Entering Side 353 Screw
.75 x 3.5"
354 Nut
355 Gasket- Return Head
PartQuantity
Number
334825871
1
73503396796 per head
73502962696 per head
334721708
1
3 Pass, Dish Heads
Ref.
Description
PartQuantity
No. Number
352/355
Gasket - Dish Head 334825871
2
353
Screw
.75 x 3.5" 73503396796 per head
354
Nut 73502962696 per head
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 49
Evaporator
48 Inch - Water Box Head Gaskets & Hardware
150 PSIG non-ASME (Code 21=4)
Carbon Steel tube sheet and heads (Codes 24 & 25 = C)
1-Pass, Water Box Heads with Top Nozzle (Code 18=D)
Description
PartQuantity
Ref.
No. Number
352/355
Gasket - Water Box Head 334721708
4
353
Screw
.75 x 6.5" 735033973 96 x 4 1
354
Nut 735029626
96 x 4 1
1-Pass, Water Box Heads with Rear Nozzle (Code 18=E)
Description
PartQuantity
Ref.
No. Number
352/355
Gasket - Water Box Head 334721708
4
353
Screw
.75 x 6.5" 735033973 96 x 4 1
354
Nut 735029626 96 x 4 1
2-Pass, Water Box Heads with Rear Nozzle (Code 18=H)
Ref. Description
No.
352 Gasket - Water Box Head, Entering Side 353 Screw for Water Box Head
.75 x 6.5"
Screw for Dished Head
.75 x 3.5"
354 Nut
355 Gasket- Dished Head, Return Side
PartQuantity
Number
334825872
2
735033973 96 x 2 1
735033967
96
735029626 96 x 3 1
334721708
1
3-Pass, Water Box Heads with Rear Nozzle (Code 18=H)
PartQuantity
Ref. Description
No. Number
352 Gasket - Water Box Head, Entering Side 334825872 2
355 Gasket - Water Box Head, Opposite Side
334825873 2
353 Screw
.75 x 6.5" 735033973 96 x 4 1
354 Nut 735029626 96 x 4 1
Each Water Box Head has 2 sets of screws and nuts. There are 96 screws + 96 nuts for the water box cover,
and 96 screws + 96 nuts at the connection of the head to the evaporator. See Evaporator diagrams.
1
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 50
Evaporator
Sight Glass & Charge Valve
Sight Glass, Charge Valve & Cap
Part Qty.
Ref.Description
No.
Number
110A Sight Glass
1.0" MPT
350229502
1
330 Valve- Charge
332480201
2
O-Ring for Charge Valve
735073634
2
331 Cap- Charge Valve
073243901
2
WME1500DB- Water Cooled Chiller
New 09/15 RPL 7000517 / Page 51
Critical Daikin Applied OEM Parts
Are What Your HVAC Unit Needs!
Daikin MagnitudeTM Centrifugal Chiller
WME
1500
Critical Components
UNIT SIZE
Voltage
Part Number
Sensors
S01 - Evap Entering Water Temp
S02 - Evap Leaving Water Temp
S05 - Cond Entering Water Temp
S06 - Cond Leaving Water Temp
S07 - Cond Refrigerant Pressure
S09 - Liquid Line Temp
S10 - Compr Suction Temp
S11 - Compr Suction Pressure
S12 - Compr Discharge Temp
S13 - Compr Discharge Pressure
S14 - Motor Gap Temp
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
ALL
ALL
ALL
ALL
ALL
ALL
ALL
ALL
ALL
ALL
ALL
073007203
073007203
073007203
073007203
071568621
073007203
331582801
071568521
331582801
071568621
331795205
Switches
S04 - Switch, Evap Entering Flow
S08 - Switch, Cond Entering Flow
S15 - Switch, High Pressure
1500
1500
1500
ALL
ALL
ALL
331796201
331796201
074796301
VFD Controls
Wire Harness/Cable Kit
Fuse, 20A/1000VAC
Fuse, 600A/700V
Fuse, 20A/800V
Fuse, Power Supply Plate F1-2, F8-10
Fuse, Power Supply Plate F3-5
Fuse, Power Supply Plate F6-7
1500
1500
1500
1500
1500
1500
1500
ALL
ALL
ALL
ALL
ALL
ALL
ALL
300055446
300047094
300047092
300048941
300047089
300047090
300046902
Compressor O-Ring Kit
Compressor O-Ring Kit (one kit per compr)
1500
ALL
300049073
Call Your Local Daikin Applied Parts Distributor For All Your Parts Needs.
To Locate A Distributor, Go To www.DaikinApplied.com or Call 1-800-37PARTS
7000516 New 09/2015
CPL Page 1 of 1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
