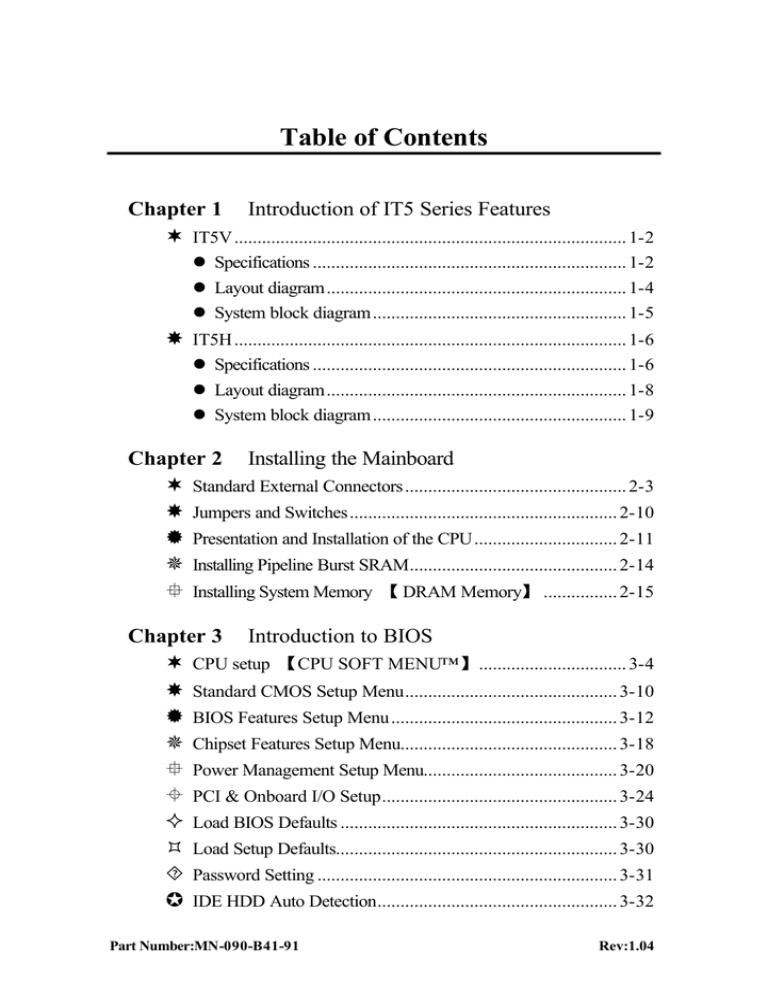

Table of Contents
Chapter 1 Introduction of IT5 Series Features
¬ IT5V ..................................................................................... 1-2
l Specifications .................................................................... 1-2
l Layout diagram................................................................. 1-4
l System block diagram....................................................... 1-5
- IT5H ..................................................................................... 1-6
l Specifications .................................................................... 1-6
l Layout diagram................................................................. 1-8
l System block diagram....................................................... 1-9
Chapter 2 Installing the Mainboard
¬ Standard External Connectors ................................................ 2-3
- Jumpers and Switches.......................................................... 2-10
® Presentation and Installation of the CPU............................... 2-11
¯ Installing Pipeline Burst SRAM............................................. 2-14
° Installing System Memory 【 DRAM Memory】 ................ 2-15
Chapter 3 Introduction to BIOS
¬ CPU setup 【CPU SOFT MENU™ 】................................ 3-4
- Standard CMOS Setup Menu.............................................. 3-10
® BIOS Features Setup Menu ................................................. 3-12
¯ Chipset Features Setup Menu............................................... 3-18
° Power Management Setup Menu.......................................... 3-20
± PCI & Onboard I/O Setup................................................... 3-24
² Load BIOS Defaults ............................................................ 3-30
³ Load Setup Defaults............................................................. 3-30
´ Password Setting ................................................................. 3-31
µ IDE HDD Auto Detection.................................................... 3-32
Part Number:MN-090-B41-91
Rev:1.04
Appendix A Quick Installation
Appendix B Intel Pentium CPUs
Appendix C AMD-K5 CPUs
Appendix D Cyrix 6x86 CPUs
Appendix E General Discussion about HDD Installation
Appendix F Technical Support
Appendix G Flash BIOS User Instructions
Introduction of IT5 Series Features
1-1
Chapter 1 Introduction of IT5
Series Features
The IT5 series has been especially designed for File server, Workstation
and Professional users. It can support a wide range of processors, including all
Intel CPUs (P54C) and Intel CPUs with MMX (P55C), as well as all
AMD-K5 and Cyrix 6x86/6x86L CPUs. It also takes into account, as much as
possible, all future CPUs.
This series uses SOFT MENU™ technology, which means that all the
parameters can be configured without using DIP switches or jumpers. The
configuration is entirely achieved through a “Soft Switch” that allows the user to
set CPU speed and operating voltage with ease.
The IT5 series uses Intel 430VX and 430HX series chipsets, and has
256K or 512K Level-2 Pipeline Burst SRAM on board. It also provides an
extension slot allowing the user to upgrade Pipeline Burst SRAM to 512K.
Two 168-pin DIMM slots and four 72-pin SIMM slots meet the
requirements for all memory configurations required by high level computing.
The 168-pin DIMM slots support traditional Fast Page and EDO DRAM as a
memory standard for next generation 64-bit systems. The two 168-pin
DIMM slots have been reserved to meet requirements for both present and
future upgrades.
This series also provides two Universal Serial Bus (USB) ports and meets
the Concurrent PCI Rev. 2.1 standard. It also supports IDE interface for Fast
HDD (Mode 0~4), as well as IDE Bus Master. These features also meet
present and future interface standards and needs.
System BIOS features include Plug-and-Play (PnP), Advanced Power
Management (APM), the newest Desktop Management Interface (DMI), as
well as IT5’s unique CPU operating frequency and voltage setup feature in
order to meet modern computing demands.
1-2
Chapter 1
¬ IT5V
l Specifications:
1. CPU frequency and voltage setup with CPU “SOFT MENU™ ”
l Setup of the mainboard’s frequency and voltage without DIP
Switches or Jumpers.
l Modification of CPU operating voltage and frequency through
software configuration.
l Modification of CPU operating voltage and frequency directly on
screen.
2. Uses ZIF CPU Socket 7 for easy CPU installation
l Three voltage regulator/cooling plate sets for a more stable
CPU operating environment
l Supports Intel Pentium® CPUs: 75MHz to 200MHz and P55C
CPUs with MMX
l Supports all AMD sixth generation AMD-K5™ CPUs: 75MHz
to 166MHz, AMD-K6™ CPUs: 200MHz and 233MHz
l Supports all Cyrix sixth generation 6x86™ CPUs: P120+, P133+,
P150+, P166+
l Reserved circuitry supports future sixth generation CPUs
3. Chipset
l Intel 430VX chipset
l Supports standard version PCI 2.1
4. L2 Cache Memory
l 256K or 512K of cache memory (Pipeline Burst SRAM)
l Cache memory upgradeable to 512K
5. System DRAM
l Four 72-pin SIMM sockets: support FP and EDO DRAM
l Two 168-pin DIMM sockets: support FP, EDO and Synchronous
DRAM (SDRAM)
l DIMM sockets use PC modules (3.3V Unbuffered DRAM)
l Up to 128MB memory configuration possible
Introduction of IT5 Series Features
1-3
6. System BIOS
l AWARD BIOS
l Supports Plug-and-Play (PnP)
l Supports Advanced Power Management (APM)
l Supports Desktop Management Interface (DMI)
7. Multi I/O features
l Two Universal Serial Bus (USB) ports
l Four fast IDE channels (PIO mode 0~4 and Bus Master)
l One EPP/ECP parallel port and one 16550 serial port
l Two floppy disk drive connectors (FDD) (360K, 720K, 1.2M,
1.44M and 2.88M)
8. Other features
l Standard AT architecture dimensions
l Four ISA bus slots and four PCI bus slots
l Supports 3-MODE for a special Japanese floppy disk drive
l Supports two bootable hard disks--able to run two different
operating systems
Note: All brand names and trademarks are the property of their respective owners.
1-4
l
Chapter 1
Layout diagram
Fig 1-1 Layout diagram
Introduction of IT5 Series Features
l
1-5
System block diagram
Pentium Processor
3.3V
Host BUS
Control
Address
Second Level
Cache
Data
Ctrl
CACHE
(SRAM)
Tag Ctrl
TIO[0..7]
TVX
Addr
Main
Ctrl
Memory
Data
TDX
(DRAM)
TAG
Plink
TXD Ctrl
PCI BUS
Control
Address/Data
USB
CD ROM &
Hard Disk
Fast
IDE
1
USB
2
PIIX3
Universal Serial Bus
ISA BUS
Serial
ALi
M5123
LPT
FDC
Fig. 1-2 System block diagram
PCI Device(s)
ISA Devi ce(s)
1-6
Chapter 1
- IT5H
l Specifications:
1. CPU frequency and voltage configuration with CPU “SOFT
MENU™ ”
l Setup of the mainboard’s frequency and voltage without DIP
Switches or Jumpers.
l Modification of CPU operating voltage and frequency through
software configuration.
l Modification of CPU operating voltage and frequency directly on
screen.
2. Uses ZIF CPU Socket 7 for easy CPU installation
l Three voltage regulator/cooling plate sets for a more stable
CPU operating environment
l Supports Intel Pentium® CPUs: 75MHz to 200MHz and P55C
CPUs with MMX
l Supports all AMD sixth generation AMD-K5™ CPUs: 75MHz to
166MHz, AMD-K6™ CPUs: 200MHz and 233MHz
l Supports all Cyrix sixth generation 6x86™ CPUs: P120+, P133+,
P150+, P166+
l Reserved circuitry supports future sixth generation CPUs
3. Chipset
l Intel 430 HX chipset
l Supports standard version PCI 2.1
4. L2 Cache Memory
l 256K or 512K of cache memory (Pipeline Burst SRAM)
l Cache memory upgradeable to 512K
5. System DRAM
l Four 72-pin SIMM sockets: support FP and EDO DRAM
l Two 168-pin DIMM sockets: support FP, EDO
l DIMM sockets use PC modules (3.3V Unbuffered DRAM)
l Supports error check and correction (ECC) function
l Up to 512MB memory configuration possible
Introduction of IT5 Series Features
1-7
6. System BIOS
l AWARD BIOS
l Supports Plug-and-Play (PnP)
l Supports Advanced Power Management (APM)
l Supports Desktop Management Interface (DMI)
7. Multi I/O features
l Two Universal Serial Bus (USB) ports
l Four fast IDE channels (PIO mode 0~4 and Bus Master)
l One EPP/ECP parallel port and one 16550 serial port
l Two floppy disk drive connectors (FDD) (360K, 720K, 1.2M,
1.44M and 2.88M)
8. Other features
l Standard AT architecture dimensions
l Four ISA bus slots and four PCI bus slots
l Supports 3-MODE for a special Japanese floppy disk drive
l Supports two bootable hard disks--able to run two different
operating systems
Note: All brand names and trademarks are the property of their respective owners.
1-8
Chapter 1
l Layout diagram
Fig. 1-3 Layout diagram
Introduction of IT5 Series Features
l
1-9
System block diagram
Pentium Processor
3.3V
Host BUS
Control
Address
Data
Second Level
Cache
CACHE
(SRAM)
Ctrl
Tag Ctrl
TXC
TIO[0..7]
TIO[8..10]
TAG
PCI BUS
Addr
Main
Ctrl
Memory
ECC
Data
(DRAM)
Control
Address/Data
USB
CD ROM &
Hard Disk
Fast
IDE
USB
1
2
PIIX3
Universal Serial Bus
ISA BUS
Serial
ALi
M5123
LPT
FDC
PCI Device(s)
ISA Device(s)
1-10
Chapter 1
Fig. 1-4 System block diagram
Introduction of IT5 Series Features
1-11
Installing the Mainboard
Chapter 2
2-1
Installing the
Mainboard
This mainboard series not only provides all standard equipment for classic
personal computers, but also provides great flexibility for meeting future upgrade
demands. This chapter will introduce step by step all the standard equipment
and will also present, as completely as possible future upgrade capabilities.
This mainboard is able to support all Intel Pentium including P55C with MMX,
Cyrix 6x86, 6x86L and AMD-K5 processors now on the market. (For details,
see specifications in Chapter 1.) However, we cannot guarantee that the
description given in this manual on the circuitry of your mainboard will work for
processors not listed in Chapter 1. For example, the operating voltage of
Cyrix’s next generation CPUs is unknown at the present time. Thus we were
not able to include these specifications in your motherboard. We will supply
further information about CPU support when new CPUs arrive on the market.
This chapter is organized according the following features:
ΠStandard external connectors
• Jumpers and switches
Ž Installing the CPU--steps for installing Intel, Cyrix and AMD
processors.
• Installing cache memory--If you don’t want to upgrade the cache
memory you can skip this chapter.
• Installing the system memory.
NNNN
Before proceeding with the installation
Before installing the mainboard please be sure to turn off or disconnect the
power supply unit. Before making any modifications to the hardware
configuration of the mainboard, the power supply to any areas of the mainboard
you plan to modify should be turned off to avoid unnecessary damage to the
hardware.
2-2
Chapter 2
&
User friendly instructions
Our objective is to enable the novice computer user to perform the
installation by themselves. We have attempted to write this document in a very
clear, concise and descriptive manner to help overcome any obstacles you may
face during installation. Please read our instructions carefully and follow them
carefully step-by-step.
Installing the Mainboard
2-3
¬ Standard External Connectors
Inside the case of any computer several cables and plugs have to be
connected. These cables and plugs are usually connected one-by-one to
connectors located on the mainboard. You need to carefully pay attention to
any connection orientation the cables may have and, if any, notice the position of
the first pin of the connector. In the explanations that follow, we will describe
the significance of the first pin.
PN1 - Keylock connector Please pay attention to pin position and
orientation
This connector has a specific orientation. Connect the five-thread keylock
connector cable to the PN1 connector pins on the mainboard.
Pin number
1
2
3
4
5
Name or significance of signal
+5VDC
No connection
Ground
Keyboard inhibit Signal
Ground
2-4
Chapter 2
Computer
Knowledge
The “keylock switch” is used to lock the computer’s
keyboard. This disables the keyboard so that unauthorized
persons cannot use it. When this function is in use, you will
need to use the unlock key to activate the keyboard.
PN1 - IDE LED connector
This connector has a specific orientation. Connect the two-thread IDE LED
connector cable attached to the case to the IDE LED connector on the
mainboard.
Pin number
7
8
Name or significance of signal
LED’s Cathode
LED’s Anode
PN1 - Standby connector
There is no specific orientation. Most of the present AT cases do not support
this feature so most of you can ignore this instruction. If your case has a cable
for the Standby feature, you should connect this cable to the connector on the
Mainboard.
Pin number
10
11
Computer
knowledge
Name or significance of signal
Standby power supply【+5VSB】
Control signal of computer switch of the case
The “standby connector,” unlike the traditional mechanical
switch, is an electronic way to turn the computer’s power off.
To use this feature, the power supply system must permit a
shutdown power supply (+5VSB), support the electronic
switch feature, and must also be used with connector JS1 on
the mainboard. For example, when using Windows 95,
your computer will automatically shut down after having saved
your work when you exit Windows. You do not need to
use the mechanical switch to turn the computer off.
Installing the Mainboard
2-5
PN1 - Hardware Suspend switch
There is no specific orientation. Connect the two-thread hardware suspend
plug to the PN1 connector pins on the mainboard. Since most cases do not
support this feature, most of you ignore this instruction. Furthermore, this
feature is not necessary as it is already a part of the mainboard.
Pin number
13
14
Name or significance of the signal
Suspend
Ground
PN2 - Hardware Reset connector
There is no specific orientation. Connect the two-thread hardware reset cable
to the PN2 connector pins on the mainboard.
Pin number
1
2
Computer
knowledge
Name or significance of signal
Ground
Hardware reset signal
The “Hardware Reset” is used to reset the computer during
operation without turning the computer off and back on.
For example, if you are running an application that stops
responding to the computer, you may press the Reset button
to restart the computer.
PN2 - Speaker connector
There is no specific orientation. Connect the four-thread speaker cable to the
PN2 connector pins on the mainboard.
Pin number
4
5
6
7
Name or significance of signal
+5VDC
Ground
Ground
Sound Signal
2-6
Chapter 2
PN2 - Turbo switch LED connector
This connector has a specific orientation. Connect the two-thread turbo switch
LED plug to the PN2 connector pins on the mainboard.
Pin number
9
10
Computer
knowledge
Name or significance of signal
Anode terminal of Turbo LED
Cathode terminal of Turbo LED
The “hardware Turbo LED” indicates the status of hardware
operating speed.
JS1 - Power Control connector
This has a specific orientation. The present power supply units of AT computer
do not support this feature, so you can ignore this connector. If your power
supply unit features this connector, insert plug JS1, but be sure that the
signification of the signal cable is the same, and be sure to use this feature in
connection with the Standby connector on connector PN1.
Pin number
1
2
3
Name of the signal or signification
Power supply control signal 【PS_ON】
Standby power supply 【+5VSB】
Ground
Installing the Mainboard
2-7
FAN - CPU Fan power connector
This has a specific orientation. Connect the three-threads CPU fan cable to the
Fan connector.
Pin number
1
2
3
Name of the signal or signification
Ground
+12V
Ground
Mouse - PS/2 Mouse connector Watch the pin number and the orientation
This
has a specific orientation. Connect the six-threads PS/2 Mouse cable
provided to the Mouse connector on the mainboard.
Pin number
1
2
3
4
5
6
Computer
knowledge
Name of the signal or signification
Mouse data
No connection
Ground
+5VDC
Ground
Mouse clock
The “PS/2 Mouse Port” is different from COM1 or COM2
serial ports to which you can also connect a Mouse. This
mainboard features an extra PS/2 Mouse port, so when you
buy a mouse, be sure that it is a PS/2 Mouse before connecting
it to this port. But if you cannot find any PS/2 Mouse, you can
still use COM1 or COM2 to connect a serial mouse to your
computer.
2-8
Chapter 2
J2 - Keyboard Connector
This has an orientation pin. Connect your keyboard connector to connector J2
on the mainboard.
Pin number
1
2
3
4
5
Name of the signal or signification
Keyboard clock
Keyboard data
No connection
Ground
+5VDC
P8/P9 - Power input Connectors Watch the pin number and the
orientation
These have a specific orientation. The three warning marks indicate that if you
make a mistake in pin number or connection orientation, you could destroy your
equipment. During installation, you just need to connect to the correct pins and in
the correct orientation, and to connect connectors P8 and P9 of the power
supply unit to the connectors on the mainboard.
Pin number
1
2
3
4
5
6
Name of the signal or
signification
POWERGOOD
+5VDC
+12VDC
-12VDC
Ground
Ground
Pin number
7
8
9
10
11
12
Name of the signal or
signification
Ground
Ground
-5VDC
+5VDC
+5VDC
+5VDC
Installing the Mainboard
2-9
IR - Infrared remote Connector Watch the pin number and the orientation
This has a specific orientation. Your mainboard supports this feature, but you
must buy the infrared remote device as an option.
Pin number
1
2
3
4
5
Name of the signal or signification
+5VDC
No connection
Receive data
Ground
Transmit data
I/O Port connectors Watch the pin number and the orientation
Connector name
IDE 1
IDE 2
FDC
LPT
COM1
COM2
USB
Pin number
40
40
34
26
10
10
16
Name of the peripheral connected
IDE Channel 1
IDE Channel 2
Floppy Disk connector
Parallel port connector
Serial port COM1 connector
Serial port COM2 connector
Universal Serial Bus connector
2-10
Chapter 2
- Jumpers and Switches
CCMOS : Delete the contents of the CMOS
This jumper is set on pins 1 and 2 at the factory, in order for the
computer to function normally, so please do not change this setting.
The main feature of this jumper is to solve situations where the
computer crashes due to improper usage. For instance:
l You have forgotten the password you set.
l You have changed inappropriately the settings in the BIOS
menu.
l You want to change the version of flash BIOS.
All these errors are very serious, you must avoid them. But if you
have made one of these errors, this jumper can save your life. First
turn off the power supply and open the computer case, than place
the jumper on pins 2 and 3 in order to save your computer. But if
you use your computer normally, you should not need to use this
feature.
After you have deleted the CMOS information, the computer is saved, but
you still have to go back to the BIOS Setup menu, and reset one by one all
the specifications: CPU, date, hour, FDD and HDD parameters. etc., before
your computer will get back into normal operation.
JC1: Installing the cache memory in the cache memory extension
slot (COAST)
On delivery, the IT5 mainboard comes with a 256K or 512K cache
memory. If you already have 512K, your mainboard will not need a
cache extension, and you will not be able to see the extension slot.
But if you have only 256K, we have reserved an extension slot which
permits you to extend the cache to 512K. This is set up at the factory
with no jumper, which is what we call OFF status. You will need to
put the jumper in place only when you extend the cache. For more
details, refer to the section which deals with cache memory.
Installing the Mainboard
2-11
® Presentation and Installation of the CPU
Jumperless Mainboard (Mainboard with no DIP Switch or Jumper)
This mainboard series can be installed with CPU without the hardware
setting of the CPU.
On other boards, when you want to install the CPU, you have, more or
less, to setup some jumpers or DIP switches. With this mainboard, you will not
need to adjust any jumper or switch. The CPU speed and model is set up by
software, in order to allow the user to complete setup and installation
procedures easily. After you have inserted the CPU on the CPU socket, you
can close the computer case and turn the computer on. You just need to enter
the CPU SOFT MENU™ located in the BIOS Setup, and to setup the speed
and the voltage of the CPU to compete the installation. Even if you don’t need to
setup any switch, we recommend you to read our presentation of the CPUs, it
will be useful information for you.
Since 1996, every two or three months, Intel adds new models to the
Pentium CPU series. That is why the CPU market is filled with a lot of different
models and brands. All CPUs have different electrical specifications. That’s why
installing a CPU is becoming more and more complex. You can’t help that,
because everybody wants to be able to upgrade its hardware. So, you have to
take a bit of time to read this section, in order to be able to install a cheaper and
better processor.
This mainboard does not only support all the CPUs listed in the
specifications, but also has reserved several circuits in order to be able to
support future processors. But before we go further in our presentation, we
must clarify that “we have only tested the CPUs listed in Chapter 1”, we cannot
guarantee that this board will be able to support future products, because we
cannot forecast future developments. But we will do our best to support any
possible CPU.
Related terminology :
External clock
Also referred to as the external CPU clock, or “Bus clock”, it is the input
clock of the CPU. For instance, Intel Pentium P90, P120 and P150 all
have a 60MHz external CPU clock, but have different internal clock
2-12
Chapter 2
multiplier factors.
Installing the Mainboard
2-13
Clock multiplier factor
The real operation clock within the CPU is the multiple of the external
clock. We refer to this factor as the clock multiplier factor. The four
factors possible are 1.5, 2, 2.5 and 3. The factor differs from one CPU to
another. For instance, the Intel Pentium 166 CPU has a 66MHz external
clock, with a multiplier factor of 2.5, so that the speed of the internal clock
is 66MHz x 2.5.
Internal clock
Also referred to as the real internal CPU clock, it is the actual internal
operating clock of the CPU. The Internal Clock is a multiple of the external
clock and of the clock multiplier factor. For instance, the Intel Pentium 90
CPU has a 60MHz external clock and its clock multiplier factor is 1.5; the
Intel Pentium P133 CPU has a 66MHz external clock and its clock
multiplier factor is 2.
Internal CPU clock = clock multiplier factor x external CPU clock
AT Bus clock
Also referred to as ISA SPEED, or AT CLOCK, or even ISA Bus clock.
Ten years ago, the original specification of AT Bus clock installed in the
first generation PC/AT computers was 8MHz, this means that there are
some interface cards which can only work at 8MHz. In order to guarantee
compatibility with older hardware, we still support 8MHz AT Bus clock,
but if your interface card is newer or faster, you can choose a higher speed
for the AT Bus clock, in order to increase the transmission rate of the
interface cards. But we recommend you not to be too ambitious. An
8MHz setup ensures maximum compatibility.
CPU Voltage - Vcore and Vio
From the voltage point of view, 586 series CPU can be divided into two
categories: single voltage CPU and dual voltage CPUs. Single voltage
CPUs include: Intel Pentium P54C series, AMD-K5 and Cyrix 6x86, etc.
Dual voltage CPUs include: Intel P55C with MMX, future AMD CPUs,
Cyrix 6x86L and M2.
The voltage of dual voltage CPUs has two components: Vcore and Vio.
Vcore provides all the power for internal processing, and its power
consumption is quite important. Vio provides the power necessary for the
external interface of the CPU.
2-14
Chapter 2
P-Rating
The P-Rating was defined by some manufacturers other than Intel to rate
the performance of their CPU in comparison with Intel Pentium CPUs. For
instance, Cyrix 6x86 P166+ has a higher actual speed compared with Intel
Pentium P166, its internal clock needs only 133MHz versus 166MHz for
Intel’s product. The main reason is that Cyrix has improved the internal
architecture of the 6x86 CPU, which means that with the same internal
clock speed, the actual clock speed will be different.
Having read the related terminology above, please refer to the information in
appendices B, C or D for the type and specifications of your own CPU. We
suggest that you note down these specifications, which will help you when you
install the CPU.
CPU Settings:
! ! CPU SOFT MENU! !
To configure the speed and the voltage of the CPU, you must enter to the CPU
SOFT MENU in BIOS Setup.
Installing the Mainboard
2-15
¯ Installing Pipeline Burst SRAM
This mainboard features a 256K or 512K cache memory. It also features a
cache memory extension socket (COAST) in order to permit you to upgrade
256K cache to 512K, and this with only one JC1 to choose from. Installation is
very easy. Refer to the table below:
Configuration
Mode 1
Mode 2
Mode 3
Mode 4
Mode 5
Mode 6
With 32K32
SRAM
NO
YES
YES
NO
NO
NO
With 64K32
SRAM
NO
NO
NO
NO
NO
YES
Cache socket
Cache total
NO
NO
256K module
256K module
512K module
NO
0K
256K
512K
256K
512K
512K
JC1
settings
OFF
OFF
ON
OFF
ON
OFF
【Notes】1. If your mainboard features a 512K cache when it is delivered
from the factory (Mode 6 in the table), the mainboard will not
have any cache extension slot (COAST) or JC1 jumper.
2. The configurations listed in the table are all the possible
configurations reserved when the board was designed. The actual
configuration when the board is delivered depends mainly on the
demands of the market.
2-16
Chapter 2
° Installing System Memory【 DRAM Memory】
When this mainboard was designed, we not only have taken into account
the present needs, but we have also tried to care about demands for future
upgrades:
1. Two 168-pin DIMM sockets:
Within 3 to 5 years, you may not be able to buy 72-pin SIMM
memory modules anymore, just as now you cannot find 30-pin SIMM
memory modules anymore. If you want to extend your memory
capacity, you will have no solution other than to use 168-pin 3.3V
unbuffered DIMM sockets.
2. Four 72-pin SIMM sockets:
Currently, the most common memory modules on the market are
72-pin SIMM modules. The four 72-pin SIMM sockets of this
mainboard will meet your needs.
3. Easy installation
You just need to insert the modules, without the help of God. Isn’t it
great?
Besides the features mentioned above, you can use simultaneously 72-pin
SIMM modules and 168-pin DIMM modules, but you will rarely encounter this
kind of configuration. Before you proceed with installation, be patient, first read
what follows:
1. Factory default setting of the mainboard is for 70ns FP or EDO
modules.
If your memory modules are faster than 70ns, say 60ns or 45ns, you
can modify the BIOS settings in order to speed up the operating speed
of the system. But if you don’t want to modify these settings, or if you
don’t know how to modify them, it’s no big deal.
But if you set the external CPU clock at 66MHz or more, we
recommend you use 60ns or even faster DRAM modules.
2. Memory error check and correction feature on this mainboard.
Installing the Mainboard
2-17
IT5V: No support. Since the Intel 430VX chipset does not support
this feature, since the memory error check and correction
feature may not be effective, and since you cannot easily find
memory modules with memory check and correction feature,
this mainboard does not support it.
IT5H : Support. In a server or network environment, demands
regarding system stability and data security are higher, that is
why these systems have to rely on hardware security
supported by software, and that is also the reason why this
mainboard features automatic memory error check and
correction.
3. Maximum memory capacity supported by this mainboard.
IT5V: 128M Bytes. It is the upper limit supported by the 430 VX
chipset.
IT5H: 512M Bytes. It is the upper limit supported by the 430 HX
chipset.
Computer
Knowledge
【 Relationships between memory modules and Pentium
CPUs】
Pentium, 6x86 and AMD-K5 are all 64 bit CPUs, but 72-pin
SIMM modules are only 32-bit. That’s why they have to be
used in pairs, because the CPU will always be only able to see
64 bits. This means that 72-pin SIMM modules have to be
installed in pairs. For instance, SIMM1 and SIMM2 must form
a pair, and SIMM3 and SIMM4 must form another pair. Of
course, the two members of a pair must be of the same kind
【EDO or FP DRAM】, and you cannot use pairs from
different “species”.
But this series supports different “pairs” and use different type of
memory modules, notice:
l【SIMM1 and SIMM2】must use the same memory type,
as well as【SIMM3 and SIMM4】.
2-18
Chapter 2
l【SIMM1 and SIMM2】use the same memory type, and
【SIMM3 and SIMM4】can use the same type, or a
different type, in order to permit you to obtain the best
speed configuration for each “single” pair, and to make
the system work at its maximum capacity. If one
memory pair is slower, it will have no influence on the
pair whose speed is higher.
168-pin DIMM modules are 64 bit, so you can use single
modules. On the IT5V mainboard, these modules can support
not only EDO and FP DRAM, but also Synchronous DRAM
memory configurations. The IT5H mainboard does not support
SDRAM.
When you install DIMM modules on the mainboard, you don’t have to
setup anything, just be sure that you use 3.3V unbuffered 168-pin DIMM
modules, and insert them in the memory socket.
Computer
knowledge 【 168-pin DIMM modules specifications 】
According to the standards defined by JEDEC, there are a lot of
different types of specifications for 168-pin DIMM sockets.
Here are the possible types:
l 3.3V UNBUFFERED DIMM
l 3.3V BUFFERED DIMM
l 5V UNBUFFERED DIMM
l 5V BUFFERED DIMM
These types of DIMM modules differ not only by the electrical
design, but also by their architecture. So, if you buy different
types of DIMM modules, you will not be able to insert them in
the DIMM sockets. Currently, the standard for PC is 3.3V
UNBUFFERED DIMM, which is the standard supported by
this series.
After installing the DRAM, the BIOS of the mainboard will automatically detect
the size of the memory installed on the mainboard. Below is a list of all the
possible situations:
Installing the Mainboard
2-19
Scenario 1: You use only 72-pin SIMM modules:
l The maximum memory size is 128M bytes.
l Support possible for single density or double density memory
modules.
l Memory modules supported: 1Mx32【4M】, 2Mx32
【8M】, 4Mx32【16M】or 8Mx32【32M】.
l 【SIMM1 and SIMM2】is the first pair, 【SIMM3 and
SIMM4】is the second pair. Usually, you first insert the first
pair, than the second pair, but it is possible to do the reverse.
l You can also directly refer to table 2-1.
Scenario 2: You use only 168-pin DIMM modules:
l The maximum memory size is:
IT5V: 128M Bytes.
IT5H: 256M Bytes.
l Support possible for single density or double density memory
modules.
l Memory modules supported: 1Mx64【8M】, 2Mx64
【16M】or 4Mx64【32M】.
l DIMM1 is the first pair, DIMM2 is the second pair. Usually,
you first insert modules in DIMM1 socket, than in DIMM2
socket, but it is possible to do the reverse.
l You can also directly refer to table 2-2.
Scenario 3: You use 72-pin SIMM modules and 168-pin DIMM modules:
l The maximum memory size is: IT5V: 128M Bytes.
IT5H: 512M Bytes.
l Support possible for single density or double density memory
modules.
l Memory modules supported: Refer to case 1 and case 2
above.
l Support possible for mixed use of single density and double
density modules.
l Since there is a lot of possible configurations, no table is given.
2-20
System DRAM
72- pin SIMM socket
Support FP DRAM
Support EDO DRAM
168-pin DIMM specifications
168-pin DIMM socket
Support FP DRAM
Support EDO DRAM
Support synchronous DRAM (SDRAM)
DRAM Error Check
Maximum memory size
Chapter 2
IT5V
4 SIMM
Yes
Yes
3.3V Unbuffered
2 DIMMs
Yes
Yes
Yes
No
128MB
IT5H
4 SIMM
Yes
Yes
3.3V Unbuffered
2 DIMMs
Yes
Yes
No
ECC/Parity
512MB
Installing the Mainboard
2-21
Table 2-1 72-pin SIMM Module Installation
【SIMM1, SIMM2】
1 st pair 【or 2 nd pair】
【SIMM3, SIMM4】
2 nd pair【or 1 st pair】
1Mx32【4Mx2】
2Mx32【8Mx2】
4Mx32【16Mx2】
8Mx32【32Mx2】
16Mx32【64Mx2】
Total memory size
8MB
16MB
32MB
64MB
128MB*
1Mx32【4Mx2】
8MB
2Mx32【8Mx2】
No
16MB
4Mx32【16Mx2】
module
32MB
8Mx32【32Mx2】
inserted
64MB
16Mx32【64Mx2】
128MB*
Since the installation described above is valid for the first pair as well as for the second pair, it
will not be repeated.
1Mx32【4Mx2】
16MB
1Mx32【4Mx2】
2Mx32【8Mx2】
24MB
4Mx32【16Mx2】
40MB
8Mx32【32Mx2】
72MB
16Mx32 【64Mx2】
136MB *
1Mx32【4Mx2】
24MB
2Mx32【8Mx2】
2Mx32【8Mx2】
32MB
4Mx32【16Mx2】
48MB
8Mx32【32Mx2】
80MB
16Mx32 【64Mx2】
144MB *
1Mx32【4Mx2】
40MB
4Mx32【16Mx2】
2Mx32【8Mx2】
48MB
4Mx32【16Mx2】
64MB
8Mx32【32Mx2】
96MB
16Mx32 【64Mx2】
160MB *
8Mx32【32Mx2】
1Mx32【4Mx2】
72MB
2Mx32【8Mx2】
80MB
4Mx32【16Mx2】
96MB
8Mx32【32Mx2】
128MB
16Mx32 【64Mx2】
192MB *
16Mx32【64Mx2】
1Mx32【4Mx2】
136MB *
2Mx32【8Mx2】
144MB *
4Mx32【16Mx2】
160MB *
8Mx32【32Mx2】
192MB *
16Mx32 【64Mx2】
256MB *
No
module
inserted
*: indicates that only IT5H supports this configuration.
Perhaps you have already found out the rules from the table above. This table,
we believe, contains all possible configurations. In fact, you just need to insert
two or four 72-pin SIMM modules in the socket to complete the installation.
2-22
Chapter 2
Table 2-2 168-pin DIMM Module Installation
【DIMM1】
1 st pair【or 2 nd pair】
【DIMM2】
2 nd pair【or 1 st pair】
Total memory size
No
1Mx64【8M】
8MB
module
2Mx64【16M】
16MB
inserted
4Mx64【32M】
32MB
8Mx64【64M】
64MB
16Mx64【128M】
128MB*
1Mx64【8M】
No
8MB
2Mx64【16M】
module
16MB
4Mx64【32M】
inserted
32MB
8Mx64【64M】
64MB
16Mx64【128M】
128MB*
Since the installation described above is valid for the first pair as well as for the second pair, it will not
be repeated.
1Mx64【8M】
16MB
1Mx64【8M】
2Mx64【16M】
4Mx64【32M】
8Mx64【64M】
16Mx64【128M】
2Mx64【16M】
24MB
4Mx64【32M】
40MB
8Mx64【64M】
72MB
16Mx64【128M】
136MB*
1Mx64【8M】
24MB
2Mx64【16M】
32MB
4Mx64【32M】
48MB
8Mx64【64M】
80MB
16Mx64【128M】
144MB*
1Mx64【4Mx2】
40MB
2Mx64【8Mx2】
48MB
4Mx64【16Mx2】
64MB
8Mx64【64M】
96MB
16Mx64【128M】
160MB*
1Mx64【4Mx2】
72MB
2Mx64【8Mx2】
80MB
4Mx64【16Mx2】
96MB
8Mx64【64M】
128MB
16Mx64【128M】
192MB*
1Mx64【4Mx2】
136MB
2Mx64【8Mx2】
144MB
4Mx64【16Mx2】
160MB
8Mx64【64M】
192MB
16Mx64【128M】
256MB*
*: indicates that only IT5H supports this configuration.
In fact, the table above shows that you just need to insert the DIMM module in
any of the two sockets to complete the installation of the memory.
Installing the Mainboard
2-23
Introduction of BIOS
3-1
Chapter 3 Introduction of BIOS
The BIOS is a program located on a Read-Only Memory chip on the
mainboard. This program will not be lost when you turn the computer off. This
program is also referred to as the boot program. It is the only channel for the
hardware circuit to communicate with the operating system. Its main function is
to manage the setup of the mainboard and interface cards parameters, including
simple parameters such as time, date, hard disk drive, as well as more complex
parameters such as hardware synchronization, device operating mode, CPU
SOFT MENU™ techniques, setup of CPU voltage and speed. The computer
will operate normally, or will operate at its best, only if all these parameters are
correctly configured through the BIOS.
M Don’t change the parameters inside the BIOS unless you know
what you are doing
The parameters inside the BIOS are used to setup the hardware
synchronization or the device operating mode. If the parameters are not
correct, they will produce errors, the computer will crash, and sometimes
you will even not be able to boot the computer after it has crashed. We
recommend that you do not change the parameters inside the BIOS unless
you are familiar with them. If you are not able to boot your computer
anymore, please refer to the section “Erase CMOS data” in Chapter 2.
When you start the computer, it is controlled by the BIOS program. The
BIOS first operates an auto-diagnostic for all the necessary hardware,
configures the parameters of the hardware synchronization, and detects all the
hardware. Only when these tasks are completed does it give up control of the
computer to the program of the next level, which is the operating system. Since
the BIOS is the only channel for hardware and software to communicate, it will
be the key factor to system stability, and to ensure that your system performs at
its best. After the BIOS has achieved the auto-diagnostic and auto-detection
operations, it will display the following message:
TO ENTER SETUP BEFORE BOOT PRESS CTRL-ALT-ESC OR DEL KEY
3-2
Chapter 3
Three to five seconds after the message is displayed, if you press the Del
key, or if you press simultaneously the Ctrl Alt Esc keys, you will access the
BIOS Setup menu. At that moment, the BIOS will display the following
message:
ROM PCI/ISA BIOS(XXXXXXXX)
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
!!CPU SOFT MENU!!
STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PCI & ONBOARD I/O SETUP
ESC : Quit
F10: Save & Exit Setup
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS
PASSWORD SETTING
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING
↑↓→← : Select Item
(Shift)F2: Change color
Description of each function
Fig 3 BIOS Setup main menu
In the BIOS Setup main menu of Figure 3, you can see several options.
We will explain these options step by step in the following pages of this chapter,
but let us first see a short description of the function keys you may use here:
l Press Esc to quit the BIOS Setup.
l Press ↑↓→← (up, down, left, right) to choose, in the main menu,
the option you want to confirm or to modify.
l Press F10 when you have completed the setup of BIOS parameters to
save these parameters and to exit the BIOS Setup menu.
l Press Page Up/Page Down or +/- keys when you want to modify the
BIOS parameters for the active option.
Introduction of BIOS
Computer
knowledge
3-3
CMOS DATA
Maybe you have heard somebody saying that their
CMOS DATA was lost. What is the CMOS? Is it
important? The CMOS is the memory used to store the
BIOS parameters that you have configured. This memory is
passive. You can read its data, and you can also store data
in it. But this memory has to be powered by a battery, in
order to avoid any loss of its data when the computer is
turned off. Since you may have to change the CMOS
battery when it is out of power and indoing so, you will
loose all CMOS data, therefore, we recommend that you
write down all the parameters of your hardware, or to put a
label with these parameters on your hard disk.
3-4
Chapter 3
¬ CPU setup【CPU SOFT MENU™ 】
The CPU can be setup through a programmable switch (CPU SOFT
MENU™ ), that replaces traditional manual hardware configuration. This
feature allows the user to complete more easily the installation procedures. You
can install the CPU without configuring any jumpers or switches. The CPU
must be setup according its specifications.
In the first option, you can press <F1> at any time to display all the items
that can be chosen for that option.
ROM PCI/ISA BIOS (XXXXXXXX)
!! CPU SOFT MENU!!
AWARD SOFTWARE, INC.
CPU Name Is
: Intel Pentium
MMX
CPU Type (Speed)
-Turbo Frequency
-External Clock
-Multiplier Factor
: 133 (66x2)
: Disable
: 66MHz
:2
CPU Power Plane
-Core Plane Voltage
-I/O Plane Voltage
: Dual Voltage
: 2.80v
: 3.30v
Esc : Quit
↑↓→← : Select
Item
F1 : Help
PU/PD/+/- : Modify
F5 : Old Values
(Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
Fig 3-1 CPU SOFT MENU™
CPU Name Is:
ä Intel Pentium
ä AMD K5
ä Cyrix 6x86
ä Cyrix 6x86MX
ä Intel Pentium MMX
ä AMD K6
ä Cyrix 6x86L
Introduction of BIOS
3-5
But when you boot the computer, the mainboard will automatically detect
the CPU brand and type.
CPU Operating Speed:
This option sets the CPU speed. Different CPU brands use different
techniques to indicate the CPU speed. For example, AMD and Cyrix use
P-Rating.
In this field, the CPU speed is indicated like this: CPU speed (external
clock x multiplier factor)
Select the CPU speed according the type and the speed of your CPU.
【Note 1】For Intel Pentium CPUs, you can choose the following settings:
ä 75 (50x1.5)
ä 90 (60x1.5)
ä 100 (66x1.5)
ä 120 (60x2)
ä 133 (66x2)
ä 150 (60x2.5)
ä 166 (66x2.5)
ä 200 (66x3)
【Note 2】For AMD-K5 CPUs from AMD, you can choose the
following P-Ratings:
ä PR75 (50x1.5)
ä PR90 (60x1.5)
ä PR100 (66x1.5)
ä PR120 (60x1.5)
ä PR133 (66x1.5)
ä PR166 (66x1.75)
【Note 3】For Cyrix 6x86 and 6x86L CPUs, you can choose the
following P-Ratings:
ä PR120+ (50x2)
ä PR133+ (55x2)
ä PR150+ (60x2)
ä PR166+ (66x2)
ä PR200+ (75x2)
【Note 4】User define external clock and multiplier factor:
ä User Define
/ External Clock:
ä 50MHz
ä 55MHz
ä 60MHz
ä 66MHz
ä 75MHz
ä 83MHz(If hardware
supports.)
/ Multiplier Factor:
You can choose the following multiplier factors:
ä 1.5
ä 1.75
ä 2.0
ä 2.5
ä 3.0
ä 3.5
3-6
Chapter 3
However, differences will exist because of the
various brands and types available.
Introduction of BIOS
3-7
Normally, we do not recommend that you use the “User Define” option to
setup CPU speed and multiplier factor. This option is for setup of future CPUs
whose specifications are still unknown. The specifications of all present CPUs
are included in the default settings. Unless you are very familiar with all CPU
parameters, it is very easy to make mistakes when you define by yourself the
external clock and the multiplier factor.
/ Turbo Frequency:
This item will only be displayed if your CPU external clock supports
Turbo mode.
The Turbo mode allows you to speed up the external clock by
approximately 2.5%. This feature is used to verify the design
flexibility. It is a very important tool for test units to verify CPU
stability. Do not use this feature.
ä Disable: CPU external clock is operating within the
normal limits.
ä Enable: CPU external clock is operating within the
limits of the Turbo mode.
Solution in case of booting problem due to invalid clock setup:
Normally, if the CPU external clock setup is wrong, you will not be able
to boot. In this case, turn the system off than on again. The CPU will
automatically use its standard parameters to boot. You can then enter BIOS
Setup again and set up the external clock.
When you change your CPU:
IT5 series mainboards have been designed in such a way that you can
turn the system on after having inserted the CPU in the socket without having to
configure any jumpers or DIP switches. But if you change your CPU, normally,
you just have to turn off the power supply, change the CPU and then, set up
the CPU parameters through CPU SOFT MENU™ . However, if the CPU
brand and type is the same, and if the new CPU is slower than the old one, we
offer you two methods to successfully complete the CPU change operation.
3-8
Chapter 3
Method 1: Setup up the CPU for the lowest speed for its brand. Turn the
power supply off and change the CPU. Then turn the system
on again, and set up the CPU parameters through CPU
SOFT MENU.
Method 2: Try turning the system on a few times (3~4 times) and the
system will automatically use its standard parameters to boot.
You can then enter BIOS SETUP again and set up the new
parameters.
Method 3: Since you have to open the computer case when you change
the CPU, it could be a good idea to use the CCMOS jumper
to erase the parameters of the original CPU and to enter
BIOS Setup to set up CPU parameters again.
Note :
The increase by 2.5% of the CPU speed is not a standard
feature of this product. It is only for use by our development
department to verify that the CPU is able to work normally
when CPU speed, operating temperature and power supply
are 2.5% higher or lower than the standard values. This is to
guarantee product stability. We require the manufacturer of
the Clock Generator to meet the demands of our
development department and to add a TURBO Frequency
feature used for testing purposes by our R&D department. Of
course, you can use this feature to test the stability of your
own system, but after you have tested the product, we
recommend that you set it back to its normal value in order to
guarantee system stability.
CPU Power Plane:
In the previous chapter we explained that the 586 CPUs can be divided
into two types: single voltage and dual voltage. This option will normally
auto-detect the type of your CPU, so you don’t need to make any changes.
ä Single Voltage: Single voltage CPU
ä Dual Voltage: Dual voltage CPU
ä Set up the voltage via CPU Marking
Introduction of BIOS
3-9
¤ When the CPU is single voltage, the following options will be
displayed to set up the voltage:
/ Plane voltage:
ä 3.52v :For Intel VRE standard CPUs and AMK-K5 or Cyrix
8x86 CPUs
ä 3.38v :For Intel STD and VR standards CPUs
¤ When the CPU is dual voltage, two options will be displayed to set
up Vcore and Vio plane voltage
/ Core Plane Voltage:
ä 2.90v :For AMD K6/200 CPU.
ä 2.80v :For Intel Pentium MMX, Cyrix 6x86L and 6x86MX
CPU.
ä 2.70v :For future CPUs.
ä 2.50v :For future CPUs. (If hardware supports.)
ä 3.20v :For AMD K6/233 and future CPUs. (If hardware
supports.)
/ I/O Plane Voltage:
ä 3.52v :Reserved
ä 3.38v :Some CPUs from AMD need this I/O Plane Voltage.
ä 3.30v :For most of the dual voltage CPUs (default) currently
available.
The CPU voltage must be set according to voltage indications via CPU
Marking given by the manufacturer. Since the CPU voltage will decrease as
technology improves, we have reserved some options according to what we
can forecast from present documentation. We cannot give you detailed
information about the voltage required by each kind of CPU in this chapter.
For the correct values, refer to appendices B, C and D.
¤ Set up the voltage via CPU Marking:
If you consider using the Appendices to set up as too complicated, you
can use the CPU Marking: within the options under “CPU Marking
Is,” set up via CPU Marking on the CPU.
3-10
Chapter 3
Notes:
1. If your CPU is a dual voltage one and that the voltage set up is
3.52V, our mainboard features a hardware protection circuit that
will lower the voltage between 2.8V and 2.9V, which is within the
CPU operating voltage limits.
2. The voltage value given is the central value. For example, the voltage
range of 3.52V is 3.45V to 3.6V. The central voltage value between
3.45V and 3.6V is 3.52V.
Attention: After setting up the parameters and you leave the BIOS SETUP,
and you have verified that the system can be turned on, do not
press the Reset button or turn off the power supply. Otherwise
the BIOS will not read correctly, the parameters will fail and you
must enter CPU SOFT MENU™ again to set up the parameters
all over again.
Introduction of BIOS
3-11
- Standard CMOS Setup Menu
It is the basic configuration parameters of the BIOS. These parameters
include the settings of date, hour, VGA card, FDD and HDD.
Date(mm:dd:yy) : Wed,Jul 10 1996
Time(hh:mm:ss) : 14:53:31
HARDS DISKS Type
SIZE
CYLS
Primary Master : None
0
0
Primary Slave : None
0
0
Secondar Master : None
0
0
y
Secondar Slave : None
0
0
y
HEAD
0
0
0
0
Drive A: 1.44M,3.5IN.
Drive B: None
Floppy 3Mode Support: Disable
Video: EGA/VGA
Halt On: All Errors
Esc: Quit
F1: Help
↑↓→← : Select Item
(Shift)F2: Change color
PRECOMP LANDZ
0
0
0
0
0
0
0
0
SECTOR
0
0
0
MODE
----------------
0
------
Base Memory : 640K
Extended Memory : 3328K
Expanded Memory :
0K
Other Memory : 128K
----------------------------------------Total Memory: 4096K
PU/PD/+/- : Modify
F3 : Toggle Calendar
Fig 3-2 Standard CMOS Setup Menu
l
Set up of HDD operating mode
【NORMAL, LBA, LARGE】
Since old operating systems were only able to support HDD whose
capacity was not bigger than 528MB, any hard disk with more than 528MB
was unusable. AWARD BIOS features a solution to this problem: you can,
according to your operating system, choose three operating modes:
NORMAL, LBA or LARGE.
ä Normal mode:
Standard normal mode supports hard disks of 528MB or
less. This mode directly uses positions indicated by Cylinders
(CYLS), Heads, and Sectors to access data.
3-12
Chapter 3
ä LBA (Logical Block Addressing) mode:
LBA mode supports hard disk drives up to 8.4Giga. This
mode uses a different method to calculate the position of disk
data to be accessed. It translates Cylinders (CYLS), Heads
and Sectors into a logical address where data are located.
The Cylinders, Heads, and Sectors displayed in this menu do
not reflect the actual structure of the hard disk, they are just
reference values used to calculate actual positions. Currently,
all high capacity hard disks support this mode, that’s why we
recommend you use this mode. The HDD
AUTODETECTION option in the Main Menu will
automatically detect the parameters of your hard disk and the
mode supported.
ä LARGE Mode:
When the number of cylinders (CYLs) of the hard disk
exceeds 1024 and DOS is not able to support it, or if your
operating system does not support LBA mode, you should
select this mode.
l FDD supporting 3 Mode:
3 Mode floppy disk drives (FDD) are 3 1/2” drives used in Japanese
computer systems. If you need to access data stored in this kind of floppy,
you must select this mode, and of course you must have a 3 Mode floppy
drive.
2 For further information about HDD installation, refer to Appendix E.
Introduction of BIOS
3-13
® BIOS Features Setup Menu
BIOS Features Setup Menu has already been set for maximum operation.
If you do not really understand each of the options in this menu, we
recommend you use default values.
In each item, you can press <F1> at any time to display all the options for
this item.
ROM PCI/ISA BIOS (XXXXXXXX)
BIOS FEATURES SETUP
AWARD SOFTWARE, INC.
Virus Warning
CPU Internal Cache
External Cache
Quick Power on Self Test
Boot Sequence
Swap Floppy Drive
Boot Up Floppy Se ek
Boot Up NumLock Status
IDE HDD Block Mode
Typematic Rate Setting
Typematic Rate(Chars/Sec)
Typematic Delay (Msec)
Security Option
PCI/VGA Palette Snoop
: Disabled
: Enabled
: Enabled
: Enabled
: A,C, SCSI
: Disabled
: Disabled
: On
: Enabled
: Enabled
: 30
: 250
: Setup
: Disabled
Video BIOS Shadow
C8000-CBFFF Shadow
CC000-CFFFF Shadow
D0000-D3FFF Shadow
D4000-D7FFF Shadow
D8000-DBFFF Shadow
DC000-DFFFF Shadow
OS Select For DRAM > 64MB
: Non-OS2
Esc : Quit
F1 : Help
F5 : Old Values
F6 : Load BIOS
Defaults
F7 : Load Setup
Defaults
: Enabled
: Disabled
: Disabled
: Disabled
: Disabled
: Disabled
: Disabled
↑↓→← : Select Item
PU/PD/+/- : Modify
(Shift)F2 : Color
Fig 3-3 BIOS Features Setup
Virus Warning:
This item can be set as Enable or Disable.
When this feature is enabled, if there is any attempt from a software or an
application to access the boot sector or the partition table, the BIOS will
warn you that a boot virus is attempting to access to the hard disk.
3-14
Chapter 3
CPU Internal Cache:
This item is used to Enable or to Disable the CPU internal cache. When
the cache is set at Disable, it is much slower, so the default setting for this
item is Enable. Some old and very bad programs will make the computer
malfunction or crash if the system speed is to high. In that case, you
should Disable this feature.
CPU External Cache:
This item is used to enable or to disable the CPU external cache. When
the external cache is enabled, the system works faster. The default is
Enable.
Quick power on self test:
After the computer has been powered on, the BIOS of the mainboard
will run a series of tests in order to check the system and its peripherals.
If the Quick power on self test feature is Enable, the BIOS will simplify
the test procedures in order to speed up the boot process. The default is
Enable.
Boot Sequence:
When the computer boots up, it can load the operating system from
floppy drive A:, hard disk drive C:, SCSI disk drive or CD-ROM. There
are many options for the boot sequence:
ΠA, C, SCSI
• C, A, SCSI
Ž C, CD-ROM, A
• CD-ROM, C, A
• D, A, SCSI (at least 2 IDE HDD can be used)
‘ E, A, SCSI (at least 3 IDE HDD can be used)
’ F, A, SCSI (at least 4 IDE HDD can be used)
“ SCSI, A, C
Ò SCSI, C, A
Ó A, SCSI, C
Swap Floppy Drive:
This item can be set as Enable or Disable.
When this feature is enabled, you don’t need to open the computer case
to swap the position of floppy disk drive connectors. Drive A: can be set
Introduction of BIOS
as drive B:, and drive B: can be set as drive A:.
3-15
3-16
Chapter 3
Boot Up Floppy Seek:
When computer boots up, the BIOS detects if the system has FDD or not.
When this item is enabled, if the BIOS detects no floppy drive, it will
display a floppy disk drive error message. If this item is disabled, the
BIOS will skip this test.
Boot Up NumLock Status:
ä On: At boot up, the Numeric Keypad is in numeric mode.
ä Off: At boot up, the Numeric Keypad is in cursor control mode.
IDE HDD Block Mode:
This item can be set as Enable or Disable.
Most of new hard disk drives (IDE drives) support multi-sector transfers.
This feature speeds up hard disk drive access performance and reduces
the time necessary to access data. When this item is enabled, the BIOS
will automatically detect if your hard disk drive supports this feature or not,
and will choose the right settings for you.
2 For further details about hard disk drive installation, refer to appendix E.
Typematic Rate Setting:
This item allows you to adjust the keystroke repeat rate. When enabled,
you can set the two keyboard typematic control that follow (Typematic
Rate and Typematic Rate Delay). If this item is disabled, the BIOS will
use the default setting.
Typematic Rate (Chars/Sec):
When you press a key continuously, the keyboard will repeat the keystroke
according to the rate you have set. (Unit: characters/second)
Typematic Rate Delay (Msec):
When you press a key continuously, if you exceed the delay you have set
here, the keyboard will automatically repeat the keystroke according a
certain rate. (Unit: milliseconds)
Introduction of BIOS
3-17
Security Option:
This option can be set to System or to Setup.
After you have created a password through PASSWORD SETTING,
this option will deny access to your system (System) or modification of
computer setup (BIOS Setup) by unauthorized users.
ä SYSTEM: When you choose System, a password is required each
time the computer boots up. If the correct password is not given, the
system will not start.
ä SETUP: When you choose Setup, a password is required only when
accessing the BIOS Setup. If you have not set a password in the
PASSWORD SETTING option, this option is not available.
Notice: Don’t forget your password. If you forget the password, you
will have to open the computer case and clear all information in
the CMOS before you can start up the system. But doing this,
you have to reset all the options you had set up before.
PCI /VGA Palette Snoop:
This option allows the BIOS to preview VGA Status, and to modify the
information delivered from the Feature Connector of the VGA card to the
MPEG Card. This option can solve the display inversion to black after
you have used the MPEG card.
OS Select For DRAM > 64MB:
When the system memory is bigger than 64MB, the communication
method between the BIOS and the operating system will differ from one
operating system to another. If you use OS/2, select OS2; if you choose
another operating system, select Non-OS2.
Video BIOS Shadow:
This option is used to define whether the BIOS on the video card uses
shadow feature or not. You should set this option to Enable, otherwise
the display performance of the system will greatly decrease.
3-18
Chapter 3
Shadowing address ranges (C8000-CBFFF Shadow):
This option allows you to decide if the memory block (BIOS) of an
interface card at the address C8000-CBFFF uses the shadow feature or
not. If you have no interface card using this memory block, don’t enable
this option.
Shadowing address ranges (CC000-CFFFF Shadow):
This option allows you to decide if the memory block (BIOS) of an
interface card at the address CC000-CFFFF uses the shadow feature or
not. If you have no interface card using this memory block, don’t enable
this option.
Shadowing address ranges (D0000-D3FFF Shadow):
This option allows you to decide if the memory block (BIOS) of an
interface card at the address D0000-D3FFF uses the shadow feature or
not. If you have no interface card using this memory block, don’t enable
this option.
Shadowing address ranges (D4000-D7FFF Shadow):
This option allows you to decide if the memory block (BIOS) of an
interface card at the address D4000-D7FFF uses the shadow feature or
not. If you have no interface card using this memory block, don’t enable
this option.
Shadowing address ranges (D8000-DBFFF Shadow):
This option allows you to decide if the memory block (BIOS) of an
interface card at the address D8000-DBFFF uses the shadow feature or
not. If you have no interface card using this memory block, don’t enable
this option.
Shadowing address ranges (DC000-DFFFF Shadow):
This option allows you to decide if the memory block (BIOS) of an
interface card at the address DC000-DFFFF uses the shadow feature or
not. If you have no interface card using this memory block, don’t enable
this option.
Introduction of BIOS
Computer
knowledge
3-19
SHADOW
What is the SHADOW? The BIOS of standard video or
interface cards is stored in ROM, and it is often very slow.
With the Shadow feature, the CPU reads the BIOS on the
VGA card and copies it into RAM. When the CPU runs this
BIOS, the operation is speeded up.
3-20
Chapter 3
¯ Chipset Features Setup Menu
The Chipset Features Setup Menu is used to modify the contents of the
buffers in the chipset on the mainboard. Since the parameters of the buffers are
closely related to hardware, if the setup is not correct or false, the mainboard
will become unstable or you will not be able to boot up. If you don’t know the
hardware very well, use default values (use the LOAD SETUP DEFAULTS
option).
ROM PCI/ISA BIOS (XXXXXXXX)
CHIPSET FEATURES SETUP
AWARD SOFTWARE, INC.
Auto Configuration
DRAM Timing
DRAM RAS# Precharge Time
DRAM R/W Leadoff Timing
Fast RAS# to CAS# Delay
DRAM Read Timing (EDO/FP)
DRAM Write Timing
Fast MA to RAS# Delay CLK
Fast EDO Path Select
Refresh RAS# Assertion
ISA Bus Clock
: Enabled
: 60ns
:4
:6
:3
: x222/x333
: x222
:1
: Disabled
: 5 Clks
: PCICLK/3
Delayed Transaction
SDRAM (CAS Lat/RAS-to-CAS)
System BIOS Cacheable
Video BIOS Cacheable
8 Bit I/O Recovery Time
: 3/3
: Disabled
: Enabled
:1
Esc : Quit
16 Bit I/O Recovery Time
Memory Hole At 15M-16M
Peer Concurrency
Passive Release
:1
: Disable
: Enabled
: Enabled
F1 : Help
F5 : Old Values
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
: Enabled
↑↓→←: Select
Item
PU/PD/+/- : Modify
(Shift)F2 : Color
Fig 3-4 Chipset Features Setup
You can use the arrow keys to move between the items. Use "PgUP",
"PgDn", "+" and "-" to change the values. When you have finished setting up
the chipset, press "ESC" to go back to the main menu.
Auto Configuration:
This option allows (Enable) or prevents (Disable) the BIOS from using
default values for Auto Configuration. The BIOS default is Enable.
ä When you select Enable, the BIOS will automatically use the values
related to DRAM. You will not be able to set up the following
Introduction of BIOS
options.
3-21
3-22
Chapter 3
ä When you select Disable, you can manually set up DRAM options.
Attention: Unless you are very familiar with your computer and with the
DRAM configuration and speed, we recommend you not
change the DRAM options but enable this option.
DRAM settings:
The other DRAM settings are all closely related to hardware. If you do
not understand this very well, don’t make any changes. Our BIOS is able
to autodetect the characteristics of your DRAM and to choose the best
settings.
Memory Hole At 15M-16M:
This option is used to free up the 15M-16M memory block. Some
special peripherals need to use a memory bloc located between 15M and
16M, and this memory block has a size of 1M. We recommend that you
disable this option.
DRAM ECC/PARITY SELECT:
This option is used to select the DRAM check feature.
ä ECC (Error check and correction)
ä PARITY (Parity error check)
Only IT5H has this feature.
Memory Parity/ECC Check:
This option is used to enable or disable memory check feature.
ä Enable: Enable memory check feature
ä Disable: Disable memory check feature
ä Auto: Automatically enable or disable memory check feature. If your
DRAM module features a Parity bit, it will automatically
enable this feature; if not, it will automatically disable the
feature.
Only IT5H mainboard has this feature.
There are small differences in the chipset feature setup according to
different mainboard models, but this has no influence upon performance. Our
default setup should be the best one. That is the reason why we do not
Introduction of BIOS
describe all the features of this menu.
3-23
3-24
Chapter 3
° Power Management Setup Menu
The difference between Green PCs and traditional computers is that Green
PCs have a power management feature. With this feature, when the computer is
powered on but inactive, the power consumption is reduced in order to save
energy. When the computer operates normally, it is in Normal mode. In this
mode, the Power Management Program will control the access to video, parallel
ports, serial ports and drives, and the operating status of the keyboard, mouse
and other device. These are referred to as Power Management Events. In cases
where none of these events occur, the system enters the power saving mode.
When one of the controlled events occurs, the system immediately returns to
normal mode and operates at its maximum speed. Power saving modes can be
divided into three modes according to their power consumption: Doze Mode,
Standby Mode , and Suspend Mode. The four modes proceed in the following
sequence:
Normal Mode===> Doze Mode===> Standby Mode===> Suspend Mode
The system consumption is reduced according the following sequence:
Normal
>
Doze >
Standby
>
Suspend
1. In the Main Menu, select "Power Management Setup" and press "Enter". The
following screen is displayed:
ROM PCI/ISA BIOS (XXXXXXXX)
POWER MANAGEMENT SETUP
AWARD SOFTWARE, INC.
Power Management
PM Control by APM
Video Off Method
Video Off Option
Modem Use IRQ
: Use Define
: Yes
: V/H SYNC+Blank
: Susp, stby --> off
: NA
Doze Mode
Standby Mode
Suspend Mode
HDD Power Down
: Disable
: Disable
: Disable
: Disable
** Wake Up Events In Doze & St andby **
IRQ 3 (Wake-Up Event)
: ON
IRQ 4 (Wake-Up Event)
: ON
IRQ 8 (Wake-Up Event)
: OFF
IRQ 12 (Wake-Up Event)
: ON
** Power Down & Resume Event **
IRQ 3 (COM2)
: ON
IRQ 4 (COM1)
: ON
IRQ 5 (LPT2)
: ON
IRQ 6 (Floppy Disk)
: ON
IRQ 7 (LPT1)
: ON
IRQ 8 (RTC Alarm)
: OFF
IRQ 9 (IRQ2 Redir)
: OFF
IRQ 10 (Reserved)
: OFF
IRQ 11 (Reserved)
: OFF
IRQ 12 (PS/2 Mouse)
: ON
IRQ 13 (Coprocessor)
: ON
IRQ 14 (IDE-1)
: ON
IRQ 15 (IDE-2)
: ON
Esc : Quit
↑↓→←: Select Item
F1 : Help
PU/PD/+/- : Modify
F5 : Old Values
(Shift)F2 : Color
F6 : Load BIOS Defaults
Introduction of BIOS
3-25
F7 : Load Setup Defaults
Fig 3-5 Power Management Setup Menu
3-26
Chapter 3
2. Use arrow keys to go to the item you want to configure. To change the
settings, use "PgUP", "PgDn", "+" and "-".
3. After you have configured the Power Management feature, press “Esc” to
go back to the Main Menu.
We are now going to briefly explain the options in this menu:
Power Management:
Four options:
ä
User Define
User Define defines the delay for accessing the power modes.
ä
Disable
Disable Power Management features.
ä
Min Saving
When the three saving modes are enabled, the system is set up for
minimum power savings.
Doze = 1 hour
Standby = 1 hour
Suspend = 1 hour
ä
Max Saving
When the three saving modes are enabled, the system is set up for
maximum power savings.
Doze = 1 minute
Standby = 1 minute
Suspend = 1 minute
PM Control by APM:
Power Management is completely controlled by the APM.
APM stands for Advanced Power Mangement, it is a power management
standard set by Microsoft, Intel and other major manufacturers.
Video Off Method:
Three video off methods are available: "Blank", "V/H SYNC+Blank" and
"DPMS". The default is "V/H SYNC+Blank".
If this setting does not shut off the screen, select “Blank”. If your monitor
and video card support DMPS standard, select “DPMS”.
Introduction of BIOS
3-27
Video Off Option:
Select the saving mode in which the video is switched off.
ä
Always On
The video will never be switched off in no saving mode.
ä
All Modes Off
The video will be switched off in all saving modes.
ä
Suspend or Suspend (Susp,Stby --> Off)
The video will only be switched off in Standby or Suspend mode.
ä
Suspend (Suspend --> Off)
The video will only be switched off in Suspend mode.
Modem Use IRQ:
If you use a modem, enter which IRQ it is using so that the APM can
control it.
HDD Power Down:
If the system has not accessed data on the hard disk drive during the
specified time period, the engine of the HDD will stop in order to save
electricity.
You can set 1 to 15 minutes or select Disable according to your use of
the HDD.
Doze Mode:
When the setting selected for "Power Management" is "User Define", you
can define for this mode any delay from 1 minute to 1 hour. If no power
management event occurs during this time period, meaning that computer
is inactive during this period, the system will enter the Doze power saving
mode.
If this mode is disabled, the system will enter the next mode in the
sequence (Standby or Suspend mode).
3-28
Chapter 3
Standby Mode:
When the setting selected for "Power Management" is "User Define", you
can define for this mode any delay from 1 minute to 1 hour. If no power
management event occurs during this time period, meaning the computer
is inactive during this period, the system will enter the Standby power
saving mode.
If this mode is disabled, the system will enter the next mode in the
sequence (Suspend mode).
Suspend Mode:
When the setting selected for "Power Management" is "User Define", you
can define for this mode any delay from 1 minute to 1 hour. If no power
management event occurs during this time period, meaning the computer
is inactive during this period, the system will enter the Suspend power
saving mode. The CPU stops working completely.
If this mode is disabled, the system will not enter the Suspend mode.
Wake-Up Events:
When system is in Doze or Standby power saving mode, it will check for
the wake-up events (IRQ4, 3, 8, 12) defined. When it detects an activity
of one of the IRQs defined, it exits the power saving mode and returns to
full operation mode (Normal).
Wake-up events are all operations or signals that cause the system to
recover normal operation.
Power Down & Resume Events:
When one of the power down and resume events (IRQ3-15) speficied
occurs, the count down made for entry in power saving mode goes back
to zero.
Since the computer will enter a power saving mode only after an inactivity
delay specified (time speficied for Doze, Standby and Suspend modes)
and after it has no activity, during this time period, any event will cause the
computer to re-count the time elapsed. Resume events are operations or
signals that cause the computer to resume time counting.
Introduction of BIOS
3-29
± PCI & Onboard I/O Setup
In this menu, you can change the INT# and IRQ of the PCI bus and the
onboard I/O device, I/O port address and other hardware settings.
ROM PCI/ISA BIOS (XXXXXXXX)
PCI & ONBOARD I/O SETUP
AWARD SOFTWARE, INC.
Reset PnP Config Data
PCI PnP BIOS Auto-Config
PCI IRQ Actived By
1st Available IRQ
2nd Available IRQ
3rd Available IRQ
4th Available IRQ
: Disabled
: Disabled
: Level
: 10
: 11
:9
:5
PCI IDE Card 2nd Channel
PCI IDE Card IRQ Map to
Primary IDE INT#
Secondary IDE INT#
: Enabled
: PCI-AUTO
:A
:B
Onboard USB Controller
Onboard IDE-1 Controller
-Master Drive PIO Mode
: Disabled
: Enabled
: Auto
-Slave Drive PIO Mode
Onboard IDE-2 Controller
-Master Drive PIO Mode
-Slave Drive PIO Mode
: Auto
: Enabled
: Auto
: Auto
Onboard PS/2 Mouse
Onboard FDD Controller
Onboard Serial Port 1
Onboard Serial Port 2
-Onboard IR Function
-IR Duplex Mode
Onboard Parallel Port
-Parallel Port Mode
-ECP Mode Use DMA
Esc : Quit
F1 : Help
F5 : Old Values
F6 : Load BIOS Defaults
F7 : Load Setup
Defaults
: Enabled
: Enabled
: 3F8/IRQ4
: 2F8/IRQ3
: IrDA
: Half
: 378/IRQ7
: ECP+EPP1.9
:3
↑↓→← : Select
Item
PU/PD/+/- : Modify
(Shift)F2 : Color
Fig 3-6 PCI & Onboard I/O Setup
Reset PnP Config Data:
If you want to clear ESCD data next time you boot up, and ask the BIOS
to reset the settings for the Plug & Play ISA Card and the PCI Card, select
Enabled. But the next time you boot up, this option will automatically be set
as Disabled.
Computer
Knowledge
ESCD (Extended System Configuration Data)
The ESCD contains the IRQ, DMA, I/O Port, Memory
information of the system. This is a specification and a feature
specific to Plug & Play BIOS.
3-30
Chapter 3
PCI PnP BIOS Auto-Config:
This option enables or disables the BIOS capability to automatically assign
IRQs. The BIOS default is Disable.
When you select Enable, the BIOS will automatically assign the correct
IRQ to the interrupt number (INT#) of the PCI slots. When this option is
disabled, you have to assign IRQs used by the interrupt number (INT#) of
the PCI slots.
Xth Available IRQ:
You can select four IRQs out of the 10 listed (IRQ3, 4, 5, 7, 9, 10, 11, 12,
14, 15) to be assigned for use by the interrupt number (INT#) of the PCI
slot.
1st Available IRQ:
This means that the first interrupt number (INT#) found on the PCI bus
will use this IRQ. That is, this IRQ will be assigned to the first interrupt
number (INT#) found on the PCI bus.
2nd Available IRQ:
This means that the second interrupt number (INT#) found on the PCI
bus will use this IRQ. That is, this IRQ will be assigned to the second
interrupt number (INT#) found on the PCI bus.
The third and the fourth available IRQ will be assigned in
sequence to the third and the fourth interrupt numbers (INT#)
found on the PCI bus.
PCI IDE Card 2nd Channel:
This option can be enabled or disabled. BIOS default is Enable.
Since this channel uses IRQ15, if you want to use this channel, you have
to enable this option to make the BIOS assign IRQ15 to this channel.
PCI IDE Card IRQ Map to:
Three options are available for this item: PCI Auto, PCI-slotX and ISA.
ä PCI-Auto: The onboard BIOS auto-detects which PCI slot has an
IDE card inserted in.
Introduction of BIOS
3-31
ä PCI-slotX: Some old PCI IDE cards cannot be detected by the
BIOS. If the onboard BIOS cannot detect a PCE IDE card, you
have to specify on which PCI slot the IDE card is inserted, to make
the BIOS assign IRQ14 for use by the interrupt number (INT#) of
this PCI slot.
ä ISA: If you select ISA, it means that your PCI IDE card features a
“paddleboard” and a cable that can be connected to IRQ on the ISA
slot, because the BIOS will not assign any IRQ to this PCI slot.
Attention: Primary Channel and Secondary Channel : The BIOS needs
two independent interrupt number (INT#) lines to be
allocated to the PCI IDE card. Be careful not to choose twice
the same interrupt number (INT#).
Note:
Since the interrupt number of the PCI slot is connected
according the design described below, there are some limitations,
be careful.
+ The INT#A signal of the first PCI slot, the INT#B signal of
the second PCI slot, the INT#C signal of the third PCI slot
and the INT#D signal of the fourth PCI slot, are the same,
so be careful not to use them simultaneously.
+ The INT#B signal of the first PCI slot, the INT#C signal of
the second PCI slot, the INT#D signal of the third PCI slot
and the INT#A signal of the fourth PCI slot, are the same,
so be careful not to use them simultaneously.
+ The INT#C signal of the first PCI slot, the INT#D signal of
the second PCI slot, the INT#A signal of the third PCI slot
and the INT#B signal of the fourth PCI slot, are the same,
so be careful not to use them simultaneously.
+ The INT#D signal of the first PCI slot, the INT#A signal of
the second PCI slot, the INT#B signal of the third PCI slot
and the INT#C signal of the fourth PCI slot, are the same,
so be careful not to use them simultaneously.
On Board USB Controller:
This is to Enable or Disable the onboard Universal Serial Bus (USB)
controller.
3-32
Chapter 3
Onboard PS/2 Mouse:
This is to Enable or Disable the PS/2 Mouse. When in Enable, IRQ 12 is
used.
On Board FDD Controller:
This is to Enable or Disable the Onboard FDD Controller.
On board Serial Port 1:
This is used to specify the I/O address and IRQ of Serial Port 1. Five
options are available: Disable, 3F8h/IRQ4, 2F8h/IRQ3, 3E8h/IRQ4 or
2E8h/IRQ3.
On board Serial Port 2:
This is used to specify the I/O address and IRQ of Serial Port 2. Five
options are available: Disable, 3F8h/IRQ4, 2F8h/IRQ3, 3E8h/IRQ4 or
2E8h/IRQ3.
Attention: Do not select the same I/O address and IRQ for the two
serial ports, otherwise the serial ports will not be able to
operate normally.
/ Onboard IR Function:
Onboard serial port 2 can support IR (Infrared) function. Three
options are available:
ä Disable: No support for IR function.
ä IrDA (HPSIR) mode.
ä ASK IR (Amplitude Shift Keyed IR) mode.
/ IR Duplex Mode:
Set the IR mode as Half or Full. Default is Half.
/ IR Tr/Re Polarity:
Set IR transmission/reception polarity as High or Low.
On board parallel Port:
Set the I/O address and IRQ of the onboard parallel port. Four options
are available: Disable, 3BCh/IRQ7, 278h/IRQ5 and 378h/IRQ7. Default
is 378h/IRQ7.
Introduction of BIOS
3-33
/ Parallel Port Mode:
Can be set as EPP v.1.7, EPP v. 1.9, ECP, ECP+EPP 1.7,
ECP+EPP 1.9 or Normal (SPP) mode. Default is Normal (SPP)
mode.
/ ECP Mode Use DMA:
When the mode selected for the onboard parallel port is ECP, the
DMA channel selected can be Channel 1 or Channel 3.
Onboard IDE-1 Controller:
Onboard PCI IDE 1 controller can be set as Enable or Disable.
/ Master drive PIO Mode:
ä Auto: the BIOS can auto-detect the PIO mode of the HDD in
order to set its data transfer rate. (Default)
ä Mode 0~Mode 4: User can specify the PIO mode of the HDD
in order to set its data transfer rate.
/ Slave drive PIO Mode:
ä Auto: the BIOS can auto-detect the PIO mode of the HDD in
order to set its data transfer rate. (Default)
ä Mode 0~Mode 4: User can specify the PIO mode of the HDD
in order to set its data transfer rate.
Onboard IDE-2 Controller:
The onboard IDE-2 controller can be set at Enable of Disable.
/ Master drive PIO Mode:
ä Auto: the BIOS can auto-detect the PIO mode of the HDD
installed in order to set its data transfer rate. (Default)
ä Mode 0~Mode 4: User can specify the PIO mode of the HDD
in order to set its data transfer rate.
/ Slave drive PIO Mode:
ä Auto: the BIOS can auto-detect the PIO mode of the HDD
installed in order to set its data transfer rate. (Default)
ä Mode 0~Mode 4: User can specify the PIO mode of the HDD
in order to set its data transfer rate.
3-34
Computer
knowledge
Chapter 3
MODE 0~4 reflects the HDD data transfer rate. The higher
the MODE value is, the better is the HDD data transfer rate.
But it does not mean that you can select the highest MODE
value just as you like, you first have to be sure that your
HDD supports this MODE, otherwise the hard disk will not
be able to operate normally.
2 For further information about HDD installation, refer to Appendix E.
Introduction of BIOS
3-35
² Load BIOS Defaults
BIOS defaults are the reference settings that allow your system to work at
a comparatively low performance. When you choose the option, the following
message is displayed:
“Load BIOS Defaults (Y/N)? N”
If you want to use BIOS default values, press “Y”, than <Enter>.
³ Load Setup Defaults
Setup defaults are the settings that allow your system to operate at its
highest performance. When you choose this option, the following message is
displayed:
“Load Setup Defaults (Y/N)? N”
If you want to use BIOS Setup default values, press “Y”, than <Enter> to
complete the loading of the settings for best performance.
You should first load the best settings, than enter the CPU Soft Menu to
set up CPU parameters, otherwise the BIOS will replace set parameters by
default parameters.
3-36
Chapter 3
´ Password Setting
This option allows you to set a password required to start the system
(System) or to access to the BIOS (Setup).
After you have set a password through the PASSWORD SETTING
option, you can enter the Security Option in the “BIOS Features Setup Menu”
to select the security level in order to prevent any unauthorized access.
Password setting procedure:
When you choose the Password setting option, the following
message is displayed:
“Enter Password:“
Type your password. When complete, press <Enter>. The following
message is displayed:
“Confirm Password:“
Type your password again. When complete, press <Enter>. The
password setting is completed.
Password clearing procedure:
When you select the Password setting option, the following message
is displayed:
“Enter Password:“
Press <Enter>, the message “Password Disable” is displayed. Press a
key. The password clearing procedure is completed.
Notice:
Do not forget your password. If you forget it, you will have to
open the computer case, clear the contents of the CMOS,
and boot the system up again. But doing this, you must reset
all your settings.
Introduction of BIOS
3-37
µ IDE HDD Auto Detection
After you have installed the hard disk, in old systems, you had to know
the hard disk specifications, such as the number of cylinders, heads and sectors,
and to enter the relevant information into the hard disk information section. If
the CMOS data were erased, and you had forgotten the hard disk
specifications, it was a great problem. But now, you can use this option to
autodetect the hard disk type and specifications, and the BIOS will
automatically detect all the relevant information and place them in the Hard
Disk data section of the Standard CMOS Setup Menu, in order to allow you
to use your hard disk.
Quick Installation
A-1
Appendix A Quick Installation
Appendix A will give you a simplified installation procedure, in order
to allow you to install tour mainboard quickly and correctly.
If you need further information or if you need to change some other settings,
read from Chapters 1.
Installing the CPU:
Lift up the lever of the CPU socket, insert your
CPU on the socket, and lower the lever back in position. Don’t worry, if you
don’t respect the correct orientation, you will not be able to insert the CPU.
Adjusting CPU voltage and speed:
According to your CPU
voltage and speed, set up the CPU in the CPU SOFT MENU™ of the BIOS
SETUP. For information about your CPU, refer to appendices B, C or D, and
to information labeled on the CPU itself.
Installing DRAM:
SIMM1~SIMM4,DIMM1~DIMM2- Since
Pentium are 64-bit CPUs, you have to use two 72-pin DRAM modules, or
one 168-pin DRAM module. Refer to the scenarios listed below to install your
DRAM modules.
Scenario 1: Two identical 72-pin DRAM modules:
Insert your DRAM modules into SIMM1 and SIMM2
memory banks.
Scenario 2: Four identical 72-pin DRAM modules:
Insert your DRAM modules into SIMM1, SIMM2,
SIMM3 and SIMM4 memory banks.
Scenario 3: Four DRAM modules, identical by pairs:
Insert two identical DRAM modules into SIMM1 and
SIMM2, and the other two identical DRAM modules
into SIMM3 and SIMM4.
A-2
Appendix A
For other configurations, please refer to the section dealing with
system memory installation in Chapter 2.
Installing FDD:
FDC- Connect one end of the 34-pin cable that
comes with the drive to the FDD connector, and the other end of the cable to
the FDC pin connector on the mainboard.
Note: Be sure that the red line on the cable connects to the first pin of the
connectors.
Installing HDD:
IDE1- Connect one end of the 40-pin cable that
comes with the drive to the HDD connector, and the other end to IDE1 pin
connector on the mainboard.
Note: Be sure that the red line on the cable connects to the first pin of the
connectors.
Installing CD-ROM Drive:
IDE2- Connect one end of the 40-pin
cable that comes with the drive to the CD-ROM connector, and the other end
to the IDE2 pin connector on the mainboard.
Note: Be sure that the red line on the cable connects to the first pin of the
connectors.
Installing parallel port:
LPT- Connect the 26-pin cable that
comes with the hardware to the LPT connector on the mainboard.
Installing serial port:
COM1- Connect the 10-pin cable that comes
with the hardware to connector COM1 on the mainboard.
COM2- Connect the other 10-pin cable to connector COM2 on the
mainboard.
Attach the bracket of Parallel Port, Serial Port and PS2 Mouse on the
Quick Installation
computer case.
A-3
A-4
Appendix A
Installing Keylock connector:
Watch the pin position and the
orientation
PN1 - There is a specific orientation for pin 1 to Pin 5. Insert the five-threads
keylock cable into correct pins of connector PN1 on the mainboard.
Pin number
1
2
3
4
5
Name of the signal or signification
+5VDC
No connection
Ground
Keyboard inhibit Signal
Ground
Watch the pin position and the
orientation
PN1 - There is a specific
orientation for pin 7 and pin 8. Connect the two-threads IDE LED connector
to the connector on mainboard.
Installing IDE LED
connector:
Pin number
7
8
Name of the signal or signification
Activity LED Cathode
IDE LED signal 【LED Anode】
Watch the pin position
and the orientation
PN1 - There is a specific orientation for pins 13 and 14. Connect the
two-threads suspend switch connector of the computer case to correct pins of
connector PN1 on the mainboard. You can ignore this connector since most of
computer cases do not support this feature (the mainboard itself supports it).
Installing Suspend switch connector:
Pin number
13
14
Name of the signal or signification
Suspend
Ground
A-5
Quick Installation
H/W Reset connector:
PN2 - There is no specific orientation for pins
1 and 2. Insert the two-threads hardware reset connector into the correct pins
of connector PN2 on the mainboard.
Pin number
1
2
Name of the signal or signification
Ground
Hardware Reset Signal
Installing speaker connector:
PN2 - There is no specific
orientation for pin 4 to pin 7. Connect the four-threads speaker cable to the
correct pins of connector PN2 on the mainboard.
Pin number
4
5
6
7
Name of the signal or signification
+5VDC
Ground
Ground
Sound Signal
Installing Turbo LED connector:
PN2 - There is not specific
orientation for pins 9 and 10. Connect the two-threads connector to the
correct pins of connector PN2 on the mainboard.
Pin number
9
10
Name of the signal or signification
Anode terminal of Turbo LED
Cathode terminal of Turbo LED
A-6
Appendix A
Watch the pin position and
the orientation
P8/P9- Connect connectors P8 and P9 or the power supply unit to the correct
connectors on the mainboard.
Installing Power input connector:
Pin number
1
2
3
4
5
6
Name of the signal or
signification
POWERGOOD
+5VDC
+12VDC
-12VDC
Ground
Ground
Pin number
7
8
9
10
11
12
Installing Keyboard connector:
Name of the signal or
signification
Ground
Ground
-5VDC
+5VDC
+5VDC
+5VDC
J2 - There is an orientation pin.
Connect
your
keyboard
connector to connector J2 on the mainboard.
Installing PS2 Mouse:
Mouse- Connect the six-threads PS/2
Mouse cable that comes with the hardware to the connector on the mainboard.
Install the bracket located on the other end of the computer case. When you
buy a Mouse, it has to be a PS/2 Mouse for it to be connected to this port.
Attach the bracket of Parallel Port, Serial Port and PS2 Mouse on the
computer case.
Installing CPU Fan Power
connector:
FAN - There is a specific
orientation. Connect the
three-threads CPU Fan power cable to the Fan connector on the mainboard.
Pin number
1
2
3
Name of the signal or signification
Ground
+12V
Ground
Quick Installation
A-7
Adjusting other jumpers:
Some jumpers are reserved for future
functions or are not to be adjusted in normal operation. Adjust them according
to the following recommendations.
CCMOS :Put jumper on pin 1 and pin 2.
JC1
:OFF (don’t need to use any jumper).
BIOS Setup:
Parameters and CPU settings After you have followed
the steps described above and completed the installation, when you power the
computer on, you will see the following message displayed:
TO ENTER SETUP BEFORE BOOT PRESS CTRL-ALT-ESC OR
DEL KEY
Press immediately Del key to enter BIOS Setup. Select Load Setup Defaults,
than enter CPU Soft Menu to set CPU parameters.
B-1
Intel Pentium CPUs
Appendix B
Intel Pentium CPUs
Pentium 75MHz
CPU
CPU
Internal
Bus
External
Speed
Spec.
Clock
Factor
Clock
P54CS
Q0649
75MHz
1.5
50MHz
STD
STD
Yes
P54C
Sx753
75MHz
1.5
50MHz
STD
STD
Yes
P54C
SX961
75MHz
1.5
50MHz
STD
STD
Yes
SX969
75MHz
1.5
50MHz
STD
STD
Yes
P54C
Q0700/S
75MHz
1.5
50MHz
STD
STD
Yes
P54C
Q0749/S
75MHz
1.5
50MHz
STD
MD
Yes
P54C
Q0837
75MHz
1.5
50MHz
STD
STD
Yes
P54C
SY005
75MHz
1.5
50MHz
STD
STD
Yes
P54C
Q0540
75MHz
1.5
50MHz
STD
STD
Yes
P54C
Q0541
75MHz
1.5
50MHz
STD
STD
Yes
P54C
Q0666
75MHz
1.5
50MHz
STD
STD
Yes
P54C
SX961
75MHz
1.5
50MHz
STD
STD
Yes
P54C
SZ977
75MHz
1.5
50MHz
STD
STD
Yes
P54C
Q0700
75MHz
1.5
50MHz
STD
STD
Yes
P54C
Q0749
75MHz
1.5
50MHz
STD
MD
Yes
P54C
SX998
75MHz
1.5
50MHz
STD
MD
Yes
P54C
SZ994
75MHz
1.5
50MHz
STD
MD
Yes
P54C
SU070
75MHz
1.5
50MHz
STD
MD
Yes
P54C
Q0689
75MHz
1.5
50MHz
2.9V
3.3V
Yes
P54C
SK091
75MHz
1.5
50MHz
2.9V
3.3V
Yes
P54C
Q0851
75MHz
1.5
50MHz
2.9V
3.3V
Yes
P54C
SK122
75MHz
1.5
50MHz
2.9V
3.3V
Yes
P54C
SU097
75MHz
1.5
50MHz
STD
STD
Yes
P54C
SU098
75MHz
1.5
50MHz
STD
STD
Yes
P54C
75 MHz
Power
Vcore
VIO
CPU
Timing
DP
Supp. Note
B-2
Appendix B
Pentium 90MHz
CPU
Speed
CPU
Internal
Bus
External
Power
VIO
Timing
DP
Spec
Clock
Factor
Clock
P54C
Sx653
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Sx957
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Q0654
90MHz
1.5
60MHz
VR
STD
Yes
P54C
Vcore
CPU
Supp. Note
Sx958
90MHz
1.5
60MHz
VR
STD
Yes
Q0655
90MHz
1.5
60MHz
STD
MD
Yes
P54C
Sx959
90MHz
1.5
60MHz
STD
MD
Yes
P54C
Q0699/S
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Sx968
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Sx969
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Q0783
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Sy006
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Q0542
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Q0613
90MHz
1.5
60MHz
VR
STD
Yes
P54C
Q0543
90MHz
1.5
60MHz
STD
DP
Yes
P54C
Sx879
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Sx885
90MHz
1.5
60MHz
STD
MD
Yes
P54C
Sx909
90MHz
1.5
60MHz
VR
STD
Yes
P54C
Q0628
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Q0611
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Q0612
90MHz
1.5
60MHz
VR
STD
Yes
P54C
Sx923
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Sx922
90MHz
1.5
60MHz
VR
STD
Yes
P54C
Sx921
90MHz
1.5
60MHz
STD
MD
Yes
P54C
Sz951
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Q0653
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Q0654
90MHz
1.5
60MHz
VR
STD
Yes
P54C
Sz978
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Q0699
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Sz995
90MHz
1.5
60MHz
STD
STD
Yes
P54C
SU031
90MHz
1.5
60MHz
STD
STD
Yes
P54C
Q0695
90MHz
1.5
60MHz
2.9V
3.3V
Yes
P54C
SK092
90MHz
1.5
60MHz
2.9V
3.3V
Yes
P54C
Q0852
90MHz
1.5
60MHz
2.9V
3.3V
Yes
P54C
SK123
90MHz
1.5
60MHz
2.9V
3.3V
Yes
P54C
90 MHz
B-3
Intel Pentium CPUs
Pentium 100MHz
CPU
Speed
CPU
Internal
Bus
External
Power
Spec
Clock
Factor
Clock
Sx886
100MHz
1.5
66MHz
STD
MD
No
P54C
Sx910
100MHz
1.5
66MHz
VR
MD
No
100 MHz
VIO
Timing
DP
P54C
P54C
Vcore
CPU
Supp. Note
Sx956
100MHz
1.5
66MHz
STD
STD
No
P54C
Sx960
100MHz
1.5
66MHz
VRE
MD
No
P54C
Q0657
100MHz
1.5
66MHz
VR
MD
No
P54C
Q0658
100MHz
1.5
66MHz
VRE
MD
Yes
P54C
Sx962
100MHz
1.5
66MHz
VRE
MD
Yes
P54C
Q0698/S
100MHz
1.5
66MHz
VRE
MD
Yes
P54C
Q0697/S
100MHz
1.5
66MHz
STD
STD
Yes
P54C
Sx963
100MHz
1.5
66MHz
STD
STD
Yes
P54C
Sx970
100MHz
1.5
66MHz
VRE
MD
Yes
P54C
Q0784
100MHz
1.5
66MHz
STD
STD
Yes
P54C
SY007
100MHz
1.5
66MHz
STD
STD
Yes
P54C
Q0563
100MHz
1.5
66MHz
STD
STD
Yes
P54C
Q0587
100MHz
1.5
66MHz
VR
STD
Yes
P54C
Q0614
100MHz
1.5
66MHz
VR
STD
Yes
P54C
Q0677
100MHz
1.5
66MHz
VRE
MD
Yes
P54C
Q0656
100MHz
1.5
66MHz
STD
MD
Yes
P54C
Q0698
100MHz
1.5
66MHz
VRE
MD
Yes
P54C
Q0697
100MHz
1.5
66MHz
STD
STD
Yes
P54C
SZ996
100MHz
1.5
66MHz
STD
STD
Yes
P54C
SU032
100MHz
1.5
66MHz
STD
STD
Yes
P54C
Q0853
100MHz
1.5
66MHz
2.9V
3.3V
MD
Yes
P54C
SK124
100MHz
1.5
66MHz
2.9V
3.3V
MD
Yes
P54C
SY046
100MHz
1.5
66MHz
P54C
Q0784
100MHz
1.5
66MHz
STD
STD
Yes
P54C
SU110
100MHz
1.5
66MHz
STD
STD
Yes
P54C
SU099
100MHz
1.5
66MHz
STD
STD
Yes
Yes
B-4
Appendix B
Pentium120MHz
CPU
CPU
Internal
Bus
External
Speed
Spec.
Clock
Factor
Clock
P54CQS
Q0708
120MHz
2
60MHz
STD
STD
Yes
P54CQS 120 MHz
Q0711
120MHz
2
60MHz
VRE
MD
Yes
P54CQS
Q0730
120MHz
2
60MHz
STD
MD
Yes
P54CQS
Sk084
120MHz
2
60MHz
STD
MD
Yes
P54CQS
Sk086
120MHz
2
60MHz
VRE
MD
Yes
P54C
Sx994
120MHz
2
60MHz
VRE
MD
No
Q0732/S 120MHz
2
60MHz
VRE
MD
No
P54C
Power
Vcore
VIO
CPU
DP
Timing Supp. Note
P54C
Q0785
120MHz
2
60MHz
VRE
STD
No
P54C
SY008
120MHz
2
60MHz
VRE
STD
No
P54C
SY033
120MHz
2
60MHz
STD
STD
No
P54C
Q0707
120MHz
2
60MHz
VRE
STD
No
P54C
Q0732
120MHz
2
60MHz
VRE
MD
No
P54C
SU033
120MHz
2
60MHz
VRE
MD
No
P54C
Q0776
120MHz
2
60MHz
STD
Yes
P54C
SK110
120MHz
2
60MHz
STD
Yes
P54C
Q0808
120MHz
2
60MHz
STD
Yes
P54C
SX999
120MHz
2
60MHz
STD
Yes
P54C
SY030
120MHz
2
60MHz
STD
Yes
P54C
SU100
120MHz
2
60MHz
STD
STD
No
P54CS
Q031
120MHz
2
60MHz
STD
KIT
Yes
P54CS
SY062
120MHz
2
60MHz
STD
KIT
Yes
Convert to P54C
Convert to P54C
B-5
Intel Pentium CPUs
Pentium 133MHz
CPU
CPU
Internal
Bus
External
Speed
Spec
Clock
Factor
Clock
P54CS
Q0772
133MHz
2
66MHz
P54CS
Q0773
133MHz
2
66MHz
P54CS
Q0774
133MHz
2
66MHz
P54CS
Q0877
133MHz
2
66MHz
P54CS
Sk106
133MHz
2
66MHz
P54CS
S106J
133MHz
2
66MHz
STD
Yes
P54CS
Sk107
133MHz
2
66MHz
STD
Yes
P54CS
Q0843
133MHz
2
66MHz
STD
Yes
P54CS
SY022
133MHz
2
66MHz
STD
Yes
P54CS
Q0844
133MHz
2
66MHz
STD
Yes
P54CS
SY023
133MHz
2
66MHz
STD
Yes
P54CS
133 MHz
Power
Vcore
VIO
STD
CPU
Timing
DP
Supp. Note
STD
Yes
STD
Kit
Yes
VRE
MD
Yes
VRE
STD
Yes
STD
STD
Yes
SU038
133MHz
2
66MHz
STD
Yes
P54CS
SU073
133MHz
2
66MHz
STD
Yes
P54CS
Q0882
133MHz
2
66MHz
Yes
P54CS
SY082
133MHz
2
66MHz
Yes
P54CQS
Q0733
133MHz
2
66MHz
STD
MD
Yes
Convert to P54CS
P54CQS
Sk098
133MHz
2
66MHz
STD
MD
Yes
Convert to P54CS
P54CQS
Q0751
133MHz
2
66MHz
STD
MD
Yes
P54CQS
Q0775
133MHz
2
66MHz
VRE
MD
Yes
Internal
Bus
External
Power
CPU
Convert to P54CS
Pentium 150MHz
CPU
Speed
CPU
Spec
Clock
Factor
Clock
P54CS
Q0835
150MHz
2.5
60MHz
STD
STD
Yes
P54CS
SY015
150MHz
2.5
60MHz
STD
STD
Yes
P54CS
Q0878
150MHz
2.5
60MHz
STD
STD
Yes
P54CS
SU071
150MHz
2.5
60MHz
STD
STD
Yes
Q0939
150MHz
2.5
60MHz
2.9V
3.3V
CPGA
P55C
Q0941
150MHz
2.5
60MHz
2.9V
3.3V
PPGA
P55C
Q974
150MHz
2.5
60MHz
2.8V
3.3V
CPGA
P55C
Q977
150MHz
2.5
60MHz
2.8V
3.3V
PPGA
P55C
150 MHz
Vcore
VIO
Timing
DP
Supp. Note
PPGA
B-6
Appendix B
Pentium 166MHz
CPU
CPU
Internal
Bus
External
Speed
Spec
Clock
Factor
Clock
P54CS
SY016
166MHz
2.5
66MHz
VRE
Yes
P54CS
Q0841
166MHz
2.5
66MHz
VRE
Yes
P54CS
SY017
166MHz
2.5
66MHz
VRE
Yes
P54CS
Q0949
166MHz
2.5
66MHz
VRE
P54CS
SY037
166MHz
2.5
66MHz
VRE
P54CS
166MHz
Power
Vcore
VIO
CPU
Timing
Kit
DP
Supp. Note
No
PPGA up
No
PPGA up
Q0951F
166MHz
2.5
66MHz
VRE
Kit
Yes
PPGA
P54CS
SY044
166MHz
2.5
66MHz
VRE
Kit
Yes
PPGA
P54CS
Q0836
166MHz
2.5
66MHz
VRE
Yes
P54CS
Q0886
166MHz
2.5
66MHz
VRE
Yes
PPGA
P54CS
Q0890
166MHz
2.5
66MHz
VRE
Yes
PPGA
P54CS
SY072
166MHz
2.5
66MHz
VRE
Yes
P55C
Q0940
166MHz
2.5
66MHz
2.9V
3.3V
CPGA
P55C
Q0942
166MHz
2.5
66MHz
2.9V
3.3V
PPGA
P55C
Q975
166MHz
2.5
66MHz
2.8V
3.3V
CPGA
P55C
Q978
166MHz
2.5
66MHz
2.8V
3.3V
PPGA
P55C
Q019
166MHz
2.5
66MHz
2.8V
3.3V
PPGA
Internal
Bus
External
Pentium 200MHz
CPU
Speed
P54CS
P54CS
CPU
Power
Spec
Clock
Factor
Clock
Q0951
200MHz
3
66MHz
Vcore
VRE
VIO
CPU
Timing
DP
Supp. Note
No
PPGA up
SY045
200MHz
3
66MHz
VRE
Kit
No
PPGA up
Q0951F
200MHz
3
66MHz
VRE
Kit
Yes
PPGA
P54CS
SY044
200MHz
3
66MHz
VRE
Yes
PPGA
P55C
Q018
200MHz
3
66MHz
P54CS
200 MHz
2.8V
3.3V
PPGA
Intel Pentium CPUs
B-7
Y Bus Factor
Power STD
VR
3.15V~3.465V (Recommended voltage is 3.38V)
3.300V~3.465V (Recommended voltage is 3.38V)
VRE 3.450V~3.6V (Recommended voltage is 3.52V)
Timing STD
MD
Standard Timing
Min. Delay (denoting shorter minimum valid delay AC timing
for some signal)
Kit
Supports timing for C55/C88 cache chipsets & design
P54C
1. Beginning with the P54C E-Step, standard timings have been replaced by
existing Min Delay timing.
P54CS
1. P54CS PPGA UP:No DP,No APIC,No FRC
2. Beginning with the P54C E-Step, standard timings have been replaced by
existing Min Delay timing.
P55C
1. P55C A-Step is NOT production stepping
2. A-1 step:
Vcc and timing on initial samples is 2.9V +/- 0.1V
3. A-2 Step and B step: Vcc and timing on production stepping si 2.8V +/0.1V
B-8
Appendix B
C-1
AMD-K5 CPUs
Appendix C
AMD-K5 CPUs
Recognizing AMD CPU speed, voltage and package:
AMD-K5-PR100 A B Q xx
100MHz
Reserved
Case Temperature
Internal
Clock
Q= 60℃
R= 70℃
75MHz
90MHz
100MHz
120MHz
133MHz
W=55℃
X= 65℃
Y= 75℃
Z= 85℃
Processor name
K5
P-Rating
75 ,90 ,100,120
133,150,166
Package Type
A=SPGA (296 pin)
Operating Voltage
B= 3.45V-3.60V
C= 3.30V-3.465V
F= 3.135V-3.465V
G= x/y
H=2.86V-3.00V /
3.30V-3.465V
J= 2.57V-2.84V /
3.30V-3.465V
K= 2.38V-2.63V /
3.30V-3.465V
x = Vcore ; y= Vio
C-2
Appendix C
D-1
Cyrix 6x86 CPUs
Appendix D Cyrix 6x86 CPUs
Recognizing Cyrix CPU speed and voltage:
Name of the
processor
6x86, 6x86L
P-Rating
90+,120+,133+,
150+,166+,200+
6x86-P166+ GP
133 MHz
CPU Core Frequency
100,110,120,
133,150
3.52V (028)
Center of Core Voltage
3.3V
3.52V
2.5V
2.7V
VCC Specification
Full spec.: 3.15V-3.70V
C-spec. (016): 3.15V-3.45V
C-spec. (028): 3.40V-3.70V
D-2
Appendix D
General Discussion about HDD Installation
Appendix E
E-1
General Discussion
about HDD Installation
Most of the present HDDs use IDE interface. Installing an IDE hard disk
does not require a huge amount of intelligence like installing the driver for a SCSI
hard disk, but this means that the user often must install the hard disk by himself
and cope with all the problems he may encounter. Here, we will try to help you
solve these possible problems.
The data stored in the hard disk are accessed through a chipset located on
the mainboard. You probably often hear about the PIO mode, Master mode or
DMA mode of HDD. These modes reflect the way data is transferred from and
to the IDE drive and the mainboard.
What is the PIO mode? When the system needs to access hard disk data,
the CPU delivers input/output (I/O) orders through the chipset on the mainboard
to the hard disk drive, and than puts these data into the system memory. This is
the PIO mode.
What is the Master mode? When the system needs to access hard disk
data, these data are directly accessed from the hard disk by the chipset on the
mainboard (using a DMA or a PIO mode), and then the data is put into the
memory. In this case, the CPU does not participate in the data transfer.
What is the DMA mode? Usually, DMA mode refers to accessing the hard
disk data by the chipset, it does not refers to data transfer mode.
Here are some examples of data transfer rates for IDE HDD with PIO
interface:
PIO Mode 0 The fastest data transfer rate reaches 3.3Mbyte/sec
PIO Mode 1 The fastest data transfer rate reaches 5.2Mbyte/sec
PIO Mode 2 The fastest data transfer rate reaches 8.3Mbyte/sec
PIO Mode 3 The fastest data transfer rate reaches 11.1Mbyte/sec
PIO Mode 4 The fastest data transfer rate reaches 16.6MByte/sec
E-2
Appendix E
The higher the MODE value is, the best is the hard disk data transfer rate.
But this does not mean that you can select the highest mode value as you like.
You must be sure that your hard disk supports that type of fast data transfer,
otherwise your hard disk will not be able to operate correctly.
Here are some examples of data transfer rates for IDE HDD with DMA
mode:
DMA Mode 0 The fastest data transfer rate reaches 4.16Mbyte/sec
DMA Mode 1 The fastest data transfer rate reaches 13.3Mbyte/sec
DMA Mode 2 The fastest data transfer rate reaches 16.6Mbyte/sec
Usually, PIO mode means that the hard disk data are accessed by the
CPU through the chipset and placed into memory, and the chipset is using PIO
mode to access hard disk data.
MASTER mode means that hard disk data are accessed by the chipset,
and that the chipset places the data into memory. The chipset is using DMA or
PIO mode to access data stored in the hard disk drive. The Master mode can
reduce the CPU load, especially in a Multi-task environment. This can help
system performance.
E-3
General Discussion about HDD Installation
Installing a hard disk:
In the Standard CMOS Setup Menu,
♦ Primary means the first connector on the mainboard, that is,
connector IDE1 on our mainboard.
♦ Secondary means the second connector on the mainboard, that is,
connector IDE2 on our mainboard.
♦ Two HDDs can be connected to the each connector:
The first HDD is referred to as Master,
The second HDD is referred to as Slave.
The Master or Slave status of the hard disk drive is set on the
hard disk itself. Refer to the hard disk drive manual.
Installing one HDD : The red line on the connection cable must be lined up with pin 1 on the connector.
Be sure that your hard disk drive is set at Master. Actually, most hard
disk drives are set at Master as a default, so you don’t need to adjust
any setting. Just connect one end of the 40 pin cable on the drive
connector, and the other end to connector IDE1 on the mainboard.
Installing one HDD + one CD-ROM drive:
The red line on the connection cable must be
lined up with pin 1 on the connector.
Method 1: Set the HDD at Master, and the CD-ROM drive at
Slave.
Connect one connector of the 40-pin cable to the hard
disk, another one to the CD-ROM drive, and the other
end to connector IDE1 on the mainboard.
Method 2: Set the HDD as Master and connect one end of the
40-pin cable to the HDD, and the other end to connector
IDE1 on the mainboard.
You can ignore the setting of the CD-ROM drive, just
connect one end of the 40-pin cable to the CD-ROM
drive, and the other end to connector IDE2 on the
mainboard.
We recommend you use this kind of connection, which
has no influence on HDD speed.
E-4
Appendix E
Installing two HDDs: The red line on the connection cable must be lined up with pin 1 on the connector.
Method 1: Set the hard disk drive used for boot up at Master, and
the other drive at Slave. Connect one of the connectors of
the 40-pin cable to the first drive, another connector to
the second drive, and the other end of the cable to
connector IDE1 on the mainboard.
Method 2: Set the hard disk drive used for boot up at Master,
connect one end of the 40-pin cable to the drive, and the
other end to connector IDE1 on the mainboard.
Set the other hard disk drive at Master, connect one end
of the 40-pin cable to the drive, and the other end to
connector IDE2 on the mainboard.
Installing two HDDs + one CD-ROM drive:
The red line on the connection cable must be
lined up with pin 1 on the connector.
Method 1: Set the hard disk drive used for boot up as Master, set
the other HDD at Slave, connect one connector of the
40-pin cable to the first drive, another connector to the
second drive, and the other end of the cable to connector
IDE1 on the mainboard.
You can ignore the setting of the CD-ROM drive.
Connect one end of the 40-pin cable to the drive, and the
other end to connector IDE2 on the mainboard.
We recommend you use this method, which has no
influence on HDD speed.
Method 2: Set the hard disk drive used for boot up at Master,
connect one end of the 40-pin cable to the drive, and the
other end to connector IDE1 on the mainboard.
Set the other hard disk drive at Master, and be sure that
the CD-ROM drive is set at Slave. Most of CD-ROM
drives are set at Slave as a default, so you will normally
not have to set the CD-ROM drive. After you have
verified the settings, connect one connector of the 40-pin
cable to the HDD, another connector to the CD-ROM
drive, and the other end of the cable to connector IDE2
on the mainboard.
General Discussion about HDD Installation
E-5
Installing three HDDs: The red line on the connection cable must be lined up with pin 1 on the connector.
Method 1: Set the hard disk drive used for boot up at Master, set
the second drive at Slave. Connect one connector of the
40-pin cable to the first drive, another connector to the
second drive, and the other end of the cable to connector
IDE1 on the mainboard.
Set the other (the third) drive at Master, and connect one
end of the 40-pin cable to the drive, and the other end to
connector IDE2 on the mainboard.
Method 2: Set the hard disk drive used for boot up at Master, and
connect one end of the 40-pin cable to the drive and the
other end to connector IDE1 on the mainboard. Set
another drive (the second drive) at Master and the third
drive at Slave, connect one connector of the 40-pin cable
to the second drive, another connector to the third drive,
and the other end of the cable to connector IDE2 on the
mainboard.
Installing three HDDs + one CD-ROM drive:
The red line on the connection cable must
be lined up with pin 1 on the connector.
Set the hard disk drive used for boot up at Master, set another HDD
(the second) at Slave, connect one connector of the 40-pin cable to
the first drive, another connector to the second drive, and the other
end of the cable to connector IDE1 on the mainboard.
Set the third hard disk drive at Master, set the CD-ROM drive at
Slave, connect one connector of the 40-pin cable to the third HDD,
another connector to the CD-ROM drive, and the other end of the
cable to connector IDE2 on the mainboard.
BIOS Setup:
♦ If all your HDDs are new, you can use the IDE HDD Auto
Detection option in the CMOS to autodetect the parameters of all
your drives. You don’t need to set any hard disk parameter.
♦ If one or several of your HDDs are old, and if you don’t know their
parameters, and you want to reconfigure your drives, you can also
use the IDE HDD Auto Detection option in the CMOS to
autodetect the drives parameters.
E-6
Appendix E
♦ If one or several of your HDD are old, and if you don’t want to
erase the data stored in your drives, you will have to remember the
parameters (Type, Cylinders, Heads, Sectors, Mode) of the drive(s)
you don’t want to erase. After you have used the IDE HDD Auto
Detection option in the CMOS, enter the Standard CMOS
Setup Menu to change the settings of the related hard disk drive.
Software use:
The basic step in using a hard disk drive is to make a HDD Low Level
Format, than run FDISK, and than FORMAT the drive. Most of
present HDD have already been subjected to low level format at the
factory, so you probably can skip this operation.
Boot with a bootable floppy disk, then enter FDISK.
Using FDISK: (DOS command)
This command is found in the DOS disks.
FDISK is a tool used to organize and to partition the hard disk. The
hard disk must have been partitioned before use. You can create
one unique partition on the hard disk, or create several partition and
use a different Operating System on each partition. Just don’t forget
that you have to specify an Active partition, otherwise your hard
disk will not be bootable. For further information about FDISK,
refer to the FDISK section in the DOS user’s manual.
After you have partitioned the hard disk with FDISK, the system will
reboot automatically. Boot from a system floppy disk, and type
FORMAT C:/S
Using FORMAT: (DOS command)
This command is found in the DOS disks.
FORMAT is used to format the hard disk. The HDD have to be
formatted before use. Don’t forget to add /S after C:, otherwise the
hard disk will not be bootable after formatting.
F-1
Technical Support
Appendix F
Technical Support
L When you have a problem during operation...
In order to help our technical support personnel to quickly find out what is the
problem of your mainboard and to give you the answers you need, before filling
in the technical support form, eliminate any peripheral that is not related to the
problem, and indicate on the form the key peripherals. Fax this form to your
dealer or to the company where you bought the hardware in order to benefit
from our technical support. (You can refer to the examples given below.)
2
Example 1: With a system including: mainboard (with CPU, DRAM,
COAST...) HDD, CD-ROM, FDD, VGA CARD, MPEG CARD,
SCSI CARD, SOUND CARD..., after the system is assembled, if
you cannot boot up, check the key components of the system using
the procedure described below.
First remove all interface cards except the VGA card and try to
reboot.
F If you still cannot boot up:
Try installing another brand/model VGA card and see if the
system will start. If it still does not start, note the VGA card
model, mainboard model, Bios identification number, CPU on
the technical support form (refer to main instructions), and
describe the problem in the problem description space
provided.
F If you can boot up:
Insert back the interface cards you have removed one by one
and try to start the system each time you insert a card, until the
system doesn’t start anymore. Keep the VGA card and the
interface card that causes the problem inserted on the
mainboard, remove any other card or peripheral, and start
again. If you still cannot start, note down the information
related to both cards in the Add-On Card space provided, and
don’t forget to indicate the mainboard model, version, BIOS
identification number, CPU (refer to main instructions), and
give a description of the problem.
F-2
Appendix F
2
Example 2: With a system including the mainboard (with CPU, DRAM,
COAST...) HDD, CD-ROM, FDD, VGA CARD, LAN CARD,
MPEG CARD, SCSI CARD, SOUND CARD, after assembly
and after having installed the Sound Card Driver, when you restart
the system, when it runs the Sound Card Driver, it resets
automatically. This problem may be due to the Sound Card Driver.
During the Starting DOS… procedure, press SHIFT (BY-PASS)
key, to skip CONFIG.SYS and AUTOEXEC.BAT; edit
CONFIG.SYS with a text editor, and in front on the line that loads
the Sound Card Driver, add a remark REM, in order to disable the
Sound Card Driver. See the example below.
CONFIG.SYS:
DEVICE=C:\DOS\HIMEM.SYS
DEVICE=C:\DOS\EMM386.EXE HIGHSCAN
DOS=HIGH,UMB
FILES=40
BUFFERS=36
REM DEVICEHIGH=C:\PLUGPLAY\DWCFGMG.SYS
LASTDRIVE=Z
Restart the system. If the system starts and does not reset, you can
be sure that the problem is due to the Sound Card Driver. Note
down the Sound Card model, mainboard model, BIOS
identification number on the technical support file (refer to main
instructions), and describe the problem in the space provided.
JJJ
F-3
Technical Support
&
Technical Support Form
( Phone #:
Company name:
J Contact:
Model
Mainboard model no.
OS/Application
/Fax #:
*
*
Brand
C.P.U
*
IDE1
IDE2
CD-ROM Drive
IDE1
IDE2
System Memory
(DRAM)
COAST
ADD-ON CARD
?
Problem Description:
*
*
Hardware name
HDD
BIOS ID #
DRIVER REV
Specifications
F-4
Appendix F
$$ Main instructions...
To fill in this “Technical Support Form”, refer to the step-by-step
instructions given below:
*1. MODEL: Note the model number given in your user’s manual.
Example: PT5R2, PR5R2...
*2. Mainboard model number (REV): Note the mainboard model
number labeled on the mainboard as “REV:*.**”.
Example: REV:2.11
*3.BIOS ID# : See below:
Example:
PENTIUM-S CPU at 150Mhz
Memory Test : 32768K OK
Award Plug and Play BIOS Extension
v1.0A
Copyright (C) 1995, Award Software, Inc.
Press
DEL
to
enter
SETUP
04/19/96-SiS-5511B-5513-2A5IDA1CC-D6
“D6” is the BIOS ID number.
F-5
Technical Support
4. DRIVER REV: Note the driver version number indicated on the
DEVICE DRIVER disk as “Release *.**”.
<
Example:
IDE Device Driver
Drivers Diskette Release 1.09A
Release 1.09A
*5. OS/APPLICATION: Indicate what are the operating system and
the applications your are running on the system.
Example: MS-DOS 6.22, Windows 3.1....
*6. CPU: Indicate the brand and the speed (MHz) of your CPU.
Example: (A) In the “Brand” space, write “Intel”, in the
“Specifications” space, write “150MHz”。
(B) In the “Brand” space, write “Cyrix”, in the
“Specifications” space, write “P166+”。
(C) In the “Brand” space, write “AMD”, in the
“Specifications” space, write “P75”.
7. HDD: Indicate the brand and specifications of your HDD(s), specify if
the HDD is using ¨IDE1 or ¨IDE2. If you know the disk capacity,
indicate it and check (“ü”) “ ”; in case you give no indication, we will
consider that your HDD is “þIDE1” Master.
Example: In the “HDD” space, check the box, in the Brand space, write
“Seagate”, in the Specifications space, write “ST31621A
(1.6GB)”.
8. CD-ROM Drive: Indicate the brand and specifications of your
CD-ROM drive, specify if it uses ¨ IDE1 or ¨IDE2, and check
(“ü”) “ ”; in case you give no indication, we will consider that your
CD-ROM is “þIDE2” Master.
Example: In the “CD-ROM drive” space, check the box, in the Brand space,
write “Mitsumi”, in the Specifications space, write “FX-400D”.
F-6
Appendix F
9. System Memory (DRAM):
Indicate the brand and specifications
(SIMM/DIMM) of your system memory.
Examples:
In the Brand space, write “Panasonic”, in the Specifications space, write
“SIMM-FP DRAM 4MB-06”.
Or, in the Brand, write “NPNX”, in the Specifications space, write
“SIMM-EDO DRAM 8MB-06”.
Or, in the Brand space, write “SEC”, in the Specifications space, write
“DIMM-S DRAM 8MB-G12”.
10. COAST: Indicate the brand and specifications of your COAST.
Example: In the Brand space, write “Winbond”, in the Specifications space, write
“256KB” or “W25P010AF-8”。
11. ADD-ON CARD: Indicate which add-on cards you are “absolutely sure” are
related to the problem.
If you cannot identify the problem origin, indicate all the add-on cards inserted
into your system.
Note: Items between the “ ” are absolutely necessary.
Flash BIOS User Instructions
Appendix G
G-1
Flash BIOS User
Instructions
FLASH MEMORY WRITER v5.33
Copyright ( C ) 1996, Award Software, Inc.,
AWDFLASH [(FLASH) [PATH] [FILENAME]] [/Py, Pn]
[(SAVE) [PATH] [FILENAME]] [/Sy, Sn]
[(CLEAR CMOS) [/CC]] [(CLEAR PnP)] [/CP]
[/?]
[Py/Pn] PROGRAM BIOS ANSWER Y or N.
[Sy/Sn] SAVE OLDBIOS ANSWER Y or N.
[/?] FOR HELP !
EXAMPLE 1 : AWDFLASH NEWBIOS /Py SAVEBIOS /Sy
EXAMPLE 2 : AWDFLASH NEWBIOS SAVEBIOS /CC
EXAMPLE 3 : AWDFLASH NEWBIOS /Sn /CP
EXAMPLE 4 : AWDFLASH /Pn SAVEBIOS
Error message:
Example 1
To update BIOS and create a backup of the current system
BIOS execute this command:
AWDFLASH NEWBIOS /Py SAVEBIOS /Sy
Example 2
To update BIOS, create a backup of current system BIOS,
and clear the CMOS, execute this command:
AWDFLASH NEWBIOS SAVEBIOS /CC
Example 3
To update BIOS and clear PnP settings execute this
command:
AWDFLASH NEWBIOS /Sn /CP
Example 4
To make a backup of the current system BIOS execute the
following command:
AWDFLASH NEWBIOS /Pn SAVEBIOS
“NEWBIOS” indicates file name for the new BIOS which can be
downloaded from our website at http://www.abit.com.tw (user can
choose a different file name in place of NEWBIOS).
Notes:
Appendix G
G-2
“SAVEBIOS” indicates the filename of the old system BIOS
(user can choose a different file name in place of SAVEBIOS).
Explanation of parameter names:
/CC: Clears CMOS data
/CP: Clears PnP data
Remarks:
¬ When executing AWDFLASH.EXE, do not run
HIMEM.SYS and EMM386.EXE in the CONFIG.SYS.
- Please take the following actions to solve problems caused
by power shortage or other unpreventable malfunctions during
BIOS update that lead to update failure.
First, it is strongly
suggested that you format a disk that can boot your computer
before you update your BIOS. If the
above mentioned
problem occurs during BIOS update you will be able to use this
disk to automatically execute a BIOS
update. The content of
the disk should be the following:
a. Startup system files (COMMAND.COM, MSDOS.SYS,
IO.SYS...)
b. AWDFLSH.EXE
c. The NEWBIOS file which can be downloaded from
ABIT’s website.
d. AUTOEXEC.BAT, which has the following content:
A:\AWDFLASH NEWBIOS /Py /Sn
® When a version of BIOS that is for the incorrect
mainboard model the following message will appear:
“The program file’s part number does not match with
your system! ”
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
