fridge - freezer

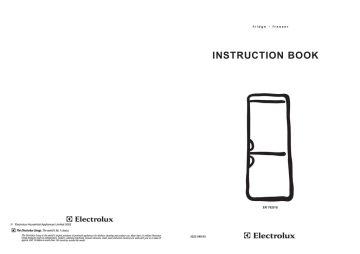

INSTRUCTION BOOK
ER 7620 B
© Electrolux Household Appliances Limited 2002
2222 048-53
IMPORTANT SAFETY INFORMATION
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of safety. You MUST read it carefully before
installing or using the appliance.
Installation
¥
Do not place carbonated or fizzy drinks in the
freezer.
¥
This appliance is heavy. Care should be taken
when moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from the
manufacturer or its service agent.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
The appliance should be left for 2 hours after installation before it is turned on, in order to allow the
refrigerant to settle.
¥
Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
¥
Ice lollies can cause Ôfrost/freezer burnsÕ if consumed straight from the freezer.
¥
ManufacturersÕ storage recommendations should
be strictly adhered to. Refer to relevant instructions.
¥
The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
Child Safety
Maintenance and Cleaning
¥
Do not allow children to tamper with the controls or
play with the product.
¥
¥
Keep all packaging well away from children.
Servicing
¥
¥
¥
¥
¥
General Safety
¥
Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
The appliance must not be located close to radiators or boilers.
Avoid prolonged exposure of the appliance to
direct sunlight.
Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
¥
¥
¥
During Use
¥
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs only.
¥
Frozen food must NOT be re-frozen once it has
thawed out.
2
Switch off and unplug the appliance before carrying out any cleaning or maintenance work.
¥
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
¥
Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Electrolux Service Force Centre and always
insist on genuine spare parts.
At the end of the
Appliance Life
¥
When disposing of your appliance, use an authorised disposal site.
¥
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
CONTENTS
Instructions for the User
Important Safety Information
2
Instructions for the
Installer
Description of the Appliance
4
Technical Specification
14
Operation
5
Installation
15
Before use
5
Positioning
15
Control panel
5
Rear Spacers
15
To start the Appliance
5
Electrical Connection
16
Setting the temperature
5
Use of an air circulation slider control
5
Door Reversal
17
Fresh food refrigeration
6
Positioning the door shelves
6
Positioning the inner shelves
6
The freezer compartment
7
Freezing fresh food
7
Frozen food storage
7
Thawing
7
Making Ice cubes
7
Normal Operating Sounds
8
Health and Safety Guidelines
9
Maintenance and Cleaning
10
Internal cleaning
10
External cleaning
10
When the appliance is not in use
10
Changing the light bulb
10
Defrosting
10
Something Not Working
11
Service and Spare Parts
12
Customer Care
12
Guarantee Conditions
13
2222 048-53
3
DESCRIPTION OF THE APPLIANCE
Door reversal directions
1. Disconnect from the electricity supply.
3
2. Remove all loose items, including food, store
food in a cool place.
3. Gently lay the fridge/freezer on its back with the
top held away from the floor by 5-8 cm (2-3
inches) of packing;
MAX
min
ON
J
COLDEST
COLD
COOL FLOW SYSTEM
A
B
1
2
4. Remove the feet (2-3)
5. Remove bottom hinge (1).
D715 PIED/M
6. Remove the freezer door by releasing it from the
middle hinge (H).
7. Unscrew the middle hinge.
I
C
H
G
D
F
H
8. Slide out the fridge door from pin (G), unscrew
the latter and then screw it down into the hinge
provided on the opposite side, after having
removed the small plugs which should then be
fitted on the opposite side.
9. Refit the fridge door and replace the middle hinge
to the left hand side.
10.Replace the door and bottom hinge (1) on the
opposite side.
11. Refit the feet (2-3) on the opposite side.
1-
3-4
3-
3-
3-
3-
10 -
10 -
10 -
10 -
E
12.Unscrew the handles. Refit them on the opposite
side after having pierced the plugs with a punch.
Cover the holes left open with the plugs
contained in the documentation pack.
G
Attention
A- Thermostat control for fridge and freezer compartments
After completion of the door reversing operation,
check that the door gasket adheres to the cabinet. If
the ambient temperature is cold (i.e. in Winter), the
gasket may not fit perfectly to the cabinet. In that
case, wait for the natural fitting of the gasket or
accelerate this process by heating up the part
involved with a normal hairdryer on a low setting.
B- Dairy compartment
C- Storage shelf
D- Bottle storage shelf
E- Freezing/Storage compartments
PR228
F- Freezing fresh food compartment
G- Salad drawers
H- Glass shelf
I- Wire shelves
J- Air circulation slider control
4
Printed on recycled paper
17
Electrical connections
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
The plug moulded onto the lead incorporates a fuse.
For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
A replacement cover/carrier must be obtained from
your local Service Force Centre.
The manufacturer declines any liability should
this safety measure not be observed.
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
-
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
-
89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not
correspond with the markings identifying the
terminals in your plug, proceed as follows:
13 AMP. FUSE
BROWN
BLUE
D207
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Control panel
Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of a breakdown.
MAX
CORD CLAMP
A - Thermostat control
B - Pilot light
To Start the Appliance
Allow the appliance to stand for 2 hours after
installation.
Plug in the appliance and switch on at the mains
supply. Turn the thermostat control to a midway
setting. The pilot light will light up. Adjust the slider
control, situated on the back wall of the fridge
section, to a midway position between ÒcoldÓ and
ÒcoldestÓ. Leave the appliance for approximately 4
hours for the correct temperature to be reached
before placing food inside.
Your appliance has an air circulation slider control
situated at the rear of the fridge compartment, which
controls the amount of cold air circulated through the
fridge compartment.
Setting the temperature
The temperature inside the appliance is regulated by
a thermostat with 6 temperature positions and an
ÒOFFÓ (O) position.
When the ambient temperature is above 16¡C the
slider control should be midway between ÒcoldÓ and
ÒcoldestÓ.
Position 1 = minimum coldness
When the ambient temperature is very high (i.e. hot
summer days) position the slider control to ÒcoldestÓ.
ÇEÈ or the earth symbol
yellow.
The intermediate position is usually the most
suitable (3-4).
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter ÇLÈ or coloured
red.
Use of an air circulation slider
control - COOL FLOW SYSTEM
When the ambient temperature is between 10¡C and
16¡C, the slider control should be in the ÒcoldÓ
position.
Position 6 = maximum coldness
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter ÇNÈ or coloured
black.
B
A
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
or coloured green and
min
ON
To switch off the appliance turn the thermostat
control to position ÒÇ■ÈÓ
13 AMP
GREEN & YELLOW
Before using
This appliance complies with the following
E.E.C. Directives:
Remove the fuse from the cut off plug.
Important
OPERATION
Turn the thermostat dial to the required position.
COLD
The thermostat control regulates the temperature
both within the fridge and the freezer compartment.
The thermostat setting can vary as the temperature
inside the appliance depends on the following
factors:
Ð room temperature
COLD
16
Ð position of the appliance
COLDEST
COOL FLOW SYSTEM
Ð how often the door is opened
Ð how much food is stored
COLDEST
COOL FLOW SYSTEM
D757
5
INSTALLATION
Fresh food refrigeration
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; cover
or wrap the food, particularly if it has a strong flavour.
Important
Warning
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation.
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
To help you use your refrigerator correctly, here are
some more useful hints:
Raw meat (beef, pork, lamb & poultry or chicken):
wrap in polythene bags and place on the glass shelf
above the salad drawers.
It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
on ÒDoor reversal directionsÓ paragraph.
Meat can only be stored safely in this way for
one or two days at the most.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the salad drawers.
Warning
If using the appliance with the salad drawer
removed, please ensure the vent in the back wall of
the appliance is not obstructed.
D756
Positioning the door shelves
You should also ensure that air can circulate freely
around the back and the top of the cabinet. There
must also be at least 100 mm (4Ó) distance between
the top of the cabinet and any overhanging kitchen
furniture (A). Ideally, the appliance should not be
positioned beneath overhanging furniture (B).
A
B
10 mm
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
10 mm
This appliance is designed to operate in ambient
temperatures between 10¡C (50¡F) and 38¡C (100¡F).
It should be located in a dry atmosphere, out of direct
sunlight and away from extreme temperature e.g. not
next to a boiler or radiator, or in a very cold room e.g.
an outhouse, where the temperatures may fall below
10¡C (50¡F). If these temperatures are exceeded i.e.
colder or warmer, then the appliance may not operate
correctly.
100 mm
Positioning
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
NP002
There should also be a gap of 25 mm either side of
the appliance. Do not obstruct the space underneath.
The door shelves can be easily removed for
cleaning. Gently ease the shelf in the directions
shown.
Rear spacers
Adjustment of the door shelves can be made to
accommodate varying heights of bottles and other
containers. Store light items such as small cartons
and jars on the door shelves. The bottle shelf can be
used for the storage of heavier bottles.
The plastic bag containing all relevant documentation
also contains two spacers to be fitted into special
holes in the back of the appliance.
D758
Positioning the inner shelves
Fit the spacers into the holes, taking care to ensure
that the arrow (A) is positioned as shown in the
diagram. Then turn them through 45¡ (arrow (A)
vertical) until they lock into place.
A
45°
PR60
DO NOT install in places with restricted ventilation.
The walls of the refrigerator have runners so that
shelves can be positioned as desired.
Adjust the level of the appliance by screwing out the
adjustable foot, or feet, at the bottom of the cabinet
using your fingers.
D200
D040
6
15
TECHNICAL SPECIFICATIONS
The freezer compartment
The four-star freezer compartment is suitable for
storage of commercially frozen food and for freezing
fresh foods.
DIMENSIONS
Freezing fresh food
Height
163 cm
Width
55 cm
Depth
60 cm
POWER SUPPLY VOLTAGE AND FREQUENCY
220-240 V / 50 Hz
TOTAL POWER ABSORBED
224 W
AVERAGE DAILY UNITS ELECTRICITY *
1.18 kWh
When freezing fresh foods set the slider control to
the ÒcoldÓ position and turn the thermostat control to
a higher setting.
In any 24 hours you can freeze up to 6 kg.
Place food to be frozen in the upper drawer of the
freezer as this is the coldest part.
After 24 hours reposition the slider control and
thermostat control to previous setting.
Important
GROSS CAPACITY
Fridge
Freezer
166 l
90 l
NET CAPACITY
Fridge
Freezer
165 l
67 l
* This figure is based on standard test results in accordance with European Standard EN 153.
Actual consumption will depend on how the appliance is used and where it is located.
Thawing
Frozen food can be thawed in the fridge or at room
temperature depending on the time available. Small
food items may even be cooked from frozen; in this
case cooking will take longer.
Any frozen food which is allowed to thaw
accidentally should either be eaten as soon as
possible or thrown away. Alternatively, if the food is
uncooked and has not been completely defrosted it
can be cooked and then refrozen.
Meat, fish and fruit should be thawed in the
refrigerator compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.
Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.
To ensure correct operation of the appliance do not
use the appliance with the basket or drawers
removed.
A microwave oven is particularly suitable for thawing
of frozen food: follow the oven instructions,
particularly regarding the placement of aluminium
wrapping or containers in the oven.
Frozen food storage
Defrosted cooked food must never be refrozen.
Frozen food can be stored in any basket or drawer of
the freezer compartment, including the fast freeze
compartment.
Do not exceed the storage period indicated by the
manufacturer.
Do not open the door frequently or leave it open
longer than is absolutely necessary.
Warning
Do not put carbonated liquids, (fizzy drinks etc.), in
the freezer compartment.
Ice Iollies, if consumed immediately after removal
from the freezer, can cause low temperature skin
burns.
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
Òfrost/freezer burnsÓ.
Making ice cubes
Attention!
In the event of a power failure - DO NOT OPEN
THE DOOR, the food in the freezer will not be
affected if the power cut is short and the freezer
is full.
If the temperature in the freezer rises, and the
food begins to thaw, do not re-freeze the food
without checking its conditions.
The following guidelines should assist you.
Ice-cream: once thawed should be discarded.
Fruits & Vegetables: if soft should be cooked and
used up.
Breads & Cakes: can be re-frozen without danger.
Shellfish: should be refrigerated and used up
quickly.
Cooked Dishes: i.e. casseroles should be
refrigerated and used up.
Large Pieces of Meat: can be re-frozen providing
there are still ice crystals remaining within them.
Small Joints: should be cooked and can then be refrozen as cooked dishes.
Chicken: should also be cooked and re-frozen as a
cooked dish.
The appliance is provided with one or more trays for
ice-cubes trays.
Fill the tray(s) 3/4 full to give the ice space to expand
and place them in the freezer compartment.
To release the ice cubes simply give the tray a slight
twist.
Do not use sharp or metallic instruments to remove
the trays from the freezer.
14
7
Normal Operating Sounds
The advanced design of todayÕs frost free appliances mean you hear unfamilar noises during everyday
operation. The diagram below describes some of the noises you may hear. These are quite normal and mean
your appliance is operating correctly
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturerÕs
instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the CompanyÕs property.
The thermostat control will
click when starting or
stopping the compressor.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
The fan circulates cold air to
cool the refrigerator and the
freezer compartment and
sounds like air blowing or a
whirring sound.
The flow of refrigerant
through the freezer cooling
coil makes a gurgling noise.
Exclusions
This guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
Defrost water drips into the
drain pan during the defrost
cycle.
Water dropping on the defrost
heater causes a hissing or
popping sound during the
defrost cycle.
The automatic defrost timer
sounds like an electric clock
and clicks in and out of the
defrost cycle.
The compressor will make a
humming or pulsating sound
while
operating.
8
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country
of use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France
Senlis
+33 (0)3 44 62 20 13
Germany
NŸrnberg
+49 (0)800 234 7378
Italy
Pordenone
+39 (0)800117511
Sweden
Stockholm
+46 (0)20 78 77 50
UK
Slough
+44 (0)1735 219898
13
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your
local Electrolux Service Force Centre by telephoning:-
0870 5 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
HEALTH AND SAFETY GUIDELINES
Because of consumer demand, preservatives have been removed from many pre-prepared foods. This
together with the changes in shopping habits to a once-a-week shop, mean that safe handling and
storage of food is even more important than ever.
The following tips should help you to ensure that the food in your home is in as perfect condition as
possible.
¥
Keep the time between buying chilled food and
placing it in your fridge as short as possible. Tests
showed that the temperature of 1 litre of orange
juice rose to 22¡C in an hour between the
supermarket and home. It then took 11 hours to
get down to 7¡C in the refrigerator.
¥
Frozen food, once thawed, must not be refrozen.
Lean food keeps better and longer than fatty
food, salt reduces the storage time.
¥
¥
Keep the refrigerator door closed as much as
possible.
Wrap the food in polythene or aluminium freezing
bags or foil so that they adhere to the food and
provide an airtight seal .
¥
¥
Do not push food together too much, try to allow
air to circulate around each item.
¥
Cool cooked food as quickly as possible but do
NOT place in the refrigerator until cool. (Leave
food in a cool place in order that it can then be
put in the refrigerator as soon as possible).
Packaging which is swollen or has traces of
refrozen water droplets on the pack could
indicate that the product has not been kept at a
suitable temperature and that it may have lost its
original quality. Partially thawed food must not be
refrozen, it must be consumed within 24 hours.
Never exceed the storage times indicated.
¥
Do NOT mix raw and cooked meat, they must be
in separate containers. Take care not to let the
meat juices drip onto other food. If the meat does
drip, remove everything and clean thoroughly.
Never place hot food, bottles or cans of fizzy
drink in the freezer as they may explode.
Containers with a lid must not be filled to the
brim.
¥
Do not open the door or place extra fresh food in
the freezer next to food which is already frozen
as this could cause the temperature of the frozen
food to rise and its quality and storage life to
reduce .
¥
The symbols on the drawers show different types
of frozen goods.
For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details under the heading ÔSomething Not
Working.Õ
When you contact the Service Force Centre you will need to give the following details:
1.
Your name, address and post code
2.
Your telephone number
3.
Clear and concise details of the fault
4.
The model and serial number of the appliance (found on the rating plate)
5.
The purchase date
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee
service calls.
¥
CUSTOMER CARE DEPARTMENT
¥
Do not store food uncovered.
¥
The best way to defrost food is to put it in the
refrigerator to thaw slowly.
For general enquiries concerning your Electrolux appliance or for further information on Electrolux products,
please contact our Customer Care Department by letter or telephone as follows:-
¥
Remove suspect food from your refrigerator and
clean (refer to ÒMaintenance and Cleaning).
Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
08705 950 950 *
¥
Never allow spillages to dry and harden.
¥
Ensure that food placed in the freezer is dated
and labelled and used in date order to ensure
that food is consumed at its best.
¥
It is important that food is used before its Òbest
beforeÓ date.
¥
Store eggs in the egg rack provided in the
refrigerator door. Discard any broken or chipped
eggs.
¥
Regularly check the refrigerator door seal to
ensure that it is clean and free from debris.
¥
Always wash your hands with soapy water and
dry them with a clean towel before handling food.
¥
Keep work surfaces clean and avoid cross
contamination by not using the same work
surface or knife, without washing them thoroughly
in between.
¥
The fresh foods to be frozen must be fresh and of
the best quality.
¥
The size of each pack should be small enough to
ensure that it is used in one go . Small packs
freeze more quickly and uniformly and give better
results.
*
12
calls to this number may be recorded for training purposes
The numbers indicate storage times in months for
the appropriate types of frozen goods. Whether
the upper or lower value of the indicated storage
time is valid depends on the quality of the foods
and pre-treating before freezing.
9
MAINTENANCE AND CLEANING
SOMETHING NOT WORKING
Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.
Before contacting your local Service Force Centre, check the following points:
Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation a charge will be made, even if the appliance is under guarantee.
Internal cleaning
Changing the light bulb
Should the interior light fail to work, first switch off
the appliance and disconnect from the electricity
supply, then replace the bulb as follows;
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER USE DETERGENTS, ABRASIVE
POWDERS, HIGHLY PERFUMED
CLEANING PRODUCTS OR WAX
POLISHES, TO CLEAN THE INTERIOR AS
THESE WILL DAMAGE THE SURFACE AND
LEAVE A STRONG ODOUR.
Symptom
Solution
No power to the appliance
Check there is power at the socket.
Check there is not a power cut by checking the
household lights.
Check the fuse has not blown.
The light does not come on
Ensure that the bulb is correctly fitted.
Replace the bulb if it has blown.
External cleaning
Wash the outer cabinet with warm soapy water. Do
NOT use abrasive products.
An accumulation of dust will affect the performance
of the appliance and cause excessive electricity
consumption.
You MUST ensure that the appliance is switched
OFF.
Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance,
with a brush or vacuum cleaner, see figure.
D411
Unscrew the light cover and then pull it outward by
pressing as shown in the figure. Unscrew the bulb
and replace it with a new 15 watt bulb (available
from your nearest Service Force Centre).
Check the door light switch is not jammed.
The temperature in the fridge or freezer section is
too high
Check the ambient temperature is within the
applianceÕs operating limits of 10¡C to 32¡C.
Replace the light cover by sliding it into its original
position and replacing the screw.
Automatic Defrosting
Your appliance has been designed to be frost free.
This means there is no need to defrost your
appliance as this will be carried out automatically.
Check the tthermostat control knob in the fridge is
turned to the correct setting relative to ambient
conditions.
The freezer door will not open
Has door just been opened? If so leave for a few
minutes to allow the air pressure to equalise.
The compressor runs continously
Adjust the thermostat control knob to give correct
temperature control. See ÒSetting the temperatureÓ.
Check that the doors are closed.
Large quantities of food have recently been placed in
the cabinet and/or door is frequently opened.
Check that air vents is not obstructed.
CONDENSER
Noise
Refer to normal operating sounds.
DEFROST
TRAY
COMPRESSOR
D273
If, after the above checks, there is still a fault, call your local Service Force Centre.
When the appliance is not in use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the doors ajar
to prevent unpleasant smells.
10
In-guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service calls.
11
MAINTENANCE AND CLEANING
SOMETHING NOT WORKING
Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.
Before contacting your local Service Force Centre, check the following points:
Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation a charge will be made, even if the appliance is under guarantee.
Internal cleaning
Changing the light bulb
Should the interior light fail to work, first switch off
the appliance and disconnect from the electricity
supply, then replace the bulb as follows;
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER USE DETERGENTS, ABRASIVE
POWDERS, HIGHLY PERFUMED
CLEANING PRODUCTS OR WAX
POLISHES, TO CLEAN THE INTERIOR AS
THESE WILL DAMAGE THE SURFACE AND
LEAVE A STRONG ODOUR.
Symptom
Solution
No power to the appliance
Check there is power at the socket.
Check there is not a power cut by checking the
household lights.
Check the fuse has not blown.
The light does not come on
Ensure that the bulb is correctly fitted.
Replace the bulb if it has blown.
External cleaning
Wash the outer cabinet with warm soapy water. Do
NOT use abrasive products.
An accumulation of dust will affect the performance
of the appliance and cause excessive electricity
consumption.
You MUST ensure that the appliance is switched
OFF.
Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance,
with a brush or vacuum cleaner, see figure.
D411
Unscrew the light cover and then pull it outward by
pressing as shown in the figure. Unscrew the bulb
and replace it with a new 15 watt bulb (available
from your nearest Service Force Centre).
Check the door light switch is not jammed.
The temperature in the fridge or freezer section is
too high
Check the ambient temperature is within the
applianceÕs operating limits of 10¡C to 32¡C.
Replace the light cover by sliding it into its original
position and replacing the screw.
Automatic Defrosting
Your appliance has been designed to be frost free.
This means there is no need to defrost your
appliance as this will be carried out automatically.
Check the tthermostat control knob in the fridge is
turned to the correct setting relative to ambient
conditions.
The freezer door will not open
Has door just been opened? If so leave for a few
minutes to allow the air pressure to equalise.
The compressor runs continously
Adjust the thermostat control knob to give correct
temperature control. See ÒSetting the temperatureÓ.
Check that the doors are closed.
Large quantities of food have recently been placed in
the cabinet and/or door is frequently opened.
Check that air vents is not obstructed.
CONDENSER
Noise
Refer to normal operating sounds.
DEFROST
TRAY
COMPRESSOR
D273
If, after the above checks, there is still a fault, call your local Service Force Centre.
When the appliance is not in use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the doors ajar
to prevent unpleasant smells.
10
In-guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service calls.
11
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your
local Electrolux Service Force Centre by telephoning:-
0870 5 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
HEALTH AND SAFETY GUIDELINES
Because of consumer demand, preservatives have been removed from many pre-prepared foods. This
together with the changes in shopping habits to a once-a-week shop, mean that safe handling and
storage of food is even more important than ever.
The following tips should help you to ensure that the food in your home is in as perfect condition as
possible.
¥
Keep the time between buying chilled food and
placing it in your fridge as short as possible. Tests
showed that the temperature of 1 litre of orange
juice rose to 22¡C in an hour between the
supermarket and home. It then took 11 hours to
get down to 7¡C in the refrigerator.
¥
Frozen food, once thawed, must not be refrozen.
Lean food keeps better and longer than fatty
food, salt reduces the storage time.
¥
¥
Keep the refrigerator door closed as much as
possible.
Wrap the food in polythene or aluminium freezing
bags or foil so that they adhere to the food and
provide an airtight seal .
¥
¥
Do not push food together too much, try to allow
air to circulate around each item.
¥
Cool cooked food as quickly as possible but do
NOT place in the refrigerator until cool. (Leave
food in a cool place in order that it can then be
put in the refrigerator as soon as possible).
Packaging which is swollen or has traces of
refrozen water droplets on the pack could
indicate that the product has not been kept at a
suitable temperature and that it may have lost its
original quality. Partially thawed food must not be
refrozen, it must be consumed within 24 hours.
Never exceed the storage times indicated.
¥
Do NOT mix raw and cooked meat, they must be
in separate containers. Take care not to let the
meat juices drip onto other food. If the meat does
drip, remove everything and clean thoroughly.
Never place hot food, bottles or cans of fizzy
drink in the freezer as they may explode.
Containers with a lid must not be filled to the
brim.
¥
Do not open the door or place extra fresh food in
the freezer next to food which is already frozen
as this could cause the temperature of the frozen
food to rise and its quality and storage life to
reduce .
¥
The symbols on the drawers show different types
of frozen goods.
For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details under the heading ÔSomething Not
Working.Õ
When you contact the Service Force Centre you will need to give the following details:
1.
Your name, address and post code
2.
Your telephone number
3.
Clear and concise details of the fault
4.
The model and serial number of the appliance (found on the rating plate)
5.
The purchase date
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee
service calls.
¥
CUSTOMER CARE DEPARTMENT
¥
Do not store food uncovered.
¥
The best way to defrost food is to put it in the
refrigerator to thaw slowly.
For general enquiries concerning your Electrolux appliance or for further information on Electrolux products,
please contact our Customer Care Department by letter or telephone as follows:-
¥
Remove suspect food from your refrigerator and
clean (refer to ÒMaintenance and Cleaning).
Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
08705 950 950 *
¥
Never allow spillages to dry and harden.
¥
Ensure that food placed in the freezer is dated
and labelled and used in date order to ensure
that food is consumed at its best.
¥
It is important that food is used before its Òbest
beforeÓ date.
¥
Store eggs in the egg rack provided in the
refrigerator door. Discard any broken or chipped
eggs.
¥
Regularly check the refrigerator door seal to
ensure that it is clean and free from debris.
¥
Always wash your hands with soapy water and
dry them with a clean towel before handling food.
¥
Keep work surfaces clean and avoid cross
contamination by not using the same work
surface or knife, without washing them thoroughly
in between.
¥
The fresh foods to be frozen must be fresh and of
the best quality.
¥
The size of each pack should be small enough to
ensure that it is used in one go . Small packs
freeze more quickly and uniformly and give better
results.
*
12
calls to this number may be recorded for training purposes
The numbers indicate storage times in months for
the appropriate types of frozen goods. Whether
the upper or lower value of the indicated storage
time is valid depends on the quality of the foods
and pre-treating before freezing.
9
Normal Operating Sounds
The advanced design of todayÕs frost free appliances mean you hear unfamilar noises during everyday
operation. The diagram below describes some of the noises you may hear. These are quite normal and mean
your appliance is operating correctly
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturerÕs
instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the CompanyÕs property.
The thermostat control will
click when starting or
stopping the compressor.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
The fan circulates cold air to
cool the refrigerator and the
freezer compartment and
sounds like air blowing or a
whirring sound.
The flow of refrigerant
through the freezer cooling
coil makes a gurgling noise.
Exclusions
This guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Electrolux manufacture which are not marketed by Electrolux.
European Guarantee
Defrost water drips into the
drain pan during the defrost
cycle.
Water dropping on the defrost
heater causes a hissing or
popping sound during the
defrost cycle.
The automatic defrost timer
sounds like an electric clock
and clicks in and out of the
defrost cycle.
The compressor will make a
humming or pulsating sound
while
operating.
8
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country
of use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France
Senlis
+33 (0)3 44 62 20 13
Germany
NŸrnberg
+49 (0)800 234 7378
Italy
Pordenone
+39 (0)800117511
Sweden
Stockholm
+46 (0)20 78 77 50
UK
Slough
+44 (0)1753 219898
13
TECHNICAL SPECIFICATIONS
The freezer compartment
The four-star freezer compartment is suitable for
storage of commercially frozen food and for freezing
fresh foods.
DIMENSIONS
Freezing fresh food
Height
163 cm
Width
55 cm
Depth
60 cm
POWER SUPPLY VOLTAGE AND FREQUENCY
220-240 V / 50 Hz
TOTAL POWER ABSORBED
224 W
AVERAGE DAILY UNITS ELECTRICITY *
1.18 kWh
When freezing fresh foods set the slider control to
the ÒcoldÓ position and turn the thermostat control to
a higher setting.
In any 24 hours you can freeze up to 6 kg.
Place food to be frozen in the upper drawer of the
freezer as this is the coldest part.
After 24 hours reposition the slider control and
thermostat control to previous setting.
Important
GROSS CAPACITY
Fridge
Freezer
166 l
90 l
NET CAPACITY
Fridge
Freezer
165 l
67 l
* This figure is based on standard test results in accordance with European Standard EN 153.
Actual consumption will depend on how the appliance is used and where it is located.
Thawing
Frozen food can be thawed in the fridge or at room
temperature depending on the time available. Small
food items may even be cooked from frozen; in this
case cooking will take longer.
Any frozen food which is allowed to thaw
accidentally should either be eaten as soon as
possible or thrown away. Alternatively, if the food is
uncooked and has not been completely defrosted it
can be cooked and then refrozen.
Meat, fish and fruit should be thawed in the
refrigerator compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.
Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.
To ensure correct operation of the appliance do not
use the appliance with the basket or drawers
removed.
A microwave oven is particularly suitable for thawing
of frozen food: follow the oven instructions,
particularly regarding the placement of aluminium
wrapping or containers in the oven.
Frozen food storage
Defrosted cooked food must never be refrozen.
Frozen food can be stored in any basket or drawer of
the freezer compartment, including the fast freeze
compartment.
Do not exceed the storage period indicated by the
manufacturer.
Do not open the door frequently or leave it open
longer than is absolutely necessary.
Warning
Do not put carbonated liquids, (fizzy drinks etc.), in
the freezer compartment.
Ice Iollies, if consumed immediately after removal
from the freezer, can cause low temperature skin
burns.
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
Òfrost/freezer burnsÓ.
Making ice cubes
Attention!
In the event of a power failure - DO NOT OPEN
THE DOOR, the food in the freezer will not be
affected if the power cut is short and the freezer
is full.
If the temperature in the freezer rises, and the
food begins to thaw, do not re-freeze the food
without checking its conditions.
The following guidelines should assist you.
Ice-cream: once thawed should be discarded.
Fruits & Vegetables: if soft should be cooked and
used up.
Breads & Cakes: can be re-frozen without danger.
Shellfish: should be refrigerated and used up
quickly.
Cooked Dishes: i.e. casseroles should be
refrigerated and used up.
Large Pieces of Meat: can be re-frozen providing
there are still ice crystals remaining within them.
Small Joints: should be cooked and can then be refrozen as cooked dishes.
Chicken: should also be cooked and re-frozen as a
cooked dish.
The appliance is provided with one or more trays for
ice-cubes trays.
Fill the tray(s) 3/4 full to give the ice space to expand
and place them in the freezer compartment.
To release the ice cubes simply give the tray a slight
twist.
Do not use sharp or metallic instruments to remove
the trays from the freezer.
14
7
INSTALLATION
Fresh food refrigeration
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; cover
or wrap the food, particularly if it has a strong flavour.
Important
Warning
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation.
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
To help you use your refrigerator correctly, here are
some more useful hints:
Raw meat (beef, pork, lamb & poultry or chicken):
wrap in polythene bags and place on the glass shelf
above the salad drawers.
It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
on ÒDoor reversal directionsÓ paragraph.
Meat can only be stored safely in this way for
one or two days at the most.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the salad drawers.
Warning
If using the appliance with the salad drawer
removed, please ensure the vent in the back wall of
the appliance is not obstructed.
D756
Positioning the door shelves
You should also ensure that air can circulate freely
around the back and the top of the cabinet. There
must also be at least 100 mm (4Ó) distance between
the top of the cabinet and any overhanging kitchen
furniture (A). Ideally, the appliance should not be
positioned beneath overhanging furniture (B).
A
B
10 mm
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
10 mm
This appliance is designed to operate in ambient
temperatures between 10¡C (50¡F) and 38¡C (100¡F).
It should be located in a dry atmosphere, out of direct
sunlight and away from extreme temperature e.g. not
next to a boiler or radiator, or in a very cold room e.g.
an outhouse, where the temperatures may fall below
10¡C (50¡F). If these temperatures are exceeded i.e.
colder or warmer, then the appliance may not operate
correctly.
100 mm
Positioning
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
NP002
There should also be a gap of 25 mm either side of
the appliance. Do not obstruct the space underneath.
The door shelves can be easily removed for
cleaning. Gently ease the shelf in the directions
shown.
Rear spacers
Adjustment of the door shelves can be made to
accommodate varying heights of bottles and other
containers. Store light items such as small cartons
and jars on the door shelves. The bottle shelf can be
used for the storage of heavier bottles.
The plastic bag containing all relevant documentation
also contains two spacers to be fitted into special
holes in the back of the appliance.
D758
Positioning the inner shelves
Fit the spacers into the holes, taking care to ensure
that the arrow (A) is positioned as shown in the
diagram. Then turn them through 45¡ (arrow (A)
vertical) until they lock into place.
A
45°
PR60
DO NOT install in places with restricted ventilation.
The walls of the refrigerator have runners so that
shelves can be positioned as desired.
Adjust the level of the appliance by screwing out the
adjustable foot, or feet, at the bottom of the cabinet
using your fingers.
D200
D040
6
15
Electrical connections
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
The plug moulded onto the lead incorporates a fuse.
For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
A replacement cover/carrier must be obtained from
your local Service Force Centre.
The manufacturer declines any liability should
this safety measure not be observed.
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
-
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
-
89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not
correspond with the markings identifying the
terminals in your plug, proceed as follows:
13 AMP. FUSE
BROWN
BLUE
D207
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Control panel
Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of a breakdown.
MAX
CORD CLAMP
A - Thermostat control
B - Pilot light
To Start the Appliance
Allow the appliance to stand for 2 hours after
installation.
Plug in the appliance and switch on at the mains
supply. Turn the thermostat control to a midway
setting. The pilot light will light up. Adjust the slider
control, situated on the back wall of the fridge
section, to a midway position between ÒcoldÓ and
ÒcoldestÓ. Leave the appliance for approximately 4
hours for the correct temperature to be reached
before placing food inside.
Your appliance has an air circulation slider control
situated at the rear of the fridge compartment, which
controls the amount of cold air circulated through the
fridge compartment.
Setting the temperature
The temperature inside the appliance is regulated by
a thermostat with 6 temperature positions and an
ÒOFFÓ (O) position.
When the ambient temperature is above 16¡C the
slider control should be midway between ÒcoldÓ and
ÒcoldestÓ.
Position 1 = minimum coldness
When the ambient temperature is very high (i.e. hot
summer days) position the slider control to ÒcoldestÓ.
ÇEÈ or the earth symbol
yellow.
The intermediate position is usually the most
suitable (3-4).
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter ÇLÈ or coloured
red.
Use of an air circulation slider
control - COOL FLOW SYSTEM
When the ambient temperature is between 10¡C and
16¡C, the slider control should be in the ÒcoldÓ
position.
Position 6 = maximum coldness
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter ÇNÈ or coloured
black.
B
A
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
or coloured green and
min
ON
To switch off the appliance turn the thermostat
control to position ÒÇ■ÈÓ
13 AMP
GREEN & YELLOW
Before using
This appliance complies with the following
E.E.C. Directives:
Remove the fuse from the cut off plug.
Important
OPERATION
Turn the thermostat dial to the required position.
COLD
The thermostat control regulates the temperature
both within the fridge and the freezer compartment.
The thermostat setting can vary as the temperature
inside the appliance depends on the following
factors:
Ð room temperature
COLD
16
Ð position of the appliance
COLDEST
COOL FLOW SYSTEM
Ð how often the door is opened
Ð how much food is stored
COLDEST
COOL FLOW SYSTEM
D757
5
DESCRIPTION OF THE APPLIANCE
Door reversal directions
1. Disconnect from the electricity supply.
3
2. Remove all loose items, including food, store
food in a cool place.
3. Gently lay the fridge/freezer on its back with the
top held away from the floor by 5-8 cm (2-3
inches) of packing;
MAX
min
ON
J
COLDEST
COLD
COOL FLOW SYSTEM
A
B
1
2
4. Remove the feet (2-3)
5. Remove bottom hinge (1).
D715 PIED/M
6. Remove the freezer door by releasing it from the
middle hinge (H).
7. Unscrew the middle hinge.
I
C
H
G
D
F
H
8. Slide out the fridge door from pin (G), unscrew
the latter and then screw it down into the hinge
provided on the opposite side, after having
removed the small plugs which should then be
fitted on the opposite side.
9. Refit the fridge door and replace the middle hinge
to the left hand side.
10.Replace the door and bottom hinge (1) on the
opposite side.
11. Refit the feet (2-3) on the opposite side.
1-
3-4
3-
3-
3-
3-
10 -
10 -
10 -
10 -
E
12.Unscrew the handles. Refit them on the opposite
side after having pierced the plugs with a punch.
Cover the holes left open with the plugs
contained in the documentation pack.
G
Attention
A- Thermostat control for fridge and freezer compartments
After completion of the door reversing operation,
check that the door gasket adheres to the cabinet. If
the ambient temperature is cold (i.e. in Winter), the
gasket may not fit perfectly to the cabinet. In that
case, wait for the natural fitting of the gasket or
accelerate this process by heating up the part
involved with a normal hairdryer on a low setting.
B- Dairy compartment
C- Storage shelf
D- Bottle storage shelf
E- Freezing/Storage compartments
PR228
F- Freezing fresh food compartment
G- Salad drawers
H- Glass shelf
I- Wire shelves
J- Air circulation slider control
4
Printed on recycled paper
17
IMPORTANT SAFETY INFORMATION
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of safety. You MUST read it carefully before
installing or using the appliance.
Installation
¥
Do not place carbonated or fizzy drinks in the
freezer.
¥
This appliance is heavy. Care should be taken
when moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from the
manufacturer or its service agent.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
The appliance should be left for 2 hours after installation before it is turned on, in order to allow the
refrigerant to settle.
¥
Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
¥
Ice lollies can cause Ôfrost/freezer burnsÕ if consumed straight from the freezer.
¥
ManufacturersÕ storage recommendations should
be strictly adhered to. Refer to relevant instructions.
¥
The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
Child Safety
Maintenance and Cleaning
¥
Do not allow children to tamper with the controls or
play with the product.
¥
¥
Keep all packaging well away from children.
Servicing
¥
¥
¥
¥
¥
General Safety
¥
Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
The appliance must not be located close to radiators or boilers.
Avoid prolonged exposure of the appliance to
direct sunlight.
Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
¥
¥
¥
During Use
¥
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs only.
¥
Frozen food must NOT be re-frozen once it has
thawed out.
2
Switch off and unplug the appliance before carrying out any cleaning or maintenance work.
¥
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
¥
Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Electrolux Service Force Centre and always
insist on genuine spare parts.
At the end of the
Appliance Life
¥
When disposing of your appliance, use an authorised disposal site.
¥
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
CONTENTS
Instructions for the User
Important Safety Information
2
Instructions for the
Installer
Description of the Appliance
4
Technical Specification
14
Operation
5
Installation
15
Before use
5
Positioning
15
Control panel
5
Rear Spacers
15
To start the Appliance
5
Electrical Connection
16
Setting the temperature
5
Use of an air circulation slider control
5
Door Reversal
17
Fresh food refrigeration
6
Positioning the door shelves
6
Positioning the inner shelves
6
The freezer compartment
7
Freezing fresh food
7
Frozen food storage
7
Thawing
7
Making Ice cubes
7
Normal Operating Sounds
8
Health and Safety Guidelines
9
Maintenance and Cleaning
10
Internal cleaning
10
External cleaning
10
When the appliance is not in use
10
Changing the light bulb
10
Defrosting
10
Something Not Working
11
Service and Spare Parts
12
Customer Care
12
Guarantee Conditions
13
2222 048-53
3
fridge - freezer
INSTRUCTION BOOK
ER 7620 B
© Electrolux Household Appliances Limited 2002
2222 048-53
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
