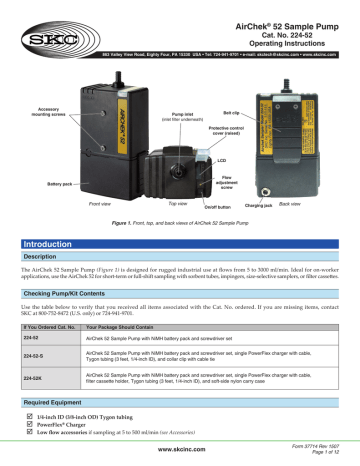

Figure 1. Front, top, and back views of AirChek 52 Sample Pump

Back view

Introduction

Description

The AirChek 52 Sample Pump (Figure 1) is designed for rugged industrial use at fl ows from 5 to 3000 ml/min. Ideal for on-worker applications, use the AirChek 52 for short-term or full-shift sampling with sorbent tubes, impingers, size-selective samplers, or fi lter cassett es.

Checking Pump/Kit Contents

Use the table below to verify that you received all items associated with the Cat. No. ordered. If you are missing items, contact

SKC at 800-752-8472 (U.S. only) or 724-941-9701.

If You Ordered Cat. No.

224-52

Your Package Should Contain

AirChek 52 Sample Pump with NiMH battery pack and screwdriver set

224-52-S

AirChek 52 Sample Pump with NiMH battery pack and screwdriver set, single PowerFlex charger with cable,

Tygon tubing (3 feet, 1/4-inch ID), and collar clip with cable tie

224-52K

AirChek 52 Sample Pump with NiMH battery pack and screwdriver set, single PowerFlex charger with cable, fi lter cassette holder, Tygon tubing (3 feet, 1/4-inch ID), and soft-side nylon carry case

Required Equipment

;

1/4-inch ID (3/8-inch OD) Tygon tubing

;

PowerFlex

®

Charger

;

Low fl ow accessories if sampling at 5 to 500 ml/min (see Accessories)

www.skcinc.com

Form 37714 Rev 1507

Page 1 of 12

Getting Started

Charge the Battery Pack

1. Activate the charger (follow PowerFlex Operating Instructions 40069).

Note: For optimum charge, ensure that the pump is not running.

2. Insert the charging cable connector into the charging port on the charger

(see right).

3. Insert the charging plug end of the cable into the jack on the back of the pump’s batt ery pack (Figure 1).

4. Charge the batt ery completely (the LED at the port connected to the pump is a steady green) before using the pump.

5. Disconnect the charging cable from the back of the pump’s batt ery pack.

Charging jack

Power cable

Charging cable

Charging train with single PowerFlex charger

Charger

Notes and Cautions

• To comply with intrinsic safety regulations, do not charge or operate the pump from the charger in hazardous locations.

• Using a non-approved charger voids any warranty.

• Using a repaired or rebuilt battery pack voids any warranty and the UL Listing for intrinsic safety.

• Using any device other than the approved battery pack to power the pump voids the UL Listing for intrinsic safety and any warranty.

• Ensure proper orientation of charging cable before plugging it into the charging jack. Improper orientation/contact will short-circuit the battery and voids any warranty.

• Short-circuiting the battery pack will render it immediately inoperative.

• Failure to follow warnings and cautions voids any warranty.

• The battery pack may be kept on the SKC-approved charger for an indefi nite time.

For more information on SKC pump battery packs, visit www.skcinc.com/catalog/pdf/instructions/1756.pdf.

Use the Pump with AC Power (Power option in non-hazardous locations)

Do not use the pump with the Battery Eliminator in hazardous locations. UL Listing for intrinsic safety is not in effect during pump operation with Battery Eliminator.

The Batt ery Eliminator is an accessory that converts alternating current (AC) to direct current (DC) from which the pump can be operated for extended runs. The Batt ery Eliminator should be used in non-hazardous locations only. See Accessories.

1. Remove the batt ery pack from the pump (see Replace the Batt ery Pack). The Batt ery Eliminator is comprised of two pieces, a wall cube and a power adapter.

2. Plug the wall cube into a standard wall outlet and insert its plug end into the power adapter.

3. Fit the power adapter on the pump in place of the batt ery pack.

www.skcinc.com

Form 37714 Rev 1507

Page 2 of 12

Operation

High Flow Applications (1000 to 3000 ml/min)

Set/Calibrate Flow Rate

1. Ensure that the batt ery is fully charged and that the pump has run for fi ve minutes before calibrating. Leave the pump running.

2. Prepare the calibrator (see calibrator instructions). Using fl exible tubing, connect the calibrator outlet (suction port) to the representative sample medium inlet (see right).

3. Using ¼-inch Tygon tubing, connect the sample medium outlet to the pump inlet (see right).

4. Set the pump fl ow rate by using a screwdriver to turn the fl ow adjustment screw on top of the pump (Figure 1), clockwise to increase or counterclockwise to decrease fl ow, until the calibrator indicates the method-specifi ed fl ow rate. Take a minimum of three readings and record the average fl ow rate, as per OSHA/NIOSH instructions.

Pump inlet

5. When calibration is complete, press the on/off butt on to turn off the pump. Disconnect the calibrator.

Set Up/Sample

Sample medium

Suction port

Calibrator

Calibration train with fi lter cassette

Tygon tubing

• Before sampling, allow pump to equilibrate after moving it from one temperature extreme to another.

• Protect sample pump from weather when sampling outdoors.

• Powering the pump with any device other than the approved battery pack voids the UL Listing for intrinsic safety.

during pump operation with Battery Eliminator.

• Use of any device to power the pump, other than the approved battery pack or Battery Eliminator, voids any warranty.

1. Replace the sample medium used for calibration with an unexposed medium for sample collection.

2. Place the sample medium where appropriate for sampling.

a. For personal sampling, clip the sample collection medium to the worker in the breathing zone and the pump to the worker’s belt using the belt clip.

b. When using an impinger, an in-line trap (SKC Cat. No. 225-22 or 225-22-01) is required to prevent

fumes from accidentally being drawn into the sampler. Place the in-line trap between the pump and impinger. Mount the single or dual impinger and trap (SKC Cat. No. 225-20-01 or 225-20-02) to the face of the sampler using the accessory mounting screws (Figure 1) or place them in a holster at the worker’s waist.

Failure to use an appropriate in-line trap during impinger sampling voids any warranty.

Clip sample medium to worker and pump to belt.

3. Press the on/off butt on to clear the elapsed time displayed on the LCD and to start sampling. Record the start time. The LCD will automatically display elapsed pump run time.

Impinger holder on pump with impinger and trap

Possible Displays During Sampling

Flow or Batt ery Fault Shutdown - If the pump is unable to compensate due to excessive back pressure or a low batt ery condition exists, it will shut down and timing functions will pause. The LCD will display either a batt ery-shaped icon or a fl ow fault icon (

) depending on the cause of the shutdown. Upon fl ow fault, the pump will att empt to restart up to fi ve times. To restart from fl ow fault, correct the blockage and press the on/off butt on twice. The elapsed run time

display will reset to 0 when the pump is restarted. If the batt ery icon is displayed, recharge the batt ery before sampling.

Displayed Elapsed Run Time - Elapsed run time is displayed continuously on the LCD. For elapsed times after 999 minutes, the display still shows elapsed time but alternates between displaying the fi rst two digits of the elapsed time and the last three digits. For example, a pump that has run for 1,440 minutes would display fi rst “01” and then “440.”

The display maximum is 99 999, which is 99,999 minutes.

4. At the end of the sampling period, press the on/off butt on and record stop time.

www.skcinc.com

Form 37714 Rev 1507

Page 3 of 12

High Flow Applications (Cont)

5. Seal the sample and send it with blanks and pertinent sampling information to a laboratory for analysis.

a. Turn on the pump and reinstate the calibration train and sampling media.

b. Take three readings and record the average value as the post-sample fl ow rate. Do not adjust the pump fl ow rate during this step. c. Compare the pre and post-sample fl ow rates. Note in sampling documentation if the values diff er by more than ± 5%.

Low Flow Applications (5 to 500 ml/min)

Using a CPC and Single Adjustable Low Flow Tube Holder (Figure 2)

Set/Calibrate Flow Rate for Single Tube

CPC

Collar clip

Protective cover for sample tube

Flow adjust screw

(needle valve)

Single adjustable low fl ow tube holder

Tygon tubing

Figure 2. Single Adjustable Low Flow Tube Holder connected to AirChek 52

1. Ensure that the batt ery is fully charged and that the pump has run for fi ve minutes before calibrating. Leave the pump running.

2. Prepare the calibrator (see calibrator instructions). Using fl exible tubing, connect the calibrator outlet to the pump inlet.

3. Set the pump fl ow rate to 1.5 L/min. Using a small screwdriver, turn the fl ow adjustment screw on top of the pump (Figure 1), clockwise to increase fl ow or counterclockwise to decrease fl ow, until the calibrator indicates 1.5 L/min.

4. Remove tubing from the pump inlet.

5. Insert an opened sorbent tube into the rubber sleeve on a single adjustable low fl ow tube holder. Ensure

the arrow on the tube points toward the tube holder.

6. Using a small screwdriver, loosen (turn counterclockwise) the brass fl ow adjust screw on the low fl ow

Flow adjust screw

7. Place a Constant Pressure Controller (CPC) in line between the tube holder and the pump (see below right). a. Insert the inlet of the CPC (marked “To Sample”) into the black rubber tubing at the end of the tubing att ached to the tube holder.

b. Insert the short length of ¼-inch Tygon tubing supplied assembled to the CPC outlet (side without a label) onto the pump inlet.

Turn screw on tube holder to adjust fl ow.

9. Do not adjust the fl ow on the pump. Adjust the fl ow rate through the sorbent tube by turning the fl ow adjust screw on the tube holder (counterclockwise to increase, clockwise to decrease) until the calibrator displays the method-specifi ed fl ow rate. Take a minimum of three readings and record the average fl ow rate, as per OSHA/NIOSH instructions.

Calibration train with low fl ow single tube holder

10. When calibration is complete, turn off the pump by pressing the on/off butt on. Disconnect the calibration tubing from the sorbent tube.

www.skcinc.com

Form 37714 Rev 1507

Page 4 of 12

Low Flow Applications (Cont)

Set Up/Sample with Single Tube

• Before sampling, allow pump to equilibrate after moving it from one temperature extreme to another.

• Protect sample pump from weather when sampling outdoors.

• Use of any device other than the approved battery pack to power the pump voids the UL Listing for intrinsic safety and any warranty.

1. Replace the sorbent tube used for calibrating fl ow with a new unexposed sorbent tube for sample collection.

2. Place the appropriate size tube cover over the tube (Figure 2) and thread it into place on the tube holder.

3. Place the sorbent tube where appropriate for sampling. For personal sampling, clip the low fl ow tube holder to the worker in the breathing zone and the pump to the worker’s belt.

4. Press the on/off butt on to clear the elapsed time displayed on the LCD and to start sampling. Record the start time. The LCD will automatically display elapsed run time.

Clip tube holder to worker and pump to belt.

Possible Displays During Sampling

Flow or Batt ery Fault Shutdown - If the pump is unable to compensate due to excessive back pressure or a low batt ery condition exists, it will shut down and timing functions will pause. The LCD will display either a batt ery-shaped icon or a fl ow fault icon (

) depending on the cause of the shutdown. Upon fl ow fault, the pump will att empt to restart up to fi ve times. To restart from fl ow fault, correct the blockage and press the on/off butt on twice. The elapsed run time

display will reset to 0 when the pump is restarted. If the batt ery icon is displayed, recharge the batt ery before sampling.

Displayed Elapsed Run Time - Elapsed run time is displayed continuously on the LCD. For elapsed times after

999 minutes, the display still shows elapsed time but alternates between displaying the fi rst two digits of the elapsed time and the last three digits. For example, a pump that has run for 1,440 minutes would display fi rst “01” and then

“440.” The display maximum is 99 999, which is 99,999 minutes.

5. At the end of the sampling period, press the on/off butt on and record stop time.

6. Cap the sample tube and send it, with blanks and pertinent sampling information, to a laboratory for analysis.

7. To return to high fl ow, remove the CPC and low fl ow tube holder.

a. Turn on the pump and reinstate the calibration train and sampling media.

b. Take three readings and record the average value as the post-sample fl ow rate. Do not adjust the pump fl ow rate during this step. c. Compare the pre and post-sample fl ow rates. Note in sampling documentation if the values diff er by more than ± 5%.

www.skcinc.com

Form 37714 Rev 1507

Page 5 of 12

Low Flow Applications (Cont)

Using a CPC and Dual, Tri, or Quad Adjustable Low Flow Tube Holder

Flow adjust screws

Top view of fl ow adjust screws

Clothing clip

Anti-tamper cover

Rubber sleeve

Low fl ow holder outlet

Sorbent sample tube

Protective cover

Figure 3. Quad Adjustable Low Flow Tube Holder

Set/Calibrate Flow Rate for Multiple Tubes

Follow these important steps before proceeding.

1. Ensure that the batt ery is fully charged and that the pump has run for fi ve minutes before calibrating. Leave pump running.

2. Prepare a calibrator (see calibrator instructions). Using fl exible tubing, connect the calibrator outlet to the pump inlet.

3. Calculate the sum of all tube fl ow rates. The maximum fl ow rate through any one tube is 500 ml/min.* a. If the sum is ≤ 1000 ml/min, set the pump fl ow rate to 1.5 L/min.

b. If the sum is > 1000 ml/min, multiply that number by 0.15 and total the two numbers. Set the pump fl ow rate for the resulting new sum. (Example: Sampling with three sorbent tubes, each with a fl ow rate of 500 ml/min.* The sum of the tube fl ow rates is calculated as 3 x 500 = 1500. Determining a 15% higher fl ow rate is calculated as 1500 x 0.15 = 225. Calculating the fi nal pump fl ow sett ing would be 1500 + 225 = 1725 ml/min.)

* Back pressure across some sample tubes can be higher than average. In these instances, the maximum fl ow rate of 500 ml/min per tube may not be achieved.

4. Set the pump fl ow rate by using a small screwdriver to turn the fl ow adjustment screw on top of the pump (Figure 1), clockwise to increase fl ow or counterclockwise to decrease fl ow, until the calibrator indicates the required fl ow rate.

5. Remove tubing from the pump inlet.

6. Insert an opened sorbent tube into each rubber sleeve on a low fl ow tube holder (Figures 3 and 4). Ensure that the arrow on each tube

points toward the tube holder. Insert an unopened tube in any unused port.

CPC inlet (marked “To Sample”)

Tube holder outlet

Quad tube holder

Pump inlet

Connect CPC to pump inlet, tube holder to CPC, and tube inlet to calibrator.

Calibrator

Suction port

Figure 4. Calibration Train with Quad Adjustable Low Flow Tube Holder

www.skcinc.com

Form 37714 Rev 1507

Page 6 of 12

Low Flow Applications (Cont)

7. Label each port.

8. Using a small screwdriver, loosen (turn counterclockwise) the brass fl ow adjust screw on the fi rst port of the low fl ow tube holder (see right). Note: For tri and quad tube holders, use a Phillips screwdriver

to loosen the screw on each anti-tamper cover to expose the fl ow adjust screws (Figures 3 and 5).

Flow adjust screw

9. Place a Constant Pressure Controller (CPC) in line between the tube holder and the pump (Figure 4). a. Insert the inlet of the CPC (marked “To Sample”) into the black rubber tubing at the end of the tubing att ached to the tube holder.

Turn screw on tube holder to adjust fl ow.

b. Insert the short length of ¼-inch Tygon tubing supplied assembled to the CPC outlet (side without a label) onto the pump inlet.

10. Using fl exible tubing, connect the outlet of the calibrator to the exposed end of the fi rst sorbent tube in the holder (tube in the port opened in Step 8) (Figure 4).

11. Do not adjust the fl ow on the pump. Adjust the fl ow rate through the sorbent tube by turning the fl ow adjust screw on the tube holder (counterclockwise to increase, clockwise to decrease) until the calibrator displays the method-specifi ed fl ow rate. Take a minimum of three readings and record the average fl ow rate, as per OSHA/NIOSH instructions.

12. When the method-specifi ed fl ow is set on the fi rst tube, turn off the pump by pressing the on/off butt on. Disconnect the calibration tubing from the fi rst tube. Repeat Steps 8 through 12 for each of the other active tubes. Note: Changing the fl ow on one tube will not aff ect the fl ow rate through the

remaining tubes.

13. When calibration is complete, turn off the pump by pressing the on/off butt on. Disconnect the calibration tubing from the last sorbent tube.

Screw

Screw

Figure 5. Cut-away of Tri/Quad

Low Flow Tube Holder

Set Up/Sample with Multiple Tubes

• Before use, allow pump to equilibrate after moving it from one temperature extreme to another.

• Protect sample pump from weather when sampling outdoors.

• Use of any device other than the approved battery pack to power the pump voids the UL Listing for intrinsic safety and any warranty.

1. Replace the sorbent tubes used for calibration with unexposed sorbent tubes for sample collection. Use protective tube covers to prevent tube breakage.

2. Place sorbent tubes where appropriate for sampling. For personal sampling, clip the low fl ow tube holder to the worker in the breathing zone and the pump to the worker’s belt.

3. Press the on/off butt on to clear the elapsed time displayed on the LCD and to start sampling. Record the start time. The LCD will automatically display elapsed run time.

Clip tube holder to worker and pump to belt.

Possible Displays During Sampling

Flow or Batt ery Fault Shutdown - If the pump is unable to compensate due to excessive back pressure or a low batt ery condition exists, it will shut down and timing functions will pause. The LCD will display either a batt ery-shaped icon or a fl ow fault icon (

) depending on the cause of the shutdown. Upon fl ow fault, the pump will att empt to restart up to fi ve times. To restart from fl ow fault, correct the blockage and press the on/off butt on twice. The elapsed run time

display will reset to 0 when the pump is restarted. If the batt ery icon is displayed, recharge the batt ery before sampling.

Displayed Elapsed Run Time - Elapsed run time is displayed continuously on the LCD. For elapsed times after 999 minutes, the display still shows elapsed time but alternates between displaying the fi rst two digits of the elapsed time and the last three digits. For example, a pump that has run for 1,440 minutes would display fi rst “01” and then “440.”

The display maximum is 99 999, which is 99,999 minutes.

www.skcinc.com

Form 37714 Rev 1507

Page 7 of 12

Low Flow Applications (Cont)

4. At the end of the sampling period, press the on/off butt on and record stop time.

5. Cap the sample tubes and send them with blanks and pertinent sampling information to a laboratory for analysis.

6. To return to high fl ow, remove the CPC and low fl ow tube holder.

a. Turn on the pump and reinstate the calibration train and sampling media.

b. Take three readings and record the average value as the post-sample fl ow rate. Do not adjust the pump fl ow rate during this step. c. Compare the pre and post-sample fl ow rates. Note in sampling documentation if the values diff er by more than ± 5%.

Maintenance

Replace the Pump Inlet Filter

The AirChek 52 Sampler is fi tt ed with a fi lter/trap just below the pump inlet. This prevents particles from being drawn into the pump mechanism. The fi lter should be replaced periodically as follows:

1. Grip the inlet fi tt ing (see right) and turn it counterclockwise to unthread it.

2. Holding the pump upside down, use a small fl athead screwdriver or tweezers to remove the fi lter.

3. Place a new fi lter in the inlet. Ensure that the rubber gasket inside the inlet fi tt ing is still in place.

4. Thread the inlet fi tt ing back into place.

Replace the Battery Pack

Use of a repaired or rebuilt battery pack voids any warranty and the UL Listing for intrinsic safety.

1. Loosen two security screws on bott om of pump case and allow them to fall to the out position.

the top half.

3. Align arms on top half of case with slots on either side of the new batt ery pack housing. Ensure that the back of the batt ery pack with the charging jack is on the same side as the belt clip.

Battery pack release arms

Battery pack

Security screws in out position

5. Push each security screw into the batt ery pack housing and tighten.

Once installed, completely charge the new battery pack before operating the pump (see Charge the Battery Pack). It may be necessary to charge it a few times before achieving maximum battery capacity.

For information on SKC pump batt ery packs, visit htt p://www.skcinc.com/instructions/1756.pdf.

www.skcinc.com

Form 37714 Rev 1507

Page 8 of 12

Accessories/Replacement Parts

Accessories Cat. No.

Low Flow Sampling

Single Holder, included in Low Flow Kit below

Dual Holder

Tri Holder

224-26-01

224-26-02

224-26-03

Quad Holder

Constant Pressure Controller (CPC), included in Low Flow Kit below

224-26-04

224-26-CPC

Low Flow (5 to 500 ml/min) Adapter Kit includes CPC, single adjustable low fl ow holder, and Type A tube cover

210-500

Protective Sample Tube Covers

224-29A

224-29B

224-29C

224-29D

Battery Maintenance

PowerFlex Charging System for SKC Personal Pumps

5-Station, 100-240 V

Single, 100-240 V

PowerFlex Pump Cable, for AirChek 52

Replacement Battery Pack, NiMH

Replacement Battery Pack, NiCad

Battery Eliminator,* connects pump to line power for extended sampling, 115 V

Pump Operation

Screwdriver Set, included with pump

Protective Nylon Pouch with belt and shoulder strap

Black

High-profi le Red

Defender Primary Standard Calibrator, 50 to 5000 ml/min, includes lead-acid battery, charger (100-240 V), software, and serial cable

223-1000

223-2000

223-1004

P78011AMH

P78011A

223-300

224-11

224-88

224-96A

224-96C

717-510M

* Not UL Listed for intrinsic safety

Use of a repaired or rebuilt battery pack voids any warranty and the UL Listing for intrinsic safety.

Failure to follow notes and cautions voids any warranty.

www.skcinc.com

Form 37714 Rev 1507

Page 9 of 12

Replacement Parts

Internal Stack

No.

Description

1A/1C Stack screws, pk/12

2

Inlet/Hose Connect, includes fi lter and gasket

2A

Replacement Inlet Filter, pk/10

3

4

Pulsation dampener

Stack plate

5A/5B Valve plates (top and bottom)

6

Diaphragm/Yoke assembly

7

8

9

Pump body

Motor/Eccentric

Pump base plate

Full Stack without Motor

Parts not indicated in illustration:

N/A

PC Board

N/A

Screw and O-ring Set (complete for one pump)

Cat. No.

P51891

P20106

P40370

P2010802

N/A

P213201

P2129B

P22417G

P518803

P20102

P20102A

P79592

P22402

8

2A

6

3

4

1B

1A

2

5A

7

5B

9

1C

External Case

12

13

14

15

8

9

10

11

6

7

4

5

No.

Description

1

Battery Pack, NiCad or

Battery Pack, NiMH

2

3

Battery Pack Release Arms

Battery Pack Security Screws

Compensation Pot A

Compensation Pot B

Power Plug for Battery Pack, pk/5

Charging Jack (on rear of battery pack)

Impinger Holder Mounting Screws

Inlet (includes fi lter and gasket)

Control Cover

Flow Adjustment Screw

Power Switch (on/off)

Belt Clip (not shown)

LCD

External Case

Cat. No.

P78011A

P78011AMH

N/A

N/A

N/A

N/A

P20107

N/A

N/A

P20106

P20105

N/A

N/A

P20104

P72391

P2010003

8

1

2

9

2

7

Use only SKC-approved parts to ensure reliable performance. Failure to do so voids the UL Listing for intrinsic safety and any warranty.

Use of a repaired or rebuilt battery pack voids any warranty and the

UL Listing for intrinsic safety.

Failure to follow warnings and cautions voids any warranty.

Bottom of pump without battery pack

13

3 3

6

5

4

SKC Limited Warranty and Return Policy

SKC products are subject to the SKC Limited Warranty and Return Policy, which provides SKC’s sole liability and the buyer’s exclusive remedy. To view the complete SKC Limited Warranty and Return Policy, go to htt p://www.skcinc.com/warranty.asp.

www.skcinc.com

Form 37714 Rev 1507

Page 10 of 12

10

14

11

12

15

Appendix

Performance Profi le

Flow Range

Flow Control

Compensation Range

(backpressure capability)

Typical Back Pressure of

Sampling Media

(inches water)

Run Time

Power Supply

Battery Charging Time

(varies with battery capacity and level of discharge)

Temperature

1000 to 3000 ml/min

(5 to 500 ml/min requires low fl ow accessories, see Replacement Parts)

Holds constant fl ow to ± 5% of set-point after calibration

1000 ml/min up to 25 inches water back pressure

2000 ml/min up to 25 inches water back pressure

2500 ml/min up to 20 inches water back pressure

3000 ml/min up to 15 inches water back pressure

Flow Rate (L/min)

Filter/Pore Size (μm)

25-mm MCE/0.8

25-mm MCE/0.45

37-mm MCE/0.8

37-mm PVC/5.0

1.0

6

14

2

1

1.5

9

22

3

1

2.0

12

28

4

2

2.5

15

35

5

2

Compare the information in this table to pump compensation range to determine appropriate applications.

Nickel-metal hydride (NiMH) battery: 12 hours minimum at 2000 ml/min and up to 25 inches water back pressure; depends on media used. See Table 1.

Battery Eliminator: Pump provides extended runs.

Rechargeable 4.8-V NiMH battery pack, 3.3-Ah capacity or

Rechargeable 4.8-V NiCad battery pack, 1.8-Ah capacity

A Battery Eliminator is available (see Accessories); use voids the UL Listing for intrinsic safety.

6 to 8.5 hours with PowerFlex charger

Humidity

Flow Fault

Low Battery Fault

Time Display

LCD Indicator

Noise Level

RFI/EMI Shielding

Intrinsic Safety

Dimensions

Weight

Multiple-tube Sampling

Tubing

Certifi cations

Operating: 32 to 113 F (0 to 45 C)

Storage: -4 to 113 F (-20 to 45 C)

Charging: 50 to 113 F (10 to 45 C)

0 to 95% non-condensing

If the pump is unable to compensate for longer than 15 seconds due to excessive back pressure, the pump enters fl ow fault. During fl ow fault, the pump stops, the fault icon appears on the display, and elapsed time remains on the display. Auto-restart is attempted up to 5 times. Note: Elapsed time information

will be lost on restart.

LCD displays low battery icon and pump shuts down. LCD remains on.

LCD shows elapsed pump run time in minutes up to 99,999.

Note: Older pump models display elapsed time up to three digits (999) and then roll back to zero.

LCD always remains on. Displayed elapsed run time information resets when pump is started.

62.5 dBA* - pump without case

55 dBA* - pump housed in noise-reducing case (optional accessory Cat. No. 224-96C, see Accessories)

* Measured 3-foot (1-meter) distance from pump operating at 2 L/min with a 37-mm, 0.8-μm MCE fi lter cassett e

27 to 1000 MHz

UL Listed for Intrinsic Safety: Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2,

Groups E, F, G; and, Class III, Temperature Code T3C. ATEX-approved models available. Contact SKC.

5 x 3 x 1.75 in (12.7 x 7.6 x 4.4 cm)

20 oz (567 gm)

Requires additional accessories to sample with up to four sorbent tubes simultaneously at fl ows from

5 to 500 ml/min (dependent on back pressure). See Accessories.

Requires 1/4-inch ID tubing

• Intrinsic safety: UL Class I, Groups A, B, C, and D; Class II, Groups E, F, and G; Class III hazardous locations when used with SKC battery pack model P78011A or P78011AMH (SKC Cat.

No. P78011A or P78011AMH).

• CE marked

• ATEX-approved models available

www.skcinc.com

Form 37714 Rev 1507

Page 11 of 12

Appendix (Cont)

Typical Run Times

Table 1 contains the typical run times achieved when using a fully charged NiMH batt ery pack. Data is sorted by type of sample media.

All run times are listed in hours. Results are obtained using a new pump and new fully charged batt ery. Pump performance may vary.

Increases in back pressure during sampling due to buildup of sample on the fi lter can decrease batt ery life.

Table 1. Pump Run Time in Hours with NiMH Battery

Mixed Cellulose (MCE) fi lter, 0.8-μm pore size

Filter Diameter

Flow Rate (L/min)

2.0

2.5

3.0

37 mm

40

38

34

25 mm

37

29

25

Polyvinyl Chloride (PVC) fi lter, 5.0-μm pore size

Filter Diameter

Flow Rate (L/min)

2.0

2.5

3.0

37 mm

56

48

42

25 mm

47

41

38

www.skcinc.com

Form 37714 Rev 1507

Page 12 of 12

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
