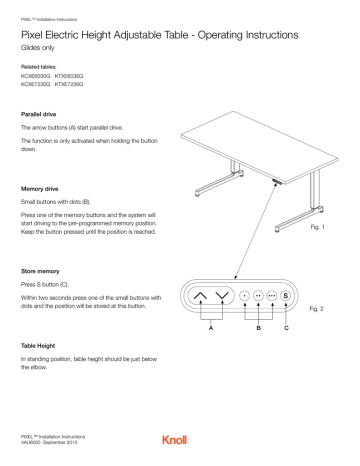

Pixel Electric Height Adjustable Table - Operating Instructions

Pixel Electric Height Adjustable Table - Operating Instructions
PIXEL™ Installation Instructions
Pixel Electric Height Adjustable Table - Operating Instructions
Glides only
Related tables:
KCXE6030G KTXE6036G
KCXE7230G KTXE7236G
Parallel drive
The arrow buttons (A) start parallel drive.
The function is only activated when holding the button
down.
Memory drive
Small buttons with dots (B).
Press one of the memory buttons and the system will
start driving to the pre-programmed memory position.
Keep the button pressed until the position is reached.
Fig. 1
Store memory
Press S button (C).
Within two seconds press one of the small buttons with
dots and the position will be stored at this button.
Fig. 2
A
Table Height
In standing position, table height should be just below
the elbow.
PIXEL™ Installation Instructions
4AU6000 September 2015
B
C
PIXEL™ Installation Instructions
Electric Height Adjustable Table - Troubleshooting
1. The desk does not drive at all
3. How to store a memory position
Check: Is the main power connected to the control box?
Positions (e.g. for sitting and/or standing) can be stored.
Try/Solution: Try to connect a lamp or similar to the main
power supply to check that the supply voltage is OK.
How to store:
Check: Are all plugs mounted correctly in the control box
and to the leg?
Try/Solution: Check all connections.
- Drive to the height you wish to store
- Press ‘S’ and then the memory button
Your position has now been stored
To recall your memory position, press the memory button until
you reach the stored position.
Check: Are there any visible damages on cables, controls,
the control box or legs?
Try/Solution: Contact Knoll Customer Service.
Check: Is something blocking the movement: cables,
furniture or other objects?
Try/Solution: Remove items that are blocking the table.
2. The desk can only drive downward
The desk must be initialized. (Error code E01)
How to initialize:
Press down key and drive to the lowest position.
Hold the key until the desk stops completely
Reactivate the down key and hold the key until the desk
stops completely.
Now the desk can drive up.
PIXEL™ Installation Instructions
4AU6000 September 2015
4. The desk will not drive fully upwards. Always stops in
the same position.
The system has set a new end-stop outwards. To erase this
position, the desk must be initialized again. See #2
Was this manual useful for you? yes no
Thank you for your participation!
