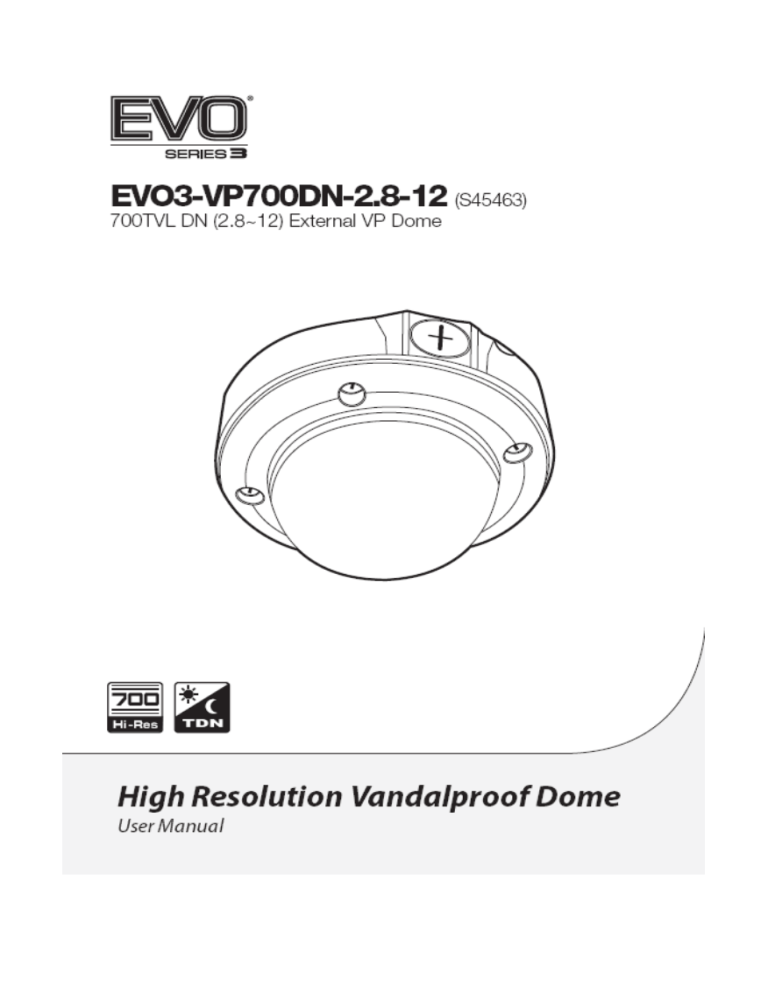

S45463 EVO3-VP700DN-2.8-12 Manual V1.0

S45463 EVO3-VP700DN-2.8-12 Manual V1.0

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT

THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.

CAUTION

RISK OF ELECTRIC

SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICABLE PARTS INSIDE.

REFFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ''dangerous voltage'' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the product.

PRECAUTIONS

Safety

Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.

Unplug the unit from the wall outlet if it is not going to be used for several days or more.

To disconnect the cord, pull it out by the plug. Never pull the cord itself.

Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on soft surfaces (rugs, carpets, sofas, etc.) or near materials (curtains, draperies) that may block the ventilation holes.

Installation

Do not install the unit in an extremely hot or humid place or in a place subject to excessive dust, mechanical vibration.

The unit is not designed to be waterproof.

Exposure to rain or water may damage the unit.

Cleaning

Clean the unit with a slightly damp soft cloth.

Use a mild household detergent. Never use strong solvents such as thinner or benzine as they might damage the finish of the unit.

Retain the original carton and packing materials for safe transport of this unit in the future. ii

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been moisture, does not operate normally, or has been dropped.

15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY

QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF

ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER

THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS

UNLESS YOU QRE QUALIFIED TO DO SO.

16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed

Class 2 power source only.

iii

\

CE COMPLIANCE STATEMENT

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. iv

CONTENTS OF PACKAGE

Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes.

Carefully remove the color camera and its accessories from the carton and verify that they were not damaged in shipment.

The contents of the package includes :

1. Camera in Housing _____________________1

2. Instruction Manual (This Document) ________1

3. Accessory Kit for Installing _______________1

4. Drilling guide label _____________________1

TABLE OF CONTENTS

INTRODUCTION ----------------------------------------------------------------------------------------- 1

CAMERA CONNECTION & CONTENSTS of PACKAGE ------------------------------------- 2

INSTALLATION ------------------------------------------------------------------------------------------ 3

OSD MENU STRUCTURE ---------------------------------------------------------------------------- 5

AUTO WHITE DEFECT & LENS ADJUSTMENT ---------------------------------------------- 12

EXTERNAL DIMENSION ---------------------------------------------------------------------------- 13

SPECIFICATIONS ------------------------------------------------------------------------------------- 14 v

INTRODUCTION

The camera provides high-quality images using SONY 1/3” CCD and digital

Signal process LSIs.

Features:

● 1/3" HAD CCD

for an image of high sensitivity

● 2.8~12 mm D/N Vari-focal(DC AI)

● Digital Wide Dynamic Range ( Adaptive Tone Reproduction)

● Excellent picture quality

● 700 lines of resolution

● Minimum illumination 0.15 Lux (Color)

● Auto electronic shutter [1/60(1/50) ~ 1/10,000] and manual electronic shutter modes

● OSD (On Screen Display)

● Auto and manual white balance modes

● Auto BLC and HLC, Day & Night (Auto)

● 2D-NR

● Privacy Zone 4 point, Motion Detection 4 Point

● MIRROR, SHARPNESS, HUE, CONTRAST, GAIN

● AGC (Auto Gain Control)

● VIDEO OUT (BNC)

● Internal

● Operates in 12VDC or 24VAC

(If using DC 12V power adaptor, Please use a power supply capable of supplying over 600mA.)

● Use Certified / Listed Class 2 power source only.

● Auto White Defect

IMPORTANT :

The user of this camera is responsible for checking and complying with local, state, and federal laws and statutes concerning the recording and monitoring of audio signals.

1

CAMERA CONNECTION

1. Lens : 2.8~12mm D/N Vari-focal(DC AI) for wide area monitoring

2. Power : power source from a DC 12V or AC 24V

3. Video : BNC connector used to connect the camera to a monitor, switcher.ect.

CONTENTS OF PACKAGE

2

INSTALLATION

3

4

OSD MENU STRUCTURE

SETUP MENU (page 1)

LENS

SHUTTER/AGC

WHITE BAL

BACKLIGHT

PICT ADJUST

ATR

MOTION DET

NEXT (page2)

EXIT SAVE ALL

LENS

AUTO

MANUAL

WHITE BALANCE

ATW

PUSH

USER 1

USER 2

ANTI CR

MANUAL

PUSH LOCK

PICTURE ADJUST

MIRROR

BRIGHTNESS

CONTRAST

SHARPNESS

HUE

GAIN

RETURN

ATR

OFF

ON

5

SHUTTER/AGC

AUTO

MANUAL

BACKLIGHT

OFF

BLC

HLC

MOTION DET

OFF

ON

SETUP MENU (page 2)

PRIVACY

DAY/NIGHT

NR

CAMERA ID

LANGUAGE

CAMERA RESET

BACK (page 1)

EXIT SAVE ALL

NR

NR MODE

Y LEVEL

C LEVEL

RETURN

LANGUAGE

ENGLISH

日本語

DEUTSCH

FRANCAIS

PYCCKNN

PORTUGUES

ESPANOL

PRIVACY

OFF

ON

CAMERA ID

OFF

ON

6

DAY/NIGHT

COLOR

B/W

CAMERA RESET

(return the camera to factory defaults)

LENS

AUTO

TYPE

(DC / VIDEO)

Sets the type of mechanical iris

(Video lens is not supported)

MODE

(AUTO / OPEN / CLOSE )

Sets the type of control to be applied over the mechanical iris.

SPEED

(0 – 255)

Sets the convergence speed of the mechanical iris.

MANUAL

Manual lens only

. (

Note

Since Manual mode AUTO mode is changed SHUTTER/AGC to

SHUT+AUTO IRIS when MANUAL is changed to AUTO, AUTO MODE should be changed to AUTO IRIS in SHUTTER/AGC)

SHUTTER/AGC

AUTO

HIGH LUMINANCE

MODE

(SHUT+AUTO IRIS / AUTO IRIS)

(

Note

: only SHUT can be selected if LENS is in MANUAL mode

SHUT+AUTO IRIS is AE(

Auto Exposure

)

for

SHUTTER is 1/500(1/480) and

MIRIS)

BRIGHTNESS

(0 ~ 255)

Adjusts the brightness

LOW LUMINANCE

MODE

(AGC / OFF)

Auto Gain Control on or off

BRIGHTNESS

(x0.25 / x0.50 / x0.75/ x1.00)

Amount of AGC applied in low lighting conditions

MANUAL

MODE

(SHUT+ AGC)

Auto gain control

SHUTTER

Select the shutter speed (1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000,

1/10000)

AGC

Sets the AGC gain applied [dB] for ME (manual exposure)

(6, 12, 18, 24, 30, 36, 42, 44.8dB)

7

WHITE BAL

ATW

(Auto Trace White balance)

SPEED

(0~255)

Adjusts the pull-in speed of ATW.

DELAY CNT

(0~255)

Sets the time-based hysteresis of ATW.

ATW FRAME

(x0.5 / x1 / x1.5 / x2)

Sets the pull-in frame magnification.

ENVIROMENT

(INDOOR / OUTDOOR)

Preset for either indoor or outdoor applications of the ATW

PUSH

Wide range Auto White Balance mode (AWB)

USER1 & 2

Both USER 1 & 2 can be individually set up for specific applications. The gain values for the outdoor fixed mode are used as the adjustment items of USER1 on the internal OSD menu.

B-GAIN

(0~255)

R-GAIN

(0~255)

ANTI CR

Color rolling suppression

MANUAL

The B and R gain values for manual WB are set on this screen.

LEVEL

(NTSC : 13 ~ 56) , (PAL : 16 ~ 78)

PUSH LOCK

PUSHLOCK is selected and the Enter input is active

BACKLIGHT

Sharpens subjects with backlight (OFF / BLC / HLC)

PICT ADJUST

MIRROR

(OFF / ON) Horizontally inverts image.

BRIGHTNESS

(0~255) Sets the screen brightness.

CONTRAST

(0~255) Sets the screen contrast.

SHARPNESS

(0~255) Sets the screen sharpness.

HUE

(0~255) Adjusts the hue.

GAIN

(0~255) Adjusts the gain.

8

ATR

ATR (Adaptive Tone Reproduction) allows adjustment of the image to assist

with widely contrasting scenes of view.

LUMINANCE

(LOW / MID / HIGH)

Sets the extent of the luminance compression

CONTRAST

(LOW / MIDLOW / MID / MIDHIGH / HIGH)

Sets the extent of the contrast enhancement

MOTION DET

DETECT SENSE

(0~127)

Sets the motion detection sensitivity (0=low sensitivity, 127=high sensitivity)

BLOCK DISP

(OFF / ON / ENABLE)

Applies a Motion block trace in the selected area. To define the area, select

Enable and push centrally on the joystick. Use the Joystick to navigate to the blocks you want to

Disable

and not include in motion trace. To return to the menu, push and hold central joystick for 2secs and release.

MOTION AREA

(ON / OFF)

Enables/disables the motion detection

AREA SEL

(1~4)

(

Selects the motion detection area

Note

to move firstly BOTTOM and RIGHT)

TOP

: Set the area sel it would be better

(NTSC:0~244 , PAL:0~288)

0 = top

BOTTOM

244(288) = bottom

LEFT

(NTSC:0~474 , PAL:0~468)

0 = left

RIGHT

(NTSC:0~474 , PAL:0~468)

474(468) = right

(NTSC:0~244 , PAL:0~288)

MOTION DET

DETECT SENSE IIIIIII

I

III 111

BLOCK DISP OFF

MONITOR AREA ON

AREA SEL 1/4

TOP

I

IIIIIIII 000

BOTTOM II

I

IIIIII 076

LEFT

I

IIIIIIII 000

RIGHT III

I

IIIII 183

RETURN

PRIVACY

AREA SEL

(1~4)

Selects the motion detection area

(

Note

: Set the area sel it would be better

to move firstly BOTTOM and RIGHT)

TOP

(NTSC:0~244 , PAL:0~288)

0 = top

BOTTOM

(NTSC:0~244 , PAL:0~288)

244(288) = bottom

AREA SEL

TOP

I

IIIIIIIII000

BOTTOM II

I

IIIIIII077

LEFT

I

IIIIIIIII000

RIGHT IIII

I

IIIII187

COLOR 1

TRANSP 1.00

MOSAIC OFF

RETURN

9

LEFT

(NTSC:0~474 , PAL:0~468)

0 = left

RIGHT

(NTSC:0~474 , PAL:0~468)

474(468) = right

COLOR

(1~8)

Sets the colors of the privacy zones.

TRANSP

(0.00 / 0.50 / 0.75 / 1.00)

Sets the transparency of the privacy zone area if color is selected.

MOSAIC

(OFF / ON)

Sets the mosaic function as the privacy to ON or OFF.

(Note: when ON, transparency needs to be set at 0.00 and privacy zones

can only be 1 color OR mosaic and not mixed)

DAY / NIGHT

COLOR

(color only operation)

B/W

(monochrome only operation)

BURST

(OFF / ON)

Allows the color burst signal in monochrome to be removed if required.

IR OPTIMIZER

(OFF / ON)

Smart IR mode OFF or ON

MODE

(ONLY IR OPTIMIZER ON, AUTO / CENTER)

Auto : Histogram integration mode

Center : Center priority mode

LEVEL

(ONLY IR OPTIMIZER ON, 0~31)

NR (2D-DNR)

This is used to remove noise from the image in low light conditions when

AGC is applied.

NR MODE

(OFF, Y, C, Y/C)

Sets the 2D NR filter mode.

Y LEVEL

(0-15)

Sets the Y filter (Luminance) strength.

C LEVEL

(0-15)

Sets the C filter (Chrominance) strength.

10

CAMERA ID

Sets the camera ID to ON or OFF. A title of 52 characters per line can be

applied.

Use the joystick to navigate the cursor. Pushing centrally on the joystick will allow selection of that character.

The arrows at the bottom allow you to move the cursor without changing the character.

CLR

Inserts a space

POS

Allows you adjust the location of the camera ID title display. ( if you move too much right side or down, it might lose ID on the screen)

LANGUAGE

LANGUAGE

select between:

English, Japanese, German, French, Russian, Portuguese & Spanish.

CAMERA RESET

CAMERA RESET

- Returns the camera to the factory default settings.

SAVE ALL

SAVE ALL

- Saves all the changes made in the menu.

EXIT

EXIT

– Exits the menu and does not save changes made.

11

AUTO WHITE DEFECT

Push the left button for 5 seconds and enter Auto white defect menu.

Cover the lens and Enter for starting.

If white defects are over 65pcs, the camera is faulty and auto defect is useless.

LENS ADJUSTMENT (OPTIONAL VARIFOCAL LENS)

2.8 ~ 12mm Lens


Size

Focal

Length

Angular

Field of

View

1/3’’ CCD

2.8 ~ 12mm

5%

HORIZONTAL

100.8

°

~ 23.7

°

12

13

SPECCIFICATIONS

MODEL

Power

Power source

Power consumption

Image sensor

Total pixels

Effective pixels

Scanning system

General

Connector

& etc

Scanning frequency

Sync. system

Electronic Shutter

Resolution

Min. illumination

Video output

S/N ratio

Camera Control

F

U

N

ATR (Adaptive Tone

Reproduction)

Backlight

Day & Night

Smart IR

MD (Motion Detection)

PM (Privacy Masking)

WB (White Balance)

C

T

N

I

O

AGC (Auto Gain

Control)

Exposure

Brightness

Contrast

Sharpness

HUE

Gain

NR(Noise Reduction)

Mirror

Power input

Video output

Lens

Operating temperature

Operating humidity

External dimension

Weight

EVO3-VP700DN-2.8-12

DC 12V / AC 24V±10%

3.5 Watts (300mA

)

1/3″ SONY HAD CCD II

1020(H) x 596(V)

976(H) x 582(V)

2:1 Interlace

15.625KHz(H) x 50Hz(V)

Internal

1/50 ~ 1/10,000 sec

700TVL

0.15 Lux (Color)

1.0Vp-p (75 ohm, composite)

50 dB (AGC OFF)

Internal OSD Key

LUMINANCE(L/M/H), CONTRAST(L/LM/M/MH/H)

OFF / BLC / HLC

AUTO

On / Off / Level

"On (4 areas) / Off Adjustable Size & Sensitivity"

0 ~ 4 zone

ATW / PUSH / USER1 / USER2

/ ANTI CR / MANUAL / PUSH LOCK

On / Off

Auto Iris / Auto Iris + Electronic Shutter

0 ~ 255 steps

0 ~ 255 steps

0 ~ 255 steps

0 ~ 255 steps

0 ~ 255 steps

OFF / Y / C / Y, C

ON / OFF

2-Pin Terminal block

BNC connector

2.8~12mm Vari-focal lens (True D/N)

-10ºC ~ +50 ºC

0~96% (non-condensing)

146 x 106 mm

305g

14

16

17

50303576A

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
