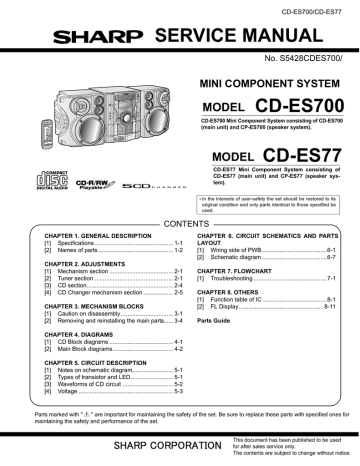

CD-ES700/CD-ES77
SERVICE MANUAL
No. S5428CDES700/
MINI COMPONENT SYSTEM
MODEL
CD-ES700
CD-ES700 Mini Component System consisting of CD-ES700
(main unit) and CP-ES700 (speaker system).
MODEL
CD-ES77
CD-ES77 Mini Component System consisting of
CD-ES77 (main unit) and CP-ES77 (speaker system).
In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
CONTENTS
CHAPTER 1. GENERAL DESCRIPTION
[1] Specifications ................................................. 1-1
[2] Names of parts ............................................... 1-2
CHAPTER 2. ADJUSTMENTS
[1] Mechanism section ........................................ 2-1
[2] Tuner section ................................................. 2-1
[3] CD section...................................................... 2-4
[4] CD Changer mechanism section ................... 2-5
CHAPTER 3. MECHANISM BLOCKS
[1] Caution on disassembly ................................. 3-1
[2] Removing and reinstalling the main parts
........ 3-4
CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS
LAYOUT
[1] Wiring side of PWB........................................6-1
[2] Schematic diagram ........................................6-7
CHAPTER 7. FLOWCHART
[1] Troubleshooting .............................................7-1
CHAPTER 8. OTHERS
[1] Function table of IC .......................................8-1
[2] FL Display.................................................... 8-11
Parts Guide
CHAPTER 4. DIAGRAMS
[1] CD Block diagrams ........................................ 4-1
[2] Main Block diagrams...................................... 4-2
CHAPTER 5. CIRCUIT DESCRIPTION
[1] Notes on schematic diagram.......................... 5-1
[2] Types of transistor and LED........................... 5-1
[3] Waveforms of CD circuit ................................ 5-2
[4] Voltage ........................................................... 5-3
Parts marked with "
" are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for
maintaining the safety and performance of the set.
SHARP CORPORATION
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
CD-ES700/CD-ES77
IMPORTANT SERVICE NOTES
BEFORE RETURNING THE AUDIO PRODUCT
BEFORE RETURNING THE AUDIO PRODUCT
(Fire & Shock Hazard)
Before returning the audio product to the user, perform the following
safety checks.
1. Inspect all lead dress to make certain that leads are not pinched or
that hardware is not lodged between the chassis and other metal
parts in the audio product.
2. Inspect all protective devices such as insulating materials, cabinet,
terminal board, adjustment and compartment covers or shields,
mechanical insulators etc.
3. To be sure that no shock hazard exists, check for leakage current in
the following manner.
* Plug the AC line cord directly into a 120 volt AC outlet.
* Using two clip leads, connect a 1.5 kohm, 10 watt resistor paralleled
by a 0.15 µF capacitor in series with all exposed metal cabinet parts
and a known earth ground, such as conduit or electrical ground connected to earth ground.
* Use a VTVM or VOM with 1000 ohm per volt, or higher, sensitivity to
measure the AC voltage drop across the resistor (See diagram).
* Connect the resistor connection to all exposed metal parts having a
return path to the chassis (antenna, metal cabinet, screw heads,
knobs and control shafts, escutcheon, etc.) and measure the AC
voltage drop across the resistor.
VTVM
AC SCALE
1.5 kohms
10 W
TO EXPOSED
METAL PARTS
All check must be repeated with the AC line cord plug connection
reversed.
Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp. AC.) or
more is excessive and indicates a potential shock hazard which must
be corrected before returning the audio product to the owner.
–i–
0.15 mF
TEST PROBE
CONNECT TO
KNOWN EARTH
GROUND
CD-ES700/CD-ES77
Service
E
Market
CD-ES700/CD-ES77
Manual 1. GENERAL DESCRIPTION
CHAPTER
[1] Specifications
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
CD-ES700/CD-ES77
Tuner
General
Power source
Power consumption
Dimensions
Weight
AC 120 V, 60 Hz
135 W
Width: 10-1/4" (260 mm)
Height: 13" (330 mm)
Depth: 12-7/8" (326 mm)
18.5 lbs. (8.4 kg)
Amplifier
Output power
Output terminals
Input terminals
150 watts minimum RMS per channel into 6
ohms from 100 Hz to 20 kHz, 10% total harmonic distortion
Speakers: 6 ohms
Headphones: 16 - 50 ohms
(recommended: 32 ohms)
Video output: 1Vp-p
Game/Auxiliary (audio signal):
500 mV/47 k ohms
Game/Video: 1Vp-p
CD player
Type
Signal readout
D/A converter
Frequency
response
Dynamic range
5-disc multi-play compact disc player
Non-contact, 3-beam semiconductor laser
pickup
1-bit D/A converter
20 - 20,000 Hz
90 dB (1 kHz)
Frequency range
FM: 87.5 - 108.0 MHz
AM: 530 - 1,720 kHz
Cassette deck
Frequency
response
Signal/noise ratio
50 - 14,000 Hz (normal tape)
Wow and flutter
0.3 % (WRMS)
55 dB (TAPE-1 playback)
50 dB (TAPE-2 recording/playback)
CP-ES700/CP-ES77
Type
3-way type speaker system
with passive radiator
Super tweeter x 2
2" (5 cm) tweeter x 1
6-1/2" (16 cm) woofer x 1
4" (10 cm) passive radiator
Maximum input
power
Rated input power
Impedance
300 W
Dimensions
Width: 10-7/8" (277 mm)
Height: 13" (330 mm)
Depth: 11" (279 mm)
8.6 lbs. (3.9 kg)/each
Weight
150 W
6 ohms
Specifications for this model are subject to change without
prior notice.
1–1
CD-ES700/CD-ES77
[2] Names of parts
CD-ES700/CD-ES77
Front panel
1. Disc Trays
2. Timer Indicator
3. Power On/Stand-by Button
4. CD Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up, Time Up Button
5. Clock/Timer Button
6. Tuning Up Button
7. Tuning Down Button
8. CD Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down, Time Down Button
9. Equalizer Mode Select Button
10. Tape 1 Cassette Compartment
11. Headphone Jack
12. Game/Video Input Jacks
13. Disc Number Select Buttons
14. CD Direct Play Button
15. Disc Tray Open/Close Button
16. CD Play or Repeat, Tape Play Button
17. Memory/Set Button
18. Tape 2 Record Pause Button
19. CD or Tape Stop Button
20. Extra Bass/Demo Mode Button
21. Volume Control
22. Tape 2 Cassette Compartment
23. Tuner (Band) Button
24. CD Button
25. Tape (1 2) Button
26. Game/Video Button
13
1
2
3
14
15
16
4
5
6
7
17
18
8
20
9
10
21
19
22
11
23 24 25 26
12
Display
1
2 34 5
6
7
8
1. Disc Number Indicators
2. CD Play Indicator
3. CD Pause Indicator
4. Memory Indicator
5. CD Repeat Play Indicator
6. CD Indicator
7. Extra Bass Indicator
8. Tape Play Indicator
9. FM Stereo Mode Indicator
10. Daily Timer Indicator
11. FM Stereo Receiving Indicator
12. Tape 2 Record Indicator
13. Sleep Indicator
14. Timer Play Indicator
15. Timer Recording Indicator
12
9 10 11
13 14 15
Rear panel
1. Cooling Fan
2. AC Power Cord
3. FM 75 Ohms Antenna Terminal
4. FM Antenna Ground Terminal
5. AM Loop Aerial Jack
6. Video Output Jack
7. Speaker Terminals
3
4
5
6
1
7
2
1–2
CD-ES700/CD-ES77
Remote control
1
1. Remote Control Transmitter
2. Disc Number Select Buttons
3. Disc Direct Search Buttons
4. CD Clear/Dimmer Button
5. Memory/Set Button
6. CD Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down, Time Down Button
7. CD Pause Button
8. Tape 2 Record Pause Button
9. Tuner (Band) Button
10. CD Button
11. Tape (1 2) Button
12. Game/Video Button
13. Power On/Stand-by Button
14. Clock/Timer Button
15. CD Random Button
16. CD Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up, Time Up Button
17. CD or Tape Stop Button
18. CD Play or Repeat, Tape Play Button
19. Extra Bass Button
20. Equalizer Mode Select Button
21. Volume Up and Down Buttons
13
2
14
3
15
16
17
18
19
20
4
5
6
7
8
9
10
21
11
12
CP-ES700/CP-ES77
1. Tweeter
2. Passive Radiator
3. Woofer
4. Super Tweeters
5. Speaker Wire
1
4
2
3
1–3
5
CD-ES700/CD-ES77
Service
E
Market
CD-ES700/CD-ES77
Manual 2. ADJUSTMENTS
CHAPTER
•
Signal generator: 1 kHz, 40 kHz dev., FM modulated
[1] Mechanism section
•
•
FM Band
Coverage
FM RF
Specified Value
Tape 1: Over 80 g
Tape 2: Over 80 g
Frequency
Frequency
Display
—
87.50 MHz
98.00 MHz
(10-30 dB)
98.00 MHz
Setting/
Adjusting
Point
T301 (fL):
1.3 V ± 0.1 V
L312
*1. Input: Antenna
*2. Input: Antenna
Specified Value
Tape 1
Tape 2
30 to 80 g.cm
30 to 80 g.cm
—
70 to 180 g.cm
—
70 to 180 g.cm
Play: TW-2111
Fast forward: TW-2231
•
*1
*2
Normal
speed
Adjusting Point
Variable
Resistor in
motor.
MTT-111
Specified
Value
3,000 ± 30 Hz
Speaker
Output: TP301
Output: Speaker terminal
FM IF
Signal generator: 10.7 MHz, FM modulated
Test
Stage
IF
Tape Speed
Test Tape
Instrument
Connection
Speaker Terminal (Load
resistance: 6
ohms)
Frequency
Frequency
Display
98 MHz
10.7 MHz
*1. Input: Antenna
TAPE MECHANISM
Setting/Adjusting Point
T302 (Turn the
core of transformer T302
fully counter
clockwise)
Output: TP302
MAIN PWB
FM BAND
COVERAGE fL
R381
TP301
Tape
Motor
T301
Figure 1
[2] Tuner section
FM IF
1
FM RF
L312
T303
R356
T306
AM TRACKING
fL
fL: Low-range frequency
T351
AM IF
T302
IC301
CNP301
AM/FM LOOP ANTENNA
Variable Resistor in motor
TP302
AM BAND
COVERAGE fL
fH: High-range frequency
•
Instrument
Connection
Torque Check
Torque Meter
•
Test
Stage
Driving Force Check
Torque Meter
Play: TW-2111
FM RF
AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
Test Stage
Frequency
Frequency
Display
AM IF
AM Band
Coverage
AM
Tracking
450 kHz
—
1,720 kHz
530 kHz
990 kHz
990 kHz
*1. Input: Antenna
*2. Input: Antenna
Setting/
Adjusting
Parts
T351
(fL): T306
1.1 ± 0.1 V
(fL): T303
Figure 2 Adjustment Points
Instrument
Connection
*1
*2
*1
Output: TP302
Output: TP301
2–1
Instrument
Connection
*1
CD-ES700/CD-ES77
[3] TEST MODE
• Setting the test mode
During stand-by mode, press ON/STAND-BY button while pressing
down the
button and X-BASS/DEMO button. then, press the CD
button to enter the test mode.
C D
T E S T
IL isn’t done
OPEN/CLOSE operation is using manual.
<<
>>,<<
>>buttons make pick's slide possible.
A
IL isn’t done
IL isn’t done
to page 2-3
<<PLAY>> key input.
Do TOC IL. Do normal play.
When these following key is input into PLAY key, track number can be appoint directly.
<<
1>> key: Track 4
<<
2>> key: Track 9
<<
3>> key: Track 15
<<MEMORY>>
key input.
Adjustment result automatically will
display as below for each 2 sec:
a) "FOF_XXXX"
b) "TOF_XXXX"
c) "TBAL_XX"
d) "TGAN_XX"
f) "FGAN_XX"
g) "RFLS_XX"
––––––––
<<STOP>> key input.
STOP
explanation:
a) Focus off set
b)Tracking off set
c)Tracking balance
d)Tracking Gain
f) Focus Gain
g) RF level shift
VOL — Last memory
P.GEQ — FLAT
X-BASS — OFF
To cancel : Power OFF
= "FOF_XXXX"
= "TOF_XXXX"
= "TBAL_XX"
= "TGAN_XX"
= "FGAN_XX"
= "RFLS_XX"
2–2
CD-ES700/CD-ES77
A
<<MEMORY>> key input.
Laser ON.
<<MEMORY>> key input.
Tracking OFF play at that specific point.
<<MEMORY>> key input.
Tracking ON play from that specific point.
<<MEMORY>> key input.
Adjustment result automatically will display as below for each 2 sec :
a) "FOF_XXXX"
b) "TOF_XXXX"
c) "TBAL_XX"
d) "TGAN_XX"
f) "FGAN_XX"
g) "RFLS_XX"
<<STOP>> key input.
STOP
Sliding the PICKUP with<<
in STOP mode.
explanation:
a) Focus off set
b)Tracking off set
c)Tracking balance
d)Tracking Gain
f) Focus Gain
g) RF level shift
VOL — Last memory
P.GEQ — FLAT
X-BASS — OFF
To cancel : Power OFF
>>, <<
>> button must only be
= "FOF_XXXX"
= "TOF_XXXX"
= "TBAL_XX"
= "TGAN_XX"
= "FGAN_XX"
= "RFLS_XX"
2–3
CD-ES700/CD-ES77
[4] CD section
CD Error code description
Error
01
10*
11*
20*
21*
31
*
Explanation
When Pickup set inner position, inner switch cannot detect
'ON' level for 10 secs.
CAM error. Can't detect CAM switch when CAM is moving.
When it detect cam operation error during initialize process.
TRAY error. Can't detect TRAY switch when TRAY is moving.
When it detect TRAY operation error during initialize process.
When it change to CD function, DSP cannot read initial
data.
'CHECKING'
If Error is detected, 'CHECKING' will be displayed instead of 'ERCD**'. 'ER-CD**' display will only be displayed when error had been
detected for the 5th times.
Standard Specification of Stereo System Error Message Display Contents
CD
TUNER
Error Contents
Pickup Mechanism Error.
CD Changer Mechanism Error.
Display
'ER-CD01'
'ER-CD**' (*)
CD DSP Communication Error.
Focus Not Match/IL Time Over.
PLL Unlock.
'ER-CD31'
'NO DISC'
FM 87.5 MHz
Notes
PU-IN SW Detection NG.
10: CAM SW Detection NG during normal operation
11: CAM SW Detection NG during initialize process
20:TRAY SW Detection NG during normal operation
21:TRAY SW Detection NG during initialize process
DSP COMMUNICATION ERROR.
PLL Unlock.
(*) CHECKING:
If CD changer mechanism error is detected, 'CHECKING' will be display instead of 'ER-CD**'. 'ER-CD**' display will only be display when
error had been detected for the 5 th times.
Speaker abnormal detection and +B PROTECTION display
In case speaker abnormal detection or +B PROTECTION had
occurred, it can be check by pressing 'POWER', '
' and 'X-BASS'
button. MicroComputer version number will displayed as "U*****".
Press ‘VIDEO/AUX’ button during version number display and then
press ‘POWER’, ‘MEMORY/SET’ and ‘VIDEO/GAME’ button. Display
will show "S** B**". S is referring to speaker abnormal detection and B
is referring to +B PROTECTION. ** is in hex valve.
+B PROTECTION is condition when irregular process occur on power
supply line.
BEFORE TRANSPORTING THE UNIT
The following process need to be taken after set tapering/parts
replacement.
1. Press the ON/STAND-BY button to enter stand-by mode.
2. While pressing down the
button and the X-BASS/DEMO button, press the ON/STAND-BY button. The Micro Computer version
number will be displayed as "U*****".
3. Press OPEN/CLOSE button until "WAIT"→ "FINISHED" appears.
4. Unplug the AC cord and the unit is ready for transporting.
2–4
CD-ES700/CD-ES77
[5] CD Changer mechanism section
•
A number in the drawing sheet is the number of the parts guide
(CHANGER MECHANISM PARTS).
1
141
140
HALF GEAR
MUST ARRANGE AS SHOWN
2–5
CD-ES700/CD-ES77
2
139
APPLY SANKOL BEFORE FIX
FIX ITEM 1 ACCORDING TO THE
SHOWN PICTURE ABOVE
ROTATE MODE BIG GEAR UNTIL REACH AS SHOWN IN PICTURE
2–6
CD-ES700/CD-ES77
3
143
APPLY GREASE
112
PULL THE LEVER UNITIL
REACH THE ARROW MARK
2–7
CD-ES700/CD-ES77
4
FIGURE 2
FIGURE 1
152
118
142
APPLY GREASE
SLOT CLAMP SW ARM INSIDE BASE SLOT
2–8
CD-ES700/CD-ES77
5
APPLY GREASE AT BOTTOM SIDE
OF GEAR FOLLOW MARKING
NO NEED APPLY GREASE AT BOTTOM
SIDE
APPLY GREASE AT
TOP SIDE OF GEAR
FOLLOW MARKING
127
OTHER THAN FIGURE 1 DIRECTION ALL N.G
O.K
128
N.G
FIGURE 1
BLACK MARK
2–9
CD-ES700/CD-ES77
6
APPLY GREASE AT
HALF GEAR AREA
ROTATE CLOCKWISE UNTIL REACH HERE (MAXIMUM)
129
2 – 10
CD-ES700/CD-ES77
7
CHANGE COLOR TO BLACK
148
151
150
2 – 11
CD-ES700/CD-ES77
8
TRAY BIG GEAR
CHANGE COLOR
TO BLACK
MUST FREE FROM GREASE THE SHOWN AREA
O.K
GREASE APPLICATION LENGTH
GREASE APPLICATION PORTION
N.G
124
TRAY BIG GEAR
CHANGE COLOR
TO BLACK
131
SHOWN HOLE MUST FACING ARROW DIRECTION
2 – 12
CD-ES700/CD-ES77
9
APPLY GREASE AT
BOTTOM SIDE ONLY
138
126
TR-RE JOINT GEAR C
125
APPLY GREASE ONLY AT TOP SIDE GEAR
MUST FIX ACCORDING TO THE HOLE'S
2 – 13
CD-ES700/CD-ES77
10
148
147
146
145
2 – 14
CD-ES700/CD-ES77
11
121
APPLY GREASE
144
130
WHEN FIXING ITEM 2 MUST FOLLOW AS SHOWN
2 – 15
CD-ES700/CD-ES77
12
117
FIGURE 1
FIGURE 2
APPLY GREASE
FIGURE 3
2 – 16
APPLY GREASE SC141
CD-ES700/CD-ES77
13
ITEM 2 , 3 MUST APPLY GREASE ON TOP SIDE GEAR ONLY
134
133
GEAR 112
O.K
GEAR 112
N.G
132
TOP VIEW AFTER
ASSY
2 – 17
FIX REVERSE N.G
CD-ES700/CD-ES77
14
APPLY GREASE BEFORE FIX
MOVE 112 UNTIL TOUCH THE WALL
B
A
DURING GEAR A ROTATE
MUST PRESS SHOWN AREA
AND LEVER B WILL MOVE
ARROW DIRECTION THEN
FIX PART 108
SCREW TORQUE
2
108
+0.5
-0
kgf-cm
803 x6
APPLY GREASE
CONFIRM WHETHER
FIXED
PROPELY OR NOT
2 – 18
CD-ES700/CD-ES77
15
APPLY GREASE
115
BEHIND THE LEVER NEED TO APPLY GREASE
PULL IT THEN LEVER WILL
MOVE IN
2 – 19
CD-ES700/CD-ES77
16
123
115
APPLY GREASE
APPLY GREASE BEFORE FIX
APPLY GREASE
AT BOSS
SPRING MUST ARRANGE UNDER THE HOOK
O.K
LR JOINT LEV
BOARD R
BOARD R LR JOINT LEV
N.G
2 – 20
CD-ES700/CD-ES77
17
ASSY REVERSELY N.G
103
137
136
APPLY GREASE
BIG SLOT MUST FACING OUT
WHEN FIX & AFTER FIX TO BASE CHASSIS
AFTER ASSY CONFIRM THE FREE DROP
GEAR POSITION DURING FIXING
2 – 21
CD-ES700/CD-ES77
18
ASSY REVERSELY N.G
APPLY GREASE
114
135
136
BIG SLOT MUST FACING OUT
WHEN FIX & AFTER FIX TO BASE CHASSIS
AFTER ASSY CONFIRM THE FREE DROP
GEAR POSITION DURING FIXING
CONFIRM BOTH GEAR SIT PROPELY & LOCKED
2 – 22
CD-ES700/CD-ES77
19
AFTER FIX OUTER UP/DOWN LEVER HOLD SHOWN PORTION AND
MOVE UP/DOWN THEN CONFIRM LEVER GO INSIDE THE HOLE OR NOT
120
IF GO INSIDE HOLE
IS O.K
BIGGER SLOT FACING OUT
IF NO GO INSIDE HOLE IS N.G
119
BIGGER SLOT FACING OUT
2 – 23
CD-ES700/CD-ES77
20
BIG SLOT FACING OUT
110
2 – 24
CD-ES700/CD-ES77
21
PUSH THE LEVER ACCORDING TO ARROW
DIRECTION THEN FIX
WHEN FIX MAIN BASE ASSY FOLLOW ACCORDING TO O.K PICTURE
O.K
MAKE SURE MECHA HOLDER SHAFT FIX PROPELY TO LEVER
2 – 25
N.G
N.G
CD-ES700/CD-ES77
22
APPLY SANKOL
APPLY SANKOL ON TOP
101
APPLY SANKOL INSIDE THE SLOT
& OTHER SHOWN PORTION
RIB
102
RIB
APPLY SANKOL AT TRAY SLIDING PORTION
FIX TRAY NO 1 FIRST THAN
FOLLOW OTHER
2 – 26
COSMO GUIDE TRAY HAVE
MARKING AS SHOWN
CD-ES700/CD-ES77
23
111
GEAR UP/DOWN BOARD
APPLY GREASE AT INNER & OUTER GEAR SLIDING PORTION
WHEN FIX GEAR UP/
DOWN BOARD THE
TWO LEVER MUST AT
PARALLEL LINE &
POSITION AT TOP
MAX SIDE
AFTER ASSY GEAR UP/DOWN BOARD
2 – 27
CD-ES700/CD-ES77
24
SCREW TORQUE
3
+0.5
-0
804
2 – 28
kgf-cm
CD-ES700/CD-ES77
25
AFTER ASSY TOP PLATE
FIX THE FFC
FFC4
AFTER PUSH MAKE SURE SNAP PROPELY
PRESS IN
BACK
PORTION
122
AFTER FIX PUSH FOLLOW ARROW DIRECTION
107
BEFORE LOCK
SLOT IN
AFTER LOCK
BEFORE LOCK
MUST CONFIRM
AFTER LOCK
BEFORE LOCK
AFTER LOCK
MUST CONFIRM
2 – 29
CD-ES700/CD-ES77
26
CAUTION
O.K
1. MAKE SURE NO PWB CHIP INSIDE SET .( BEFORE
FIX MAKE SURE PWB NO DUST , GREASE & ETC )
N.G
803
2 – 30
CD-ES700/CD-ES77
27
THE TWO SLOT
MUST FREE FROM GREASE
APPLY GREASE BELOW
THE MARKING FOR
BOTH PORTION
ASSEMBLY SEQUENCE
1. APPLY GREASE TO MAIN BASE
GREASE APPLICATION AREA
ALL BOSS
APPLY GREASE
APPLY GREASE
105
APPLY GREASE
APPLY GREASE AT 3 HALF MOON
1 RIB ONLY
CAUTION
APPLY GREASE
TRAY SLIDING
AREA MUST
FREE FROM
GREASE
APPLY GREASE
AT BOTH SLOT
APPLY GREASE
APPLY GREASE
INSIDE SLOT
APPLY GREASE
APPLY GREASE AT WALL
2 – 31
CD-ES700/CD-ES77
28
MOTOR SCREWING HOLE
SCREW TORQUE
1.5
13.8 + 0.2
-0
MUST HAVE GAP
M1,2
12.2 +- 0.1
REFERENCE ONLY
MOTOR GEAR HEIGHT FROM
MAIN BASE 12.2 +- 0.1
+ 0.5
-0
AFTER SCREW MOTOR, CONFIRM THE
ARRANGEMENT AS IN FIGURE 2
FIGURE 2
801
APPLY GREASE
2 – 32
CD-ES700/CD-ES77
29
3.1 + 0.1
APPLY SANKOL
SHAFT X 3 DIM AFTER INSERTION
MUST CONFIRM EVERYDAY
SANKOL APPLICATION AREA
109-2
APPLY GREASE AT THE SLIDING PORTION
114
APPLY GREASE
116
UP / DOWN
HOLDER CHANGE
TO NATURE
COLOR
2 – 33
CD-ES700/CD-ES77
30
BEFORE MELT IT
AFTER MELT IT ( MUST FLAT )
WHEN FITTING STABILIZER PLATE TO STABILIZER,
ROTATE STABILIZER ANTI CLOCKWISE BY JIG
( BY HAND CANNOT X )
CHANGE COLOR
TO NATURE
BELOW
2 – 34
AFTER ASSY TO HOLDER
STABILIZER NEED CLEAN
WITH ALCOHOL DISC
TOUCHING SURFACE
CD-ES700/CD-ES77
31
104
APPLY GREASE
MUST MAKE SURE SNAP PROPELY BOTH SIDE
ALL SURFACE MUST TOUCH
GAP
N.G
O.K
2 – 35
N.G
CD-ES700/CD-ES77
32
NO GAP
HAVE GAP
O.K
N.G
2 – 36
CD-ES700/CD-ES77
Service
E
Market
CD-ES700/CD-ES77
Manual 3. MECHANISM BLOCKS
CHAPTER
[1] Caution on disassembly
Caution on Disassembly
Follow the below-mentioned notes when disassembling the unit and reassembling it, to keep it safe and ensure excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to be removed when disassembling the unit. After servicing the unit, be sure to rearrange
the leads where they were before disassembling.
CD-ES700/CD-ES77
STEP
REMOVAL
PROCEDURE
1
Top/Side Cabinet 1. Screw .................... (A1) x11
2
Changer Unit/
Rear Panel B
1. Screw ......................
2. Hook ........................
3. Flat Cable................
4. Socket .....................
Rear Panel A with 1. Screw ...................... (C1) x6
Fan motor
2. Socket ..................... (C2) x1
4
Main PWB
Front Panel
7
Display PWB
8
Game Input PWB 1. Screw...................... (H1) x2
9
CD Servo PWB
(B2)x1
(B1)x2
φ3x10mm
(D1)x1
φ3x10mm
1. Screw ....................... (J1) x2
2. Flat Cable ................ (J2) x2
3. Socket ...................... (J3) x1
4. Hook ......................... (J4) x1
Changer
Mechanism Unit
1. Screw ...................... (K1) x4
2. Changer Chassis .... (K2) x1
11
CD Mechanism
1. Screw ....................... (L1) x4
Pull
Rear
Panel A
1. Knob ........................ (G1) x1
2. Screw .................... (G2) x10
10
(C1)x6
φ3x10mm
Lug Wire
Main PWB
Fan Motor
Note:
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the front end
of the connector so as to protect the optical pickup from electrostatic damage.
(D1)x1
φ3x18mm
(D2)x1
(D3)x2
(D3)x1
(E2)x1
Front Panel
Top/Side Cabinet
(E3)x1
Front Panel
(A1)x3
φ3x10mm
Front Panel
Rear
Panel B
1. Screw ...................... (E1) x2
2. Flat Wire .................. (E2) x1
3. Hook ........................ (E3) x2
Tape Mechanism 1. Screw ....................... (F1) x6
2. Flat Cable ................ (F2) x1
(B4)x1
Changer
Mechanism
Unit
1. Screw ...................... (D1) x2
2. Flat Cable ............... (D2) x1
3. Socket ..................... (D3) x4
4. Flat Wire .................. (D4) x1
5. Screw ...................... (D5) x2
6
CD Servo (B3)x1
PWB
Pull
Main PWB
(B1) x2
(B2) x2
(B3) x1
(B4) x1
3
5
(B2)x1
(C2)x1
Rear Panel B
(D5)x2
φ3x10mm
Power PWB
(D4)x1
(D3)x1
(E3)x1
Main
PWB
Rear Panel A
(A1)x5
φ3x10mm
(E1)x2
φ3x8mm
(A1)x3
φ3x10mm
3–1
CD-ES700/CD-ES77
(F2)x1
(K1)x4
φ3x10mm
Front Panel
Tape
Mechanism
(F1)x6
φ3x10mm
(K2)x1
Lug Wire
Changer
Mechanism
Unit
Front Panel
(G2)x10
φ2.6x10mm
Display PWB
(L1)x4
φ2.6x10mm
(G1)x1
CD Mechanism
Game Input
PWB
(H1)x2
φ3x10mm
Changer
Mechanism
Unit
(J1)x2
φ3x10mm
(J2)x1
(J4)x1
(J3)x1
(J2)x1
CD Servo
PWB
Changer
Mechanism
Unit
3–2
CD-ES700/CD-ES77
CP-ES700/CP-ES77
STEP
1
REMOVAL
Tweeter
PROCEDURE
Passive Radiator 1. Screw ...................... (A1) x4
2. Side Panel .............. (A2) x1
3. Screw ...................... (A3) x4
2
Woofer
1. Front Panel ............. (B1) x1
2. Screw ...................... (B2) x4
3
Tweeter
1. Screw ...................... (C1) x2
4
Super Tweeter
1. Screw ...................... (D1) x4
(A3)x4
φ4x16mm
(C1)x2
φ3x12mm
Super Tweeter
Passive Radiator
(D1)x2
φ3x12mm
Super Tweeter
(D1)x2
φ3x12mm
(B2)x4
φ4x16mm
Front Panel
Speaker Box
Speaker Box
Woofer
(A2)x1
(A1)x4
φ4x35mm
Passive Radiator
(B1)x1
Screwdriver
Speaker Box
Driver should
be pried away
from Speaker Box.
3–3
CD-ES700/CD-ES77
[2] Removing and reinstalling the main parts
1. TAPE MECHANISM SECTION
Perform steps 1 to 5 and 6 of the disassembly method to remove the
tape mechanism.
1.1. How to remove the record/playback and erase heads
(TAPE 2) (See Fig. 1)
1. When you remove the screws (A1) x 2 pcs., the recording/playback head and three-dimensional head of the erasing head can be
removed.
Pinch
Roller
Pawl
TAPE 2
Pinch Roller
(C1)x1
Clutch Ass'y
<A>
Pull
Record/Playback
Head
<B>
Figure 3
1.4. How to remove the belt (TAPE 2) (See Fig. 4)
1. Remove the main belt (D1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (D2) x 1 pc.
1.5. How to remove the belt (TAPE 1) (See Fig. 4)
Erase Head
1. Remove the main belt (E1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (E2) x 1 pc.
(A1)x2
φ2x9mm
Figure 1
TAPE 2
1.2. How to remove the playback head (TAPE 1)(See Fig. 2)
FF/REW
Belt
(D2)x1
Tape
Motor
1. When you remove the screws (B1) x 2 pcs., the playback head can
be removed.
Tape
Motor
TAPE 1
TAPE 2 Main Belt
Main Belt (E1)x1
(D1)x1
TAPE 1
Main Belt
(D1)x1
Main Belt
(E1)x1
TAPE 1
Clutch Ass'y
Playback
Head
FF/REW
Belt
(E2)x1
Figure 4
1.6. How to remove the motor (See Fig. 5)
1. Remove the screws (F1) x 2 pcs., to remove the motor.
Tape
Motor
(B1)x2
φ2x9mm
Clutch Ass'y
Figure 2
(F1)x2
φ2.6x5mm
1.3. How to remove the pinch roller (TAPE 1/2) (See Fig. 3)
1. Carefully bend the pinch roller pawl in the direction of the arrow
<A>, and remove the pinch roller (C1) x 1 pc., in the direction of the
arrow <B>.
Note:
When installing the pinch roller, pay attention to the spring mounting
position.
Figure 5
3–4
CD-ES700/CD-ES77
2. CD MECHANISM SECTION
Perform steps 1, 2, 9, 10, 11 and 12 of the disassembly method to
remove the CD mechanism.
Reduction gear C
2.1. Remove the pickup. (See Fig. 1)
1. Remove the stop washer (A1) x 1 pc., to remove the gear (A2) x 1
pc.
2. Remove the screws (A3) x 2 pcs., to remove the shaft (A4) x 1 pc.
3. Remove the pickup.
Front
Note
After removing the connector for the optical pickup from the connector
wrap the conductive aluminium foil around the front end of connector
so as to protect the optical pickup from electrostatic damage.
Rear
Figure 3
2. In another case, if CD mechanism is at tray No.1 play position and
to remove CD located in tray No.3, the procedure is as follows:
If the gear up down board is located at tray No.1 position, then
rotate gear clock-wise until it at stock position. Rotate reduction
gear D clockwise (Figure 4) to move the CD mechanism to tray
No.3 position.This is confirmed by checking the gear up down
board position by the marking as indicated on the main chassis as
shown in Figure 5.
(A3)x2
φ2.6x6mm
CD Mechanism
Reduction gear D
Shaft
(A4)x1
Gear
(A2)x1
Stop Washer
(A1)x1
Up
Down
Pickup Unit
Figure 4
Figure 1
3. CHANGER MECHANISM SECTION
Perform steps 1, 2, 9 and 10 of the disassembly method to remove the
CD changer mechanism.
3.1. How to remove CD Disc (See Fig. 2~5)
1. When CD is at play position (Figure 2), rotate reduction gear C
clock-wise as shown in Figure 3 Until disc tray is at stock position,
then rotate further to eject the disc tray so that CD can be removed
from the tray.
Gear up down board
CD Disc
Mark 1
Mark 3
Mark 5
(DISC 3)
(DISC 1)
(DISC 5)
Mark 2
Mark 4
(DISC 2)
(DISC 4)
Disc Tray
Guide Tray
Figure 5
CD At play position.
CD Disc
CD At stalk position.
Figure 2
3–5
CD-ES700/CD-ES77
3.2. How to Remove the tray motor/main cam motor/5Changer Motor PWB (See Fig. 1)
1. Remove the screws (A1)x 2 pcs., to remove tray motor/main cam
motor/5-Changer Motor PWB.
Changer Mechanism Unit
Main Cam Motor
(A1)X2
φ2x10mm
Tray Motor
5-Changer
Motor PWB
Figure 1
NOTE: There are 2 more screws tighten the motors at the bottom of
main chassis. Before performing procedure 1 above, disc stop
spring, top plate sear up down board and trays must be
removed, then only the 2 screws can be untighten.
3–6
CD-ES700/CD-ES77
— MEMO —
3–7
CD-ES700/CD-ES77
Service
E
Market
CD-ES700/CD-ES77
Manual 4. DIAGRAMS
CHAPTER
74
75
36 35
CONT3
CONT2
42 44
CONT4
M1
TRAY MOTOR
1
2
3
4
5
6
7
M1
MAIN CAM
MOTOR
8
9
+
+
RX1
SW4 DISC
SW1 CLAMP
SW2 TRAY SW3
M
-
-
10 11
CNP4
CNP5
1 2 3 4 5 6 7 8 9 10 11 12 13 14
M
GND
DI
DO
DRF
WRQ
CD RESOUT
8
+B6
GND
TRAY SW3
TRAY SW2
CLAMP
A_+5V(+B8)
7
CNP5
+8V(+B3)
6
CONT5
63 CL
5
RCHO
62 CE
D_+5V(+B9)
4
DGND
3
LCHO
L-CH
AGND
DGND
R-CH
2
DISC
CE
CL
TO DISPLAY SECTION
TO MAIN SECTION
1
SW3 TRAY SW2
[1] CD Block diagrams
75
69
64 DI
57
65 DO
56
66 WRQ
55
67 RES
51
68 DRF
50
43
IC1
LC78648E
CD SERVO
XL1
16.933 MHz
47 XOUT
44
40
37
CONT 1 34
49 XIN
1 26 27 80 60 49
41 45
7 8
9 10 14 15
VO6+
FWD5 19
+3.3V
+3.3V
REV5 20
IC2
LA6261
FOCUS/TRACKING/
SPIN/SLIDE
DRIVER
1
2
35 36
NM1
SPINDLE
MOTOR
COIL
TRACKING
FOCUS COIL
9
27
LASER
DRIVER
Q1
VO5-
REV6
FWD6
VO6VO5+
31 32 33 34
28 PVCC2
+5V
PICKUP UNIT
22 23
20 19
+3.3V
CONSTANT
VOLTAGE
11 13 15 17
VIN2
VIN3
VIN4
TDO 22
LDD
LDS
FIN
DIN
EIN
BIN
CIN
AIN
RVDD
LVDD
XVDD
DVDD
VVDD
AVDD
AVDD2
AVDD1
FDO 21
VIN1
SLDO 23
SPDO 24
3
4
5
30
7
26
6
M
NSW 1
PICKUP
IN
NM2
SLED
MOTOR
Figure 4-1 BLOCK DIAGRAM (1/3)
4–1
M
CD-ES700/CD-ES77
[2] Main Block diagrams
AM
LOOP
ANTENNA
IC303
LA1832S
FM IF DET./
FM MPX./AM IF
IC301
TA7358AP
FM FRONT END
FM
FM IF
T302
9
4
5
7
FM
OSC
3
FM L312
RF
CF303
CF351
X351
450 kHz
456 kHz
T351 CF352
AM IF
4 5 9 8
1 2
17 13
AM MIX
AM IF GND VCC FM VCO MO/ST
DET
L 14
24 AM OSC OUT
R 15
FM/AM
FM/AM IF MPX.
OUT MPXIN FM/AM
12
16
21
18
23
7
VCC
8
T301
AM OSC IN
FM
OSC
OSC BUFF
Q302
STEREO
6
1
B.P.F
AM RF IN
BF301
+B4
10.7 MHz
AM TRACKING
AM BAND
COVERAGE
+B7
+B7
1
FROM CD SECTION
CNP5
7
BI601
23
TUNER L 11
R 14
CD
3
L 12
R 13
DI 1
CE 2
CLK 24
IC601
LC75341 21 R
AUDIO
4 L
PROCESSOR
7 8 17 18
4
L(T1) 1
R(T1) 24
REC.
SWITCHING
P.B.
Q103TAPE 2 L-CH
Q104
REC./P.B. HEAD R-CH
21
+B4
JK690
VIDEO GAME
INPUT
VIDEO
L
AUX
R
1
TAPE 1 L-CH
P.B. HEAD R-CH
6
FM
2
3
5
FM/AM MO/ST
9 10
L 9
R 16
TAPE L 10
R 15
CNS601
4
SWITCHING
TAPE
MECHANISM
ASS'Y
Q714~
Q717
SOLENOID
DRIVER
3
VDD 17
+B4
Q360
Q706
11
OSC
+B
FM
MOTOR
DRIVER
22 15 16
1
DO
20
IC302
LC72131
PLL(TUNER)
CLK
X352
4.5 MHz
VT
DI
T306
CE
T303
+B4
13
4 L
21 R
L(T2) 2
R(T2) 23
3
Q107
Q108
MUTING
P.B
P.B.
-20dB
ATT
Q601
Q602
REC/PLAY
L NF 3
R NF 22
7 L REC.
18 R
AC BIAS
L REC. 9 REC
R REC. 16
8 L NF
17 R NF
12
SWITCHING
Q105
Q106
T1/T2
19
SWITCHING
IC101
AN7345K
PLAYBACK AND RECORD/
PLAYBACK AMP.
10 ALC
T1/T2
Q114
SWITCHING
Q112
ERASE
HEAD
BIAS Q111
OSC L103
Q113
SWITCHING
Q109
BIAS
BIAS
Q110
Figure 4-2 BLOCK DIAGRAM (2/3)
4–2
+B4
LED703
1 2
5 - 21
FL701
FL DISPLAY
28 - 31
44 45
32 - 41
F2
F1
F1
+B4
F2
CD-ES700/CD-ES77
JOG701
JOG
VOLUME
48
46
46
SP_RLY
27 40 25 13
VDD
78 - 69
AC_RLY
+B5
83
-
38
CE
CLK
DI
DO
VDD
RESET
T1/T2
BIAS
REC/PLAY
-
1 2 4 5 3 6 7 10 11 12
15 16 21
+B5
KEY
SW701-SW707
SW711-SW716
SW725-SW725
29
+B PROTECT
24 20 17 18 19
+B6
+B5
XL701
4.19 MHz
TO CD
SECTION
+B7
JK692
HEADPHONES
RESET Q709
L 18
R
14
IC901
VL+
VLVHVH+
Ð20dB
ATT
Q601
Q602
2
5
6
7
1
RELAY
DRIVER Q841
IC901
STK41242
POWER AMP.
8 R-OUT
11 L-OUT
L-CH
R-CH
RL914
SO902
SPEAKER
TERMINAL
Q905
D801
SPEAKER
RELAY
F802
5A/125V
-B2
-B1
D802
+B1
F801
5A/125V
IC851
AN80T53
VOLTAGE REGULATOR
+B3
+B7
+B4
+B9 A_+5V
+B6
SW5V
VF2
+B8
D+5V
7 LD+8V
2 M+13V
6 A+10V
F805
5A/125V
D804
1 +5V
F804
2A/125V
F803
2A/125V
3
D803
Q801
T.F.
VF1
+B5
RL841
AC POWER
SUPPLY CORD
-VF
T1/T2
BIAS
M901
M FAN MOTOR
Q906
+B2
REC/PLAY
+B8
MOTOR
DRIVER
SP. DET. D905
D906
D907
Q901
Q902
Q903
Q904
+B5
-
84
100
VDD
79
39
Q713
PHOTO 37
IC701
VLOAD
IXA002AW
(SERAIL No.31200001~402xxxxx)
+B5
IXA020AW
AVDD 34
(SERAIL No.402xxxxx~)
33
SYSTEM
MICROCOMPUTER
31
-
80
RX701
3 REMOTE
SENSOR 1
2
30
PT801
MAIN POWER
TRANSFORMER
IC854
1
AN78L05
CONSTANT
VOLTAGE REGULATOR
3
D842~
D845
PT841
SUB POWER
TRANSFORMER
Figure 4-3 BLOCK DIAGRAM (3/3)
4–3
AC 120 V, 60 Hz
CD-ES700/CD-ES77
Service
E
Market
CD-ES700/CD-ES77
Manual 5. CIRCUIT DESCRIPTION
CHAPTER
[1] Notes on schematic diagram
•
•
•
Schematic diagram and Wiring Side of P.W.Board for this model are
subject to change for improvement without prior notice.
•
The indicated voltage in each section is the one measured by Digital Multimeter between such a section and the chassis with no signal given.
Resistor:
To differentiate the units of resistors, such symbol as K and M are
used: the symbol K means 1000 ohm and the symbol M means
1000 kohm and the resistor without any symbol is ohm-type resistor. Besides, the one with “Fusible” is a fuse type.
Capacitor:
To indicate the unit of capacitor, a symbol P is used: this symbol P
means pico-farad and the unit of the capacitor without such a symbol is microfarad. As to electrolytic capacitor, the expression
Ocapacitance/withstand voltageO is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
REF. NO
JOG701
NSW1
SW1
SW2
SW3
SW4
SW701
SW702
SW703
SW704
SW705
SW706
SW707
SW712
SW713
DESCRIPTION
VOLUME
PICKUP IN
CLAMP
TRAY SW1
TRAY SW2
DISC
POWER ON/STAND-BY
CLOCK/TIMER
TUNING UP
TUNING DOWN
FAST REWIND/PRESET DOWN
EQUALIZER
FAST FORWARD/PRESET UP
TUNER (BAND)
CD
1. In the tuner section,
indicates AM
indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
•
Parts marked with “
“(
) are important for maintaining the safety of the set. Be sure to replace these parts with
specified ones for maintaining the safety and performance of the
set.
REF. NO
SW714
SW715
SW716
SW725
SW726
SW727
SW728
SW729
SW730
SW731
SW732
SW733
SW734
SW735
POSITION
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
DESCRIPTION
TAPE
GAME/VIDEO
X-BASS/DEMO
PLAY/REPEAT
STOP
REC/PAUSE
MEMORY/SET
OPEN/CLOSE
DIRCET PLAY
DISC2
DISC4
DISC5
DISC3
DISC1
[2] Types of transistor and LED
FRONT
VIEW
B
(3)
TOP
VIEW
E
(1)
TOP VIEW
TOP VIEW
DS1SS133
1N4004S
C
(2)
E C B
(S)(G)(D)
(1)(2)(3)
KTA1266 GR
KTA1271 Y
KTA1273 Y
KTA1274 Y
KTC3194 Y
KTC3199 GR
KTC3200 GR
KTC3203 Y
KRA107 S
KRC102 S
KRC104 S
KTA1504 Y
KTC3875 GR
TOP VIEW
FRONT
VIEW
AC
KDS184
FRONT
VIEW
AC
D10XB60F
5–1
304VT2H3
SDPB50CD
POSITION
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
ON—OFF
CD-ES700/CD-ES77
[3] Waveforms of CD circuit
Stopped
CH1=500 mV
DC 10:1
CH3=500 mV
DC 10:1
T
1
IC1 21
Stopped
CH1=200 mV
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
T
1999/04/07 09:51:15
500 ms/div
(500 ms/div)
NORM:20 kS/s
CH2=500 mV
DC 10:1
FDO
1
T
FDO
1
IC1 21
2
6
IC1 22
1
TDO
2
IC1 20
3
SPDO
CH1
v/DIV
500 mV
=Filter=
Smoothing : ON
BW : FULL
=Offset=
CH1 :
0.000 V
CH2 :
0.0 V
CH3 :
0.000 V
CH4 :
0.00 V
Stopped
CH1=500 mV
DC 10:1
1
IC1 21
3
IC1 67
CH2=10 V
DC 10:1
=Record Length=
Main :
100 K
Zoom :
2K
CH3=1 V
DC 10:1
=Filter=
Smoothing : ON
BW : FULL
=Trigger=
Mode : AUTO
Type : EDGE CH1
Delay :
0.0 ns
Hold off :
0.2 µs
Stopped
CH1=500 mV
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
T
2
IC1 73
CH3=1 V
DC 10:1
=Trigger=
Mode : NORMAL
Type : EDGE CH2
Delay :
2.924 ms
Hold off :
0.2 µs
1999/04/05 17:33:17
CH4=1 V
500 ms/div
(500 ms/div)
DC 10:1
NORM:20 kS/s
3
4
DRF
PDO2
IC1 74
T
TE
IC1 15
=Record Length=
Main :
100 K
Zoom :
2K
PDO1
7
FDO
1
8
4
=Offset=
CH1 :
0.000 V
CH2 :
0.000 V
CH3 :
0.00 V
CH4 :
0.00 V
3
CH Position To
-3 div
-1 div
0 div
=Filter=
=Offset=
Smoothing : ON
CH1 :
0.000 V
BW : FULL
CH2 :
0.0 V
CH3 :
0.00 V
CH4 :
0.00 V
1
CH2
Position
0.20 div
+1 div
+3 div
=Record Length=
Main :
100 K
Zoom :
2K
IC1 21
FDO
1
CH1
v/DIV
500 mV
=Trigger=
Mode : AUTO
Type : EDGE CH1
Delay :
0.0 ns
Hold off :
0.2 µs
=Filter=
Smoothing : ON
BW : FULL
Stopped
CH1=2 V
DC 10:1
=Offset=
CH1 :
0.000 V
CH2 :
0.0 V
CH3 :
0.00 V
CH4 :
0.00 V
=Record Length=
Main :
100 K
Zoom :
2K
T
=Trigger=
Mode : AUTO
Type : EDGE CH2
Delay :
0.0 ns
Hold off :
0.2 µs
1999/04/07 09:25:28
500 ns/div
(500 ns/div)
NORM:200 MS/s
T
5
9
IC1 4
IC1 39
DOUT
=Filter=
Smoothing : ON
BW : FULL
Vp-p=1.0 V~1.3 V
0.5 mV/div,0.5 µsec/div
Stopped
CH1=10 V
DC 10:1
1
T
CH2=1 V
DC 10:1
Stopped
CH1=2 V
DC 10:1
100 ms/div
(100 ms/div)
NORM:100 kS/s
10
=Offset=
CH1 :
0.00 V
CH2 :
0.00 V
CH3 :
0.00 V
CH4 :
0.00 V
=Record Length=
Main :
1K
Zoom :
100
T
CH2=2 V
DC 10:1
CH3=2 V
DC 10:1
=Trigger=
Mode : NORMAL
Type : EDGE CH1
Delay :
2.887 ms
Hold off :
0.2 µs
1999/04/05 20:50:17
5 µs/div
(5 µs/div)
NORM:100 kS/s
IC1 58
TE
4
IC1 15
1
2
LRSY
11
IC1 59
2
DATACK
3
IC1 67
T
1
DRF
12
IC1 60
T
3
DATA
=Filter=
Smoothing : ON
BW : FULL
=Offset=
CH1 :
0.0 V
CH2 :
0.00 V
CH3 :
0.00 V
CH4 :
0.00 V
=Record Length=
Main :
100 K
Zoom :
2K
=Trigger=
Mode : NORMAL
Type : EDGE CH1
Delay :
2.924 ms
Hold off :
0.2 µs
=Filter=
Smoothing : ON
BW : FULL
5–2
CH3
v/DIV
2V
=Offset=
CH1 :
0.00 V
CH2 :
0.00 V
CH3 :
0.00 V
CH4 :
0.00 V
=Record Length=
Main :
5K
Zoom : 100
=Trigger=
Mode : AUTO
Type : EDGE CH3
Delay :
0.0 ns
Hold off :
0.2 µs
CD-ES700/CD-ES77
[4] Voltage
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
IC1
VOLTAGE
3.20 V
1.61V
1.61 V
1.60 V
1.61 V
3.08 V
1.65 V
1.65 V
1.65 V
1.65 V
1.48 V
0V
1.65 V
0V
1.65 V
1.47 V
1.48 V
0V
0V
0V
1.60 V
0V
1.61 V
1.61 V
0V
0V
3.20 V
0V
3.20 V
0V
0V
1.59 V
1.60 V
3.20 V
0V
0V
0V
0V
0V
0V
3.61 V
0V
0V
1.80 V
3.60 V
0V
1.45 V
1.49 V
3.19 V
3.79 V
0V
0V
0V
0V
0V
0V
0V
0V
0V
3.20 V
0V
0V
0.53 V
0V
5.16 V
5.18 V
4.68 V
0V
0V
0V
0V
0V
0V
4.86 V
4.86 V
3.01 V
0V
1.12 V
0V
3.20 V
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
IC2
VOLTAGE
2.10 V
2.20 V
2.10 V
2.20 V
2.10 V
2.20 V
0V
4.37 V
5.02 V
3.20 V
1.62 V
1.65 V
1.62 V
1.65 V
1.62 V
0V
1.62 V
1.64 V
4.71 V
4.71 V
3.92 V
3.11 V
3.10 V
2.50 V
1.65 V
0V
5.02 V
8.68 V
5.02 V
0.59 V
0.71 V
0V
0V
0V
2.11 V
2.20 V
IC101
VOLTAGE
0V
0V
0.57 V
2.03 V
0.44 V
0V
0V
0.58 V
3.45 V
3.35 V
0V
0V
6.97 V
4.16 V
0V
3.42 V
0.57 V
0V
0V
0.41 V
2.03 V
0.57 V
0V
0V
PIN
NO.
1
2
3
4
5
6
7
8
9
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
IC301
VOLTAGE
0V
0V
0.29 V
0.20 V
0V
0.29 V
0.26 V
0.29 V
0.29 V
IC302
VOLTAGE
2.57 V
0V
0V
0V
0V
5.22 V
10.18 V
4.76 V
0V
0V
5.23 V
0V
5.23 V
0V
0V
2.59 V
5.24 V
0V
0V
10.18 V
0V
2.57 V
IC303
VOLTAGE
1.97 V
5.15 V
1.97 V
1.96 V
0V
0V
5.21 V
3.59 V
5.15 V
0V
2.01 V
1.25 V
2.27 V
1.13 V
1.10 V
1.96 V
0V
1.29 V
2.08 V
1.29 V
1.95 V
1.95 V
5.15 V
3.65 V
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
PIN
NO.
1
2
3
4
5
6
7
5–3
IC601
VOLTAGE
0V
0V
0V
5.10 V
5.10 V
5.10 V
5.10 V
5.11 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
10.20 V
0V
IC901
VOLTAGE
52.80 V
21.60 V
9.60 V
-9.70 V
-21.60V
-48.80 V
0V
-19.70 V
-22.90 V
-22.10 V
-18.60 V
-51.30 V
51.40V
-0.14 V
-0.13 V
-50.04 V
-0.14 V
-0.14 V
IC851
VOLTAGE
5.22 V
13.11 V
20.66 V
0V
19.72 V
10.22 V
8.67 V
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
IC701
PIN
NO.
51
4.74 V
52
4.65 V
53
0V
54
4.70 V
55
4.72V
56
4.72 V
57
0V
58
0V
59
0V
60
4.83 V
61
2.27 V
62
1.99 V
63
0V
64
4.73 V
65
0V
66
4.74 V
67
0V
68
0V
69
5.22 V
70
0V
71
0V
72
4.68 V
73
0V
74
0V
75
0V
76
5.20 V
77
0V
78
5.01 V
79
5.01 V
80
2.64 V
81
5.01 V
82
5.01 V
83
0V
84
0V
85
5.01 V
86
1.67 V
87
5.20 V
88
5.01 V
89
4.87 V
90
0V
91
2.02 V
92
0V
93
13.10 V
94
0V
95
0V
96
4.74 V
97
0V
98
4.61 V
99
0V
100
0V
VOLTAGE
VOLTAGE
0V
0V
0V
0V
5.17 V
5.17 V
-29.70 V
0V
-0.26 V
-0.24 V
-0.22 V
-0.20 V
-0.19 V
-0.19 V
-0.18 V
-0.17 V
-0.16 V
0V
-29.90 V
-29.90 V
-29.90 V
-29.90 V
-29.90 V
-19.76 V
-27.40 V
-24.87 V
-22.29 V
-22.30 V
-30.13 V
-27.43 V
-14.50 V
-27.20 V
-19.30 V
-6.08 V
-21.85 V
-27.22 V
-21.89 V
-17.00 V
-27.38 V
-27.10 V
-27.07 V
-27.00 V
-27.00 V
-27.35 V
-26.27 V
-27.11 V
-27.00 V
-27.07 V
-27.07 V
-26.83 V
CD-ES700/CD-ES77
Service
E
Market
CD-ES700/CD-ES77
Manual 6. CIRCUIT SCHEMATICS AND PARTS LAYOUT
CHAPTER
[1] Wiring side of PWB
DISPLAY PWB-A2
A
RD03
RD02
RD04
RD01
SW701
POWER
ON/STAND-BY
RD06
RD05
B
16
14
12
10
8
6
4
2
R761
P6-5 11-B
TO MAIN PWB
CNP701B
15
13
11
9
7
5
3
1
CNP701A
16
SW704
TUNING DOWN
SW703
TUNING UP
SW702
CLOCK/TIMER
LED701
1
FFC701
SW705
FAST REWIND/
PRESET DOWN
R593
R789
R788
SW707
FAST FORWARD/
PRESET UP
R738
Q716
SW714
TAPE
R728
B
C
E
C710
D710
D709
C705
R713
R716
R703
SW716
X-BASS/DEMO
SW726
STOP
RD23
D714
R781
Q709
SW730
DIRECT
PLAY
D713
1
SW729
OPEN/
CLOSE
FW705 6
1
RD25
Q713
14 12 10 8 6 4 2
CNP704
13 11 9 7 5 3 1
RD26
RD27
C715
6
SW728
MEMORY/
SET
SW727
REC/PAUSE
1
FFC704
14
CNP5
P6-2 6-C
TO CD SERVO PWB
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
1
2
3
4
Figure 6-1 WIRING SIDE OF PWB (1/6)
6–1
5
6
P6-6 5-A
TO POWER AMP. PWB
R783
C714
R791
R573
C701
C707
RD32
SW731
DISC2
D711
D712
R782
D715
Q710
SW735
DISC1
RD28
SW732
DISC4
RD29
RD31
RD30
G
R705
R704
R751
CNP802
R708
RD24
LED703
SW725
PLAY/REPEAT
WTM705
R701
R702
L701
SW733
DISC5
7
FFC702
CNP702A
R769
R795
1
2
3
4
5
6
7
SW715
GAME/VIDEO
R745
R794
1
R787
P6-3 9-A
C721
R714
R715
R763
R770
R786
R790
RD13
R712
R711
R709
R710
C704
RD14
XL701
Q711
2
1
SW734
DISC3
R780
C709
1
9
8
7
6
5
F
R775
B C E Q707
Q715
Q712
R717
R776
R778
R727
RD11
RD12
Q706
B
C
E
R785
R726
R722
R759
R723
D716
R739
Q714
R777
30
R767
R719
TO TAPE MECHANISM PWB
100
R720
R718
R773
JOG701
VOLUME
81
R766
31
35
25
20
R771
R779
FL702
55 45
40
70
IC701
75
85
15
90
10
95 5
80
Q717
SW713
CD
R733
R736
R721
60
65
E
3
2
1
R724
51 50
D
21
20
19
18
17
16
15
14
13
12
11
10
RX701
R768
R784
D701
C720
R732
R729
C717
C702
41
40
39
38
37
36
35
34
33
32
31
30
29
28
Q708
R741
SW706
EQUALIZER
SW712
TUNER
(BAND)
R731
C
R740
R725
45
44
R762
R730
R746
R750
CD-ES700/CD-ES77
A
R32
10
15
1
18
6 5 4 3 2 1
R24
CNS601
CNP704
CNP5
P6-1 3-H
TO DISPLAY PWB
R55
C14
R20
R16
R15
R18
R14
R13
B
C
E
P6-5 12-F
FROM MAIN PWB
C42
R27
R25
C22
L1
R28
R47
R49
14
FFC704
2
1
CNP4
1 3 5 7 9 11
2 4 6 8 10
C40
D
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R56
5
25 20
Q2
IC2
CNP3
R9
19
1
R8
C10
36
35 30
C13
D1
C17
C39
R10
C47
C20
R44
C3
C11
R19
R17
R48
5
4
Q1
6
R42
C23
C4
R3
C15
20 21
C46
1
FFC1
C18
C25
40
C21
C9
R6
C50
C24
C44
41
50
45
35
30
CNP2
1
2
3
4
5
6
7
8
C26
C48
10
15 25
ZD1
XL1
R58
R43
IC1
C16
R22
R50
C28
C30
C29
C2
C35 R39
C36 R40
R57
C37 R41
R33
R36
R35
R34
R37
C33
C27
C34
75
5
1
9
C51 C52
65
70 55
80
C8
C6
C12
R45
1
C
16
14
12
10
8
6
4
2
10
61 60
R12
15
13
11
9
7
5
3
1
R54
C5
16
CNP1
16
R7
C1
8
C38
B
C49
R52
11
C32
C31
R38
R31
R51
R53
R21
R30
7
3 12
R26
CD SERVO PWB-C
1
11
1
11
FFC4
COLOR TABLE
E
BR
BROWN
RD(R)
RED
OR
ORANGE
YL
YELLOW
GR
GREEN
BL
BLUE
VL
VIOLET
GY
GRAY
CNS3A
6 5 4 3 2 1
F
BK
BLACK
PK
PINK
WH
GR
WH
GR
WH
RD
W H ( W ) WHITE
6 5 4 3 2 1
CNS3B
+
16
654 321
G
CNP3A
NM1
SPINDLE MOTOR
1
NSW1
PICKUP IN
+
CD MOTOR
PWB-F
PICKUP UNIT(306)
NM2
SLED MOTOR
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
1
2
3
4
Figure 6-2 WIRING SIDE OF PWB (2/6)
6–2
5
6
CD-ES700/CD-ES77
TAPE MECHANISM
ASSEMBLY
P6-1 6-E
TO DISPLAY PWB
CNP702A
TAPE MECHANISM PWB-D
FFC702
7
1
1 3 5 7
2 4 6
SW
SW
SW
2
1
RD
BK
SOLENOID
SOLENOID
+TAPE
MOTOR
TAPE 2
RECORD/PLAYBACK
HEAD
BK
RD
GR
SW1
CLAMP
RD
WH
BK
YL
WH
BK
ERASE HEAD
WH
TAPE 1
PLAYBACK HEAD
RD
3
2
1
SW2
TRAY SW1
7 6 5 4 3 2 1
CNP102
CNP101
P6-5 11-C
TO MAIN PWB
SW3
TRAY SW2
M1
TRAY
MOTOR
BK
YL
WH
BK
RD
WH
BK
BK
10
8
6
4
2
WH
11
9
7
5
3
1
CNP4A
GR
GR
P6-5 12-D
TO MAIN PWB
RX1
SW4
DISC
M2
MAIN CAM
MOTOR
5-CHANGER
MOTOR PWB-E
• The number 1 to 12 are waveform number shown in page 5-2.
7
8
9
10
Figure 6-3 WIRING SIDE OF PWB (3/6)
6–3
11
12
CD-ES700/CD-ES77
A
R124 R122
R136
C120
C396
C383
C605
C615
C611
C613
C631
9
C621
C623
D860
D862
D861
R620
R958
R857
R853
R864
R912
IC901
IC85
18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
6 4
C918
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
3
4
Figure 6-4 WIRING SIDE OF PWB (4/6)
6–4
5
R
C922
C921
C920
R941
R939
R889
D885
Q902
RL914
Q885
Q886 C
C916
R916
R917
R913
R911
C919
C917
R919
ZD903
R926
R925
R927
C923
R942
R920
ZD902
R918
C910
R922
Q901
R921
D911
D906
D905
R943
C914
C911
C912
R910
LG2
2
7 5 3
L901
D913
G
1
C859
C640
C946
C902
WH
BK
WH
BK
WH
BK
WH
R616
R617
Q603 Q604
C906
R906
C904 R902
R904
C913
RD
R605
C617
C619
C612
R641
C624
R643
C626
C625
R609
R608
1
BI601
1
2
3
4
5
6
7
8
9
10
11
12
CNP701B
C915
C907
C908
R907
R908
24
23
22
21
20
19
18
17
16
15
14
13
IC601
C371
R644
C622
R642
C372
C905
R905
R901
C903
R903
LG4
C620
C609
R607
C607
C602
16
14
12
10
8
6
4
2
C864
R393
X351
C618
R935
C928
L920
R-CH
C374
R909
R621
D907
C616
C909
R611
R610 C639
C601
C606
R606
C614
C373
C368
R613
R615
R612
SO902
C929
C395
R383
C398
R392
T301
R365
C342
C363
C364
R356
R357
R934
R945
D912
R944
R950
R940
R938
L-CH
L921
F
Q904
C653
C651
C652
C608
C369
Q903
B C E
Q905
R947
R949
SO902
SPEAKER
TERMINAL
R619
R983
C925
R937
D914
C931
Q906
R956
R946
C370
R601
R603
R602
C603
C610
R618
C944
B C E
CNS603
P6-6 4-G
FROM
GAME INPUT PWB
VD303
Q302
Q909 Q908
R984
JK691
VIDEO OUT
E
5
4
3
2
1
T306
R604
C399
C367
R986
Q602
2
1
CNP971
C335
C366
L902
CNP602
D691
BR
2
RD
1
CNS971
R309
C332
C330
D690
IC303
R350
R988
C331
C388
24 23 22 21 20 19 18 17 16 15 14 13
R323
C1
15
13
11
9
7
5
3
1
L352
CF351
R353
C353
C354
R352
C361
R358
D305
R313
R395
ZD351
1 2 3 4 5 6 7 8 9 10 11 12
C316
C1
R133
C356
R351
C309
R336
VD301
T303
C338
M901
FAN MOTOR
CF303
C334
C323
D302
C352
C350
R311
D301
D
C385
C389
C318
C324
R380
C320
C317
R316
2
R382
CF352
3
2
1
C351 T351
R614
BF301
R325
R322
R314
1 2 3
B
C
E
R375
1 2 3
R985
1
C312
L312
C308
1
2
C313
C310
C303
CNP301
C311
C362 VD302
IC301
AM LOOP
ANTENNA
R377
R987
C901
C304
GND
B C E
R302
C315
C305
C347
9
8
7
6
5
4
3
2
1
T302
C306
FM 75 OHMS
C
C393
C307
S0302
FM ANTENNA
TERMINAL
L351
C358
22 21 20 19 18 17 16 15 14 13 12
C392
C380
C394
C397
R381
R158
R355
C355
C387
R391
IC302
R379
C357
1 2 3 4 5 6 7 8 9 10 11
C365
C382
C381
C386
R387
R384
R359
Q360 R360
C391 R386
C377
R372 C378 R378
R385 R376 R388
C376 C379
R374
R373
Q601
C384
C302
B
X352
MAIN PWB-A1
6
CD-ES700/CD-ES77
CNP701A
C103
R111
Q111
GY
GRAY
W H( W ) WHITE
BK
BLACK
PK
PINK
R144
R143
C140
L103
R141
R140
Q112
R142
Q109
11
R928
C921
D910
CNP901
R929
Q902
C850
R887
R888
Q886 C885
R930
R885 R886
D909
D863
C855
C856
R889
Q885
BI801
ZD903
R926
R925
R927
1
2
3
4
5
6
7
8
CNS601
CNP2
P6-2 5-B
TO CD SERVO PWB
RD
WH
BK
WH
BK
WH
BK
WH
R863
R916
R917
C917
R919
VIOLET
E C B
C139
R146
R147
BLUE
VL
P6-3 11-F
C104
R114
CNP102
R115
R109
R110
R107
R108
C141 C138
GREEN
BL
FROM
TAPE 2 RECORD/PLAYBACK HEAD
C124
R126
C150
IC101
R101
R102
C117
R148
C137
R145
6 4 2
7 5 3 1
C918
ZD902
R918
R913
R911
E C B
IC851
C923
C920
E C B
YELLOW
1
1
2
3
4
5
BL
10
WH
9
BL
8
WH
7
BL
6
WH
5
BL
4
WH
3
BL
2
RD
1
CNS801
CNP801
P6-6 4-A
TO POWER AMP. PWB
R864
C910
R922
Q901
R857
R853
C922
C911
D911
D906
D905
Q106
E C B
YL
GR
R859
D861
R620
R910
R921
C912
7
6
5
4
3
2
1
E C B
C132
R134
R105
Q103
R103
Q101
R104
Q102
R112
Q104
R106
ORANGE
D860
D862
R912
C919
RL914
R149
C112
R118
R116
Q110
18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
R920
Q105
R120
C116
C130
RED
OR
C623
IC901
R935
C110
CNP101
3 2 1
LG3
R958
C114
C118
BROWN
RD( R)
R854
R906
C904 R902
R904
C913
C108
9
C621
R616
C640
P6-3 10-F
FROM
TAPE 1 PLAYBACK HEAD
C865
C902
C631
P6-1 2-B
TO DISPLAY PWB
Q108
C619
BR
R128
Q113
ZD805
C854
C906
RD
WH
BK
WH
BK
WH
BK
WH
C864
R908
C617
C612
R641
C624
R643
C626
C625
R609
R608
1
R605
D885
C907
C908
R907
C615
C611
C613
C916
R903
C605
C915
C905
R905
R901
C903
1
2
3
4
5
6
7
8
9
10
11
12
C914
L902
R644
C622
R642
R909
R621
LG4
C620
C909
R611
R610 C639
C618
R617
C365
R613
R615
R612
C374
C372
R356
R357
Q601
R986
Q602
C342
C363
C364
R350
C616
24
23
22
21
20
19
18
17
16
15
14
13
R121
R123
C107
C109
COLOR TABLE
1
FFC701
C105
C101
C102
R113
R119
C113
C115
R117
C111 C106
Q107
R139
Q114
CNP701B
BI601
X351
C369
C368
C361
R358
C367
7
6
5
4
3
2
1
14
15
16
17
18
19
20
21
22
23
24
C859
C373
24 23 22 21 20 19 18 17 16 15 14 13
C609
R607
C607
C602
IC601
C399
Q603 Q604
C366
C601
C606
R606
C614
R618
R351
IC303
C653
C651
C652
C608
C358
R353
C353
C354
1 2 3 4 5 6 7 8 9 10 11 12
R614
C610
15
13
11
9
7
5
3
1
R601
R603
R602
C603
C356
3
R365
C383
C395
C370
R352
R619
R604
CF351
03
6
C388
C946
C352
C350
L352
11
R13110
C121 9
R129 8
C123
R127
R137
C119
16
14
12
10
8
6
4
2
C135
C128
R132
C143
C371
VD303
1
R395
ZD351
C134
C133
C131
C126
R135
C127 R130
C129 12
13 R150
C125
R133
R393
R382
CF352
3
2
1
C351 T351
R383
C398
R392
B
C
E
R375
T301
C324
C385
R377
R158
R355
C355
5 14 13 12
C357
7
C396
R385 R376 R388
8 9 10 11
16
R124 R122
R138
R136
C120
R391
C386
R387
R384
R359
Q360 R360
C391 R386
79
7
378
LG1
LG2
FW901
P6-6 4-H
FROM
GAME INPUT PWB
7
8
9
10
Figure 6-5 WIRING SIDE OF PWB (5/6)
6–5
11
12
CD-ES700/CD-ES77
D853
D856
R803
C801
C810
Q801
B
C
E
D801
R891
R808
ZD803
C802
R806
C803
D806
C811
C804
D802
F803
2A/125V
Q841
C808
C809
C843
R842
10 9 8 7 6 5 4 3 2 1
CNP801
R804
R801
R805
ZD801
R802
C807
F804
2A/125V
D845
D844
D842
D843
B
D803
C805
C841
D805
R858
D804
C806
C842
R844
ZD802
1
2
3
C861
IC854
A
FW705
R841
1 2 3 4 5 6
CNP802
P6-1 6-G
FROM DISPLAY PWB
P6-5 12-G
FROM MAIN PWB
CNS801
POWER PWB-B1
F801
5A/125V
B C E
F802
5A/125V
R843
PT801
MAIN POWER TRANSFORMER
C
AC POWER SUPPLY CORD
AC 120 V, 60 Hz
F805
5A/125V
D
T.F.
R890
C844
WH
E
D846
RL841
BK
PT841
SUB POWER TRANSFORMER
F
R692
JK690
C690
R-CH
BI603
BK
BK
BK
BK
BK
R691
L-CH
C691
G
1
R693
5
5
WTM901
VIDEO IN
5
4
3
2
1
CNS603
1
1
COLOR TABLE
BR
CNP901
P6-5 11-H
TO MAIN PWB
6
AUX/VIDEO
CNP602
P6-4 1-E
TO MAIN PWB
R690
FW901
BROWN
RD(R)
RED
OR
ORANGE
YL
YELLOW
GR
GREEN
BL
BLUE
VL
VIOLET
GY
GRAY
W H ( W ) WHITE
JK692
HEADPHONES
GAME INPUT
PWB-B2
H
BK
BLACK
PK
PINK
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
1
2
3
4
Figure 6-6 WIRING SIDE OF PWB (6/6)
6–6
5
6
CD-ES700/CD-ES77
[2] Schematic diagram
GND
FM 75 OHMS
SO302
FM ANTENA
TERMINAL
2
1
2
1
VD303
SVC230C
R309
10K
2
3
CF303
T306
9
C335
560P
C334
22P(CH)
C306
0.022
T303
8
C347
0.022
C324
4.7P(CH)
FM OSC.
C313
22P
(CH)
1
7
C323
0.022
AM BAND
COVERAGE fL
C330
C307
10/50
R323
68K
15P(CH)
VD301
SVC347S
R316
4.7K
10K
R336
TP301
+B
R378
C379
100P
(CH)
R386
22K
C350
3
CF352
C353
0.022
R393
1K
C354
R359
1.8K
8
9
C391
47/25
DO
+B
R383
5.6K
R391
270
+B
C395
0.022
C396
100/10
CLK
270
R385
5.6K
Q360
KTA1266S GR
SWITCHING
R384
5.6K
C364
2.2/50
C366
0.001
R350
2.7K
8 FM DET
22P
(CH)
L352
100µH
10 IF OUT
11 PHASE
C368
1/50
MPX IN 16
C369
R-CH OUT 15
L-CH OUT 14
12 PHASE
MO/ST 13
C358
(FM/AM)
1/50
27P(CH)
TP
R356
1K
TP302
X351
456 kHz
MPX VCO 17
R357
470K
C374
0.015
C373
0.015
C371
1/50
IC303
LA1832S
FM IF DET./FM MPX./AM IF
ZD351
DZ5.1BSB
AGND
C384
0.001
7
C367
1/50
R353
270
9 VCC
C370
1/50
R392
P6-13 12-C
TO MAIN SECTION
6
+B
DI
5
SD
C365
0.022
7 STEREO
C357
2.2/50
C355
R388
3.9K
A+10V
6
0.022
C398
100/10
5.6K
4
4 AM IFAMIN LOW CUT 19
FM/AM OUT 18
5 GND
C361
0.022
C363
0.022
VSM 20
C372
1/50
R395
47K
R387
3
R352
1K
C356
0.001
R360
4.7K
G
AM RF IN 21
1
2
10K
C362
3.3/50
CF351
F
2
R365
AM OSC IN 23
2 AM MIX OUT
FM AFC 22
3 REG
0.022
C399
0.022
CE
R358
3.9K
1 FM IF IN
AM OSC OUT 24
10.7 MHz
1
R351
5.6K
C389
0.001
0.022
10/50
R355
3.3K
IC302
LC72131
PLL(TUNER)
E
C351
C352
AM IF
R372
C397
0.022
1 X INX OUT 22
C393
VSS 21
1/50 R381
2
AOUT 20
1K
10K C394
3 CE
47/25
1K
4 DI
1K
5 CL
AIN 19
1K
R379
6 DO PD 18
2.2K
FM/AM
17
7
VDD
C387
FM IN 16
IF
0.022
8 CONT
AM IN 15
C385
9 FM/AM
14 0.01
L351
100µH
10 MO/ST SD 13
IF IN 12
11 ST IND
R377
C386
R376
47K
330P
1K
T351
R373
C342
0.022
C392
0.001
R374
C377
100P(CH)
C378
100P(CH)
+B
R382
150
C380
10/50
C383
47P
R380
1.5K
C376
100P(CH)
IC302
LC72131
R375
470
C381
12P(CH)
C382
15P(CH)
X352
4.5 MHz
D
C388
0.001
DGND
TUN_R
TUN_L
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
1
2
3
4
Figure 6-7 SCHEMATIC DIAGRAM (1/9)
6–7
5
6
AM TRACKING fL
C312
0.022
FM IF
6
15P(CH)
C311
18P
(CH) R302
10
T301
T302
R325
47K
R322
680
C318
100P
OSC. BUFFER
C
4
5
C310
Q302
KTC3194Y
3
C331
0.047
VD302
SVC230C
33K
0.001
2
C320
0.001
C332
0.022
R313
C338
C309
0.001
C302
0.001
1
C305
4.7P
(CH)
C317
C304
0.01
AM OSC.
22
B
R314
C316
0.022
AM SIGNAL
FM RF
L312
IC301
TA7358AP
FM FRONTEND
FM SIGNAL
1
2
3
C303
10P(CH)
C308
4.7P
(CH)
R311
100K
FM BAND
COVERAGE fL
C315
0.01
D302
DS1SS133
D301
DS1SS133
BF301
BAND PASS FILTER
D305
DS1SS133
0.001
CNP301
MAIN PWB-A1 (1/3)
AM ANTENNA
A
AM LOOP
ANTENNA
CD-ES700/CD-ES77
A
CD SERVO PWB-C
CD SIGNAL
B
C1
47/25
PICKUP UNIT
R7
47
+B
4
13
F
5
12
D
6
11
7
10
8
9
9
8
10
7
11
6
12
5
13
4
14
3
15
2
1
16
VREF
AVDD1
VR
E
R6
56
R12
330
C8
B
R3
56
C
TR+
FOC21
0.056
FO+
TR-
C9
3.3/16
CNP1
1
C11
0.056
FO+
C46
0.01
FOPD
+B
+B
NM1
SPINDLE
MOTOR
NM2
SLED
MOTOR
NSW1
PICKUP IN
CNS3A
CD MOTOR PWB-F
CNS3B
G
6
6
6
6
-
5
5
5
5
+
4
4
4
4
+
M
M
-
CNP3A
3
3
3
2
2
2
2
1
1
1
1
KDS184
VIN2
10
11 12 13
14 15
16 17
18
C40
100/10
CNP3
SP+
+B
SP-
Q2
KTA1271 Y
CONSTANT VOLTAGE
SL+
+B
SLPUIN
GND
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
1
2
3
4
Figure 6-8 SCHEMATIC DIAGRAM (2/9)
6–8
5
FWD5
VIN1G
9
19
VIN4G
VIN1
8
21 20
REV5
REGOUT
7
REV6
VREFIN
VCONT6
PVCC1
6
FWD6
SGND
REGIN
5
VIN3
MUTE
PVCC2
PGND1
4
VIN2G
VO6+
PGND2
VO1-
3
R48
10K
R49
10K
IC2
LA6261
FOCUS/TRACKING/SPIN/SLED DRIVER
+B
3
D1
VCONT5
R17
VO6-
VO1+
2
SVCC
VO5+
VO2-
1
1
R10
10K
24 23 22
VO5-
27 26 25
VO2+
29 28
VO4-
30
VO4+
31
VO3-
F
34 33 32
VO3+
36 35
R8
10K
C47
100/10
6.8K
C10
0.001
C20
C17
0.001
R45
100
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
LPF
JITTC
AIN
CIN
BIN
DIN
FEC
PHLPF/RF
VREF
EIN
FIN
TEC
4
TE
TEIN
LDD
LDS
2
FDO 21 22 23
R19
5.6K
+B
C39
+B
GND
C15
100/10
E
100/10
VR
LD
100/10
TR-
VIN4
FO+
8
GND
VIN3G
TR+
1
5
0.01
100P(CH)
C6
C12
TRTR+
1
2 SLCO
3 EFMIN
0.0027
4 RF
0.047
C5
C49
0.022
A
F
C36
0 22
VVDD
80 79 78
C4
0.001
VCC
R57
0.2M
47/25
C3
PD
R40
B
R41
56K
6
6 8K
14
C37
0.1
10
R15
15
3
LD
VVSS
PCKIST
2
A
LASER DRIVER
Q1
KTA1504 Y
R9
C2
0.01
TDO
SLDO
E
C
C38
0.01
GND
16
6.8K
8.2K
15K
C
16
1
VREF
R14
R13
R16
VCC
FFC1
16
CD-ES700/CD-ES77
100P(CH)
C33
0.022
C32
C31
C30
C29
C28
100P(CH)
100P(CH)
100P(CH)
C27
0.022
100P(CH)
100P(CH)
R38
R37
1K
1K
R36
R35
R34
R33
R32
1K
1K
1K
1K
1K
FFC704
14
14 CD RES
13 WRQ
12 DRF
11 DO
10 DI
CNP704
9 CL
+B
+B
8 CE
2
9
C14
100/10
2.2K
2.2K
1K
0.022
C13
6.8K
0.022
C43
R18
R28
R47
DS184
R15
D1
R14
R13
R16
1
6.8K
8.2K
15K
R52
4.7K
47K
R55
FDO 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
C22
0.01
ZD1
2.2K
390
R31
R56
2.2K
R30
DZ3.3BSB
C16
330/6.3
C23
10/25
C24
10/25
R24
2.2K
R25
2.2K
C25
0.0015
(ML)
C26
0.0015
(ML)
11
2
10
3
9
4
DISC
5
6
+5V
+B
7
TR+
8
TRÐ
9
CAM+
10
CAMÐ
11
8
VIN4G
18
SW4 DISC
RX1
4
+
3
2
1
1
11
+
-
M
M1
TRAY
MOTOR
M
M2
MAIN CAM
MOTOR
+B
C18
0.01
+B
R27
10K
+B
C48
0.022
+B
1
R-CH
2
AGND
3
L-CH
4
DGND
5
D_+5V
6
DGND
7
+8V
8
A_+5V
R44
1
4.7K
CNP2
R20
VIN4
7
SW1 CLAMP
5
CNP4
FWD5
REV5
R26
10K
19
SW3 TRAY SW2
SW2 TRAY SW1
7
6
C42
0.01
0
CNP4A
1
TRAY SW1
R22
100
5-CHANGER
MOTOR PWB-E
FFC4
11
CNS601
P6-12 1-A
FROM MAIN PWB
TE
TEIN
LDD
LDS
R51
4.7K
R58
10K
6
GND
CLAMP
L1
4
IC1
LC78648E
CD SERVO
1
1
TRAY SW2
0.82 µH
LPF
JITTC
AIN
CIN
BIN
DIN
FEC
PHLPF/RFMON
VREF
EIN
FIN
TEC
1 +5V
CNP5
10
LVDD
C21
056
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2 GND
+B
11
DATACK
LRSY
ASDFIN
ASDACK
ASLRCK
F16MOUT
OUT1
F16MIN
IOMODE
XVDD
XIN
XOUT
XVSS
RVDD
RCHO 44
LRVSS 43
LCHO 42
41
3
8 7
12
C44
0.001
H)
5 TRAY SW1
4 TRAY SW2
DVDD
60
59 DATA
58
57
56
55
54
R50
53
4.7K
52
51
C51 18P(CH)
50
49
XL1
48
16.9344 MHz
R43
47
220
C52
46
18P
+B
45
TDO
SLDO
SPDO
AVSS
AVDD2
DVDD
DVSS
VPB
DEFECT
FSEQ
EFLG
FSX
PU_IN/CONT1
M0_BÐ/CONT2
MO_B+/CONT3
MONI1
MONI2
DOUT
TEST
5
PD01
MOT_AÐ/CONT4
MOT_A+/CONT5
MONI3
MONI4
MONI5
MO_SPEED/CONT6
C2F/SBCK
DRF
*RES
*WRG
DO
DI
CL
CE
DVSS
VVSS
PCKIST
PD02
1
047
2 SLCO
3 EFMIN
0027
4 RF
6 CLAMP
3 PHOTO
VVDD
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61
DD1
4.7K
4.7K
4.7K
R53
R21
R54
R39
680
R40
680
C35
0.047
C36
0.22
R57
0.2M
7 DISC
C37
0.1
P6-11 12-C
TO DISPLAY PWB
C34
C50
0.022
+B
+5V
+B
+8V
R42
1
• The number 1 to 12 are waveform number shown in page 5-3.
7
8
9
10
Figure 6-9 SCHEMATIC DIAGRAM (3/9)
6–9
11
12
CD-ES700/CD-ES77
DISPLAY PWB-A2
G11
P02
P01
P04
P03
P06
P05
NX
NX
NX
NX
NX
P07
NX
P08
P09
P11
P10
P13
P12
P14
P17
P16
P15
NP
NP
F2
F2
R794
1.5
3
45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 1
C707
1/50
1
R745
10K
R751
330
2
+10V
LED703
SDPB50CD
Q710
KRC102 S
P19
P18
FL701
FL DISPLAY
LED DRIVER
P20
A
B
R750
47K
G6
G7
G8
G9
G10
S1
S2
S10
79 VLOAD
G11
S3
S4
S5
S6
S7
S8
S9
81 82 83 84 85 86 87 88 89 90 91 92 93 94 9
80
78 S11
77 S12
76 S13
+B
75 S14
74 S15
73 S16
72 (DIST 3),S17
71 (DIST 2),S18
D701
DS1SS133
70 (DIST 1),S19
69 (DIST 0),S20
C
IC701
IXA002AW
(SERAIL No.31200001~
IXA020AW
(SERAIL No.402x
SYSTEM
MICROCOMPUT
68
67
66
65
64
63
62
61
P IN
1K
1K
R733
R736
R721
R724
1K
1K
560
1K
R725
R729
2.2K
R726
R727
+B
680
680
R728
R731
10K
50 49 48 47 46 45 44 43 42 41 40 39 38 37 3
R762 R784
1K
10K
+B
SP DET
51
VSS
52
R732
1K
REMOCON
54 TRAY SW1
53 TRAY SW2
T_SOL_B
1K
S MUTE
1K
R730
R788
10K
TIMER LED
R746
57 DIST
56 CLAMP SW
55 DISC_SW
T_MOTOR
100
T_SOL_A
1K
R740
VDD
R741
60
59 MIC SW
58 ILLU LED
AC_RLY
1K
SP_RLY
D
R789
10K
R738
E
FFC701
16
4
3
2
1
1
+B
+B
SW_5V
D716
DS1SS133
+B
+B
+B
+B
+B
SP_DET
SP_RLY
-20dB
3
CNP701A
Q717
KRA107 S
2
3
TAPE
MOTOR
M
-
2
Q714
KRC104 S
1
7
4
5
6
+MTR
6
SOL2
5
SOL1
4
F_REC
3
T1 RUN
2
7
1
2
SOL
3
7
1
GND
R790
8.2K
SOLENOID
DRIVER
R787
4.7K
R786
4.7K
Q706
KTA1273 Y
MOTOR
DRIVER
FFC702
1
7
SOL
1
Q708
KTA1273 Y
D709
DS1SS133
D710
DS1SS133
CNP702A
JOG701
VOLUME
+B
R777
10K
Q707
KTA1273 Y
LED701
304VT2H3
2
Q712
1 KRC104S
1
G
+
3
R761
10K
3
3
Q716
2 KRC104S
T2 RUN
1
Q715
KRA107 S 2
1
1
TAPE MECHANISM
PWB-D
Q711
KRA107 S
3
2
R778
10K
+B
R779
10K
SOLENOID
DRIVER
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
1
R593
A+10V
M_+13V
R771
4.7K
5
REC/PLAY
T_BIAS
C710
0.047
6
T_T1/T2
R785
2.7K
7
S_MUTE
R780
10K
8
D_GND
R775
4.7K
9
DI
+B_PROTECT
R776
4.7K
11
10
CNP701B
F
P6-13 12-G
TO MAIN PWB
12
CLK
M_+13V
13
DO
C709
0.047
14
CE
R770
5.6K
16
15
2
3
4
Figure 6-10 SCHEMATIC DIAGRAM (4/9)
6 – 10
5
6
CD-ES700/CD-ES77
F1
F1
NP
NP
G01
G03
G02
G04
G06
G05
G07
G08
G09
G10
G11
P02
P01
P04
P03
P06
P05
NX
NX
NX
NX
NX
P07
NX
FL701
FL DISPLAY
8 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
R795
1.5
C702
220/10
C701
1/50
+B
4
5
1K
R701
1K
R702
1K
R703
1K
R704
1K
6
R705
1K
7
8
R708
9
1K
C704
RESET 10
15P(CH)
XOUT 11
C705
XIN 12
18P(CH)
VPP/IC 13 XL701
4.19 MHz
14
R769
1K
CD_DRF 15
3),S17
2),S18
1),S19
0),S20
IC701
IXA002AW
(SERAIL No.31200001~402xxxxx) VDD 16 R709
CLK 17
IXA020AW
R710
DI 18
R711
(SERAIL No.402xxxxx~)
DO 19
R712
CE 20
SYSTEM
R713
CD_CE 21
MICROCOMPUTER
R714
SW
CD_CLK 22
R715
CD_DI 23
R716
CD_DO 24
AVSS 25
LED
AVREF
AVDD
P_IN
T_FP SW 28
PROTECT 29
VOL_JOG 30
+B
1K
2
1K
FFC704
Q713
KRC104 S
1K
1K
1K
1K
1K
R573
10K
R759
5.6K
C720
0.022
+B
WTM705
1
FW705
VF2
-VF
P_IN
R722
1K
R723
1K
KEY 1
KEY 2
R718
1K
R719
1K
R720 +B
1K KEY 0
1K
1K
1K
1K
R724
R733
R736
R721
560
1K
R725
R729
2.2K
R726
R727
680
680
R728
14
CNP704
3
1
9 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31
R731
10K
1
2
3
4
5
6
7
8
9
10
11
12
13
14
CD DO
CD DI
CD CLK
CD CE
DISC SW
CLAMP SW
TRAY SW1
TRAY SW2
GND
+5V
+B
1K
R717
1K
R739
1K
T_RUN PULS 26
TUN_SM(SPAN) 27
SP DET
REMOCON
VSS
S MUTE
TIMER LED
T_SOL_B
T_MOTOR
T_SOL_A
VDD
AC_RLY
SW1
SW2
SP_RLY
P SW
_SW
1
CD_RESOUT
CD_WRQ
CD_DRF
CNP5
3
R763
CNP802
2
VF1
UNSW5.6
+B
AC RELAY
CTR
6
R791
10K
+B
L701
+B
5V BACK UP
D713
DS1SS133
100 µH
RX701
REMOTE SENSOR
C715
0.01
1
R761
10K
RD23
680
KEY 2
R785
2.7K
LED701
304VT2H3
R768
10K
OG701
OLUME
RD11
KEY 1
STOP
RD12
820
680
SW712 SW713
R767
10K
C710
0.047
RD24
820
SW725 SW726
PLAY/
REPEAT
TUNER
(BAND)
RD01
680
KEY 0
R766
10K
CD
RD02
820
SW701 SW702
CLOCK/
POWER
TIMER
ON/STAND-BY
7
C714
3.3/50
D715
DS1SS133
R593
10K
R780
10K
R771
4.7K
RESET
Q709
R781
47K KRC102 S
2
3
+B
8
9
RD25
1K
RD26
1.5K
SW727
SW728
REC/ MEMORY/
PAUSE
SET
RD13
RD27
2.2K
SW729
RD29
3.9K
SW730 SW731
OPEN/ DIRECT
CLOSE PLAY
RD30
5.6K
R783
100
RD31
10K
1 2 3
C717
47/25
RD32
15K
SW732 SW733 SW734 SW735
DISC 2 DISC 4
DISC 5 DISC 3
DISC 1
RD14
1K
1.5K
SW714 SW715
SW716
TAPE
GAME/ X-BASS/
VIDEO DEMO
RD03
RD04
RD05
1K
1.5K
2.2K
SW703
TUNING
UP
SW704
SW705
RD06
2.7K
SW706
TUNING FAST REWIND/ EQUALIZER
DOWN
PRESET DOWN
10
Figure 6-11 SCHEMATIC DIAGRAM (5/9)
6 – 11
RD28
2.7K
D714
DS1SS133
R782
100K
R773
10K
D711
DS1SS133
D712
DS1SS133
+B
+B
P6-9 12-B
TO CD SERVO PWB
1
P6-15 7-G
TO POWER AMP. PWB
VDD
-20dBATT
T_BIAS
T_REC/PLAY
T_T1/T2
CD_RESOUT
CD_WRQ
D
C721
0.022
G1
G2
G3
G4
G5
G6
G7
G8
G9
G10
G11
S1
S2
S3
S4
S5
S6
S7
2 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100
SW707
FAST FORAWRD/
PRESET UP
11
12
CD-ES700/CD-ES77
MAIN PWB-A1 (1/3)
FM SIGNAL
R601
1K
RECORD SIGNAL
R602
1K
CD SIGNAL
+B
VIDEO SIGNAL
AUDIO SIGNAL
+B
IC601
LC75341
AUDIO PROCESSOR
CNS601
R618
330
CD_D_GND
CD_A_GND
4
C605
Q909
KTC3875 GR
R607
3.9K
C611
0.0022
R987
2.2K
6
C613
1/50
7
8
1/50
1/50
C619
C621
1/50
9
10
11
12
+B
ROUT
LOUT
C603
220/10
C608
0.082
21
LBASS
RBASS
LTRE
RTRE
RIN
LIN
RSEL0
LSEL0
R4
AUX
L3
DECK
L2
TUNER
R2
L1
CD
R1
R6
3.
C6
0.0
20
0.1
19
C614
1/50
C616
4.7/50
C618
1/50
C620
1/50
C622
1/50
18
17
-
L4
C61
1/5
C606
16
R3
15
14
13
C624
1/50
C623
1/50
17
2.2K
R608
C626
0.0022
2.2K
R609
C625
0.0022
22K
R621
C639
1/50
22K
R620
AGC
C640
22/50
26
5
0.1
C615
4.7/50
C617
C631
0.01
Q908
KTC3875 GR
R-CH
R616
2.2K
R985
8.2K
6
R610
2.2K
R612
390
R619
330
Q604
KTC3875 GR
L-CH
A_GND
15
R615
4.7K
R614
4.7K
D_GND
7
14
16
C
R611
2.2K
+B
C607
0.082
R988
2.2K
Q602
KTC3875 GR
A_5V +B
D+5V
R617
2.2K
+
-
+-
P6-14 1-F
TO POWER SECTION
12
LD+7V
CCB
INTERFACE
+
-
11
Q603
KTC3875 GR
10
CLK 24
3 VSS
R986
8.2K
C6
0.0
C601
220/16
VDD 23
VREF
22
+
-
B
R613
390
Q601
KTC3875 GR
1 DI
CE
2
C609
1/50
R605
10K
+B
C653
220P
+-
+B
+
-
L-CH
3
CD_GND
4
5
A+5V
6
5
D_GND
6
7
+8V
8
7
D+5V
8
9
PLAYBACK SIGNAL
+
3
4
C651
220P
A_GND
1
C652
2
R-CH
220P
P6-9 12-E
TO CD SERVO PWB
CNP2
A
1
+
-
BI601
D
C141
SWITCHING
8.6V
R148
4.7K
REC_R
0V
Q112
KTA1504 GR
3.4V
R138
10K
Q114
KRC104 S
SWITCHING
0V
R103
2.2K
KTC3200 GR
SWITCHING
0V
R111
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
2
3
4
Figure 6-12 SCHEMATIC DIAGRAM (6/9)
6 – 12
ALC
Nor/CrO2
RIPPLE
ALC
Vcc
10 11 12
C131
47/25
R133
100
15K
H
1
5
6
C135
0.022
C134
220/10
C133
22/25
C124
270P
R130
1.5K R132
C128
0.022
100
C130
0.0033
C132
47/25
R134
10K
C150
47/50
R126
4.7K
R150
68K
R122
18K
C120
0.0022
R123
6.8K
C115
560P
R115
56
0V Q101
56K
+
Ð
9
15 14 13
R135
10K
0.7V
0V
0V
16
Ð
+
56K
C129
0.0033
R105
3.3K
8
7
C123
270P
0.7V
R113
1K
17
C125
22/50
C109
330P
IC101
AN7345K
PLAYBACK
AND C113
0.039
RECORD/
PLAYBACK
6
R127
0V
Q103
KTC3200 GR
5
0.022
0V
4
3.3/50
180P
3
C121
RECORD/
PLAYBACK HEAD
2
C143
4.7K
SWITCHING
C103
1
L
C107 330P
MUTING
C126
22/50
18
C119
0.0022
CNP102
19
Hich=CHROME
18K
Q104
KTC3200 GR
SWITCHING
R128
5.6K
Ð
+
112K
Hich=T1
112K
+
Ð
R121
0V
0V
20
C117
47/25
3.3K
21
R119
3.9K
R106
22
C106
0.0015
0.7V
23
R124
6.8K
IC101
AN7345K
C110
330P
C111
47/25
TAPE2
C104
180P(CH)
ERASE
T2_R2
3
A_GND
4
T2_R1
5
T2_L1
6
T2_L2
7
2
0V
SWITCHING
G
1
M_GND
0V
C105
L-CH
R-CH
1
2
3
4
5
6
7
0V
R114
1K
R C108
330P
24
0.0015
0.7V
47K
R104
2.2K
0V
R120
3.9K
R129
5.6K
1K
Q102
KTC3200 GR
R108
C101
560P
C116
560P
C114
0.039
R118
100K
R101
R117
100K
SWITCHING
C118
47/25
A_GND
CNP101
ERASE HEAD
C112
47/25
T1_L
R110
3
4.7K
Q106
KTC3875 GR
2
3
R116
56
1K
Q105
KTC3875 GR
2
T1_R
SWITCHING
1
R109
4.7K
1
R107
47K
R-CH
L-CH
F
R112
15K
R102
C102
560P
0.7V
Q107
KTC3875 GR
Q108
KTC3875 GR
MUTING
R
L
TAPE1
PLAYBACK HEAD
R139
10K
0.7V
0.022
9.3V
C127
E
3.4V
0V
R131 1.5K
9.3V
SWITCHING
Q113
KRC104 S
0V
R137
R147
10K
R136
220K
R146
10K
100/16
R149
150
CD-ES700/CD-ES77
JK691
VIDEO OUT
1
FW901
5
JK692
HEADPHONES
P6-15 11-B
TO POWER AMP.
PWB
CNP901
GAME INPUT PWB-B2
1
M_+13V
SP_RLY
R-CH
GND
L-CH
5
WTM901
CNS603
D690
DS1SS133
D691
DS1SS133
C602
0.022
C601
220/16
B
C603
220/10
C608
0.082
1
1
2
2
2
3
4
3
4
3
4
5
5
CNP602
R603
1K
1
C610
1/50 R604
5
VIDEO IN
R693
33K
R691
8.2K
R690
8.2K
L-CH
C691
390P
C690
390P
6
AUX/VIDEO
R-CH
R692
33K
BI603
JK690
GAME
VIDEO INPUT
CHASSIS
10K
R606
3.9K
C612
0.0022
1
C614
1/50
C616
4.7/50
C618
1/50
C620
1/50
C622
1/50
CE
+B
+B
1
A+10V
5
DGND
R642
10K
7
DI
2
CLK
R644
6.8K
624
50
3
TUN_R
8
AGND
6
P6-7 1-G
TO TUNERSECTION
06
R643
6.8K
TUN_L
R641
10K
9
4
2.2K
R608
DO
REC_R
R139
10K
R137
220K
+B
REC_L
R136
220K
+B
0.7V
Q107
0V
KTC3875 GR
R134
10K
MUTING
FFC701
16
DO
DI
R158
220
+B
R140
47K
11.6V
R142
9
8
T_BIAS
7
A+10V
0V
5
SW_5V
+B
4
SP_DET
19
20 5
7
3
SP_RLY
2
21 22 23
1
SP_RLY
SP_DET
SW_5V
-20dB
M_+13
D_GND
+B_PROTECT
A+10V
M_GND
18
TAPE_A_GND
R145
4.7
C138
0.0082
6
M_+13V
0V
L103
330 µH
C140
47/25
0V
Q111
KTC3203 Y
BIAS OSC.
47K
10
REC/PLAY
+B
22K
R143
11
T_T1/T2
0V
+B
C137
0.047(ML) R144
R135
10K
S_MUTE
11.6V
R141
Q109 4.7K
KTA1504 GR
SWITCHING
13
12
D_GND
Q110
KRC104 S
82
(1/2W)
0V
C139
0.039(ML)
ALC
Nor/CrO2
RIPPLE
ALC
Vcc
47/25
10 11 12
14
+B_PROTECT
BIAS
15 14 13
15
CNP701A
C135
0.022
C133
22/25
CLK
16
CNP701B
1
24 25
P6-14 1-F
TO POWER SECTION
7
8
9
10
Figure 6-13 SCHEMATIC DIAGRAM (7/9)
6 – 13
11
12
P6-10 1-F
TO DISPLAY PWB
47/25
C134
220/10
CE
CD-ES700/CD-ES77
VL-
2
1
3
+B
0.1(3W)
C922
C921
4700/35 4700/35
-B
C920
3300/71
VH-
C885
R885
820
0.1
D909
1N4004S
VL-
VL+
D910
1N4004S
R889
47K
SW
5
GND
4
C856
0.1
(ML)
C855
10/50
SP_RLY
C859
22/50
+B
3
13V
2
5V
1
C854
220/25 C865
R854
22/25
3.3K
C864
22/25
AGC
+B
CHASSIS
+B
IC851
AN80T53
VOLTAGE
REGULATOR
BI801
+B
+B
+B
R864
22K
-B
-B
+B
+B
+B
R857
22K
+B
2
2
3
3
3
4
4
4
5
5
5
6
6
6
7
7
7
8
8
8
9
9
9
10
10
10
6
D863
DS1SS133
AGND(AUDIO PRO)
M_GND
18
D_GND
7
CHASSIS
CD_D_GND
16
CD_A_GND
17
TAPE_A_GND
19
MAIN PWB-A1 (3/3)
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
1
2
V
G
V
R859
10K
P6-11 12-E
FROM DISPLAY PWB
FW705
G
1
CNP802
+B
SW_5V
CN
1
3
4
Figure 6-14 SCHEMATIC DIAGRAM (8/9)
6 – 14
5
6
1
2
3
4
5
6
V
Ð
P
V
AC RLY
+B
D861
DS1SS133
D+5V
A_5V
D860
DS1SS133
+B_PROTECT
1
11
+B
A+10V
11
C850
4700/35
D862
DS1SS133
P6-12 1-C
P6-13 8-H
TO MAIN SECTION
+B
+B
LD+8V
21
23
R934
56K
-B
R853
22K
E
12
R937
56K
-B
ZD805
DZ12BSB
10V
6
+B
R887
22K
IC851
8V
7
+B
+B
R888
47K
R886
22K
R-CH
M_+13V
R935
56K
VH+
CNS801
R863
3.3
(1/2W)
L_CH
Q886
KTC3875 GR
25
5
C925
R930
47K
+B
Q885
KTC3875 GR
SP_DET
10
47/50
L
C923
3300/71
R929
47K
SP_DET
C946
0.1/50
L901
3µH
R939
10
(1/2W)
R922
R928
39K
-B
24
22
R
Q903
KTC3875 GR
+B
D907
DS1SS133
Q904
KTC3875 GR
R926
1.5K
(1/2W)
R927
39K
C919
0.01
D885
DS1SS133
A_GND
F
ZD903
DZ12BSB
R925
1.5K
(1/2W)
R908
1K
C902
4.7/50
6
26
ZD902
DZ12BSB
D906
DS1SS133
C916
100/50
C917
0.01
C918
100/50
R918
1.5K
C914
100/100
R917
0.1(3W)
Q902
KTC3875 GR
Q901
KTC3875 GR
D905
R920
DS1SS133
1.8K
R958
100(1/4W)
Fusible
14
15
L902
3µH
+B
1.8K
+B
D
+B
-B
R921
1.5K
C901
4.7/50
4
R919
C911
100/100
R901 R902
56K 56K
C
5
-B
R910
1K
C915
100/100
C904
0.001
6
IC901
STK41242
POWER AMP.
-B
B
C903
0.001
7
8
VH+
9
VL+
10
R916
0.22/3W
11
R913
0.22/3W
12
Fusible
13
R912
100(1/4W)
14
C912
100/100
15
R911
56K
R907
56K
C909
0.1
(ML)
560
C905
47/50
C906
R906 47/50
R905
560
16
C907
C908
3P(CH) 100P(CH)
C913
100P(CH)
R904
1K
17
R909 C910
33K 3P(CH)
18
R903
1K
VH-
+
-
A
GND
+
-
CD-ES700/CD-ES77
FM SIGNAL
D912
DS1SS133
GR
470(2W)
470(2W)
R944
1.5K
R934
56K
L
R947
15K
R949
1K
Q906
KTC3203 Y
R950
68K
C931
10/50
2
2
1
1
L1_OUT
+
-
M
CNS971
+B
D911
DS1SS133
L921
0.29µH
D913
DS1SS133
R956
1K
1
2
3
4
5
CNP901
L920
0.29µH
D914
DS1SS133
Q905
KTC3199S GR 4.4
R946
SP RELAY
ON-OFF
47K
10
(1/2W)
SP_L1-CH
SP_R1-CH
R983
33K
R940
R941
10
R939
10
(1/2W)
L901
3µH
(1/2W)
R938
10
(1/2W)
0.2
C928
0.1
(ML)
C929
0.1
(ML)
M_+13V
SP_RLY
R-CH
GND
L-CH
FW901
R935
56K
RL914
L
M901
FAN
MOTOR
R1_OUT
R
R937
56K
47/50
R942
L R943
R
R945
1.5K
R
FROM GAME INPUT PWB
L902
3µH
CNP971
FAN MOTOR
DRIVER
+B
+B
6 OHMS MIN
R984
1.8K
+B
+B
C944
47/25
SP_L1-CH_GND
SP_R1-CH_GND
SO902
SPEAKER
TERMINAL
POWER PWB-B1
C810
0.22
+B
CHASSIS
7
7
7
8
8
8
9
9
9
10
10
10
VH-
C807
0.1 (ML)
DZ30BSB
ZD803
C802
47/50
R806 C803
47K 47/50
F803
2A/125V
RL841
T.F.
R891
100
PT801
MAIN POWER
TRANSFORMER
IC854
AN78L05
CONSTANT VOLTAGE
REGULATOR
VF1
R858
220
UNSW_ 5.6V
D806
1N4004S
Q801
KTA1274 Y
ZD801
DZ6.2BSA
VOLTAGE
REGULATOR
IC854
AN78L05
3
R841
220K
D853
1N4004S
1
C861
0.022
2
8
D856
DS1SS133
VF2
-VF
P_IN
C801
100/35
CNP802
1
2
3
4
5
6
BLACK
WHITE
D803
1N4004S
R802 ZD802
47K DZ7.5BSB
CHASSIS
7
F804
2A/125V
D804
1N4004S
AC_RLY
P6-11 12-E
FROM DISPLAY PWB
FW705
C806
0.1
(ML)
-B
+B
CNS801
11
-B
VL-
AC POWER SUPPLY CORD
AC 120 V, 60 Hz
6
R890
4.7M
(1/2W)
5
6
F801
5A/125V
F805
5A/125V
5
6
D802
D10XB60F
C844
0.0047
5
C808
0.1
(ML)
+B
GND
D846
DS1SS133
4
R842
1K
R843
47K
D842
D845 1N4004S
1N4004S
D844
D843
1N4004S 1N4004S
C842
470/35
9
C843
0.047(ML)
3
4
C805
22/100
3
4
C841
Q841
KTC3199 GR 1000/6.3
3
VH+
VL+
C804 D805
220/63
1N4004S
2
R805
47
-B
1
2
R803
12K
B
1
R804
47
+B
1
R844
82
+B
C809
0.1
(ML)
R801
100K
+B
F802
5A/125V
CNP801
R808
2.2K
(1/2W)
BI801
C811
0.22
D801
D10XB60F
PT841
SUB POWER
TRANSFORMER
10
Figure 6-15 SCHEMATIC DIAGRAM (9/9)
6 – 15
11
12
CD-ES700/CD-ES77
Service
E
Market
CD-ES700/CD-ES77
Manual 7. FLOWCHART
CHAPTER
[1] Troubleshooting
1. When the CD does not function
The CD section may not operate when the objective lens of the optical pickup is dirty. Clean the objective lens, and check the playback operation.
When this section does not operate even after the above step is taken, check the following items.
Remove the cabinet and follow the trouble shooting instructions.
"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup lens. Before attempting
any adjustment make certain that the lens is clean. If not, clean it as mentioned below."
Turn the power off.
Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.
Do not touch the lens with the bare hand.
1.
Parts code
UDSKA0004AFZZ
CD optical pickup Lens cleaner disc
HOW TO USE
1. Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the
brush on the CD cleaner disc which has the mark next to it.
2. Place the CD cleaner disc onto the CD disc tray with the brush side down,then
press the play button.
3. You will hear music for about 20 seconds and the CD player will automatically stop.
If it still play continuously, press the stop button.
Cleaning fluid
CAUTION
The CD lens cleaner should be effective for 30-50 operations, however if the
brushes become worn out earlier then please replace the cleaner disc.
If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft
cloth.
Do not drink the cleaner fluid or allow it contact with the eyes. In the event of this
happening then drink and / or rinse with clean water and seek medical advice.
The CD cleaner disc must not be used on car CD players or on computer CD-ROM
drives.
All rights reserved. Unauthorized duplicating, broadcasting and renting this product
is prohibited by law.
Cleaner disc
2. When a CD cannot be played
2.1. "E-CD01" is displayed.
1) Check the power to IC1 (LC78648E), the presence of the clock signal (16.9344 MHz) and the status of the RESET terminal (pin 67 on IC1).
2) Does the pickup move to the PICKUP-IN Switch (NSW1) position?
If (1) and (2) are OK, check the system microcomputer (especially the communication line with the DSP).
2.2. Pressing the CD operation key is accepted, but playback does not occur.
1) Focus-HF system check
2) Tracking system check
3) Spin system check
4) PLL system check
5) Others
7–1
CD-ES700/CD-ES77
(1) Focus-HF system check.
Stopped
CH1=500 mV
DC 10:1
CH3=500 mV
DC 10:1
T
Although a CD is inserted and the cover is closed, "NO
DISC" is displayed.
500 ms/div
(500 ms/div)
NORM:20 kS/s
FDO
1
Press the Tray1 CD Eject Button without inserting a disc, and try
starting the playback operation.
TDO
3
CH1
v/DIV
500 mV
=Filter=
Smoothing : ON
BW : FULL
=Offset=
CH1 :
0.000 V
CH2 :
0.0 V
CH3 :
0.000 V
CH4 :
0.00 V
=Record Length=
Main :
100 K
Zoom :
2K
=Trigger=
Mode : AUTO
Type : EDGE CH1
Delay :
0.0 ns
Hold off :
0.2 µs
Figure 1
1. Does the pickup move to the PICKUP-IN Switch (NSW1) position?
Yes
2. Does the focus (lens) move up and down?
(Waveform drawing Figure 1)
No
Sled motor (NM2).
No
Check the focus peripheral circuit.
No
Check the laser diode driver Q1 peripheral circuit.
No
Spindle motor (NM1).
No
Pins 7~11, 13,19 and 20 on IC1
Check the laser diode driver Q1 peripheral circuit.
Yes
3. Is the laser lit?
Yes
4. Is the turntable rotating?
When a disc is loaded, start playback operation.
1. Is focus servo activated?
(Waveform drawing Figure 2)
Yes
2. Does DRF change from "L" to "H"?
No
Is the disc rotating?
No
If the disc is spinning and a HF waveform
is generated, DRF will go H.
Yes
3. Is the HF waveform normal?
(Waveform drawing Figure 3)
Stopped
CH1=500 mV
DC 10:1
CH2=10 V
DC 10:1
No
CH3=1 V
DC 10:1
Check the spin system.
If the level is not normal.
500 ms/div
(500 ms/div)
NORM:20 kS/s
FDO
1
T
2
DRF
TE
3
CH Position To
-3 div
-1 div
0 div
+1 div
+3 div
=Filter=
=Offset=
=Record Length=
Smoothing : ON CH1 :
0.000 V
Main :
100 K
BW : FULL
CH2 :
0.0 V
Zoom :
2K
CH3 :
0.00 V
CH4 :
0.00 V
CH2
Position
0.20 div
=Trigger=
Mode : AUTO
Type : EDGE CH1
Delay :
0.0 ns
Hold off :
0.2 µs
Vp-p=1.0 V~1.3 V
0.5 mV/div,0.5 µsec/div
Figure 2
Figure 3
7–2
CD-ES700/CD-ES77
(2) Focus-HF system check.
Check the TE waveform at pin 17 on IC1.
If the waveform shown in Figure 4 appears and soon after NO
DISC appears?
No
"Initialization" is possible, but play is not possible?
Yes
The tracking servo is not activated.
Check the peripheral circuits at pins 16, 17 and 22 on IC1, and
FFC1.
Yes
A normal jump operation cannot be completed or the beginning
of the track cannot be found.
Check the around pin 22 on IC1.
No
"Initialization" is not possible.
Data cannot be read. Check the VCO-PLL (Pin76~80 on IC1)
system.
T
Stopped
CH1=10 V
DC 10:1
CH2=1 V
DC 10:1
100 ms/div
(100 ms/div)
NORM:100 kS/s
TE
2
T
1
DRF
=Filter=
Smoothing : ON
BW : FULL
=Offset=
CH1 :
0.0 V
CH2 :
0.00 V
CH3 :
0.00 V
CH4 :
0.00 V
=Record Length=
Main :
100 K
Zoom :
2K
=Trigger=
Mode : NORMAL
Type : EDGE CH1
Delay :
2.924 ms
Hold off :
0.2 µs
Figure 4
(3) Spin system check.
Press the OPEN/CLOSE switch without inserting a disc, and
then try starting the play operation.
1. The turntable rotates a little?
(Waveform drawing Figure 5)
Yes
The spin driver circuit is OK.
No
2. The turntable doesn't rotate.
Check around pin 24 on IC1, pins 3 and 4 on IC2, and CNS3A/
CNS3B.
Stopped
CH1=200 mV
DC 10:1
T
1999/04/07 09:51:15
500 ms/div
(500 ms/div)
NORM:20 kS/s
CH2=500 mV
DC 10:1
T
FDO
2
1
SPDO
=Filter=
Smoothing : ON
BW : FULL
=Offset=
CH1 :
0.000 V
CH2 :
0.000 V
CH3 :
0.00 V
CH4 :
0.00 V
=Record Length=
Main :
100 K
Zoom :
2K
Figure 5
7–3
=Trigger=
Mode : NORMAL
Type : EDGE CH2
Delay :
2.924 ms
Hold off :
0.2 µs
CD-ES700/CD-ES77
(4) PLL system check.
Stopped
CH1=500 mV
DC 10:1
When a disc is loaded, start play operation.
CH3=1 V
DC 10:1
1999/04/05 17:33:17
CH4=1 V
500 ms/div
(500 ms/div)
DC 10:1
NORM:20 kS/s
PDO1
3
4
The HF waveform is normal, but the TOC data cannot be read.
PDO2
T
Check the PDO waveform. (Figure 6)
FDO
1
CH1
v/DIV
500 mV
=Filter=
Smoothing : ON
BW : FULL
Check around pins 76~80 on IC1.
=Offset=
CH1 :
0.000 V
CH2 :
0.0 V
CH3 :
0.00 V
CH4 :
0.00 V
=Record Length=
Main :
100 K
Zoom :
2K
=Trigger=
Mode : AUTO
Type : EDGE CH2
Delay :
0.0 ns
Hold off :
0.2 µs
Figure 6
(5) Others.
The HF waveform is normal and the time is displayed normally, but no sound is produced. Or the sound has dropouts.
Is pin 69 (C2F) on IC1 "L"?
No
Yes
1. When playing at normal speed.
Check the peripheral circuit at pin 39 (DOUT) on IC1 and the
waveform (Figure 7).
There are too many error flags on a damaged disc which makes
error correction impossible.
Check again using a known good disc.
If OK, Check the unit.
Stopped
CH1=2 V
DC 10:1
T
1999/04/07 09:25:28
500 ns/div
(500 ns/div)
NORM:200 MS/s
T
1
DOUT
=Filter=
Smoothing : ON
BW : FULL
=Offset=
CH1 :
0.00 V
CH2 :
0.00 V
CH3 :
0.00 V
CH4 :
0.00 V
=Record Length=
Main :
1K
Zoom :
100
Figure 7
7–4
=Trigger=
Mode : NORMAL
Type : EDGE CH1
Delay :
2.887 ms
Hold off :
0.2 µs
CD-ES700/CD-ES77
Service
E
Market
CD-ES700/CD-ES77
Manual 8. OTHERS
CHAPTER
[1] Function table of IC
IC1 VHiLC78648E-1: CD Servo (LC78648E) (1/2)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12*
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29*
Terminal Name
AVDD1
SLCO
EFMIN
RF
LPF
JITTC
AIN
CIN
BIN
DIN
FEC
PHLPF/RFMON
VREF
EIN
FIN
TEC
TE
TEIN
LDD
LDS
FDO
TDO
SLDO
SPDO
AVSS2
AVDD2
DVDD
DVSS
VPB
Input/Output
Output
Output
Input
Output
Output
Input
Input
Input
Input
Input
Output
Output
Output
Input
Input
Output
Output
Input
Output
Input
Output
Output
Output
Output
—
—
—
—
Output
Setting in Reset
—
—
—
—
—
—
—
—
—
—
30*
31*
DEFECT
FSEQ
Output
Output
L
L
32*
33*
EFLG
FSX
Output
Output
L
L
34
CONT1
Input/Output
Input
35
CONT2
Input/Output
Input
36
CONT3
Input/Output
Input
37*
MONI1
Input/Output
Input
38*
39*
40
41
42
43
MONI2
DOUT
TEST
LVDD
LCHO
LRVSS
Output
Output
Input
—
Output
—
L
L
L
—
LVDD/2
—
ZHI
AVDD1/2
—
—
—
—
—
ADAVDD/2
ADAVDD/2
ADAVDD/2
ADAVDD/2
—
—
—
—
H
Function
Analog power supply pin 1.
slice level con- Slice level Control output pin.
trol.
RF signal input pin.
RF signal Output pin.
RF signal DC level detection LPF capacitor connection pin.
Jitter detection capacitor connection pin.
A signal input pin.
C signal input pin.
B signal input pin.
D signal input pin.
FE signal LPF capacitor connection pin.
Reference supply setting terminal.
VREF voltage output pin.
E signal input pin.
F signal input pin.
TE signal LPF capacitor connection pin.
TE signal output pin.
TES signal generation TE signal input pin
Laser power control signal output pin.
Laser power control signal input pin.
Focus control output pin. D/A output.
Tracking control output pin. D/A output.
Thread control output pin. D/A output.
Spindle control output pin. D/A output.
Analog GND pin 2. Must always be connected to 0 V.
Analog power supply pin 2.
Digital power supply pin.
Digital GND pin 2. Must always be connected to 0 V.
Rough servo/phase control automatic switching monitor output pin.“H” for rough
servo and “L” for phase servo.
Defect signal output pin.
Synchronization signal detection output pin.
Outputs a high level when the Synchronization signal detection from the EFM signal and the internally generated Synchronization signal agree.
C1, C2 error correction monitor pin
7.35 kHz Synchronization signal output pin.
CLV playback mode.
General purControlled by command from the microprocessor. Any of these
pose I/O pin 1. that are unused must be either set up as input pin ports and
connected to 0 V, or set up as output pin ports and left open.
General purpose I/O pin 2.
General purpose I/O pin 3.
External deiemphasis setting pin, INternal signal monitor pin 1.Controlled by
microprocessor.
Internal signal monitor pin 2.
Digital OUT output Pin. (EIAJ format)
Test input pin. Must always be connected to 0 V.
L channel Power supply pin.
Left channel
D/A converter L channel output supply pin.
LR channel GND pin. Must always be connected to 0 V.
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
8–1
CD-ES700/CD-ES77
IC1 VHiLC78648E-1: CD Servo (LC78648E) (2/2)
Pin No.
44
45
46
47
48
Terminal Name
RCHO
RVDD
XVSS
XOUT
XIN
Input/Output
Output
—
—
Output
Input
Setting in Reset
RVDD /2
—
—
Oscillator
Oscillator
49
50
XVDD
IOMODE
—
Input
—
—
51
52*
53*
F16MIN
OUT1
16MOUT
Input
Output
Output
54
ASLRCK
Input
—
L
CLK
Output
—
55
ASDACK
Input
—
56
ASDFIN
Input
—
57*
58*
59*
60
61
62
63
64
65
66
67
LRSK
DATACK
DATA
DVDD
DVSS
CE
CL
DI
DO
WRQB
RESB
Output
Output
Output
—
—
Input
Input
Input
Output
Output
Input
L
L
L
—
—
—
—
—
(H)
L
—
68
69
DRF
C2F/SBCK
Output
Input/Output
L
Input
70
CONT6/SBCK
Input/Output
Input
71*
72*
73*
74
MONI5
MONI4
MONI3
CONT5
Output
Output
Output
Input/Output
L
L
L
Input
75
CONT4
Input/Output
Input
76
77
78
PDO1
PDO2
PCKIST
Output
Output
Input
—
—
—
79
80
VVSS
VVDD
—
—
—
—
Function
Right channel R channel Power supply pin.
D/A converter R channel output supply pin.
Digital GND pin. Must always be connected to 0 V
Power supply for crystal oscillator.
Crystal
Connected for a 16.9344 MHz crystal oscillator pin.
oscillator
Digital power supply pin. Must always be connected to 0 V
CONT4 to 6. MONI3~5, DRF, WRQB pin output mode switching input pin.
”L” setting: Normal output “H” setting: Nch open drain output
DF. DAC external clock input pin.
General-purpose output pin 1.
16.9344 MHz output port.
Left/Right clock input pin.
(Must be connect to 0 V when unused.)
Bit clock input pin.
Anti-shock
(Must be connect to 0 V when unused.)
Left/Right channel data input pin.
(Must be connect to 0 V when unused.)
Left/Right channel data output pin.
Digital data outBit clock output pin.
put
Left/Right clock output pin.
Digital power supply pin.
Digital GND pin 2. Must always be connected to 0V.
Chip enable signal input pin.
Microcomputer Data transfer clock input pin.
Interface
Data output pin.
Data output pin. (Try state output.)
Interruption signal output pin.
Reset input pin for LSI.
This pin must be set LOW briefly after power is first applied.
Focus ON detection pin.
Error flag monitor pin, or sub
Controlled by commands from the microprocode read clock input pin.
cessor.
General-purpose I/O pin 6, or
Controlled by commands from the microprosub code read clock input pin.
cessor.
Any of these that are unused must be either
set up as input pin ports and connected to 0
V, or set up as output pin ports and left open.
Internal signal monitor pin 5.
Internal signal monitor pin 4.
Internal signal monitor pin 3.
General purControlled by command from the microprocessor. Any of
pose I/O pin 5. these that are unused must be either set up as input pin ports
and connected to 0 V, or set up as output pin ports and left
General purpose I/O pin 4. open when unused.
PLL
Phase comparison output pin 1 to control built-in VCO.
Phase comparison output pin 2 to control built-in VCO.
Resistor connection pin to set current for PDO1 and 02 outputs.
Built-in VCO GND pin. Must always be connected to 0 V.
Built-in VCO power supply pin.
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
The same potential must be supplied to all power supply pins, i, e., AVDD1, AVDD2, XVDD, DVDD, LVDD and RVDD)
8–2
CD-ES700/CD-ES77
DRF
*RES
*WRQ
DO
DI
CL
CE
DVSS
73
C2F/SBCK
75 74
CONT6/SBCK
76
MONI5
PD01
77
72 71
70
69 68
67
66 65
64
63 62
61
MONI4
PD02
78
MONI3
PCKIST
79
CONT5
VVSS
80
CONT4
VVDD
IC1 VHiLC78648E-1: CD Servo (LC78648E)
AVDD1
1
60 DVDD
SLCO
2
59 DATA
EFMIN
3
58 DATACK
RF
4
57 LRSY
LPF
5
56 ASDFIN
JITTC
6
55 ASDACK
AIN
7
54 ASLRCK
CIN
8
53 F16MOUT
BIN
9
52 OUT1
DIN 10
51 F16MIN
LC78648E
FEC 11
50 IOMODE
PHLPF/RFMON 12
49 XVDD
VREF 13
48 XIN
EIN 14
47 XOUT
FIN 15
46 XVSS
TEC 16
45 RVDD
TE 17
44 RCHO
VREF
32 33
34
35 36
37
38 39
40
EFLG
CONT1
CONT2
MONI1
MONI2
TEST
MONITOR
VREF
A/D
A/D
LDD
LDS
LPF
RF
AIN
CIN
BIN
DIN
FEC
EIN
FIN
TEC
TE
TEIN
JITTC
SLCO
EFMIN
PDO1
PDO2
PCKIST
VVDD
VVSS
XVDD
XVSS
XIN
XOUT
F16MIN
F16MOUT
ASLRCK
ASDACK
ASDFIN
RVDD
RCHO
LRVSS
LCHO
LVDD
DOUT
31
CONT3
29 30
FSX
28
FSEQ
AVSS
PHLPF/RFMON
26 27
DEFECT
25
VPB
24
DVSS
23
DVDD
22
AVDD2
21
SPDO
41 LVDD
SLDO
42 LCHO
LDS 20
TDO
43 LRVSS
LDD 19
FDO
TEIN 18
SERVO
PROCESSOR
APC
RF SIGNAL
PROCESSOR
FOCUS ERROR
PROCESSOR
AUTO
ADJUST
RAM
TRACK
JUMP
RUPTURE
DEFECT
CLV
CAV
CONTROL
DRF
CPU I/F
PORT
SLICE LEVEL
CONTROL
FRAME SYNC
DETECT,PROTECT,
INSERT,
EFM DECODE
PLL
EXTERNAL
AUDIO IN
LPF
DRF
VPB
JITTER/DETECT
CLOCK
GENERATOR
AVDD1
AVSS
AVDD2
DEFECT
TRACKING ERROR
PROCESSOR
RAM
FDO
TDO
SPDO
SLDO
CONT1~6
OUT1
FSEQ
FSX
EFLG
C2F
ERROR
CORRECTION
INTERPOLATION
MUTE
CL
CE
DI
DO
WRQB
MONITOR SIGNAL
SELECTOR
ATTENUATION
SUBCODE DECODE
CRC & TEXT
8FS DIGITAL
FILTER
DEEMPHASIS
AUDIO OUT
1bit DAC
SERIAL
OUT
MONI1~5
DOUT
LRSY
DATACK
DATA
DVDD
DVDD
DVSS
RESB
TEST
IOMODE
DVSS
Figure 8-3 BLOCK DIAGRAM OF IC
8–3
CD-ES700/CD-ES77
IC2 VHILA6261//-1: Focus/Tracking/Spin/Sled Driver (LA6261)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12*
13
14*
15
16*
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Terminal Name
VO3+
VO3VO2+
VO2VO1+
VO1PGND1
REGIN
PVCC1
REGOUT
VIN1
VIN1G
VIN2
VIN2G
VIN3
VIN3G
VIN4
VIN4G
FWD5
REV5
VCONT5
FWD6
REV6
VCONT6
VREFIN
SGND
SVCC
PVCC2
MUTE
PGND2
VO6+
VO6VO5+
VO5VO4+
VO4-
Function
BTL Output pin (+) for channel 3.
BTL Output pin (-) for channel 3.
BTL Output pin (+) for channel 2.
BTL Output pin (-) for channel 2.
BTL Output pin (+) for channel 1.
BTL Output pin (-) for channel 1.
Power GND for channels 1,2,3 and 4 (BTL).
Regulator pin (External PNP base).
Power for channels 1,2,3 and 4 (BTL). (SVCC short-crircuited)
Regulator pin (External PNP collector).
Input pin for channel 1
Input pin for channel 1 (for gain control)
Input pin for channel 2
Input pin for channel 2 (for gain control)
Input pin for channel 3
Input pin for channel 3 (for gain control)
Input pin for channel 4
Input pin for channel 4 (for gain control)
CH5 Output change pin (FWD). Logic input for bridge.
CH5 Output change pin (REV). Logic input for bridge.
Input pin for CH5 output voltage control
CH6 Output change pin (FWD). Logic input for bridge.
CH6 Output change pin (REV). Logic input for bridge.
Input pin for CH5 output voltage control.
Reference voltage input pin.
Signal system GND
Signal system power (PVCC1 short - circuited)
Power for channel 5 and 6 (H bridge).
Input pin for BTL mute.
Power GND for channels 5 and 6 (H bridge).
H bridge Output pin (+) for channel 6.
H bridge Output pin (-) for channel 6.
H bridge Output pin (+) for channel 5.
H bridge Output pin (-) for channel 5.
BTL Output pin (+) for channel 4.
BTL Output pin (-) for channel 4.
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
*
Set power system GND to the minimum potential together with SGND
*
Short-circuit three pins of power system SVSS and PVCC1 externally before use.
8–4
CD-ES700/CD-ES77
IC2 VHILA6261//-1: Focus/Tracking/Spin/Sled Driver (LA6261)
1
+
-
+
-
CH3
36
CH4
35
2
+
-
+
-
3
34
4
33
+
-
32
Pre Drive
5
CH2
6
+
-
7
8
31
CH5
30
29
Pre Drive
+
-
9
CH1
28
CH6
+
VOLTAGE
CONTROL AMP
+
-
BTL
10
22k
11
22k
1k
16
17
18
+
DUFFER AMP
For 1/2 VCC
DUFFER AMP
For VREF
11k
Reference
voltage
+
22k
+
Band gad
1k
Figure 8-5 BLOCK DIAGRAM OF IC
8–5
25
24
23
22
21
TSD
1k
11k
Mode
select
22k
1k
15
+
-
11k
13
14
26
Mode
select
12
27
+
+
-
11k
20
19
CD-ES700/CD-ES77
IC601 VHiLC75341/-1: Audio Processor (LC75341)
VSS
LOUT
5
LBASS
6
LTRE
7
8
9-12
LIN
LSEL0
L4-1
20
RBASS
21
ROUT
22
VREF
23
24
VDD
CLK
LOUT
3
4
Terminal Name
R1-4
RSEL0
RIN
RTRE
LBASS
CE
Pin No.
13-16
17
18
19
LTRE
2
Function
Serial data and clock input pin for control.
Chip enable pin.
Data written into an internal latch in a
timing of "H" to "L".
Each analog switch is activated.
Data transfer enabled at "H" level.
Ground pin.
Bass band filter comprising
capacitor and resistor connection pin
and bass/treble output pin.
Bass band filter comprising capacitor
and resistor connection pin.
Treble band filter comprising capacitor
and resistor connection pin.
Volume + equalizer output pin.
Input selector output pin.
Input signal pin.
LIN
Terminal Name
DI
LSEL0
Pin No.
1
8
7
6
5
4
Function
Input signal pin.
Input selector output pin.
Volume + equalizer output pin
Treble band filter comprising capacitor
and resistor connection pin.
Bass band filter comprising capacitor
and resistor connection pin.
Bass band filter comprising capacitor
and resistor connection pin and bass/
treble output pin.
0.5x VDD voltage generation block
for analog ground. Capacitor of several 10µF to be connected between
VREF and AWSS (VSS) as a countermeasure against power ripple.
Supply pin
Serial data and clock input pin for control.
L4 9 CD
L3 10
L2 11
L1 12
Tuner
Tape
CONTROL
CIRCUIT
Video
CONTROL
CIRCUIT
R1 13
LVref
2 CE
CCB
INTERFACE
1 DI
24 CLK
CONTROL
CIRCUIT
R2 14
3 VSS
RVref
RSEL0
17
18
19
20
21
ROUT
22 VREF
RBASS
R4 16
RTRE
23 VDD
RIN
R3 15
Figure 8-6 BLOCK DIAGRAM OF IC
8–6
CD-ES700/CD-ES77
IC701 RH-iXA002AWZZ: System Microcomputer (IXA002AW) (Serial NO.31200001~402XXXXX) (1/2)
IC701 RH-iXA020AWZZ: System Microcomputer (IXA020AW) (Serial NO.402XXXXX~) (1/2)
Pin No.
1
2
3
4
5
6
7
8*
9*
10
11
12
13
14*
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31-33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49*
50*
51*
52*
53
54
55
56
57
58
59
60*
61*
62*
Port Name
VDD
P37
P36
P35
P34
P33
P32
P31
P30
RESET
X2
X1
IC(VPP)
XT2
P04
VDD
P27
P26
P25
P24
P23
P22
P21
P20
AVSS
ANI7
ANI6
ANI5
ANI4
ANI3
ANI2-ANI0
AVDD
AVREF
INTP3
P02
INTP1
INTP0
VSS
P74
P73
P72
P71
P70
VDD
P127
P126
P125
P124
P123
P122
P121
P120
P117
P116
P115
P114
P113
P112
P111
P110
Terminal Name
VDD
-20dBATT
T BIAS
T_REC/PLAY
T-T1/T2
CD RESOUT
CD_WRQ
NO USE
NO USE
RESET
XOUT
XIN
VPP
NO USE
CD_DRF
VDD
CLK
DI
DO
CE
CD CE
CD CLK
CD DI
CD DO
AVSS
T RUN PULS
TUN SM/SPAN
T_FP SW
PROTECT
VOL JOG
KEY 2-KEY 0
AVDD
AVREF
P_IN
SP DET
REMOCON
VSS
S MUTE
TIMER LED
T_SOL B
T_MOTOR
T_SOL A
VDD
SP RLY
AC RLY
RDS RST
RDS READY
RDS RDDA
RDS RDCL
TRAY SW2
TRAY SW1
DISC SW
CLAMP SW
DIST
ILLU LED
MIC SW
KARA_LATCH
NO USE
NO USE
Input/Output
Input
Output
Output
Output
Output
Output
Input
Output
Output
Input
Output
Input
—
—
Input
Input
Output
Output
Input
Output
Output
Output
Output
Input
—
Input
Input
Input
Input
Input
Input
Input
Input
Input
Input
Input
Input
—
Output
Output
Output
Output
Output
Input
Output
Output
Output
Input
Input
Output
Input
Input
Input
Input
Input
Output
Input
Output
Output
Output
Function
(+) Power supply 5V.
-20dB Attenuator.
Tape record bias control.
Tape REC/PLAY control.
Tape T1/T2 Control.
CD reset.
CD WRQ input.
Open.
Open.
Reset Input.
Main clock output 4.19MHz.
Main clock input 4.19MHz.
GND
Open
CD DRF detect.
(+) Power supply 5V.
CD clock.
Data output.
Data input.
CE output.
CD chip enable.
CD Clock.
CD Data output.
CD Data input.
Analog ground.
Tape Run pulse detect.
Tuner signal meter/Span Selector.
Tape Fool proof A & B SW.
Power abnormal detect.
Volume jog input.
Key input.
Analog power supply 5 V.
Analog reference voltage 5 V.
Power failure detect.
5-Changer Photo SW.
Speaker abnormal detect.
Remocon input.
Ground voltage.
System mute control.
Timer LED control.
Tape 2 solenoid control.
Tape motor control.
Tape 1 solenoid control.
(+) Power supply 5 V.
Speaker relay control.
AC relay control.
RDS reset.
RDS ready.
RDS data.
RDS clock.
5-Changer Tray SW2.
5-Changer Tray SW1.
5-Changer Disc SW1.
5-Changer Clamp SW1.
Destination input.
Illumination LED.
Mic sw detect.
Karaoke latch (when not used, connect to 0 V.)
Open.
Open.
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
8–7
CD-ES700/CD-ES77
IC701 RH-iXA002AWZZ: System Microcomputer (IXA002AW) (Serial NO.31200001~402XXXXX) (2/2)
IC701 RH-iXA020AWZZ: System Microcomputer (IXA020AW) (Serial NO.402XXXXX~) (2/2)
Pin No.
63
64*
65*
66*
67*
68*
69
70
71
72
73-78
79
80-89
90-100
Port Name
P107
P106
P105
P104
P103
P102
P101/FIP30
P100/FIP29
P97/FIP28
P96/FIP27
FIP26-FIP21
VLOAD
FIP20-FIP11
FIP10-FIP0
Terminal Name
NO USE
NO USE
NO USE
NO USE
NO USE
NO USE
S20/DEST0
S20/DEST1
S20/DEST2
S20/DEST3
S16-S11
VLOAD
S10-S1
G11-G1
Input/Output
Output
Output
Output
Output
Output
Output
Input
Output
Output
Output
Output
Input
Output
Output
Function
Open.
Open.
Open.
Open.
Open.
Open.
FL segment driver/Destination input.
FL segment driver/Destination input.
FL segment driver/Destination input.
FL segment driver/Destination input.
FL segment driver.
VLOAD -35 V
FL segment driver.
FL grid driver.
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
8–8
CD-ES700/CD-ES77
IC701 RH-iXA002AWZZ: System Microcomputer (IXA002AW)(Serial NO.31200001~402XXXXX)
VDD
1
VDD
-20dBATT
2
P37
T_BIAS
3
T_REC/PLAY
T_T1/T2
S6
S7
S8
S9
P84/FIP17 83
P85/FIP18 82
P86/FIP19 81
S4
S5
S3
S2
P81/FIP14 86
P82/FIP15 85
P83/FIP16 84
S1
FIP12 88
P80/FIP13 87
G11
FIP11 89
G10
G9
FIP9 91
FIP10 90
G8
G7
G4
FIP3 97
FIP7 93
FIP8 92
G3
FIP2 98
G5
G6
G2
FIP1 99
FIP4 96
FIP5
95
FIP6 94
G1
FIP0 100
IC701 RH-iXA020AWZZ: System Microcomputer (IXA020AW)(Serial NO.402XXXXX~)
P87/FIP20
80
S10
VLOAD
79
VLOAD
P36/BUZ
P90/FIP21
78
S11
4
P35/PCL
P91/FIP22
77
5
P34/T12
P92/FIP23
76
S12
S13
CD_RESOUT
6
P33/T11
P93/FIP24
75
S14
CD_WRQ
7
P94/FIP25
P95/FIP26
74
S15
8
P32/TO2
P31/TO1
73
S16
9
P30/TO0
P96/FIP27
72
S17
(DIST3)
S18
(DIST2)
S19
(DIST1)
S20
(DIST0)
IXA002AW (Serial No.31200001~402XXXXX)
IXA020AW (Serial No.402XXXXX~)
RESET
10
RESET
P97/FIP28
71
XOUT
11
X2
P100/FIP29
70
XIN
12
X1
P101/FIP30
69
VPP
13
IC(VPP)
P102/FIP31
68
14
XT2
P103/FIP32
67
CD_DRF
15
P04/XT1
P104/FIP33
66
VDD
16
VDD
P105/FIP34
65
CLK
17
P27/SCK0
P106/FIP35
64
DI
18
P26/SO0/SB1
P107/FIP36
63
DO
19
P25/SI0/SB0
P110/FIP37
62
CE
20
P24/BUSY
P111/FIP38
61
21
P23/STB
P112/FIP39
60
KARA LATCH
P113/FIP40
59
MIC_SW
CD_CE
CD_CLK
P73
P72
P71
P70
VDD
P127/FIPS2
P126/FIPS1
P125/FIPS0
P124/FIP49
43
44
45
46
47
48
49
50
TIMER LED
T_SOL
T MOTOR
T_SOL
VDD
SP_RLY
AC_RLY
RDS_RST
RDS_READY
RDS_RDDA
42
51
P74
P123/FIP48
41
P13/ANI3
S MUTE
30
VSS
VOL_JOG
40
TRAY SW2
RDS_RDCL
VSS
52
P00/INTPOT0
P121/FIP46
P122/FIP47
39
P15/ANI5
P14/ANI4
53
29
REMOCON
28
P01/INTP1
T_FP SW
PROTECT
P02/INTP2
TRAY SW1
(SPAN)
38
54
37
27
P120/FIP45
DISC SW
P16/ANI6
TUN_SM
SP_DET
55
36
P117/FIP44
AVREF
P03/INTP3
P17/ANI7
35
26
AVREF
P-IN
CLAMP SW
T_RUN PULS
AVDD
DIST
56
34
57
P116/FIP43
AVDD
P115/FIP42
AVSS
P10/ANI0
P20/SI1
25
33
24
AVSS
KEY0
CD_DO
P11/ANI1
ILLU LED
32
58
KEY1
P114/FIP41
P12/ANI2
23
P21/SO1
31
CD_DI
KEY2
22
P22/SCK1
Figure 8-9 BLOCK DIAGRAM OF IC
8–9
CD-ES700/CD-ES77
IC851 VHIAN80T53/-1: Multi Regulator (AN80T53)
Pin
No.
1
2
3
4
5
6
7
Terminal Name
Function
REG4 Output
REG3 Output
VCC
GND
MODE 1
REG2 Output
REG1 Output
5.1 V power supply with a minimum peak out current of 1200 mA.
13 V power supply with a minimum peak out current of 1350 mA.
Connected to Power supplies.
Connected to the IC substrate.
REG1, REG2,REG3 and REG4 outputs are turned ON when this pin is 5 V.
10 V power supply with a minimum peak out current of 800 mA.
8.5 V power supply with a minimum peak out current of 700 mA.
Peak Current Protection,
Thermal Protection,
Load Short Protection.
Out puts
+
-
+
-
Prc
Drive
+
-
Prc
Drive
+
-
Prc
Drive
Prc
Drive
Reference
Voltage
5
MODE1
2
REG3
13V
3
4
1
7
6
VCC
GND
REG4
5.1V
REG1
8.5V
REG2
10.0V
Figure 8-10 BLOCK DIAGRAM OF IC
8 – 10
CD-ES700/CD-ES77
[2] FL Display
FL701 VVKNA11SS55-1
GRID ASSIGNMENT
11G
B DVD VCD CD MP3 X-BASS
A1
MEMORY ANGLE CHAP TITLE WMAV- SURROUND TP
col
1G
2G
3G
D5a
4G
Dot
col
6G
Dot
7G
8G
DAILY
9G
10G
D5a
D5c
D5b
D4a
a
D4a
D4c
D4b
D3a
(1G)
5G
TA
D3a
D3c
m
e
r
D2a
p
c
n
d
D2c
D2b
D1a
b
g
D3b
D2a
h j k
f
(2G~9G)
D1a
D1c
D1b
ANODE CONNECTION
1G
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
2G
5
D5-a
D5-b
D5-c
4
D4-a
D4-b
D4-c
P 20
3
D3-a
D3-b
D3-c
2
D2-a
D2-b
D2-c
3G
4G
5G
a
b
a
b
a
b
a
b
k
j
h
f
m
d
g
p
e
n
r
c
k
j
h
f
m
d
g
p
e
n
r
c
k
j
h
f
m
d
g
p
e
n
r
c
k
j
h
f
m
d
g
p
e
n
r
c
1
6G
col
a
b
7G
k
j
h
f
m
d
g
p
e
n
r
c
Dot
k
j
h
f
m
d
g
p
e
n
r
c
8G
col
a
b
9G
k
j
h
f
m
d
g
p
e
n
r
c
Dot
k
j
h
f
m
d
g
p
e
n
r
c
a
b
10G
11G
PTYI
a
b
DVD
VCD
CD
(L)
TA
TP
RDS
X-BASS
MP3
RES
WMA
VSURROUND
DAILY TITLE
PTY
CHAP
)
ANGLE
(
A
B
1
MHz
kHz
MEMORY
ST
D1-a
D1-b
(R)
SLEEP
D1-c
45
OUTER DIMENSIONS
1
PATTERN AREA
PIN CONNECTION
PIN NO.
45
44
43
42
CONNECTION
F2
F2
NP
PIN NO.
20
19
CONNECTION
P5
P4
41
40
39
35
34
NP P20 P19 P18 P17 P16 P15
P14
18
17
16
15
P3
P2
P1
11G 10G
14
38
37
36
33
32
31
30
29
28
27-22
P13 P12 P11 P10
P9
P8
P7
NX
13
12
11
10
9
8
7
6
5
4
3
2
1
9G
8G
7G
6G
5G
4G
3G
2G
1G
NP
NP
F1
F1
8 – 11
21
P6
CD-ES700/CD-ES77
PARTS GUIDE
MINI COMPONENT SYSTEM
MODEL
CD-ES700
CD-ES700 Mini Component System consisting of CD-ES700
(main unit) and CP-ES700 (speaker system).
MINI COMPONENT SYSTEM
MODEL
CD-ES77
CD-ES77 Mini Component System consisting of CD-ES77
(main unit) and CP-ES77 (speaker system).
“HOW TO ORDER REPLACEMENT PARTS”
To have your order filled promptly and correctly, please furnish the
following information.
1. MODEL NUMBER
2. REF. No.
3. PART NO.
4. DESCRIPTION
For U.S.A. only
Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP
MARK: SPARE PARTS-DELIVERY SECTION
Explanation of capacitors/resistors parts codes
Capacitors
Resistors
VCC ....................... Ceramic type
VCK ........................ Ceramic type
VCT ........................ Semiconductor type
VC • • MF ............... Cylindrical type (without lead wire)
VC • • MN ............... Cylindrical type (without lead wire)
VC • • TV ................ Square type (without lead wire)
VC • • TQ ............... Square type (without lead wire)
VC • • CY ............... Square type (without lead wire)
VC • • CZ ............... Square type (without lead wire)
VC • • • • • • • • • J .. The 13th character represents capacity difference.
("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)
VRD ....................... Carbon-film type
VRS ........................ Carbon-film type
VRN ....................... Metal-film type
VR • • MF ............... Cylindrical type (without lead wire)
VR • • MN ............... Cylindrical type (without lead wire)
VR • • TV ................ Square type (without lead wire)
VR • • TQ ............... Square type (without lead wire)
VR • • CY ............... Square type (without lead wire)
VR • • CZ ............... Square type (without lead wire)
VR • • • • • • • • • J .. The 13th character represents error.
("J" ±5%, "F" ±1%, "D" ±0.5%.)
If there are no indications for the electrolytic capacitors, error is ±20%.
If there are no indications for other parts, the resistors are ±5%
carbon-film type.
CAUTION:FOR CONTINUED
PROTECTION AGAINST FIRE
HAZARD, REPLACE ONLY WITH
SAME TYPE F801, F802 5A, 125V /
F803, F804 2A, 125V / F805 5A, 125V FUSES
ATTENTION:POUR ASSURER
UNE LONGUE PROTECTION CONTRE
UNINCENDIE, REMPLACER SEULEMENT
PAR UN FUSIBLE DE
TYPE F801, F802 5A, 125V /
F803, F804 2A, 125V / F805 5A, 125V
NOTE:
Parts marked with “
” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.
CD-ES700/CD-ES77
NO.
PRICE
RANK
PART CODE
DESCRIPTION
ZD902,903
CD-ES700/CD-ES77
IC1
IC2
VHILC78648E-1
VHILA6261//-1
J
J
IC101
VHIAN7345K/-1
J
IC301
IC302
IC303
VHITA7358AP-1
VHILC72131/-1
VHILA1832S/-1
J
J
J
IC601
IC701
VHILC75341/-1
RH-IXA002AWZZ
J
J
IC701
RH-IXA020AWZZ
J
IC851
IC854
VHIAN80T53/-1
VHIAN78L05/-1
J
J
IC901
VHISTK41242-1
J
AW CD Servo,LC78648E
AN Focus/Tracking/Spin/Sled Driver,
LA6261
AM Playback and Record/Playback
Amp.,AN7345K
AG FM Front End,TA7358AP
AP PLL (Tuner),LC72131
AN FM IF Det./FM Mpx./AM IF,
LA1832S
AM Audio Processor,LC75341
AX System Microcomputer,
IXA002AW
(Serial No.31200001~402*****)
AX System Microcomputer,
IXA020AW (Serial No.402*****~)
AL Mult Regulator,AN80T53
AE Constant Voltage Regulator,
AN78L05
BB Power Amp.,STK41242
VSKTA1504Y/-1
VSKTA1271Y/-1
VSKTC3200GR-1
VSKTC3875GR-1
VSKTA1504Y/-1
VSKRC104S//-1
VSKTC3203Y/-1
VSKTA1504Y/-1
VSKRC104S//-1
VSKTC3194Y/-1
VSKTA1266GR-1
VSKTC3875GR-1
VSKTA1273Y/-1
VSKRC102S//-1
VSKRA107S//-1
VSKRC104S//-1
VSKRA107S//-1
VSKRC104S//-1
VSKRA107S//-1
VSKTA1274Y/-1
VSKTC3199GR-1
VSKTC3875GR-1
VSKTC3875GR-1
VSKTC3199GR-1
VSKTC3203Y/-1
VSKTC3875GR-1
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AB
AC
AC
AB
AB
AC
AC
AB
AC
AD
AB
AB
AE
AB
AB
AC
AB
AC
AB
AE
AB
AB
AB
AB
AC
AB
Silicon,PNP,KTA1504 Y
Silicon,PNP,KTA1271 Y
Silicon,NPN,KTC3200 GR
Silicon,NPN,KTC3875 GR
Silicon,PNP,KTA1504 Y
Digital,NPN,KRC104 S
Silicon,NPN,KTC3203 Y
Silicon,PNP,KTA1504 Y
Digital,NPN,KRC104 S
Silicon,NPN,KTC3194 Y
Silicon,PNP,KTA1266 GR
Silicon,NPN,KTC3875 GR
Silicon,PNP,KTA1273 Y
Digital,NPN,KRC102 S
Digital,NPN,KRA107 S
Digital,NPN,KRC104 S
Digital,NPN,KRA107 S
Digital,NPN,KRC104 S
Digital,NPN,KRA107 S
Silicon,PNP,KTA1274 Y
Silicon,NPN,KTC3199 GR
Silicon,NPN,KTC3875 GR
Silicon,NPN,KTC3875 GR
Silicon,NPN,KTC3199 GR
Silicon,NPN,KTC3203 Y
Silicon,NPN,KTC3875 GR
VHDKDS184//-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDD10XB60F-1
VHD1N4004S/-1
VHD1N4004S/-1
VHDDS1SS133-1
VHD1N4004S/-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDDS1SS133-1
VHD1N4004S/-1
VHDDS1SS133-1
VHP304VT2H3-1
VHPSDPB50CD-1
VHEDZ3R3BSB-1
VHEDZ5R1BSB-1
VHEDZ6R2BSA-1
VHEDZ7R5BSB-1
VHEDZ300BSB-1
VHEDZ120BSB-1
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AB
AB
AB
AB
AB
AB
AL
AB
AB
AB
AB
AB
AB
AB
AB
AB
AB
AC
AK
AB
AC
AB
AB
AB
AB
Silicon,KDS184
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,D10XB60F
Silicon,1N4004S
Silicon,1N4004S
Silicon,DS1SS133
Silicon,1N4004S
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,1N4004S
Silicon,DS1SS133
LED,Red,304VT2H3
LED,Blue,SDPB50CD
Zener,3.3V,DZ3.3BSB
Zener,5.1V,DZ5.1BSB
Zener,6.2V,DZ6.2BSA
Zener,7.5V,DZ7.5BSB
Zener,30V,DZ30BSB
Zener,12V,DZ12BSB
TRANSISTORS
DIODES
D1
D301,302
D305
D690,691
D701
D709~716
D801,802
D803~806
D842~845
1 D846
D853
D856
D860~863
D885
D905~907
D909,910
D911~914
LED701
LED703
ZD1
ZD351
ZD801
ZD802
ZD803
ZD805
PRICE
RANK
PARTS CODE
DESCRIPTION
VHEDZ120BSB-1
J
AB
Zener,12V,DZ12BSB
RFILR0008AWZZ
RFILF0124AFZZ
RFILF0003AWZZ
RFILA0009AWZZ
J
J
J
J
AE
AD
AK
AE
Band Pass Filter
FM IF,10.7 MHz
FM IF
AM IF
RTRNP0522AWZZ
RTRNP0483AWZZ
RCILB0065AWZZ
RCILI0017AWZZ
RCILA0052AWZZ
RCILB0067AWZZ
RCILI0019AWZZ
J
J
J
J
J
J
J
BF
AL
AC
AB
AE
AD
AD
Power,Main
Power,Sub
FM OSC.
FM IF
AM Antenna
AM OSC.
AM IF
VP-XHR82K0000
VP-MK331K0000
RCILR0056AWZZ
VP-DH101K0000
VP-DH101K0000
RCILZ0024AWZZ
RCILZ0137AFZZ
J
J
J
J
J
J
J
AC
AB
AB
AB
AB
AC
AA
0.82 µH
330 µH,Choke
FM RF
100 µH,Choke
100 µH,Choke
3 µH,Choke
0.29 µH
FILTERS
INTEGRATED CIRCUITS
Q1
Q2
Q101~104
Q105~108
Q109
Q110
Q111
Q112
Q113,114
Q302
Q360
Q601~604
Q706~708
Q709,710
Q711
Q712~714
Q715
Q716
Q717
Q801
Q841
Q885,886
Q901~904
Q905
Q906
Q908,909
NO.
BF301
CF303
CF351
CF352
TRANSFORMERS
1 PT801
1 PT841
T301
T302
T303
T306
T351
COILS
L1
L103
L312
L351,352
L701
L901,902
L920,921
VARIABLE CAPACITORS
VD301
VD302,303
VHCSVC347S/-1
VHCSVC230C/-1
J
J
AG Variable Capacitance,SVC347S
AD Variable Capacitance,SVC230C
J
J
J
J
AF
AF
AG
AH
Crystal,456 kHz
Crystal,4.5 MHz
Crystal,16.9344 MHz
Crystal,4.19 MHz
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AB
AA
AB
AA
AB
AA
AA
AD
AA
AB
AA
AB
AB
AC
AA
AB
AB
AB
AA
AB
AB
AB
AA
AB
AA
AB
AB
AB
AA
AB
AB
AB
AA
AA
AB
AB
47 µF,25V,Electrolytic
0.01 µF,16V
47 µF,25V,Electrolytic
0.001 µF,50V
0.047 µF,50V
0.01 µF,16V
0.0027 µF,50V
3.3 µF,16V,Electrolytic
0.001 µF,50V
0.056 µF,16V
100 pF (CH),50V
0.022 µF,25V
100 µF,10V,Electrolytic
330 µF,6.3V,Electrolytic
0.001 µF,50V
0.01 µF,50V
100 µF,10V,Electrolytic
0.056 µF,16V
0.01 µF,16V
10 µF,25V,Electrolytic
0.0015 µF,50V,Mylar
0.022 µF,25V
100 pF (CH),50V
0.022 µF,25V
100 pF (CH),50V
0.047 µF,50V
0.22 µF,16V
0.1 µF,16V
0.01 µF,16V
100 µF,10V,Electrolytic
0.01 µF,50V
0.022 µF,25V
0.001 µF,50V
0.01 µF,16V
100 µF,10V,Electrolytic
0.022 µF,25V
VIBRATORS
X351
X352
XL1
XL701
92LCRSTL1425A
RCRSP0019AWZZ
RCRSP0020AWZZ
RCRSP0003AWZZ
CAPACITORS
C1
C2
C3
C4
C5
C6
C8
C9
C10
C11
C12
C13
C14,15
C16
C17
C18
C20
C21
C22
C23,24
C25,26
C27
C28~32
C33
C34
C35
C36
C37
C38
C39,40
C42
C43
C44
C46
C47
C48,49
–1–
VCEAZA1EW476M
VCKYCY1CB103K
VCEAZA1EW476M
VCKYCY1HB102K
VCKYCY1HB473K
VCKYCY1CB103K
VCKYCY1HB272K
RC-EZ0004AWZZ
VCKYCY1HB102K
VCTYPA1CX563K
VCCCCY1HH101J
VCKYCY1EF223Z
VCEAZA1AW107M
VCEAZA0JW337M
VCKYCY1HB102K
VCKYPA1HF103Z
VCEAZA1AW107M
VCKYCY1CB563K
VCKYCY1CB103K
VCEAZA1EW106M
VCQYKA1HM152K
VCKYCY1EF223Z
VCCCCY1HH101J
VCKYCY1EF223Z
VCCCCY1HH101J
VCKYCY1HB473K
VCKYCY1CF224Z
VCKYCY1CB104K
VCKYCY1CB103K
VCEAZA1AW107M
VCKYPA1HF103Z
VCKYCY1EF223Z
VCKYCY1HB102K
VCKYCY1CB103K
VCEAZA1AW107M
VCKYCY1EF223Z
CD-ES700/CD-ES77
NO.
C50
C51,52
C101,102
C103
C104
C105,106
C107~110
C111,112
C113,114
C115,116
C117,118
C119,120
C121
C123,124
C125,126
C127,128
C129,130
C131,132
C133
C134
C135
C137
C138
C139
C140
C141
C143
C150
C302
C303
C304
C305
C306
C307
C308
C309
C310
C311
C312
C313
C315
C316
C317
C318
C320
C323
C324
C330
C331
C332
C334
C335
C338
C342
C347
C350,351
C352
C353,354
C355
C356
C357
C358
C361
C362
C363
C364
C365
C366
C367,368
C369
C370~372
C373,374
C376~379
C380
C381
C382
C383
C384
C385
C386
C387
C388
PART CODE
VCKYPA1HF223Z
VCCCCY1HH180J
VCKYCY1HB561K
VCKYBT1HB181K
VCCCCY1HH181J
VCKYCY1HB152K
VCKYCY1HB331K
VCEAZA1EW476M
VCTYPA1EX393K
VCKYCY1HB561K
VCEAZA1EW476M
VCKYCY1HB222K
VCKYCY1EF223Z
VCKYCY1HB271K
VCEAZA1HW226M
VCTYPA1CX223K
VCKYCY1HB332K
VCEAZA1EW476M
VCEAZA1EW226M
VCEAZA1AW227M
VCKYCY1EF223Z
VCQYKA1HM473K
VCQPKA2AA822J
VCQYKA1HM393K
VCEAZA1EW476M
VCEAZA1CW107M
VCEAZA1HW335M
VCEAZA1HW476M
VCKYCY1HB102K
VCCCCY1HH100D
VCKYCY1HB103K
VCCCCY1HH4R7C
VCKYCY1EF223Z
VCEAZA1HW106M
VCCCCY1HH4R7C
VCKYCY1HB102K
VCCCCY1HH150J
VCCCCY1HH180J
VCKYCY1EF223Z
VCCCCY1HH220J
VCKYCY1HB103K
VCKYCY1EF223Z
VCKYCY1HB102K
VCKYBT1HB101K
VCKYBT1HB102K
VCKYCY1EF223Z
VCCCCY1HH4R7C
VCCCCY1HH150J
VCKZPA1HF473Z
VCKYCY1EF223Z
VCCCCY1HH220J
VCKYCY1HB561K
VCKYCY1HB102K
VCKYCY1EF223Z
VCKYCY1EF223Z
VCKYCY1EF223Z
VCEAZA1HW106M
VCKYCY1EF223Z
VCCCCY1HH220J
VCKYCY1HB102K
VCEAZA1HW225M
VCEAZA1HW105M
VCKYCY1EF223Z
VCEAZA1HW335M
VCKYCY1EF223Z
VCEAZA1HW225M
VCTYPA1CX223K
VCKYCY1HB102K
VCEAZA1HW105M
VCCCCY1HH270J
VCEAZA1HW105M
VCTYPA1CX153K
VCCCCY1HH101J
VCEAZA1HW106M
VCCCCY1HH120J
VCCCCY1HH150J
VCCSBT1HL470J
VCKYCY1HB102K
VCKYCY1HB103K
VCKYCY1HB331K
VCKYCY1EF223Z
VCKYCY1HB102K
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
PRICE
RANK
DESCRIPTION
AB
AA
AA
AA
AA
AA
AA
AB
AA
AA
AB
AA
AB
AA
AB
AA
AA
AB
AB
AC
AB
AB
AA
AB
AB
AC
AB
AB
AA
AA
AA
AA
AB
AB
AA
AA
AA
AA
AB
AA
AA
AB
AA
AA
AA
AB
AA
AA
AA
AB
AA
AA
AA
AB
AB
AB
AB
AB
AA
AA
AB
AB
AB
AB
AB
AB
AA
AA
AB
AA
AB
AA
AA
AB
AA
AA
AA
AA
AA
AA
AB
AA
0.022 µF,50V
18 pF (CH),50V
560 pF,50V
180 pF,50V
180 pF (CH),50V
0.0015 µF,50V
330 pF,50V
47 µF,25V,Electrolytic
0.039 µF,25V
560 pF,50V
47 µF,25V,Electrolytic
0.0022 µF,50V
0.022 µF,25V
270 pF,50V
22 µF,50V,Electrolytic
0.022 µF,16V
0.0033 µF,50V
47 µF,25V,Electrolytic
22 µF,25V,Electrolytic
220 µF,10V,Electrolytic
0.022 µF,25V
0.047 µF,50V,Mylar
0.0082 µF,100V,Polypropylene
0.039 µF,50V,Mylar
47 µF,25V,Electrolytic
100 µF,16V,Electrolytic
3.3 µF,50V,Electrolytic
47 µF,50V,Electrolytic
0.001 µF,50V
10 pF (CH),50V
0.01 µF,50V
4.7 pF (CH),50V
0.022 µF,25V
10 µF,50V,Electrolytic
4.7 pF (CH),50V
0.001 µF,50V
15 pF (CH),50V
18 pF (CH),50V
0.022 µF,25V
22 pF (CH),50V
0.01 µF,50V
0.022 µF,25V
0.001 µF,50V
100 pF,50V
0.001 µF,50V
0.022 µF,25V
4.7 pF (CH),50V
15 pF (CH),50V
0.047 µF,50V
0.022 µF,25V
22 pF (CH),50V
560 pF,50V
0.001 µF,50V
0.022 µF,25V
0.022 µF,25V
0.022 µF,25V
10 µF,50V,Electrolytic
0.022 µF,25V
22 pF (CH),50V
0.001 µF,50V
2.2 µF,50V,Electrolytic
1 µF,50V,Electrolytic
0.022 µF,25V
3.3 µF,50V,Electrolytic
0.022 µF,25V
2.2 µF,50V,Electrolytic
0.022 µF,16V
0.001 µF,50V
1 µF,50V,Electrolytic
27 pF (CH),50V
1 µF,50V,Electrolytic
0.015 µF,16V
100 pF (CH),50V
10 µF,50V,Electrolytic
12 pF (CH),50V
15 pF (CH),50V
47 pF,50V
0.001 µF,50V
0.01 µF,50V
330 pF,50V
0.022 µF,25V
0.001 µF,50V
NO.
–2–
C389
C391
C392
C393
C394
C395
C396
C397
C398
C399
C601
C602
C603
C605,606
C607,608
C609,610
C611,612
C613,614
C615,616
C617~624
C625,626
C631
C639
C640
C651~653
C690,691
C701
C702
C704
C705
C707
C709,710
C714
C715
C717
C720,721
C801
C802,803
C804
C805
C806~809
C810,811
C841
C842
C843
1 C844
C850
C854
C855
C856
C859
C861
C864,865
C885
C901,902
C903,904
C905,906
C907
C908
C909
C910
C911,912
C913
C914,915
C916
C917
C918
C919
C920
C921,922
C923
C925
C928,929
C931
C944
C946
CT1
PRICE
RANK
PARTS CODE
VCKYBT1HB102K
VCEAZA1EW476M
VCKYCY1HB102K
VCEAZA1HW105M
VCEAZA1EW476M
VCKYCY1EF223Z
VCEAZA1AW107M
VCKYCY1EF223Z
VCEAZA1AW107M
VCKYCY1EF223Z
VCEAZA1CW227M
VCKYPA1HF223Z
VCEAZA1AW227M
VCFYFA1HA104J
VCFYFA1HA823J
VCEAZA1HW105M
VCKYCY1HB222K
VCEAZA1HW105M
VCEAZA1HW475M
VCEAZA1HW105M
VCKYCY1HB222K
VCKYBT1HB103K
VCEAZA1HW105M
VCEAZA1HW226M
VCKYCY1HB221K
VCKYPA1HB391K
VCEAZA1HW105M
VCEAZA1AW227M
VCCCCY1HH150J
VCCCCY1HH180J
VCEAZA1HW105M
VCKYCY1HB473K
VCEAZA1HW335M
VCKYCY1HB103K
VCEAZA1EW476M
VCKYCY1EF223Z
VCEAZA1VW107M
VCEAZA1HW476M
VCEAZA1JW227M
VCEAZA2AW226M
VCQYKA1HM104K
VCFYDA2AA224J
VCEAZA0JW108M
VCEAZA1VW477M
VCQYKA1HM473K
RC-KZ002LAWZZ
RC-EZ0106AWZZ
VCEAZA1EW227M
VCEAZA1HW106M
VCQYKA1HM104K
VCEAZA1HW226M
VCKYPA1HF223Z
VCEAZA1EW226M
VCKYCY1HB104K
VCEAZA1HW475M
VCKYCY1HB102K
VCEAZA1HW476M
VCCCCY1HH101J
VCCCCY1HH3R0C
VCQYKA1HM104K
VCCCCY1HH3R0C
VCEAZA2AW107M
VCCCCY1HH101J
VCEAZA2AW107M
VCEAZA1HW107M
VCKYCY1HB103K
VCEAZA1HW107M
VCKYCY1HB103K
RC-EZ0029AWZZ
RC-EZ0106AWZZ
RC-EZ0029AWZZ
VCEAZA1HW476M
VCQYKA1HM104K
VCEAZA1HW106M
VCEAZA1EW476M
VCEAZA1HW104M
VCKZPA1HF473Z
DESCRIPTION
0.001 µF,50V
47 µF,25V,Electrolytic
0.001 µF,50V
1 µF,50V,Electrolytic
47 µF,25V,Electrolytic
0.022 µF,25V
100 µF,10V,Electrolytic
0.022 µF,25V
100 µF,10V,Electrolytic
0.022 µF,25V
220 µF,16V,Electrolytic
0.022 µF,50V
220 µF,10V,Electrolytic
0.1 µF,50V,Thin Film
0.0083 µF,50V
1 µF,50V,Electrolytic
0.0022 µF,50V
1 µF,50V,Electrolytic
4.7 µF,50V,Electrolytic
1 µF,50V,Electrolytic
0.0022 µF,50V
0.01 µF,50V
1 µF,50V,Electrolytic
22 µF,50V,Electrolytic
220 pF,50V
390 pF,50V
1 µF,50V,Electrolytic
220 µF,10V,Electrolytic
15 pF (CH),50V
18 pF (CH),50V
1 µF,50V,Electrolytic
0.047 µF,50V
3.3 µF,50V,Electrolytic
0.01 µF,50V
47 µF,25V,Electrolytic
0.022 µF,25V
100 µF,35V,Electrolytic
47 µF,50V,Electrolytic
220 µF,63V,Electrolytic
22 µF,100V,Electrolytic
0.1 µF,50V,Mylar
0.22 µF,100V,Thin Film
1000 µF,6.3V,Electrolytic
470 µF,35V,Electrolytic
0.047 µF,50V,Mylar
0.0047 µF,250V,Ceramic
4700 µF,35V,Electrolytic
220 µF,25V,Electrolytic
10 µF,50V,Electrolytic
0.1 µF,50V,Mylar
22 µF,50V,Electrolytic
0.022 µF,50V
22 µF,25V,Electrolytic
0.1 µF,50V
4.7 µF,50V,Electrolytic
0.001 µF,50V
47 µF,50V,Electrolytic
100 pF (CH),50V
3 pF (CH),50V
0.1 µF,50V,Mylar
3 pF (CH),50V
100 µF,100V,Electrolytic
100 pF (CH),50V
100 µF,100V,Electrolytic
100 µF,50V,Electrolytic
0.01 µF,50V
100 µF,50V,Electrolytic
0.01 µF,50V
3300 µF,71V,Electrolytic
4700 µF,35V,Electrolytic
3300 µF,71V,Electrolytic
47 µF,50V,Electrolytic
0.1 µF,50V,Mylar
10 µF,50V,Electrolytic
47 µF,25V,Electrolytic
0.1 µF,50V,Electrolytic
0.047 µF,50V
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AB
AA
AB
AB
AB
AB
AB
AB
AB
AC
AB
AC
AC
AB
AB
AA
AB
AB
AB
AA
AB
AB
AB
AA
AA
AB
AC
AA
AA
AB
AB
AB
AA
AB
AB
AC
AB
AD
AC
AB
AD
AC
AD
AB
AC
AH
AC
AB
AB
AB
AB
AB
AD
AB
AA
AB
AA
AA
AB
AA
AD
AA
AD
AC
AA
AC
AA
AN
AH
AN
AB
AB
AB
AB
AB
AA
J
AA 0 ohm,Jumper,0.8×1.55mm,Green
RESISTORS
VRS-CY1JB000J
CD-ES700/CD-ES77
NO.
R3
R6
R7
R8
R9
R10
R12
R13
R14,15
R16
R17
R18
R19
R20
R21
R22
R24,25
R26,27
R28
R30,31
R32~38
R39,40
R41
R42
R43
R44
R45
R47
R48,49
R50~54
R55
R56
R57
R58
R101,102
R103,104
R105,106
R107,108
R109,110
R111
R112
R113,114
R115,116
R117,118
R119,120
R121,122
R123,124
R126,127
R128,129
R130,131
R132,133
R134,135
R136,137
R138,139
R140
R141
R142
R143
R144
R145
R146,147
R148
R149
R150
R158
R302
R309
R311
R313
R314
R316
R322
R323
R325
R336
R350
R351
R352
R353
R355
R356
R357
PRICE
RANK
PART CODE
VRD-ST2CD563J
VRD-ST2CD563J
VRD-ST2CD470J
VRD-ST2CD103J
VRS-CY1JB100J
VRD-ST2CD103J
VRS-CY1JB331J
VRD-ST2CD822J
VRD-ST2CD682J
VRD-ST2CD153J
VRS-CY1JB682J
VRD-ST2CD102J
VRS-CY1JB562J
VRD-ST2CD472J
VRS-CY1JB472J
VRD-ST2CD101J
VRS-CY1JB222J
VRS-CY1JB103J
VRD-ST2CD222J
VRD-ST2CD222J
VRD-ST2CD102J
VRS-CY1JB681J
VRS-CY1JB563J
VRD-ST2EE1R0J
VRS-CY1JB221J
VRD-ST2EE1R0J
VRD-ST2CD101J
VRD-ST2CD222J
VRS-CY1JB103J
VRS-CY1JB472J
VRS-CY1JB473J
VRD-ST2CD391J
VRS-CY1JB225J
VRS-CY1JB103J
VRS-CY1JB102J
VRS-CY1JB222J
VRS-CY1JB332J
VRS-CY1JB473J
VRS-CY1JB472J
VRD-ST2CD153J
VRS-CY1JB153J
VRD-ST2CD102J
VRD-ST2CD560J
VRS-CY1JB104J
VRS-CY1JB392J
VRS-CY1JB183J
VRS-CY1JB682J
VRS-CY1JB472J
VRS-CY1JB562J
VRS-CY1JB152J
VRS-CY1JB101J
VRS-CY1JB103J
VRS-CY1JB224J
VRS-CY1JB103J
VRS-CY1JB473J
VRS-CY1JB472J
VRD-RT2HD820J
VRS-CY1JB473J
VRS-CY1JB223J
VRD-ST2CD4R7J
VRS-CY1JB103J
VRS-CY1JB472J
VRD-ST2EE151J
VRS-CY1JB683J
VRD-ST2EE221J
VRS-CY1JB100J
VRD-ST2CD103J
VRS-CY1JB104J
VRS-CY1JB333J
VRD-ST2CD220J
VRS-CY1JB472J
VRS-CY1JB681J
VRS-CY1JB683J
VRS-CY1JB473J
VRS-CY1JB103J
VRS-CY1JB272J
VRS-CY1JB562J
VRS-CY1JB102J
VRS-CY1JB271J
VRS-CY1JB332J
VRS-CY1JB102J
VRS-CY1JB474J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
DESCRIPTION
56 kohms,1/6W
56 kohms,1/6W
47 ohms,1/6W
10 kohm,1/6W
10 ohm,1/16W
10 kohm,1/6W
330 ohms,1/16W
8.2 kohms,1/6W
6.8 kohms,1/6W
15 kohms,1/6W
6.8 kohms,1/16W
1 kohm,1/6W
5.6 kohms,1/16W
4.7 kohms,1/6W
4.7 kohms,1/16W
100 ohm,1/6W
2.2 kohms,1/16W
10 kohm,1/16W
2.2 kohms,1/6W
2.2 kohms,1/6W
1 kohm,1/6W
680 ohms,1/16W
56 kohms,1/16W
1 ohm,1/4W
220 ohms,1/16W
1 ohm,1/4W
100 ohm,1/6W
2.2 kohms,1/6W
10 kohm,1/16W
4.7 kohms,1/16W
47 kohms,1/16W
390 ohms,1/6W
0.2 Mohms,1/16W
10 kohm,1/16W
1 kohm,1/16W
2.2 kohms,1/16W
3.3 kohms,1/16W
47 kohms,1/16W
4.7 kohms,1/16W
15 kohms,1/6W
15 kohms,1/16W
1 kohm,1/6W
56 ohms,1/6W
100 kohm,1/16W
3.9 kohms,1/16W
18 kohms,1/16W
6.8 kohms,1/16W
4.7 kohms,1/16W
5.6 kohms,1/16W
1.5 kohms,1/16W
100 ohm,1/16W
10 kohm,1/16W
220 kohms,1/16W
10 kohm,1/16W
47 kohms,1/16W
4.7 kohms,1/16W
82 ohms,1/2W
47 kohms,1/16W
22 kohms,1/16W
4.7 ohms,1/6W
10 kohm,1/16W
4.7 kohms,1/16W
150 ohms,1/4W
68 kohms,1/16W
220 ohms,1/4W
10 ohm,1/16W
10 kohm,1/6W
100 kohm,1/16W
33 kohms,1/16W
22 ohms,1/6W
4.7 kohms,1/16W
680 ohms,1/16W
68 kohms,1/16W
47 kohms,1/16W
10 kohm,1/16W
2.7 kohms,1/16W
5.6 kohms,1/16W
1 kohm,1/16W
270 ohms,1/16W
3.3 kohms,1/16W
1 kohm,1/16W
470 kohms,1/16W
NO.
R358
R359
R360
R365
R372~374
R375
R376
R377
R378
R379
R380
R381
R382
R383
R384
R385
R386
R387
R388
R391,392
R393
R395
R573
R593
R601~603
R604,605
R606,607
R608~611
R612,613
R614,615
R616,617
R618
R619
R620,621
R641
R642
R643,644
R690,691
R692,693
R701~703
R704,705
R708~712
R713~716
R717
R718~722
R723
R724
R725
R726
R727,728
R729
R730
R731
R732,733
R736
R738,739
R740
R741
R745
R746
R750
R751
R759
R761,762
R763
R766~768
R769
R770
R771
R773
R775,776
R777~779
R780
R781
R782
R783
R784
R785
R786
R787
R788,789
R790
–3–
PRICE
RANK
PARTS CODE
VRD-ST2CD392J
VRS-CY1JB182J
VRS-CY1JB472J
VRS-CY1JB103J
VRS-CY1JB102J
VRD-ST2CD471J
VRS-CY1JB102J
VRS-CY1JB473J
VRS-CY1JB102J
VRS-CY1JB222J
VRS-CY1JB152J
VRS-CY1JB103J
VRD-ST2EE151J
VRS-CY1JB562J
VRD-ST2CD562J
VRS-CY1JB562J
VRD-ST2CD223J
VRD-ST2CD562J
VRS-CY1JB392J
VRD-ST2EE271J
VRD-ST2CD102J
VRS-CY1JB473J
VRD-ST2CD103J
VRS-CY1JB103J
VRD-ST2CD102J
VRS-CY1JB103J
VRS-CY1JB392J
VRS-CY1JB222J
VRS-CY1JB391J
VRS-CY1JB472J
VRS-CY1JB222J
VRD-ST2CD331J
VRS-CY1JB331J
VRS-CY1JB223J
VRS-CY1JB103J
VRD-ST2CD103J
VRS-CY1JB682J
VRD-ST2CD822J
VRD-ST2CD333J
VRS-CY1JB102J
VRD-ST2CD102J
VRD-ST2CD102J
VRS-CY1JB102J
VRD-ST2CD102J
VRS-CY1JB102J
VRD-ST2CD102J
VRS-CY1JB102J
VRD-ST2CD102J
VRS-CY1JB222J
VRS-CY1JB681J
VRD-ST2CD561J
VRD-ST2CD102J
VRS-CY1JB103J
VRS-CY1JB102J
VRS-CY1JB102J
VRD-ST2CD102J
VRD-ST2CD101J
VRD-ST2CD102J
VRD-ST2CD103J
VRD-ST2CD102J
VRD-ST2CD473J
VRD-ST2CD331J
VRD-ST2CD562J
VRS-CY1JB103J
VRS-CY1JB102J
VRS-CY1JB103J
VRD-ST2CD102J
VRS-CY1JB562J
VRD-ST2CD472J
VRS-CY1JB103J
VRS-CY1JB472J
VRS-CY1JB103J
VRD-ST2CD103J
VRS-CY1JB473J
VRD-ST2CD104J
VRS-CY1JB101J
VRS-CY1JB102J
VRS-CY1JB272J
VRS-CY1JB472J
VRD-ST2CD472J
VRD-ST2CD103J
VRS-CY1JB822J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
DESCRIPTION
3.9 kohms,1/6W
1.8 kohms,1/16W
4.7 kohms,1/16W
10 kohm,1/16W
1 kohm,1/16W
470 ohms,1/6W
1 kohm,1/16W
47 kohms,1/16W
1 kohm,1/16W
2.2 kohms,1/16W
1.5 kohms,1/16W
10 kohm,1/16W
150 ohms,1/4W
5.6 kohms,1/16W
5.6 kohms,1/6W
5.6 kohms,1/16W
22 kohms,1/6W
5.6 kohms,1/6W
3.9 kohms,1/16W
270 ohms,1/4W
1 kohm,1/6W
47 kohms,1/16W
10 kohm,1/6W
10 kohm,1/16W
1 kohm,1/6W
10 kohm,1/16W
3.9 kohms,1/16W
2.2 kohms,1/16W
390 ohms,1/16W
4.7 kohms,1/16W
2.2 kohms,1/16W
330 ohms,1/6W
330 ohms,1/16W
22 kohms,1/16W
10 kohm,1/16W
10 kohm,1/6W
6.8 kohms,1/16W
8.2 kohms,1/6W
33 kohms,1/6W
1 kohm,1/16W
1 kohm,1/6W
1 kohm,1/6W
1 kohm,1/16W
1 kohm,1/6W
1 kohm,1/16W
1 kohm,1/6W
1 kohm,1/16W
1 kohm,1/6W
2.2 kohms,1/16W
680 ohms,1/16W
560 ohms,1/6W
1 kohm,1/6W
10 kohm,1/16W
1 kohm,1/16W
1 kohm,1/16W
1 kohm,1/6W
100 ohm,1/6W
1 kohm,1/6W
10 kohm,1/6W
1 kohm,1/6W
47 kohms,1/6W
330 ohms,1/6W
5.6 kohms,1/6W
10 kohm,1/16W
1 kohm,1/16W
10 kohm,1/16W
1 kohm,1/6W
5.6 kohms,1/16W
4.7 kohms,1/6W
10 kohm,1/16W
4.7 kohms,1/16W
10 kohm,1/16W
10 kohm,1/6W
47 kohms,1/16W
100 kohm,1/6W
100 ohm,1/16W
1 kohm,1/16W
2.7 kohms,1/16W
4.7 kohms,1/16W
4.7 kohms,1/6W
10 kohm,1/6W
8.2 kohms,1/16W
CD-ES700/CD-ES77
NO.
R791
R794,795
R801
R802
R803
R804,805
R806
R808
R841
R842
R843
R844
R853
R854
R857
R858
R859
R863
R864
R885
R886,887
R888,889
1 R890
R891
R901,902
R903,904
R905,906
R907
R908
R909
R910
R911
1 R912
R913
R916
R917
R918
R919,920
R921
R922
R925,926
R927,928
R929,930
R934,935
R937
R938~941
R942,943
R944,945
R946
R947
R949
R950
R956
1 R958
R983
R984
R985,986
R987,988
RD01
RD02
RD03
RD04
RD05
RD06
RD11
RD12
RD13
RD14
RD23
RD24
RD25
RD26
RD27
RD28
RD29
RD30
RD31
RD32
PRICE
RANK
PART CODE
VRS-CY1JB103J
VRD-ST2EE1R5J
VRD-ST2CD104J
VRD-ST2CD473J
VRD-ST2CD123J
VRD-ST2EE470J
VRD-ST2CD473J
VRD-RT2HD222J
VRD-ST2CD224J
VRD-ST2CD102J
VRD-ST2CD473J
VRD-ST2EE820J
VRD-ST2CD223J
VRD-ST2CD332J
VRD-ST2CD223J
VRD-ST2CD221J
VRD-ST2CD103J
VRD-RT2HD3R3J
VRD-ST2CD223J
VRS-CY1JB821J
VRS-CY1JB223J
VRD-ST2CD473J
RR-HZ0001AWZZ
VRD-ST2EE101J
VRS-CY1JB563J
VRS-CY1JB102J
VRS-CY1JB561J
VRS-CY1JB563J
VRS-CY1JB102J
VRS-CY1JB333J
VRD-ST2CD102J
VRS-CY1JB563J
VRG-ST2EC101J
VRN-VV3LAR22J
VRN-VV3LAR22J
VRN-VV3LAR10J
VRD-ST2CD152J
VRS-CY1JB182J
VRD-ST2CD152J
VRN-VV3LAR10J
VRD-RT2HD152J
VRD-ST2EE393J
VRD-ST2EE473J
VRD-ST2CD563J
VRS-CY1JB563J
VRD-RT2HD100J
VRS-VV3DA471J
VRD-ST2CD152J
VRS-CY1JB473J
VRS-CY1JB153J
VRD-RT2HD102J
VRD-ST2CD683J
VRS-CY1JB102J
VRG-ST2EC101J
VRS-CY1JB333J
VRS-CY1JB182J
VRS-CY1JB822J
VRS-CY1JB222J
VRD-ST2CD681J
VRS-CY1JB821J
VRS-CY1JB102J
VRD-ST2CD152J
VRS-CY1JB222J
VRS-CY1JB272J
VRS-CY1JB681J
VRS-CY1JB821J
VRD-ST2CD102J
VRS-CY1JB152J
VRD-ST2CD681J
VRD-ST2CD821J
VRD-ST2CD102J
VRS-CY1JB152J
VRS-CY1JB222J
VRS-CY1JB272J
VRS-CY1JB392J
VRS-CY1JB562J
VRS-CY1JB103J
VRS-CY1JB153J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AE
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AC
AC
AD
AA
AA
AA
AD
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
DESCRIPTION
NO.
PRICE
RANK
PARTS CODE
DESCRIPTION
OTHER CIRCUITRY PARTS
10 kohm,1/16W
1.5 ohms,1/4W
100 kohm,1/6W
47 kohms,1/6W
12 kohms,1/6W
47 ohms,1/4W
47 kohms,1/6W
2.2 kohms,1/2W
220 kohms,1/6W
1 kohm,1/6W
47 kohms,1/6W
82 ohms,1/4W
22 kohms,1/6W
3.3 kohms,1/6W
22 kohms,1/6W
220 ohms,1/6W
10 kohm,1/6W
3.3 ohms,1/2W
22 kohms,1/6W
820 ohms,1/16W
22 kohms,1/16W
47 kohms,1/6W
4.7 Mohms,1/2W
100 ohm,1/4W
56 kohms,1/16W
1 kohm,1/16W
560 ohms,1/16W
56 kohms,1/16W
1 kohm,1/16W
33 kohms,1/16W
1 kohm,1/6W
56 kohms,1/16W
100 ohm,1/4W,Fusible
0.22 ohms,3W
0.22 ohms,3W
0.1 ohm,3W
1.5 kohms,1/6W
1.8 kohms,1/16W
1.5 kohms,1/6W
0.1 ohm,3W
1.5 kohms,1/2W
39 kohms,1/4W
47 kohms,1/4W
56 kohms,1/6W
56 kohms,1/16W
10 ohm,1/2W
470 ohms,2W
1.5 kohms,1/6W
47 kohms,1/16W
15 kohms,1/16W
1 kohm,1/2W
68 kohms,1/6W
1 kohm,1/16W
100 ohm,1/4W,Fusible
33 kohms,1/16W
1.8 kohms,1/16W
8.2 kohms,1/16W
2.2 kohms,1/16W
680 ohms,1/6W
820 ohms,1/16W
1 kohm,1/16W
1.5 kohms,1/6W
2.2 kohms,1/16W
2.7 kohms,1/16W
680 ohms,1/16W
820 ohms,1/16W
1 kohm,1/6W
1.5 kohms,1/16W
680 ohms,1/6W
820 ohms,1/6W
1 kohm,1/6W
1.5 kohms,1/16W
2.2 kohms,1/16W
2.7 kohms,1/16W
3.9 kohms,1/16W
5.6 kohms,1/16W
10 kohm,1/16W
15 kohms,1/16W
BI601/CNS601
BI603/CNS603
BI801/CNS801
CNP1
CNP2
CNP3
CNP3A
CNP4
CNP4A
CNP5
CNP101
CNP102
CNP301
CNP602
CNP701A
CNP701B
CNP702A
CNP704
CNP801
CNP802
CNP901
CNP971
CNS3A/B
CNS971
1 F801,802
1 F803,804
1 F805
FFC1
FFC4
FFC701
FFC702
FFC704
FL701
FW705
FW901
JK690
JK691
JK692
JOG701
LG1~4
M1
M2
M901
NM1
NM2
NSW1
1 RL841
RL914
RX1
RX701
SO302
SO902
SW1
SW2
SW3
SW4
SW701
–4–
QCNWN2715AWPZ J
QCNWN2714AWPZ J
QCNWN2713AWPZ J
QCNCWYP16AWZZ J
92LCONE8P53254 J
92LCONE6P53253 J
92LCONE6P53254 J
QCNCWZX11AWZZ J
QCNCWZO11AWZZ J
QCNCWZY14AWZZ J
QCNCM705CAFZZ J
QCNCM705GAFZZ J
92LCONE2P5268 J
92LCONE5P53253 J
QCNCWZY16AWZZ J
QCNCWZX16AWZZ J
QCNCWZY07AWZZ J
QCNCWZY14AWZZ J
92LCONEAP5267X J
QCNCW012FAWZZ J
QCNCW012EAWZZ J
92LCONE2P53253 J
QCNWN2699AWPZ J
QCNWNA080AWPZ J
QFS-D502BSJNI
J
QFS-D202BSJNI
J
QFS-D502BSJNI
J
QCNWN2700AWPZ J
QCNWN2701AWPZ J
QCNWN2716AWPZ J
QCNWN2495AWZZ J
QCNWN2717AWPZ J
VVKNA11SS55-1
J
QCNWN2712AWPZ J
QCNWN2711AWPZ J
QSOCJ0313AWZZ J
QSOCJ0120AWZZ J
QJAKM0004AWZZ J
QSW-ZA001AWZZ J
QLUGP0001AWZZ J
92LMTR5529AASY J
92LMTR5529AASY J
RMOTV0059AWZZ J
92LMTR5515CASY J
92LMTR1854BASY J
QSW-F9001AW01 J
RRLYD0018AWZZ J
RRLYD0016AWZZ J
VHPGP1S094HCZ J
VHLPIC3704/-1
J
QTANC0206AWZZ J
QTANA0424AWZZ J
QSW-P9003AWZZ J
QSW-P9003AWZZ J
QSW-P9003AWZZ J
QSW-P9006AWZZ J
92LSWICH1401AT J
AG
AK
AH
AD
AC
AC
AC
AC
AC
AD
AA
AB
AB
AB
AD
AD
AC
AD
AC
AC
AC
AB
AF
AC
AE
AB
AE
AE
AD
AF
AD
AF
AV
AD
AD
AF
AD
AK
AE
AC
AD
AD
AL
AD
AP
AD
AH
AH
AF
AG
AD
AE
AD
AD
AD
AF
AC
SW702
SW703
SW704
SW705
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
J
J
J
J
AC
AC
AC
AC
SW706
SW707
92LSWICH1401AT J
92LSWICH1401AT J
AC
AC
SW712
SW713
SW714
SW715
SW716
SW725
SW726
SW727
SW728
SW729
SW730
SW731
SW732
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
J
J
J
J
J
J
J
J
J
J
J
J
J
Connector Ass’y,9/8Pin
Connector Ass’y,6/5Pin
Connector Ass’y,11/10Pin
Socket,16Pin
Plug,8Pin
Plug,6Pin
Plug,6Pin
Socket,11Pin
Socket,11Pin
Socket,14Pin
Plug,3Pin
Plug,7Pin
Plug,2Pin
Plug,5Pin
Socket,16Pin
Socket,16Pin
Socket,7Pin
Socket,14Pin
Plug,10Pin
Plug,6Pin
Socket,5Pin
Plug,2Pin
Connector Ass’y,6/6Pin
Connector Ass’y,2Pin
Fuse,5A/125V,
Fuse,2A/125V
Fuse,5A/125V
Flat Cable,16Pin
Flat Cable,11Pin
Flat Cable,16Pin
Flat Cable,7Pin
Flat Cable,14Pin
FL Display
Flat Wire,6Pin
Flat Wire,5Pin
Jack,Game Input
Jack,Video Out
Jack,Headphones
Switch,Jog Type [Volume]
Lug Terminal
Motor With Gear [Tray]
Motor With Gear [Main Cam]
Motor,Fan
Motor with Chassis [Spindle]
Motor with Gear [Sled]
Switch,Push Type [Pickup In]
Relay
Relay
Photo Interrupter,GP1S094HCZ
Remote Sensor,PIC3704
Terminal,FM Antenna
Terminal,Speaker
Switch,Push Type [CLAMP]
Switch,Push Type [TRAY SW1]
Switch,Push Type [TRAY SW2]
Switch,Push Type [DISC]
Switch,Key Type
[Power On/Stand-by]
Switch,Key Type [Clock/Timer]
Switch,Key Type [Tuning Up]
Switch,Key Type [Tuning Down]
Switch,Key Type
[Fast Rewind/Preset Down]
Switch,Key Type [Equalizer]
Switch,Key Type
[Fast Forward/Preset Up]
Switch,Key Type [Tuner (Band)]
Switch,Key Type [CD]
Switch,Key Type [Tape]
Switch,Key Type [Game/Video]
Switch,Key Type [X-Bass/Demo]
Switch,Key Type [Play/Repeat]
Switch,Key Type [Stop]
Switch,Key Type [Rec/Pause]
Switch,Key Type [Memory/Set]
Switch,Key Type [Open/Close]
Switch,Key Type [Direct Play]
Switch,Key Type [Disc2]
Switch,Key Type [Disc4]
CD-ES700/CD-ES77
NO.
SW733
SW734
SW735
WTM705
WTM901
PRICE
RANK
PART CODE
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
QCNCW019FAWZZ
QCNCW019EAWZZ
DESCRIPTION
J
J
J
J
J
AC
AC
AC
AB
AB
Switch,Key Type [Disc5]
Switch,Key Type [Disc3]
Switch,Key Type [Disc1]
Socket,6Pin
Socket,5Pin
Gear,Middle
Gear,Drive
Shaft,Guide
Cushion
Pickup Unit Ass’y
Pickup Unit
(Not Replacement Item)
Gear,Rack
Spring,Rack
Cushion
Cushion
Screw,ø2.6×6mm
Screw,ø2×3mm
Washer,ø1.5×ø3.8×0.25mm
Motor with Chassis [Spindle]
Motor with Gear [Sled]
Switch,Push Type [Pickup In]
CD MECHANISM PARTS
301
302
304
305
1 306
306- 1
NGERH0011AWZZ
NGERH0012AWZZ
NSFTM0020AWFW
92LMCUSN1524A
92LHPC1LFASY
————
J
J
J
J
J
AC
AC
AD
AD
BB
––
306- 2
306- 3
307
308
701
703
704
NM1
NM2
NSW1
NGERR0043AFZZ
MSPRC0961AFZZ
PCUSG0001AWSA
PCUSG0004AWSA
XBSSD26P06000
XBBSD20P03000
LX-WZ1070AFZZ
92LMTR5515CASY
92LMTR1854BASY
QSW-F9001AW01
J
J
J
J
J
J
J
J
J
J
AC
AA
AD
AD
AA
AA
AA
AD
AP
AD
CHANGER MECHANISM PARTS
101
102
103
104
105
106
107
108
109
109- 1
109- 2
109- 3
109- 4
109- 5
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
GCOVA1513AWZZ
GCOVA1514AWZZ
LANGG0008AWZZ
LANGG0009AWZZ
LCHSM0194AWZZ
LHLDZ9017AWZZ
LPLTP0014AWZZ
LPLTP0015AWZZ
MHOLD5529ASY
LHLDM9001AWZZ
LHLDZ9019AWM1
LPLTM0017AWZZ
LPLTMA001AWFW
PMAGF0003AWZZ
MLEVP0129AWZZ
MLEVP0130AWZZ
MLEVP0131AWZZ
MLEVP0132AWZZ
MLEVP0133AWZZ
MLEVP0134AWZZ
MLEVP0135AWZZ
MLEVP0136AWZZ
MLEVP0137AWZZ
MLEVP0138AWZZ
MLEVP0139AWZZ
MSPRC0044AWFJ
MSPRD0191AWFJ
MSPRD0192AWFJ
NGERH0176AWZZ
NGERH0177AWZZ
NGERH0178AWZZ
NGERH0179AWZZ
NGERH0180AWZZ
NGERH0181AWZZ
NGERH0182AWZZ
NGERH0183AWZZ
NGERH0184AWZZ
NGERH0185AWZZ
NGERH0186AWZZ
NGERH0187AWZZ
NGERH0188AWZZ
NGERH0189AWZZ
NGERH0190AWZZ
NGERH0191AWZZ
NGERH0192AWZZ
NGERH0193AWZZ
NGERH0194AWZZ
NGERH0195AWZZ
NGERH0196AWZZ
NGERH0198AWZZ
NGERH0199AWZZ
NGERH0200AWZZ
NGERH0201AWZZ
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AF
AF
AD
AC
AP
AF
AK
AG
AP
AD
AK
AB
AC
AF
AC
AG
AD
AD
AC
AD
AC
AC
AC
AB
AC
AB
AC
AB
AF
AC
AC
AC
AB
AC
AC
AC
AC
AC
AC
AB
AC
AB
AC
AE
AC
AC
AB
AC
AC
AB
AB
AB
AB
Disc Tray
Guide Tray
Outer Tray Guide
Inner Tray Guide
Main Base
CD Mechanism Holder
Top Plate
Gear Plate
Up/Down Holder Ass’y
Stabilizer
Up/Down Holder Ass’y
Stabilizer Plate
Plate
Magnet
Tray Lock Lever
Gear Up/Down Board
Mechanism Up/Down Board (L)
Mechanism Up/Down Board (R)
Mechanism Clamp Board
L/R Joint Lver
Tray Set Lever
Mechanism Clamp Switch Lever
Mechanism Clamp Switch Arm
Inner GR Up/Down Lever
Outer GR Up/Down Lever
Shift Spring
Disc Stop Spring
Balance Spring
Tray Big Gear
Tray Front Gear A
Tray Front Gear B
Tray Rear Gear A
Tray Rear Gear B
Mechanism Clamp Gear A
Mechanism Clamp Joint Gear
Mechanism Clamp Board Gear
Tray Rear Joint Gear A
Tray Rear Joint Gear B
Tray Rear Joint Gear C
Tray Rear Drive Gear
Tray Drive Gear
Tray Front Drive Gear
Tray Front Joint Gear
Mode Big Gear
G-Up/Down Gear A
G-Up/Down Gear B
Mechanism Up/Down Gear A
Mechanism Up/Down Gear B
Mechanism Clamp Switch Gear
Reduction Gear A
Reduction Gear B
Reduction Gear C
Reduction Gear D
NO.
149
150
151
152
801
803
804
M1
M2
RX1
SW1
SW2
SW3
SW4
PRICE
RANK
DESCRIPTION
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AB
AB
AB
AD
AB
AA
AA
AD
AD
AF
AD
AD
AD
AF
Up/Down Reduction Gear E
Up/Down Reduction Gear F
Tray Reduction Gear E
Shaft,Main Base
Screw,Special
Screw,ø2×10mm
Screw,ø3×10mm
Motor with Gear [Tray]
Motor with Gear [Main Cam]
Photo Interrupter,GP1S094HCZ
Switch,Push Type [CLAMP]
Switch,Push Type [TRAY SW1]
Switch,Push Type [TRAY SW2]
Switch,Push Type [DISC]
J
J
BC Front Panel Ass’y [CD-ES77]
BC Front Panel Ass’y [CD-ES700]
–– Front Panel
(Not Replacement Item)
AG Cover,Cassette [Tape 1]
[CD-ES77]
AK Cover,Cassette [Tape 1]
[CD-ES700]
AG Cover,Cassette [Tape 2]
[CD-ES77]
AK Cover,Cassette [Tape 2]
[CD-ES700]
AE Holder,Cassette [Tape 1]
AE Holder,Cassette [Tape 2]
AE Panel,Cassette [Tape 1]
AE Panel,Cassette [Tape 2]
AF Button,Disc Number [CD-ES77]
AE Button,Disc Number [CD-ES700]
AD Damper
AF Button,Operation A [CD-ES700]
AK Button,Operation A [CD-ES77]
AF Button,Operation B [CD-ES700]
AK Button,Operation B [CD-ES77]
AE Button,Function
AF Button,Memory [CD-ES77]
AE Button,Memory [CD-ES700]
AF Button,Tuning [CD-ES77]
AE Button,Tuning [CD-ES700]
AG Button,Power [CD-ES77]
AF Button,Power [CD-ES700]
AC Cover,Timer
AD Badge,SHARP
AB Spring,Cassette [Tape 1]
AB Spring,Cassette [Tape 2]
AH Volume Knob Ring,A
[CD-ES700]
AG Volume Knob Ring,A [CD-ES77]
AF Volume Knob Ring,B
AH Decoration Plate,Amp.
[CD-ES77]
AH Decoration Plate,Amp.
[CD-ES700]
AC Lock,Cassette [Tape 1]
AC Lock,Cassette [Tape 2]
AB Spring,Cassette Lock [Tape 1]
AC Spring,Cassette Lock [Tape 2]
AY Cabinet,Top/Side [CD-ES77]
AY Cabinet,Top/Side [CD-ES700]
AB Cushion,Leg
AL Rear Panel,B [CD-ES700]
AL Rear Panel,B [CD-ES77]
AG Cover,CD Tray
AM Chassis,Changer
AG Shield,Dust Cover
AA Nylon Band,80mm
BC Tape Mechanism Ass’y
AE Panel,Edge Light
AC Lug Wire
AD Knob,Volume
AL Cover,Volume Knob
AA Spring,Ring
AQ Chassis,Main
AP Rear Panel,A
AA Nylon Band
PARTS CODE
NGERH0202AWZZ
NGERH0203AWZZ
NGERH0204AWZZ
NSFTT0084AWFD
LX-BZA006AWFD
XEBSD20P10000
XEBSD30P10000
92LMTR5529AASY
92LMTR5529AASY
VHPGP1S094HCZ
QSW-P9003AWZZ
QSW-P9003AWZZ
QSW-P9003AWZZ
QSW-P9006AWZZ
CABINET PARTS
201
201
201- 1
CCABA5548AW01
CCABA5549AW01
————
201- 2
GCOVAA026AWSA J
201- 2
GCOVA1521AWSA J
201- 3
GCOVAA027AWSA J
201- 3
GCOVA1522AWSA J
201- 4
201- 5
201- 6
201- 7
201- 8
201- 8
201- 9
201-10
201-10
201-11
201-11
201-12
201-13
201-13
201-14
201-14
201-15
201-15
201-16
201-17
201-18
201-19
201-20
GDORF0127AWSA
GDORF0128AWSA
HDECQ1108AWSA
HDECQ1109AWSA
JKNBZA022AWSA
JKNBZ0982AWSA
MLIF-A001AWZZ
JKNBZA040AWSA
JKNBZ0983AWSA
JKNBZA041AWSA
JKNBZ0984AWSA
JKNBZ0985AWSA
JKNBZA026AWSA
JKNBZ0986AWSA
JKNBZA027AWSA
JKNBZ0987AWSA
JKNBZA030AWSA
JKNBZ0991AWSA
GCOVA1533AWSA
HBDGB1007AWSA
MSPRDA002AWFJ
MSPRDA003AWFJ
HDECQA039AWSA
201-20
201-21
201-22
HDECQ1105AWSA J
HDECQ1106AWSA J
HDECQA018AWSA J
201-22
HDECQA019AWSA J
201-23
201-24
201-25
201-26
202
202
203
204
204
205
206
207
208
209
210
212
213
214
216
217
218
219
MLOKC0014AWZZ
MLOKC0015AWZZ
MSPRD0196AWFJ
MSPRD0197AWFJ
GCAB-A006AWSA
GCAB-3101AWSA
PCUSG0022AWZZ
GITARA044AWSA
GITARA045AWSA
GCOVA1520AWSA
LCHSZ0025AWZZ
PSLDMA009AWFW
92LNBAND1318A
KMECBA001AWZZ
HDECQA033AWSA
QCNWN1860AWZZ
JKNBK0103AWSA
HDECQ1104AWSA
92LCSPR1431C
LCHSM0198AWFW
GITARA057AWSA
LBND-1011AWZZ
–5–
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
CD-ES700/CD-ES77
NO.
1 220
221
222
223
1 224
225
226
227
228
229
601
602
603
604
605
606
607
608
609
610
611
612
613
614
618
PRICE
RANK
DESCRIPTION
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AM
AD
AD
AE
AB
AX
AD
AC
AE
AC
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AD
AC
AB
AB
AB
AC Power Supply Cord
Bushing,AC Power Supply Cord
Rotary Fan
Bracket,Fan Support A
Holder,Fuse
Heat Sink
Holder,Edge Light A
Bracket,PWB Support
Shield Sheet,Main PWB
Holder,Rib Support
Screw,ø3×10mm
Screw,ø3×10mm
Screw,ø2.6×10mm
Screw,ø2.6×10mm
Screw,ø3×10mm
Screw,ø3×8mm
Screw,Special
Screw,ø4×8mm
Screw,ø2×4mm
Screw,ø3×10mm
Push Rivet
Snap Rivet
Screw,ø3×18mm
Screw,ø3×10mm
Screw,Special
J
J
J
J
J
J
J
AG
AE
AD
AA
AD
AR
AG
AM Loop Antenna
Operation Manual
Quick Guide
Label,energy Star
FM Antenna
Remote Control
Lid,Remote Control
PART CODE
QACCD0022AWZZ
LBSHC0005AWZZ
NFANP0001AWZZ
LANGK0437AWFW
QFSHD0001AWZZ
PRDARA018AWFW
LHLDZ9023AWZZ
LANGT0042AWFW
PSHEPA010AWZZ
LHLDZA004AWZZ
XJBSD30P10000
XEBSD30P10000
LX-EZ0005AWFD
XEBSD26P10000
XESSD30P10000
XJSSD30P08000
LX-EZ0010AWFD
XHBSD40P08000
XBBSD20P04000
LX-JZ0010AFFD
LX-LZA002AWZZ
LX-LZ0002AW00
LX-JZ0037AWFD
LX-JZ0044AWFF
LX-JZ036AWFD
NO.
ACCESSORIES
QANTL0005AWZZ
TINSEA011AWZZ
TINSZA009AWZZ
TLABZA092AWZZ
92LFANT1746A
RRMCG0391AWSA
GFTAT1017AWSA
P.W.B. ASSEMBLY (Not Replacement Item)
PWB-A1,2
1 PWB-B1,2
92LPWB5548MANS J
92LPWB5548PWRS J
PWB-C
PWB-D
PWB-E
PWB-F
92LPWB5529CDUS J
————
QPWBF1055AWZZ J
QPWBF0027AWZZ J
––
––
Main/Display (Combined Ass’y)
Power/Game Input
(Combined Ass’y)
–– CD Servo
–– Tape Mechanism (PWB Only)
AE 5-Changer Motor (PWB Only)
AD CD Motor (PWB Only)
OTHER SERVICE PART
UDSKA0004AFZZ
J
AZ
CD Pickup Lens Cleaner
CP-ES700/CP-ES77
SPEAKER BOX PARTS
901
GBOXLA023AWSA J
901
GBOXLA024AWSA J
902
GBOXRA023AWSA J
902
GBOXRA024AWSA J
903
CPNLSA005AW03
J
903
CPNLSA005AW04
J
904
CPNLSA006AW03
J
904
CPNLSA006AW04
J
905
905
906
906
907
907
908
909
HPNLSA007AWSA
HPNLSA007AWSB
HPNLSA008AWSA
HPNLSA008AWSB
TSPC-A058AWZZ
TSPC-A059AWZZ
PFLT-0046AWZZ
QCNWHA001AWZZ
J
J
J
J
J
J
J
J
BE Speaker Box Ass’y,Left
[CP-ES700]
BF Speaker Box Ass’y,Left
[CP-ES77]
BE Speaker Box Ass’y,Right
[CP-ES700]
BF Speaker Box Ass’y,Right
[CP-ES77]
BD Front Panel Ass’y,Left
[CP-ES700]
BD Front Panel Ass’y,Left
[CP-ES77]
BD Front Panel Ass’y,Right
[CP-ES700]
BD Front Panel Ass’y,Right
[CP-ES77]
AX Side Panel,Left [CP-ES700]
AX Side Panel,Left [CP-ES77]
AX Side Panel,Right [CP-ES700]
AX Side Panel,Right [CP-ES77]
AC Label,Specifications [CP-ES700]
AC Label,Specifications [CP-ES77]
AC Felt
AK Speaker Cord Ass’y with
Capacitor
–6–
910
911
912
913
914
915
SP1,2
SP1,2
SP3,4
SP5,6
PARTS CODE
XJBSD40P16000
J
XJBSD30P12000
J
XMPSF40P35000 J
XMBSF40P16000 J
PFLT-0079AWZZ
J
PPCUSG0147AWZZ J
RSP-ZA022AWZZ J
RSP-ZA028AWZZ J
RSP-ZA023AWZZ J
RSP-ZA008AWZZ J
PRICE
RANK
AB
AA
AC
AC
AG
AC
BD
BD
AS
AS
DESCRIPTION
Screw,ø4×16mm
Screw,ø3×12mm
Screw,ø4×35mm
Screw,ø4×16mm
Felt
Cushion,Leg
Woofer [CP-ES700]
Woofer [CP-ES77]
Tweeter
Passive Radiator
CD-ES700/CD-ES77
CD-ES700/CD-ES77
306-2
A
306
306-1
701
306-3
704
B
304
701
C
302
301
703x2
D
E
NM1
F
307
NM2
308
305x2
G
NSW1
H
PWB-F
1
2
3
4
Figure 7 CD MECHANISM EXPLODED VIEW
–7–
5
6
CD-ES700/CD-ES77
CD-ES700/CD-ES77
CHANGER
MECHANISM UNIT
BELT CONNECTION
FF/REW
Tape
FF/REW
ROLLER
Motor
ROLLER
ASS'Y
ASS'Y
A
601x5
202
FLYWHEEL
FLYWHEEL
ASS'Y
MAIN BELT ASS'Y
TAPE2
TAPE1
601x3
605x6
PWB-D
B
CD
MECHANISM
212
603x4
206
601x3
209
C
602x2
604x10
602x4
207
PWB-C
D
601x2
204
PWB-A2
M901
205
223
602x2
216
205
205
205
FL701
205
226
612
222
228
201-22
218
201
201-21
227
604
201-20
614x2
201-10
201-17
601x2
613
610
201-15 201-16
213
216
212
F
607x2
PWB-B2
201-12
201-8
201-14
214
601x8
610
PWB-A1
210
E
609x2
201-25
201-23
Silicon
Grease
201-13
201-9
225
IC901
613x2
229
201-24
201-26
G
PWB-B1
608x4
201-4
201-2
220
221
IC851
618
PT801
201-1
201-9
201-11
604
611
217
224x10
201-18
203x2
201-5
201-6
H
201-19
606x2
208
219
201-3
201-7
203x2
Note: Only the unit and consumable parts are supplied as parts supply for the Tape mechanism.
1
2
3
4
Figure 8 CABINET EXPLODED VIEW
–8–
5
6
CD-ES700/CD-ES77
CD-ES700/CD-ES77
115
107
A
803x6
123
119
135
104
112
B
136
122
113
108
141
C
130
133
143
801x2 139
134
111
124
132
110
120
144
118
103
131
142
117
127
140
137
121
145
128
125
152
126
152
D
138
136
804
149
101
150
105
148
148
E
101
129
147
147
146
146
101
151
145
M1
M2
101
SW1
SW2
SW3
RX1
PWB-E
101
F
102
SW4
803x2
102
109-5
106
109-1
102
G
109
109-3
102
116
109-4
102
114
109-2
H
1
2
3
4
Figure 9 CHANGER MECHANISM EXPLODED VIEW
–9–
5
6
CD-ES700/CD-ES77
CP-ES700/CP-ES77
A
SP9, 10
SUPER TWEETER
SP9, 10
SUPER TWEETER
SP7, 8
SUPER TWEETER
SP7, 8
SUPER TWEETER
SP3, 4
TWEETER
BL
BK
BK
C1,
C2
Capacitor
1.8 µF,
250 V
Electrolytic
SP3, 4
TWEETER
B
903, 904
BL
RD
SP1,2
WOOFER
C1,
C2
Capacitor
1.8 µF,
250 V
Electrolytic
BK
SP1,2
WOOFER
914
905, 906
C
912x4
908x2
908x3
D
SP3,4
E
907
911x2
909
SP9, 10
911x2
901, 902
F
SP7, 8
911x2
913x4
G
910x4
SP5,6
H
915x4
SP1,2
1
2
3
4
Figure 10 SPEAKER EXPLODED VIEW
– 10 –
5
6
CD-ES700/CD-ES77
PACKING OF THE SET
Setting position of switches and knobs
Tape Mechanism
STOP
SPEAKER
CP-ES700
CP-ES77
CD-ES700
CD-ES77
SPAKP0032AWZZ
Polyethylene Bag, Unit
P
O
T
SSAKH0053AWZZ
Polyethylene Bag,
Speaker
UNIT
SPAKAA010AWZZ
Packing Add., Left/Right
P
O
T
E
SID
RE
AR
E
P
O
T
SID
FRONT
HT
FR
RIG
ON
T
SPAKAA013AWZZ
Packing Add., Top/Bottom
BO
O
TT
M
O
B
O
T
T
M
RE
AR
SPAKZA010AWZZ
Miramat Sheet
A
Energy Star
Label
AM Loop Antenna
Operation Manual
Quick Guide
Remote Control
FM Antenna
92LBAG1460C1
Polyethylene Bag,
Accessories
B
SPAKZA050AWZZ
Pad, Support
SPAKZA007AWZZ
Spacer
T
P
O
SPAKCA042AWZZ [CD-ES700]
SPAKCA041AWZZ [CD-ES77]
Packing Case
RIG
P
T
O
ON
T
HT
FR
P
O
T
E
B
SID
RE
AR
E
SID
A
Not Replacement Item
COPYRIGHT
©
2004 BY SHARP CORPORATION
ALL RIGHTS RESERVED.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any from or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
SHARP CORPORATION
AV Systems Group
Quality & Reliability Control Center
Higashihiroshima, Hiroshima 739-0192, Japan
Printed in Japan
A0405-1447DS•HA•M
SC
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
