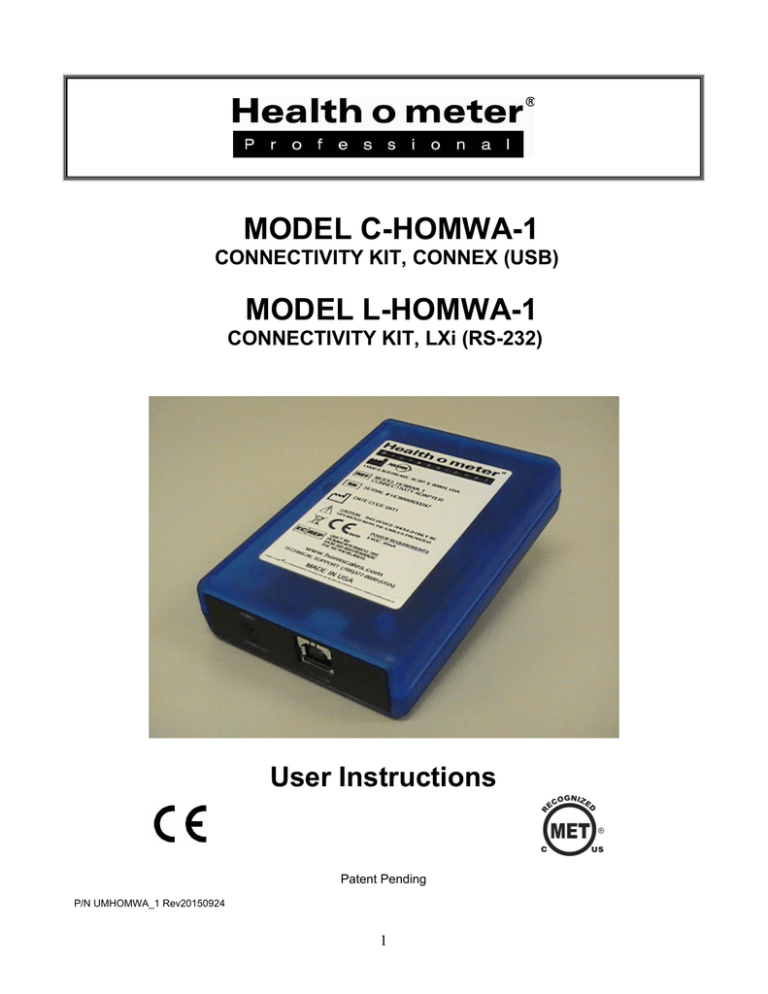

MODEL C-HOMWA-1
CONNECTIVITY KIT, CONNEX (USB)
MODEL L-HOMWA-1
CONNECTIVITY KIT, LXi (RS-232)
User Instructions
Patent Pending
P/N UMHOMWA_1 Rev20150924
1
Model HOMWA-1
Thank you for your purchase of this Health o meter® Professional product. Please read this manual
carefully, and keep it for easy reference or training.
TABLE OF CONTENTS
Caution and Warning ................................................................................................ 3
Specifications for This Product ................................................................................. 4
Certifications / Connectivity / Disposal ...................................................................... 5
Assembly Instructions HOMWA-1 Product .............................................................. 6
Setup ........................................................................................................................ 9
Quick Start Instructions............................................................................................. 9
Maintenance ............................................................................................................. 11
Troubleshooting ........................................................................................................ 12
Warranty ................................................................................................................... 13
Please register your product for warranty coverage at:
www.homscales.com
For User Instructions updates and revisions please go to:
/www.homscales.com
2
CAUTION AND WARNING
When Operating this product:

To prevent injury and damage to your product, please follow these instructions very carefully.

To prevent injury, as well as product damage during assembly, exercise
caution when assembling the product.

Assemble and operate the product per the enclosed user instructions.

For accurate weighing, verify before each use the proper operation according
to the procedure described in this manual.

Operating this product at voltages and frequencies other than specified can
damage the equipment and will void the warranty.

Do not use in the presence of flammable or explosive materials.

If the product becomes damaged, it should not be operated until properly serviced. All
repairs should only be performed by authorized Health o meter® Professional service
personnel.

Prior to using this product, inspect the connectors/cord for cracking / fraying, or for
broken / bent plug prongs.

These devices comply with CISPR 11, FCC Part 15, and ICES-003 radiated emissions
requirements. This device does not cause harmful interference, and will accept any
interference received, without causing undesired operation.
WARNING – Electric Shock Hazard. Do not connect an external power supply to
the scale. The scale should operate on batteries only when used with the
Connectivity Adapter.
The Connectivity Adapter is intended only as an accessory to other listed medical
equipment where the combination has been investigated and tested for leakage current
as a system before being put into service.
The “TO LXi” connector on the Connectivity Adapter is intended only for connection to
connectors of equipment complying with double insulation requirements of UL606011/CSA22.2 No.601.1
The “TO SCALE” connector on the Connectivity Adapter is intended for connection to
Health o meter scales complying with double insulation requirements of UL606011/CSA22.2 No. 601.1.
The “TO CONNEX DEVICE” connector on the Connectivity Adapter is intended for
connection to circuits that are not live and that are separated from mains by at least
basic insulation as defined by UL60601-1/CSA C22.2 No. 601.1.
3
SPECIFICATIONS FOR THIS PRODUCT
General
Thank you for purchasing this product. It is important that you read through this manual
before installing the product to avoid problems during set-up and use.
Both the C-HOMWA-1 and the L-HOMWA-1 connectivity kits allow communication between
the Health o meter® Professional product and the Welch Allyn Spot Vital Signs® LXi, Welch
Allyn Connex® Vital Signs Monitors, and Connex® Integrated Wall Systems. The CHOMWA-1 Connectivity Kit transfers weight, height and BMI data from the Health o meter®
Professional digital scale to the display of the Welch Allyn Connex device. The L-HOMWA1 Connectivity Kit transfers weight data from the Health o meter® Professional digital scale
to the display of the Welch Allyn Spot Vital Signs® LXi device.
HOMWA-1 Product Specifications
Model C-HOMWA-1 Connectivity Kit, Connex (USB) [For use with Welch Allyn
Connex® devices]
1 - HOMWA-1
1 - SP62941
1 - SP62979
1 - UMHOMWA
Connectivity Adapter
1ft (.31m) USB Cable (Connects Scale to Adapter)
2m (6.6ft) USB Cable (Connects Connex to Adapter)
User Instructions (on CD)
Model L-HOMWA-1 Connectivity Kit, LXi (RS-232) [For use with Welch Allyn Spot
Vital Signs® LXi device]
1 - HOMWA-1
1 - SP62941
1 - CSMN9MF-5
1 - UMHOMWA
Environmental
Connectivity Adapter
1ft (.31m) USB Cable (Connects Scale to Adapter)
5ft (1.5m) D-Sub Cable (Connects LXi to Adapter)
User Instructions (on CD)
Operating temperatures: 30°F to 122°F (0°C to 50°C)
Storage temperatures: 0°F to 140°F (-18°C to 60°C)
Maximum Humidity: 10% - 90% RH
4
CERTIFICATIONS / CONNECTIVITY / DISPOSAL
Certification Descriptions
Pelstar, LLC has been officially certified as the manufacturer of
Health o meter® Professional medical devices. The Pelstar, LLC
quality assurance system covers the development, production,
sales and service of medical products and measuring systems.
This product is tested to and meets the requirements of:
1. UL60601-1 First Edition: Safety for Medical Electrical
Equipment
2. CSA C22.2 No. 601-1 M90: Medical Electrical Equipment
Products carrying this symbol meet the requirements of:
1. Directive governing medical devices 93/42/EEC
HOMWA-1 Product Connectivity Information
To enable reliable transmission of weight, height, and Body Mass Index (BMI) data, this product is
designed to connect to a computer, monitor, or other electronic device via a built-in USB port or RS232 serial port. This connectivity helps minimize a source of potential medical errors caused by
incorrectly copying and then recording patient data.
Note: The scales listed on page 7 and 8 are used with the Connectivity Kit. To view the most up to
date list, visit Health o meter® Professional website:
www.homscales.com
This product is EMR-EHR compatible. For more information regarding how to connect this product to
other electronic devices, please contact Health o meter® Professional Products Technical Support,
available during normal business hours at 1-800-683-3722.
Note: “CONNEX” is a general trade name for the family of Welch Allyn products such as the
6000 Series Vital Signs Monitor.
HOMWA-1 Product Disposal
This Health o meter® Professional product must be disposed of properly as electronic waste. Follow
the national, regional or local regulations which apply to you for disposal of electronic waste or
batteries. Do not dispose of this device in the domestic waste stream.
5
HOMWA-1 ASSEMBLY INSTRUCTIONS
Before Assembly
Each HOMWA-1 product is shipped disassembled in one carton. Carefully inspect the carton for
shipping damage before unpacking. If damage is found, contact your shipper or a Health o meter®
Professional representative immediately at 1-800-815-6615. Claims must be filed with the shipper as
soon as possible after receipt of the package. The following information details what you will find
inside the main carton as you unpack the parts for assembly.
To prevent scratching any components, carefully remove each assembly from the carton and unwrap
the packing materials. Set the carton aside for storage. To avoid damaging the product parts when
unpacking, do not use a box cutter, knife, scissors, or any sharp object to open the protective inner
packaging.
Parts List
Model C-HOMWA-1 Connectivity Kit, Connex (USB) [For use with Welch Allyn
Connex® devices]
1 - HOMWA-1
1 - SP62941
1 - SP62979
1 - UMHOMWA
Connectivity Adapter
1ft (.31m) USB Cable (Connects Scale to Adapter)
2m (6.6ft) USB Cable (Connects Connex to Adapter)
User Instructions (on CD)
Model L-HOMWA-1 Connectivity Kit, LXi (RS-232) [For use with Welch Allyn Spot
Vital Signs® LXi device]
1 - HOMWA-1
1 - SP62941
1 - CSMN9MF-5
1 - UMHOMWA
Connectivity Adapter
1ft (.31m) USB Cable (Connects Scale to Adapter)
5ft (1.5m) D-Sub Cable (Connects LXi to Adapter)
User Instructions (on CD)
Tools Required
None
6
HOMWA-1 ASSEMBLY INSTRUCTIONS (CONTINUED)
Assembling the HOMWA-1 Product (Refer to Figures 1 - 3)
Mounting the Connectivity Adapter
1. For Health o meter® Professional scales with a pillar (Models 499KL, 500KL,
500KLWA, 522KL, 522KLWA, 597KL, 597KLWA, 597KG, 597KGWA, 599KL,
599KLWA, 599KG, 599KGWA), the Connectivity Adapter is mounted to the back of
the pillar below the display head as shown in Figure 1 and Figure 2. Clean the area
on the pillar where the adapter is to be mounted. Remove the protective film from the
velcro tape on the back of the connectivity adapter and mount the adapter to the scale
pillar. Ensure the end of the adapter with the two connectors labeled “To Scale” and
“To LXi” is facing the display head.
2. For Health o meter® Professional scales with hand rails (Models 1100KL, 1600KL,
2101KL, 2101KG, 2101KGWA, 2500KL, 2500KG, 2500KGWA, 2600KL, 2600KG,
2600KGWA, 2610KL, 3001KL-AM), the Connectivity Adapter is mounted to the
underside of the hand rail bar where the display head is mounted as shown in
Figure 3. Clean the area on the hand rail where the adapter is to be mounted.
Remove the protective film from the velcro tape on the back of the adapter and mount
the adapter to the display head handrail bar so that the end of the adapter with the two
connectors labeled “To Scale” and “To LXi” faces the display head.
9in
(22.8cm)
6in
(15.2cm)
Figure 1
500KL Scale
Figure 2
597KL Scale
Note: Allow enough cable slack for head to pivot.
7
HOMWA-1 ASSEMBLY INSTRUCTIONS (CONTINUED)
Figure 3
2101KL Scale
3. For Health o meter® Professional scales with a remote display head (Models
498KL, 752KL, 752KG, 752KGWA, 753KL, 2400KL, 2650KL, 2650KG,
2650KGWA, 2700KL), the Connectivity Adapter is located close to the display
head and can be mounted as required with the velcro tape on the back of the
adapter. Mount the adapter so that the adapter end with the two connectors
labeled “To Scale” and “To LXi” is facing the scale display head.
Connecting the Adapter: C-HOMWA-1 Connectivity Kit, Connex (USB)
1. Using the SP62941, 1 foot USB cable, connect the “TO SCALE” USB connector
on the adapter to the USB connector located on the back of the scale display
head.
2. Using the SP62979, 2 meter USB cable, connect the “TO CONNEX DEVICE”
USB connector on the adapter to the USB connector behind the USB door on the
back of the Welch Allyn Connex device.
Connecting the Adapter: L-HOMWA-1 Connectivity Kit, LXi (RS-232)
1. Using the SP62941, 1 foot USB cable, connect the “TO SCALE” USB connector
on the adapter to the USB connector located on the back of the scale display
head.
2. Using the CSMN9MF-5, 5 foot serial cable, connect the “TO LXi” DB-9 connector
on the adapter to the DB-9 connector (labeled 1) on the back of the Welch Allyn
Spot Vital Signs LXi device.
8
SETUP
Preparing the HOMWA-1 Product for Use
The Connectivity Adapter works with a variety of Health o meter® Professional digital
scales. In order to establish a proper communication link between the scale and the
Welch Allyn device, the connectivity adapter must recognize the scale it is first
connected to. This initialization is accomplished by taking one or more weighings on
the scale until a weight is displayed on the Welch Allyn device.
Once this is done, the adapter remembers the scale and does not require initialization
even if the Welch Allyn device or Health o meter® Professional scale is disconnected,
or powered off and on.
QUICK START / OPERATING INSTRUCTIONS
When used with the Welch Allyn Spot Vital Signs LXi Device
Note: On the device, ensure the Weight Scale option is enabled in the External Devices
menu. For more information, see the Internal Configuration section of the Spot Vital
Signs LXi Directions for Use.
1. Power on the Welch Allyn Spot LXi. Note that the “Power” and “Connected”
LEDs on the Connectivity Adapter will not be illuminated.
2. Power on the Health o meter® Professional scale and wait for a zero to display.
3. Weigh yourself by following the procedures for weighing. After the scale
has stabilized and locked, the weight measurement is transferred to the LXi
device.
4. Check the LXi device for a weight measurement. If a weight measurement
is displayed, the adapter has initialized and has established a
communication link between the scale and the LXi device. If not, weigh
yourself one or two more times until the weight is displayed on the LXi
device.
5. Follow the procedures for scale and LXi device use.
When used with the Welch Allyn Connex Device
Note: Ensure that the license enabling communication between the Connex device and
the scale is active. For instructions on enabling the weight scale communication
license, see the Welch Allyn Service Tool Installation and Configuration Guide that
shipped with your Connex device.
Note: Ensure that the Connex device is configured to automatically display weight,
height and BMI measurements. For more information, see the Welch Allyn Connex
Device Directions for Use.
9
QUICK START / OPERATING INSTRUCTIONS
1. Power on the Connex device. Verify that the green “Power” LED and the
green “Connected” LED on the Connectivity Adapter illuminate. This is an
indication that the adapter has power and is communicating with the Connex
device.
2. Power on the Health o meter® Professional scale and wait for a zero to display.
3. Weigh yourself by following the procedures for weighing. After the scale has
stabilized and locked, the weight measurement is transferred to the Connex
device.
4. Check that the weight measurement is displayed under the Weight label on the
Connex Device Home tab. If a weight measurement is displayed, the adapter
has initialized and has established a communication link between the scale
and the Connex device. If not, weigh yourself one or two more times until the
weight is displayed on the Connex device.
5. Follow the procedures for scale and device use.
Note: When a measurement is transferred from the scale to the Connex
device, the measurement displayed on the device is within one decimal
place (0.1) of the measurement displayed by the scale.
10
MAINTENANCE
Maintenance
The following pages provide instructions for maintenance, cleaning, and troubleshooting for the
HOMWA-1 product. Maintenance operations other than those described in this manual should
be performed by qualified service personnel.
Caution: Before first use, or after long periods of non-use, check the product for proper
operation and function. If the product does not operate correctly, refer to qualified
service personnel.
1. Check overall appearance of the total product for any obvious damage, wear, and tear.
2. Inspect the condition of the cables connected to the adapter for cracking, fraying, or
broken/bent prongs.
Cleaning
Proper care and cleaning is essential to ensure a long life of accurate and effective operation.
Caution: Disconnect the product from the weighing device prior to cleaning the unit.
1. Clean all external surfaces with a clean damp cloth or tissue. Mild antimicrobial or
antibacterial soap and water solution may be used. Dry with a clean soft cloth.
2. Do not immerse the product into cleaning or other liquid solutions.
3. Do not use Isopropyl Alcohol or other solutions to clean the display surface.
4. Do not use abrasive cleaners.
11
TROUBLESHOOTING
Troubleshooting
Before contacting service personnel, refer to the following instructions to check and to correct
any failures.
Welch Allyn Spot Vital Signs LXi Device
Symptom
Possible Cause
1. Bad cable connection.
2. Wrong connection to
LXi.
No weight displayed on
monitor.
3. Adapter hasn’t
initialized.
4. Weight scale option is
not enabled.
Corrective Action
1. Ensure cable plugs
are fully seated in their
respective jacks.
2. Ensure cable is plugged
in to connector
labeled 1 on LXi.
3. See “Product Use”
section (page 5) for LXi.
4. Enable the weight scale
option in the External
Devices menu. See the
Internal Configuration
section of the Spot Vital
Signs LXi Directions for
Use.
Welch Allyn Connex Devices
Symptom
Possible Cause
1. Bad cable connection.
2.
No weight displayed on
monitor
3.
4.
1.
“Power” LED on Adapter
not lit.
“Connected” LED on
Adapter not lit.
2.
1.
Corrective Action
1. Ensure cable plugs are
fully seated in their
respective jacks.
2. See “Product Use”
Adapter hasn’t
section (page 5) for
initialized.
Connex device.
Weight scale license is 3. Enable the weight scale
communication license
not enabled on the
on the device (See
Connex device.
Welch Allyn Service Tool
Installation and
Configuration Guide).
4. Configure the device to
Weight, height, or
display weight, height
BMI is not displayed
and BMI.
on Connex device.
Bad cable connection to 1. Ensure cable plugs
monitor.
are fully seated.
No power to Adapter.
2. Power on the Connex
device.
Poor Adapter/monitor
1. Power cycle the Connex
power up sequence.
device.
12
WARRANTY
2 Year Limited Warranty
What does the Warranty Cover?
Health o meter® Professional products are warranted from date of purchase against defects of materials or in
workmanship for a period of two (2) years. If product fails to function properly, return the product, freight prepaid and
properly packed to Pelstar, LLC (see “To Get Warranty Service”, below, for instructions). If the manufacturer
determines that a defect of material or in workmanship exists, the customer’s sole remedy will be replacement of the
product at no charge. Replacement will be made with a new or remanufactured product or component. If the product
is no longer available, replacement may be made with a similar product of equal or greater value. All replaced parts
are covered only for the original warranty period.
Who is Covered?
The original purchaser of the product must have proof of purchase to receive warranty service. Please save your
invoice or receipt. Pelstar dealers or retail stores selling Pelstar products do not have the right to alter, or modify or in
any way change the terms and conditions of this warranty.
What is Excluded?
Your warranty does not cover normal wear of parts or damage resulting from any of the following: negligent
use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, abuse
including tampering, damage in transit, or unauthorized repair or alterations. Further, the warranty does not cover
natural disasters, such as fire, flood, hurricanes and tornadoes. This warranty gives you specific legal rights, and you
may also have other rights that vary from country to country, state to state, province to province or jurisdiction to
jurisdiction.
To get Warranty Service make sure you keep your sales receipt or document showing proof of purchase. Call
(+1) 800-638-3722 or (+1) 708-377-0600 to receive a return authorization (RA) number, which must be included on
the return label. Attach your proof of purchase to your defective product along with your name, address, daytime
telephone number and description of the problem. Carefully package the product and send with shipping and
insurance prepaid to:
Pelstar, LLC
Attention R/A#_____________
Return Department
th
9500 West 55 Street
McCook, IL 60525
If your product is not covered by warranty, or has been damaged, an estimate of replacement costs will be provided
to you for approval, prior to replacing.
PELSTAR, LLC
th
9500 West 55 Street • McCook, IL 60525 • USA
1-800-638-3722 or 1-708-377-0600
PLEASE REGISTER YOUR PRODUCT FOR WARRANTY COVERAGE AT:
www.homscales.com
®
Health o meter is a registered trademark of Sunbeam Products, Inc. used under license.
®
Health o meter Professional products are manufactured, designed, and owned by Pelstar, LLC.
®
We reserve the right to improve, enhance, or modify Health o meter Professional product features or specifications
without notice.
© Pelstar, LLC 2015
P/N UMHOMWA_1 Rev20150924
13
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
