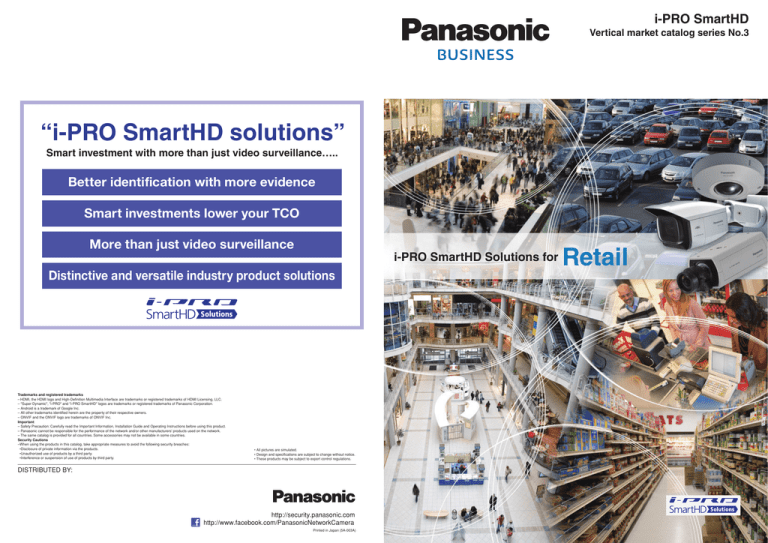

i-PRO SmartHD
Vertical market catalog series No.3
“i-PRO SmartHD solutions”
Smart investment with more than just video surveillance…..
Better identification with more evidence
Smart investments lower your TCO
More than just video surveillance
i-PRO SmartHD Solutions for
Distinctive and versatile industry product solutions
Trademarks and registered trademarks
–HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
– "Super Dynamic", "i-PRO" and "i-PRO SmartHD" logos are trademarks or registered trademarks of Panasonic Corporation.
– Android is a trademark of Google Inc.
– All other trademarks identified herein are the property of their respective owners.
– ONVIF and the ONVIF logo are trademarks of ONVIF Inc.
Important
– Safety Precaution: Carefully read the Important Information, Installation Guide and Operating Instructions before using this product.
– Panasonic cannot be responsible for the performance of the network and/or other manufacturers' products used on the network.
– The same catalog is provided for all countries. Some accessories may not be available in some countries.
Security Cautions
–When using the products in this catalog, take appropriate measures to avoid the following security breaches:
•Disclosure of private information via the products.
•Unauthorized use of products by a third party.
•Interference or suspension of use of products by third party.
• All pictures are simulated.
• Design and specifications are subject to change without notice.
• These products may be subject to export control regulations.
DISTRIBUTED BY:
http://security.panasonic.com
http://www.facebook.com/PanasonicNetworkCamera
Printed in Japan (5A-003A)
Retail
What are the current problems?
Loss prevention
Solutions
--Shoplifting
--Unauthorized operation of self-checkout
--Burglary
--Pranks and tampering of products
--Damage to or destruction of store equipment
--Customer complaints such as trouble with change
Panasonic systems solve all of these
problems and provide you with solutions
to suit your needs
--Work attitude of employees (ignoring work rules, slacking off)
--Parking lot trouble (car contact, theft, intrusion by suspicious individuals)
--Graffiti during night hours and on outer walls, etc.
»
shoplifting damages by monitoring without
»Reduce
blind spots
»
recognition, matching, and searching to detect
»Face
repeat shoplifters and wanted criminals
Store management
--Multiple stores are not centrally managed
--Variation in employee quality and service across stores
--Time and costs incurred in patrolling multiple stores
--Sales opportunities lost due to lack of understanding regarding customer
segments and trends
Existing analog equipment
--Poor camera quality, meaning the situation cannot be accurately determined
--Narrow angle of view, and many blind spots even when a large number of
cameras are installed
--Information other than images cannot be obtained
--Problems cannot be detected unless the video is constantly watched
2
»
resolution data to perform detailed checks for
»High
detecting problems
»
(multiple store) monitoring with a network
»Multi-site
»
lineup for both indoor and outdoor installation
»Product
»
solutions including cameras, recorders, and
»One-stop
management software
»
analysis of customer segments (age,
»Automatic
gender)
»
customer flow and heat map information
»Provide
»
information on customer segment changes by
»Provide
time of day
3
Entrance
Sales Floor
Information such as faces, clothing, and entry times of customers needs to be
accurately identified at the store entrance.
When damage such as shoplifting is confirmed at a later time, a variety of
information related to the criminal can be obtained from the video captured
at the entrance. The face information of customers can also be used to
immediately detect the entry of repeat shoplifters and wanted criminals to
prevent damage in advance by enhancing the store security system.
Sales floors require a wide range of monitoring without blind spots.
Shoplifting needs to be able to be viewed from any position of the sales
floor and have video evidence recorded.
Tampering of products also needs to be immediately discovered to ensure
the safety of products and customers.
Products missing from shelves can also be checked from camera video to
enable products to be accurately restocked to prevent lost sales.
Providing Smooth Images with a High
Image Quality
360-degree Monitoring without Blind Spots
Clearly Capturing Images in
Locations with a Large Difference in Illumination
i-PRO SmartHD series network cameras can capture high resolution
images. They can clearly depict people’s faces and clothing (colors).
Movements can be captured at a maximum rate of 60 frames per second
(some models) to ensure quick movements are not missed, and enable
playback of smooth video.
In installation environments with differences in brightness, the Super
Dynamic (SD) function brightens dim areas with low visibility and reduces
the brightness of areas where blown-out highlights can occur due to
over-brightness, providing a natural image that is easy to view. In shop
entrances, this enables the capturing of sharp images of people’s faces
as they enter from the outside when exposed to direct sunlight. With the
Super Dynamic (SD) function, the camera can be installed without worrying
about lighting conditions that vary based on the time of day and season.
Super Dynamic
OFF
Super Dynamic
The 360-degree Network Camera can capture images around the
camera lens in all directions.
Available modes include Fisheye, Double Panorama, Panorama,
Quad PTZ, and 4 Stream, and the camera can output video images
based on the selected video mode for reduced loads on the viewing
system.
A high resolution of up to 9
megapixels (2,992 x 2,992)
enables people's faces to be
captured clearly.
Fisheye Mode
Panorama Mode
Double Panorama Mode
Quad / Single PTZ Mode
4 Stream Mode
1
3
2
4
ON
This is the Panasonic difference !
De-warping
Face Matching *
Face Search *
Specific faces can be registered in advance to send an alarm when
they are detected. The faces of repeat shoplifters and wanted criminals,
etc. can be registered in the system from data recorded in the past.
Information can also be shared between stores by importing generic
photo data in the JPEG format, etc. Alarms can notify the operator by
displaying pop-ups on the screen, emitting warning sounds, or flashing
the camera on the map, etc.
Face images can be used to perform searches.
For example, face images of suspicious people detected on the sales
floor can be searched to track information on a timeline, including what
time they entered the store and which sales floor they passed. Whether
suspicious people have shoplifted, etc. after entering the store can also
be immediately searched for and checked.
The 360-degree Network Camera can generate and output video images for
each mode within the camera unit. Also, the Network Disk Recorder (WJ-NV300)
or i-PRO Management Software (WV-ASM200) can be used on 360-degree
omnidirectional images captured by Fisheye Mode to convert to a format that is
easier to view, such as Quad PTZ. Because the 360-degree omnidirectional video
image is stored in the recorder, nothing is missed within the viewing area.
Fisheye Mode
Quad / Single PTZ Mode
In addition, the area that you want to view can be selected using a controller or mouse to allow you to automatically move the viewing spot for
patrolling the area. Even during patrolling, areas not visible on the screen are all stored in the recorder in Fisheye Mode so that nothing is left unseen.
The Pan-Tilt of the 360-degree Network Camera does not use mechanical components, and so provides a smooth movement without the mechanized
wear that could adversely affect camera longevity.
* i-PRO management software and a face recognition system are required in addition to a network camera.
PTZ Camera for Wide Range Monitoring and a High Zoom Ratio
* i-PRO management software and a face recognition system are required in addition to a network camera.
Normal fixed lens cameras can only monitor in a certain direction, but the lens of a PTZ camera
can be operated remotely to switch to the direction you want to view.
Detailed areas can also be zoomed in. Since the cameras can be infinitely rotated 360-degree at a
high speed of 300 degrees/sec, you will not miss the subjects you want to monitor.
-25°
0°
180°
Pan
360-degree
endless
WV-SC588
Tilt
-25 degrees to 205 degrees
Detected Registered
faces
face
Preset Position / Preset Sequences
<Entrance>
<Control room>
Matching face
4
* Supported functions and specifications differ according to the model. See the specifications for each model.
Registered face
If the locations you want to monitor are fixed, you can register them in advance and move to them with
a single touch or automatically patrol the registered locations. Data can be saved to a recorder when
automatically patrolling the registered locations, without intervention by an operator.
Ranges that cannot be covered with a single fixed lens camera can be covered by patrolling.
205°
Auto tracking
The pan, tilt, and zoom functions can be combined for
automatically tracking the movement of a subject.
If the tracked subject moves out of the camera’s
shootable range, notification is sent to other cameras
so that the tracking process can be carried on without
interruption.
5
Cashier
Backyard
Problems may occur at cash registers because employees and customers
exchange cash and credit cards.
By recording clear video and audio evidence of these interactions, the
cause of problems can be identified to implement countermeasures.
Unauthorized use of cash registers can also be captured with certainty
and checked via the recorded video.
Installing cameras also deters crime.
In backyard locations, people other than store personnel, such as
distributors, move in and out of the store outside business hours. It is
necessary to accurately monitor the movements of people and objects.
The camera can automatically adjust its brightness with flexibility whether
the lights are on or off, to provide the optimal image for the current
conditions.
Able to Identify Even Types of Banknotes
Strong Low Light Performance in Color
i-PRO SmartHD series network cameras can capture high resolution images.
A camera installed above a cash register enables not only the interaction between
employees and customers to be checked, but even the type of banknotes to be
identified. If a problem occurs at a register, the image evidence can be checked the
accurately understand and resolve the situation.
Even in dark locations, color images with low noise can be reproduced
to clearly view the movement of people. This is effective for not only
backyard locations, but also sales floors, etc. after the store has closed.
Normal shooting
Shooting in dim location (0.2 lx)
Installation example
In locations where it is bright during the day but dark at night, the camera
can automatically determine the brightness of the area and record video
under the optimum conditions.
During nighttime hours, the camera automatically switches to black-andwhite video for providing footage with high visibility.
Day / night
Monitoring a Wide Area and Playing Back
Audio for a Specific Area
With a combination of a 360-degree Network Microphone and a
360-degree Network Camera, the audio of a specific location in the video
can be heard by itself.
For example, a single 360-degree Network Microphone with 360-degree
Network Camera can be installed above multiple cash registers, enabling
the separate conversations at each register to be heard in detail.
This enables the cause to be immediately identified when a problem
occurs and check whether the employee is dealing with the customer
appropriately.
Day / Night Automatic Mode Switching
OFF
Day / night
ON
360-degree Network Microphone
WV-SMR10
Monitoring Locations Such as Long
Corridors
»»360-degree audio monitoring
With microphone arrays, 360-degree audio monitoring from a specified
direction is possible.
»» Specifying a desired direction on a camera image
While watching the 360-degree Network Camera
(WV-SFV481 / WV-SFN480 / WV-SW458 / WV-SF448 / WV-SF438) image,
audio from the desired location can be freely specified by clicking on that
location.
Monitoring screen
Wide Coverage & Low Distortion
Provide clear images of corridors and narrow and long locations (such as
product warehouses or storage rooms) with the focus adjusted for both
the close area and the far area.
Backyards feature locations with low ceilings and little space between
the wall and the objects to capture, which cannot be fully covered with
regular cameras. The i-PRO SmartHD lineup features compact models
that exceed a maximum angle of view of 100 degrees. They provide
natural images with little distortion even when capturing a wide angle.
»»Synchronizing with the Network Disk Recorder
After recording audio to a Network Disk Recorder*, the sound collecting
direction can be specified while playing back the recorded image of the
360-degree Network Camera.
* Models WJ-NV300 and WJ-ND400 are supported
An area on the screen can be specified to hear
the audio for that area only.
By cutting out the audio of other areas, the
audio of the required area can be clearly heard.
»»Can be installed with a 360-degree Network Camera as one unit
Basic System Connection Example
Cameras notify users of changes without constant human monitoring
Coaxial cable
IP Network cable
Analog Cameras
Some stores may have difficulty having security personnel constantly monitoring the camera image.
Cameras can notify personnel when the following changes occur in the area monitored by the camera.
This can be linked to send e-mail, play a warning sound, display a warning on the screen, turn on a rotating light, or change the music in the store, etc.
Analog Camera
■■Intruder Detection
■■Utilizing analog cameras
An encoder (WJ-GXE500/WJ-GXE100) can be used to
connect existing analog cameras to an IP network, enabling
video to be recorded and managed with the same recorder
as network cameras.
IP NET WORK
WJ-GXE100
Network Cameras
* Supported functions and specifications differ according to the model. See the specifications for each model.
Network Switch
Network Disk Recorder
WJ-NV300
■■Object Detection
Detect changes in the scenery, such as when the
direction of the camera is changed, the lens is covered
with a cloth, or painted with spray paint
Detect when suspicious people are loitering around the
store outside of set times
■■Direction Detection
Detect when people try to exit from a one-way entrance
and when cars try to enter from a one-way exit
■■Scene Change Detection
■■Loitering Detection
6
Detection Area
Set an area in the image where intrusion is prohibited to
detect moving objects such as people in that area
WJ-GXE500
Horizontal: 100°
Intelligent Video Motion Detection (i-VMD)
Migrating from an Analog to an IP Network (Utilizing Existing Analog Equipment)
When migrating from current analog cameras to
highly functional high resolution network cameras,
the existing analog cameras and coaxial cables
can be utilized.
Horizontal: 70°
The microphone can be neatly installed in one place by integrating it with a
Panasonic 360-degree Network Camera.
Detect when paintings hung on a wall go missing or
when suspicious objects are placed in an empty location
Detection Area
■■Cross Line Detection
Specify a line on an image to detect objects that cross
that line (in one direction or in both directions)
7
Parking Lots
Rain Wash Coating
Coated areas are
resistant to water droplets
Water droplets from rain can adhere to the dome cover of the
camera and hinder the shooting of clear images.
In our Rain-wash coated models, a special coating is applied so that water
droplets are repelled allowing clear images to be recorded even during rainfall.
This coating is also effective at repelling dirt so that cleaning of the dome
cover is required less frequently.
Many stores have an adjacent parking lot and it is necessary to obtain
information relating to trouble that occurs in it.
Situations such as car crashes, pedestrian accidents, and non-customer cars
parking for extended periods of time can be checked at any time via the captured
video. Suspicious persons can be detected before they enter the store when
they are in the parking lot or in the vicinity, to send notifications and the parking
lot video can be checked to obtain information on the car of a shoplifter (vehicle
type, model, color, number plate) and the direction it traveled.
* WV-SPV781L / WV-SW598 / WV-SW397A
A single 4K camera can capture video of a wide area such as a parking lot. A
part of the image can be zoomed in as necessary to check an area in detail.
A 4K camera has 27 times the resolution of an analog (VGA) camera, 9 times
that of an HD (1,280 x 720) camera, and 4 times that of a Full HD (1,920 x 1,080)
camera.
0 lux Pitch Dark Locations
Specific areas can be selected from the entire image to cut out.
This enables monitoring to be focused on a specific area such as the entrance
or corridor of a parking lot, while viewing the entire image.
1
2
Cropped image 1
Cropped image 2
Cropped image 3
Cropped image 4
Rain-wash coated
Vandal resistant mechanism
When installed in locations that are prone to
vandalism and tampering, measures are required
for preventing damage to the camera.
Models featuring the Vandal Resistant mechanism
are ideal for installation in these types of locations.
Cropping function
Rain-wash coated Non-coated
This is the Panasonic difference !
Vandal Resistant
High Resolution/Wide Range 4K Camera
Non-coated
Coated areas are
resistant to dirt
Models featuring the Vandal Resistant mechanism
include a shock absorber around the internal lens.
Even if the dome cover is subjected to a potentially
damaging impact, the shock absorber will absorb
this impact to protect the internal structure from
damage.
IR LED
OFF
IR LED
ON
Cameras with an IR LED can be used to monitor environments that are
completely dark.
This enables areas without the level of illumination required to be monitored
to prevent graffiti, illegal dumping, and property destruction.
The IR LED can illuminate a wide area so that monitoring is not limited to a
specific part of the image.
The built-in IR LED can capture subjects up to 30 meters away. The lens
design also has a wide angle of view to allow monitoring over
a wide area.
3
4
4K (3,840 x 2,160)
Utilizing Network Cameras for Marketing
New uses other than crime prevention and monitoring
HD (1,280 x 720) x 4
The information from network cameras that capture 24-hour video for crime prevention is starting to be used for marketing.
Panasonic network cameras have intelligent functions that enable a variety of information beyond that of simple video.
Select the Specialized Model for Your Installation Environment
Rainwater protection for outdoor installations
The outdoor models have a weatherproof and dustproof structure
that is rated IP66 for outdoor installation without requiring insertion in
a special housing or other weatherproofing protection.
People counting, age and gender statistics
Temperature protection for outdoor installations
Models can be selected to match your specific installation conditions and can be
installed in environments with temperatures ranging from +55°C to -50°C.
* The supported temperature range varies depending on the specific model.
Cameras installed at the store entrance, etc. can be used to detect the number of customers and their age and
gender, and output statistic data.
Information on customer trends at a certain time of the day, such as women in their 40s often visiting at a certain
time of the days, can be used to implement measures for efficiently increasing sales, such as changing the products
on the sales floor or performing time sales.
(Network Disk Recorder WJ-NV300 + Additional Business Intelligence Kit WJ-NVF30 or Face Recognition System
WV-ASF900 + i-PRO management software WV-ASM200 + Extension software WV-ASE231 are required.)
Using the WV-SFV480/WV-SFV481 9 mega pixel 360-degree network camera
Heat map function
Images of a store captured with the fisheye lens of
a 360-degree camera (WV-SFN480/WV-SFV481)
can be used to highlight places that people pass or
gather in. This enables stores to adopt a layout that
maximizes sales by optimizing the product placement
and the positions of aisles and sales floors.
This is the Panasonic difference !
Counting passers-by in a specific location
A virtual line can be drawn on images to count the number
of people that pass that line. Numbers can be counted in two
directions; from the left to the right of the image and from the
top to the bottom of the image. The numbers of customers
visiting a specific sales floor in the store can be used as
information for measuring the result of sales initiatives and
implementing new initiatives.
Moving Objects Remover (MOR)
Moving objects in an image can be removed. This enables customers
passing in front of product shelves to be removed to check images
of product sales and the timing for restocking products.
Removing customers from images also enables video to be captured
in situations where privacy is required.
Dehumidification Device
The network camera outdoor models have a built-in dehumidifier device to lower the internal humidity for
preventing cloudiness due to condensation. This eliminates blurry video images caused by clouding of the
camera dome cover when installed in locations with high humidity or extreme temperature changes over the
course of the day.
8
* Supported functions and specifications differ according to the model. See the specifications for each model.
Dehumidifier
9
Example Store Installation
IN OUT
Entrance 1
Cashier 1
Cashier 2
Cashier 3
Cashier 4
WV-SPV781L
HD network camera
for face recognition system
Entrance 2
WV-SPN311
Full HD
network camera
Full HD
network camera
WV-SPN531
WV-SPN531
Weatherproof
4K network camera
WV-SPN311
HD network camera
for face recognition system
360-degree network camera &
network microphone
Parking lot
WV-SF438+WV-SMR10
WV-SW598
9 mega pixel 360-degree
network camera
WV-SFN480
HD network
camera
PTZ network
camera
WV-SPN531
Expensive
liquor corner
WV-SPW631LT
Weatherproof
network camera
WV-SF138
WV-SFR611
WV-SF138
Backyard
10
11
Lineup
Software
Panasonic can provide a one-stop solution that includes management software in addition to cameras and recorders.
Face Recognition System running in
the video surveillance system
Face Recognition System
Network Cameras
WV-ASF900
• Add-on face matching function: Add the face matching
function by simply adding the necessary devices and
the software
• Can be connected up to 20 cameras on a server.
For entrances/exits
Capture customers' faces and clothing in detail with HD resolution
Super Dynamic HD Network Camera
WV-SPN311
Lens : optional
Face search
Face Matching
•Face images that camera detected are stored, and
it can be searched later.
•By searching the face DB, you can display the result
of each cameras in chronological order and find
movement locus of persons.
•Specify camera or date
in detected face images
and display the result in
the list in similarity order.
For sales floor ceilings
Capture 360-degree video at 4K level resolution
360-degree Indoor Dome 9 Megapixel Network Camera
WV-SFN480
Automatic tracking of moving objects with Full HD video, high speed pan/tilt, and high magnification
People counting, Age and Gender Statistics
• When it is matched with registered people, alarm of
face matching is output in real-time, and display an
alarm history in the list.
• Specified screen image can be played back on
control monitor with double-clicking on an alarm
history.
• When it is matched with registered people, alarm of
face matching is output in real-time, and display an
alarm history in the list.
• Specified screen image can be played back on
control monitor with double-clicking on an alarm
history.
Super Dynamic Full HD PTZ Dome Network Camera
WV-SC588
Basic System Connection Example
High resolution Full HD dome camera with IR LED
Camera
Recorder
Super Dynamic Full HD Dome Network Camera
Video Stream
Video Stream
WV-SFN631L
WV-ASC970
(with WV-ASM970 only)
For areas around cash registers
Extract and delivery
face images
Full HD resolution to clearly identify the type of banknotes
(in case of WV-ASM200)
Alarm notification
WV-ASF900
Super Dynamic Full HD Network Camera
WV-ASM970/WV-ASM200
+Extension Software(WV-ASE231)
Primary Server (Max. 10 Primary Servers)
WV-SPN531
Search results
Statistical report
Lens : optional
Thumbnail
For parking lots
9 Secondary Servers / 1 Primary Server
Image processing part
- Register the face image in the database
- Face matching, report alarm
- Age and gender evaluation
Full HD resolution camera for outdoor installation with IR LED for capturing 0 lux situations
Super Dynamic Full HD Weatherproof Long Focus Type Network Camera
WV-SPW631LT
i-PRO Management Software
Full HD PTZ camera for outdoor installation with 90x zoom for detailed capturing of remote locations
WV-ASM200
WV-SW598
4K Vandal Resistant Weatherproof Network Camera
Ethernet System Controller with
3D-Joystick & Jog/Shuttle
WV-CU950
(WV-ASE201 is necessary.)
(System Controller WV-CU950 and monitor displays are optional.)
•Supports 16:9 video stream and 16:9 HD monitor. Displays 16:9 and 4:3 videos
from IP cameras on the same screen.
•H.264 recording data in the SD/SDHC/SDXC memory card can be downloaded.
•Convert file format from n3r (proprietary format) to MP4.
•Up to 100 recorders, 64 encoders and 256 directly connected cameras can be
registered. Up to 6,400 cameras registered in the recorders and 256 cameras
registered in the encoders are automatically registered in the WV-ASM200
(the number of the cameras depends on the recorder and encoder).
WV-SPV781L
For backyards
Compact size Full HD wide range dome camera
Super Dynamic Full HD Dome Network Camera
WV-SF138
WV-ASE201
Clear capturing in dark locations. IR LED equipped as standard.Supports the capturing of object collisions, etc.
Super Dynamic Full HD Dome Network Camera
•Up to 16x 30 ips/camera images can be displayed in H.264 1.5Mbps mode (VGA:
Normal quality mode) or MPEG-4 2 Mbps mode (VGA: Normal quality mode,
QVGA:High quality mode, depending on the camera and camera setup).
•When used with WJ-ND400 series, WJ-HD716/616, WJ-NV200, VMD search can
be operated.
•1-screen/4-screen PTZ compensation function (hereinafter compensation
function) from the fish-eye images of the Panasonic Fisheye network cameras
(WV-SF438/WV-SF448/WV-SW458)
•Supports 360-degree Network Microphone (WV-SMR10)
WV-ASE204
•Decoder registration: Up to 10 decoders
WV-ASE205
•Visibility Enhancement Function
WV-ASE202
Network Disk Recorder
Recorder that can be expanded to 4TB from
simple configurations
Enables head counting and gender and age
detection with a recorder
Network Disk Recorder
Additional Business Intelligence Kit for WJNV300 / WJ-NV200
WJ-NV300
•Add Live window, Map window in addition to the Operation window (3 monitors)
•Control using the Ethernet System Controller WV-CU950
•Expand the maximum numbers of screens to 20.
* To use the multi-monitor function, it is necessary to install an additional video card on the PC in use.
WV-SFR611
Optional Accessory
Extension Software
WV-ASE201 / ASE202 /
ASE203 / ASE204 /
ASE205 /
ASE231 (for WV-ASF900)
Super Dynamic Weather Resistant Full HD PTZ Dome Network Camera
WV-ASM200 with WV-ASE201
WJ-NVF30
•Expand the maximum numbers of screens to 64.
•Up to 4 live windows.
•Multi-monitor function using up to 6 PC monitors.
• To display the operation window, the map window and the 4 map windows
simultaneously.
Spatial
Tonal Correction
Snowfall and Rainfall
Noise Reduction
Multi-frame Synthesis
Noise Reduction
WV-ASE203
• Expand the maximum numbers of registered recorders, encoders and cameras to
100, 64 and 256 respectively.
• Up to 4 licenses for the WV-ASE203 can be added.
Spatial Tonal Correction , Snowfall and Rainfall Noise Reduction
All the above models support Onvif .
12
13
System Example
Case Study
Example of Simple Configuration
Network Cable:
CAT5E or CAT6 Cable
Sub monitor
Sales floor
Project Outline and Solution Needed for Customer
Multi screen
Store entrance Box Camera x 4
WV-SPN311 x 4
- Install IP cameras in store, and monitor at the store and control room at the Tricot HQ.
- The purpose of the system is for security and marketing, such as product arrangement and price, and whether the store follows instructions or not.
- Counts the number of visitors, detects the age and gender of visitors using a face recognition system (WV-ASF900), and makes use of the results for
marketing strategy. The first stage project is for 20 locations in Santiago.
4 port
Sales floor ceiling Camera x13, Microphone x 1
WV-SFN480 x 1
WV-SF438 x 2
WV-SMR10 x 1
WV-SC588 x 1
WV-SPN611 x 3
WV-SFN311 x 6
Backyard Camera x 6
System-Diagram
Control room
14 port
Tricot (Clothing Retail Store), Chile
HDMI
Tricot store-A
Tricot HQ
WV-ASM200
in Tricot Monitoring Room
Main monitor
Main display (HDMI)
6 port
WJ-NV200
PoE Switch
WV-SF138 x 4
WV-SPN311 x 2
Network cameras
WAN
Parking lot/exterior Camera x 4
4 port
Network Disk Recorder
WJ-NV300+WJ-NVE30
Store-B
Store-C
Data Center
WV-SW598 x 1
WV-SPW631L x 2
WV-SPV781L x 1
PoE Switch
Local Network
Install WV-ASF900
Into PC server of Publicdata center
Network Switch
Centralized Management of Multiple Locations + Face Recognition System
Network Cable:
CAT5E or CAT6 Cable
Store A
Box Camera x 4F for face recognition at store entrance
4 port
WV-SPN631 x 4
Sales floor ceiling Camera x13, Microphone x 1
WV-SFN480 x 1
WV-SF438 x 2
WV-SMR10 x 1
WV-SC588 x 1
WV-SPN611 x 3
WV-SFN311 x 6
Backyard Camera x 6
Head office control room
WV-SW598 x 1
WV-SPW631L x 2
WV-SPV781L x 1
Network Disk Recorder
WJ-NV300+WJ-NVE30
Store B
Store C
14
PC1
Ethernet System Controller
WV-CU950
PC2
4 port
Network Switch
(PoE)
As a large facility used daily by a large number of customers, S-PAL was considering adopting cameras for checking the status of each floor and corner. Some
sales floors already had analog cameras, but time and money was being spent on installing coaxial cables and power cables when adding or moving cameras,
so S-PAL was considering adopting network cameras that can be connected via a LAN cable and also powered via a LAN cable (PoE).
Operation / Map / Multi / Face recognition screen
6 port Network Switch
(PoE)
Parking lot/exterior Camera x 6
The “S-PAL” shopping center is located in Sendai Station, which has more than 83,000 passengers each day. Inside is the
“S-PAL” shopping center, which has a total of 171 Panasonic network cameras operating to enable a comfortable store
environment for customers and employees.
<Background>
14 port
WV-SF138 x 4
WV-SPN311 x 2
S-PAL Station Building Shopping Center (Sendai Terminal
Building Co., Ltd.), Japan
Face Recognition System
WV-ASF900
* Face information data base
Internet
Network Switch
<System Adopted>
Cameras were installed in store aisles, escalator doors, entrances/exits, and side doors, etc.
Cameras without blind spots were installed in sales floors, with these cameras not causing discomfort in regular customers, but also being visible enough to
deter crime. Monitors were installed to enable video to be viewed from staff rooms, and enable employees to immediately identify when a problem arises in a
sales floor or when assistance is needed.
<Store Network>
In addition to the Sendai store, the same system was constructed at the Koriyama, Yamagata, and Fukushima stores.
An environment for viewing the video from each store was set up at the head office in Sendai, and system problems could be handled at the head office.
Panasonic Security Viewer
Mobile terminals
(iOS/Android™)
Clothing sales floor
Control room
Large monitor installed in the office
Ms. Ito
Mr. Shigihara
15
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
