www.skcltd.com

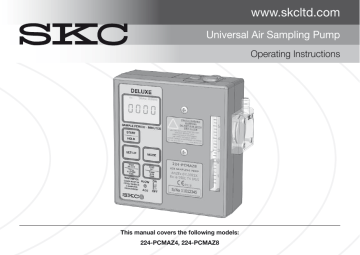

Universal Air Sampling Pump

Operating Instructions

This manual covers the following models:

224-PCMAZ4, 224-PCMAZ8

Purchase Details and Service History

Thank you for choosing an SKC product. Your purchase is covered by our warranty, details of which can be found inside the rear cover of this manual.

Product Model Number Product Serial Number Date of Purchase

SKC recommends annual servicing of this product. The first service is due one year from the date of purchase, and then at yearly intervals on this date.

Service

1

Date Service

5

Date Service

9

Date

2

3

6

7

10

11

4 8 12

Please note that SKC Ltd are the only authorised service centre in the UK, guaranteeing you access to the full range of genuine SKC replacement parts. For all other areas a full list of SKC approved distributors and service centres can be found at www.skcltd.com

SKC UK service centre - Tel: +44 (0)1258 480188 Fax: +44 (0)1258 480184 Email: [email protected]

Page 2 224-UMAZM Issue A www.skcltd.com

Contents

Intrinsic Safety Information .............................................................................................................................2

Specifications ................................................................................................................................................3

General Information .......................................................................................................................................6

Diagram of the Universal MAZ Pump .............................................................................................................8

Pump Controls Layout .................................................................................................................................10

Getting Started ............................................................................................................................................11

Operating the Timer (224-PCMAZ8 Only) .....................................................................................................14

Low Flow Sampling .....................................................................................................................................18

Troubleshooting ...........................................................................................................................................20

Care of the Battery Pack ..............................................................................................................................22

Universal MAZ Pump Components ..............................................................................................................24

Universal MAZ Pump Replacement Parts ....................................................................................................25

Universal MAZ Pump Accessories ...............................................................................................................26

Intrinsic Safety Certification ..........................................................................................................................28

Warranty Information ...................................................................................................................................34

www.skcltd.com 224-UMAZM Issue A Page 1

Intrinsic Safety Information

The Universal MAZ pump range

• Complies with the ANZEx scheme for equipment intended for use in potentially explosive atmospheres, as intrinsically safe to Ex ia I/IIC T4 IP55, for use in Australia and New Zealand.

• Certificate number: ANZEx 07.3022X.

• Standards applied: AS/NZS 60079-0:2000, AS/NZS 60079-11:2000, AS 60529:2004.

• The equipment may be used in zones 0, 1 and 2 (flammable gases and vapours), with apparatus groups

IIA, IIB & IIC, and with temperature classes T1,T2,T3 & T4.

• The equipment may be used in mines (firedamp and/or coal dust), with apparatus group I.

• The equipment is certified for use in ambient temperatures (Ta) in the range -20°C to +40°C and should not be used outside this range when in a hazardous location.

• The equipment has a casing IP rating of IP55, corresponding to dust-proof and protected against water jets. The equipment casing is not certified as protected against high pressure water jets, and is not suitable for immersion in water.

• Do not charge the battery pack whilst in a hazardous location.

• Use only SKC approved chargers designated for these pump models.

• The equipment should not be used if damaged in a way that could invalidate intrinsic safety. Such defects might include cracking of the battery pack enclosure and internal encapsulant such that internal components or cells are exposed.

• Substitution of components with non-SKC approved components may invalidate the intrinsic safety certification of the pump.

Important note about intrinsic safety

If you are unsure as to whether the air sampling pump you have purchased is suitable for your environment, check with your site manager or responsible person BEFORE USE that the intrinsic safety rating on the product meets your site requirements.

SKC personnel are unable to recommend the appropriate safety rating for your site.

Page 2 224-UMAZM Issue A www.skcltd.com

Specifications

All models

• Weight: 915 g

• Casing IP rating: IP55

• Operating range: 5 - 2500 ml/min (5 - 500 requires adapter)

• Flow control: ±5% set point constant flow

• Flow indicator: Scale range 0.5 - 5.5 l/min

• Battery pack: NiMH rechargeable, 2.0 Ah, 4.8 V

• Storage & operating temperature: -20°C to +40°C

• Operating humidity: 0 to 95% RH

• Compensation range:

131mm

Flow rate

(ml/min)

Back Pressure

(inches of water)

1000

1500

2000

5 - 20

0 - 15

0 - 10

• Typical run time: 8 hours minimum at 2000 ml/min and 15 inches of water back pressure

• Timer: Run time display 0 to 9999 minutes

Hold feature to pause pump and timer

Fault shutdown for low battery and high back pressure with timer freeze

224-PCMAZ8 only:

• Timer: Delayed start up to 9999 minutes

Timed shut down

57mm www.skcltd.com 224-UMAZM Issue A Page 3

Specifications

Pump Features

All Models

Battery charging options

Anti-tamper cover

Low battery shutdown

Flow indicator

Particulate trap

SKC offer two battery charger options for the Universal MAZ series pumps, a single charger (Part No. 223-203A) and a five station charger (Part No. 223-

103A). Both charger models provide optimum charging of the NiMH battery packs used in the Universal MAZ series pumps, based on a timed (16 hour) constant current charging phase followed by a switch to a trickle charging rate to prevent overcharging.

The pump controls are situated beneath a clear anti-tamper cover, requiring a tool for removal. This helps prevent tampering during a sample run.

Automatic pump shutdown in the event of a low battery condition. Prevents degradation of battery pack due to over-discharge.

Built in rotameter to indicate airflow during sampling. Gives visual indication of changes in flow rate during a sample due to filter loading or constricted tubing for example. Note the flow indicator must not be used to calibrate the sample flow rate.

Built in replaceable filter to trap particles that would otherwise contaminate the pump mechanism.

Page 4 224-UMAZM Issue A www.skcltd.com

Specifications

LCD screen

Sample hold function

Flow fault function

Pump Features

LCD screen indicates elapsed sample run time in minutes up to 9999 minutes

(approximately one week). Also displays operating mode, battery condition and flow fault condition. Elapsed sample time is retained on screen in the event of low battery or flow fault shutdown.

Enables pausing and restarting of the pump during a sample.

Indicates flow fault due to obstructed tubing or excessive filter loading.

Shuts the pump down if the condition persists for longer than 15 seconds.

Automatically attempts four restarts before shutting down completely.

224-PCMAZ8 Only

Programmable run time

Programmable delayed start time

Intermittent sampling function

Sample run time programmable in minutes, via keypad and LCD screen.

Pump automatically shuts down at end of sample and elapsed run time is retained on LCD screen.

Sample start delay time programmable in minutes, via keypad and LCD screen. Start delay countdown display on LCD screen in operation.

Automatically calculates and controls on/off timing for multiple sample periods.

www.skcltd.com 224-UMAZM Issue A Page 5

General Information

1) Pump Models

224-PCMAZ4

224-PCMAZ8

Intermediate pump with on/off control, sample hold and elapsed run time display.

Deluxe pump with full timer control and timer display.

2) Care of Universal MAZ Series Pumps

• Always use the correct SKC batteries and battery chargers designated for the Universal MAZ series pumps.

• Never run the pump long term without a tube or filter medium in place.

• When carrying out sampling using long term colour change tubes always use a tandem tube holder with trap tube (Part No. 222-3D-2 and cover 224-29T). This will prevent the aggressive fumes generated by these tubes from entering and damaging the pump mechanism.

• When carrying out sampling using impingers always fit a trap between the impinger and pump inlet.

This will prevent the possibility of the fluid used in the impinger from entering and damaging the pump mechanism. As a further precaution always ensure that the pump flow rate is set to below 1 litre/min before connecting the trap and impinger to the pump inlet. For stability use the accessory mounting screws (refer to pump diagram on pages 8 and 9) to fix the impinger bracket to the front of the pump.

• The Universal MAZ series pump cases are IP55 rated, and therefore must not be used where they may be subjected to high pressure water jets or complete immersion in water. The pumps can be used where they may be subjected to rain, splashing water or low pressure water jets, but care must be taken to ensure that water cannot enter the pump air inlet port.

Page 6 224-UMAZM Issue A www.skcltd.com

General Information

• Universal MAZ series pumps are fitted with a particulate filter which is easy to replace. For general maintenance replace the filter every 2-3 months or if it appears dirty. New filters are white in colour (order

Part No. P2240901).

Warning - Failure to follow these guidelines will void the product warranty.

3) Non ANZEx Certified Variants of the Universal Pump

The Universal pumps are also produced in a variant ranges which are UL or ATEX certified for intrinsic safety and these pumps are therefore not suitable for use in potentially explosive atmospheres in Australia and New

Zealand where ANZEx or IECEx approval is required.

Pump components vary between the ANZEx, UL and ATEX certified variants, therefore components must not be interchanged between these pumps. If in any doubt please contact SKC Ltd customer services for advice.

4) Sampling Methods

This instruction manual provides the necessary information to set up and operate the Universal MTX series pumps. For more detailed information on specific sampling methods please refer to SKC’s Step-By-Step

Guide to Air Sampling (Part No. 224-G1). To obtain a free copy please contact SKC Ltd customer services on

+44 (0) 1258 480188 or download at www.skcltd.com.

www.skcltd.com 224-UMAZM Issue A Page 7

Diagram of the Universal MAZ Pump

19 18 20

1

4

5

6

7

2

3

Page 8

8 9

17

16

15

14

13

12

21

11

10

224-UMAZM Issue A

22 23

19

24 www.skcltd.com

1. LCD screen

2. START / HOLD key

3. SET-UP key

4. MODE key

5. SELECT key

6. SET key

7. Flow adjust control screw

8. Anti-tamper cover retaining screw

9. On/off switch

10. Accessory mounting screws

11. Flow indicator

12. Filter housing screws (4qty) www.skcltd.com 224-UMAZM Issue A

Key to Pump Diagram

13. Filter O ring seal

14. Inlet protection filter

15. Inlet protection filter housing

16. Air inlet

17. Exhaust port cover

18. Low flow mode screw cover

19. Battery pack

20. Low flow mode regulator cover

21. Belt clip

22. Main case screws (4qty)

23. Battery pack charging jack socket

24. Battery pack screws (2qty)

Page 9

Pump Controls Layout

Intermediate Control

Panel : 224-PCMAZ4

INTERMEDIATE

BATT SAMPLE RUNNING

SAMPLE PERIOD - MINUTES

START

HOLD

Page 10

FLOW

ON

ADJ OFF

224-UMAZM Issue A

Deluxe Control

Panel : 224-PCMAZ8

DELUXE

BATT SAMPLE RUNNING

SAMPLE PERIOD - MINUTES

START

HOLD

SET-UP MODE

ELAPSED

TIME

FLOW

RUN

TIME

ON

ADJ OFF

www.skcltd.com

Getting Started

APPLICABLE TO ALL MODELS

1) Charging the Battery Pack

Prior to first use the battery pack should be fully charged, ideally overnight.

The Universal MAZ series pumps must only be charged using the correct SKC chargers (Part Nos. 223-203A

- single charger, 223-103A - five station charger).

The charger is supplied with mains input plugs suitable for use in the UK, Europe, USA and Australia / New

Zealand. Select the correct mains input plug and fit it to the charger.

Plug the charger output jack plug into the mating socket at the rear of the battery pack. Plug the charger into the electrical mains supply and switch on the power. The LED indicator on the charger will illuminate to indicate that the charger is charging at full rate.

After 16 hours the charger will automatically switch to trickle charge, identified by the LED indicator on the charger flashing on and off.

When fully charged disconnect the charger jack plug from the battery pack.

2) Accessing the Controls

To access the controls unfasten the screw retaining the anti-tamper control cover (No. 9) using the large bladed screwdriver attachment of the supplied toolkit, and remove the cover to access the controls.

Note: The anti-tamper control cover forms part of the IP55 rated pump casing and therefore must not be removed whilst in a hazardous location. Set up the pump and start the sample, as detailed in the following sections, whilst in a safe location and ensure that the anti-tamper control cover is securely fitted before taking the pump into the hazardous location.

www.skcltd.com 224-UMAZM Issue A Page 11

Getting Started

3) On/Off Switch (No. 10)

Set the on/off switch to the ON position and the pump will start to run. On Models 224-PCMAZ4 & 224-PCMAZ8, the LCD screen will activate, and show the legends BATT, SAMPLE RUNNING and four zeros. If left running the timer display will increment in one minute steps up to a maximum of 9999 minutes (approximately one week), at which point the timer display will revert to 0000 minutes and continue to increment.

4) Flow Adjust Screw (No. 8)

Use the small bladed screwdriver attachment of the supplied toolkit to turn the flow adjust screw. To increase the flow rate turn clockwise. The span of the flow adjust screw is 12 turns. DO NOT FORCE the flow adjust screw, and ensure the screwdriver end is securely located in the adjust screw slot.

Use a suitable flow calibrator (such as a rotameter or Defender primary calibrator) to set the required flow rate, do not use the built in flow indicator. Once the required flow rate is calibrated the pump will compensate to maintain the flow rate to within ±5% of the calibrated flow rate.

5) START/HOLD Key (No. 3)

Once the pump has been switched on using the on/off switch, press the START/HOLD key to put the pump into hold mode. The pump will stop running and the timer display will freeze. The legend HOLD is indicated in the bottom left of the LCD screen. Press the START/HOLD key again to restart the pump and the timer will continue to increase from the point at which it was frozen. The words SAMPLE RUNNING will appear in the top right of the LCD screen. Subsequent pressing of this key will toggle between sample running and hold modes.

Page 12 224-UMAZM Issue A www.skcltd.com

Getting Started

APPLICABLE TO MODEL 224-PCMAZ8 ONLY

6) SET-UP Key (No. 4)

With the pump in hold mode, press the SET-UP key to enter setup mode. The LCD screen will show the legend

SET UP DELAYED START and the right hand digit will flash.

In the setup mode the delayed start time, sample time and run time can be entered.

7) MODE Key (No. 5)

With the pump in the setup mode press the MODE key to sequence through the DELAYED START, SAMPLE

PERIOD and PUMP PERIOD settings, indicated by the corresponding legends on the LCD screen. The function of these three settings is explained in the section ‘Operating the Timer’ on pages 14 to 17.

The required values for these three settings can be entered using the DIGIT SELECT and DIGIT SET keys.

8) DIGIT SELECT key (No. 6)

With the pump in the setup mode and the required time setting selected, press the DIGIT SET key to cycle through the four timer digits on the display. The currently selected digit is indicated by flashing on and off. When the required digit is selected it can be set to the required value using the DIGIT SET key.

9) DIGIT SET key (No. 7)

With the pump in the setup mode, the required time setting selected and the required digit selected, press the

DIGIT SET key to increment the value of the digit from 0 to 9 and back to 0.

www.skcltd.com 224-UMAZM Issue A Page 13

Operating the Timer (224-PCMAZ8 Only)

The timer function features three settings used to achieve the various modes of operation:

1. DELAYED START - The time period in minutes that will elapse prior to the pump starting to run. Setting this value to zero disables the delayed start function.

2. SAMPLE PERIOD - The time period over which sampling will occur. Works in conjunction with the PUMP

PERIOD. Setting this value to zero will disable the timed run function and the pump will run continuously until stopped using the START/HOLD key.

3. PUMP PERIOD - The time period in minutes during which the pump is actually running. If the PUMP

PERIOD is set the same or to a higher value than the SAMPLE PERIOD, the pump will run continuously for the duration of the SAMPLE PERIOD. If the PUMP PERIOD is set to a lower value than the SAMPLE

PERIOD then the pump will automatically calculate on and off periods to apportion the required PUMP

PERIOD time over whole of the SAMPLE PERIOD time.

Setting a Simple Timed Run

Example: 8 hour timed run with no delayed start.

1. Switch the pump on and press the START/HOLD key to enter hold mode.

2. Press the SET-UP key to enter setup mode.

3. Press the MODE key to cycle to the SAMPLE PERIOD setting option. The right hand digit will be flashing.

4. The timer is set in minute values. Calculate the required sample period in minutes - 8 hours = 480 minutes.

Thefore the right hand digit should be set to 0.

5. Press the DIGIT SELECT key to select the second digit from the right.

6. Press the DIGIT SET key to increment the digit to 8.

Page 14 224-UMAZM Issue A www.skcltd.com

Operating the Timer (224-PCMAZ8 Only)

7. Press the DIGIT SELECT key to select the third digit from the right.

8. Press the DIGIT SET key to increment the digit to 4. The digits should now read 0480.

9. Note that if a SAMPLE PERIOD time is entered, but the PUMP PERIOD is left at 0000, the pump will run continuously for the duration of the SAMPLE PERIOD.

10. The pump is now set up to run for 8 hours and switch off. To start the timed run press the START/HOLD key. The pump will start and the legend SAMPLE PERIOD will flash on and off in the top right of the LCD screen. At the end of the 8 hours (480 minutes) the pump will automatically stop and the display will show the legends HOLD and SAMPLE OVER, and the elapsed run time. Should the pump prematurely stop during the sample period the actual elapsed run time will be displayed.

Setting a Timed Run with Delayed Start

Example: 8 hour timed run with a 2 hour delayed start

1. Switch the pump on and press the START/HOLD key to enter hold mode.

2. Press the SET-UP key to enter setup mode.

3. The right hand digit of the START DELAY time will be flashing, the required start delay time in minutes can now be entered. 2 hours = 120 minutes. Therefore leave the right hand digit set at 0.

4. Press the DIGIT SELECT key to select the second digit from the right.

5. Press the DIGIT SET key to increment the digit to 2.

6. Press the DIGIT SELECT key to select the third digit from the right.

7. Press the DIGIT SET key to increment the digit to 1.

8. The START DELAY time is now set to 120 minutes.

www.skcltd.com 224-UMAZM Issue A Page 15

Operating the Timer (224-PCMAZ8 Only)

9. Press the MODE key to cycle to the SAMPLE PERIOD setting option. The right hand digit will be flashing.

10. The timer is set in minute values. Calculate the required sample period in minutes - 8 hours = 480 minutes.

Thefore the right hand digit should set to 0.

11. Press the DIGIT SELECT key to select the second digit from the right.

12. Press the DIGIT SET key to increment the digit to 8.

13. Press the DIGIT SELECT key to select the third digit from the right.

14. Press the DIGIT SET key to increment the digit to 4. The digits should now read 0480.

15. Note that if a SAMPLE PERIOD time is entered, but the PUMP PERIOD is left at 0000, the pump will run continuously for the duration of the SAMPLE PERIOD.

16. The pump is now set to start after a delay of 2 hours, run for 8 hours and then switch off. To start the timed run press the START/HOLD key. The LCD screen will show the legend DELAYED START flashing in the bottom left of the screen and the start delay time will count down from 120 minutes. At the end of the start delay the pump will automatically start and the legend SAMPLE PERIOD will flash on and off in the top right of the LCD screen. At the end of the 8 hours (480 minutes) the pump will automatically stop and the display will show the legends HOLD and SAMPLE OVER, and the elapsed run time. Should the pump prematurely stop during the sample period the actual elapsed run time will be displayed.

Setting an Intermittent Sample

Intermittent sampling allows a sample to be taken over a period of up to 9999 minutes (approximately one week) and can prove extremely useful for environmental or ambient monitoring. To sample over a period of one week and produce an average measurement, the pump is set to actually draw air for a period that the battery can handle such as 8 hours over the 7 day period.

Page 16 224-UMAZM Issue A www.skcltd.com

Operating the Timer (224-PCMAZ8 Only)

Example: 8 hours running over a period of 24 hours

1. Switch on the pump and enter SET-UP mode. A DELAYED START time can be entered if required.

2. Press the MODE key to cycle to the SAMPLE PERIOD setting and enter 1440 minutes (24 hours) using the

DIGIT SELECT and DIGIT SET keys.

3. Press the MODE key to cycle to the PUMP PERIOD setting and enter 480 minutes (8 hours) using the

DIGIT SELECT and DIGIT SET keys.

4. The pump is now set for intermittent sampling, for a total of 8 hours over a period of 24 hours. To start the intermittent sample run press the START/HOLD key. The pump automatically calculates the required on/off timing strategy to apportion the PUMP PERIOD time over the SAMPLE PERIOD time. The pump will start and the legend SAMPLE RUNNING will be indicated in the top right of the LCD screen and the legend

PUMP PERIOD will flash in the bottom right of the screen. The timer display will increment showing the total elapsed time. To view the actual elapsed pump running time press and hold the DIGIT SET / PUMP

RUN TIME key. The display will return to the total elapsed time when the key is released.

5. At the end of the intermittent sample run the display will show the legends HOLD and SAMPLE OVER, and the total elapsed time. Press and hold the DIGIT SET / PUMP RUN TIME key to view the elapsed pump run time.

Setting a Repeat Run

To repeat a timed run at another time DO NOT switch the pump off using the on/off switch. Leave the pump switched on with the LCD screen active. To re-run the program press the SET-UP key and then the START/

HOLD key. The pump will now repeat the timed run from the start.

To quickly clear a timed run from the pump’s memory switch the pump off and on using the ON/OFF switch.

Note: The battery pack can be safely charged when the pump is left switched on.

www.skcltd.com 224-UMAZM Issue A Page 17

Low Flow Sampling

The standard compensated flow range of the Universal MAZ series pumps is 1000 to 2500 ml/min. To operate at flows in the range 5 to 500 ml/min an optional low flow adapter / tube holder is required. Low flow adapters are available for simultaneous sampling using one, two, three or four sample tubes (refer to the sampling accessories guide on pages 26 and

27 for details). The low flow adapters incorporate throttle valve(s) to set the low flow rate.

To work with the low flow adapter the pump incorporates a ‘constant pressure controller’ regulator to provide a constant suction at the outlet of the low flow adaptor, ensuring stable airflow through the sample tube(s) once the flow has been set using the throttle valve(s).

To enable or disable low flow mode a low flow mode control is located beneath the smaller of the two knurled metal cap screws on the top of the pump.

Unscrew and remove the cap screw, and use the large bladed screwdriver attachment of the supplied toolkit to unscrew the low flow mode control anti-clockwise by three turns to enable low flow mode.

To disable low flow mode screw the low flow mode control in fully clockwise.

To Set Up For Low Flow Sampling -

First ensure that low flow mode is disabled as detailed above. Ensure that the low flow adapter is not connected to the pump inlet hosetail at this point.

Page 18 224-UMAZM Issue A www.skcltd.com

Stand the pump upright on a level surface and set the pump running. Set the pump flow rate to approximately

1500 ml/min. The built in flow indicator rotameter can be used to make this setting as only an approximate flow rate is required.

Turn off the pump and enable low flow mode as previously detailed.

No further adjustment of the pump flow rate is required.

The low flow adapter can now be connected to the pump inlet hosetail. Set the low flow rate with the throttle valve on the low flow adjuster, using a suitable flow calibrator (such as a Defender primary calibrator).

Note: Always check that low flow mode has been disabled before carrying out high flow sampling subsequent to low flow sampling using the same pump.

Low Flow Sampling

Low flow adapter www.skcltd.com 224-UMAZM Issue A Page 19

Troubleshooting

Possible Fault

Battery pack will not charge

Pump will not operate

Pump flow faults continuously

Pump cannot acheive required flow rate

Corrective Action

• Check the battery charger by trying it with a different battery pack.

Replace the battery charger if required.

• Check the battery pack by connecting it to a known good battery charger. If the battery pack still will not charge replace the battery pack.

• Check for faulty battery pack by trying a known good battery pack.

Replace the battery pack if required.

• Filter media back pressure too high. Try a lower flow rate and/or a less restrictive filter media if the sampling method being used allows this.

• More than one filter accidentally fitted into sampling head. Ensure that only one filter is fitted into the sampling head.

• Filter backing paper fitted in addition to / in place of filter media. Ensure that only the filter is fitted into the sampling head.

• Pump particulate filter is blocked (appears black). Replace the particulate filter.

• Tubing blocked or crimped. Replace tubing.

• Battery pack voltage low. Fully charge the battery pack.

• Filter media back pressure too high. Try a lower flow rate and/or a less restrictive filter media if the sampling method being used allows this.

• Pump is in the low flow mode. Disable low flow mode.

• Pump valves leaking. Replace valve plate assemblies.

Page 20 224-UMAZM Issue A www.skcltd.com

Troubleshooting

Possible Fault

Pump stops due to low battery before the end of the required sample period

Corrective Action

• Battery pack not fully charged before starting sample run. Ensure battery pack is fully charged before starting a sample run.

• Battery pack has reduced capacity as it nears end of life. Replace the battery pack.

• Filter media back pressure too high. Try a lower flow rate and/or a less restrictive filter media if the sampling method being used allows this.

www.skcltd.com 224-UMAZM Issue A Page 21

Care of the Battery Pack

Battery Charging

• Charge battery pack fully before first use to ensure optimum performance.

• Full battery capacity will be acheived after 2 to 3 full charge / discharge cycles.

• Use only SKC approved charger designated for this battery pack. Use of a non-SKC approved charger may impair battery performance or even cause irrepairable damage, and will invalidate the battery pack warranty.

Battery Performance

• Charging temperature - For optimum performance charge NiMH batteries between 0 and +40°C.

• Do not overcharge - For optimum performance disconnect battery pack from charger after 24 hours.

• Discharge temperature - For optimum performance discharge NiMH batteries between -10 and +45°C

(refer also to pump specifications on page 3 for other limitations on operating temperature for intrinsically safe applications).

Battery Maintenance

• Battery cycling during regular use - To maintain optimum capacity during regular battery use, cycle battery once a month. Run pump until low battery shutdown occurs, then fully charge battery.

• Long term storage and highly infrequent use -

1. Charge battery fully prior to long term storage.

2. Store in a cool, dry place at temperature between 0 and 30°C.

3. Recharge battery at least once a year (or more frequently if stored at temperature above 30°C).

4. Cycle battery 2 to 3 times after long term storage to restore optimum capacity.

Page 22 224-UMAZM Issue A www.skcltd.com

Care of the Battery Pack

Battery Testing

1. Connect SKC approved charger to battery pack. If charger indicator LED illuminates, battery pack charger input is ok. If charger LED does not illuminate, battery pack input fuse is blown - Replace battery pack.

2. Leave battery pack connected to charger to fully charge.

3. If pump does not function at all after full charge of battery pack, battery pack output fuse has blown, or battery cells have failed or are at end of life - Replace battery pack.

4. If pump functions after full charge of battery pack but gives significantly reduced run times before low battery shutdown, battery cells are failing or are at end of life - Replace battery pack.

Battery Replacement

Refer to pump diagram on page 8. To remove the battery pack unscrew and remove the two battery screws

(No. 25). Carefully slide the battery pack sideways out from under the metal belt clip (No.22) and remove the battery pack.

Fit the replacement battery by sliding it under the metal belt clip. Take care to ensure that the pins of the pump power connector engage into the holes in the socket connector on the battery pack. Secure the battery pack with the two screws.

Battery Disposal

• SKC Ltd recommends that all batteries and battery packs are disposed of correctly at the end of their working life. This means that they should be collected and treated separately from other waste.

• Please ensure that any end-of-life SKC battery packs are collected and recycled or disposed of correctly.

www.skcltd.com 224-UMAZM Issue A Page 23

Universal MTX Pump Components

1

11

2

9

10

13

Page 24

12

3

4

7

5 6

224-UMAZM Issue A

8 6 www.skcltd.com

Universal MTX Pump Replacement Parts

Item Part No. Description

1

2

3

4

5

P22433C

P22433R

P22433ES

P22419MAZ

P22433L

Keypad cover plate

Cap screws (set of 2)

External screw pack

Battery pack 4.8V 2.0Ah NiMH

Flow meter assembly

Item Part No. Description

8 P22417G Pump body

9 P22409

Inlet filter and O ring

(set of 3 filters and 3 O rings)

9 P2240901 Inlet filter (pack of 10)

10 P22417D

Filter housing assembly

(includes 1 inlet filter and 1 O ring)

11 P22417K Pulsation dampener (set of 2)

12 P22417J Regulator assembly 6 P22417F Valve plate assembly (set of 2)

7 P22417Z Yoke / diaphragm assembly 13 P22417C Pressure (exhaust) port fitting

If the required part is not listed, contact SKC customer care on +44 (0) 1258 480188.

Note: Table item numbers correspond to the ringed numbers shown in the figures on page 24 of this manual.

www.skcltd.com 224-UMAZM Issue A Page 25

Universal MTX Pump Accessories

Part No.

223-203A

223-103A

392-0330

Description

Key Accessories

Single battery charger 100-240V ~ 50/60Hz supply with UK/EU/US/AUS mains plugs

Five station battery charger 100-240V ~ 50/60Hz supply with UK/EU/US/AUS mains plugs

Rotameter 0.3 - 3.0 litre/min accuracy ±5% full scale

717-510LA Defender primary calibrator 5 - 500 ml/min accuracy ±1% of reading

717-510MA Defender primary calibrator 50 - 5000 ml/min accuracy ±1% of reading

Dust Sampling Accessories

225-70A

225-76A

225-79A

I.O.M. sampler in plastic complete with two part plastic filter cassette and clip

I.O.M. sampler in stainless steel complete with two part stainless steel filter cassette and clip

I.O.M. sampler in plastic complete with two part stainless steel filter cassette and clip

225-71A

225-75A

391-01

225-772

225-69

225-69-37

225-62

225-62-37

225-67

I.O.M. two part plastic filter cassette with cap and clip

I.O.M. two part stainless steel filter cassette with cap and clip

‘Calidaptor’ flow calibration adapter for I.O.M. sampler

I.O.M. foam plug for respirable and multi-dust sampling (pack of 10)

Cyclone sampler in plastic with plastic cassette for 25mm diameter filters

Cyclone sampler in plastic with plastic cassette for 37mm diameter filters

Cyclone plastic cassette for 25mm diameter filters with clip

Cyclone plastic cassette for 37mm diameter filters with clip

Filter transport cassette for 25mm diameter filters

Page 26 224-UMAZM Issue A www.skcltd.com

Universal MTX Pump Accessories

Part No.

225-58F

225-19

225-8-01

Description

Glass fibre binder free (GFA) filter 25mm diameter 1.6µm pore size (pack of 100)

Mixed cellulose ester (MCE) filter 25mm diameter 0.8µm pore size with support pad (pack of 100)

PVC GLA-5000 filter 37mm diameter 5.0µm pore size with support pad (pack of 50)

Gas / Vapour Sampling Accessories

224-26-01

224-26-02

224-26-03

224-26-04

224-29A

224-29B

Single adjustable low flow adapter / tube holder

Double adjustable low flow adapter / tube holder

Treble adjustable low flow adapter / tube holder

Quadruple adjustable low flow adapter / tube holder

Protective cover type A 6mm diameter x 70mm

Protective cover type B 8mm diameter x 110mm

800-01200 Tube tip breaker

226-01 Anasorb CSC coconut charcoal tube 2 part 6mm diameter x 70mm GS (pack of 50)

226-119 Silica gel tube 2 part 6mm diameter x 110mm GS (pack of 100)

If the required item is not listed, contact your supplier or SKC sales on +44 (0) 1258 480188.

SKC provide an extensive range of sampling media, including filters, sorbent tubes and impingers. A full selection can be found in the current SKC catalogue and at www.skcltd.com

www.skcltd.com 224-UMAZM Issue A Page 27

Intrinsic Safety Certification

Page 28 224-UMAZM Issue A www.skcltd.com

Intrinsic Safety Certification

www.skcltd.com 224-UMAZM Issue A Page 29

Intrinsic Safety Certification

Page 30 224-UMAZM Issue A www.skcltd.com

Intrinsic Safety Certification

www.skcltd.com 224-UMAZM Issue A Page 31

Intrinsic Safety Certification

Page 32 224-UMAZM Issue A www.skcltd.com

Intrinsic Safety Certification

www.skcltd.com 224-UMAZM Issue A Page 33

Warranty Information

Limited One Year Warranty

1. SKC warrants that this instrument, and each of its component parts, provided for occupational health and safety applications is free from defects in workmanship and materials under normal use for a period of one (1) year. This warranty DOES NOT cover any claims due to abuse, misuse, neglect, alteration, or accident, or use in application for which the instrument was either not designed or not approved by SKC, or, due to the buyer’s failure to maintain normal maintenance, improper selection or misapplication. The warranty also DOES NOT cover any claims due to the use of a non-SKC approved charger to charge the battery pack. This warranty shall further be void if changes or adjustments to the instrument are made by a person other than an employee of the seller or, if the operating instructions furnished at the time of installation are not complied with.

2. SKC hereby expressly disclaims all warranties either expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose and neither assumes nor authorises any person to assume for it any liability in connection with the sale of these instruments. No description of the goods being sold has been made a part of the basis of the bargain or has created or amounted to an express warranty that the goods will conform to any such description. Buyer shall not be entitled to recover from SKC any consequential damages; damages to property, damages for loss of use, loss of time, loss of profits or income or any other incidental damages. Nor shall the Buyer be entitled to recover from SKC any consequential damages resulting from defect of the instrument.

3. This warranty extends only to the original purchaser of the warranted instrument during the term of the warranty, the buyer may be required to present proof of purchase in the form of a paid receipt for the instrument.

4. In the event of a defect, malfunction, or other failure of the instrument not caused by any misuse or damage to the instrument while in the possession of the Buyer, SKC will remedy the failure or defect without charge

Page 34 224-UMAZM Issue A www.skcltd.com

Warranty Information

to the buyer. The remedy will consist of service or replacement of the instrument, or refund of the purchase price, at the option of SKC. However, SKC will not elect refund unless it is unable to provide replacement and repair is not commercially practicable.

5. The terms of this warranty begin on the date the instrument is delivered to the Buyer and continue for a period of one (1) year.

6(a) To obtain performance of any obligation under this warranty, the buyer shall return the instrument, freight prepaid to SKC at the following address:-

SKC Limited

11 Sunrise Park

Higher Shaftesbury Road

Blandford Forum

Dorset DT11 8ST t: 44 (0) 1258 480188 f: 44 (0) 1258 480184

6(b) To obtain further information on the warranty performance contact SKC.

7. This warranty is provided under English law.

8. No other warranty is given by SKC in conjunction with this sale.

The disclaimers and limitations shall not affect the statutory rights of a consumer.

www.skcltd.com 224-UMAZM Issue A Page 35

Notes

Page 36 224-UMAZM Issue A www.skcltd.com

Notes

www.skcltd.com 224-UMAZM Issue A Page 37

A member of the SKC global group of companies

SKC Limited 11 Sunrise Park, Higher Shaftesbury Road, Blandford Forum, Dorset DT11 8ST United Kingdom

T: +44 (0) 1258 480188 F: +44 (0) 1258 480184 E: [email protected] W: www.skcltd.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
