Farberware FWM700P User guide

Farberware FWM700P User guide
 МЫ а
me
De e
NA
Ei Ca
EN : Sanar
SEA UA
tt PA Far
Zi
(EX
E
ET)
x
A я
be. "| +
ces
Te
an AA
EA
Lh
hr
i]
x
к
jus
ohn
cour
lah
DUREE
= AN here
Sania iy
: =
E >
pret
FA E vel
A = d 1! yr
pi SoTL is
os Esta Da RT ES

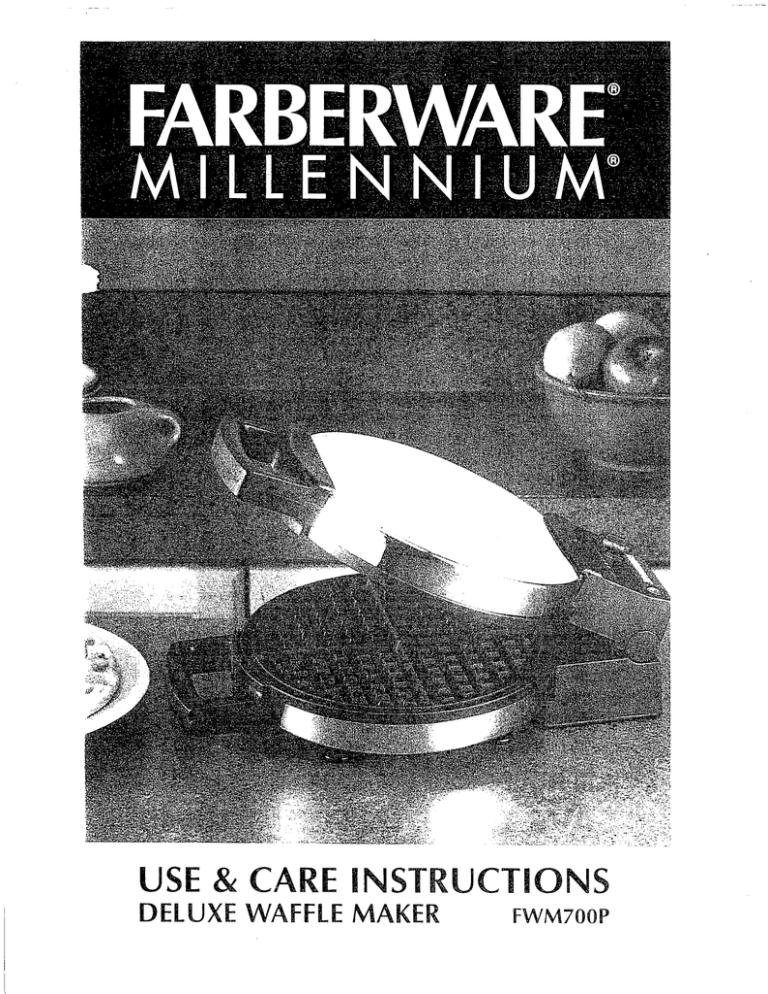

USE 8: CARE INST
DELUXE WAFFLE MAKER FWM700P
IMPORTANT SAFEGUARDS
When using electrical appliances, especially when children are
resent, basic safety precautions should always be followed
including the following:
READ ALL INSTRUCTIONS BEFORE USING
1.
2.
3.
4.
10.
11.
12.
Do not touch hot surfaces, use Handles or Knobs.
To protect against electrical hazards, do not immerse cord, plug
or the appliance in water or other liquid.
Close supervision is necessary when any appliance is used by
or near children.
Unplug from the outlet when not in use and before cleaning.
Allow to cool before putting on or taking off parts and
before cleaning.
. Do not operate any appliance with a damaged cord or plug or
after the appliance malfunctions or has been dropped or
damaged in any manner. Return appliance to the nearest
FARBERWARE? authorized service facility for examination, repair
or adjustments. |
‚The use of attachments not recommended by FARBERWARE*
may cause hazards.
. Keep the cord away from heated surfaces. Do not let the cord
hang over the edge of the table or counter, as ¡t could be
pulled off.
. Do not use outdoors.
. Do not place on or near a hot gas or electric burner or in a
heated oven.
Use extreme caution when moving an appliance containing hot
oil or other hot liquids.
To use, plug cord into electrical outlet. To disconnect, grasp
plug and remove from outlet. Do not pull on the cord.
Do not use appliance for other than its intended use.
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
POLARIZED PLUG
This appliance has a polarized plug (one blade is wider than the
other): To reduce the risk of electric shock, this plug is intended to
fit into a polarized outlet only one way. If the plug does not fit fully
in the outlet, reverse the plug. If it still does not fit, contact a
qualified electrician. Do not attempt to modify the plug in any way.
SHORT CORD INSTRUCTIONS
A short power-supply cord is provided to reduce the risk resulting
from becoming entangled in or tripping over a longer cord.
Longer detachable power-supply cords or extension cords are
available and may be used if care is exercised in their use.
If a longer detachable power-supply cord or extension cord is used,
(1) the marked electrical rating of the extension cord should be at
least as great as the electrical rating of the appliance, and (2) the
longer cord should be arranged so that it will not drape over the
counter top or table top where it can be pulled on by children or
tripped over unintentionally.
‘GETTING TO KNOW YOUR FARBERWARE®
FWM700P DELUXE WAFFLE MAKER
FIGURE 1
. Handles
. Wipe-Clean Chrome Exterior
. “READY” Light
. Variable Temperature Control
. Red “ON” Light
. Feet
. Cooking Plates
NA N 5 WW N —
FIGURE2 —
FEATURES:
Your new FARBERWARE® Deluxe Waffle Maker lets you quickly
prepare delicious waffles for breakfast, brunch or supper. It has the
following features:
* Variable Temperature Control — allows you to easily adjust
settings for light, medium or dark waffles.
o “READY” light — lets you know when waffles are ready.
¢ Red “ON” light — indicates when Waffle Maker is plugged in.
* Feet — incorporated for stability, and to help protect
countertop surface.
* Wipe-clean chrome exterior — is durable and easy-to-clean.
* Handles — serve a dual purpose: useful when opening and
closing Waffle Maker during use, and convenient when moving,
or storing it.
* Cooking Plates — are non-stick, coated to prevent batter from
sticking and for easy cleaning.
OPERATING INSTRUCTIONS
BEFORE USING
1.
2.
3.
Carefully unpack Waffle Maker.
Wipe all surfaces with a slightly damp, soft cloth. Never immerse
in water.
To burn off residues on the heating elements, it will be necessary
to operate the unit for a few minutes before initial use.
. Before heating your Waffle Maker, the Cooking Plates may be
sprayed or brushed with a small amount of non-stick spray. This
helps to protect the non-stick surface. Do not add batter or oil
during this time.
. Set the appliance on a dry, clean and flat countertop surface,
where it can be easily plugged into an electrical outlet.
. Slide the Temperature Control and set it at mid-range.
. Open the Waffle Maker, as shown in Figure 2. You will notice
smoke and a slight odor while residues burn off.
. Allow the Waffle Maker to operate until smoke and odor
dissipate, then unplug the Waffle Maker and allow it to cool.
Be careful, the Cooking Plates will be hot!
Note: Some odor may still be detected during initial use; this is
normal and should disappear after one or two uses.
HOW TO USE YOUR FARBERWARE®
DELUXE WAFFLE MAKER
1.
Be sure the Cooking Plates are clean and free from dust.
If necessary, wipe with a damp cloth.
2. When using the Waffle Maker for the first time, brush the
3
Cooking Plates with oil, butter or margarine.
. Close the Cooking Plates.
4.
Plug appliance into suitable electrical outlet; Red “ON” Light
and the yellow “READY” Light will light up, indicating the unit
is plugged in.
. After several minutes, the yellow “READY” Light will turn off
and the red “ON” Light will remain lit, indicating the Waffle
Maker is ready for use.
6. While preparing batter, allow appliance to pre-heat, (about
7
10.
11.
12.
13.
14.
15.
5 minutes).
. Slide the Variable Temperature Control and set as desired, for
light, medium or dark waffles. For lightly browned waffles, set
the control in the middle.
. Open Waftle Maker and pour batter evenly to cover the
Cooking Plates. Be careful not to pour too much batter, as
excess batter will seep out of Cooking Plates. The Red “ON”
Light may not be lit; it will re-light while the waffle is cooking.
. Carefully close the Waffle Maker. Do not force shut. Steam will
be released between the Cooking Plates. Caution should be
taken to prevent hands from coming into contact with the steam.
The “READY” light will light up, and remain on during the
entire baking time.
Waffles may take anywhere from 1 to 5 minutes, depending on
the recipe. Allow waffles to bake completely. Waffles are done
when the “READY” Light shuts off. Avoid opening the Waffle
Maker before the “READY” Light shuts off, since doing so may
cause waffles to stick, split, or bake poorly.
When the waffles are cooked remove them by using a plastic or
wooden spatula. Do not use metal tongs or knives, as these
may damage the non-stick coating.
Keep the Cooking Plates closed to preserve the heat until ready
for the next batch of waffles.
After use, immediately unplug from the electrical outlet.
If waffles are not to be consumed immediately, place the
waffles on a paper napkin to absorb condensation. To keep hot,
place on a rack in an ovenproof dish and warm in the oven at
about 200°F-250°F. Waffles will keep for about 20 minutes and
then begin to dry out. 5
HINTS FOR BEST RESULTS
Sift all dry ingredients.
* Egg yolks should be separated from egg whites before mixing.
* Beating egg whites separately, and then folding them into the
batter, will create lighter and crispier waffles
* Egg whites should be beaten until they form stiff peaks. Stir
1/4 of beaten egg whites into batter to lighten it, then gently fold
the rest of the egg whites into the batter (there should be white
streaks in the batter).
Do not over-mix batter when adding egg whites.
* It is not necessary to beat egg yolks and milk separately; just
add to the combined flour mixture, and use a whisk or hand
mixer to blend.
..* Do not open the Waffle Maker during the first minute of baking,
or waffles will separate. Completely bake waffles before
removing them from the unit.
* When waffles are done, the Red “ON” Light should light up and
the Cooking Plate will lift open easily. Lift the Cooking Plate
gently. If it pulls, wait another minute and try lifting it open again.
* Wattles can be made ahead of time, then refrigerated or frozen.
When ready to eat, just heat waffles in oven or toaster. This is
ideal when serving waffles to several people at once.
FOR LOW-FAT, LOW-CHOLESTEROL WAFFLES:
All recipes work equally well with skim milk.
* Leave out egg yolks altogether. All leavening properties come
from the beaten egg whites.
* Use liquid vegetable oils, like canola, corn or sunflower, instead
of butter.
FOR HIGHER-FIBER WAFFLES:
e Substitute 1/2 cup, or more, of whole wheat flour for white flour.
* Substitute 1/4-cup of wheat, or oat bran, for white flour.
FOR SUGARLESS WAFFLES:
* Substitute 1 Tablespoon of thawed all-natural white grape or
apple juice, from concentrate, for each teaspoon of sugar, if
adding more than 1 Tablespoon of juice from concentrate, add a
little less milk.
CARE AND CLEANING
This appliance requires little maintenance. It contains no user
serviceable parts. Do not try to repair it yourself. Refer it to
qualified personnel if servicing is needed.
CLEANING
Never immerse the Waffle Maker in water or any other liquid.
Unplug and allow to cool before cleaning. Do not use steel wool,
scouring pads or abrasive cleaners, as this will damage the finish.
Inside cleaning: Wipe Cooking Plates with absorbent paper
toweling or a soft cloth. Although the Cooking Plates are coated
with a non-stick coating, some batter or ingredients may still adhere
to the Waffle Maker. To remove, simply pour a little cooking oil
onto the baked-on food. Allow to stand for 5 to 10 minutes. This
should soften the food and make it easy to remove with absorbent
paper toweling or a soft cloth. If the preceding measure fails to
remove the food residue, we suggest wiping the Cooking Plates
with a slightly dampened cloth and a little non-abrasive detergent.
Outside cleaning: Wipe dry with a soft, dry cloth. The Waffle
Maker is designed for Cord Storage and can be placed in a vertical
position (Handles pointed up) for neat and compact storage.
TO STORE
Unplug unit and allow to cool. Store in its box or in a clean, dry
place. Never store it while it is hot or still plugged in. Never wrap
cord tightly around the appliance, wrap it loosely around the cord
storage. Do not put any stress on cord where it enters unit, as this
could cause cord to fray and break.
RECIPES
Classic Waffles
4 eggs, separated
1 cup milk
5 Tablespoons butter, melted
1/2 teaspoon vanilla
1 cup flour, all-purpose
1 Tablespoon sugar (optional)
1/2 cup teaspoon salt
* With an electric or hand mixer, beat the egg whites to a stiff
peak. Beat the egg yolks. Add milk, vanilla and butter to egg
yolks and mix well. Combine flour, salt and sugar, and add to the
egg yolk mixture. Mix until you have a thick, smooth batter.
* Using a rubber spatula, fold the egg whites into the batter VERY
GENTLY. A few small lumps are OK. DONT OVERMIX!
e Cook 3-1/2 — 4 minutes.
e Makes 8 — 10 waffles
* It's hard to think of a better topping than fresh strawberries and
real whipped cream.
Strawberry Ice Cream Waffles
1 egg, beaten
1-1/2 cups strawberry ice cream (melted)
1 teaspoon vanilla
1-1/2 cups flour, all-purpose
1 Tablespoon sugar
1 Tablespoon baking powder
1/4 teaspoon salt
* Combine wet and dry ingredients separately and mix well.
* Add wet ingredient mixture to the dry mixture, and mix until
batter is smooth. Use 1/3 — 1/2 cup batter per waffle.
e Cook 3 — 3-1/2 minutes
e Makes 8 — 10 waffles.
Top with additional ice cream, whipped cream, etc.
Low-Fat Lemon-Apple Waffles
3 egg whites
1 cup low-fat yogurt, plain
1 apple, chopped
1 teaspoon lemon extract
1-1/2 cups flour, all-purpose
2 Tablespoons sugar
1 Tablespoon baking powder
1/4 teaspoon salt
* Whip egg whites with a wire whisk for 20 — 25 seconds or until
foamy. Add yogurt, apple and lemon extract. Mix well. Combine
remaining dry ingredients. Mix well and add to yogurt mixture.
Batter should be sticky, with no lumps. Use 1/3 cup batter per
waffle (don't overload). Cook for 2 minutes
e Makes 8 — 10 waffles.
* Top with low-fat vanilla yogurt or pudding and fresh mint.
Different fruits can be substituted for apple.
(Try diced, dried apricots.)
“Almond Dream” Waffles
2 eggs, beaten
1/2 cup low-fat yogurt, plain
1/2 cup water
1 teaspoon almond extract
1-1/2 cups whole wheat flour
1/2 cup chopped almonds
3 Tablespoons sugar
1 Tablespoon baking powder
1/2 teaspoon salt
Combine wet and dry ingredients separately. Mix well. Add wet
ingredients to dry ingredients and mix again until smooth. Use
1/3 to 1/2 cup batter per waffle. Cook for 2 minutes.
e Makes 8 — 10 waffles.
° Тор with chocolate ice cream and fresh raspberries or canned
pears in a light syrup.
Waffle “Cookies”
1 stick margarine
6 Tablespoons cocoa powder
1 cup flour, all-purpose
3/4 cup sugar
2 eggs, beaten
1 teaspoon vanilla
Melt margarine and cocoa together on low heat. Stir until
smooth and remove from heat. Combine remaining ingredients
and mix well. Add cocoa mixture and mix again until smooth.
Use 1/3 to 1/2 cup batter per waffle. Make sure the batter fills all
corners of the mold. Cook for 2-1/2 to 3-1/2 minutes.
DON'T OVERCOOK!
Makes about 6 “cookies.”
These make great covers for ice cream sandwiches.
Mom's Waffles
3 eggs, beaten
1 cup milk
1/2 cup butter, melted
1 tsp. vanilla
2 cups flour, all-purpose
1 Tablespoon baking powder
2 teaspoon sugar
1/2 teaspoon salt
Combine wet and dry ingredients separately. Mix well. Add wet
ingredients to dry ingredients and mix until batter is smooth. Use
1/3 to 1/2 cup batter per waffle. Cook 3-1/2 to 4 minutes or until
light golden brown
Makes 8 — 10 waffles.
Top with warm vanilla custard and sliced bananas.
ALL RECIPES ©1997 FARBERWARE® APPLIANCES, INC.
10
FARBERWARE®
ONE-YEAR LIMITED WARRANTY
This FARBERWARE? product warranty extends to the original consumer
purchaser of the product.
Warranty Duration: This product is warranted to the original consumer
purchaser for a period of one (1) year from the original purchase date.
Warranty Coverage: This product is warranted against defective materi-
als or workmanship. This warranty is void if the product has been dam-
aged by accident, in shipment, unreasonable use, misuse, neglect,
improper service, commercial use, repairs by unauthorized personnel
or other causes not arising out of defects in materials or workmanship.
This warranty is effective only if the product is purchased and operated
in the USA, and does not extend to any units which have been used in
violation of written instructions furnished, or to units which have been
altered or modified or to damage to products or parts thereof which
have had the serial number removed, altered, defaced or rendered illeg-
ible.
Warranty Disclaimers: This warranty is in lieu of all warranties
expressed or implied and no representative or person is authorized to
assume any other liability in connection with the sale of our products.
There shall be no claims for defects or failure of performance or prod-
uct failure under any theory of tort, contract or commercial law includ-
ing, but not limited to, negligence, gross negligence, strict liability,
breach of warranty and breach of contract.
Warranty Performance: During the above one-year warranty period, a
product with a defect will be either repaired or replaced with a compa-
rable model (at Salton, Inc.'s option) when the product is returned. The
repaired or replacement product will be in warranty for the balance of
the one-year warranty period and an additional one-month period. No
charge will be made for such repair or replacement.
Important Notice
If any parts are missing or defective, return this product to the place of
purchase or contact our Consumer Service Department for assistance.
Consumer Service
This FARBERWARE® product is distributed by:
Salton, Inc.
708 SOUTH MISSOURI ST.
, MACON, MO 63552
E-mail: [email protected]
Any questions or comments can be directed to Salton, Inc.'s address or
call the Consumer Service Department:
1-800-233-9054, Monday - Friday, 9 a.m. - 5 p.m. CST
FARBERWARE? is a registered trademark of Farberware Inc.®
Manufactured and sold pursuant to a license from Farberware Inc.®
Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
