Instruction Manual

Instruction Manual

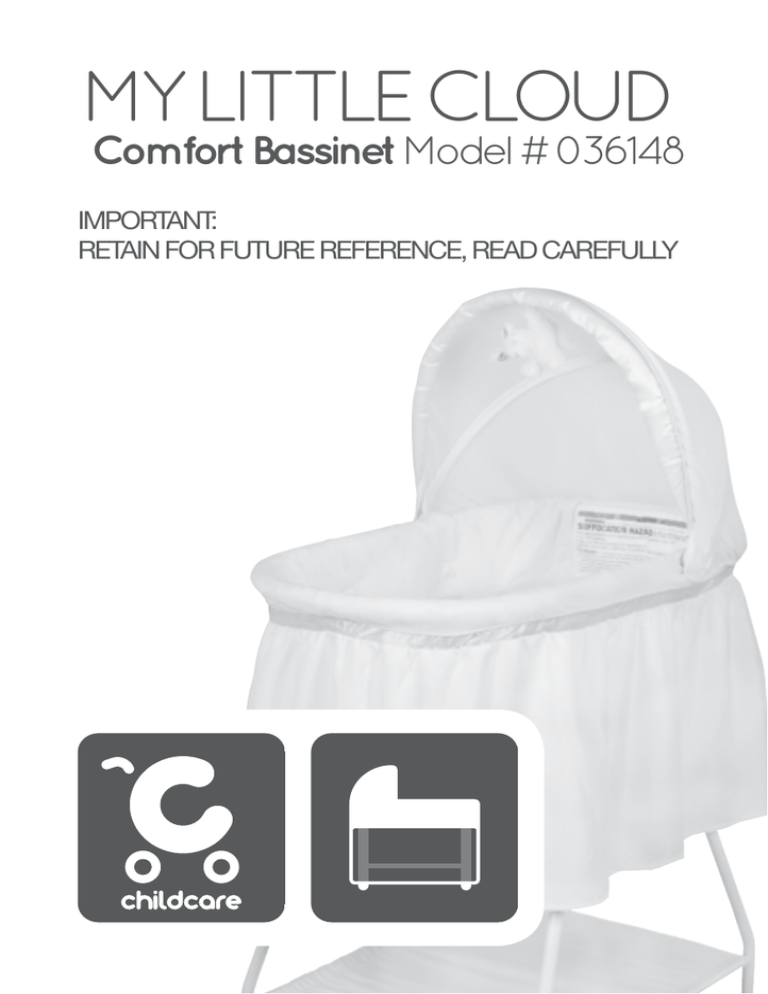

MY LITTLE CLOUD
Comfort Bassinet Model # 036148
IMPORTANT:
RETAIN FOR FUTURE REFERENCE, READ CAREFULLY
Safety Precautions
Follow the manufacturer’s assembly instructions in detail to ensure the
safety features of the bassinet/cradle are not compromised.
For safety reasons ensure that after assembly is completed, that all tools,
excess parts including plastic packaging is removed from the bassinet/
cradle vicinity to prevent from being accessed by children.
IMPORTANT! Before assembly or each use, inspect this product for
damaged hardware, loose joints, missing parts or sharp edges.
DO NOT use if any parts are missing or broken. Contact manufacturer for
replacement parts and instructions if needed. Never substitute parts.
WARNING
FAILURE TO FOLLOW THESE WARNINGS AND
INSTRUCTIONS COULD RESULT IN SERIOUS
INJURY OR DEATH.
FALL HAZARD - TO PREVENT FALLS;
• DO NOT USE THIS PRODUCT WHEN INFANT BEGINS TO
PUSH UP ON HANDS AND KNEES OR HAS REACHED THE
MANUFACTURER’S RECOMMENDED MAXIMUM WEIGHT
OF 8KGS, WHICHEVER COMES FIRST.
SUFFOCATION HAZARD - INFANTS
HAVE SUFFOCATED;
• IN GAPS BETWEEN AN EXTRA PAD AND THE SIDE OF
THE BASSINET/CRADLE, AND
• ON SOFT BEDDING.
• USE ONLY THE PAD PROVIDED BY MANUFACTURER.
NEVER ADD A PILLOW, COMFORTER, OR ANOTHER
MATTRESS FOR PADDING.
Safety Precautions
CAUTION: RECOMMENDED MATTRESS (SUPPLIED) SIZE
IS 385MM WIDE X 765MM LONG X 22MM IN THICKNESS
MAXIMUM SIZE. IT IS RECOMMENDED THAT THE MATTRESS
USED IN THIS ROCKING CRADLE BE A SNUG FIT AND NOT
EXCEED 38MM IN THICKNESS.
It is recommended that the mattress used in this rocking cradle be a snug fit
and not exceed 38mm in thickness.
This is to minimise the risk of a child’s limb becoming caught in the gap.
• Read all instructions before assembly and use of the bassinet.
• Keep instructions for future use.
• Adult assembly is required.
• Tools required for assembly: (not included) phillips head screwdriver and
wrench.
• Product features and decorations may vary from photography.
If sheet is used with the pad, use only the one provided by the bassinet
manufacturer or one specifically designed to fit the bassinet.
• To reduce the risk of Sudden Infant Death Syndrome (SIDS),
paediatricians recommend healthy infants be placed on their backs to
sleep, unless otherwise advised by your physician.
• Use bassinet with only one child at a time.
• Always attach all provided fasteners (strings, straps, clamps etc) tightly
to the bassinet according to the instructions. Check frequently.
• Strings can cause strangulation! Do not place items with a string around
a child’s neck, such as hood strings or pacifier cords. Do not suspend
strings over a bassinet or attach strings to toys.
• Do not use the body of a bassinet/cradle without its frame.
• Be aware of the risk of open fires and other sources of strong heat, such
as electric bar fires, gas fires, etc. in the near vicinity of the crib/cradle.
Safety Precautions
• DO NOT leave child unattended in the bassinet. Always make sure the
wheels or stands are in the locked down position.
• NEVER place bassinet near a window where cords from curtains can
strangle a child.
• Remove any tools or excess parts including plastics packaging from the
bassinet vicinity after its assembly.
• Discontinue of the bassinet before the infant can sit up by themselves.
• Padding and cushioning materials, including the mattress are to be
sufficiently firm to preclude conforming to the contours of the infants
face.
• Ensure proper ventilation is maintained in and around the bassinet by
limiting bed clothes, extra pillows or toys.
• Ribbons or lace associated with the bedding may entangle the infant.
• Promptly replace worn out or broken parts.
• Young children should not be allowed to play unsupervised in the
vicinity of the bassinet/ cradle.
How to care for your Childcare bassinet
Cleaning
Congratulations on your purchase of the
Childcare Comfort Bassinet.
This product has been designed and developed with
safety, comfort and functionality in mind. Please take
the time to read this manual carefully before using
this product and keep it in a safe place for future
reference.
Contents
Assembly contents list
Assembly / Operating instructions
How to care for your Childcare Comfort Bassinet
To ensure the long-lasting use of your bassinet, dry it with a soft absorbent cloth after use. Use
a damp cloth to clean the frame. Do not use abrasive cleaners. Allow it dry completely before
folding or storing it away. Do not dry clean, or use bleach on fabrics or trims. Do not machine
wash, tumble or spin dry, unless the care labelling on the product permits these methods.
Maintenance
Check bassinet regularly to ensure that locking devices and components are secure and
working properly. Always check parts regularly for tightness of screws, nuts and other
fasteners – tighten or replace if required. To maintain the safety of your bassinet seek prompt
repairs for bent, torn, worn or broken parts. Use only those parts and accessories approved by
CNP Brands.
If you have any difficulties in assembling the bassinet, please contact our Service Department.
In Australia, contact CNP Brands on 1300 667 137
In New Zealand contact Wainhouse Distribution on 0800 567 5000.
Due to variations in the style and design of our products, the photographs and illustrations
shown in this instruction manual are generic, therefore product fabrics, colour and
design may vary from images shown. CNP Brands reserves the right to alter product
specifications without notice as a result of our ongoing policy of product improvement.
Assembly Contents
Assembly Contents
Check what you have received...
Check what you have received (cont)
You have received 1 box. Please check the contents of the box against the list below.
If anything is missing, please contact Customer Service. In Australia, contact CNP
Brands on 1300 667 137, in New Zealand contact Wainhouse Distribution on
x1
0800 567 5000.
Canopy
Supplied loose in box:
Top frame (DO NOT REMOVE FOAM)
x2
x4
Castors
Leg frames ( ‘A’ x 2, ‘B’ x 2 )
x2
x8
8mm screw
Basket cross bar
x2
x4
33mm screw
Mattress support board
x1
Mattress pad (with fitted sheet)
x1
Bassinet Liner
x1
Shelf
x1
4
5
Assembly / Operating Instructions
Assembly / Operating Instructions
Inserting leg frames
Assembling bassinet frame
PLEASE NOTE: The assembly of this bassinet may require two people.
1.
Slide the shelf onto the basket
cross bar.
1.
2.
Pull back on the shelf material to
expose the cross bar ends.
2.
3.
Insert one leg marked ‘A’ into
one of the joint on the top frame
marked ‘A’. Push the pop pin
in whilst inserting leg into joint,
ensuring the pop pin clicks into
position.
Repeat for remaining three legs, ensuring the correct leg is
placed in the correct position according to the
corresponding letters.
Ensure the plastic supports are facing inward, as shown
in image.
Attaching base frame
1.
__
Turn the frame onto it’s feet and place the mattress support
board into position with the press studs facing downwards.
3.
Attach one end of the shelf cross bar using the 33mm
screws.
4.
Attach the other end of the shelf cross bars to the legs
using the remaining screws.
face inward
TIGHTEN ALL BOLTS INCLUDING MATTRESS BASE.
Attaching castor wheels
1.
2.
Turn the unit upside down insert all four castors into the
ends of the base frame tubes, ensuring they click into
position and cannot be removed.
Secure the mattress support board to the frame using the 8mm
screw with a phillips head screwdriver (not supplied).
DO NOT TIGHTEN THE BOLTS COMPLETELY
6
7
Assembly / Operating Instructions
Assembling bassinet liner
Assembly / Operating Instructions
Inserting mattress pad
1.
Place mattress pad into bassinet.
1.
Turn the frame back onto it’s feet. Place the bassinet liner into
position. Ensure the warning label is located in the middle of
one of the ends.
2.
Stretch the elastic pockets in the bottom of the bassinet liner
over the ends of the support board as shown.
1.
Position the canopy over the top end of the bassinet with the
warning label. Push the canopy ratchets onto the frame on both
sides of the bassinet.
3.
Attach the press studs on the bottom of the bassinet liner to
the corresponding press studs located on the underside of the
support board as shown.
2.
Attach the velcro on each canopy flap to the side of the bassinet
liner.
3.
Attach the velcro strips on the rear of the canopy liner edge to
the velcro strips on the rear outer edge of bassinet top rail liner.
Attaching canopy
There are a total of four press studs. Ensure the press studs
are secure.
4.
Attach the press studs on the tabs of the bassinet liner to the
press studs on the outside of the bassinet liner as shown.
There are a total of eight press studs. Ensure the press studs
are secure.
8
9
Distributed in Australia by CNP Brands, 20 Calarco Drive, VIC, 3030
Customer Service 1300 667 137 www.cnpbrands.com.au
Distributed in New Zealand by Wainhouse Distribution, 2-6 Argyle St,
Morningside, PO Box 41-014, St Lukes, Auckland, New Zealand
Customer Service: 0800 567 5000 [email protected]
