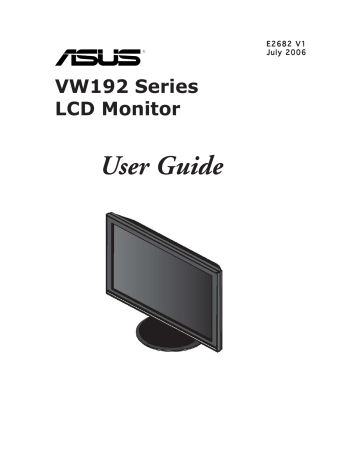

VW192 Series

LCD Monitor

User Guide

Table of contents

Notices ................................................................................................ iii

Safety information .............................................................................. iv

Care & Cleaning .................................................................................... v

Chapter 1: Product introduction

1.1

Welcome! .............................................................................. 1-1

1.2

Package contents ................................................................. 1-1

1.3

Assembling the monitor base ............................................... 1-2

1.4

Monitor introduction ............................................................. 1-3

1.4.1

Front of the LCD monitor ....................................... 1-3

1.4.2

Rear of the LCD monitor ......................................... 1-4

Chapter 2: Setup

2.1

Adjusting the monitor .......................................................... 2-1

2.2

Detaching the arm/stand (for VESA wall mount) ................ 2-2

Chapter 3: General Instruction

3.1

OSD (On-Screen Display) menu ............................................ 3-1

3.1.1

How to reconfigure ................................................. 3-1

3.1.2

OSD Function Introduction ..................................... 3-1

3.2

Troubleshooting (FAQ) ......................................................... 3-4

3.3

Supported operating modes ................................................. 3-5

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR

IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS

DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS

OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR

ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR

INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND

SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY

OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.

Notices

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

A s a n E n e r g y S t a r ® P a r t n e r , o u r c o m p a n y h a s d e t e r m i n e d t h a t

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference

Regulations of the Canadian Department of Communications.

Safety information

• Before setting up the monitor, carefully read all the documentation that came with the package.

• To prevent fire or shock hazard, never expose the monitor to rain or moisture.

• Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.

• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

• Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.

• Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided.

• The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.

• Use the appropriate power plug which complies with your local power standard.

• Do not overload power strips and extention cords. Overloading can result in fire or electric shock.

• Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet. Place the monitor on a stable surface.

• Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the monitor from damage due to power surges.

• Never push objects or spill liquid of any kind into the slots on the monitor cabinet.

• To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100-240V AC.

• If you encounter technical problems with the monitor, contact a qualified service technician or your retailer.

Care & Cleaning

• Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.

• Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner.

• Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock.

• The screen may flicker during the initial use due to the nature of the fluorescent light. Turn off the Power Switch and turn it on again to make sure that the flicker disappears.

• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.

• When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours.

• When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not repair the screen by yourself!

complete a task.

when trying to complete a task.

task.

Refer to the following sources for additional information and for product and software updates.

1 .

A S U S w e b s i t e s

The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com

2 .

O p t i o n a l d o c u m e n t a t i o n

Your product package may include optional documentation, such as warranty card, that may have been added by your dealer. These documents are not part of the standard package.

1.1

Welcome!

Thank you for purchasing the ASUS ® VW192 Series LCD monitor!

The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience.

With these features, you can enjoy the convenience and delightful visual experience that the VW192 Series brings you!

1.2

Package contents

Check your VW192 Series LCD package for the following items:

LCD monitor

User manual

1 x Power cord

1 x VGA cable

1 x DVI cable (Only for VW192T)

1 x Audio cable (Only for VW192T and VW192S)

1 x Rear cover

If any of the above items is damaged or missing, contact your retailer immediately.

1.3

Assembling the monitor base

To assemble the monitor base:

1.

Connect the base with the monitor. A click shows that the base has been connected successfully.

2.

Tighten the screw as the drawing shows to fix the base.

3.

Adjust the monitor to the angle that is most comfortable for you.

• We recommend that you cover the table surface with soft cloth to prevent damage to the monitor.

1.4

Monitor introduction

1.4.1

Front of the LCD monitor

Base

1.

S P L E N D I D

• Use this hotkey to switch from five video preset modes (Game

Mode, Night View Mode, Scenery Mode, Standard Mode, Theater

Mode) with SPLENDID™ Video Enhancement Technology.

• Exit the OSD menu or go back to the previous menu as the OSD

menu is active.

• Automatically adjust the image to its optimized position, clock,

and phase by pressing this button for 2-4 seconds.

2.

• Press this button to decrease the value of the function selected

or move to the previous fuction.

• This is also a hotkey for Volume adjustment.

3.

M E N U B u t t o n :

• Press this button to enter/select the icon (function) highlighted while the OSD menu is activated.

4.

• Press this button to increase the value of the function selected

or move to the next fuction.

• This is also a hotkey for Brightness adjustment.

5.

• Press this button to turn the monitor on/off.

6.

P o w e r i n d i c a t o r

• The color definition of the power indicator is as the below table.

Blue

Amber

OFF

ON

Standby mode

OFF

1.4.2

Rear of the LCD monitor

Rear connectors

1.

P W R p o r t . bundled power cord.

2.

D V I p o r t .

digital signal connection. (Only for some models)

3.

V G A p o r t .

4.

A u d i o - i n p o r t . bundled audio cable. (Only for some models)

2.1

Adjusting the monitor

• For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you.

• Hold the stand to prevent the monitor from falling when you change its angle.

• You can adjust the monitor’s angle from -5º to 20º.

-5º~20º

2.2

Detaching the arm/stand

(for VESA wall mount)

The detachable stand of the VW192 Series LCD monitor is specially designed for VESA wall mount.

To detach the arm/stand:

1.

Remove the rear cover.

2.

Have the front of the monitor face down on a table.

3.

Use a screwdriver to remove the two screws on the stand of the monitor as the below drawing shows.

4.

Two other screws show after you remove the screws on the stand.

Repeat step 3.

• We recommend that you cover the table surface with soft cloth to prevent damage to the monitor.

• Hold the stand of the monitor when you remove the screws.

The VESA wall mount kit (100 mm x 100 mm) is purchased separately.

3.1

OSD (On-Screen Display) menu

3.1.1

How to reconfigure

1.

Press the MENU button to activate the OSD menu.

2.

Press and to navigate through the functions. Highlight and activate the desired function by pressing the MENU button. If the function selected has a sub-menu, press + and - again to navigate through the sub-menu functions. Highlight and activate the desired sub-menu function by pressing the MENU button.

3.

Press and to change the settings of the selected function.

4.

To exit the OSD menu, press the SPLENDID button. Repeat step 2 and step 3 to adjust any other function.

3.1.2

OSD Function Introduction

1.

S p e n d i d

This function contains five sub-functions you can select for your preference.

• Scenery Mode:

Enhancement.

• Standard Mode:

SPLENDID™ Video Enhancement.

• Theater Mode:

Enhancement.

• Game Mode:

Enhancement.

• Night View Mode

Video Enhancement.

2.

I m a g e

You can adjust brightness, contrast, sharpness, saturation,position (VGA only), and focus (VGA only) from this main function.

• Brightness: hotkey to activate this function.

Contrast:

• Sharpness: is a

• Saturation:

Position: vertical position (V-Position) of the image. The adjusting range is from 0 to 100.

F o c u s : image by adjusting (Phase) and (Clock) separately. The adjusting range is from 0 to 100.

• Phase adjusts the phase of the pixel clock signal. With a wrong phase adjustment, the screen shows horizontal disturbances.

• Clock (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the image is not proportional.

3.

C o l o r

Select the image color you like from this function.

• Color Temp.:

Warm, sRGB, and User mode.

• Skin Tone: and Yellowish.

In the User mode, colors of R (Red), G (Green), and B (Bluee) are userconfigurable; the adjusting range is from 0-100.

4.

In p u t S e l e c t

In this function, you can select either VGA or DVI input source.

(For the models with a DVI port)

5.

S y s t e m S e t u p

Allow you to adjust the system.

V o l u m e :

is a hotkey to activate this function.

• OSD Setup: the vertical position (V-Position) of the OSD. The adjusting range is from 0 to 100. In the OSD Timeout selection, you can adjust the

OSD timeout from 10 to 120.

• Language:

English, German, Italian, French, Dutch, Spanish, Russian, Traditional

Chinese, Simplified Chinese, and Japanese.

• Information:

R e s e t :

3.2

Troubleshooting (FAQ)

Power LED is not ON

The Power LED lights amber and there is no screen image

Screen image is too light or dark

Screen image is not centered or sized properly

Screen image bounces or a wave pattern is present in the image

Screen image has color defects (white does not look white)

Screen image is blurry or fuzzy

No sound or sound is low

• Press the button to check if the monitor is in the ON

mode.

• Check if the power cord is properly connected to the

monitor and the power outlet.

• Check if the monitor and the computer are in the ON mode.

• Make sure the signal cable is properly connected the

monitor and the computer.

• Inspect the signal cable and make sure none of the pins are

bent.

• Connect the computer with another available monitor to

check if the computer is properly working.

• Adjust the Contrast and Brightness settings via OSD.

• Press the SPLENDID button for two seconds to

automatically adjust the image.

• Adjust the H-Position or V-Position settings via OSD.

• Make sure the signal cable is properly connected to the

monitor and the computer.

• Move electrical devices that may cause electrical

interference.

• Inspect the signal cable and make sure that none of the

pins are bent.

• Perform Reset via OSD.

• Adjust the R/G/B color settings or select the Color

Temperature via OSD.

• Press the SPLENDID button for two seconds to

automatically adjust the image.

• Adjust the Phase and Clock settings via OSD.

• Ensure that the audio cable is properly connected to the

monitor and the computer

• Adjust the volume settings of both your monitor and

computer.

• Ensure that the computer sound card driver is properly

installed and activated.

3.3

Supported operating modes

DOS

VGA

SVGA

XGA

SXGA

720 x 400 31.47KHz

640 x 480 31.47KHz

640 x 480 37.90KHz

640 x 480

800 x 600

800 x 600

37.50KHz

35.16KHz

37.90KHz

800 x 600

800 x 600

1024 x 768

1024 x 768

1024 x 768

1280 x 1024

1280 x 1024

1152 x 864

1440 x 900

48.10KHz

46.90KHz

48.40KHz

56.50KHz

60.02KHz

64.00KHz

80.00KHz

67.50KHz

55.94KHz

72Hz

75Hz

60Hz

70Hz

75Hz

60Hz

70Hz 28.32MHz

60Hz 25.18MHz

72Hz 31.50MHz

75Hz

56Hz

60Hz

31.50MHz

36.00MHz

40.00MHz

75Hz

75Hz

60Hz

50.00MHz

49.50MHz

65.00MHz

75.00MHz

78.75MHz

108.00MHz

135.00MHz

108.00MHz

106.00MHz

VESA

VESA

(Primary)

* Modes not listed in the table may not be supported. For optimal

resolution, we recommend that you choose a mode listed in the table

above.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
