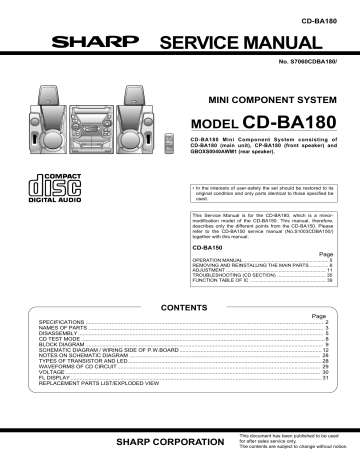

SERVICE MANUAL
No. S7060CDBA180/
MINI COMPONENT SYSTEM
MODEL CD-BA180
CD-BA180 Mini Component System consisting of
CD-BA180 (main unit), CP-BA180 (front speaker) and
GBOXS0040AWM1 (rear speaker).
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
This Service Manual is for the CD-BA180, which is a minormodification model of the CD-BA150. This manual, therefore,
describes only the different points from the CD-BA150. Please
refer to the CD-BA150 service manual (No.S1003CDBA150/)
together with this manual.
CD-BA150
Page
OPERATION MANUAL ............................................................... 5
REMOVING AND REINSTALLING THE MAIN PARTS .............. 8
ADJUSTMENT .......................................................................... 11
TROUBLESHOOTING (CD SECTION) .................................... 35
FUNCTION TABLE OF IC ........................................................ 39
CONTENTS
Page
SPECIFICATIONS ............................................................................................................................................................. 2
NAMES OF PARTS ........................................................................................................................................................... 3
DISASSEMBLY .................................................................................................................................................................. 5
CD TEST MODE ................................................................................................................................................................. 8
BLOCK DIAGRAM ............................................................................................................................................................. 9
SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD .............................................................................................. 12
NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 28
TYPES OF TRANSISTOR AND LED................................................................................................................................ 28
WAVEFORMS OF CD CIRCUIT ...................................................................................................................................... 29
VOLTAGE ........................................................................................................................................................................ 30
FL DISPLAY ...................................................................................................................................................................... 31
REPLACEMENT PARTS LIST/EXPLODED VIEW
SHARP CORPORATION
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
CD-BA180
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
SPECIFICATIONS
CD-BA180
● Cassette deck section
● General
Power source:
Power consumption:
Dimensions:
Weight:
Frequency response:
Signal/noise ratio:
AC 120 V, 60 Hz
105 W
Width; 270 mm
Height; 330 mm
Depth; 375 mm
6.2 kg
Wow and flutter:
CP-BA180
Type:
3-way type [10 cm woofer x 2
and 5 cm tweeter]
Maximum input power: 80 W
Rated input power:
40 W
Impedance:
8 ohms
Dimensions:
Width; 231.5 mm
Height; 330 mm
Depth; 210 mm
Weight:
3.1 kg/each
● Amplifier section
Output power:
Input terminals:
Output terminals:
50-14,000 Hz (Normal tape)
55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
0.3 % (WRMS)
RMS; 100 W (50 W + 50 W)
(10 % T.H.D.)
Video/Auxiliary (audio signal);
500 mV/47 kohms
Front speakers; 8 ohms
Rear speakers; 16 ohms
Headphones; 16-50 ohms
(recommended; 32 ohms)
GBOXS0040AWM1
● Compact disc player section
Type:
Signal readout:
D/A converter:
Frequency response:
Dynamic range:
Type:
10 cm full-range speaker
Maximum input power: 30 W
Rated input power:
15 W
Impedance:
16 ohms
Dimensions:
Width; 170 mm
Height; 170 mm
Depth; 88 mm
Weight:
0.5 kg/each
3-disc multi-play compact
disc player
Non-contact, 3-beam semiconductor laser pickup
1-bit D/A converter
20 - 20,000 Hz
90 dB (1 kHz)
● Tuner section
Frequency range:
Specifications for this model are subject to change without
prior notice.
FM; 87.5-108 MHz
AM; 530-1,720 kHz
–2–
CD-BA180
NAMES OF PARTS
CD-BA180
■ Front panel
1.
12.
13.
14.
15.
16.
17.
18.
19.
10.
11.
12.
13.
14.
Extra Bass Indicator
FM Stereo Mode Indicator
FM Stereo Indicator
(CD) Repeat Indicator
(CD) Pause Indicator
(CD) Play Indicator
Record Indicator
(CD) Disc Number Indicators
(CD/TUNER) Memory Indicator
Sleep Indicator
(TAPE) Play Indicator
Timer Record Indicator
Timer Play Indicator
Spectrum Analyzer/Volume Level Indicator
7
1
2 3 4 5 6
9 10 11 12 13
14
14
15.
16.
17.
3
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
8
(CD) Disc Tray
Memory/Set Button
(CD) Track Down/Review Button
(TUNER) Preset Down Button
(TAPE 2) Rewind Button
(CD) Track Up/Cue Button
(TUNER) Preset Up Button
(TAPE 2) Fast Forward Button
(TAPE 2) Record Pause Button
Timer Set Indicator
On/Stand-by Button
Clock Button
Timer/Sleep Button
Function Selector Buttons
Headphone Socket
Tuning and Time Up/Down Buttons
(CD/TAPE) Stop Button
Dimmer Button
Volume Up/Down Buttons
Equalizer Mode Selector Button
Extra Bass/Demo Mode Button
(CD) Open/Close Button
(CD) Disc Skip Button
(CD) Play/Repeat Button
(TAPE) Play Button
(TAPE 1) Cassette Compartment
(TAPE 2) Cassette Compartment
14
15 16 17
18 19
20
28
21
29
30
22
23
24
25
26
27
31
32
33
34
35
–3–
36
CD-BA180
CD-BA180
■ Rear panel
11.
12.
13.
14.
15.
AC Power Input Socket
FM/AM Loop Aerial Socket
Video/Auxiliary (Audio Signal) Input Sockets
Front Speaker Terminals
Rear Speaker Terminals
2
3
4
5
1
■ Remote control
11.
1
Remote Control Transmitter LED
● CD control section
12.
13.
14.
15.
16.
17.
18.
19.
10.
11.
Disc Number Select Buttons
Memory Button
Pause Button
Clear Button
Track Down/Review Button
Track Up/Cue Button
Disc Skip Button
Play/Repeat Button
Stop Button
Random Button
● Tuner control section
12.
8
9
2
3
4
5
6
7
10
11
12
13 14 15 16 17 18
Preset Up/Down Buttons
● Tape control section
13.
14.
15.
16.
17.
18.
(TAPE
(TAPE
(TAPE
(TAPE
(TAPE
(TAPE
19
20
21
22
1) Play Button
2) Record Pause Button
1/2) Stop Button
2) Play Button
2) Rewind Button
2) Fast Forward Button
23
● Common section
19.
20.
21.
22.
23.
Equalizer Mode Selector Button
Function Selector Buttons
On/Stand-by Button
Extra Bass Button
Volume Up/Down Buttons
CP-BA180
11.
12.
13.
14.
Tweeter
Bass Reflex Duct
Woofers
Speaker Wire
1
3
2
4
GBOXS0040AWM1
11.
12.
1
Full-Range Speaker
Speaker Wire
2
–4–
CD-BA180
DISASSEMBLY
CD-BA180
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.
(A1)x2
ø3x12mm
Top Cabinet
Side Panel
(Right)
(B1)x2
ø3x10mm
(A1)x2
ø3x12mm
Side Panel
(Left)
CD-BA180
STEP
REMOVAL
PROCEDURE
FIGURE
1
Top Cabinet
1. Screw ..................... (A1) x4
5-1
2
Side Panel
(Left/right)
1. Screw ..................... (B1) x8
5-1
3
CD Player Unit/
CD Tray Cover
1. Turn on the power supply,
open the disc tray, take out the
CD cover, and close. (Note 1)
2. Screw ..................... (C1) x1
3. Hook ....................... (C2) x3
4. Hook ....................... (C3) x2
5. Socket .................... (C4) x2
5-2
4
Main PWB/
Rear Panel
1. Screw .....................
2. Socket ....................
3. Flat Cable ..............
4. Lug Wire .................
5. Flat Wire .................
Figure 5-1
CD Tray Cover
(C2) x3
1
(D1) x10 5-2,6-2
(D2) x4
6-2
(D3) x1
(D4) x1
(D5) x1
Front Panel
1. Screw ..................... (E1) x2
2. Hook ....................... (E2) x2
6-2
6
Display PWB
1. Screw ..................... (F1) x15
2. Flat Cable .............. (F2) x1
6-3
7
Tape Mechanism 1. Open the cassette holder.
2. Screw ..................... (G1) x6
6-3
8
Headphones PWB 1. Screw ..................... (H1) x1
6-3
9
Turntable
1. Hook ....................... (J1) x2
2. Cover ..................... (J2) x1
6-4
10
Disc Tray
1. Turn fully the lock lever in the
arrow direction.
2. While holding the lock lever,rotate
the cam gear until the cam gear
rib engages with the clamp lever.
3. Push the slide holder backward to
engage the claw with the groove
and remove it in the direction
of the arrow. .............. (K1) x6
5-3
1. Screw ..................... (L1) x1
2. Hook ....................... (L2) x2
3. Socket .................... (L3) x4
6-6
CD Servo PWB
(Note 2)
(B1)x2
ø3x10mm
Rear
Panel
CD Servo
PWB
(C4)x2
5
11
(B1)x4
ø3x12mm
(C3) x1
Pull
1
2
CD Player
Unit
Rear
Panel
(C3)x1
(C1)x1
ø3x12mm
(D1)x4
ø3x12mm
6-1
(D1)x3
ø3x10mm
Main PWB
Figure 5-2
6-5
Lock Lever
12
CD Mechanism
1. Hook ....................... (M1) x2
2. Hook ....................... (M2) x3
7-1
13
Loading Motor PWB 1. Hook ....................... (N1) x5
7-1
CD Player Unit
(Bottom View)
Note 1: How to open the changer manually. (Fig. 5-3)
1. In this state, turn fully the lock lever in the arrow direction through
the hole on the loading chassis bottom.
2. While holding the lock lever, rotate the cam gear anticlockwise until the
cam gear rib engages with the clamp lever. (Fig. 6-1)
3. After that, push forward the CD slide holder.
Note 2:
1. After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the front end
of the connector so as to protect the optical pickup from electrostatic damage.
Figure 5-3
Note 3:
1. Be careful not to break the claw of the CD mechanism.
2. When fining back the cam gear assembly, let it lock by front
movement.
–5–
CD-BA180
(J2) x1
Clamp Lever
Turntable
CD Player Unit
(Top View)
Disc Tray
Cam Gear Rib
(J1) x2
Figure 6-1
(D1)x2
ø3x10mm
CD Player Unit
Figure 6-4
(D5)x1
Disc Tray
(D2)x3
(K1) x3
3
Headphones
PWB
(D3)x1
(D2)x1
(D4)x1
(E2)x1
2
Main PWB
1
(E2)x1
(E1)x2
ø3x10mm
(D1)x1
ø3x10mm
(K1) x3
Figure 6-2
Figure 6-5
(F2)x1
Display PWB
(L1) x1
CD Servo
PWB
(L3) x2
(F1)x15
ø3x10mm
(L2) x2
Tape
Mechanism
Open
(G1)x6
ø3x10mm
Cassette
Holder
(H1)x1
ø3x10mm
(L3) x2
Headphones PWB
Figure 6-3
Figure 6-6
–6–
CD Player
Chassis
CD-BA180
(M2) x3
CD
Mechanism
(M1) x1
(M1) x1
Loading
Motor
PWB
(N1) x5
Figure 7-1
CP-BA180
STEP
PROCEDURE
FIGURE
1
Woofer
REMOVAL
1. Front Panel ............ (A1) x1
2. Screw ..................... (A2) x8
7-2
7-3
2
Tweeter
1. Screw ..................... (B1) x2
7-3
Speaker Box
(A1) x1
Woofer
Driver should
be pried away
from speaker
box.
(A2)x4
ø4x12mm
(A2)x4
ø4x12mm
Screwdriver
Woofer
Speaker Box
Tweeter
(B1)x2
ø3x10mm
Figure 7-2
Figure 7-3
–7–
CD-BA180
TEST MODE
· Setting the test mode
Any one of test mode can be set by pressing several keys as fallows.
<X-BASS> + <CD> + <POWER> TEST:CD operation test
Function:-CD test mode.
-Enter test mode.
C D
T E S T
IL isn't done
OPEN/CLOSE operation is using manual.
<<
>>, <<
>> buttons make pick's slide possible.
<<PLAY>> key input.
Do TOC IL. Do normal play
When these following key is input
into PLAY key, track number can
be appoint directly
<<
<<
<<
1>> key: Track 4
2>> key: Track 9
3>> key: Track 15
<<MEMORY>> key input.
Laser ON.
<<MEMORY>> key input.
Tracking OFF play at that
specific point.
<<MEMORY>> key input.
<<STOP>> key input.
Tracking ON play at that
specific point.
STOP
<<STOP>> key input.
STOP
VOL — Last memory
BAL — CENTER
P.GEQ — FLAT
X-BASS — OFF
Sliding the PICKUP with
<< >>, << >> button
must only be in STOP mode.
To cancel : Power OFF
–8–
CD-BA180
SW2
SW3
SW1
OPEN/ CLAMP DISC
NUMBER
CLOSE
M3
T/T
UP/DOWN
MOTOR
M
6
7
8
9 10
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
CNP12
BI4
3
CNS4
CLAMP SW
5
2
CNP4
+
-
1
GND
CD RES
4
CLK
CE
3
DI
2
DO
1
DRF
5
CDINT
4
WRQ
+B3(+5V)
3
CNP11
2
TO DISPLAY SECTION
DGND
1
L-CH
R-CH
AGND
TO MAIN SECTION
(TO IC401)
CONT2
30
CONT3
32 31
RCHO
LVSS
RVSS
45 46 47 48
LCHO
76
CONT4
66 CL
75
CONT7
65 CE
CONT6
Q2
74
64
67 DI
40
68 DO
19
13
69 INT
IC2
LC78641E
SERVO/SIGNAL
CONTROL
70 WRQ
71 RES
3
CONT5
33
SLD0
26
SPD0
25
72 DEF
RFEV
14
FD0
24
TD0
23
15 16
+3.3V
+5V
TE
HFL
7
FE
XVDD
RVDD
5 18 36 44 49 50
LVDD
73
51 XIN
VDD
VDD5V
VVDD
XL1
16.9344MHz
ADAVDD
52 XOUT
1
CONSTANT
VOLTAGE
RFEV
FE-
FE
29
IC3
M63001FP
FOCUS/TRACKING/
SPIN/SLED DRIVER
24 VCC2
+5V
IC1
LA9235M
SERVO AMP.
LASER
DRIVER
1
2
3 4
Q3
LDD
PD
TIN2
TIN1
FIN2
FIN1
11
9
38 39
18 VCC1
40 VCC4
23
41 42
35
30
+3.3V
17 25
20 21 22
TE-
HFL
19
TE
17 18
Q1
2
21
14
23
28 VCC3
4
+3.3V
22
8
5
6
7
15
16 26 27
7 8
TRACKING COIL
FOCUS COIL
PICKUP UNIT
+5V
M1
SPINDLE
MOTOR
M
M2
SLED
MOTOR
M
SW4
PICKUP IN
Figure 9 BLOCK DIAGRAM (1/3)
–9–
CD-BA180
FM
+B2
AM
FM IF
1
2
3
IC301
TA7358AP
FM FRONT END
1
BF301
2 3 4
ZD351
T302
CF303
T351 CF352
AM IF
FM
OSC
CNP301
1
2
4 5
MIX
AM
T301
FM RF L312
23
AM TRACKING
T306
17
13
18
R
14
15
FM/AM
12
16
STEREO
AM RF IN
FM OSC
Q302
8
FM/AM
MPXIN
OUT
7
21
AM OSC IN
OSC BUFF
9
AM IF GND VCC FM
MO/ST
DET VCO
L
IC303
LA1832S
FM/AM IF MPX.
T303
X351
456kHz
CF351
9
8
7
5
6
AM BAND
COVERAGE
X352
4.5MHz
CE
DI
CL
DO
VT
20
MOTOR
DRIVER
TAPE
MOTOR
+B5
Q604
M
SOLENOID
Q605
Q606
T2 PLAY
IC701
54PIN
T1 PLAY
IC701
53PIN
R. PLAY
IC701
56PIN
F. PLAY
IC701
55PIN
14
22
15 16
FM+B
9 10
7
FM
Q360
+B2
L
R
1
2
3
4
5
23
AUX
10
15
TUNER L
R
11
14
L
12
13
SWITCHING
Q104~
Q107
1
24
L(T2)
R(T2)
2
23
L NF
3
22
R NF
POP
REDUCE
13
4
21
R REC
9
16
REC
REF
14
12
T1/T2
15
19
ERASE
HEAD
L
R
3
Q110
Q111
PB
MUTING
REC/PLAY
R
L REC
R
7
18
8
17
L NF
10
ALC
R NF
+B2
T1/T2
Q103
Q102
SWITCHING
Q114
L104
H/N
NOR/
HIGH
Q101
BIAS
OSC
L
+B2
SWITCHING
SWITCHING
4
SYSTEM
MUTE
Q401
Q402
5
20
T1/T2
Q108
Q109
L
1
2
24
CL
IC401
LC75341
AUDIO PROCESSOR
21 R
7 8 17 18
P.B
6
L REC
L
DI
CE
9
16
R
R
IC101
AN7345K
PLAYBACK AND RECORD
/PLAYBACK AMP.
L(T1)
R(T1)
L
R
CD
AC BIAS
21
SO401
VIDEO/AUX
L-CH
R-CH
REC/P.B. HEAD
L-CH
TAPE 2
R-CH
17
SWITCHING
P.B. HEAD
REC
P.B.
VCC
+B5
CNS402
TAPE 1
3 4 5 6
FM/AM MO/ST
+B2
TAPE
FROM
CD SECTION
CNP11
11
IC302
LC72131
PLL(TUNER)
OSC
SWITCHING
Q112
L103
BIAS
Q113
+B2
Figure 10 BLOCK DIAGRAM (2/3)
– 10 –
BIAS
CD-BA180
+B2
FL701
FL DISPLAY
+B3
1 2 3
6
~
13
14 ~ 16
23 ~ 28
29
~
44
Q601~
Q603
-B2
4
+B5
8
47 48 49
IC703
KIA4558P
OPE.AMP
IC702
KIA4558P
OPE.AMP
7
1
2
VDD
~
~
IC701
IX0328AW
SYSTEM
MICROCOMPUTER
+B4
SYS. STOP
7
9 10 11 12 13 15 16 17
+B4
20
DI
DO
CE
VDD
VDD
4 5 6
~
1
~
100
CL
31
RESET
92
93
~
~
AVDD
39
38
37
36
35
34
33
~
85
90
+B4
KEY
SW601~SW603
SW609~SW623
SW625~SW628
+B5
30
29
28
JK951
HEADPHONES
21 22 23 24
+B4
TO CD
SECTION
+B3
XL701
4.1943MHz
RESET IC
Q609
3
SP. DET.
Q901
Q902
Q903
Q904
IC704
1
Q971
+B4
M
2
IC901
STK402040
POWER AMP.
8
-Vcc
1
15
R
+Vcc
RL951
L
SYSTEM
MUTE
+B5
3
59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40
VLOAD
8
1
1
78
79
80
-B2
RX701
REMOTE
SENSOR
+B4
63
4
13
7
11
SO901
R-OUT
FRONT
SPEAKER
L-OUT
9
REAR
SPEAKER
401
402
+B1
F801
4A/125V
–B1
D801
Y
-15V
-B2
F802
4A/125V
CONSTANT
VOLTAGE
M10V
+B5
AC POWER
SUPPLY CORD
Q831
D802~D805
A10V
+B2
AC 120V, 60Hz
IC841
F803
2A/250V
VOLTAGE
REGULATOR
+B3
+5V
IC851
UNSWITCH
+5V
2
+B4
M901
FAN
MOTOR
IC852
T.F.
VOLTAGE
REGULATOR
PT801
POWER TRANSFORMER
Figure 11 BLOCK DIAGRAM (3/3)
– 11 –
CD-BA180
CD SERVO PWB-B
A
B
F
R50
47
7
6
5
5
5
5
R51
68K
TIN1
4
4
4
4
R52
68K
FIN1
R53
68K
FIN2
R54
68K
TIN2
3
2
3
2
3
3
2
2
R56
68K
1
1
1
C23
0.047
IC1
LA9235M
SERVO AMP.
R55
68K
C24
2.2/50
C11
4.7/6.3
R12
680
R79
1.5M
R1
68
C21
0.1
C
0.
1
FIN1
CNP1
C
7
6
30
1
REF
FIN2
REF
2
29
REF
TIN1
C54
47/10
C
C55
0.01
VREF
R47
3.3
D
RFSW
R42
120K
RF-
R7
6.8K
R5
39K
REF
PH
25
REF
DH
24
ODRV
EFBL
RF
22
PH/BH
REF
LPF
9
REF
10
11
ODRV
12
AGCON
20
REF
19
LPF
18
REF
REF
13
TEST0 14
TES1
21
LPF
R6
27K
R10
27K
R80
1M
C20
0.1
C17
0.0047
BH
R
1.
10K
C42
68P
C14
0.33
C27
0.1
RFEV
PH(R
FE-
R3
FE
47K
TE-
R4
TE
10K
A
HFL
C82
0.022
REF
17
REF
16 TEST
4
Q3
KTA1266 GR
C
0.
C28
47/10
C41
100/6.3
REF
15
R11
12K
R15
R8
330
C13
0.01
PH
C22
100P
C18
3P
(CH)
5
NC
23
APC
8
AGON
27
26
6
7
LDD
LDON
R25
10K
28
3
5
C7
10/35
C51
47/10 +B
C12
0.022
REF
GND
C53
0.001
AGCON
TIN2
4
C6
100/6.3
REF
REF1
C8
0.022
+B
VCC
ODRV
C26
0.047
E
7
6
8
+B
C25
0.022
B
7
6
CNS1A
Vcc
Vref
CNS1B
A
2
LASER DRIVER
EFBL
R44
1K
4
4
4
5
5
5
5
6
6
6
6
7
7
7
7
8
PICKUP UNIT
8
8
8
FO+
FO-
FO-
GND
TR+
PD
TR-
VR
3
+
37
7
11
12
13
14
R96
1.5K
+B
VCC1
STANDBY
R48
6.8K
Vref
G
CNS3B
CNS3A
+
6
6
6
6
+
5
5
5
5
4
4
4
4
-
3
3
3
3
2
2
2
2
1
1
1
1
CNP3A
M1
SPINDLE
MOTOR
M2
SLED
MOTOR
M
M
SW4
PICKUP IN
C50
100/6.3
C49
100/6.3
MUTE
CD MOTOR PWB-C
30
29
27
+
GND
31
16
18
C47
100/6.3
34
28
+
LOADING M-
33
32
15
17
+B
LOADING M+
36
26
+
-
SLDO
LD_MVCC4
35
-
SLSL+
39
38
9
GND
40
5
10
CNP2
41
6
8
LD
+
+
4
42
-
IC3
M63001FP
FOCUS/TRACKING/
SPIN/SLED DRIVER
4
CNS2A
3
CNS2B
3
FO
FO+
-
+
+
19
+
20
-
+
21
25
24
VCC3
SPSP+
SPO SPDO
VCC2(SPN)
23
+
LD
ACTUATOR
3
C46
0.022
LD_M+
+
2
-
VR
3
TR+
1
+
PD
TR-
2
FD
-
FO-
F
2
TO
FDO
-
GND
2
TDO
-
FO-
2
TR-
-
FO+
1
-
FO+
1
-
TR+
1
-
1
+B
-
TRTR+
+B
+
C52
0.01
+
E
-
22
SPSP+
SL+
+B
+B
SLPUIN
GND(D)
CNP3
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 28.
1
2
3
4
Figure 12 SCHEMATIC DIAGRAM (1/10)
– 12 –
5
6
FDO
TDO
13
CD-BA180
100P
R75
1K
DO
C76
100P
R76
1K
DI
C77
100P
R77
1K
CL
C78
100P
R78
1K
L62
2.2µH
CE
CL
DI
DO
INT
WRQ
DEF
C80
0.022
COMMAND
INTERFACE
64
SUBCODE
DECODE
CRC
63 PW
62 SBSY
59 DATA
58 DATACK
57 LRSY
SW
13
15
TE
16
SW
A/D
SERVO
PROCESSEROR
51
50
17
18
49
48
+
1BIT
DAC
-
19
47
LPF
ADAVDD
52
DIGITAL
FILTER
FE
AUTO
ADJUST
53
46
PHREF 20
BHREF 21
TBLO
EFLG
CONT5
CONT4
CONT3
XIN
RVDD
40
38
R-CH
C2F
VDD
R82
2.2K
LVSS
LCHO
LVDD C39
10/16 +B
C43
0.0015
2
L-CH
4
+5V
5
+B
C83
0.022
+B
9
CONSTANT VOLTAGE
+B
R16
10K
L61
0.82µH
Q1
2SC3203 Y
+B
+B
+B
INT
WRQ
DRF
CE
+B
DI
R21
470
C47
100/6.3
D21
DS1SS133
34
32
DRF
DO
DI
7
CLK
8
CD RES
CLAMP SW
10
3
P21 12 - B
CNS701
TO DISPLAY PWB
5
6
9
D22
DS1SS133
35
33
WRQ
CE
RES
2
CDINT
2
4
CL
R22
470
37
1
3
DO
LOADING M+
LOADING M-
P14 1 - B
CNS402
TO MAIN PWB
3
DGND
CNP11
LD_M-
36
1
AGND
R81
2.2K
ZD61
DZ3.9BSB
VCC4
C40
0.0015
C56
330/6.3
+B
LD_M+
39
C34
0.022
RCHO
RVSS
+B
41
+B
+B
C31
100/6.3
+B
+B
42
R20
220
XVDD
41 EMPH
DOUT
PCK
+B
C30
0.022
1K
R39
470
SLDO
6
SPDO
FDO
XOUT
42 MUTEL
FSX
R17
1
R38
270
TDO
XVSS
43 MUTER
AUDIO
OUT
27 28 29 30 31 32 33 34 35 36 37 38 39 40 TEST
1K
13
25 26
R46
R35
1K
ERROR
CORRECT
CONT2
24
D/A
LASER
23
FDO
SPDO
EFBL
R44
1K
44
GENERAL
S/H
22
TDO
ASLRCK
45
1.2K
2
ASDACK
220
14
54
X1
16.9344MHz
ASDFIN
R58
JITER
DEFECT
CONTROL
12
56
55
R84
10K
SLICE
LEVEL
CONTROL
9
C29
0.022
ADAVSS
12
11
10
61 SFSY
60 16M
10
VREF
C45
100/6.3
SBCK
R83
10K
IC2
LC78641E
SERVO/SIGNAL
CONTROL
8
PH(RFENV)
C44
0.022
73 72 71 70 69 68 67 66 65
7
BH
CE
+B
+B
RES
1K
INT
C75
SERIAL
OUT
6
JITTV 11
JITTC
C41
100/6.3
1K
CLOCK
GENERATOR
EFMIN
C28
47/10
R74
EXTERNAL
AUDIO IN
SLCO
10K
C82
0.022
100P
INTERPOLATION
MUTE
ATTENUATION
DEEMPHASIS
R15
C27
0.1
WRQ
C74
CLV
CONTROL
1.2K
C42
68P
1K
C38
10/16
FR
1.2K HFL
C26
0.047
C17
0.0047
R73
C64
47/6.3
5
SLCIST
R8
330
100P
FRAME SYNC
DEFECT,PROTECT
EFM DECODE
R45
C20
0.1
PLL
VCEC
4
PCKIST
VVDD
R80
1M
RES
C73
GENERAL
3
C81
0.022
R14
1K
R19
47
VVSS
R11
12K
DRF
R72
2
R40
R10
27K
1
R13
680 PD02
C21
0.1
1K
0.01
VDD5V
CONT1
C22
100P
R79
1.5M
R71
C72
80 79 78 77 76 75 74
PD01
SLDO
C25
0.022
C24
2.2/50
R12
680
100P
EFMO
7
FG(D_Vref)
C23
0.047
1K
DISC_NO
FSEQ
V/vP
CONT7
+B
CONT6
R68
8
R67
R95
10K
C71
VSS
R94
10K
O/C
3
CD SIGNAL
GND
CNP12
Q2
1
KRC102 M
GND
31
30
29
28
27
26
25
24
VCC3
SP-
CNS4
SP+
O/C
SPO SPDO
GND(D)
VCC2(SPN)
DISC_NO
23
M+
22
M-
BI4
SW1
OPEN/
CLOSE
1
1
1
2
2
2
3
3
3
4
4
4
5
5
5
+
6
6
6
-
M
CNP4
SW2
CLAMP
SW3
DISC
NUMBER
M3
T/T
UP/DOWN
LOADING
CD LOADING
MOTOR PWB-E
+B
+B
• The numbers 1 to 13 are waveform numbers shown in page 29.
7
8
9
10
Figure 13 SCHEMATIC DIAGRAM (2/10)
– 13 –
11
12
CD-BA180
A
+B
R-CH
A_GND
L-CH
CD_GND
C407
10/50
+B
+5V +B
+
-
LTRE
Q401
KTC3199 GR
C417
1/50
7
LIN
C419
4.7/50
8
LSEL0
R407
2.2K
C421
1/50
9
L4
AUX
R4
C423
1/50
10
L3
DECK
R3
C425
1/50
11
L2
TUN
R2
12
L1
CD
R1
C402
0.001
Q402
KTC3199 GR
R417
3.3K
C427
R408
2.2K
1/50
RTRE
+
-
5
6
RIN
RSEL0
C403
22/25
FM SIGNAL
PLAYBACK SIGNAL
RECORD SIGNAL
CD SIGNAL
VIDEO SIGNAL
16
15
14
13
1/50
C424
1/50
C426
1/50
C428
1/50
C108
100/16
0V
Q105
2SC1845 F
R113
47K
R107
2.2K
C107
0.001
4
C117
100/10
R117
56
7
6
5
R125
33K
R138
15K
8
9
4
Figure 14 SCHEMATIC DIAGRAM (3/10)
– 14 –
5
6
1
Nor/CrO2
ALC
10
C129
22/25
• NOTES ON SCHEMATIC DIAGRAM can be found on page 28.
3
15
56K
+
Hich=CHROME
+
56K
H
2
R136
10K
R134
100
16
17
C139
3.3/50
C137
0.022
C123 R123
47/25 5.6K
C130
0.022
C132
0.0033
C134
47/25
R132
1.5K
C126
270P
R130
3.9K
R128
IC101
AN7345K
R133
100
C115
330P
6.8K
68K
R126
C122
47/25
3
18
19
Q11
KTC319
C135
47/25
C131
0.022
0V
22
C127
270P
R115
1K
2
0V
R109
3.3K
0.7V
0V
L
1
21
- 112K
+
Hich=T1
+
- 112K
C133
0.0033
0V
22
R131
1.5K
C105
180P
23
R
C113
330P
0.7V
24
R129
3.9K
0V
R141
10K
C128
22/25
R127
6.8K
Q107
2SC1845 F
R112
4.7K
R108
Q106 3.3K
2SC1845 F
0V
0V
Q109
KTC3199 GR
CNP102
0V
0V
C112
330P
C114
330P
R122
5.6K
C143
0.0022
R106
2.2K
0.7V
R114
1K
C106
0.001
R110
47K
0.7V
R124
C120 33K
560P
R118
100K
Q104
2SC1845 F
0V
0V
1 M_GND 1
2 ERASE 2
T2_R2 3
3
4 A_GND 4
T2_R1 5
5
6
T2_L1 6
T2_L2 7
7
R105
1K
R140
10K
0V
C144
0.0022
C119
0.033
C121
560P
C104
180P
TAPE 2
RECORD/
PLAYBACK HEAD
R116
56
C116
100/10
C118
0.033
Q108
KTC3199 GR
C103
0.001
Q110
KTC3199 GR
0.7V
Q103
KRC104 M
R111
4.7K
CNP101
F
0V
R104
1K
T1_R 1
A_GND 2
T1_L 3
TAPE 1
PLAYBACK HEAD
MUTING
3
R137
15K
C102
0.001
1
2
3
R142
220K
R120
3.9K
Q101
KTA1266 GR
9.3V
MECHANISM
CHASSIS
EARTH
1
0V
2
8.6V
1
R418
3.3K
C150
22/25
R119
100K
R121
3.9K
9.3V
1
3.4V
R103
4.7K
0V
E
G
4.7/50
C422
3.4V
3
0V
2
0V
R101
10K
L-CH
C420
Q102
KRC104 M
R102
10K
CHASSIS
R-CH
17
+B
R157
150
ERASE
HEAD
0.0027
1/50
Q401,Q402 : SYSTEM MUTE
D
L-CH
C414
C418
19
18
R
IC401
LC75341
AUDIO PROCESSOR
R410
10K
GND (CD_GND)
R-CH
+B
C406
22/50
22
C408
10/50
ROUT
C410
21
0.1(ML)
C412 0.1(ML)
RBASS
20
VREF
0.0027
C401
0.001
s
R402
330
R
24
23
C413
+
-
j
GND (A_GND)
LOUT
+
-
r
VSS
4
+
-
t
TO
POWER
SECTION
P16 1 - F
L
CCB
INTERFACE
3
CLK
VDD
LBASS
R403
2.7K
q
CE
0.1(ML)
R409
10K
R404
2.7K
DI
2
C411
R401
330
C
C409
0.1(ML)
R415
3.9K
1
+
-
+5v
C404
100/16
+
-
BI402
1
2
3
4
5
1
2
3
4
5
R425
22K
B
P13 12 - D
CNP11
TO CD SERVO
PWB
C405
0.022
+
-
CNS402
+B
R135
10K
1
CD-BA180
MAIN PWB-A1(1/3)
+B
SO401
VIDEO/AUX
22/50
10/50
R416
3.9K
10
L)
R419
5.6K
C429
390P
R420
5.6K
C430
390P
0.1(ML)
0.0027
D404
DS1SS133
1/50
D403
DS1SS133
R421
27K
L-ch
R422
27K
R-ch
4.7/50
CE
1/50
DI
1/50
1/50
TUN_R
R418
3.3K
TUN_L
1/50
B
A
CLK
DO
C
E
F
TO
TUNER
SECTION
P19 11 - H
D
G
R424
470K
R423
470K
23
+B
CE
+B
DO
DI
CLK
T_BIAS
T_T1/T2
REC_L
REC_R
142
20K
R141
10K 0.7V
0V
Q111
KTC3199 GR
0V
–B
C138
220/10
C130
0.022
C132
0.0033
C134
47/25
CNP401
C145
0.001
C136
22/25
15
14
13
12
11
10
CNP702
P21 12 - C
TO DISPLAY PWB
9
8
7
6
5
4
3
2
1
1
R144
47K
11.7V
11.6V
R145
4.7K
0V
3
Q113
KRC104 M
0V
+B
0V
+B
R148
22K
0V
R149
4.7
C140
0.0082(PP)
C141
0.039
(ML)
8
L104
330µH
(ML)
C142
47/25
g
-15V
GND (D_GND)
Q114
KTC3203 Y
R147
47K
–B
+B
a b c p h f k i
l e
SP_DET
GND (M_GND)
R146
82(1/2W)
BIAS
OSC.
3
UN_SW_5V
0V
11.6V
2
+5V
GND (A_GND)
0V
C148
0.047(ML)
7
18
17
16
+B
VF1
-VP
VF2
SP_RLY
M_10V
Vcc
12
20
19
FC701
A_10V
R135
10K
GND
RIPPLE
Nor/CrO2
C135
47/25
C131
0.022
R133
100
13
11
10
C129
22/25
C133
0.0033
14
ALC
ALC
15
IC101
PLAYBACK AND RECORD/
PLAYBACK AMP.
9
SP_DET
M_GND
+B
R139
220
56K
+
h=CHROME
+
56K
VF1
-VP
VF2
SP_RLY
M_10V
-15V
D_GND
+5V
A_GND
UN_SW 5V
+B
C128
22/25
16
+B
+B
R136
10K
R140
10K
+B
Q112
KTA1266 GR
Q110
3199 GR
R134
100
SMUTE
R143
220K
0.7V
1.5K
REC/PLAY
SPA_SIG
23
22
21
nm
TO
TUNER
SECTION
P16 1 - F, P19 11 - H
9
10
Figure 15 SCHEMATIC DIAGRAM (4/10)
– 15 –
11
12
CD-BA180
7
+Vcc
6
5
8
+B
Ch2
Out
4
3
Ch2
Out
2
-Vcc
9
10
11
13
12
R931
1K
C902
220P
–B
R918
100
C910
100/50
C906
47/50
C905
47/50
C904
15P
C912
10/50
C911
10/50
R920
22K
+B
R919
100
C909
100/50
C903
15P
R901
56K
R903
820
R904
820
R902
56K
R905
1K
C901
220P
R906
1K
–B
R934
68K
R908
D901
0.1(1W) DS1SS133
4.1V
C
R910 4.1V
1K
C908
0.022
0V
R911
0V
10K
Q901
KTC3199 GR
0V
0V
R912
10K
R914
56K
Q904
KTC3199 GR
Q902
KTC3199 GR
C917
47/50
R915
56K
+B
D903
DS1SS133
R909
1K
C907
0.022
4.9V
R907
0.1(1W)
R913
56K
R933
68K
D902
DS1SS133
C935
10/50
C936
10/50
B
15
14
–B
R932
1K
1
Ch1
Out
A
+
Ch2
-
+
Ch1
-
Ch1
Out
IC901
STK40204(2Ch)
POWER AMP.
Q903
KTC3199 GR
+B
+B
+B
–B
G
TO
MAIN
SECTION
P14 1 - C,
P15 10 - H
g
b
c
a
p
h
f
k
j
l
e
n
m
0.022
220/25
C831
C807
3300/25
3.3
D80
1N400
R807
12K
C841
0.1(ML)
C843
47/25
3
ZD802
DZ6.2BSA
10K
0.022
(CD_GND)
A_10V
C852
GND
C842
0.1(ML)
R841
22K
s
+B
47/25
+B
+B
20V R842
20V
1
2
D80
1N400
+B
1
2
C853
R
3
R851
(A_GND)
47/25
GND
5.7V
+B
D851
DS1SS133
r
L
C854
t
IC852
AN78L05
VOLTAGE
REGULATOR
+B
C855
0.047(ML)
q
F
+B
R802
22K
IC841
3
+5V
R801
22K
+B
10V
i
C832
C833
22/25
R832
33(1/2W)
R833
22K
9.9V
R803
680(2W)
1
2
IC851
KIA7805P
VOLTAGE
REGULATOR
C851
0.1(ML)
+B
E
C834
0.047(ML)
IC841
KIA7810AP
VOLTAGE
REGULATOR
R831
3.3(1/2W)
20V
9.9V
ZD803
Q831
KTC2026 Y
–B
+B
DZ130BSB
–B
+B
-VP
VF2
VF1
SP_RLY
+B
M_10V
-15V
GND (D_GND)
SW_5V
+B
GND A_GND
+5V
-B
+B
+B
SP_DET
GND (M_GND)
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 28.
1
2
3
C813
D
4
Figure 16 SCHEMATIC DIAGRAM (5/10)
– 16 –
5
6
CD-BA180
R975
4.7(1/2W)
+B
FM SIGNAL
D971
DS1SS133
R973
15K
+B
RL951
RELAY
R953
4.7K
C972
10/50
R954
4.7K
4.9V
L1_OUT
5
2
2
1
1
CNP951
1
2
3
4
5
Q951
KRC107 M
2
M
M901
FAN MOTOR
Q971
KTC3203 Y
R972
68K
FW951
R1_OUT
D951
DS1SS133
R971
1K
1
+B
CNS971
CNP971
C971
47/50
R952
330(1/2W)
R951
JK951
330(1/2W)
HEADPHONES
HEADPHONES PWB-A3
1 0.2V
L921
0.29µH
4.4V
3
SP_L-CH
+
+
R913
56K
+B
SP_R-CH
L920
0.29µH
FRONT SPEAKER
8 OHMS
R914
56K
SP_L-CH_GND
SP_R-CH_GND
–
–
SP_L-CH
R915
56K
+
+
C930
22/50
SO901
SPEAKER
TERMINAL
SP_R-CH
REAR SPEAKER
16 OHMS
C931
22/50
–
+B
SP_L-CH_GND
SP_R-CH_GND
–
+B
+B
–B
F801
4.0A/125V
D801
TS6B04GM
C801
0.047(ML)
C803
2200/50
R802
22K
C804
2200/50
–B
+B
D804
1N4004S
C806
0.047(ML)
-28V
R804
2.2K
-33V
1
2
3
4
5
6
7
8
F803
2.0A/250V
C808
100/50
C811
47/50
C810
220/50
C812
100/50
R805
47K
C813
100/35
ZD802
DZ6.2BSA
R807
12K
ZD801
DZ300BSB
C809
100/50
D805
1N4004S
D806
1N4004S
D802
1N4004S
C805
0.047(ML)
D803
1N4004S
F802
4.0A/125V
C802
0.047(ML)
1
2
1
SO801
R801
22K
CNP801
+B
AC POWER
SUPPLY CORD
AC120V,60Hz
1
2
2
3
4
5
6
7
8
AC SOCKET PWB -A4
CNP802
D807
1N4004S
R803
80(2W)
T.F.
-28V
R806
D808
10
Q801
1N4004S
KTA1274 Y
PT801
POWER TRANSFORMER
MAIN PWB-A1(2/3)
7
8
9
10
Figure 17 SCHEMATIC DIAGRAM (6/10)
– 17 –
11
12
CD-BA180
0.001
AM TRACKING
C331
C330
0.047
15P(UJ)
C323
0.022
0.001
DS1SS133
D302
DS1SS133
T303
1
9
0.022
0.022
C350
0.022
10/16
VSM
TP301
1K
+B
MAIN PWB-A1(3/3)
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 28.
Figure 18 SCHEMATIC DIAGRAM (7/10)
– 18 –
5
6
R378
G
4
6
FM/AM
PD
AIN
CL
5
1K
1K
4
R373
3
R372
CE
2
DI
VSS
19 18 17 16
IC302
LC72131
1K
1
R375
470
AM SIGNAL
AOUT
X OUT
X352
4.5MHz
22 21 20
FM SIGNAL
R379
2.2K C380
10/16
C393 R380
1/50 1.5K
C381
12P(CH)
OSC BUFF
3
C364
AM RF IN
C392
0.001
R381
10K
R316
4.7K
Q302
KTC3194 Y
C394
47/16
C387
C397
0.022
VDD
C318
100P
R382
150
C382
15P(CH)
2
C363
0.022
FM AFC
AM IF
DO
2
R322
680
1
T351
FM IN
1
X IN
C316
0.022
3
C326
0.001
FM IF
C312
0.022
10/16
C313
22P
(CH)
+B
C315
0.0047
FM
CF303
FM IF
R313
33K
L312
T302
R309
10K
F
1
20
R35
1K
C351
C324
8.2P(UJ)
VD302
KDV147B
R327
33
21
2
C352
C311
18P(CH)
R325
47K
22
C307
10/16
R314
22
FM RF
C314
0.0047
7 8
T301
FM OSC
R311
100K
C308
D305
DS1SS133
4.7P
C309
0.001
E
6
C305
4.7P
(CH)
C301
0.01
C375
0.001
5
R302
10
C304
0.01
D
4
VD303
KDV147B
3
C306
0.022
2
C310
15P(CH)
1
C317
0.001
1
2
3
FM IF IN
IC301
TA7358AP
FM FRONT END
C303
10P(CH)
1
2
3
R351
1 2 3
CNP301
FM
23
REG
B.P.F
AM
24
5.6K
BF301
C
3.3/50
R336
10K
R323
68K
AM OSC IN
C334
27P
(UJ)
AM OSC
R358
3.9K
AM MIX OUT
C335
560P
R365
10K
C361
VD301
SVC348S
AM OSC OUT
AM BAND
COVERAGE
T306
C362
C332
0.022
R374
B
C338
D301
C342
0.022
C302
A
7
8
CD-BA180
R357
470K
C374
0.015
R362
10K
1/50
PHASE
C357 R355
2.2/50 3.3K
C356
0.001
C370
C398
100/10
C399
0.022
0.022
C354
CF351
FM IF
0.022
C353
CF352
AM IF
1
C372
1/50
10 11 C358
1/50 12
R353
270
3
1
R361
10K
MO/ST
MPX IN
9
PHASE
8
VCC
7
R352
1K
C371
1/50
R363
10K
15 14 13
C355
22P
6
FM DET
5
STEREO
GND
4
SD
AM IF IN
IC303
LA1832S
FM IF DET./FM MPX./AM IF
R364
10K
(FM/AM)
16
R-CH OUT
17
IF OUT
FM/AM OUT
AM RF IN
VSM
AM LOW CUT
20 19 18
1
C369
27P
(UJ)
C373
0.015
L-CH OUT
X351
456kHz
C367
1/50
MPX VCO
C366
C365
C363
C364
R350
2.7K
C368 R356
1/50 1K
0.001
0.022
0.022
10/16
TP302
R388
3.9K
R393
1K
L352
100µH
R377
47K
R379
2.2K C380
10/16
L351
100µH
C395
0.022
R392
270
+B
R391
270
+B
C386
330P
9
IF IN
R359
1.8K
R395
47K
ST IND
SD
FM/AM
8
R383
5.6K
SWITCHING
MO/ST
AM IN
FM IN
7
10 11 R376
1K
R385
5.6K
R384
5.6K
R360
4.7K
+B
C391
47/16
R378
1K
IF
CONT
VDD
100/10
+B
C385
0.01
FM/AM
PD
DZ5.1BSB
C396
Q360
KTA1266 GR
8 17 16 15 14 13 12
DO
R387
5.6K
C387
0.022
ZD351
g
l
G
TO
MAIN SECTION
P15 11 - H
7
8
9
10
Figure 19 SCHEMATIC DIAGRAM (8/10)
– 19 –
E
F
A
B
D
TO
MAIN SECTION
P15 11 - C
11
12
C
GND
D GND
CLK
DO
CE
DI
TUN_L
TUN_R
A_10V
+B
TUN_SM
+B
GND A GND
+B
K
CD-BA180
DISPLAY PWB-A2
A
9 8 7 6 3 2 1
49 48 47 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 16 15 14 13 12 11 10
Q602
KTC3199 GR
Q603
KTC3199 GR
77 P8
76 P9
T_T1/T2
T-BIAS
REC/PLAY
RES OUT
DRF
WRQ
RESET
X2
70 P15/DIST0
IC701
IX0328AW
SYSTEM
MICROCOMPUTER
69 P16/DIST1
68 P17/DIST2
67 P18/DIST3
66 P19
65 P20
VDD 16
CD CLK 17 R6
CD DI 18 R6
CD DO 19 R6
CD CE 20 R6
CE 21 R6
64 P21
63 P22
62 P23
61 P24
C613
2.2/50
C614
2.2/50
R620
180K
IC703
KIA4558P
OPE AMP.
R649
Q604 10K
KTC3199 GR
C617 R637
10/16
1K
ZD601
DZ6.2BSC
9.3V
G
TAPE
MOTOR
M
FC702
+B
T2 PLAY
SOLENOID
SOLENOID
R.PLAY
T1 PLAY
F.PLAY
1
2
3
4
5
6
7
8
9
10
11
12
T2 PLAY
+5V
T2 RUN
MTR +
T2 SOL
T1 SOL
R_REC
T1 RUN
T1 RUN
COM
Q607
KTA1273 Y
1
2
3
4
5
6
7
8
9
10
11
12
13
0V
0V
Q606
KTA1271 Y
D613
DS1SS133
+B
9.3V
R651
10K
+B
9.3V
9.3V
R652
10K
D614
DS1SS133
F-REC
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 28.
1
2
3
4
Figure 20 SCHEMATIC DIAGRAM (9/10)
– 20 –
5
6
R675
1K
R674
1K
R673
1K
1K
10K
R668
R669
R667
1K
R662
10K
CNP703
13
KEY 0
AVDD
AVref
VSS
REMOCON
NO
USE
SP_RLY
SYS STOP
SMUTE
T_SOL_B
VDD
TIMER LED
T_MOTOR
T_SOL_A
2.2K
2.2K
2.2K
2.2K
+B
8.6V
9.3V
Q605 9.3V
KTA1271 Y
C620
47/25
C618 R655
10/16 1K
D615
DS1SS133
D611
DS1SS133
TAPE MECHANISM PWB-D
+
-
R660
10K
+B
Q608
KTC3199 GR
8
7
D604 R627
DS1SS133 100K
M10V
5
6
R672
10K
R650
68K
4
1
R670
10K
R671
10K
R658
47K
C608
0.022
R619
2.2M
2
3
+B
LED722
4204SRT7
+B
R636
68K
R612
1M
C607
0.022
R661
R663
R664
R665
RUN
R653
1K
C612
2.2/50
D603
DS1SS133
4.2V
8
7
R638
47K
R610
15K
5
6
C611
0.022
C604
0.0068
4
1
+B
R656
10K
R614
390K
R608
68K
R605
56K
C603
0.0068
2
3
R626
100K
R615
150K
F
R618
220K
C606
0.0027
R604
C602
12K
0.0027
D601
DS1SS133
R609
470K
R617
220K
C605
270P
R659
1K
–B
D602
DS1SS133
C610
0.022
R607
33K
+B
R6
R6
M-BUSY/TUN SM 26
NO
27
SP
28
SPE
29
SPE
30
50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31
4.2V
R603
10K
E
55 FPA
54 PLAY SW_B
53 PLAY SW_A
52 CD CLAMP
SW
51 T2 RUN
+B
R623
270
DO 24
AVSS 25
R625
100K
R613
820K
CLK 22 R6
DI 23 R6
57 MIC IN
56 FPB
10K
10K
10K
10K
10K
R624
270
C601
270P
R642
22K
R643
1K
R644
1K
R645
22K
R646
1K
R647
1K
R648
1K
T1
R632
R629
R633
R634
R635
60 SPN
59 DISTOUT/SW OUT
58 KARAOKE LATCH
1K
AC RLY_CONT
D
R640
R654 SPK_DET
1K
R725
10K
D607
DS1SS133
+B
R6
R6
R6
R68
R68
R6
R6
10
X
11
4.1
KEY 2
+B
1
2
3
4
5
6
7
8
9
X1 12
VPP/IC 13
XT2 14
CD INT 15 R6
KEY 1
R621
33
IC702
KIA4558P
OPE. AMP.
G1
VDD
P37
S-BUSY
75 P10
+B
G2
81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100
80 P6
79 VLOAD
78 P7
74 P11
73 P12
72 P13
71 P14
C
G3
G4
G5
G6
G7
G8
G9
G10
G13
G12
G11
G14
G15
P1
P2
C616
1/50
C609
47/50
P3
P5
P4
R622
100K
R616
1K
-25.7V
3.3V
3.3V
R606
1K
R611
100K
-25.7V
R602
100K
3.3V
B
R601
1K
-25.7V
-25.7V
-25.7V
-25.7V
Q601
KTC3199 GR
F
F
F
P22
F
P21
F
P20
P19
F
P18
P17
P16
P15
P14
P13
P12
P11
P10
P09
P08
P07
P06
P05
P04
P03
P02
P01
G11
G10
G09
G08
G07
G06
G05
G04
G03
G02
G01
FL701
FL DISPLAY
F
F
F
P02
P01
G11
G10
G09
G08
G07
G06
G05
G04
G03
G02
G01
CD-BA180
9 8 7 6 3 2 1
CD INT
WRQ(DSP)
DRF
CD CE
CD DO
CD DI
CD CLK
RES OUT
CLAMP SW
GND
100
T-BIAS
T_T1/T2
REC/PLAY
RES OUT
DRF
WRQ
RESET
X2
IC701
IX0328AW
SYSTEM
MICROCOMPUTER
1
2
3
4
5
6
7
8
9
R693
R694
1K
R675
1K
R674
1K
R673
1K
1K
10K
R668
R669
R667
1K
R708
10K
KEY 2
KEY 1
AVDD
KEY 0
AVref
VSS
REMOCON
NO
USE
SP_RLY
SYS STOP
SMUTE
T_SOL_B
T_MOTOR
T_SOL_A
VDD
TIMER LED
CE
DO
DI
CLK
T_BIAS
T_T1/T2
REC/PLAY
SPA_SIG
SMUTE
VF1
-VP
VF2
SP_RLY
+B
M_10V
–B
-15V
D_GND
+B
+5V
A_GND
UN_SW 5V
AC_RLY CONT
SP_DET
M_GND
+B
M-BUSY/TUN SM 26
NO USE
27
SPEANA2
28
SPEANA1
29
SPEANA0
30
2.2K
2.2K
2.2K
2.2K
CNP12
23
1K
CLK 22 R691
DI 23 R692
R661
R663
R664
R665
P13 12 - F
TO
CD SERVO PWB
FC701
C622
15P(CH)
1K
1K
1K
1K
1K
1K
1K
1K
R676
4.7K
47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31
AC RLY_CONT
1
2
3
4
5
6
7
8
9
10
CNS701
C623
18P(CH)
VDD 16
CD CLK 17 R686
CD DI 18 R687
CD DO 19 R688
CD CE 20 R689
CE 21 R690
DO 24
AVSS 25
1
2
3
4
5
6
7
8
9
10
BI701
R678
1K
R679
1K
R680
1K
R681
1K
R682
1K
R683
1K
R684
1K
10
XL701
11
4.1943MHz
X1 12
VPP/IC 13
XT2 14
CD INT 15 R685
SW OUT
LATCH
_B
_A
P
+B
C634
0.001
VDD
P37
S-BUSY
C625
220/10
84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99
C624
0.022
G1
G2
G3
G4
G5
G6
G7
G8
G9
G10
G13
G12
G11
G14
G15
P1
P2
C621
1/50
24 23 16 15 14 13 12 11 10
+B
+B
23
22
21
20
19
18
17
16
15
14
P15 12 - E
CNP401
TO MAIN PWB
13
12
11
10
9
8
7
6
5
4
3
2
1
1
CNP702
R666
1K
+B
9
+B
+B
+B
+B
LED722
4204SRT7
–B
–B
+B
R716
4.7K
10K
R670
10K
L601
100µH
+B
R672
10K
D617
DS1SS133
D616
DS1SS133
R671
10K
+B
5V BACK UP
4.8V
0V
2
3
R703
1K
SW616 SW617
CD
TAPE
R695
680
R698
820
SW612
X-BASS/
DEMO
SW611
DIMMER
+B
R696
680
R700
820
SW601
POWER
SW602
CLOCK
8
1
9
R711
100K
R706
1.5K
R701
1K
SW613
EQUALIZER
R702
1K
R705
1.5K
3
1
5.9V
2
R709
2.2K
SW621
PRESET
UP
0V
C630
10/50
C629
0.022
+B
D621
DS1SS133
RX701 N63H380A
REMOTE SENSOR
R718 R719
5.6K 10K
SW622
PLAY/
REPEAT
SW623
STOP
R723
100
1 2 3
C631
0.022
D618
DS1SS133
R712
R714
2.7K
3.9K
SW620
SW619
SW618
TUNING MEMORY/ PRESET
DOWN
SET
DOWN
+B
7
C628
3.3/50
C626
0.1/50
Q608
KTC3199 GR
R699
820
R697
680
M10V
4.2V
+B
D620
DS1SS133
5.9V
Q609
KRC102 M
R704
47K
0V
660
10K
IC704
KIA7042AP
RESET
R721
18K
R722
33K
C632
47/25
R724
100K
SW625 SW626 SW627
TUNING VIDEO/
REC/
PAUSE /TIME UP AUX
R707
1.5K
SW614
VOLUME
UP
R710
2.2K
SW615
VOLUME
DOWN
R713
2.7K
R715
3.9K
R717
68K
SW609
DISC
SKIP
SW603
TIMER/
SLEEP
10
Figure 21 SCHEMATIC DIAGRAM (10/10)
– 21 –
R720
100K
11
SW610
OPEN/
CLOSE
12
SW628
TUNER
(BAND)
CD-BA180
A
MAIN PWB-A1
L-CH
–
R-CH
+
C426
R395
C356
R353
C358
C355
R-CH
–
L-CH
–
R903
R901
R920
C907
R911
Q901 E C B
E C B Q904
R914
C908
R912
Q902
B C E Q903
D901
D903
C917
R801
+
C912
C931
C803
C930
D8
R802
REAR
SPEAKER
16 OHMS
R935
C368
C374
R356
R913
C911
R909
R908
R915
L-CH
C905
R361
C369
1 2 3
R953
SO901
SPEAKER
TERMINAL
X351
R351
R365
Q951
RL951
R919
C910
D971
R973
L921
F
C396
R392
C398
C324
VD303
FW951
R972
C903
–
1 2 3 4 5 6 7
5
R954
8 OHMS
IC9
1
C972
L920
FRONT
SPEAKER
C372
R905
R-CH
CNP971
2 1
R907
+
C429
B
C
E
D951
L-CH
D404
D403
R419
+
E C B
Q401
R401
R403
R931
R362
R975
Q971
C971
C430
R420
R421
L-CH
R-CH
R364
C373
R422
SO401
VIDEO/AUX
E
R309
C313
D305
R311
C335
R-CH
R350
C403
R407
R425
C401
R363
C371
C901
C331
C399
C366
C367
C364
C363
C338
R323 T306
VD301
C330
C334
C405
R410
R355
C357
IC303
R357
CNP951
D
R971
5 4 3 2 1
R313
C40
C404
C370
24 23 22 21 20 19 18 17 16 15 14 13
R358
C375
C317
R316
T303
R951
C308
C354
1 2 3 4 5 6 7 8 9 10 11 12
C361
C314
CF352
IC301
R314
R322
R325
R302
C303
C342
D302
C362
D301
R952
ZD351
L352
CF351
R352
CF303
C309 1 2 3
VD302
L312
R336 C316
C304
BF301
1 2 3
C312
3
2
1
C350
C351
C352
C332
AM LOOP
ANTENNA
C311
C310
T302
C323
QPWBF0582AWZZ
1
2
3
C305
A
1
2
3
JK951
HEADPHONES
CNP301
FM ANTENNA
B C E
R327
C315
C306
0
C
R359
T351
Q302
Q360
B
C
E
R385
R391
R382
T301
C307
9
8
7
6
5
4
3
2
1
R387
R383
C393
R375
C353
R381
R393
R380
C326
R377
L351
C385
C392
C380
R409
C395
R376
C365
C397
22 21 20 19 18 17 16 15 14 13 12
C394
R388
R384
R360
C391
IC302
R379
C387
C381
HEADPHONES
PWB-A3
C386
1 2 3 4 5 6 7 8 9 10 11
C318
C301
R372
R373
C382
B
R378
R374
X352
C804
G
1 2
RD
CNS971
R803
BR
H
M901
FAN MOTOR
1
2
3
4
Figure 22 WIRING SIDE OF P.W.BOARD (1/8)
– 22 –
5
6
CD-BA180
TO DISPLAY PWB
P25 10 - G
CNP702
CNS402
1
2
3
4
5
C421
C419
R423
C135
C122
C422
C412
C414
C420
IC901
C105
R138
R146
D806
D808
C813
C810
C806
D804
D802
C802
9
R804
10
Figure 23 WIRING SIDE OF P.W.BOARD (2/8)
– 23 –
A
D807
Q801
R806
0
D803
E C B
C805
3
C807
8
R805
C811
C809
R842
2
C801
7
C812
ZD801
1
R803
QPWBF0582AWZZ
B
C
D805
D801
P27 7 - C
FROM
POWER
TRANSFORMER
R807
E
R841
R831
C841
C831
ZD803
C832
D903
7
FROM
TAPE 1
PLAYBACK HEAD
ZD802
C854
C808
C833
C843
D901
C855
IC841
R910
D902
C842
Q903
1 2 3 4 5 6 7 8
F803
2.0A/250V
Q831
R832
3
C834
Q902 E C B
2
R833
C909
C908
R912
CNP802
1
C852
R906
C910
R920
C907
R911
Q901 E C B
Q904
R914
Q112
P27 10 - E
Q113
1
IC851 D851
R851
C851
3 2
F801
4.0A/125V
C853
R918
08
E C B
F802
4.0A/125V
IC852
R919
C912
B
3 2 1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
C911
P27 12 - E
FROM
TAPE 2 RECORD/
PLAYBACK HEAD
C104
Q101
R102
R101
R157
909
C140
C107
R114
R110
CNP102 C106
R113
Q108
R112
Q103
C905
R903
C901
C372
Q402
R402
R362
R111
R935
R364
C373
R933
R934
C906
R363
R115
C117
C355
C358
C123
R416
70
C410
R417
BI402
C411
C409
C407
C408
ZD351
L352
FC701
23
1
Q110
R142
B C E
C138
C423
R132
C150 R139
R136
C134
5
C425
R124
R140
1
12
GY
R141
C427
C132
C144
C131
WH
5
10
C136
IC401
R134
GY
B C E
20
15
WH
R135
C130
RD
Q111
13 R418
24
1
C133 C145
R133
C128 R122
C404
C428
R129
13
C129
R130
12
R128
C405
R131
15
R424
C126
R143
10
C424
C406
R127
C143
R126
IC101
C116
C127 C139
C418
R410
R125
5 20
R118
C137
C120
C114
R120
24
R123 C113
1
R117
C118
R121
C115 R116
C112
R109
R105
C121
22 20 18 16 14 12 10 8 6 4 2
R104
E
B Q107
C
R119
23 21 19 17 15 13 11 9 7 5 3 1
R107
C119 CNP101
CNP401
E C B Q105
C403
3 2 1 Q109
R106
7
R407
E
E
6
R425
E C B Q104
C402
5
C401
C102 C
R137
C
4
R408
R404
E C B
B
B
R108
E C B
3
C148
C935
2
C103
Q401
Q106
E
1
R401
R148
R149
C
R403
C936
R147
R931
R904
R103
B
E C B
L104
C902
1
C904
Q102
Q114
1
2
C108
C141
R902
2
3
C142
E
R932
R145
3
C
R144
R409
C426
C417
C413
R415
P26 4 - A
TO CD SERVO
PWB
CNP11
11
COLOR TABLE
BR
BROWN
RD(R)
RED
OR
ORANGE
YL
YELLOW
GR
GREEN
BL
BLUE
VL
VIOLET
GY
GRAY
WH(W)
WHITE
BK
BLACK
PK
PINK
12
CD-BA180
A
DISPLAY PWB-A2
1 2 3 RX701
6 7 8 9 10 11 12 13 14 15 16
R601
R606
R616
C632
100
SW615
VOLUME
DOWN
D611
B
C
E
E
C
B
Q607
SW610
OPEN/
CLOSE
R662
C617
G
R714
SW623
STOP
C620
E
C
B
Q605
D614
13
1
FC702
R717
R720
SW609
DISC SKIP
P27 9 - A
FROM
TAPE MECHANISM PWB
H
1
2
R672
R671
R689
R667
R712
R719
R695
E
C
B
C634
SW622
PLAY/
REPEAT
SW613
EQUALIZER
R651
R649
Q604
R636
R638
R637
SW625
REC
PAUSE
CNP703
2 4 6 8 10 12
1 3 5 7 9 11 13
R698
Q606
F
C624
R701
R707
SW621
PRESET
UP
R650
R652
C618
SW612
X-BASS
R660
C624
C613
R608
C606
R655
E
C
B
25
R604
D615
Q608
R690
R626
R618
R658
E
XL701
C612
C601
R715
C602
R617
R614
IC701
30
R625
D613
R623
2
7
IC702 C605
3
6
R607
4
5
D603
D602
R624
R619
D601
R605
10
C623
C603 R609
C610
R613
1
R603
8
D
C622
R693
R694
1
8
2
7
IC703 3
6
5
4
70
15
20
Q603
R612
C604
C611
R620
C608
R615
R610
C607
5
1
R679
R680
R688
C614
80
95
R710
R627
E
C
B
D604
ZD601
81
85
90 75
Q602
SW614
VOLUME
UP
C
E
C
B
R676
E
C
B
R678
R692
R691
SW611
DIMMER
R611
R713
C621
Q601
R668
R621
R687
R686
C631
B
23 24 25 26 27 28 2
R684 R622
R683
R682
R681 R602
R685
1 2 3
C609
3
4
Figure 24 WIRING SIDE OF P.W.BOARD (3/8)
– 24 –
5
6
CD-BA180
P26 5 - A
TO CD SERVO PWB
CNP12
10 9 8 7 6 5 4 3 2 1
BK
WH
BK
WH
BK
WH
BK
WH
BK
RD
CNS701
FL701
23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44
SW603
TIMER/
SLEEP
SW619
MEMORY/
SET
A
SW627
VIDEO/
AUX
CNP702
SW617
TAPE
2 4 6 8 10 1214 1618 20 22
1 3 5 7 9 11 13 1517 19 21 23
0
R709
D620
R697
R722
R666
R718
SW616
CD
R724
R706
SW623
STOP
C626
SW628
TUNER
R703
R714
1
2
3
Q609
R708
R656
C634
3
2
1
QPWBF0582AWZZ
D618
C630
R702
IC704
D616
D617
C628
L601
R725
R705
R663
R665
R664
C625
R653
R723
R674
R672
R675
R671
C624
R668
R710
SW602
CLOCK
R670
R673
SW620
PRESET
DOWN
R676
R713
R669
R696
R700
R716
30 31
R634
R635
R633
R629
R632
R661
R704
40
35
R647
D621
50
C629
51
R711
25
55
45
SW601
POWER
R640
60
IC701
15
20
C616
R654
10
R644
5
1
65
R646
95
R645
70
R659
100
R643
R642
80
85
90 75
BI701
D609
D608
D607
R648
R686
LED722
81
1
10
47 48 49
SW626
TUING UP
R721
R699
COLOR TABLE
1
23
FC701
SW618
TUING
DOWN
CNP401
FROM
MAIN PWB
P23 10 - A
7
8
9
10
Figure 25 WIRING SIDE OF P.W.BOARD (4/8)
– 25 –
11
BR
BROWN
RD(R)
RED
OR
ORANGE
YL
YELLOW
GR
GREEN
BL
BLUE
VL
VIOLET
GY
GRAY
WH(W)
WHITE
BK
BLACK
PK
PINK
12
CD-BA180
R72
R19
C71
C78
C73
C74
C75
C76
C77
C72
C17
R79
R13
C80
R80
C41
C82
75
70
6 5 4 3 2 1
CNP3
3
12
11
65
64
60
IC2
55
50
35
R20
45
10
C34
R40
30
X1
40 41
R82
C40
R84
C30
R94
R48
R46
R17
R16
1
1 80
20
24
25
R95
E
R67
R68
C23
5
R45
Q2
R22 R21
C47
D21
D22
22
C50
L61
R12
10
C31
21
C25
R11
C81
R38
1 2 3
25
8
7
C38
9
C56
6 5 4 3 2 1
CNP4
C39
R81
C43
R83
R53
R51
R52
20
C21
15
42
35
10 IC3
30
15
R71
R78
R73
R74
R75
R76
R77
C12
R7
R44
R35
R39
40
C49
R15
C29
5
D
C22
C20
C27
R96
1
L62
C24
R8
R4
C6
B C E
R10 R14
C26
2
C46
C13
16
15
C64
ZD61
Q1
R6
R3
C8
C54
20
10
R55
R56
C
C14
C28
CNP1
7
6
5
4
3
2
1
R42
C7
R50
4
25
IC1
C18
R5
R54
13
30
5
C55
B
R25
1
CNP12
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5
CNP11
C11
R47
E C B
Q3
C83
R58
C53
8
7
CNP2 6
5
4
3
2
1
CNS701
C45
C51
C52
CNS402
C44
A
P25 11 - A
FROM DISPLAY PWB
C42
5
CD SERVO PWB-B
P23 9 - A
FROM MAIN PWB
6
CNS3A
654 321
WH
GY
WH
GY
WH
RD
PICKUP UNIT(306)
654 321
F
CNS3B
CNS1A
CNS1B
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
RD
WH
GY
WH
GY
WH
GY
WH
1
2
3
4
5
6
7
8
1
654 321
CNP3A
1
8
SW4
PICKUP IN
+
CNS2A
7
M2
SLED MOTOR
RD
WH
BL
WH
BL
WH
BL
+
1
2
3
4
5
6
7
-
G
CD MOTOR
PWB-C
CNS2B
-
M1
SPINDLE MOTOR
H
• The numbers 1 to 13 are waveform numbers shown in page 29.
1
2
3
4
Figure 26 WIRING SIDE OF P.W.BOARD (7/8)
– 26 –
5
6
CD-BA180
P24 4 - G
TO DISPLAY PWB
CNS702
TAPE MECHANISM
ASSEMBLY
FC702
1
TAPE MECHANISM PWB-D
13
1 3 5 7 9 11 13
2 4 6 8 10 12
SW
SW
SW
PH
1
PH
2
TAPE MOTOR
+
-
SOLENOID
SOLENOID
TO MAIN PWB
P23 10 - F
CNS802
TAPE 2
RECORD/PLAYBACK HEAD
TAPE 1
PLAYBACK HEAD
RD
TAPE 2
ERASE HEAD
BR
BK
BR
YL
YL
RD
BL
RD
1 2 3 4 5 6 7 8
PT801
POWER
TRANSFORMER
WH
WH
BL
WH
BK
PK
YL
GY
1
123
1
WH
YL
PK
BK
WH
WH
RD
SO801
AC INPUT
SOCKET
BL
RD
2
3
4
5
6
BL
7
2
1
CNP101
P23 12 - E
TO MAIN PWB
CNP102
P23 12 - D
TO MAIN PWB
CNP801
2
QPWBF0582AWZZ
A
AC POWER
SUPPLY CORD
AC 120V, 60Hz
0
AC SOCKET PWB-A4
CNS4
CD LOADING MOTOR
PWB-E
BR
WH
BK
WH
BK
WH
RD
6 5 4 3 2 1
COLOR TABLE
M3
T/T UP/DOWN
MOTOR
6
1
BI4
+
–
SW3
DISC
NUMBER
7
SW1
OPEN/
CLOSE
SW2
CLAMP
8
9
10
Figure 27 WIRING SIDE OF P.W.BOARD (8/8)
– 27 –
11
BROWN
RD(R)
RED
OR
ORANGE
YL
YELLOW
GR
GREEN
BL
BLUE
VL
VIOLET
GY
GRAY
WH(W)
WHITE
BK
BLACK
PK
PINK
12
CD-BA180
NOTES ON SCHEMATIC DIAGRAM
• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chassis with no signal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “
”(
) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
POSITION
REF. NO
SW1
REF. NO
OPEN/CLOSE
DESCRIPTION
ON—OFF
SW615
VOLUME DOWN
ON—OFF
SW2
CLAMP
ON—OFF
SW616
CD
ON—OFF
SW3
DISC NUMBER
ON—OFF
SW617
TAPE
ON—OFF
SW4
PICKUP IN
ON—OFF
SW618
TUNING /TIME DOWN
ON—OFF
SW601
POWER
ON—OFF
SW619
MEMORY/SET
ON—OFF
SW602
CLOCK
ON—OFF
SW620
PRESET DOWN
ON—OFF
SW603
TIMER/SLEEP
ON—OFF
SW621
PRESET UP
ON—OFF
SW609
DISC SKIP
ON—OFF
SW622
PLAY/REPEAT
ON—OFF
SW610
OPEN/CLOSE
ON—OFF
SW623
STOP
ON—OFF
SW611
DIMMER
ON—OFF
SW625
REC/PAUSE
ON—OFF
SW612
X-BASS/DEMO
ON—OFF
SW626
TUNING/TIME UP
ON—OFF
VIDEO/AUX
ON—OFF
TUNER (BAND)
ON—OFF
SW613
EQUALIZER
ON—OFF
SW627
SW614
VOLUME UP
ON—OFF
SW628
DESCRIPTION
POSITION
TYPES OF TRANSISTOR AND LED
FRONT
VIEW
FRONT
VIEW
E C B
(S) (G) (D)
(1) (2) (3)
KTA1266 GR
KRC102 M
KRC104 M
KTA1271 Y
KTA1274 Y
2SC1845 F
KTA1273 Y
KTC3203 Y
KTC3199 GR
KRC107 M
KTC3194 Y
FRONT
VIEW
B C E
KTC2026
– 28 –
4204SRT7
CD-BA180
WAVEFORMS OF CD CIRCUIT
Stopped
CH1=500mV
DC 10:1
CH3=500mV
DC 10:1
T
1
Stopped
CH1=500mV
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1999/04/05 17:33:17
CH4=1V
500ms/div
(500ms/div)
DC 10:1
NORM:20kS/s
PDO1
FDO
IC2 24
CH3=1V
DC 10:1
7
1
IC2 1
3
4
8
TDO
2
IC2 23
T
1
CH1
v/DIV
500mV
=Filter=
Smoothing : ON
BW : FULL
=Offset=
CH1 :
0.000V
CH2 :
0.0V
CH3 :
0.000V
CH4 :
0.00V
Stopped
CH1=500mV
DC 10:1
1
IC2 24
3
IC2 72
PDO2
IC2 2
3
CH2=10V
DC 10:1
=Record Length=
Main :
100K
Zoom :
2K
CH3=1V
DC 10:1
IC2 24
FDO
1
CH1
v/DIV
500mV
=Trigger=
Mode : AUTO
Type : EDGE CH1
Delay :
0.0ns
Hold off :
0.2µs
=Filter=
Smoothing : ON
BW : FULL
500ms/div
(500ms/div)
NORM:20kS/s
Stopped
CH1=2V
DC 10:1
FDO
=Offset=
CH1 :
0.000V
CH2 :
0.0V
CH3 :
0.00V
CH4 :
0.00V
=Record Length=
Main :
100K
Zoom :
2K
T
=Trigger=
Mode : AUTO
Type : EDGE CH2
Delay :
0.0ns
Hold off :
0.2µs
1999/04/07 09:25:28
500ns/div
(500ns/div)
NORM:200MS/s
1
T
4
T
2
IC1 18 ,
DRF
9
TE
IC2 37
1
DOUT
3
IC2 16
CH Position To
-3div
-1div
0div
+1div
+3div
=Filter=
=Offset=
=Record Length=
Smoothing : ON CH1 :
0.000V
Main :
100K
BW : FULL
CH2 :
0.0V
Zoom :
2K
CH3 :
0.00V
CH4 :
0.00V
CH2
Position
0.20div
=Trigger=
Mode : AUTO
Type : EDGE CH1
Delay :
0.0ns
Hold off :
0.2µs
=Filter=
Smoothing : ON
BW : FULL
Stopped
CH1=2V
DC 10:1
5
=Offset=
CH1 :
0.00V
CH2 :
0.00V
CH3 :
0.00V
CH4 :
0.00V
=Record Length=
Main :
1K
Zoom :
100
T
CH2=2V
DC 10:1
CH3=2V
DC 10:1
=Trigger=
Mode : NORMAL
Type : EDGE CH1
Delay :
2.887ms
Hold off :
0.2µs
1999/04/05 20:50:17
5us/div
(5us/div)
NORM:100kS/s
IC1 27
10
IC2 57
1
LRSY
11
IC2 58
2
DATACK
Vp-p=1.0V~1.3V
0.5mV/div,0.5µsec/div
12
T
Stopped
CH1=10V
DC 10:1
CH2=1V
DC 10:1
100ms/div
(100ms/div)
NORM:100kS/s
IC2 59
T
3
DATA
=Filter=
Smoothing : ON
BW : FULL
4
3
TE
IC1 18 ,
2
IC2 72
T
1
DRF
T
Stopped
CH1=500mV
DC 10:1
1
=Offset=
CH1 :
0.0V
CH2 :
0.00V
CH3 :
0.00V
CH4 :
0.00V
Stopped
CH1=200mV
DC 10:1
=Record Length=
Main :
100K
Zoom :
2K
T
=Trigger=
Mode : NORMAL
Type : EDGE CH1
Delay :
2.924ms
Hold off :
0.2µs
4
1999/04/07 09:51:15
500ms/div
(500ms/div)
NORM:20kS/s
CH2=500mV
DC 10:1
13
T
IC2 24
T
=Record Length=
Main :
5K
Zoom : 100
=Trigger=
Mode : AUTO
Type : EDGE CH3
Delay :
0.0ns
Hold off :
0.2µs
CH2=200mV
DC 10:1
CH3=1V
DC 10:1
FDO
IC1 18 ,
TE
3
IC2 16
IC1 13 ,
EFBL
2
IC2 22
FDO
IC2 24
IC2 25
CH2
v/DIV
200mV
2
1
SPDO
=Filter=
Smoothing : ON
BW : FULL
1999/04/05 20:26:47
500ms/div(500ms/div)
NORM:20kS/s
1
=Filter=
Smoothing : ON
BW : FULL
6
=Offset=
CH1 :
0.00V
CH2 :
0.00V
CH3 :
0.00V
CH4 :
0.00V
IC2 16
=Filter=
Smoothing : ON
BW : FULL
1
CH3
v/DIV
2V
=Offset=
CH1 :
0.000V
CH2 :
0.000V
CH3 :
0.00V
CH4 :
0.00V
=Record Length=
Main :
100K
Zoom :
2K
=Trigger=
Mode : NORMAL
Type : EDGE CH2
Delay :
2.924ms
Hold off :
0.2µs
– 29 –
=Offset=
CH1 :
0.000V
CH2 :
0.000V
CH3 :
0.00V
CH4 :
0.00V
=Record Length=
Main : 100K
Zoom :
2k
=Trigger=
Mode : SINGLE
Type : EDGE CH1
Delay :
0.0ns
Hold off :
0.2µs
CD-BA180
VOLTAGE
IC2
IC1
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
VOLTAGE
1.6V
1.6V
1.6V
1.6V
1.6V
1.6V
0V
2.6V
0V
0V
0V
3.3V
1.6V
1.6V
1.6V
0V
0V
1.6V
1.6V
1.6V
1.6V
1.6V
0V
1.6V
0V
0V
0V
1.6V
1.6V
3.3V
IC3
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
VOLTAGE
1.6V
1.6V
1.8V
2.1V
2.1V
2.1V
2.1V
0V
0V
0V
0V
0V
0V
0V
2.1V
2.1V
1.6V
4.9V
3.5V
1.6V
0V
0V
4.9V
4.9V
1.6V
2.1V
2.1V
1.9V
0V
0V
0V
0V
0V
0V
0V
4.2V
0V
2.1V
2.1V
4.9V
2.1V
2.1V
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
VOLTAGE
0.7V
0V
0V
0V
3.3V
2.4V
0V
0V
1.6V
0V
4.7V
1.7V
0V
1.6V
1.6V
1.6V
1.6V
3.3V
0V
1.6V
1.6V
1.6V
1.6V
1.6V
1.6V
1.6V
1.6V
0V
0V
2.1V
2.1V
0V
3.3V
3.5V
3.3V
3.3V
3.3V
1.6V
1.6V
0V
0V
3.3V
3.3V
3.0V
1.5V
0V
0V
1.5V
3.0V
3.3V
1.8V
3.0V
0V
0V
0V
0V
1.7V
3.3V
0V
3.0V
1.6V
0V
2.4V
0V
0V
0V
0V
4.8V
4.9V
4.9V
4.6V
0V
4.9V
0V
0V
0V
3.2V
0V
0V
3.4V
IC101
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
VOLTAGE
0V (0V)
0V (0V)
0.5V (0.5V)
1.9V (1.9V)
0V (0V)
0V (0V)
0V (0V)
0.6V (0.6V)
3.3V (3.3V)
3.3V (3.3V)
0V (0V)
0V (0V)
6.7V (6.7V)
4.0V (4.0V)
0V (0V)
3.3V (3.3V)
0.6V (0.6V)
0V (0V)
0V (0V)
0V (0V)
1.9V (1.9V)
0.5V (0.5V)
0V (0V)
0V (0V)
IC301
PIN
NO.
1
2
3
4
5
6
7
8
9
VOLTAGE
0.8V (0V)
1.5V (0V)
3.6V (0.4V)
1.5V (0V)
0V (0V)
3.6V (0.4V)
2.8V (0.2V)
3.5V (0.3V)
3.6V (0.3V)
IC302
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
VOLTAGE
2.4V (2.4V)
0V (0V)
0V (0V)
0V (0V)
4.6V (4.7V)
4.8V (4.9V)
0.1V (9.9V)
4.2V (0V)
3.3V (0V)
3.4V (0V)
4.6V (4.9V)
2.2V (0V)
4.6V (4.9V)
0V (0V)
0V (2.4V)
2.3V (0V)
4.6V (4.9V)
0.8V (4.9V)
0.8V (4.9V)
1.1V (0V)
0V (0V)
2.5V (3.0V)
IC303
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
VOLTAGE
2.1V (2.4V)
4.5V (4.8V)
2.1V (2.1V)
2.1V (2.1V)
0V (0V)
4.6V (4.6V)
4.6V (4.6V)
2.4V (3.2V)
4.5V (4.8V)
3.9V (0V)
3.3V (1.8V)
3.3V (1.1V)
3.5V (2.0V)
1.2V (1.2V)
1.2V (1.2V)
2.0V (2.0V)
2.7V (0V)
2.1V (0.9V)
0V (1.9V)
0.3V (0.9V)
2.6V (2.0V)
3.5V (3.0V)
IC401
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
VOLTAGE
0V
0V
0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
10.0V
0V
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
IC701
PIN
VOLTAGE
NO.
5.0V
51
0V
52
5.0V
53
0V
54
5.0V
55
5.0V
56
5.0V
57
1.2V
58
0.87V
59
4.84V
60
2.38V
61
2.06V
62
0V
63
0V
64
1.4V
65
4.89V
66
4.8V
67
0V
68
2.3V
69
0V
70
0V
71
0V
72
0V
73
4.44V
74
0.3V
75
0V
76
0V
77
0V
78
0V
79
0V
80
5.1V
81
5.1V
82
5.1V
83
4.9V
84
5.0V
85
4.9V
86
4.9V
87
0V
88
5.0V
89
0V
90
1.7V
91
8.0V
92
7.9V
93
8.0V
94
3.8V
95
4.89V
96
4.89V
97
4.89V
98
4.29V
99
4.29V
100
IC704
VOLTAGE
4.29V
4.29V
4.29V
4.29V
4.29V
4.29V
0V
0V
–27.8V
–27.8V
0V
0V
–27.7V
–27.7V
–27.7V
–27.7V
–27.7V
–27.7V
–20.4V
–22.1V
–25.9V
–27.7V
–24.1V
–24.4V
–25.9V
–22.2V
–22.2V
–22.3V
–27.8V
–27.7V
–27.7V
27.7V
–20.3V
–24.0V
–20.3V
2.38V
2.58V
–25.8V
–25.8V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
PIN
NO.
1
2
3
VOLTAGE
5.0V
0V
5.0V
IC702
PIN
NO.
1
2
3
4
5
6
7
8
VOLTAGE
0V
0V
0V
–11.0V
0V
0V
0V
5.58V
IC703
PIN
NO.
1
2
3
4
5
6
7
8
VOLTAGE
0V
0V
0V
–11.0V
0V
0V
0V
5.58V
IC901
PIN
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
VOLTAGE
0V
0V
0V
34.4V
–32.9V
0V
0V
35.4V
–35.1V
0V
0V
–34.0V
0V
0V
0V
IC852
PIN
NO.
1
2
3
VOLTAGE
19.4V
0V
5.76V
IC851
PIN
NO.
1
2
3
VOLTAGE
19.4V
0V
5V
IC841
PIN
NO.
1
2
3
VOLTAGE
19.41V
0V
10V
Q831
PIN
NO.
1
2
3
– 30 –
VOLTAGE
10.0V
19.41V
10.0V
CD-BA180
FL DISPLAY
FL701 VVKBJ11LM02T1: FL Display
11G
B21
B20
B19
B18
B17
B16
B15
S1
B7 B6 B5 B4
10G
S1
S1
B3
B2
B1
1G
2G
B8
B9
B10
B11
B12
B13
B14
3G
4G
9G
S1
S1
B7
B6
B5
B4
B3
B2
B1
5G
6G
7G
S1
8G
B1
B2
B3 B4
B5 B6 B7
S4
S5
S2
S3
a
j
h
f
g
col
e
k
b
m
n
r
p
c
d
Dp
11G
10G
9G
8G
7G
6G
5G
4G
3G
2G
1G
P1
S1
S1
S1
Dp
Dp
Dp
Dp
Dp
Dp
Dp
Dp
P2
B1
B1
B1
d
d
d
d
d
d
d
d
P3
B2
B2
B2
c
c
c
c
c
c
c
c
P4
B3
B3
B3
n
n
n
n
n
n
n
n
P5
B4
B4
B4
p
p
p
p
p
p
p
p
P6
B5
B5
B5
r
r
r
r
r
r
r
r
P7
B6
B6
B6
e
e
e
e
e
e
e
e
P8
B7
B7
B7
m
m
m
m
m
m
m
m
g
g
g
g
g
g
g
g
P9
B8
P10
B9
P11
B10
b
b
b
b
b
b
b
b
P12
B11
k
k
k
k
k
k
k
k
P13
B12
j
j
j
j
j
j
j
j
P14
B13
h
h
h
h
h
h
h
h
P15
B14
f
f
f
f
f
f
f
f
P16
B15
a
a
a
a
a
a
a
a
P17
B16
S2
S2
S2
S2
S2
S2
S2
S2
P18
B17
S3
S3
S3
S3
S3
S3
S3
S3
P19
B18
S4
S4
S4
S4
S4
S4
S4
S4
P20
B19
S5
S5
S5
S5
S5
S5
S5
S5
P21
B20
P22
B21
col
– 31 –
CD-BA180
–– MEMO ––
– 32 –
CD-BA180
PARTS GUIDE
MINI COMPONENT SYSTEM
MODEL CD-BA180
CD-BA180 Mini Component System consisting of
CD-BA180 (main unit), CP-BA180 (front speaker) and
GBOXS0040AWM1 (rear speaker).
“HOW TO ORDER REPLACEMENT PARTS”
To have your order filled promptly and correctly, please furnish the
following information.
1. MODEL NUMBER
2. REF. No.
3. PART NO.
4. DESCRIPTION
For U.S.A. only
Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP
MARK: SPARE PARTS-DELIVERY SECTION
Explanation of capacitors/resistors parts codes
Capacitors
Resistors
VCC ....................... Ceramic type
VCK ........................ Ceramic type
VCT ........................ Semiconductor type
VC • • MF ............... Cylindrical type (without lead wire)
VC • • MN ............... Cylindrical type (without lead wire)
VC • • TV ................ Square type (without lead wire)
VC • • TQ ............... Square type (without lead wire)
VC • • CY ............... Square type (without lead wire)
VC • • CZ ............... Square type (without lead wire)
VC • • • • • • • • • J .. The 13th character represents capacity difference.
("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)
VRD ....................... Carbon-film type
VRS ........................ Carbon-film type
VRN ....................... Metal-film type
VR • • MF ............... Cylindrical type (without lead wire)
VR • • MN ............... Cylindrical type (without lead wire)
VR • • TV ................ Square type (without lead wire)
VR • • TQ ............... Square type (without lead wire)
VR • • CY ............... Square type (without lead wire)
VR • • CZ ............... Square type (without lead wire)
VR • • • • • • • • • J .. The 13th character represents error.
("J" ±5%, "F" ±1%, "D" ±0.5%.)
If there are no indications for the electrolytic capacitors, error is ±20%.
If there are no indications for other parts, the resistors are ±5%
carbon-film type.
NOTE:
Parts marked with “
” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.
– 33 –
CD-BA180
NO.
PRICE
RANK
PARTS CODE
DESCRIPTION
NO.
!
INTEGRATED CIRCUITS
IC1
IC2
IC3
VHILA9235M/-1
VHILC78641E-1
VHIM63001FP-1
J
J
J
IC101
VHIAN7345K/-1
J
IC301
IC302
IC303
VHITA7358AP-1
VHILC72131/-1
VHILA1832S/-1
J
J
J
IC401
IC701
VHILC75341/-1
RH-IX0328AWZZ
J
J
IC702,703
IC704
IC841
IC851
IC852
VHIKIA4558P-1
VHIKIA7042AP1
VHIKIA7810AP1
VHIKIA7805P-1
VHIAN78L05/-1
J
J
J
J
J
IC901
VHISTK40204-1
J
AQ Servo Amp.,LA9235M
AV Servo/Signal Control,LC78641E
AX Focus/Tracking/Spin/Sled Driver,
M63001FP
AM Playback and Record/Playback
Amp.,AN7345K
AG FM Front End,TA7358AP
AP PLL (Tuner),LC72131
AN FM IF Det./FM Mpx./AM IF,
LA1832S
AM Audio Processor,LC75341
AX System Microcomputer,
IX0328AW
AC Ope Amp.,KIA4558P
AC Reset,KIA7042AP
AF Voltage Regulator,KIA7810AP
AF Voltage Regulator,KIA7805P
AE Constant Voltage Regulator,
AN78L05
AX Power AMP.,STK40204
TRANSISTORS
VSKTC3203Y/-1
VSKRC102M//-1
VSKTA1266GR-1
VSKTA1266GR-1
VSKRC104M//-1
VS2SC1845F/-1
VSKTC3199GR-1
VSKTA1266GR-1
VSKRC104M//-1
VSKTC3203Y/-1
VSKTC3194Y/-1
VSKTA1266GR-1
VSKTC3199GR-1
VSKTC3199GR-1
VSKTA1271Y/-1
VSKTA1273Y/-1
VSKTC3199GR-1
VSKRC102M//-1
VSKTA1274Y/-1
VSKTC2026//-1
VSKTC3199GR-1
VSKRC107M//-1
VSKTC3203Y/-1
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AC
AC
AB
AB
AC
AC
AB
AB
AC
AC
AD
AB
AB
AB
AC
AE
AB
AC
AE
AF
AB
AC
AC
Silicon,NPN,KTC3203 Y
Digital,NPN,KRC102 M
Silicon,PNP,KTA1266 GR
Silicon,PNP,KTA1266 GR
Digital,NPN,KRC104 M
Silicon,NPN,2SC1845 F
Silicon,NPN,KTC3199 GR
Silicon,PNP,KTA1266 GR
Digital,NPN,KRC104 M
Silicon,NPN,KTC3203 Y
Silicon,NPN,KTC3194 Y
Silicon,PNP,KTA1266 GR
Silicon,NPN,KTC3199 GR
Silicon,NPN,KTC3199 GR
Silicon,PNP,KTA1271 Y
Silicon,PNP,KTA1273 Y
Silicon,NPN,KTC3199 GR
Digital,NPN,KRC102 M
Silicon,PNP,KTA1274 Y
Silicon,NPN,KTC2026
Silicon,NPN,KTC3199 GR
Digital,NPN,KRC107 M
Silicon,NPN,KTC3203 Y
VHDDS1SS133-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDTS6B04GM-1
VHD1N4004S/-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDDS1SS133-1
VHDDS1SS133-1
VHP4204SRT7-1
VHEDZ3R9BSB-1
VHEDZ5R1BSB-1
VHEDZ6R2BSC-1
VHEDZ300BSB-1
VHEDZ6R2BSA-1
VHEDZ130BSB-1
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AB
AB
AB
AB
AB
AB
AB
AB
AB
AP
AB
AB
AB
AB
AB
AD
AC
AC
AB
AB
AB
AB
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,TS6B04GM
Silicon,1N4004S
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,DS1SS133
Silicon,DS1SS133
LED,Red,4204SRT7
Zener,3.9V,DZ3.9BSB
Zener,5.1V,DZ5.1BSB
Zener,6.2V,DZ6.2BSC
Zener,30V,DZ30BSB
Zener,6.2V,DZ6.2BSA
Zener,13V,DZ13BSB
RFILR0008AWZZ
RFILF0124AFZZ
RFILF0003AWZZ
RFILA0009AWZZ
J
J
J
J
AE
AD
AK
AE
Band Pass Filter
FM IF,10.7 MHz
FM IF
AM IF
DIODES
D21,22
D301,302
D305
D403,404
D601~604
D607
D611
D613~618
D620,621
D801
D802~808
D851
D901~903
D951
D971
LED722
ZD61
ZD351
ZD601
ZD801
ZD802
ZD803
FILTERS
BF301
CF303
CF351
CF352
DESCRIPTION
TRANSFORMERS
CD-BA180
Q1
Q2
Q3
Q101
Q102,103
Q104~107
Q108~111
Q112
Q113
Q114
Q302
Q360
Q401,402
Q601~604
Q605,606
Q607
Q608
Q609
Q801
Q831
Q901~904
Q951
Q971
PRICE
RANK
PARTS CODE
PT801
T301
T302
T303
T306
T351
RTRNP0294AWZZ
RCILB0065AWZZ
RCILI0017AWZZ
RCILA0052AWZZ
RCILB0067AWZZ
RCILI0019AWZZ
J
J
J
J
J
J
BC
AC
AB
AE
Power
OSC,FM
FM IF
AM Antenna
AM OSC
AD AM IF
VP-XHR82K0000
VP-DH2R2K0000
VP-MK331K0000
RCILR0056AWZZ
VP-DH101K0000
VP-DH101K0000
RCILZ0026AWZZ
J
J
J
J
J
J
J
AC
AB
AB
AB
AB
AB
COILS
L61
L62
L104
L312
L351,352
L601
L920,921
0.82 µH
2.2 µH,Choke
330 µH,Choke
FM RF
100 µH,Choke
100 µH,Choke
0.29 µH
VARIABLE CAPACITORS
VD301
VD302,303
VHCSVC348S/-1
VHCKDV147B/-1
J
J
AK Variable Capacitance,SVC348S
AH Variable Capacitance,KDV147B
J
J
J
J
AH Crystal,16.9344 MHz
AF Crystal,456 kHz
Crystal,4.5 MHz
AH Crystal,4.1943 MHz
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AC
AC
AA
AB
AA
AA
AC
AA
AA
AB
AA
AA
AB
AA
AA
AC
AB
AA
AC
AA
AC
AA
AC
AA
AA
AA
AC
AA
AC
AC
AB
AA
AA
AB
AA
AC
AB
AA
AA
AA
AA
AA
AA
AA
AC
AA
AB
AA
AA
AB
VIBRATORS
X1
X351
X352
XL701
92LCRSTL1746AT
92LCRSTL1425A
RCRSP0019AWZZ
RCRSP0003AWZZ
CAPACITORS
C6
C7
C8
C11
C12
C13
C14
C17
C18
C20,21
C22
C23
C24
C25
C26
C27
C28
C29,30
C31
C34
C38,39
C40
C41
C42
C43
C44
C45
C46
C47
C49,50
C51
C52
C53
C54
C55
C56
C64
C71
C72
C73~78
C80~83
C102,103
C104,105
C106,107
C108
C112~115
C116,117
C118,119
C120,121
C122,123
–1–
VCEAZA0JW107M
VCEAZA1CW106M
VCKYTV1EF223Z
RC-EZY476AF0J
VCKYTV1EF223Z
VCKYTV1HB103K
VCFYDA1HA334J
VCKYTV1HB472K
VCCCTV1HH3R0C
VCTYPA1CX104K
VCKYTV1HB101K
VCTYPA1CX473K
VCEAZA1HW225M
VCKYTV1EF223Z
VCTYPA1CX473K
VCKYBT1HF104Z
VCEAZA1AW476M
VCKYTV1EF223Z
VCEAZA0JW107M
VCKZPA1HF223Z
VCEAZA1CW106M
VCKYTV1HB152K
VCEAZA0JW107M
VCCCTV1HH680J
VCKYTV1HB152K
VCKYTV1EF223Z
VCEAZA0JW107M
VCKYTV1EF223Z
VCEAZA0JW107M
VCEAZA0JW107M
VCEAZA1AW476M
VCTYPA1CX103K
VCKYTV1HB102K
VCEAZA1AW476M
VCKYTV1HB103K
VCEAZA0JW337M
RC-EZY476AF0J
VCKYTV1HB101K
VCKYTV1HB103K
VCKYTV1HB101K
VCKYTV1EF223Z
VCKYMN1HB102K
VCKYMN1HB181K
VCKYMN1HB102K
VCEAZA1CW107M
VCKYMN1HB331K
VCEAZA1AW107M
VCTYPA1EX333K
VCKYMN1HB561K
VCEAZA1EW476M
100 µF,6.3V,Electrolytic
10 µF,16V,Electrolytic
0.022 µF,25V
47 µF,6.3V,Electrolytic
0.022 µF,25V
0.01 µF,50V
0.33 µF,50V,Thin Film
0.0047 µF,50V
3 pF (CH),50V
0.1 µF,16V
100 pF,50V
0.047 µF,16V
2.2 µF,50V,Electrolytic
0.022 µF,25V
0.047 µF,16V
0.1 µF,50V
47 µF,10V,Electrolytic
0.022 µF,25V
100 µF,6.3V,Electrolytic
0.022 µF,50V
10 µF,16V,Electrolytic
0.0015 µF,50V
100 µF,6.3V,Electrolytic
68 pF (CH),50V
0.0015 µF,50V
0.022 µF,25V
100 µF,6.3V,Electrolytic
0.022 µF,25V
100 µF,6.3V,Electrolytic
100 µF,6.3V,Electrolytic
47 µF,10V,Electrolytic
0.01 µF,16V
0.001 µF,50V
47 µF,10V,Electrolytic
0.01 µF,50V
330 µF,6.3V,Electrolytic
47 µF,6.3V,Electrolytic
100 pF,50V
0.01 µF,50V
100 pF,50V
0.022 µF,25V
0.001 µF,50V
180 pF,50V
0.001 µF,50V
100 µF,16V,Electrolytic
330 pF,50V
100 µF,10V,Electrolytic
0.033 µF,25V
560 pF,50V
47 µF,25V,Electrolytic
CD-BA180
NO.
C126,127
C128,129
C130,131
C132,133
C134,135
C136
C137
C138
C139
C140
C141
C142
C143
C144
C145
C148
C150
C301
C302
C303
C304
C305
C306
C307
C308
C309
C310
C311
C312
C313
C314,315
C316
C317
C318
C323
C324
C326
C330
C331
C332
C334
C335
C338
C342
C350,351
C352
C353,354
C355
C356
C357
C358
C361
C362
C363
C364
C365
C366
C367,368
C369
C370~372
C373,374
C375
C380
C381
C382
C385
C386
C387
C391
C392
C393
C394
C395
C396
C397
C398
C399
C401,402
C403
C404
C405
C406
C407,408
PARTS CODE
VCKYMN1HB271K
VCEAZA1EW226M
VCTYPA1CX223K
VCTYMN1CX332K
VCEAZA1EW476M
VCEAZA1EW226M
VCTYMN1EF223Z
VCEAZA1AW227M
VCEAZA1HW335M
VCQPKA2AA822J
VCQYKA1HM393K
VCEAZA1EW476M
VCKYMN1CX222K
VCKYPA1HB222K
VCKYMN1HB102K
VCQYKA1HM473K
VCEAZA1EW226M
VCTYMN1CY103N
VCKYMN1HB102K
VCCCMN1HH100J
VCTYMN1CY103N
VCCCMN1HH4R7C
VCTYMN1EF223Z
VCEAZA1CW106M
VCCSMN1HL4R7C
VCKYMN1HB102K
VCCCMN1HH150J
VCCCMN1HH180J
VCTYMN1EF223Z
VCCCMN1HH220J
VCTYMN1CX472K
VCTYMN1EF223Z
VCKYMN1HB102K
VCKYMN1HB101K
VCTYMN1EF223Z
VCCUMN1HJ8R2D
VCKYBT1HB102K
VCCUMN1HJ150J
VCKZPA1HF473Z
VCTYMN1EF223Z
VCCUMN1HJ270J
VCKYMN1HB561K
VCKYMN1HB102K
VCTYMN1EF223Z
VCTYMN1EF223Z
VCEAZA1CW106M
VCTYMN1EF223Z
VCCSMN1HL220J
VCKYMN1HB102K
VCEAZA1HW225M
VCEAZA1HW105M
VCTYMN1EF223Z
VCEAZA1HW335M
VCTYMN1EF223Z
VCEAZA1CW106M
VCKZPA1HF223Z
VCKYMN1HB102K
VCEAZA1HW105M
VCCUMN1HJ270J
VCEAZA1HW105M
VCTYPA1CX153K
VCKYMN1HB102K
VCEAZA1CW106M
VCCCMN1HH120J
VCCCMN1HH150J
VCTYMN1CY103N
VCKYMN1HB331K
VCTYMN1EF223Z
VCEAZA1CW476M
VCKYMN1HB102K
VCEAZA1HW105M
VCEAZA1CW476M
VCTYMN1EF223Z
VCEAZA1AW107M
VCTYMN1EF223Z
VCEAZA1AW107M
VCTYMN1EF223Z
VCKYMN1HB102K
VCEAZA1EW226M
VCEAZA1CW107M
VCKZPA1HF223Z
VCEAZA1HW226M
VCEAZA1HW106M
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
PRICE
RANK
DESCRIPTION
AA
AB
AA
AA
AB
AB
AA
AC
AB
AA
AB
AB
AA
AA
AA
AB
AB
AA
AA
AA
AA
AA
AA
AC
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AC
AA
AA
AA
AB
AB
AA
AB
AA
AC
AA
AA
AB
AA
AB
AA
AA
AC
AA
AA
AA
AA
AA
AB
AA
AB
AB
AA
AB
AA
AB
AA
AA
AB
AC
AA
AB
AB
270 pF,50V
22 µF,25V,Electrolytic
0.022 µF,16V
0.0033 µF,16V
47 µF,25V,Electrolytic
22 µF,25V,Electrolytic
0.022 µF,25V
220 µF,10V,Electrolytic
3.3 µF,50V,Electrolytic
0.0082 µF,100V,Polypropylene
0.039 µF,50V,Mylar
47 µF,25V,Electrolytic
0.0022 µF,16V
0.0022 µF,50V
0.001 µF,50V
0.047 µF,50V,Mylar
22 µF,25V,Electrolytic
0.01 µF,16V
0.001 µF,50V
10 pF (CH),50V
0.01 µF,16V
4.7 pF (CH),50V
0.022 µF,25V
10 µF,16V,Electrolytic
4.7 pF,50V
0.001 µF,50V
15 pF (CH),50V
18 pF (CH),50V
0.022 µF,25V
22 pF (CH),50V
0.0047 µF,16V
0.022 µF,25V
0.001 µF,50V
100 pF,50V
0.022 µF,25V
8.2 pF (UJ),50V
0.001 µF,50V
15 pF (UJ),50V
0.047 µF,50V
0.022 µF,25V
27 pF (UJ),50V
560 pF,50V
0.001 µF,50V
0.022 µF,25V
0.022 µF,25V
10 µF,16V,Electrolytic
0.022 µF,25V
22 pF,50V
0.001 µF,50V
2.2 µF,50V,Electrolytic
1 µF,50V,Electrolytic
0.022 µF,25V
3.3 µF,50V,Electrolytic
0.022 µF,25V
10 µF,16V,Electrolytic
0.022 µF,50V
0.001 µF,50V
1 µF,50V,Electrolytic
27 pF (UJ),50V
1 µF,50V,Electrolytic
0.015 µF,16V
0.001 µF,50V
10 µF,16V,Electrolytic
12 pF (CH),50V
15 pF (CH),50V
0.01 µF,16V
330 pF,50V
0.022 µF,25V
47 µF,16V,Electrolytic
0.001 µF,50V
1 µF,50V,Electrolytic
47 µF,16V,Electrolytic
0.022 µF,25V
100 µF,10V,Electrolytic
0.022 µF,25V
100 µF,10V,Electrolytic
0.022 µF,25V
0.001 µF,50V
22 µF,25V,Electrolytic
100 µF,16V,Electrolytic
0.022 µF,50V
22 µF,50V,Electrolytic
10 µF,50V,Electrolytic
NO.
–2–
C409~412
C413,414
C417,418
C419,420
C421~428
C429,430
C601
C602
C603,604
C605
C606
C607,608
C609
C610
C611
C612~614
C616
C617,618
C620
C621
C622
C623
C624
C625
C626
C628
C629
C630
C631
C632
C634
C801,802
C803,804
C805,806
C807
C808,809
C810
C811
C812
C813
C831
C832
C833
C834
C841,842
C843
C851
C852
C853,854
C855
C901,902
C903,904
C905,906
C907,908
C909,910
C911,912
C917
C930,931
C935,936
C971
C972
PRICE
RANK
PARTS CODE
VCQYKA1HM104K
VCTYMN1CX272K
VCEAZA1HW105M
VCEAZA1HW475M
VCEAZA1HW105M
VCKYMN1HB391K
VCCSPA1HL271J
VCTYMN1CX272K
VCTYMN1CX682K
VCKYMN1HB271K
VCTYMN1CX272K
VCTYMN1EF223Z
VCEAZA1HW476M
VCTYMN1EF223Z
VCKZPA1HF223Z
VCEAZA1HW225M
VCEAEA1HW105M
VCEAZA1CW106M
VCEAZA1EW476M
VCEAZA1HW105M
VCCCMN1HH150J
VCCCMN1HH180J
VCTYBT1EF223Z
VCEAZA1AW227M
VCEAEA1HW104M
VCEAZA1HW335M
VCKZPA1HF223Z
VCEAZA1HW106M
VCTYMN1EF223Z
VCEAZA1EW476M
VCKYBT1HB102K
VCQYKA1HM473K
VCEAZW1HW228M
VCQYKA1HM473K
VCEAZW1EW338M
VCEAZA1HW107M
VCEAZV1HW227M
VCEAZA1HW476M
VCEAZA1HW107M
VCEAZA1VW107M
VCEAZA1EW227M
VCKZPA1HF223Z
VCEAZA1EW226M
VCQYKA1HM473K
VCQYKA1HM104K
VCEAZA1EW476M
VCQYKA1HM104K
VCKZPA1HF223Z
VCEAZA1EW476M
VCQYKA1HM473K
VCCSPA1HL221J
VCCSPA1HL150J
VCEAZA1HW476M
VCKZPA1HF223Z
VCEAZA1HW107M
VCEAZA1HW106M
VCEAZA1HW476M
VCEAZA1HW226M
VCEAZA1HW106M
VCEAZA1HW476M
VCEAZA1HW106M
DESCRIPTION
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AB
AA
AB
AB
AB
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AB
AB
AC
AB
AB
AA
AA
AA
AC
AB
AB
AA
AB
AA
AB
AA
AB
AH
AB
AG
AC
AD
AB
AC
AC
AC
AA
AB
AB
AB
AB
AB
AA
AB
AB
AA
AA
AB
AA
AC
AB
AB
AB
AB
AB
AB
0.1 µF,50V,Mylar
0.0027 µF,16V
1 µF,50V,Electrolytic
4.7 µF,50V,Electrolytic
1 µF,50V,Electrolytic
390 pF,50V
270 pF,50V
0.0027 µF,16V
0.0068 µF,16V
270 pF,50V
0.0027 µF,16V
0.022 µF,25V
47 µF,50V,Electrolytic
0.022 µF,25V
0.022 µF,50V
2.2 µF,50V,Electrolytic
1 µF,50V,Electrolytic
10 µF,16V,Electrolytic
47 µF,25V,Electrolytic
1 µF,50V,Electrolytic
15 pF (CH),50V
18 pF (CH),50V
0.022 µF,25V
220 µF,10V,Electrolytic
0.1 µF,50V,Electrolytic
3.3 µF,50V,Electrolytic
0.022 µF,50V
10 µF,50V,Electrolytic
0.022 µF,25V
47 µF,25V,Electrolytic
0.001 µF,50V
0.047 µF,50V,Mylar
2200 µF,50V,Electrolytic
0.047 µF,50V,Mylar
3300 µF,25V,Electrolytic
100 µF,50V,Electrolytic
220 µF,50V,Electrolytic
47 µF,50V,Electrolytic
100 µF,50V,Electrolytic
100 µF,35V,Electrolytic
220 µF,25V,Electrolytic
0.022 µF,50V
22 µF,25V,Electrolytic
0.047 µF,50V,Mylar
0.1 µF,50V,Mylar
47 µF,25V,Electrolytic
0.1 µF,50V,Mylar
0.022 µF,50V
47 µF,25V,Electrolytic
0.047 µF,50V,Mylar
220 pF,50V
15 pF,50V
47 µF,50V,Electrolytic
0.022 µF,50V
100 µF,50V,Electrolytic
10 µF,50V,Electrolytic
47 µF,50V,Electrolytic
22 µF,50V,Electrolytic
10 µF,50V,Electrolytic
47 µF,50V,Electrolytic
10 µF,50V,Electrolytic
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
0 ohm,Jumper,ø1.4×3.5mm,Ivory
0 ohm,Jumper,1.25×2mm,Green
47 kohms,1/10W
10 kohm,1/10W
39 kohms,1/10W
27 kohms,1/10W
6.8 kohms,1/10W
330 ohms,1/10W
27 kohms,1/10W
12 kohms,1/10W
680 ohms,1/10W
1.2 kohms,1/10W
10 kohm,1/10W
10 kohm,1/6W
1 kohm,1/6W
47 ohms,1/6W
220 ohms,1/10W
470 ohms,1/10W
10 kohm,1/6W
RESISTORS
R3
R4
R5
R6
R7
R8
R10
R11
R12,13
R14
R15
R16
R17
R19
R20
R21,22
R25
VRD-MN2BD000C
VRS-TV2AB000J
VRS-TV2AB473J
VRS-TV2AB103J
VRS-TV2AB393J
VRS-TV2AB273J
VRS-TV2AB682J
VRS-TV2AB331J
VRS-TV2AB273J
VRS-TV2AB123J
VRS-TV2AB681J
VRS-TV2AB122J
VRS-TV2AB103J
VRD-ST2CD103J
VRD-ST2CD102J
VRD-ST2CD470J
VRS-TV2AB221J
VRS-TV2AB471J
VRD-ST2CD103J
CD-BA180
NO.
R35
R38
R39
R40
R42
R44
R45
R46
R47
R48
R50
R51~54
R55,56
R58
R67,68
R71~78
R79
R80
R81,82
R83,84
R94,95
R96
R101,102
R103
R104,105
R106,107
R108,109
R110
R111,112
R113
R114,115
R116,117
R118,119
R120,121
R122,123
R124,125
R126
R127,128
R129,130
R131,132
R133,134
R135,136
R137
R138
R139
R140
R141
R142,143
R144
R145
R146
R147
R148
R149
R157
R302
R309
R311
R313
R314
R316
R322
R323
R325
R327
R336
R350
R351
R352
R353
R355
R356
R357
R358
R359
R360
R361~365
R372~374
R375
R376
R377
R378
R379
PRICE
RANK
PARTS CODE
VRD-ST2CD102J
VRD-ST2CD271J
VRD-ST2CD471J
VRS-TV2AB122J
VRS-TV2AB124J
VRD-ST2CD102J
VRS-TV2AB122J
VRS-TV2AB102J
VRD-ST2EE3R3J
VRS-TV2AB682J
VRS-TV2AB470J
VRS-TV2AB683J
VRD-ST2CD683J
VRD-ST2CD221J
VRD-ST2CD102J
VRD-ST2CD102J
VRS-TV2AB155J
VRD-ST2CD105J
VRS-TV2AB222J
VRS-TV2AB103J
VRS-TV2AB103J
VRD-ST2CD152J
VRD-MN2BD103J
VRD-MN2BD472J
VRD-MN2BD102J
VRD-MN2BD222J
VRD-MN2BD332J
VRD-MN2BD473J
VRD-MN2BD472J
VRD-MN2BD473J
VRD-ST2CD102J
VRD-ST2CD560J
VRD-MN2BD104J
VRD-MN2BD392J
VRD-MN2BD562J
VRD-MN2BD333J
VRD-MN2BD683J
VRD-MN2BD682J
VRD-MN2BD392J
VRD-MN2BD152J
VRD-MN2BD101J
VRD-MN2BD103J
VRD-MN2BD153J
VRD-ST2CD153J
VRD-ST2EE221J
VRD-ST2CD103J
VRD-MN2BD103J
VRD-ST2CD224J
VRD-MN2BD473J
VRD-ST2CD472J
VRD-RT2HD820J
VRD-MN2BD473J
VRD-MN2BD223J
VRD-ST2CD4R7J
VRD-ST2EE151J
VRD-MN2BD100J
VRD-ST2CD103J
VRD-MN2BD104J
VRD-MN2BD333J
VRD-ST2CD220J
VRD-MN2BD472J
VRD-MN2BD681J
VRD-MN2BD683J
VRD-MN2BD473J
VRD-MN2BD330J
VRD-MN2BD103J
VRD-ST2CD272J
VRD-MN2BD562J
VRD-MN2BD102J
VRD-MN2BD271J
VRD-MN2BD332J
VRD-MN2BD102J
VRD-ST2CD474J
VRD-ST2CD392J
VRD-MN2BD182J
VRD-MN2BD472J
VRD-MN2BD103J
VRD-MN2BD102J
VRD-ST2CD471J
VRD-MN2BD102J
VRD-MN2BD473J
VRD-MN2BD102J
VRD-MN2BD222J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
DESCRIPTION
1 kohm,1/6W
270 ohms,1/6W
470 ohms,1/6W
1.2 kohms,1/10W
120 kohms,1/10W
1 kohm,1/6W
1.2 kohms,1/10W
1 kohm,1/10W
3.3 ohms,1/4W
6.8 kohms,1/10W
47 ohms,1/10W
68 kohms,1/10W
68 kohms,1/6W
220 ohms,1/6W
1 kohm,1/6W
1 kohm,1/6W
1.5 Mohms,1/10W
1 Mohm,1/6W
2.2 kohms,1/10W
10 kohm,1/10W
10 kohm,1/10W
1.5 kohms,1/6W
10 kohm,1/8W
4.7 kohms,1/8W
1 kohm,1/8W
2.2 kohms,1/8W
3.3 kohms,1/8W
47 kohms,1/8W
4.7 kohms,1/8W
47 kohms,1/8W
1 kohm,1/6W
56 ohms,1/6W
100 kohm,1/8W
3.9 kohms,1/8W
5.6 kohms,1/8W
33 kohms,1/8W
68 kohms,1/8W
6.8 kohms,1/8W
3.9 kohms,1/8W
1.5 kohms,1/8W
100 ohm,1/8W
10 kohm,1/8W
15 kohms,1/8W
15 kohms,1/6W
220 ohms,1/4W
10 kohm,1/6W
10 kohm,1/8W
220 kohms,1/6W
47 kohms,1/8W
4.7 kohms,1/6W
82 ohms,1/2W
47 kohms,1/8W
22 kohms,1/8W
4.7 ohms,1/6W
150 ohms,1/4W
10 ohm,1/8W
10 kohm,1/6W
100 kohm,1/8W
33 kohms,1/8W
22 ohms,1/6W
4.7 kohms,1/8W
680 ohms,1/8W
68 kohms,1/8W
47 kohms,1/8W
33 ohms,1/8W
10 kohm,1/8W
2.7 kohms,1/6W
5.6 kohms,1/8W
1 kohm,1/8W
270 ohms,1/8W
3.3 kohms,1/8W
1 kohm,1/8W
470 kohms,1/6W
3.9 kohms,1/6W
1.8 kohms,1/8W
4.7 kohms,1/8W
10 kohm,1/8W
1 kohm,1/8W
470 ohms,1/6W
1 kohm,1/8W
47 kohms,1/8W
1 kohm,1/8W
2.2 kohms,1/8W
NO.
R380
R381
R382
R383
R384
R385
R387
R388
R391,392
R393
R395
R401,402
R403,404
R407
R408
R409,410
R415,416
R417,418
R419,420
R421,422
R423,424
R425
R601
R602
R603
R604
R605
R606
R607
R608
R609
R610
R611
R612
R613
R614
R615
R616
R617
R618
R619
R620
R621
R622
R623,624
R625~627
R629
R632~635
R636
R637
R638
R640
R642
R643,644
R645
R646~648
R649
R650
R651,652
R653
R654
R655
R656
R658
R659
R660
R661
R662
R663~665
R666
R667,668
R669,670
R671
R672
R673~675
R676
R678~694
R695~697
R698~700
R701~703
R704
R705,706
R707
–3–
PRICE
RANK
PARTS CODE
VRD-MN2BD152J
VRD-MN2BD103J
VRD-ST2EE151J
VRD-MN2BD562J
VRD-ST2CD562J
VRD-MN2BD562J
VRD-ST2CD562J
VRD-MN2BD392J
VRD-ST2EE271J
VRD-MN2BD102J
VRD-MN2BD473J
VRD-MN2BD331J
VRD-MN2BD272J
VRD-MN2BD222J
VRD-ST2CD222J
VRD-ST2CD103J
VRD-MN2BD392J
VRD-MN2BD332J
VRD-MN2BD562J
VRD-MN2BD273J
VRD-ST2CD474J
VRD-MN2BD223J
VRD-ST2CD102J
VRD-MN2BD104J
VRD-MN2BD103J
VRD-ST2CD123J
VRD-MN2BD563J
VRD-ST2CD102J
VRD-MN2BD333J
VRD-MN2BD683J
VRD-MN2BD474J
VRD-MN2BD153J
VRD-MN2BD104J
VRD-ST2CD105J
VRD-MN2BD824J
VRD-ST2CD394J
VRD-MN2BD154J
VRD-ST2CD102J
VRD-ST2CD224J
VRD-MN2BD224J
VRD-ST2CD225J
VRD-MN2BD184J
VRD-MN2BD330J
VRD-MN2BD104J
VRD-ST2EE271J
VRD-MN2BD104J
VRD-ST2CD103J
VRD-ST2CD103J
VRD-MN2BD683J
VRD-MN2BD102J
VRD-MN2BD473J
VRD-MN2BD102J
VRD-MN2BD223J
VRD-MN2BD102J
VRD-MN2BD223J
VRD-MN2BD102J
VRD-MN2BD103J
VRD-ST2CD683J
VRD-MN2BD103J
VRD-MN2BD102J
VRD-ST2CD102J
VRD-MN2BD102J
VRD-ST2CD103J
VRD-MN2BD473J
VRD-MN2BD102J
VRD-MN2BD103J
VRD-ST2CD222J
VRD-MN2BD103J
VRD-ST2CD222J
VRD-MN2BD102J
VRD-ST2CD102J
VRD-ST2CD103J
VRD-MN2BD103J
VRD-ST2CD103J
VRD-ST2CD102J
VRD-ST2CD472J
VRD-ST2CD102J
VRD-ST2CD681J
VRD-ST2CD821J
VRD-ST2CD102J
VRD-MN2BD473J
VRD-ST2CD152J
VRD-MN2BD152J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
DESCRIPTION
1.5 kohms,1/8W
10 kohm,1/8W
150 ohms,1/4W
5.6 kohms,1/8W
5.6 kohms,1/6W
5.6 kohms,1/8W
5.6 kohms,1/6W
3.9 kohms,1/8W
270 ohms,1/4W
1 kohm,1/8W
47 kohms,1/8W
330 ohms,1/8W
2.7 kohms,1/8W
2.2 kohms,1/8W
2.2 kohms,1/6W
10 kohm,1/6W
3.9 kohms,1/8W
3.3 kohms,1/8W
5.6 kohms,1/8W
27 kohms,1/8W
470 kohms,1/6W
22 kohms,1/8W
1 kohm,1/6W
100 kohm,1/8W
10 kohm,1/8W
12 kohms,1/6W
56 kohms,1/8W
1 kohm,1/6W
33 kohms,1/8W
68 kohms,1/8W
470 kohms,1/8W
15 kohms,1/8W
100 kohm,1/8W
1 Mohm,1/6W
820 kohms,1/8W
390 kohms,1/6W
150 kohms,1/8W
1 kohm,1/6W
220 kohms,1/6W
220 kohms,1/8W
2.2 Mohms,1/6W
180 kohms,1/8W
33 ohms,1/8W
100 kohm,1/8W
270 ohms,1/4W
100 kohm,1/8W
10 kohm,1/6W
10 kohm,1/6W
68 kohms,1/8W
1 kohm,1/8W
47 kohms,1/8W
1 kohm,1/8W
22 kohms,1/8W
1 kohm,1/8W
22 kohms,1/8W
1 kohm,1/8W
10 kohm,1/8W
68 kohms,1/6W
10 kohm,1/8W
1 kohm,1/8W
1 kohm,1/6W
1 kohm,1/8W
10 kohm,1/6W
47 kohms,1/8W
1 kohm,1/8W
10 kohm,1/8W
2.2 kohms,1/6W
10 kohm,1/8W
2.2 kohms,1/6W
1 kohm,1/8W
1 kohm,1/6W
10 kohm,1/6W
10 kohm,1/8W
10 kohm,1/6W
1 kohm,1/6W
4.7 kohms,1/6W
1 kohm,1/6W
680 ohms,1/6W
820 ohms,1/6W
1 kohm,1/6W
47 kohms,1/8W
1.5 kohms,1/6W
1.5 kohms,1/8W
CD-BA180
NO.
!
R708
R709,710
R711
R712,713
R714
R715
R716
R717
R718
R719
R720
R721
R722
R723
R724
R725
R801,802
R803
R804
R805
R806
R807
R831
R832
R833
R841
R842
R851
R901,902
R903,904
R905,906
R907,908
R909,910
R911,912
R913~915
R918,919
R920
R931,932
R933,934
R951,952
R953,954
R971
R972
R973
R975
PRICE
RANK
PARTS CODE
VRD-ST2CD103J
VRD-ST2CD222J
VRD-MN2BD104J
VRD-ST2CD272J
VRD-MN2BD392J
VRD-ST2CD392J
VRD-ST2CD472J
VRD-MN2BD683J
VRD-MN2BD562J
VRD-ST2CD103J
VRD-MN2BD104J
VRD-ST2CD183J
VRD-ST2CD333J
VRD-ST2CD101J
VRD-ST2CD104J
VRD-ST2CD103J
VRD-ST2EE223J
VRS-VV3DA681J
VRD-ST2CD222J
VRD-ST2CD473J
VRD-ST2CD100J
VRD-ST2CD123J
VRD-RT2HD3R3J
VRD-RT2HD330J
VRD-ST2CD223J
VRD-ST2CD223J
VRD-RT2HD3R3J
VRD-ST2CD103J
VRD-ST2CD563J
VRD-ST2CD821J
VRD-ST2CD102J
VRN-VV3AAR10J
VRD-ST2CD102J
VRD-ST2CD103J
VRD-ST2CD563J
VRG-ST2EC101J
VRD-ST2CD223J
VRD-MN2BD102J
VRD-ST2CD683J
VRD-RT2HD331J
VRD-ST2CD472J
VRD-ST2CD102J
VRD-ST2CD683J
VRD-ST2CD153J
VRD-RT2HD4R7J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AC
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
DESCRIPTION
NO.
10 kohm,1/6W
2.2 kohms,1/6W
100 kohm,1/8W
2.7 kohms,1/6W
3.9 kohms,1/8W
3.9 kohms,1/6W
4.7 kohms,1/6W
68 kohms,1/8W
5.6 kohms,1/8W
10 kohm,1/6W
100 kohm,1/8W
18 kohms,1/6W
33 kohms,1/6W
100 ohm,1/6W
100 kohm,1/6W
10 kohm,1/6W
22 kohms,1/4W
680 ohms,2W
2.2 kohms,1/6W
47 kohms,1/6W
10 ohm,1/6W
12 kohms,1/6W
3.3 ohms,1/2W
33 ohms,1/2W
22 kohms,1/6W
22 kohms,1/6W
3.3 ohms,1/2W
10 kohm,1/6W
56 kohms,1/6W
820 ohms,1/6W
1 kohm,1/6W
0.1 ohm,1W
1 kohm,1/6W
10 kohm,1/6W
56 kohms,1/6W
100 ohm,1/4W,Fusible
22 kohms,1/6W
1 kohm,1/8W
68 kohms,1/6W
330 ohms,1/2W
4.7 kohms,1/6W
1 kohm,1/6W
68 kohms,1/6W
15 kohms,1/6W
4.7 ohms,1/2W
!
!
QCNWN1572AWZZ J
QCNWN1561AWZZ J
QCNWN1562AWZZ J
QCNCM704GAWZZ J
QCNCM704HAWZZ J
92LCONE6P53253 J
92LCONE6P53254 J
QCNCM705FAFZZ J
92LCONE5P53254 J
92LCONEAP53254 J
QCNCM705CAFZZ J
QCNCM705GAFZZ J
92LCONE3P5268 J
QCNCWZG23AWZZ J
QCNCWZF23AWZZ J
QCNCWZF13AWZZ J
QCNCM049BAWZZ J
QCNCM035HAWZZ J
QCNCW012EAWZZ J
92LCONE2P53253 J
QCNWN1537AWZZ J
QCNWN1538AWZZ J
QCNWN1539AWZZ J
QCNWN1389AWZZ J
92LFUSET402D
J
92LFUSET202D
J
QCNWN1564AWZZ J
QCNWN1544AWZZ J
VVKBJ11LM02T1
J
QCNWN1563AWZZ J
QJAKM0004AWZZ J
92LMTR2790CASY J
92LMTR1854BASY J
92LTWMEN7E6Y
J
AF
AF
AH
AC
AC
AC
AC
AB
AB
AD
AA
AB
AC
AK
AK
AC
AC
AB
AC
AB
AG
AG
AE
AC
AC
AD
AG
AE
AD
AK
BB
AP
AR
M901
RL951
RX701
SO401
SO801
SO901
SW1
SW2
SW3
SW4
SW601
SW602
SW603
RMOTV0027AWZZ
RRLYD0014AWZZ
VHLN63H380A-1
QSOCJ0219AWZZ
QSOCA0214AWZZ
QTANA0808AWZZ
SWMPU10780MLB
SWMPU11470MLB
SWMPU11470MLB
QSW-F9001AW01
92LSWICH1663T
92LSWICH1663T
92LSWICH1663T
J
J
J
J
J
J
J
J
J
J
J
J
J
AM
AK
AK
AD
AD
AF
AH
AE
AE
AD
AC
AC
AC
SW609
SW610
92LSWICH1663T
92LSWICH1663T
J
J
AC
AC
SW611
SW612
92LSWICH1663T
92LSWICH1663T
J
J
AC
AC
SW613
SW614
SW615
92LSWICH1663T
92LSWICH1663T
92LSWICH1663T
J
J
J
AC
AC
AC
SW616
SW617
SW618
92LSWICH1663T
92LSWICH1663T
92LSWICH1663T
J
J
J
AC
AC
AC
SW619
92LSWICH1663T
J
AC
SW620
92LSWICH1663T
J
AC
SW621
SW622
92LSWICH1663T
92LSWICH1663T
J
J
AC
AC
SW623
SW625
SW626
92LSWICH1663T
92LSWICH1663T
92LSWICH1663T
J
J
J
AC
AC
AC
SW627
SW628
92LSWICH1663T
92LSWICH1663T
J
J
AC
AC
DESCRIPTION
Motor,Air Cooling Fan
Relay
Remote Sensor,N63H380A
Jack,Video/AUX
Socket,AC Input
Terminal,Speaker
Switch,Push Type [Open/Close]
Switch,Push Type [Clamp]
Switch,Push Type [Disc Number]
Switch,Leaf Type [Pickup In]
Switch,Key Type [POWER]
Switch,Key Type [CLOCK]
Switch,Key Type
[TIMER/SLEEP]
Switch,Key Type [DISC SKIP]
Switch,Key Type
[OPEN/CLOSE]
Switch,Key Type [DIMMER]
Switch,Key Type
[X-BASS/DEMO]
Switch,Key Type [EQUALIZER]
Switch,Key Type [VOLUME UP]
Switch,Key Type
[VOLUME DOWN]
Switch,Key Type [CD]
Switch,Key Type [TAPE]
Switch,Key Type
[TUNING/TIME DOWN]
Switch,Key Type
[MEMORY/SET]
Switch,Key Type
[PRESET DOWN]
Switch,Key Type [PRESET UP]
Switch,Key Type
[PLAY/REPEAT]
Switch,Key Type [STOP]
Switch,Key Type [REC/PAUSE]
Switch,Key Type
[TUNING/TIME UP]
Switch,Key Type [VIDEO/AUX]
Switch,Key Type
[TUNER (BAND)]
CD MECHANISM PARTS
OTHER CIRCUITRY PARTS
BI4/CNS4
BI402/CNS402
BI701/CNS701
CNP1
CNP2
CNP3
CNP3A
CNP4
CNP11
CNP12
CNP101
CNP102
CNP301
CNP401
CNP702
CNP703
CNP801
CNP802
CNP951
CNP971
CNS1A/B
CNS2A/B
CNS3A/B
CNS971
F801,802
F803
FC701
FC702
FL701
FW951
JK951
M1
M2
M3
PRICE
RANK
PARTS CODE
Connector Ass’y,6/6Pin
Connector Ass’y,5Pin
Connector Ass’y,10/10Pin
Plug,7Pin
Plug,8Pin
Plug,6Pin
Plug,6Pin
Plug,6Pin
Plug,5Pin
Plug,10Pin
Plug,3Pin
Plug,7Pin
Plug,3Pin
Socket,23Pin
Socket,23Pin
Socket,13Pin
Plug,2Pin
Plug,8Pin
Socket,5Pin
Plug,2Pin
Connector Ass’y,7/7Pin
Connector Ass’y,8/8Pin
Connector Ass’y,6/6Pin
Connector Ass’y,2Pin
Fuse,4A/125V
Fuse,2A/250V
Flat Cable,23Pin
Flat Cable,13Pin
FL Display
Flat Wire,5Pin
Jack,Headphones
Motor with Chassis [Spindle]
Motor with Gear [Sled]
Motor with Worm Pulley
[T/T Up/Down Loading]
!
301
302
303
304
305
306
306- 1
NGERH0011AWZZ
NGERH0012AWZZ
MLEVP0080AWZZ
NSFTM0020AWFW
92LMCUSN1524A
92LHPC1LXASY
————
J
J
J
J
J
J
AC
AC
AC
AD
AD
BD
—
306- 2
306- 3
701
702
703
704
M1
M2
SW4
NGERR0043AFZZ
MSPRC0961AFZZ
XBSSD26P06000
XHBSD20P05000
XBBSD20P03000
LX-WZ1070AFZZ
92LMTR2790CASY
92LMTR1854BASY
QSW-F9001AW01
J
J
J
J
J
J
J
J
J
AC
AA
AA
AA
AA
AA
BB
AP
AD
201
201- 1
92LCAB3286AASY J
————
—
201- 2
201- 3
201- 4
201- 5
201- 6
201- 7
201- 8
201-10
201-11
201-12
201-13
201-14
201-15
201-16
201-20
GDORF0074AWSA
GDORF0075AWSA
GCOVA1251AWSA
GCOVA1252AWSA
HDECQ0521AWSA
HDECQ0522AWSA
HDECQ0614AWSA
JKNBZ0649AWSA
JKNBZ0648AWSA
JKNBZ0657AWSA
JKNBZ0658AWSA
JKNBZ0659AWSA
JKNBZ0660AWSA
JKNBZ0661AWSA
GCOVA1258AWSA
Gear,Middle
Gear,Drive
Rail,Guide
Shaft,Guide
Cushion
Pickup Unit Ass'y
Pickup Unit
(Not Replacement Item)
Gear,Rack
Spring,Rack
Screw,ø2.6×6mm
Screw,ø2×5mm
Screw,ø2×3mm
Washer,ø1.5×ø3.8×0.25mm
Motor with Chassis [Spindle]
Motor with Gear [Sled]
Switch,Leaf Type [Pickup In]
CABINET PARTS
–4–
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AE
AE
AH
AH
AD
AD
AF
AG
AF
AF
AF
AF
AE
AB
Front Cabinet Ass’y
Front Panel
(Not Replacement Item)
Cassette Holder,Tape 1
Cassette Holder,Tape 2
Cover,Cassette Holder,Tape 1
Cover,Cassette Holder,Tape 2
Panel,Cassette Holder,Tape 1
Panel,Cassette Holder,Tape 2
Panel,Amp.
Button,Volume
Button,Center Operation
Button,Power/Clock
Button,Function,A
Button,Function,B
Button,Tuning
Button,Dimmer
Cover,Power LED
CD-BA180
NO.
!
PRICE
RANK
PARTS CODE
201-21
201-22
201-23
201-24
201-25
202
202- 1
MLIFP0008AWZZ
MSPRD0151AWFJ
MSPRD0152AWFJ
92LBADGE1671A
JKNBZ0650AWSA
92LCAB3283BASY
————
J
J
J
J
J
J
202- 2
203
203- 1
PCUSG0022AWZZ J
92LCAB3283CASY J
————
203- 2
204
204- 1
PCUSG0022AWZZ J
92LCOV3303AASY J
————
204- 2
204- 3
205
206
208
209
210
213
214
219
220
221
222
223
224
225
226
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
262
263
264
267
268
269
270
271
272
601
604
605
606
607
608
609
611
612
613
GCOVA1254AWSA
GCOVA1255AWSA
GCAB-1184AWSA
GITAR0625AWSA
LANGK0110AWFW
LANGK0111AWFW
LANGK0192AWFW
LCHSM0094AWFW
LHLDZ1241AWZZ
MLOKC0003AWZZ
MLOKC0004AWZZ
MSPRD0109AWFJ
MSPRD0110AWFJ
NFANP0001AWZZ
92LPT0331105
PCUSG0022AWZZ
PRDAR0148AWFW
QCNWN1615AWZZ
QFSHD0001AWZZ
92LBE241414
92LCSPR1431C
92LEVA0330702
92LMAG0104302
92LMT0304302
92LNBAND1318A
92LNM0305401
92LPT0303002
92LPT0304303
92LPT0304304
92LPT0304305
92LPT0304306
92LPT0304307
92LPT0304308
92LPT0304309
92LPT0305413
92LPT0309506
92LPT0309507
92LPT0309508
92LPT0309509
92LPT0309510
92LPT0309511
92LPT0311101
92LPT0311102
92LPT0312005
92LPT0320201
92LPT0330301
92LPT0330803
92LPT0331003
92LSP0304303
92LSP0304305
92LSP0304306
LANGK0184AWFW
KMECB0011AWZZ
PSHEZ0067AWZZ
LANGF0039AWFW
QLUGP0002AWZZ
QLUGP0001AWZZ
XBBSD20P04000
XEBSD30P12000
XESSD30P10000
XHBSD26P04000
XJBSD30P12000
XJBSD30P10000
XJBSD30P14000
XJSSD30P10000
LX-HZ0009AWFD
XHBSD40P10000
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
DESCRIPTION
AD Damper
Spring,Cassette Holder,Tape 1
Spring,Cassette Holder,Tape 2
AC Badge,SHARP
AF Button,Disc Skip/X-BASS
AM Side Panel Ass’y,Left
— Side Panel,Left
(Not Replacement Item)
AB Cushion,Leg
AM Side Panel Ass’y,Right
— Side Panel,Right
(Not Replacement Item)
AB Cushion,Leg
AK CD Tray Cover Ass’y
— Cover,CD Tray
(Not Replacement Item)
AE Cover,CD Tray,Left
AE Cover,CD Tray,Right
AP Top Cabinet
Rear Panel
AE Bracket,Cassette Lock,Tape 1
AE Bracket,Cassette Lock,Tape 2
AD Bracket,Fan Motor
AP Main Chassis
AE Holder,FL Display
AD Lock Lever,Cassette,Tape 1
AD Lock Lever,Cassette,Tape 2
AB Spring,Cassette Lock,Tape 1
AB Spring,Cassette Lock,Tape 2
AD Rotary Fan
AM Turntable
AB Cushion,Leg
AR Heat Sink
AC Lug Wire
AB Holder,Fuse
AD Belt
AA Spring,Ring
AD Cushion,CD Player Unit
AE Magnet
AB Plate,Metal
AA Nylon Band,80mm
AB Velvet Cushion
AB Roller
AB Lever,Stop
AB Stopper,Cam Gear
AE Lever,Lock
AG Stabilizer
AC Support,Cam
AB Lock Gear Pin
AB Cap,Pulley Stopper
AG Cam Gear Lower
AD Gear,Turntable Drive
AD Gear,Open/Close Drive
AD Gear,Planet
AD Gear,Drive
AE Gear,Pulley
AD Gear,Middle
AB Lever,Clamp
AC Lever,Disc
AL Gear,Cam
AE Support,Stabilizer
AU Chassis,CD Player Unit
AK CD,Chassis
AT Shassis,Disc Tray
AB Spring,Stopper
AB Spring,Lock
AB Spring,Lock Gear
AG Bracket,Main PWB
BH Tape Mechanism Ass’y
AC Sheet,PWB Support
AD Bracket,Power Transformer
AB Lug Terminal
AC Lug Terminal
AA Screw,ø2×4mm
AA Screw,ø3×12mm
AA Screw,ø3×10mm
AA Screw,ø2.6×4mm
AA Screw,ø3×12mm
AA Screw,ø3×10mm
AA Screw,ø3×14mm
AA Screw,ø3×10mm
AC Screw,Special
AA Screw,ø4×10mm
NO.
614
615
616
617
618
619
PRICE
RANK
PARTS CODE
LX-JZ0010AFFD
XEBSD30P10000
LX-BZ2222AXZZ
LX-JZ0004AWFD
92LSC0308MBZI
92LSC0308RBZI
J
J
J
J
J
J
AA
AA
AB
AA
AB
DESCRIPTION
Screw,ø3×10mm
Screw,ø3×10mm
Screw,Special
Screw,ø3×12mm
Screw,ø3×8mm
Screw,ø3×8mm
ACCESSORIES/PACKING PARTS
QACCD0028AWZZ
QANTL0007AWZZ
SPAKA0245AWZZ
SPAKC0989AWZZ
SPAKP0013AWZZ
SPAKZ0573AWZZ
SPAKZ0623AWZZ
TINSZ0588AWZZ
TLABN0112AWZZ
TLABR1152AWZZ
TLABZ0692AWZZ
TLABZ0697AWZZ
92LBAG1460C1
RRMCG0219AWSA
GFTAB1022AWSB
!
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AC Power Supply Cord
AK AM/FM Loop Antenna
AM Packing Add.
Packing Case
AC Polyethylene Bag,Unit
AB CD Tray Sheet
AL Center Pad
Operation Manual
AA Serial No.Label
Label,Bar Code
AC Label,Feature,Tape 1
AC Label,Feature,Tape 2
AB Polyethylene Bag,Accessories
AR Remote Control
AK Battery Lid,Remote Control
P.W.B. ASSEMBLY (Not Replacement Item)
PWB-A1~4
92LPWB3286MANS J
PWB-B
PWB-C
PWB-D
PWB-E
92LPWB3303CDUS J
QPWBF0027AWZZ J
————
92LPC99C017
J
—
Main/Display/Headphones/AC
Socket (Combined Ass’y)
— CD Servo
AD CD Motor (PWB Only)
— Tape Mechanism
AE CD Loading Motor (PWB Only)
OTHER SERVICE PART
UDSKA0004AFZZ
J
AZ
CD Pickup Lens Cleaner
J
J
J
J
J
J
J
J
J
J
J
J
BA Front Panel Ass’y,Left
BA Front Panel Ass’y,Right
AP Net Frame Ass’y
Speaker Box Ass’y,Left
Speaker Box Ass’y,Right
AC Foot Cushion
AC Port Cushion
Label,Specifications
AE Catching Holder
AB Screw,ø3×10mm
AB Screw,ø4×12mm
AG Speaker Cord Ass’y
(With Capacitor)
AQ Tweeter
AU Woofer
AU Woofer
CP-BA180
SPEAKER BOX PARTS
901
902
903
904
905
907
908
909
912
913
914
915
92L126-0009
92L126-0010
92L121-0178
92L051-0079
92L051-0085
92L394-0056
92L394-0055
92L351-0373
92L319-0027
92L372-0109
92L372-0124
92L122-0048
SP1,2
SP3,4
SP5,6
VSP0051TBN98A J
VSPA010WB24WA J
VSPA010WB24WA J
PACKING PARTS
92L411-0075
92L412-0133
92L416-0068
J
J
J
AG Polyethylene Bag,Front Speaker
AN Packing Add.,Top/Bottom
AC Layer Pad
J
J
J
J
J
J
AP Net Frame Ass’y
Bottom Cabinet
AK Speaker Cord
Label,Part Cord
AB Screw,ø3×14mm
Speaker
GBOXS0040AWM1
SPEAKER BOX PARTS
901
902
903
904
905
SP1,2
92L60-00-1190
92L32-01-0510
92L37-03-0110
92L33-01-1680
92L35-02-0320
VSPA010PB23WA
PACKING PARTS
92L41-05-0340
92L41-08-0360
–5–
J
J
Packing Add.,Top/Bottom
Polyethylene Bag,Rear Speaker
CD-BA180
CD-BA180
701
306
A
304
306-2
701
306-1
B
704
306-3
302
C
301
702
303
D
703x2
E
M1
F
305
M2
305x2
G
SW4
PWB-C
H
1
2
3
4
Figure 6 CD MECHANISM EXPLODED VIEW
–– 39
6 ––
5
6
CD-BA180
CD-BA180
206
202
PWB-A1
A
202-1
608x2
609x2
607x2
617x9
272
614x3
607x3
B
202-2
271
231x6
614x2
IC901
Q831
IC851
Silicon
grease
615x15
PWB-A2
BELT CONNECTION
226
IC841
201
201-13
214
201-14
TAPE 2
FF/REW
Roller
Ass'y
Motor
Motor
C
TAPE 2
Flywheel
Ass'y
Main Belt
201-15
201-12
201-21
201-11
201-20
201-1
201-24
FL701
201-25
209
TAPE
MECHANISM
201-16
605x6
606x2
220
268
D
230
201-10
TAPE 1
Flywheel Ass'y
TAPE 1
FF/REW
Roller Ass'y
616
PWB-D
222 612
606x2
PWB-A3
612
201-21
267
221
E
219
225
608
208
213
M901
223
233
608
608
601x2 210
F
225
613x4
270
270
201-8
201-22
611x2
201-3
201-2
G
PT801
201-4
PWB-A4
201-5
201-23
201-6
237x5
203-1
203-2
201-7
H
203
1
2
3
4
Figure 7 CABINET EXPLODED VIEW (1/2)
––40
7 ––
5
608x2
6
CD-BA180
CD-BA180
604x2
205
257
A
236
235
B
243
224
618
244
C
256
604x2
262
CD
MECHANISM
241
238
247
250x4
251
D
259
M3
252
255
249
PWB-E
SW3
SW1
253
SW2
248
239
232
E
M3
239
246
239
254
263
260
242
234
F
239x4
204-2
264
240
204-1
G
245
204
204-3
269
258
H
619
PWB-B
1
2
3
4
Figure 8 CABINET EXPLODED VIEW (2/2)
–– 41
8 ––
5
6
CD-BA180
CP-BA180
915
(with
Capacitor C1,2)
A
904(LEFT)
905(RIGHT)
909
B
914x4
SP3(L-CH)
SP4(R-CH)
C
903
914x4
SP1(L-CH)
SP2(R-CH)
D
SP5(L-CH)
SP6(R-CH)
913x2
901(LEFT)
902(RIGHT)
912x4
E
908
907x2
SUB
WOOFER
SP5(L-CH)
SP6(R-CH) RD
F
RD
RD
907x2
TWEETER
SP1(L-CH)
SP2(R-CH)
G
BK
C1,2
Capacitor
2.2µF,50V
Electrolytic
(N.P.)
WOOFER
SP3(L-CH)
SP4(R-CH)
BK
BK
TWEETER
SP1(L-CH)
SP2(R-CH)
SUB
WOOFER
SP5(L-CH)
SP6(R-CH)
H
1
C1,2
Capacitor
2.2µF,50V
Electrolytic
(N.P.)
WOOFER
SP3(L-CH)
SP4(R-CH)
2
3
4
Figure 9 SPEAKER EXPLODED VIEW (1/2)
––42
9 ––
5
6
CD-BA180
GBOXS0040AWM1
A
905x6
904
B
SP1(L-CH)
SP2(R-CH)
C
D
903
E
902
901
SP1(L-CH)
SP2(R-CH)
F
G
BK
(White Line)
BK
H
1
2
3
4
Figure 10 SPEAKER EXPLODED VIEW (2/2)
– 43
10 –
5
6
CD-BA180
COPYRIGHT © 2000 BY SHARP CORPORATION
ALL RIGHTS RESERVED.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
SHARP CORPORATION
Communication Systems Group
Quality & Reliability Control Center
Higashihiroshima, Hiroshima 739-0192, Japan
Printed in Japan
A0007-164DS•HA•M
LAG(MEX)
– 44 –
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
