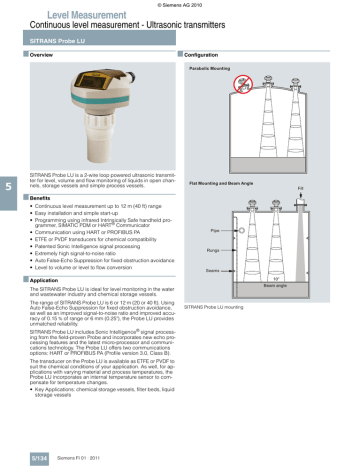

Level Measurement
Continuous level measurement - Ultrasonic transmitters
SITRANS Probe LU
■ Overview
■ Configuration
Parabolic Mounting
5
SITRANS Probe LU is a 2-wire loop powered ultrasonic transmitter for level, volume and flow monitoring of liquids in open channels, storage vessels and simple process vessels.
Flat Mounting and Beam Angle
Fill
■ Benefits
• Continuous level measurement up to 12 m (40 ft) range
• Easy installation and simple start-up
• Programming using infrared Intrinsically Safe handheld programmer, SIMATIC PDM or HART® Communicator
• Communication using HART or PROFIBUS PA
• ETFE or PVDF transducers for chemical compatibility
• Patented Sonic Intelligence signal processing
• Extremely high signal-to-noise ratio
• Auto False-Echo Suppression for fixed obstruction avoidance
• Level to volume or level to flow conversion
Pipe
Rungs
Seams
■ Application
10°
Beam angle
The SITRANS Probe LU is ideal for level monitoring in the water
and wastewater industry and chemical storage vessels.
The range of SITRANS Probe LU is 6 or 12 m (20 or 40 ft). Using
Auto False-Echo Suppression for fixed obstruction avoidance,
as well as an improved signal-to-noise ratio and improved accuracy of 0.15 % of range or 6 mm (0.25"), the Probe LU provides
unmatched reliability.
SITRANS Probe LU includes Sonic Intelligence® signal processing from the field-proven Probe and incorporates new echo processing features and the latest micro-processor and communications technology. The Probe LU offers two communications
options: HART or PROFIBUS PA (Profile version 3.0, Class B).
The transducer on the Probe LU is available as ETFE or PVDF to
suit the chemical conditions of your application. As well, for applications with varying material and process temperatures, the
Probe LU incorporates an internal temperature sensor to compensate for temperature changes.
• Key Applications: chemical storage vessels, filter beds, liquid
storage vessels
5/134
Siemens FI 01 · 2011
SITRANS Probe LU mounting
© Siemens AG 2010
Level Measurement
Continuous level measurement - Ultrasonic transmitters
SITRANS Probe LU
■ Technical specifications
Mode of operation
Process connection
Measuring principle
Ultrasonic level measurement
Typical application
Level measurement in storage
vessels and simple process vessels
Threaded connection
2" NPT [(Taper), ANSI/ASME
B1.20.1]
R 2" [(BSPT), EN 10226] or
G 2" [(BSPP), EN ISO 228-1]
Inputs
Flange connection
3" (80 mm) universal flange
Measuring range
Other connection
FMS 200 mounting bracket (see
page 5/190) or customer supplied
mount
• 6 m (20 ft) model
0.25 ... 6 m (10" ... 20 ft)
• 12 m (40 ft) model
0.25 ... 12 m (10" ... 40 ft)
Frequency
54 kHz
Display and Controls
Interface
Local: LCD display with bar
graph
Remote: Available via HART or
PROFIBUS PA
Configuration
Using Siemens SIMATIC PDM
(PC) or HART handheld communicator or Siemens infrared handheld programmer
Memory
Non-volatile EEPROM
Outputs
mA/HART®
• Range
4 ... 20 mA
• Accuracy
± 0.02 mA
PROFIBUS PA
Profile 3, Class B
Performance
Resolution
≤ 3 mm (0.12")
Accuracy
± the greater of 0.15 % of range
or 6 mm (0.24")
Repeatability
≤ 3 mm (0.12")
Blanking distance
0.25 m (10")
Update time
≤ 5 seconds
• 4/20 mA/HART version
≤ 5 seconds at 4 mA
• PROFIBUS version
≤ 4 seconds at 15 mA current
loop
Temperature compensation
Built-in to compensate over temperature range
Beam angle
10°
Power supply
4 ... 20 mA/HART
Nominal 24 V DC with 550 Ω
maximum; maximum 30 V DC
4 ... 20 mA
PROFIBUS PA
12, 13, 15, or 20 mA depending
on programming (General Purpose or Intrinsically Safe version)
per IEC 61158-2
Certificates and Approvals
General
CSAUS/C, FM, CE, C-TICK
Marine (only applies to HART communication option)
• Lloyd’s Register of Shipping
• ABS Type Approval
Rated operating conditions
Hazardous
Ambient conditions
• Intrinsically Safe (Europe)
ATEX II 1G EEx ia IIC T4
• Intrinsically Safe (USA/Canada)
CSA/FM (barrier required) T4,
Class I, Div. 1, Groups A, B, C, D;
Class II, Div. 1, Groups E, F, G;
Class III
• Intrinsically Safe (Australia/New
Zealand)
ANZEx Ex ia IIC T4,
Tamb = -40 ... +80 °C
(-40 ... +176 °F) IP67, IP68
• Intrinsically Safe (International)
IECEx TSA 04.0020X Ex ia IIC T4
• Intrinsically Safe (Brazil)
INMETRO Br-Ex ia IIC T4
• Non-incendive (USA)
FM (no barrier required) T5:
Class I, Div. 2, Groups A,B,C, D
• Location
Indoor/outdoor
• Ambient temperature
-40 ... +80 °C (-40 ... +176 °F)
• Relative humidity/ingress protection
Suitable for outdoor
• Installation category
I
• Pollution degree
4
Medium conditions
• Temperature at flange or threads
-40 ... +85 °C (-40 ... +185 °F)
• Pressure (vessel)
0.5 bar g (7.25 psi g)
Design
Handheld Programmer
Material (enclosure)
PBT (Polybutylene Terephthalate)
Degree of protection
Type 4X/NEMA 4X, Type 6/NEMA
6/IP67/IP68 enclosure
Weight
2.1 kg (4.6 lbs)
Cable inlet
2 x M20x1.5 cable gland or 2 x
½" NPT thread
Material (transducer)
ETFE (Ethylene Tetrafluoroethylene) or PVDF (Polyvinylidene
Fluoride)
Intrinsically Safe Siemens handheld
programmer
Infrared receiver
• Approvals for handheld programmer
IS model with ATEX EEx ia IIC T4
CSA/FM Class I, Div. 1, Groups A,
B, C, D
Ambient temperature
-20 ... +40 °C (-5 ... +104 °F)
Interface
Proprietary infrared pulse signal
Power
3 V lithium battery
(non-replaceable)
Siemens FI 01 · 2011
5/135
5
© Siemens AG 2010
Level Measurement
Continuous level measurement - Ultrasonic transmitters
SITRANS Probe LU
Selection and Ordering data
Order No.
C) 7 M L 5 2 2 1 SITRANS Probe LU
2-wire, loop powered ultrasonic transmitter for
7 7 7 77
level, volume and flow monitoring of liquids in
open channels, storage vessels and simple process vessels.
Enclosure/Cable Inlet
Plastic (PBT), 2 x M20x1.5 (check Approvals for
cable gland details)
Plastic (PBT), 2 x ½" NPT (no cable glands supplied)
A
B
12 meter (40 ft), ETFE
12 meter (40 ft), PVDF Copolymer
C
D
Communication/Output
4 ... 20 mA, HART®
PROFIBUS PA
A
B
C
1
2
Approvals
General Purpose, FM, CSA, CE, C-TICK
Further designs
Please add "-Z" to Order No. and specify Order
code(s).
1
FM, Class l, Div. 21)
Intrinsically Safe, CSA/FM Class I, Div. 1, Groups A,
B, C, D (barrier required); Class II, Div. 1, Groups E,
F, G; Class III2)
Intrinsically Safe, ATEX II 1G EEx ia IIC T42)
4
5
Intrinsically safe, ATEX II 1 G EEx ia IIC T4, ANZEx,
IECEx, INMETRO, CE, C-TICK 3)
Intrinsically safe, CSA/FM Class I, Div. 1, Groups A,
B, C, D; Class II, Div. 1 Group E, F, G; Class III T43)
7
6
8
1)
Available with Enclosure/Cable Inlet option 2 only.
2)
Available with communication option 2 only.
3)
Available with communication option 1 only.
C) Subject to export regulations AL: N, ECCN: EAR99
Y15
Stainless steel tag [69 x 50 mm (2.71 x 1.97")]:
Measuring-point number/identification (max. 16 characters) specify in plain text
Operating Instructions for HART/mA device
English
French
German
Note: The Operating Instructions should be ordered
as a separate item on the order.
Additional Multi-language Quick Start manual
This device is shipped with the Siemens Milltronics
manual CD containing the complete ATEX Quick
Start and Operating Instructions library.
2
Range/Transducer material
6 meter (20 ft), ETFE
6 meter (20 ft), PVDF Copolymer
Process connection
2" NPT [(Taper), ANSI/ASME B1.20.1]
R 2" [(BSPT), EN 10226]
G 2" [(BSPP), EN ISO 228-1]
5
1
Order code
Selection and Ordering data
Order No.
C) 7ML1998-5HT02
C) 7ML1998-5HT12
C) 7ML1998-5HT32
C) 7ML1998-5QR81
Operating Instructions for PROFIBUS PA device
C) 7ML1998-5JB02
English
C) 7ML1998-5JB32
German
Note: The Operating Instructions should be ordered
as a separate item on the order.
C) 7ML1998-5QV81
Additional Multi-language Quick Start manual
This device is shipped with the Siemens Milltronics
manual CD containing the complete ATEX Quick
Start and Operating Instructions library.
Optional equipment
Handheld programmer, Intrinsically Safe, EEx ia
Handheld programmer, General Purpose approvals
Handheld programmer, Infrared, Intrinsically Safe,
PROFIBUS PA
D)
HART modem/RS-232
(for use with PC and SIMATIC PDM)
D)
HART modem/USB
(for use with a PC and SIMATIC PDM)
2" NPT locknut, plastic
2" BSPT locknut, plastic
3" ASME, DN 65 PN 10, JIS 10K 3B ETFE Flange
adapter for 2" NPT
3" ASME, DN 65 PN 10, JIS 10K 3B ETFE Flange
adapter for 2" BSPT
One General Purpose polymeric cable gland
M20x1.5, rated for -20 ... +80 °C (-4 ... +176 °F)
One metallic cable gland M20x1.5, rated -40 ...
+80 °C (-40 ... +176 °F) for General Purpose or ATEX
EEx e installations (available for HART only)
One metallic cable gland M20x1.5, rated -40 ...
+80 °C (-40 ... +176 °F) with integrated shield connection (available for PROFIBUS PA)
7ML5830-2AH
7ML1830-2AN
7ML5830-2AJ
7MF4997-1DA
7MF4997-1DB
7ML1830-1DT
7ML1830-1DQ
7ML1830-1BT
7ML1830-1BU
7ML1930-1AM
7ML1930-1AP
7ML1930-1AQ
SITRANS RD100 Remote display - see Chapter 8
SITRANS RD200 Remote display - see Chapter 8
SITRANS RD500 Remote display - see Chapter 8
Spare Parts
Plastic lid
7ML1830-1KB
C) Subject to export regulations AL: N, ECCN: EAR99
D) Subject to export regulations AL: N, ECCN: EAR99H
■ Options
Flange adapter for mating 2" NPT or 2" BSP process connections
to 3" ASME, DN 65 PN10 and JIS 10K 3B flanges
SITRANS Probe LU with FMS 200 Mounting Bracket
148,8 (5.86)
bolt hole circle
diameter
190,2 (7.49)
diameter
SITRANS Probe LU optional flange adapter, dimensions in mm (inch)
5/136
Siemens FI 01 · 2011
SITRANS Probe LU with optional mounting bracket
© Siemens AG 2010
Level Measurement
Continuous level measurement - Ultrasonic transmitters
SITRANS Probe LU
139.7 (5.50)
■ Dimensional drawings
Hinged lid
198.9 (7.83)
130.1 (5.12)
Electronics
5
21
(0.83)
Mounting thread
Transducer
51.1
(2.01)
54 (2.13)
Note: Above model is shown without M20 cable glands or 1/2" NPT conduit connectors.
SITRANS Probe LU, dimensions in mm (inch)
■ Schematics
Connect the wires to the
terminals as shown:
the polarity is identified
on the terminal block.
Lid screws
Terminals for loop current
or PROFIBUS PA cable
Cable
Watertight
gland
Note:
-
HART model above is shown with M20 cable glands. 1/2" NPT threaded connection is also available.
DC terminal shall be supplied from an SELV source in accordance with IEC-1010-1 Annex H.
All field wiring must have insulation suitable for rated input voltages.
Separate cables and conduit may be required to conform to standard instrumentation wiring practices or electrical codes.
SITRANS Probe LU connections
Siemens FI 01 · 2011
5/137
