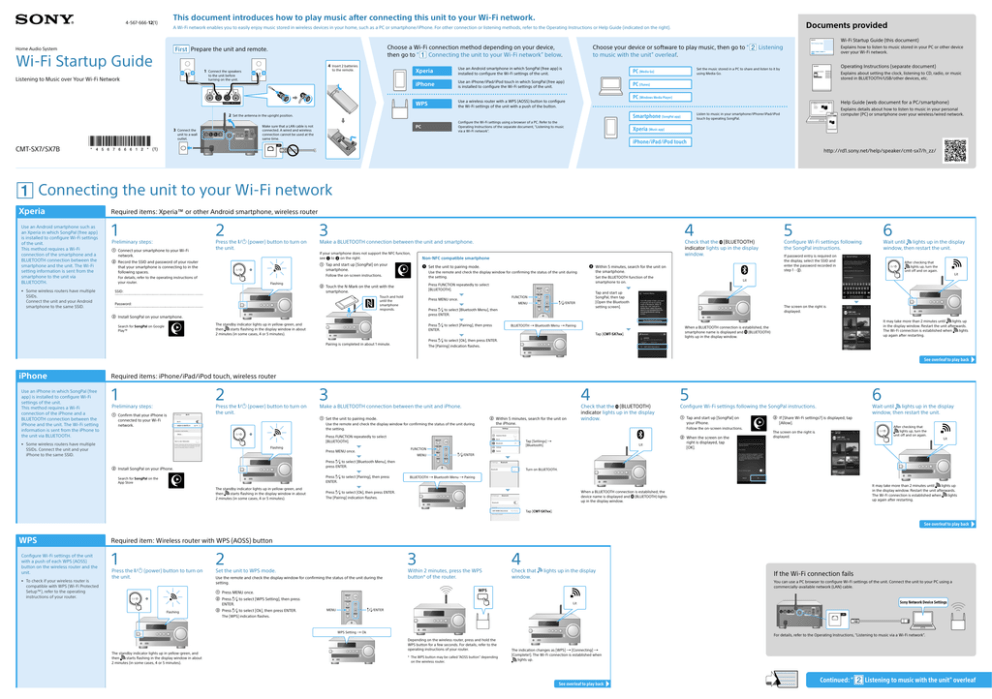

Sony CMT-SX7B Quick start guide

This document introduces how to play music after connecting this unit to your Wi-Fi network.
4-567-666-12(1)
Documents provided
A Wi-Fi network enables you to easily enjoy music stored in wireless devices in your home, such as a PC or smartphone/iPhone. For other connection or listening methods, refer to the Operating Instructions or Help Guide (indicated on the right).
Wi-Fi Startup Guide
4 Insert 2 batteries
to the remote.
1 Connect the speakers
to the unit before
turning on the unit.
Listening to Music over Your Wi-Fi Network
Choose your device or software to play music, then go to “ Listening
to music with the unit” overleaf.
Choose a Wi-Fi connection method depending on your device,
then go to “ Connecting the unit to your Wi-Fi network” below.
First Prepare the unit and remote.
Home Audio System
Xperia
Use an Android smartphone in which SongPal (free app) is
installed to configure the Wi-Fi settings of the unit.
PC (Media Go)
iPhone
Use an iPhone/iPad/iPod touch in which SongPal (free app)
is installed to configure the Wi-Fi settings of the unit.
PC (iTunes)
WPS
Use a wireless router with a WPS (AOSS) button to configure
the Wi-Fi settings of the unit with a push of the button.
unit to a wall
outlet.
Configure the Wi-Fi settings using a browser of a PC. Refer to the
Operating Instructions of the separate document, “Listening to music
via a Wi-Fi network”.
PC
Operating Instructions (separate document)
Set the music stored in a PC to share and listen to it by
using Media Go.
Explains about setting the clock, listening to CD, radio, or music
stored in BLUETOOTH/USB/other devices, etc.
Help Guide (web document for a PC/smartphone)
Explains details about how to listen to music in your personal
computer (PC) or smartphone over your wireless/wired network.
Listen to music in your smartphone/iPhone/iPad/iPod
touch by operating SongPal.
Smartphone (SongPal app)
Make sure that a LAN cable is not
connected. A wired and wireless
connection cannot be used at the
same time.
Explains how to listen to music stored in your PC or other device
over your Wi-Fi network.
PC (Windows Media Player)
2 Set the antenna in the upright position.
3 Connect the
Wi-Fi Startup Guide (this document)
Xperia (Music app)
iPhone/iPad/iPod touch
CMT-SX7/SX7B
http://rd1.sony.net/help/speaker/cmt-sx7/h_zz/
 Connecting the unit to your Wi-Fi network
Xperia
Use an Android smartphone such as
an Xperia in which SongPal (free app)
is installed to configure Wi-Fi settings
of the unit.
This method requires a Wi-Fi
connection of the smartphone and a
BLUETOOTH connection between the
smartphone and the unit. The Wi-Fi
setting information is sent from the
smartphone to the unit via
BLUETOOTH.
• Some wireless routers have multiple
SSIDs.
Connect the unit and your Android
smartphone to the same SSID.
Required items: Xperia™ or other Android smartphone, wireless router
1
2
Preliminary steps:
 Connect your smartphone to your Wi-Fi
network.
Press the / (power) button to turn on
the unit.
Non-NFC compatible smartphone
 Tap and start up [SongPal] on your
smartphone.
 Set the unit to pairing mode.
Use the remote and check the display window for confirming the status of the unit during
the setting.
Follow the on-screen instructions.
For details, refer to the operating instructions of
your router.
Flashing
SSID:
Password:
 Within 5 minutes, search for the unit on
the smartphone.
Set the BLUETOOTH function of the
smartphone to on.
Press FUNCTION repeatedly to select
[BLUETOOTH].
 Touch the N-Mark on the unit with the
smartphone.
Touch and hold
until the
smartphone
responds.
//ENTER
MENU
Press / to select [Bluetooth Menu], then
press ENTER.
The standby indicator lights up in yellow-green, and
starts flashing in the display window in about
then
2 minutes (in some cases, 4 or 5 minutes).
Press / to select [Pairing], then press
ENTER.
Configure Wi-Fi settings following
the SongPal instructions.
6
Wait until
lights up in the display
window, then restart the unit.
If password entry is required on
the display, select the SSID and
enter the password recorded in
step 1 - .
After checking that
lights up, turn the
unit off and on again.
Lit
The screen on the right is
displayed.
BLUETOOTH  Bluetooth Menu  Pairing
It may take more than 2 minutes until
lights up
in the display window. Restart the unit afterwards.
lights
The Wi-Fi connection is established when
up again after restarting.
When a BLUETOOTH connection is established, the
smartphone name is displayed and (BLUETOOTH)
lights up in the display window.
Tap [CMT-SX7xx].
Press / to select [Ok], then press ENTER.
Pairing is completed in about 1 minute.
5
Lit
Tap and start up
SongPal, then tap
[Open the Bluetooth
setting screen].
FUNCTION
Press MENU once.
 Install SongPal on your smartphone.
Search for SongPal on Google
Play™
Check that the (BLUETOOTH)
indicator lights up in the display
window.
Make a BLUETOOTH connection between the unit and smartphone.
If your smartphone does not support the NFC function,
see  to  on the right.
 Record the SSID and password of your router
that your smartphone is connecting to in the
following spaces.
4
3
The [Pairing] indication flashes.
See overleaf to play back
iPhone
Use an iPhone in which SongPal (free
app) is installed to configure Wi-Fi
settings of the unit.
This method requires a Wi-Fi
connection of the iPhone and a
BLUETOOTH connection between the
iPhone and the unit. The Wi-Fi setting
information is sent from the iPhone to
the unit via BLUETOOTH.
Required items: iPhone/iPad/iPod touch, wireless router
1
2
Preliminary steps:
 Confirm that your iPhone is
connected to your Wi-Fi
network.
Press the / (power) button to turn on
the unit.
3
4
Make a BLUETOOTH connection between the unit and iPhone.
 Set the unit to pairing mode.
Use the remote and check the display window for confirming the status of the unit during
the setting.
 Within 5 minutes, search for the unit on
the iPhone.
Flashing
Tap [Settings] 
[Bluetooth].
FUNCTION
Press MENU once.
MENU
Press / to select [Pairing], then press
ENTER.
Search for SongPal on the
App Store
The standby indicator lights up in yellow-green, and
starts flashing in the display window in about
then
2 minutes (in some cases, 4 or 5 minutes).
Lit
6
Configure Wi-Fi settings following the SongPal instructions.
 Tap and start up [SongPal] on
your iPhone.
 When the screen on the
right is displayed, tap
[OK].
 If [Share Wi-Fi settings?] is displayed, tap
[Allow].
The screen on the right is
displayed.
Wait until
lights up in the display
window, then restart the unit.
After checking that
lights up, turn the
unit off and on again.
Lit
//ENTER
Press / to select [Bluetooth Menu], then
press ENTER.
 Install SongPal on your iPhone.
5
Follow the on-screen instructions.
Press FUNCTION repeatedly to select
[BLUETOOTH].
• Some wireless routers have multiple
SSIDs. Connect the unit and your
iPhone to the same SSID.
Check that the (BLUETOOTH)
indicator lights up in the display
window.
Turn on BLUETOOTH.
BLUETOOTH  Bluetooth Menu  Pairing
It may take more than 2 minutes until
lights up
in the display window. Restart the unit afterwards.
lights
The Wi-Fi connection is established when
up again after restarting.
When a BLUETOOTH connection is established, the
device name is displayed and (BLUETOOTH) lights
up in the display window.
Press / to select [Ok], then press ENTER.
The [Pairing] indication flashes.
Tap [CMT-SX7xx].
See overleaf to play back
WPS
Configure Wi-Fi settings of the unit
with a push of each WPS (AOSS)
button on the wireless router and the
unit.
• To check if your wireless router is
compatible with WPS (Wi-Fi Protected
Setup™), refer to the operating
instructions of your router.
Required item: Wireless router with WPS (AOSS) button
1
Press the / (power) button to turn on
the unit.
2
3
Set the unit to WPS mode.
Use the remote and check the display window for confirming the status of the unit during the
setting.
Within 2 minutes, press the WPS
button* of the router.
4
Check that
window.
lights up in the display
If the Wi-Fi connection fails
You can use a PC browser to configure Wi-Fi settings of the unit. Connect the unit to your PC using a
commercially-available network (LAN) cable.
 Press MENU once.
Press / to select [WPS Setting], then press
ENTER.
Flashing
Press / to select [Ok], then press ENTER.
Lit
//ENTER
MENU
The [WPS] indication flashes.
WPS Setting  Ok
The standby indicator lights up in yellow-green, and
starts flashing in the display window in about
then
2 minutes (in some cases, 4 or 5 minutes).
For details, refer to the Operating Instructions, “Listening to music via a Wi-Fi network”.
Depending on the wireless router, press and hold the
WPS button for a few seconds. For details, refer to the
operating instructions of your router.
** The WPS button may be called “AOSS button” depending
on the wireless router.
The indication changes as [WPS]  [Connecting] 
[Complete!]. The Wi-Fi connection is established when
lights up.
See overleaf to play back
Continued: “  Listening to music with the unit” overleaf
 Listening to music with the unit
Communication fees may be charged for downloading the app or browsing the Help Guide. The design and displays of the app may change without notice.
©2015 Sony Corporation Printed in China
Music stored in your PC
PC (Media Go)
Music stored in your smartphone/iPhone
Smartphone (SongPal app)
Required item: Media Go installed PC
You can listen to music stored in your PC with
the unit by using the software Media Go.
• Go to the following URL beforehand, and install or
update to the latest version of Media Go (free
software) on your PC.
For customers in Europe:
http://www.sony.eu/support
For customers in the U.S.A.:
http://esupport.sony.com/US
For customers in Canada:
http://esupport.sony.com/CA/
For customers in other countries/regions:
http://www.sony-asia.com/section/support
1
2
Connect the unit and PC to your Wi-Fi
network.
Press the FUNCTION button repeatedly to
select NETWORK.
3
Required item: SongPal installed smartphone/iPhone/iPad/iPod touch
You can listen to music stored in your
smartphone/iPhone with SongPal (free app).
• For more details about SongPal, refer to the
Operating Instructions, “About SongPal”.
Prepare Media Go.
 Start up [Media Go] on your PC.
1
Connect the unit and smartphone/iPhone to
your Wi-Fi network.
2
3
Set the unit on SongPal.
 Install SongPal on your smartphone/iPhone.
 Select [Preferences...] from the [Tools] menu.
If SongPal is already installed, skip this procedure and go
to .
NETWORK
Play music in your smartphone/iPhone by
operating SongPal.
 Tap your smartphone/iPhone.
Search for SongPal on Google Play or the
App Store.
FUNCTION
 Tap and start up [SongPal].
Follow the on-screen instructions.
 When the screen on the right is
displayed, tap [CMT-SX7xx].
Preferences
The unit switches to NETWORK mode.
Connect the unit and PC to the same SSID of your router.
See overleaf for connecting the unit to your Wi-Fi network,
is lit in the display window.
and make sure
 Select a song to play and adjust the volume.
Connect the unit and smartphone/iPhone to the same SSID
of your router.
See overleaf for connecting the unit to your Wi-Fi network,
is lit in the display window.
and make sure
Music is played back.
4
Set Media Go on your PC as the server.
 Select [Media Sharing], then check [Library name].
[Library name] can be changed to an arbitrary name.
5
Xperia (Music app)
Play music by operating Media Go on your PC.
Select (Throw) from the bottom of the Media Go
window.
 Select [CMT-SX7xx] on the Throw menu of Media Go.
 Select a song to play and adjust the volume.
Required item: Music app-compatible Xperia
You can listen to music stored on your Xperia
by operating the Music app.
• This function is available when you have an
Xperia with the Music (or WALKMAN®) app
pre-installed.
• Update the Android OS of your Xperia to the
latest version beforehand.
• Your Xperia may need to disable [Auto-select
wireless option] of [Throw settings]. For details,
refer to the User guide of Xperia.
Media Sharing
Library name
1
Connect the unit and Xperia to your Wi-Fi
network.
Make sure that a check mark is in all three items of
[Media Sharing].
2
Play music in your Xperia by operating the Music app.
 Play music and adjust the volume.
 Tap and start up
([Music]) on your
Xperia.
Tap , then tap
[CMT-SX7xx].
 After confirming the screen, select [OK].
Connect the unit and Xperia to the same SSID of your router.
See overleaf for connecting the unit to your Wi-Fi network,
is lit in the display window.
and make sure
Music is played back.
Music is played back.
PC (iTunes)
You can listen to iTunes music on your PC with
the unit using AirPlay.
• Update iTunes to the latest version beforehand.
Required item: iTunes installed PC
1
Connect the unit and PC to your Wi-Fi
network.
iPhone/iPad/iPod touch
2
You can listen to music stored in your iPhone/
iPad/iPod touch using AirPlay.
Play music by operating iTunes on your PC.
 Start iTunes on your PC.
Select
 Select [CMT-SX7xx] on the AirPlay menu of iTunes.
(AirPlay) on the iTunes window.
• Update the iPhone/iPad/iPod touch to the latest
version beforehand.
• The screen illustrations are examples using iOS 8.
Required item: iPhone/iPad/iPod touch
1
Connect the unit and iPhone/iPad/iPod
touch to your Wi-Fi network.
2
Play music by operating iPhone/iPad/iPod touch.
 Swipe up the screen to
display the Control Center.
 Tap [CMT-SX7xx].
 Select a song to play and adjust the volume.
Tap
Connect the unit and PC to the same SSID of your router.
See overleaf for connecting the unit to your Wi-Fi network,
is lit in the display window.
and make sure
 Play music and adjust the volume.
(AirPlay).
Connect the unit and iPhone/iPad/iPod touch to the same
SSID of your router.
See overleaf for connecting the unit to your Wi-Fi network,
is lit in the display window.
and make sure
Music is played back.
Music is played back.
PC (Windows Media Player)
You can listen to music using Windows Media Player on the PC with the
unit.
• Refer to the Help Guide for more details.
http://rd1.sony.net/help/speaker/cmt-sx7/h_zz/
SongPal Link:
For more information about the unit, consult other documents
Enjoy music in any room via Wi-Fi.
You can listen to your favorite music stored in your PCs or mobile
phones and furthermore, music from streaming services, in different
rooms with ultimate sound quality.
Operating Instructions (separate document)
Use the SongPal app installed on your smartphone/iPhone to control
the function.
If you use multiple devices that are compatible with the SongPal Link
function, all devices must be connected to the same Wi-Fi network.
For more details, refer to the Help Guide listed on the right, or the
Wi-Fi Startup Guide supplied with each device.
•• Safety information
•• Location and Function of Controls
•• Setting the clock
•• Listening to CD and radio
•• Connection/playback method with
BLUETOOTH, USB or other devices
•• About the NFC function
Help Guide (web document for a PC/smartphone)
•• Wi-Fi network connection using PC
•• Usable setting menu
•• Software update
•• Linkage with SongPal app
•• Troubleshooting
•• Specifications etc.
•• Wi-Fi network connection details
•• Linkage with SongPal app
•• Network connection and playback method with
each OS/device etc.
Help Guide URL:
http://rd1.sony.net/help/speaker/cmt-sx7/h_zz/

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
