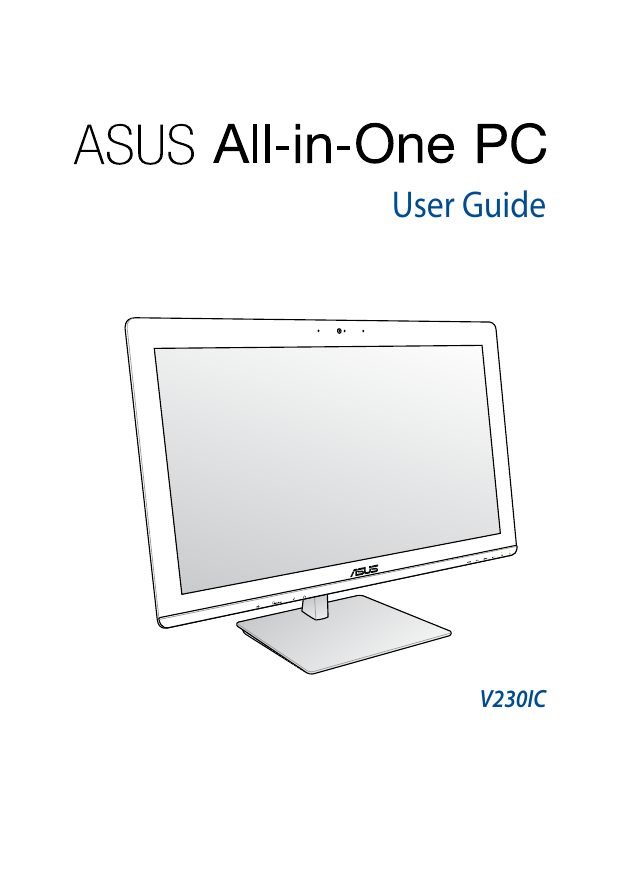

Asus V241 Series User manual
User Guide
V230IC
E10622
First Edition
August 2015
COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES
OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION
OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES
ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL
USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE
CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY
ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND
SOFTWARE DESCRIBED IN IT.
Copyright © 2015 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS
AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL,
INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING
LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR
POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at http://support.asus.com
2
ASUS All-in-One PC
Contents
Chapter 1: Hardware Setup
Getting to know your ASUS All-in-One PC .......................................................13
Chapter 2: Using your ASUS All-in-One PC
Connecting a wired keyboard and mouse ............................................................23
Connecting a wireless keyboard and mouse (optional) ...................................24
Using the On Screen Display (OSD) Menu ........................................................27
Using the touch screen (on selected models only) .......................................29
Using touch screen panel gestures on Windows® 10 ........................................30
ASUS All-in-One PC
3
4
Chapter 3: Working with Windows® 10
Putting your ASUS All-in-One PC to sleep ........................................................51
Chapter 4: Recovering your system
ASUS All-in-One PC
Appendices
Federal Communication Commission Interference Statement .....................57
Canadian Department of Communications Statement ....................................60
IC Radiation Exposure Statement for Canada ......................................................60
Radio Frequency (RF) Exposure Information ........................................................61
Informations concernant l’exposition aux frequences radio (RF) .................61
Declaration of Conformity (R&TTE directive 1999/5/EC) ..................................62
Wireless Operation Channel for Different Domains ...........................................62
CE marking for devices without wireless LAN/Bluetooth ................................63
CE marking for devices with wireless LAN/ Bluetooth ......................................63
Global Environmental Regulation Compliance and Declaration .................65
Rechargeable Battery Recycling Service in North America.............................66
ASUS All-in-One PC
5
6
About this manual
This manual provides information about the hardware and software features of your ASUS All-in-One PC, organized through the following chapters:
Chapter 1: Hardware Setup
This chapter details the hardware components of your ASUS Allin-One PC.
Chapter 2: Using your ASUS All-in-One PC
This chapter provides you with information on using your ASUS
All-in-One PC.
Chapter 3: Working with Windows® 10
This chapter provides an overview of using Windows® 10 in your
ASUS All-in-One PC.
Chapter 4: Recovering your system
This chapter provides recovery options for your ASUS All-in-One
PC.
Appendices
This section includes notices and safety statements for your ASUS
All-in-One PC.
ASUS All-in-One PC
Conventions used in this manual
To highlight key information in this manual, some texts are presented as follows:
IMPORTANT! This message contains vital information that must be followed to complete a task.
NOTE: This message contains additional information and tips that can help complete tasks.
WARNING! This message contains important information that must be followed to keep you safe while performing tasks and prevent damage to your device’s data and components.
Typography
Bold = This indicates a menu or an item that must be selected.
Italic =
This indicates sections that you can refer to in this manual.
ASUS All-in-One PC
7
Icons
The icons below indicate the devices you can use for completing a series of tasks or procedures on your ASUS All-in-One PC.
= Use the touch screen panel.
= (optional) Use the wireless mouse.
= (optional) Use the wireless keyboard.
All illustrations and screenshots in this manual are for reference only. Actual product specifications and software screen images may vary with territories. Visit the ASUS website at www.asus.com for the latest information.
8
ASUS All-in-One PC
Safety information
Your ASUS All-in-One PC is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.
•
•
Setting up your system
• Read and follow all instructions in the documentation before you operate your system.
•
•
•
Do not use this product near water or a heated source such as a radiator.
Set up the system on a stable surface.
Openings on the chassis are for ventilation. Do not block or cover these openings. Ensure that you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.
Use this product in environments with ambient temperatures between 0˚C and 40˚C.
If you use an extension cord, ensure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.
•
•
Care during use
• Do not walk on the power cord or allow anything to rest on it.
Do not spill water or any other liquids on your system.
When the system is turned off, a small amount of electrical current still remains in the product. Always unplug all power, modem, and network cables from the power outlets before cleaning the system.
ASUS All-in-One PC
9
•
•
•
The touch screen requires periodic cleaning to perform at optimal touch sensitivity. Keep the screen clean from foreign objects or excessive dust accumulation. To clean the screen:
- Turn off the system and disconnect the power cord from the wall.
- Spray a small amount of household glass cleaner on the supplied cleaning cloth and gently wipe the surface of the screen.
- Do not spray the cleaner directly on the screen.
Do not use an abrasive cleaner or a coarse cloth when cleaning the screen.
If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.
- The power cord or plug is damaged.
- Liquid has been spilled into the system.
- The system does not function properly even if you follow the operating instructions.
- The system was dropped or the cabinet is damaged.
- The system performance changes.
10
ASUS All-in-One PC
Sound Pressure Warning
Excessive sound pressure from earphones or headphones can cause hearing loss or permanent damage to hearing. Increasing the volume and equalizer beyond default levels increases the output voltage and sound pressure produced by the earphones or headphones.
DC Fan Warning
Please note that the DC fan is a moving part and can cause harm when used improperly. Keep away from the fan when using the product.
ASUS All-in-One PC
11
Package contents
V230IC AC power adapter Quick Start Guide
12
V230IC base Power cable KBM USB receiver dongle (optional)
Keyboard (optional) Mouse (optional)
NOTES:
• If any of the items are damaged or missing, contact your retailer.
• The base, keyboard, mouse, and power supply illustrations are for reference only. Actual product specifications may vary with territories.
ASUS All-in-One PC
Chapter 1: Hardware Setup
Getting to know your ASUS All-in-
One PC
Front view
Array microphones (built-in)
The array microphones feature echo canceling, noise suppression, and beam forming functions for better voice recognition and audio recording.
Camera
The built-in camera allows you to take pictures or record videos using your ASUS All-in-One PC.
Webcam LED
Indicates that the built-in webcam is enabled.
ASUS All-in-One PC
13
LCD display panel
The LCD display panel provides excellent viewing features for photos, videos, and other multimedia files.
On selected models, multi-touch is supported. You can operate your ASUS All-in-One PC using touch gestures.
Power indicator
This LED power indicator lights up when the ASUS All-in-One
PC is turned on.
Drive activity indicator
This indicator lights up when your ASUS All-in-One PC is accessing the internal storage drives.
14
ASUS All-in-One PC
Rear view
Power input
The bundled power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the ASUS All-in-One PC. To prevent damage to the ASUS All-in-One PC, always use the bundled power adapter.
WARNING! The power adapter may become warm or hot when in use. Do not cover the adapter and keep it away from your body.
ASUS All-in-One PC
15
16
LAN port
The eight-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network
HDMI output port
This port allows you to connect your ASUS All-in-One PC to another HDMI-compatible device for file sharing or extending your display monitor.
USB 3.1 port
This USB 3.1 (Universal Serial Bus 3.1) port provides a transfer rate of up to 10 Gbit/s and is backward compatible to USB 2.0.
USB 3.0 port
This USB 3.0 (Universal Serial Bus 3.0) port provides a transfer rate of up to 5 Gbit/s and is backward compatible to USB 2.0.
Kensington® security slot
The Kensington® security slot allows you to secure your
ASUS All-in-One PC using Kensington® compatible security products.
ASUS All-in-One PC
Right side
Optical Disc Drive manual eject hole
The manual eject hole is used to eject the drive tray in case the electronic eject button does not work.
WARNING! Use the manual eject hole only when the electronic eject button does not work.
Optical Disk Drive electronic eject button
Press this button to eject the optical drive tray.
You can also eject the drive tray using your media player or by right-clicking the optical drive icon in Windows File Explorer and clicking Eject.
ASUS All-in-One PC
17
Optical Drive
This support compact discs (CD), digital video discs (DVD), and recordable (R) or re-writable (RW) discs. Consult product specifications for details on included optical drive.
NOTE: DVD R/RW is optional and is available on selected models only.
18
ASUS All-in-One PC
Bottom view
USB 3.1 port
This USB 3.1 (Universal Serial Bus 3.1) port provides a transfer rate of up to 10 Gbit/s and is backward compatible to USB 2.0.
Memory card reader
This ASUS All-in-One PC has a built-in memory card reader slot that supports MMC, SD, SDHC, SDXC cards.
Microphone jack
The microphone jack is designed to connect to a microphone used for video conferencing, voice narrations, or simple audio recordings.
ASUS All-in-One PC
19
20
Headphone jack
This port allows you to connect amplified speakers or headphones.
Mode button
Touch to switch the display signal source. When switched to
HDMI-in, the ASUS All-in-One PC can be used as a standard desktop LCD monitor.
Menu down button
When adjusting the menu settings, press this button to move down to the menu selections. You can also use this button to decrease the value of selected menu items such as brightness, contrast, volume, etc.
MENU button
Touch to display the menu. Touch this button to enter/select the highlighted icon (function) while the OSD is activated.
Menu up button
When adjusting the menu settings, press this button to move up to the menu selections. You can also use this button to increase the value of selected menu items such as brightness, contrast, volume, etc.
Power button
Press this button to turn on your ASUS All-in-One PC.
Audio speakers
The built-in audio speaker allows you to hear audio straight from the ASUS All-in-One PC. Audio features are softwarecontrolled.
ASUS All-in-One PC
Chapter 2:
Using your ASUS All-in-One PC
Assembling the base
1. Place the ASUS All-in-One PC on a flat and stable surface such as a table or desk.
2. Align and attach the base to the stand. Ensure that the stand is fitted firmly and aligned properly to the base.
NOTE: The stand fits to the base in one orientation only.
3. Secure the base to the stand with the bundled screw using a
Phillips or a flat screwdriver. You can also use a coin or token.
screw base stand
NOTE: The illustration above is for reference only. The actual base of your
AiO may vary depending on the model but the installation steps remains the same.
ASUS All-in-One PC
21
Positioning your ASUS All-in-One
PC
25
O
-5
O
1. Place your ASUS All-in-One PC on a flat surface such as a table or desk.
2. Tilt the display to an angle between -5 o to 25 o
.
IMPORTANT! Avoid adjusting the display to an angle beyond the recommended values or you may risk damaging the All-in-One PC.
22
ASUS All-in-One PC
Setting up your ASUS All-in-One PC
Connecting a wired keyboard and mouse
Connect the keyboard and the mouse to the USB ports on the rear panel.
ASUS All-in-One PC
23
Connecting a wireless keyboard and mouse
(optional)
1. Install batteries into the wireless keyboard and mouse.
2. Connect the wireless dongle for keyboard and mouse to a USB port on the rear or on the side panel.
3. You can begin using the wireless keyboard and mouse.
24
ASUS All-in-One PC
Powering on the system
WARNING! DO NOT connect the AC power cord to an AC outlet prior to connecting the DC plug to the system. Doing so may damage the AC-DC adapter.
A. Connect the AC power cord to the AC/DC adapter.
B. Plug the AC power adapter into a 100V~240V power source.
C. Connect the DC power connector into your ASUS All-in-One PC’s power (DC) input.
D. Press the power button.
ASUS All-in-One PC
25
NOTE: For details on turning off your All-in-One PC, refer to the section
Turning off your All-in-One PC
in
Working with Windows® 10
.
26
ASUS All-in-One PC
Using the On Screen Display (OSD)
Menu
The On Screen Display (OSD) menu will display when you:
1. Press the Menu button on the front panel.
2. Connect an HDMI cable to the rear HDMI input port.
Using the OSD Menu
To display the OSD menu, press the Menu button on the front panel.
To navigate through the OSD functions or modify OSD settings, press the Menu Up or Menu Down keys on the front panel. To activate the selected function, press the Menu button again.
NOTE: Refer to the section
Getting to know your ASUS All-in-One PC
for the location of the front panel buttons.
Panel Off
Press this button to switch off the display.
Color
Brightness: This setting can be adjusted using values between 0 to 100.
Contrast: This setting can be adjusted using values between
0 to 100.
Color Temp. : Four color modes are available - Cool, Normal,
Warm, and User mode.
ASUS All-in-One PC
27
28
Sharpness: This setting can be adjusted using values between 0 to 100.
Aspect Control: Select the aspect ratio to “Full” or
“OverScan”. This setting is available only when you use the
All-in-One PC as a standard desktop LCD monitor.
Auto Adjust: Adjusts the horizontal position (H-Position) and the vertical position (V-Position) of the display. This feature is available only when you use the All-in-One PC as a standard desktop LCD monitor.
Input Select
PC: Displays video produced by the All-in-One PC.
System Setup
OSD Setup:
1. H-Position - Adjusts the horizontal position of the OSD menu.
2. V-Position - Adjusts the vertical position of the OSD menu.
3. OSD Timeout - Sets the display duration of OSD menu from 10 to 120 seconds.
4. DDC/CI - Enables or disables the DDC/CI (Display Data
Channel/Command Interface).
Information: Displays resolution and refresh rate.
Language: Sets the OSD language.
All Reset: Resets all OSD settings to defaults.
Exit
Exit from the OSD menu.
ASUS All-in-One PC
Using the touch screen
(on selected models only)
The touch screen panel of your ASUS All-in-One PC provides excellent viewing features for photos, videos, and other multimedia files on your
ASUS All-in-One PC. It also supports the 10-point multi-touch feature that facilitates smoother and more accurate touch gestures allowing you to operate your ASUS All-in-One PC faster and easier.
IMPORTANT: Do not use sharp objects such as scissors or ballpoint pens on the touch screen to prevent dents and scratches which may cause the touchscreen to become unresponsive.
ASUS All-in-One PC
29
Gestures for the touch screen panel
Gestures allow you to launch programs and access the settings of your
ASUS All-in-One PC. Refer to the following illustrations when using hand gestures on your touch screen panel.
NOTE: The following screenshots are for reference only. The touch screen panel’s appearance may vary depending on model.
Using touch screen panel gestures on
Windows® 10
The gestures allow you to launch programs and access the settings of your ASUS All-in-One PC. The functions can be activated by using the hand gestures on your ASUS All-in-One PC’s touch screen panel.
Left edge swipe Right edge swipe
Swipe from the left edge of the screen to launch Task view.
Swipe from the right edge of the screen to launch Action Center.
30
ASUS All-in-One PC
Tap/Double-tap Press and hold
•
•
Tap an app to select it.
Double-tap an app to launch it.
Zoom in
Press and hold to open the rightclick menu.
Zoom out
Spread apart your two fingers on the touch screen panel.
Bring together your two fingers on the touch screen panel.
ASUS All-in-One PC
31
Finger slide Drag
Slide your finger to scroll up and down and slide your finger to pan the screen left or right.
•
•
Drag to create a selection box around multiple items.
Drag and drop an item to move it to a new location.
32
ASUS All-in-One PC
Chapter 3: Working with
Windows® 10
Starting for the first time
When you start your ASUS All-in-One PC for the first time, a series of screens appear to guide you in configuring your Windows® 10 operating system.
To start your ASUS All-in-One PC for the first time:
1. Press the power button on your ASUS All-in-One PC. Wait for a few minutes until the setup screen appears.
2. From the setup screen, pick your region and a language to use on your ASUS All-in-One PC.
3. Carefully read the License Terms. Select I accept.
4. Follow the onscreen instructions to configure the following basic items:
• Personalize
• Get online
• Settings
• Your account
5. After configuring the basic items, Windows® 10 proceeds to install your apps and preferred settings. Ensure that your ASUS All-in-
One PC is kept powered on during the setup process.
6. Once the setup process is complete, the Desktop appears.
NOTE: The screenshots in this chapter are for reference only.
ASUS All-in-One PC
33
Start menu
The Start menu is the main gateway to your ASUS All-in-One PC’s programs, Windows® apps, folders, and settings.
Change account settings, lock, or sign out from your account
Launch an app from the Start screen
•
•
•
•
•
•
Launch Taskview
Launch Search
Launch the Start menu
Launch an app from the taskbar
Launch All apps
Shut down, restart, or put your ASUS All-in-One PC to sleep
Launch Settings
Launch File Explorer
You can use the Start menu to do these common activities:
Start programs or Windows® apps
Open commonly used programs or Windows® apps
Adjust ASUS All-in-One PC settings
Get help with the Windows operating system
Turn off your ASUS All-in-One PC
Log off from Windows or switch to a different user account
34
ASUS All-in-One PC
Launching the Start menu
Tap the Start button your desktop.
in the lower-left corner of
Position your mouse pointer over the Start button in the lower-left corner of your desktop then click it.
Press the Windows logo key on your keyboard.
Opening programs from the Start menu
One of the most common uses of the Start menu is opening programs installed on your ASUS All-in-One PC.
Tap the program to launch it.
Position your mouse pointer over the program then click to launch it.
Use the arrow keys to browse through the programs.
Press to launch it.
NOTE: Select All apps at the bottom of the left pane to display a full list of programs and folders on your ASUS All-in-One PC in alphabetical order.
ASUS All-in-One PC
35
Windows
®
apps
These are apps pinned on the right pane of the Start menu and displayed in tiled-format for easy access.
NOTE: Some Windows® apps require signing in to your Microsoft account before they are fully launched.
36
ASUS All-in-One PC
Working with Windows® apps
Use your ASUS All-in-One PC’s touch screen, mouse, or keyboard to launch, customize, and close apps.
Launching Windows® apps from the Start menu
Tap the app to launch it.
Position your mouse pointer over the app then click to launch it.
Use the arrow keys to browse through the apps. Press
to launch an app.
Customizing Windows® apps
You can move, resize, unpin, or pin apps to the taskbar from the Start menu using the following steps:
Moving apps
Press and hold the app, then drag and drop it to a new location.
Position your mouse pointer over the app, then drag and drop the app to a new location.
ASUS All-in-One PC
37
Resizing apps
Press and hold the app, then tap and select an app tile size.
Position your mouse pointer over the app and right-click it, then click Resize and select an app tile size.
Use the arrow keys to navigate to the app. Press then select Resize and select an app tile size.
,
Unpinning apps
Press and hold the app, then tap the icon.
Position your mouse pointer over the app and right-click it, then click Unpin from Start.
Use the arrow keys to navigate to the app. Press then select Unpin from Start.
,
38
ASUS All-in-One PC
Pinning apps to the taskbar
Press and hold the app, then tap Pin to taskbar.
Position your mouse pointer over the app and right-click it, then click Pin to taskbar.
Use the arrow keys to navigate to the app. Press then select Pin to taskbar.
,
Pinning more apps to the Start menu
From All apps, press and hold the app you want to add to the Start menu, then tap Pin to Start.
From All apps, position your mouse pointer over the app you want to add to the Start menu and right-click it, then click Pin to Start.
From All apps, press on the app that you want to add to the Start menu, then select Pin to Start.
ASUS All-in-One PC
39
Task view
Quickly switch between opened apps and programs using the task view feature, you can also use task view to switch between desktops.
Launching task view
Tap the icon on the taskbar or swipe form the left edge of the screen.
Position your mouse pointer over the taskbar and click it.
icon on the
Press on your keyboard.
40
ASUS All-in-One PC
Snap feature
The Snap feature displays apps side-by-side, allowing you to work or switch between apps.
Snap hotspots
You can drag and drop apps to these hotspots to snap them into place.
ASUS All-in-One PC
41
Using Snap
or
1. Launch the app you wish to snap.
2. Drag the title bar of your app and drop the app to the edge of the screen to snap.
3. Launch another app and repeat the above steps to snap another app.
1. Launch the app you wish to snap.
2. Press and hold the keys to snap the app.
key, then use the arrow
3. Launch another app and repeat the above steps to snap another app.
42
ASUS All-in-One PC
Action Center
Action Center consolidates notifications from apps and presents a single place where you can interact with them. It also has a really useful Quick
Actions section at the bottom.
Launching Action Center
Click the icon on the taskbar or swipe from the right edge of the screen.
Position your mouse pointer over the icon on the taskbar and click it.
Press on your keyboard.
ASUS All-in-One PC
43
Other keyboard shortcuts
Using the keyboard, you can also use the following shortcuts to help you launch applications and navigate Windows® 10.
\
Launches Start menu
Launches Action Center
Launches the desktop
Launches the File Explorer
Opens the Share panel
Launches Settings
Launches Connect panel
Activates the Lock screen
Minimizes all currently active windows
44
ASUS All-in-One PC
ASUS All-in-One PC
Launches Search
Launches Project panel
Opens the Run window
Opens Ease of Access Center
Opens the context menu of the Start button
Launches the magnifier icon and zooms in your screen
Zooms out your screen
Opens Narrator Settings
45
Connecting to wireless networks
Wi-Fi
Access emails, surf the Internet, and share applications via social networking sites using your ASUS All-in-One PC’s Wi-Fi connection.
Connecting Wi-Fi
Connect your ASUS All-in-One PC to a Wi-Fi network by using the following steps: or
1. Select the icon from the taskbar.
2. Select the icon to enable Wi-Fi.
3. Select an access point from the list of available Wi-Fi connections.
NOTE: You may be prompted to enter a security key to activate the Wi-Fi connection.
46
ASUS All-in-One PC
Bluetooth
Use Bluetooth to facilitate wireless data transfers with other Bluetoothenabled devices.
Pairing with other Bluetooth-enabled devices
You need to pair your ASUS All-in-One PC with other Bluetooth-enabled devices to enable data transfers. Connect your devices by using the following steps: or
Devices, then select Bluetooth to search for
Bluetooth-enabled devices.
3. Select a device from the list. Compare the passcode on your ASUS All-in-One PC with the passcode sent to your chosen device. If they are the same, select
Yes to successfully pair your ASUS All-in-One PC with the device.
NOTE: For some bluetooth-enabled devices, you may be prompted to key in the passcode of your ASUS All-in-One
PC.
ASUS All-in-One PC
47
Connecting to wired networks
You can also connect to wired networks, such as local area networks and broadband Internet connection, using your ASUS All-in-One PC’s
LAN port.
NOTE: Contact your Internet Service Provider (ISP) for details or your network administrator for assistance in setting up your Internet connection.
To configure your settings, refer to the following procedures.
IMPORTANT! Ensure that a network cable is connected between your
ASUS All-in-One PC’s LAN port and a local area network before performing the following actions.
Configuring a dynamic IP/PPPoE network connection
48 or
4. Select your LAN then select Properties.
Internet Protocol Version 4(TCP/IPv4) then select Properties.
Obtain an IP address automatically then select OK.
NOTE: Proceed to the next steps if you are using PPPoE connection.
ASUS All-in-One PC
7. Return to the Network and Sharing Center window then select Set up a new connection or
network.
10. Type your User name, Password, and Connection name then select Connect.
12. Select on the taskbar then select the connection you just created.
13. Type your user name and password then select
Connect to start connecting to the Internet.
Configuring a static IP network connection
1. Repeat steps 1 to 5 under
Configuring a dynamic
IP/PPPoE network connection
.
or
3. Type the IP address, Subnet mask and Default gateway from your service provider.
4. If needed, you can also type the preferred DNS server address and alternate DNS server address then select OK.
ASUS All-in-One PC
49
Turning your ASUS All-in-One PC off
You can turn off your ASUS All-in-One PC by doing either of the following procedures:
• or
•
Launch the Start menu, then select
Shut down to do a normal shutdown.
>
From the log-in screen, select > Shut down.
•
•
Press
to launch Shut Down
Windows. Select Shut down from the drop-down list then select OK.
If your ASUS All-in-One PC is unresponsive, press and hold the power button for at least four (4) seconds until your ASUS All-in-One PC turns off.
50
ASUS All-in-One PC
Putting your ASUS All-in-One PC to sleep
To put your ASUS All-in-One PC to Sleep mode:
• or
•
Launch the Start menu, then select >
Sleep to put your ASUS All-in-One PC to sleep.
From the log-in screen, select > Sleep.
Press
to launch Shut Down Windows.
Select Sleep from the drop-down list then select OK.
NOTE: You can also put your ASUS All-in-One PC to Sleep mode by pressing the power button once.
ASUS All-in-One PC
51
52
ASUS All-in-One PC
Chapter 4: Recovering your system
•
•
Entering the BIOS Setup
BIOS (Basic Input and Output System) stores system hardware settings that are needed for system startup in the ASUS All-in-One PC.
In normal circumstances, the default BIOS settings apply to most conditions to ensure optimal performance. Do not change the default
BIOS settings except in the following circumstances:
An error message appears on the screen during the system bootup and requests you to run the BIOS Setup.
You have installed a new system component that requires further
BIOS settings or update.
WARNING! Inappropriate BIOS settings may result to instability or boot failure. We strongly recommend that you change the BIOS settings only with the help of a trained service personnel.
Quickly enter the BIOS
To access the BIOS:
•
•
When your ASUS All-in-One PC is off, press the power button for at least four (4) seconds to access the BIOS directly.
Press the power button to turn on your ASUS All-in-One PC then press <F2> or <Del> during POST.
NOTE: POST (Power-On Self-Test) is a series of software controlled diagnostic tests that run when you turn on your ASUS All-in-One PC.
ASUS All-in-One PC
53
Recovering your system
Using recovery options on your ASUS All-in-One PC allows you to restore the system to its original state or simply refresh its settings to help improve performance.
IMPORTANT!
• Backup all your data files before doing any recovery option on your
ASUS All-in-One PC.
• Note down important customized settings such as network settings, user names, and passwords to avoid data loss.
• Ensure that your ASUS All-in-One PC is plugged in to a power source before resetting your system.
Windows® 10 allows you to do any of the following recovery options:
•
•
Keep my files - This option allows you refresh your ASUS All-in-
One PC without affecting personal files (photos, music, videos, documents).
Using this option, you can restore your ASUS All-in-One PC to its default settings and delete other installed apps.
Remove everything - This option resets your ASUS All-in-One PC to its factory settings. You must backup your data before doing this option.
54
ASUS All-in-One PC
•
•
Go back to an earlier build - This option allows you to go back to an earlier build. Use this option if this build is not working for you.
Advanced startup - Using this option allows you to perform other advanced recovery options on your ASUS All-in-One PC such as:
- Using a USB drive, network connection or Windows recovery
DVD to startup your ASUS All-in-One PC.
Troubleshoot to enable any of these advanced recovery options: System Restore, System Image Recovery,
Startup Repair, Command Prompt, UEFI Firmware Settings, and Startup Settings.
Performing a recovery option
Refer to the following steps if you want to access and use any of the available recovery options for your ASUS All-in-One PC.
ASUS All-in-One PC
55
2. Under the Update and security option, select Recovery then select the recovery option you would like to perform.
56
ASUS All-in-One PC
•
•
•
•
Appendices
Notices
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
ASUS All-in-One PC
57
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
This device is restricted to indoor use when operated in the 5.15 to 5.25
GHz frequency range.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device
58
ASUS All-in-One PC
RF exposure warning
The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment.
The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.
IMPORTANT! Outdoor operations in the 5.15~5.25 GHz band is prohibited. This device has no Ad-hoc capability for 5250~5350 and
5470~5725 MHz.
CAUTION: Any changes or modifications not expressly approved by the guarantee of this device could void the user’s authority to operate the equipment.
ASUS All-in-One PC
59
Canadian Department of Communications
Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
IC Radiation Exposure Statement for Canada
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with IC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.
Operation is subject to the following two conditions:
• This device may not cause interference and
• This device must accept any interference, including interference that may cause undesired operation of the device.
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-
210. Operation is subject to the following two conditions:
1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device.
60
ASUS All-in-One PC
Radio Frequency (RF) Exposure Information
The radiated output power of the wireless device is below the Industry
Canada (IC) radio frequency exposure limits. The wireless device should be used in such a manner such that the potential for human contact during normal operation is minimized.
Canada, avis d’Industry Canada (IC)
Cet appareil numerique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes: 1) cet appareil ne doit pas
causer d’interference et 2) cet appareil doit accepter toute interference, notamment les interferences qui peuvent affecter son fonctionnement.
Informations concernant l’exposition aux frequences radio (RF)
La puissance de sortie emise par l’appareil de sans fil est inferieure a la limite d’exposition aux frequences radio d’Industry Canada (IC). Utilisez l’appareil de sans fil de facon a minimiser les contacts humains lors du fonctionnement normal.
ASUS All-in-One PC
61
Declaration of Conformity (R&TTE directive
1999/5/EC)
The following items were completed and are considered relevant and sufficient:
Essential requirements as in [Article 3]
Protection requirements for health and safety as in [Article 3.1a]
Testing for electric safety according to [EN 60950]
Protection requirements for electromagnetic compatibility in [Article
3.1b]
Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301
489-17] & [EN 301 489-3]
Effective use of the radio spectrum as in [Article 3.2]
Radio test suites according to [EN 300 328-2]
Wireless Operation Channel for Different
Domains
N. America 2.412-2.462 GHz
Japan 2.412-2.484 GHz
Ch01 through CH11
Ch01 through Ch14
Europe ETSI2.412-2.472 GHz Ch01 through Ch13
The highest SAR value for this device is 1.575 W/kg.
In the frequency band 5 150-5 350 MHz, WAS/RLANs shall be restricted to indoor use.
62
ASUS All-in-One PC
CE Mark Warning
This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
CE marking for devices without wireless LAN/
Bluetooth
The shipped version of this device complies with the requirements of the EEC directives 2004/108/EC “Electromagnetic compatibility” and
2006/95/EC “Low voltage directive”.
/
CE marking for devices with wireless LAN/
Bluetooth
This equipment complies with the requirements of Directive 1999/5/
EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and mutual recognition of conformity.
is for class II device.
63
ASUS All-in-One PC
NO DISASSEMBLY
The warranty does not apply to the products that have been disassembled by users
Lithium-Ion Battery Warning
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
No Exposure to Liquids
DO NOT expose to or use near liquids, rain, or moisture. This product is not waterproof or oil-proof.
64
This symbol of the crossed out wheeled bin indicates that the product
(electrical, electronic equipment, and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.
請勿將電池當作一般垃圾丟棄。這個標誌表示電池不應視為一般
垃圾丟棄。
ASUS All-in-One PC
REACH
Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http:// csr.asus.com/english/REACH.htm.
Global Environmental Regulation Compliance and Declaration
ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.
Please refer to http://csr.asus.com/english/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with:
Japan JIS-C-0950 Material Declarations
EU REACH SVHC
Korea RoHS
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.
ASUS All-in-One PC
65
66
Coating Notice
IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.
Rechargeable Battery Recycling Service in North
America
For US and Canada customers, you can call 1-800-822-
8837 (toll-free) for recycling information of your ASUS products’ rechargeable batteries.
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at high volume levels for long periods.
ASUS All-in-One PC
ENERGY STAR complied product
ENERGY STAR is a joint program of the U.S. Environmental
Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices.
All ASUS products with the ENERGY STAR logo comply with the ENERGY
STAR standard, and the power management feature is enabled by default. The monitor and computer are automatically set to sleep after 10 and 30 minutes of user inactivity. To wake your computer, click the mouse or press any key on the keyboard. Please visit http:// www.energy.gov/powermanagement for detail information on power management and its benefits to the environment. In addition, please visit http://www.energystar.gov for detail information on the ENERGY
STAR joint program.
NOTE: Energy Star is NOT supported on FreeDOS and Linux-based operating systems.
ASUS All-in-One PC
67
Manufacturer
Address, City
Telephone Number
Authorized Representative in
Europe
Address, City
Country
ASUSTek COMPUTER INC.
4F No. 150, LI-TE RD., PEITOU, TAIPEI 112,
TAIWAN
+886-2-2894-3447
ASUS COMPUTER GmbH
HARKORT STR. 21-23, 40880 RATINGEN
GERMANY
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
