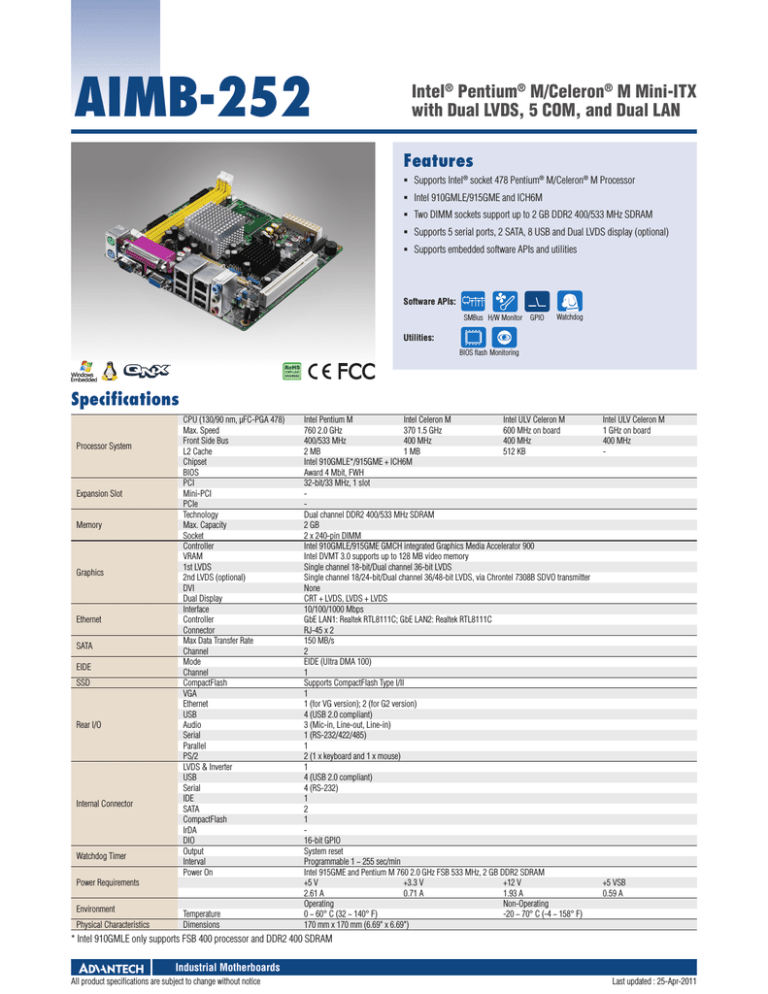

AIMB-252
Intel® Pentium® M/Celeron® M Mini-ITX
with Dual LVDS, 5 COM, and Dual LAN
Features
ƒƒ Supports Intel® socket 478 Pentium® M/Celeron® M Processor
ƒƒ Intel 910GMLE/915GME and ICH6M
ƒƒ Two DIMM sockets support up to 2 GB DDR2 400/533 MHz SDRAM
ƒƒ Supports 5 serial ports, 2 SATA, 8 USB and Dual LVDS display (optional)
ƒƒ Supports embedded software APIs and utilities
Software APIs:
SMBus H/W Monitor
GPIO
Watchdog
Utilities:
BIOS flash Monitoring
Specifications
Processor System
Expansion Slot
Memory
Graphics
Ethernet
SATA
EIDE
SSD
Rear I/O
Internal Connector
Watchdog Timer
CPU (130/90 nm, µFC-PGA 478)
Max. Speed
Front Side Bus
L2 Cache
Chipset
BIOS
PCI
Mini-PCI
PCIe
Technology
Max. Capacity
Socket
Controller
VRAM
1st LVDS
2nd LVDS (optional)
DVI
Dual Display
Interface
Controller
Connector
Max Data Transfer Rate
Channel
Mode
Channel
CompactFlash
VGA
Ethernet
USB
Audio
Serial
Parallel
PS/2
LVDS & Inverter
USB
Serial
IDE
SATA
CompactFlash
IrDA
DIO
Output
Interval
Power On
Power Requirements
Environment
Physical Characteristics
Temperature
Dimensions
Intel Pentium M
Intel Celeron M
Intel ULV Celeron M
760 2.0 GHz
370 1.5 GHz
600 MHz on board
400/533 MHz
400 MHz
400 MHz
2 MB
1 MB
512 KB
Intel 910GMLE*/915GME + ICH6M
Award 4 Mbit, FWH
32-bit/33 MHz, 1 slot
Dual channel DDR2 400/533 MHz SDRAM
2 GB
2 x 240-pin DIMM
Intel 910GMLE/915GME GMCH integrated Graphics Media Accelerator 900
Intel DVMT 3.0 supports up to 128 MB video memory
Single channel 18-bit/Dual channel 36-bit LVDS
Single channel 18/24-bit/Dual channel 36/48-bit LVDS, via Chrontel 7308B SDVO transmitter
None
CRT + LVDS, LVDS + LVDS
10/100/1000 Mbps
GbE LAN1: Realtek RTL8111C; GbE LAN2: Realtek RTL8111C
RJ-45 x 2
150 MB/s
2
EIDE (Ultra DMA 100)
1
Supports CompactFlash Type I/II
1
1 (for VG version); 2 (for G2 version)
4 (USB 2.0 compliant)
3 (Mic-in, Line-out, Line-in)
1 (RS-232/422/485)
1
2 (1 x keyboard and 1 x mouse)
1
4 (USB 2.0 compliant)
4 (RS-232)
1
2
1
16-bit GPIO
System reset
Programmable 1 ~ 255 sec/min
Intel 915GME and Pentium M 760 2.0 GHz FSB 533 MHz, 2 GB DDR2 SDRAM
+5 V
+3.3 V
+12 V
2.61 A
0.71 A
1.93 A
Operating
Non-Operating
0 ~ 60° C (32 ~ 140° F)
-20 ~ 70° C (-4 ~ 158° F)
170 mm x 170 mm (6.69" x 6.69")
Intel ULV Celeron M
1 GHz on board
400 MHz
-
+5 VSB
0.59 A
* Intel 910GMLE only supports FSB 400 processor and DDR2 400 SDRAM
Industrial Motherboards
All product specifications are subject to change without notice
Last updated : 25-Apr-2011
AIMB-252
Board Diagram
400/533
CRT
VGA
1st LVDS
18-bit LVDS
2nd LVDS
24-bit LVDS via SDVOB
1 ATA 100 Port or
CF Type II
DMA 33/66/100
2 SATA ports
150 MB/s
MHz FSB
Intel Socket 478
Pentium M/Celeron M
Processor
USB 2.0/1.1
Realtek Audio Codec
ALC655
AC-97 Link
DDR2 400/533
Channel B
DDR2 400/533
PCIe x1
GbE LAN1:
RTL 8111C
PCIe x1
GbE LAN2:
RTL 8111C
32-bit/33MHz PCI Bus
PCI
ICH6M
8 USB Ports
Channel A
2 GB/s bandwidth
Direct Media Interface
Intel 910GMLE/
915GME GMCH
16-bit GPIO
LPC
Super I/O Winbond
W83627DHG-A
Fintek
F81216D
1 RS-232/422/485, WDT, PS/2
4 RS-232
FWH
BIOS
Packing List
Ordering Information
Part Number
CPU
ULV Celeron M
AIMB-252VG-M0A1E
600 MHz
ULV Celeron M
AIMB-252VG-S0A1E
1 GHz
AIMB-252G2-00A1E -
Chipset
DDR2
GbE COM LVDS
910GMLE 400
1
5
1
910GMLE 400
1
5
1
400/533 2
5
1
915GME
Bracket View
Description
AIMB-252 SBC
IDE HDD cable (40-pin)
SATA HDD cable
SATA power cable
Serial port cable 1-to-2
CPU cooler
I/O port bracket
Startup manual
Driver CD
Quantity
x1
x1
x2
x2
x2
x1
x1
x1
x1
Optional Accessories
AIMB-252VG-M0A1E
AIMB-252VG-S0A1E
AIMB-252G2-00A1E
Part Number
1700003195
1700002204
1700008461
Description
USB cable with two ports, 17.5 cm
USB cable with two ports, 27 cm
USB cable with four ports, 30.5 cm
Embedded OS/API
OS/API
Win XPE
Software API
Part No.
2070006673
2070003985
2070005149
205E000021
Description
XPE FP2007 AIMB-252 V3.01 ENG
XPE FP2007 AIMB-252 V3.1 ENG
XPE FP2007 AIMB-252 V3.5 JPN_ENG
SUSI 3.0 SW API for AIMB-252 XP
Online Download www.advantech.com/products
